BOTTLE COOLERS
SLIDE TOP
INSTALLATION AND OPERATION
INSTRUCTION MANUAL
MODEL SERIES
BC24-__ __ BC36-__ __ BC48-__ __
BC72-__ __ BC96-__ __
Krowne Metal Corporation
100 Haul Rd. Wayne, NJ 07470 • Toll Free: (800) 631-0442 • Fax: (973) 872-1129
[email protected] • www.krowne.com • www.facebook.com/KrowneMetal • www.twitter.com/KrowneMetal
Rev. 11/2012
No. BC-1.02
Printed in the USA
TABLE OF CONTENTS
WARRANTY INFORMATION 3
INSTALLATION 4
OPERATION & MAINTENANCE 5
SPECIFICATIONS 6
WIRING DIAGRAM 7
PARTS BREAKDOWN 8,9
FREQUENTLY ASKED QUESTIONS 10
Krowne Metal Corporation
100 Haul Rd. Wayne, NJ 07470 • Toll Free: (800) 631-0442 • Fax: (973) 872-1129
[email protected] • www.krowne.com • www.facebook.com/KrowneMetal • www.twitter.com/KrowneMetal
“WE RAISE THE BAR”
*** IMPORTANT ***
CONDENSER MUST BE CLEANED
EVERY 60 DAYS OR MAY VOID WARRANTY
*** IMPORTANT ***
WARRANTY WORK MUST BE AUTHORIZED BY
FACTORY PRIOR TO SERVICE BEING DONE
*** IMPORTANT ***
COOLER MUST BE LEVEL TO OPERATE PROPERLY
* This equipment is intended for the storage and display of
non-potentially-hazardous bottled or canned products only *
Krowne Metal Corporation
100 Haul Rd. Wayne, NJ 07470 • Toll Free: (800) 631-0442 • Fax: (973) 872-1129
[email protected] • www.krowne.com • www.facebook.com/KrowneMetal • www.twitter.com/KrowneMetal
All Krowne Metal Corporation (KMC) refrigeration products are warranted to be free
of defects in material and workmanship within one year of factory ship date.
WARRANTY FORM
A warranty form is included with the refrigeration unit and must be completed and
returned to KMC. You can also visit us at www.krowne.com and register online.
Registration must be complete within 2 weeks of install. Failure to do so may void
labor warranty.
ONE YEAR PARTS & LABOR WARRANTY
PARTS WARRANTY: Any part found defective under normal use within one year of
factory ship date will be replaced by KMC. Warranty is void in the absence of proper
maintenance, operation and authorized service. Warranty is also void on units that
have been damaged in freight, eld altered, lack of proper electrical requirements,
re, ood or natural disaster.
REPLACEMENT PARTS: Must be returned to KMC prepaid. Credit will be issued
upon return and inspection of defective part.
LABOR WARRANTY: Labor service MUST be approved by KMC before work is done.
If authorization is not obtained warranty is void. KMC is not responsible for any loss
of product or sales during that time. Any additional costs due to after hour services
or excessive travel time (more than an hour) will be incurred by end user. Labor
warranty covers all 50 states.
5 YEAR COMPRESSOR WARRANTY
Compressor is covered by a 5 year replacement warranty and a one year labor
warranty from the original factory ship date.
3
WARRANTY INFORMATION
At Krowne Metal Corporation (KMC) we are dedicated to customer satisfaction. This installation guide is
provided to clarify and answer any questions you may have regarding our line of Slide Top Bottle Coolers.
Please read this guide before attempting installation or operation. Thank you for choosing KMC as your Bottle
Cooler provider.
UNCRATING
Remove all shipping material from unit before operation. Please inspect unit for any hidden freight damage and
report any damage immediately to Krowne Metal Corp. If included, install optional casters or legs to bottom of
unit. Please avoid turning unit on it’s side or rear to install accessories. If this can not be avoided, unit must be
left in the upright position for 24 hrs before operating. All units come equipped with pre-determined mounting
holes and self starting screws for easy install. (screws are provided only when casters or legs are ordered from
factory). It is important to check that casters or legs are securely attached with appropriate mounting
hardware.
ELECTRICAL REQUIREMENTS
115 Volt AC, 1 Phase, 60Hz. We recommend using a dedicated 15 amp circuit minimum. 8’-0”grounded cord
standard. ** DO NOT PLUG UNIT INTO A GFI OUTLET **
PLUMBING
All units have an evaporating pan and do not require any plumbing hook-up.
INSTALLING OF DIVIDERS
Dividers come pre-installed at the factory. Additional racks can be ordered and placed as per customer’s
request.
LOCATION
Place unit in desired location and level. Allow 2” clearance on left side or at rear of unit for proper air ow (both
recommended). DO NOT BLOCK OR OBSTRUCT FRONT GRILL.
FLOOR SEALING
If desired, unit can be sealed to oor using a NSF approved clear silicone. Excess sealant should be wiped
clean.
Krowne Metal Corporation
100 Haul Rd. Wayne, NJ 07470 • Toll Free: (800) 631-0442 • Fax: (973) 872-1129
[email protected] • www.krowne.com • www.facebook.com/KrowneMetal • www.twitter.com/KrowneMetal
4
INSTALLATION
OPERATING TEMPERATURE
The operating temperature of the Slide Top Bottle Cooler is pre-set at the factory for an average of 36°. Average
operating range is from 32° to 40°.

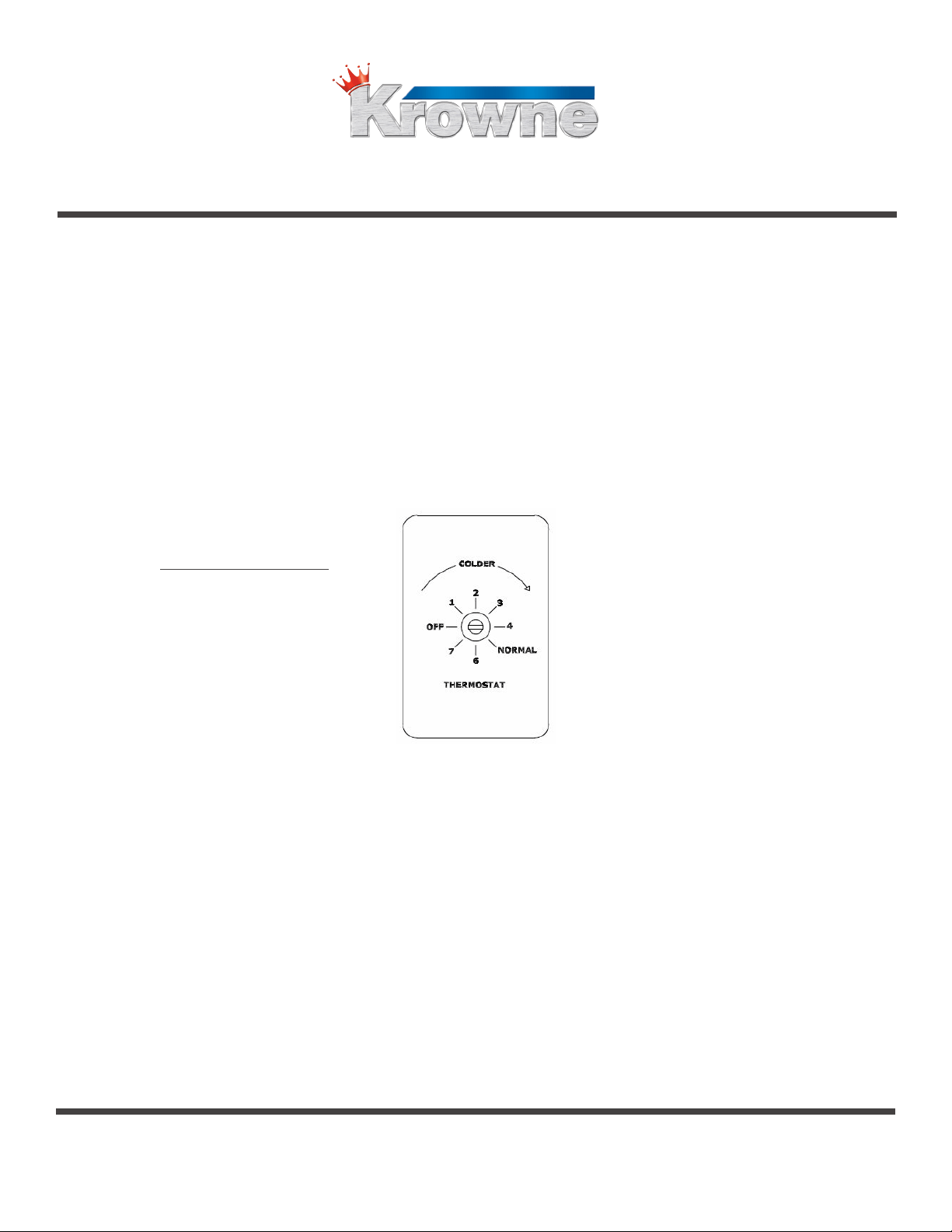

Thermostat is located on the front of the evaporator housing inside of the unit and may be adjusted using a
at-head screw driver. IMPORTANT: Any adjustments to temperature should be made in small increments to
prevent damage to unit. Turning the temperature too cold will result in the coil freezing and the compressor will
be forced to run continuously, ultimately resulting in higher box temperature and the compressor burning out. If
the coil freezes, unplug the cooler open the doors and let unit defrost for 24 hours before plugging in again. It is
important to turn screw back to factory setting to prevent coil from freezing again. (see below)
FACTORY SETTINGS
24”, 36” & 48” coolers set to #4
72” coolers set to #5 (normal)
96” coolers set to #5 (normal)
CLEANING INSTRUCTIONS
Make sure to avoid all products which may corrode the stainless steel such as steel wool and chlorine based
bleaches. The cooler should be cleaned with a mild detergent , warm water and a soft cloth. All cleaning
materials should be washed away and the cooler completely dried.
Condenser must be cleaned every 60 days or may void warranty. Remove front grill for access to condenser.
If the condenser is not cleaned regularly loss of efciency and ultimately condenser failure may occur.
Doors, door gaskets and exterior should be cleaned daily to prevent buildup of liquids and other matter that
may interfere with operation. Interior of unit should be cleaned regularly. To clean these surfaces use a mild
detergent, warm water and a soft cloth. Dry completely!
Krowne Metal Corporation
100 Haul Rd. Wayne, NJ 07470 • Toll Free: (800) 631-0442 • Fax: (973) 872-1129
[email protected] • www.krowne.com • www.facebook.com/KrowneMetal • www.twitter.com/KrowneMetal
5
OPERATION AND MAINTENANCE
Krowne Metal Corporation
100 Haul Rd. Wayne, NJ 07470 • Toll Free: (800) 631-0442 • Fax: (973) 872-1129
[email protected] • www.krowne.com • www.facebook.com/KrowneMetal • www.twitter.com/KrowneMetal
MODEL NO. BC24- BC36- BC48- BC72- BC96-
NO. OF DOORS 1 1 2 2 3
LENGTH 24” 36” 48” 72” 96”
DEPTH 24” 24” 24” 24” 24”
REFRIG. TYPE 134A 134A 134A 134A 134A
CHARGE 7.0 oz. 7.0 oz. 7.5 oz. 10.0 oz. 12.0 oz.
DESIGN
PRESSURE H/L
440/140 440/140 440/140 440/140 440/140
H.P. 1/5 1/5 1/3 1/3 1/3
FULL LOAD
AMPS
4.0 4.0 5.5 6.0 6.6
WEIGHT (LBS.) 185 220 260 350 450
115V, 1 PHASE, 60 HZ
6
SPECIFICATIONS
Krowne Metal Corporation
100 Haul Rd. Wayne, NJ 07470 • Toll Free: (800) 631-0442 • Fax: (973) 872-1129
[email protected] • www.krowne.com • www.facebook.com/KrowneMetal • www.twitter.com/KrowneMetal
7

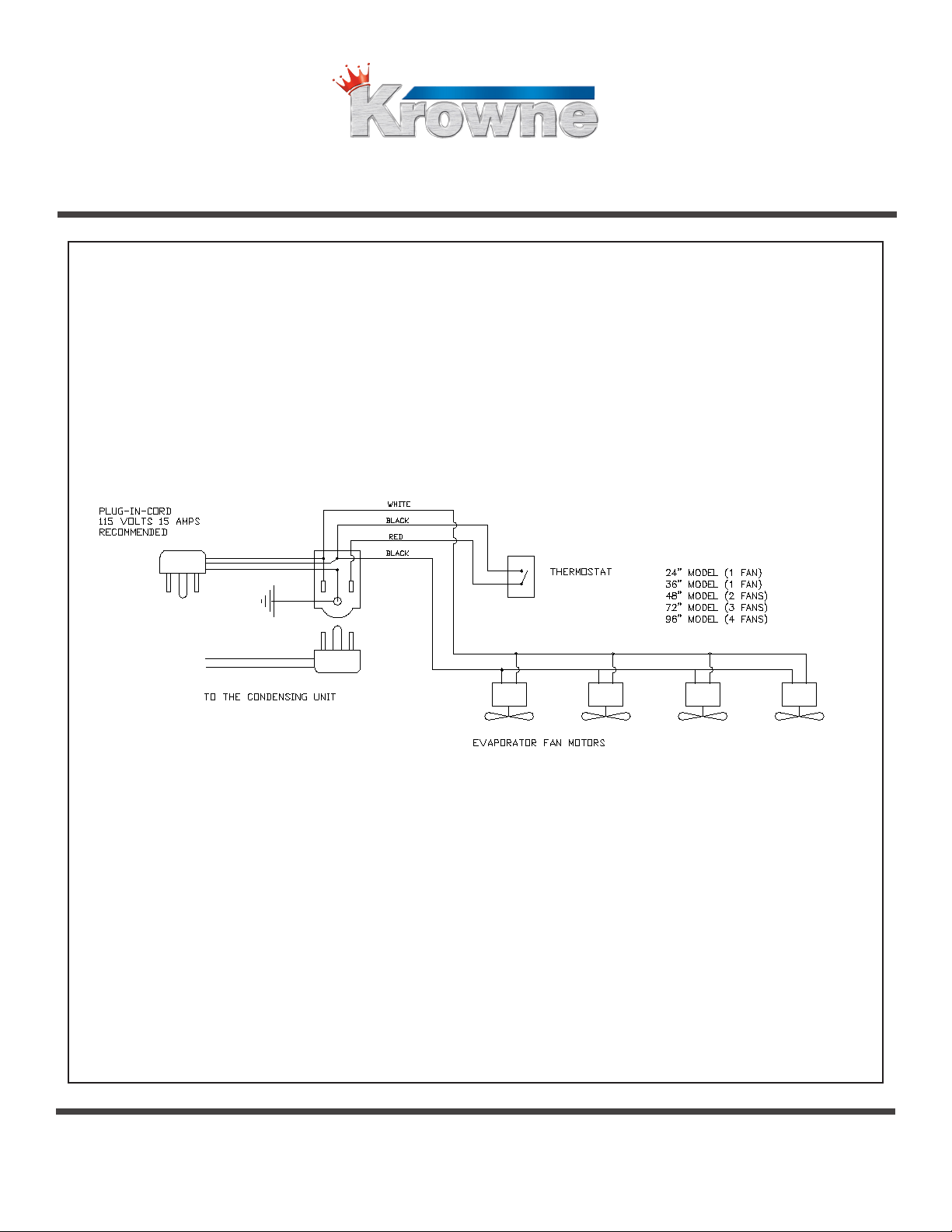

WIRING DIAGRAM
Krowne Metal Corporation
100 Haul Rd. Wayne, NJ 07470 • Toll Free: (800) 631-0442 • Fax: (973) 872-1129
[email protected] • www.krowne.com • www.facebook.com/KrowneMetal • www.twitter.com/KrowneMetal
6
5
11
8
7
9
12
4
1,2
20
19
17
16
15
18
10
3
13
14

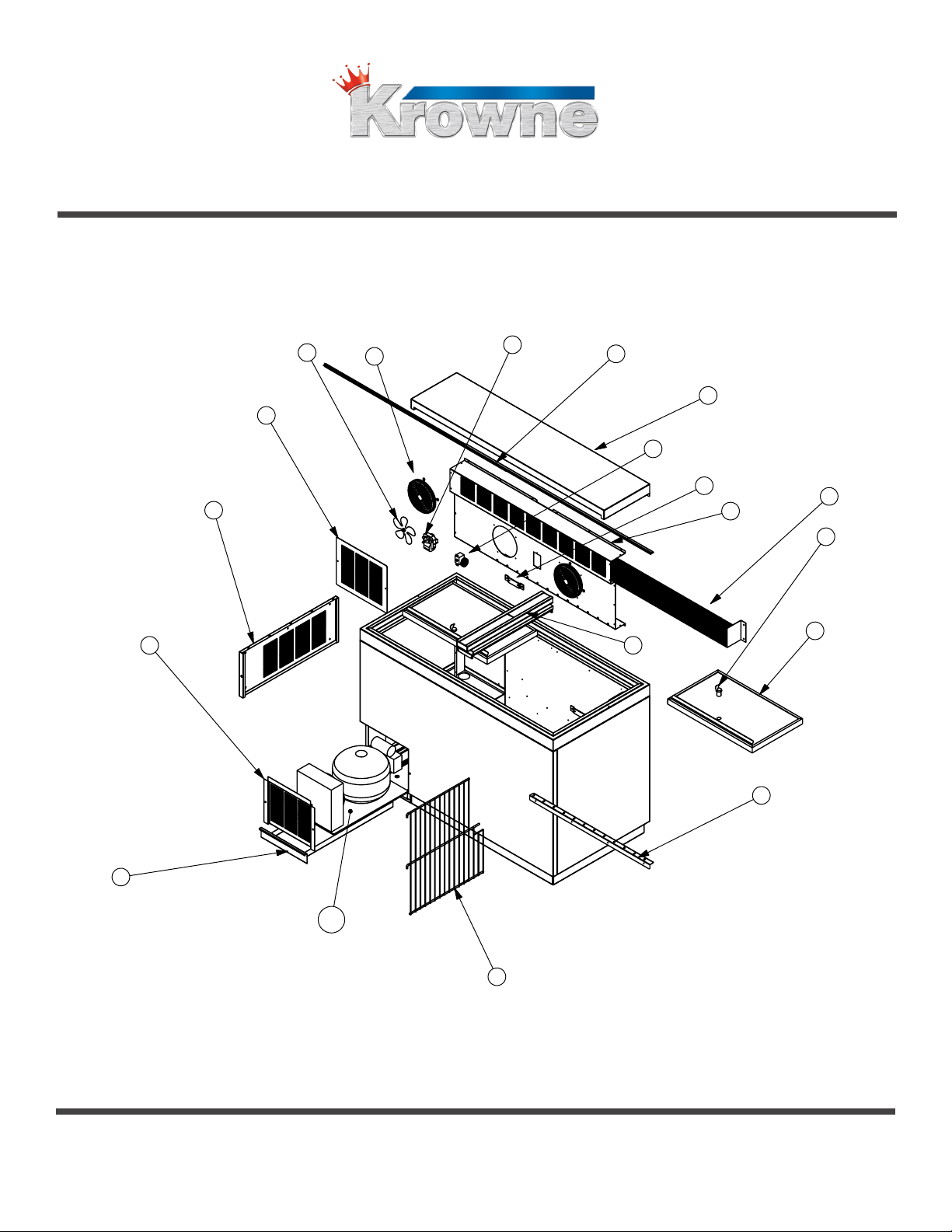

PARTS BREAKDOWN
8
Krowne Metal Corporation
100 Haul Rd. Wayne, NJ 07470 • Toll Free: (800) 631-0442 • Fax: (973) 872-1129
[email protected] • www.krowne.com • www.facebook.com/KrowneMetal • www.twitter.com/KrowneMetal
COOLER SIZE 24” 36” 48” 72” 96”
ITEM NO. DESCRIPTION PART #
1 Condensing Unit 134A BC-625 BC-625 BC-500 BC-500 BC-500
2 Compressor Head BC-626 BC-626 BC-501 BC-501 BC-501
3 Condensate Pan 2012 2012 1403 1403 1403
4A Front Grill (Black Vinyl) N/A N/A 1420 1420 1420
4B Front Grill (Stainless Steel) 2010 2010 1426 1426 1426
5A Side Grill (Black Vinyl) 1441 1441 1461 1461 1461
5B Side Grill (Stainless Steel) 1441 1441 1441 1441 1441
6 Back Grill (Galvanized) 1412 1412 1412 1412 1412
7 Fan Blade BC-515 BC-515 BC-515 BC-515 BC-515
8 Fan Guard BC-516 BC-516 BC-516 BC-516 BC-516
9 Fan Motor BC-514 BC-514 BC-514 BC-514 BC-514
10 Hood Wiper Gasket BC-608 BC-609 BC-610 BC-611 BC-612
11 Hood 2042 2102 1467 1667 1867
12 Thermostat BC-510 BC-510 BC-510 BC-510 BC-510
13 Fan Motor Bracket 1469 1469 1469 1469 1469
14A Evaporator Cover (Galvanized) N/A N/A 1452 1652 1852
14B Evaporator Cover (Stainless Steel) 2022 2117 1431 1631 1831
15 Evaporator BC-630 BC-630 BC-502 BC-503 BC-504
16 Door Locks BC-619 BC-619 BC-619 BC-619 BC-619
17A Sliding Door with Lock BC-710 BC-712 BC-710 BC-712 BC-710 & BC-712
17B Sliding Door without Lock BC-711 BC-713 BC-711 BC-713 BC-711 & BC-713
18 Stainless Steel Center Post N/A N/A 1411 1411 1411
19 Wire Rack Bracket N/A 2109 1448 1648 1848
20 Wire Partition N/A BC-536 BC-536 BC-536 BC-536
9
PARTS BREAKDOWN
Krowne Metal Corporation
100 Haul Rd. Wayne, NJ 07470 • Toll Free: (800) 631-0442 • Fax: (973) 872-1129
[email protected] • www.krowne.com • www.facebook.com/KrowneMetal • www.twitter.com/KrowneMetal
1. Why is my cooler not turning on?
A. Make sure unit is plugged in.
B. Make sure unit is not plugged into a GFI receptacle.
C. Check to see if circuit breaker is off.
2. Why was my cooler working but now has shut off?
A. Check to see if circuit breaker is off.
B. Make sure unit is not plugged into a GFI receptacle.
3. Why is my cooler running (compressor noise) but not getting cold?
A. Make sure condenser is clean. Remove front grill to inspect.

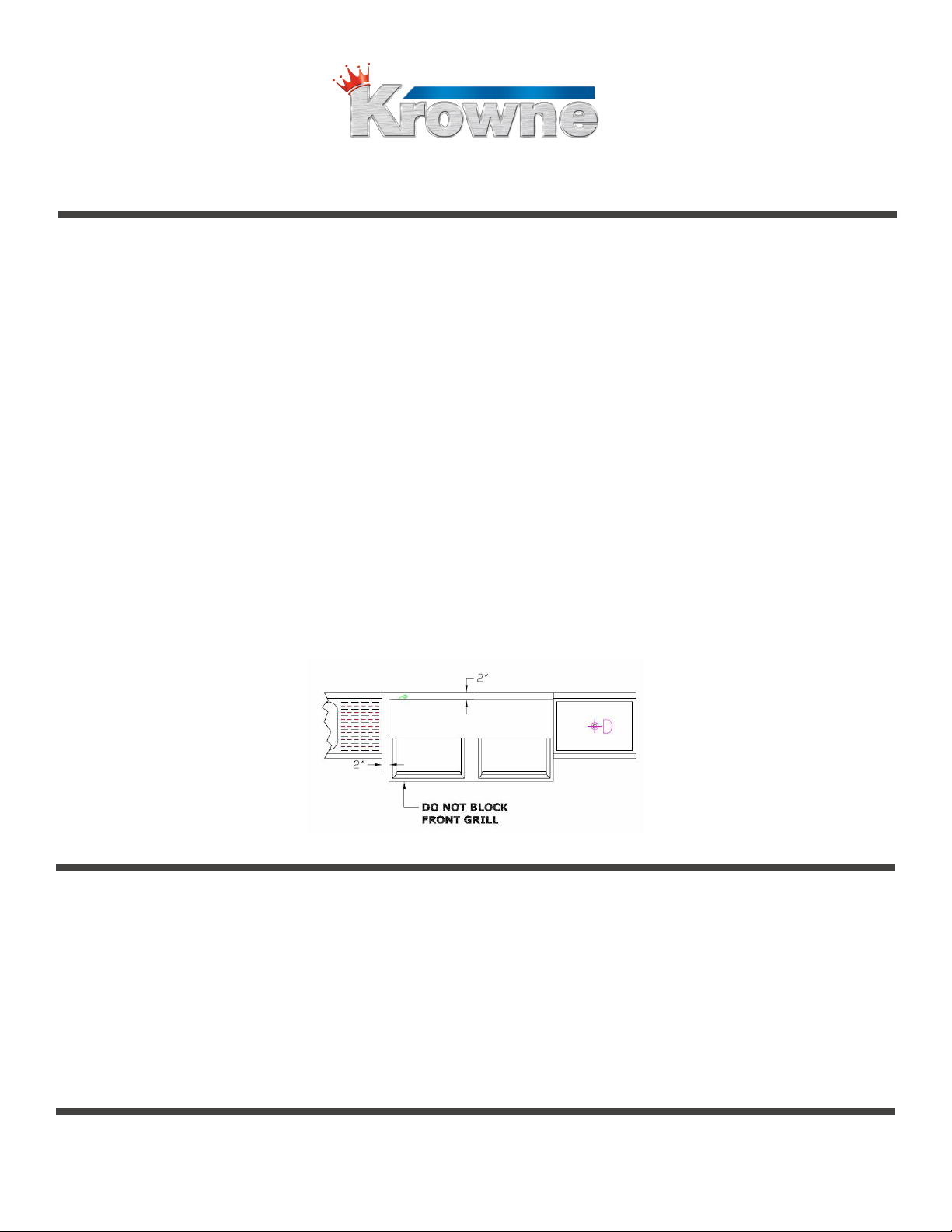

B. Check that there is adequate air ow. DO NOT RESTRICT AIRFLOW AT REAR, LEFT AND FRONT (see
diagram below)
C. Check to see if evaporator is frozen. If so, unit will need to be unplugged to defrost for up to 24 hours.
D. Check interior of unit. Make sure evaporator is clear. Do not load cooler fully to top. This will restrict
airow.
10
FREQUENTLY ASKED QUESTIONS
*** WARNING ***
ALL SERVICE SHOULD BE PERFORMED BY A
CERTIFIED REFRIGERATION TECHNICIAN
WARRANTY REGISTRATION FORM
PLEASE CHECK THE TYPE OF UNIT YOU HAVE:
☐
BACK BAR COOLER
☐
SLIDE TOP BOTTLE COOLER
☐ MUG FROSTER
MODEL NO.: ______________ SERIAL NO.: ______________ INSTALL DATE: _______
NAME OF ESTABLISHMENT: ________________________ PHONE NO.: ______________
ADDRESS: _____________________ CITY/STATE: _______________ ZIP: __________
DEALER NAME: ________________________ CITY/STATE: ___________________
PLEASE FAX TO (973) 872-1129 TO
COMPLETE REGISTRATION
YOU CAN ALSO REGISTER YOUR WARRANTY ONLINE
AT WWW.KROWNE.COM/WARRANTY
