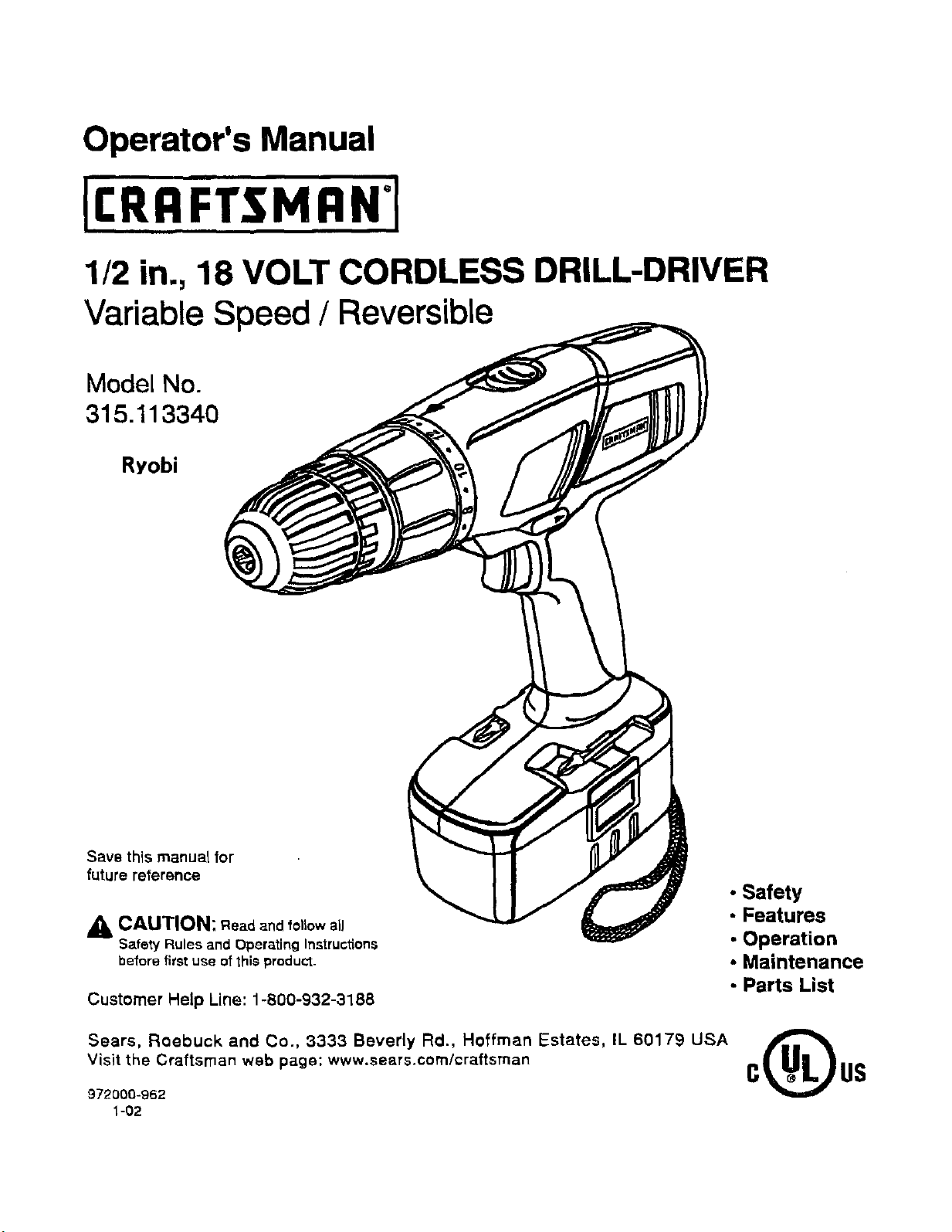

Operator's Manual
1/2 in., 18 VOLT CORDLESS DRILL-DRIVER
Variable Speed / Reversible
Model No.
315.113340
Ryobi
Save this manual for
future reference
_k CAUTION: Read and follow all
Safety Rules and Operating Instructions
before first use of *[his product.
Customer Help Line: 1-800-932-3188
Sears, Roebuck and Co., 3333 Beverly Rd., Hoffman Estates, IL 60179 USA
Visit the Craftsman web pago: www.sears.com/craftsman
972000-962
1-02
• Safety
• Features
• Operation
• Maintenance
• Parts List
0( 0s

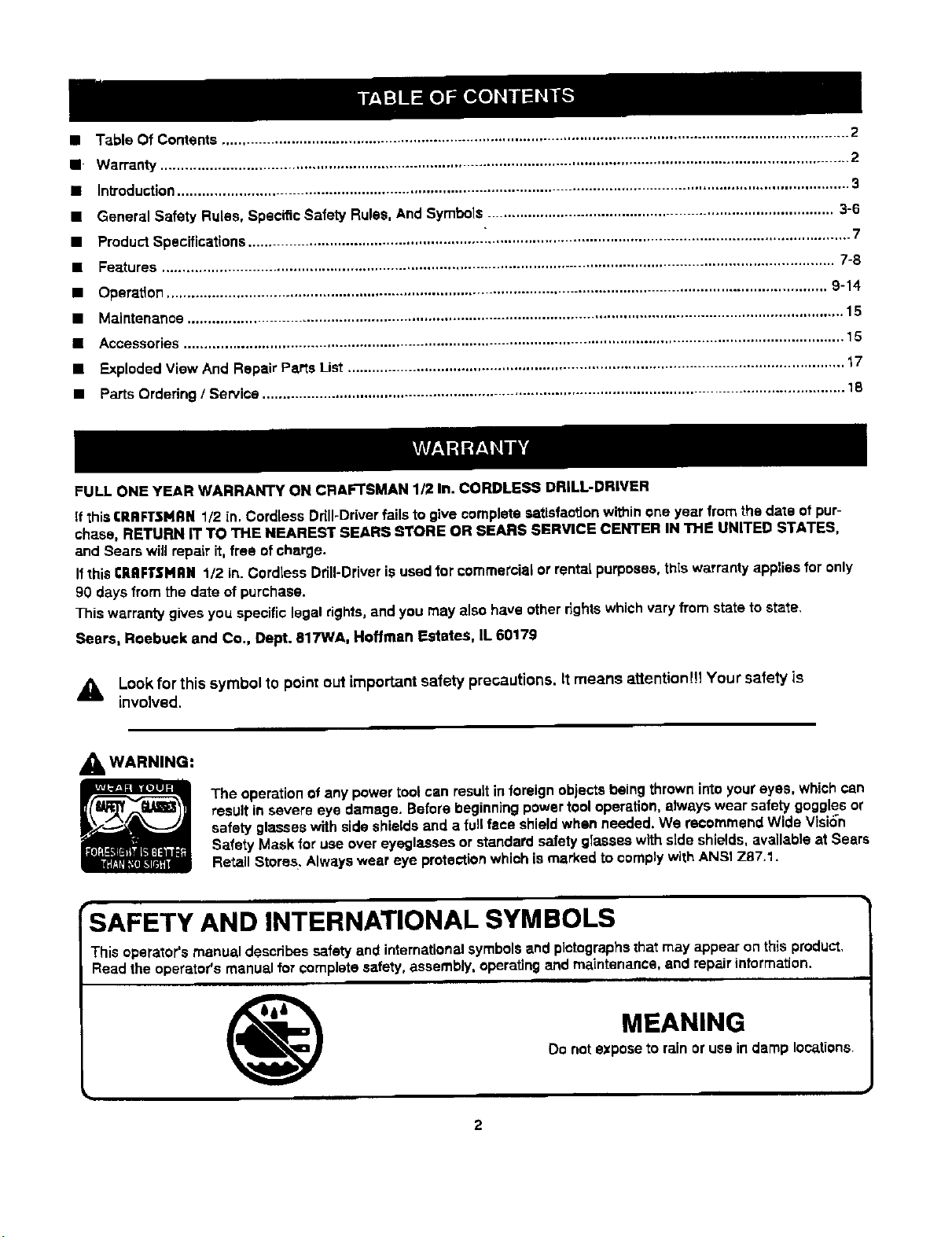

• Table Of Contents ......................................................................................................................................................... 2
• - Warranty ......................................................................................................................................................................... 2
• Introduction ..................................................................................................................................................................... 3
• General Safety RuLes. Specific Safety Rules, And Symbols ..................................................................................... 3-6
• Product Specifications .......................................................... i......................................................................................... 7

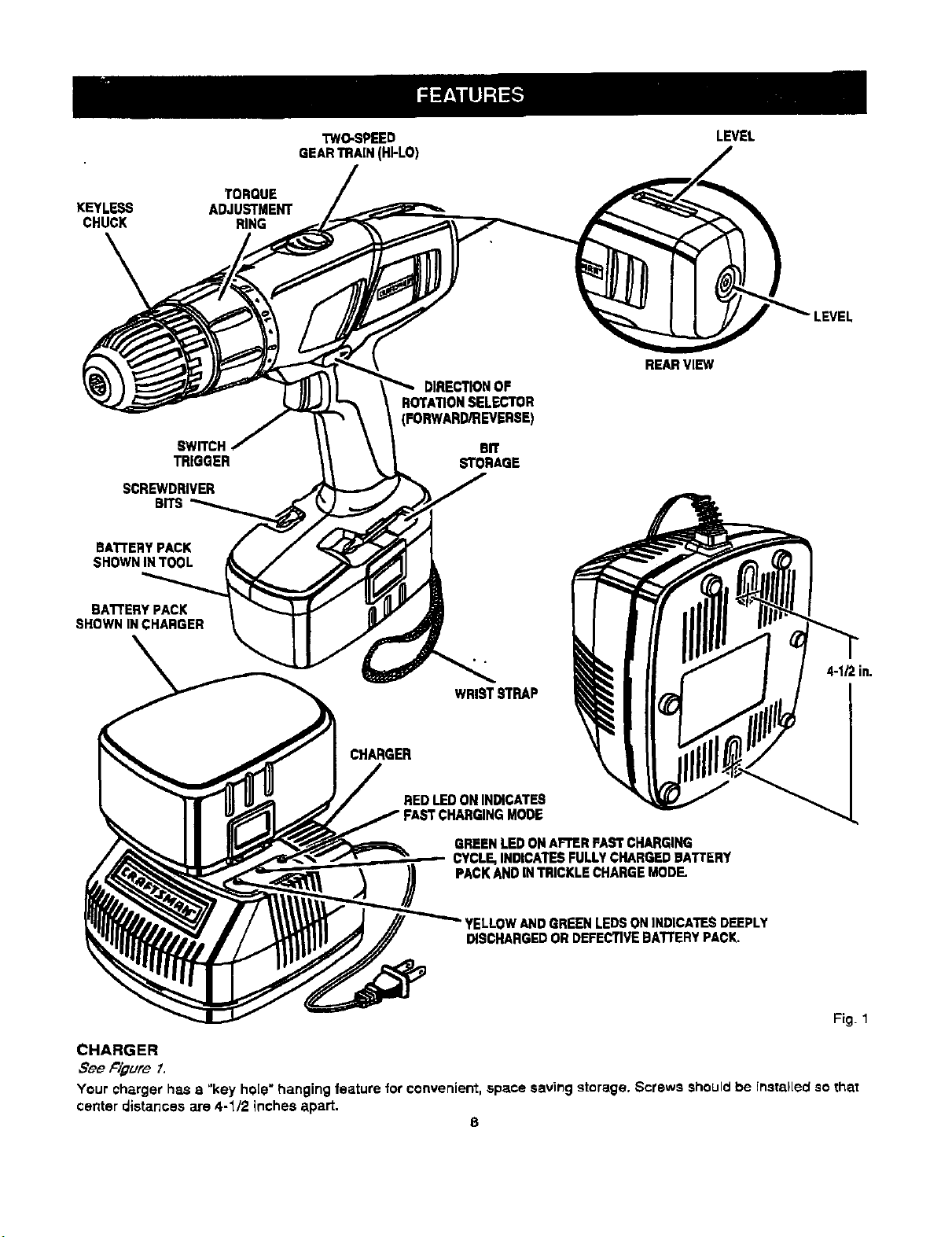

• Features ..................................................................................................................................................................... 7-8
• Operation .................................................................................................................................................................. 9-14
• Maintenance ................................................................................................................................................................. 15
• Accessories .................................................................................................................................................................. 15

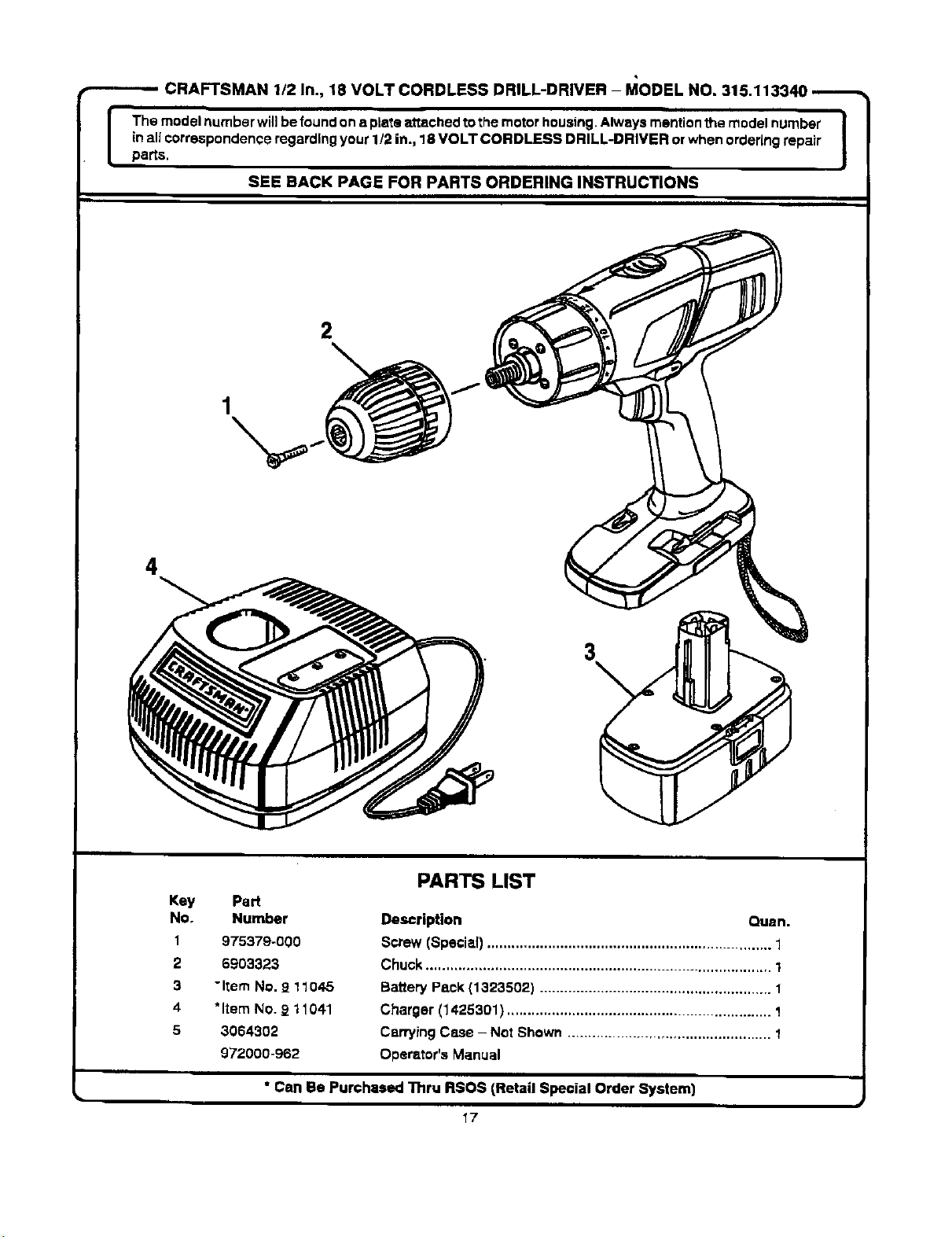

• Exploded View And Repair Parts List .......................................................................................................................... 17
• Parts Ordedng / Service ............................................................................................................................................... 18
FULL ONE YEAR WARRANTY ON CRAFTSMAN 1/2 In. CORDLESS DRILL-DRIVER
If thisCRRFTSNRN1/2 in, CordlessDrilFDdverfailsto give completesatisfaction withinone yearfrom the date ofpur-
chase, RETURN IT TO THE NEAREST SEARS STORE OR SEARS SERVICE CENTER IN THE UNITED STATES,
and Sears willrepair it, free of charge.
Ifthis CRgFT$14BN1/2 in. CordLessDrill-Driverisusedfor commercialor rentalpurposes,this warrantyappliesfor only
90 daysfrom the date ofpurchase.
This warrantygives you specificlegalrights,and you may also have otherdghtswhichvaryfrom state to state.
Sears, Roebuck and Co., Dept. 817WA, Hoffmah Estates, IL 60179
A Look for this symbol to point out important safety precautions. It means attention!!1Your safety is
involved.
A WARNING:
The operationof anypowertoolcan resultin foreignobjectsbeingthrown intoyoureyes, whichcan
result in severe eye damage. Beforebeginningpowertooloperation,always wear safetygogglesor
safety glasses withside shieldsand a fullface shieldwhen needed. We recommendWide Visib-n
Safety Maskfor use over eyeglasses or standardsafety glasseswithside shields,available at Sears
Retail Stores. Alwayswear eye protectionwhiohismarked tocomplywith ANSI Z87.1.
SAFETY AND INTERNATIONAL SYMBOLS
This operator's manual describes safety and international symbols and piotographs that may appear on this produ_.
Read the operator's manual for complete safety, assemb(y, operating and maintenance, and repair information.
MEANING
Do not expose to rain or use in damp locations.

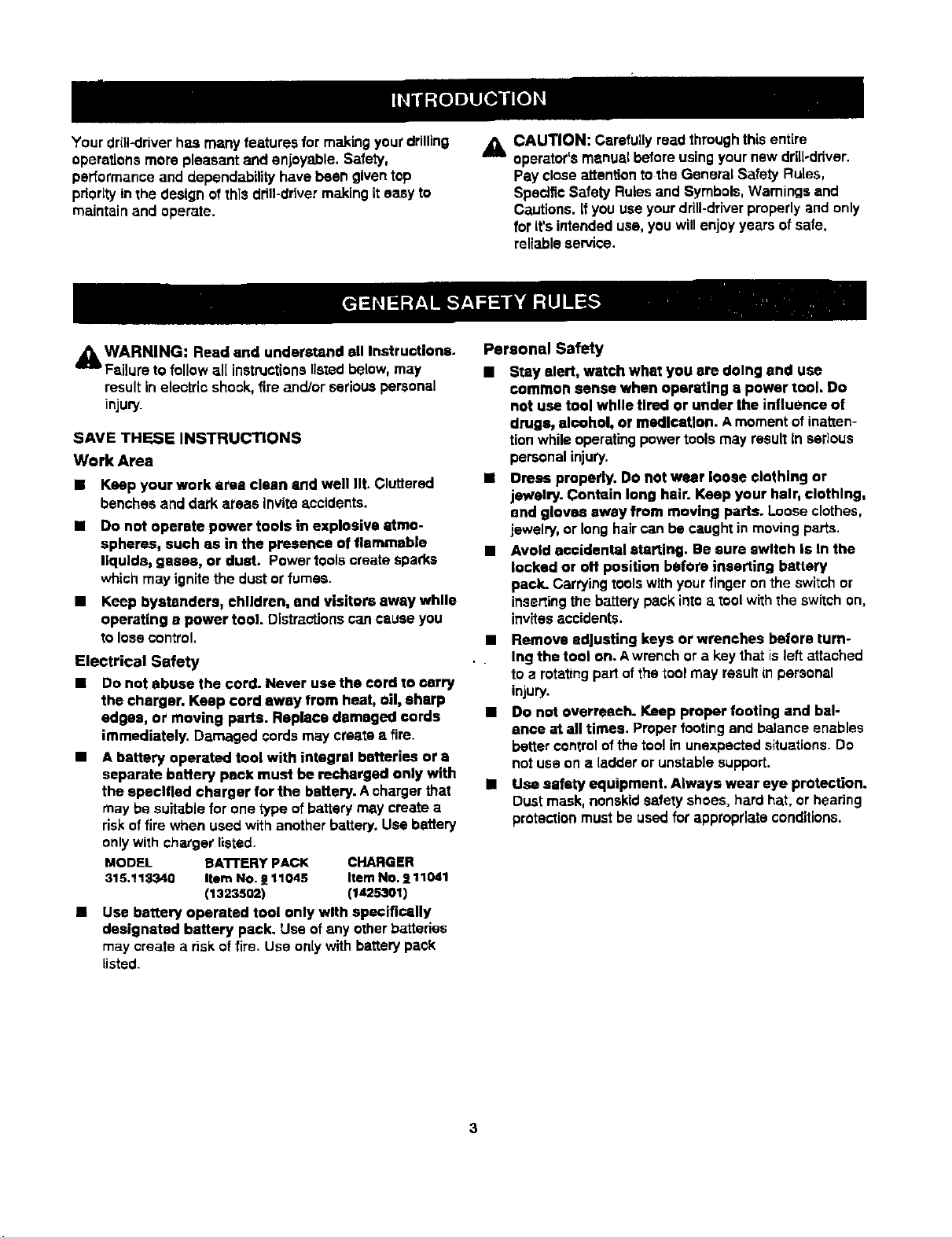

Your drill-driver has many features for making your drilling
operationsmore pleasantand enjoyable. Safety,
performanceand dependabilityhave been giventop
pdorityin the designofthis drill-drivermakingit easy to
maintainand operate.
_IL CAUTION: Carefullyread through this entire
operator'smanualbeforeusingyournewdrilL-driver.
Pay close attention tothe General Safety Rules,
Spedllc Safety Rulesand Symbols,Warningsend
Cautions. ifyouuse yourdrill-driverproperlyand only
for it'sintendeduse,you willenjoyyears ofsafe.
reliableservice.
_WARNING: Read and understand ell Instructions.
Failureto followall instructionslistedbelow,may
resultinelectricshock,fire and/orseriouspersonal
injury.
SAVE THESE INSTRUC'nONS
Work Area
J Keep your work area clean and well lit. Cluttered
benchesand dark areas inviteaccidents.
• Do not operate power tools in explosive atmo-
spheres, such as in the presence of flammable
liquids, gases, or dust. Powertoolscreatesparks
whichmay ignitethe dust orfumes.
• Keep bystanders, children, and visitors away while
operating e power tool. Distractionscancause you
tolose control.
Electrical Safety
• Do not abuse the cord. Never use the cord to carry
the charger, Keep cord away from heat, oil, sharp
edges, or moving parts. Replace damaged cords
immediately. Damaged cordsmay createa fire.
• A battery operated tool with integral batteries or a
separate battery pack must be recharged only with
the specified charger for the battery.Achargerthat
maybe suitablefor one type ofbatterymay create a
riskoffire when usedwith anotherbattery.Usebattery
only with chargerlisted.
MODI=L BA'rrERYPACK CHARGER
315.113340 Item NO. J!11045 Item No. 911041
(1323502) (1425301 )
• Use battery operated tool only with specifically
designated battery pack. Useof any otherbatteries
may create a riskoffire. Use onlywithbatterypack
listed.
Personal Safety
• Stay alert, watch what you ere doing end use
estonian sense when operating a power tool, Do
not use tool while tired or under the influence of
drugs, alcohol, or medication. A momentofinatten-
tionwhileoperatingpowertoolsmay resultin serious
personalinjury.
• Dress properly. Do not wear loose clothing or
jewelry. Contain long hair. Keep your hair, clothing,
end gloves away from moving pads. Looseclothes,
jewelry,or longhaircan be caughtin movingparts.
• Avoid accidental starting. Be sure switch Is In the
locked or off position before inserting battery
pack. Carryingtoolswith yourfinger onthe switchor
insertingthe batterypackintoa toolwiththe switchon,
invitesaccidents.
• Remove adjusting keys or wrenches before turn-
. Ing the tool on. Awrenchor a key thatisleft attached
to • rotatingpart of thetool may resulfin personal
injury.
• Do not overreach. Keep proper footing and bal-
ance at all times. Properfootingansibalanceenables
bettercontrolofthetoolin unexpectedsituations.Do
not useon a [adderor unstablesupport.
• Use safety equipment. Always wear eye protection.
Dustmask,nonskidsafetyshoes,hard hat. or hearing
prOteCtionmustbe usedfor appropriate conditions.
3

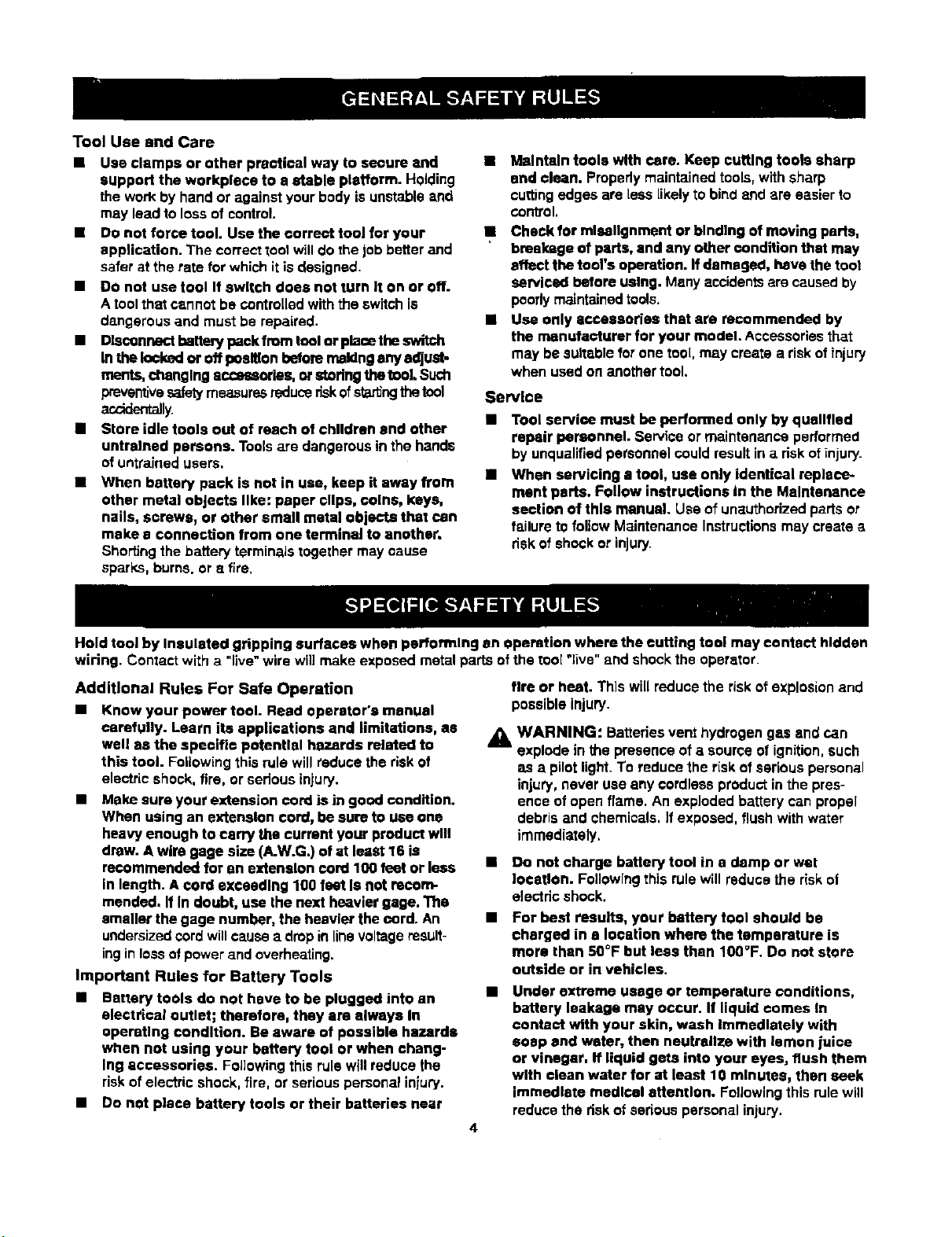

Tool Use and Care
• Use clamps or other practical way to secure and
support the workplace to a stable platform. Holding
the work by hand or against your body is unstable and
may lead to loss of control
• Do not force tool. Use the correct tool for your
application. The correct tool will do the job better and
safer at the rate for which it is designed.
• Do not use tool If switch does not turn It on or off.
A tool that cannot be controlled with the switch is
dangerous and must be repaired.
• Disconnect battery pack from tool or place the switch
In the locked or off position before maldng any i_lusb
merits, changing acceeeoriss, or stodng the tceL Such
preventive safety measures reduce riskof startingthe tool
acddentaily.
• Store idle tools out of reach of children end other
untrained persons. Tools are dangerous in the hands
of unVained users.
• When battery pack is not in use, keep it away from
other metal objects like: paper clips, coins, keys,
nails, screws, or other small metal objects that can
make a connection from one terminal to another.
Shodthg the battery terminals together may cause
sparks, burns, or a fire.
• Maintain tools with care. Keep cutting tools sharp
and clean. Properlymaintained tools,withsharp
cuttingedges are lesslikelyto bindand are easierto
control.
• Check for mleellgnment or binding of moving parts,
breakage of parts,and any other condition that may
affect thetool's operation. Ifdamaged, havethe tool
serviced before using. Manyaccidents are causedby
poodymaintained tools.
• Use only accessories that are recommended by
the manufacturer for your model. Accessoriesthat
may be sult=_blefor one too[,may create a riskofinjury
when usedon anothertool.
Servloe
• Tool service must be performed only by qua,fled
repair personnel. Service or maintenance performed
by unqualifiedpersonnelcould resultina risk ofinjury.
• When servicing a tool, use only identical replace-
ment parts. Follow instructions tn the Maintenance
section of this manual. Usaof unauthorizedpartsor
failuretofollowMaintenancoInstructionsmay create a
riskof shockorinjury.
Hold tool by Insulated gripping surfaces when performing an operation where the cutting tool may contact hidden
wiring. Contact with a "live" wire will make exposed metal parts of the tool "live" and shock the opera,or.
Additional Rules For Safe Operation
• Know your power fool. Read operator's manual
carefully. Learn its applications and limitations, as
well as the specific putentlal hazards related to
this tool. Following this rule will reduce the risk of
electric shock, fire, or serious injury.
• Make sure your extension cord is in good condition.
When using an extension cord, be sure to use one
heavy enough to carry the current your product will
draw. A wire gage size (A.W.G.) of at leaSt 16 is
recommended for an extension cord 100 feet or less
in length. A cord exceeding 100 feet Is not recom-
mended, If In doubt, use the next heavier gage. The
smaller the gage number, the heavier the cord° An
undersized cord will cause a drop in lii_evoltage result-
ing in loss of power and overheating.
Important Rules for Battery Tools
• Battery tools do not have to be plugged into an
electrical outlet; therefore, they are always In
operating condition. Be aware of possible hazards
when not using your battery tool or when chang-
Ing accessories. FoJ]owing this rule will reduce the
risk of electric shock, fire, or serious personal iniury.
• De nat place battery tools or their batteries near
fire or heat. Thiswill reducethe riskofexplosionand
possibleinjury.
A WARNING: Batteries vent hydrogen gas alld can
explode in the presence of a source of ignition, such
as a pilot light. To reduce the risk of serious personal
injury, never use any cordless product in the pres-
ence of open flame. An exploded battery can propel
debris and chemicals. If exposed, flush with water
immediately.
Do not charge battery tool in a damp or wet
location. Following this rule will reducs the risk of
electric shock.
For best results, your battery tool should be
charged in a location where the temperature is
more than 50°F but less than 100°F. Do not store
outside or in vehicles.
Under extreme usage or temperature conditions,
battery leakage may occur. If liquid comes In
contact with your skin, wash Immediately with
soap and water, then neutralize with lemon juice
or vinegar, If liquid gets into your eyes, flush them
with clean water for at least 10 minutes, then seek
immediate medical attention. Following this rule will
reduce the risk of serious personal injury.
4

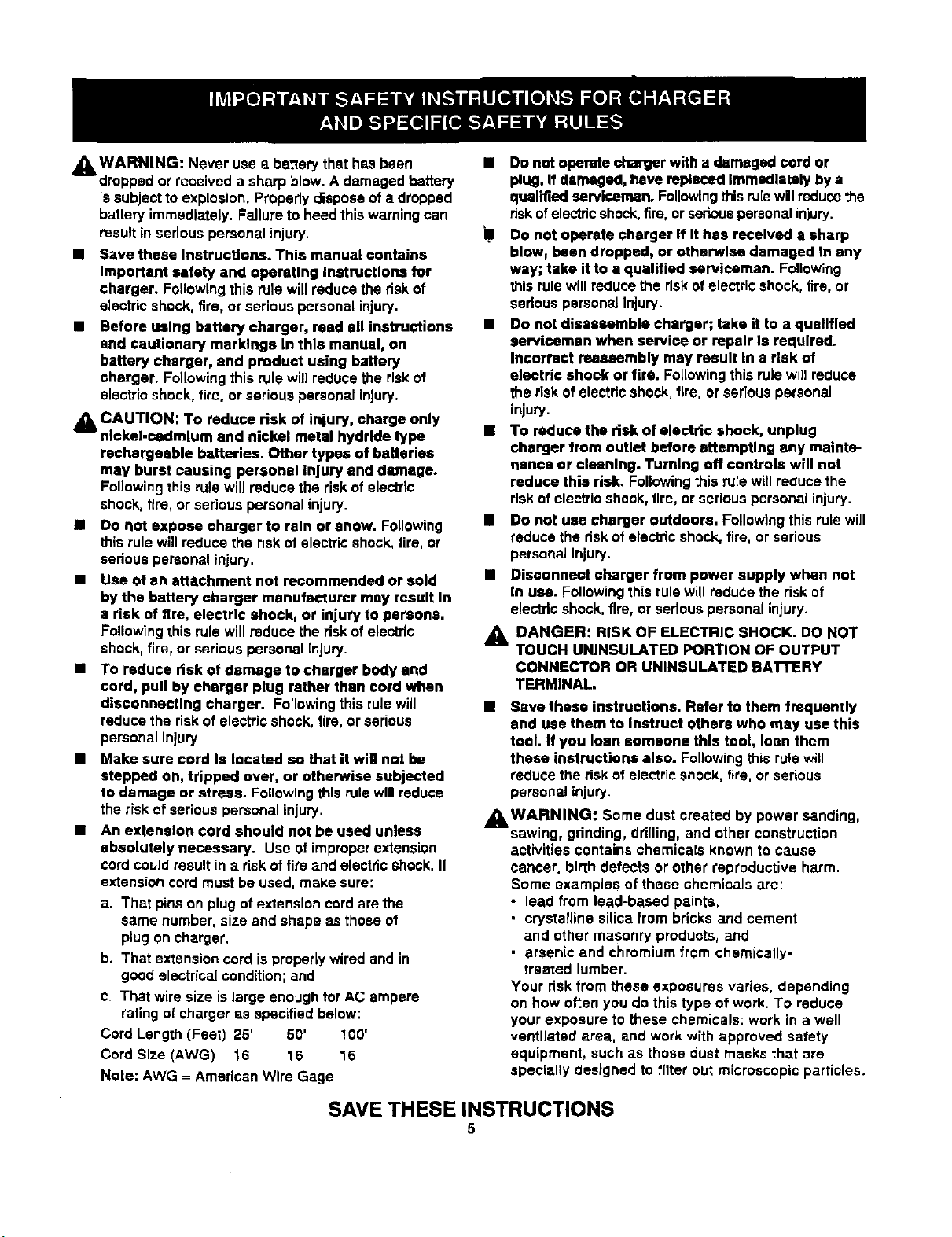

,_WARNING: Never use a battery thathas been
droppedor received a sharpblow. A damagedbattery
issubjectto explosion.Properlydisposeof a dropped
battery immediately.Failureto heed this warningcan
resultin seriouspersonalinjury.
• Save these instructions. This manual €ontains
Important safety and Operetlng Instructions for
charger. Followingthisrule willreduce the dsk of
electricshock,fire,or serious personalinjury,
• Before using battery charger, read ell instructions
and cautionary markings In this manual, on
battery charger, and product using battery
charger. Followingthis rulewillreducethe riskof
electric shock,fire. or seriouspersonalinjury.
ACAUTION: To reduce risk of injury, charge only
nickel-cadmium and nickel metal hydride type
rechergeeble batteries. Other types of batteries
may burst causing personal injury end damage.
Following this rule will reduce the risk of electric
shock, fire, or serious personal injury
• Do not expose charger to rein or snow. Following
this rule will reduce the risk of eleck'ic shock, fire, or
serious personal injury.
• Use of an attachment not recommended or sold
by the battery charger manufacturer may result In
a risk of fire, electric shock, or injury to persons.
Following this rule will reduce the risk of electric
shock, fire, or serious personal [njury.
• To reduce risk of damage to charger body end
cord, pull by charger plug rather than cord when
disconnecting charger. Following this rule will
reduce the risk of electric shock, fire, or serious
personal injury
• Make sure cord Is located so that it will not be
stepped on, tripped ever, or otherwise subjected
to damage or stress. FoUowing this rule will reduce
the risk of serious personal injury.
• An extension cord should not be used unless
absolutely necessary. Use of improper extension
cord could result in a risk of fire and electric shock. If
extension cord must be used, make sure:
a. That pins on plug of extension cord are the
same number, size and shape as those of
plug on charger,
b, That extension cord is properly wired and in
good electrical condition; and
c That wire size is large enough for AC ampere
rating of charger as specified below:
Cord Length (Feet) 25' 50' 100'
Cord Size (AWG) 16 16 16
Note: AWG = American Wire Gage
• DO nat operate charger with a damaged cord or
plug. If damaged, have replaced Immediately by a
qualified servioegl_n. Following this ru[e will reduce the
risk of electric shock, fire, or serious personal injury.
'• Do not operate charger If It has received a sharp
blow_ been dropped, or otherwise damaged In any
way; take it to a qualified serviceman. Following
this ru[e will reduce the risk of electric shock, fire, or
serious personal injury.
• Do not disassemble charger; take it to a qualified
servicemen when service or repair Is required.
Incorrect reassembly may result In s risk of
electric shock or fire. Following this rule will reduce
the risk of electric shock, fire, or serious personal
injury.
• To reduce the risk of electric shook, unplug
charger from outlet before _'temptlng any mainta-
hence or €lesnlng. Turning off controls will not
reduce this risk. Following this rule will reduce the
risk of electric shock, fire, or serious personal injury.
• Do not use charger outdoors, Following this rule will
reduce the risk of elect_c shock, fire, or serious
personal injury.
• Disconnect charger from power supply when not
In use. Following this rule will reduce the risk of
electric shock, fire, or serious personal injury.
A DANGER: RISK OF ELECTRIC SHOCK. DO NOT
TOUCH UNINSULATED PORTION OF OUTPUT
CONNECTOR OR UNINSULATED BATrERY
TERMINAL•
• Save these instructions. Refer to them frequently
and use them to instruct others who may use this
tool. If you loan someone this tool, loan them
these instructions also. Followingthisrulewill
reduce the risk ofelectricshock,fire, or serious
personalinjury.
_LWARNING: Some dust created by power sanding,
sawing, grinding, drilling,and other construction
activities contains chemicals knownto cause
cancer, birth detects or other reproductive harm.
Some examples ofthese chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement
and other masonry products, and
• arsenic and chromiumfrom chemically-
treated lumber.
Your risk from these exposures varies, depending
on how often you do this type of work. To reduce
your exposure tothese chemicals: work in a well
ventilated ares, and work with approved safety
equipment, such as those dust masks that are
specially designed to filterout microscopic particles.
SAVE THESE INSTRUCTIONS
5
m m
.Important: Someof thefollowingsymbolsmaybe usedonyourtool. Pleasestudythemand learn theirmeaning.Proper
interpretationofthese symbolswillallowyouto operate thetoolbetter and safer.
SYMBOL NAME DESIGNATION/EXP LANATION
V Volts Voltage
A Amperes Current
Hz Hertz Frequency(cyclesper second)
rain Minutes Time
AlternatingCurrent Type or a characteristicof current
m m
DirectCurrent Type or a characteristicofcurrent
==J=
no NOLoad Speed Rotationalspeed, at no load
../min Revolutionsor ReciprocationPerMinute Revolutions,strokes,
surface speed, orbitsetc. per minute
Safety AlertSymbol Indicatesdanger, warningor caution.
It meansattention!!!Yoursafety is
involved.
The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and
the explanations with them, deserve your careful attention and understanding. The safety warnings do
not by themselves eliminate any danger. The Instructions or warnings they give are not substitutes for
proper accident prevention measures.
SYMBOL MEANING
SAFETY ALERT SYMBOL:
indicatesdanger,warning,orcaution.Maybe usedinconjunctionwithothersymbolsorpictographs.-
A
A
,a,
NOTE:
DANGER; Failureto obey a safety warningwillresultinseriousinjuryto yourselforto others.
Always follow the safety precautionsto reducethe riskoffire,electricshockand personalinjury.
WARNING: Failure to obeya safetywarningcan resultinseriousinjuryto yourselfor toothers.
Alwaysfollowthe safety precautionsto reducethe riskoffire,electricshockand personalinjury.
CAUTION: Failuretoobey a safety warningmay resultin propertydamage or personalinjuryto
yourselfor to others.Alwaysfollowthe safetyprecautionsto reducethe riskof fire, electricshock
and personalinjury.
Advisesyou of informationor instructionsvitaltothe operationor maintenanceofthe equipment.
6

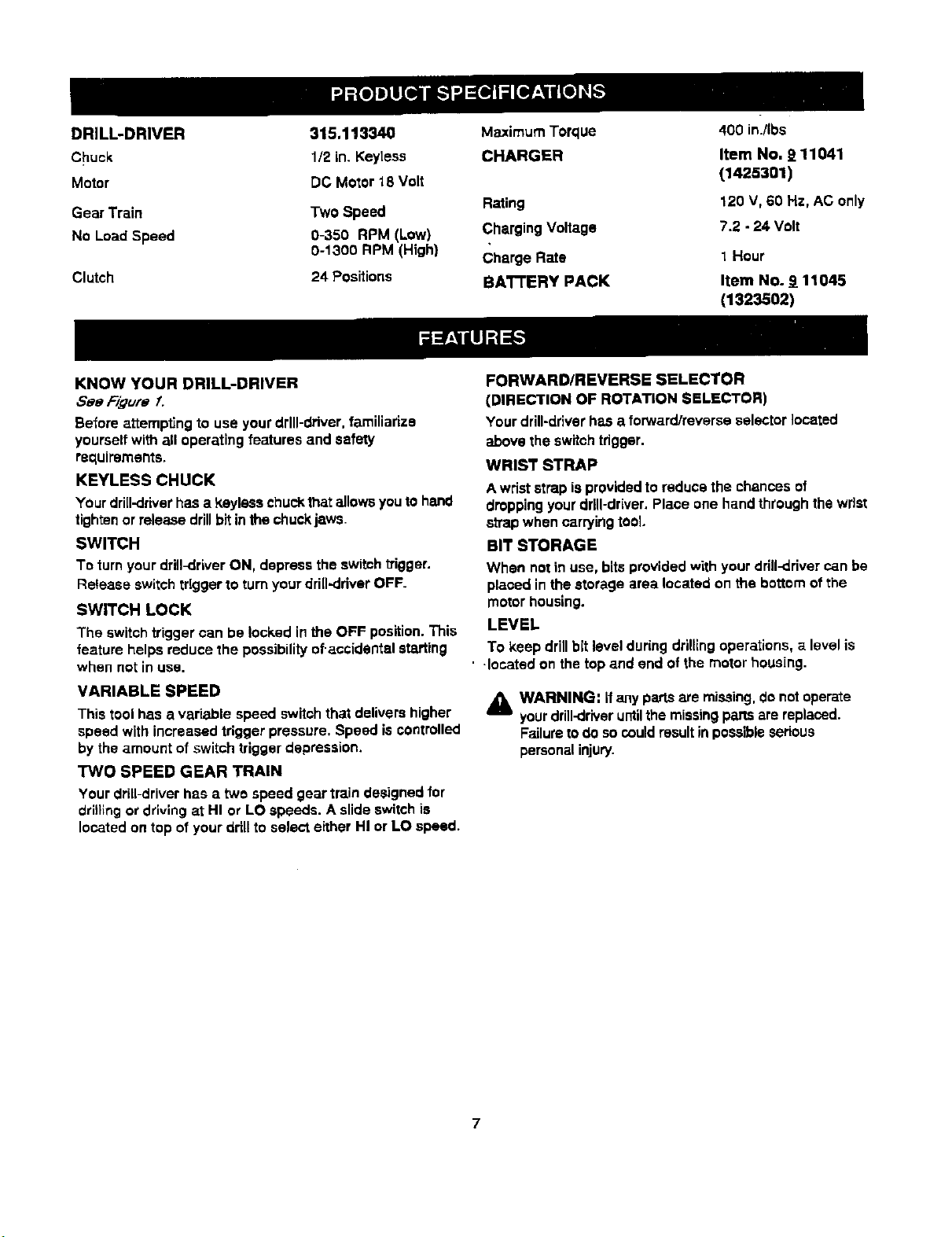

DRILL-DRIVER 315.113340
Chuck 1/2in.Keytess
Motor DCMotor18Volt
Gear Train Two Speed
No Load Speed 0-350 RPM (Low)
0-1300 RPM (High)
Clutch 24 Positions
MaximumTorque
CHARGER
400 in./Ibs
Item No. 9 11041
(1425301)
Rating 120 V, 60 Hz, AC only
ChargingVoltage 7.2 - 24 Volt
Charge Rate 1 Hour
BAI-rERY PACK Item No. 9 11045
(1323502)
KNOW YOUR DRILL-DRIVER
See Figure f.
Before attempting to use yourdrill-driver,familiarize
yourselfwithall operatingfeatures and safety
requirements.
KEYLESS CHUCK
Yourdri[I-driverhas a keylass chuckthatallowsyouto hand
tightenor releasedrillbitinthechuck:jaws.
SWITCH
To turnyourdrill-driverON, depresstheswitch'0"igger.
Release switchtriggerto turnyourdrill-dryer OFF.
SWITCH LOCK
The switchtriggercan be lockedinthe OFF position.This
feature helpsreducethe possibilityof-accidentalstarting
when not in usa.
VARIABLE SPEED
Thistoolhas a variable speed switch thatdelivershigher
speed with increasedtrigger pressure,Speed iscontrolled
by theamountof switchtriggerdepression,
"I'WO SPEED GEAR TRAIN
Yourdrill-driverhas a two speed gear train designedfor
drilling or drivingat HI or LO speeds, A slideswitchis
locatedon top of yourddll to selecteither HI or LO speed.
FORWARD/REVERSE SELECTOR
(DIRECTION OF ROTATION SELECTOR)
Yourdrill-driverhas aforward/reverseselector located
above the switchtrigger.
WRIST STRAP
Awriststrap isprovidedtoreducethe chancesof
droppingyourdrill-driver.Place one handthroughthewrist
strapwhen carryingtool.
BIT STORAGE
When not in use, bitsprovidedwith yourdrill-drivercan be
placed inthe storagearea locatedon the bottomof the
motor housing.
LEVEL
To keep drillbit level duringdrillingoperations,a levelis
• Jocatedon thetop and end ofthe motorhousing.
A WARNING: Ifanypartsare missing,do notoperate
yourdrill-driveruntilthe missingpars arereplaced.
Failureto do socouldresultinpossibleserious
personalinjury.
TWO-SPEED LEVEL
GEARTRAIN (HI-LO)
TORQUE
KEYLESS ADJUSTMENT
CHUCK RING
SCREWDRIVER
DIRECTIONOF
ROTATIONSELECTOR
(FORWARD/REVERSE)
B_
STORAGE
REARVIEW
BATTERYPACK
SHOWNINTOOL
BATTERYPACK
SHOWNINCHARGER
WRISTSTRAP
4-1/2in.
CHARGER
RED LEDONIN_CATES
MOD£
GREENLEDONAFTERFASTCHARGING
CYCLE,INDICATESFULLYCHARGEDBATTERY
PACKAND INTRICKLECHARGEMODE.
YELLOWAND GREENLEDSON INDICATESDEEPLY
DISCHARGEDORDEFECTIVEBATTERYPACK.
Fig. 1
CHARGER
Bee _'@ufe f,
Your charger has a "key ho[e" hanging feature for convenient, space saving storage. Screws should be installed so that
center distances are 4-1/2 inches apart.
B

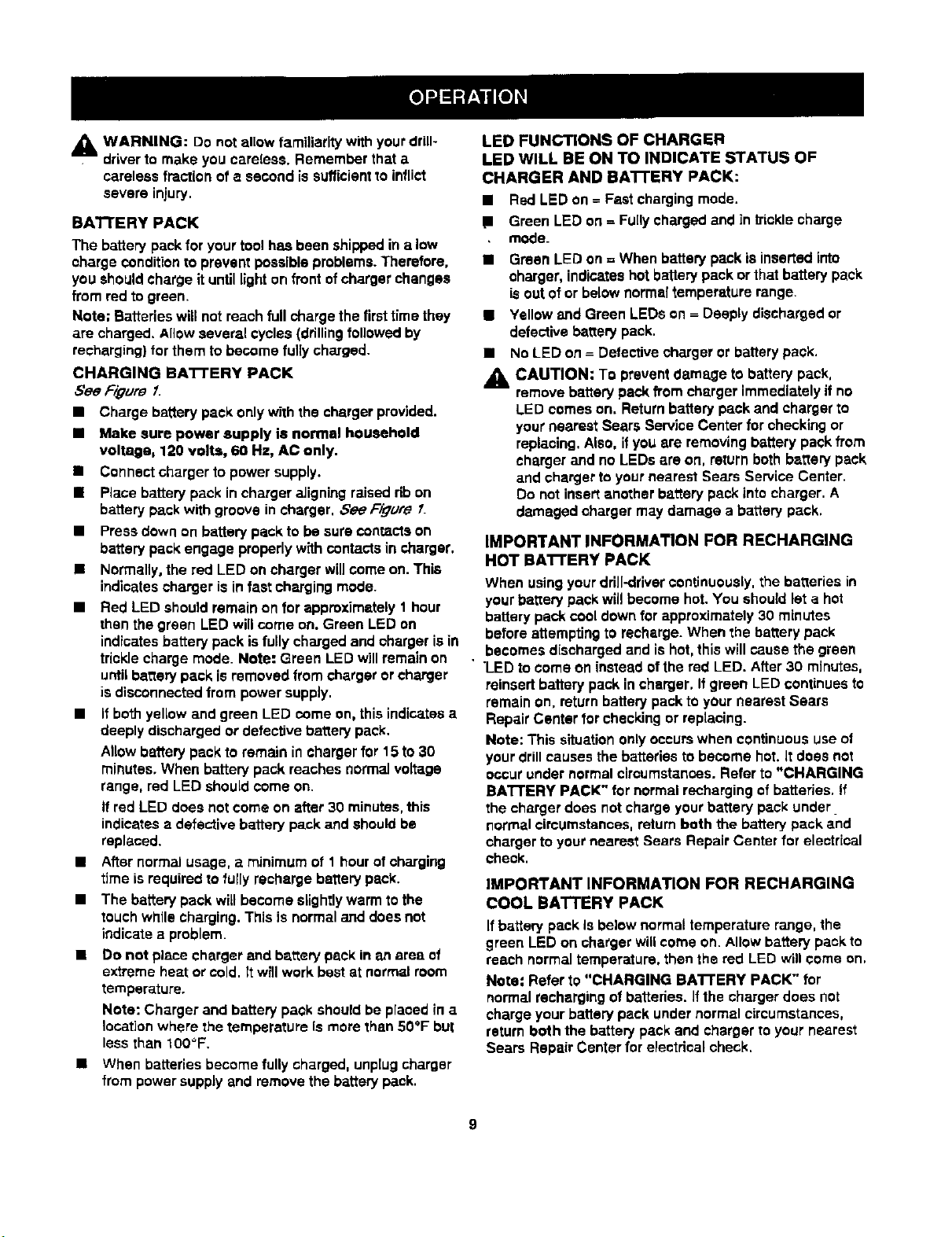

_ WARNING: DOnot allow familiaritywith yourdrill-
driverto make you careless. Remember thata
careless fractionof a secondis sufficientto inflict
severe injury,
BA'I'rERY PACK
The battery packfor yourtoolhas been shippedin a low
charge conditionto prevent possibleproblems.Therefore,
you shouldcharge ituntillighton frontofcharger changes
from redtogreen.
Note; Batterieswill not reachfullchargethe firsttimethey
are charged.Allowseveral cycles(drillingfollowedby
recharging}for them tobecome fullycharged.
CHARGING BA'I-I'ERY PACK
See F/gum [
• Charge battery packonlywiththe chargerprovided.
• Make sure power supply is normal household
voltage, 120 volts, 60 Ha, AC only,
• Connectcharger to powersupply.
• Placebatterypack in chargeraligning raisedribon
battery packwith groove in charger, See Figure.1.
• Pressdownon batterypack tobe sure €ont=qctson
batterypack engage properlywithcontacts in charger,
• Normally,the red LED on charger willcome on.This
indicatescharger isin fastcharging mode.
• Red LED shouldremainon for approximately1 hour
then the green LED willcome on. Green LED on
indicatesbattery packisfullychargedand charger isin
tricklechargemode. Note: Green LED willremainon
untilbatterypack is removedfromcharger orcharger
is disconnectedfrom powersupply,
• if bothyellowand green LED come on,thisindicatesa
deeplydischarged or detectivebatterypack.
Allowbafferypackto remain in chargerfor 15 to 30
minutes. When battery packreaches normalvoltage
range, red LED shouldcomeon.
If red LED does notcome on after30 minutes,this
indicatesa defective batterypack and should be
replaced.
• After normalusage, a minimum of 1 hourofcharging
timeis requiredto fullyrecharge batterypack.
• The batterypack willbecome slightlywarm tothe
touchwhileCharging.This is normaland does not
indicatea problem.
• Do not place chargerand battery packin alt area of
extremeheat or cold. Itwillworkbest at normalroom
temperature.
Note: Charger and batterypack shouldbe placedin a
locationwhere the temperature Is more than 50°F but
lessthan 100°F.
• When batteriesbecomefullycharged, unplugcharger
from powersupplyand removethe batterypack.
LED FUNCTIONS OF CHARGER
LED WILL BE ON TO INDICATE STATUS OF
CHARGER AND BATrERY PACK:
• Red LED on = Fast chargingmode.
1 Green LED on = Fu[lychargedand in tricklecharge
mode_
• Green LED on = When batterypack isinsertedinto
charger,indicateshot batterypackor thatbatterypack
isoutofor belownorms[temperature range.
• Yellowand Green LEDs on = Deeplydischargedor
defectivebe,ttery pack,
• No LED on = Defectivechargeror batterypack.
_1, CAUTION: To prevent damage to batterypack,
remove battery packfromcharger immediatelyifno
LED comeson. Returnbatterypack and chargerto
yournearest Sears ServiceCenter for checkingor
replacing,Also, ifyou ere removingbattery packfrom
charger and no LEDs are on, returnbothbattery pack
and chargerto yournearest Sears Service Center.
Do notinsertanother battery packintocharger. A
damagedcharger may damage a battery pack.
IMPORTANT INFORMATION FOR RECHARGING
HOT !BA'I'FERY PACK
When usingyourdrill-drivercontinuously,the batteriesin
yourbatterypackwillbecome hot.You shouldlet a hot
batterypack cooldownfor approximately30 minutes
beforeattemptingtorecharge.When the battery pack
becomes dischargedand ishot,thiswill causethe green
"LEDtocome on insteadofthe red LED. After30 minutes,
reinsertbattery packin charger,If green LED continuesto
remain on, returnbatterypackto yournearest Sears
Repair Centerfor checkingor replacing.
Note: This situationonlyoccurswhen continuoususeof
yourdrillcausesthebatteriesto become hot.it does not
occurunder normalcircumstances.Refer to "CHARGING
BATrERY PACK" for normal rechargingofbatteries, If
the chargerdoes notcharge yourbattery pack under
normalcircumstances,returnboth the batterypack and
charger toyournearest Sears Repair Centerfor electrical
check.
IMPORTANT INFORMATION FOR RECHARGING
COOL BATTERY PACK
Ifbattery packIs belownormaltemperature range, the
green LED on chargerwillcome on. Allowbattery packto
reach normaltemperature,then the red LED willcomeon,
Note: Refer to "CHARGING BATrERY PACK" for
normalrechargingof batteries.Ifthe chargerdoes not
chargeyourbatterypack under normalcircumstances,
return both the batterypackand charger to your nearest
Sears Repair Center for electricalcheck.
9
SWITCH
,FeeFigure2.
To turnyourdrillON, depressthe switchtrigger.To turnit
OFF, release the switchtrigger.
FORWARD/REVERSE
SELECTOR
VARIABLESPEED
SWITCHTRIGGER Fig. 2
VARIABLESPEED
This tool has a variable speed switch that delivers higher
speed and torque withincreasedtriggerpressure.Speed is
controlledby the amounto! switchtriggerdepression.
Note: You mighthear a whistlingor ringingnoisefrom the
switchduringuse, Do not be concerned,this isa normal
part ofthe switchfunction.
TWO-SPEED GEAR TRAIN
See Figure3.
Yourdrillhas a two-speed gear train designedfor drilling
or drivingat LO (1) or HI (2) speeds. A slldeswitchis
locatedon top ofyour drillto selecteither LO (1) or HI (2)
speed. When usingdrillin the LO (1) speed range, speed
willdecrease and unitwillhere mere power and torque.
When usingdrillin the HI (2) speed range, speed will
increaseand unitwillhave lens powerand torque. Use
LO (1) speed for high powerand torque applications and
HI (2) speed !orfast drillingor drivingapplications.
TWOSPEED LO
GEARTRAIN(HFLO) SPEED
HI
SPEED
TO INSTALL BA'I-rERY PACK
• Lockswitchtriggeron yourdrillby placingthe direction
of rotationselectorin center position.See F/#uFe5.
• Place batterypack in yourdrill,Alignraisedribon
batterypackwithgroove insidedrll{, See F3_'Ure4.
LATCHES
DEPRESSLATCHESTC
RELEASEEATrERYPACK
Fig 4
• Make sure the latches on each side of your battery
pack snap in place and battery pack is secured in drill
before beginning operation.
_ CAUTION: When placingbatterypack Jnyourdrill,
be sureraised ribon battery packalignswith groove
insidedrilland latchessnap intoplace properly.
Improperassemblyofbatterypack can cause
damage to internalcomponents.
TO REMOVE BATTERY PACK
II Lockswitchtriggeron yourddllby placingthe direction
of rotationselectorin center position. Sea Figure5.
• Locatelatcheson side of battery packand depressto
release batterypackfrom your drill See F/qure4.
• Removebat'[erypackfrom yourdrill.
10

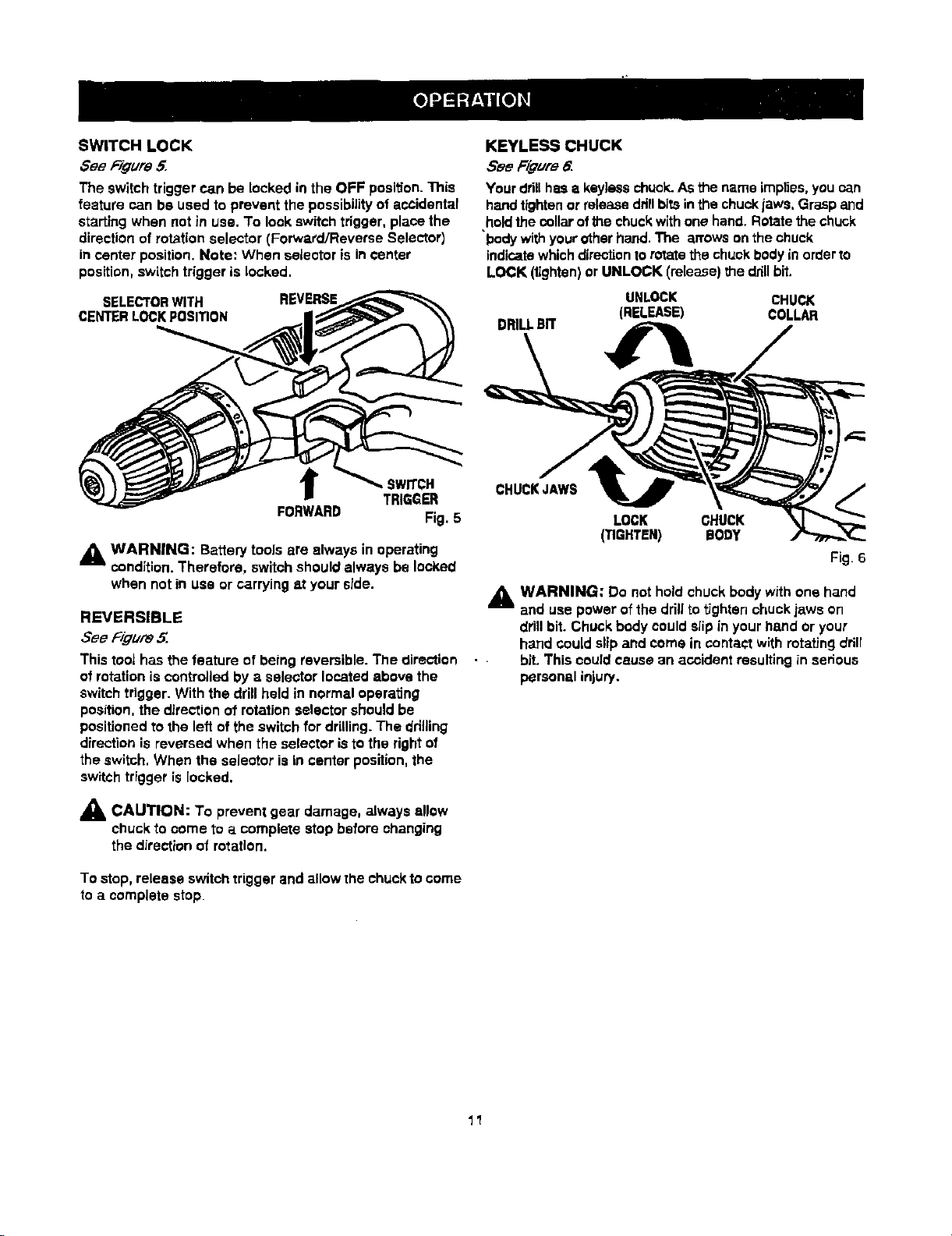

SWITCHLOCK
See Figure S.
The switchtriggercan be lockedin the OFF position.This
feature can be used toprevent the possibilityof accidental
startingwhen not in use. To lookswitchtrigger,place the
directionof rotation selector (ForWard/ReverseSelector)
in center position.Note: When selector is incentar
position,switchtriggeris locked,
SELECTORWITH
CENTERLOCK POSITION
REVERSE
KEYLESS CHUCK
See Fi#ure 6.
Yourdrillh_ a keylesschuck.ASthename implies,youcan
handtightenor releaseddllbitsinthechuckjaws, Graspand
holdthe collarofthe chuckwithone hand.Rotatethe chuck
"body withyourotherhand.The an'oweonthe chuck
indicatewhichdirectiontorotatethechuckboclyin orderto
LOCK (t_ghten)or UNLOCK (release)the drillbit,
DRILLsn"
UNLOCK CHUCK
(RELEASE) COLLAR
f . SWITCH
TRIGGER
FORWARD Fig. 5
A WARNING: Battery tools are always in operating
condition. Therefore, switch should always be locked
when not in use or carrying at your side.
REVERSIBLE
See F_gum
Thistool hasthe feature ofbeing reversible. The direction
ofrotationiscontrolledby a selectorlocatedabove the
switchtrigger. Withthe drillheld in normal operating
position,the directionofrotationselectorshouldbe
positionedto the left ofthe switchfor drilling.The drilling
directionisreversedwhen the selectoristo the rightof
theswitch,When the selectorisin center position,the
switch triggerislocked.
_l, CAUTION: To prevent gear damage, always allow
chuck to come to a complete stop before changing
the direction of rotation.
To stop,release switchtriggerand allow the chuckto come
to a completestop.
CHUCKJAWS
LOCK CHUCK
(_GHTEH) BODY
Fig.6
_ WARNING: Do not hold chuck body with one hand
and use power of the drill to tighten chuck jaws on
drillbit.Chuckbodycouldslipin yourhand or your
hand couldslipand comein contact with rotatingdrill
• bit.Thiscouldcause an accident resultinginserious
personalinjuPf.
11

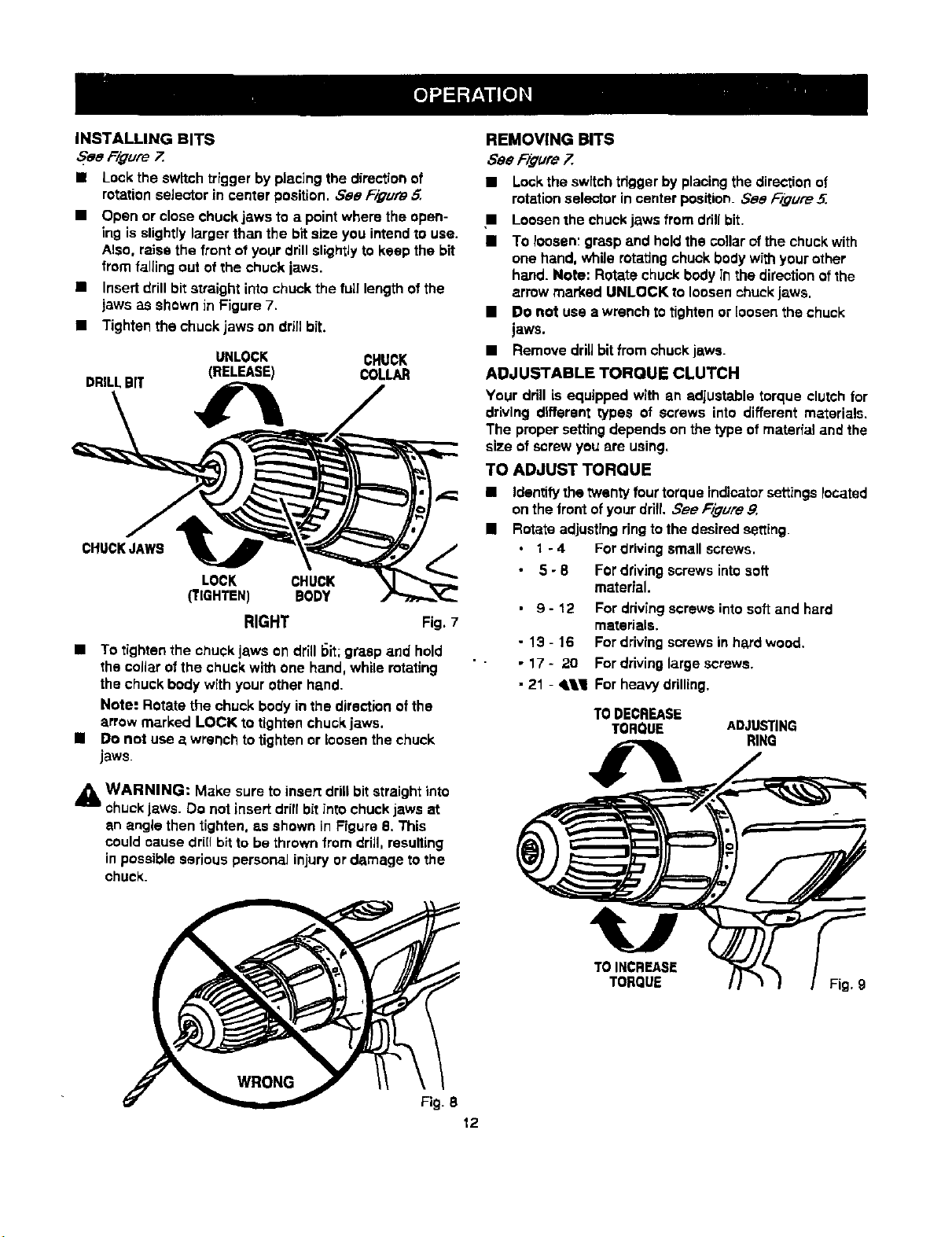

INSTALLING BITS
See Figure 7.
B Looktheswitch triggerbyplacingthe directionof
rotationselectorin center position.See F_um 5,
• Open or close chuckjaws to a pointwhere the open-
ing isslightlylargerthan the bit size you intendto use.
Also, raise the front ofyour drillslightlyto keep the bit
from falling out of the chuckjaws.
• Insertdrillbit straightintochuckthe fulllengthofthe
jaws as shownin Figure7.
• Tightenthe chuckjaws on drillbit.
DRILLBIT
UNLOCK CHUCK
(RELEASE) COLLAR
CHUCKJAW$
LOCK
(TIGHTEN)
CHUCK
BODY
RIGHT Fig. 7
• TOtighten the chuckjaws on drillbit;grasp and hold
the collarofthe chuckwith one hand, whilerotating
the chuckbodywith your otherhand.
Note: Rotatethe chuck bodyin the directionofthe
arrowmarked LOCK to t_ghfenchuckjaws.
• Do not use a wrench totightenor loosen thechuck
jaws.
WARNING: Make sure to insert drill bit straight into
chuck jaws. Do not insert drill bR into chuck jaws at
an angle then tighten, as shown in Figure 8. This
could cause dri[I bit to be thrown from ddll, resulting
in possible serious personal injury or damage to the
chuck.
Fig. 8
12
REMOVING BITS
See Fi#ure 7.
• Lockthe switchtdggerby placingthedirection of
rotationselectorincenter position.See Figure5.
• Loosenthe chuckjawsfrom drill bit.
• To loosen:graspand holdthe collarofthe chuckwith
one hand, whilerotatingchuckbodywithyourother
hand. Note: Rotatechuckbodyin thedirectionofthe
arrow marked UNLOCK to loosenchuckjaws.
• Do not use a wrenchtotightenor loosen thechuck
jaws.
• Removedrillbit from chuckjaws.
ADJUSTABLE TORQUE CLUTCH
Your drill is equipped with en adjustable torque clutch for
driving different types of screws into different materials.
The proper seffing depends on the type of materhd and the
size of screw you are using.
TO ADJUST TORQUE
Identifythe twentyfourtorque indicatorsettingslocated
on thefront ofyourdrill.See Figure9,
Rotateadjustingringtothe desiredsetting.
• 1 - 4 Fordrivingsmallscrews.
5 - 8 Fordrivingscrewsintosoft
material.
• 9 - 12 Fordrivingscrewsintosoftand herd
materials.
- 13 - 16 Fordrivingscrewsinhardwood.
• 17 - 20 Fordriving largescrews.
• 21 - 411 For heavy drilling.
TODECREASE
TOROUE ADJUSTING
RING
TO INCREASE
TORQUE Fig. 9
BIT STORAGE
Bee Figure 10.
When not in use, bits provided with yourdrillcan be
placed inthe storagearea located on the bottomofyour
drillas shownin Figure10.
SCREWDRIVER
BIT
LEVEL
B!
STORAGEAREA Fig. I0
,_, WARNING: Alwayswear safetygogglesor safety
glasseswith side shieldswhen operatingt_ols.
Failuretodo Socould resultin objectsbeingthrown
intoyoureyes, resultingin possibleseriousinjury.
LEVEL
See Figure77.
A convenient feature provided with yourdrillis a level. It
is recessed inthe motorhousingon top and end of your
drill. Itcan be used to keep drillbit level duringdrilling
operations.
Fig. 12
When ddllinghardsmoothsurfaces use a centerpunchto
mark desired holelocation.This willpreventthe drillhit
• .fromslippingoffcenter as the hole isstarted.However,
the low speed feature allowsstartingholeswithoutcenter
punchingifdesired. To accomplishthis.simplyoperate
yourddll at a low speed untilthe hole isstarted.
The materialto be drilledshouldbe securedin a vise or
with clampsto keep itfrom turning as the drillbit rotates.
Hold tool firmlyand placethe bit at the point to bedrilled.
Depress the switchtrigger to starttool.
Move the drillbit intothe workpiece applyingonlyenough
pressureto keep the bit cutting.Do notforce or applyside
pressureto elongate a ho]e.
A WARNING: Be prepared for binding or bit
breakthrough. When these situations occur, drill has
a tendency to grab and kick opposite to the direction
of rotation and could cause loss of control when
breaking through material. It not prepared, this loss
of control can result in possible sedous injury.
When drillingmetals, usea lightolion the drillbitto keep
itfrom overheating.The oil willprolongthe Jifeofthe bit
and increasethe drillingaction.
Ifthe bitjams in workpieceor ifthe drillstalls,release
switchtrigger immediately.Remove the bitfrom the
work.pieceand determine the reasonfor jamming.
Fig. 11
13

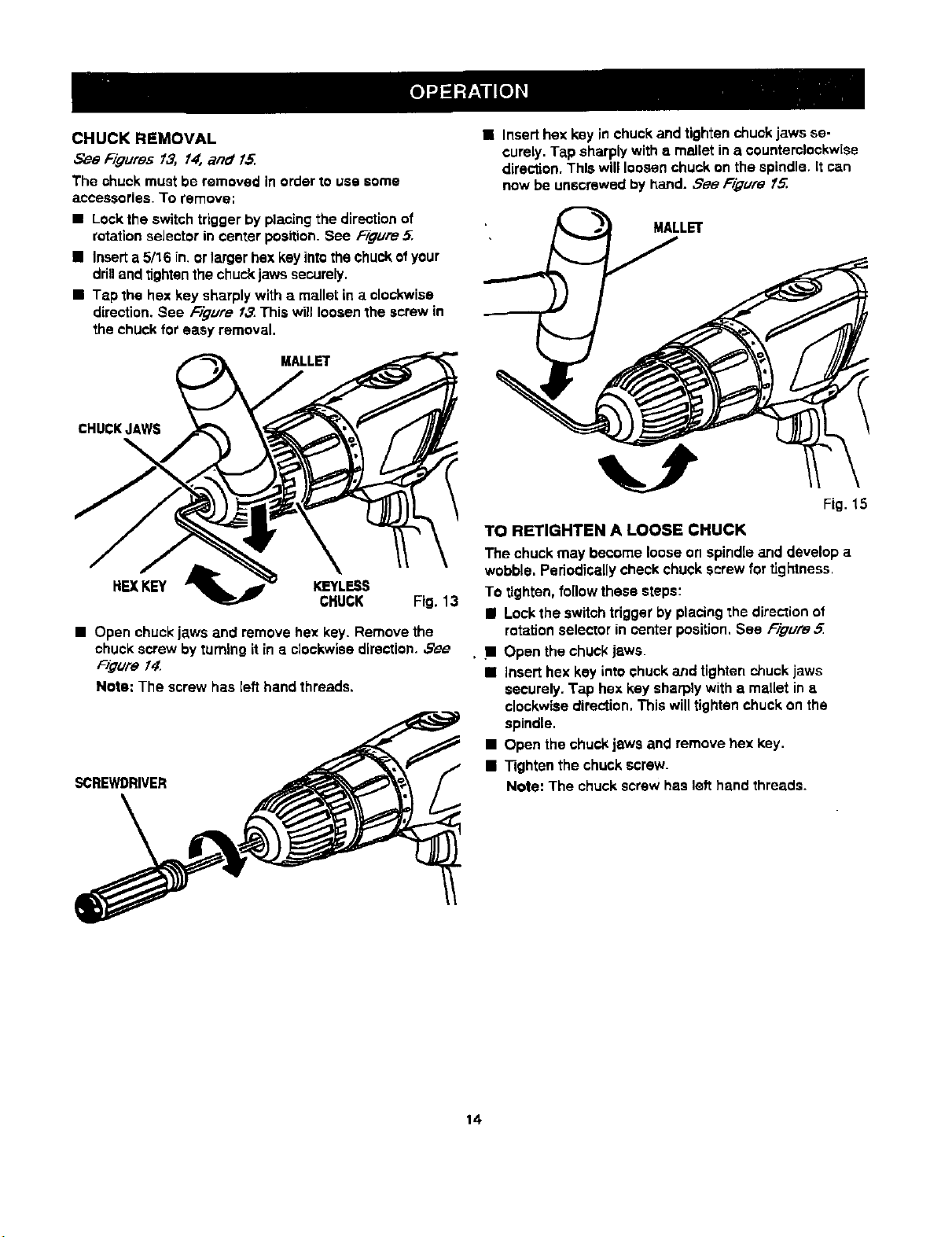

CHUCK REMOVAL
See Figures 13, 1#, and 15.
The chuck must be removed in order to use some
accessories. To remove:
• Lock the switch trigger by placing the direction of
rotation seJector in center position. See FTgure ..5..
• Insert a 5/16 in. or larger hex key into the chuck of your
dnnand tighten the chuck jaws securely.
• Tap the hex key sharply with a mallet in a clockwise
direction. See Figure 13. This wgl loosen the screw in
the chuck for easy removal.
•ALLET
CHUCKJAW$
REXKEY KEYLESS
CHUCK Fig. 13
• Openchuckjaws and remove hex key. Remove the
chuckscrew byturningit in e clockwisedirection.,5'ee
FigureI_[
Note: The screw has lefthandthreads,
SCREWDRIVER
• Insert hex key in chuck and tighten chuck jaws se-
curely. Tap sharply with e mallet in a counterclockwise
direction. This will loosen chuck on the spindle. It can
now be unscrewed by hand. See Figure f_
MALLET
Fig. 15
TO RETIGHTEN A LOOSE CHUCK
The chuck may become loose on spindle and develop a
wobble. Periodically check chuck screw for tightness,
To tighten, follow these steps:
II Lock the switch tdgger by placing the direction of
rotation selector in center position. See Figure 5
. .11 Open the chuck jaws.
• Insert hex key into chuck and tighten chuck jaws
securely. Tap hex key sharply with a maUet in a
clockwise direction. This will tighten chuck on the
spindle.
• Open the chuck jaws and remove hex key.
• Tighten the chuck screw.
Note: The chuck screw has left hand threads.
14

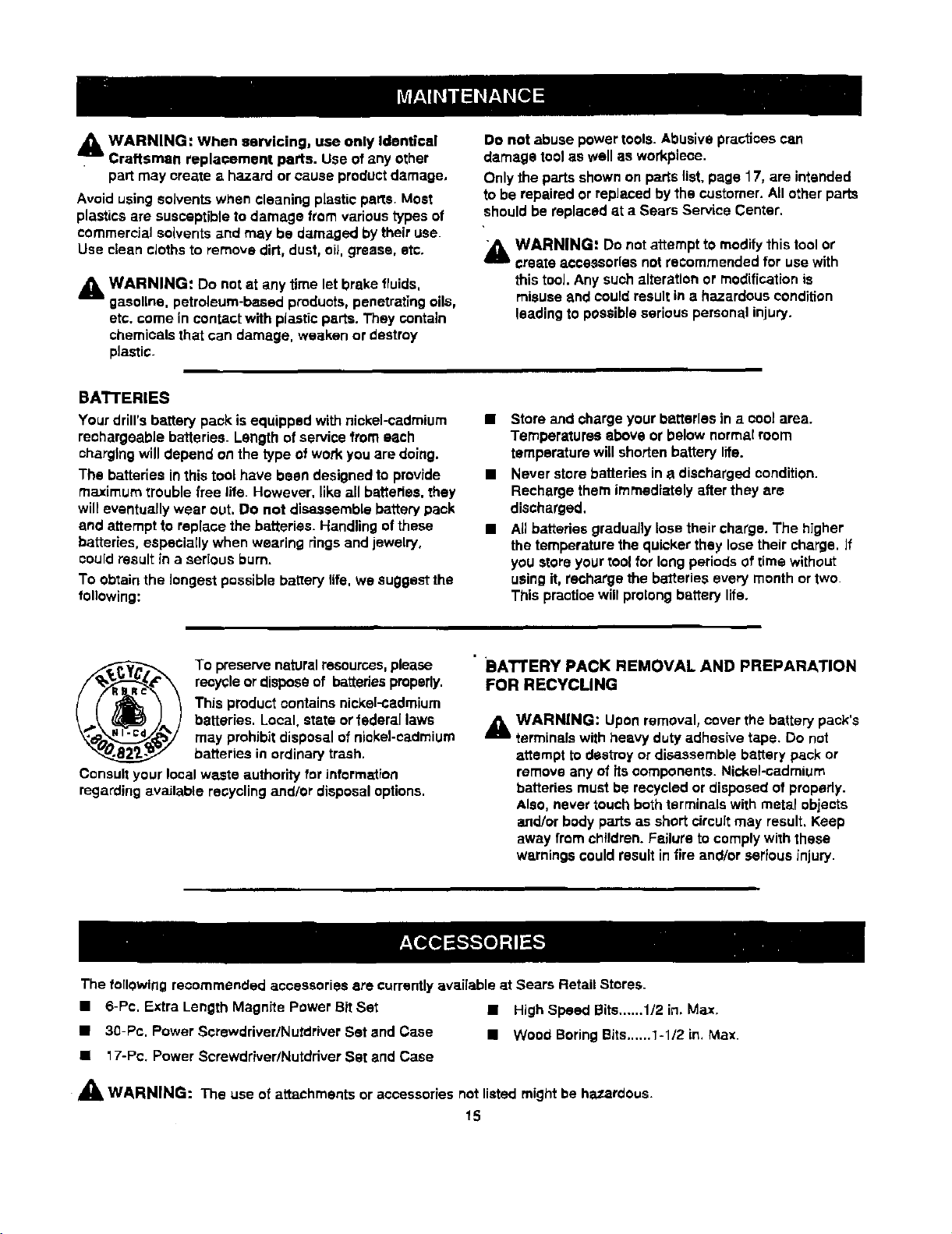

WARNING: When servicing, use only Identical
Craftsman replacement parts. Use of any other
part may create a hazard or cause productdamage.
Avoid using solvents when cleaning pJastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their usa.
Use clean cloths to remove dirt, dust, eli, grease, etc.
A WARNING: Do not at any time let brake fluids,
gasoline, petroleum-based products, penetrating oils,
etc. come in contact with plastic parts. They contain
chemicals that can damage, weaken or destroy
plastic.
Do not abuse power tools. Abusive prances can
damage tool as well as workplace.
Only the parts shown on parts list. page 17, are intended
to be repaired or replaced by the customer. All other parts
should be replaced at a Sears Service Center,
_ WARNING: Do not attemptto modify this toolor
create accessories not recommended for use with
this tool Any suchalterationor modificationis
misuseand couldresultin a hazardouscondition
leadingto possibleseriouspersonalinjury.
BATTERIES
Your drill's battery pack is equipped with nickel-cadmium
rechargeable batteries. Length of service from each
charging will depend on the type of work you are doing.
The batteries in this tool have been designed to provide
maximum trouble free life. However, like all batteries, they
will eventually wear out. Do not disassemble battery pack
and attempt to replace the batteries. Handling of these
batteries, especially when wearing rings and jewelry,
could result in a serious bum.
To obtain the Jongest possible battery life, we suggest the
following:
• Store and chargeyourbatteriesin a coolarea.
Temperaturesabove or belownorma[room
temperaturewill shortenbattery life.
• Never store batteriesin a dischargedcondition.
Recharge themimmediatelyafterthey are
discharged,
• All batteriesgradually lose theirchar'ge.The higher
the temperaturethe quickerthey lose theircharge, if
you store yourtoolfor long periodsof timewithout
usingit, rechargethe batteriesevery monthortwo.
This practicewillprolongbatterylife.
To preservenaturalresources, please
recycleor disposeof batteriesproperly.
This productcontainsnickel-cadmium
batteries. Local, stateor federal laws
may prohibitdisposalofnickel-cadmium
batteries in ordinarytrash.
Consultyourlocalwaste authorityfor information
regardingavailable recyclingand/or disposaloptions.
• BATTERY PACK REMOVAL AND PREPARATION
FOR RECYCLING
A
WARNING: Upon removal, cover the battery pack's
terminals with heavy duty adhesive tape. De not
attempt to destroy or disassemble battery pack or
remove any of ifs components. Nickel-cadmium
batteries must be recycled or disposed of propody.
Also. never touch both terminals with metal objects
and/or body parts as short circuit may result. Keep
away from children. Failure to comply with these
warnings could result in fire and/or serious injury.
The following recommended accessories are currently available at Sears Retail Stores.
• 6-Pc. Extra Length Magnite Power Bit Set • High Speed Bits......t/2 in. Max.
• 30-Pc. Power Screwdriver/Nutdriver Set and Case • Wood Boring Bits.....t-1/2 in. Max.
• 17-Pc. Power Screwdr'iver/Nutdriver Set and Case
_ WARNING: The use of attachmentsor accessoriesnotlistedmightbehazardous.
15
i
I
I .
I I II
16
CRAFTSMAN 1/2 In., 18 VOLT CORDLESS DRILL-DRIVER - MODEL NO. 315.113340
The model number will be found on a plate attached tothe motor housing. Always mention the model number |
in all correspondence regarding your 1/2 in., 18 VOLT CORDLESS DRILL-DRIVER or when ordering repair
I
parts.
SEE BACK PAGE FOR PARTS ORDERING INSTRUCTIONS
2
4
3
Key Pert
No. Number
1 975379-000
2 6903323
3 "Item No. 9 11045
4 *Item No._ 11041
5 3064302
972000-962
PARTS LIST
Description Ouan.
Screw (Special) ...................................................................... 1
Chuck ..................................................................................... 1
Battery Pack (1323502) ......................................................... 1
Charger (1425301) ................................................................. !
Carrying Case - Not Shown .................................................. 1
Operator's Manual
* Can Be Purchased Thru RSOS (Retail Special Order System)
b, J
17

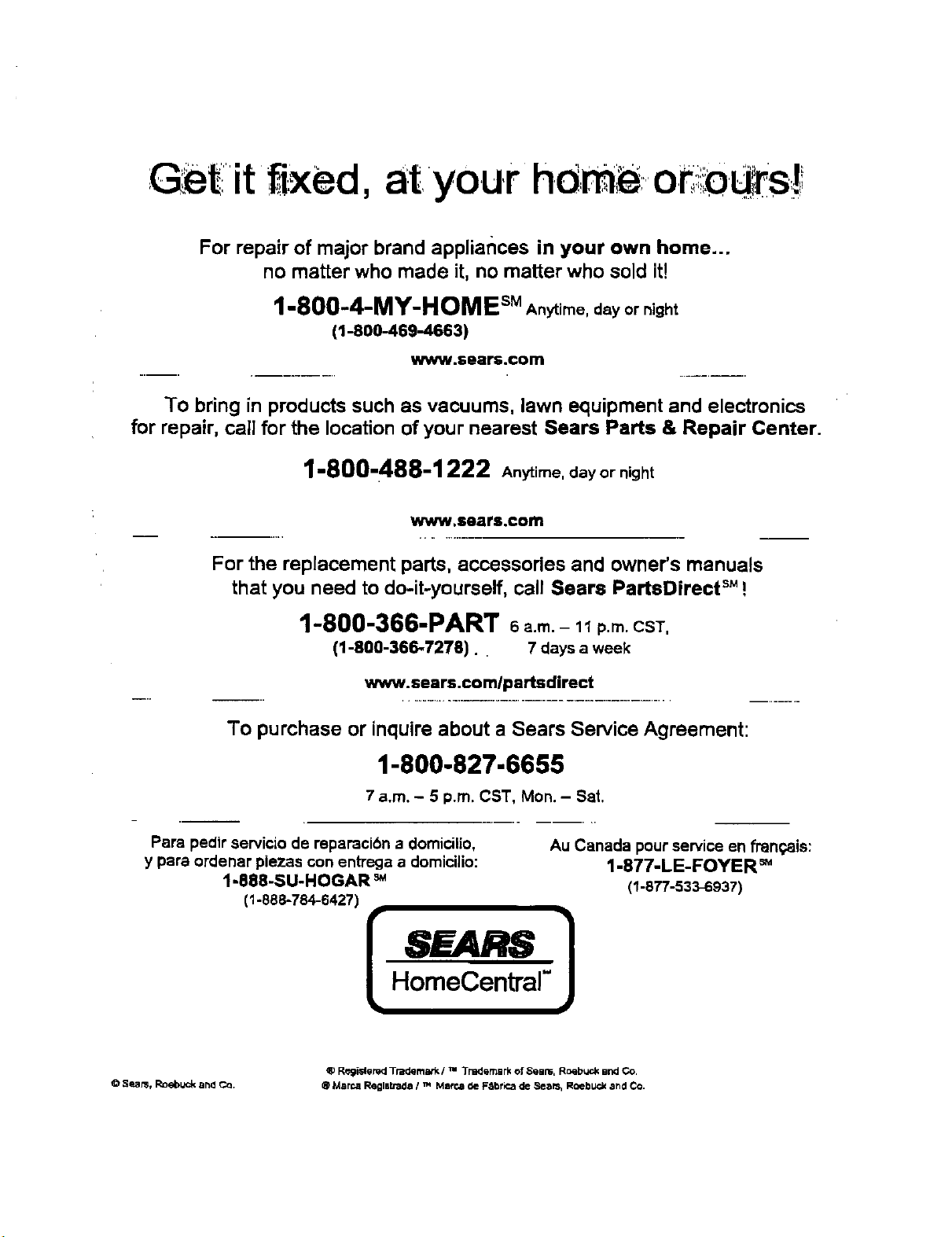

G:et it at, ur , ,,,
For repair of major brand appliarlces in your own home...
no matter who made it, no matter who sold it!
1-800-4-MY-HOM EsMAnytime,dayornight
(1-800469.-4663)
WW_N.seRrs.COITI
To bring in products such as vacuums, lawn equipment and electronics
for repair, call for the location of your nearest Sears Parts & Repair Center.
1-800-488-1222 Anytime, dayor night
www.sears.com
For the replacement parts, accessories and owner's manuals
that you need to do-it-yourself, call Sears PartsDirect sM!
1-800-366-PART 6am- 11pmCST
(1-800-366-7278). 7 days a week
www.sears.com/partsdirect
To purchase or inquire about a Sears Service Agreement:
1-800-827-6655
7 a.m. - 5 p.m. CST, Mon. - Sat.
Para pedir servicio de reparacibn a domicilio,
y para ordenar plazas con entrega a domicilio:
1-888-SU-HOGAR _
(1-888-784-6427)
Au Canada pour service en franr.,ais:
1-877-LE-FOYER ='
(1-877-533q5937)
HomeCentrar J
_ Rv'_i_4e red Trademark / "J'radernirk of Sean_, Roebuck and Co.
© Sears, Roebuck and C,Q. ® Mama Reglsb=0e I TM Ma_.al _e F_lbriCa dc _1_, ROebUCk and CO.
