ELECTRIC TOWER PTC HEATER
USER MANUAL
4003094
Model
：
EHT180
PLEASE SAVE THESE INSTRUCTIONS
WARNING: READ THIS USER MANUAL CAREFULLY BEFORE USE.
CONTENTS
IMPORTANT INSTRUCTIONS------- ------------------------------------
PACKAGE LIST-------------------------------------------------------------
SPECIFICATIONS----------------------------------------------------------
SAFETY FEATURES--------------------------------------------------------
PRODUCT DIAGRAM------------------------------------------------------
CONTROL PANEL----------------------------------------------------------
MAINTENANCE-----------------------------------------------------------
STORAGE------------------------------------------------------------------

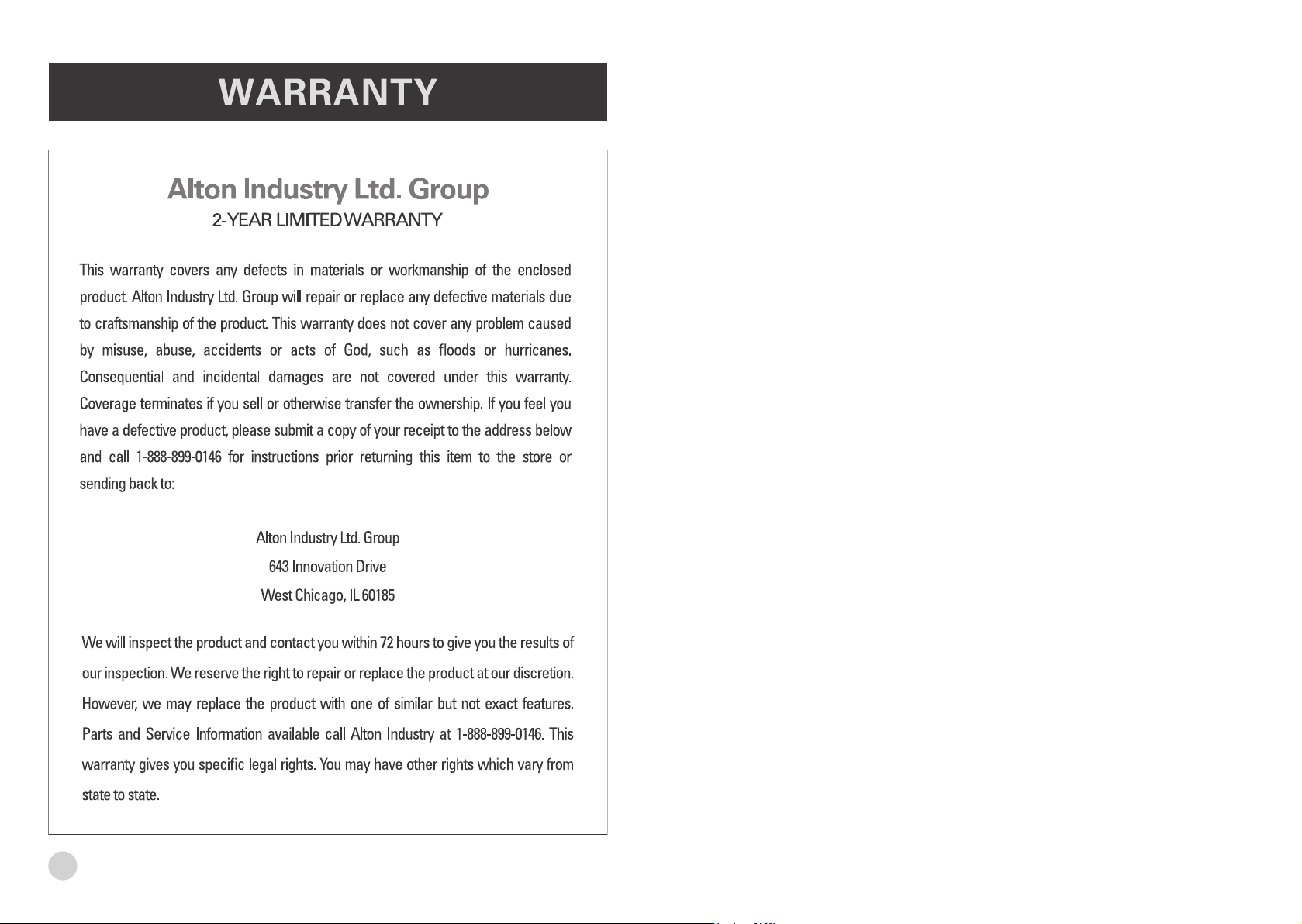

WARRANTY----------------------------------------------------------------
02
03
03
04
05
06
07
07
08
02
03
Thank you for choosing out PTC Heater System. This user manual will provide you
with valuable information necessary for the proper care and maintenance of your
new product. Please take a few moments to thoroughly read the instructions and
familiarize yourself with all the operational aspects of your new heater.
When using this electric unit, basic safety precautions should always be
followed to reduce the risk of fire, electric shock, and injury to persons,
including the following:
1.
16.
17.
18.
19.
20.
21.
22.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
Read ALL instructions before using this unit.
Always unplug the unit before moving or cleaning, or whenever the heater is not in use.
Use only for intended household use as described in this manual. Any other use not recom-
mended by the manufacturer may cause fire, electric shock, or injury to persons. The use of
attachments not recommended or sold by unauthorized dealers may cause hazards.
Always use on a dry, level surface. Use on floor only.
DO NOT use outdoors.
WARNING: To reduce the risk of fire or electric shock, DO NOT use this unit with any sol-
id-state speed control device.
DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing
so will void your warranty. The inside of the unit contains no user serviceable parts. Quali-
fied personnel should perform all servicing only.
TOWER PTC HEATER X1
USER MANUAL X1
WARRANTY CARD X1
Save these instructions.
CAUTION: Risk of Electric Shock. DO NOT open or try to repair the heater yourself.
This heater may get hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces.
If provided, use handles when moving this heater.
Keep combustible materials, such as furniture, pillows, bedding, paper, clothes, and curtains at
least 3 ft from the front of the heater and keep them away from the sides, top, and rear. DO NOT
place towels or other objects on the heater.
Extreme caution is necessary when any heater is used by or near children or the disabled, or
when the heater is left operating and unattended.
DO NOT operate any heater with a damaged cord or after the heater malfunctions, has been
dropped or damaged in any manner. Return heater to authorized service facility for examination,
electrical or mechanical adjustment, or repair.
This heater is not intended for use in bathrooms, laundry areas and similar indoor locations.
NEVER locate heater where it may fall into a bathtub or other water container. To protect
against electrical hazards, DO NOT immerse in water or other liquids.
DO NOT touch the control panel or plug with a wet hand.
DO NOT run cord under carpeting. DO NOT cover cord with throw rugs, runners, or similar
coverings. Arrange cord away from traffic area and where it will not be tripped over.
DO NOT insert or allow foreign objects to enter any ventilation or exhaust opening as this
may cause an electric shock or fire, or damage the heater.
To prevent a possible fire, DO NOT block the air intakes or exhaust in any manner. DO NOT
use on soft surfaces, like a bed, where openings may become blocked.
A heater has hot and arcing or sparking parts inside. DO NOT use in areas where gasoline, paint,
explosive and/or flammable liquids are used or stored. Keep unit away from heated surfaces and
open flames.
Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or
relocatable power tap(outlet/power strip).
To avoid fire or shock hazard, plug the unit directly into a 120 V AC electrical outlet
To disconnect heater, turn controls to OFF, then remove plug from outlet. Pull firmly on the plug, DO
NOT unplug by pulling on the cord.
IMPORTANT INSTRUCTIONS
SPECIFICATIONS
PACKAGE LIST
Voltage Rating 120 V (60Hz)
Power Consumption 1500W
Unit Size 17.40x15.80x47.60cm
Unit Weight 1.74kgs
04
05
Tip-Over Safety Feature
Overheat Safety Feature
This heater is equipped with a tip-over safety feature. Once the heater is tipped over, an internal
switch will automatically shut the heater off. Once the heater is restored an upright position, the
heater will reset. To continue operation, turn on the heater using the supplied remote control or the
control panel on the heater.
This heater is equipped with a overheat safety feature. When the heaters internal components reach a
certain temperature that could cause overheat and possible fire, the heater will automatically shut off.
Power Cord
SAFETY FEATURES
PRODUCT DIAGRAM
WARNING:
It is normal for the power cord to feel warm to the touch; however, a loose fit between the outlet and
the plug may cause overheating of the plug. If this occurs, try inserting the plug into a different outlet.
Contact a qualified electrician to inspect the original outlet for damage.
Shift knob
Temperature control knob
Panel
AIROUT GRILL
FRONT HOUSING
OSC BASE
After the shell
AIR IN GRILL
06
07
CONTROL PANEL
Power indicator light
temperature control power control Rotation control
-
+
0
II
I
0
II
OS C
I
DO NOT COVER
Instruction for Use
1.
1.
1.
2.
2.
2.
3.
3.
4.
4.
7.
5.
5.
6.
Plug in the heater;
Turn off the power switch in the rear of the unit.
Check if the power cord is plugged into an electrical outlet, if not, plug in.
Adjust the thermostat dial clockwise to the maximum grade;
Unplug the unit and let it cool completely.
Check if electricity to the main power switch (in the back) is working.
For the heater to function properly, the desired temperature on the heater must be set a few de-
grees higher than the temperature in the room. If the seems to not be heating, increase the desired
temperature on the heater to engage the heat elements.
When the grade dial is adjusted to the desired grade, the heater will function automatically
according to the setting.
To keep the heater clean, the outer shell may be cleaned with a soft, damp cloth. You may
use a mild detergent if necessary. After cleaning, dry the unit with a soft cloth. CAUTION:
DO NOT let liquid enter the heater.
To turn on the rotation function, select the place of rotation on the control panel.
DO NOT use alcohol, gasoline, abrasive powders, furniture polish, or rough brushes to
clean the heater. This may cause damage or deterioration to the surface of the heater.
If you do not use the heater for a long time, please take out the remote batteries (to prevent
corrosion ) as shown below. Store the remote in a safe place.
To turn off the heater, adjust the grade dial to 0 position and the thermostat dial to - position,
then pull the plug out.
DO NOT immerse the heater in water.
Wait until the unit is completely dry before use.
MAINTENANCE
STORAGE
If the heater will not operate, please check the following before
seeking repair advice:
NOTE:
08
