EMPV-WIT373
1
1.Before unpack the unit,please inspect the carton carefully for any
damage.any damage,please take a picture or record all admage
carefully.if necessary,contact your dealer/distributor immediately. to
file a freight claim.
2.Unpack the carton,then inspect thr carton carefully for any damage
and check if all the spare parts are there .if there is any damage,please
take a picture or record all it carefully .if necessary,contact your
dealer/distributor immediately.
3.Water test before installation .although all our walk-in tub are water
tested before they leave our factory,there may be some loose of the
hose connections due to the transport.
(1)Place the tub on a flat surface in an area where it may be drained
after testing.
(2)Check if there is any loose of the connection system.
(3)Close the door,fill the tub with water to the overflow and allow
standing for a few minutes to inspect the tub for leaks.
(4)Insert the plug,start all the function for few minutes(which
includes the functions of massage,air bubble,underwater light, ozone
sterilization,aroma and so on.)inspect the tub completely any defect
must be reported to your dealer /distributor prior to installation in order
to have it covered under warrant.
TESTING YOUR WALK-IN TUB BEFORE INSTALLATION
BY FOLLOWING PROCEDURES
IMPORTANT:Failure to follow the pre-installation instruction
and water test the bathtub before installation,
manufacturer will not be liable for the removal
or installation of the bathtub.
1.
2
Filter
screen
3

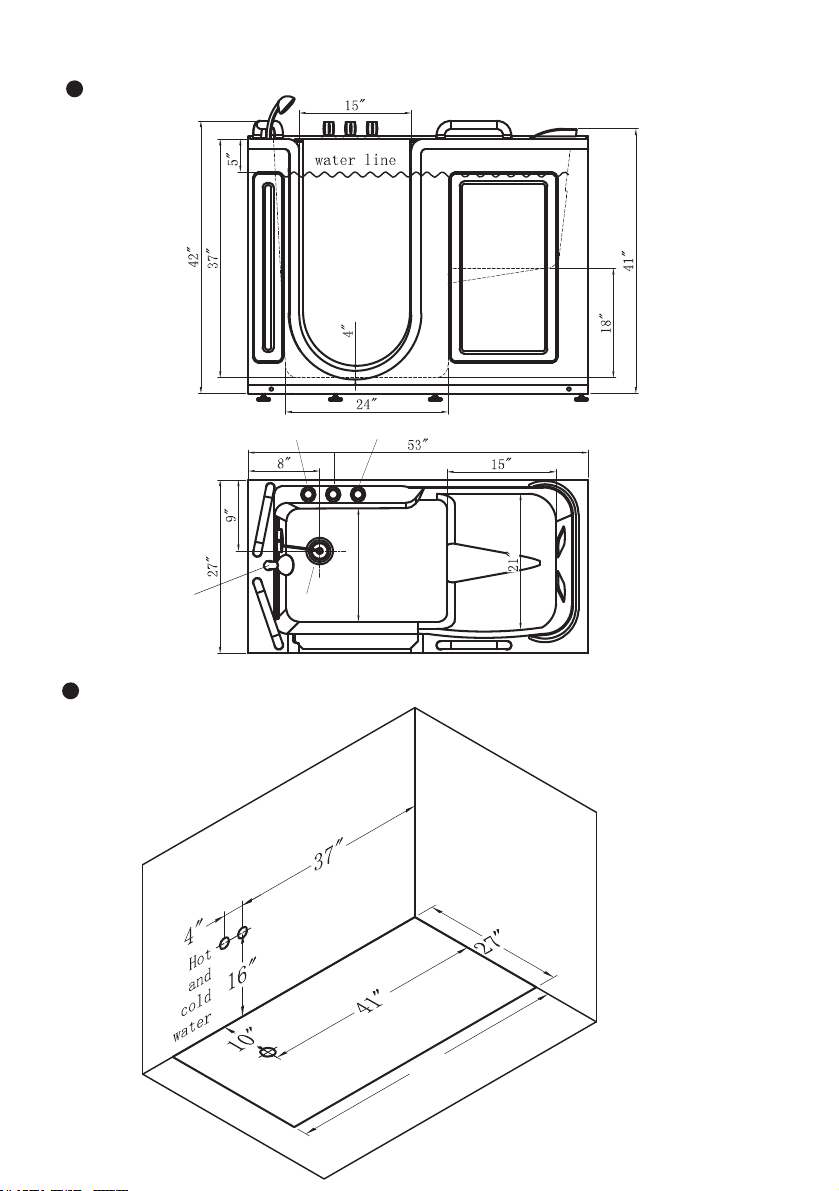

Size chart
Water and electricity installation drawing
1
8
″
shower head
drainer
transferable switch
hot water
cold water
T
h
e
d r a
i
n
≥2
. 3 6
″
5 3
″
4
12.This unit must be connected to a circuit that is protected by a Ground Fault Circuit
Interrupter(GFCI).The GFCI should be provided and installed by a licensed
electrician and tested on a regular basis (at least monthly).To test the GFCI push the
test button.TheGFCI should interrupt the power.Push the reset botton and the power
should be restored.if the GFCI fails to operate in this manner there is a possibility of
an electric shock ,do not operate this unit.disconnect the unit and have the problem
corrected by a licensed electrician before using.
CAUTION:DO NOT USE HARSH ABRASIVES OR SOLVENTS TO
CLEAN THIS PRODUCT.
SAVE THESE INSTRUCTIONS
Notice:
1.the water tight system is well design and professional.
you do not need to press door handle downward with so much
strength,so that you can lift up the door easily when you open the door.
Door lock:
Inward opening door lock
steps to close the door
close the door,press the door handle downward
steps to open the door
Lift up the handle,open the door
5
Switch marked with "H" is hot water switch;
Switch marked with "C" is cold water switch;
Switch marked with icons is transferable
switch which can be rotated to waterfall or
sprinkling style.
H
C
1.Three-piece set faucet
Rotate the cover clockwise to close the drain.
Rotate the cover anticlockwise to open the drain.
When the water is over the maximum water level,the
excess water will be drained by overflow.
Notice:
when the overflow cover is faulty or it is hard to
rotate,please upward the chain to draining the water
by hand.
6.Drainage
Open
Close
2
Rotate the shower head shell can adjust
the water pattern as follow:
-inner water column
-middle water column
-external water column
6
SYMPTOMS PROBLEMS SOLUTIONS
Door leaks
slightly
1.Door lock is not closed
tightly;
2.There is some debris on the
door seal.
1.Close the door lock
tightly;
2.Clean the debris on
door seal.
Water hose
leaks
1.Rubber ring is not good;
2.Screw nut is not tightened,
the connection is not good;
1.Change a new rubber
ring;
2.Tighten screw nut
and make sure its
connection is good.
7
