BEFORE YOU BEGIN
Read these instructions compLeteLy and c&re_[]yo
IM PO RTANT -Savethese
instructions for local inspector's use.
IMPORTANT -Ohservea.
governing codes and ordinances.
Note to Installer - Be sure to leave these instructions with
the customer.
Note to Customer Keep these instructions with your Use
and Care Book fbr flmlre refi_rence.
This dryer must be exhausted to the outdoors.
Before the old dryer is removed from service or discarded,
remove the dryer door.
Service Information and the wiring diagram are located in
the control console.
Do not allow children on or in the appliance. Close
supervision of chiklren is necessary when the appliance is
used near chiklren.
TOOLS YOU WILL NEED
10"ADJUSTABLEWRENCHES{2)
SLIPJOINTPLIERS
FLATBLADESCREWDRIVER
8"PIPEWRENDHE
%
LEVEL
FOR YOUR SAFETY:
A
, Use only rigid metal or flexible metal 4-in. diameter
ductwork for exhausting to the outdoors. Never use
plastic or other combustible easy-to-puncture ductwork.
* This appliance must be properly grounded and installed
as described in these instructions.
" Do not install or store appliance in an area where it
will be exposed to water and/or weather.
, The National Fuel Gas Code restricts installations of
gas appliances in garages. They must be 18 in. off the
ground and protected by a barrier from vehicles.
, Install the dryer where the temperature is above ,50°F
for satisfhctory operation of the dryer control system.
MATERIALS YOU WILL NEED
%
4"DIA.METALELBOW
PIPECOMPOUND
FLEXIBLEGASLINECONNECTOR
4"DIA,METALDUCT DUCT
(RECOMMENDED) CLAMPS{2)
4"DIA.FLEXIBLEMETALDUCT
(IFNEEDED)
GLOVES
SOAPSOLUTION
FORLEAKDETECTION
EXHAUSTHOOD
SAFETYGLASSES DUCTTAPE
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
Step 7
VerifY/Your Gas Installation (see section 2).

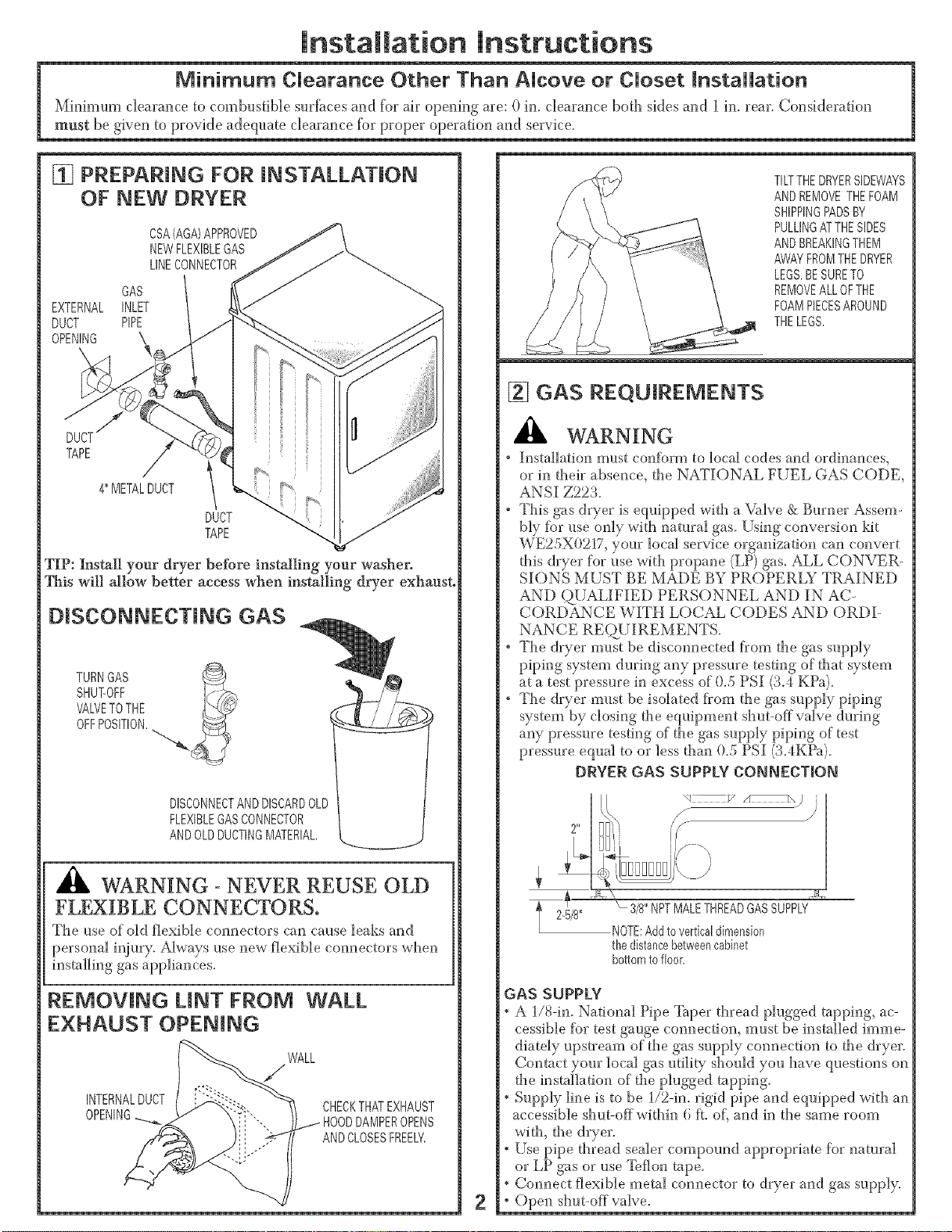

Prepare the Area and Exhaust for Installation of
New Dryer (see section 1).
Check and Insure the Existing External Exhaust is
Clean (see section 1) and Meets Attached Installation
Specifications.(see section 6)
Remove the Foam Shipping Pads (see section 1).
Move the Dryer to the Desired Location.
Level _)ur Dryer (see section 8).

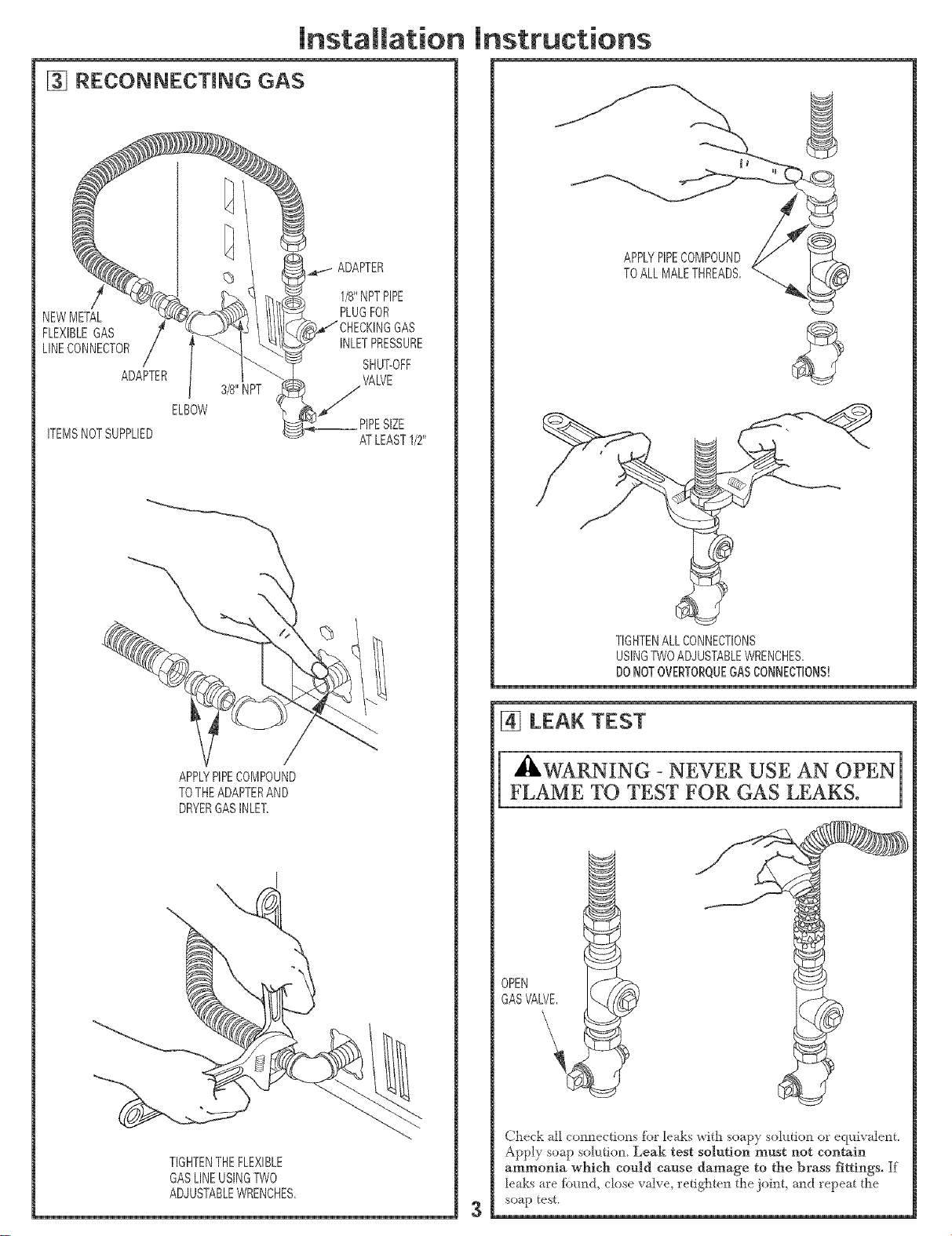

Connect the Gas Supply (see section 3) and check
fbr leaks (see section 4).

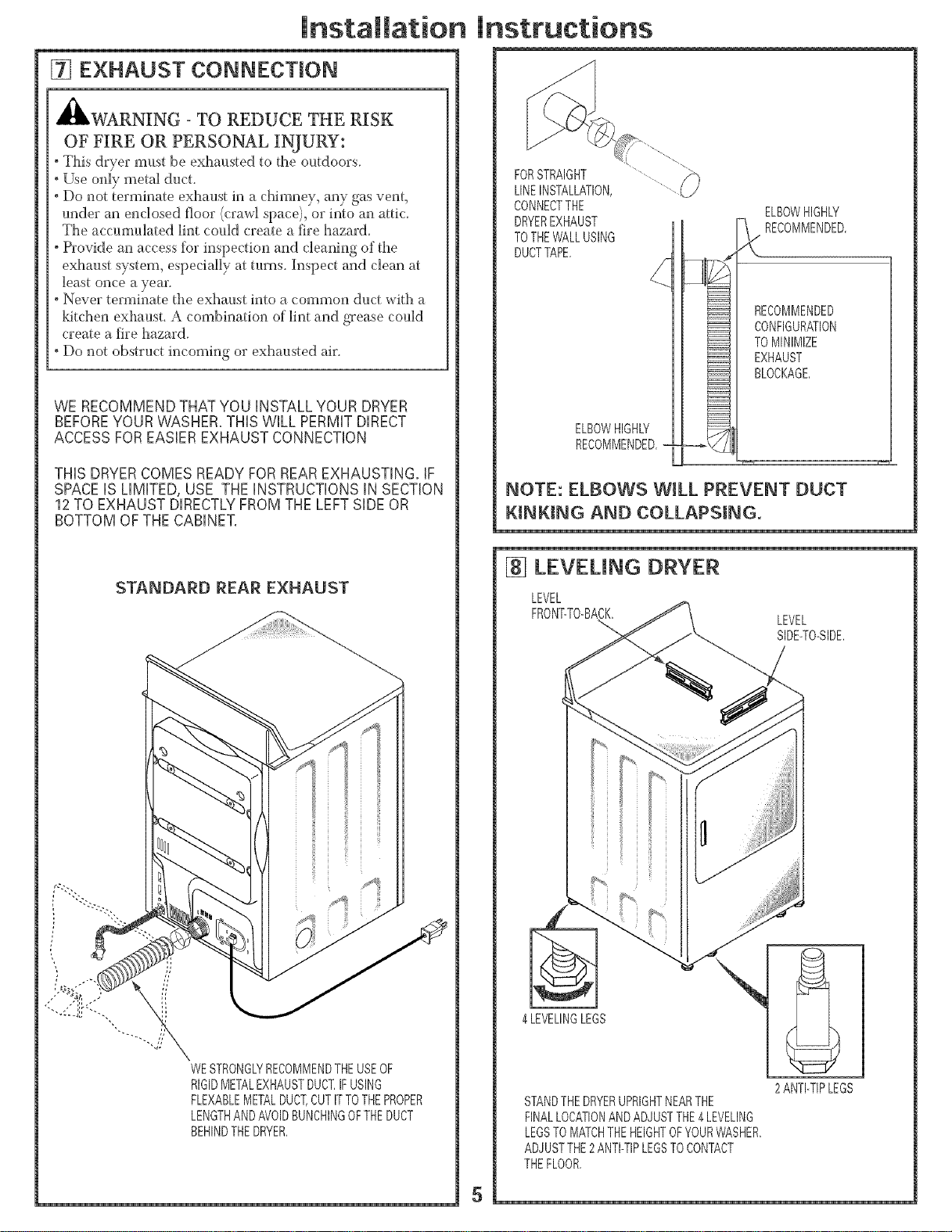

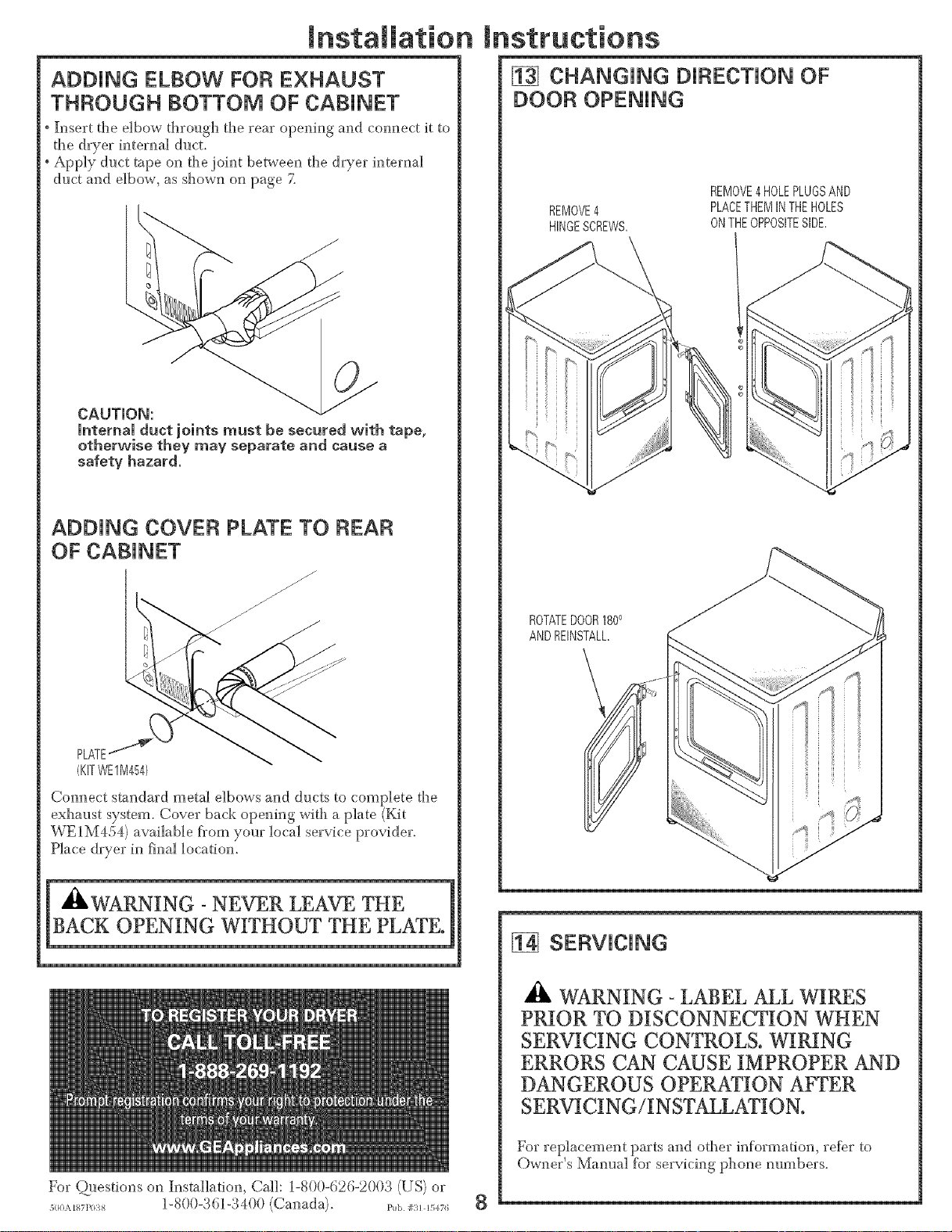

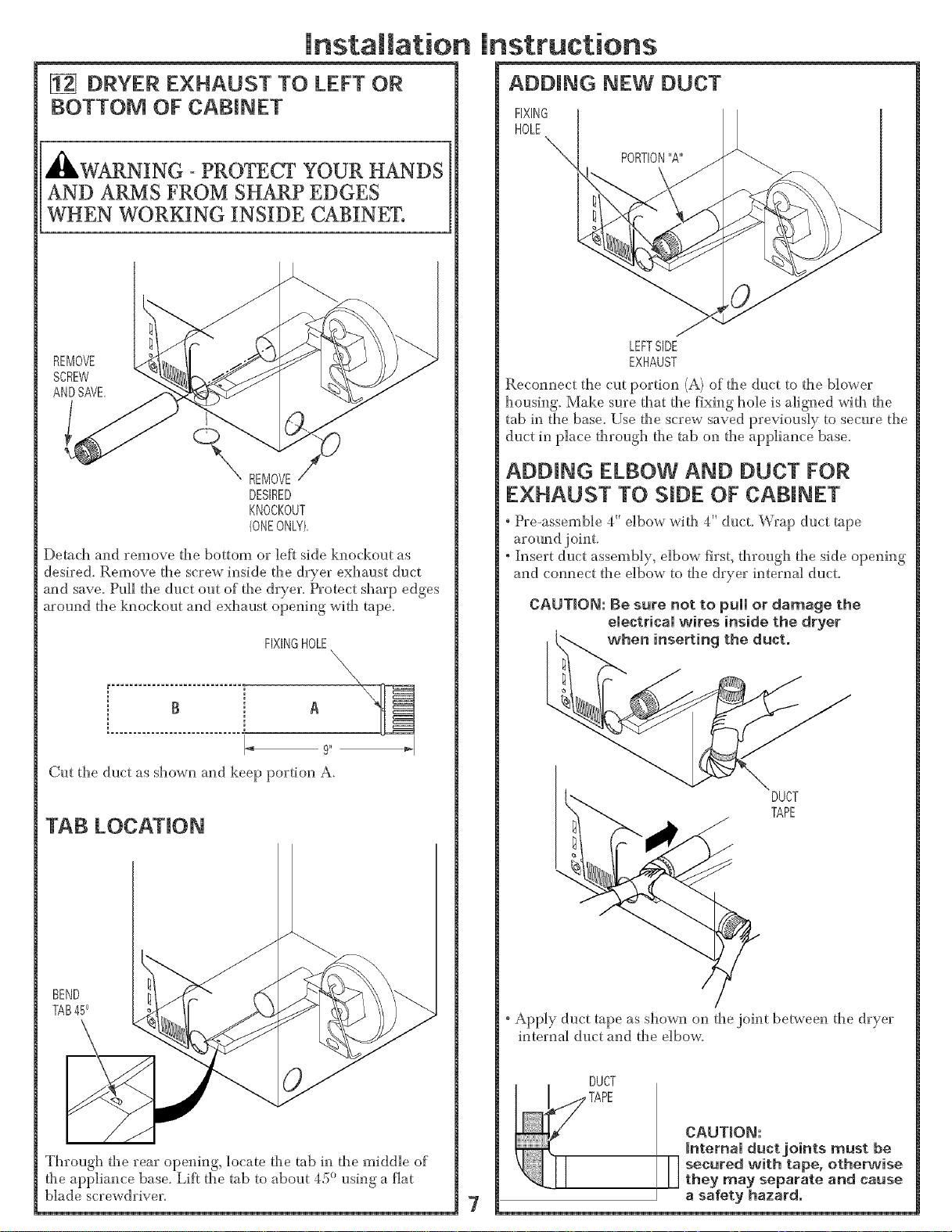

Step 8 Connect the External Exhaust (see section 7).

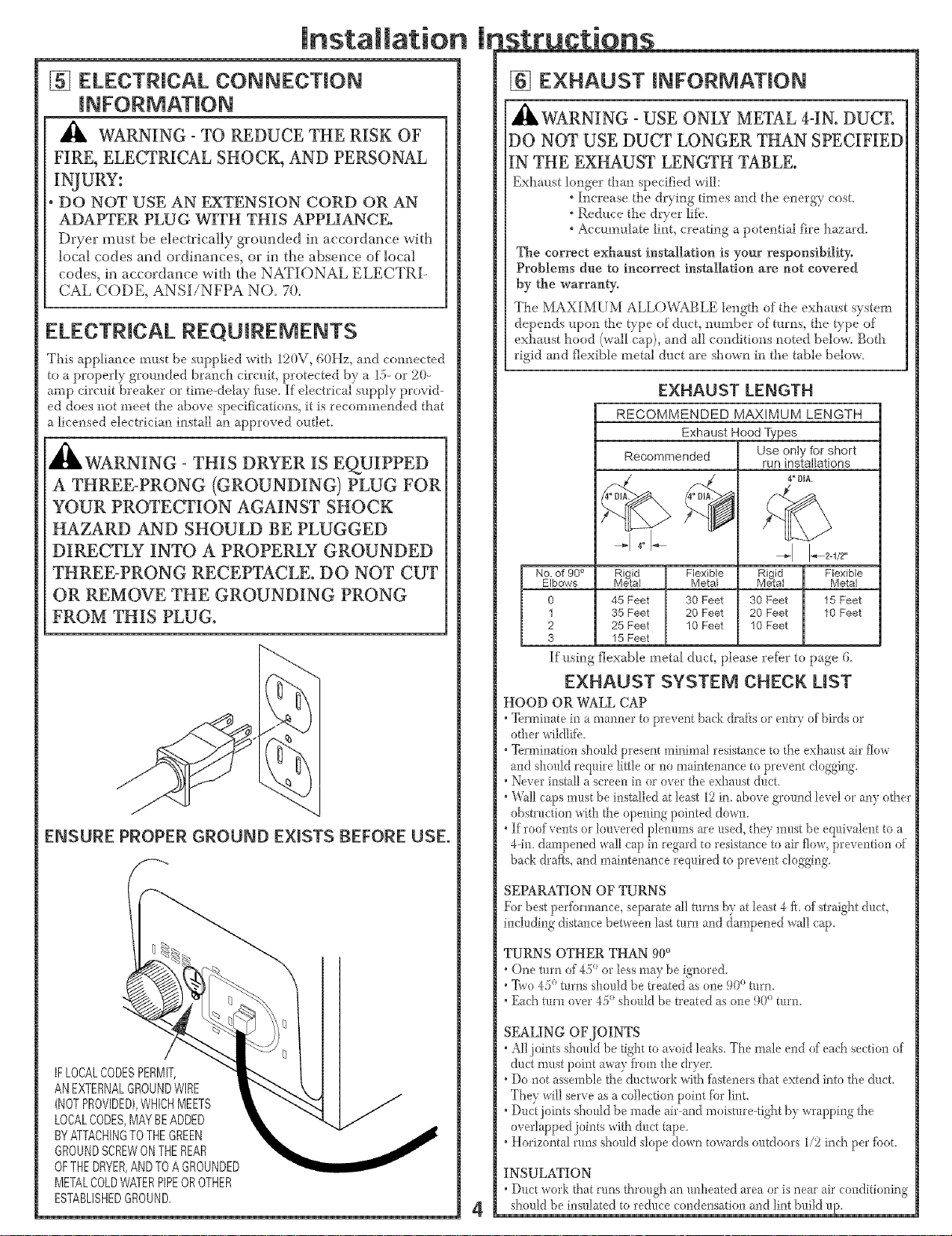

Step 9 Connect the Power Supply (see section 5).
Step 10 Check the Operation of the Power Supply, Gas
Connections, and Venting.
Step 11 Place the Owners ManuN and the Installation
Instructions in a Location Where They Will Be
Noticed By the Owner.

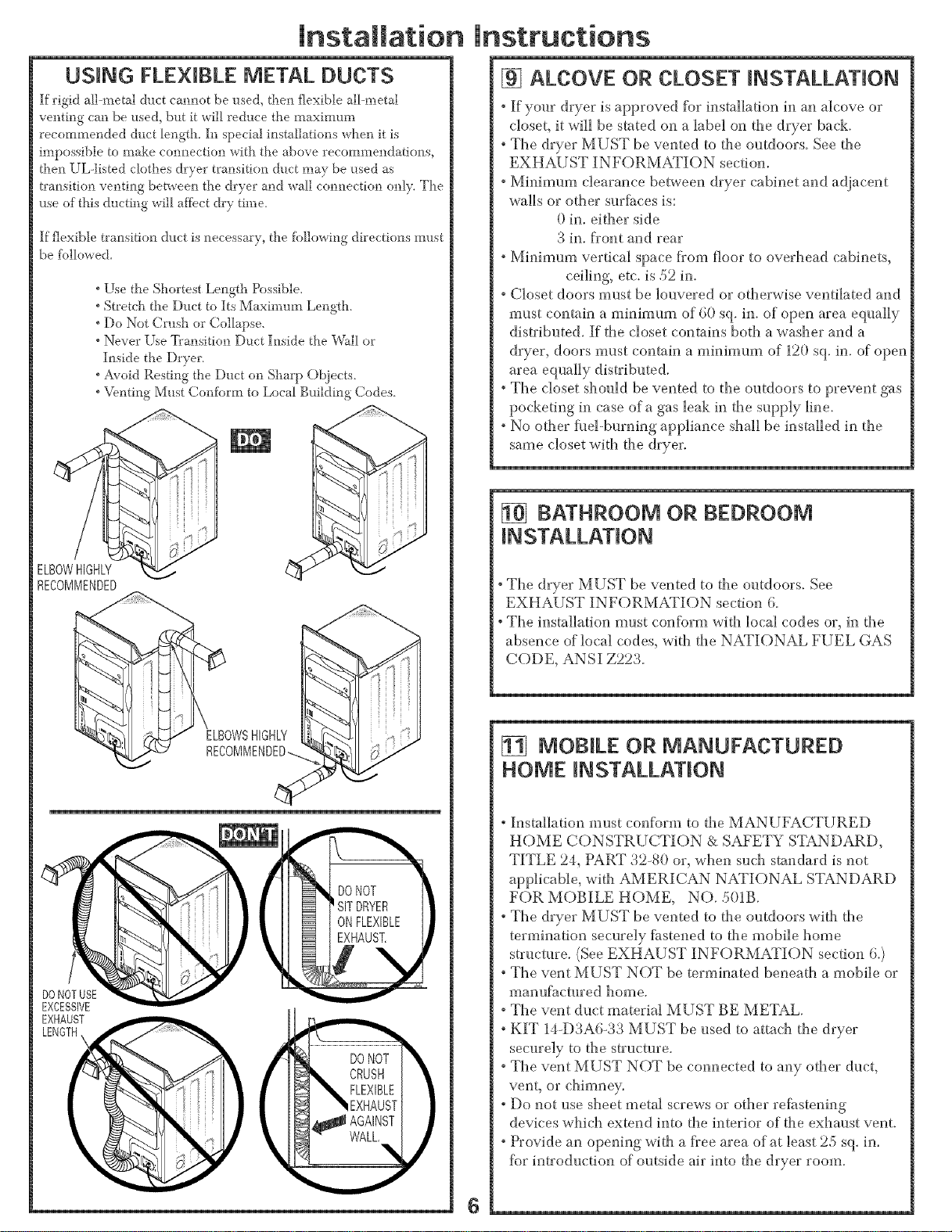

For Alcove or Closet Installation see section !1.
For Bathroom or Bedroom Installation see section 10
For Mobile or Manufactured Home see section 11.
