20” WIDE ALL-REFRIGERATOR
Model: FF511L
User Manual
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS
FELIX STORCH, INC.
An ISO 9001:2015 registered company
770 Garrison Avenue
Bronx, NY 10474
www.accucold.com
2
TABLE OF CONTENTS
Important Safeguards 3-4
Location of Parts 5
Technical Information 5
Installation Instructions 6-8
Before Using your Refrigerator 6
Installing your Refrigerator 6
Electrical Connection 7
Reversing the Door Swing 8
Door Handle Installation 8
Operating your Refrigerator 9
Setting the Temperature Control 9
Automatic Defrost System 9
Care and Maintenance 10
Cleaning the Refrigerator 10
Power Failure 10
Vacation Time 10
Moving the Unit 10
Energy-Saving Tips 10
Troubleshooting 11
Limited Warranty 12
3
IMPORTANT SAFEGUARDS
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read
and obey all safety messages.
This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can kill or
injure you and others. All safety messages will follow the Safety Alert Symbol and either
the words DANGER or WARNING.
DANGER means that failure to heed this safety
statement may result in severe personal injury or
death.
WARNING means that failure to heed this safety
statement may result in extensive product
damage, serious personal injury, or death.
Safety messages will alert you to what the potential hazard is, tell you how to reduce the chance of injury,
and let you know what can happen if the instructions are not followed.
Before the refrigerator is used, it must be properly positioned and installed as described in
this manual, so read the manual carefully. To reduce the risk of fire, electrical shock or
injury when using the refrigerator, follow basic precautions, including the following:
• Plug into a grounded 3-prong outlet. Do not remove grounding prong, do not use an adapter, and do
not use an extension cord.
• It is recommended that a separate circuit, serving only your refrigerator, be provided. Use receptacles
that cannot be turned off by a switch or pull chain.
• Never clean refrigerator parts with flammable fluids. These fumes can create a fire hazard or
explosion. And do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance. The fumes can create a fire hazard or explosion.
• Before proceeding with cleaning and maintenance operations, make sure the power line of the unit is
disconnected.
• Do not connect or disconnect the electric plug when your hands are wet.
• Unplug the refrigerator or disconnect the power before cleaning or servicing. Failure to do so can
result in electrical shock or death.
• Do not attempt to repair or replace any part of your refrigerator unless it is specifically recommended
in this material. All other servicing should be referred to a qualified technician.
• This appliance is CFC- and HFC-free and contains a small quantity of Isobutane (R600a), which is
environmentally friendly but flammable. It does not damage the ozone layer, nor does it increase the
greenhouse effect. Care must be taken during transportation and setting up of the appliance that no
parts of the cooling system are damaged. Leaking coolant can ignite and may damage the eyes.
• In the event of any damage:
o Avoid open flames and anything that creates a spark,
o Disconnect from the electrical power line,
o Air the room in which the appliance is located for several minutes, and
o Contact the Service Department for advice.
4
• The more coolant there is in an appliance, the larger the room it should be installed in. In the event of
a leakage, if the appliance is in a small room, there is the danger of combustible gases building up. For
every ounce of coolant, at least 325 cubic feet of room space is required. The amount of coolant in the
appliance is stated on the data plate on the appliance. It is hazardous for anyone other than an
Authorized Service Person to carry out servicing or repairs to this appliance.
• Take serious care when handling, moving, and using the appliance to avoid either damaging the
refrigerant tubing or increasing the risk of a leak.
• Replacing component parts and servicing shall be done by factory authorized service personnel so as
to minimize the risk of possible ignition due to incorrect parts or improper service.
• This unit is not designed to operate in enclosed spaces. When placing your unit, make sure
you allow adequate airflow on all sides.
• Use two or more people to move and install the refrigerator. Failure to do so can result in back or
other injury.
• To ensure proper ventilation for your refrigerator, the front of the unit must be completely
unobstructed. Choose a well-ventilated area with temperatures above 60
°
F (16
°
C) and below 90
°
F
(32
°
C). This unit must be installed in an area protected from the elements, such as wind, rain, water
spray or drips.
• The refrigerator should not be located next to ovens, grills or other sources of high heat.
• The refrigerator must be installed with all electrical connections in accordance with state and local
codes. A standard electrical supply (115V AC only, 60 Hz), properly grounded in accordance with the
National Electrical Code and local codes and ordinances, is required.
• Do not kink or pinch the power supply cord of the refrigerator.
• The fuse (or circuit breaker) size should be 15 amperes.
• It is important for the refrigerator to be leveled in order to work properly. You may need to make
several adjustments to level it.
• Never allow children to operate, play with or crawl inside the refrigerator.
• Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may damage
or discolor the interior.
• Do not use this apparatus for other than its intended purpose.
Risk of child entrapment
Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are
still dangerous, even if they will “just sit in the garage a few days.”
• Before you throw away your old refrigerator: Take off the doors. Leave the shelves in place
so that children may not easily climb inside.
• Never allow children to operate, play with, or crawl inside the refrigerator.
•
- SAVE THESE INSTRUCTIONS –
5

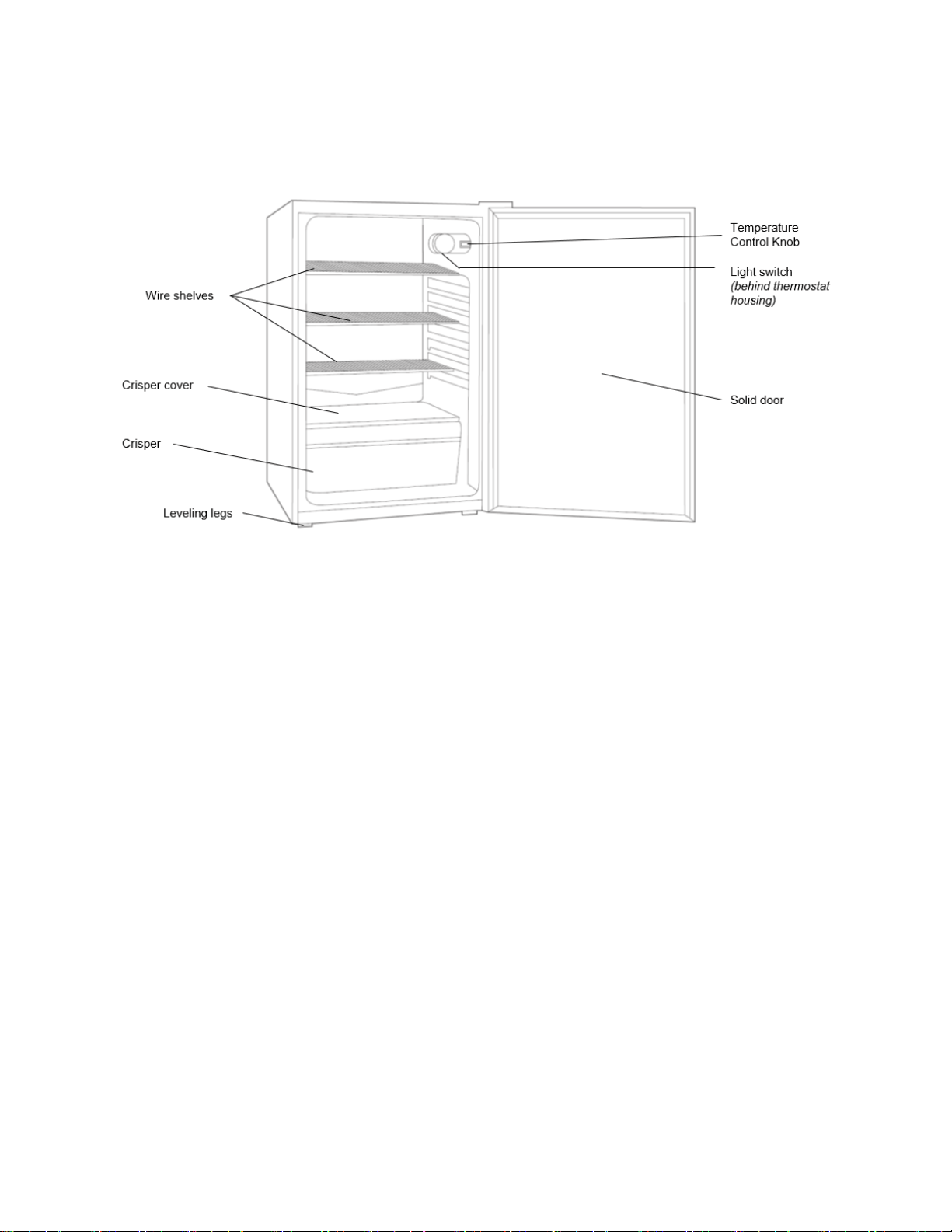

LOCATION OF PARTS
NOTE: This model is designed for general purpose storage and is not intended for use as a
household refrigerator.
TECHNICAL INFORMATION
Model
FF511L
Capacity
4.1 cubic feet
Electrical Input
115V AC / 60 Hz / 1.2A
Refrigerant
R600a, 0.74oz
Installation
Free-standing
Unit Weight
55 lbs.
Unit Dimensions
19.25” W x 21.38” D x 33.5” H
6
INSTALLATION INSTRUCTIONS
Before Using your Refrigerator
• Remove the exterior and interior packing.
• Check to be sure you have all of the following parts:
o 3 shelves
o 1 crisper drawer with glass cover
o 1 handle with screws and handle seal
o 2 keys
• Before connecting the unit to the power source, let it stand for approximately 2 hours. This
will reduce the possibility of a malfunction in the cooling system from handling during
transportation.
• Clean the interior surface with lukewarm water using a soft cloth.
Installing the Refrigerator
• This appliance is designed to be free-standing only, and should not be recessed or built in.
• Place your unit on a floor that is strong enough to support the unit when it is fully loaded. To
level your unit, adjust the leveling legs at the bottom.
• Allow 5 inches of space between the back and sides of the unit, which will allow the proper
air circulation to cool the compressor and condenser.
• Locate the unit away from direct sunlight and sources of heat (stove, heater, radiator, etc.).
Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Extremely cold ambient temperatures may also affect the unit's performance.
• Avoid locating the unit in moist areas.
• Plug the unit into an exclusive, properly installed and grounded wall outlet. Do not under any
circumstances cut or remove the third (ground) prong from the power cord. Any questions
concerning power and/or grounding should be directed toward a certified electrician or
authorized service center.
• After plugging the appliance into a wall outlet, allow the unit to cool down for 2 to 3 hours
before placing items to be stored inside.
7
Electrical Connection
This unit should be properly grounded for your safety. The power cord of this unit is equipped with a
three-prong plug which mates with a standard three-prong wall outlet to minimize the possibility of
electrical shock.
Do not under any circumstances cut or remove the third ground prong from the power cord supplied.
For personal safety, this appliance must be properly grounded.
This unit requires a standard 115-volt AC/60Hz electrical outlet with three-prong ground. Have the
wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.
When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation to have it
replaced with a properly grounded 3-prong wall outlet.
To prevent accidental injury, the cord should be secured behind the unit and not left exposed or
dangling.
The unit should always be plugged into its own individual electrical outlet which has a voltage rating
that matches the rating label on the appliance. This provides the best performance and also
prevents overloading house wiring circuits that could cause a fire hazard from overheated wires.
Never unplug the unit by pulling on the power cord. Always grip the plug firmly and pull straight out
from the receptacle. Repair or replace immediately any power cord that has become frayed or
otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at
either end. When moving the unit, be careful not to damage the power cord.
Extension Cord
Do not use an extension cord with this appliance. If the power cord is too short, have a qualified
electrician or service technician install an outlet near the appliance.
8
Reversing the Door Swing
NOTE: Certain modifications or product options, such as stainless steel doors or factory-installed
alarms may result in your door no longer being field-reversable.

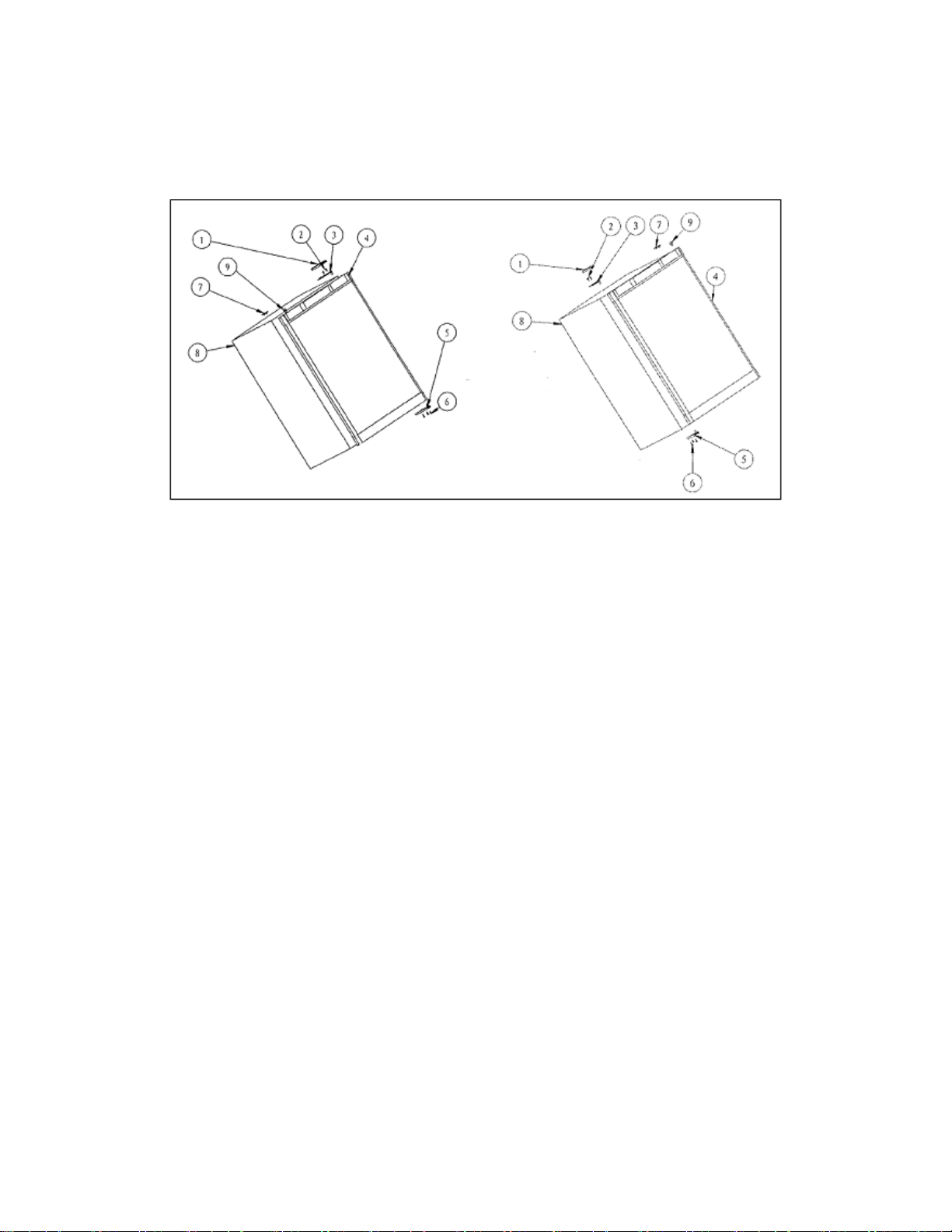

Figure 1 (Default position)
Figure 2 (After door reversal)
1. Upper hinge cover
6. Screws
2. Screws
7. Hole cover
3. Upper hinge
8. Cabinet
4. Door
9. Pin cap
5. Lower door hinge
This refrigerator can be opened from either the right side or the left. By default, the door hinge is on
the right side. If you prefer it on the left, please follow these instructions:
NOTE: All of the parts that are removed must be kept for the reinstallation of the door.
1. Remove the three screws (6) holding lower door hinge (5). Keep hinge for later use.
2. Remove the door from the upper hinge (3), and keep the padded surface upward to prevent
scratching.
3. Remove the upper hinge cover (1), remove the two screws (2), remove the upper hinge (3) and
keep it for later use.
4. Remove the hole cover (7) and transfer it to the same location on the opposite side.
5. Insert the lower door hinge (5) into the left side, fixing the hinge into place by tightening all the
screws (6).
6. Remove the pin cap (9) from the left side of the upper door frame and then transfer it to the same
location on the opposite side.
7. Set the door on the lower door hinge (5), keep the door level, then fix the upper hinge (3) to the
body (8) by the screws (2).
8. Put on the upper hinge cover (1).
Door Handle Installation
The door has two screw holes on each side, allowing you to install a handle (included). To do so,
align the handle with the screw holes on the side you prefer. Fix the handle in place with the
included screws, then cover the screw heads with the handle seal (included).
9
OPERATING YOUR REFRIGERATOR
Setting the Temperature Control
• Your unit has only one control for regulating the temperature in the compartment. The
temperature control is located on the upper right-hand side of the compartment.
•
When you turn the unit on for the first time, set the control to its coldest setting,
which is
6
.
• The range of the temperature control is from the Off position to 6. After 24 to 48 hours, adjust the
temperature control to the setting that best suits your needs. The setting 3 should be appropriate
for most uses.
• To turn the appliance off, turn the temperature control to Off.
NOTES:
1. Turning the temperature control to Off stops the cooling cycle but does not shut off the power to
the unit.
2. If the unit is unplugged, has lost power, or is turned off, you must wait 3 to 5 minutes before
restarting the unit. If you attempt to restart before this time delay, the unit will not start.
Interior Light Switch
The interior light is controlled by a rocker switch located behind the thermostat (temperature control)
housing. If you turn the light on, be sure to turn it off again before closing the door.
Automatic Defrost System
It is not necessary for you to defrost this appliance. While the compressor is operating, ice may build
up along the cold rear wall of the refrigerator compartment (the evaporator is behind the wall).
During the compressor's off-cycle, the ice will melt, drip down, and drain through a small hole at the
back of the cabinet into a tray above the compressor where the compressor's heat evaporates the
water.
If you notice an excessive build-up of ice on the rear wall, try setting the thermostat to a slightly
warmer setting. Be sure the door gasket is well seated. Occasionally you should check that there is
no obstruction of the drain hole in the bottom rear of the cabinet.
10
CARE AND MAINTENANCE
Cleaning the Refrigerator
1. Turn the temperature control to Off, unplug the unit and remove the stored items and shelves.
2. Wash the inside surfaces with a solution of warm water and baking soda. The solution should
contain about 2 tablespoons of baking soda to a quart of water.
3. Wash the shelves with a mild detergent solution.
4. Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with
a clean soft cloth.
5. Wring excess water out of the sponge or cloth before cleaning the area of the controls, or any
electrical parts.
CAUTION: Failure to unplug the unit before cleaning or maintenance could result in electrical shock
or personal injury.
Power Failure
Most power failures are corrected within a few hours and should not affect the temperature of your
unit if you minimize the number of times the door is opened. If the power is going to be off for a
longer period of time, you need to take the proper steps to protect the contents.
Vacation Time
• Short vacations: Leave the refrigerator operating during vacations of less than three weeks.
• Long vacations: If the refrigerator will not be used for several months, remove all contents and
unplug the power cord. Clean and dry the interior thoroughly. To prevent odor and mold growth,
leave the door open slightly, blocking it open if necessary.
Moving the Unit
1. Remove all items stored in the refrigerator.
2. Securely tape down all loose items inside the unit.
3. Turn the leveling legs up to the base to avoid damage.
4. Tape the door shut.
5. Be sure the unit stays secure in the upright position during transportation. Also, protect the
outside of the unit with a blanket or similar covering.
Energy-Saving Tips
• The unit should be located in the coolest area of the room, away from heat-producing appliances
and out of direct sunlight.
• Let warm items cool to room temperature before placing in the unit. Overloading the unit forces
the compressor to run longer.
• Be sure to wrap items properly and wipe containers dry before placing them in the unit. This cuts
down on frost build-up inside the unit.
• The unit's storage area should not be lined with aluminum foil, wax paper or paper toweling.
Liners interfere with cold air circulation, making the unit less efficient.
• Organize and label stored items to reduce door openings and extended searches. Remove as
much as needed at one time, and close the door as soon as possible.
11
TROUBLESHOOTING
You can easily solve many common problems with your refrigerator, saving you the cost of a
possible service call. Try the suggestions below to see if you can correct the problem before calling
the service provider.
Problem
Possible Cause
Unit does not operate.
Not plugged in.
The circuit breaker has tripped or the fuse has
blown.
The unit's temperature control is set at Off.
Turns on and off frequently.
Room temperature is warmer than usual.
A large number of items have recently been put
into the unit.
The door is opened too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
The unit does not have the correct clearances.
Vibrations
Check to be sure the unit is level.
The unit seems to be making too much
noise.
A rattling noise may come from the flow of
refrigerant, which is normal.
As each cycle ends, you may hear gurgling sounds
caused by the flow of refrigerant in your unit.
Contraction and expansion of the inside walls may
cause popping and crackling noises.
The unit is not level.
The door will not close properly.
The unit is not level.
The door was reversed and not properly
re-installed.
The gasket is dirty or bent.
The shelves or the crisper are out of position.
12
LIMITED WARRANTY
ONE-YEAR LIMITED WARRANTY
Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated
and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-
specified parts and repair labor to correct defects in materials or workmanship. Service must be provided by a
designated service company. Outside the 48 states, all parts are warranted for one year from manufacturing
defects. Plastic parts, shelves and cabinets are warranted to be manufactured to commercially acceptable
standards, and are not covered from damage during handling or breakage.
5-YEAR COMPRESSOR WARRANTY
1. The compressor is covered for 5 years.
2. Replacement does not include labor.
ITEMS WARRANTOR WILL NOT PAY FOR:
1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to
replace or repair fuses or to correct wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs or broken shelves. Consumable parts (such as filters)
are excluded from warranty coverage.
3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation,
installation not in accordance with electrical or plumbing codes, or use of products not approved by
warrantor.
4. Replacement parts or repair labor costs for units operated outside the United States.
5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
6. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed
in accordance with published installation instructions.
DISCLAIMER OF IMPLIED WARRANTIES – LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR.
WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES
DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR
LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO
THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC
LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE.
Printed in China
FELIX STORCH, INC.
An ISO 9001:2015 registered company
770 Garrison Avenue
Bronx, NY 10474
www.accucold.com
For parts and accessory ordering,
troubleshooting and helpful hints, visit:
www.accucold.com/support
