LRSC21935TT
LRSC21935SW
LRSC21935SB
REFRIGERATOR
UseCs Guide
Please read this guide thoroughly
before operating and keep it handy for
:e at all times.
manuel
]e
Lea detenidamente
!@i!_i!ii!ii!ii!i!!i!!!!i!
iiiiiiiiiiiiiiiiiiiiiiii/iiiiili!iii!!iiiiiiiiiiiiiiiiiiii
iliiiiiil)iii_i_/iiiiiiiiiiii!i!i!i_)iii_i
Introduction
Installation
Operation
Suggestion on
food storage
Care and
maintenance
Table of contents
Entry
Important safety instruction
Identification of parts
Where to install
Door removal
Door replacement
Feed water pipe installation
Water connection instruction guide
Operation instruction guide
Height adiustment
Starting
Adjusting the temperatures and functions
(Dispenser / Automatic ice maker)
Shelf (Applicable to some models only)
Wine holder (Applicable to some models only)
Egg box
Humidity control in the vegetable compartment
Convert into a vegetable or meat compartment
Deodorizer (Applicable to some models only)
Location of foods
Storing foods
How to dismantle parts
General information
Cleaning
Trouble shooting
Recommended
Grounding
Method
Accessibility of
Supply Plug
Supply Cord
Replacement
/_Warning
Entry
The model and serial numbers are found on the inner case or back of refrigerator
compartment of this unit. These numbers are unique to this unit and not
available to others. You should record requested information here and retain
this guide as a permanent record of your purchase. Staple your receipt here.
Date of purchase
Dealer purchased from
Dealer address
Dealer phone no.
Model no.
Serial no.
Important safety instruction
Beforeit isused,this refrigeratormustbe properlyinstalledandlocatedinaccordancewith
the installationinstructionsinthis document,
Neverunplugyourrefrigeratorbypullingonthe power cord,Alwaysgrip plugfirmlyandpull
it straightoutfrom the outlet,
Whenmovingyourapplianceaway from thewall, be carefulnot to rolloverthe power cord
orto damageit inanyway,
Afteryour refrigeratoris inoperation,do nottouchthe coldsurfacesinthefreezer
compartment,particularlywhenyourhandsaredamporwet, Skincouldadhereto these
extremelycoldsurfaces,
Unplugthe powercordfrom the poweroutlet forcleaningor otherrequirements,Never
touch itwith wet handsbecauseyou canget anelectricshockorbehurt,
Neverdamage,process,severelybend,pullout, or twist the powercordbecausedamage
the powercordmaycausea fireor electricshock,Youhavedoubts onwhether the
applianceis properlygrounded,
Neverplaceglassproductsinthe freezerbecausethey may bebrokendue to expansion
whentheir contentsarefrozen.
Neverallowyour handswithin the icestoragebinof theautomaticicemaker.Youcouldbe
hurtbythe operationof theautomaticicemaker,
Theapplianceisnot intendedfor usebyyoungchildrenor infirmpersonswithout
supervision,
Youngchilderenshouldbe supervisedto ensurethat they do notplaywith the appliance,
Neverallowanyoneto climb,sit,standor hangonthe refreshmentcenterdoor,These
actionsmaydamagethe refrigeratorandeventip itover,causingseverepersonalinjury.
Beforeyou moveyourrefrigeratorintoits finallocation,
it isimportantto makesureyouhavethe properelectrical
connection:
A 115Volt,60 Hz,,AConly 15or 20amperefused,grounded
electricalsupplyisrequired,It isrecommendedthat aseparate
circuitservingonlyyourrefrigeratorbe provided,Useanoutlet that
cannotbeturnedoff byaswitch. Donot useanextensioncord.
Therefrigerator-freezershouldbe sopositionedthat thesupplyplug
isaccessiblefor quickdisconnectionwhen accidenthappens,
If the supplycordisdamaged,it must bereplacedbythe manufactureror its serviceagentor
asimilarlyqualifiedpersoninorderto avoida hazard,
Donot modify or extend the Power Cord length.
• It will cause electricshock orfire.
Child entrapment
warning
Don't store
Grounding (Earthing)
Doorrack
Automatic
icemaker
Lamp
Shelf
(steelor glass)
Doorrack ........................
(Optional)
Shelf
Drawer(1or 2)
Doorrack
(Optional)
Lowercover ..............................................................................
DANGER:Riskof child entrapment.
Beforeyou throw away your old refrigerator orfreezer:
Take off the doors but leavethe shelves inplaceso thatchildren may not easilyclimb
inside.
The applianceisnot intendedfor use byyoung children or infirm personswithout
supervision.
Young children should be supervised to ensure thatthey do not playwith the appliance.
Don't store or use gasolineor other flammable vapor and liquids inthe vicinity of this or
any other appliance.
Inthe event of an electric short circuit, grounding (earthing)reduces the risk of electric
shock by providingan escape wire for the electriccurrent,
Inorder to prevent possibleelectric shock, this appliancemust be grounded
improper use ofthe grounding plug can result in an electric shock. Consulta qualified
electrician or service person ifthe grounding instructions are not completely
understood, or if you havedoubts on whether the applianceisproperly grounded.
Identification of parts
Freezer Refrigerator
compartment compartment
Milk productcorner
Lamp
............................Shelf
Doorrack
...................................Wineholder(Optional)
Shelf
Snackdrawer (Optional)
Eggbox
Lamp
Vegetabledrawer(1or 2)
Doorrack
Vegetable
drawer/Meatdrawer
Humidityswitch
Conversionswitch
(Meats/Vegetables)
Select a good
location
Where to install
1. Placeyour appliance where it iseasy to use.
2. Avoid placingthe unit near heat sources, direct sunlight or moisture.
3. Toavoid vibrations, the appliance must be leveled.
4. Don't install the appliance below 504",,.It may cause affect the performance.
z_ Warning
Remove lower
cover and
then feed water
tube
Remove the
freezer
compartment
door
Remove the
refrigerator
door
Door removal
ElectricShock Hazard
Disconnectelectricalsupply to refrigerator beforeinstalling.
Failureto do socouldresult in deathor seriousinjury. [_
Ifyour accessdoor istoo narrow for the _,_ _:::_-_--J_
refrigerator to passthrough, remove the Lower cover
refrigeratordoor and passthe refrigeratorlaterally. -- ; _ _ _
Removethe lowercover byliftingupward,and J _/:;_1
then pullupthe feedwater tubewhile pressing _/ "@"k.
area¢ shown inthe figureto the right. Feed watertube
1)Removingthe hingecover bylooseningthe
screws.Separateallconnectionwires except
for the earthline after.
2) Removethe keeperbyrotating itcounter
clockwise (@)andthen liftingthe upper
hinge up(@).
Hinge /" ........................ Connection
)_, cover //f_" w res
Uppe_hing /J'_ "j ',\ __ EarthNne
Kee?_ [_pei hinge
,gx
3) Removethe freezercompartmentdoorby
lifting it upward.Thistime, thedoor should
be lifted enoughforthereed water pipetube
to be completelypulledout.
Lower hinge
1) Loosen the hinge cover screws and remove
the cover, Remove connection wire, if any,
except for the earth line.
wires
2) Remove keeper by rotating it clockwise (@)
and then remove the upper hinge by lifting
it up (@).
3) Removethe refrigeratorcompartment door
bylifting it up.
Lower hinge

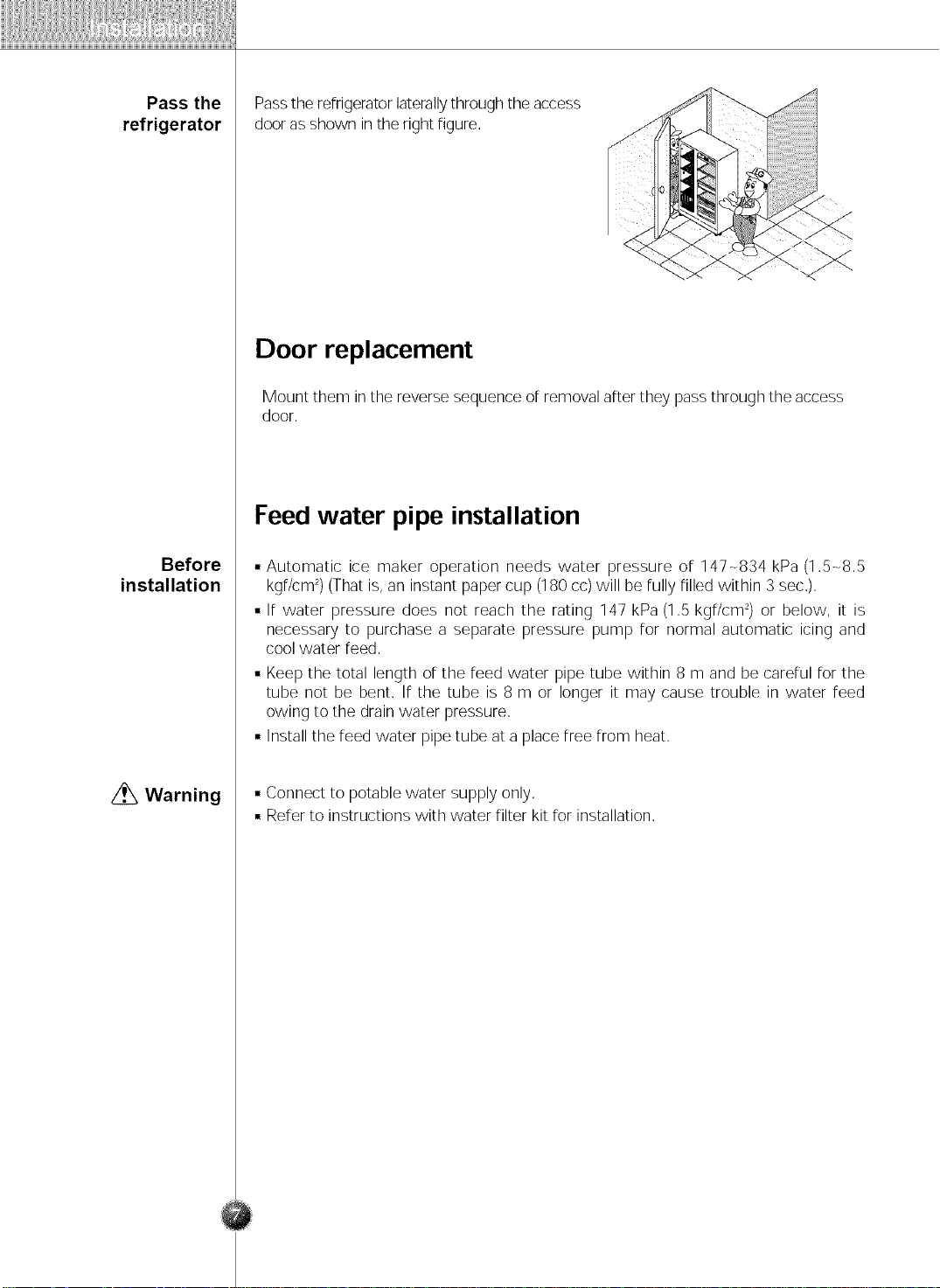

Pass the
refrigerator
Before
installation
Passthe refrigeratorlaterallythroughthe access
dooras shown inthe right figure,
Door replacement
Mount them inthe reverse sequence of removal after they passthrough the access
door.
Feed water pipe installation
• Automatic ice maker operation needs water pressure of 147-834 kPa (1.5-8.5
kgr/cm2)(That is, an instant paper cup (180 cc) will be fully filled within 3 sec.).
• If water pressure does not reach the rating 147 kPa(1.5 kgf/cm2)or below, it is
necessary to purchase a separate pressure pump for normal automatic icing and
cool water reed.
• Keep the total length of the feed water pipe tube within 8 m and be careful for the
tube not be bent. If the tube is 8 m or longer it may cause trouble in water feed
owing to the drain water pressure.
• Installthe reed water pipe tube at a placefree from heat.
Warning • Connect to potable water supply only.
• Refer to instructions with water filter kit for installation.
Connecting
the refrigerator
to a water source
Warning
Tools required
Cold water supply
Water connection instruction guide
Read all directions carefully before you begin.
Connect to potable water supply only.
• Standard screwdriver
• 7/16 - inch and 1/2 -inch open-end wrenches or two adjustable wrenches
• 1/4 -inch nut driver
• 1/4 -inch drill bit
• Hand drill or electric drill (properly grounded)
The ice maker water valve contains a flow washer which is used as a water
pressure regulator.
The ice maker needs to be connected to a cold water line with water pressure
207 o-827 kPa (30 o-120 psi).
Ira problem occurs, callyour utility company.
Connect
the tubing to
water line
1. Unplug refrigerator or disconnect power.
2.Turn OFF main water supply. Turn ON nearest faucet long enough to empty
water pipes.
3. Find a 1/2 -inch to 1-1/4 -inch vertical COLD water pipe near the refrigerator,
4. To determine the length of copper tubing you will need, measure from the
connection on the lower left rear of the refrigerator to the water pipe. Add 7
feet (2.1m)to allow for moving refrigerator for cleaning. Use 1/4 -inch O.D.
(outside diameter) copper tubing. Be sure both ends of copper tubing are cut
square.
5. Using a grounded drill, drill a 1/4 - inch hole in the cold water pipe you have
selected.
6. Fasten shut - off valve to cold water pipe with pipe clamp. Be sure outlet end
is solidly in the 1/4dnch drilled hole in the water pipe and that the washer is
under the pipe clamp. Tighten packing nut. Tighten the pipe clamp screws
carefully and evenly so washer makes a watertight seal. Do not over tighten or
you may crush the copper tubing, especially if soft (coiled) copper tubing is
used. Now you are ready to connect the copper tubing.
7. Slip compression sleeve and compression nut on copper tubing as shown.
Insert end of tubing into outlet end squarely as far as it will go. Screw
compression nut onto outlet end with adjustable wrench. Do not over tighten.
8. Place the free end of the tubing into a container or sink, and turn ON main
water supply and flush out tubing until water is clear. Turn OFF shut- off valve
on the water pipe. Coil copper tubing.
Pipe
Packing Nut\
Coil of polyethylene or
Shut Off Valve Copper Tubing
Compression Sleeve Compression Nut
Connect the tubing to
the refrigerator
Turn the water on at
the shutoff valve
Automatic ice maker
Operation instruction guide
Before making the connection to the
refrigerator, be sure the refrigerator
power cord is not plugged into the wall
outlet.
1. Remove the plastic flexible cap from
the water valve.
2. Placethe compression nut and ferrule
(sleeve) onto the end of the tubing as
shown.
3. Insert the end of the copper tubing into
the water valve connection as far as
possible. While holding the tubing,
tighten the fitting.
(Provided)
Compression nut
(Provided) *_
Ferrule
Copper tubing
Tighten any connections that leak.
• Plug In the Refrigerator
Arrange the coil of copper tubing so that it does not vibrate against the back of
the refrigerator or against the wall. Push the refrigerator back to the wall.
• Start the Icemaker
Set the ice making stop switch to the ON position The icemaker will not begin
to operate until it reaches its operating temperature of 15 °F (-9 °C) or below. It
will then begin operation automatically if the ice making stop switch is in the
ON position.
• The automatic ice maker can automatically make 8 pieces of ice cube at a time,
80-100 pieces a day.
But these quantities may be varied according to various conditions including
how many times the refrigerator door opens and closes,
• Ice making stops when the ice storage bin is full.
When ice maker
does not operate
smoothly
CAUTION
Ice is clumped together
• When ice is clumped together, take the ice clumps out oftheice storage bin,
break them into small pieces, and then place them into the ice storage bin
again.
• When the ice maker produces too small or clumped ice, the amount of water
supplied to the ice maker need to adjusted. Contact the service center.
• If ice is not used frequently, it may clump together.
Power failure
• Water may drop into the freezer compartment. Take the ice storage bin out and
discard all the ice then dry it and place it back.
The unit is newly installed
• It takes about 12 hours for a newly installed refrigerator to make ice in the
freezer compartment.
Throw away the ice (about 20 pieces) first made after refrigerator installation.
The first iceand water may include particles or odor from the feed water pipe or
feed water box.
This isalso necessary ifthe refrigerator has not been used for a long time.
Never store beverage cans or other foods in ice storage bin for the purpose of rapid
cooling.
Suchactions may damage the automatic ice maker.
Never remove the ice maker cover.
Sometimes level the surface so that the ice storage bin isfully filled with ice.
Ice may pile upjust around the ice maker causing the ice maker to think that the ice
storage bin is rul.
If discolored ice is dispensed, immediately contact Service Center.
Do not use until problem is solved.
If the freezer
compartment door
is lower than the
refrigerator
compartment door
If the freezer
compartment door
is higher than the
refrigerator
compartment door
After leveling the
door height
Next
Height adjustment
Levelthe door by insertingflat (- type) driverintothe grooveofthe left heightadjusting
screw and rotate it clockwise (0).
Height difference
q-4
Left height
adjustment screw
Levelthe door by inserting flat (- type) driver into the groove of the right height
adjusting screw and rotate it clockwise (0).
Height difference
1
N _
Right height
adjustment screw
The refrigerator doors will close smoothly by heightening the front side by adjusting
the height adjusting screw. If the doors do not close correctly, performance may be
affected.
1.Wipe off all dust accumulated during shipping and clean your appliance thoroughly.
2. Install accessories such as the ice cube box, cover evaporating tray, etc., in their
proper places.They are packedtogether to prevent possibledamage during shipping.
3. Connect the power supply cord (or plug) to the outlet. Don't double up with other
appliances on the same outlet.
Starting
When your refrigerator isfirst installed, allow it to stabilize at normal operating
temperatures for 2-3 hours prior to filling it with fresh or frozen foods.
If operation is interrupted, wait 5 minutes before restarting.
AdJusting the temperatures and functions
Water/Ice Output
Dispenser Push Switch
Dispenser Lamp
(Bottom ceiling of
funct+bnd+splayboard)
j_ Function display board
EXPRESSFRZ DISPENSER FREEZERREFRIGERATORFILTERRESET LOCK
Lock button.
Dispenser
selection button.
Filter reset button.
for freezer compartment.
Temperature adjustment button
for refrigerator compartment.
How to adjust the
temperature in
the freezer
compartment
How to adjust the
temperature in
the refrigerator
compartment
Dispenser use
selection
You can adjust temperature of and freezer room and refrigerator room,
F_eezer roomtemperatureadjustment
FREEZER
Setting
temperature
,_frigerator roomtemperatureadjustment
REFRIGERATOR
Setting L_IL._°F _._ll °F
temperature
FRZ TEMP FRZ TEMP FRZTEMP FRZTEMP FRZTEMP
_:_Whenever pressing button, setting is repeated in the order of (Middle) ÷
(Middle Strong) -_ (Strong)÷ (Weak)-_ (Middle Weak).
• The actual inner temperature varies depending on the rood status, asthe
indicated setting temperature isa target temperature, not actual temperature
within refrigerator.
• Refrigeration function isweak in the initial time. Pleaseadjust temperature as
above after using refrigerator for minimum 2-3 days.
You can select water or ice.
_:_Pleaseselect water, slice iceand square ice by
_SPENSER
pressing button asyou desire.
_ Please press the push button lightly by catching and
pushing in cup.
• The border line is indicated for the selected function,
• "Tak!"sounds if 5 seconds pass after ice comes out.
It issound that the outlet of ice isclosed.
• Reference : Please wait for 2-3 seconds in order to take final ice
slices or drops of water when taking out cup from the
pressing switches after taking ice or water.
DISPENSER
Pressing
Switch .........
Automatic ice
maker
When ice maker
does not operate
smoothly
Super freezer
Lock
• The icemaker can automatically make 8 pieces of icecubes at anyone time,
approximately 80 pieces per day. However these quantities may vary according to
certain conditions. E.g.the duration and amount of times the refrigerator door is
opened.
• The Ice making proceeds ceases automatically when the ice storage bin is full.
• Ifyou choose not to use the automatic ice making function, repositioned the
icemaker selection switch to the off position or the on position for reselection. Note:
The manual selection function isonly applicable to some models only.
Iceis lumped together
• When ice is lumped together, take the ice lumps out of the icestorage bin, break
them into small pieces, and then placethem into the ice storage bin again.
• When the ice maker produces too small or lumped together ice, the amount of
water supplied to the ice maker need to adjusted. Contact the service center.
÷ If ice is not used frequently, it may lump together.
Power failure
• Ice may drop into the freezer compartment. Takethe ice storage bin out and discard
all the icethen dry it and place it back. After the machine is powered again,crushed
ice will be automatically selected.
The unit is newly installed
• Ittakes about 12 hours for a newly installed refrigerator to make ice in the freezer
compartment.
Please select this function for prompt freezer.
ressin _PREss_z
• "On"or "Off" is repeated whenever p , g @
button.
• The arrow mark graphic remains at the On
status when selecting Special Refrigeration "On".
• Super freezer function automatically turns off if a
fixed time passes.
EXPRESSFRZ
This button stops operation of different
button.
• Locking or Release isrepeated whenever
LOCK
pressing the (_ .
• Pressing the other button when selecting 'LOCK',
the button does not operate.
LOCK
Ex) Inselecting Ex) Inselecting
"LOCK.... UNLOCK"
The other
functions
How ice/cold
water is supplied
How to use
dispenser
Door open warning
• 3 times of warning sounds atthe interval of 30 seconds ifa minute passeswith the
door of refrigerator and the hombar door opened or completely closed.
• Pleasecontact with the localservice center ifwarning continue to sound even after
closing the door.
Diagnosis (failure detection) function
• Diagnosisfunction automatically detects failurewhen failure isfound in product during
the use of refrigerator.
• If failure occursat product, itdoes not operatethough pressing any button and normal
indication is notdone. Inthis case, do notturn power off but immediately contact with
the localservicecenter. A lot of time are need for service engineer to detect the failed
part ifturning it off.
Water is cooled while stored in the water tank in the refrigerator compartment, and
then sent to the dispenser.
Ice is made in the automatic ice maker and sent to the dispenser divided into crushed
or cubed form ice.
• Select one among crushed ice, water, and cubed ice and slightly press the push
switch with a glass or other container.
Water
Light the water
indicating lamp by
pressing the selection
button.
•Water will be dispensed
by pressing the push
switch with a glass.
DISPENSER
Crushed ice
Light the crushed ice
indicating lamp by
pressing the selection
button.
• Crushed icewill be
dispensedbypressingthe
pushswitchwith aglass.
D,SPE,SER
L
Cubed ice
Light the cubed ice
indicatinglamp by
pressing the
selection button.
•Cubedicewillbedispensed
by pressing the push
switch with a glass.
DISPENSER
6 Filter condition
(filter replacement
cycle) display
function
Cautions
• After 6 months, the following sentence and will appear on the filter condition
part of the LEE). "Press for 3 seconds after replacing filter"
• After 6 months have passed, and if the filter has been replaced or you want to reset
the filter condition display, press the filter replacement button for more than 3
seconds and it will reset to the initial Power On state.
Throw away the ice (about 20 pieces) and water (about 7 glasses)first made
after refrigerator installation.
The first iceand water may include particles or odor from the feed water pipe or feed
water box. This is necessary in case that the refrigerator has not been used for a long
time.
Keep children away from the dispenser.
Children may push switch incorrectly bad or damage lamps.
Be careful that food is not block the ice
passage.
If foods are placedat the entrance of ice
passage,icemay not be dispensed.The ice
passagemay also be covered with ice
powder if splinter ice isused only. This time, Freezer
door
remove the ice powder accumulated.
Never store beverage cans or other
foods in icestorage bin for the purpose
of rapid cooling.
Such actions may damage the automatic ice maker.
Never usethin crystal glass or crockery to collect ice.
Such glasses or containers may be broken.
Put ice first into a glass before filling water or other beverages.
Water may be splashed if ice is added to existing liquid in a glass.
Never touch a hand or other tools on ice outlet.
Touch may cause a part breakage or hand injury.
Never remove the ice maker cover.
Sometimes level the surface so that the icestorage bin is fully filled with ice.
Ice is piled upjust near the ice maker. So,such status may be considered, by the ice
maker, that the ice storage bin is fully filled and ice making operation may stop,
Ifdiscolored ice isdispensed, immediately contact service center, stopping use.
Never usetoo narrow or deep glass.
Ice may bejammed in ice passage and, thus, the refrigerator may be failed.
Keep the glass at a proper distance from ice outlet.
A glass too close to the outlet may hinder ice from coming out.
Silde-Under
Shelf
Wine holder
adjustment
Shelf (Applicableto somemodelsonly)
You can store taller items such asa galloncontainer or bottles by simply pushing
in Fronthalf of shelf underneath back halfof shelf. Pulltoward you to return to a
FullshelF.
Wine holder
(Applicableto somemodelsonly)
Bottles can be stored laterally with this wine corner. This can be attached to any
shelf,
)
In case of inserting the wine holder :
Pull the wine holder downward as in
® aRer inserting it into the side anchoring
part of the shelf as in 0 by catching it
upward as in ¢.
In case of separating the wine holder :
Pull the wine holder inward as in @after
holding it upward as in ® by catching it.
!®
l®
Egg box
You can move the egg box to a place you want and select another form of box
according to the amount of eggs.
[Normal] [For Many Eggs]
Humidity control in the vegetable compartment
The humidity carl be controlled by adjusting the humidity control switch to the
left/right when storing vegetabes or fruits.
Highhumidity
I Close I .......... _.......... 0 Open
Lowhumidity
Convert into a vegetable or meat compartment
• The bottom drawer in the refrigerator can be converted into a vegetable or meat
compartment
0 Meats Vegetables
,
Vegetable
compartment
.0 Meats Vegetables
Meat compartment
The meat compartment maintains the temperature at a lower point than the
refrigerator compartment so that meat or fish can be stored fresh longer.
Deodorizer (Applicableto somemodelsonly)
This system efficiently absorbs strong odors
by using the optical catalyst. This system
does hot haveany affect on stored rood.
f=i
./I
./ I
./ I
J_ Deodorizing
system
Vegetable
compartment
tl COrnVersion
How to use the
deodorizing
system
• Since it is installed already installed onto the cool air intake duct from the from
the refrigerator compartment, you need no separate installation,
• Pleaseuse closed containers to store food with pungent odors,
Otherwise, this oder can beabsorbed by other food in the compartment,
Wine holder
Snack drawer
Freezer
compartment
shelf
Freezer
compartment
door rack
Freezer
compartment
drawer
Milk product
corner
Egg box
Refreshment
center
Refrigerator
compartment
shelf
Refrigerator
compartment
door rack
Vegetable drawer
Vegetable
drawer
/meat drawer
conversion corner
Location of foods
(Refer to identification of parts)
Store wine.
Storesmall foods such as bread,snacks,etc..
Storevarious frozen foods such as meat,fish,
icecream, frozen snacks, etc..
• Store small packed frozen food.
• Temperature is likely to increase as door
opens. So,do not store long-term rood such
ice cream, etc..
• Store meat, fish, chicken, etc.. after
wrapping them with thin foil.
• Storedry.
Store milk products such as butter, cheese,
etc..
Placethis egg box in the proper location.
Storefoods of frequent use suchas beverage,
etc,,
Store side dishes or other foods at a proper
distance.
Store small packed rood or beverages such
as milk,juice, beer, etc..
Store vegetables or fruits.
Store vegetable, fruits, meat to thaw, raw
fish, etc.. setting the conversion switch as
necessary.
Be sure to check the conversion switch
setting before storing foods.
Storing foods
• Storefresh food in the refrigerator compartment. How food isfrozen and thawed isan
important factor in maintaining its freshness and flavor.
• Do not store rood which goes bad easily at low temperatures, such as bananas,and
melons.
• Allow hot rood to cool prior to storing, placing hot rood in the refrigerator could spoil
other rood,and leadto higher energyconsumption.
• When storing the rood, cover it with vinyl wrap or store in a container with a lid. This
prevents moisture from evaporating,and helpsrood to keep its taste and nutrients.
• Do not block air vents with rood. Smooth circulation of chilled air keeps refrigerator
temperatures even.
• Do not open the door frequently. Opening the door lets warm air enter the refrigerator,
and cause temperatures to rise.
• Never keep too much rood in door rack because they may pushagainst by innerracks
sothat the door cannot be fully closed.
Freezer
compartment
Refrigerator
compartment
• Do not store bottles in the freezer compartment - they may breakwhen frozen.
• Do not refreeze rood that has been thawed. This causes loss of taste and nutrient.
• When storing frozen food like ice cream for a long period, place it on the freezer
shelf, not in the door rack.
• Do not touch the cold foods or containers- especially made of metallic -,with wet
handsand place glass products in the freezer compartment.
- That'swhy you mayhavechilblainsand they may be brokenwhen their inner matters
arefrozen,causingpersonalinjury,
• Avoid placing moist food in top refrigerator shelves, it could freeze from direct
contact with chilled air.
• Always cleanfood prior to refrigeration. Vegetables and fruits should be washed and
wiped, and packed food should be wiped, to prevent adjacent food from spoiling.
• When storing eggs in their storage rack or box, ensure that they are fresh, and always
store them inan upright position, which keeps them fresh longer,
Freezer
compartment
lamp
Dispenser lamp
Freezer
compartment
shelf
Door rack and
support
Ice storage bin
After dispenser
is used
How to dismantle parts
Separatethe lamp bypullingit out (®)while
slightlystriking((1))and rotating ((9)the lamp
cover,
Turnthebulbcounterclockwise,Max.40W bulb
for refrigerator is usedand can be purchasedat
a service center.
Seperate the lamp by pulling it out, and then
remove the lamp. Max. 15 W bulb for
refrigerator is used and can be purchased at a
service center.
To remove a shelf, lift the left partof the shelf
a bit, push it to the direction (O), lift the right
partto the diretion (®),and take it out.
Lift the door rack holding both sides ((b) and
pull it out to (®)direction.
Holdthe icestorage bin as shown inthe right
figure and pullit out (®)while slightlylifting it
(®).
• It is recommended not to dismantle the ice
storage bin unless it is necessary.
• Be sure to use both handswhen removing
the ice storage bin,so as not to drop it on the
floor.
• If the icestorage bin does not fit well, slightly
rotate the rotating device.
The water collector hasno self-drainage
function. So it should be cleaned regularly.
Remove the cover by pressing the left side of
water collector cover and dry it with a cloth.
Press the point marked asshown in the figure
to the right to remove the water collector
cover.
©
Rotating
device
Lamp in
refrigerator
compartment
Vegetable
compartment
cover
To remove the lampcover, press the protrusion under the lamp cover to the front and
then pull the lamp cover out.
Turn the bulb counterclockwise. Max. 40 W bulb for refrigerator is used and can be
purchased at a service center.
• To remove the vegetable compartment
cover, pull out the vegetable compartment
a bit to the front (b, lift the front part of the
vegetable compartment cover as shown by
@, and take it out.
®
Vacation time
Power failure
If you move
Anti
condensation
pipe
Exterior
Interior
After cleaning
Warning
General information
During average length vacations, you will probably find it best to leave the refrigerator
in operation. Placefreezable items in freezer for longer life.
When you plan not to operate, remove all food, disconnect the power cord, clean the
interior thoroughly, and leave each door OPENto prevent odor formation.
Most power failures that are corrected in an hour or two will not affect your
refrigerator temperatures.
However, you should minimize the number of door openings while the power is off.
Remove or securely fasten down all loose items insidethe refrigerator.
To avoid damaging the height adjusting screws, turn them all the way into the base.
The outside wall of the refrigerator cabinet may sometimes get warm, especiallyjust
after installation.
Don't be alarmed. This is due to the anti-condensation pipe, which pumps hot
refrigeratorto prevent "sweating" on the outer cabinet wall.
Cleaning
It is important that your refrigerator be kept clean to prevent undesirable odors. Spilled
rood should be wiped up immediately, since it may acidify and stain plastic surfaces if
allowed to settle.
Use a lukewarm solution of mild soap or detergent to clean the durable finish of your
refrigerator.
Wipe with a clean damp cloth and then dry.
Regularcleaning is recommended. Wash all compartments a bakingsoda solution or a
mild detergent and warm water. Rinse and dry.
Please verify that the power cord is not damaged, power plug is not overheated, or
power plug iswell inserted into the power consent.
Always remove power cord from the wall outlet prior to cleaning in the vicinity of
electrical parts (lamps,switches, controls, etc.).
Wipe up excess moisture with a sponge or cloth to prevent water or liquid from
getting into any electrical part and causing an electric shock.
Never use metallic scouring pads, brushes, coarse abrasive cleaners, strong alkaline
solutions, flammable or toxic cleaning liquids on any surface.
Do not touch frozen surfaces with wet or damp hands, because damp object will stick
or adhere to extremely cold surfaces.
Trouble shooting
Before calling for service, review this list. It may save you both time and expense,
This list includes common occurrences that are not the result of defective
workmanship or materials inthis appliance.
Runing of
refrigerator
Refrigerator Refrigerator control is off. Set refrigerator control. See setting the
compressor controls.
does not run. Refrigerator is in defrost cycle. This is normal for a fully automatic
defrosting refrigerator. The defrost
cycle occurs periodically.
Plug at wall outlet is disconnected. Make sure plug is tightly pushed into
outlet.
Power outage. Check house lights. Call local electric company.
Refrigerator Refrigerator is larger than the previous This is normal. Larger, more efficient
runs too much one you owned, units run longer in these conditions.
or too long Room or outside weather is hot. It is normal for the refrigerator to work
longer under these conditions.
Refrigerator has recently been It takes some hours for the refrigerator
disconnected for a period of time. to cool down completely.
Large amounts of warm or hot food Warm food will cause the refrigerator to
may have been stored recently, run longer until the desired temperature
isreached.
Doors are opened too frequently or too Warm air entering the refrigerator
long. causes it to run longer. Open the door
less often.
Refrigerator or freezer door may be Make sure the refrigerator is level.
slightly open. Keep food and containers from
blocking door. See problem section.
OPENING/CLOSING of doors.
Refrigerator control is set too cold. Set the refrigerator control to a
warmer setting until the refrigerator
temperature is satisfactory.
Refrigerator or freezer gasket is dirty, Clean or change gasket. Leaks in the
worn, cracked, or poorly fitted, door seal will cause refrigerator to run
longer in order to maintain desired
tern peratures.
Thermostat is keeping the refrigerator This is normal. Refrigerator goes on and
at a constant temperature, off to keepthe temperature constant,

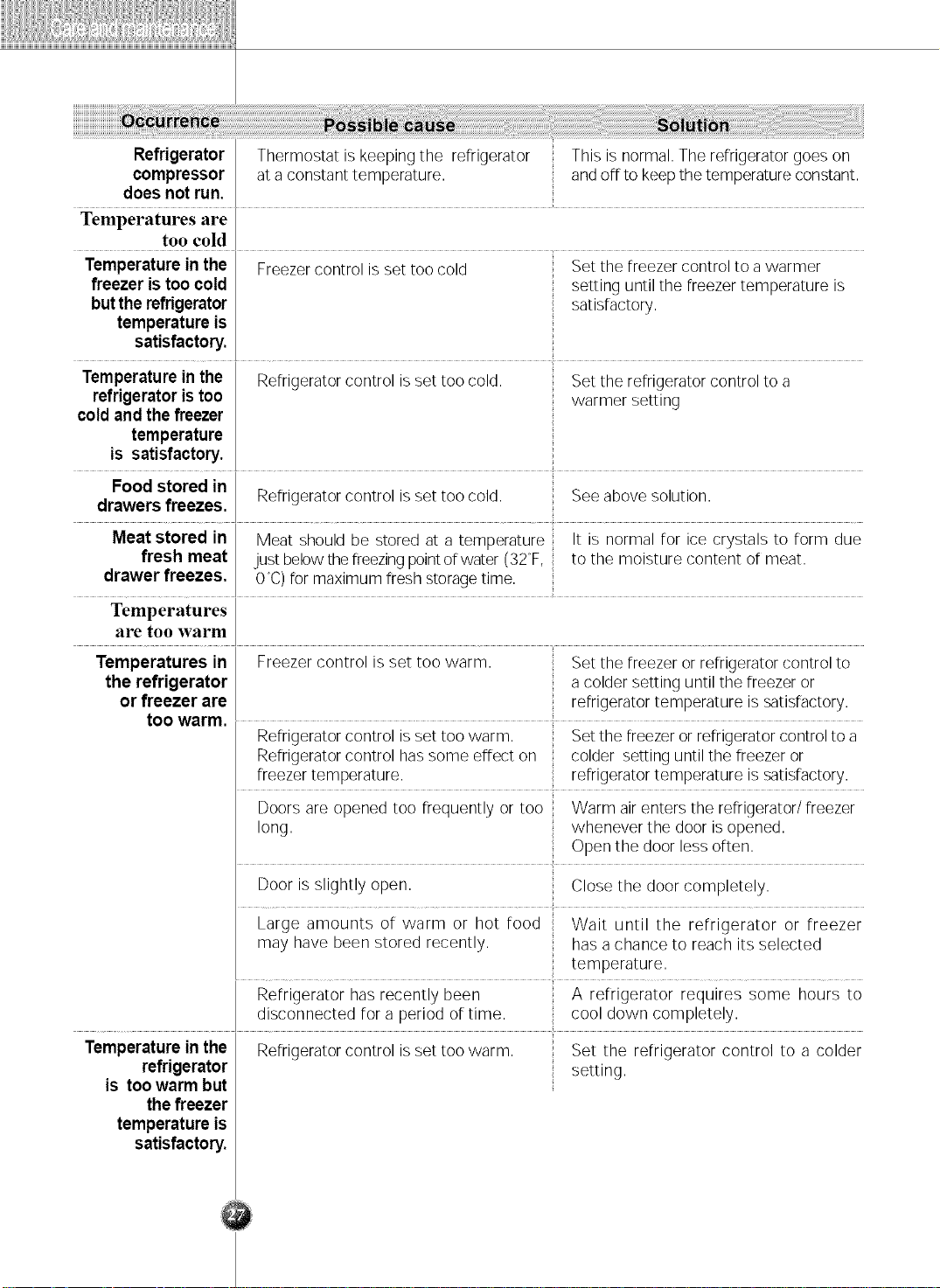

Refrigerator Thermostat is keeping the refrigerator This is normal. The refrigerator goes on
compressor at a constant temperature, andoffto keepthe temperature constant,
does not run.
Temperatures are
too cold
Temperature in the Freezer control is set too cold Set the Freezercontrol to a warmer
freezer is too cold setting until the Freezertemperature is
butthe refrigerator satisfactory.
temperature is
satisfactory.
Temperature in the Refrigerator control is set too cold. Set the refrigerator control to a
refrigerator is too warmer setting
cold and the freezer
temperature
is satisfactory.
Food stored in
drawers freezes. Refrigerator control is set too cold. See above solution.
Meat stored in Meat should be stored at a temperature It is normal Forice crystals to Form due
fresh meat just belowthefreezingpointofwater (32°F, to the moisture content of meat.
drawer freezes. OC) for maximum fresh storage time.
Temperatures
are too warm
Temperatures in Freezer control is set too warm. Set the Freezeror refrigerator control to
the refrigerator a colder setting until the Freezeror
or freezer are refrigerator temperature is satisfactory.
too warm. ......
ReFrigeratorcontrol is set too warm. Set the freezer or refrigerator control to a
Refrigerator control has some effect on colder setting until the freezer or
freezer temperature, refrigerator temperature is satisfactory.
Doors are opened too Frequently or too Warm air enters the refrigerator/freezer
long. whenever the door is opened.
Open the door less often.
Door is slightly open. Close the door completely.
Large amounts of warm or hot food Wait until the refrigerator or freezer
may have been stored recently, has a chance to reach its selected
temperature.
Refrigerator has recently been A refrigerator requires some hours to
disconnected for a period of time. cool down completely.
Temperature in the Refrigerator control is set too warm. Set the refrigerator control to a colder
refrigerator setting.
is too warm but
the freezer
temperature is
satisfactory.
Sound and noise
Louder sound Today's refrigerators have increased Itis normal for sound levels to be higher.
levelswhen storage capacity and maintain more
refrigerator is on. even temperatures.
Louder sound Refrigeratoroperates at higher pressures This is normal. The sound will level off as
levels when during the start of the ON cycle, the refrigerator continues to run.
compressor
comes on.
Vibrating or Flooris uneven or weak. Be sure floor is level and solid and can
rattling noise. Refrigerator rocks onthe floor when it is adequately support refrigerator.
moved slightly.
Items placedon the top ofthe refrigerator Remove items.
are vibrating.
Dishes are vibrating on the shelves in It is normal for dishes to vibrate slightly.
the refrigerator. Move dishes slightly.
Make sure refrigerator is level and firmly
set on floor.
Refrigeratoristouching wall or cabinets. Move refrigerator sothat it does not
touch the wall or refrigerator.
Water/Moisture
/Ice inside
refrigerator
Moisture collects The weather is hot and humid which This is normal.
on the inside walls increases the rate of frost buildup
of the refrigerator, and internal sweating.
Door is slightly open. See problem section opening/closing of
doors.
Door is opened too often or too long. Open the door less often.
Water/Moisture
/Ice outside
refrigerator
Moisture forms Weather is humid. This is normal in humid weather.
on the outside of When humidity is lower, the moisture
the refrigerator should disappear.
or between doors.
Door is slightly open,causing cold air Thistime, close the door completely.
from the inside the refrigerator to meet
warm air from the outside.
Odors in refrigerator
Interior needsto be cleaned. Clean interior with sponge,warm water
and bakingsoda.
Foodwith strong odor is inthe refrigerator. Cover rood completely.
Some containers and wrapping materials Use a different container or brand of
produce odors, wrapping materials.
Opening/Closing of
doors/Drawers
Door(s) will not Food package is keeping door open. Move packages that keep door from
close, closing.
Door(s) will not Doorwas closed too hard, causing other Close both doors gently.
close, door to open slightly.
Refrigerator is not level. It rocks on the Adjust the height adjusting screw.
floor when it is moved slightly.
Floor is uneven or weak. Be sure floor is level and can adequately
Refrigerator rocks on the floor when it support refrigerator.
is moved slightly. Contact carpenter to correct sagging or
sloping floor.
Refrigerator istouching wall or cabinets. Move refrigerator..
Drawers are Food is touching shelf on top of the Keep less rood in drawer.
difficult to move. drawer
Trackthat drawer slides on is dirty. Cleandrawer andtrack.
Dispenser
Dispenser will not Ice storage bin is empty. When the first supply or ice is dropped
dispense ice intothe bin, the dispensershouldoperate,
Freezer temperature is set too warm. Turn the freezer control to a higher
setting so that ice cubes will be made,
When the first supply of ice is made,
the dispenser should operate.
Household water line valve isnot open. Open household water line valve and
allow sufficient time Forice to be made.
When ice is made, dispenser should
operate.
Refrigerator or freezer door is not closed. Be sure both doors are closed.

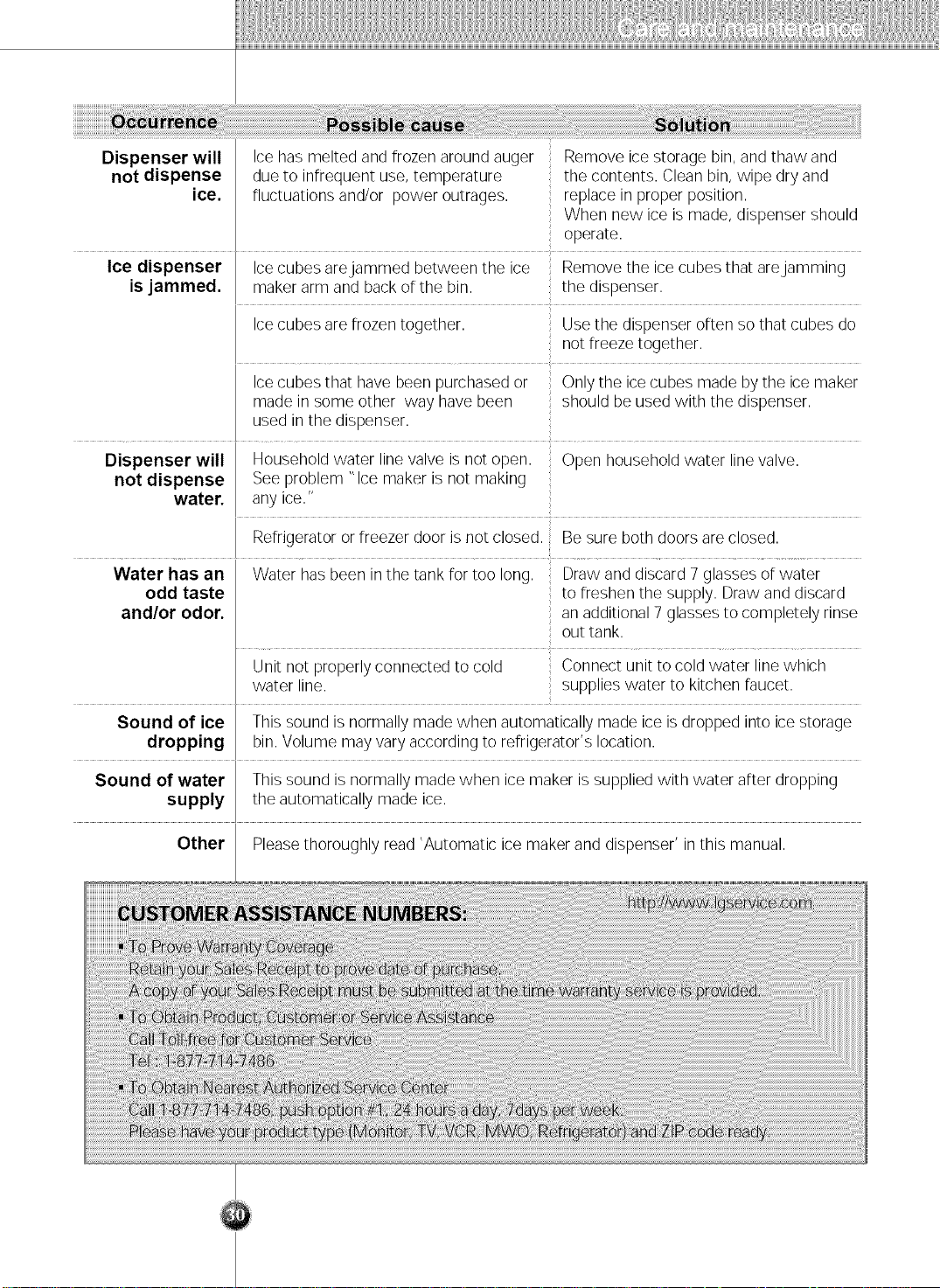

Dispenserwill IcehasmeltedandFrozenaroundauger Removeicestoragebin,andthawand
not dispense due to infrequent use, temperature the contents. Clean bin,wipe dry and
ice. Fluctuationsand/or power outrages, replace in proper position.
When new ice is made, dispenser should
operate.
Ice dispenser Icecubes arejammed between the ice Remove the ice cubes that arejamming
is jammed, maker arm and back oFthe bin. the dispenser.
Icecubes are Frozentogether. Use the dispenser often so that cubes do
not Freezetogether.
Icecubes that have been purchased or Only the ice cubes made by the ice maker
made in some other way have been should be used with the dispenser.
used in the dispenser.
Dispenser will Household water line valve is not open. Open household water line valve.
not dispense See problem "Ice maker is not making
water, any ice."
ReFrigeratoror Freezerdoor is not closed. Be sure both doors are closed.
Water has an Water has been inthe tank Fortoo long. [)raw and discard 7 glasses oFwater
odd taste to Freshenthe supply. [)raw and discard
and/or odor. an additional 7 glasses to completely rinse
out tank.
Unit not properlyconnected to cold Connect unit to cold water line which
water line. supplies water to kitchen Faucet.
Sound of ice Thissound is normally made when automatically made ice is dropped into icestorage
dropping bin.Volume may vary according to refrigerator's location.
Sound of water This sound is normally made when ice maker is supplied with water after dropping
supply the automatically made ice.
Other Pleasethoroughly read 'Automatic ice maker and dispenser' in this manual.
LG Electronics Inc.
LG Twin Tower, 20, Yoido-Dong,
Youngdungpo-Gu, Seoul, 150-721, Korea.
http://www.lge.com
P/NO :3828JD8792G Printed in Korea
