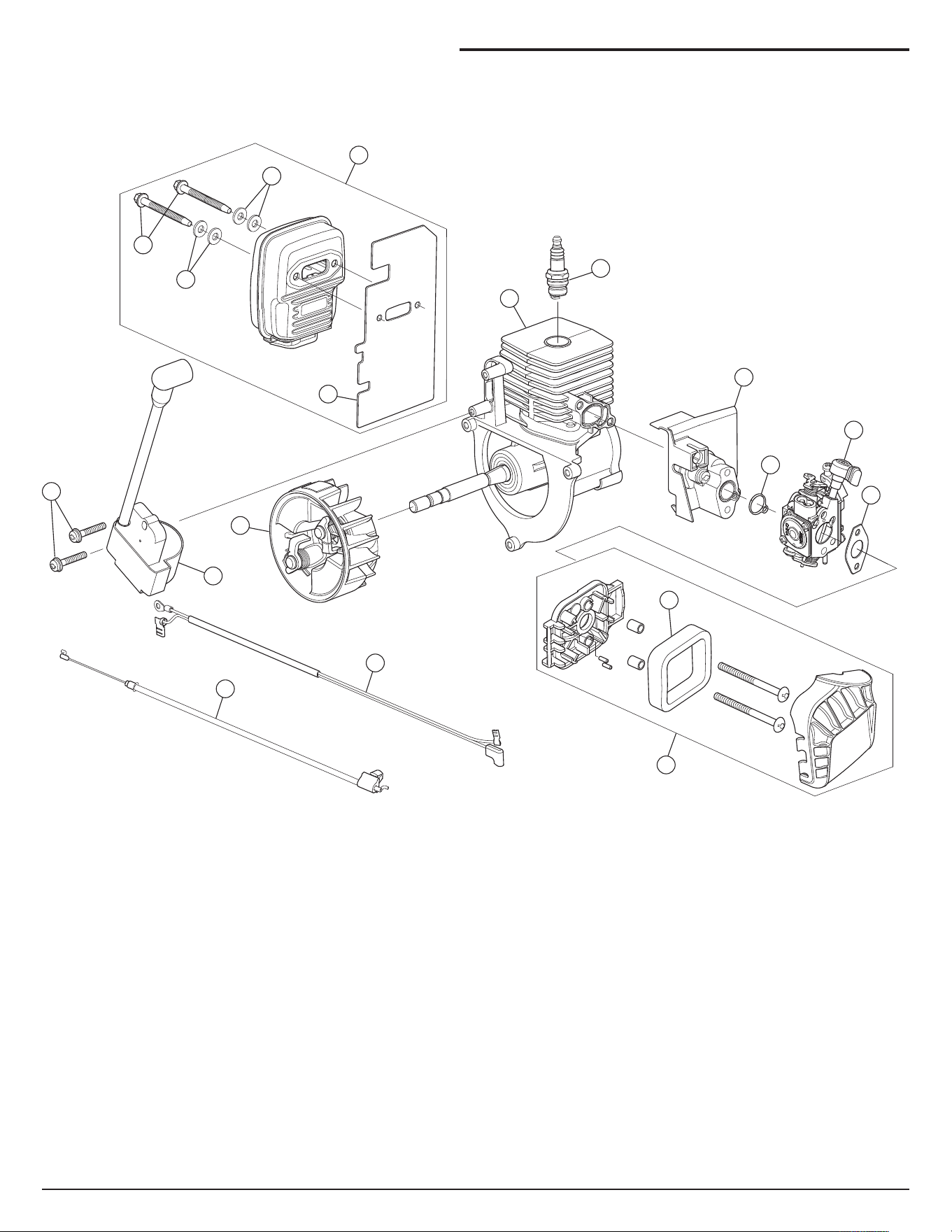

REPLACEMENT PARTS - MODEL TB430
2-CYCLE BLOWER
PPN 41AS99BS766
769-12227 / 00 04/17
1
7
4
3
6
5
2
8
9
10
11
12
13
14
7
15
16
18
19
20
7
7
7
21
22
23
24
25
7
17
Item Part No. Description
14 753-08533 Impeller Housing Assembly (LH) (includes 7)
15 731-10598 Upper Blower Tube
16 731-11154 Blower Nozzle
17 731-10782 Lower Blower Tube
18 753-08508 Fuel Tank Assembly
19 712-04050 U-Shaped Nut
20 9206A Screw
21 753-08511 Intake Cover (includes 7)
22 750-06367 Shaft Spacer
23 736-05080 Washer
24 753-08496 Engine Adapter (includes 9)
25 753-08510 Engine Cover
Housing (includes 7)
Item Part No. Description
1 753-08532 Handle Assembly
2 841-012313S Handle (LH)
3 732-04270A Trigger Spring
4 725-05280 On/Off Switch
5 731-10776-10 Handle (RH)
6 731-09987-1 Throttle Trigger
7 710-04194 Screw
8 753-08534 Impeller Housing Assembly (RH) (includes 9)
9 710-06341 Screw
10 753-08491 Impeller Assembly
11 736-05080 Washer
12 736-04110A Lock Washer
13 712-04137 Nut
769-12227 / 00 04/17
1
2
3
4
5
6
11
12
13
15
16
16
REPLACEMENT PARTS - MODEL TB430
2-CYCLE BLOWER
PPN 41AS99BS766
9
10
14
8
7
Item Part No. Description
10 746-05226 Throttle Cable
11 753-08490 Flywheel Assembly
12 753-08489 Module Assembly
13 710-06301 Screw
14 753-08488 Muffler Assembly (includes 15, 16 and 17)
15 710-05077 Muffler Screws
16 2592 Washers
17 721-04801 Muffler Gasket
Item Part No. Description
1 753-08712 Shortblock Assembly
2 753-06847 Spark Plug
3 753-06189 Insulator Assembly
4 753-06185 O-Ring
5 753-06288 Carbur
etor
6 721-04381 Carburetor Gasket
7 753-08507 Air Cleaner Assembly
8 9653 Air Cleaner Filter
9 725-06313 Lead Wire
