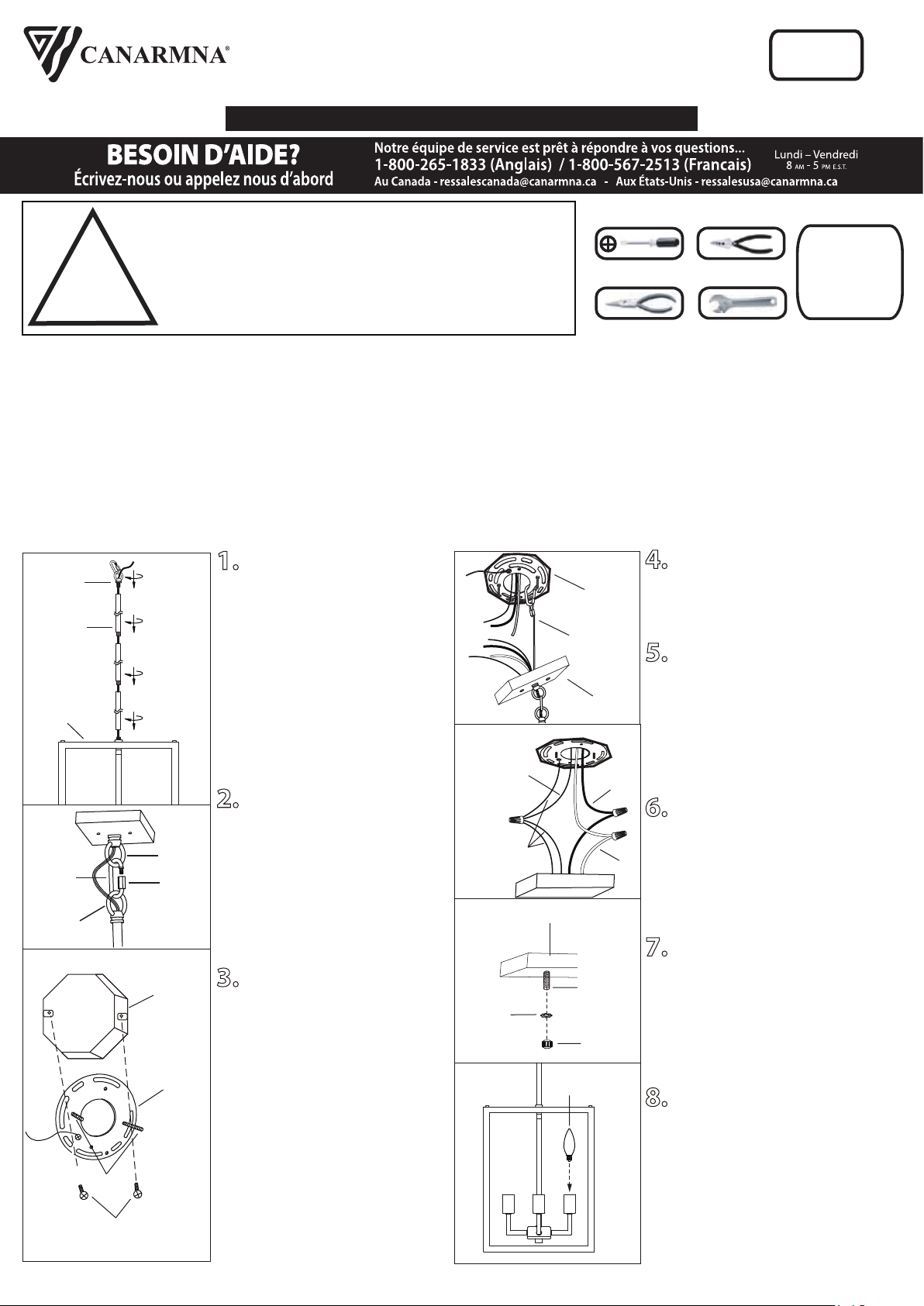

IOL533
10/20
Tel: (613) 342-5424, Fax: (800) 263-4598
Phillips
Screwdriver
Wire Cutters
Pliers Wrench
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Wiring supplies
as required by
local electrical
code

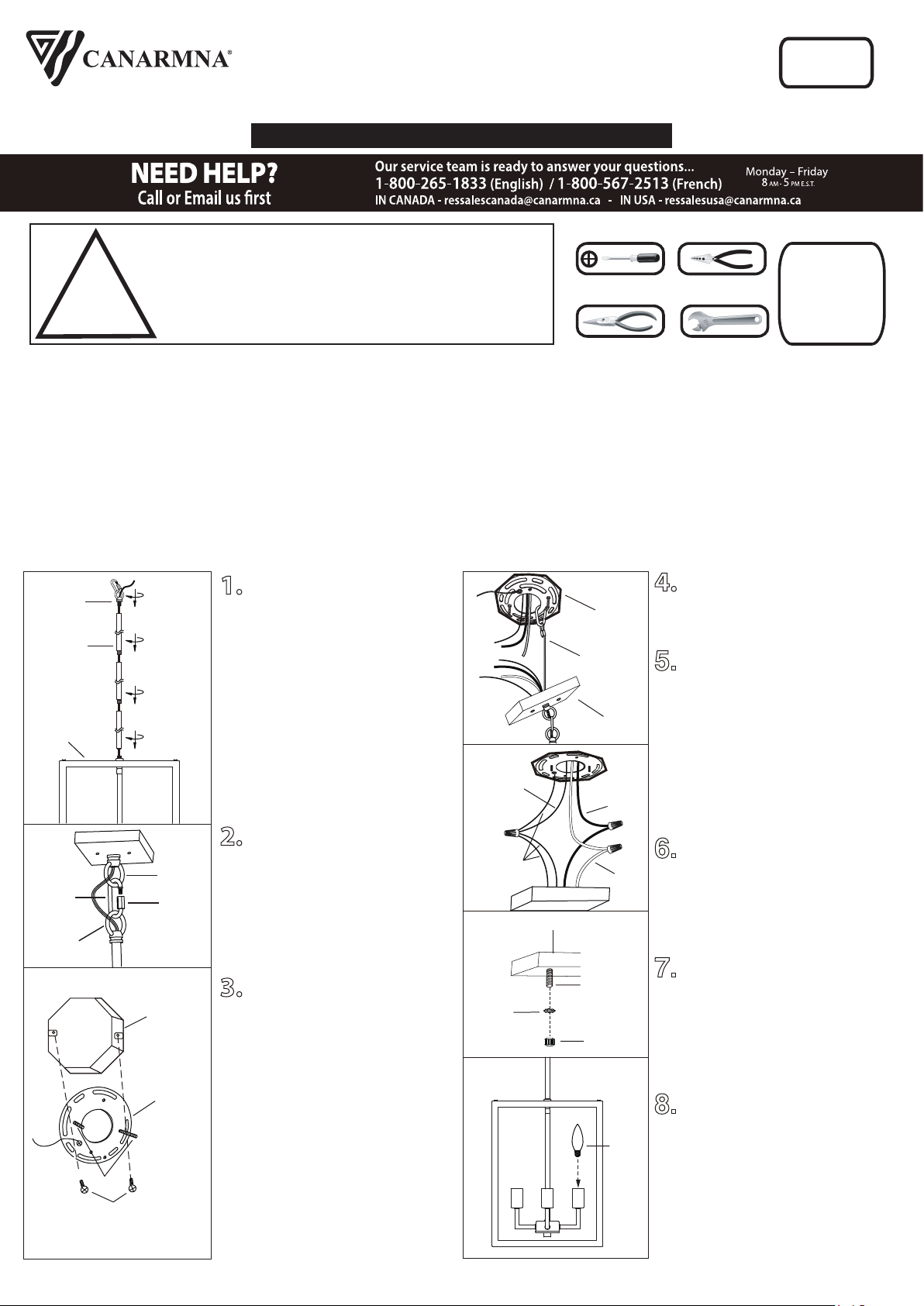

1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE
BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
3. CONNECT THE GROUND WIRES (BARE COPPER OR GREEN) FROM YOUR FIXTURE TO THE GROUND
WIRE (BARE COPPER OR GREEN) OR GROUND SCREW IN THE ELECTRICAL BOX.
4. TO CLEAN THE FIXTURE, TURN OFF THE POWER, WAIT FOR IT TO COOL, AND WIPE THE FIXTURE WITH A
CLEAN, SOFT CLOTH.
NOTE: Product may not look exactly as shown in figures.
INSTALLATION:
SAFETY PRECAUTIONS:
TOOLS AND MATERIALS REQUIRED:
OUTDOOR
LIGHTING
SUITABLE FOR DRY OR DAMP LOCATIONS
Fixture
Rod
Lower
loop
1. Install the length of rod that
is required by threading wire
through the rod and screwing it
to the fixture. Screw the lower
loop to the top rod.
2. Un-Screw the screw hook
and insert the upper and lower
loop into the screw hook.
Seal the opening on the screw
hook by screwing the nut.
3. Mount the mounting
bracket to electrical box using
electrical box screws (not
included). Make sure the studs
on the mounting bracket are
facing out from the electrical
box.
Electrical Box Screws
(not Included)
Electrical
Box
Mounting
Bracket
Studs
Mounting
Bracket
Suspended
Wire
Fixture
White
Black
House
supply
Ground
wire
Fixture
Ground
wire
Star
Washer
Cap
Nut
Fixture
Bulb
4. Use the suspended wire to
hang the fixture as shown for
wiring connection.
5. Connect the ground wires
(bare copper or green) from your
fixture to the ground wire (bare
copper or green) or ground
screw in the electrical box.
Connect the black wire from the
fixture to the black wire in the
electrical box and connect the
white wire from the fixture to the
white wire in the electrical box.
6. Once wire connections are
completed, carefully tuck wires
and wire nuts into the electrical
box making sure no bare wire (on
the black and white) is visible at
the wire nuts.
7. Install the light fixture to the
ceiling by aligning the hole(s) in
the fixture with the studs on the
mounting bracket. Secure fixture
in place with star washers, hex
nuts and cap nuts.
8. Install specified bulb type
and wattage (not included).
Lower
loop
Upper
loop
Screw
hook
Nut
Stud
