SECTION: 2.30.040
FM2852
0719
Supersedes
1017
Product information presented
here reects conditions at time
of publication. Consult factory
regarding discrepancies or
inconsistencies.
4-9/16”
(116 mm)
8-3/4”
(222 mm)
6-1/2”
(165 mm)
4-9/16” (116 mm)
2” NPT
OR
3” NPT
FLANGE AVAILABLE
8-9/16”
(217 mm)
1-1/2” NPT
CONDUIT CONNECTION
24-15/16”
(633 mm)
21-1/2”
(546 mm)
6-1/16” (154 mm)
CAUTION
Model 293 should not be subjected to less than 15' (5 m) TDH.
SK1914
4-9/16”
(116 mm)
8-3/4”
(222 mm)
6-1/2”
(165 mm)
4-9/16” (116 mm)
2” NPT
OR
3” NPT
AVAILABLE
CHECK VALVE
6-1/16” (154 mm)
22-31/32”
(566 mm)
23-9/32”
(591 mm)
1-1/2” NPT
CONDUIT CONNECTION
SK2508
TECHNICAL DATA SHEET
HIGH HEAD WASTE-MATE SERIES
Models X292, X293, X294, X295
Submersible Sewage Pumps For Hazardous Locations
Class I, Division 1, Groups C & D Rated
Class I, Zone 1, Groups IIA & IIB
AUTOMATIC
NONAUTOMATIC
All Class 30 cast iron construction.
NOTE: The sizing of effluent systems normally requires variable level float(s)
controls and properly sized basins to achieve required pumping cycles or
dosing timers with nonautomatic pumps.
PRODUCT SPECIFICATIONS
MOTOR
Horse Power 1/2 (X292), 1 (X293), 1-1/2 (X294), 2 (X295)
Voltage 115 - 575
Phase 1 or 3 Ph
Hertz 60 Hz
RPM 3450
Type Permanent split capacitor or 3 Ph
Insulation Class B:X292-X293, Class F:X294,X295
Amps 2.4 - 20.5
PUMP
Operation Automatic or nonautomatic
Auto On/Off Points 19-1/2" (495 mm) / 9-3/4" (248 mm)
Discharge Size 2" or 3" NPT female, anged vertical
Solids Handling 2" (50 mm) spherical solids
Cord Length 20' (6 m) standard
Cord Type
1 Ph-UL listed 5-wire neoprene cord
3 Ph-8 wire with no plug
Max. Head 75' (22.9 m)
Max. Flow Rate 214 GPM (810 LPM)
Max. Operating Temp. 104 °F (40 °C)
Cooling Oil lled with nned housings
Motor Protection
Auto reset thermal overload (1 Ph) or thermal
sensor (3 Ph)
MATERIALS
Upper Bearing Ball bearing
Lower Bearing Ball bearing
Mechanical Seals Carbon and ceramic with stainless steel parts
Impeller Type Non-clogging vortex
Impeller Cast iron, optional bronze
Hardware Stainless steel
Motor Shaft 416 stainless steel
Gasket Neoprene square ring
NOTE: See model comparison chart for specific details.
Patent No. 8,535,014
Automatic model only
Certied to CSA Standard
C22.2 No. 145
Tested to FM Standard
3600 & 3615
© Copyright 2019 Zoeller
®
Co. All rights reserved.
502-778-2731 | 800-928-7867 | 3649 Cane Run Road | Louisville, KY 40211-1961 | zoellerpumps.com
SELECTION GUIDE
1. See FM1705 for correct intrinsically-safe simplex or duplex panel
2. See FM0526 for variable level control switches rated 30VDC are used as a control activator. Quantity required dependent upon panel selection.
3. Integral oat-operated mechanical switch; no external control required
4. Automatic pumps: use the optional seal-failure panel (10-1031) to enable the moisture sensor circuit, if required by local codes.
Additional cord lengths are available in 35' (11 m) and 50' (15 m).
All Models are, cCSAus approved
Tested to FM Standards 3600 & 3615 by CSA
Model
MODEL COMPARISON
Seal Mode Volts Ph Amps HP Hz Lbs Kg Simplex Duplex
MX292 Single Auto 115 1 15.0 1/2 60 123 56 2 & 3 ---
NX292 Single Non 115 1 15.0 1/2 60 118 54 1 & 2 1 & 2
DX292 Single Auto 230 1 7.5 1/2 60 123 56 3 & 4 ---
EX292 Single Non 230 1 7.5 1/2 60 110 49 1 & 2 1 & 2
HX292 Single Auto 200 1 8.8 1/2 60 123 56 3 & 4 ---
IX292 Single Non 200 1 8.8 1/2 60 110 49 1 & 2 1 & 2
FX292 Single Non 230 3 5.2 1/2 60 121 55 1 & 2 1 & 2
JX292 Single Non 200 3 6.4 1/2 60 121 55 1 & 2 1 & 2
GX292 Single Non 460 3 2.9 1/2 60 121 55 1 & 2 1 & 2
BAX292 Single Non 575 3 2.4 1/2 60 121 55 1 & 2 1 & 2
DX293 Single Auto 230 1 10.2 1 60 123 56 2 & 3 ---
EX293 Single Non 230 1 10.2 1 60 118 54 1 & 2 1 & 2
HX293 Single Auto 200 1 12.0 1 60 123 56 2 & 3 ---
IX293 Single Non 200 1 12.0 1 60 121 55 1 & 2 1 & 2
FX293 Single Non 230 3 7.6 1 60 121 55 1 & 2 1 & 2
JX293 Single Non 200 3 8.2 1 60 121 55 1 & 2 1 & 2
GX293 Single Non 460 3 4.0 1 60 121 55 1 & 2 1 & 2
BAX293 Single Non 575 3 3.3 1 60 121 55 1 & 2 1 & 2
DX294 Single Auto 230 1 13.7 1-1/2 60 128 58 2 & 3 ---
EX294 Single Non 230 1 13.7 1-1/2 60 121 55 1 & 2 1 & 2
HX294 Single Auto 200 1 17.8 1-1/2 60 128 58 2 & 3 ---
IX294 Single Non 200 1 17.8 1-1/2 60 121 55 1 & 2 1 & 2
FX294 Single Non 230 3 9.5 1-1/2 60 121 55 1 & 2 1 & 2
JX294 Single Non 200 3 10.8 1-1/2 60 121 55 1 & 2 1 & 2
GX294 Single Non 460 3 4.8 1-1/2 60 121 55 1 & 2 1 & 2
BAX294 Single Non 575 3 3.8 1-1/2 60 121 55 1 & 2 1 & 2
DX295 Single Auto 230 1 17.1 2 60 128 58 2 & 3 ---
EX295 Single Non 230 1 17.1 2 60 121 55 1 & 2 1 & 2
HX295 Single Auto 200 1 20.5 2 60 128 58 2 & 3 ---
IX295 Single Non 200 1 20.5 2 60 121 55 1 & 2 1 & 2
FX295 Single Non 230 3 12.2 2 60 121 55 1 & 2 1 & 2
JX295 Single Non 200 3 14.3 2 60 121 55 1 & 2 1 & 2
GX295 Single Non
460 3 6.1 2 60 121 55 1 & 2 1 & 2
BAX295 Single Non 575 3 4.9 2 60 121 55 1 & 2 1 & 2
009919
CAUTION
Model 293 should not be subjected to less than 15' (5 m) TDH.
TOTAL DYNAMIC HEAD FLOW PER MINUTE
130
480
TOTAL DYNAMIC HEAD
FLOW PER MINUTE
GALLONS
LITERS
0
0
10
2
5
4
15
80
10 20
160
30 40
30
6
20
8
25
10
35
12
40
240
50 60
320
70 80 110
400
90 100 120
X293
70
50
14
45
16
55
18
60
20
65
METERS
FEET
22
80
X295
800640
170
560
150
140 160
X292
X294
720
190
180 200 210 220
75
24

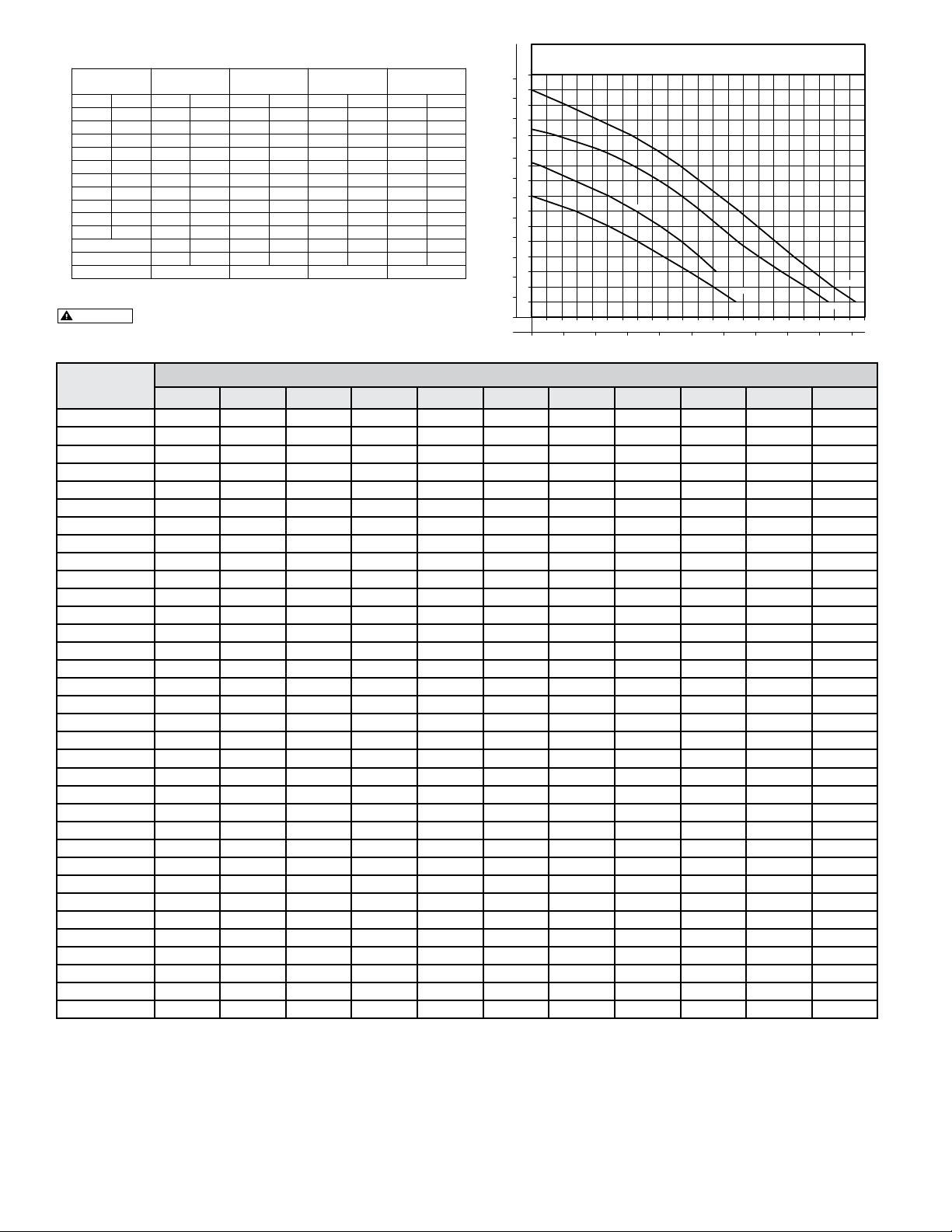

PUMP PERFORMANCE CURVE
MODEL X292/X293/X294/X295
TOTAL DYNAMIC HEAD/FLOW
PER MINUTE
SEWAGE AND DEWATERING
Feet Meters LitersGal. Liters Gal.
MODEL
5 1.5 511135 -- --
10 3.0 454120 -- --
4.6 394104 122 46215
6.1 32987 111 42020
7.6 26570 99 37525
9.1 19351 85 322
30
12.2 ---- 51 193
40
15.2 ---- 6 2350
18.3 ---- -- --60
21.3 ---- -- --70
Shut-off Head: 40 ft.(12.2m) 51 ft.(15.5m)
10.7 11029 69 261
35
16.8 ---- -- --55
LitersGal. Gal. Liters
X295X293X292 X294
196 742
181 685
165 625
150 568
136 515
124 469
99 375
67 254
16 61
-- --
62 ft.(18.9m)
199 753
124
23
98
66
161
149
186
173
469
87
371
250
609
564
704
655
214 810
75 ft.(22.9m)
112 424 137 519
46 174 83 314
