HDM67V8D2CX/UKHDM67V8D2CX/UKHDM67V8D2CX/UK
EN
ENGLISH
Health and Safety guide
Installation guide
Quick guide
2
EN
SAFETYINSTRUCTIONS
IMPORTANTTOBEREADANDOBSERVED
Beforeusingtheappliance,readthesesafety
instructions.Keepthemnearbyforfuture
reference.
Theseinstructionsandtheapplianceitselfprovide
importantsafetywarnings,tobeobservedatall
times.Themanufacturerdeclinesanyliabilityfor
failuretoobservethesesafetyinstructions,for
inappropriateuseoftheapplianceorincorrect
settingof controls.
WARNING:Theapplianceanditsaccessible
partsbecomehotduringuse. Careshoulbetaken
to avoid touching heating elements. Children less
than8yearsofagemustbekeptawayunless
continuouslysupervised.
WARNING:Ifthehobsurfaceiscracked,donot
usetheappliance– riskofelectricshock.
WARNING : Danger of fire :Do not store items
onthecookingsurfaces.
CAUTION:Thecookingprocesshastobe
supervised.Ashortcookingprocesshastobe
supervisedcontinuously.
WARNING:Leaving thehob unattended when
cooking withfatoroilcanbedangerous – riskof
fire.NEVER try to extinguish a fire with water,but
switchofftheapplianceandthencovertheflames
e.g.witha lidorafireblanket.
Donotusethehobasaworksurfaceorsupport.
Keepclothesorotherflammablematerialsaway
fromtheappliance,unitl allthecomponentshave
cooleddowncompletely– riskoffire.
Veryyoungchildren(0-3years)shouldbekept
awayfromtheappliance.Youngchildren(3-8
years)shouldbekeptawayfromtheappliance
unlesscontinuouslysupervised.Childrenfrom8
yearsoldandaboveandpersonswithreduced
physical,sensoryormentalcapabilitiesorlackof
experienceandknowledgecanuse this appliance
onlyiftheyaresupervisedorhavebeengiven
instructionsonsafeuseandunderstandthe
hazardsinvolved. Childrenmustnot play with the
appliance.Cleaningandusermaintenancemust
notbecarriedoutbychildrenwithoutsupervision.
WARNING:Theapplianceanditsaccessible
partsbecomehotduringuse.Careshouldbetaken
to avoid touching heating elements. Children less
than8yearsofagemustbekeptawayunless
continuouslysupervised
Never leavethe applianceunattended during
fooddrying.Iftheapplianceissuitablefor
probeusage,onlyuseatemperatureprobe
recommendedforthis oven-riskoffire.
Keepclothesorotherflammablematerials
awayfromtheappliance,untilallthecomponents
havecooleddowncompletely-riskoffire.Always
bevigilantwhencookingfoodsrichinfat,oilor
whenaddingalcoholicbeverages-riskoffire.Use
ovenglovestoremovepansandaccessories.At
theendofcooking,openthedoorwithcaution,
allowinghotairorsteamtoescapegradually
before accessing the cavity - risk of burns.Do not
obstructhotairventsatthefrontoftheoven-risk
offire.
Exercise caution when theoven door isinthe
openor downposition,to avoidhittingthedoor.
PERMITTEDUSE
CAUTION:Theapplianceisnotintendedto
beoperatedbymeansofanexternalswitching
device,suchasatimer,orseparateremote
controlledsystem.
Thisapplianceisintendedtobeusedin
householdandsimilarapplicationssuchas:staff
kitchenareasinshops,officesandotherworking
environments;farmhouses;byclientsinhotels,
motels,bed&breakfastandotherresidential
environments.
Nootheruseispermitted(e.g.heatingrooms).
Thisapplianceisnotforprofessionaluse.Do
notusethe applianceoutdoors.
Donotstoreexplosiveorflammable
substances(e.g.gasolineoraerosolcans)insideor
nearthe appliance- riskoffire.
INSTALLATION
Theappliancemustbehandledandinstalled
bytwoormorepersons-riskofinjury.Use
protectiveglovestounpackandinstall-riskof
cuts.
Installation,includingwatersupply(ifany),
electricalconnectionsand repairs must becarried
outbyaqualifiedtechnician.Donotrepairor
replaceanypartoftheapplianceunlessspecifically
statedintheusermanual.Keepchildrenawayfrom
theinstallationsite.Afterunpackingtheappliance,
makesurethatithasnotbeendamagedduring
transport.Intheeventofproblems,contactthe
dealeroryournearestAftersalesService.Once
installed,packagingwaste(plastic,styrofoam
partsetc.)mustbestoredoutofreachof
children-riskofsuffocation.Theappliancemust
bedisconnectedfromthepowersupplybefore
anyinstallationoperation-riskofelectricshock.
During installation, make sure the appliance does
notdamagethepowercable-riskoffireorelectric
shock.Onlyactivatetheappliancewhenthe
installationhasbeencompleted.
Donot removethe appliancefromits polystyrene
foambase untilthetime ofinstallation.
Donotinstalltheappliancebehindadecorative
door- riskoffire.
iftherangeis placedon abase,itmust
beleveledandfixedtothewall bythe
retentionchainprovided,to preventthe
applianceslippingfromthebase.
3
WARNING:In ordertopreventthe
appliancefromtipping,theretentionchain
providedmustbeinstalled.Refertothe
instructionsforinstallation.
ELECTRICALWARNINGS

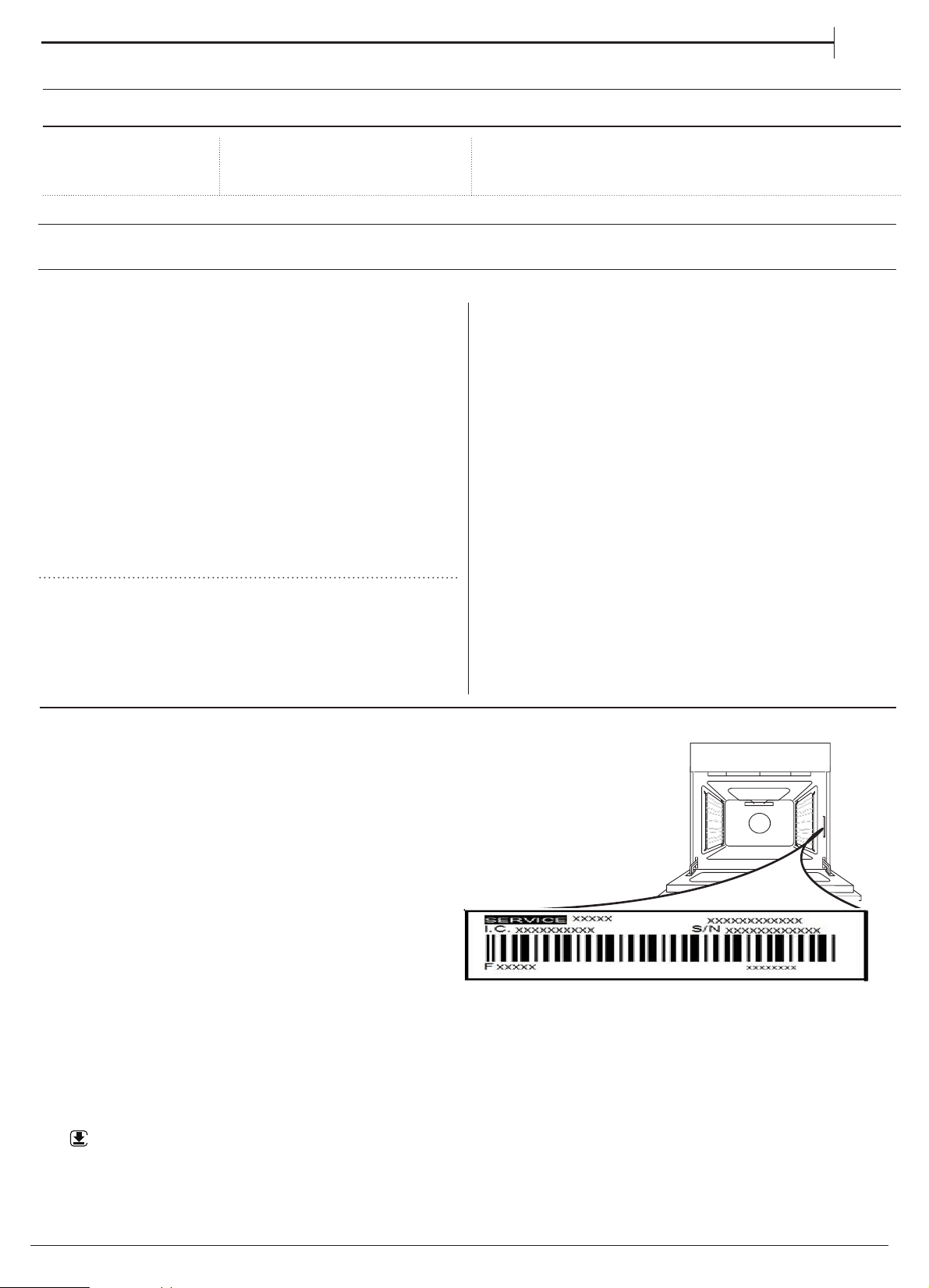

Theratingplateisonthefrontedgeofthe
oven(visible whenthe doorisopen).
Itmustbepossibletodisconnecttheappliance
fromthepowersupplybyunpluggingitif
plugisaccessible,orbyamulti-poleswitch
installedupstreamofthesocketinaccordance
withthewiringrulesandtheappliancemust
beearthedinconformitywithnationalelectrical
safetystandards.
Donotuseextensionleads,multiplesockets
oradapters.Theelectricalcomponentsmustnot
be accessible to the user after installation.Do not
usetheappliancewhenyouarewetorbarefoot.
Do not operate this appliance if ithas a damaged
powercableorplug,ifitisnotworkingproperly,
orifithasbeendamagedor dropped.
Ifthesupplycordisdamaged,itmust
bereplacedwithanidenticalonebythe
manufacturer,itsserviceagentorsimilarly
qualifiedpersonsinordertoavoidahazard-
riskofelectric shock.
Ifthepowercableneedstobereplaced,
contactan authorizedservicecenter.
WARNING:Ensurethattheapplianceis
switchedoffbeforereplacingthelamptoavoid
thepossibilityofelectricshock.
CLEANINGANDMAINTENANCE
WARNING:Ensurethattheapplianceis
switchedoffanddisconnectedfromthepower
supplybeforeperforminganymaintenance
operation;never usesteam cleaning equipment -
riskofelectric shock.
Donotuseharshabrasivecleanersormetal
scraperstocleanthedoorglasssincetheycan
scratchthesurface,whichmayresultinshattering
oftheglass.
Donotuseabrasiveorcorrosiveproducts,
chlorine-basedcleanersor panscourers.
Makesuretheappliancehascooleddown
beforecleaningor performing maintenance. - risk
ofburns.
WARNING:Switchofftheappliancebefore
replacingthelamp-riskofelectricshock.
DISPOSALOFPACKAGINGMATERIALS
Thepackagingmaterialis100%recyclableandismarkedwiththe
recyclesymbol
.Thevariouspartsofthepackagingmusttherefore
bedisposedofresponsiblyandinfullcompliancewithlocalauthority
regulationsgoverningwaste disposal.
DISPOSALOFHOUSEHOLDAPPLIANCES
Thisapplianceismanufacturedwithrecyclableorreusablematerials.
Disposeofitinaccordancewithlocalwastedisposalregulations.
4
<
$*
&=.:=>:?>*'***7-***1
7
$
7
($'
$7$
and with the Waste Electrical and Electronic Equipment regulations
2013 (as amended).
Regulation 66/2014; Energy Labelling Regulation 65/2014;
This appliance meets: Ecodesign requirements of European
Ecodesign for Energy-Related Products and Energy Information
(Amendment) (EU Exit) Regulations 2019, in compliance with the
European standard EN 60350-1.
This appliance meets Ecodesign requirements of European Regulation
Information (Amendment) (EU Exit) Regulations 2019 in compliance with the
European standard EN 60350-2.
66/2014 and The Ecodesign for Energy-Related Products and Energy

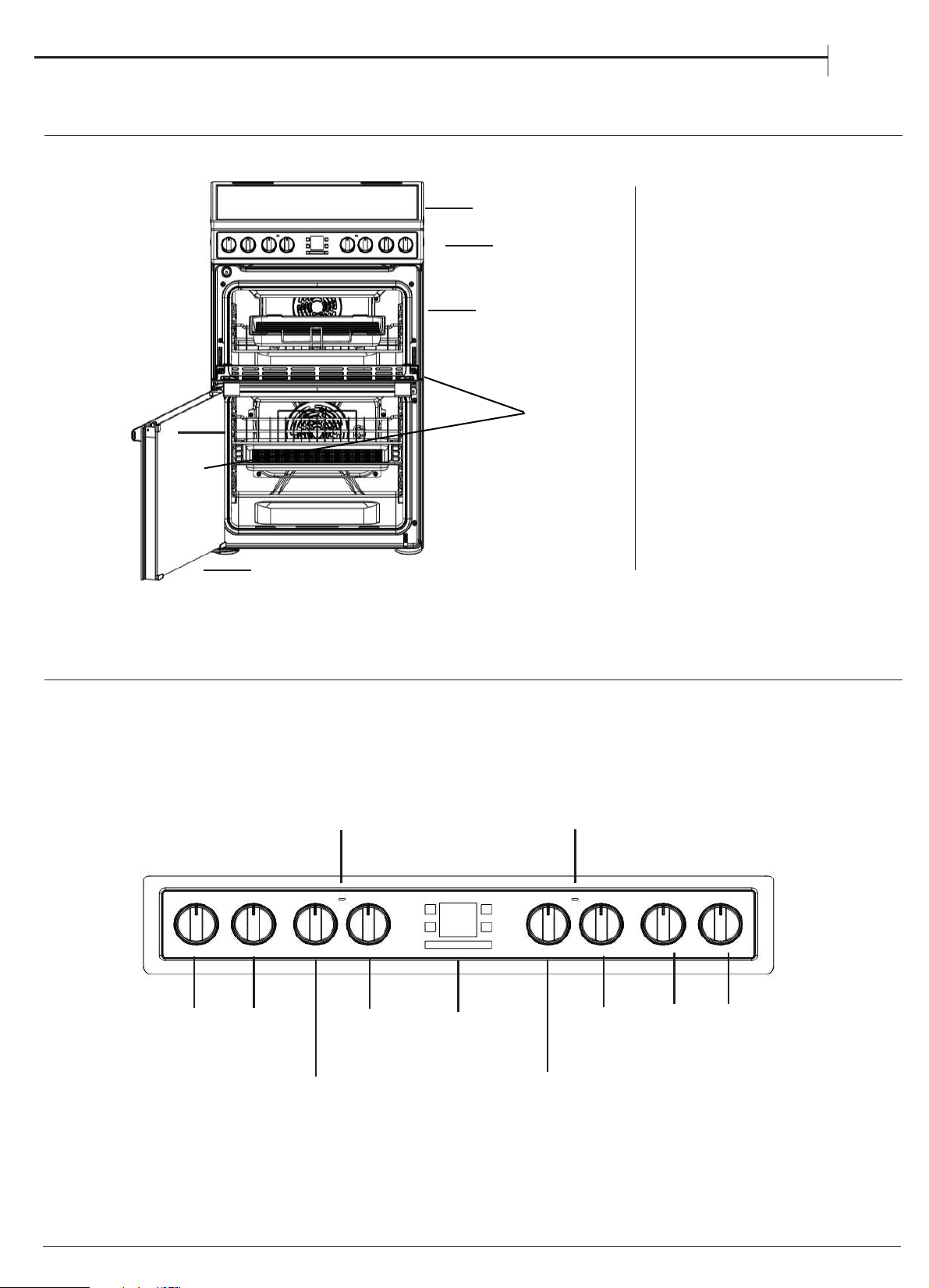

PRODUCT DESCRIPTION
1. Glass ceramic hob
CONTROL PANEL
2. Control panel
3. Runners for accessories
(the level is indicated on the wall
of the cooking compartment)
5.
Main oven door
Removable Inner Door Glass
4.
5
1.
2.
3.
3.
4.
5.
EN
TOP OVEN/GRILL
PILOT LIGHT
MAIN OVEN
PILOT LIGHT
MAIN
OVEN
ELECTRONIC
TIMER
LEFT
FRONT
PLATE
LEFT
REAR
PLATE
RIGHT
REAR
PLATE
RIGHT
FRONT
PLATE
THERMOSTAT
MAIN
OVEN
TOP
OVEN/
GRILL SELECTOR
SELECTOR
THERMOSTAT
TOP OVEN/
GRILL
6
EN
INSTALLATION TIPS
Positioning
Important: this unit may be installed and used only in
permanently ventilated rooms according to the
British Standards Codes Of Practice: B.S. 6172/B.S. 5440, Par.
2 and B.S. 6891 Current Editions. The following
requirements must be observed:
a) The cooker should not be installed in a bed sitting
room with a volume of less than 20m
3
. If it is installed in a
room of volume less than 5m
3
an air vent of effective area
of 110cm
2
is required, if it is installed in a room of volume
between 5m
3
and 10m
3
a supplementary airvent area of
50cm2 is required, if the volume exceeds 11m
3
no airvent is
required. However, if the room has a door or a window which
opens directly to the outside no air vent is required even
when the volume is between 5m
3
and 11m
3
.
b) During prolonged use of the appliance you may
consider it necessary to open a window to the outside to
improve ventilation.
c) If there are other fuel burning appliances in the
same room, B.S.5440 Part 2 Current Edition, should, be
consulted to determine the requisite air vent requirements.
This appliance must be earthed.
Mains Connection
Your cooker should have been checked to ensure that
the voltage corresponds with your supply voltage,
this is stated on the rating plate, which is situated on
the outer rear panel.
The model number and serial number are located on the
front of the cooker, as shown on the Feature's page.
The cooker must be connected by a competent person
such as one who is a, NICEIC registered contractor to a
suitable double-pole control unit with a minimum rating
of 32A and a minimum contact clearance of 3mm
(applicable to newer properties, older properties where a
30A double pole control unit and a minimum contact
clearance of 3mm is acceptable).
The double pole control unit should be fitted
adjacent to the cooker, in accordance with IEE regulations.
The control unit must be within 2 meters of but not
directly above the appliance and should be easily
accessible in the event of an emergency. The power
supply cable should conform to B.S.6004 with a
conductor size of 6mm2, minimum.
Access to the mains terminals is gained by removing the
rear access cover. The mains cable must pass through
the cable clamp adjacent to the terminal block.
Sufficient cable should be used to allow the cooker to
be pulled out for servicing.
Ensure that the mains cable is routed away from any
brackets affixed to the rear panel and is not trapped to
the rear wall when pushing the cooker into position
between cabinets.
This operation must be performed by a
qualified technician.
Before moving your cooker check that it is cool, and switch off
at the cooker control unit. Movement of your cooker is
most easily achieved by lifting the front as follows:
Take care in moving the cooker as it is heavy. Take care
to ensure that any floor covering is not damaged.
Splashplate optional, apply to Parts Department (see
Back Cover for contact number.)
The following instructions should be read by a qualified
technician to ensure that the appliance is installed,
regulated and technically serviced correctly in
compliance with current regulations.
GRID
ACCESSORIES
The number and type of accessories may vary depending on which model
is purchased. Other accessories that are not supplied can be purchased
separately from the After-sales Service.
The number and type of accessories may vary depending on which model
is purchased. Other accessories that are not supplied can be purchased
separately from the After-sales Service.
KIT GRILL PAN
Grill Pan Handle
The grill pan handle is detachable from the pan to
facilitate cleaning and storage. Fix the pan handle
securely before use:
1. Fit the handle to the grill pan so that the external
‘hooks’ embrace the edge of the pan (fig. 1)
2. Make sure that the middle part of the handle fits
exactly the protruding support of the pan (fig .2)
and holds the pan from the bottom.
The food must be placed on the rack in the grill pan.
Position the grill pan on top of the oven rack. The
best results are achieved following the cooking table.
Pouring a little water into the grill pan will make the
collection of grease particles more efficient and prevent
the formation of smoke.
7
FIRST TIME USE
DAI LY USE
To heat the oven turn the knob clockwise, selecting
the require temperature between 80°C (176°F) and
250°C (482°F) as recommended in the temperature
chart. The pilot light will immediately come on and
remain on until the oven reaches the required
temperature. This light will then automatically go off
and on during cooking as the oven thermostat
maintains the correct temperature.
MAIN OVEN
TOP OVEN
The top oven should be used to cook small
quantities of food.The oven is designed so that the
grill element operates at a reduced heat output, this
is combined with a heating element situated
underneath the floor of the oven.
To ensure even cooking of the food it is important
that cooking utensils are positioned correctly on the
oven shelf so that the element is directly above.
There are two cooking positions, the shelf placed on
runner 1 or 2 (from the base), do not use shelves
upside down.
Food/utensils must not be placed directly on the
oven floor.
There should always be at least 25mm (1in) between
the top of the food and the grill element.
Warning: Items stored in top oven will get hot when
main oven is in use.
Operation
Do not use the grill pan as a meat pan in the
top oven as air circulation will be seriously
restricted.
Top oven as a warming compartment for plates
Place the plates/dishes on the shelf, positioned on
runner 1, turn top oven control to 100°C for 10-15
minutes.Never use grill control.
It should be noted that at the end of the cooking
period there may be a momentary puff of steam
when the oven door is opened. This will disperse in
a few seconds and is a perfectly normal
characteristic of an oven with a good door seal.
Since a circulaire fan oven heats up more
quickly,and generally cooks food at a lower
temperature than a conventional oven, pre-heating is
often unnecessary.However, foods such as bread,
scones,Yorkshire pudding,do benefit from being
placed in a pre-heated oven.
The 'oven temperature charts' are a guide only,
giving approximate cooking temperatures and
times.To suit personal taste and requirements, it
may be necessary to increase or decrease
temperatures by 10°C.
Unless otherwise indicated in the charts food should
be placed in a cold oven, i.e. without pre-heating. If
food is placed in an already hot oven, the
suggested cooking time should be reduced,
depending on the type and quantity of food being
cooked.
Oven positions
Since the distribution of heat in the circulaire fan
oven is very even, most foods will cook satisfactorily
on any shelf position, but the shelves should be
evenly spaced.
The top oven rod shelf can be used in the main oven
when cooking large quantities of food.
Food or utensils should Never be placed directly
an the floor of the oven for cooking.
Never use more than 4 shelves in the oven as air
circulation will be seriously restricted.To ensure oven
circulation do not use meat pans larger than 390 x
300mm (15"x12") and baking trays no larger than
330 x 255mm (13"x 10"), these should be positioned
centrally on the oven shelf.
Food should not be placed directly on the floor of
the oven. To avoid unnecessary cleaning, rod
shelves which are not in use, should be removed
from the oven.
Temperature and time
When all four shelves are used to cook large
quantities of food for home freezing or parties, it
may be necessary to increase the cooking times
given in the temperature charts by a few minutes, to
allow for the loss of heat due to extra time taken to
load the oven, and the larger mass of food. Baking
trays should have an equal gap at either side of the
oven.
EN
When the cooker is first used an odour may be emitted,
When first using the cooker ensure that the room is well
this will cease after a period of use.
ventilated (e.g. open a window or use an extractor fan)
and that persons who may be sensitive to the odour avoid
any fumes. It is suggested that any pets be removed from
the room until the smell has ceased. This odour is due to
temporary finish on oven liners and elements and also any
moisture absorbed by the insulation.
While the top oven is heating up, the pilot light
will come on and remain on until the oven
reaches the required temperature. The pilot light
will automatically go on and off during cooking
as the thermostat maintains the correct temperature.
USING THE GLASS CERAMIC HOB
PRACTICAL ADVICE ON USING THE HOB
• Use pans with a thick, flat base to ensure that they
adhere perfectly to the cooking zone.
• Always use pans with a diameter that is large
enough to cover the hotplate fully, in order to use all
the heat produced.
• Always make sure that the base of the pan is
completely clean and dry: this ensures that the pans
adhere perfectly to the cooking zones and that both
the pans and the hob last for a longer period of time.
• Avoid using the same cookware that is used on gas
burners: the heat concentration on gas burners may
have warped the base of the pan, causing it not to
adhere to the surface correctly.
• Never leave a cooking zone switched on without a
pan on top of it, as doing so may cause the zone to
become damaged.
The glue applied on the gaskets leaves traces of
grease on the glass. Before using the appliance, we
recommend you remove these with a special non-
abrasive cleaning product. During the first few hours
of use there may be a smell of rubber which will
disappear very quickly.
Ratings of Cooking Zones
Front Left Front Right Back Left Back Right
Ceramic
1800 W
180 mm diameter
Ceramic
1200 W
140mm diameter
Ceramic
1200 W
140mm diameter
Ceramic
1800 W/750 W
8
EN
180 mm diameter
The Working of the Heating Zones
Heating only occurs within the marked circular
cooking zones. The zones heat up and cool down
quicker, providing greater controllability for sensitive
foods. Each heating zone is equipped with a thermal
limiter which is a safety cut-out which prevents the
ceramic glass from overheating. After several
minutes at full power without a pan on the heating
zone the thermal limiter will switch the heating
elements off and on automatically to avoid any
damage to the ceramic glass.
Front Right
6 Heat 1200W
Rear Left
Dual Circut Hilite -Solarglo 1800/750
Rear Right
6 Heat 1200W
Front Left
6 Heat 1800W
The HOT HOB indicator light:
This indicates that the temperature of the
corresponding cooking zone is greater than 60°C,
even when the heating element has been switched
off but is still hot.
Rear Right Dual Circuit hotplate
This is a dual purpose hotplate with two elements.
The settings on the glass control panel will show 1 -
4 when the control knob is turned clockwise to
indicate that the whole hotplate is turned on and can
be used for a larger pan, 4 is the highest setting.
With the control knob turned anti-clockwise the
settings on the glass control panel will show 1 - 4 to
indicate that only the inner part of the hotplate is
switched on.
This is an energy saving feature and is useful for
cooking with smaller pans or for simmering. The
control will be OFF when the control knob is turned
to the O position.
9

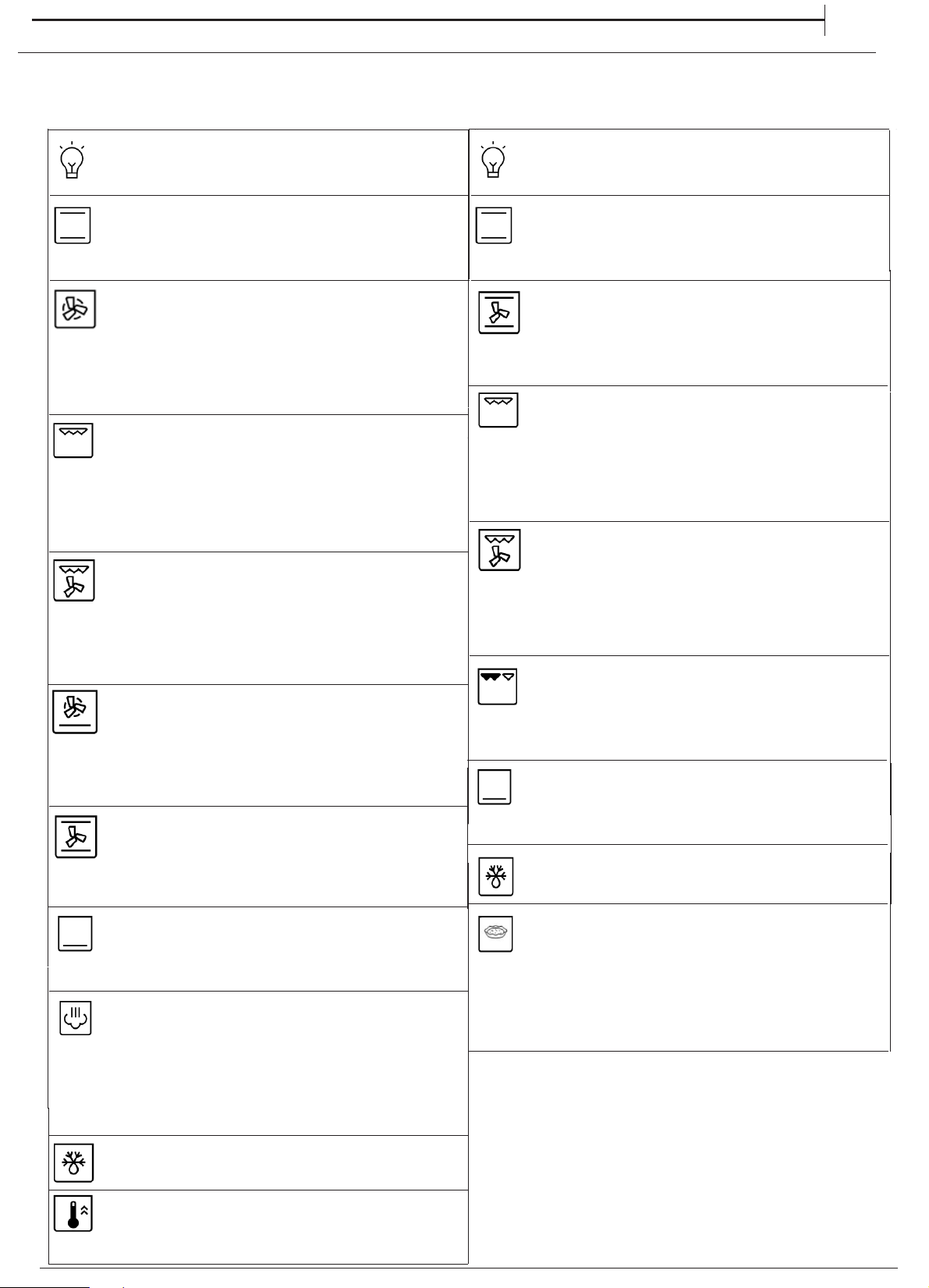

FUNCTIONS & DAILY USE
MAIN OVEN
CONVECTION BAKE
To cook on a maximum of two shelves at the
same time. It is a good idea to swap the position of
the baking trays halfway through cooking.
LIGHT
CONVENTIONAL
For cooking any kind of dish on one shelf only.
This function can be used to finish cooking
filled pies or to thicken soups. Use this function
for the last 10/15 minutes of cooking.
GRILL
For grilling steaks, kebabs and sausages,
cooking vegetables au gratin or toasting bread.
When grilling meat, we recommend using a drip tray
to collect the cooking juices: Position the pan on any
of the levels below the wire shelf and add 200 ml of
drinking water.
TURBO GRILL
For roasting large joints of meat (legs, roast
beef, chicken). We recommend using a drip tray to
collect the cooking juices: Position the pan on any
of the levels below the wire shelf and add 200 ml of
drinking water.
DEFROSTING
For accelerating the defrosting of food.
FORCED AIRFORCED AIR
For cooking different foods on multiple shelves (maximum
of four) at the same time. This function can be used to
cook different foods without odours being transferred from
one food to another.
To finish cooking food with a very liquid consistency
and to obtain crisp, golden bases.
Also useful for thickening sauces.
Place food on the 2nd shelf.
The oven does not have to be preheated.
BOTTOM HEATING + FAN
BOTTOM HEATING + FAN
For switching on the oven light.
To preheat the oven rapidly. At the end of preheating, select
FAST PREHEAT
STEAM
BOTTOMBOTTOM
The functions provide excellent results thanks to the
addition of steam in cooking cycles. Only when the oven
is cold, pour drinking water on the bottom of the oven and
select the specific function for your preparation. The optimal
water quantities and temperatures for each food category are
listed in the relative cooking table. Do not preheat the oven before
inserting food.
FAST PREHEAT
LIGHT
CONVENTIONAL
For cooking any kind of dish on one shelf only.
For switching on the oven light.
TOP OVEN
CONVECTION BAKE
To cook on a maximum of two shelves at the
same time. It is a good idea to swap the position of
the baking trays halfway through cooking.
GRILL
For grilling steaks, kebabs and sausages,
cooking vegetables au gratin or toasting bread.
When grilling meat, we recommend using a drip tray
to collect the cooking juices: Position the pan on any
of the levels below the wire shelf and add 200 ml of
drinking water.
TURBO GRILL
For roasting large joints of meat (legs, roast
beef, chicken). We recommend using a drip tray to
collect the cooking juices: Position the pan on any
of the levels below the wire shelf and add 200 ml of
drinking water.
LEFT GRILL
This function can be used to finish cooking
filled pies or to thicken soups. Use this function
for the last 10/15 minutes of cooking.
BOTTOMBOTTOM
DEFROSTING
For accelerating the defrosting of food.
STEAM
1. SELECT A FUNCTION
For grilling small food like bacon or toasting bread.
The grill pan is placed on top of the top oven cavity
shelf. The shelf position can be adjusted to allow for grilling
different types of food.
EN
SALTY CAKE
To cook vegetable pie, quiche with liquid filling (savoury
or sweet) on a single shelf. This function delivers an even, golden,
temperature is reached.
use the 2nd shelf. Preheat the oven to the
required temperature and place the food in it when the set
crisp top and base,
the preferred cooking function. Wait until the end of preheating
before placing food inside.
To select a function, turn the Top Oven/Grill or Main Oven Selection Knob
to the symbol for the function you require, then select the required
temperature by turning the Top Oven/Grill or Main Oven Temperature Knob.
10
COOKING TABLE
MAIN OVEN
EN
RECIPE FUNCTION PREHEAT
TEMPERATURE (°C) /
POWER LEVEL
DURATION
(Min)
LEVEL (L-number) AND
ACCESSORIES
Leavened cakes /
Sponge cakes
CONVENTIONAL
YES 170 30 - 50
Leavened cakes /
Sponge cakes
FORCED AIR YES
160-170
30 - 50
Filled cake
(cheese cake, strudel,
fruit pie)
CONVENTIONAL
YES 160 - 180 40 - 60
Filled cake
(cheese cake, strudel,
fruit pie)
FORCED AIR YES 150 - 170 40 - 70
Cookies / Shortbread CONVENTIONAL
YES 140 - 150 30 - 60
Cookies / Shortbread FORCED AIR YES 140 - 150 40 - 60
Cookies / Shortbread FORCED AIR YES 140 - 150 35 - 50
Cookies / Shortbread FORCED AIR YES 140 - 150 35 - 70
Small cakes / Muffin CONVENTIONAL
YES 160 - 180 20 - 50
Small cakes / Muffin FORCED AIR YES 150 - 160 30 - 50
Small cakes / Muffin FORCED AIR YES 150 - 160 40 - 60
Choux buns CONVENTIONAL
YES 170 - 200 20 - 50
Choux buns FORCED AIR YES 170 - 200 20 - 50
Choux buns FORCED AIR YES 170 - 200 20 - 50
Meringues CONVENTIONAL
YES 80 - 100 120 - 200
Meringues FORCED AIR YES 80 - 100 120 - 200
Pizza / Bread / Focaccia
CONVENTIONAL
YES 190 - 250 15 - 50
Pizza / Bread / Focaccia
FORCED AIR YES 190 - 230 20 - 50
Pizza / Bread / Focaccia
FORCED AIR YES 190 - 230 20 - 50
Savoury pies (vegetable
pie, quiche)
CONVECTION
BAKE
YES 180 30 - 60
Savoury pies (vegetable
pie, quiche)
FORCED AIR YES 180 50 - 80
2
2/4
2
2/4
3
2/4
2/4/5
2/3/4/5
3
2/5
1/3/5
3
4
2
1/3/5
3
4
2
2
2/4
2/4/5
3
2/4
11
EN
Vols-au-vent / Puff
pastry crackers
CONVENTIONAL YES 180 - 210 15 - 40
Vols-au-vent / Puff
pastry crackers
FORCED AIR YES 180 - 210 15 - 40
Lasagne / Flans / Baked
pasta / Cannelloni
CONVENTIONAL YES 180 - 200 30 - 65
Lamb / Veal / Beef / Pork
1 kg
TURBO GRILL - 190 - MAX 40 - 90
Chicken / Rabbit / Duck
1 kg
TURBO GRILL - 230 - MAX 50 - 100
Turkey / Goose 3 kg TURBO GRILL - 160 - MAX 130 - 170
Fish fillets / Steaks GRILL - 230 - MAX 10 - 30
Stuffed vegetables
(tomatoes, courgettes,
aubergines)
TURBO GRILL - 230 - MAX 30 - 60
Vegetable gratin GRILL - 230 - MAX 10 - 30
Toast GRILL 5' MAX 1 - 2
Sausages / Kebabs /
Spare ribs / Hamburgers
GRILL - 230 - MAX 15 - 30
Roast potatoes TURBO GRILL - 230 - MAX 30 - 60
Roast potatoes TURBO GRILL - 230 - MAX 30 - 60
Leg of lamb / Shanks TURBO GRILL - 200 - MAX 50 - 100
Complete meal (Cook3):
Fruit tart
Lasagne
Roast
FORCED AIR - 180 - 190 40 - 100
Complete meal (Cook4):
Fruit tart
Lasagne
Cuts of meat
Roasted vegetables
FORCED AIR - 180 - 190 40 - 80
3
4
3
2
4
4
3
3
3
3
4
4
3
3
3
ACCESSORIES
Wire shelf
Baking dish or cake tin on
the wire shelf
Baking tray/Drip tray or
Baking dish on the wire
shelf
Drip tray / Baking tray
Drip tray / Baking tray with
00 ml of water
5
COOKING TABLE
RECIPE FUNCTION PREHEAT
TEMPERATURE (°C) /
POWER LEVEL
DURATION
(Min)
LEVEL (L-number) AND
ACCESSORIES
MAIN OVEN
1
3/5
1/2
3/5
12
EN
RECIPE FUNCTION
TEMPERATURE (°C) / DURATION
(Min)
LEVEL (L-number) AND
ACCESSORIES
COOKING TABLE
MAIN OVEN STEAM
WATER 9(g)
Leavened cakes/Sponge
cakes
Shortbread/Cookies
Small cakes/Muffin
Focaccia
Bread rolls
Bread loaf
Roast Beef
Roast Beef 2Kg
Leg of lamb
Lamb / Veal / Beef /
Pork 1 kg
Chicken / Rabbit /
Duck 1 kg
Fish fillets / Steaks
Stuffed vegetables
(tomatoes,courgettes,
aubergines)
Roast potatoes
100
100
100
150
100
150
200
250
200
200
200
150
150
200
170-180
140-150
160-170
200-220
210
170-180
200
200
180-200
200
200-220
180
180-200
200-220
30-60
35-55
30-55
20-40
25-40
70-100
35-60
40-70
65-75
60-90
50-70
15-35
25-40
50-70
2
3
3
3
3
3
3
3
3
3
3
3
3
3
STEAM
STEAM
STEAM
STEAM
STEAM
STEAM
STEAM
STEAM
STEAM
STEAM
STEAM
STEAM
STEAM
STEAM
13
EN
COOKING TABLE
RECIPE FUNCTION PREHEAT
TEMPERATURE (°C) /
POWER LEVEL
DURATION
(Min)
LEVEL (L-number) AND
ACCESSORIES
Leavened cakes /
Sponge cakes
CONVENTIONAL
YES 170 20 - 50
Filled cake
(cheese cake, strudel,
fruit pie)
CONVENTIONAL
YES 160 - 180 40 - 60
Filled cake
(cheese cake, strudel,
fruit pie)
CONVECTION
BAKE
YES 160 - 180 50 - 80
Cookies / Shortbread CONVENTIONAL
YES
140 - 150
20 - 50
Cookies / Shortbread
CONVECTION
BAKE YES 140 - 150
30 - 50
Small cakes / Muffin CONVENTIONAL
YES 160 - 170 20 - 50
Choux buns CONVENTIONAL
YES 170 - 200 20 - 50
Meringues CONVENTIONAL
YES 80 - 100 120 - 200
Meringues
CONVECTION
BAKE
YES 80 - 100 120 - 200
Pizza / Bread / Focaccia
CONVENTIONAL
YES 190 - 250 15 - 50
Pizza / Bread / Focaccia
CONVECTION
BAKE
YES 190 - 230 25 - 60
Savoury pies (vegetable
pie, quiche)
CONVECTION
BAKE
YES 180 30 - 50
Savoury pies (vegetable
pie, quiche)
CONVECTION
BAKE
YES 180 30 - 70
Vols-au-vent / Puff
pastry crackers
CONVENTIONAL
YES 180 - 210 15 - 40
Vols-au-vent / Puff
pastry crackers
CONVECTION
BAKE
YES 180 - 210 15 - 40
Lasagne / Flans / Baked
pasta / Cannelloni
CONVENTIONAL
YES 180 - 200 30 - 65
Lamb / Veal / Beef / Pork
1 kg
TURBO GRILL - 230 - MAX 15 - 40
Chicken / Rabbit / Duck
1 kg
TURBO GRILL - 230 - MAX 40 - 60
Fish fillets / Steaks GRILL - 230 - MAX 15 - 35
Stuffed vegetables
(tomatoes, courgettes,
aubergines)
TURBO GRILL - 230 - MAX 30 - 60
Vegetable gratin GRILL - 230 - MAX 10 - 30
Toast GRILL 5' MAX 0.5 - 1.5
Sausages / Kebabs /
Spare ribs / Hamburgers
GRILL - 230 - MAX 15 - 30
Roast potatoes TURBO GRILL - 180 - MAX 40 - 80
Leg of lamb / Shanks TURBO GRILL - 230 - MAX 30 - 80
ACCESSORIES
Wire shelf
Baking dish or cake tin on
the wire shelf
Baking tray/Drip tray or
Baking dish on the wire
shelf
Drip tray / Baking tray
Drip tray / Baking tray with
00 ml of water
5
1
2
1/3
2
1/3
2
2
2
3
1
2
1/3
1/3
2
3
1
2
2
1
2
2
2
2
2
2
2
TOP OVEN
2
1414

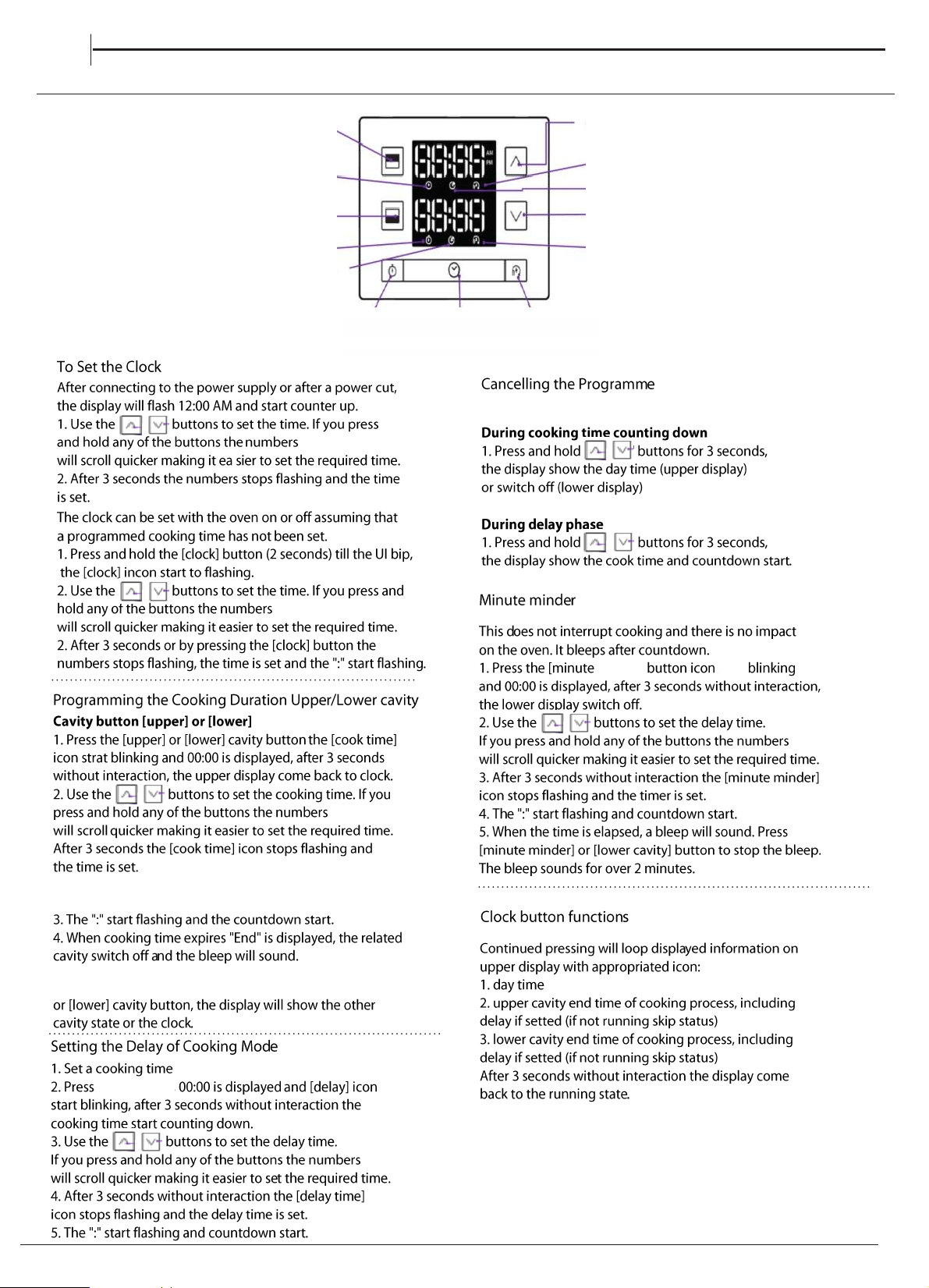

ELECTRONIC TIMER
EN
Upper arrow button
Delay icon
(Upper oven)
Duration icon
(Upper oven)
Lower arrow button
Delay icon
(Lower oven)
Delay buttonClock button
Minute Minder
button
Duration icon
(Lower oven)
Minute Minder icon
Lower cavity button
Clock icon
Upper cavity button
Turn both the function and temperature knobs
to the required settings.
5. Turn both the function and temperature knobs
to OFF position, press the [upper]
[delay] button,
minder)
start
CLEANING AND MAINTENANCE
15
EN
Removing the retaining
Removing the retaining
bar
depress carefully
both sides of the bar.
Pull the trim up gently
until the retainer is
released.
the clips on
Open the door fully.
1111
.....
Carefully slide the first
inner glass towards you,
taking care not to allow the
glass to fall.
Now the external glass
panel can be washed.
2. 2. 2. 2. 2.
3.3.3.3.
Ensure the glass panel is not subjected toEnsure the glass panel is not subjected to
Ensure the glass panel is not subjected toEnsure the glass panel is not subjected to
Ensure the glass panel is not subjected to
any sharp mechanical blows. any sharp mechanical blows.
any sharp mechanical blows. any sharp mechanical blows.
any sharp mechanical blows. Take particular
care not to damage the inner surface which is coated
with a heat reflective layer. After cleaning, rinse and
dry with a soft cloth. For slight soiling the inner glass
panel may be cleaned, while still warm, without
removing it from the door.
glass removed.
To reassemble the oven doors proceed with inserting
the glass panels in the reverse order, pushing gently
every panel directly into the liners, so that the warning
glass removed.glass removed.glass removed.glass removed.glass removed.
Oven must not be operated with inner door
glass removed.
sign printed on the glass is correctly legible.
4.
Oven must not be operated with inner doorOven must not be operated with inner doorOven must not be operated with inner doorOven must not be operated with inner door
Cleaning the glass door with 2 panels

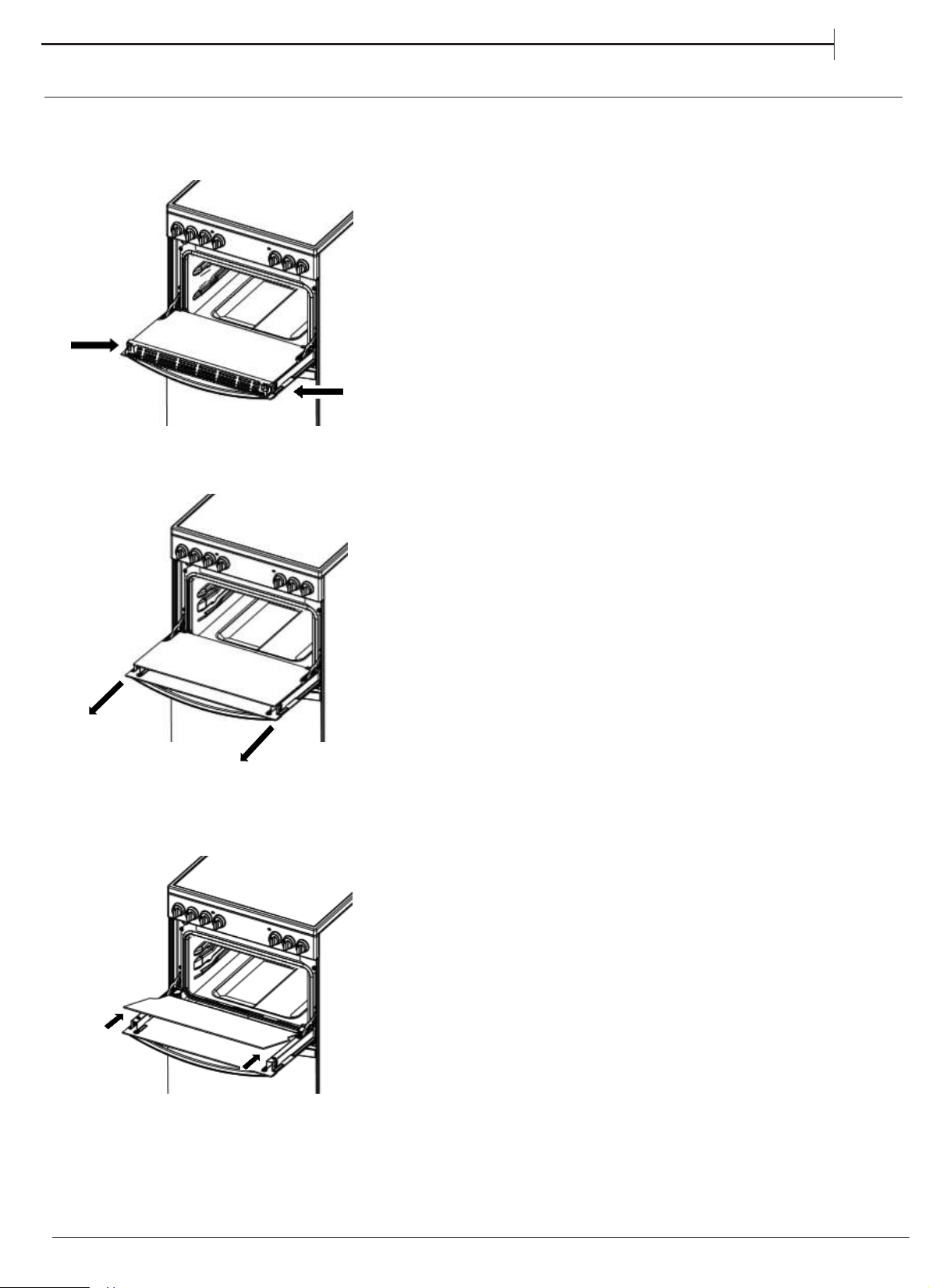

TOP OVEN DOORS
TURN OFF THE MAIN SWITCH AND ENSURE
THE COOKER IS COLD BEFORE CLEANING.
BEFORE SWITCHING ON AGAIN, ENSURE THAT
ALL CONTROLS ARE IN THE OFF POSITION.
Do not use steam cleaning
equipment.
Use protective gloves during all
operations.
Carry out the required
operations when the oven is cold.
Disconnect the appliance from
the power supply.
Do not use wire wool, abrasive
scourers or abrasive/corrosive
cleaning agents, as these could
damage the surfaces of the
appliance.
CLEANING AND MAINTENANCE
Disconnect the appliance from the power supply.
CLEANING THE CERAMIC HOB
ACCESSORIES
Soak the accessories in a washing-up liquid solution
after use, handling them with oven gloves if they
are still hot. Food residues can be removed using a
washing-up brush or a sponge.
EXTERIOR SURFACES
• Clean the surfaces with a damp microfibre cloth.
If they are very dirty, add a few drops of pH-neutral
detergent. Dry them with a dry cloth.
• Do not use corrosive or abrasive detergents. If any of
these products inadvertently comes into contact with
the surfaces of the appliance, clean immediately with
a damp microfibre cloth.
INTERIOR SURFACES
• After every use, leave the oven to cool and then
clean it, preferably while it is still warm, to remove any
deposits or stains caused by food residues To dry any
condensation that has formed as a result of cooking
foods with a high water content, let the oven to cool
completely and then wipe it with a cloth or sponge.
• Clean the glass in the door with a suitable liquid
detergent.

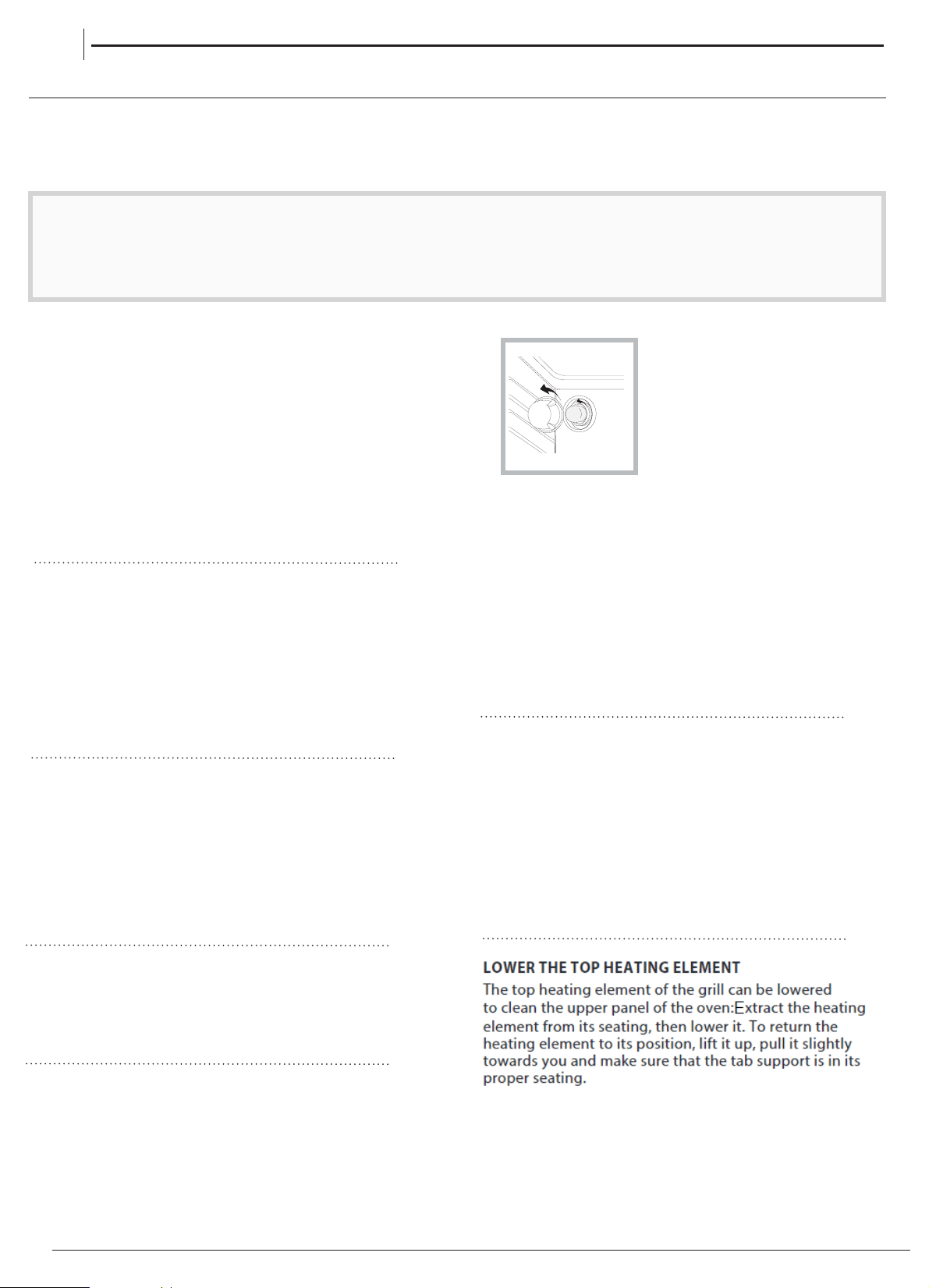

CLEANING THE OVEN SURFACE
REPLACING THE LIGHT
1.
Disconnect the oven from the power supply.
2. Unscrew the cover from the light, replace the bulb
and screw the cover back on the light.
To reduce the amount of cleaning always ensure that
the hob and cooking utensils are clean and dry
before use. Regular use of cleaner conditioner is
recommended for proper care and protection of the
hob surface. Apply conditioner before using the hob
for the first time. It contains a mild cleaning agent
so that subsequent applications may clean off soil
and apply a protective film at the same time. For
stubborn stains or heavy soiling use any of the
special materials, and finish off with conditioner.
3.
Reconnect the oven to the power supply.
Note: Use 40 W/230 V type
The bulb used in the product is specically designed for
domestic appliances and is not suitable for general room
lighting within the home (EC Regulation 244/2009).
G9
Note: Use 40 W/230 V type
Light bulbs are available from our After-sales Service.
- Do not handle bulbs with your bare hands as your
ngerprints could damage them. Do not use the oven until
the light cover has been retted.
The bulb used in the product is specically designed for The bulb used in the product is specically designed for The bulb used in the product is specically designed for
domestic appliances and is not suitable for general room
lighting within the home (EC Regulation 244/2009).
Light bulbs are available from our After-sales Service.
- Do not handle bulbs with your bare hands as your
ngerprints could damage them. Do not use the oven until
the light cover has been retted.
domestic appliances and is not suitable for general room
lighting within the home (EC Regulation 244/2009).
Light bulbs are available from our After-sales Service.
- Do not handle bulbs with your bare hands as your
ngerprints could damage them. Do not use the oven until
the light cover has been retted.
domestic appliances and is not suitable for general room
lighting within the home (EC Regulation 244/2009).
Light bulbs are available from our After-sales Service.
- Do not handle bulbs with your bare hands as your
ngerprints could damage them. Do not use the oven until
the light cover has been retted.
CATALYTIC CLEANING
These are panels coated with a special enamel, which
is able to absorb the fat released by food as it cooks.
This enamel is quite strong, so that the various
accessories (racks, dripping pans, etc.) can slide along
them without damaging them. White marks may appear
on the surfaces; these are not a cause for concern.
Nevertheless, the following should be avoided:
-scraping the enamel with sharp objects (a knife, for
example);
-using detergents or abrasive materials.
16
EN
This product contains a light source of energy
efficiency class G
HOW TO READ THE COOKING TABLE
The table lists the best function, accessories
and level to use to cook various different types
of food. Cooking times start from the moment
food is placed in the oven, excluding preheating
(where required). Cooking temperatures and times
are approximate and depend on the amount of
food and the type of accessory used. Use the
lowest recommended settings to begin with and,
if the food is not cooked enough, then switch
to higher settings. Use the accessories supplied
and preferably dark-coloured metal cake tins and
baking trays. You can also use Pyrex or stoneware
pans and accessories, but bear in mind that cooking
times will be slightly longer.
USEFUL TIPS
TROUBLESHOOTING
What to do if... Possible reasons Solutions
The oven is not working. Power cut.
Disconnection from the mains.
Check for the presence of mains electrical power and whether the
oven is connected to the electricity supply.
Turn o the oven and restart it to see if the fault persists.
WWW
A complete product specification, including the energy efficiency ratings for this oven, can be read and
downloaded from our website
AFTER-SALES SERVICE
To receive assistance, call the number given on the
warranty leaflet enclosed with the product or follow
the instructions on our website. Be prepared to
provide:
•
a brief description of the problem;
•
the exact model type of your product;
•
the assistance code (the number following the word
SERVICE on the identification plate attached to the
product, which can be seen on the inside edge when
the oven door is open);
•
your full address;
•
a contact telephone number.
Please note: If repairs are required, contact an
authorised service centre that is guaranteed to use
original spare parts and perform repairs correctly.
Please refer to the enclosed warranty leaflet for more
information on the warranty.
17
www.hotpoint.co.uk
EN
Min. 650 mm
Min. 420 mm
18
min. 10 mm
19
7
6.1
6.2 6.3 6.4
6.5
6.6
Whirlpool EMEA S.p.A.
Via Carlo Pisacane n.1
20016 Pero (MI), Italy
VAT number: IT00693740425
XEROX FABRIANO
www.hotpoint.co.uk
20
W11465831

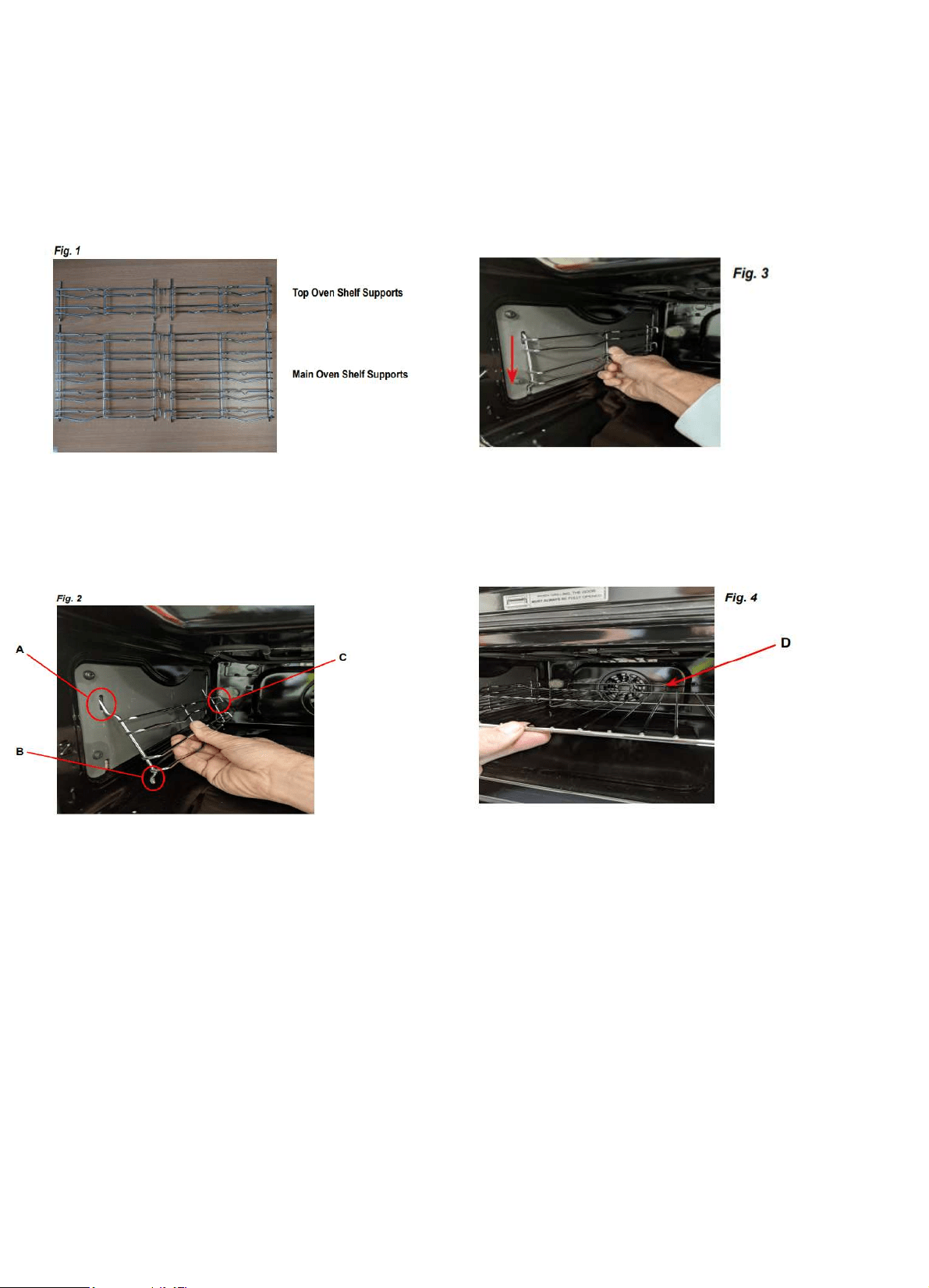

Your new cooker comes with 4 chrome shelf supports
There are 2 shelf supports for the top oven and 2
packed in the main oven along with the shelves.
for the bottom oven. See Fig. 1.
Fitting - Step 1
The top of the shelf supports engage in slots in the side
Note the rods ‘A’ are longer at the top than
‘B’ at the bottom, and the hooks ‘C’ are at the back of the
oven. It is important that the shelf supports
walls of the oven as in Fig. 2 below.
are fitted the correct way around!
Fitting - Step 2
Once engaged at the top, then push the bottom rods into
the shelf supports to lower slightly and engage. See Fig. 3.
the lower slots in the oven side walls. Now allow
This process should be repeated and all 4 shelf supports
fitted in the top and main ovens.
Fitting - Step 3
The shelves can now be fitted into the shelf supports
‘D’
that should be at the back of the oven as shown. See Fig. 4.
at the required heights. Note that there is pan guard
Your ovens are now ready to use !
10/2021 -
