Jbl PARTYBOX ENCORE ESSENTIAL Speaker

User Manual - Transcript

• Page 1: PARTYBOX Encore Essential OWNERS MANUAL
• Page 2 - English - : IMPORTANT SAFETY INSTRUCTIONS For all products 1 Read these instructions 2 Keep these instructions 3 Heed all warnings 4 Follow all instructions 5 Clean only with a dry cloth 6 Do not block any ventilation openings Install this apparatus in accordance with the manufacturers instructions 7 Do not install this apparatus near any heat sources such as radiators heat registers stoves or other apparatus including ampliers that produce heat 8 Do not defeat the safety purpose of the polarized or groundingtype plug A polarized plug has two blades with one wider than the other A groundingtype plug has two blades and a third grounding prong The wide blade or the third prong is provided for your safety If the provided plug does not t into your outlet consult an electrician for replacement of the obsolete outlet 9 Protect the power cord from being walked on or pinched particularly at plugs convenience receptacles and the point where they exit from the apparatus 10 Use only attachmentsaccessories specied by the manufacturer 11 Use only with the cart stand tripod bracket or table specied by the manufacturer or sold with the apparatus When a cart is used use caution when moving the cartapparatus combination to avoid injury from tipover 12 Unplug this apparatus during lightning storms or when unused for long periods of time 13 Refer all servicing to qualied service personnel Servicing is required when the apparatus has been damaged in any way such as when the powersupply cord or plug is damaged liquid has been spilled or objects have fallen into the apparatus or the apparatus has been exposed to rain or moisture does not operate normally or has been dropped 14 To disconnect this apparatus from the AC mains completely disconnect the power supply cord plug from the AC receptacle 15 The mains plug of the powersupply cord shall remain readily operable 16 This apparatus is intended to be used only with the power supply andor charging cable provided by the manufacturer The following instructions may not apply to waterproof devices Refer to your device user manual or quick start guide for more waterproof instruction if any Do not use this apparatus near water Do not expose this apparatus to dripping or splashing and ensure that no objects lled with liquids such as vases are placed on the apparatus WARNING To reduce the risk of re or electric shock do not expose this apparatus to rain or moisture CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN THIS SYMBOL ON THE PRODUCT MEANS THERE IS UNINSULATED DANGEROUS VOLTAGE WITHIN THE PRODUCT ENCLOSURE THAT MAY PRESENT A RISK OF ELECTRICAL SHOCK THIS SYMBOL ON THE PRODUCT MEANS THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THIS GUIDE CAUTION FCC AND IC STATEMENT FOR USERS USA AND CANADA ONLY This device complies with part 15 of the FCC Rules Operation is subject to the following two conditions 1 This device may not cause harmful interference and 2 this device must accept any interference received including interference that may cause undesired operation CAN ICES003BNMB003B FCC SDOC SUPPLIERS DECLARATION OF CONFORMITY HARMAN International hereby declares that this equipment is in compliance with the FCC Part 15 Subpart B The declaration of conformity may be consulted in the support section of our Web site accessible from wwwjblcom Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules These limits are designed to provide reasonable protection against harmful interference in a residential installation This equipment generates uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions may cause harmful interference to radio communications However there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on the user is encouraged to try to correct the interference by one or more of the following measures Reorient or relocate the receiving antenna Increase the separation between the equipment and receiver Connect the equipment into an outlet on a circuit different from that to which the receiver is connected Consult the dealer or an experienced radioTV technician for help CAUTION Changes or modications not expressly approved by HARMAN could void the users authority to operate the equipment
• Page 3 - English - : wwwjblcom English For Products That Transmit RF Energy i FCC AND IC INFORMATION FOR USERS This device complies with Part 15 of the FCC rules and Industry Canada licenseexempt RSS standards Operation is subject to the following two conditions 1 This device may not cause harmful interference and 2 this device must accept any interference received including interference that may cause undesired operation ii FCCIC Radiation Exposure Statement This equipment complies with FCC and ISED radiation exposure limits set forth for an uncontrolled environment This equipment should be installed and operated with minimum distance 20cm between the radiator amp your body In case this equipment has to subject to FCCIC SAR Specic Absorption Rate exposure test this equipment is designed to meet the requirements for exposure to radio waves established by the FCC and ISED These requirements set a SAR limit of 16 Wkg averaged over one gram of tissue The highest SAR value reported under this standard during product certication for use when properly worn on the body or on the head with no separation To meet RF exposure guidelines and reduce exposure to RF energy during the operation this equipment should be positioned at least this distance away from the body or the head For radio equipment operates in 51505850MHz FCC and IC Caution High power radars are allocated as primary users of the 525 to 535 GHz and 565 to 585 GHz bands These radar stations can cause interference with andor damage to LE LAN Licence Exempt Local Area Network devices No conguration controls are provided for this wireless equipment allowing any change in the frequency of operations outside the FCC grant of authorization for US operation according to Part 15407 of the FCC rules IC Caution User should also be advised that i The device for operation in the band 5150 5250 MHz is only for indoor use to reduce the potential for harmful interference to cochannel mobile satellite systems ii the maximum antenna gain permitted for devices in the bands 5250 5350 MHz and 5470 5725 MHz shall comply with the eirp limit and ii The maximum antenna gain permitted for devices in the band 5725 5825 MHz shall comply with the eirp limits specied for pointtopoint and non pointtopoint operation as appropriate Use Restriction Attention in European Union operation is limited to indoor use within the band 51505350 MHz Correct disposal of this product Waste Electrical amp Electronic Equipment This symbol means the product must not be discarded as household waste and should be delivered to an appropriate collection facility for recycling Proper disposal and recycling helps protect natural resources human health and the environment For more information on disposal and recycling of this product contact your local municipality disposal service or the shop where you bought this product This product is RoHS compliant This product is in compliance with Directive 201165EU and UK The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 and its amendments on the restriction of the use of certain hazardous substances in electrical and electronic equipment REACH REACH Regulation No 19072006 addresses the production and use of chemical substances and their potential impacts on human health and the environment Article 331 of REACH Regulation requires suppliers to inform the recipients if an article contains more than 01 per weight per article of any substances on the Substances of Very High Concern SVHC Candidate List REACH candidate list This product contains the substance leadCASNo 7439921 in a concentration of more than 01 per weight At the time of release of this product except for the lead substance no other substances of REACH candidate list are contained in a concentration of more than 01 per weight in this product Note On June 27 2018 lead was added to the REACH candidate list The inclusion of lead in the REACH candidate list does not mean that leadcontaining materials pose an immediate risk or results in a restriction of permissibility of its use For devices with headphone jacks WARNINGSCAUTIONS Do NOT use the headphones at a high volume for any extended period To avoid hearing damage use your headphones at a comfortable moderate volume level Turn the volume down on your device before placing the headphones on your ears then turn the volume up gradually until you reach a comfortable listening level
• Page 4 - English - : EPILEPSY WARNING A few people may experience epileptic seizures when viewing ashing lights For Products That Include Batteries Instructions for Users on Removal Recycling and Disposal of Used Batteries To remove the batteries from your equipment or remote control reverse the procedure described in the owners manual for inserting batteries For products with a builtin battery that lasts for the lifetime of the product removal may not be possible for the user In this case recycling or recovery centers handle the dismantling of the product and the removal of the battery If for any reason it becomes necessary to replace such a battery this procedure must be performed by authorized service centers In the European Union and other locations it is illegal to dispose of any battery with household trash All batteries must be disposed of in an environmentally sound manner Contact your local wastemanagement ofcials for information regarding the environmentally sound collection recycling and disposal of used batteries WARNING Danger of explosion if battery is incorrectly replaced To reduce risk of re explosion or leakage of ammable liquid gas dont disassemble crush puncture short external contacts expose to temperature above 60C 140F sunshine or like expose to extremely low air pressure or dispose of in re or water Replace only with specied batteries The symbol indicating separate collection for all batteries and accumulators shall be the crossedout wheeled bin shown below For All Products with Wireless Operation HARMAN International hereby declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 201453EU and UK Radio Equipment Regulations 2017 The declaration of conformity may be consulted in the support section of our Web site accessible from wwwjblcom
• Page 5 - English - : wwwjblcom English 9 SPECIFICATIONS 12 10 TROUBLESHOOTING 13 11 COMPLIANCE 13 12 TRADEMARK 14 TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS 2 1 INTRODUCTION 6 2 WHATS IN THE BOX 6 3 PRODUCT OVERVIEW 7 31 TOP PANEL 7 32 BACK PANEL 7 4 PLACEMENT 8 5 POWER ON 8 6 USING YOUR PARTYBOX 9 61 BLUETOOTH CONNECTION 9 62 USB CONNECTION 9 63 MUSIC CONTROL 10 64 AUX CONNECTION 10 65 MIXING SOUND WITH A MICROPHONE 10 66 CHARGING YOUR MOBILE DEVICE 10 7 CARRYING YOUR PARTYBOX 11 8 ADVANCED USAGE 11 81 JBL PARTYBOX APP 11 82 LIGHT EFFECT 11 83 TWS MODE 11 84 FACTORY RESET 12 85 IPX4 12
• Page 6 - English - : 2 WHATS IN THE BOX 1 2 3 1 Main unit 2 Power cord 3 Quick Start Guide Safety Sheet Warranty Card Power cord quantity and plug type vary by regions 1 INTRODUCTION Congratulations on your purchase This manual includes information about the PARTYBOX Encore Essential speaker We encourage you to take a few minutes to read this manual which describes the product and includes stepbystep instructions to help you to set up and get started Read and understand all the safety instructions before using your product If you have any questions about this product its installation or operation please contact your retailer or customer service or visit us at wwwjblcom
• Page 7 - English - : wwwjblcom English 3 PRODUCT OVERVIEW 31 Top Panel 1 Turn the power on or off 2 Battery level indicator 3 Press to enter Bluetooth pairing mode Press and hold for more than 10 seconds to forget all paired devices 4 Press to play pause or resume Rotate clockwise counterclockwise to increase decrease the main volume 5 LED ring 6 BASS BOOST Selects bass enhancement preset 1 preset 2 or off 7 Press switch between different light patterns Hold for more than 2 seconds to turn strobe light on or off Caution Do not look directly at the lightemitting parts when the speaker lights are turned on LED behavior Solid white Power on Off Standby Power off Flashing white quickly Pairing Solid white Connected Off Not connected BASS BOOST Dimmed white Preset 1 Solid white Preset 2 Off Off Flashing red quickly Low battery Flashing white slowly Charging Solid white The speaker is fully charged when the entire light stripe turns solid white 32 Back Panel 1 Microphone socket Connect to a microphone not supplied 2 Microphone volume Adjust volume of the connected microphone 3 GAIN microphone Adjust gain of the connected microphone 4 AC Connect to AC power supply 5 USB Connect to a USB storage device Charge your mobile device 6 AUX IN Connect to an external audio device through a 35 mm audio cable not supplied 7 TWS Press to enter True Wireless Stereo TWS pairing mode
• Page 8 - English - : 4 PLACEMENT Caution Do not sit on the speaker to avoid possible damages Place the speaker on a at stable surface and ensure that the rubber feet side is down 5 POWER ON Cautions Use the provided power cords only You can use either AC power or the builtin battery as power supply to the speaker OFF ON 1005020 1 Connect AC power To use the builtin battery disconnect AC power after charging the speaker 2 Press to power on Tips Fully charge the speaker before rsttime use to prolong the lifespan of the builtin battery When the speaker is on you can check the battery level by pressing any button on the speaker The speaker switches to standby mode automatically after 20 minutes of inactivity You can press on the speaker to switch to normal operation
• Page 9 - English - : wwwjblcom English 6 USING YOUR PARTYBOX Notes Only one sound source can be played at a time The priority order is USB gt BLUETOOTH gt AUX Starting a source with higher priority will always interrupt a source with lower priority To start a source with lower priority stop the source with higher priority rst 61 Bluetooth Connection You can use the speaker with your Bluetooth enabled smartphone or tablet ON lt10 m 33 ft Settings Bluetooth Bluetooth DEVICES JBL PB Encore Essential Now Discoverable Connected 1 Press on the speaker to enter Bluetooth pairing mode 2 Choose JBL PB Encore Essential on your Bluetooth device to connect 3 Once successfully connected you can stream audio from your Bluetooth device to this speaker Notes This speaker can memorize a maximum of 8 paired devices The ninth paired device will replace the rst one Enter 0000 if a PIN code is requested for connection to a Bluetooth device Bluetooth performance can be affected by the distance between this product and your Bluetooth device and the environment of operation To terminate the Bluetoothenabled device Turn off this speaker or Disable Bluetooth on your device To reconnect the Bluetooth enabled device When you turn on this speaker next time it tries to reconnect the last connected device automatically If not manually select JBL PB Encore Essential on your Bluetooth device to connect 62 USB Connection Plug a USB storage device that contains playable audio contents into the USB port of the speaker J The speaker switches to the USB source automatically J Audio playback will start automatically Tip The speaker plays audio les on the USB storage device from the root folder to the last level of subfolders in alphabetical sequence Up to 8 levels of subfolders are supported Supported audio formats Extension Codec Sample rate Bitrate WAVE PCM 441KHz 192KHz lt 5Mbps LPCM 441KHz 192KHz lt 5Mbps IMAADPCM 441KHz 192KHz lt 5Mbps MPEG 441KHz 192KHz lt 5Mbps MULAW 441KHz 192KHz lt 5Mbps MP3 MPEG1 layer123 32KHz 48KHz 32Kbps 320Kbps MPEG2 layer123 16KHz 24KHz 8Kbps 160Kbps MPEG25 layer3 8KHz 12KHz 8Kbps 160Kbps WMA 320Kbps 8Kbps 48Kbps

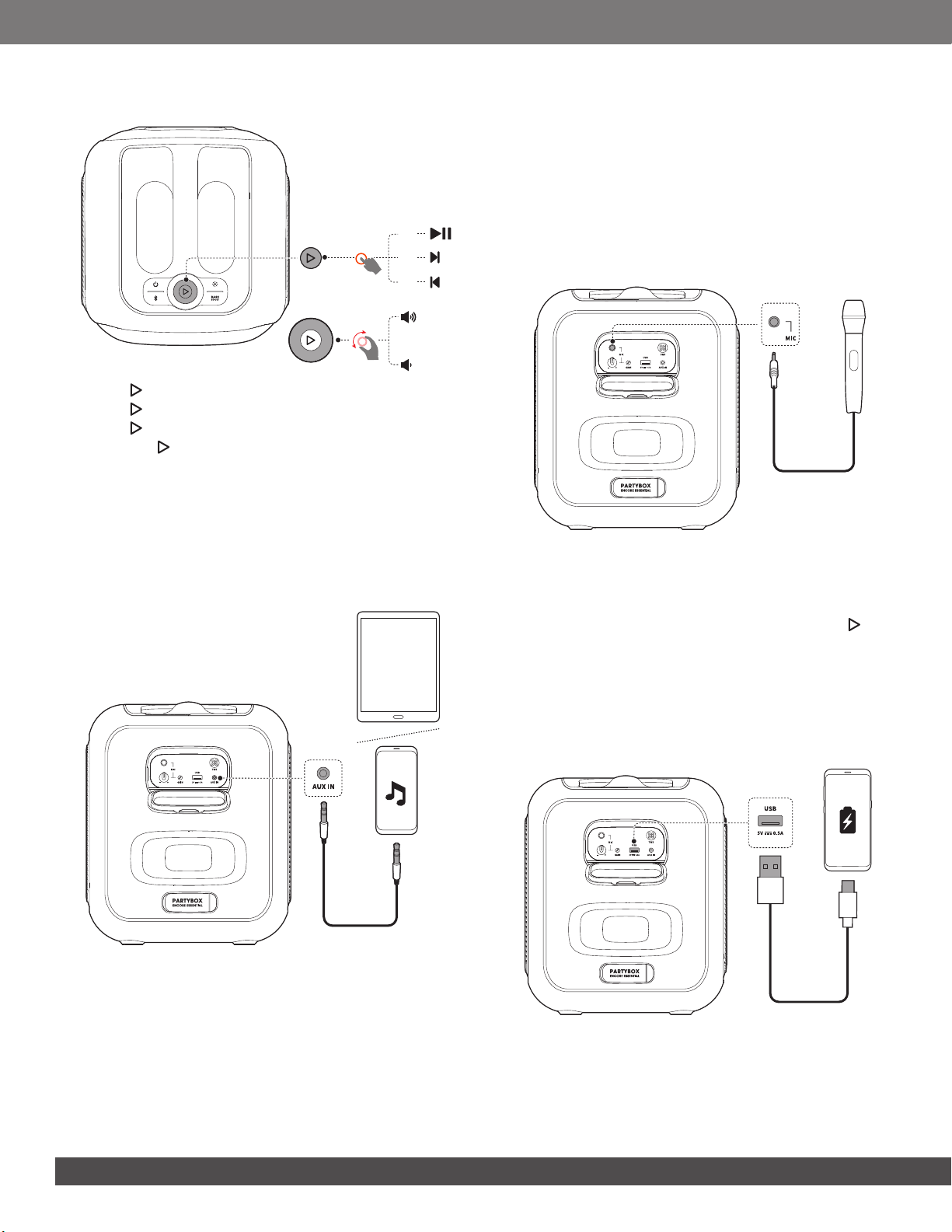

• Page 10 - English - : 63 Music Control x 1 x 2 x 3 Press once to pause or resume playback Press twice to skip to the next track Press three times to skip to the previous track Rotate the knob clockwise counterclockwise to increase decrease the main volume Press BASS BOOST to enhance the bass level level 1 level 2 or off Note The skip operation is unavailable in AUX mode 64 AUX Connection 1 Connect an external audio device to the speaker through a 35 mm audio cable not supplied 2 After stopping playback from any other source start audio playback on the external device 65 Mixing Sound with a Microphone By using a microphone not supplied you can mix sound with an audio source Notes Always set the microphone volume to the minimum level before microphone connection disconnection Always disconnect the microphone when you are not using it 651 Connecting a Microphone Connect a microphone to the microphone socket 652 Mixing Sound Sing through the microphone To adjust the volume of the audio source rotate the knob clockwise counterclockwise To adjust the volume of the microphone rotate the microphone volume knob To adjust the gain of the microphone rotate the GAIN control 66 Charging Your Mobile Device
• Page 11 - English - : wwwjblcom English 7 CARRYING YOUR PARTYBOX Cautions Before carrying the speaker ensure that all the cords are disconnected To avoid personal injury andor property damage hold the product rmly while carrying Hold the handle on the top rmly to carry the speaker 8 ADVANCED USAGE 81 JBL PARTYBOX App Download and install the JBL PARTYBOX App to get more from the product 82 Light Effect gt2s Press to select your preferred light effect rock ow cross ripple ash or off Hold for more than 2 seconds to turn strobe light on or off 83 TWS Mode You can connect two PARTYBOX speakers to each other via TWS mode Press TWS on both speakers To exit TWS mode Power off or press TWS on either speaker Tip By default the speaker connected to your Bluetooth device acts as the primary speaker left channel while the other one acts as the secondary speaker right channel
• Page 12 - English - : 84 Factory reset To restore the factory settings hold and for more than 10 seconds 85 IPX4 Caution Always keep the charging port dry before connecting AC power To ensure splash resistance always keep the protective covers closed securely The speaker is IPX4 splash resistant 9 SPECIFICATIONS Transducers 1 x 525 inch woofer 2 x 175 inch tweeter Output power 100 W RMS Power input 100 240 Vac 5060 Hz Frequency response 50 Hz 20 kHz 6 dB Signaltonoise ratio gt 80 dB Battery type Liion polymer 1776 Wh equivalent to 37 V 4800 mAh Battery charge time 35 hours Music play time up to 6 hours dependent on volume level and audio content USB format FAT16 FAT32 USB le format mp3 wma wav USB charge out 5 V 05 A maximum Cable type AC power cable Cable length 2000 mm 787quot Bluetooth version 51 Bluetooth prole A2DP 13 AVRCP 16 Bluetooth transmitter frequency range 24 GHz 24835 GHz Bluetooth transmitter power 15 dBm EIRP Bluetooth transmitter modulation GFSK π4 DQPSK 8DPSK Product dimensions W x H x D 276 x 327 x 293 mm 1087 x 1287 x 1154quot Net weight 59 kg 1300 lbs Packaging dimensions W x H x D 472 x 354 x 326 mm 1858 x 1394 x 1283quot Gross weight 727 kg 1603 lbs 6 hrs battery playtime is only a reference and may vary depending on music content and battery aging after numerous charging and discharging cycles Its achievable with a predened music source light show switched off volume level at 21 and Bluetooth streaming source
• Page 13 - English - : wwwjblcom English 10 TROUBLESHOOTING Caution Never try to repair the product by yourself If you have any problems while using this product check the following points before you request service System The speaker will not turn on Ensure that the speaker battery is not drained If not use the AC power instead No response from some buttons The product may be in demo mode In demo mode the and buttons are disabled Hold and BASS BOOST simultaneously for more than 5 seconds to exit Sound No sound from the speaker Ensure that the speaker is powered on Adjust volume Ensure that a sound source is active and not muted Bluetooth A device cannot connect with the speaker Ensure that the Bluetooth function of the device is enabled The speaker is already connected with another Bluetooth device Hold on the speaker for more than 10 seconds to disconnect and pair with a new device Poor audio quality from a connected Bluetooth device The Bluetooth reception is poor Move the device closer to the speaker or remove any obstacle between the device and speaker 11 COMPLIANCE The product is in compliance with the European Union energy legislation Bluetooth connection mode The product is intended to be used for streaming music via Bluetooth connection A consumer can stream Bluetooth audio to the speaker When the product is connected through Bluetooth the Bluetooth connection must remain active at all times to ensure proper operation The product will enter sleep mode networked standby after 20 minutes without operation The power consumption in sleep mode is less than 20 Watts after which it can be reactivated via Bluetooth connection Other mode The product will enter standby mode after 20 minutes without operation The power consumption in standby mode is less than 05 Watts
• Page 14 - English - : 12 TRADEMARK The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG Inc and any use of such marks by HARMAN International Industries Incorporated is under license Other trademarks and trade names are those of their respective owners
• Page 15 - English - : HARMAN International Industries Incorporated 8500 Balboa Boulevard Northridge CA 91329 USA wwwjblcom 2022 HARMAN International Industries Incorporated All rights reserved JBL is a trademark of HARMAN International Industries Incorporated registered in the United States andor other countries Features specications and appearance are subject to change without notice
