DAIKIN ROOM AIR CONDITIONER
OPERATION MANUAL
MODELS
FTXS15LVJU
FTXS18LVJU
FTXS24LVJU
EnglishFrançaisEspañol
00_CV_3P297290-2.indd 100_CV_3P297290-2.indd 1 10/14/2011 9:17:05 AM10/14/2011 9:17:05 AM
1
Feature
For your comfort and energy For your comfort and energy
savingsaving
Other functionsOther functions
COMFORT AIRFLOW OUTDOOR UNIT QUIET
The airfl ow direction will be in upward mode
while in COOL operation, in downward mode
while in HEAT operation. This function will
prevent cold or warm air from directly blowing
on your body.
Page 15
OUTDOOR UNIT QUIET operation
lowers the noise level of the outdoor
unit. This function is useful in
consideration of your neighbors.
Page 18
INTELLIGENT EYE
The INTELLIGENT EYE sensor detects the human movement in
a room. If no one is room for more than 20 minutes, the
operation automatically changes to energy saving operation.
Page 15
WEEKLY TIMER
Up to 4 timer settings can be saved for each day of the week
according to your family’s life style. The WEEKLY TIMER allows
you to set on/off time and the desired temperature.
Page 22
01_EN_3P297290-2.indd 101_EN_3P297290-2.indd 1 10/14/2011 9:36:22 AM10/14/2011 9:36:22 AM
2
English
Contents
Read before Operatio
n
Safety Precautions .............................................. 3
Names of Parts .................................................... 5

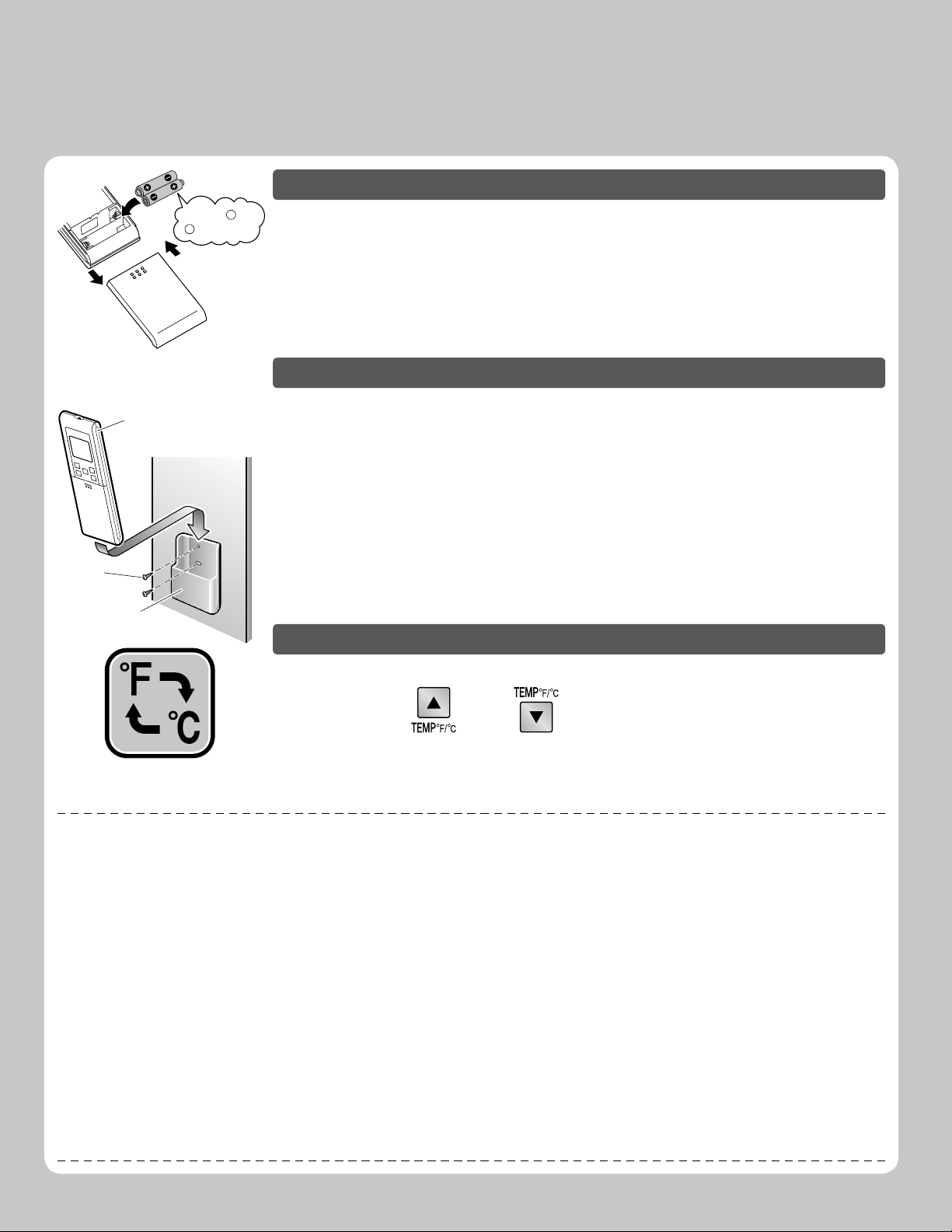

Preparation before Operation .............................. 9
Operatio
n
AUTO · DRY · COOL · HEAT · FAN
Operation ................................................ 11

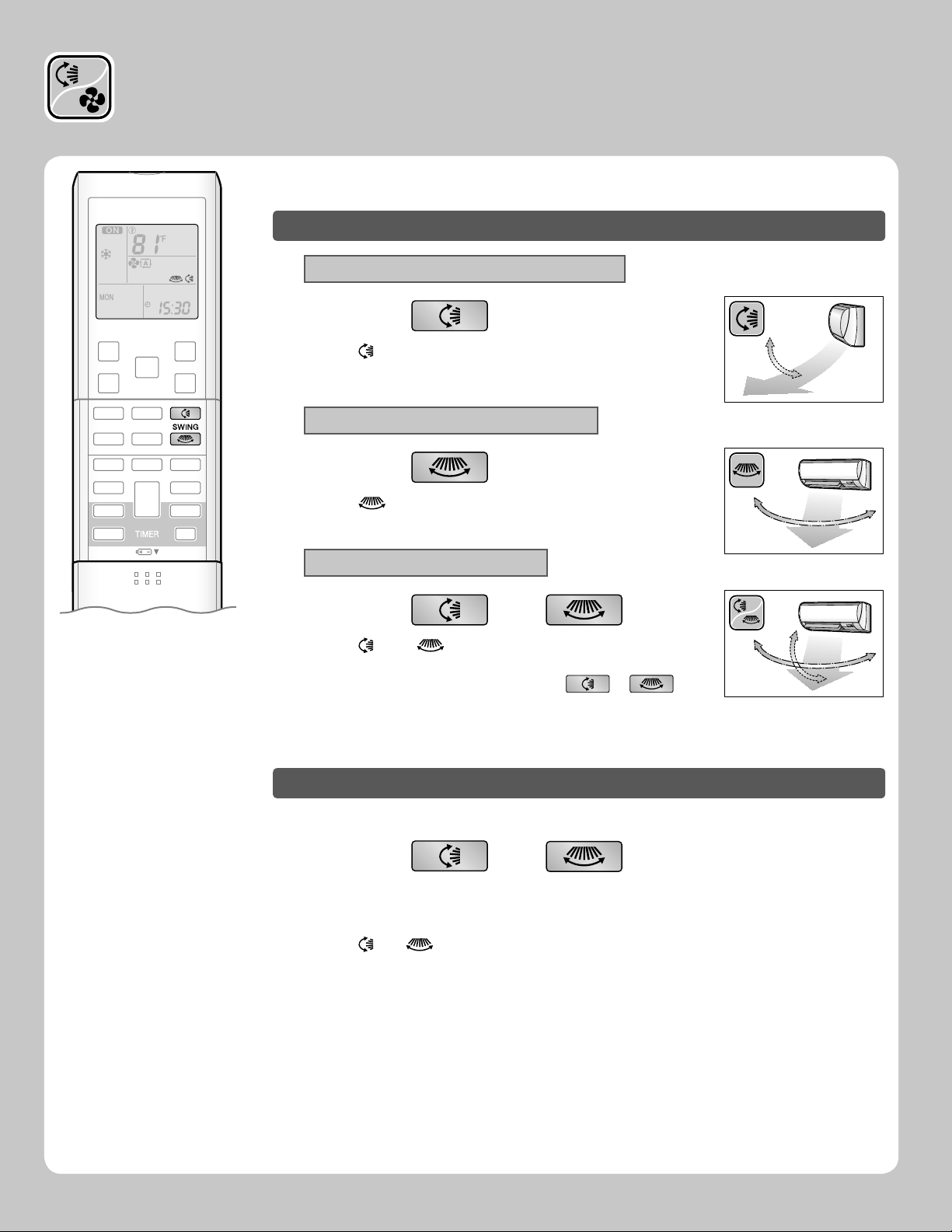

Adjusting the Airfl ow Direction
and Rate .................................................
13
COMFORT AIRFLOW /
INTELLIGENT EYE Operation ................15
POWERFUL Operation ...........................17
OUTDOOR UNIT QUIET
Operation ................................................18
ECONO Operation ..................................19

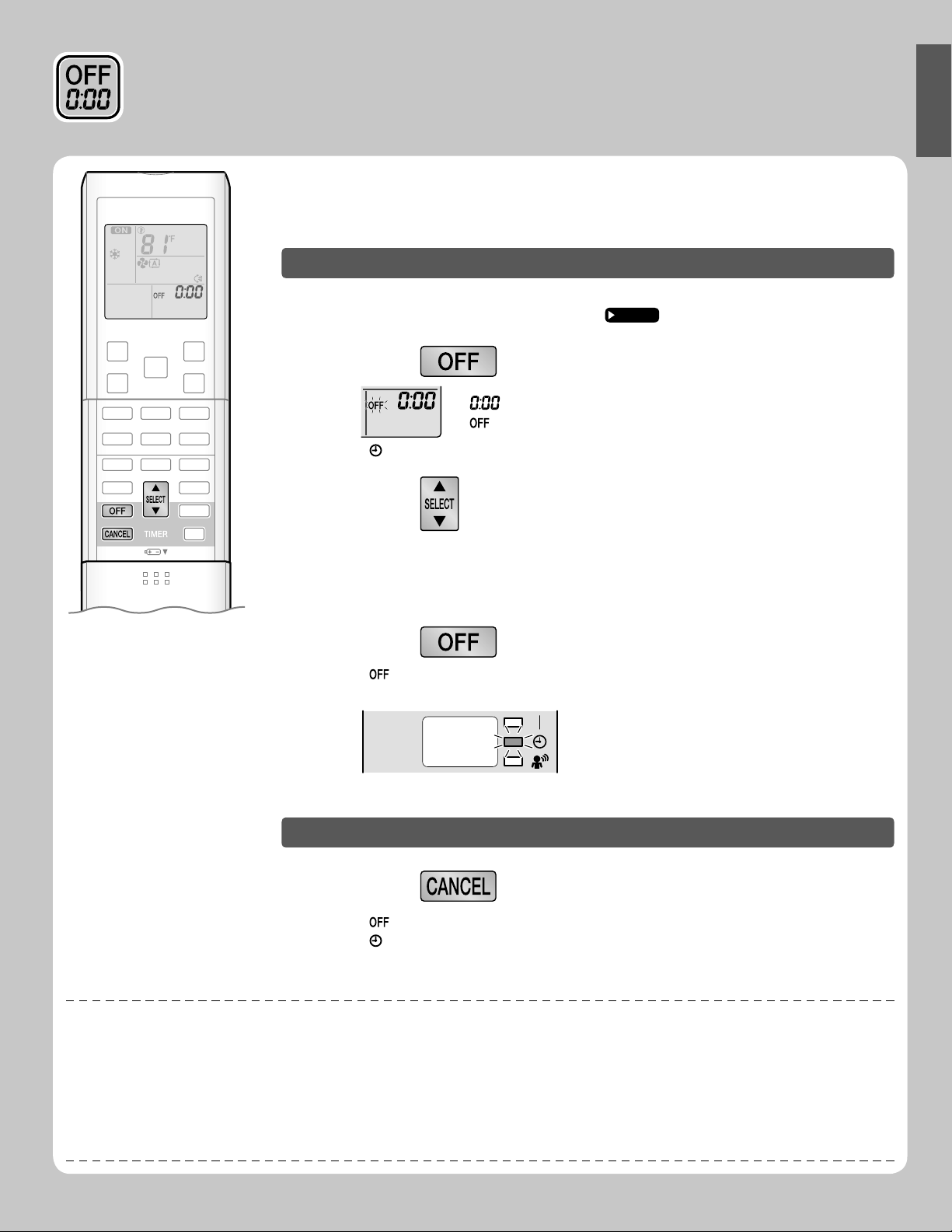

OFF TIMER Operation ............................20
ON TIMER Operation .............................21
WEEKLY TIMER Operation ....................22
Multi Connectio
n
Note for Multi System ........................................ 28
Car
e

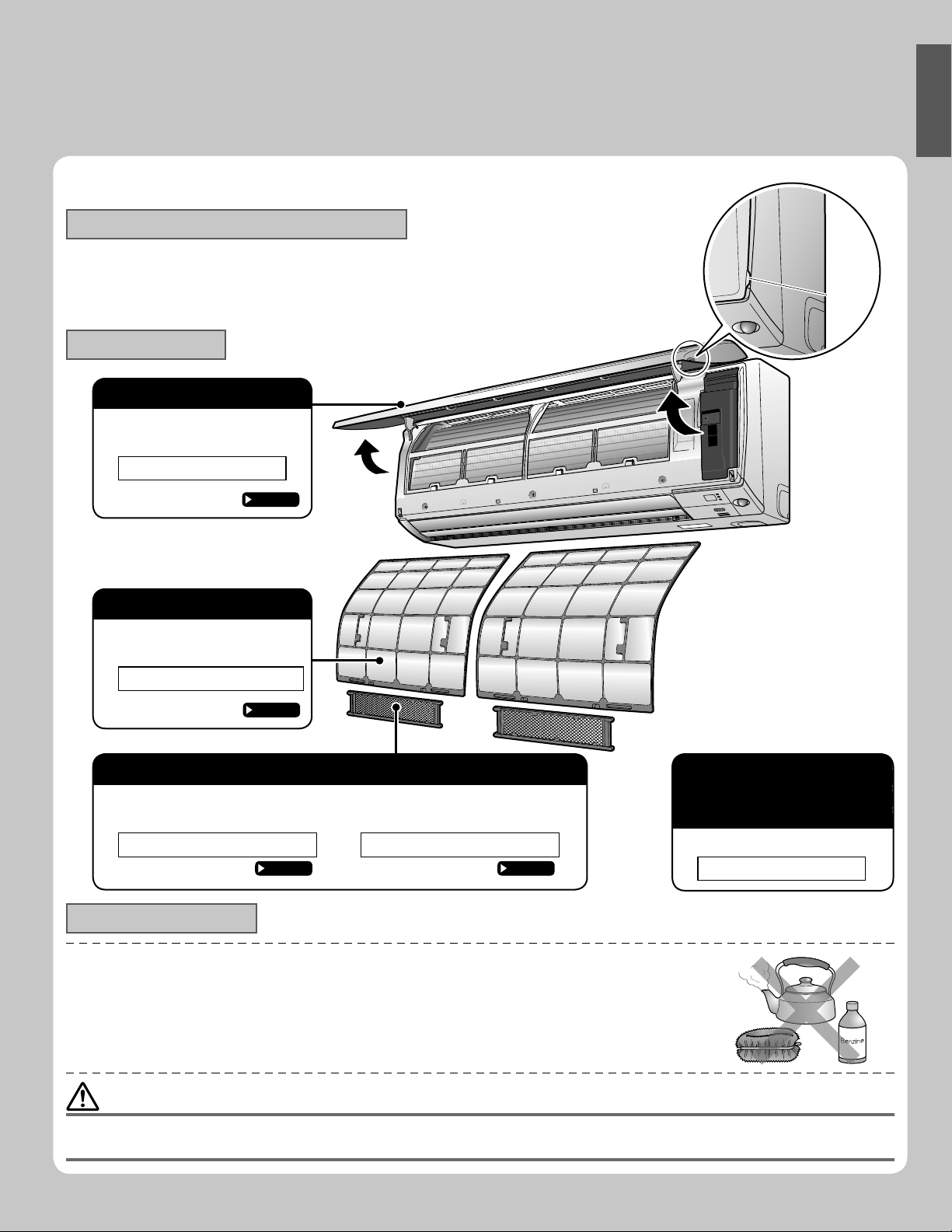

Care and Cleaning ............................................. 30
Troubleshootin
g
Troubleshooting ................................................. 35
ECONO
This function enables effi cient operation
by limiting the maximum power
consumption. It is useful when using the
air conditioner and other electrical
devices simultaneously.
Page 19
01_EN_3P297290-2.indd 201_EN_3P297290-2.indd 2 10/14/2011 9:36:35 AM10/14/2011 9:36:35 AM
3
Safety Precautions
Read these safety considerations for operations carefully before installing air conditioning equipment. After completing the •
installation, make sure that the unit operates properly during the startup operation. Instruct the customer on how to operate and
maintain the unit.
Inform customers that they should store this operation manual with the installation manual for future reference.
Meanings of DANGER, WARNING, CAUTION, and NOTE Symbols:
DANGER WARNING CAUTION
Indicates an imminently hazardous situation
which, if not avoided, will result in death or
serious injury.
Indicates a potentially hazardous situation
which, if not avoided, could result in death
or serious injury.
Indicates a potentially hazardous situation
which, if not avoided, may result in minor or
moderate injury. It may also be used to alert
against unsafe practices.
Never do.
Be sure to follow the instructions.
Be sure to ground the air conditioner.
Never allow the air conditioner or remote controller to get
wet.
Never touch the air conditioner (including the remote
controller) with a wet hand.
DANGER
For refrigerant leakage, consult your dealer.•
Refrigerant gas is heavier than air and replaces oxygen. A massive leak could lead to oxygen depletion, especially in basements,
and an asphyxiation hazard could occur leading to serious injury or death.
Refrigerant gas may produce a toxic gas if it comes in contact with fi re such as from a fan heater, stove or cooking device. Exposure •
to this gas could cause severe injury or death.
Any abnormalities in the operation of the air conditioner such as smoke or fi re could result in severe injury or death. •
Turn off the power and contact your dealer immediately for instructions.
Do not install the unit in an area where fl ammable materials are present due to risk of explosion resulting in serious injury or death.•
If equipment utilizing a burner is used in the same room as the air conditioner, there is the danger of oxygen defi ciency which could •
lead to an asphyxiation hazard resulting in serious injury or death.
Be sure to ventilate the room suffi ciently to avoid this hazard.
Safely dispose of the packing materials.•
Packing materials, such as nails and other metal or wooden parts, may cause stabs or other injuries. Tear apart and throw away
plastic packaging bags so that children will not play with them. Children playing with plastic bags face the danger of death by
suffocation.
WARNING
It is not good for health to expose your body to the air fl ow for a long time.•
Do not put your fi nger or other objects into the air outlet or inlet as the fan is rotating at high speed and could cause injury. Always •
keep small children away from the unit during operation.
Do not attempt to repair, relocate, modify or reinstall the air conditioner by yourself. Incorrect work or modifi cations could cause •
electric shocks, fi re or other damage.
For repairs and reinstallation, consult your Daikin dealer for advice and information.
If the air conditioner is not cooling (heating) properly, the refrigerant may be leaking, contact your authorized dealer or qualifi ed •
service repairman.
When making repairs which requires adding refrigerant, consult with your authorized dealer or qualifi ed service repairman.
Do not attempt to install the air conditioner by yourself. Improper installation could result in water leakage, electric shocks or fi re. For •
installation, consult your authorized dealer or a qualifi ed technician.
CAUTION
The air conditioner must be grounded. Improper grounding may result in electric shocks. Do not connect the grounding wire to a gas •
pipe, water pipe, lightning rod, or a telephone ground line. Follow all local and state electrical codes.
Do not use this unit for cooling precision instruments, food, plants, animals or works of art.•
Never expose little children, plants or animals directly to the air fl ow.•
Do not block air inlets nor outlets. Impaired air fl ow may result in poor performance or equipment problems.•
Do not stand, sit, or place objects on the outdoor unit. To avoid injury, do not remove the fan guard.•
01_EN_3P297290-2.indd 301_EN_3P297290-2.indd 3 10/14/2011 9:36:48 AM10/14/2011 9:36:48 AM
4
English
CAUTION
Do not place anything under the indoor or outdoor unit that must be kept away from moisture, such as electrical or electronic •
equipment. In certain conditions, moisture in the air may condense and drip.
Check the unit stand and fi ttings for damage annually.•
Do not touch the air inlet and aluminum fi ns of outdoor unit. It may cause injury and/or damage the heat transfer surface.•
This appliance is NOT intended for use by young children or impaired persons without proper supervision.•
Young children should be supervised to ensure that they DO NOT play with or near the air fl ow of this appliance.•
Do not pull at the conduit or hang anything on it. Otherwise it will cause fi re or electric shock.•
Do not touch the heat exchanger fi ns. Improper handling may result in injury.•
Do not turn off the power immediately after stopping operation. Always wait at least 5 minutes before turning off the power to avoid •
water leakage or other problems.
To avoid personal injury or equipment damage be sure to stop the operation, turn the breaker off or pull out the supply cord before •
cleaning or servicing the unit. NOTE: More than one disconnect may be required to shut off all power.
Do not connect the air conditioner to a power supply different from the one specifi ed. It may cause improper operation or fi re.•
Depending on the environment, state and local electrical codes, a ground fault circuit interrupter may be required. Improper •
grounding or lack of a ground fault circuit interrupter may result in electrical shock, injuries, or death.
It is recommended to install a ground fault circuit interrupter if one is not already available. •
This helps prevent electrical shocks or fi re.
Arrange the drain hose to ensure smooth drainage. Improper drainage may cause water damage to the building, or its furnishing.•
Depending on the usage environment, water may leak from the air conditioner. If this happens, contact your Daikin Dealer.•
The remote controller should be installed in such away that children cannot play with it.•
Do not place objects in direct proximity of the outdoor unit and do not let leaves and other debris accumulate around the unit.•
Leaves are a hotbed for small animals which can enter the unit. Once in the unit, such animals can cause malfunctions, smoke or
fi re when making contact with electrical parts.
Do not operate the air conditioner with wet hands.•
Do not wash the indoor unit with excessive water, only use a slightly wet cloth.•
Do not place things such as vessels containing water or anything else on top of the unit. Water may penetrate into the unit and •
degrade electrical insulations, resulting in an electric shock.
Installation site.
Operate the air conditioner in a suffi ciently ventilated area and not surrounded by obstacles. Do not use the air
conditioner in the following places.
Places with a mist of mineral oil, such as cutting oil.a.
Locations such as coastal areas where there is a lot of salt in the air.b.
Locations such as hot springs where there is a lot of sulfur in the air.c.
Locations such as factories where the power voltage varies a lot.d.
In cars, boats, and other vehicles.e.
Locations such as kitchens where oil may splatter or where there is steam in the air.f.
Locations where equipment produces electromagnetic waves.g.
Places with an acid or alkaline mist.h.
Places where fallen leaves can accumulate or where weeds can grow.i.
Consider the nuisance of noise to your neighbors.
Pay Attention to Operating Sound. Be sure to use the following places:
Places that can suffi ciently withstand the weight of the air conditioner yet can suppress the operating sound and vibration of the air a.
conditioner.
Places where warm air from the air outlet of the outside unit or the operating sound of the outside unit does not annoy neighbors.b.
Make sure that there are no obstacles close to the outside unit. Obstacles close to the outside unit may drop the performance of the
outside unit or increase the operating sound of the outside unit.
Consult your dealer if the air conditioner in operation generates unusual noise.
Electrical work.
For power supply, be sure to use a separate power circuit dedicated to the air conditioner.•
System relocation.
Relocating the air conditioner requires specialized knowledge and skills. Please consult the dealer if relocation is
necessary for moving or remodeling.
01_EN_3P297290-2.indd 401_EN_3P297290-2.indd 4 10/14/2011 9:36:49 AM10/14/2011 9:36:49 AM
5
Names of Parts
Indoor Unit
Air inletFront panel
Air outlet
Fins (vertical blades)
The fi ns are inside of the air •
outlet.
Page 13
Louvers
(horizontal blades)
Page 13
Signal receiver
It receives signals from the remote •
controller.
When the unit receives a signal, you •
will hear a beep sound.
Case Sound type
Operation start beep-beep
Setting changed beep
Operation stop long beep
Display
Indoor unit ON/OFF switch
Press this switch once to start operation.•
Press once again to stop it.
The operation mode refer to the following table.•
Mode Temperature setting Airfl ow rate
AUTO 77°F (25°C) AUTO
This switch is useful when the remote controller is missing.•
Model name
plate
Panel tab
Room temperature
sensor
It detects the air temperature •
around the unit.
INTELLIGENT EYE
sensor
It detects the movements of •
people and automatically
switches between normal
operation and energy saving
operation.
Page 15
OPERATION lamp (green)
TIMER lamp (yellow)
Page 20,21
INTELLIGENT EYE lamp
(green)
Page 15,16
01_EN_3P297290-2.indd 501_EN_3P297290-2.indd 5 10/14/2011 9:36:49 AM10/14/2011 9:36:49 AM
6
English

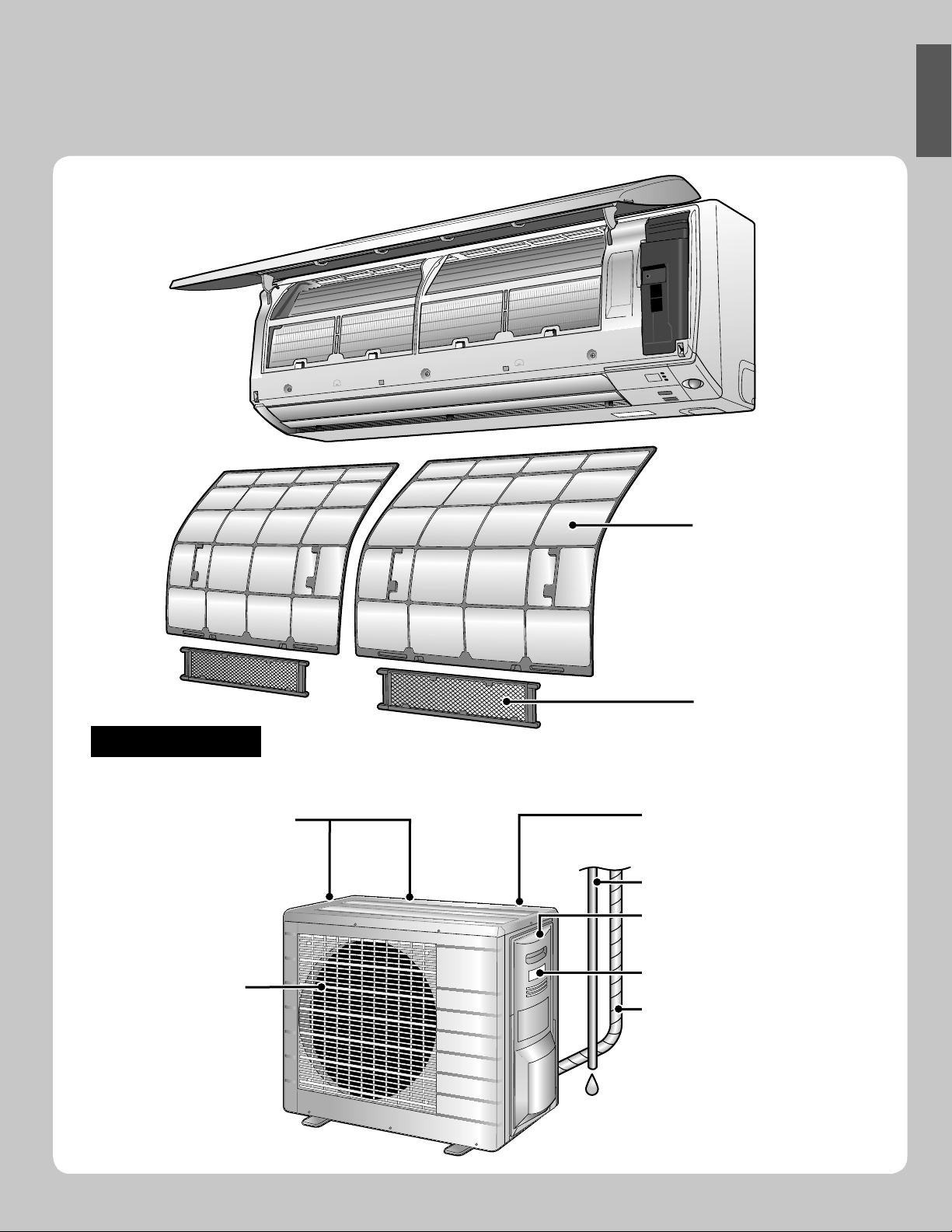

Outdoor Unit
Appearance of the outdoor unit may differ from some models.•
Open the front panel
Refrigerant piping and
inter-unit wiring
Ground terminal
Inside this cover.•
Drain hose
Air inlet
(back and side)
Air outlet
Outdoor temperature
sensor (back)
Model name plate
Air fi lter
Titanium apatite
photocatalytic
air-purifying fi lter
01_EN_3P297290-2.indd 601_EN_3P297290-2.indd 6 10/14/2011 9:36:50 AM10/14/2011 9:36:50 AM
7
Names of Parts

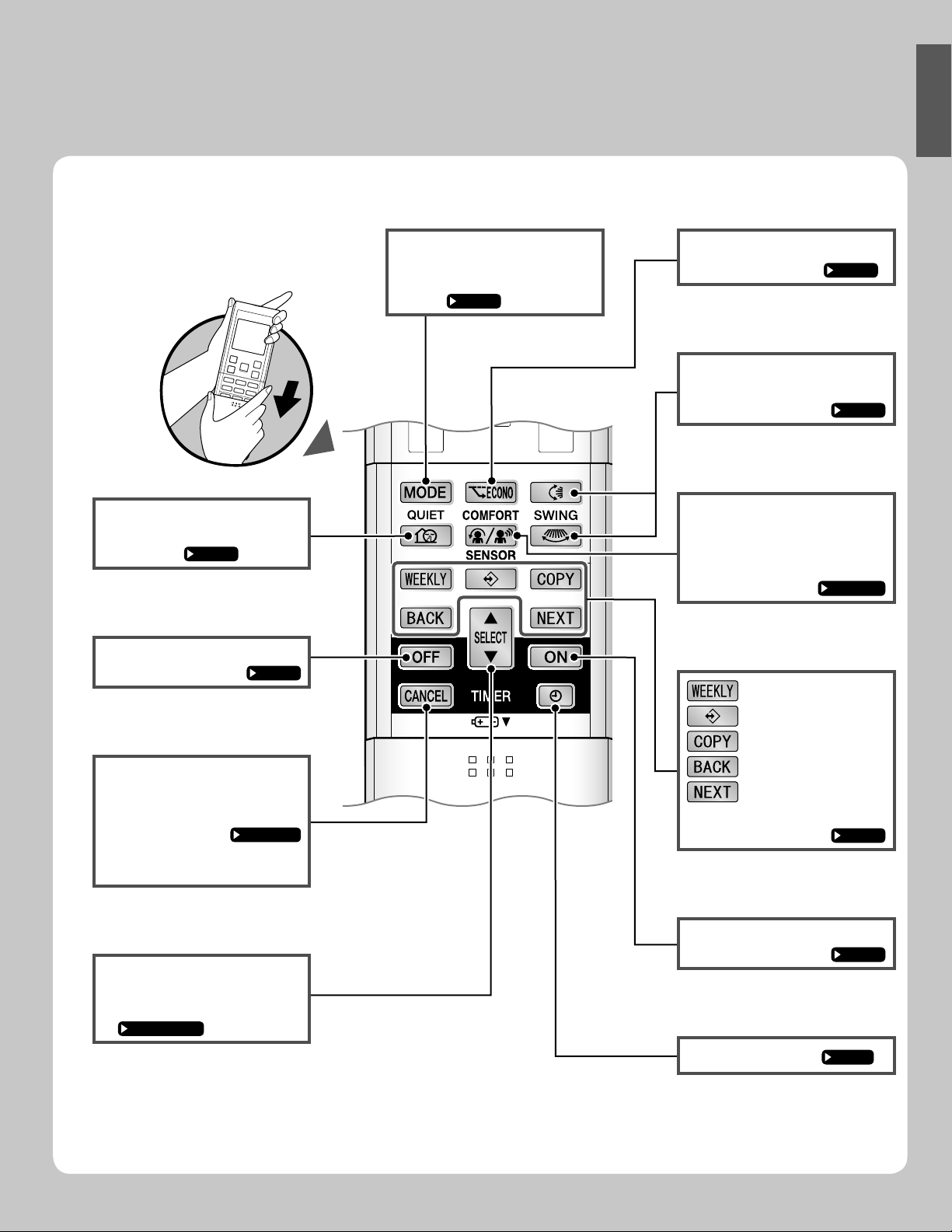

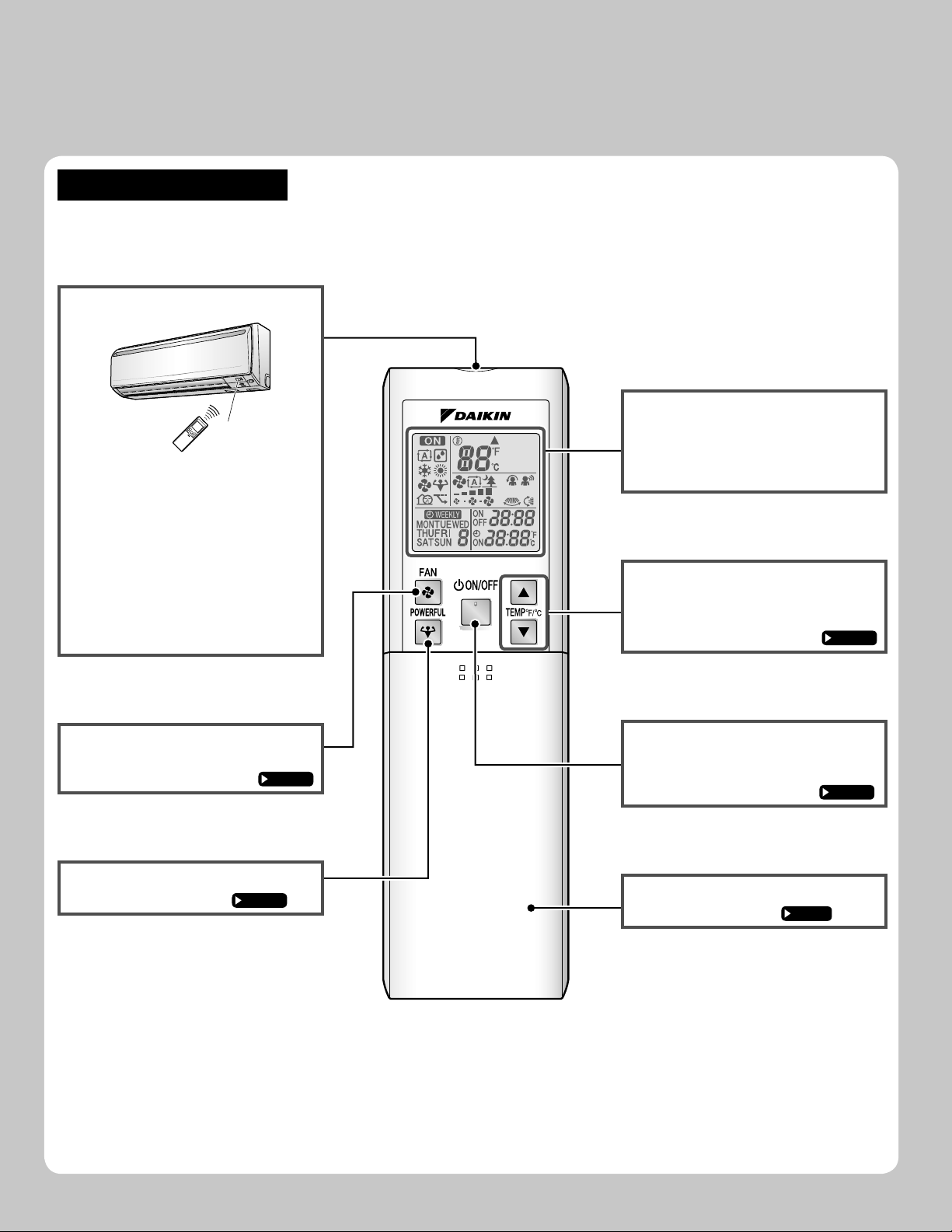

Remote Controller
Signal transmitter
Receiver
To use the remote controller, aim the •
transmitter at the indoor unit. If there
is anything to block signals between
the unit and the remote controller,
such as a curtain, the unit will not
operate.
Do not drop the remote controller. Do •
not get it wet.
The maximum distance for •
communication is approximately 23ft
(7m).
FAN setting button
Selects the airfl ow rate setting. •
Page 14
POWERFUL button
POWERFUL operation. •
Page 17
Display (LCD)
Displays the current settings.•
(In this illustration, each section is
shown with all its displays on for the
purpose of explanation.)
TEMPERATURE
adjustment buttons
Changes the temperature setting.•
Page 12
ON/OFF button
Press this button once to start •
operation.
Press once again to stop it.
Page 11
Front cover
Open the front cover. •
Page 8
<ARC452A21>
01_EN_3P297290-2.indd 701_EN_3P297290-2.indd 7 10/14/2011 9:36:52 AM10/14/2011 9:36:52 AM
8
English
Open the front cover
ECONO button
ECONO operation. •
Page 19
SWING button
Adjusting the airfl ow direction.
•
Page 13
COMFORT/SENSOR
button
COMFORT AIRFLOW and
•
INTELLIGENT EYE operation.
Page 15,16
: WEEKLY button
: PROGRAM button
: COPY button
: BACK button
: NEXT button
WEEKLY TIMER operation.•
Page 22
ON TIMER button
Page 21
CLOCK button
Page 10
QUIET button
OUTDOOR UNIT QUIET •
operation.
Page 18
OFF TIMER button
Page 20
TIMER CANCEL
button
Cancels the timer setting.•
Page 20,21
It cannot be used for the •
WEEKLY TIMER operation.
SELECT button
Changes the ON/OFF TIMER •
and WEEKLY TIMER settings.
Page 20,21,22
MODE selector button
Selects the operation mode.•
(AUTO/DRY/COOL/HEAT/
FAN)
Page 11
01_EN_3P297290-2.indd 801_EN_3P297290-2.indd 8 10/14/2011 9:36:52 AM10/14/2011 9:36:52 AM
9
Preparation before Operation
To set the batteries
2
3
1
Position and
correctly!
+
–
Slide the front cover to take it off.1.
Set two dry batteries AAA.LR03 (alkaline).2.
Set the front cover as before.3.
To fi x the remote controller holder on the wall
Remote
controller holder
Remote controller
Screws
Choose a place from where the signals reach 1.
the unit.
Fix the holder to a wall, a pillar, etc. with the
2.
screws supplied with the holder.
Place the remote controller in the remote
3.
controller holder.
Celsius/Fahrenheit display switch
The Celsius or Fahrenheit display is selectable with the following buttons.•
Press and simultaneously for
5 seconds.
The temperature will be displayed in Fahrenheit if it is presently displayed in Celsius, •
and vice versa.
NOTE
Notes on batteries
When replacing the batteries, use batteries of the same type, and replace both batteries at the same time.•
When the system is not used for a long time, take the batteries out.•
The batteries will last for approximately 1 year. If the remote controller display begins to fade and the degradation of reception performance •
occurs within a year, however, replace both batteries with new, size AAA.LR03 (alkaline).
The attached batteries are provided for the initial use of the system.•
The usable period of the batteries may be short depending on the manufactured date of the air conditioner.
Notes on remote controller
Never expose the remote controller to direct sunlight.•
Dust on the signal transmitter or receiver will reduce the sensitivity. Wipe off dust with a soft cloth.•
Signal communication may be disabled if an electronic-starter-type fl uorescent lamp (such as inverter-type lamps) is in the room. Consult the •
shop if that is the case.
If the remote controller signals happen to operate another appliance, move that appliance somewhere else, or consult the service shop.•
Celsius/Fahrenheit display change function of remote controller
The set temperature may increase when the display is changed to Celsius from Fahrenheit, because a fraction of 0.5°C is rounded up.•
Example: A set temperature of 65°F (equivalent to 18.5°C) will be converted into 19°C.
•
When the display is changed to Fahrenheit again, the set temperature will be converted into 66°F (equivalent to 19°C) instead of the
original set temperature (65°F) but a set temperature of 66°F (equivalent to 19°C) will be converted into 19°C with no temperature change.
A reception sound will go off for the transmission of set temperature to the indoor unit at the time of setting the Celsius/Fahrenheit display change function.
•
01_EN_3P297290-2.indd 901_EN_3P297290-2.indd 9 10/14/2011 9:36:54 AM10/14/2011 9:36:54 AM
10
English
Turn the breaker on
After the power is turned on, the louvers of the indoor unit open and close once to set •
the reference position.

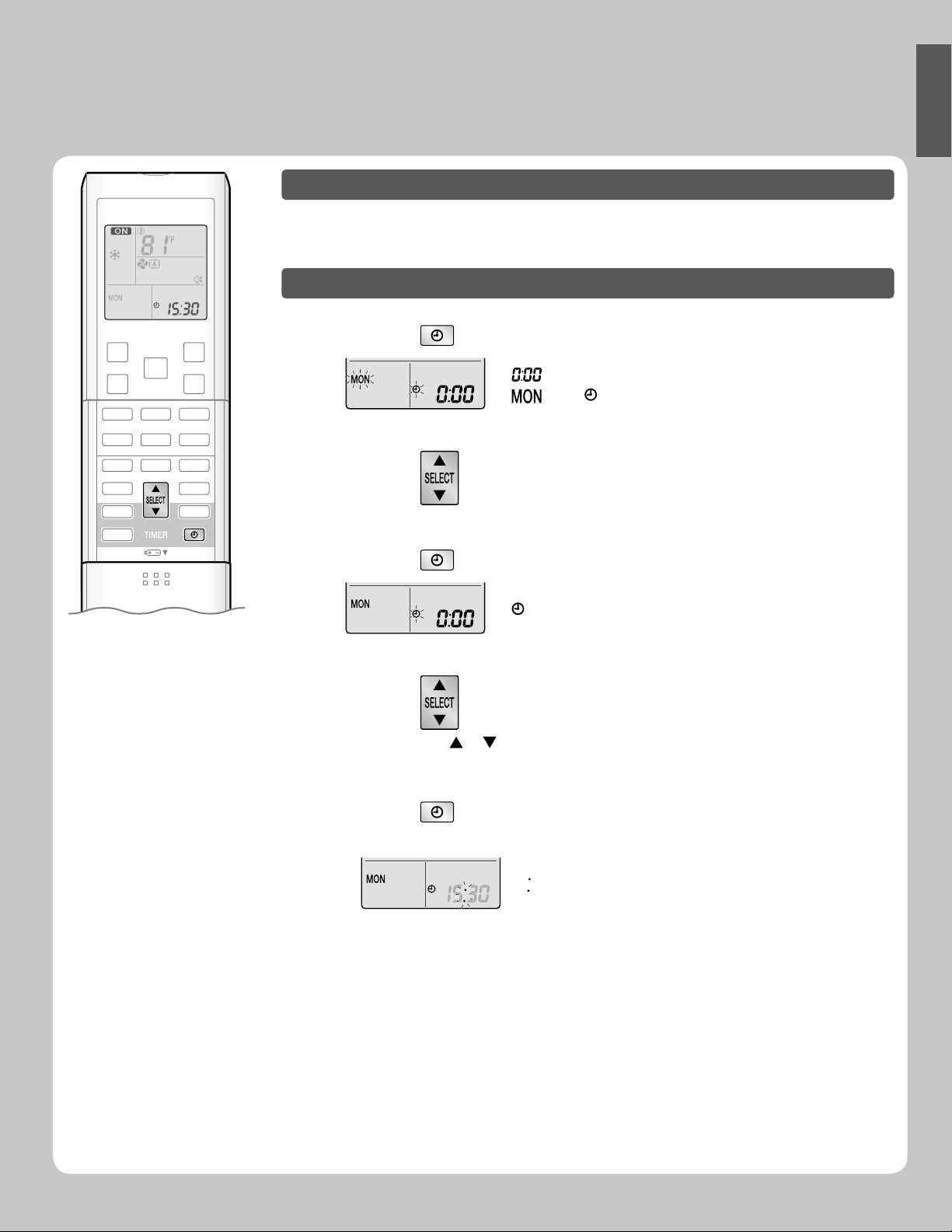

To set the clock
Press 1. .
“ ” is displayed.
“
” and “ ” blink.
Press 2. to set the current day of the week.
Press
3. .
“ ” blinks.
Press 4. to set the clock to the present time.
Holding down • or rapidly increases or decreases the time display.
Press 5. .
Point the remote controller at the indoor unit when pressing the buttons.•
“ ” blinks.
01_EN_3P297290-2.indd 1001_EN_3P297290-2.indd 10 10/14/2011 9:36:55 AM10/14/2011 9:36:55 AM
11
AUTO · DRY · COOL · HEAT ·
FAN Operation
The air conditioner operates with the operation mode of your choice.
From the next time on, the air conditioner will operate with the same operation mode.
To start operation
Press 1. and select an operation mode.
Each pressing of the button advances the mode setting in sequence.•
AUTO DRY COOL HEAT FAN
Press 2. .
“ • ” is displayed on the LCD.
The OPERATION lamp lights green.•
Display
To stop operation
Press again.
“ • ” is no longer displayed on the LCD.
The OPERATION lamp goes off.•
NOTE
MODE Notes on each operation mode
HEAT
Since this air conditioner heats the room by taking heat from outdoor air to indoors, the heating capacity becomes smaller in lower outdoor
•
temperatures. If the heating effect is insuffi cient, it is recommended to use another heating appliance in combination with the air conditioner.
The heat pump system heats the room by circulating hot air around all parts of the room. After the start of HEAT operation, it takes •
some time before the room gets warmer.
In HEAT operation, frost may occur on the outdoor unit and lower the heating capacity. In that case, the system switches into •
defrosting operation to take away the frost.
During defrosting operation, hot air does not fl ow out of indoor unit.•
COOL
This air conditioner cools the room by releasing the heat in the room outside. Therefore, the cooling performance of the air •
conditioner may be degraded if the outdoor temperature is high.
DRY
The computer chip works to rid the room of humidity while maintaining the temperature as much as possible. It automatically •
controls temperature and airfl ow rate, so manual adjustment of these functions is unavailable.
AUTO
In AUTO operation, the system selects an appropriate operation mode (COOL or HEAT) based on the room and outside •
temperatures and starts the operation.
The system automatically reselects setting at a regular interval to bring the room temperature to user-setting level.•
FAN This mode is valid for fan only.•
01_EN_3P297290-2.indd 1101_EN_3P297290-2.indd 11 10/14/2011 9:36:56 AM10/14/2011 9:36:56 AM
12
English
To change the temperature setting
Press or .
The displayed items on the LCD will change whenever either one of the buttons is •
pressed.
COOL operation HEAT operation AUTO operation DRY or FAN operation
64-90°F
(18-32°C)
50-86°F
(10-30°C)
64-86°F
(18-30°C)
The temperature setting is
not variable.
Press
to raise the temperature and press to lower the
temperature.
Operating conditions
Recommended temperature setting
For cooling: 78-82°F (26-28°C)•
For heating: 68-75°F (20-24°C)•
Tips for saving energy
Be careful not to cool (heat) the room too much. •
Keeping the temperature setting at a moderate level helps save energy.
Cover windows with a blind or a curtain.•
Blocking sunlight and air from outdoors increases the cooling (heating) effect.
Clogged air fi lters cause ineffi cient operation and waste energy. Clean them once in about every 2 weeks. •
Page 32
Notes on the operating conditions
The air conditioner always consumes a small amount of electricity even while it is not operating.•
If you are not going to use the air conditioner for a long period, for example in spring or autumn, turn the breaker off.•
Use the air conditioner in the following conditions.•
MODE Operating conditions If operation is continued out of this range
COOL
Outdoor temperature : 50-115°F (10-46°C)
Indoor temperature : 64-90°F (18-32°C)
Indoor humidity : 80% max.
A safety device may work to stop the operation. •
(In multi system, it may work to stop the operation of the outdoor unit only.)
Condensation may occur on the indoor unit and drip.•
HEAT
Outdoor temperature : 5-75°F (–15-24°C)
Indoor temperature : 50-86°F (10-30°C)
A safety device may work to stop the operation.•
DRY
Outdoor temperature : 50-115°F (10-46°C)
Indoor temperature : 64-90°F (18-32°C)
Indoor humidity : 80% max.
A safety device may work to stop the operation.•
Condensation may occur on the indoor unit and drip.•
Operation outside this humidity or temperature range may cause a safety device to disable the system.•
01_EN_3P297290-2.indd 1201_EN_3P297290-2.indd 12 10/14/2011 9:36:57 AM10/14/2011 9:36:57 AM
13
Adjusting the Airfl ow Direction
and Rate
You can adjust the airfl ow direction to increase your comfort.
To start auto swing
Upper and lower airfl ow direction
Press .
“ • ” is displayed on the LCD.
The louvers (horizontal blades) will begin to swing.•
Right and left airfl ow direction
Press .
“ • ” is displayed on the LCD.
The fi ns (vertical blades) will begin to swing.•
The 3-D airfl ow direction
Press and .
“ • ” and “ ” are displayed on the LCD.
The louvers and fi ns move in turn.•
To cancel 3-D airfl ow, press either •
or again.
The louvers or fi ns will stop moving.
To set the louvers or fi ns at desired position
This function is effective while louvers or fi ns are in auto swing mode.•
Press and when the louvers or
fi ns have reached the desired position.
In the 3-D airfl ow, the louvers and fi ns move in turn.•
“ •
” or “ ” is no longer displayed on the LCD.
01_EN_3P297290-2.indd 1301_EN_3P297290-2.indd 13 10/14/2011 9:36:58 AM10/14/2011 9:36:58 AM
14
English
To adjust the airfl ow rate setting
Press .
Each pressing of • advances the airfl ow rate setting in sequence.
Auto Indoor unit quiet Low Middle low
MiddleMiddle highHigh
When the airfl ow is set to “ • ”, indoor unit quiet operation will start and the noise
from the unit will become quieter.
In indoor unit quiet operation, the airfl ow rate is set to a weak level.•
In DRY operation, the airfl ow rate setting is not variable.•
NOTE
Notes on the angles of the louvers
The louvers swinging range depends on the operation. (See the fi gure.)•
COOL and DRY operation HEAT operation FAN operation
Upper limit
COMFORT AIRFLOW
Lower limit
Stop operation
Stop operation
Upper limit
Lower limit
COMFORT AIRFLOW
Upper limit
Lower limit
Stop operation
10°
15°
50°
30°
70°
75°
15°
70°
Note on 3-D airfl ow
Using 3-D airfl ow circulates cold air, which tends to collected at the bottom of the room, and hot air, which tends to collect near the ceiling, •
throughout the room, preventing areas of cold and hot developing.
Note on airfl ow rate setting
At smaller airfl ow rates, the cooling (heating) effect is also smaller.•
CAUTION
Always use a remote controller to adjust the angles of the louvers and fi ns. If you attempt to move the louvers and fi ns forcibly with hand when they •
are swinging, the mechanism may be broken.
Always use a remote controller to adjust the fi ns angles. Inside the air outlet, a fan is rotating at a high speed.•
01_EN_3P297290-2.indd 1401_EN_3P297290-2.indd 14 10/14/2011 9:37:00 AM10/14/2011 9:37:00 AM
15
COMFORT AIRFLOW /
INTELLIGENT EYE Operation
COMFORT AIRFLOW operation
The fl ow of air will be in the upward direction while in COOL operation and in the downward direction while in
HEAT operation, which will provide a comfortable wind that will not come in direct contact with people.
COOL operation HEAT operation
INTELLIGENT EYE operation
“INTELLIGENT EYE” is the infrared sensor which detects the human movement.
If no one is in the room for more than 20 minutes, the operation automatically changes to energy saving
operation.
[Example]
When someone is in
the room
Normal operation
The air conditioner is in •
normal operation while the
sensor is detecting the
movement of people.
When no one is in the
room
20 minutes after, start
energy saving
operation.
The set temperature is •
shifted in ±3.6°F (±2°C)
steps.
Someone is back in the
room
Back to normal
operation.
The air conditioner will •
return to normal operation
when the sensor detects the
movement of people again.
INTELLIGENT EYE operation is useful for energy saving
Energy saving operation
If no presence detected in the room for 20 minutes, the energy saving operation will start.•
This operation changes the temperature –3.6°F (–2°C) in HEAT / +3.6°F (+2°C) in COOL / +3.6°F (+2°C) in DRY operation from set temperature.•
When the room temperature exceeds 86°F (30°C), the operation changes the temperature +1.8°F (+1°C) in COOL / +1.8°F (+1°C) in DRY
operation from set temperature.
This operation decreases the airfl ow rate slightly in FAN mode only.•
Combination COMFORT AIRFLOW and INTELLIGENT EYE operation
The air conditioner can go into operation with the COMFORT AIRFLOW and INTELLIGENT EYE functions
combined.
01_EN_3P297290-2.indd 1501_EN_3P297290-2.indd 15 10/14/2011 9:37:01 AM10/14/2011 9:37:01 AM
16
English
To start operation
Press and select the desired mode.
Each time the • is pressed a different setting option is displayed on the LCD.
The INTELLIGENT EYE lamp lights green. •
Display
By selecting “ • ” from the following icons, the air conditioner will be in COMFORT
AIRFLOW operation combined with INTELLIGENT EYE operation.
blank
No SettingCOMFORT
AIRFLOW
INTELLIGENT
EYE
Combination
When the louvers (horizontal blades) are swinging, the operating as above will stop •
movement of them.
The lamp will be lit while human movements are detected.•
To cancel operation
Press and select “blank” on the LCD.
The INTELLIGENT EYE lamp goes off.•
NOTE
Notes on COMFORT AIRFLOW operation
The louver position will change, preventing air from blowing directly on the occupants of the room.•
POWERFUL operation and COMFORT AIRFLOW operation cannot be used at the same time.•
Priority is given to the function of whichever button is pressed last.
The airfl ow rate will be set to AUTO. If the upper and lower airfl ow direction is selected, the COMFORT AIRFLOW function will be canceled.•
Notes on INTELLIGENT EYE operation
Application range is as follows.•
90°
55°
23ft
(7m)
55°
Vertical angle 90°
(Side view)
Horizontal
angle 110°
(Top view)
23ft (7m)
Sensor may not detect moving objects further than 23ft (7m) away. (Check the application range)•
Sensor detection sensitivity changes according to indoor unit location, the speed of passersby, temperature range, etc.•
The sensor also mistakenly detects pets, sunlight, fl uttering curtains and light refl ected off of mirrors as passersby.•
INTELLIGENT EYE operation will not go on during POWERFUL operation.•
NIGHT SET mode •
Page 20
will not go on during use of INTELLIGENT EYE operation.
Notes on combination of COMFORT AIRFLOW operation and INTELLIGENT EYE operation
The airfl ow rate will be set to AUTO. If the upper and lower airfl ow direction is selected, the COMFORT AIRFLOW operation will be canceled.
•
Priority is given to the function of whichever button is pressed last.
CAUTION
Do not place large objects near the sensor.•
Also keep heating units or humidifi ers outside the sensor’s detection area. This sensor can detect undesirable objects.
Do not hit or violently push the INTELLIGENT EYE sensor. This can lead to damage and malfunction.•
01_EN_3P297290-2.indd 1601_EN_3P297290-2.indd 16 10/14/2011 9:37:02 AM10/14/2011 9:37:02 AM
17
POWERFUL Operation
POWERFUL operation quickly maximizes the cooling (heating) effect in any
operation mode. You can get the maximum capacity.
To start POWERFUL operation
Press during operation.
POWERFUL operation ends in 20 minutes. Then the system automatically operates •
again with the previous settings which were used before POWERFUL operation.
“ •
” is displayed on the LCD.
To cancel POWERFUL operation
Press again.
“ • ” is no longer displayed on the LCD.
[Example]
Normal operation
When you want to get the •
cooling effect quickly, start
the POWERFUL operation.
POWERFUL operation
POWERFUL operation will •
work for 20 minutes.
Back to normal
operation
NOTE
Notes on POWERFUL operation
When using POWERFUL operation, there are some functions which are not available.•
POWERFUL operation cannot be used together with ECONO, COMFORT AIRFLOW or OUTDOOR UNIT QUIET operation.•
Priority is given to the function of whichever button is pressed last.
POWERFUL operation can only be set when the unit is running. Pressing •
causes the settings to be canceled, and “ ” is no longer
displayed on the LCD.
POWERFUL operation will not increase the capacity of the air conditioner if the air conditioner is already in operation with its maximum capacity •
demonstrated.
In COOL, HEAT and AUTO operation•
To maximize the cooling (heating) effect, the capacity of outdoor unit is increased and the airfl ow rate is fi xed to the maximum setting.
The temperature and airfl ow settings are not variable.
In DRY operation•
The temperature setting is lowered by 4.5°F (2.5°C) and the airfl ow rate is slightly increased.
In FAN operation•
The airfl ow rate is fi xed to the maximum setting.
01_EN_3P297290-2.indd 1701_EN_3P297290-2.indd 17 10/14/2011 9:37:03 AM10/14/2011 9:37:03 AM
18
English
OUTDOOR UNIT QUIET
Operation
OUTDOOR UNIT QUIET operation lowers the noise level of the outdoor unit by
changing the frequency and fan speed on the outdoor unit. This function is
convenient during the night.
To start OUTDOOR UNIT QUIET operation
Press .
“• ” is displayed on the LCD.
To cancel OUTDOOR UNIT QUIET operation
Press again.
“• ” is no longer displayed on the LCD.
[Example] Using the OUTDOOR UNIT QUIET operation during the night.
The noise level of the outdoor unit will be lower.•
This is convenient in consideration of your neighbors.
NOTE
Notes on OUTDOOR UNIT QUIET operation
If using a multi system, the OUTDOOR UNIT QUIET operation will work only when this function is set on all operated indoor units. However, if •
using priority room setting, refer to “Note for multi system”.
Page 28
This function is available in COOL, HEAT, and AUTO operation.•
This is not available in FAN and DRY operation.
POWERFUL operation and OUTDOOR UNIT QUIET operation cannot be used at the same time.•
Priority is given to the function of whichever button is pressed last.
Even the operation is stopped using the remote controller or the indoor unit ON/OFF switch when using OUTDOOR UNIT QUIET operation, “•
”
will remain on the remote controller display.
OUTDOOR UNIT QUIET operation will drop neither the frequency nor fan speed if they have been already dropped low enough.•
01_EN_3P297290-2.indd 1801_EN_3P297290-2.indd 18 10/14/2011 9:37:04 AM10/14/2011 9:37:04 AM
19
ECONO Operation
ECONO operation is a function which enables effi cient operation by limiting the
maximum power consumption value.
This function is useful for cases in which attention should be paid to ensure a
circuit breaker will not trip when the product runs alongside other appliances.
To start ECONO operation
Press during operation.
“• ” is displayed on the LCD.
To cancel ECONO operation
Press again.
“• ” is no longer displayed on the LCD.
[Example]
Normal operation ECONO operation
In case the air conditioner and other •
appliances which require high power
consumption are used at same time, a circuit
breaker may trip if the air conditioner operate
with its maximum capacity.
The maximum power consumption of the air
•
conditioner is limited by using ECONO operation.
The circuit breaker is unlikely to trip even if the
air conditioner and other appliances are used at
same time.
Time
Maximum during
normal operation
Maximum during
ECONO operation
Normal
operation
ECONO
operation
From start up until set temperature is reached
Running current and
power consumption
This diagram is a representation for illustrative •
purposes only.
The maximum running current and power
consumption of the air conditioner in ECONO
operation vary with the connecting outdoor
unit.
NOTE
Notes on ECONO operation
ECONO operation can only be set when the unit is running. Pressing • causes the settings to be canceled, and “ ” is no longer displayed
on the LCD.
ECONO operation functions in AUTO, COOL, DRY, and HEAT operation. •
POWERFUL and ECONO operation cannot be used at the same time.•
Priority is given to the function of whichever button is pressed last.
If the level of power consumption is already low, ECONO operation will not drop the power consumption.•
01_EN_3P297290-2.indd 1901_EN_3P297290-2.indd 19 10/14/2011 9:37:05 AM10/14/2011 9:37:05 AM
20
English
OFF TIMER Operation
Timer functions are useful for automatically switching the air conditioner on or off
at night or in the morning. You can also use OFF TIMER and ON TIMER in
combination.
To use OFF TIMER operation
Check that the clock is correct.•
If not, set the clock to the present time.
Page 10
Press 1. .
“ ” is displayed on the LCD.
“
” blinks.
“ • ” is no longer displayed on the LCD.
Press 2. until the time setting reaches the
point you like.
Each pressing of either button increases or decreases the time setting by 10 minutes. •
Holding down either button changes the time setting rapidly.
Press 3. again.
“ • ” and setting time are displayed on the LCD.
The TIMER lamp lights yellow.•
Display
To cancel OFF TIMER operation
Press .
“ • ” and setting time are no longer displayed on the LCD.
“ •
” and day of the week are displayed on the LCD.
The TIMER lamp goes off.•
NOTE
Notes on TIMER operation
When TIMER is set, the present time is not displayed.•
Once you set ON/OFF TIMER, the time setting is kept in the memory. The memory is canceled when remote controller batteries are replaced.•
When operating the unit via the ON/OFF TIMER, the actual length of operation may vary from the time entered by the user. (Maximum •
approximately 10 minutes)
NIGHT SET mode
When the OFF TIMER is set, the air conditioner automatically adjusts the temperature setting (0.9°F (0.5°C) up in COOL, 3.6°F (2.0°C) down in •
HEAT) to prevent excessive cooling (heating) for your pleasant sleep.
01_EN_3P297290-2.indd 2001_EN_3P297290-2.indd 20 10/14/2011 9:37:07 AM10/14/2011 9:37:07 AM
21
ON TIMER Operation
To use ON TIMER operation
Check that the clock is correct.•
If not, set the clock to the present time.
Page 10
Press 1. .
“ ” is displayed on the LCD.
“
” blinks.
“ • ” and day of the week are no longer displayed on the LCD.
Press 2. until the time setting reaches the
point you like.
Each pressing of either button increases or decreases the time setting by 10 minutes. •
Holding down either button changes the setting rapidly.
Press 3. again.
“ • ” and setting time are displayed on the LCD.
The TIMER lamp lights yellow.•
Display
To cancel ON TIMER operation
Press .
“ • ” and setting time are no longer displayed on the LCD.
“ •
” and day of the week are displayed on the LCD.
The TIMER lamp goes off.•
To combine ON TIMER and OFF TIMER
A sample setting for combining the 2 timers is shown below.•
(Example)
Present time: 23:00 (The unit operating)
OFF TIMER at 0:00
ON TIMER at 14:00
Combined
NOTE
In the following cases, set the timer again.
After a breaker has turned off.•
After a power failure.•
After replacing batteries in the remote controller.•
01_EN_3P297290-2.indd 2101_EN_3P297290-2.indd 21 10/14/2011 9:37:09 AM10/14/2011 9:37:09 AM
22
English
WEEKLY TIMER Operation
Up to 4 timer settings can be saved for each day of the week. It is convenient if the WEEKLY TIMER is set
according to the family’s life style.
Using in these cases of WEEKLY TIMER
Example: The same timer settings are made for the week from Monday through Friday while different timer settings are made
for the weekend.
[Monday]
Make timer settings up to programs 1-4.
Page 23
6:00 8:30 17:30 22:00
77°F (25°C) 81°F (27°C)
ON ON OFFOFF
Program 1 Program 2 Program 3 Program 4
ON OFF ON OFF
[Tuesday]
to
[Friday]
Use the copy mode to make settings for Tuesday to Friday, because these settings are the same as those
for Monday.
Page 25
6:00 8:30 17:30 22:00
77°F (25°C) 81°F (27°C)
Program 1 Program 2 Program 3 Program 4
ON OFF ON OFF
[Saturday] No timer settings
[Sunday]
Make timer settings up to programs 1-4.
Page 23
8:00 10:00 19:00 21:00
81°F (27°C)
81°F (27°C)
77°F (25°C)
ON
ON
OFF
OFF
ON OFF OFF ON
Program 1 Program 2 Program 3 Program 4
Up to 4 reservations per day and 28 reservations per week can be set in the WEEKLY TIMER. The effective use of the copy •
mode ensures ease of making reservations.
The use of ON-ON-ON-ON settings, for example, makes it possible to schedule operating mode and set temperature changes. •
Furthermore, by using OFF-OFF-OFF-OFF settings, only the turn off time of each day can be set. This will turn off the air
conditioner automatically if the user forgets to turn it off.
01_EN_3P297290-2.indd 2201_EN_3P297290-2.indd 22 10/14/2011 9:37:11 AM10/14/2011 9:37:11 AM
23
WEEKLY TIMER Operation
To use WEEKLY TIMER operation
Setting mode
Make sure the day of the week and time are set. If not, set the day of the week and time. •
Page 10
6:00 8:30 17:30 22:00
77°F (25°C)
81°F (27°C)
Program 1 Program 2 Program 3 Program 4
ON OFF ON OFF
[Monday]
Setting Displays
Day and number settings ON/OFF settings Time settings Temperature settings
Press 1. .
The day of the week and the reservation number of the current day will be displayed.•
1 to 4 settings can be made per day. •
Press 2. to select the desired day of the
week and reservation number.
Pressing • changes the reservation number and the day of the week.
Press 3. .
The day of the week and reservation number will be set.•
“ •
” and “ ” blink.
Press 4. to select the desired mode.
Pressing • changes “ ” or “ ” setting in sequence.
ON TIMER OFF TIMER blank
In case the reservation has already been set, selecting “blank” deletes the •
reservation.
Go to • STEP
9 if “blank” is selected.
Press 5. .
The ON/OFF TIMER mode will be set. •
“ •
” and the time blink.
01_EN_3P297290-2.indd 2301_EN_3P297290-2.indd 23 10/14/2011 9:37:12 AM10/14/2011 9:37:12 AM
24
English
NOTE
Notes on WEEKLY TIMER operation
Do not forget to set the clock on the remote controller fi rst. •
Page 10
The day of the week, ON/OFF TIMER mode, time and set temperature (only for ON TIMER mode) can be set with WEEKLY TIMER. •
Other settings for ON TIMER are based on the settings just before the operation.
Both WEEKLY TIMER and ON/OFF TIMER operation cannot be used at the same time. The ON/OFF TIMER operation has priority if it is set •
while WEEKLY TIMER is still active. The WEEKLY TIMER will go into standby state, and “
” will be no longer displayed on the LCD.
When ON/OFF TIMER is up, the WEEKLY TIMER will automatically become active.
Only the time and set temperature with the WEEKLY TIMER are sent with the •
. Set the WEEKLY TIMER only after setting the operation
mode, the airfl ow rate and the airfl ow direction ahead of time.
Shutting the breaker off, power failure, and other similar events will render operation of the indoor unit’s internal clock inaccurate. Reset the •
clock.
Page 10
The • can be used only for the time and temperature settings. It cannot be used to go back to the reservation number.
6. Press to select the desired time.
The time can be set between 0:00 and 23:50 in 10 minute intervals.•
To return to the ON/OFF TIMER mode setting, press •
.
Go to • STEP
9 when setting the OFF TIMER.
Press 7. .
The time will be set. •
“ •
” and the temperature blink.
Press 8. to select the desired temperature.
The temperature can be set between 50°F (10°C) and 90°F (32°C).•
Cooling: The unit operates at 64°F (18°C) even if it is set at 50 (10) to 63°F (17°C).
Heating: The unit operates at 86°F (30°C) even if it is set at 87 (31) to 90°F (32°C).
To return to the time setting, press •
.
The set temperature is only displayed when the mode setting is on.•
Press 9. .
The temperature will be set and go to the next reservation setting.•
To continue further settings, repeat the procedure from • STEP
4.
Press
10.
to complete the setting.
Be sure to direct the remote controller toward the indoor unit and check for a receiving •
tone and fl ashing the OPERATION lamp.
“ •
” is displayed on the LCD and WEEKLY TIMER operation is activated.
The TIMER lamp lights yellow.•
Display
A reservation made once can be easily copied and the same settings used for another •
day of the week. Refer to
Copy mode
.
Page 25
01_EN_3P297290-2.indd 2401_EN_3P297290-2.indd 24 10/14/2011 9:37:14 AM10/14/2011 9:37:14 AM
25
WEEKLY TIMER Operation
Copy mode
A reservation made once can be copied to another day of the week. The whole reservation •
of the selected day of the week will be copied.
6:00 8:30 17:30 22:00
77°F (25°C)
81°F (27°C)
6:00 8:30 17:30 22:00
77°F (25°C)
81°F (27°C)
COPYCOPY
Program 1 Program 2 Program 3 Program 4
ON OFF ON OFF
[Monday]
Program 1 Program 2 Program 3 Program 4
ON OFF ON OFF
[Tuesday]
to
[Friday]
Setting Displays
Confi rmation display Copy display Paste display Normal display
Press 1. .
Press
2. to confi rm the day of the week to be
copied.
Press
3. .
The whole reservation of the selected day of the week will be copied.•
Press
4.
to select the destination day of the week.
Press 5. .
The reservation will be copied to the selected day of the week. The whole reservation •
of the selected day of the week will be copied.
To continue copying the settings to other days of the week, repeat • STEP
4 and
STEP
5.
Press 6. to complete the setting.
“ • ” is displayed on the LCD and WEEKLY TIMER operation is activated.
NOTE
Note on COPY MODE
The entire reservation of the source day of the week is copied in the copy mode.•
In the case of making a reservation change for any day of the week individually after copying the content of weekly reservations, press
and change the settings in the steps of
Setting mode
.
Page 23
01_EN_3P297290-2.indd 2501_EN_3P297290-2.indd 25 10/14/2011 9:37:16 AM10/14/2011 9:37:16 AM
26
English
Confi rming a reservation
The reservation can be confi rmed.•
Setting Displays
Normal display Confi rmation display
Press 1. .
The day of the week and the reservation number of current day will be displayed.•
Press 2. to select the day of the week and
the reservation number to be confi rmed.
Pressing • displays the reservation details.
To change the confi rmed reserved settings, select the reservation number and press •
.
The mode is switched to setting mode. Go to
Setting mode
STEP 4.
Page 23
Press 3. to exit confi rming mode.
“ • ” is displayed on the LCD and WEEKLY TIMER operation is activated.
The TIMER lamp lights yellow.•
Display
To deactivate WEEKLY TIMER operation
Press while “ ” is displayed on
the LCD.
“ • ” will be no longer displayed on the LCD.
The TIMER lamp goes off.•
To reactivate the WEEKLY TIMER operation, press •
again.
If a reservation deactivated with•
is activated once again, the last reservation
mode will be used.
01_EN_3P297290-2.indd 2601_EN_3P297290-2.indd 26 10/14/2011 9:37:18 AM10/14/2011 9:37:18 AM
27
WEEKLY TIMER Operation
To delete reservations
The individual reservation
Press 1. .
The day of the week and the reservation number will be displayed.•
Press 2. to select the day of the week and
the reservation number to be deleted.
Press 3. .
“ • ” and “ ” or “ ” blink.
Press 4. and select “ blank ”.
Pressing • changes ON/OFF TIMER mode.
The reservation will be no setting with selecting “blank”.•
ON TIMER OFF TIMER blank
Press 5. .
The selected reservation will be deleted.•
Press 6. .
If there are still other reservations, WEEKLY TIMER operation will be activated.•
The reservations for each day of the week
This function can be used for deleting reservations for each day of the week.•
It can be used while confi rming or setting reservations.•
Press 1. to select the day of the week to be
deleted.
Hold
2. for 5 seconds.
The reservation of the selected day of the week will be deleted.•
All reservations
Hold for 5 seconds while normal display.
Be sure to direct the remote controller toward the indoor unit and check for a receiving tone.
•
This operation is not effective on the setting display of WEEKLY TIMER.•
All reservations will be deleted.•
01_EN_3P297290-2.indd 2701_EN_3P297290-2.indd 27 10/14/2011 9:37:19 AM10/14/2011 9:37:19 AM
28
English
Note for Multi System
NOTE
Notes on operation mode for multi system
COOL, DRY and FAN operation may be used at the same time.•
AUTO operation automatically selects COOL operation or HEAT operation based on the room temperature.•
Therefore, AUTO operation is available when selecting the same operation mode as that of the room with the fi rst unit to be turned on.
CAUTION
Normally, the operation mode in the room where the unit is fi rst run is given priority, but the following situations are exceptions, so please keep this •
in mind.
If the operation mode of the fi rst room is FAN operation, then using HEAT operation in any room after this will give priority to HEAT operation. In
this situation, the air conditioner running in FAN operation will go on standby, and the OPERATION lamp will fl ash.
With the priority room setting active.
Refer to “Priority room setting” on the next page.
NIGHT QUIET mode (Available only for COOL operation)
NIGHT QUIET mode requires initial programming during installation. Please consult your retailer or dealer for assistance.
NIGHT QUIET mode reduces the operation noise of the outdoor unit during the nighttime hours to prevent annoyance to
neighbors.
The NIGHT QUIET mode is activated when the temperature drops 10.8°F (6°C) or more below the highest temperature recorded that day. •
Therefore, when the temperature difference is less than 7.2°F (4°C), this function will not be activated.
NIGHT QUIET mode reduces slightly the cooling effi ciency of the unit.•
OUTDOOR UNIT QUIET operation
Refer to “OUTDOOR UNIT QUIET operation”.
Page 18
With the priority room setting present but inactive or not present.
When using the OUTDOOR UNIT QUIET operation feature with the Multi system, set all indoor units to OUTDOOR UNIT
QUIET operation using their remote controllers.
When clearing OUTDOOR UNIT QUIET operation, clear one of the operating indoor units using their remote controller.
However OUTDOOR UNIT QUIET operation display remains on the remote controller for other rooms.
We recommend you release all rooms using their remote controllers.
With the priority room setting active.
Refer to “Priority room setting” on the next page.
Multi system has one outdoor unit connected to multiple indoor units.
Selecting the operation mode
With the priority room setting present but
inactive or not present.
When more than one indoor unit is operating, priority is given to the
fi rst unit that was turned on.
In this case, set the units that are turned on later to the same operation
mode as the fi rst unit.
Otherwise, they will enter the standby state, and the OPERATION
lamp will fl ash: this does not indicate malfunction.
A room B room
C room D room
Outdoor unit
01_EN_3P297290-2.indd 2801_EN_3P297290-2.indd 28 10/14/2011 9:37:21 AM10/14/2011 9:37:21 AM
29
Note for Multi System
COOL / HEAT mode lock
The COOL / HEAT mode lock requires initial programming during installation. Please consult your authorized dealer for
assistance. The COOL / HEAT mode lock sets the unit forcibly to either COOL or HEAT operation. This function is convenient
when you wish to set all indoor units connected to the multi system to the same operation mode.
Priority room setting
The priority room setting requires initial programming during installation. Please consult your authorized dealer for assistance.
The room designated as the priority room takes priority in the following situations.
Operation mode priority
As the operation mode of the priority room takes precedence, the user can select a different operation mode from other •
rooms.
[Example]
Room A is the priority room in the examples.•
When COOL operation is selected in room A while operating the following modes in room B, C and D :
Operation mode in room B, C and D Status of room B, C and D when the unit in room A is in COOL operation
COOL or DRY or FAN
Current operation mode maintained
HEAT
The unit enters standby mode. Operation resumes when the room A unit stops operating.
AUTO
If the unit is set to COOL operation, it continues. If the unit is set to HEAT operation, it enters standby
mode. Operation resumes when the room A unit stops operating.
Priority when POWERFUL operation is used
[Example]
Room A is the priority room in the examples.•
The indoor units in rooms A, B, C and D are all operating. If the unit in room A enters POWERFUL operation, operation
capacity will be concentrated in room A. In such a case, the cooling (heating) effi ciency of the units in room B, C and D may
be slightly reduced.
Priority when using OUTDOOR UNIT QUIET operation
[Example]
Room A is the priority room in the examples.•
Just by setting the unit in room A to QUIET operation, the air conditioner starts OUTDOOR UNIT QUIET operation.
You don’t have to set all the operated indoor units to QUIET operation.
01_EN_3P297290-2.indd 2901_EN_3P297290-2.indd 29 10/14/2011 9:37:21 AM10/14/2011 9:37:21 AM
Panel tab
30
English
Care and Cleaning
Quick reference

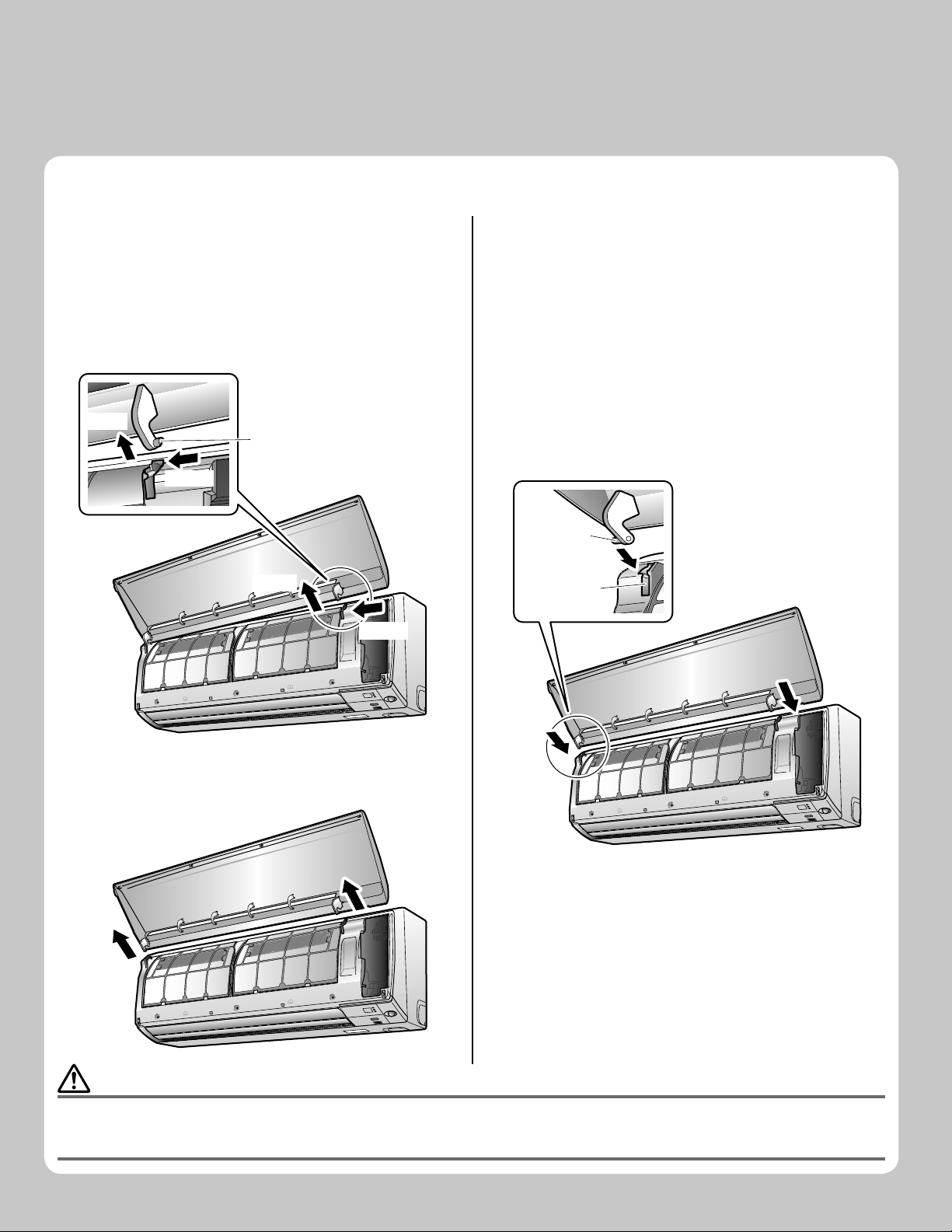

How to open / close the front panel
Hold the front panel by the panel tabs on the both sides and open it.•
Press the front panel at both sides and the center to close it.•
Cleaning parts
Notes on cleaning
For cleaning, do not use the materials as follows.
Hot water above 104°F (40°C).•
Benzine, gasoline, thinner, other volatile oils.•
Polishing compound.•
Scrubbing brushes, other hard stuff.•
CAUTION
Before cleaning, be sure to stop the operation and turn the breaker off.•
Do not touch the aluminum fi ns of the indoor unit. If you touch those parts, this may cause an injury.•
Air fi lter
Vacuum dust or wash the •
fi lter.
Once every 2 weeks
Refer to
Page 32
Titanium apatite photocatalytic air-purifying fi lter
Vacuum dust or replace the fi lter.•
[Cleaning] [Replacement]
Once every 6 months Once every 3 years
Refer to
Page 33
Refer to
Page 33
Front panel
Wipe it with soft cloth soaked •
in water.
If bothered by dirt
Refer to
Page 31
Indoor unit,
Outdoor unit and
Remote controller
Wipe them with soft cloth.•
If bothered by dirt
01_EN_3P297290-2.indd 3001_EN_3P297290-2.indd 30 10/14/2011 9:37:22 AM10/14/2011 9:37:22 AM
31
Care and Cleaning
CAUTION
When removing or attaching the front panel, use a robust and stable stool and watch your steps carefully.•
When removing or attaching the front panel, support the panel securely with hand to prevent it from falling.•
After cleaning, make sure that the front panel is securely fi xed.•
Remove the front panel.1.
Open the front panel.•
Slide the front panel to either the left or right and •
pulling it toward you.
This will disconnect the front panel shaft on one
side.
Front panel shaft
1) Slide
2) Pull
1) Slide
2) Pull
Disconnect the front panel shaft on the other side •
in the same manner.
Clean the front panel.2.
Wipe it with a soft cloth soaked in water.•
Only neutral detergent may be used.•
If you wash the panel with water, wipe it with a dry •
soft cloth, and allow to dry in the shade.
Attach the front panel.3.
Align the front panel shaft on the left and right of •
the front panel with the slots, then push them all
the way in.
Front panel
shaft
Slot
Close the front panel slowly. (Press the panel at •
both sides and the central area.)
Front panel
01_EN_3P297290-2.indd 3101_EN_3P297290-2.indd 31 10/14/2011 9:37:24 AM10/14/2011 9:37:24 AM
32
English
Pull out the air fi lters.1.
Open the front panel.•
Push the fi lter tab at the center of each air fi lter •
slightly upward, then pull it down.
1) Push
2) Pull down
Wash the air fi lters with 2.
water or clean them with
vacuum cleaner.
It is recommended to clean the air fi lters every •
2 weeks.
If the dust does not come off easily
Wash the air fi lters with neutral detergent thinned with •
lukewarm water, then allow to dry in the shade.
Be sure to remove the titanium apatite photocatalytic •
air-purifying fi lter. Refer to “Titanium apatite
photocatalytic air-purifying fi lter” on the next page.
Set the fi lters as they were 3.
and close the front panel.
Press the front panel at both sides and the central •
area.
Air fi lter
CAUTION
Do not touch the aluminum fi ns by bare hand at the time of dismounting or mounting the fi lter.•
01_EN_3P297290-2.indd 3201_EN_3P297290-2.indd 32 10/14/2011 9:37:26 AM10/14/2011 9:37:26 AM
33
Care and Cleaning
Take off the titanium apatite 1.
photocatalytic air-purifying
fi lter.
Open the front panel and pull out the air fi lters.•
Hold the recessed parts of the frame and unhook •
the 4 claws.
ClawClaw
Clean or replace the titanium
2.
apatite photocatalytic air-
purifying fi lter.
[Maintenance]
Vacuum dust, and soak in lukewarm 2-1
water or water for about 10 to
15 minutes if dirt is heavy.
Do not remove the fi lter from frame when washing •
with water.
After washing, shake off remaining 2-2
water and dry in the shade.
Since the material is made out of polyester, do not •
wring out the fi lter when removing water from it.
[Replacement]
Remove the tabs on the fi lter
frame and replace with a new
fi lter.
Do not throw away the fi lter frame. Reuse the fi lter •
frame when replacing the titanium apatite
photocatalytic air-purifying fi lter.
Dispose of the old fi lter as non-fl ammable waste.•
Set the fi lters as they were 3.
and close the front panel.
Press the front panel at both sides and the central •
area.
NOTE
Operation with dirty fi lters:•
cannot deodorize the air, –
cannot clean the air, –
results in poor heating or cooling, –
may cause odor. –
Dispose of old fi lters as non-fl ammable waste. •
To order titanium apatite photocatalytic air-purifying •
fi lter contact to the service shop there you purchased
the air conditioner.
Item
Titanium apatite photocatalytic
air-purifying fi lter (without frame) 1 set
Part No. KAF970A46
Titanium apatite photocatalytic air-purifying fi lter
01_EN_3P297290-2.indd 3301_EN_3P297290-2.indd 33 10/14/2011 9:37:28 AM10/14/2011 9:37:28 AM
34
English
Check the units
Check that the base, stand and other fi ttings of the outdoor unit are not decayed or corroded.
Check that nothing blocks the air inlets and the outlets of the indoor unit and the outdoor unit.
Check that the drain comes smoothly out of the drain hose during COOL or DRY operation.
If no drain water is seen, water may be leaking from the indoor unit. Stop operation and consult the service shop if this is the •
case.
Before a long idle period
Operate the FAN only for several hours on a nice day to dry out 1.
the inside.
Press • and select “ ” operation.
Press •
and start the operation.
After operation stops, turn off the breaker for the room air 2.
conditioner.
Clean the air fi lters and set them again.
3.
Take out batteries from the remote controller.4.
When a multi outdoor unit is connected, make sure the heating operation is not used at the other room before you use •
the fan operation.
Page 28
We recommend periodical maintenance
In certain operating conditions, the inside of the air conditioner may get foul after several seasons of use, resulting in poor •
performance. It is recommended to have periodical maintenance by a specialist aside from regular cleaning by the user.
For specialist maintenance, contact the service shop where you purchased the air conditioner.•
The maintenance cost must be born by the user.•
01_EN_3P297290-2.indd 3401_EN_3P297290-2.indd 34 10/14/2011 9:37:30 AM10/14/2011 9:37:30 AM
35
Troubleshooting
These incidents are not malfunctions.
The following incidents do not indicate a malfunctioning air conditioner and have explanations. The air conditioner can continue •
to operate.
Indoor unit
Outdoor unit
The HEAT operation stops suddenly
and a fl owing sound is heard.
The outdoor unit is taking away the frost. The HEAT •
operation starts after the frost on the outdoor unit is
removed. You should wait for about 4 to 12 minutes.
Operation does not start soon.
When “ON/OFF” button was pressed soon
after operation was stopped.
When the mode was reselected.
This is to protect the air conditioner.•
You should wait for about 3 minutes.
The louvers do not immediately swing.
The louvers move soon after startup.
The air conditioner is adjusting the louver position. •
The louvers will start moving soon.
Possible sounds.
Flowing water
Generated because the refrigerant in the air conditioner is •
fl owing.
This is a pumping sound of the water in the air conditioner •
it is heard when the water is pumped out from the air
conditioner in cooling or drying operation.
The refrigerant fl ows in the air conditioner even if the air •
conditioner is not working when the indoor units in other
rooms are in operation.
Blowing
Generated when the fl ow of the refrigerant in the air •
conditioner is switched over.
Ticking
Generated when the size of the air conditioner slightly •
expands or shrinks as a result of temperature changes.
Whistling sound
Generated when refrigerant fl ows during defrosting •
operation.
Clicking sound during operation or idle time
Generated when the refrigerant control valves or the •
electrical parts operate.
Clopping sound
Heard from the inside of the air conditioner when the •
exhaust fan is activated while the room doors are closed.
Open the window or turn off the exhaust fan.
The outdoor unit emits water or steam.
In HEAT operation
The frost on the outdoor unit melts into water or steam when the air •
conditioner is in defrost operation.
In COOL or DRY operation
Moisture in the air condenses into water on the cool surface of outdoor unit •
piping and drips.
01_EN_3P297290-2.indd 3501_EN_3P297290-2.indd 35 10/14/2011 9:37:30 AM10/14/2011 9:37:30 AM
36
English
Troubleshooting measures are classifi ed into the following two types on a remedial basis.•
Take an appropriate measure according to the symptom.
Not malfunction
The following conditions do not indicate a problem with the system.•
Check
Please check again before calling a repair person.•
The air conditioner does not operate.
(OPERATION lamp is off.)
Is a breaker off or a fuse blown? •
Is there a power failure? •
Are batteries set in the remote controller? •
Is the timer setting correct?•
Hot air does not fl ow out soon after
the start of HEAT operation.
The air conditioner is warming up. You should wait for •
1 to 4 minutes. (The system is designed to start
discharging air only after it has reached a certain
temperature.)
Operation stopped suddenly.
(OPERATION lamp is on.)
For system protection, the air conditioner may stop •
operating on a sudden large voltage fl uctuation. It
automatically resumes operation in about 3 minutes.
Operation stopped suddenly.
(OPERATION lamp fl ashes.)
Are the air fi lters clean?•
Clean the air fi lters.
Is there anything to block the air inlet or the outlet of the •
indoor and the outdoor units?
Turn the bleaker off and take all obstacles away. Then •
turn it on again and try operating the air conditioner with
the remote controller. If the lamp still fl ashes, call the
service shop where you purchased the air conditioner.
Are operation modes all the same for indoor units •
connected to outdoor units in the multi system?
If not, set all indoor units to the same operation mode
and confi rm that the lamps fl ash.
When the operation mode is in “AUTO”, set all indoor
unit operation modes to “COOL” or “HEAT” for a moment
and check again that the lamps are normal. If the lamps
stop fl ashing after the above steps, there is no
malfunction.
Page 28
Mist comes out of the indoor unit.
This happens when the air in the room is cooled into •
mist by the cold airfl ow during COOL operation.
This is because the air in the room is cooled by the heat •
exchanger and becomes mist during defrosting
operation.
01_EN_3P297290-2.indd 3601_EN_3P297290-2.indd 36 10/14/2011 9:37:31 AM10/14/2011 9:37:31 AM
37
Troubleshooting
Cooling (Heating) effect is poor.
Are the air fi lters clean?•
Is there anything to block the air inlet or the outlet of the •
indoor and the outdoor units?
Is the temperature setting appropriate?•
Are the windows and doors closed?•
Are the airfl ow rate and the airfl ow direction set •
appropriately?
Remote controller does not work
properly.
No remote controller signals are displayed.
Remote controller sensitivity is low.
Display is low in contrast or blacked out.
Display runs out of control.
The batteries are dying and the remote controller is •
malfunctioning. Replace all the batteries with new, size
AAA.LR03 (alkaline). For details, refer to “To set the
batteries” of this manual.
Page 9
HEAT operation cannot be selected,
even though the unit is heat pump
model.
Slide the DIP switch to the left as shown in the illustration •
so that the HEAT operation can be selected with the
“MODE” button.
DIP switch
The ON/OFF TIMER does not
operate according to the settings.
Check if the ON/OFF TIMER and the WEEKLY TIMER •
are set to the same time.
Change or deactivate the settings in the WEEKLY
TIMER.
Page 22
The indoor unit gives out odor.
This happens when smells of the room, furniture, or •
cigarettes are absorbed into the unit and discharged with
the airfl ow.
(If this happens, have the indoor unit washed by a
technician from the service shop where you purchased
the air conditioner.)
The outdoor fan rotates while the
air conditioner is not in operation.
After operation is stopped
The outdoor fan continues rotating for another •
60 seconds for system protection.
While the air conditioner is not in operation
When the outdoor temperature is very high, the outdoor •
fan starts rotating for system protection.
An abnormal functioning happens
during operation.
The air conditioner may malfunction with lightning or •
radio waves. Turn the breaker off, turn it on again and try
operating the air conditioner with the remote controller.
01_EN_3P297290-2.indd 3701_EN_3P297290-2.indd 37 10/14/2011 9:37:32 AM10/14/2011 9:37:32 AM
38
English
Call the service shop immediately
WARNING
When an abnormality (such as a burning smell) occurs, stop operation and turn the breaker off.
Continued operation in an abnormal condition may result in malfunctioning, electric shocks or fi re.•
Consult the service shop where you purchased the air conditioner.•
Do not attempt to repair or modify the air conditioner by yourself.
Incorrect work may result in electric shocks or fi re.•
Consult the service shop where you purchased the air conditioner.•
If one of the following symptoms occurs, call the service shop immediately.
The power cord is abnormally hot or damaged.•
An abnormal sound is heard during operation.•
The safety breaker, a fuse, or the ground leakage breaker •
cuts off the operation frequently.
A switch or a button often fails to work properly.•
There is a burning smell.•
Water leaks from the indoor unit.•
Turn the breaker off and call the service shop.
After a power failure
The air conditioner automatically resumes operation in about 3 minutes. Wait for it to restart.•
Lightning
If lightning may strike the neighboring area, stop operation and turn the breaker off for system protection.•
Disposal requirements
Dismantling the unit, and treatment of refrigerant, oil, and other parts, should be done in accordance with the relevant local and •
national regulations.
01_EN_3P297290-2.indd 3801_EN_3P297290-2.indd 38 10/14/2011 9:37:34 AM10/14/2011 9:37:34 AM
39
Troubleshooting

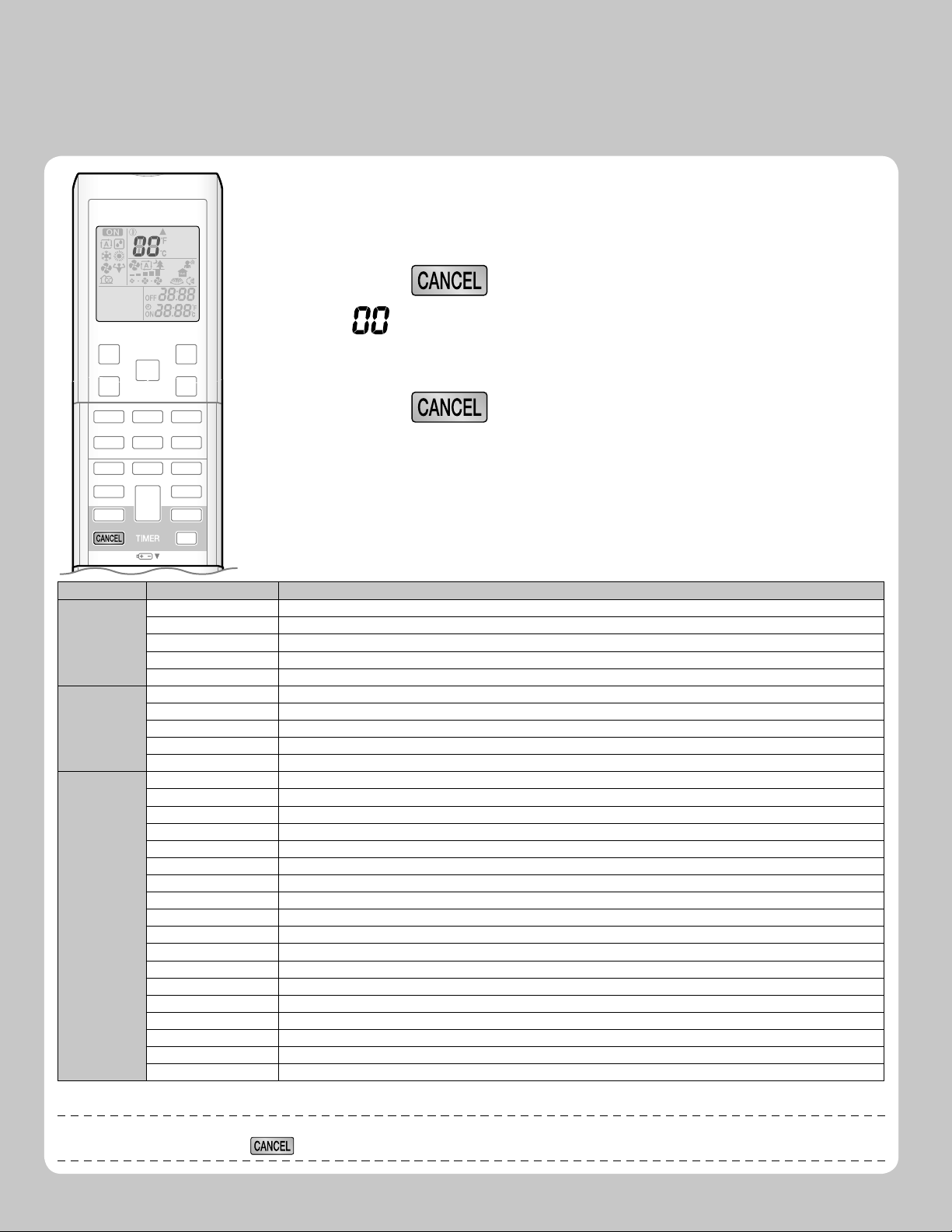

Fault diagnosis by remote controller
The remote controller can receive a corresponding error code from the indoor unit.•
When 1. is held down for 5 seconds, a
“ ” indication blinks on the temperature
display section.
Press
2. repeatedly until a continuous
beep is produced.
The code indication changes as displayed in the following table, and notifi es with a •
long beep.
NOTE
A short beep and two consecutive beeps indicate non-corresponding codes.•
To cancel the code display, hold •
for 5 seconds. The code display also cancel itself if the button is not pressed for 1 minute.
CODE MEANING
SYSTEM
00 NORMAL
UA INDOOR-OUTDOOR UNIT COMBINATION FAULT
U0 REFRIGERANT SHORTAGE
U2 DROP VOLTAGE OR MAIN CIRCUIT OVERVOLTAGE
U4 FAILURE OF TRANSMISSION (BETWEEN INDOOR UNIT AND OUTDOOR UNIT)
INDOOR
UNIT
A1 INDOOR PCB DEFECTIVENESS
A5 HIGH PRESSURE CONTROL OR FREEZE-UP PROTECTOR
A6 FAN MOTOR FAULT
C4 FAULTY HEAT EXCHANGER TEMPERATURE SENSOR
C9 FAULTY SUCTION AIR TEMPERATURE SENSOR
OUTDOOR
UNIT
EA COOLING-HEATING SWITCHING ERROR
E1 CIRCUIT BOARD FAULT
E5 OL STARTED
E6 FAULTY COMPRESSOR START UP
E7 DC FAN MOTOR FAULT
E8 OVERCURRENT INPUT
F3 HIGH TEMPERATURE DISCHARGE PIPE CONTROL
F6 HIGH PRESSURE CONTROL (IN COOLING)
H0 SENSOR FAULT
H6 OPERATION HALT DUE TO FAULTY POSITION DETECTION SENSOR
H8 DC CURRENT SENSOR FAULT
H9 FAULTY SUCTION AIR TEMPERATURE SENSOR
J3 FAULTY DISCHARGE PIPE TEMPERATURE SENSOR
J6 FAULTY HEAT EXCHANGER TEMPERATURE SENSOR
L3 ELECTRICAL PARTS HEAT FAULT
L4 HIGH TEMPERATURE AT INVERTER CIRCUIT HEATSINK
L5 OUTPUT OVERCURRENT
P4 FAULTY INVERTER CIRCUIT HEATSINK TEMPERATURE SENSOR
01_EN_3P297290-2.indd 3901_EN_3P297290-2.indd 39 10/14/2011 9:37:34 AM10/14/2011 9:37:34 AM
40
English
MEMO
01_EN_3P297290-2.indd 4001_EN_3P297290-2.indd 40 10/14/2011 9:37:35 AM10/14/2011 9:37:35 AM
3P297290-2 M11B117
(1111)
HT
Two-dimensional bar code is a code
for manufacturing.
Quick Reference
00_CV_3P297290-2.indd 200_CV_3P297290-2.indd 2 10/14/2011 9:17:08 AM10/14/2011 9:17:08 AM
