EN
Original Instructions
Version 1 – February 2022
21714, 21715, 21721, 82631, 21723, 21744, 03711
METRIC THREAD
REPAIR KIT
Stock No. Part No. Tap size
Drill bit size
(mm)
Hex key size
(mm)
Thread inserts
included
21714 DHCK-A M5 x 0.8mm 5.2 2 20
21715 DHCK-A M6 x 1.0mm 6.2 2 20
21721 DHCK-A M8 x 1.25mm 8.3 2 20
82631 DHCK-A M9 x 1.25mm 9.3 2 20
21723 DHCK-A M10 x 1.5mm 10.3 2 10
21744 DHCK-A M12 x 1.75mm 12.4 2 10
03711 DHCK-A M14 x 1.25mm 14.3 2 10
(E)
(A)
(B)
(F)
(D)
(C)
A. 1 x HSS drill bit
B. 1 x HSS
tapping tool
C. 1 x Hex key
D. 1 x Insert tool
E. 1 x Lug
breaking tool
F. Thread inserts
G. 1 x Case

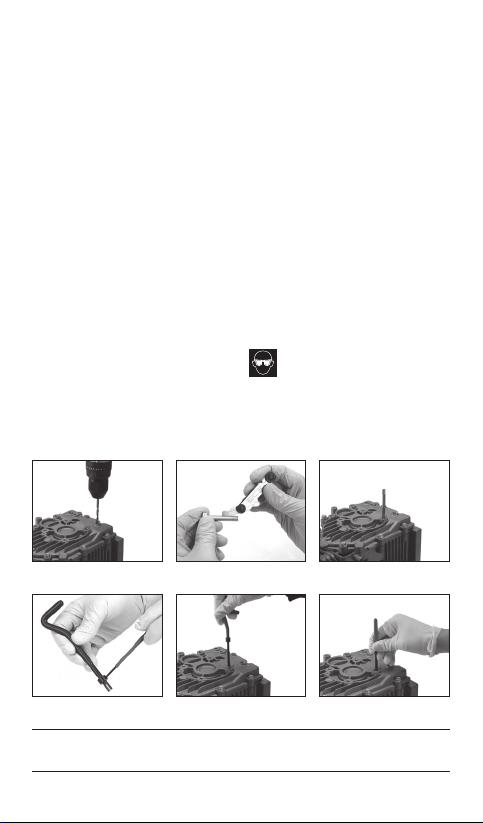

1. Health and Safety
Information
• Inspect the product thoroughly for
damage before every use; DO NOT use it if
it is damaged.
• ALWAYS wear eye protection.
• This manual is supplied as a guide only.
− Assess any other precautions that
must be taken before use with each
specic workpiece.
− Where the workpiece is part of a larger
tool or machine, refer to the
manufacturer’s manual for the correct
procedure for use.
• Keep the work area clean and well lit,
with bystanders at a safe distance.
• Secure the workpiece during operation.
WARNING! This product requires the use of
additional tools (not supplied). Read and
adhere to all Health and Safety information
and operating instructions associated with
the chosen tools before use.
Read this manual in full before attempting to use this product and retain it for later use.
Always use the latest version of the manual.
(G)
