K 2 Full Control
Operating Instructions
Please read the operating instructions
carefully before using the unit.
59674020 (10/16)
2 English
Contents
Safety instructions . . . . . . . . . . . . 3
Description of the Appliance . . . . . 8
Proper use . . . . . . . . . . . . . . . . . . 9
Environmental protection . . . . . . . 9
Installation and Startup. . . . . . . . . 9
Operation . . . . . . . . . . . . . . . . . . . 10
Transport and storage . . . . . . . . . 10
Maintenance and care . . . . . . . . . 11
Troubleshooting . . . . . . . . . . . . . . 11
Helpline. . . . . . . . . . . . . . . . . . . . . 11
Accessories and Spare Parts . . . . 11
Warranty . . . . . . . . . . . . . . . . . . . . 11
Technical specifications . . . . . . . . 12
EU Declaration of Conformity . . . . 12
Illustration . . . . . . . . . . . . . . . . . . . 13
English 3
Please read and comply
with these original in-
structions prior to the initial oper-
ation of your appliance and store
them for later use or subsequent
owners.
Apart from the notes contained
herein the general safety provi-
sions and rules for the preven-
tion of accidents of the legislator
must be observed.
Warnings and notes that are at-
tached on the appliance provide
important notes for the safe op-
eration.
DANGER
Pointer to immediate danger,
which leads to severe injuries or
death.
몇 WARNING
Pointer to a possibly dangerous
situation, which can lead to se-
vere injuries or death.
몇 CAUTION
Pointer to a possibly dangerous
situation, which can lead to mi-
nor injuries.
ATTENTION
Pointer to a possibly dangerous
situation, which can lead to
property damage.
DANGER
Risk of electric shock.
Never touch the mains plug
and the socket with wet
hands.
Check the power cord with
mains plug for damage prior
to every use. Immediately
have damaged power cord
replaced by an authorised
customer service / electrician.
Do not operate an appliance if
the power cord is damaged.
All current-conducting parts
in the working area must be
protected against jet water.
The mains plug and the cou-
pling of an extension cable
must be watertight and must
never lie in water. Moreover,
the coupling may never lie on
the ground. The use of cable
reels that ensure that the
sockets are at least 60 mm
above the ground is recom-
mended.
Make sure that the power
cord or extension cable is not
damaged by running over,
pinching, dragging or the like.
Protect the power cords from
heat, oil, and sharp edges.
Turn off the appliance and re-
move the mains plug prior to
any care and maintenance
works.
Repair work and work on the
electrical components may
only be performed by an au-
thorised customer service.
Safety instructions
Hazard levels
Electric components
4 English
몇 WARNING
The appliance may only be
connected to an electric sup-
ply that has been installed by
an electrician in accordance
with IEC 60364.
The appliance may only be
connected to alternating cur-
rent. The voltage must corre-
spond with the type plate of
the appliance.
For safety reasons, we rec-
ommend that you operate the
appliance only via a residual
current device (max. 30 mA).
An unsuitable electrical ex-
tension cable can be hazard-
ous. Only use an electrical
extension cable which has
been approved and labelled
for this purpose and has an
adequate cable cross-section
outdoors: 1 - 10 m: 1.5 mm
2
;
10 - 30 m: 2.5 mm
2
Always fully unreel the exten-
sion cable from the cable
drum.
DANGER
The user must use the appli-
ance as intended. The person
must consider the local condi-
tions and must pay attention
to other persons in the vicinity
when working with the appli-
ance.
Check important compo-
nents, such as high-pressure
hose, hand spray gun and
safety installations, for dam-
age prior to every operation.
Immediately replace dam-
aged components. Do not op-
erate appliance with dam-
aged components.
High-pressure jets can be
dangerous if improperly used.
The jet may not be directed at
persons, animals, live electri-
cal equipment or at the appli-
ance itself.
The high-pressure jet must
not be directed at other per-
sons or the user him-/herself
to clean clothing or footwear.
Vehicle tyres/tyre valves are
susceptible to damage from
the high-pressure jet and may
burst. The first indication for
this is a discolouration of the
tyre. Damaged vehicle tyres/
tyre valves are perilous. Keep
a minimum jet distance of
30 cm during cleaning!
Safe handling
English 5
몇 WARNING
Do not use the appliance
when there are other persons
around unless they are also
wearing protective clothing.
The appliance must not be
operated by children or per-
sons who have not been in-
structed accordingly.
This appliance is not intended
for use by persons with limit-
ed physical, sensory or men-
tal capacities or lacking expe-
rience and/or skills, unless
such persons are accompa-
nied and supervised by a per-
son in charge of their safety
or they have received precise
instructions on the use of this
appliance and have under-
stood the resulting risks.
Children must not play with
this appliance.
Supervise children to prevent
them from playing with the
appliance.
몇 CAUTION
Create stability for the appli-
ance prior to any work on or
with the appliance to prevent
accidents or damage.
The water jet that is emitted
from the high-pressure noz-
zle results in a repulsion pow-
er acting on the hand spray
gun. Make sure that you have
a firm footing and are also
holding the hand spray gun
and spray lance firmly.
Never leave the appliance
unattended as long as it is in
operation.
ATTENTION
In case of extended breaks,
switch the appliance off at the
main switch / appliance
switch or pull the mains plug.
Do not operate the appliance
at temperatures below 0 °C.
몇 WARNING
This appliance was designed
to be used with detergents
which are supplied or recom-
mended by the manufacturer.
The use of other detergents
or chemicals may compro-
mise the safety of the appli-
ance.
The improper use of deter-
gents can cause severe inju-
ries or toxication.
Store detergents away from
the reach of children.
Working with detergent
6 English
DANGER
The appliance may not be op-
erated in explosive atmos-
pheres.
Never use the appliance to
clean objects containing haz-
ardous substances (e.g. as-
bestos).
Do not spray flammable liq-
uids.
Never draw in fluids contain-
ing solvents or undiluted ac-
ids and solvents! This in-
cludes petrol, paint thinner
and heating oil. The spray
mist is highly inflammable,
explosive and poisonous. Do
not use acetone, undiluted
acids and solvents, as they
corrode the materials used on
the appliance.
Keep packaging films away
from children, there is a risk of
suffocation!
몇 WARNING
According to applicable regu-
lations, the appliance must
never be used on the drinking
water net without a system
separator. Ensure that the
connection of your building
water installation on which
the high-pressure cleaner is
operated is equipped with a
system separator pursuant to
EN 12729 Type BA.
Water that has flown through
a system separator is no
longer classified as drinking
water.
High-pressure hoses, fixtures
and couplings are important
for the safety of the appli-
ance. Only use high-pressure
hoses, fixtures and couplings
recommended by the manu-
facturer.
When disconnecting the sup-
ply or high pressure hose, hot
water may leak from the con-
nections after operation.
몇 CAUTION
Mind the weight of the appli-
ance when selecting the stor-
age location and during trans-
port (see technical data) to
prevent accidents or injuries.
Several hours of continuous
use of the appliance can lead
to numbness in the hands in
rare cases.
Wear gloves.
Keep hands warm.
Take breaks at regular inter-
vals.
Other risks
English 7
몇 CAUTION
Safety installations serve the
protection of the user and
may not be modified or by-
passed.
The appliance switch prevents
unintentional operation of the
appliance.
This lock locks the lever of the
trigger gun and prevents the in-
advertent start of the appliance.
If the lever on the trigger gun is
released the pressure switch
turns off the pump, the high
pressure jet is stopped. If the le-
ver is pulled the pump is turned
on again.
몇 CAUTION
Wear protective clothing and
safety goggles to protect
against splash back contain-
ing water or dirt.
During the use of high-pres-
sure cleaners aerosols can
develop. Inhaling aerosols
can cause health damage.
– Depending on the applica-
tion, completely shielded noz-
zles (e.g. surface cleaner)
that significantly reduce the
emission of aqueous aero-
sols can be used for high-
pressure cleaning.
– The use of such shielding is
not possible with all applica-
tions.
– If the use of a completely
shielded nozzle is not possi-
ble, a respirator of the catego-
ry FFP 2 or the like should be
used, depending on the envi-
ronment to be cleaned.
Safety Devices
Power switch
Lock trigger gun
Overflow valve with pressure
switch
Symbols on the machine
The high pressure jet
must not be directed at
persons, animals, live
electrical equipment or at
the appliance itself.
Protect the appliance
against frost.
The appliance must not
be directly connected to
the public drinking water
network.
Personal protective
equipment
8 English
Description of the Appliance
English 9

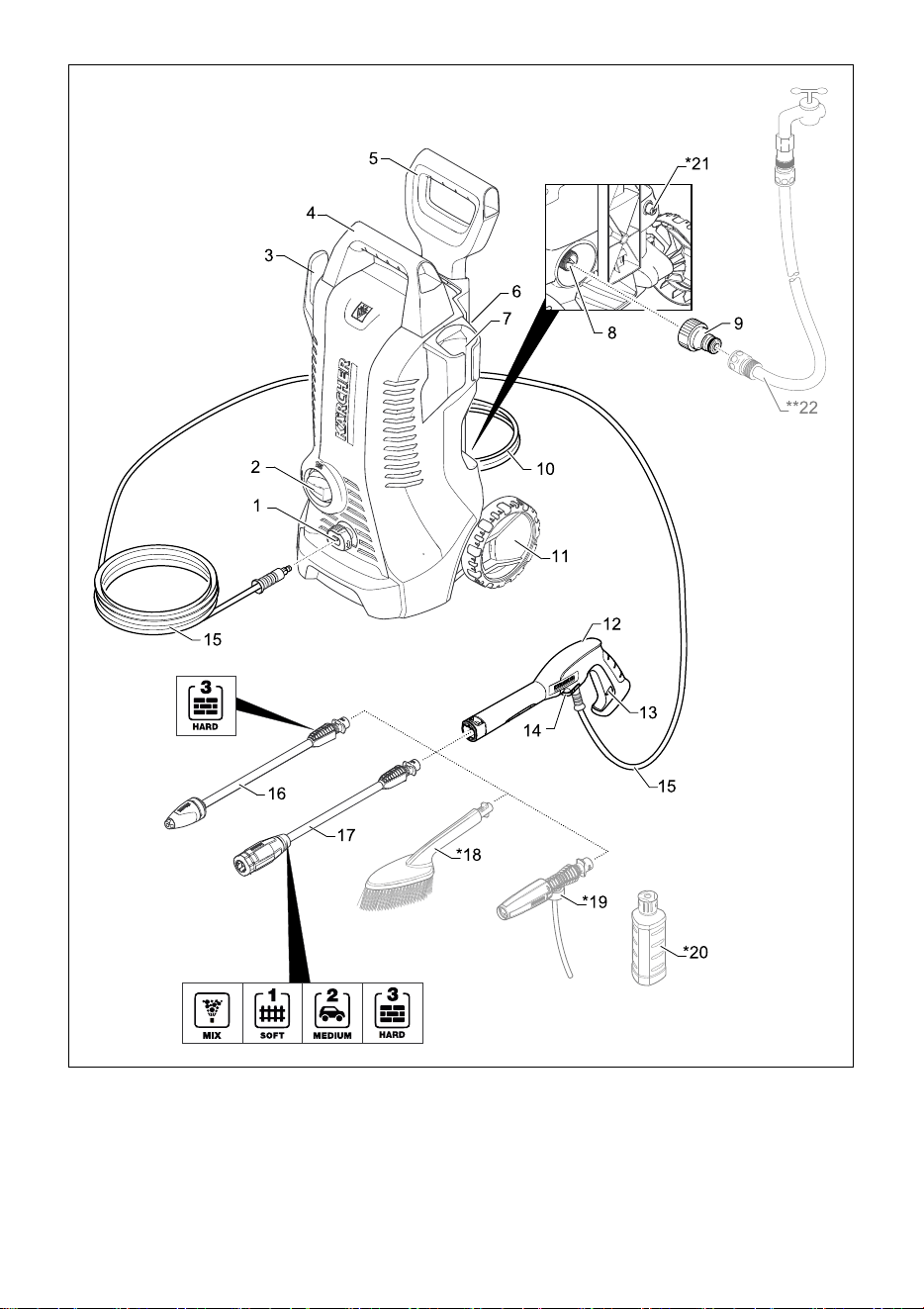

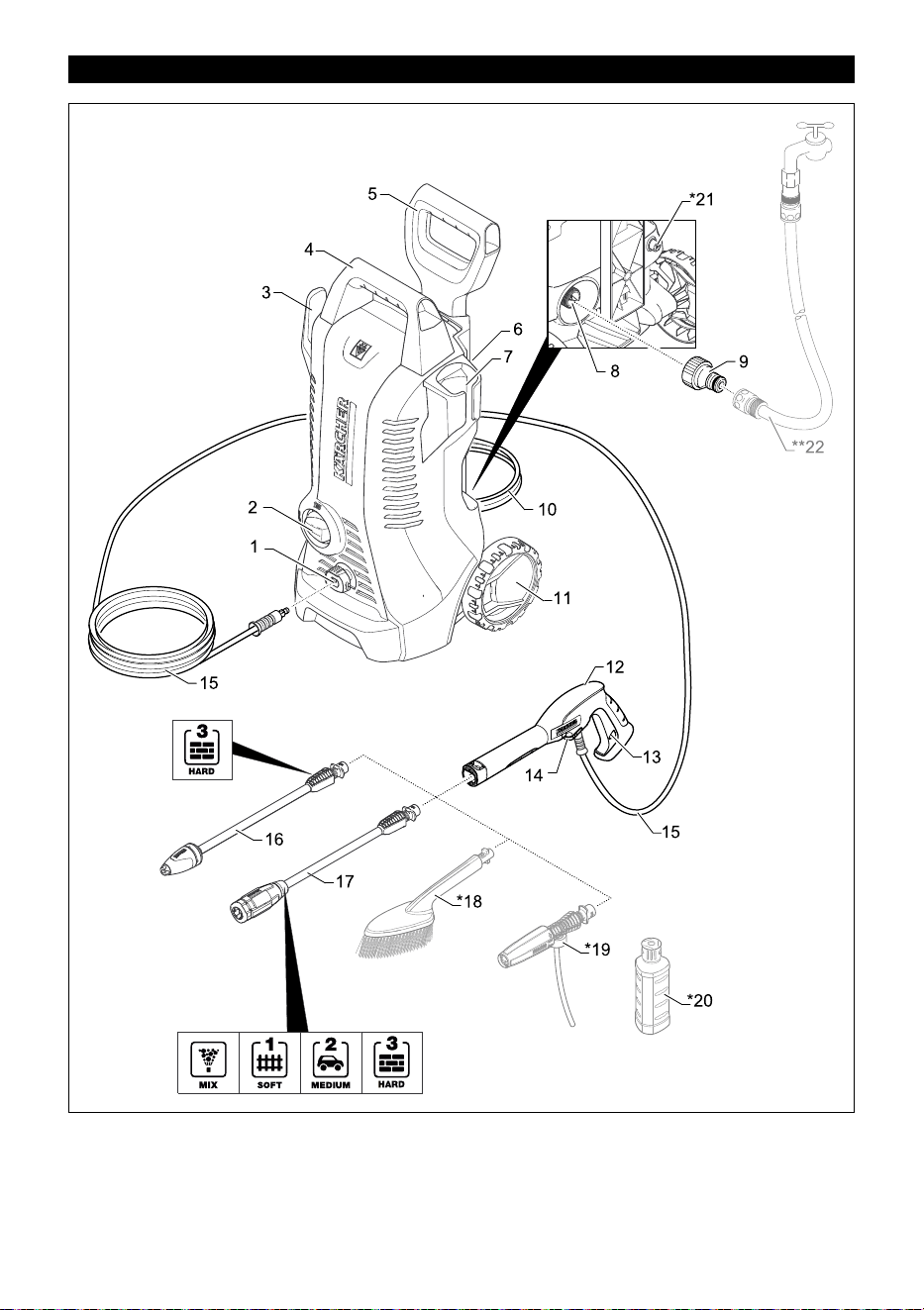

The scope of delivery of the device (depending on the
model) is illustrated on the packaging. These operating
instructions describe all possible options.
1 High pressure connection
2 Appliance switch „0/OFF“ / „I/ON“
3 Storage hook
4 Carrying handle
5 Transport handle, detachable
6 Storage for spray lance
7 Storage for trigger gun
8 Water connection with integrated sieve
9 Coupling element for water connection
10 Mains cable with mains plug
11 Bearing wheel
12 Trigger gun
13 Lock trigger gun
14 Clamp for high pressure hose
15 High pressure hose
16 Full Control spray lance Dirtblaster
For strong contaminations
Pressure level: HARD
17 Full Control spray lance Click-Vario Power
Carrying out the most common cleaning tasks
Pressure levels: HARD / MEDIUM / SOFT / MIX
This high pressure cleaner is designed for domestic use
only.
– for cleaning machines, vehicles, buildings, tools,
facades, terraces, gardening tools, etc. by means
of a high-pressure water jet (if necessary, with ad-
ditional cleaning agents).
– with accessories, replacement parts and cleaning
agents approved by KÄRCHER. Please observe
the information accompanying the cleaning agents.
Notes about the ingredients (REACH)
You will find current information about the ingredients
at:
www.kaercher.com/REACH

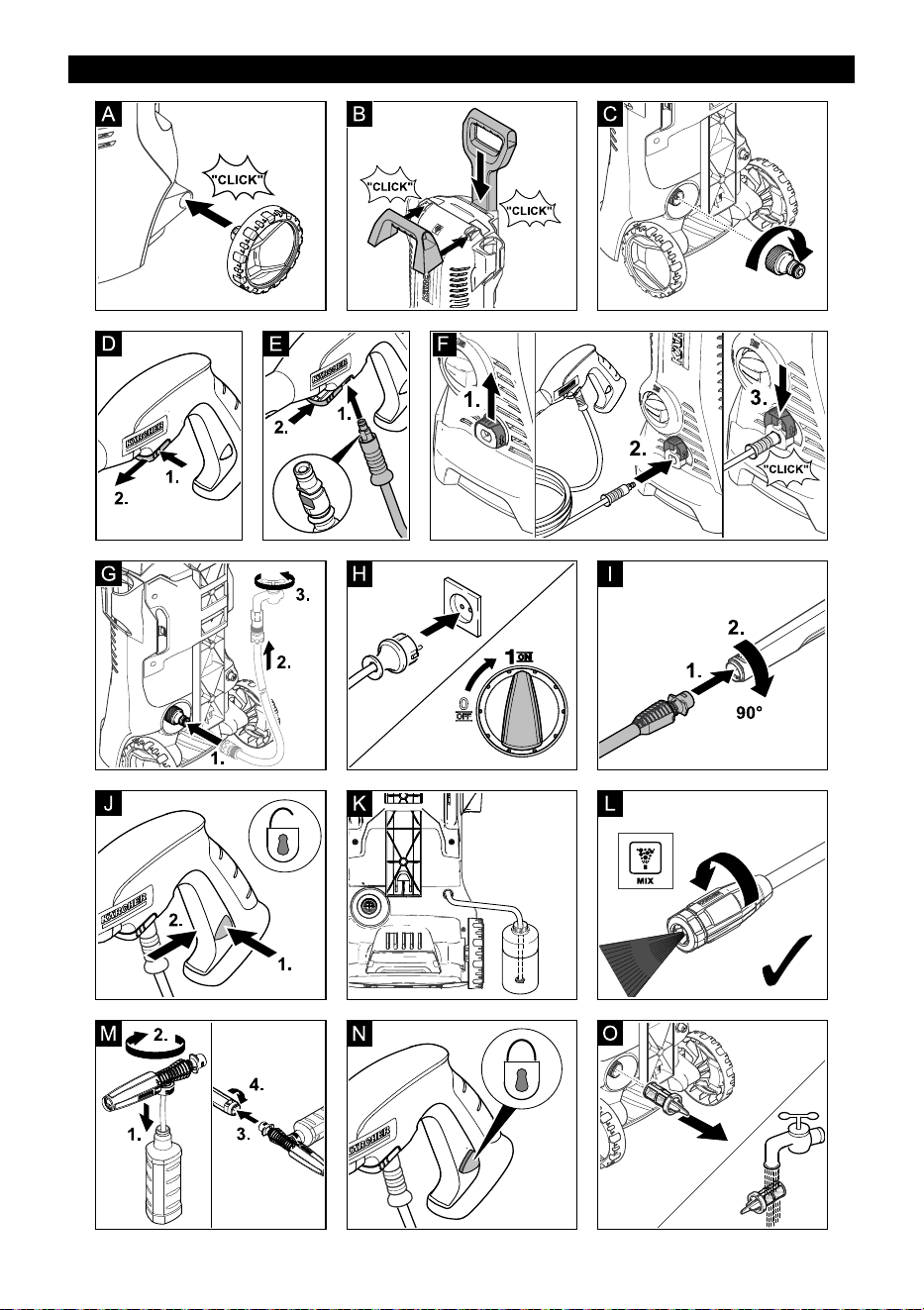

Illustrations on Page 13
Illustrations -
Mount loose parts delivered with appliance prior to
start-up.
Park the appliance on an even surface.
Illustrations -
Pull out the clamp from the trigger gun and plug the
high-pressure hose into the trigger gun.
Push the clamp in until it locks. Check the secure
connection by pulling on the high-pressure hose.
Illustrations -
ATTENTION
Impurities in the water can damage the high-pressure
pump and the accessories. For protection, the use of
the KÄRCHER water filter (optional accessory, order
no. 4.730-059) is recommended.
* Optional
18 Washing brush
Suitable for use with detergents.
19 Foam nozzle
For effective detergent foam.
20 Detergent
21 Detergent suction hose (with sieve)
** Additionally required
22 Fabric-reinforced water hose with commercially
available coupling.
– Minimum diameter, 1/2 inches (13 mm).
– Minimum length 7.5 m.
Proper use
Environmental protection
The packaging material can be recycled. Please
arrange for the environmentally appropriate dis-
posal of the packaging.
Old appliances contain valuable recyclable mate-
rials that should be recycled properly. Please ar-
range for the environmentally appropriate disposal
of the old devices.
Electrical and electronic devices often contain
components which could potentially pose a dan-
ger to human health and the environment if han-
dled or disposed of incorrectly. However, these
components are necessary for the proper opera-
tion of the device. Devices marked with this sym-
bol must not be disposed of with regular house-
hold rubbish.
Cleaning operations which produce oily waste wa-
ter, e.g. engine washes, underbody washes, may
only be carried out using washing stations
equipped with an oil separator.
Work with detergents must only be performed on
liquid-tight work surfaces with a connection to the
sewer system. Do not let release detergent into
waters or earth.
Installation and Startup
10 English
몇 CAUTION
Dry running of more than 2 minutes leads to damage of
the high-pressure pump. If the appliance does not build
up pressure within 2 minutes, switch the appliance off
and proceed in accordance with the instructions in
Chapter "Troubleshooting".
몇 CAUTION
Keep a distance of at least 30 cm when using the jet for
cleaning painted surfaces to avoid damage.
ATTENTION
Car tyres, paint or sensitive surfaces such as wood
should not be cleaned with the dirt blaster, as there is a
risk of damage.
Illustrations -
ATTENTION
The sensitivity of the materials can strongly differ de-
pending on the age and the condition. The so-called
recommendations are non-binding.
Note: Detergent can only be added when the device is
operated in low pressure mode.
Optional
Illustrations -
Illustration
Spray the detergent sparingly on the dry surface
and allow it to react, but not to dry.
Spray off loosened dirt with the high pressure jet.
After operation with detergent: Run the machine for
approximately 1 minute for a clear rinse.
ATTENTION
Risk of damage to the paintwork
When working with the washing brush, it must be free of
dirt or other particles.
Note: If required, the washing brushes can be used to
work with detergent.
Illustration
Release the lever of the trigger gun and lock it.
During longer breaks (more than 5 minutes), also
turn the appliance off using the "0/OFF" switch.
몇 CAUTION
Only separate the high-pressure hose from the trigger
gun or the device when there is no pressure in the sys-
tem.
Release the lever of the trigger gun.
Turn off the appliance "0/OFF".
Disconnect the mains plug from the socket.
Turn off tap.
Press the lever on the trigger gun to release any
remaining pressure in the system.
Lock the lever of the trigger gun.
Detach the appliance from the water supply.
몇 CAUTION
Risk of personal injury or damage!
Mind the weight and storage of the appliance during
transport.
Lift appliance by the carrying handle and carry it.
Pull out the transport handle until it audibly snaps
into place.
Pull the appliance by its transport handle.
Secure the appliance against shifting and tipping
over.
Park the machine on an even surface.
Stow away the accessories on the appliance ac-
cording to the device.
Prior to extended storage periods, as during the winter,
also observe the instructions in the Care section.
ATTENTION
Appliances and accessories that are not completely
drained can be destroyed by frost. Completely drain ap-
pliance and accessories and protect them against frost.
To avoid damage:
Completely drain all water from the appliance:
Switch the appliance on with detached high pres-
sure hose and detached water supply (max. 1 min-
ute) and wait, until no more water exits at the high
pressure connection. Turn off the appliance.
Store the appliance and the entire accessories in a
frost free room.
Operation
High pressure operation
Full Control System
Pressure level For example, recommended for
HARD Stone terraces made of paving
stones or exposed aggregate con-
crete, asphalt, metal surfaces, gar-
den utensils (wheelbarrow, spade,
etc.)
Turn the Full Control spray lance Click-Vario
Power as far as it will go for maximum possi-
ble pressure.
MEDIUM Motorcar / motorcycle, brick sur-
faces, plastered walls, plastic furni-
ture
SOFT Wooden surfaces, bicycles, sand
stone surfaces, rattan furniture
MIX Operation with detergent
Operation with detergent
Recommended cleaning method
After operation with detergent
Operation with washing brush
Interrupting operation
Finish operation
Transport and storage
When transporting by hand
When transporting in vehicles
Storing the Appliance
Frost protection
English 11
The appliance is maintenance free.
DANGER
Risk of electric shock.
Prior to all work on the appliance, switch off the ap-
pliance and pull the power plug.
Clean the sieve in the water connection regularly.
ATTENTION
The sieve must not be damaged.
Remove coupling from the water connection.
Illustration
Pull the sieve out (e.g. using flat pliers), clean un-
der running water and then reinsert it.
DANGER
Risk of electric shock.
Prior to all work on the appliance, switch off the ap-
pliance and pull the power plug.
Push the lever of the trigger gun, the device will
switch on.
Check whether the voltage indicated on the type
plate corresponds to the voltage of the mains sup-
ply.
Check the mains connection cable for damages.
Check setting at the spray lance.
Completely open the water tap.
Remove air from appliance before operation.
Switch on the appliance without connection the HP
hose (max. 2 minutes) and run it until the water dis-
charging from the HP outlet is free of bubbles.
Switch off appliance and reconnect HP hose.
Pull out the sieve in the water connection using flat-
nose pliers and clean under running water.
Clean high-pressure nozzle: Remove dirt and de-
bris from the nozzle bore, using a needle and rinse
through with water from the front.
Check water flow quantity.
Slight leakage from the appliance pump is normal.
If the leakage increases contact the authorized
customer service.
Use Vario Power spray lance.
Turn the spray lance to "Mix" position.
Remove filter from suction hose for detergent and
clean under running water.
Check the detergent suction hose for kinks.
Only use original accessories and spare parts, they en-
sure the safe and trouble-free operation of the device.
For information about accessories and spare parts,
please visit www.kaercher.com.
KÄRCHER UK Limited operates a helpline allowing
customers to discuss any problems experienced with
our products.
The helpline operates during normal business hours
and may be busy at peak periods.If you have difficulty
getting through we would ask that you try to contact us
again later in the day.
The helpline number is 01295 752200, open from
8.30 am to 5.00 pm
Monday to Friday.
It helps us if you have the model number and data plate
details to hand before making your call so that we can
assist you with your query more effectively.
Alternatively you may write to us at the address
below:
KÄRCHER UK Ltd
Kärcher House
Beaumont Road
Banbury
Oxon, OX16 1TB
or E-mail us:
The warranty terms published by the relevant sales
company are applicable in each country. We will repair
potential failures of your appliance within the warranty
period free of charge, provided that such failure is
caused by faulty material or defects in manufacturing. In
the event of a warranty claim please contact your dealer
or the nearest authorized Customer Service centre.
Please submit the proof of purchase.
Addresses can be found under:
www.kaercher.com/dealersearch
Maintenance and care
Care
Clean the sieve in the water connection
Troubleshooting
Appliance is not running
Pressure does not build up in the appliance
Strong pressure fluctuations
Appliance is leaking
No detergent infeed
Accessories and Spare Parts
Helpline
Warranty
12 English
We hereby declare that the machine described below
complies with the relevant basic safety and health re-
quirements of the EU Directives, both in its basic design
and construction as well as in the version put into circu-
lation by us. This declaration shall cease to be valid if
the machine is modified without our prior approval.
The undersigned act on behalf and under the power of
attorney of the company management.
Authorised Documentation Representative
S. Reiser
Alfred Kärcher GmbH Co. KG
Alfred-Kärcher-Str. 28 - 40
71364 Winnenden (Germany)
Phone: +49 7195 14-0
Fax: +49 7195 14-2212
Technical specifications
Electrical connection
Voltage 220-240
1~50-60
V
Hz
Power consumption 6 A
Protection class IP X5
Protective class II
Mains fuse (slow-blow) 13 A
Water connection
Max. feed pressure 1,2 MPa
Max. feed temperature 40 °C
Min. feed volume 8 l/min
Performance data
Working pressure 7,4 MPa
Max. permissible pressure 11 MPa
Water flow rate 5,5 l/min
Max. flow rate 6,0 l/min
Recoil force of trigger gun 11 N
Dimensions and weights
Length 246 mm
Width 280 mm
Height 586 mm
Weight, ready to operate with
accessories
5,1 kg
Values determined as per EN 60335-2-79
Hand-arm vibration value
Uncertainty K
<2,5
0,3
m/s
2
m/s
2
Sound pressure level L
pA
Uncertainty K
pA
75
3
dB(A)
dB(A)
Sound power level L
WA
+ Uncertainty
K
WA
90 dB(A)
Subject to technical changes.
EU Declaration of Conformity
Product: High pressure cleaner
Type: 1.673-xxx
Relevant EU Directives
2000/14/EC
2014/30/EU
2006/42/EC (+2009/127/EC)
2011/65/EU
Applied harmonized standards
EN 50581
EN 55014–1: 2006+A1: 2009+A2: 2011
EN 55014–2: 2015
EN 60335–1
EN 60335–2–79
EN 61000–3–2: 2014
EN 61000–3–3: 2013
EN 62233: 2008
Applied conformity evaluation method
2000/14/EC: Appendix V
Sound power level dB(A)
Measured: 88
Guaranteed: 90
Winnenden, 2016/08/01
CEO
Head of Approbation
English 13
Illustration
;
;
;
;
;
;;
;
;
;
;
;
;;
;
;
;
;
;
;;
;
;
;
;
;
;;
11
10
9
ﺔﻟازإ ﻢﺘﻳ :ﻲﻟﺎﻌﻟا ﻂﻐﻀﻟا ﺚﻔﻨﻣ ﻒﻴﻈﻨﺗ
ةﺮﺑإ ماﺪﺨﺘﺳﺎﺑ ﺚﻔﻨﻤﻟا ﺔﺤﺘﻓ ﻦﻣ تاروذﺎﻘﻟا
ُﺗو ﻦﻣ ﻞﺴﻐﻟا نﻮﻜﻳ ﺚﻴﺤﺑ ءﺎﻤﻟﺎﺑ ﺔﺤﺘﻔﻟا ﻞﺴﻐ
ﻷا ﺔﻴﺣﺎﻨﻟا.ﺔﻴﻣﺎﻣ
.ءﺎﻤﻟا ﻖﻓﺪﺗ ﺔﻴﻤﻛ ﻦﻣ ﻖﻘﺤﺘﻟا ﻢﺘﻳ
ﴽﺮﻣأ ﺪﻌﻳ زﺎﻬﺠﻟا ﻦﻣ ﻒﻴﻔﻃ بﺮﺴﺗ ثوﺪﺣ نإ
ﴼﻴﻤﺘﺣ ﺔﺒﺴﻧ ةدﺎﻳز ﺔﻟﺎﺣ ﻲﻓ .ﺔﻴﻨﻔﻟا ﺔﻴﺣﺎﻨﻟا ﻦﻣ
ﻼﻤﻌﻟا ﺔﻣﺪﺧ ﻰﻟإ عﻮﺟﺮﻟا مﺰﻠﻳ ﻚﻟذ ﻦﻋ بﺮﺴﺘﻟا ء
.ةﺪﻤﺘﻌﻤﻟا
عﺎﻌﺸﻟا بﻮﺒﻧأ مﺪﺨﺘﺳاVario Power.
„ ﻊﺿﻮﻟا ﻰﻟإ عﺎﻌﺸﻟا بﻮﺒﻧأ ﻒﻟMix ﺪﺤﻟا) “
ﻷا.(ﻰﺼﻗ
ﻒﻴﻈﻨﺘﻟا داﻮﻣ ﻂﻔﺷ مﻮﻃﺮﺧ ﻦﻣ ﺮﺘﻠﻔﻟا ﺐﺤﺳا
.يرﺎﺠﻟا ءﺎﻤﻟا ﺖﺤﺗ ﻪﻔﻈﻧو
ﻻاو ﺪﻘﻌﺘﻟا ﻊﺿاﻮﻣ ﻦﻣ ﻖﻘﺤﺘﻟا ﺐﺠﻳ ءاﻮﺘﻟ
.ﻒﻴﻈﻨﺘﻟا داﻮﻣ ﻂﻔﺷ مﻮﻃﺮﺨﺑ
ﻷا ﺔﻴﻠﻴﻤﻜﺘﻟا تﺎﻘﺤﻠﻤﻟا ماﺪﺨﺘﺳا ﻰﻠﻋ ﺮﺼﺘﻗا ﺔﻴﻠﺻ
ﻷا رﺎﻴﻐﻟا ﻊﻄﻗو زﺎﻬﺠﻟا ﻞﻴﻐﺸﺗ ﻦﻤﻀﺗ ﻲﺘﻟاو ،ﺔﻴﻠﺻ
ٍلﺎﺧو ﻦﻣآ ﻞﻜﺸﺑﻻا ﻦﻣ ﻼﺘﺧﻻ.ت
ﻊﻄﻗو ﺔﻴﻠﻴﻤﻜﺘﻟا تﺎﻘﺤﻠﻤﻟﺎﺑ ﺔﺻﺎﺨﻟا تﺎﻣﻮﻠﻌﻤﻟا ﺪﺠﺗ
:ﺐﻳﻮﻟا ﻊﻗﻮﻣ ﺮﺒﻋ رﺎﻴﻐﻟاwww.kaercher.com.
ﺎﻬﻌﻀﺗ ﻲﺘﻟا نﺎﻤﻀﻟا طوﺮﺷ يﺮﺴﺗ ﺔﻟود ﻞﻛ ﻲﻓ
ﻰﻟﻮﺘﻧ ﻦﺤﻧ .ﺎﻨﻟ ﺔﻌﺑﺎﺘﻟا ﺔﺼﺘﺨﻤﻟا ﻖﻳﻮﺴﺘﻟا ﺔﻛﺮﺷ
ﻷا ﺢﻴﻠﺼﺗ نوﺪﺑ كزﺎﻬﺟ ﻰﻠﻋ أﺮﻄﺗ ﺪﻗ ﻲﺘﻟا لﺎﻄﻋ
ﻼﺧ ﻞﺑﺎﻘﻣ هﺬﻫ ﻲﻓ ﺐﺒﺴﻟا نأ ﺎﻤﻟﺎﻃ نﺎﻤﻀﻟا ةﺮﺘﻓ ل
ﻷا ﻲﻓ وأ داﻮﻤﻟا ﻲﻓ ﺐﻴﻋ دﻮﺟو ﻦﻋ ﻢﺟﺎﻧ لﺎﻄﻋ
ﻪﺟﻮﺘﻟا ﻰﺟﺮﻳ ،نﺎﻤﻀﻟا قﺎﻘﺤﺘﺳا لﺎﺣ ﻲﻓ .ﻊﻨﺼﻟا
ﺔﻣﺪﺧ ﺰﻛﺮﻣ وأ عزﻮﻣ بﺮﻗأ ﻰﻟإ ءاﺮﺸﻟا ﺔﻤﻴﺴﻘﺑ
ﻼﻤﻋ.ﺪﻤﺘﻌﻣ ء
ﻼﺧ ﻦﻣ ﻦﻳوﺎﻨﻌﻟا ﺪﺠﺗ:ل
www.kaercher.com/dealersearch
ةﻮﻘﺑ ﻂﻐﻀﻟا بﺬﺑﺬﺗ
زﺎﻬﺠﻟا ﻦﻣ بﺮﺴﺘﻟا
ﻻ.ﻒﻴﻈﻨﺘﻟا داﻮﻣ ﻂﻔﺷ ﻢﺘﻳ
رﺎﻴﻐﻟا ﻊﻄﻗو تﺎﻘﺤﻠﻤﻟا
نﺎﻤﻀﻟا
ﺔﻴﻨﻔﻟا تﺎﻧﺎﻴﺒﻟا
ﻲﺋﺎﺑﺮﻬﻜﻟا ﻞﻴﺻﻮﺘﻟا
ﻲﺋﺎﺑﺮﻬﻜﻟا ﺪﻬﺠﻟا220-240
1~50-60
V
Hz
ﻼﻬﺘﺳاﻲﺋﺎﺑﺮﻬﻜﻟا رﺎﻴﺘﻟا ك6A
ﺔﻳﺎﻤﺤﻟا ﺔﺟردIP X5
ﺔﻳﺎﻤﺤﻟا ﺔﺌﻓII
ﺔﻴﺋﺎﺑﺮﻬﻜﻟا ﺔﻳﺬﻐﺘﻟا تاﺮﻬﺼﻨﻣ
(ﻦﻛﺎﺴﻟا ﻊﺿﻮﻟا) ﺔﻴﺴﻴﺋﺮﻟا
10A
هﺎﻴﻤﻟا ﺔﻠﺻو
ﻷا ﺪﺤﻟا) ﻖﻓﺪﺘﻟا ﻂﻐﺿ(ﻰﺼﻗ1,2MPa
ﺪﺤﻟا) ﻖﻓﺪﺘﻟا ةراﺮﺣ ﺔﺟرد
ﻷا(ﻰﺼﻗ
40°C
ﻷا ﺪﺤﻟا) ﻖﻓﺪﺘﻟا ﺔﻴﻤﻛ(ﻰﻧد8l/min
ﻷا تﺎﻧﺎﻴﺑءاد
ﻞﻤﻌﻟا ﻂﻐﺿ7,4MPa
ﻪﺑ حﻮﻤﺴﻣ ﻂﻐﺿ ﻰﺼﻗأ11 MPa
هﺎﻴﻤﻟﺎﻘﻓﺪﺗ ﺔﻴﻤﻛ5,5l/min
ﻷا ﺪﺤﻟا) ﻖﻓﺪﺗ ﺔﻴﻤﻛ(ﻰﺼﻗ6,0l/min
شﺮﻟا سﺪﺴﻣ داﺪﺗرا ةﻮﻗ
يوﺪﻴﻟا
11N
ﻷاﻷاو دﺎﻌﺑنازو
لﻮﻄﻟا246mm
ضﺮﻌﻟا280mm
ﻻاعﺎﻔﺗر586mm
ﻊﻣ ﻞﻤﻌﻠﻟ ﺰﻫﺎﺟ زﺎﻬﺠﻟاو نزﻮﻟا
ﺔﻴﻠﻴﻤﻜﺘﻟا تﺎﻘﺤﻠﻤﻟا
5,1kg
ًﻘﻓو ﺔﺒﺴﺘﺤﻤﻟا ﻢﻴﻘﻟا ﺔﻔﺻاﻮﻤﻠﻟ ﺎEN 60335-2-79
ﺪﻴﻟا عارذ زاﺰﺘﻫا ﺔﻤﻴﻗ
ﻚﺸﻟاK
<2,5
0,3
m/s
2
m/s
2
تﻮﺼﻟا ﻂﻐﺿ ىﻮﺘﺴﻣL
pA
ﻚﺸﻟا K
pA
75
3
dB(A)
dB(A)
تﻮﺼﻟا ةرﺪﻗ ىﻮﺘﺴﻣL
WA
+
ﻚﺸﻟاK
WA
90dB(A)
.ﻞﻳﺪﻌﺘﻠﻟ ﺔﻌﺿﺎﺧ ﺔﻴﻨﻔﻟا تﺎﻔﺻاﻮﻤﻟا
8
몇
ﻪﻳﻮﻨﺗ
ﻺﻟ ضﺮﻌﺘﻟا ﺮﻄﺧ !رﺮﻀﻠﻟ و ﺔﺑﺎﺻ
.ﻦﻳﺰﺨﺘﻟاو ﻞﻘﻨﻟا ﺪﻨﻋ زﺎﻬﺠﻟا نزو ةﺎﻋاﺮﻣ ﻰﺟﺮﻳ
.ﻪﻠﻤﺣاو ﻞﻤﺤﻟا ﺾﺒﻘﻣ ﻦﻣ زﺎﻬﺠﻟا ﻊﻓرا
تﻮﺼﺑ ﺖﺒﺜﻳ نأ ﻰﻟإ ﻞﻘﻨﻟا ﺾﺒﻘﻣ ﺐﺤﺳا
.عﻮﻤﺴﻣ
.ﻞﻘﻨﻟا ﺾﺒﻘﻣ ﻖﻳﺮﻃ ﻦﻋ زﺎﻬﺠﻟا ﺐﺤﺳا
ﻻا ﺪﺿ زﺎﻬﺠﻟا ﻦﻴﻣﺄﺘﺑ ﻢﻗﻻﺰﻧﻻاو قﻼﻘﻧ.ب
.ﺔﻳﻮﺘﺴﻣ ﺔﻴﺿرأ ﻰﻠﻋ زﺎﻬﺠﻟا فﺎﻘﻳﺈﺑ ﻢﻗ
ﺔﺼﺼﺨﻤﻟا تاﺰﻴﻬﺠﺘﻟا ﻲﻓ زﺎﻬﺠﻟا تﺎﻘﺤﻠﻣ ﻦﻳﺰﺨﺗ
.زﺎﻬﺠﻟﺎﺑ ﻚﻟﺬﻟ
ًﻼﺜﻣ ءﺎﺘﺸﻟا ﻲﻓ ،ﺔﻠﻳﻮﻃ ةﺮﺘﻔﻟ زﺎﻬﺠﻟا ﻦﻳﺰﺨﺗ ﻞﺒﻗ ،
ﴼﻀﻳأ ﺐﺠﻳﻹا ةﺎﻋاﺮﻣ ﻞﺼﻓ ﻲﻓ ةدراﻮﻟا تادﺎﺷر
.ﺔﻳﺎﻨﻌﻟا
ﻪﻴﺒﻨﺗ
ﻷا ﻒﻠﺘﺗ نأ ﻦﻜﻤﻳ ﻢﺘﻳ ﻢﻟ ﻲﺘﻟا تﺎﻘﺤﻠﻤﻟاو ةﺰﻬﺟ
ﻎﻳﺮﻔﺗ ﻢﺘﻳ .ﺪﻤﺠﺘﻟا ﺮﻴﺛﺄﺗ ﺖﺤﺗ مﺎﺗ ﻞﻜﺸﺑ ﺎﻬﻐﻳﺮﻔﺗ
ًﻣﺎﻤﺗ تﺎﻘﺤﻠﻤﻟاو زﺎﻬﺠﻟا.ﺪﻤﺠﺘﻟا ﻦﻣ ﻢﻬﺘﻳﺎﻤﺣو ﺎ
:تﺎﻴﻔﻠﺗ ثوﺪﺤﻟ ﺎﻳدﺎﻔﺗ
ﴼﻤﺋاد زﺎﻬﺠﻟا ﻎﻳﺮﻔﺘﺑ ﻢﻗ ﻞﻴﻐﺸﺘﺑ ﻢﻗ :هﺎﻴﻤﻟا ﻦﻣ
ﻲﻟﺎﻌﻟا ﻂﻐﻀﻟا مﻮﻃﺮﺧ ﻞﻴﺻﻮﺗ نوﺪﺑ زﺎﻬﺠﻟا
ﻹا رﺪﺼﻣ ﻞﻴﺻﻮﺗ نوﺪﺑو ﺔﻘﻴﻗد ةﺪﻤﻟ) ءﺎﻤﻟﺎﺑ داﺪﻣ
ءﺎﻤﻟا جوﺮﺧ ﻒﻗﻮﺘﻳ ﻰﺘﺣ ﺮﻈﺘﻧا ﻢﺛ (ﻰﺼﻗأ ﺪﺤﺑ
فﺎﻘﻳﺈﺑ ﻢﻗ .ﻲﻟﺎﻌﻟا ﻂﻐﻀﻟا ﺔﻠﺻو ﻦﻣ ﺎﻣﺎﻤﺗ
.زﺎﻬﺠﻟا ﻞﻴﻐﺸﺗ
ﺪﺿ نﺎﻜﻣ ﻲﻓ ﺔﻠﻣﺎﻛ ﻪﺗﺎﻘﺤﻠﻣو زﺎﻬﺠﻟا ﻆﻔﺣ ﻢﺘﻳ
.ﺪﻤﺠﺘﻟا
ﻻ زﺎﻬﺠﻟا.ﺔﻧﺎﻴﺻ ﺐﻠﻄﺘﻳ
ﺮﻄﺧ
.ﺔﻴﺋﺎﺑﺮﻬﻛ ﺔﻣﺪﺼﻟ ضﺮﻌﺘﻟا ﺮﻄﺧ
ﻪﻠﻴﻐﺸﺗ فﺎﻘﻳإ ﻢﺘﻳ زﺎﻬﺠﻟﺎﺑ لﺎﻤﻋأ ءاﺮﺟإ ﻞﺒﻗ
.ﺲﺒﻘﻤﻟا جرﺎﺧ ﺲﺑﺎﻘﻟا ﺐﺤﺳ ﻢﺘﻳو
ءﺎﻤﻟا ﺔﻠﺻو ﻲﻓ ةدﻮﺟﻮﻤﻟا ةﺎﻔﺼﻤﻟا ﻒﻴﻈﻨﺘﺑ ﻢﻗ
.ﺔﻤﻈﺘﻨﻣ ﺔﻔﺼﺑ
ﻪﻴﺒﻨﺗ
ﻻﻼﺗإ زﻮﺠﻳ .ةﺎﻔﺼﻤﻟا ف
.ءﺎﻤﻟا ﺔﻠﺻو ﻦﻣ ﺔﻧرﺎﻘﻟا ﺔﻟازإ
ةرﻮﺻ
ﻼﺜﻣ) ةﺎﻔﺼﻤﻟا ﺐﺤﺳ ،(ﺔﺤﻄﻠﻔﻣ ﺔﻳدرز ماﺪﺨﺘﺳﺎﺑ
ةدﺎﻋإ ﻢﺘﻳ ﻚﻟذ ﺪﻌﺑو يرﺎﺠﻟا ءﺎﻤﻟا ﺖﺤﺗ ﺎﻬﻔﻴﻈﻨﺗو
.ﺎﻬﺒﻴﻛﺮﺗ
ﺮﻄﺧ
.ﺔﻴﺋﺎﺑﺮﻬﻛ ﺔﻣﺪﺼﻟ ضﺮﻌﺘﻟا ﺮﻄﺧ
ﻪﻠﻴﻐﺸﺗ فﺎﻘﻳإ ﻢﺘﻳ زﺎﻬﺠﻟﺎﺑ لﺎﻤﻋأ ءاﺮﺟإ ﻞﺒﻗ
.ﺲﺒﻘﻤﻟا جرﺎﺧ ﺲﺑﺎﻘﻟا ﺐﺤﺳ ﻢﺘﻳو
ﻢﺘﻴﻓ ،ﻲﻟﺎﻌﻟا ﻂﻐﻀﻟا سﺪﺴﻣ عارذ ﻂﻐﺿا
.زﺎﻬﺠﻟا ﻞﻴﻐﺸﺗ
ﺔﺣﻮﻟ ﻰﻠﻋ نوﺪﻤﻟا ﺪﻬﺠﻟا ﻖﺑﺎﻄﺗ ﻦﻣ ﻖﻘﺤﺗ
.رﺎﻴﺘﻟا رﺪﺼﻣ ﺪﻬﺟ ﻊﻣ ﻊﻨﺼﻟا
ﻚﻠﺳ ﺔﻠﺻﻮﺑ تﺎﻴﻔﻠﺗ دﻮﺟو مﺪﻋ ﻦﻣ ﻖﻘﺤﺘﻟا ﺐﺠﻳ
.ﻲﺴﻴﺋﺮﻟا ﻞﻴﺻﻮﺘﻟا
.عﺎﻌﺸﻟا بﻮﺒﻧأ ﻂﺒﺿ ﻦﻣ ﻖﻘﺤﺘﻟا ﺐﺠﻳ
.راﺮﻤﺘﺳﺎﺑ هﺎﻴﻤﻟا رﻮﺒﻨﺻ ﺢﺘﻔﺑ ﻢﻗ
.ﻪﻠﻴﻐﺸﺗ ﻞﺒﻗ ءاﻮﻬﻟا ﻦﻣ زﺎﻬﺠﻟا ﻎﻳﺮﻔﺘﺑ ﻢﻗ
عﺎﻌﺸﻟا بﻮﺒﻧأ ﻞﻴﺻﻮﺗ نوﺪﺑ زﺎﻬﺠﻟا ﻞﻴﻐﺸﺘﺑ ﻢﻗ
ﻰﺘﺣ ،(ﻰﺼﻗأ ﺪﺤﻛ ﻦﻴﺘﻘﻴﻗد) ﻞﻤﻌﻳ ﻪﻛﺮﺗا ﻢﺛ
ﴼﻴﻟﺎﺧ سﺪﺴﻤﻟا ﻦﻣ ءﺎﻤﻟا جﺮﺨﻳ تﺎﻋﺎﻘﻔﻟا ﻦﻣ
بﻮﺒﻧأ ﻞﻴﺻﻮﺗو زﺎﻬﺠﻟا فﺎﻘﻳﺈﺑ ﻢﻗ .ﺔﻴﺋاﻮﻬﻟا
.ىﺮﺧأ ةﺮﻣ عﺎﻌﺸﻟا
جرﺎﺨﻠﻟ ءﺎﻤﻟا ﺔﻠﺻﻮﺑ ةدﻮﺟﻮﻤﻟا ةﺎﻔﺼﻤﻟا ﺐﺤﺳا
يرﺎﺠﻟا ءﺎﻤﻟﺎﺑ ﺎﻬﻔﻈﻧو ﺔﺤﻄﻠﻔﻣ ﺔﻳدرز ماﺪﺨﺘﺳﺎﺑ
ﻦﻳﺰﺨﺘﻟاو ﻞﻘﻨﻟا
يوﺪﻴﻟا ﻞﻘﻨﻟا
تارﺎﻴﺳ ﻲﻓ ﻞﻘﻨﻟا
زﺎﻬﺠﻟا ﻦﻳﺰﺨﺗ
ﺪﻤﺠﺘﻟا ﻦﻣ ﺔﻳﺎﻤﺤﻟا
ﺔﻳﺎﻨﻌﻟاو ﺔﻧﺎﻴﺼﻟا
ﺔﻳﺎﻨﻌﻟا
ءﺎﻤﻟا ﺔﻠﺻو ﻲﻓ ةدﻮﺟﻮﻤﻟا ةﺎﻔﺼﻤﻟا ﻒﻴﻈﻨﺗ
لﺎﻄﻋأ ثوﺪﺣ ﺪﻨﻋ ةﺪﻋﺎﺴﻤﻟا
ﻻ زﺎﻬﺠﻟاﻞﻤﻌﻳ
ﻻ زﺎﻬﺠﻟا.ﻂﻐﺿ يأ رﺪﺼﻳ
7
ﻪﻴﺒﻨﺗ
ﻼﺘﺧا ﻒﻠﺘﺨﺗ ﺪﻗ داﻮﻤﻟا ﺔﻴﺳﺎﺴﺣًﻓًﻌﺒﺗ اﺮﻴﺒﻛ ﺎ ﺮﻤﻌﻠﻟ ﺎ
ًﻤﻠﻋ .ﺔﻟﺎﺤﻟاو.ﺔﻣﺰﻠﻣ ﺮﻴﻏ ةرﻮﻛﺬﻤﻟا تﺎﻴﺻﻮﺘﻟا نﺄﺑ ﺎ
:دﺎﺷرإﻻﻻإ ﻒﻴﻈﻨﺘﻟا داﻮﻣ ﺔﻓﺎﺿإ ﻦﻜﻤﻳ ﻂﻐﺿ ﻲﻓ
.ﺾﻔﺨﻨﻣ
يرﺎﻴﺘﺧا
رﻮﺼﻟا -
ةرﻮﺻ
ﻷا ﻰﻠﻋ صﺮﺤﺑ ﻒﻴﻈﻨﺘﻟا داﻮﻣ شر ﻢﺘﻳ ﺢﻄﺳ
ُﺘﺗو ﺔﻓﺎﺠﻟا.(ﻒﺠﺘﻟ ﺲﻴﻟ) ﺎﻬﻟﻮﻌﻔﻤﺑ مﻮﻘﺘﻟ كﺮ
ُﺗﻷا ﻞﺴﻐ ﻂﻐﻀﻟا عﺎﻌﺸﺑ ﺔﻜﻜﻔﺘﻤﻟا خﺎﺳو
.ﻲﻟﺎﻌﻟا
ﻞﻴﻐﺸﺘﺑ ﻢﻗ :ﻒﻴﻈﻨﺘﻟا داﻮﻣ ماﺪﺨﺘﺳﺎﺑ ﻞﻤﻌﻟا ﺪﻌﺑ
.ﻪﻠﺴﻐﻟ ﺔﻘﻴﻗد ﻲﻟاﻮﺣ ةﺪﻤﻟ زﺎﻬﺠﻟا
ﻪﻴﺒﻨﺗ
ﻼﻄﻟﺎﺑ راﺮﺿأ ثوﺪﺣ ﺮﻄﺧء
نأ ةﺎﻋاﺮﻣ ﺐﺠﻳ ﻞﺴﻐﻟا ةﺎﺷﺮﻓ ماﺪﺨﺘﺳﺎﺑ ﻞﻤﻌﻟا ﺪﻨﻋ
.ىﺮﺧأ تﺎﺌﻳﺰﺟ ﺔﻳأ وأ تﺎﺧﺎﺴﺗا يأ ﻦﻣ ﺔﻴﻟﺎﺧ نﻮﻜﺗ
ﺔﻇﻮﺤﻠﻣﴼﻀﻳأ ﻦﻜﻤﻳ : ﻞﻤﻌﻠﻟ ﻞﺴﻏ شﺮﻓ ماﺪﺨﺘﺳا
.ﺔﺟﺎﺤﻟا ﺪﻨﻋ ﻚﻟذو ،ﻒﻴﻈﻨﺘﻟا ةدﺎﻣ ماﺪﺨﺘﺳﺎﺑ
ةرﻮﺻ
مﺎﻜﺣإ ﻢﺛ ﻲﻟﺎﻌﻟا ﻂﻐﻀﻟا سﺪﺴﻣ عارذ ﺮﻳﺮﺤﺗ
.ﻪﻠﻔﻗ
ﻦﻣ ﺮﺜﻛأ) ﻞﻤﻌﻟا ﻒﻗﻮﺗ تاﺮﺘﻓ لﻮﻃ ةدﺎﻳز ﻊﻣو
5 حﺎﺘﻔﻣ ﻦﻣ زﺎﻬﺠﻟا ﻞﻴﻐﺸﺗ فﺎﻘﻳإ ﻢﺘﻳ (ﻖﺋﺎﻗد
„ زﺎﻬﺠﻟا0/OFF.“
몇
ﻪﻳﻮﻨﺗ
ﻞﺼﻓ ﻢﺘﻳ ،مﺎﻈﻨﻟﺎﺑ ﻂﻐﻀﻟا ﺮﻓﻮﺗ مﺪﻋ ﺔﻟﺎﺣ ﻲﻓ
ﻲﻟﺎﻌﻟا ﻂﻐﻀﻟا سﺪﺴﻣ ﻦﻣ ﻲﻟﺎﻌﻟا ﻂﻐﻀﻟا مﻮﻃﺮﺧ
.ﻂﻘﻓ زﺎﻬﺠﻟا ﻦﻣ وأ
ﻲﻓ ﻲﻟﺎﻌﻟا ﻂﻐﻀﻟا سﺪﺴﻣ عارذ كﺮﺗ ﻢﺘﻳ
.ﺮﺤﻟا ﻊﺿﻮﻟا
ﻰﻠﻋ ﻂﻐﻀﻟﺎﺑ زﺎﻬﺠﻟا ﻞﻴﻐﺸﺗ فﺎﻘﻳﺈﺑ ﻢﻗ
„0/OFF.“
.ﻞﻴﺻﻮﺘﻟا ﺲﺒﻘﻣ ﻦﻣ ﺔﻜﺒﺸﻟا ﺲﺑﺎﻗ ﺐﺤﺳا
هﺎﻴﻤﻟا رﻮﺒﻨﺻ ﻖﻠﻏأ
ﻲﻟﺎﻌﻟا ﻂﻐﻀﻟا سﺪﺴﻣ عارذ ﻰﻠﻋ ﻂﻐﻀﻟا
.مﺎﻈﻨﻟا ﻲﻓ ﻲﻘﺒﺘﻤﻟا ﻂﻐﻀﻟا ﻦﻣ ﺺﻠﺨﺘﻠﻟ
ﻼﻏإ ﻢﻜﺣأ.ﻲﻟﺎﻌﻟا ﻂﻐﻀﻟا سﺪﺴﻣ عارذ ق
ﻹا رﺪﺼﻣ ﻦﻋ زﺎﻬﺠﻟا ﻞﺼﻓا.هﺎﻴﻤﻟﺎﺑ داﺪﻣ
ﻞﻣﺎﻜﻟا ﻢﻜﺤﺘﻟا مﺎﻈﻧ
ﻂﻐﻀﻟا ىﻮﺘﺴﻣ ـﻟ ﻪﺑ ﻰﺻﻮﻳ
HARD تﺎﻓﺮﺸﻟا ،لﺎﺜﻤﻟا ﻞﻴﺒﺳ ﻰﻠﻋ
ةرﺎﺠﺣ ﻦﻣ ﺔﻋﻮﻨﺼﻤﻟا ﺔﻳﺮﺠﺤﻟا
ﺔﻟﻮﺴﻐﻤﻟا ﺔﻧﺎﺳﺮﺨﻟا وأ ﻒﺻﺮﻟا
ﻷاوﻷاو ﺖﻠﻔﺳ ﺔﻴﻧﺪﻌﻤﻟا ﺢﻄﺳ
،ﺪﻴﻟا ﺔﺑﺮﻋ) ﻖﺋاﺪﺤﻟا تاودأو
(ﺦﻟا ،ﺔﻓﺮﺠﻤﻟا
ﻲﻐﺒﻨﻳ ،ﻦﻜﻤﻣ ﻂﻐﺿ ﻰﻠﻋأ ﻰﻟإ لﻮﺻﻮﻠﻟ
عﺎﻌﺸﻟا بﻮﺒﻧﺄﺑ ﻞﻣﺎﻜﻟا ﻢﻜﺤﺘﻟا ةرادإ
Click-Vario Power.ﺔﻳﺎﻬﻨﻟا ﻰﻟإ
MEDIUMﻼﻣ ةرﺎﻴﺳ ﺔﻳرﺎﻨﻟا ﺔﺟارﺪﻟا / ﻲﻛ
نارﺪﺠﻟاو ﺪﻴﻣﺮﻘﻟا ﺢﻄﺳأو
ﻷاو ﺔﺼﺼﺠﻤﻟا عﻮﻨﺼﻤﻟا ثﺎﺛ
ﻼﺒﻟا ﻦﻣﻚﻴﺘﺳ
SOFTﻷا تﺎﺟارﺪﻟاو ﺔﻴﺒﺸﺨﻟا ﺢﻄﺳ
ﻷاو ﻲﻠﻣﺮﻟا ﺮﺠﺤﻟا ﺢﻄﺳأو ثﺎﺛ
نارﺰﻴﺨﻟا ﻦﻣ عﻮﻨﺼﻤﻟا
MIX ةدﺎﻣ ماﺪﺨﺘﺳﺎﺑ ﻞﻴﻐﺸﺘﻟا
ﻒﻴﻈﻨﺗ
ﻒﻴﻈﻨﺗ ةدﺎﻣ ماﺪﺨﺘﺳﺎﺑ ﻞﻴﻐﺸﺘﻟا
ﺎﻬﺑ ﻰﺻﻮﻤﻟا ﻒﻴﻈﻨﺘﻟا قﺮﻃ
ﻒﻴﻈﻨﺗ ةدﺎﻣ ماﺪﺨﺘﺳﺎﺑ ﻞﻴﻐﺸﺘﻟا ﺪﻌﺑ
ﻞﺴﻐﻟا ةﺎﺷﺮﻓ ماﺪﺨﺘﺳﺎﺑ ﻞﻴﻐﺸﺘﻟا
ﻞﻴﻐﺸﺘﻟا ﻊﻄﻗ
ﻞﻴﻐﺸﺘﻟا ءﺎﻬﻧإ
6
ﻻُﻳ ﻻإ اﺬﻫ ﻲﻟﺎﻌﻟا ﻂﻐﻀﻟا ﻒﻈﻨﻣ مﺪﺨﺘﺴﻸﻟ لﺎﻤﻋ
.ﻂﻘﻓ ﺔﺻﺎﺨﻟا ﺔﻴﻟﺰﻨﻤﻟا
–ﻷا ﻒﻴﻈﻨﺘﻟ دﺪﻌﻟاو ﻲﻧﺎﺒﻤﻟاو تارﺎﻴﺴﻟاو ةﺰﻬﺟ
ﺎﻫﺮﻴﻏو ﻖﺋاﺪﺤﻟا تاﺪﻌﻣو تﺎﻓﺮﺸﻟاو تﺎﻬﺟاﻮﻟاو
اذإ) ﻲﻟﺎﻌﻟا ﻂﻐﻀﻟﺎﺑ ءﺎﻣ عﺎﻌﺷ ماﺪﺨﺘﺳﺎﺑ ﻚﻟذو
ﻷا مﺰﻟُﺗ ﺮﻣ.(ﻒﻴﻈﻨﺗ داﻮﻣ فﺎﻀ
– ﻒﻴﻈﻨﺘﻟا داﻮﻣو رﺎﻴﻐﻟا ﻊﻄﻗو تﺎﻘﺤﻠﻤﻟا ﻊﻣ
ُﻤﻟا ﺔﻛﺮﺷ ﻞﺒﻗ ﻦﻣ ﺎﻬﺑ حﺮﺼKARCHER ﺐﺠﻳ .
ﻻاﻹﺎﺑ ماﺰﺘﻟ.ﻒﻴﻈﻨﺘﻟا داﻮﻣ ﻊﻣ ﺔﻘﻓﺮﻤﻟا تادﺎﺷر
) تﺎﻧﻮﻜﻤﻟا لﻮﺣ تادﺎﺷرإREACH(
ﻊﻗﻮﻣ ﻲﻓ تﺎﻧﻮﻜﻤﻟا لﻮﺣ ﺔﻴﻟﺎﺤﻟا تﺎﻣﻮﻠﻌﻤﻟا ﺪﺠﺗ
ﻹا :ﺖﻧﺮﺘﻧ
www.kaercher.com/REACH
ﺔﺤﻔـــﺼﻟا ﻲـــﻓ مﻮـــﺳﺮﻟا11
رﻮﺼﻟا -
ﻷا ﺖﻴﺒﺜﺗ ﻢﺘﻳ ﻞﻴﻐﺸﺘﻟا ءﺪﺑ ﻞﺒﻗ ﺔﻛﻮﻜﻔﻤﻟا ءاﺰﺟ
.زﺎﻬﺠﻟا ﻊﻣ ﺔﻘﻓﺮﻤﻟا
.ﺔﻳﻮﺘﺴﻣ ﺔﻴﺿرأ ﻰﻠﻋ زﺎﻬﺠﻟا ﻊﺿو
رﻮﺼﻟا -
ﻲﻟﺎﻌﻟا ﻂﻐﻀﻟا سﺪﺴﻣ ﻦﻣ ﺖﻴﺒﺜﺘﻟا ﻚﺒﺸﻣ ﺐﺤﺳ
سﺪﺴﻣ ﻲﻓ ﻲﻟﺎﻌﻟا ﻂﻐﻀﻟا مﻮﻃﺮﺧ لﺎﺧدإو
.ﻲﻟﺎﻌﻟا ﻂﻐﻀﻟا
ﺺﺤﻓا .ﺖﺒﺜﻳ نأ ﻰﻟإ ﻞﺧاﺪﻟا ﻰﻟإ ﻚﺒﺸﻤﻟا ﻂﻐﺿا
ﻵا ﻞﻴﺻﻮﺘﻟاﻼﺧ ﻦﻣ ﻦﻣ ﻂﻐﻀﻟا مﻮﻃﺮﺧ بﺬﺟ ل
.ﻲﻟﺎﻌﻟا
رﻮﺼﻟا -
ﻪﻴﺒﻨﺗ
ﺔﺨﻀﻤﺑ هﺎﻴﻤﻟا ﻲﻓ ةدﻮﺟﻮﻤﻟا تﺎﺛﻮﻠﻤﻟا ﺮﻀﺗ ﺪﻗ
ُﻳ ﺎﻬﻨﻣ ﺔﻳﺎﻗﻮﻠﻟو .تﺎﻘﺤﻠﻤﻟاو ﻲﻟﺎﻌﻟا ﻂﻐﻀﻟا ﺢﺼﻨ
هﺎﻴﻣ ﺢﺷﺮﻣ ماﺪﺨﺘﺳﺎﺑKARCHER ،صﺎﺧ ﻖﺤﻠﻣ)
ﺐﻠﻄﻟا ﻢﻗر059-4.730(
몇
ﻪﻳﻮﻨﺗ
ﻰﻟإ ﻦﻴﺘﻘﻴﻗد ﻰﻠﻋ ﺪﻳﺰﺗ ﻲﺘﻟا ﻒﻴﻔﺠﺘﻟا ةرود يدﺆﺗ
ﻦﻜﻤﺘﻳ ﻢﻟ اذإ .ﻲﻟﺎﻌﻟا ﻂﻐﻀﻟا ﺔﺨﻀﻤﺑ راﺮﺿأ ثوﺪﺣ
،ﻦﻴﺘﻘﻴﻗد نﻮﻀﻏ ﻲﻓ ﻂﻐﺿ يأ ءﺎﺸﻧإ ﻦﻣ زﺎﻬﺠﻟا
ﻹا ﺐﺴﺣ فﺮﺼﺘﻟاو زﺎﻬﺠﻟا فﺎﻘﻳﺈﺑ ﻢﻘﻓ تادﺎﺷر
ثوﺪﺣ ﺔﻟﺎﺣ ﻲﻓ ةﺪﻋﺎﺴﻤﻟا» ﻞﺼﻓ ﻲﻓ ةدراﻮﻟا
ﻼﺘﺧاﻻ.«ت
몇
ﻪﻳﻮﻨﺗ
ﻷا ﻒﻴﻈﻨﺗ ﺪﻨﻋﻻأ ﺐﺠﻳ ﺔﻴﻠﻄﻤﻟا ﺢﻄﺳ ﺔﻓﺎﺴﻤﻟا ﻞﻘﺗ
ﻦﻋ عﺎﻌﺸﻟا ﻦﻴﺑو ﺎﻬﻨﻴﺑ30.تﺎﻴﻔﻠﺗ ثوﺪﺤﻟ ﺎﻳدﺎﻔﺗ ﻢﺳ
ﻪﻴﺒﻨﺗ
ﻻﻼﻄﻟا وأ ةرﺎﻴﺴﻟا تارﺎﻃإ ﻒﻴﻈﻨﺘﺑ ﻢﻘﺗ ﻷا وأ ء ﺢﻄﺳ
ﻦﺤﻃ ةادأ ماﺪﺨﺘﺳﺎﺑ ﺐﺸﺨﻟا ﻞﺜﻣ ﺔﺳﺎﺴﺤﻟا
ﻻا.رﺮﻀﻠﻟ ضﺮﻌﺘﻟا ﺮﻄﺧ ،تﺎﺧﺎﺴﺗ
رﻮﺼﻟا -
ﻻاتﺎﻤﻴﻠﻌﺘﻠﻟ ﻖﺑﺎﻄﻤﻟا ماﺪﺨﺘﺳ
ﺔﺌﻴﺒﻟا ﺔﻳﺎﻤﺣ
ﻹ ﺔﻠﺑﺎﻗ ﻒﻴﻠﻐﺘﻟا ﻲﻓ ﺔﻣﺪﺨﺘﺴﻤﻟا داﻮﻤﻟا ةدﺎﻋ
ﻼﻐﻟا ﻦﻣ ﺺﻠﺨﺘﻟﺎﺑ ﻢﻗ .ﻊﻴﻨﺼﺘﻟا ﻖﺑﺎﻄﻳ ﺎﻤﺑ ف
.ﺔﺌﻴﺒﻟا ﻰﻠﻋ ظﺎﻔﺤﻟا طوﺮﺷ
ﻷا ﻦﻤﻀﺘﺗﻷا ﻦﻣ ﺪﻳﺪﻌﻟا ﺔﻤﻳﺪﻘﻟا ةﺰﻬﺟ ءاﺰﺟ
ﻲﻐﺒﻨﻳ ﻲﺘﻟاو ىﺮﺧأ ةﺮﻣ ﻊﻴﻨﺼﺘﻠﻟ ﺔﻠﺑﺎﻘﻟا
ﻻاًةﺮﻣ ﺎﻬﻨﻣ ةدﺎﻔﺘﺳ ﺺﻠﺨﺗ ﻚﻠﻀﻓ ﻦﻣ .ىﺮﺧأ
ﻻ ﻖﻳﺮﻄﺑ زﺎﻬﺠﻟا ﻦﻣ.ﺔﺌﻴﺒﻟا ﺮﻀﺗ
ﴼﺒﻟﺎﻏﻷا ﻞﻤﺘﺸﺗ ﺎﻣ ﻹاو ﺔﻴﺋﺎﺑﺮﻬﻜﻟا ةﺰﻬﺟ ﺔﻴﻧوﺮﺘﻜﻟ
ﺔﺤﺻ ﻰﻠﻋ ةرﻮﻄﺧ ﻞﻜﺸﺗ ﺪﻗ تﺎﻧﻮﻜﻣ ﻰﻠﻋ
ﻹا وأ ﺎﻬﻌﻣ ﻞﻣﺎﻌﺘﻟا ﺔﻟﺎﺣ ﻲﻓ ﺔﺌﻴﺒﻟاو نﺎﺴﻧ
هﺬﻫ نأ ﺮﻴﻏ .ﺔﺌﻃﺎﺧ ةرﻮﺼﺑ ﺎﻬﻨﻣ ﺺﻠﺨﺘﻟا
.ﻢﻴﻠﺳ ﻞﻜﺸﺑ زﺎﻬﺠﻟا ﻞﻴﻐﺸﺘﻟ ﺔﻳروﺮﺿ تﺎﻧﻮﻜﻤﻟا
ﻻ ﻚﻟﺬﻟوﻷا ﻦﻣ ﺺﻠﺨﺘﻟا زﻮﺠﻳ ةﺰﻴﻤﻤﻟا ةﺰﻬﺟ
ﻼﻤﻬﻤﻟا ﻦﻤﺿ ﺰﻣﺮﻟا اﺬﻬﺑ.ﺔﻴﻟﺰﻨﻤﻟا ت
ﻻُﻳ ﺎﻬﻨﻋ ﻒﻠﺨﺘﻳ ﻲﺘﻟا ﺔﻓﺎﻈﻨﻟا لﺎﻤﻋأ ءاﺮﺟﺈﺑ ﺢﻤﺴ
ﻞﺴﻏ ﻞﺜﻣ تﻮﻳز ﻰﻠﻋ ﺔﻳﻮﺘﺤﻣ فﺮﺻ هﺎﻴﻣ
ﻻإ ةرﺎﻴﺴﻠﻟ ﻲﻠﻔﺴﻟا ﻞﻜﻴﻬﻟاو كﺮﺤﻤﻟا ﻦﻛﺎﻣأ ﻲﻓ
.ﺖﻳز ةﺎﻔﺼﻤﺑ ةدوﺰﻤﻟا ﻞﺴﻐﻟا
ﻻﻷا ءاﺮﺟإ زﻮﺠﻳ ُﻳ ﻲﺘﻟا لﺎﻤﻋ ﺎﻬﻴﻓ مﺪﺨﺘﺴ
ﻻإ تﺎﻔﻈﻨﻤﻟاﻷا ﻲﻓ ﺪﺿ ﺔﻤﻜﺤﻤﻟا ﻦﻛﺎﻣ
فﺮﺼﻟا ﺔﻜﺒﺸﻟ ﺔﻠﺻﻮﺑ ةدوﺰﻤﻟاو ﺐﻳﺮﺴﺘﻟا
ﻻ .ﻲﺤﺼﻟا وأ هﺎﻴﻤﻟا ﻰﻟإ ﺐﺳﺮﺘﺗ تﺎﻔﻈﻨﻤﻟا عﺪﺗ
.ﺔﺑﺮﺘﻟا ﻰﻟإ
ﻞﻴﻐﺸﺘﻟا ءﺪﺑو ﺐﻴﻛﺮﺘﻟا
ﻞﻴﻐﺸﺘﻟا
ﻲﻟﺎﻌﻟا ﻂﻐﻀﻟﺎﺑ ﻞﻴﻐﺸﺘﻟا
5
4
몇
ﻪﻳﻮﻨﺗ
ﻷا تاﺰﻴﻬﺠﺗ ﻞﻤﻌﺗ مﺪﺨﺘﺴﻤﻟا ﺔﻳﺎﻤﺣ ﻰﻠﻋ نﺎﻣ
ﻼﻳﺪﻌﺗ لﺎﺧدﺈﺑ حﻮﻤﺴﻣ ﺮﻴﻏوﻻا وأ ﺎﻬﻴﻠﻋ ت ءﺎﻨﻐﺘﺳ
.ﺎﻬﻔﺋﺎﻇو ﻦﻋ
نود ﺔﻟﻮﻠﻴﺤﻟا ﻰﻠﻋ زﺎﻬﺠﻟا ﻞﻴﻐﺸﺗ حﺎﺘﻔﻣ ﻞﻤﻌﻳ
.زﺎﻬﺠﻠﻟ ﺪﻤﻌﺘﻤﻟا ﺮﻴﻏ ﻞﻴﻐﺸﺘﻟا
يوﺪﻴﻟا شﺮﻟا سﺪﺴﻣ عارذ ﺰﺠﺤﺑ ﻖﻠﻐﻟا مﺎﻤﺻ مﻮﻘﻳ
.ﺪﻤﻌﺘﻣ ﺮﻴﻏ ﻞﻜﺸﺑ زﺎﻬﺠﻟا ﻞﻴﻐﺸﺗ ءﺪﺑ نود لﻮﺤﻳو
مﻮﻘﻳ ،يوﺪﻴﻟا شﺮﻟا سﺪﺴﻤﺑ عارﺬﻟا ﺮﻳﺮﺤﺗ ﺔﻟﺎﺣ ﻲﻓ
ﻼﻏﺈﺑ ﻂﻐﻀﻟا حﺎﺘﻔﻣ ﻰﻠﻋ ﻞﻤﻌﺗ ﻲﺘﻟا ﺔﺨﻀﻤﻟا ق
،عارﺬﻟا ﺐﺤﺳ ﺪﻨﻋو .ﻲﻟﺎﻌﻟا ﻂﻐﻀﻟا عﺎﻌﺷ فﺎﻘﻳإ
.ىﺮﺧأ ةﺮﻣ ﺔﺨﻀﻤﻟا ﻞﻤﻌﺗ
몇
ﻪﻳﻮﻨﺗ
ﻼﻣ ءاﺪﺗرا ﻢﺘﻳ ﺔﺒﺳﺎﻨﻣ ﺔﻴﻗاو تارﺎﻈﻧو ﺲﺑ
.ةﺮﺛﺎﻨﺘﻣ ﺪﺗﺮﺗ ﻲﺘﻟا تاروذﺎﻘﻟاو هﺎﻴﻤﻟا ﻦﻣ ﺔﻳﺎﻤﺤﻠﻟ
زﺎﻬﺟ ماﺪﺨﺘﺳا ءﺎﻨﺛأ رﺎﺒﻐﻟا ﺄﺸﻨﻳ نأ ﻦﻜﻤﻳ
ﺐﺒﺴﺘﻳ ﺪﻗو .ﻲﻟﺎﻌﻟا ﻂﻐﻀﻟا يذ ﻒﻴﻈﻨﺘﻟا
ﻻ ﺔﻴﺤﺻ راﺮﺿأ ثوﺪﺣ ﻲﻓ رﺎﺒﻐﻟا قﺎﺸﻨﺘﺳاًﻘﺣ.ﺎ
–
ﴼﻘﻓوﻼﻟ تﺎﺜﻔﻨﻤﻟا ماﺪﺨﺘﺳا ﻦﻜﻤﻳ ماﺪﺨﺘﺳ
ﻷا تﺎﻔﻈﻨﻤﻛ) ﻞﻣﺎﻛ ﻞﻜﺸﺑ ﺔﻴﻤﺤﻤﻟا ﻰﻠﻋ ﺢﻄﺳ
ﻲﺘﻟاو ﻲﻟﺎﻌﻟا ﻂﻐﻀﻟﺎﺑ ﻒﻴﻈﻨﺘﻠﻟ (لﺎﺜﻤﻟا ﻞﻴﺒﺳ
ﺄﺒﻌﻤﻟا يﻮﺠﻟا ءﺎﺒﻬﻟا تﺎﺛﺎﻌﺒﻧا ﺢﺿاو ﻞﻜﺸﺑ ﻞﻠﻘﺗ
.ءﺎﻤﻟﺎﺑ
–
ﻲﻓ ﻦﻜﻤﻣ ﺮﻴﻏ هﺬﻫ ﺔﻳﺎﻤﺤﻟا ةﺰﻴﻬﺠﺗ ماﺪﺨﺘﺳاو
ﻻا ﻊﻴﻤﺟ.تﺎﻣاﺪﺨﺘﺳ
–
ﻲﻤﺤﻤﻟا ﺚﻔﻨﻤﻟا ماﺪﺨﺘﺳا ﻦﻜﻳ ﻢﻟ ﺎﻣ ﺔﻟﺎﺣ ﻲﻓو
ﴼﻨﻜﻤﻣ ﻞﻣﺎﻛ ﻞﻜﺸﺑ ﺲﻔﻨﺗ عﺎﻨﻗ ماﺪﺨﺘﺳا ﻲﻐﺒﻨﻳ
) ﺔﺌﻔﻟا ﻦﻣ قاوFFP 2ﴼﻘﻓو ﺎﻬﻠﺛﺎﻤﻳ ﺎﻣ وأ ( ﺔﺌﻴﺒﻠﻟ
.ﺎﻬﻔﻴﻈﻨﺗ داﺮﻤﻟا
ﻼﻤﺘﺸﻤﻟ ةرﻮﺻ ﺔﺒﻠﻌﻟا ﻰﻠﻋ ﺪﺟﻮﻳ ﺎﻌﺒﺗ) زﺎﻬﺠﻟا ت
تارﺎﻴﺨﻟا ﻊﻴﻤﺟ اﺬﻫ ﻞﻴﻐﺸﺘﻟا ﻞﻴﻟد ﻒﺼﻳ .(زاﺮﻄﻠﻟ
.ﺔﻨﻜﻤﻤﻟا
1ﻲﻟﺎﻌﻟا ﻂﻐﻀﻟا ﺔﻠﺻو
2"فﺎﻘﻳإ /ﻞﻴﻐﺸﺗ" زﺎﻬﺠﻟا حﺎﺘﻔﻣ
3ﻆﻔﺤﻟا تﺎﻓﺎﻄﺧ
4 ﺾﺒﻘﻣ
5ﻚﻔﻠﻟ ﻞﺑﺎﻗ ،ﻞﻘﻨﻠﻟ ﺾﺒﻘﻣ
6ﻷا ﻆﻔﺣ نﺎﻜﻣثﺎﻔﻨﻟا بﻮﺒﻧ
7ﻲﻟﺎﻌﻟا ﻂﻐﻀﻟا سﺪﺴﻣ ﻦﻳﺰﺨﺗ
8ﺔﺒﻛﺮﻣ ةﺎﻔﺼﻤﺑ ةدوﺰﻣ ءﺎﻣ ﺔﻠﺻو
9ءﺎﻤﻟا ﺔﻠﺻﻮﻟ ﺔﻧرﺎﻗ
10 ﺲﺑﺎﻘﻟاو ﻲﺴﻴﺋﺮﻟا ﻞﻴﺻﻮﺘﻟا ﻚﻠﺳ ﺔﻠﺻو
ﻲﺋﺎﺑﺮﻬﻜﻟا
11ﻞﻘﻧ ﺔﻠﺠﻋ
12ﻲﻟﺎﻌﻟا ﻂﻐﻀﻟا سﺪﺴﻣ
13ﻲﻟﺎﻌﻟا ﻂﻐﻀﻟا سﺪﺴﻣ ﻖﻠﻏ مﺎﻤﺻ
14ﻲﻟﺎﻌﻟا ﻂﻐﻀﻟا مﻮﻃﺮﺨﻟ ﻚﺒﺸﻣ
15ﻲﻟﺎﻌﻟا ﻂﻐﻀﻟا مﻮﻃﺮﺧ
16تاروذﺎﻘﻟا ﻞﻳﺰﻣ عﺎﻌﺷ بﻮﺒﻧﺄﺑ ﻞﻣﺎﻜﻟا ﻢﻜﺤﺘﻟا
ﻼﻟ ﺔﺒﺴﻨﻟﺎﺑةﺪﻴﻨﻌﻟا تﺎﺧﺎﺴﺗ
ﻦﺸﺧ :ﻂﻐﻀﻟا ىﻮﺘﺴﻣ
17 عﺎﻌﺸﻟا بﻮﺒﻧﺄﺑ ﻞﻣﺎﻜﻟا ﻢﻜﺤﺘﻟاClick-Vario
Power
ُﻳﻻا ﻒﻴﻈﻨﺘﻟا مﺎﻬﻤﺑ مﺎﻴﻘﻠﻟ مﺪﺨﺘﺴﺔﻳدﺎﻴﺘﻋ
/ ﻢﻋﺎﻧ / ﻂﺳﻮﺘﻣ / ﻦﺸﺧ :ﻂﻐﻀﻟا تﺎﻳﻮﺘﺴﻣ
ﻂﻴﻠﺧ
ﻼﺴﻟا تادﺎﺷرإﺔﻣ
زﺎﻬﺠﻟا ﻞﻴﻐﺸﺗ حﺎﺘﻔﻣ
يوﺪﻴﻟا شﺮﻟا سﺪﺴﻣ ﻖﻠﻏ مﺎﻤﺻ
ﻂﻐﻀﻟا حﺎﺘﻔﻤﺑ دوﺰﻤﻟا ﺪﺋاﺰﻟا رﺎﻴﺘﻟا مﺎﻤﺻ
زﺎﻬﺠﻟا ﻰﻠﻋ ةدﻮﺟﻮﻤﻟا زﻮﻣﺮﻟا
ﻲﻟﺎﻌﻟا ﻂﻐﻀﻟا عﺎﻌﺷ ﻪﻴﺟﻮﺗ مﺪﻋ ﺐﺠﻳ
ﻷا ﻰﻠﻋﻷا وأ تﺎﻧاﻮﻴﺤﻟا وأ صﺎﺨﺷ ةﺰﻬﺟ
زﺎﻬﺠﻟا ﻰﻠﻋ ﻰﺘﺣ وأ ﺔﻠﻌﻔﻤﻟا ﺔﻴﺋﺎﺑﺮﻬﻜﻟا
.ﻪﺴﻔﻧ
.ﺪﻤﺠﺘﻟا ﻦﻣ زﺎﻬﺠﻟا ﺔﻳﺎﻤﺣ ﻰﻠﻋ صﺮﺣا
ﻻ هﺎﻴﻣ ﺔﻜﺒﺸﺑ زﺎﻬﺠﻟا ﻞﻴﺻﻮﺗ ﻢﺘﻳ نأ ﺐﺠﻳ
.ﺮﺷﺎﺒﻣ ﻞﻜﺸﺑ ﺔﻴﻣﻮﻤﻌﻟا بﺮﺸﻟا
ﺔﻴﺼﺨﺸﻟا ﺔﻳﺎﻤﺤﻟا تاﺪﻌﻣ
زﺎﻬﺠﻟا ﻒﺻو
*يرﺎﻴﺘﺧا
18ﻞﺴﻐﻟا ةﺎﺷﺮﻓ
.ﻒﻴﻈﻨﺘﻟا داﻮﻣ ماﺪﺨﺘﺳﺎﺑ ﻞﻤﻌﻠﻟ ﺔﺤﻟﺎﺻ
19ةﻮﻏﺮﻟا ﺔﻫﻮﻓ
.ﺔﻳﻮﻘﻟا ﻒﻴﻈﻨﺘﻟا داﻮﻣ ةﻮﻏﺮﻟ
20ﻒﻴﻈﻨﺘﻟا داﻮﻣ
21(ﺮﺘﻠﻔﺑ دوﺰﻣ) ﻒﻴﻈﻨﺘﻟا ةدﺎﻣ ﻂﻔﺷ مﻮﻃﺮﺧ
**ﻹﺎﺑ مﺰﻠﻳوﻚﻟذ ﻰﻟإ ﺔﻓﺎﺿ
22 ﺔﻧرﺎﻘﺑ دوﺰﻤﻟا ﺞﻴﺴﻨﻟا ىﻮﻘﻤﻟا هﺎﻴﻤﻟا مﻮﻃﺮﺧ
.ﺔﻟواﺪﺘﻣ
–ﻻ ﺮﻄﻘﻟا ﻦﻋ ﻞﻘﻳ 1/2) ﺔﺻﻮﺑ 13.(ﻢﻠﻣ
–ﻻ لﻮﻄﻟا ﻦﻋ ﻞﻘﻳ 7.5.ﺮﺘﻣ
3
ﻼﻋ لوأ ﺢﻀﺘﺗوّﻴﻐﺗ ﻲﻓ ﻚﻟذ ثوﺪﺣ ﻰﻠﻋ ﺔﻣ نﻮﻟ ﺮ
ﻹاُﺗو .رﺎﻃ تﺎﻣﺎﻤﺻو تارﺎﻴﺴﻟا تارﺎﻃإ ﻞﻜﺸ
ﻹاﻷا ةﺎﻴﺣ ﻰﻠﻋ ةرﻮﻄﺧ ﺔﻔﻟﺎﺘﻟا تارﺎﻃ .داﺮﻓ
ُﻳﻻأ ﻒﻴﻈﻨﺘﻟا ﺪﻨﻋ ﻰﻋاﺮ عﺎﻌﺸﻟا ﻦﻴﺑ ﺔﻓﺎﺴﻤﻟا ﻞﻘﺗ
ﻦﻋ ﻪﻔﻴﻈﻨﺗ ﻢﺘﻳ يﺬﻟا ﻢﺴﺠﻟاو30!ﻢﺳ
몇
ﺮﻳﺬﺤﺗ
ﻻُﻳ ﻦﻳﺮﺧآ صﺎﺨﺷأ ﺪﺟاﻮﺗ ﺪﻨﻋ زﺎﻬﺠﻟا مﺪﺨﺘﺴ
ﻻإ ﻞﻤﻌﻟا قﺎﻄﻧ ﻲﻓﻼﻤﻟ ﻢﻬﺋاﺪﺗرا ﻊﻣ .ﺔﻴﻗاو ﺲﺑ
ﻷا ﻞﺒﻗ ﻦﻣ زﺎﻬﺠﻟا ﻞﻴﻐﺸﺘﺑ حﻮﻤﺴﻣ ﺮﻴﻏ وأ لﺎﻔﻃ
.ﻦﻴﺑرﺪﻤﻟا ﺮﻴﻏ
ﻼﻟ ﺺﺼﺨﻣ ﺮﻴﻏ زﺎﻬﺠﻟا اﺬﻫ ﻞﺒﻗ ﻦﻣ ماﺪﺨﺘﺳ
ﻷا وأ ﺔﻴﺴﺤﻟا وأ ﺔﻴﻧﺪﺒﻟا تارﺪﻘﻟا يدوﺪﺤﻣ صﺎﺨﺷ
ﻻ ﻦﻣ وأ ﺔﻴﻠﻘﻌﻟا ﺔﻓﺮﻌﻤﻟا وأ/و ةﺮﺒﺨﻟا ﻢﻬﻳﺪﻟ ﺮﻓاﻮﺘﺗ
ﻻإﻹا ﻢﺗ اذإ ﺺﺘﺨﻣ ﺺﺨﺷ ﻞﺒﻗ ﻦﻣ ﻢﻬﻴﻠﻋ فاﺮﺷ
ﻼﺳو ﻢﻬﻨﻣﺄﺑ تﺎﻤﻴﻠﻌﺗ ﻰﻠﻋ ﻢﻬﻟﻮﺼﺣ ﺪﻌﺑ وأ ﻢﻬﺘﻣ
اﺬﻫ ماﺪﺨﺘﺳا ﺔﻴﻔﻴﻛ نﺄﺸﺑ ﺺﺨﺸﻟا اﺬﻫ ﻦﻣ
ﻷاو زﺎﻬﺠﻟا .ﻚﻟذ ﻦﻋ ﺔﺌﺷﺎﻨﻟا رﺎﻄﺧ
ﻻﻸﻟ ﺢﻤﺴﻳ .زﺎﻬﺠﻟﺎﺑ ﺚﺒﻌﻟﺎﺑ لﺎﻔﻃ
ﻷا ﺔﺒﻗاﺮﻣ ﻲﻐﺒﻨﻳﻼﺗ مﺪﻋ نﺎﻤﻀﻟ لﺎﻔﻃ ﻢﻬﺒﻋ
.زﺎﻬﺠﻟﺎﺑ
몇
ﻪﻳﻮﻨﺗ
ﻪﻣاﺪﺨﺘﺳﺎﺑ وأ زﺎﻬﺠﻟا ﻰﻠﻋ لﺎﻤﻋأ ﺔﻳأ ءاﺮﺟإ ﻞﺒﻗ
نود ﺔﻟﻮﻴﺤﻠﻟ زﺎﻬﺠﻠﻟ تﺎﺒﺜﻟا ﺮﻴﻓﻮﺗ ﻰﻠﻋ صﺮﺣا
ﻹا وأ ثداﻮﺤﻠﻟ ﻪﺿﺮﻌﺗ.تﺎﺑﺎﺻ
ﻂﻐﻀﻟا ﺚﻔﻨﻤﺑ جرﺎﺨﻟا ءﺎﻤﻟا عﺎﻌﺷ ﺮﻴﺛﺄﺘﺑو
شﺮﻟا سﺪﺴﻣ ﻰﻠﻋ ﺔﻳداﺪﺗرا ةﻮﻗ ﺮﺛﺆﺗ ﻲﻟﺎﻌﻟا
مﺎﻜﺣإو ﻦﻣآ فﻮﻗو ﺮﻴﻓﻮﺘﺑ ﺔﻳﺎﻨﻌﻟا ﺐﺠﻳ .يوﺪﻴﻟا
.عﺎﻌﺸﻟا بﻮﺒﻧأو يوﺪﻴﻟا شﺮﻟا سﺪﺴﻣ ﺖﻴﺒﺜﺗ
ًﻤﺋاد ﻚﻴﻠﻋ ﺐﺠﻳ زﺎﻬﺠﻟا نﺎﻛ ﺎﻤﻟﺎﻃ زﺎﻬﺠﻟا ﺔﺒﻗاﺮﻣ ﺎ
.ﻞﻴﻐﺸﺘﻟا ﺪﻴﻗ
ﻪﻴﺒﻨﺗ
صﺮﺣا ﺔﻠﻳﻮﻃ تاﺮﺘﻔﻟ ﻞﻴﻐﺸﺘﻟا ﻒﻗﻮﺗ ﺔﻟﺎﺣ ﻲﻓ
/ ﻲﺴﻴﺋﺮﻟا حﺎﺘﻔﻤﻟا ﻖﻳﺮﻃ ﻦﻋ زﺎﻬﺠﻟا فﺎﻘﻳإ ﻰﻠﻋ
ﻷا حﺎﺘﻔﻣ ﻦﻣ رﺎﻴﺘﻟا ﺲﺑﺎﻗ ﻊﻠﺨﺑ ﻢﻗ و ةﺰﻬﺟ
.ﺔﻴﺋﺎﺑﺮﻬﻜﻟا ﺔﻜﺒﺸﻟا
ﻻ ﺖﺤﺗ ةراﺮﺣ تﺎﺟرد ﻲﻓ زﺎﻬﺠﻟا ﻞﻴﻐﺸﺗ ﺐﺠﻳ
.ﺮﻔﺼﻟا
몇
ﺮﻳﺬﺤﺗ
ﻻ زﺎﻬﺠﻟا اﺬﻫ ﺮﻳﻮﻄﺗ ﻢﺗ ﺪﻘﻟ داﻮﻣ ماﺪﺨﺘﺳ
ﺢﺼﻨﺗ وأ ﺔﺠﺘﻨﻤﻟا ﺔﻛﺮﺸﻟا ﺎﻬﺠﺘﻨﺗ ﻲﺘﻟا ﻒﻴﻈﻨﺘﻟا
ﻦﻣ ىﺮﺧأ عاﻮﻧأ ماﺪﺨﺘﺳا نأ ﺎﻤﻛ .ﺎﻬﻣاﺪﺨﺘﺳﺎﺑ
ﻼﺴﺑ ﺮﻀﻳ ﺪﻗ تﺎﻳوﺎﻤﻴﻜﻟا وأ ﻒﻴﻈﻨﺘﻟا داﻮﻣ ﺔﻣ
.زﺎﻬﺠﻟا
ﻻا نأ ﻦﻜﻤﻳ ﻒﻴﻈﻨﺘﻟا داﻮﻤﻟ ﺊﻃﺎﺨﻟا ماﺪﺨﺘﺳ
ﻻﺎﺣ وأ ﺔﻐﻟﺎﺑ تﺎﺑﺎﺻإ ثوﺪﺣ ﻰﻟإ يدﺆﻳ.ﻢﻤﺴﺗ ت
ﴽﺪﻴﻌﺑ ﻒﻴﻈﻨﺘﻟا ةدﺎﻣ ﻆﻔﺣ ﺐﺠﻳ لوﺎﻨﺘﻣ ﻦﻋ
ﻷا.لﺎﻔﻃ
ﺮﻄﺧ
ُﻳًﺋﺎﻬﻧ ﺮﻈﺤﻷا ﻲﻓ زﺎﻬﺠﻟا ﻞﻴﻐﺸﺗ ﺎﻴ ﺔﻠﺑﺎﻘﻟا ﻦﻛﺎﻣ
ﻼﻟ.رﺎﺠﻔﻧ
ﻻﻷا ﻒﻴﻈﻨﺘﻟ شﺮﻟا ﻢﺘﻳ ﻰﻠﻋ يﻮﺘﺤﺗ ﻲﺘﻟا ءﺎﻴﺷ
ﻞﺜﻣ) ﺔﺤﺼﻟا ﻰﻠﻋ ةرﻮﻄﺧ ﻞﺜﻤﺗ داﻮﻣ
ﻷا.(سﻮﺘﺴﺒﺳ
ﻻﻼﻟ ﺔﻠﺑﺎﻗ ﻞﺋاﻮﺳ مﺪﺨﺘﺴﺗ ﺔﻴﻠﻤﻋ ﻲﻓ لﺎﻌﺘﺷ
.شﺮﻟا
ﻻ ﺔﺒﻳﺬﻣ داﻮﻣ ﻰﻠﻋ يﻮﺘﺤﺗ ﻞﺋاﻮﺳ ﻂﻔﺷ ﺎﻴﺋﺎﻬﻧ ﻢﺘﻳ
لﺎﺜﻤﻟا ﻞﻴﺒﺳ ﻰﻠﻋ ﺎﻬﻨﻣو !ﺔﻔﻔﺨﻣ ﺮﻴﻏ ضﺎﻤﺣأ وأ
ﻷا تﺎﻔﻔﺨﻣ وأ ﻦﻳﺰﻨﺒﻟا .ﺔﻨﺧﺎﺴﻟا تﻮﻳﺰﻟا وأ ناﻮﻟ
ﺔﻴﻟﺎﻋ ﺔﻴﻠﺑﺎﻗ تاذ ةدﺎﻣ شﺎﺷﺮﻟا بﺎﺒﺿ ﺪﻌﻳ
ﻼﻟﻻ .ﺔﻣﺎﺳو ةﺮﺠﻔﺘﻣو لﺎﻌﺘﺷ لﺎﻤﻌﺘﺳا ﻢﺘﻳ
ﻷاﻷاو نﻮﺘﻴﺳ داﻮﻤﻟاو ﺔﻔﻔﺨﻤﻟا ﺮﻴﻏ ضﺎﻤﺣ
ﻷ ﺔﺒﻳﺬﻤﻟا ﻊﻨﺻ ﻲﻓ ﺔﻣﺪﺨﺘﺴﻤﻟا تﺎﻣﺎﺨﻟا ﺮﻀﺗ ﺎﻬﻧ
.زﺎﻬﺠﻟا
ًﺪﻴﻌﺑ ﻒﻴﻠﻐﺘﻟا ﻖﺋﺎﻗر ﻆﻔﺣاﻷا لوﺎﻨﺘﻣ ﻦﻋ ا ،لﺎﻔﻃ
ﻻا ﺮﻄﺧ!قﺎﻨﺘﺧ
몇
ﺮﻳﺬﺤﺗ
ُﻳ ﺔﻳرﺎﺴﻟا ﺪﻋاﻮﻘﻠﻟ ﺎﻘﻓو زﺎﻬﺠﻟا ﻞﻴﻐﺸﺗ ﺮﻈﺤ
هﺎﻴﻣ ﺔﻜﺒﺸﺑ مﺎﻈﻨﻟا ﻞﺻﺎﻓ دﻮﺟو نوﺪﺑ ﺎﻘﻠﻄﻣ
صﺎﺨﻟا هﺎﻴﻤﻟا ﻖﻓﺮﻣ ﺔﻠﺻو نأ ﻦﻣ ﺪﻛﺄﺗ .بﺮﺸﻟا
ﻲﻟﺎﻌﻟا ﻂﻐﻀﻟا ﻒﻈﻨﻣ ﻞﻴﻐﺸﺗ ﻢﺘﻳ يﺬﻟاو ﻚﻟﺰﻨﻤﺑ
ﴼﻘﻓو مﺎﻈﻧ ﻞﺻﺎﻔﺑ ةﺰﻬﺠﻣ ﺎﻬﻴﻠﻋ ﺮﻴﻳﺎﻌﻤﻠﻟ
ﻷا) ﺔﻴﺑوروEN 12729 Typ BA.(
ﻻ مﺎﻈﻨﻟا ﻞﺻﺎﻓ ﻖﻳﺮﻃ ﻦﻋ بﺎﺴﻨﺗ ﻲﺘﻟا هﺎﻴﻤﻟا
.بﺮﺸﻠﻟ ﺔﺤﻟﺎﺻ هﺎﻴﻣ ﺪﻌﺗ
تﺎﻧرﺎﻘﻟاو تﺎﺒﻴﻛﺮﺘﻟاو ﻲﻟﺎﻌﻟا ﻂﻐﻀﻟا ﻢﻴﻃاﺮﺧ
ﻷ ﺔﻳروﺮﺿﻻا ﺮﺼﺘﻘﻳ .زﺎﻬﺠﻟا نﺎﻣ ﻰﻠﻋ ماﺪﺨﺘﺳ
تﺎﻧرﺎﻘﻟاو تﺎﺒﻴﻛﺮﺘﻟاو ﻲﻟﺎﻌﻟا ﻂﻐﻀﻟا ﻢﻴﻃاﺮﺧ
.ﺔﺠﺘﻨﻤﻟا ﺔﻛﺮﺸﻟا ﺎﻬﺑ ﺢﺼﻨﺗ ﻲﺘﻟا
ﻂﻐﻀﻟا مﻮﻃﺮﺧ وأ ﺔﻳﺬﻐﺘﻟا مﻮﻃﺮﺧ ﻞﺼﻓ ﺪﻨﻋ
ﻼﺻﻮﻟا ﻦﻣ ﻦﺧﺎﺳ ءﺎﻣ جﺮﺨﻳ ﺪﻗ ﻲﻟﺎﻌﻟا ﺪﻌﺑ ت
.ﻞﻴﻐﺸﺘﻟا
몇
ﻪﻳﻮﻨﺗ
تﺎﻧﺎﻴﺒﻟا ﺮﻈﻧا)زﺎﻬﺠﻟا نزو ةﺎﻋاﺮﻣ ﻰﻠﻋ صﺮﺣا
ﺪﻨﻋ تﺎﺑﺎﺻإ وأ ثداﻮﺣ عﻮﻗو ﺐﻨﺠﺘﻟ (ﺔﻴﻨﻘﺘﻟا
.ﻦﻳﺰﺨﺘﻟا نﺎﻜﻣ رﺎﻴﺘﺧا
ﻻﺎﺣ ﻲﻓ ﻦﻜﻤﻳ زﺎﻬﺠﻟا مﺪﺨﺘﺳا يدﺆﻳ نأ ةردﺎﻧ ت
ﻲﻓ رﺪﺨﺗ ثوﺪﺣ ﻰﻟإ ﻞﺻاﻮﺘﻣ ﻞﻜﺸﺑو تﺎﻋﺎﺴﻟ
.ﻦﻳﺪﻴﻟا
.تازﺎﻔﻘﻟا ءاﺪﺗرا ﻰﺟﺮﻳ
ﻷا ءﺎﻘﺑإو.ﺔﺌﻓاد يﺪﻳ
.ﺔﻤﻈﺘﻨﻣ ﺔﺣار تاﺮﺘﻓ ﺬﺧأو
ﻒﻴﻈﻨﺘﻟا داﻮﻣ ماﺪﺨﺘﺳا
ىﺮﺧأ ﺮﻃﺎﺨﻣ
2
ﻷا ﻞﻴﻐﺸﺘﻟا ﻞﻴﻟد ةءاﺮﻗ ﻰﺟﺮﻳ اﺬﻫ ﻲﻠﺻ
ﻞﻣﺎﻌﺘﻟا ﻢﺛ ،ﻢﻛزﺎﻬﺠﻟ ماﺪﺨﺘﺳا لوأ ﻞﺒﻗ
ﴼﻘﻓو زﺎﻬﺠﻟا ﻊﻣ ﺎﻤﻛ .ﻞﻴﻟﺪﻟا اﺬﻬﺑ ةدراﻮﻟا تﺎﻤﻴﻠﻌﺘﻠﻟ
ﻻا ﻰﺟﺮﻳﻷ ﻞﻴﻐﺸﺘﻟا ﻞﻴﻟﺪﺑ ظﺎﻔﺘﺣ تﺎﻣاﺪﺨﺘﺳا ي
زﺎﻬﺠﻟا ﻢﻴﻠﺴﺗ ﺔﻟﺎﺣ ﻲﻓ وأ ﺪﻌﺑ ﺎﻤﻴﻓ ىﺮﺧأ
.ﻦﻳﺮﺧآ ﻦﻴﻣﺪﺨﺘﺴﻤﻟ
ﻼﻋﻹا ﻰﻠﻋ ةو اﺬﻫ ﻞﻴﻐﺸﺘﻟا ﻞﻴﻟد ﻲﻓ ةدراﻮﻟا تادﺎﺷر
ﻼﺴﻠﻟ ﺔﻣﺎﻌﻟا ﺪﻋاﻮﻘﻟا ةﺎﻋاﺮﻣ ﻚﻴﻠﻋ ﺐﺠﻳ ﺔﻳﺎﻗﻮﻟاو ﺔﻣ
.عﺮﺸﻤﻟا ﺎﻫدﺪﺤﻳ ﻲﺘﻟاو ثداﻮﺤﻟا ﻦﻣ
ﻼﻌﻟ ﺢﻴﺿﻮﺗ زﺎﻬﺠﻟا ﻊﻣ ﻖﻓﺮﻣﻼﻋو ﺮﻳﺬﺤﺘﻟا تﺎﻣ تﺎﻣ
ﻹا ﻰﻟإ لﻮﺻﻮﻠﻟ ﺔﻤﻬﻣ تادﺎﺷرإ ﻲﻄﻌﺗ ﻲﺘﻟاو دﺎﺷر
.رﺎﻄﺧأ نوﺪﺑ ﻞﻴﻐﺸﺗ
ﺮﻄﺧ
ﻻا ﻲﺘﻟا ثوﺪﺤﻟا ﺔﻜﻴﺷو ةﺮﺷﺎﺒﻤﻟا ﺮﻃﺎﺨﻤﻟا ﻰﻟإ هﺎﺒﺘﻧ
ﻲﻓ ﺐﺒﺴﺘﺗ وأ ﺔﻐﻟﺎﺑ ﺔﻳﺪﺴﺟ تﺎﺑﺎﺻإ ﻰﻟإ يدﺆﺗ ﺪﻗ
.ةﺎﻓﻮﻟا
몇
ﺮﻳﺬﺤﺗ
ﻻا ﻰﻟإ يدﺆﺗ ﺪﻗو ﺮﻃﺎﺨﻤﻟا ﺎﻬﻔﺤﺗ ﺪﻗ ﻒﻗاﻮﻣ ﻰﻟإ هﺎﺒﺘﻧ
.ةﺎﻓﻮﻟا ﻲﻓ ﺐﺒﺴﺘﺗ وأ ﺔﻐﻟﺎﺑ ﺔﻳﺪﺴﺟ تﺎﺑﺎﺻإ
몇
ﻪﻳﻮﻨﺗ
ﻻا يدﺆﻳ ﺪﻗ يﺬﻟاو ﻞﻤﺘﺤﻤﻟا ﺮﻴﻄﺨﻟا ﻒﻗﻮﻤﻟا ﻰﻟإ هﺎﺒﺘﻧ
.ﺔﻄﻴﺴﺑ تﺎﺑﺎﺻإ ﻰﻟإ
ﻪﻴﺒﻨﺗ
ﻻا يدﺆﻳ ﺪﻗ يﺬﻟاو ﻞﻤﺘﺤﻤﻟا ﺮﻴﻄﺨﻟا ﻒﻗﻮﻤﻟا ﻰﻟإ هﺎﺒﺘﻧ
.ﺔﻳدﺎﻣ راﺮﺿأ ﻰﻟإ
ﺮﻄﺧ
.ﺔﻴﺋﺎﺑﺮﻬﻛ ﺔﻣﺪﺼﻟ ضﺮﻌﺘﻟا ﺮﻄﺧ
ﻻأ ﺐﺠﻳﻹا ﻢﺘﻳ ﺲﺒﻘﻤﻟاو ﺔﻜﺒﺸﻟا ﺲﺑﺎﻘﺑ كﺎﺴﻣ
ﴼﻴﺋﺎﻬﻧ ءﺎﻤﻟﺎﺑ ﺔﻠﺘﺒﻣ يﺪﻳﺄﺑ.
ﻚﻠﺳ ﺔﻠﺻﻮﺑ تﺎﻴﻔﻠﺗ دﻮﺟو مﺪﻋ ﻦﻣ ﻖﻘﺤﺘﻟا ﺐﺠﻳ
ﻪﺑ دﻮﺟﻮﻤﻟا ﻞﺻﻮﻟا ﺲﺑﺎﻗو ﻲﺴﻴﺋﺮﻟا ﻞﻴﺻﻮﺘﻟا
ارﻮﻓ صﺮﺣا .ةﺮﻣ ﻞﻛ ﻲﻓ ﻞﻴﻐﺸﺘﻟا ﻞﺒﻗ ﻚﻟذو
ﻲﺴﻴﺋﺮﻟا ﻞﻴﺻﻮﺘﻟا ﻚﻠﺳ ﺔﻠﺻو لاﺪﺒﺘﺳا ﻰﻠﻋ
ﻼﻤﻌﻟا ﺔﻣﺪﺧ ﻖﻳﺮﻃ ﻦﻋ ﺔﻔﻟﺎﺘﻟا ﻲﻨﻓ /ةﺪﻤﺘﻌﻤﻟا ء
ﻻ .ﺺﺘﺨﻣ ﻲﺋﺎﺑﺮﻬﻛ ﺔﻄﺳاﻮﺑ زﺎﻬﺠﻟا ﻞﻴﻐﺸﺘﺑ ﻢﻘﺗ
.ﻒﻟﺎﺗ ﻲﺴﻴﺋر ﻞﻴﺻﻮﺗ ﻚﻠﺳ
ﻷا ﻊﻴﻤﺟ ﺔﻳﺎﻤﺣ ﺐﺠﻳ ﻲﻓ رﺎﻴﺘﻟا ﺎﻬﺑ ﺮﻤﻳ ﻲﺘﻟا ءاﺰﺟ
.ءﺎﻤﻟا عﺎﻌﺷ ﻦﻣ ﻞﻤﻌﻟا قﺎﻄﻧ
تﺎﻧرﺎﻗو ﻞﺻﻮﻟا ﺲﺑﺎﻗ ﻦﻣ ﻞﻛ نﻮﻜﻳ نأ ﺐﺠﻳ
ﻻأ ﺐﺠﻳ ﺎﻤﻛ ءﺎﻤﻠﻟ موﺎﻘﻣ ﺪﻳﺪﻤﺘﻟا ﻚﻠﺳ ﺎﻌﺿﻮﻳ
ﻻأ ﺐﺠﻳ ءﺎﻤﻟا ﻲﻓﻷا ﻰﻠﻋ ﺔﻧرﺎﻘﻟا نﻮﻜﺗ .ضر
ُﻳ ﻦﻤﻀﺗ ﻲﺘﻟاو ،ﺔﻴﻠﺑﺎﻜﻟا ﺮﻴﺑﺎﻨﻄﻟا ماﺪﺨﺘﺳا ﻞﻀﻔ
ﻦﻋ ﻞﻘﻳ عﺎﻔﺗرا ﻰﻠﻋ ﺲﺑﺎﻘﻤﻟا ﺪﺟاﻮﺗ مﺪﻋ60
ﻷا ﺢﻄﺳ ﻦﻣ ﻢﻣ.ضر
ُﻳﻻأ ﻰﻋاﺮ ﻲﺴﻴﺋﺮﻟا ﻞﻴﺻﻮﺘﻟا ﻚﻠﺳ ﺔﻠﺻو ضﺮﻌﺘﺗ
روﺮﻤﻠﻟ ﺔﺠﻴﺘﻧ ﻒﻠﺘﻟا وأ رﺮﻀﻠﻟ ﺪﻳﺪﻤﺘﻟا ﻚﻠﺳ وأ
ﻼﻟ ﺎﻬﺿﺮﻌﺗ وأ ﺎﻬﻗﻮﻓّﻮﻤﺘﻟا وأ ﻲﻨﺜﻟاو ءاﻮﺘﻟ ج
ﻼﺻو ﺔﻳﺎﻤﺣ ﺐﺠﻳ .ﻚﻟذ ﻪﺑﺎﺷ ﺎﻣو ﺪﻘﻌﺘﻟاو ت
.ةدﺎﺤﻟا فاﻮﺤﻟاو ﺖﻳﺰﻟاو ﺔﻧﻮﺨﺴﻟا ﻦﻣ ﺔﻜﺒﺸﻟا
ﺐﺠﻳ ﺔﻧﺎﻴﺼﻟاو ﺔﻳﺎﻨﻌﻟا لﺎﻤﻋأ ﻊﻴﻤﺠﺑ مﺎﻴﻘﻟا ﻞﺒﻗ
.ﺔﻜﺒﺸﻟا ﺲﺑﺎﻗ ﺐﺤﺳو زﺎﻬﺠﻟا فﺎﻘﻳإ
ﻹا ءاﺮﺟﺈﺑ حﻮﻤﺴﻣ ﺮﻴﻏﻼﺻ ﻞﻤﻌﻟاو تﺎﺣ
ﻻإ زﺎﻬﺠﻟﺎﺑ ﺔﻴﺋﺎﺑﺮﻬﻜﻟا تﺎﻧﻮﻜﻤﻟﺎﺑﻼﻤﻌﻟا ﺔﻣﺪﺨﻟ ء
.ةﺪﻤﺘﻌﻤﻟا
몇
ﺮﻳﺬﺤﺗ
ﺔﻴﺋﺎﺑﺮﻬﻛ ةﺮﺋاد يﺄﺑ زﺎﻬﺠﻟا ﻞﻴﺻﻮﺘﺑ حﻮﻤﺴﻣ ﺮﻴﻏ
ﺺﺘﺨﻣ ﻲﺋﺎﺑﺮﻬﻛ ﺎﻬﺒﻴﻛﺮﺘﺑ مﻮﻘﻳ ﻲﺘﻟا ﻚﻠﺗ ىﻮﺳ
رﺎﻴﻌﻤﻠﻟ ﺎﻘﻓو ﻚﻟذ نﻮﻜﻳوIEC 60364.
ﻻﻻإ زﺎﻬﺠﻟا ﻞﻴﺻﻮﺗ ﻢﺘﻳ نأ ﺐﺠﻳ .ﻂﻘﻓ ددﺮﺘﻣ رﺎﻴﺘﺑ
ﻊﻨﺻ ﺔﺣﻮﻟ ﻰﻠﻋ نوﺪﻣ ﻮﻫ ﺎﻣ ﻊﻣ ﺪﻬﺠﻟا ﻖﺑﺎﻄﺘﻳ
.زﺎﻬﺠﻟا
ﻷ ﻞﻴﻐﺸﺘﺑ ﻲﺳﺎﺳأ ﻞﻜﺸﺑ ﺢﺼﻨﻧ ﺔﻴﻨﻣأ بﺎﺒﺳ
رﺎﻴﺘﻟ ﺔﻴﺋﺎﺑﺮﻬﻜﻟا ةﺮﺋاﺪﻟا ﻊﻄﻗ حﺎﺘﻔﻣ ﺮﺒﻋ زﺎﻬﺠﻟا
ﻰﺼﻗأ ﺪﺤﺑ) ﻞﻠﺨﻟا30.(ﺮﻴﺒﻣأ ﻲﻠﻠﻣ
ﻼﺳأ ﻞﻜﺸﺗ نأ ﻦﻜﻤﻤﻟا ﻦﻣ ﺔﻴﺑﺮﻬﻜﻟا ﺪﻳﺪﻤﺘﻟا ك
ﻼﻤﻟا ﺮﻴﻏﻻ ﺔﺣﻮﺘﻔﻤﻟا ﻖﻃﺎﻨﻤﻟا ﻲﻓ .ةرﻮﻄﺧ ﺔﻤﺋ
ﻻإ مﺪﺨﺘﺴﺗﻼﺳأ ﻼﻤﻟا ﺪﻳﺪﻤﺘﻟا ك حﻮﻤﺴﻤﻟاو ﺔﻤﺋ
ﻲﺿﺮﻌﻟا ﻊﻄﻘﻤﻟا نﻮﻜﻳ نأ ﻰﻠﻋ ضﺮﻐﻟا اﺬﻬﻟ ﺎﻬﺑ
ﴼﻴﻓﺎﻛ ﻚﻠﺴﻠﻟ:
1
-
10 m: 1,5 mm
2
; 10
-
30 m: 2,5 mm
2
ُﻳ.ﻞﻣﺎﻜﻟﺎﺑ ﻞﺑﺎﻜﻟا ةﺮﻜﺑ ﻦﻣ ﺪﻳﺪﻤﺘﻟا ﻚﻠﺳ ﺎﻤﺋاد ﻚﻔ
ﺮﻄﺧ
ﺎﻘﻓو زﺎﻬﺠﻟا لﺎﻤﻌﺘﺳا مﺪﺨﺘﺴﻤﻟا ﻰﻠﻋ ﺐﺠﻳ
فوﺮﻈﻟا هرﺎﺒﺘﻋا ﻲﻓ ﺬﺧﺄﻳ نأو .تﺎﻤﻴﻠﻌﺘﻠﻟ
ﻼﺳ ﻰﻠﻋ صﺮﺤﻳو ﺔﻄﻴﺤﻤﻟا ﺔﻴﻧﺎﻜﻤﻟا ﺔﻣ
ﻷا ﻞﻤﻌﻟا ﺪﻨﻋ نﺎﻜﻤﻟا ﻲﻓ ﻦﻳﺪﺟاﻮﺘﻤﻟا صﺎﺨﺷ
.زﺎﻬﺠﻟا ماﺪﺨﺘﺳﺎﺑ
ًﻤﺋاد ﻖﻘﺤﺗ تﺎﻧﻮﻜﻤﻟا ﻦﻣ ماﺪﺨﺘﺳا ﻞﻛ ﻞﺒﻗو ﺎ
سﺪﺴﻣو ،ﻲﻟﺎﻌﻟا ﻂﻐﻀﻟا مﻮﻃﺮﺧ ﻞﺜﻣ ،ﺔﻣﺎﻬﻟا
ﻷا تاﺰﻴﻬﺠﺗو يوﺪﻴﻟا شﺮﻟا لاﺪﺒﺘﺳا ﻢﺘﻳ .نﺎﻣ
ﻻ .رﻮﻔﻟا ﻰﻠﻋ ﺔﻔﻟﺎﺘﻟا تﺎﻧﻮﻜﻤﻟا ﻞﻴﻐﺸﺘﺑ ﻢﻘﺗ
.ﺔﻔﻟﺎﺗ تﺎﻧﻮﻜﻣ ﺔﻄﺳاﻮﺑ زﺎﻬﺠﻟا
ﺔﻟﺎﺣ ﻲﻓ ةﺮﻴﻄﺧ نﻮﻜﺗ ﺪﻗ ﻲﻟﺎﻌﻟا ﻂﻐﻀﻟا ﺔﻌﺷأ
ﻼﻣ ﺮﻴﻏ وأ ﺊﻃﺎﺧ ﻞﻜﺸﺑ ﺎﻬﻣاﺪﺨﺘﺳا ﺐﺠﻳ .ﻢﺋ
ﻷا ﻰﻠﻋ عﺎﻌﺸﻟا ﻪﻴﺟﻮﺗ مﺪﻋ تﺎﻧاﻮﻴﺤﻟا وأ صﺎﺨﺷ
ﻷا وأ ﻰﻠﻋ ﻰﺘﺣ وأ ﺔﻄﺸﻨﻟا ﺔﻴﺋﺎﺑﺮﻬﻜﻟا ةﺰﻬﺟ
.ﻪﺴﻔﻧ زﺎﻬﺠﻟا
ﻻ وأ ﻚﺴﻔﻧ ﻰﻠﻋ ﻲﻟﺎﻌﻟا ﻂﻐﻀﻟا عﺎﻌﺷ ﻪﺟﻮﺗ
ﻵاﻼﻤﻟا ﻒﻴﻈﻨﺗ فﺪﻬﺑ ﻦﻳﺮﺧﻷا وأ ﺲﺑ.ﺔﻳﺬﺣ
ﻹا تﺎﻣﺎﻤﺻ/تارﺎﻴﺴﻟا تارﺎﻃإ ضﺮﻌﺘﺗ ﺪﻗ تارﺎﻃ
ﻻاو ﻒﻠﺘﻠﻟ .ﻲﻟﺎﻌﻟا ﻂﻐﻀﻟا عﺎﻌﺷ ﺮﻴﺛﺄﺗ ﻦﻣ رﺎﺠﻔﻧ
ﻼﺴﻟا تادﺎﺷرإﺔﻣ
ﺮﻄﺨﻟا تﺎﺟرد
ﺔﻴﺋﺎﺑﺮﻬﻜﻟا تﺎﻧﻮﻜﻤﻟا
ﻵا ﻞﻣﺎﻌﺘﻟاﻦﻣ
http://www.kaercher.com/dealersearch
