Model as shown
KEC36-BK
Spectrum Power Display
TM
Bridge Element (36”)
Trinal
TM
Burner
• Spectrum Power Display
™
provides intuitive and precise control of all
cooktop elements.
• High performance radiant heating elements provide reliable and even heat
distribution for maximum consistency and cooking results.
• Premium Trinal
™
burner ensures optimum cooking exibility.
• Industry exclusive Marquise
™
accented glass cooking surface presents an
authentic visual connection to the Hestan design integrity.
• Versatile bridge element (36” model) transforms conveniently to a larger
cooking surface.
• Low Power setting for delicate cooking and simmering.
• 30” black radiant cooktop has 4 cooking zones, one zone with the Trinal
™
burner.
• Timer function and display.
• Power and hot surface indicators.
• Audible alerts and feedback provide certainty of control interface.
• 36” black radiant cooktop has 5 cooking zones, one zone with the Trinal
™
burner
and a bridge zone.
• Locking controls provide additional safety and peace of mind.
• Automatic Quick-Boil heating function allows for elements to heat up more
quickly to the desired heat setting.
• Elegantly styled professional stainless steel frame adds beauty and protection.
STANDARD FEATURES
RADIANT
COOKTOPS
RADIANT
COOKTOPS
www.hestanhome.com phone 888.905.7463
3375 E. La Palma Ave., Anaheim, CA 92806
RADIANT
COOKTOPS
www.hestanhome.com phone 888.905.7463
3375 E. La Palma Ave., Anaheim, CA 92806CONTACT US:
Built - In
Models
Description
KEC30-BK 30” Radiant Electric Cooktop
KEC36-BK 36” Radiant Electric Cooktop
Circut Breaker
Required
40 Amp 58
65
50 Amp
Approx
SHP WT (lbs)
ELECTRICAL REQUIREMENTS
:
208/240
V, 60Hz, 40 or 50 amps
Hestan Indoor products are approved for indoor
use only. Hestan Commercial Corporation reserves the
right to change materials and specications without
notice.
A
B
SEE NOTE
R

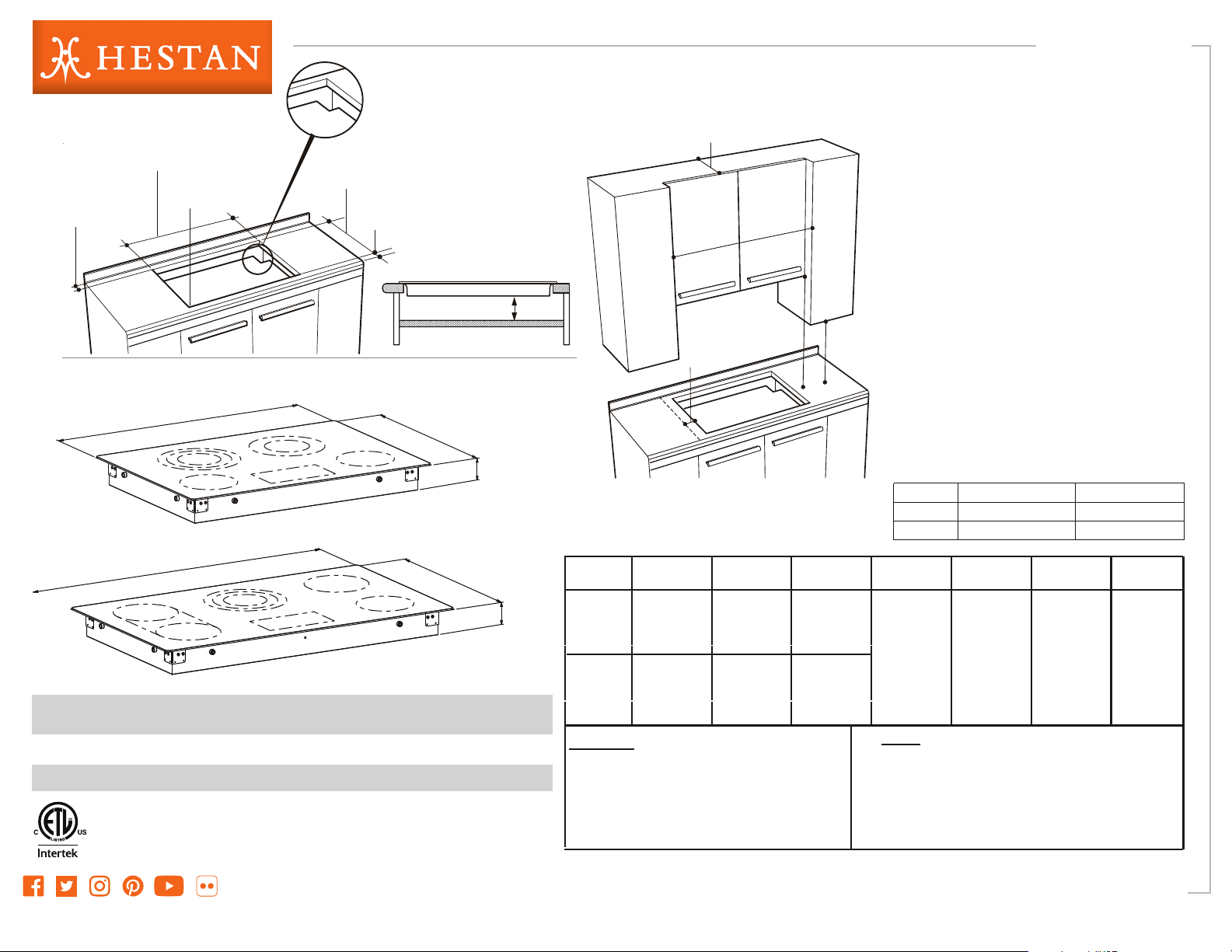

CUTOUT DIMENSIONS
SLOT FOR
CABLE
ROUTING
3-1/2” [9 cm]
2-1/2” [6.5 cm]
LENGTH OF CUT
FROM EDGE OF CUTOUT
AND FRONT EDGE OF
COUNTERTOP
2-1/2” [6.5 cm]
1-1/4” [3.2 cm] Canadian
2-1/4” [5.7cm] US
LENGTH OF CUT
1-1/2” [3.8CM]
MIN CLEARANCE
30” 3/8
[77.1 cm]
21” 3/16
[53.8 cm]
3” 1/8
[7.9 cm]
36” 3/16
[91.9 cm]
21” 3/16
[53.8 cm]
3” 1/8
[7.9 cm]
30” Cooktop
36” Cooktop
D
G
C
E
F
WALL COVERING CABINETS,
AND COUNTERTOP MUST
WITHSTAND HEAT UP TO 200°F [93°C]
CUTOUT REQUIREMENTS
This cooktop has been designed with wide
tolerances of cut-out for when another brand is
being replaced with a Hestan unit. For new
installations, we recommend holding to the
minimum cutout dimensions.
Dim . Inches cm
28-15/16” x 19-9/16” 73.5 x 49.7
34-5/16” x 19-9/16” 87.2 x 49.7
• 30”
• 36”
13” [33 cm]
Depth of
unprotected
overhead
cabinets
2” [5 cm] min
Clearance
from cutout to
side wall on
the left and
right of the
unit
30” [76.2 cm]
min.
[see note*]
Clearance
from
countertop to
unprotected
overhead
surface
18” [45.7 cm]
min
Height from
countertop
to nearest
cabinet on
either side of
unit
A B C D E F G
30”
[76.2 cm] min
36”
[91.4 cm] min
19-1/4”
[49.0 cm]
19-5/8”
[49.8 cm]
19-1/4”
[49.0 cm]
19-5/8”
[49.8 cm]
28-11/16”
[72.9 cm]
28 15/16”
[73.5 cm]
34-1/16”
[86.5 cm]
34-5/16”
[87.2 cm]
CUTOUT
WIDTH
30”
[76.2cm]
36”
[91.4 cm]
Cutout dimensions and requirements
Under the cooktop it is necessary to install a partition
as shown ****
IMPORTANT
* NOTE
24” [61 cm] min. clearance if bottom of wood or metal
cabinets is protected by not less than 1/4” [0.6 cm] ame
retardant millboard covered with no less than No. 28 MSG
sheet steel 0.015” [0.04 cm] stainless steel, or 0.024” [0.06
cm] aluminum or 0.020” [0.05 cm] copper.
30”[76.2 cm] min. clearance between top of cooking platform
and bottom of unprotected wood or metal cabinet
021887 REV A
