This document is part of the product, keep it for the life of the product passing it on to any subsequent holder of

the product. Read all information before operating product.

This guide has been compiled by Draper Tools describing the purpose for which the product has been designed,

and contains necessary information to ensure its correct and safe use. By following the information contained in

this guide, it will ensure both product and operator safety, together with longer life of the product itself.

AlI photographs and drawings in this guide are supplied by Draper Tools to help illustrate the operation of the

product.

Whilst every effort has been made to ensure the accuracy of information contained in this guide, the Draper

Tools policy of continuous improvement determines the right to make modifications without prior warning.

APPLICATION GUIDE FOR:

CAMSHAFT SPROCKET PULLER AND

BALANCE SHAFT TOOL

1. TITLE PAGE

1.2 REVISIONS:

Date first published June 2018.

- 11 -

10. EXPLANATION OF SYMBOLS

- 2 -

10.1 EXPLANATION OF SYMBOLS

Refer to website.

As our user manuals are continually updated, users should make sure that they use

the very latest version.

Downloads are available from: http://drapertools.com

Draper Tools Limited

Hursley Road

Chandler’s Ford

Eastleigh

Hampshire

SO53 1YF

Website: drapertools.com

Product Helpline: +44 (0) 23 8049 4344

General Fax: +44 (0) 23 8026 0784

1.3 UNDERSTANDING THIS GUIDES SAFETY CONTENT:

WARNING! – Information that draws attention to the risk of injury or death.

CAUTION! – Information that draws attention to the risk of damage to the product or

surroundings.

Permission is granted to reproduce this publication for personal and educational use

only. Commercial copying, redistribution, hiring or lending is prohibited.

No part of this publication may be stored in a retrieval system or transmitted in any

other form or means without written permission from Draper Tools Limited.

In all cases this copyright notice must remain intact.

Read the guide.

1.1 INTRODUCTION:

USER GUIDE FOR: Camshaft Sprocket Puller and Balance Shaft Tool

Stock No: 19156

Part No: ETK237

2. CONTENTS

- 3 -

- 10 -

Depending on manufacture and model, some engine components do change. Please check with

Autodata or the manufacturer’s data before use.

1. TITLE PAGE

1.1 INTRODUCTION.......................................................................................................... 2

1.2 REVISION HISTORY .................................................................................................. 2

1.3 UNDERSTANDING THIS GUIDE................................................................................. 2

1.4 COPYRIGHT NOTICE .................................................................................................2

2. CONTENTS

2.1 CONTENTS ....................................................................................................................3

3. GUARANTEE

3.1 GUARANTEE ............................................................................................................... 4

4. GENERAL PRODUCT INFORMATION

4.1 GENERAL PRODUCT INFORMATION ....................................................................... 5

5. HEALTH AND SAFETY INFORMATION

5.1 GENERAL SAFETY INSTRUCTIONS FOR USE

Personal safety........................................................................................................... 6

6. CONTENTS

6.1 PARTS DRAWING AND LISTING ............................................................................... 7

7. APPLICATION

7.1 PRODUCT APPLICATION AND COMPATIBILITY LISTING ...................................... 8

8. PREPARATION

8.1 ADVISORIES BEFORE USE ...................................................................................... 9

9. PROCEDURE AND APPLICATION GUIDE

9.1 APPLICATION GUIDANCE........................................................................................10

10. EXPLANATION OF SYMBOLS

10.1 EXPLANATION OF SYMBOLS .................................................................................. 11

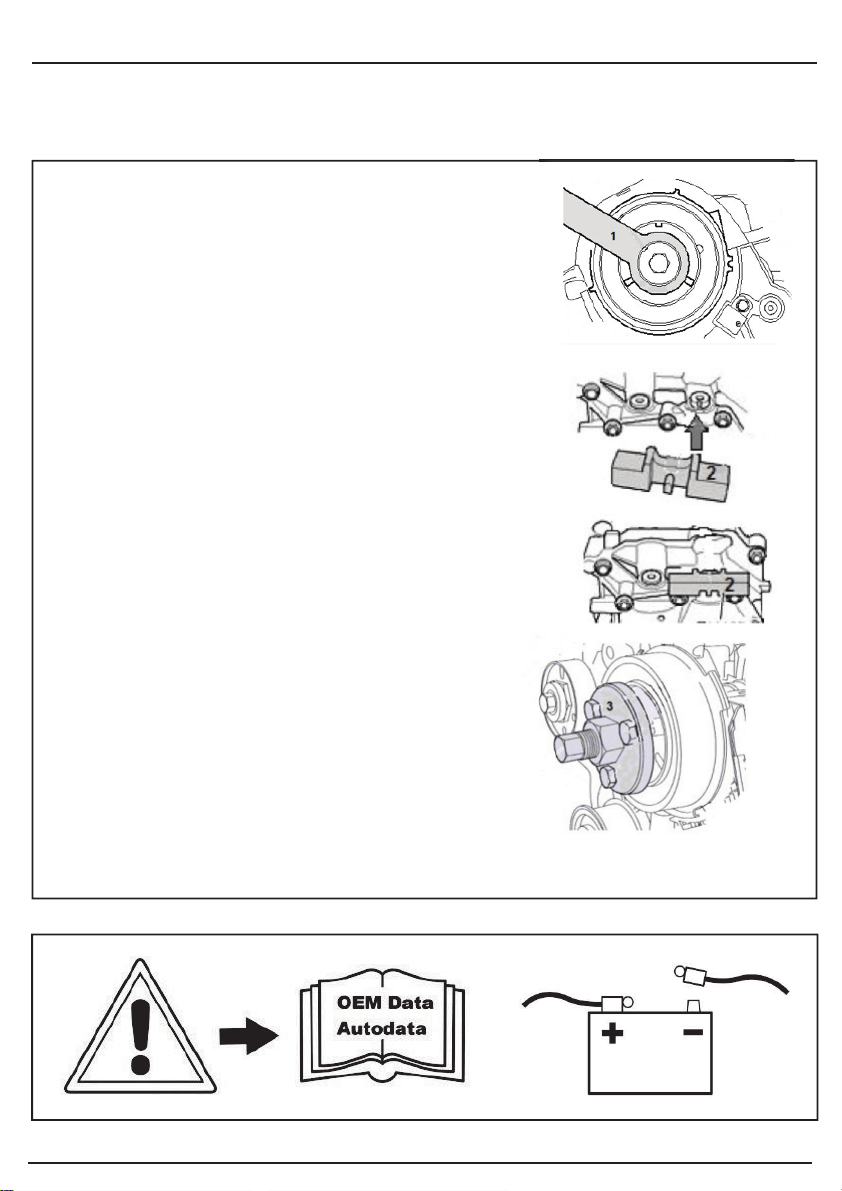

9. PROCEDURE AND APPLICATION GUIDE

Please note images are for guidance only and subject to change.

Component 1

Component 1 is designed to be used with a ½” drive

breaker bar to hold the camshaft pulleys while the

camshaft pulley fixings are removed.

Component 2

Component 2 has been designed to fit as shown in the

diagram to lock the balance shaft in its timed position.

Ensure the engine is at TDC and appropriate locking tools

have been used to lock the camshafts and crankshaft in the

relative positions. The balancer shaft locking tool locates

at the rear of the balance shaft.

Component 3

Component 3 is used to remove the camshaft sprocket

hubs when dismantling the cylinder head or timing the

inlet and exhaust camshafts. Ensure the hub fixing bolt

is left loose in place for the puller to push against.

3. GUARANTEE

3.1 GUARANTEE

Draper tools have been carefully tested and inspected before shipment and are guaranteed to be

free from defective materials and workmanship.

Should the tool develop a fault, please return the complete tool to your nearest distributor or

contact:

Draper Tools Limited, Chandler's Ford, Eastleigh, Hampshire, SO53 1YF. England.

Telephone Sales Desk: (023) 8049 4333 or:

Product Helpline (023) 8049 4344.

A proof of purchase must be provided.

If upon inspection it is found that the fault occurring is due to defective materials or workmanship,

repairs will be carried out free of charge. This guarantee period covering parts/labour is 12 months

from the date of purchase except where tools are hired out when the guarantee period is 90 days

from the date of purchase. This guarantee does not apply to normal wear and tear, nor does it

cover any damage caused by misuse, careless or unsafe handling, alterations, accidents, or

repairs attempted or made by any personnel other than the authorised Draper warranty repair

agent.

Note: If the tool is found not to be within the terms of warranty, repairs and carriage charges will be

quoted and made accordingly.

This guarantee applies in lieu of any other guarantee expressed or implied and variations of its

terms are not authorised.

Your Draper guarantee is not effective unless you can produce upon request a dated receipt or

invoice to verify your proof of purchase within the guarantee period.

Please note that this guarantee is an additional benefit and does not affect your statutory rights.

Draper Tools Limited.

8. PREPARATION

- 4 -

- 9 -

The following is for guidance only. Please refer to OEM derived data such as the vehicle

manufacturer’s own data or Autodata. The use of this product is purely down to the user’s

discretion and Draper Tools Limited cannot be held responsible for any damage caused what so

ever.

4. GENERAL PRODUCT INFORMATION

This product is designed to be used correctly and with care for the purpose for which it is intended.

No liability is accepted by Draper Tools Limited for incorrect use or application of any of our

products, and Draper Tools Limited cannot be held responsible for any damage to personnel,

property or equipment when using this product. Incorrect use will also invalidate any warranty.

The applications database and any instructional information provided has been designed to offer

general guidance for a particular product’s use and while all attention is given to the accuracy of

the data, no project should be attempted without referring first to the manufacturer’s technical

documentation (workshop or instruction manual) or the use of a recognised authority such as

Autodata.

It is our policy to continually improve our products and thus we reserve the right to alter

specifications and components without prior notice. It is the responsibility of the user to ensure the

suitability of the product and information prior to use.

7. APPLICATION

- 5 -

- 8 -

The 19156 has been developed as a camshaft sprocket puller and balance shaft tool for the

vehicles listed below. Designed to allow the user to turn the engine safely and also used to remove

the camshaft sprocket off the tapered mounting on the camshaft. Supplied with a balance shaft

locking tool.

Used on the following Vehicles:

Audi A6 2005 - 2015

Audi Q3 2011 - 2015

Audi Q5 2008 - 2016

Audi TT 2008 - 2014

Seat Toledo 2009 - 2015 TDI CR FR

Seat Alhambra 2005 - 2015 TDI PD

Seat Altea/Altea XL 2009 - 2015 TDI CR

Seat Exeo 2009 - 2013 TDI PD Ecomotive

Seat Ibiza 2009 - 2015 TDI CR Ecomotive

Seat Leon 2009 - 2013 TDI CR Freetrack

Skoda Fabia II 2010 - 2015 TDI CR FR/Sport

Skoda Octavia II 2008 - 2013 vRS TDI CR

Skoda Praktik 2010 - 2015 TDI CR GreenLine

Skoda Rapid 2012 - 2015 TDI CR/BlueMotion/Technology

Skoda Roomster 2010 - 2015 TDI CR GreenLine II

Skoda Superb II 2005 - 2016 TDI CR BlueMotion

Skoda Yeti 2009 - 2016 TDI CR BlueMotion Technology

Volkswagen Amarok 2010 - 2017 TDIe CR

Volkswagen Beetle 2011 - 2015 BiTDI CR 400

Volkswagen Caddy 2010 - 2015 BiTDI CR 420

Volkswagen CC 2012 - 2017

Volkswagen Crafter 2011 - 2017

Volkswagen Eos 2008 - 2015

Volkswagen Golf 2008 - 2015 TDI CR 340

Volkswagen Jetta 2008 - 2015 TDI CR BlueMotion/Technology

Volkswagen Jetta 2011 - 2015 TDI CR/BlueMotion Technology

Volkswagen Passat 2003 - 2015 Blue TDI CR

Volkswagen Polo 2009 - 2014 TDI PD BlueMotion

Volkswagen Scirocco 2008 - 2014 TDI CR 4Motion Achleitner

Volkswagen Sharan 2005 - 2015 TDI CR 4x2

Volkswagen Tiguan 2007 - 2016 GTD CR

Volkswagen Touran 2010 - 2015 BiTDI CR

Volkswagen Transporter T5 2009 - 2015

Engine Codes:

1.2cc - CFWA

1.6cc - CAYB, CAYC, CAYA, CLNA, CAYD, CAYE

2.0cc

CFFA, CFFB, CFFE, CFGB, CFGC, BRT, BVH, CEGA, CFHC, CFJA, CAGA, CAGC, CAHA,

CGLB, CJCA, CJCC, CFHD, CLCB, CFHF, CLCA, BSS, CBBB, CLJA, BMP, CFHA, CBDB,

CFJB, CFCA, CAAA, CAAB, CBAC, CBAA, CAHB, CGLC, CGLD, CJCB, CJCD, CMFA,

CMFB, CGLA, BLB, BNA, BPW, BRC, BRD, BRE, BRF, BVA, BVF, BVG, CFGD, CLLB,

CFHB, CBAB, CAGB, CMGB, CAAC, CAAD, CAAE, CCHA, CCHB, CDCA, CNEA, CSHA,

CDBA, BKP, BMA, BMR, BUZ, BVE, BWV, CBBA, CFFD, CNFB, CFHE, CKUB, CKTB,

CKTC, CKUC, CSLB, CSNA, CJAA, CBDA, CLLA, BGW, BHW, CBDC, CMEA, CGLE

Audi A1 2010 - 2015

Audi A3 2008 - 2013

Audi A4 2004 - 2016

Audi A5 2008 - 2015

5. HEALTH AND SAFETY INFORMATION

6. CONTENTS

- 6 -

- 7 -

GENERAL SAFETY INSTRUCTIONS

Warning: Please read all safety warnings and all details carefully. Failure to follow the warnings

may result in serious injury or major component damage.

Important: Draper Tools recommends that this product should not be modified or used for any

application other than that for which it was designed.

Save all warnings and instructions for future reference.

1) Personal safety

a) Stay alert, watch what you are doing and use common sense when using this product.

Do not use this product while you are tired or under the influence of drugs, alcohol or any

medication. A moment of inattention while using this product may result in serious personal

injury.

b) Use personal protective equipment as necessary.

c) Check and remove any part of the product before turning/testing the engine. A part left

attached to a rotating part of the engine may result in personal injury or major component

damage.

d) Carefully clean the tool components after every use.

f) Keep the tool components safe and tidy.

g) Do not use this product for any purpose other than for which it is designed.

Warning! Some of the packaging materials used may be harmful to children. Do not leave any of

these materials in the reach of children.

If any of the packaging is to be thrown away, make sure it is disposed of correctly; according to

local regulations.

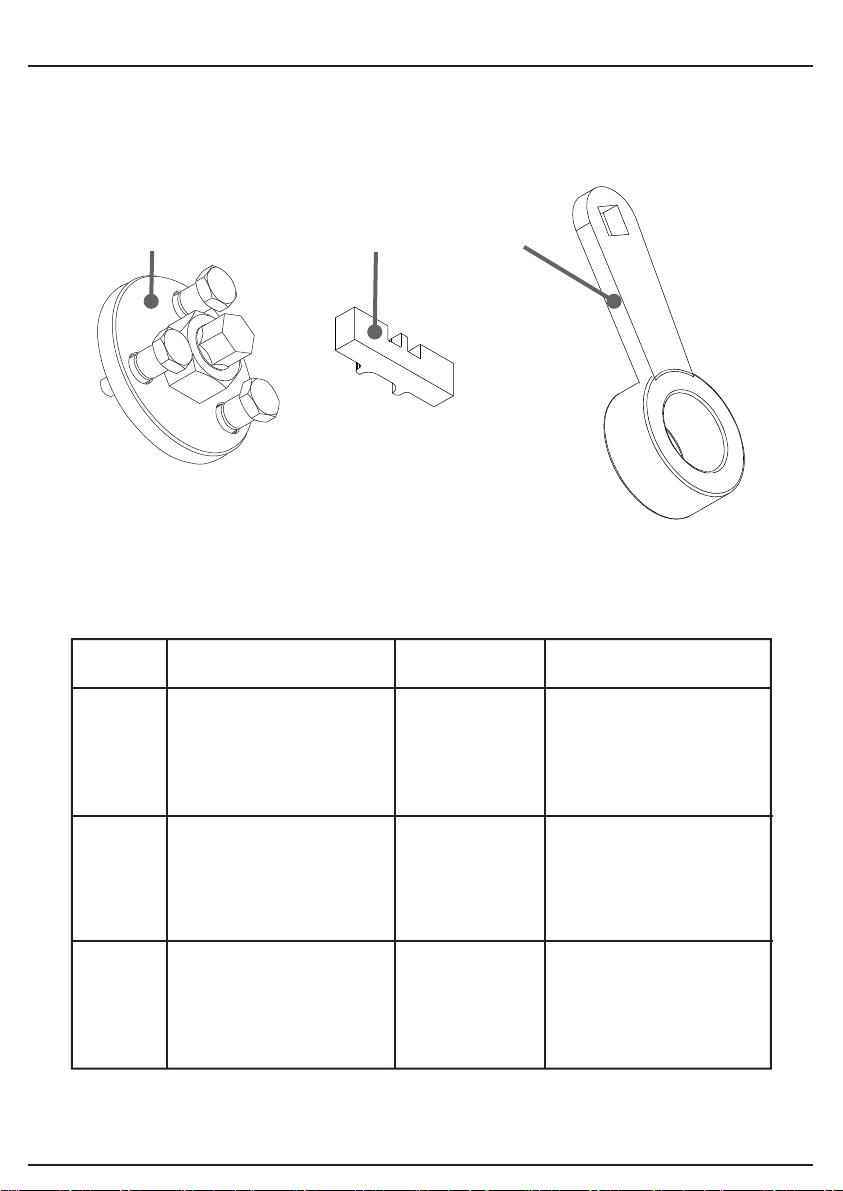

ITEM DESCRIPTION OEM STOCK No.

Camshaft Gear

T10051 35566

Holding Tool

Balance shaft

T10255 35567

Locking Tool

Camshaft

T10052 35568

Sprocket Puller

5. HEALTH AND SAFETY INFORMATION

6. CONTENTS

- 6 -

- 7 -

GENERAL SAFETY INSTRUCTIONS

Warning: Please read all safety warnings and all details carefully. Failure to follow the warnings

may result in serious injury or major component damage.

Important: Draper Tools recommends that this product should not be modified or used for any

application other than that for which it was designed.

Save all warnings and instructions for future reference.

1) Personal safety

a) Stay alert, watch what you are doing and use common sense when using this product.

Do not use this product while you are tired or under the influence of drugs, alcohol or any

medication. A moment of inattention while using this product may result in serious personal

injury.

b) Use personal protective equipment as necessary.

c) Check and remove any part of the product before turning/testing the engine. A part left

attached to a rotating part of the engine may result in personal injury or major component

damage.

d) Carefully clean the tool components after every use.

f) Keep the tool components safe and tidy.

g) Do not use this product for any purpose other than for which it is designed.

Warning! Some of the packaging materials used may be harmful to children. Do not leave any of

these materials in the reach of children.

If any of the packaging is to be thrown away, make sure it is disposed of correctly; according to

local regulations.

ITEM DESCRIPTION OEM STOCK No.

Camshaft Gear

T10051 35566

Holding Tool

Balance shaft

T10255 35567

Locking Tool

Camshaft

T10052 35568

Sprocket Puller
