Hestan KVL42 42 Inch Under Cabinet Liner Hood with Variable User Manual

INDOOR COOKING

Vent Hood - Liner

KVL

Installation, Use and Care Manual

IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED

EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING

PROPERTY DAMAGE, PERSONAL INJURY, OR DEATH.

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or

any other appliance.

Installation and service must be performed by a qualified installer or service agency.

DO NOT REPAIR, REPLACE OR REMOVE ANY PART OF THE APPLIANCE UNLESS

SPECIFICALLY RECOMMENDED IN THE MANUAL. IMPROPER INSTALLATION,

SERVICE OR MAINTENANCE CAN CAUSE INJURY OR PROPERTY DAMAGE. REFER

TO THIS MANUAL FOR GUIDANCE. ALL OTHER SERVICING SHOULD BE DONE BY

A HESTAN AUTHORIZED SERVICE TECHNICIAN.

READ THESE INSTRUCTIONS CAREFULLY AND COMPLETELY BEFORE

INSTALLING OR USING YOUR APPLIANCE TO REDUCE THE RISK OF

FIRE, BURN HAZARD, OR OTHER INJURY. KEEP THIS MANUAL FOR

FUTURE REFERENCE.

SAFETY DEFINITIONS

THIS INDICATES THAT DEATH OR SERIOUS INJURY MAY OCCUR

AS A RESULT OF NOT OBSERVING THIS WARNING

THIS INDICATES THAT MINOR OR MODERATE INJURY MAY

OCCUR AS A RESULT OF NOT OBSERVING THIS WARNING.

THIS INDICATES THAT DAMAGE TO THE APPLIANCE OR

PROPERTY MAY OCCUR AS A RESULT OF NOT OBSERVING THIS

WARNING.

INSTALLER: LEAVE THIS MANUAL WITH THE OWNER OF THE APPLIANCE.

HOMEOWNER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.

Message from Hestan:

Hestan’s award-winning culinary innovations and purpose-built features reinvented

the restaurant kitchen and redefined culinary experience in some of America’s most

acclaimed restaurants. Hestan now takes this performance from the back of the

house and puts it front and center in yours. Thoughtfully designed and meticulously

built, Hestan will serve you beautifully for years to come.

Hestan is the only residential brand born from the dreams and demands of

professional chefs. From ranges to refrigeration, every detail is designed to deliver

the performance and reliability expected in a restaurant – now available for you.

We appreciate you choosing Hestan, and we promise to deliver the very best to you.

Welcome to Hestan

ELECTRICAL SHOCK HAZARD

It is the responsibility of the user to have the appliance connected by a

licensed electrician in accordance with all applicable codes and standards,

including fire-related construction. See step 11 - “WIRING CONNECTION:”

on page14 for details.

ELECTRICAL SUPPLY AND GROUNDING

• This appliance must be grounded. See step 11 - “WIRING CONNECTION:” on page14 for

instructions.

• This appliance must be connected to 120 VAC Single Phase, 60 Hz, with a dedicated 20 amp

circuit.

• OWNER: Have the installer show you where the electric circuit breaker is located so you know

how to shut off the power to this appliance.

Suitable for use in covered outdoor applications when installed in a GFCI protected branch circuit.

TABLE OF CONTENTS

1 SAFETY PRECAUTIONS - BEFORE YOU BEGIN

4 MODEL NUMBERS

4 RATING LABEL

5 REGULATORY / CODE REQUIREMENTS

5 USING THE VENTILATION SYSTEM

6 CLEANING AND MAINTENANCE

9 TROUBLESHOOTING

10 DUCTING DO’S AND DON’TS

11 INSTALLATION

16 VENT ACCESSORIES

17 PARTS / SERVICE

17 LIMITED WARRANTY

When properly cared for, your Hestan ventilation system will provide safe, reliable service for many

years. When using this ventilation system, basic safety practices must be followed as described in

the following pages.

IMPORTANT: Save these instructions for the local Utility Inspector’s use.

INSTALLER: Please leave these Installation Instructions with the owner.

OWNER: Please read these Instructions and save them for future reference.

SAFETY PRECAUTIONS - BEFORE YOU BEGIN

GENERAL SAFETY PRECAUTIONS

When properly cared for, your Hestan ventilation liner has been designed to be a safe, reliable

ventilation system. Read all instructions carefully before using this ventilation system. When using

kitchen appliances, basic safety precautions must be followed.

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO

PERSONS, OBSERVE THE FOLLOWING:

a) Use this ventilation system only as intended by the manufacturer. If you have any questions,

contact the manufacturer.

b) Before servicing or cleaning unit, switch power off at service panel and lock the service

disconnecting means to prevent power from being switched on accidentally. When the service

disconnecting means cannot be locked, securely fasten a prominent warning device, such as a

tag, to the service panel.

FOR GENERAL VENTILATING USE ONLY. DO NOT USE TO

EXHAUST HAZARDOUS OR EXPLOSIVE MATERIALS AND VAPORS.

TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

a) Never leave burners or surface units unattended at high settings. Boilovers cause smoking and

greasy spillovers that may ignite. Heat oils slowly on low or medium settings.

b) Always turn hood ON when cooking at high heat or when flambéing food (i.e. Crepes Suzette,

Cherries Jubilee, Peppercorn Beef Flambé).

c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.

d) Use proper pan size. Always use cookware appropriate for the size of the burner or surface

element.

TO REDUCE THE RISK OF INJURY TO PERSONS, IN THE EVENT

OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING *:

a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the

burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately,

EVACUATE AND CALL THE FIRE DEPARTMENT.

b) NEVER PICK UP A FLAMING PAN - You may be burned.

c) DO NOT USE WATER, including wet dish cloths or towels - a violent steam explosion will

result.

d) Use an extinguisher ONLY IF:

1. You have a Class ABC or Class K fire extinguisher and you already know how to operate it.

2. The fire is small and contained in the area where it started.

3. The fire department is being called.

4. You can fight the fire with your back to an exit.

* Based on “Kitchen Fire Safety Tips” published by NFPA

SAFETY PRECAUTIONS - BEFORE YOU BEGIN

(CONT.)

BURN HAZARD

This ventilation system is intended for use with ranges or cooktops, which can get very hot during

operation. Observe the warnings and cautions for the cooking appliance.

This ventilation system should be serviced only by a Hestan authorized service technician. Contact

the nearest authorized service center for examination, repair or adjustment.

Do not repair or replace any part of the system unless specifically recommended. Refer service to

an authorized servicer.

Do not operate this ventilation system if it is not working properly or if it has been damaged, until

an authorized servicer has examined it.

Install or locate this ventilation system only in accordance with the Installation section of this

manual. Do not cover or block any openings on this ventilation system.

It is highly recommended that a suitable kitchen fire extinguisher (Class ABC or K) be readily

available and highly visible next to any cooking appliance.

SAFETY DURING CLEANING

Clean only ventilation system parts listed in this manual, in the manner specified in this manual.

Note: the “ventilating fans” and “filter” in the previous warnings refer to the blower wheel(s),

blower housing(s), and blower shield(s). See “CLEANING” on page7 for parts identification

and cleaning instructions.

THIS MANUAL SHOULD REMAIN WITH THE HOMEOWNER FOR FUTURE REFERENCE.

SAFETY PRECAUTIONS - BEFORE YOU BEGIN

(CONT.)

RATING LABEL

The rating label contains important information about your Hestan appliance such as the model and

serial number, electrical rating, and minimum installation clearances.

The rating label is located on the blower housing.

If service is necessary, contact Hestan Customer Care with the model and serial number information

shown on the label.

MODEL NO. DESCRIPTION BLOWER PACKAGE

KVL 30

30” Ventilation Liner 600 cfm Kitchen Ventilation System WM2L Dual

KVL 36

36” Ventilation Liner 600 cfm Kitchen Ventilation System WM2L Dual

KVL 42

42” Ventilation Liner 900 cfm Kitchen Ventilation System WM2L Dual + WM1L Single

KVL 48

48” Ventilation Liner 900 cfm Kitchen Ventilation System WM2L Dual + WM1L Single

KVL 54

54” Ventilation Liner 1200 cfm Kitchen Ventilation System Two WM2L Duals

RATINGS

Blower

Package

Amps

CFM

[email protected]”*

Equivalent

CFM **

CFM

[email protected]”*

CFM

[email protected]”*

CFM

[email protected]”*

Minimum

Round Duct

Size

Sones

***

WM2L Dual 2.9 600 900 531 480 430 8” (50 in.

) 6.5

WM2L Dual

+ WM1L

Single

4.4 900 1350 804 725 655 AKVT6810:

10” (79 in.

)

6.3

Two WM2L

Duals

5.8 1200 1800 1062 960 860 AKVT8812:

12” (113 in.

)

6.6

All units 115 VAC 60 Hz 1550 RPM

* Static Pressure in inches water column.

** When comparing the Hestan system with blower units made by other manufacturers, use the “Equivalent CFM”.

*** Ratings in accordance with the Standard Test Code by the Energy Systems Laboratory of the Texas Engineering

Experiment Station.

Typical rating label

(serial number)

(model number)

MODEL NUMBERS

Rating label location

Installation of this ventilation system must be made in accordance with local codes. In the absence

of local codes, this unit should be installed in accordance with the National Electrical Code and

local codes.

This appliance must be electrically grounded in accordance with local codes or in the absence of

local codes with the National Electrical Code

ANSI/NFPA 70

, or Canadian Electrical code

CSA

C22.1

USING THE VENTILATION SYSTEM

FEATURES OF THE VENTILATION SYSTEM

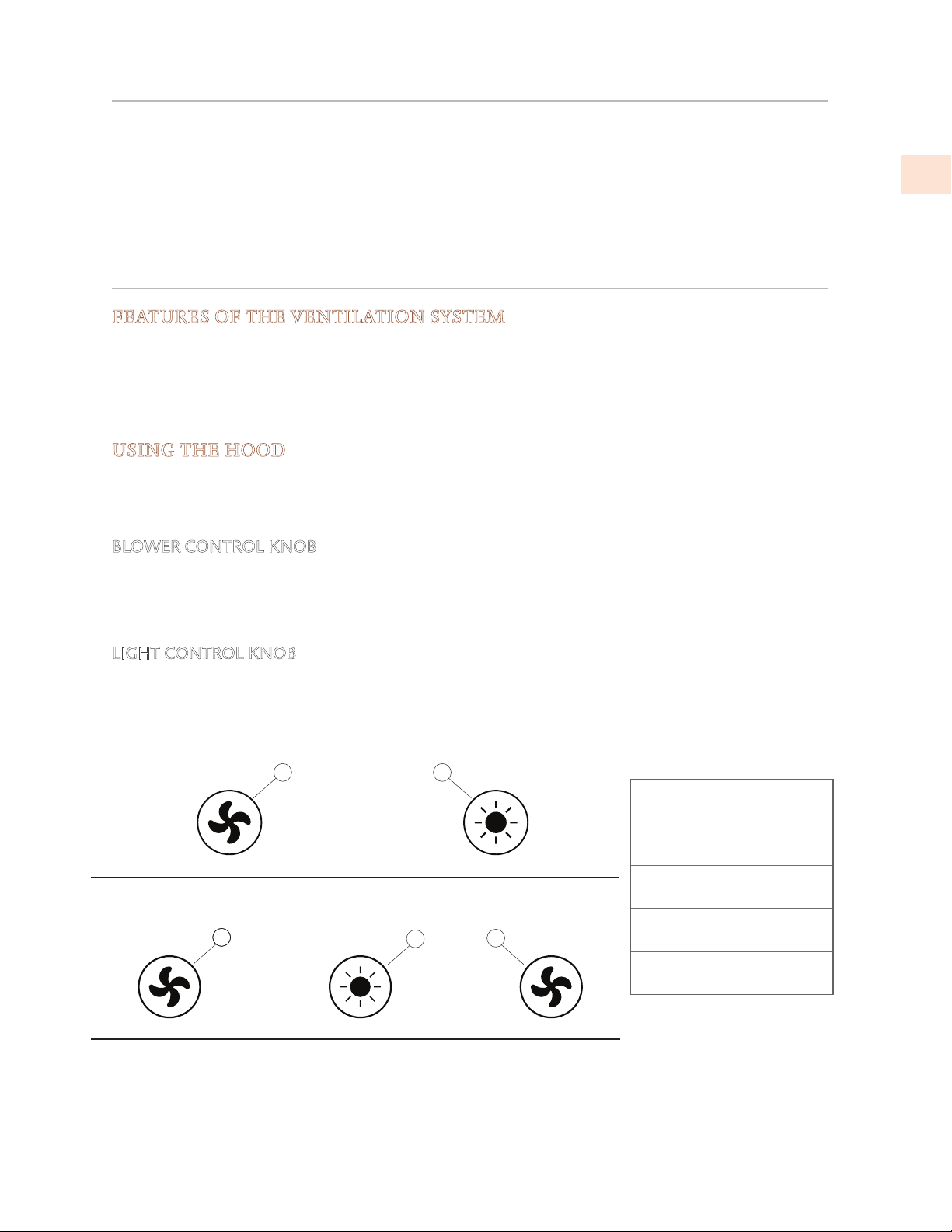

Speed controls are provided for the blower assembly. Two-blower systems will have one speed

control knob, while three- or four-blower systems will have two speed control knobs.

A control knob is provided for lighting intensity.

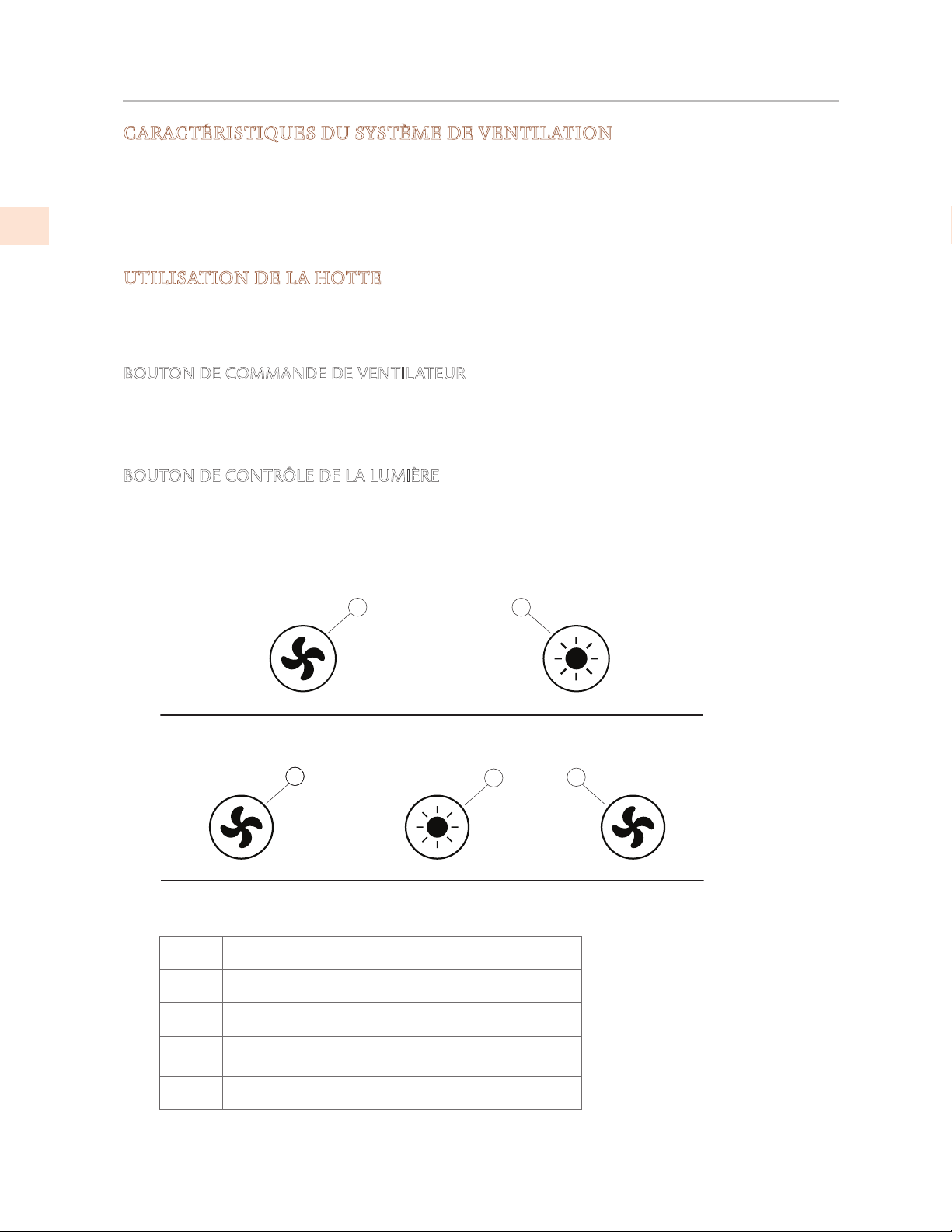

The controls layout will be similar to that shown below.

USING THE HOOD

The user can start with the a hood on the lowest setting, and then increase speed and/or turn

on additional blowers as required. Using the hood at high settings may increase heating or air

conditioning requirements and costs for the house.

BLOWER CONTROL KNOB

To operate the blower(s), rotate the knob through the blower speed settings by turning it clockwise

(facing the knob).

Rotate the knob counter-clockwise to reduce the blower speed.

LIGHT CONTROL KNOB

To operate the lights, rotate the knob through the light intensity settings by turning it clockwise

(facing the knob). Rotate the knob counter-clockwise to dim the lights or turn them off.

Item Function

Blower control

Light control

Blower control

blowers 1 & 2

Blower control, blower

3 or blowers 3 & 4

Controls for two blowers

Controls for three and four blowers

REGULATORY / CODE REQUIREMENTS

CLEANING AND MAINTENANCE

CLEANING THE VENTILATION SYSTEM

Cleaning requirements depend completely on usage and environment. The more high-heat and/or

greasy cooking, the more often the hood and blower will need cleaning.

The grease tray and blower aren’t visible from the outside, so they must be removed for inspection.

After you’ve inspected the tray a few times over the course of six months or a year, you’ll be able to

set a cleaning schedule according to your usage pattern.

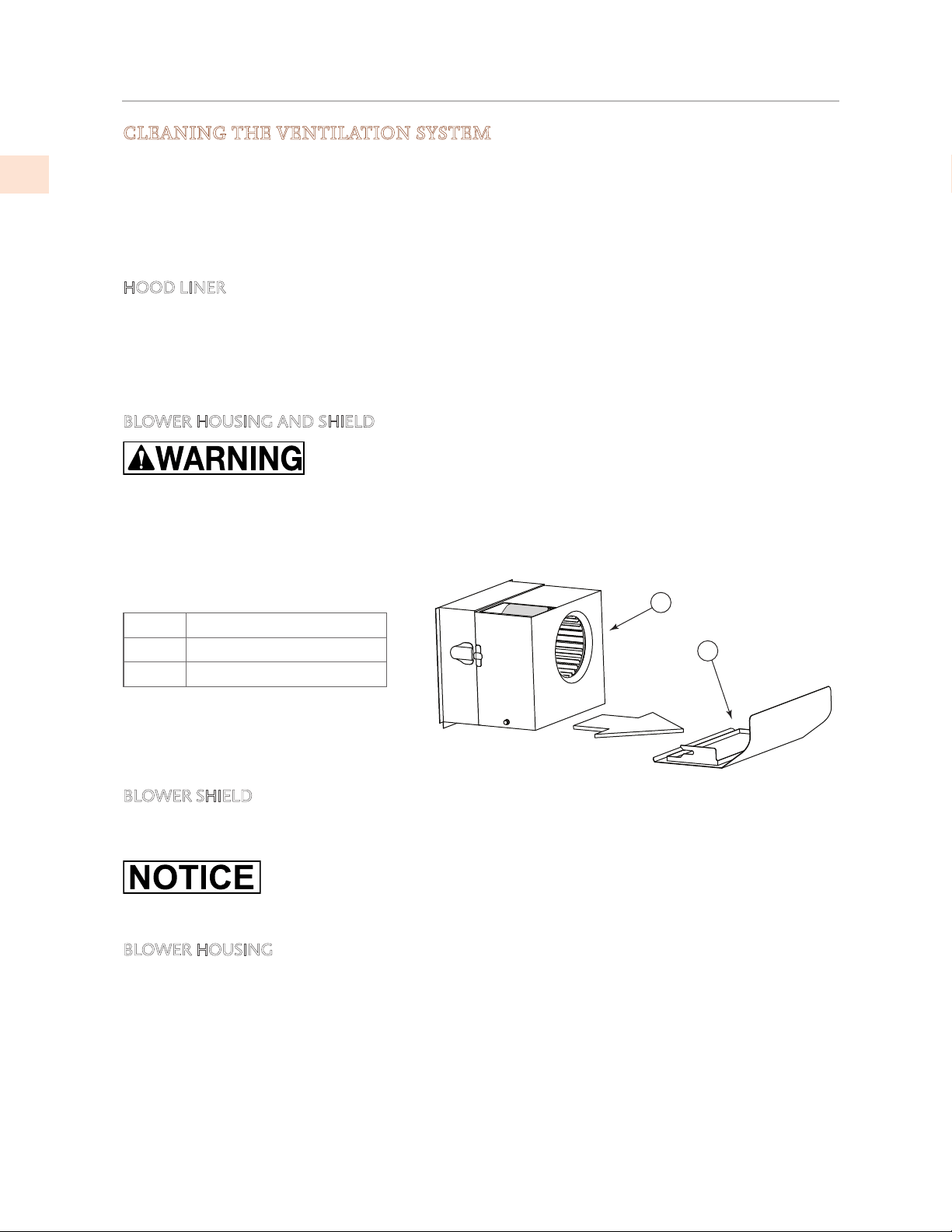

HOOD LINER

Wipe down the interior of the hood liner as needed with a soft cloth and warm soapy water (liquid

dish detergent is acceptable). Do not use acids, abrasives, strong detergents, solvents, or scouring

pads. Stainless steel should be treated with a quality stainless steel cleaner such as Stainless Steel

Magic®. Follow all label instructions. Do not polish across the grain or in circles.

BLOWER HOUSING AND SHIELD

To reduce the risk of personal injury, be sure the power is turned off in

the hood before removing the shield(s) and blower housing(s).

The blower captures grease by-products in the blower housing(s) and blower shield(s). The blower

shields require more frequent cleaning than the blower housing but cooking usage determines how

often each item will need to be cleaned.

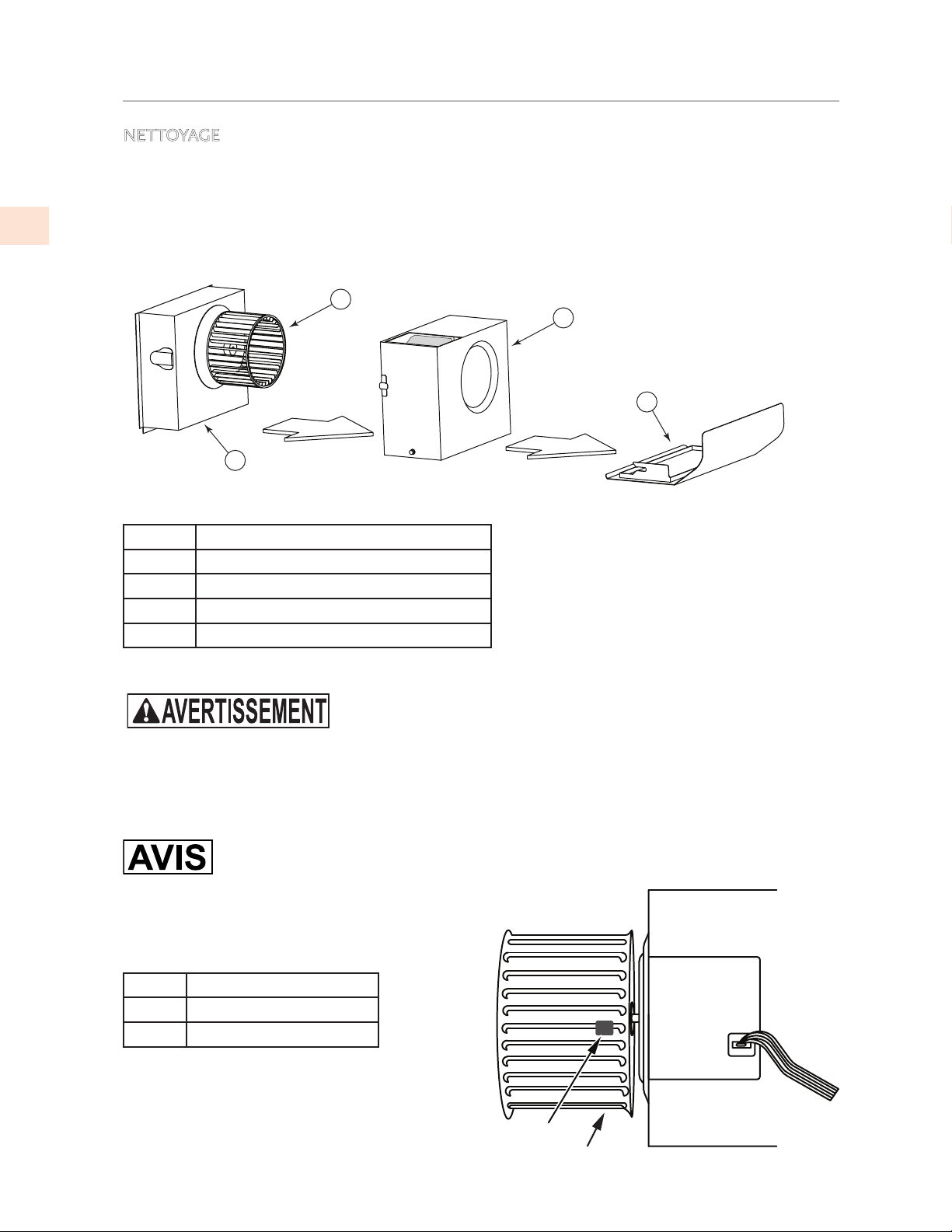

Item# Description

Blower housing with damper(s)

Blower shield

BLOWER SHIELD

The blower shields are easily removed for cleaning by pulling the blower shield(s) toward the front

of the hood.

Be careful to keep the tray level if the hood has been recently used and the

grease might still be warm.

Inspect and clean the shield. (Details follow)

BLOWER HOUSING

To remove the blower housing:

1. Unsnap two suitcase latches, one on each side of the housing.

2. Support the housing and pull it away from the blower base.

3. While pulling it back, gently “tip” it downward to clear the blower wheel(s).

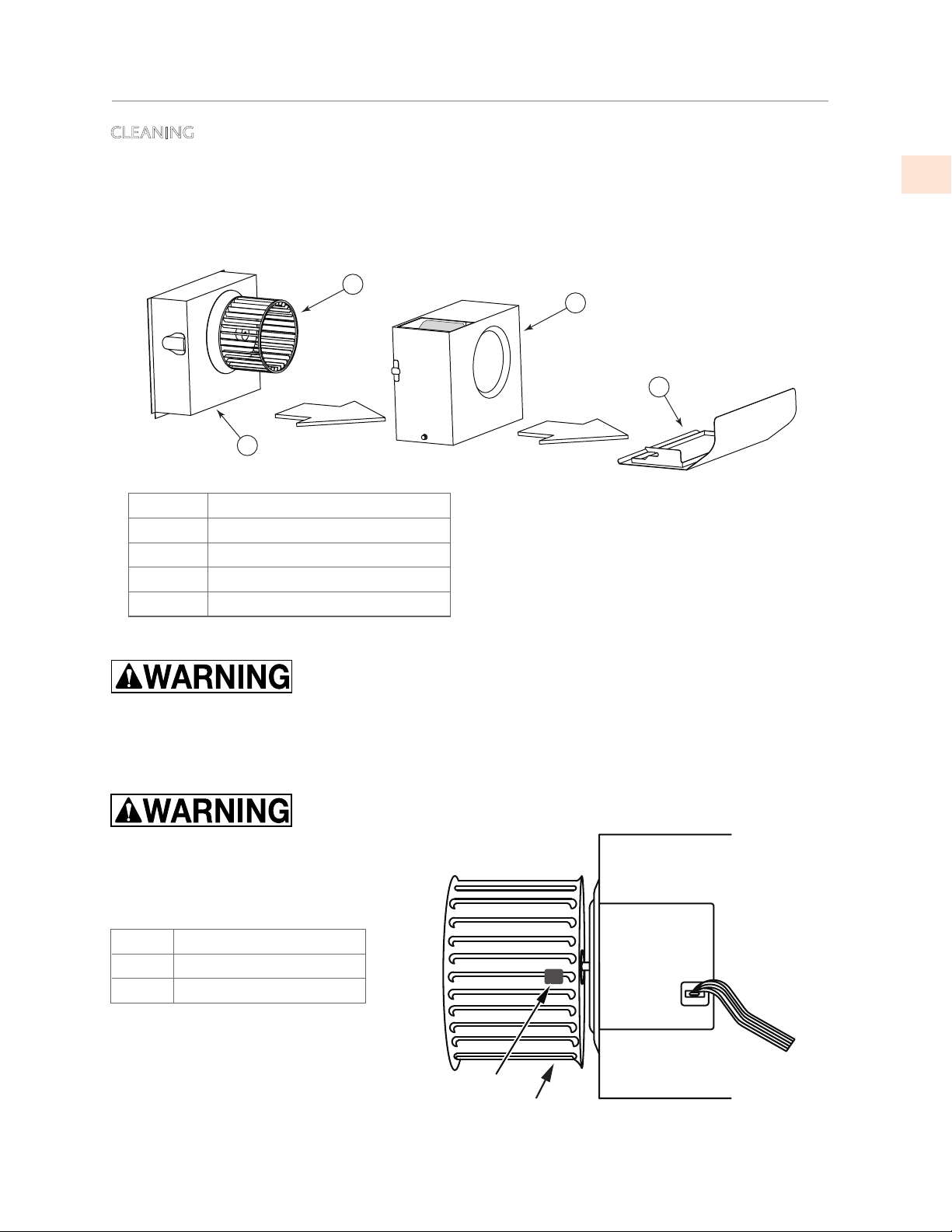

CLEANING

Clean the shield(s) and/or blower housing(s) in a sink of warm soapy water (liquid dish detergent)

and let soak for a few minutes. Wash with a sponge or dishcloth, rinse and let drain before

reinstalling. Alternatively, the blower housing(s) and blower shield(s) may be placed into a

dishwasher.

To reduce the risk of personal injury, be sure the power is turned off in

the hood before removing the shield(s) and blower housing(s).

Regular cleaning of the blower housing should prevent grease accumulation on the blower wheel.

If grease build-up should occur, the blower wheel may easily be cleaned in place using a soft bristle

toothbrush and a common degreaser such as Formula 409®.

Take care not to move or lose the metal balancing clips that may be

affixed to the wheel.

Item # Description

Balancing clip

Blower wheel

Item # Description

Motor housing

Wheel

Blower housing with damper(s)

Blower shield

CLEANING AND MAINTENANCE

(CONT.)

CLEANING AND MAINTENANCE

(CONT.)

BLOWER WHEEL REMOVAL

For instances where the blower wheel must be removed, follow the instructions below.

• Removing the blower wheel requires a 1/8” hex wrench. This may be obtained from your local

hardware store or tool supply.

The wheel is retained by a set screw on the side of the hub of the wheel that tightens up against a

“flat” spot on the motor shaft. (See illustration on previous page.)

1. Locate the set screw on the side of the hub of the wheel

2. Insert wrench through the blades of the blower wheel and into the set screw.

3. Loosen the set screw 1/2 turn counterclockwise.

If the wheel is difficult to remove, the area where the motor shaft makes contact with the

blower wheel hub may need to be sprayed with a common penetrating oil such as WD-40

After allowing the penetrating oil to soak for a few minutes, push the blower wheel forward

slightly, then gently pull the blower wheel off the motor shaft.

• Use caution to avoid bending or distorting the blower wheel and take care not to move or lose

the metal balancing clips(1) that may be affixed to the wheel (2).

A soft bristle toothbrush with warm soapy water may be used to clean the blades, or soak the

blower wheel in warm soapy water.

BLOWER WHEEL INSTALLATION

When reinstalling the wheel onto the motor shaft, make sure the set screw makes direct contact

with the “flat spot” on the motor shaft.

1. Slide the blower wheel onto the motor shaft as far as it will go, making sure the back of the

blower wheel does not touch the motor mount screws protruding from the motor.

• If the motor is too far back, it will rub the motor mount screws, and if it is too far forward, it

will rub the inside of the blower housing.

2. Adjust the blower wheel slightly to find the correct front-to-rear location.

3. Tighten the set screw (clockwise) to lock the blower wheel in the correct position.

For hood liners that have more than one blower wheel, make sure that white

blower wheels are matched up with white motor rings, and black blower

wheels are matched up with black motor rings.

The hood will not perform properly if blower wheels and motors are mismatched.

TROUBLESHOOTING

If the hood does not perform satisfactorily, check the following:

• Do the blowers run?

• Are the blower wheels installed on the correct motors? (black wheel on black motor, white

wheel on white motor)

• Are the motor and wheel assemblies installed in the correct locations?

• Check the damper doors in blower housing(s) - do they move/open freely?

• Check the dampers/vents to outside - do they open freely, with no obstructions?

• Check for damaged or obstructed ductwork.

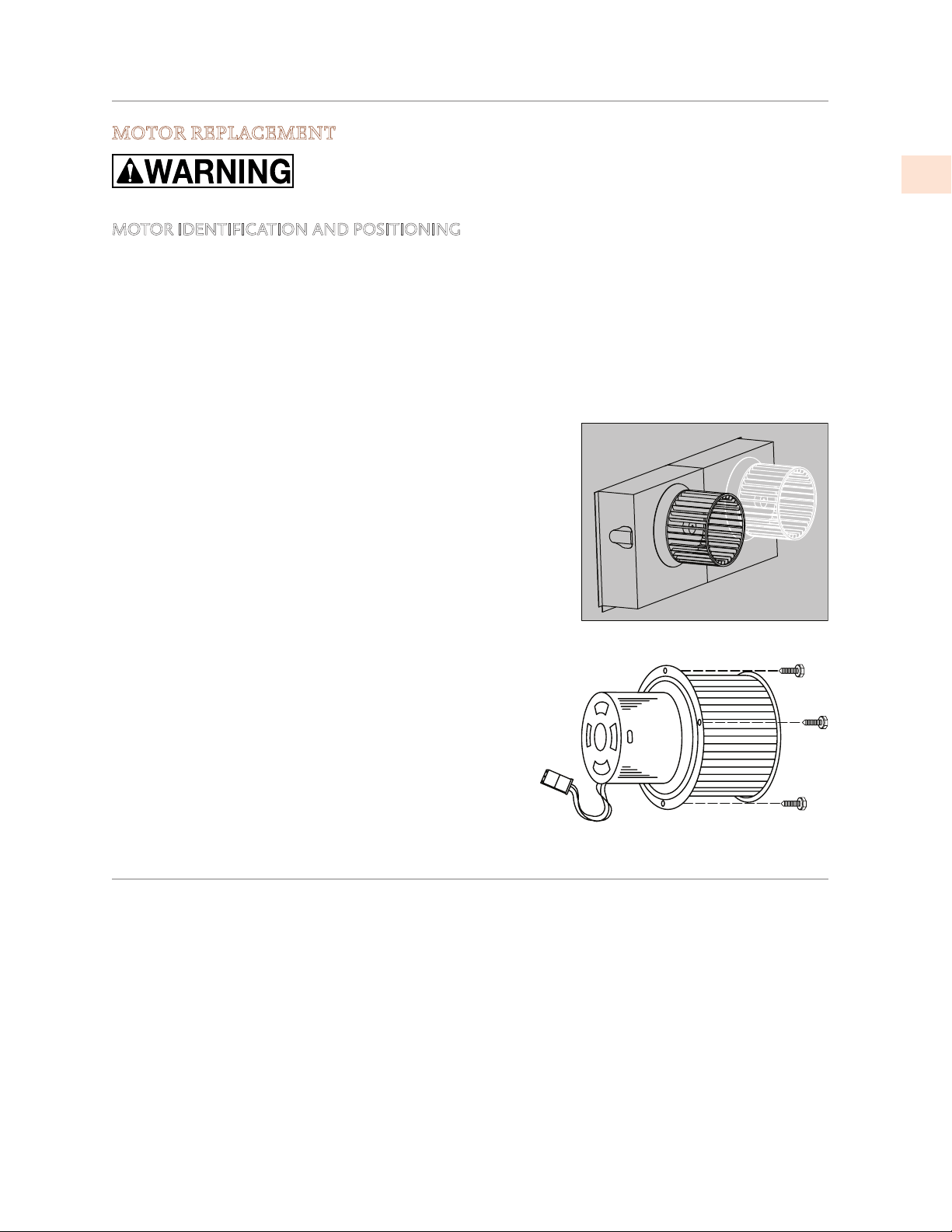

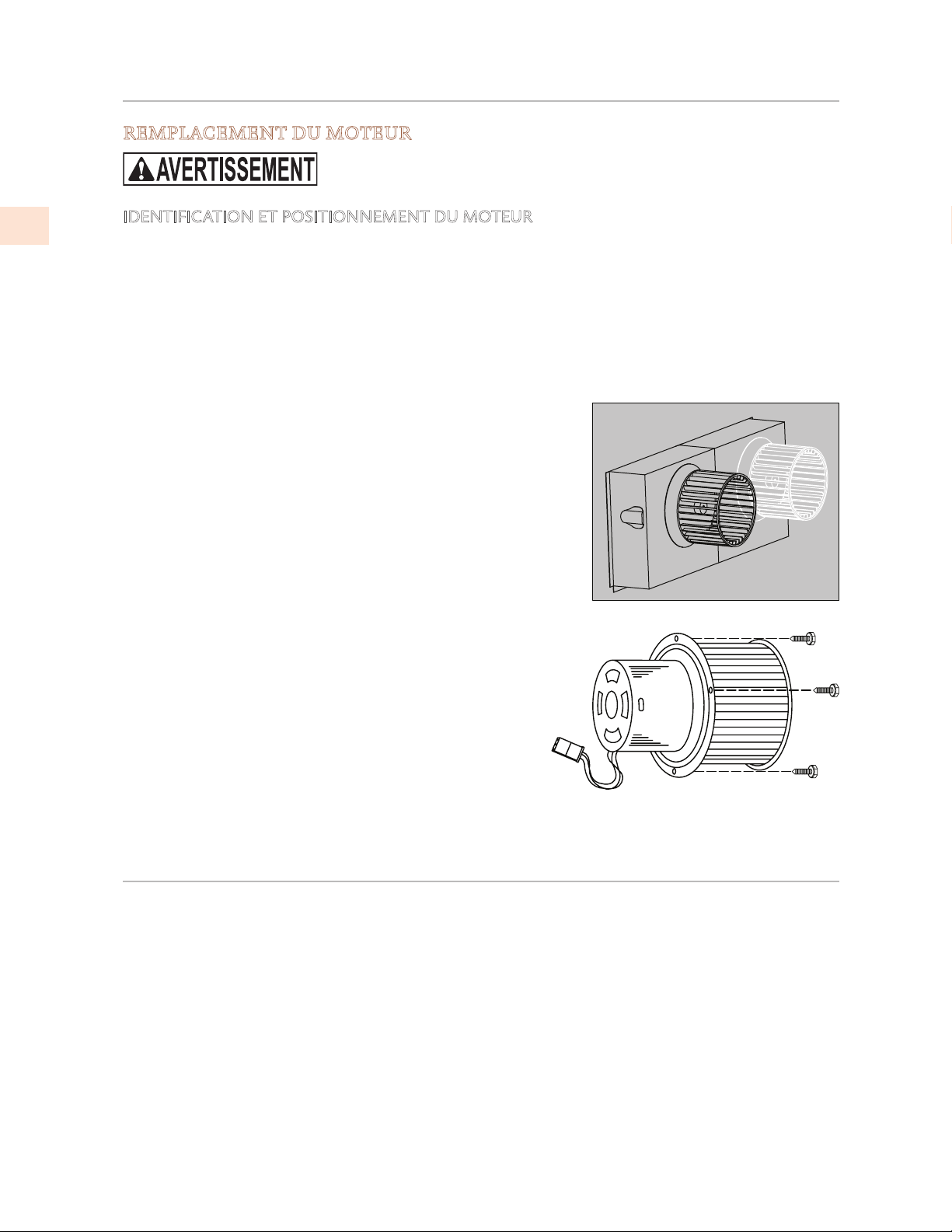

MOTOR REPLACEMENT

To reduce the risk of personal injury, turn off power to the hood at the

breaker or the circuit disconnect before attempting to remove the

blower motor.

MOTOR IDENTIFICATION AND POSITIONING

Motors are color-coded; black and white motors have different rotations and must be installed in

the correct positions.

• Housings with a single blower use a white blower and wheel.

• Housings with two blowers use a white blower on the right and black on the left.

Make sure you have the correct motor in each housing position.

• If the replacement blower motor includes a blower wheel, then you can remove the motor and

wheel together. If you will re-use your existing wheel, then you may wish to remove the wheel

before removing the motor.

1. Remove the shield and blower housing as described in

“BLOWER WHEEL REMOVAL” on page8.

2. Use a ¼” nut driver to remove the three motor mount

screws that attach the motor to the hood.

3. Gently pull the motor forward and down.

4. Disconnect the wiring harness, remove the old motor.

• To avoid damage to the blower wheel, you may wish to

install the motor and then install the wheel onto the motor.

5. Lift the new motor so you can connect the wiring

harness. Be sure to fully engage the electrical

connections and tighten the motor mount screws.

6. Check the blower wheel clearance and adjust

as needed, as described in “BLOWER WHEEL

INSTALLATION” on page8.

CLEANING AND MAINTENANCE

(CONT.)

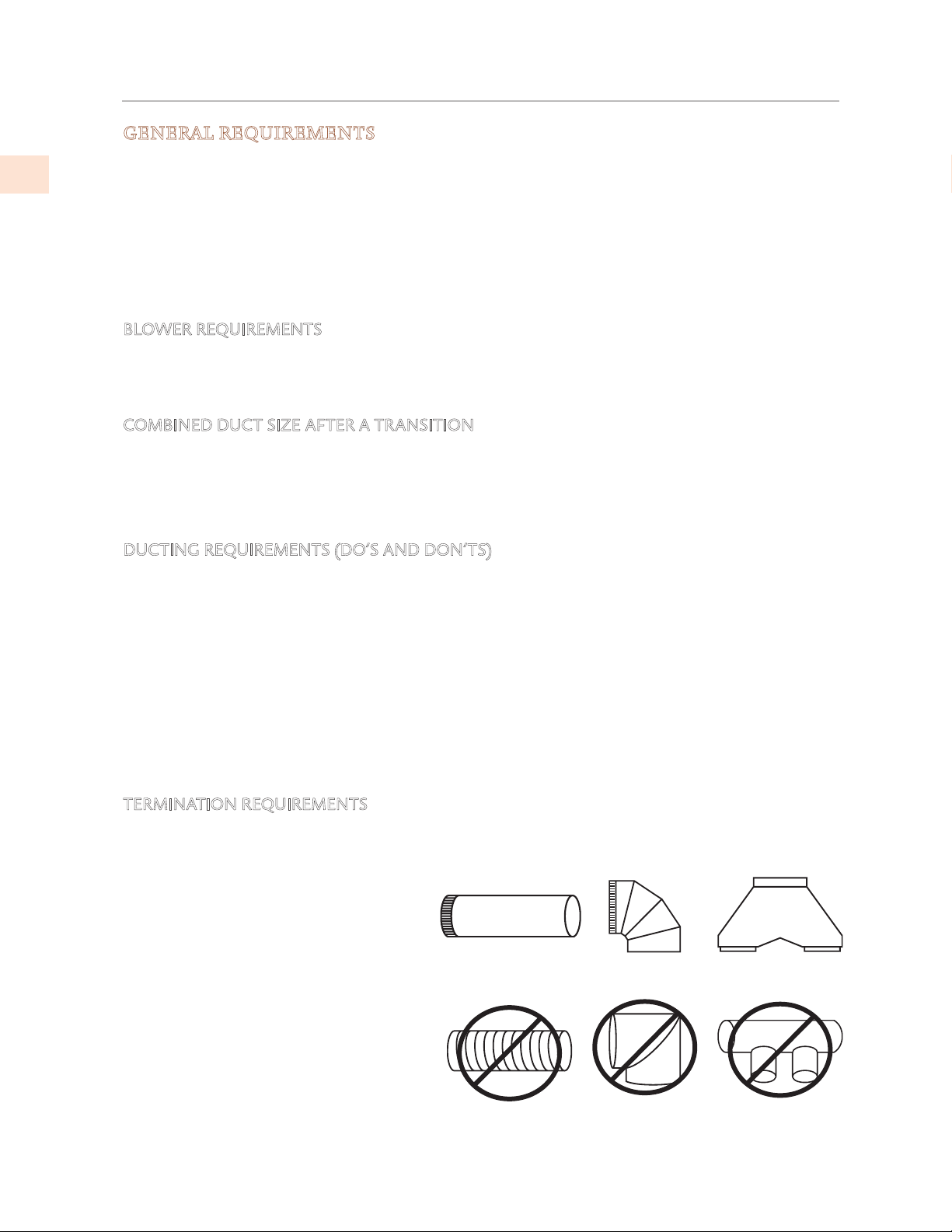

DUCTING DO’S AND DON’TS

GENERAL REQUIREMENTS

Observe local codes regarding special duct requirements and placement of duct work against

combustibles.

• Using recommended transitions (see VENT ACCESSORIES) will ensure proper efficiency.

• Using recommended roof caps or wall louvers (see VENT ACCESSORIES) will ensure proper

efficiency.

• Use foil HVAC tape (not grey cloth duct tape) to seal all joints.

• The hood must be ducted to the outdoors without restrictions.

BLOWER REQUIREMENTS

The dual blower unit (WM2L, used in all systems) requires 8” round duct or equivalent (50 square

inches). The single blower unit (WM1L, used in addition to the dual blower unit in 900 CFM

systems) requires 6” round duct or equivalent (28 square inches).

COMBINED DUCT SIZE AFTER A TRANSITION

Single and Dual (WM1L & WM2L) combine to 10” round or equivalent 79 square inches using a

multi-blower transition such as AKVT6810 (Optional)

Two Duals (Two WM2Ls) combine to 12” round or equivalent 113 square inches using a multi-

blower transition such as AKVT8812 (Optional)

DUCTING REQUIREMENTS (DO’S AND DON’TS)

• NEVER reduce the duct size. When combining ducts together, the square inch area of

the outlet duct must be equal or greater than the total square inch area of the ducts being

combined.

• Only use smooth, galvanized, metal duct. Do not use flexible or corrugated duct. This type of

duct will restrict airflow and reduce performance.

• Make the duct run as short and as straight as possible with as few turns as possible.

• Avoid sharp-angled turns. Instead, use smooth, gradual turns such as adjustable elbows or 45

degree angled turns.

• For duct runs over 20 feet, increase the duct diameter by one inch for every ten feet of duct.

• When planning length, a 90 degree elbow is equivalent to 5 feet of duct.

TERMINATION REQUIREMENTS

Airflow must not be restricted at the end of the duct run.

A wall louver or roof cap is required

for each duct run.

Every wall louver or roof cap must

include a gravity damper to prevent

back drafts.

Do not use screen wire or spring-

loaded doors on wall louvers or roof

caps.

Do not terminate venting into an

attic or chimney.

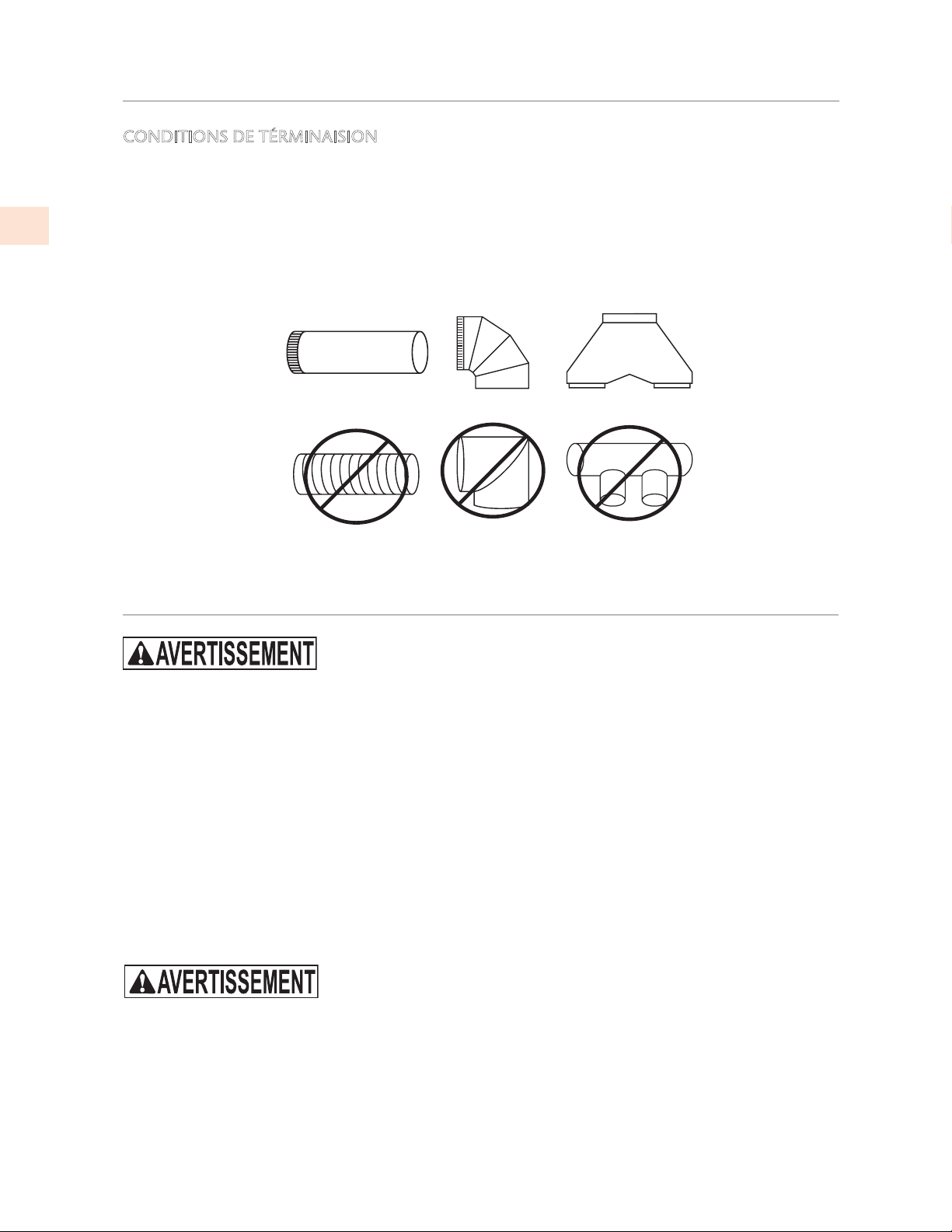

Smooth duct Smooth gradual turn

Proper combining

of two ducts

YES

Flexible duct Sharp angled turns

of two ducts

Improper combining

INSTALLATION

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO

PERSONS, OBSERVE THE FOLLOWING:

a) Installation work and electrical wiring must be done by qualified person(s) in accordance with

all applicable codes and standards, including fire-rated construction.

b) Sufficient air is needed for proper combustion and exhausting of gases through the flue

(chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment

manufacturer’s guideline and safety standards such as those published by the National Fire

Protection Association (NFPA), and the American Society for Heating, Refrigeration, and Air

Conditioning Engineers (ASHRAE) and the local code authorities.

c) When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden

utilities.

d) Ducted fans must always be vented to the outdoors.

TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT USE THIS BLOWER WITH

ANY SOLID-STATE SPEED CONTROL DEVICE.

INSTALLATION DETAILS

1. Read all instructions thoroughly before beginning installation. Note: These instructions apply

to Hestan hood liners only.

• See “DUCTING DO’S AND DON’TS” on page10.

• Weight and size: For safe installation, at least two people should be present to lift and hold the

liner. For larger liners, it is advisable to have a third person present to assist.

• Back Venting: If venting out the wall behind the hood instead of venting through the ceiling,

see “BACK VENTING” on page15 for details.

2. When installing a Hestan hood liner, it is recommended that the

bottom edge of the liner be located no more than 30” above the

cooking surface for optimum performance.

3. Install the duct(s) from the outside of the house down to the

location of the exhaust outlet(s) on the top of the liner, allowing

room for the optional transitions, if used.

a) If back venting, the elbows should be installed so that the non-

crimped end(s) are on the inside of the collar(s) of the exhaust

outlet(s). If a transition is used, install the duct so it will engage

1” of the transition outlet.

b) Consult the connection diagrams (following) for further details

on exhaust outlet placement.

c) Use foil HVAC tape (not gray cloth duct tape) to seal all joints.

See “VENT ACCESSORIES” on page16 for available Hestan

vent accessories.

Make sure that once the liner is mounted,

the motor cooling vents are not obstructed.

Cabinet with

vent liner

30”

[76.2 cm]

12”

[30.5 cm]

12”

[30.5 cm]

22-1/2”

[57.2 cm]

36”

[91.4 cm]

TRANSITION HEIGHTS:

Dual Blower (WM2L = 600 CFM): no transition - 8” round duct will connect directly to the top

of the liner.

Single and Dual Blower (WM1L + WM2L = 900 CFM): 6” round duct will connect directly to

the top of the liner; 8” round duct will connect directly to the top of the liner.

If using the optional multi-blower transition (AKVT6810, sold separately), a 10”

round duct connects to it 17-1/2” above top of hood..

See “VENT ACCESSORIES” on page16.

Two Dual Blowers (Two WM2Ls = 1200 CFM):

Two 8” round ducts connect directly to the top of the liner.

If using the optional multi-blower transition (AKVT8812, sold separately), a 12”

round duct connects to it 16-1/2” above top of hood.

See “VENT ACCESSORIES” on page16.

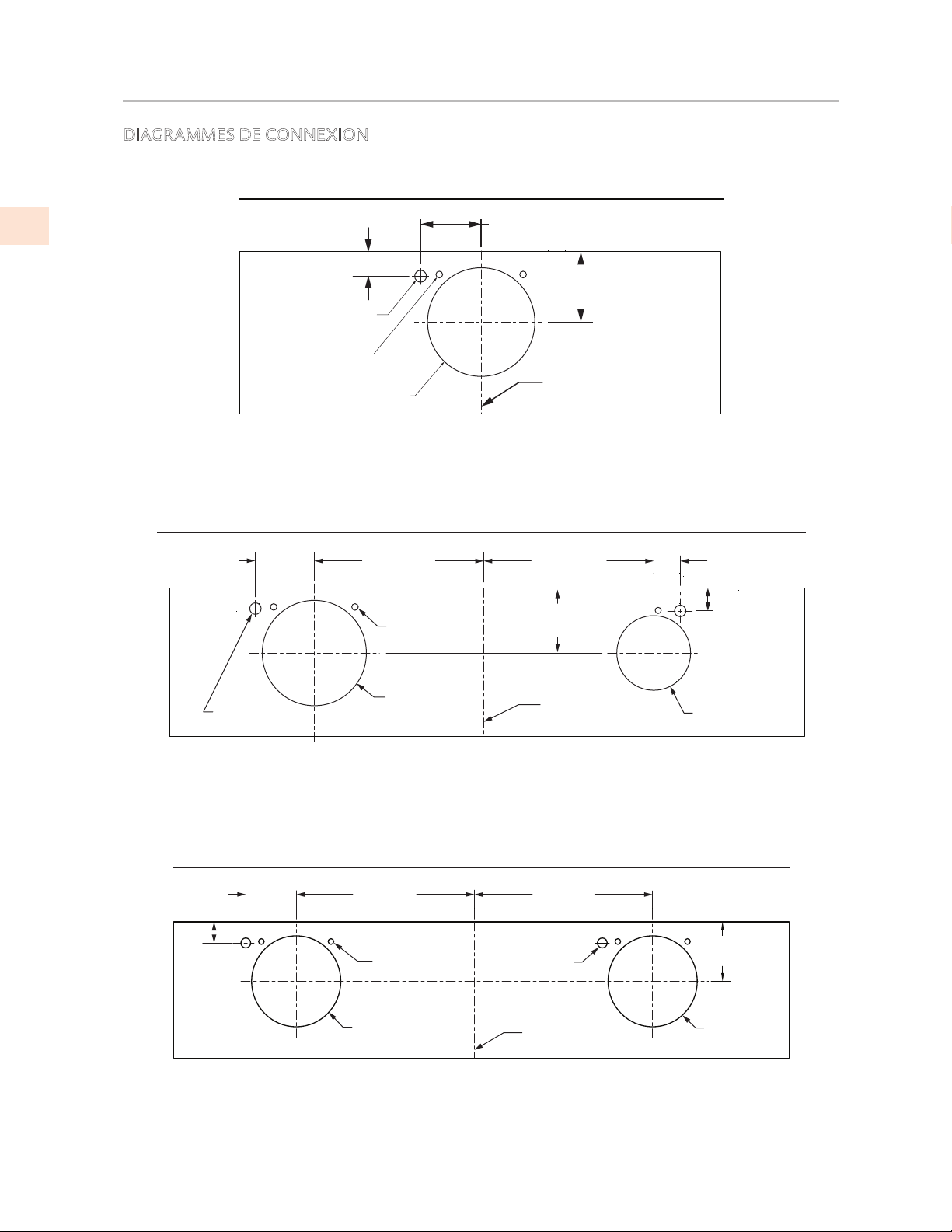

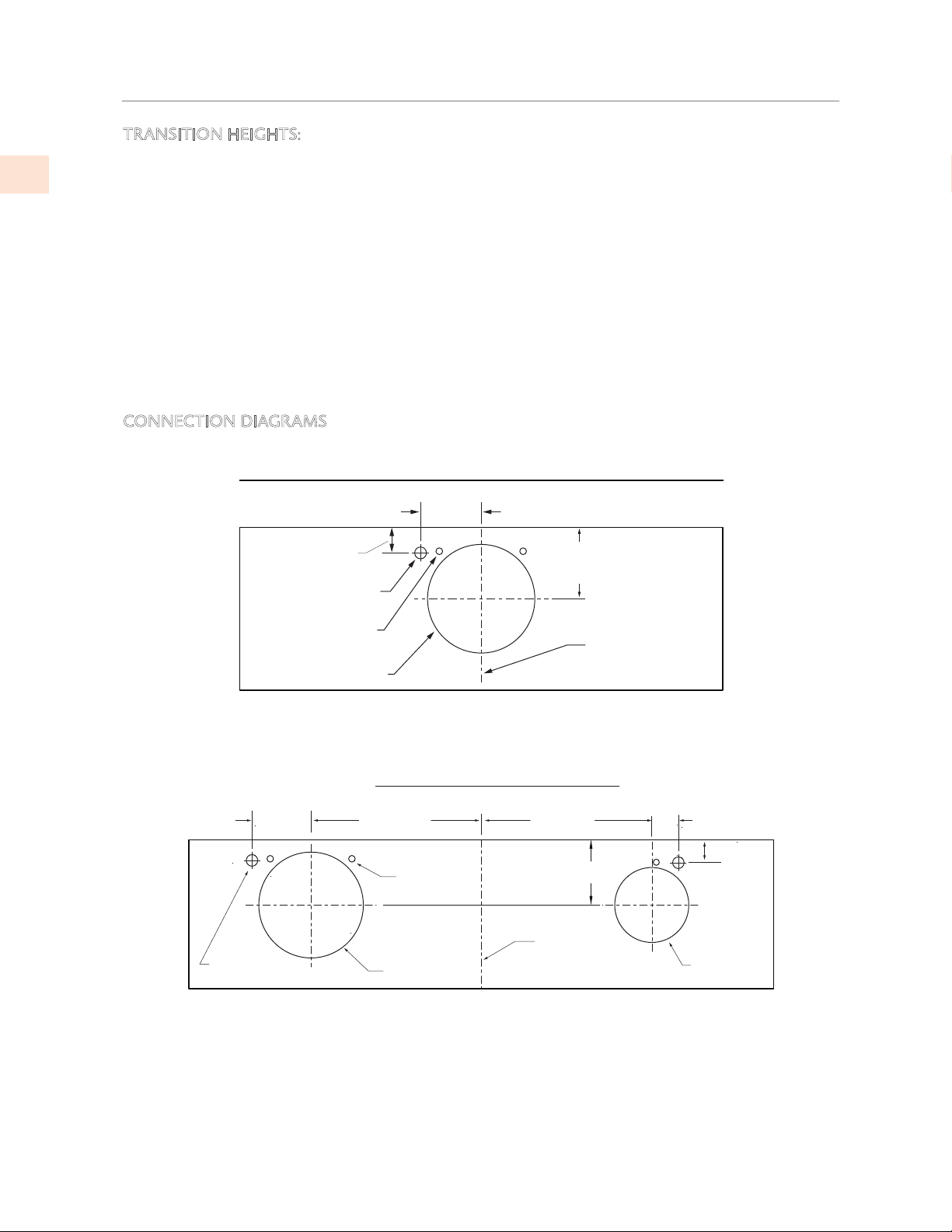

CONNECTION DIAGRAMS

Motor

cooling

vent

Electrical

WM2L Dual blower (600 CFM )

(Top view)

Wall side

Centerline

of liner

Connection diagram (30-36” width)

8" [20.3 cm] round

5-1/2"

[14 cm]

1-3/4"

[4.4 cm]

5-1/4"

[13.3 cm]

8" Round

Connection diagram (42” width)

WM2L Dual + WM1L Single blower (900 CFM) (Top view)

Wall

side

Centerline

of liner

Electrical (2)

Motor

cooling

vent (3)

6" [15.2 cm]

round

7-5/16"

[18.6 cm]

1-7/8"

[4.8 cm]

5-1/4"

[13.3 cm]

1-3/4"

[4.4 cm]

7-5/16"

[18.6 cm]

5-1/2"

[14 cm]

INSTALLATION

(CONT.)

4. Remove the liner from its packaging and place the back of the liner on the floor or countertop

in front of the wall where it will hang. Save the trim kit and hardware for step 10.

5. With the liner on its back facing you, remove the shield(s) and blower housing(s) as follows:

a) Remove the shipping tape that is securing the blower shield(s) inside the liner.

b) Remove the shield(s) by lightly pulling it (lifting it) toward the front of the liner.

c) Gently close the back draft damper(s) from the top side of the liner.

d) To remove the blower housing(s), unsnap the suitcase latches (one on each side of the

housing).

e) Support the housing and lift it away from the blower base, then tip it back toward you to

clear the blower wheel(s), and then lift it up and out from the liner.

Make sure power is off at the supply panel / breaker during service or

installation.

6. One blower motor must be removed from each blower assembly to access the connection

box(es). The blower assembly will have a decal identifying the location of the connection

box(es). It is not necessary to remove the blower wheel from the motor.

a) Remove the three screws retaining the blower motor.

b) Pull the motor out far enough so you can reach its electrical connector.

c) Unplug the connector, set the blower motor and screws aside.

• To lighten the liner for easier handling, the remaining motor(s) can be removed as well, in the

same manner as above.

7. WIRING PREPARATION:

a) Install an appropriate 1/2” UL listed electrical wire clamp through each motor box electrical

opening on top of the liner.

b) Install electrical wiring from the service panel to the liner location for each motor box.

Consult the connection diagrams (on previous page) for further details on electrical

placement. See “ELECTRICAL SUPPLY AND GROUNDING” on page1 for power

requirements.

Electrical (2

)

Connection diagram (48”- 54” widths)

Two WM2L Dual blowers (1200 CFM)

(Top view)

Wall side

Centerline

of liner

Motor

cooling

vent (4)

[20.3 cm] Round

5-1/2"

[14 cm]

1-3/4"

[4.4 cm]

5-1/4"

[13.3 cm]

11"

[29.9 cm]

11"

[29.9 cm]

[20.3 cm] Round

INSTALLATION

(CONT.)

8. This step will require the fasteners and hardware in the trim kit.

a) The liner must be lifted into place while guiding the wires into place and aligning the

duct(s) or elbow(s) with the exhaust collar(s) or transition.

b) The duct(s) must fit inside the exhaust collar(s).

c) The lower edge of the liner should be flush with the enclosure or slightly above.

9. Install a wood screw with countersunk washer and flat washer into each mounting hole along

the bottom edge of the liner.

10. Trim Installation:

a) Install the trim piece for the back side of the

liner by hooking one side under the bottom

edges of the back countersunk washers.

b) Snap the trim piece over the top of the

countersunk washers by applying pressure

upward and toward the liner wall.

c) Repeat this process for the front trim piece.

d) After the back and front trim pieces are

installed, use the same process for the side

trim pieces.

• A rubber mallet may be used to gently tap the trim pieces into place if needed.

11. WIRING CONNECTION:

a) Bring wires into each of the connection boxes and secure them with the electrical wire

clamps.

b) From inside the liner, using UL listed wire nuts, attach the “neutral” wire(s) to the white

lead(s), the “hot” wire(s) to the black lead(s), and the ground wire(s) to the green lead(s)

inside the motor box(es).

DO NOT OPERATE HOOD WITHOUT A PROPER GROUND

CONNECTION.

12. For each removed blower motor: Re-plug its connector to the hood wiring, then reinstall the

blower motor using the three retaining screws that were previously removed.

• Make sure motors are installed in the correct locations. See “MOTOR IDENTIFICATION AND

POSITIONING” on page9.

13. Make sure that the damper(s) open and close smoothly. Replace the blower housing(s) and the

blower shield(s).

14. Turn Power On, Verify Operation: See “USING THE VENTILATION SYSTEM” on page5

for proper hood operation. Test all blower and light functions to ensure they are operating

properly.

Liner Trim Kit

Flat nylon washer

Countersunk

nylon washer

Wood screw

Trim piece

INSTALLATION

(CONT.)

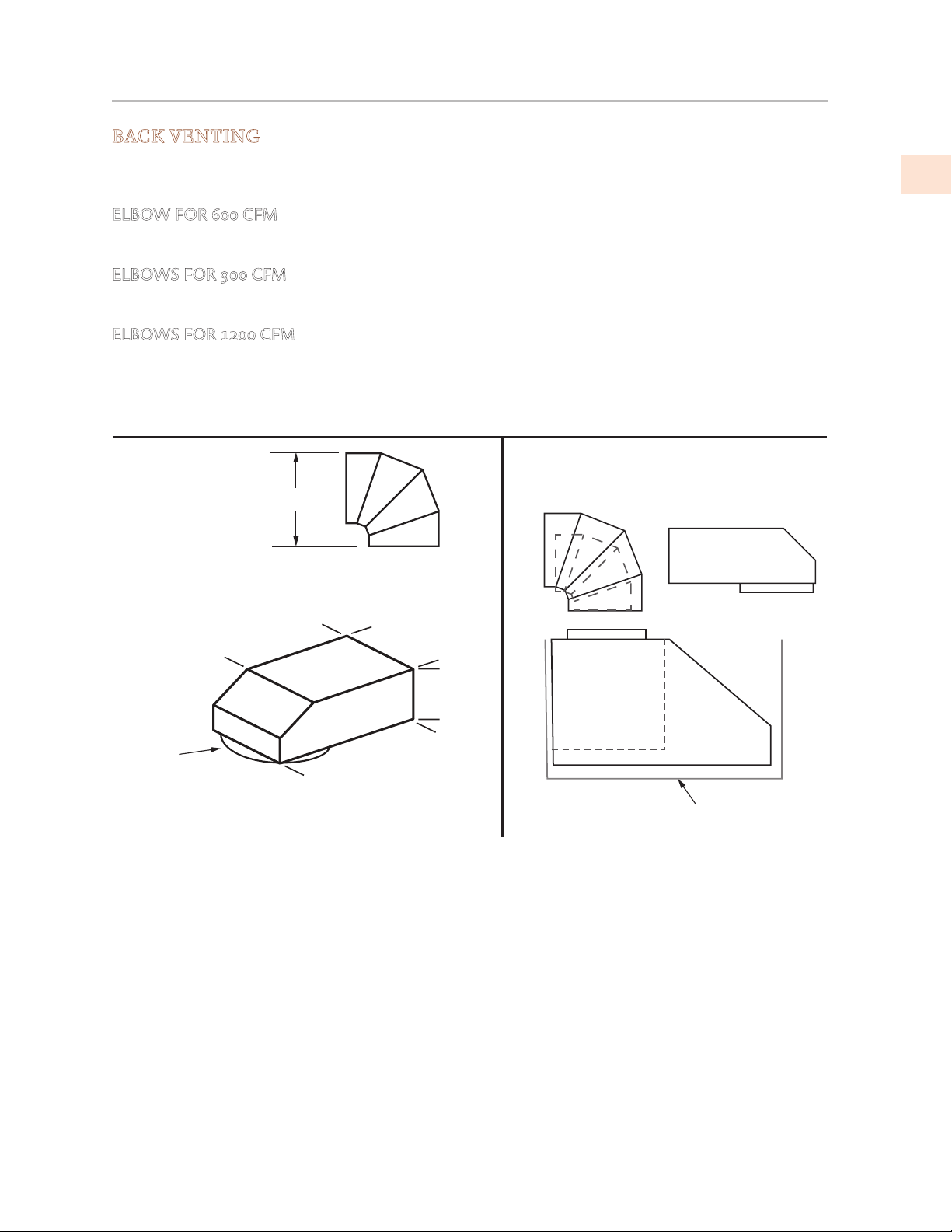

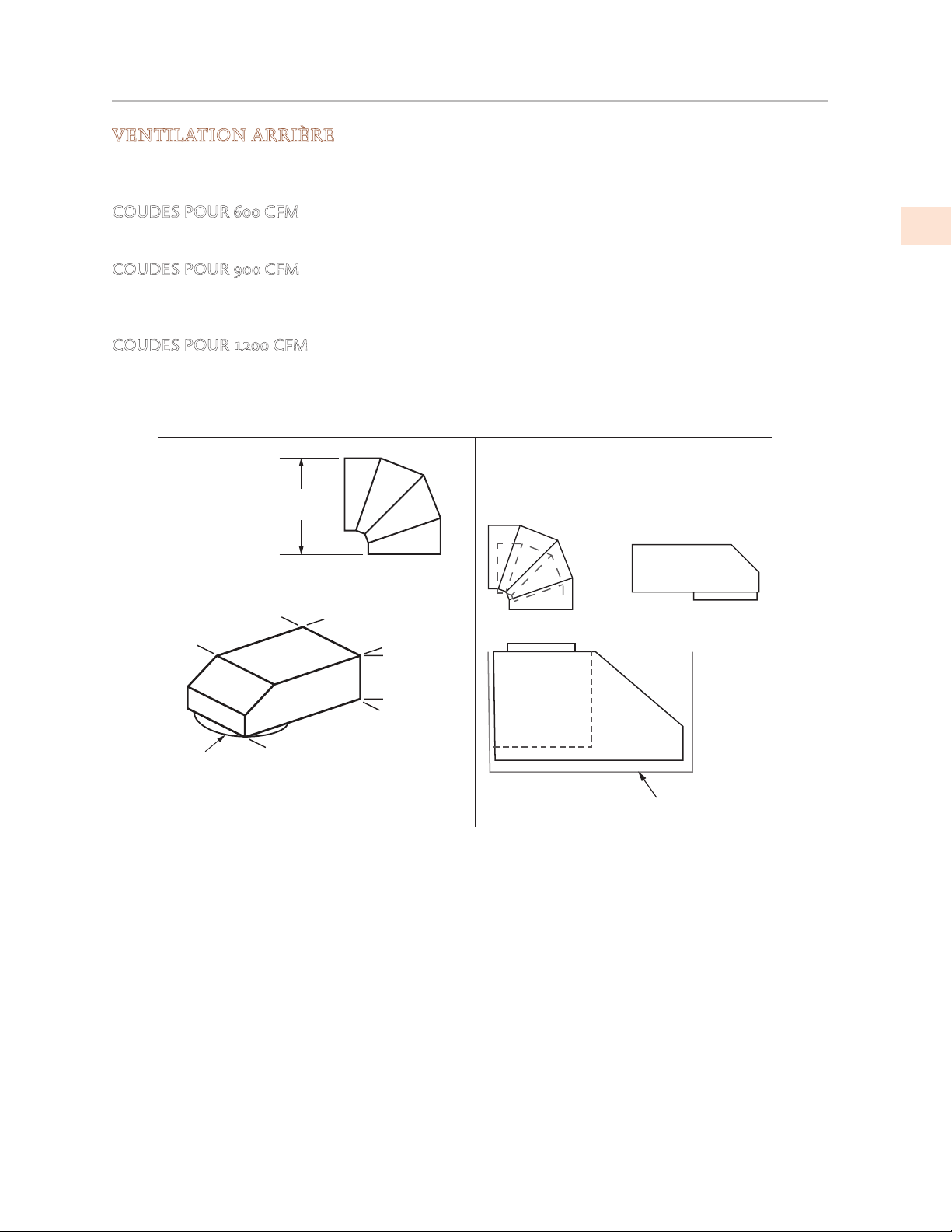

BACK VENTING

When venting out through the wall, one or two elbows are required, depending on the blower

configuration:

ELBOW FOR 600 CFM

Units (hoods/liners) with 600 CFM blower systems require one 8” elbow for the blower unit

ELBOWS FOR 900 CFM

Units with 900 CFM blower systems require one 8” elbow and one 6” elbow

ELBOWS FOR 1200 CFM

Units with 1200 CFM blower systems require two 8” elbows, one for each 600 CFM blower unit.

Standard 6” [15.2 cm] round - 8-1/2” [21.6 cm]

Standard 8” [20.3 cm] round - 10-3/4” [27.3 cm]

Elbow and Transition Heights

600 CFM fan module uses 8” round

300 CFM fan module uses 6” round

(Drawing Not To Scale)

Side View

8” Round

Height when

fully adjusted to

90 degrees:

12”

[30.5 cm]

6”

[15.2 cm]

16”

[40.6 cm]

8” Round

[20.3 cm]

8-1/2”

[21.6 cm]

Hood Enclosure

(supplied by customer)

Low profile elbow: 8” to 6” x 8-1/2”

Hestan P/N AKVBE8

INSTALLATION

(CONT.)

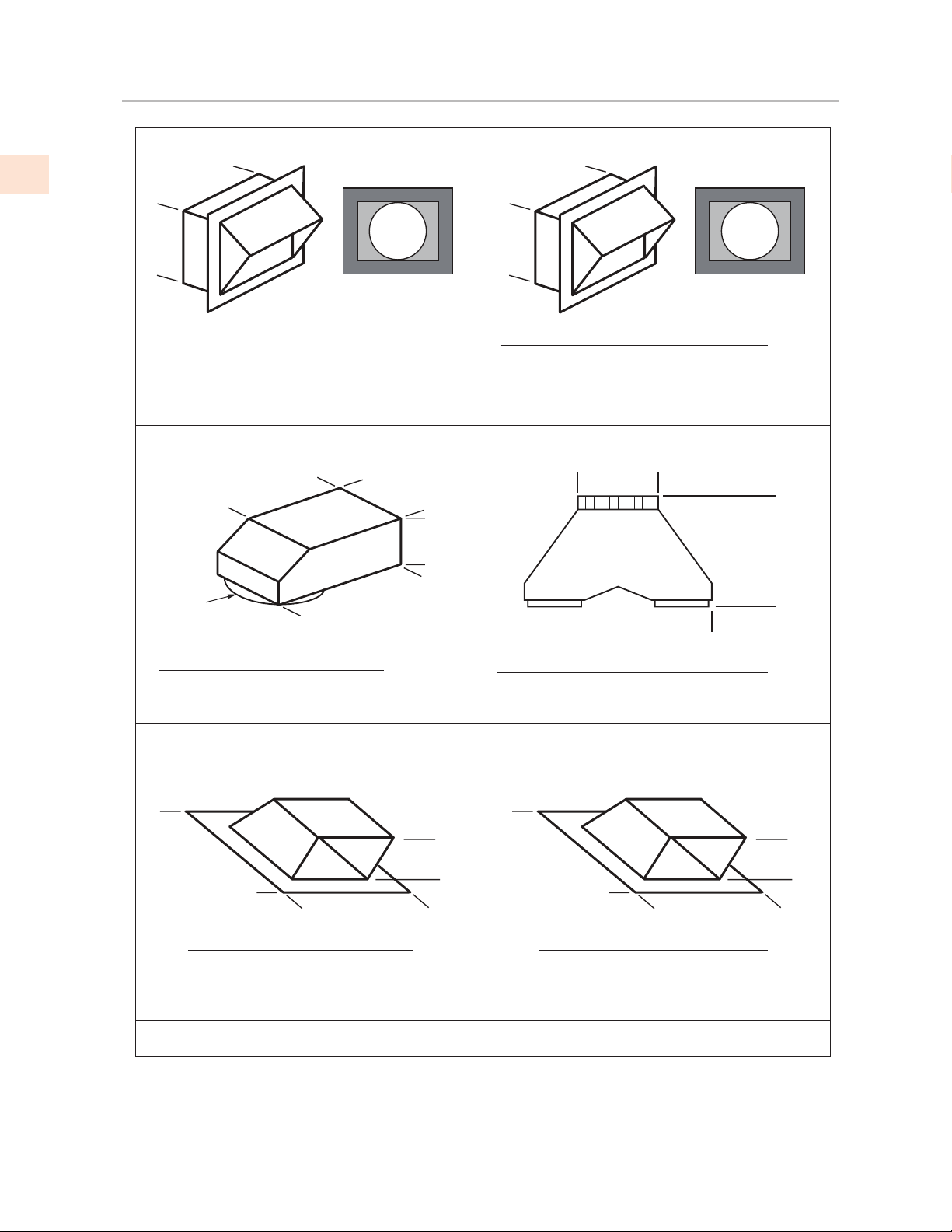

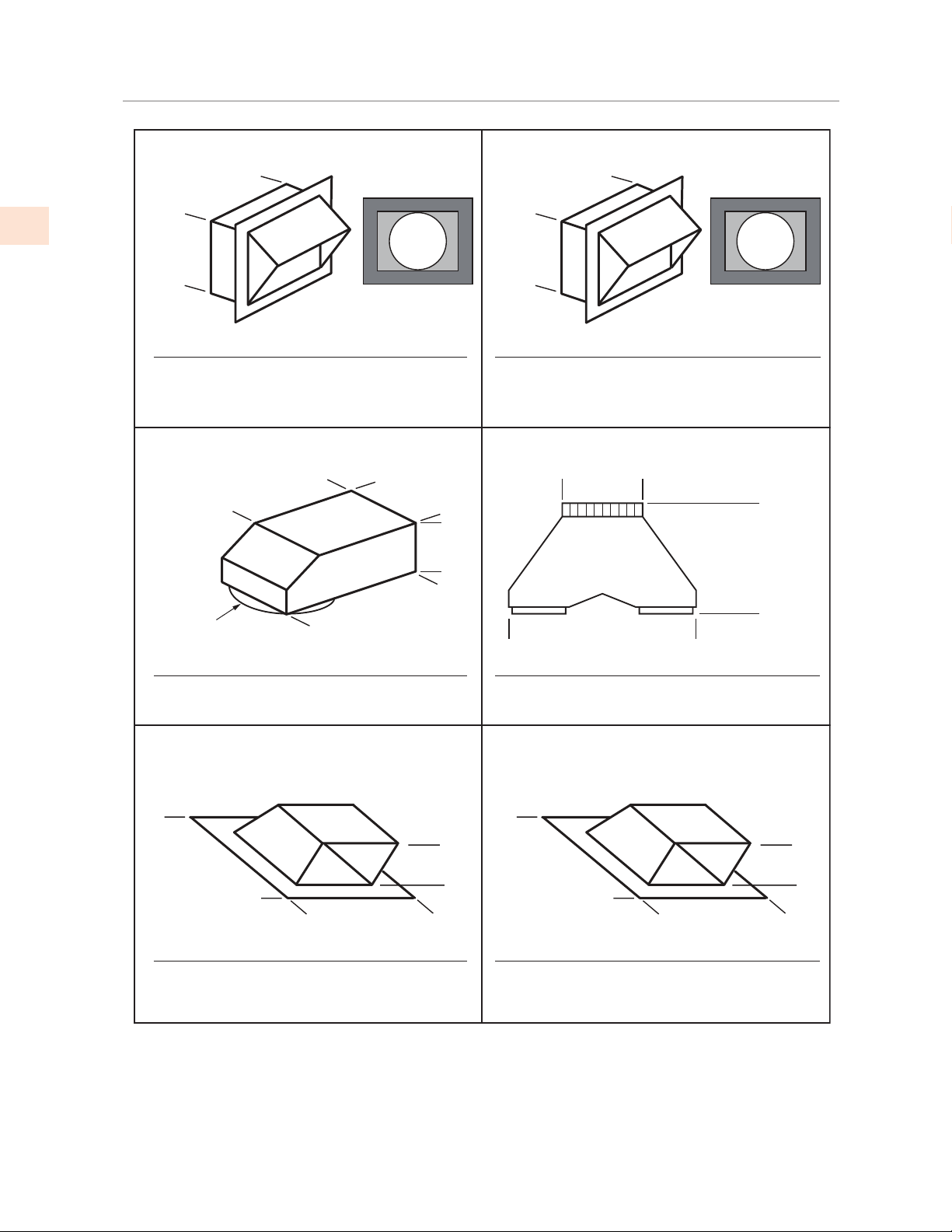

VENT ACCESSORIES

THE INFORMATION IN THIS DOCUMENT IS SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE.

LOW PROFILE ROOF CAP

(MINIMUM 4/12 PITCH)

6-½”

16-¾”

MODEL DESCRIPTION

AKVRC6HP 6” Round

AKVRC8HP 8” Round

LOW PROFILE ROOF CAP

(MINIMUM 4/12 PITCH)

10-½”

22-½”

20-¾”

MODEL DESCRIPTION

AKVRC10HP 10” Round

AKVRC12HP 12” Round

AKVWL12 12” Round

WALL LOUVER

A: 6”

A, B: 8-5/8”

B: 8”

Back

View

1-½” Flange

MODEL DESCRIPTION

AKVWL6 6” Round

AKVWL8 8” Round

WALL LOUVER

B: 13”

A: 11”

Back

View

1-½” Flange

MODELITEM ITEM

ITEM

DESCRIPTION

AKVWL10 10” Round

MULTI-BLOWER TRANSITIONLOW PROFILE ELBOW

17-½”

16-½”

A: 10”

B: 12”

23-¼”

30-½”

MODEL DESCRIPTION

AKVT6810 6” & 8” to 10”

AKVT8812 8” & 8” to 12”

12”

6”

16”

8” Round

8-½”

8” Round to 6” x 8-1/2” Rect.

MODEL DESCRIPTION

AKVBE8

SERVICE DATA RECORD

The rating label contains the model number and serial number of the appliance. See page4 for

location of the rating label.

Now is a good time to write this information in the space provided below. Keep your invoice for

warranty validation.

Model Number _________________________________

Serial Number __________________________________

Date of Installation or Occupancy __________________

PARTS / SERVICE

SERVICE

All warranty and non-warranty repairs should be performed by qualified service personnel. To

locate an authorized service agent in your area, contact your Hestan dealer, local representative, or

the manufacturer. Before you call, please have the model number and serial number information

ready.

Hestan Commercial Corporation

3375 E. La Palma Avenue

Anaheim, CA 92806

(888) 905-7463

PARTS LIST

Please visit the Hestan website to access the parts list for your Hestan Indoor product:

www.hestanhome.com.

LIMITED WARRANTY

WHAT THIS LIMITED WARRANTY COVERS

Hestan Commercial Corporation (“HCC”) warrants to the original consumer purchaser of a Hestan

Indoor Cooking product (the “Product”) from an HCC authorized dealer that the Product is free

from defective materials or workmanship for a period of two (2) years from the date of original

retail purchase or closing date for new construction, whichever period is longer (“Limited Warranty

Period”). HCC agrees to repair or replace, at HCC’s sole option, any part or component of the

Product that fails due to defective materials or workmanship during the Limited Warranty Period.

This Limited Warranty is not transferable and does not extend to anyone beyond the original

consumer purchaser (“Purchaser”). This Limited Warranty is valid only on Products purchased

and received from an HCC authorized dealer in the fifty United States, the District of Columbia

and Canada. This Limited Warranty applies only to Products in non-commercial use and does not

extend to Products used in commercial applications.

HOW TO OBTAIN WARRANTY SERVICE

If the Product fails during the Limited Warranty Period for reasons covered by this Limited

Warranty, the Purchaser must immediately contact the dealer from whom the Product was

purchased or HCC at 888.905.7463.

Purchaser is responsible for making the Product reasonably accessible for service or for paying the

cost to make the Product reasonably accessible for service. Service is to be provided during normal

business hours of the authorized Hestan Commercial Service Provider. To the extent Purchaser

requests service outside of the normal business hours of the authorized Hestan Commercial Service

Provider, Purchaser will pay the difference between regular rates and overtime or premium rates.

Purchaser is required to pay all travel costs for travel beyond 50 miles (one way) from the nearest

authorized Hestan Commercial Service Provider.

EXTENSIONS TO TWO YEAR LIMITED WARRANTY PERIOD:

IN ADDITION TO THE TWO-YEAR LIMITED WARRANTY, THE FOLLOWING COMPONENTS

HAVE EXTENDED WARRANTY COVERAGE AS SPECIFICALLY SET FORTH BELOW:

1. The Product’s gas burners (excludes appearance), electric heating elements, blower motors

(ventilation hoods), electronic control boards, magnetron tubes and induction generators

(where applicable) are warranted to be free from defects in material and workmanship under

normal non-commercial use and service for a period of five (5) years of the original Purchaser.

This excludes surface corrosion, scratches, and discoloration which may occur during normal

use and is limited to replacement of the defective part(s), with the Purchaser paying all other

costs, including labor, shipping and handling, as applicable.

WHAT THIS LIMITED WARRANTY DOES NOT COVER:

This Limited Warranty does not cover and HCC will not be responsible for and will not pay for:

damage to or defects in any Product not purchased from an HCC authorized dealer; color variations

in color finishes or other cosmetic damage; failure or damage from abuse, misuse, accident, fire,

natural disaster, commercial use of the Product, or loss of electrical power or gas supply to the

Product; damage from alteration, improper installation, or improper operation of the Product;

damage from improper or unauthorized repair or replacement of any part or component of the

Product; damage from service by someone other than an authorized agent or representative of the

Hestan Commercial Service Network; normal wear and tear; damage from exposure of the Product

to a corrosive atmosphere containing chlorine, fluorine, or any other damaging chemicals; damage

resulting from the failure to provide normal care and maintenance to the Product; damage HCC

was not notified of within the Limited Warranty Period; and incidental and consequential damages

caused by any defective material or workmanship.

ARBITRATION:

This Limited Warranty is governed by the Federal Arbitration Act. Any dispute between Purchaser

and HCC regarding or related to the Product or to this Limited Warranty shall be resolved by

binding arbitration only on an individual basis with Purchaser. Arbitration will be conducted by the

American Arbitration Association (“AAA”) in accordance with its Consumer Arbitration Rules or by

JAMS. The arbitration hearing shall be before one arbitrator appointed by the AAA or JAMS. The

arbitrator shall not conduct class arbitration and Purchaser shall not bring any claims against HCC

in a representative capacity on behalf of others.

LIMITATION OF LIABILITY:

This Limited Warranty is the final, complete and exclusive agreement between HCC and Purchaser

regarding the Product.

THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED

ABOVE. NO WARRANTIES WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT

LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE SHALL APPLY AFTER THE LIMITED WARRANTY PERIOD STATED

ABOVE. NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM

OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON HCC. HCC

LIMITED WARRANTY

(CONT.)

LIMITED WARRANTY

(CONT.)

ASSUMES NO RESPONSIBILITY THAT THE PRODUCT WILL BE FIT FOR ANY PARTICULAR

PURPOSE, EXCEPT AS OTHERWISE PROVIDED BY APPLICABLE LAW.

HCC SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE

SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL

DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THE PRODUCT, REGARDLESS

OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF HCC HAS BEEN

ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NO RECOVERY OF ANY KIND AGAINST

HCC SHALL BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT.

WITHOUT LIMITING THE FOREGOING, YOU ASSUME ALL RISK AND LIABILITY FOR

LOSS, DAMAGE OR INJURY TO YOU AND YOUR PROPERTY AND TO OTHERS AND THEIR

PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THE PRODUCT NOT

CAUSED DIRECTLY BY THE NEGLIGENCE OF HCC. THIS LIMITED WARRANTY STATES YOUR

EXCLUSIVE REMEDY.

No oral or written representation or commitment given by anyone, including but not limited

to, an employee, representative or agent of HCC will create a warranty or in any way increase

the scope of this express Limited Two Year Warranty. If there is any inconsistency between

this Limited Warranty and any other agreement or statement included with or relating to the

Product, this Limited Warranty shall govern. If any provision of this Limited Warranty is found

invalid or unenforceable, it shall be deemed modified to the minimum extent necessary to make

it enforceable and the remainder of the Limited Warranty shall remain valid and enforceable

according to its terms.

INTERACTION OF LAWS WITH THIS LIMITED WARRANTY:

Some states, provinces or territories may not allow limitations on how long an implied warranty

lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations

or exclusions may not apply to you. Some states, provinces or territories may provide for

additional warranty rights and remedies, and the provisions contained in this Limited Warranty

are not intended to limit, modify, take away from, disclaim or exclude any mandatory warranty

requirements provided by states, provinces or territories, including certain implied warranties. This

warranty gives you specific legal rights, and you may also have other rights which vary depending

on location.

Any questions about this Limited Warranty may be directed to

Hestan Commercial Corporation at (888) 905-7463

DÉFINITIONS DE SÉCURITÉ

CECI INDIQUE QUE L’INOBSERVATION DE CET AVERTISSEMENT

PEUT ENTRAÎNER DES BLESSURES GRAVES VOIRE MORTELLES.

LISEZ ATTENTIVEMENT ET COMPLÈTEMENT CES INSTRUCTIONS

AVANT D’INSTALLER OU D’UTILISER VOTRE APPAREIL AFIN DE

RÉDUIRE LES RISQUES D’INCENDIE, DE BRÛLURE OU D’AUTRES

BLESSURES. CONSERVER CE MANUEL POUR RÉFÉRENCE FUTURE.

INSTALLATEUR: LAISSER CE MANUEL AVEC LE PROPRIÉTAIRE DE

L’APPAREIL.`

PROPRIÉTAIRE: CONSERVEZ CE MANUEL POUR RÉFÉRENCE FUTURE.

Ne pas entreposer ou utiliser d’essence ou tout autre liquide ou gaz inflammable à

proximité de cet appareil ou de tout autre appareil.

L’installation et le service doivent être effectués par un installateur qualifié ou une agence

de service.

NE PAS RÉPARER, REMPLACER OU ENLEVER TOUTE PIÈCE DE L’APPAREIL, SAUF

SI SPÉCIFIQUEMENT RECOMMANDÉ DANS LES MANUELS. UNE INSTALLATION,

UN ENTRETIEN OU UNE MAINTENANCE INCORRECTS PEUT ENTRAÎNER DES

BLESSURES OU DES DOMMAGES MATÉRIELS. CONSULTEZ CE MANUEL DE

L’ORIENTATION. TOUS LES AUTRES SERVICES DEVRAIENT ÊTRE EFFECTUÉS PAR

UN TECHNICIEN DE SERVICE HESTAN AUTORISÉ.

CECI INDIQUE QUE L’INOBSERVATION DE CET AVERTISSEMENT

PEUT ENTRAÎNER DES BLESSURES MINEURES OU MODÉRÉES.

CECI INDIQUE QUE L’INOBSERVATION DE CET AVERTISSEMENT

PEUT ENTRAÎNER DES DOMMAGES DE L’APPAREIL OU DES

DÉGÂTS MATÉRIELS.

LE NON-RESPECT À LA LETTRE DE CES INSTRUCTIONS PEUT

CAUSER UN INCENDIE OU UNE EXPLOSION, QUI POURRAIT

ENTRAÎNER DES DOMMAGES MATÉRIELS, DES BLESSURES OU LA

MORT.

Un message de Hestan

Les innovations culinaires primées de Hestan et les caractéristiques spéciales ont

réinventé la cuisine du restaurant et redéfini l’expérience culinaire dans certains

des restaurants les plus acclamés de l’Amérique. Hestan prend maintenant cette

performance à l’arrière de la maison et la met au centre de la vôtre. Pensé et

méticuleusement conçu, Hestan vous servira magnifiquement pour les années à

venir.

Hestan est la seule marque résidentielle née des rêves et des exigences des chefs

professionnels. De la cuisinière à la réfrigération, chaque détail est conçu pour

offrir la performance et la fiabilité attendues dans un restaurant - maintenant

disponible pour vous.

Nous apprécions que vous ayez choisi Hestan, et nous nous engageons à vous

offrir le meilleur.

Bienvenue à Hestan

PRÉCAUTIONS DE SÉCURITÉ - AVANT DE COMMENCER

Lorsqu’il est correctement entretenu, votre système de ventilation Hestan fournira un service

fiable et sûr pendant de nombreuses années. Lors de l’utilisation de ce système de ventilation, les

pratiques de sécurité de base doivent être suivies comme décrit dans les pages suivantes.

IMPORTANT: Conservez ces instructions pour l’inspecteur d’utilitaires local.

INSTALLATEUR: Veuillez laisser ces instructions d’installation avec le propriétaire.

PROPRIÉTAIRE: Veuillez lire ces instructions et les sauvegarder pour référence future

RISQUE DE CHOC ÉLECTRIQUE

Il est de la responsabilité de l’utilisateur de connecter l’appareil par un

électricien agréé conformément à tous les codes et normes applicables, y

compris la construction liée au feu. Lisez étape 11 - «CONNEXION DU

CÂBLAGE:» à la page 16 pour plus de détails.

ALIMENTATION ÉLECTRIQUE ET MISE À LA TERRE

• Cet appareil doit être mis à la terre. Lisez étape 11 - «CONNEXION DU CÂBLAGE:» à la page

16 pour plus de détails.

• Cet appareil doit être connecté à un circuit dédié 120 VAC monophasé, 60 Hz, 20 ampères.

• PROPRIÉTAIRE: Demandez à l’installateur de vous indiquer l’emplacement du disjoncteur

électrique pour savoir comment couper l’alimentation de cet appareil.

Convient pour une utilisation dans des applications extérieures couvertes lorsqu’il est installé dans

un circuit protégé par GFCI.

TABLES DES MATIERES

1 PRÉCAUTIONS DE SÉCURITÉ - AVANT DE COMMENCER

4 NUMÉROS DE MODÈLE

5 PLAQUE SIGNALÉTIQUE

5 RESPECT DE LA RÉGLEMENTATION ET DES CODES EN VIGUEUR

6 MODE D’EMPLOI

7 NETTOYAGE ET ENTRETIEN

10 DÉPANNAGE

11 BONNE PRATIQUE DE CANALISATION

12 INSTALLATION

18 ACCESSOIRES DE VENTILATION

19 PIÈCES / SERVICE

19 GARANTIE LIMITÉE

PRÉCAUTIONS GÉNÉRALES DE SÉCURITÉ

Lorsqu’il est correctement entretenu, votre hotte de ventilation est un système de ventilation sûr et

fiabl. Lisez attentivement toutes les instructions avant d’utiliser ce système de ventilation. Lors de

l’utilisation d’appareils de cuisine, des précautions de sécurité de base doivent être respectées.

POUR RÉDUIRE LES RISQUES D’INCENDIE, D’ÉLECTROCUTION

OU DE BLESSURES, OBSERVEZ CE QUI SUIT:

a) N’utilisez cet appareil que de la manière prévue par le fabricant. Si vous avez des questions,

contactez le fabricant.

b) Avant de procéder à l’entretien ou au nettoyage de l’unité, éteignez le panneau de service et

verrouillez les moyens de déconnexion du service afin d’éviter toute mise sous tension

accidentelle. Lorsque les moyens de déconnexion du service ne peuvent pas être verrouillés,

fixez fermement un dispositif d’avertissement proéminent, tel qu’une étiquette, sur le panneau

de service.

POUR USAGE VENTILATOIRE GÉNÉRAL UNIQUEMENT. NE PAS

UTILISER POUR L’ÉCHAPPEMENT DE MATÉRIAUX OU DE

VAPEURS DANGEREUX OU EXPLOSIVES.

POUR RÉDUIRE LE RISQUE D’UN FEU DE GRAISSE SUR LA

CUISINIÈRE:

a) Ne laissez jamais des brûleurs ou des unités de surface sans surveillance à des réglages élevés.

Les débordements provoquent le tabagisme et les débordements graisseux qui peuvent

s’enflammer. Chauffer les huiles lentement sur les réglages bas ou moyens.

b) Allumez toujours le hotte lorsque vous cuisinez à feu vif ou lorsque vous flambez de la

nourriture (c.-à-d. Crêpes Suzette, cerises jubilées, poivres de bœuf Flambe).

c) Nettoyer fréquemment les ventilateurs. La graisse ne doit pas s’accumuler sur le ventilateur ou

le filtre.

d) Utilisez la taille de casserole appropriée. Utilisez toujours des ustensiles de cuisine adaptés à la

taille de l’élément de surface ou du brûleur.

POUR RÉDUIRE LES RISQUES DE BLESSURES EN CAS DE FEU DE

GRAISSE SUR LA CUISINIÈRE, OBSERVEZ CE QUI SUIT *:

a) ÉTOUFFER LES FLAMMES avec un couvercle hermétique, une plaque à biscuits ou un plateau

métallique, puis éteignez le brûleur. SOYEZ PRUDENT POUR PRÉVENIR LES BRÛLURES.

Si les flammes ne s’éteignent pas immédiatement, ÉVACUER ET APPELER LE SERVICE DES

INCENDIES.

b) NE JAMAIS RAMASSER UN PAN INFLAMMABLE - Vous pourriez être brûlé.

c) N’UTILISEZ PAS D’EAU, y compris des torchons ou des serviettes humides - une violente

explosion de vapeur se produira.

d) Utilisez un extincteur UNIQUEMENT si:

1. Vous savez que vous avez un extincteur de type ABC ou type K, et vous savez déjà comment

l’utiliser.

2. Le feu est petit et contenu dans la zone où il a commencé.

3. Le service d’incendie est appelé.

4. Vous pouvez combattre le feu avec votre dos à une sortie.

* - Basé sur «Kitchen Fire Safety Tips» publié par NFPA.

PRÉCAUTIONS DE SÉCURITÉ - AVANT DE COMMENCER

(SUITE)

RISQUE DE BRÛLURE

Ce système de ventilation est conçu pour être utilisé avec des cuisinières ou tables de cuisson, qui

peuvent devenir très chauds pendant le fonctionnement. Respectez les avertissements et les mises

en garde concernant l’appareil de cuisson.

Ce système de ventilation doit être réparé uniquement par un technicien agréé Hestan. Contactez

le centre de service agréé le plus proche pour l’examen, la réparation ou le réglage.

Ne réparez ou ne remplacez aucune partie du système à moins d’une recommandation spécifique.

Renvoyer le service à un réparateur agréé.

N’utilisez pas ce système de ventilation s’il ne fonctionne pas correctement ou s’il a été endommagé

jusqu’à ce qu’un réparateur agréé l’ait examiné.

Installez ou localisez ce système de ventilation uniquement conformément à la section Installation

de ce manuel. Ne pas couvrir ou bloquer les ouvertures de ce système de ventilation.

Il est fortement recommandé de disposer d’un extincteur de cuisine adapté (type ABC ou type K)

facilement disponible et très visible à proximité de tout appareil de cuisson.

SÉCURITÉ PENDANT LE NETTOYAGE

Nettoyez uniquement les pièces du système de ventilation indiquées dans ce manuel, de la manière

spécifiée dans ce manuel.

Remarque: les «ventilateurs» et «filtre» dans les avertissements précédents se réfèrent à la roue(s)

du soufflante, la boîtier(s) de la soufflante, et la bouclier de la soufflante.

CE MANUEL DOIT RESTER AVEC LA PROPRIÉTAIRE POUR RÉFÉRENCE FUTURE.

PRÉCAUTIONS DE SÉCURITÉ - AVANT DE COMMENCER

(SUITE)

NUMÉROS DE MODÈLE

NO.

MODÈLE

DESCRIPTION

VENTILATEURS

UTILISÉS

KVL30

Système de Ventilation de Cuisine 600 CFM
