Draper Tools Limited, Hursley Road,
Chandler's Ford, Eastleigh, Hampshire. SO53 1YF. U.K.
Helpline: (023) 8049 4344
Sales Desk: (023) 8049 4333
Internet: drapertools.com
E-mail: [email protected]
General Enquiries: (023) 8026 6355
Service/Warranty Repair Agent:
For aftersales servicing or warranty repairs, please contact the
Draper Tools Helpline for details of an agent in your local area.
©Published by Draper Tools Limited.
No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means,
electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
18348
CONTACTS
YOUR DRAPER STOCKIST
CMDB0618
BRITISH
MADE
This document is part of the product, keep it for the life of the product passing it on to any subsequent holder of
the product. Read all information before operating product.
This guide has been compiled by Draper Tools describing the purpose for which the product has been designed,
and contains necessary information to ensure its correct and safe use. By following the information contained in
this guide, it will ensure both product and operator safety, together with longer life of the product itself.
AlI photographs and drawings in this guide are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this guide, the Draper
Tools policy of continuous improvement determines the right to make modifications without prior warning.
APPLICATION GUIDE FOR:
TENSIONER
TOOL SET
1. TITLE PAGE
1.2 REVISIONS:
Date first published June 2018.
- 11 -
10. EXPLANATION OF SYMBOLS
- 2 -
10.1 EXPLANATION OF SYMBOLS
Refer to website.
As our user manuals are continually updated, users should make sure that they use
the very latest version.
Downloads are available from: http://drapertools.com
Draper Tools Limited
Hursley Road
Chandler’s Ford
Eastleigh
Hampshire
SO53 1YF
UK
Website: drapertools.com
Product Helpline: +44 (0) 23 8049 4344
General Fax: +44 (0) 23 8026 0784
1.3 UNDERSTANDING THIS GUIDES SAFETY CONTENT:
WARNING! – Information that draws attention to the risk of injury or death.
CAUTION! – Information that draws attention to the risk of damage to the product or
surroundings.
1.4 COPYRIGHT © NOTICE:
Copyright © Draper Tools Limited.
Permission is granted to reproduce this publication for personal and educational use
only. Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in any
other form or means without written permission from Draper Tools Limited.
In all cases this copyright notice must remain intact.
Read the guide.
1.1 INTRODUCTION:
USER GUIDE FOR: Tensioner Tool Set
Stock No: 18348
Part No: ETK210
2. CONTENTS
- 3 -
- 10 -
Depending on manufacture and model, some engine components do change. Please check with
Autodata or the manufacturer’s data before use.
1. TITLE PAGE
1.1 INTRODUCTION.......................................................................................................... 2
1.2 REVISION HISTORY .................................................................................................. 2
1.3 UNDERSTANDING THIS GUIDE................................................................................. 2
1.4 COPYRIGHT NOTICE .................................................................................................2
2. CONTENTS
2.1 CONTENTS ....................................................................................................................3
3. GUARANTEE
3.1 GUARANTEE ............................................................................................................... 4
4. GENERAL PRODUCT INFORMATION
4.1 GENERAL PRODUCT INFORMATION ....................................................................... 5
5. HEALTH AND SAFETY INFORMATION
5.1 GENERAL SAFETY INSTRUCTIONS FOR USE
Personal safety........................................................................................................... 6
6. CONTENTS
6.1 PARTS DRAWING AND LISTING ............................................................................... 7
7. APPLICATION
7.1 PRODUCT APPLICATION AND COMPATIBILITY LISTING ...................................... 8
8. PREPARATION
8.1 ADVISORIES BEFORE USE ...................................................................................... 9
9. PROCEDURE AND APPLICATION GUIDE
9.1 APPLICATION GUIDANCE........................................................................................10
10. EXPLANATION OF SYMBOLS
10.1 EXPLANATION OF SYMBOLS .................................................................................. 11

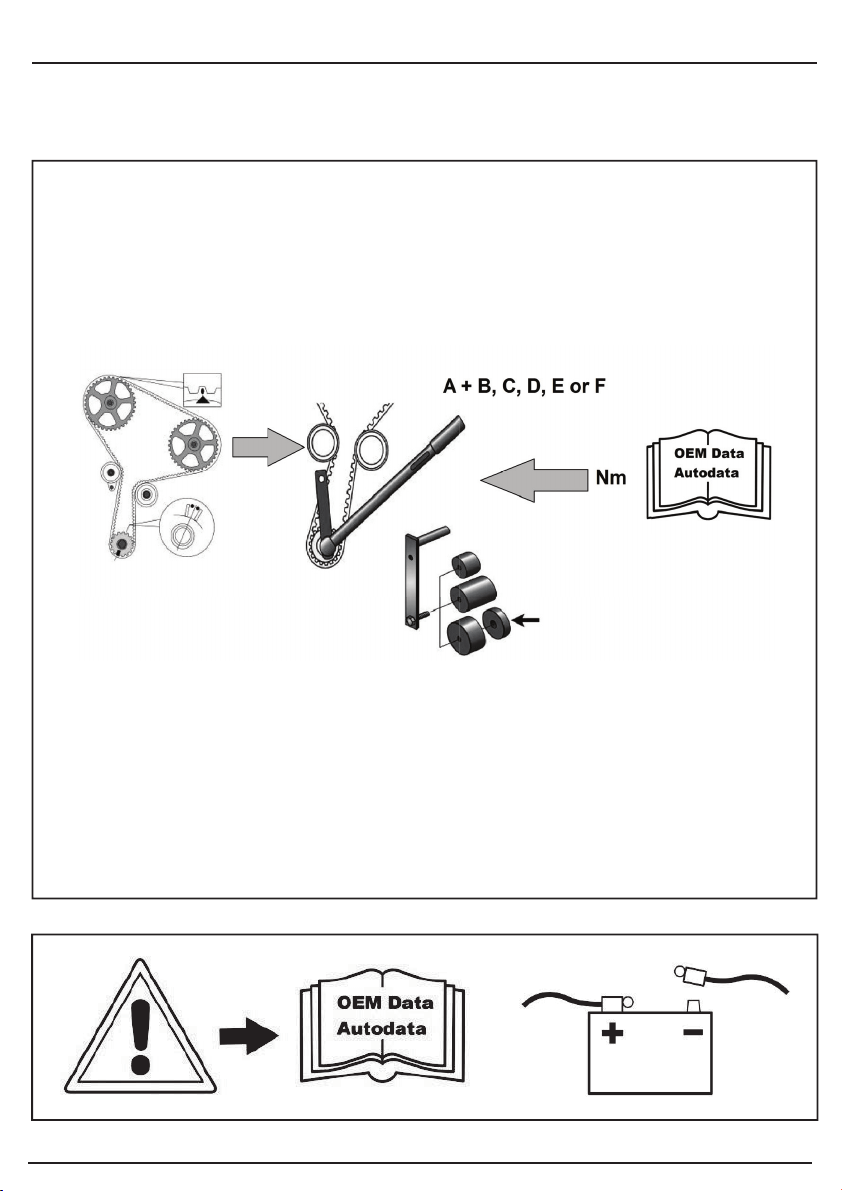

9. PROCEDURE AND APPLICATION GUIDE
Please note images are for guidance only and subject to change.
3. GUARANTEE
3.1 GUARANTEE
Draper tools have been carefully tested and inspected before shipment and are guaranteed to be
free from defective materials and workmanship.
Should the tool develop a fault, please return the complete tool to your nearest distributor or
contact:
Draper Tools Limited, Chandler's Ford, Eastleigh, Hampshire, SO53 1YF. England.
Telephone Sales Desk: (023) 8049 4333 or:
Product Helpline (023) 8049 4344.
A proof of purchase must be provided.
If upon inspection it is found that the fault occurring is due to defective materials or workmanship,
repairs will be carried out free of charge. This guarantee period covering parts/labour is 12 months
from the date of purchase except where tools are hired out when the guarantee period is 90 days
from the date of purchase. This guarantee does not apply to normal wear and tear, nor does it
cover any damage caused by misuse, careless or unsafe handling, alterations, accidents, or
repairs attempted or made by any personnel other than the authorised Draper warranty repair
agent.
Note: If the tool is found not to be within the terms of warranty, repairs and carriage charges will be
quoted and made accordingly.
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its
terms are not authorised.
Your Draper guarantee is not effective unless you can produce upon request a dated receipt or
invoice to verify your proof of purchase within the guarantee period.
Please note that this guarantee is an additional benefit and does not affect your statutory rights.
Draper Tools Limited.

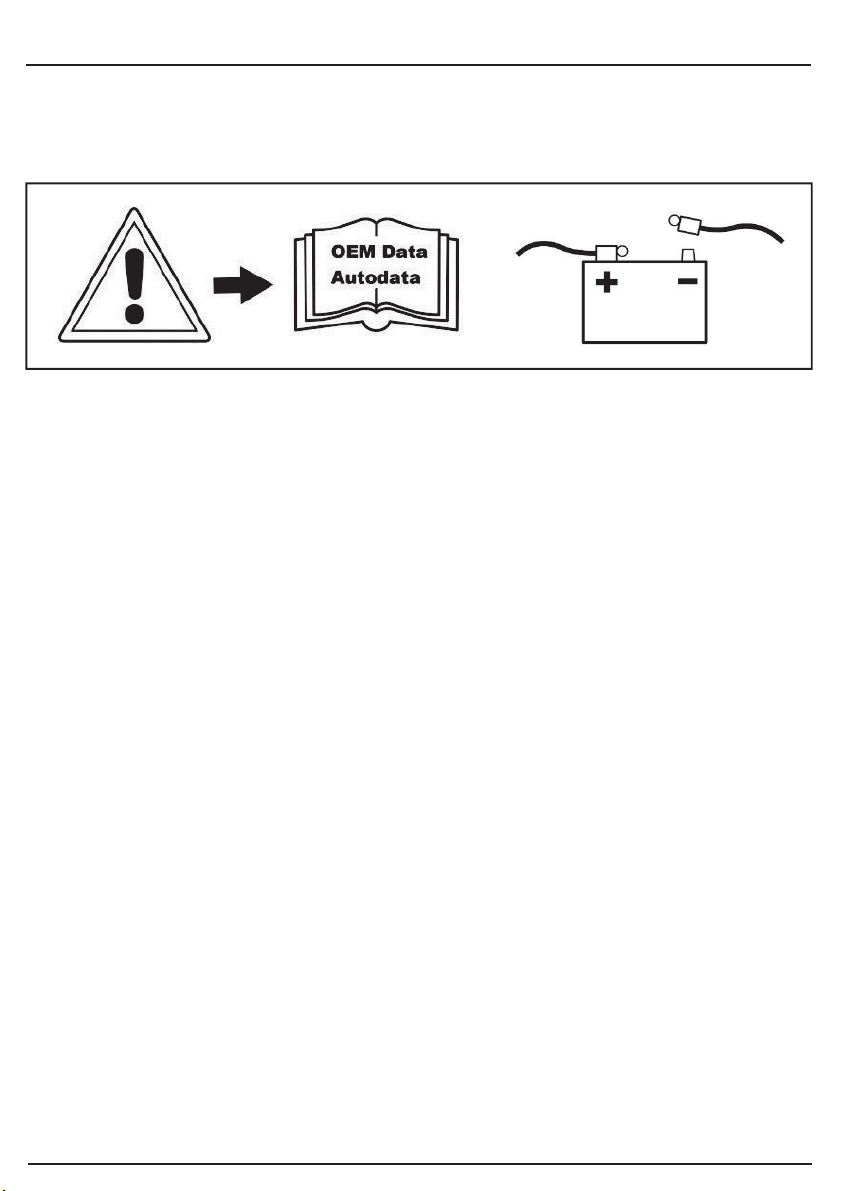

8. PREPARATION
- 4 -
- 9 -
The following is for guidance only. Please refer to OEM derived data such as the vehicle
manufacturer’s own data or Autodata. The use of this product is purely down to the user’s
discretion and Draper Tools Limited cannot be held responsible for any damage caused what so
ever.
4. GENERAL PRODUCT INFORMATION
This product is designed to be used correctly and with care for the purpose for which it is intended.
No liability is accepted by Draper Tools Limited for incorrect use or application of any of our
products, and Draper Tools Limited cannot be held responsible for any damage to personnel,
property or equipment when using this product. Incorrect use will also invalidate any warranty.
The applications database and any instructional information provided has been designed to offer
general guidance for a particular product’s use and while all attention is given to the accuracy of
the data, no project should be attempted without referring first to the manufacturer’s technical
documentation (workshop or instruction manual) or the use of a recognised authority such as
Autodata.
It is our policy to continually improve our products and thus we reserve the right to alter
specifications and components without prior notice. It is the responsibility of the user to ensure the
suitability of the product and information prior to use.
7. APPLICATION
- 5 -
- 8 -
The 18348 has been developed as a tensioner tool set for the vehicles listed below. An essential
kit to accurately set the belt tension after replacement or removal.
Used on the following Vehicles:
Renault 19 1988 - 1996
Renault 21 1989 - 1995
Renault 5 1991 - 1995
Renault Clio 1990 - 2003
Renault Espace 1999 - 2007
Renault Extra/Rapid/Express 1991 - 2001
Renault Kangoo 1998 - 2005
Renault Laguna 1999 - 2007
Renault Master II 2001 - 2006
Renault Megane 1995 - 2012
Renault Scenic 1999 - 2011
Renault Thalia 2001 - 2007
Renault Trafic 1997 - 2009
Nissan Interstar 2002 - 2006
Nissan Primastar 2002 - 2007
Nissan Primera 2003 - 2007
Suzuki Grand Vitara 2005 - 2015
Suzuki Samurai 2000 - 2004
Vauxhall Arena 1997 - 2001
Vauxhall Movano-A 1999 - 2006
Vauxhall Vivaro-A 2001 - 2007
Mitsubishi Space Star 2000 - 2006
Engine Codes:
1.9cc
F9Q2, F9Q 772, F9Q 774, F9Q 760, F9Q 762, F9Q, F9Q 770, F9Q W772,
F9Q 780, F9Q 782, F9Q 720, F9Q 722, F9Q 680, F9Q 820, F9Q 826,
F9Q 790, F9Q 718, F9Q 754, F9Q 710, F9Q 716, F9Q 717, F9Q 650,
F9Q 660, F9Q 664, F9Q 670, F9Q 674, F9Q 690, F9Q 750, F9Q 751,
F9Q 752, F9Q 755, F9Q 758, F9Q 759, F9Q 732, F9Q 733, F9Q 731,
F9Q 736, F9Q 744, F9Q 730/734, F9Q 800, F9Q 803, F9Q 804, F9Q 808,
F9Q 814, F9Q 816, F9Q 818, F9Q 870, F9Q 872, F9Q 740, F9Q 748,
F9Q 8, F9Q 812, F9Q B2, F8QT, F8Q, F8Q 706, F8Q 742, F8Q 744,
F8Q 764, F8Q A706, F8Q 610, F8Q 740, F8Q 768, F8Q 710, F8Q 722,
F8Q 672/692, F8Q 676/696, F8Q 678, F8Q 714, F8Q 714/730, F8Q 730,
F8Q 732, F8Q 630, F8Q 632, F8Q 662, F8Q 644/648, F8Q 646/680,
F8Q 724, F8Q 776/684, F8Q B640/682, F8Q 622, F8Q 790, F8Q 620,
F8Q 624, F8Q 784/786, F8Q 788, F8Q 600, F8Q 606
5. HEALTH AND SAFETY INFORMATION
6. CONTENTS
- 6 -
- 7 -
GENERAL SAFETY INSTRUCTIONS
Warning: Please read all safety warnings and all details carefully. Failure to follow the warnings
may result in serious injury or major component damage.
Important: Draper Tools recommends that this product should not be modified or used for any
application other than that for which it was designed.
Save all warnings and instructions for future reference.
1) Personal safety
a) Stay alert, watch what you are doing and use common sense when using this product.
Do not use this product while you are tired or under the influence of drugs, alcohol or any
medication. A moment of inattention while using this product may result in serious personal
injury.
b) Use personal protective equipment as necessary.
c) Check and remove any part of the product before turning/testing the engine. A part left
attached to a rotating part of the engine may result in personal injury or major component
damage.
d) Carefully clean the tool components after every use.
f) Keep the tool components safe and tidy.
g) Do not use this product for any purpose other than for which it is designed.
Warning! Some of the packaging materials used may be harmful to children. Do not leave any of
these materials in the reach of children.
If any of the packaging is to be thrown away, make sure it is disposed of correctly; according to
local regulations.

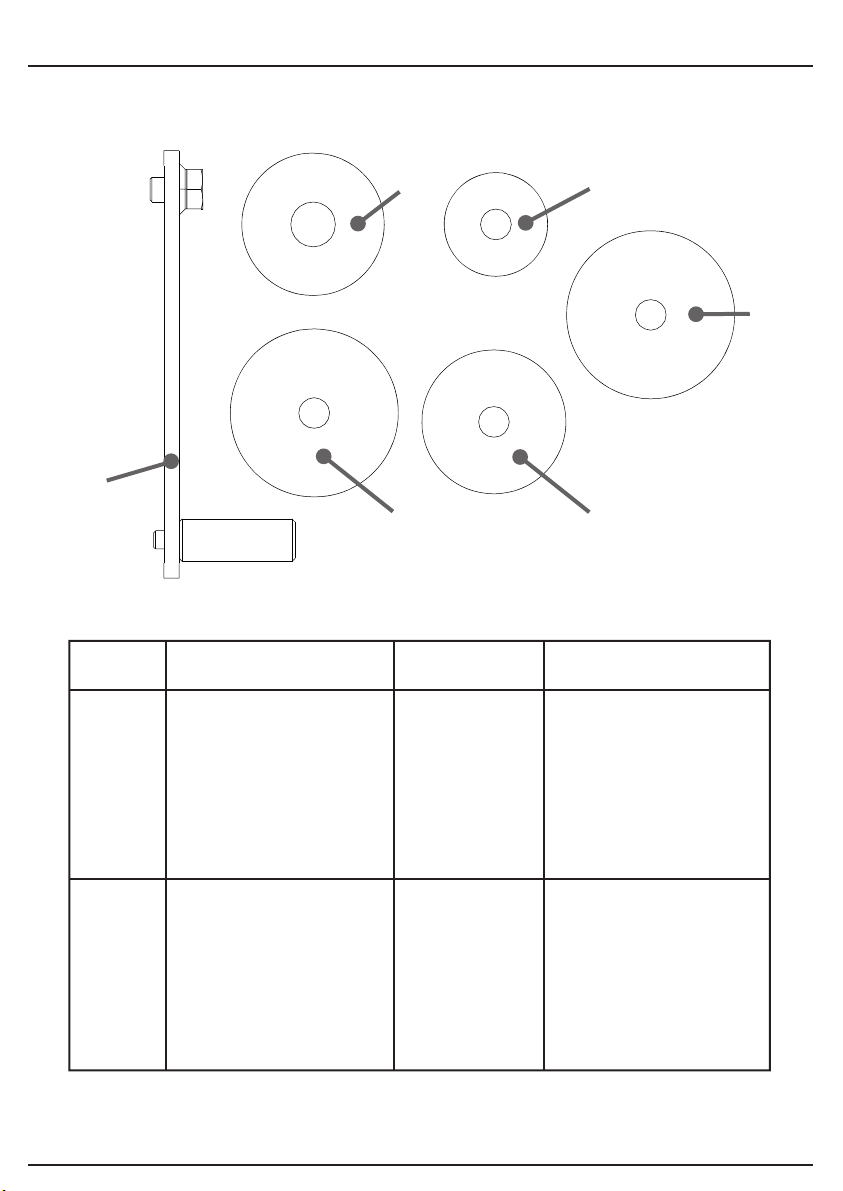

ITEM DESCRIPTION OEM STOCK No.
A
Tension Tool
MOT 1543 33835
Assembly
B Cover No 4 MOT 1705 33839
A
A
A
A
1
3
2
A
B
5. HEALTH AND SAFETY INFORMATION
6. CONTENTS
- 6 -
- 7 -
GENERAL SAFETY INSTRUCTIONS
Warning: Please read all safety warnings and all details carefully. Failure to follow the warnings
may result in serious injury or major component damage.
Important: Draper Tools recommends that this product should not be modified or used for any
application other than that for which it was designed.
Save all warnings and instructions for future reference.
1) Personal safety
a) Stay alert, watch what you are doing and use common sense when using this product.
Do not use this product while you are tired or under the influence of drugs, alcohol or any
medication. A moment of inattention while using this product may result in serious personal
injury.
b) Use personal protective equipment as necessary.
c) Check and remove any part of the product before turning/testing the engine. A part left
attached to a rotating part of the engine may result in personal injury or major component
damage.
d) Carefully clean the tool components after every use.
f) Keep the tool components safe and tidy.
g) Do not use this product for any purpose other than for which it is designed.
Warning! Some of the packaging materials used may be harmful to children. Do not leave any of
these materials in the reach of children.
If any of the packaging is to be thrown away, make sure it is disposed of correctly; according to
local regulations.
ITEM DESCRIPTION OEM STOCK No.
A
Tension Tool
MOT 1543 33835
Assembly
B Cover No 4 MOT 1705 33839
A
A
A
A
1
3
2
A
B
4. GENERAL PRODUCT INFORMATION
This product is designed to be used correctly and with care for the purpose for which it is intended.
No liability is accepted by Draper Tools Limited for incorrect use or application of any of our
products, and Draper Tools Limited cannot be held responsible for any damage to personnel,
property or equipment when using this product. Incorrect use will also invalidate any warranty.
The applications database and any instructional information provided has been designed to offer
general guidance for a particular product’s use and while all attention is given to the accuracy of
the data, no project should be attempted without referring first to the manufacturer’s technical
documentation (workshop or instruction manual) or the use of a recognised authority such as
Autodata.
It is our policy to continually improve our products and thus we reserve the right to alter
specifications and components without prior notice. It is the responsibility of the user to ensure the
suitability of the product and information prior to use.
7. APPLICATION
- 5 -
- 8 -
The 18348 has been developed as a tensioner tool set for the vehicles listed below. An essential
kit to accurately set the belt tension after replacement or removal.
Used on the following Vehicles:
Renault 19 1988 - 1996
Renault 21 1989 - 1995
Renault 5 1991 - 1995
Renault Clio 1990 - 2003
Renault Espace 1999 - 2007
Renault Extra/Rapid/Express 1991 - 2001
Renault Kangoo 1998 - 2005
Renault Laguna 1999 - 2007
Renault Master II 2001 - 2006
Renault Megane 1995 - 2012
Renault Scenic 1999 - 2011
Renault Thalia 2001 - 2007
Renault Trafic 1997 - 2009
Nissan Interstar 2002 - 2006
Nissan Primastar 2002 - 2007
Nissan Primera 2003 - 2007
Suzuki Grand Vitara 2005 - 2015
Suzuki Samurai 2000 - 2004
Vauxhall Arena 1997 - 2001
Vauxhall Movano-A 1999 - 2006
Vauxhall Vivaro-A 2001 - 2007
Mitsubishi Space Star 2000 - 2006
Engine Codes:
1.9cc
F9Q2, F9Q 772, F9Q 774, F9Q 760, F9Q 762, F9Q, F9Q 770, F9Q W772,
F9Q 780, F9Q 782, F9Q 720, F9Q 722, F9Q 680, F9Q 820, F9Q 826,
F9Q 790, F9Q 718, F9Q 754, F9Q 710, F9Q 716, F9Q 717, F9Q 650,
F9Q 660, F9Q 664, F9Q 670, F9Q 674, F9Q 690, F9Q 750, F9Q 751,
F9Q 752, F9Q 755, F9Q 758, F9Q 759, F9Q 732, F9Q 733, F9Q 731,
F9Q 736, F9Q 744, F9Q 730/734, F9Q 800, F9Q 803, F9Q 804, F9Q 808,
F9Q 814, F9Q 816, F9Q 818, F9Q 870, F9Q 872, F9Q 740, F9Q 748,
F9Q 8, F9Q 812, F9Q B2, F8QT, F8Q, F8Q 706, F8Q 742, F8Q 744,
F8Q 764, F8Q A706, F8Q 610, F8Q 740, F8Q 768, F8Q 710, F8Q 722,
F8Q 672/692, F8Q 676/696, F8Q 678, F8Q 714, F8Q 714/730, F8Q 730,
F8Q 732, F8Q 630, F8Q 632, F8Q 662, F8Q 644/648, F8Q 646/680,
F8Q 724, F8Q 776/684, F8Q B640/682, F8Q 622, F8Q 790, F8Q 620,
F8Q 624, F8Q 784/786, F8Q 788, F8Q 600, F8Q 606
3. GUARANTEE
3.1 GUARANTEE
Draper tools have been carefully tested and inspected before shipment and are guaranteed to be
free from defective materials and workmanship.
Should the tool develop a fault, please return the complete tool to your nearest distributor or
contact:
Draper Tools Limited, Chandler's Ford, Eastleigh, Hampshire, SO53 1YF. England.
Telephone Sales Desk: (023) 8049 4333 or:
Product Helpline (023) 8049 4344.
A proof of purchase must be provided.
If upon inspection it is found that the fault occurring is due to defective materials or workmanship,
repairs will be carried out free of charge. This guarantee period covering parts/labour is 12 months
from the date of purchase except where tools are hired out when the guarantee period is 90 days
from the date of purchase. This guarantee does not apply to normal wear and tear, nor does it
cover any damage caused by misuse, careless or unsafe handling, alterations, accidents, or
repairs attempted or made by any personnel other than the authorised Draper warranty repair
agent.
Note: If the tool is found not to be within the terms of warranty, repairs and carriage charges will be
quoted and made accordingly.
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its
terms are not authorised.
Your Draper guarantee is not effective unless you can produce upon request a dated receipt or
invoice to verify your proof of purchase within the guarantee period.
Please note that this guarantee is an additional benefit and does not affect your statutory rights.
Draper Tools Limited.
8. PREPARATION
- 4 -
- 9 -
The following is for guidance only. Please refer to OEM derived data such as the vehicle
manufacturer’s own data or Autodata. The use of this product is purely down to the user’s
discretion and Draper Tools Limited cannot be held responsible for any damage caused what so
ever.
2. CONTENTS
- 3 -
- 10 -
Depending on manufacture and model, some engine components do change. Please check with
Autodata or the manufacturer’s data before use.
1. TITLE PAGE
1.1 INTRODUCTION.......................................................................................................... 2
1.2 REVISION HISTORY .................................................................................................. 2
1.3 UNDERSTANDING THIS GUIDE................................................................................. 2
1.4 COPYRIGHT NOTICE .................................................................................................2
2. CONTENTS
2.1 CONTENTS ....................................................................................................................3
3. GUARANTEE
3.1 GUARANTEE ............................................................................................................... 4
4. GENERAL PRODUCT INFORMATION
4.1 GENERAL PRODUCT INFORMATION ....................................................................... 5
5. HEALTH AND SAFETY INFORMATION
5.1 GENERAL SAFETY INSTRUCTIONS FOR USE
Personal safety........................................................................................................... 6
6. CONTENTS
6.1 PARTS DRAWING AND LISTING ............................................................................... 7
7. APPLICATION
7.1 PRODUCT APPLICATION AND COMPATIBILITY LISTING ...................................... 8
8. PREPARATION
8.1 ADVISORIES BEFORE USE ...................................................................................... 9
9. PROCEDURE AND APPLICATION GUIDE
9.1 APPLICATION GUIDANCE........................................................................................10
10. EXPLANATION OF SYMBOLS
10.1 EXPLANATION OF SYMBOLS .................................................................................. 11
9. PROCEDURE AND APPLICATION GUIDE
Please note images are for guidance only and subject to change.
1. TITLE PAGE
1.2 REVISIONS:
Date first published June 2018.
- 11 -
10. EXPLANATION OF SYMBOLS
- 2 -
10.1 EXPLANATION OF SYMBOLS
Refer to website.
As our user manuals are continually updated, users should make sure that they use
the very latest version.
Downloads are available from: http://drapertools.com
Draper Tools Limited
Hursley Road
Chandler’s Ford
Eastleigh
Hampshire
SO53 1YF
UK
Website: drapertools.com
Product Helpline: +44 (0) 23 8049 4344
General Fax: +44 (0) 23 8026 0784
1.3 UNDERSTANDING THIS GUIDES SAFETY CONTENT:
WARNING! – Information that draws attention to the risk of injury or death.
CAUTION! – Information that draws attention to the risk of damage to the product or
surroundings.
1.4 COPYRIGHT © NOTICE:
Copyright © Draper Tools Limited.
Permission is granted to reproduce this publication for personal and educational use
only. Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in any
other form or means without written permission from Draper Tools Limited.
In all cases this copyright notice must remain intact.
Read the guide.
1.1 INTRODUCTION:
USER GUIDE FOR: Tensioner Tool Set
Stock No: 18348
Part No: ETK210
Draper Tools Limited, Hursley Road,
Chandler's Ford, Eastleigh, Hampshire. SO53 1YF. U.K.
Helpline: (023) 8049 4344
Sales Desk: (023) 8049 4333
Internet: drapertools.com
E-mail: [email protected]
General Enquiries: (023) 8026 6355
Service/Warranty Repair Agent:
For aftersales servicing or warranty repairs, please contact the
Draper Tools Helpline for details of an agent in your local area.
©Published by Draper Tools Limited.
No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means,
electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
18348
CONTACTS
YOUR DRAPER STOCKIST
CMDB0618
BRITISH
MADE
This document is part of the product, keep it for the life of the product passing it on to any subsequent holder of
the product. Read all information before operating product.
This guide has been compiled by Draper Tools describing the purpose for which the product has been designed,
and contains necessary information to ensure its correct and safe use. By following the information contained in
this guide, it will ensure both product and operator safety, together with longer life of the product itself.
AlI photographs and drawings in this guide are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this guide, the Draper
Tools policy of continuous improvement determines the right to make modifications without prior warning.
APPLICATION GUIDE FOR:
TENSIONER
TOOL SET
