MOUSE FEATURES
INSTALLING THE MOUSE BATTERIES AND REMOVING
THE NANO RECEIVER
1 Take the battery cover o.
2 Remove the nano receiver.
3 Insert the included AA battery into the battery compartment. Make
sure that the + and - signs match the symbols in the compartment.
4 Replace the battery cover.
Tip: Store the nano receiver in the mouse when it is not in use.

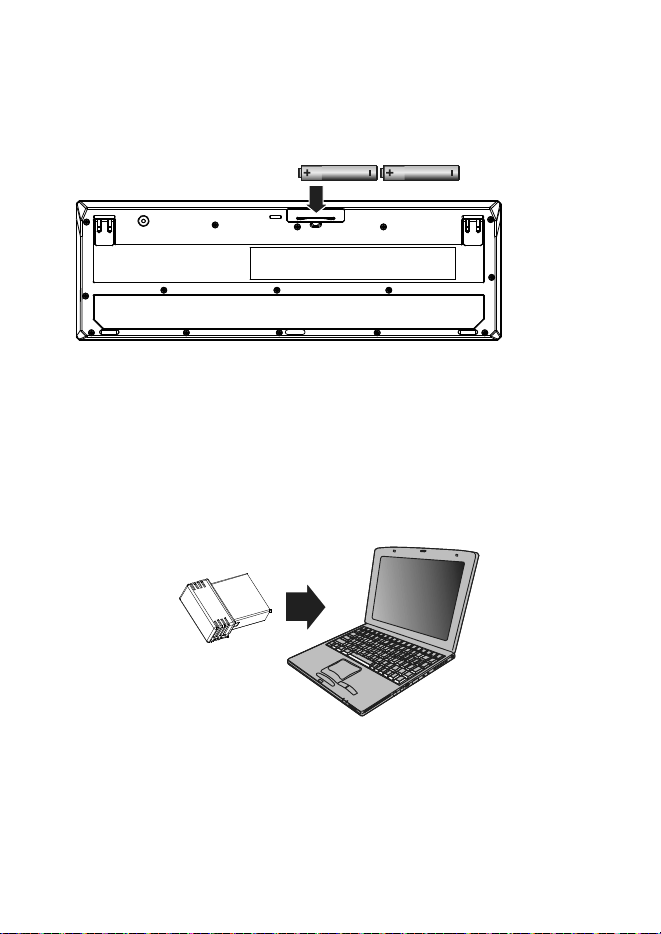

KEYBOARD FEATURES
PACKAGE CONTENTS
• Wireless keyboard
• Wireless mouse
• Nano receiver
SYSTEM REQUIREMENTS
• Windows® 10 or macOS®
• One available USB port
Before using your new product, please read these instructions to prevent any damage.
• AA battery (1)
• AAA batteries (2)
• Quick Setup Guide
QUICK SETUP GUIDE
Wireless Keyboard
and Mouse Combo
NS-PNC7011 / NS-PNC7011-C

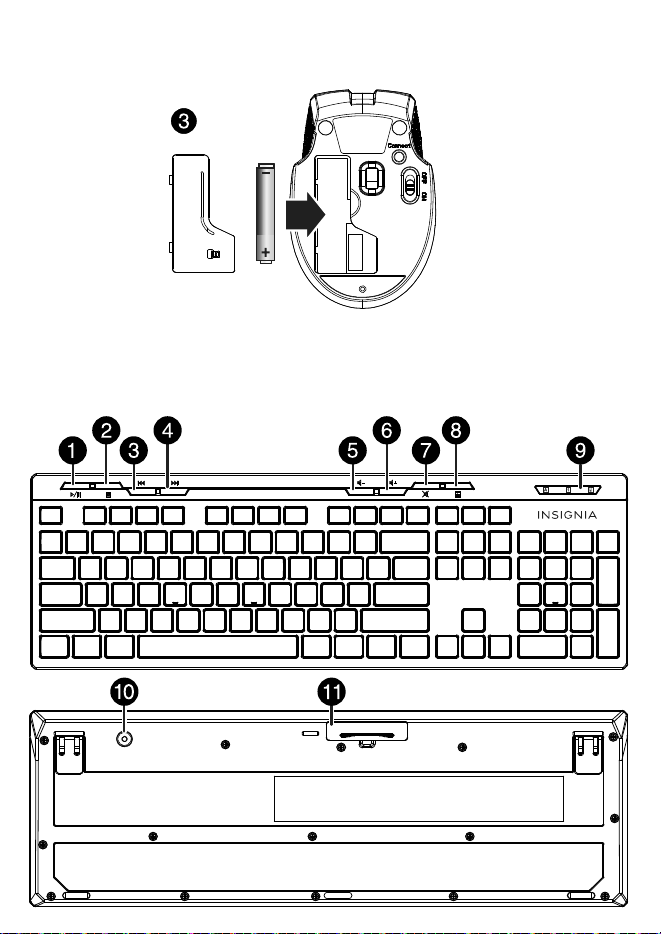

# ICON ITEM
1 Play/Pause
2 Stop
3 Previous
4 Next
5 Volume down
6 Volume up
7 Mute
8 Calculator
9 LED indicator
10 Connect button
11 Battery cover
DESCRIPTION
Press to play or pause media.
Press to stop playing media.
Press to select the previous media track.
Press to select the next media track.
Press to decrease the computer’s volume.
Press to increase the computer’s volume.
Press to turn o the computer’s sound.
Press to launch the Microsoft calculator.
Cap lock , Num lock, Low battery warning
and pairing.
Press to initiate pairing with your comput-
er.
Remove to install or replace the batteries.
Red LED
Right
button
Left button
Scrolling wheel
OFF/ON switch
Connect button
Battery cover
USB transceiver
AA battery
Pull
NS-PNC7011_C_20-0329_QSG_V4_EN_Final.ai 1 6/24/2020 12:55:27 PM
