APPLICATION GUIDE FOR:
CAMSHAFT DRIVE CHAIN
WEAR INDICATOR
1. TITLE PAGE
1.2 REVISIONS:
Date first published June 2018.
- 11 -
10. EXPLANATION OF SYMBOLS
- 2 -
10.1 EXPLANATION OF SYMBOLS
Refer to website.
As our user manuals are continually updated, users should make sure that they use
the very latest version.
Downloads are available from: http://drapertools.com
Draper Tools Limited
Hursley Road
Chandler’s Ford
Eastleigh
Hampshire
SO53 1YF
UK
Website: drapertools.com
Product Helpline: +44 (0) 23 8049 4344
General Fax: +44 (0) 23 8026 0784
1.3 UNDERSTANDING THIS GUIDES SAFETY CONTENT:
WARNING! – Information that draws attention to the risk of injury or death.
CAUTION! – Information that draws attention to the risk of damage to the product or
surroundings.
1.4 COPYRIGHT © NOTICE:
Copyright © Draper Tools Limited.
Permission is granted to reproduce this publication for personal and educational use
only. Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in any
other form or means without written permission from Draper Tools Limited.
In all cases this copyright notice must remain intact.
Read the guide.
1.1 INTRODUCTION:
USER GUIDE FOR: Camshaft Drive Chain Wear Indicator
Stock No: 16239
Part No: ETK132
2. CONTENTS
- 3 -
- 10 -
Depending on manufacture and model, some engine components do change. Please check with
Autodata or the manufacturer’s data before use.
1. TITLE PAGE
1.1 INTRODUCTION.......................................................................................................... 2
1.2 REVISION HISTORY .................................................................................................. 2
1.3 UNDERSTANDING THIS GUIDE................................................................................. 2
1.4 COPYRIGHT NOTICE .................................................................................................2
2. CONTENTS
2.1 CONTENTS ....................................................................................................................3
3. GUARANTEE
3.1 GUARANTEE ............................................................................................................... 4
4. GENERAL PRODUCT INFORMATION
4.1 GENERAL PRODUCT INFORMATION ....................................................................... 5
5. HEALTH AND SAFETY INFORMATION
5.1 GENERAL SAFETY INSTRUCTIONS FOR USE
Personal safety........................................................................................................... 6
6. CONTENTS
6.1 PARTS DRAWING AND LISTING ............................................................................... 7
7. APPLICATION
7.1 PRODUCT APPLICATION AND COMPATIBILITY LISTING ...................................... 8
8. PREPARATION
8.1 ADVISORIES BEFORE USE ...................................................................................... 9
9. PROCEDURE AND APPLICATION GUIDE
9.1 APPLICATION GUIDANCE........................................................................................10
10. EXPLANATION OF SYMBOLS
10.1 EXPLANATION OF SYMBOLS .................................................................................. 11
9. PROCEDURE AND APPLICATION GUIDE
Please note images are for guidance only and subject to change.
Warning:
• Always refer to OEM vehicle specific data
• Remove all spark plugs to aid turning of the engine
WARNING: do not start the engine while the K00885 is fitted.

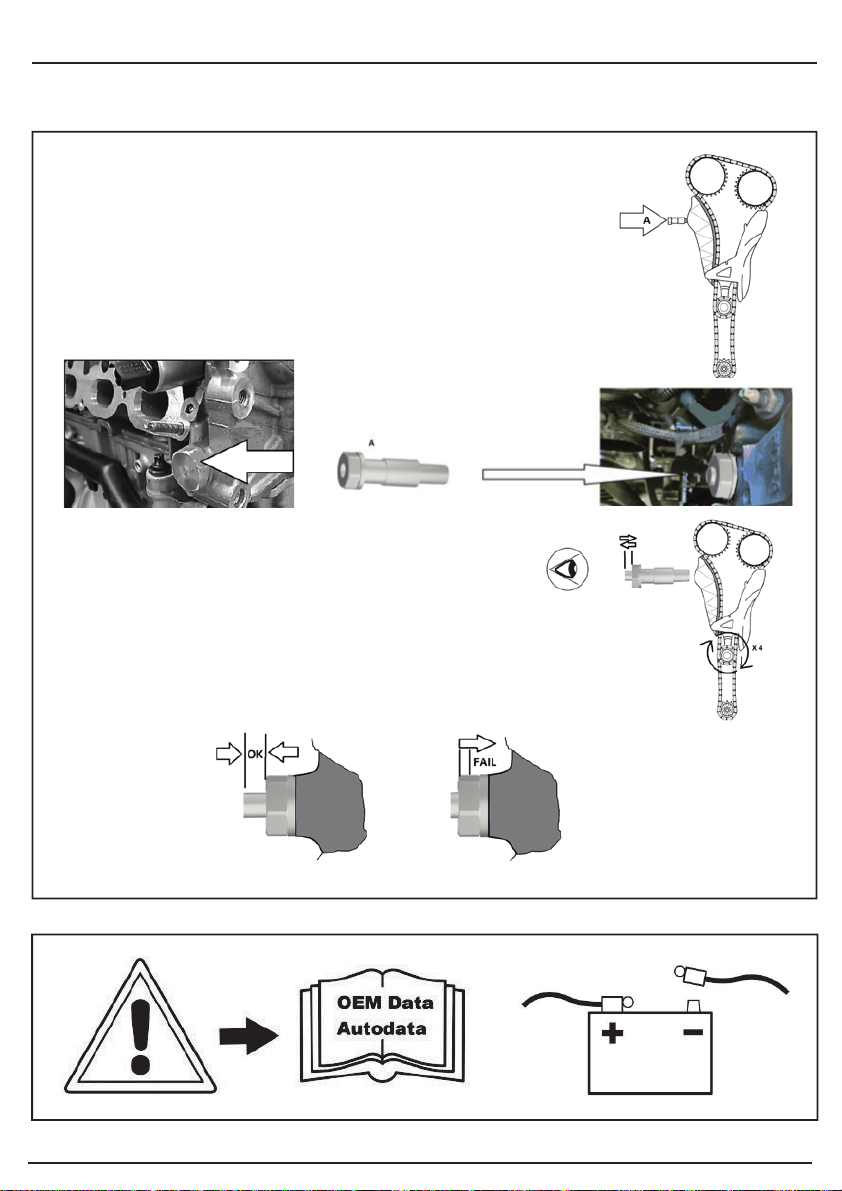

Component A
Components A is used to assess the amount of chain stretch in the
camshaft timing chain. Remove the timing chain tensioner and washer
from the engine - FIG:1. Screw in component A complete with the spacer
ring as shown - Fig:2. Tight to 20Nm.
i
n
g
as s
h
own -
Fig
:
2
.
Tight
t
o
2
FIG:1
FIG:2
Turn the engine 4 complete turns by hand in the normal
direction of rotation while watching the sprung loaded centre
rod of the K00885. The centre rod will move in and out as
the engine is turned.
If the rod falls below the level of the head of the K00885 outer body the
chain has excessive stretch and should be replaced along with associated
guides and tensioners. Always check OEM instructions to confirm result.
WARNING: Never start or attempt to run the engine with the
K00885 installed or without the chain tensioner installed.
3. GUARANTEE
3.1 GUARANTEE
Draper tools have been carefully tested and inspected before shipment and are guaranteed to be
free from defective materials and workmanship.
Should the tool develop a fault, please return the complete tool to your nearest distributor or
contact:
Draper Tools Limited, Chandler's Ford, Eastleigh, Hampshire, SO53 1YF. England.
Telephone Sales Desk: (023) 8049 4333 or:
Product Helpline (023) 8049 4344.
A proof of purchase must be provided.
If upon inspection it is found that the fault occurring is due to defective materials or workmanship,
repairs will be carried out free of charge. This guarantee period covering parts/labour is 12 months
from the date of purchase except where tools are hired out when the guarantee period is 90 days
from the date of purchase. This guarantee does not apply to normal wear and tear, nor does it
cover any damage caused by misuse, careless or unsafe handling, alterations, accidents, or
repairs attempted or made by any personnel other than the authorised Draper warranty repair
agent.
Note: If the tool is found not to be within the terms of warranty, repairs and carriage charges will be
quoted and made accordingly.
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its
terms are not authorised.
Your Draper guarantee is not effective unless you can produce upon request a dated receipt or
invoice to verify your proof of purchase within the guarantee period.
Please note that this guarantee is an additional benefit and does not affect your statutory rights.
Draper Tools Limited.
8. PREPARATION
- 4 -
- 9 -
The following is for guidance only. Please refer to OEM derived data such as the vehicle
manufacturer’s own data or Autodata. The use of this product is purely down to the user’s
discretion and Draper Tools Limited cannot be held responsible for any damage caused what so
ever.
4. GENERAL PRODUCT INFORMATION
This product is designed to be used correctly and with care for the purpose for which it is intended.
No liability is accepted by Draper Tools Limited for incorrect use or application of any of our
products, and Draper Tools Limited cannot be held responsible for any damage to personnel,
property or equipment when using this product. Incorrect use will also invalidate any warranty.
The applications database and any instructional information provided has been designed to offer
general guidance for a particular product’s use and while all attention is given to the accuracy of
the data, no project should be attempted without referring first to the manufacturer’s technical
documentation (workshop or instruction manual) or the use of a recognised authority such as
Autodata.
It is our policy to continually improve our products and thus we reserve the right to alter
specifications and components without prior notice. It is the responsibility of the user to ensure the
suitability of the product and information prior to use.
7. APPLICATION
- 5 -
- 8 -
The 16239 has been developed as a camshaft drive chain wear indicator for the vehicles listed
below. Allows the user to check the camshaft drive chain for wear with minimal strip down as the
indicator tool fits in to the chain tensioner position.
Used on the following Vehicles:
Mini-Clubman (R55)-2007 - 2014 One/First
Mini-Clubvan (R55)-2012 - 2014 Cooper
Mini-Countryman (R60)-2010 - 2017 Ray
Mini-Coupe (R58)-2011 - 2015 Cooper S
Mini-Mini (R56/57)-2006 - 2015 JCW
Mini-Paceman (R61)-2013 - 2017 JCW
Mini-Roadster (R59)-2012 - 2015 JCW
Engine Codes:
1.4cc
N12 B14AB, N12 B14
1.6cc
N12 B16A, N16 B16A, N16 B16M0, N16 B16U0, N16 B16A/M0,
N16 B16K0, N16 B16A/MO, N18 B16A, N18 B16A/M0, N18 B16C,
N18 B16A/MO, N18, N18 B16M0, N18 B16C/TO
5. HEALTH AND SAFETY INFORMATION
6. CONTENTS
- 6 -
- 7 -
GENERAL SAFETY INSTRUCTIONS
Warning: Please read all safety warnings and all details carefully. Failure to follow the warnings
may result in serious injury or major component damage.
Important: Draper Tools recommends that this product should not be modified or used for any
application other than that for which it was designed.
Save all warnings and instructions for future reference.
1) Personal safety
a) Stay alert, watch what you are doing and use common sense when using this product.
Do not use this product while you are tired or under the influence of drugs, alcohol or any
medication. A moment of inattention while using this product may result in serious personal
injury.
b) Use personal protective equipment as necessary.
c) Check and remove any part of the product before turning/testing the engine. A part left
attached to a rotating part of the engine may result in personal injury or major component
damage.
d) Carefully clean the tool components after every use.
f) Keep the tool components safe and tidy.
g) Do not use this product for any purpose other than for which it is designed.
Warning! Some of the packaging materials used may be harmful to children. Do not leave any of
these materials in the reach of children.
If any of the packaging is to be thrown away, make sure it is disposed of correctly; according to
local regulations.

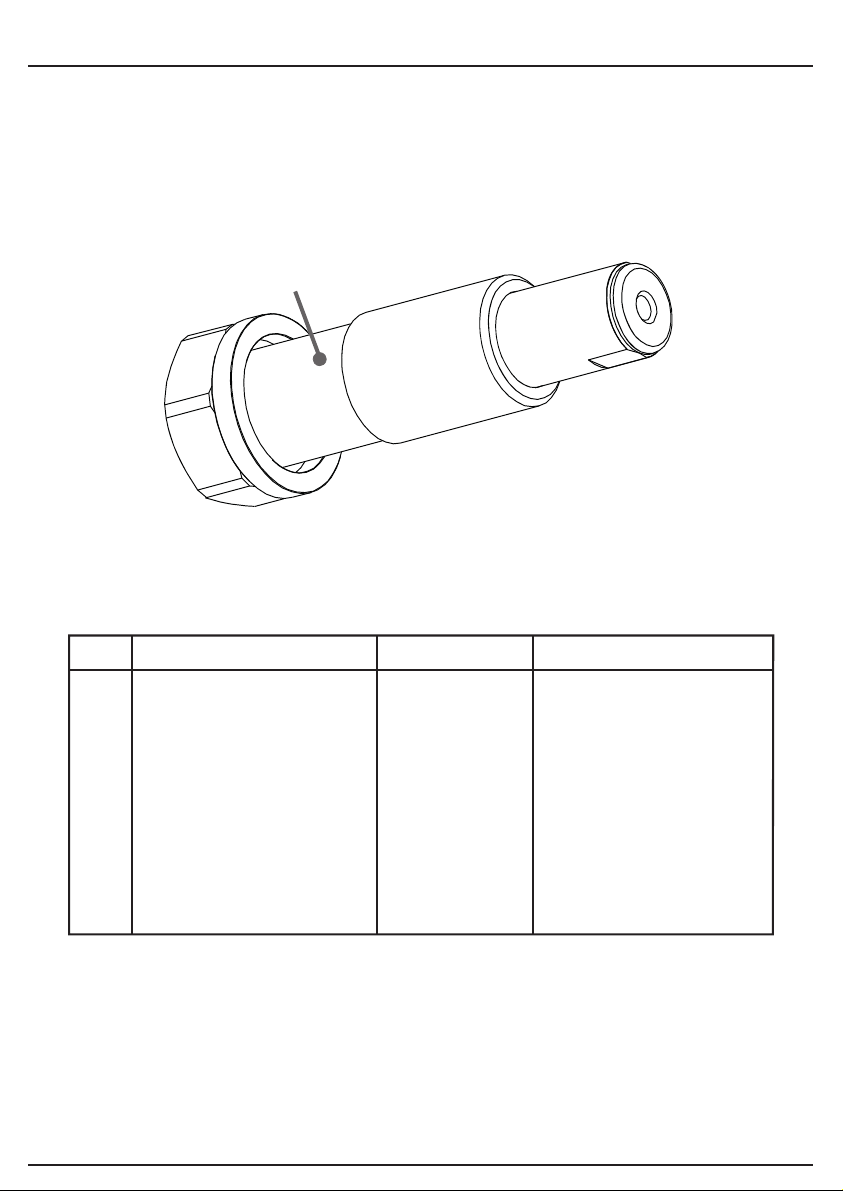

ITEM DESCRIPTION OEM STOCK No.
A
Camshaft Drive Chain
2 353 281 16239
Wear Indicator Tool
A
5. HEALTH AND SAFETY INFORMATION
6. CONTENTS
- 6 -
- 7 -
GENERAL SAFETY INSTRUCTIONS
Warning: Please read all safety warnings and all details carefully. Failure to follow the warnings
may result in serious injury or major component damage.
Important: Draper Tools recommends that this product should not be modified or used for any
application other than that for which it was designed.
Save all warnings and instructions for future reference.
1) Personal safety
a) Stay alert, watch what you are doing and use common sense when using this product.
Do not use this product while you are tired or under the influence of drugs, alcohol or any
medication. A moment of inattention while using this product may result in serious personal
injury.
b) Use personal protective equipment as necessary.
c) Check and remove any part of the product before turning/testing the engine. A part left
attached to a rotating part of the engine may result in personal injury or major component
damage.
d) Carefully clean the tool components after every use.
f) Keep the tool components safe and tidy.
g) Do not use this product for any purpose other than for which it is designed.
Warning! Some of the packaging materials used may be harmful to children. Do not leave any of
these materials in the reach of children.
If any of the packaging is to be thrown away, make sure it is disposed of correctly; according to
local regulations.
ITEM DESCRIPTION OEM STOCK No.
A
Camshaft Drive Chain
2 353 281 16239
Wear Indicator Tool
A
4. GENERAL PRODUCT INFORMATION
This product is designed to be used correctly and with care for the purpose for which it is intended.
No liability is accepted by Draper Tools Limited for incorrect use or application of any of our
products, and Draper Tools Limited cannot be held responsible for any damage to personnel,
property or equipment when using this product. Incorrect use will also invalidate any warranty.
The applications database and any instructional information provided has been designed to offer
general guidance for a particular product’s use and while all attention is given to the accuracy of
the data, no project should be attempted without referring first to the manufacturer’s technical
documentation (workshop or instruction manual) or the use of a recognised authority such as
Autodata.
It is our policy to continually improve our products and thus we reserve the right to alter
specifications and components without prior notice. It is the responsibility of the user to ensure the
suitability of the product and information prior to use.
7. APPLICATION
- 5 -
- 8 -
The 16239 has been developed as a camshaft drive chain wear indicator for the vehicles listed
below. Allows the user to check the camshaft drive chain for wear with minimal strip down as the
indicator tool fits in to the chain tensioner position.
Used on the following Vehicles:
Mini-Clubman (R55)-2007 - 2014 One/First
Mini-Clubvan (R55)-2012 - 2014 Cooper
Mini-Countryman (R60)-2010 - 2017 Ray
Mini-Coupe (R58)-2011 - 2015 Cooper S
Mini-Mini (R56/57)-2006 - 2015 JCW
Mini-Paceman (R61)-2013 - 2017 JCW
Mini-Roadster (R59)-2012 - 2015 JCW
Engine Codes:
1.4cc
N12 B14AB, N12 B14
1.6cc
N12 B16A, N16 B16A, N16 B16M0, N16 B16U0, N16 B16A/M0,
N16 B16K0, N16 B16A/MO, N18 B16A, N18 B16A/M0, N18 B16C,
N18 B16A/MO, N18, N18 B16M0, N18 B16C/TO
3. GUARANTEE
3.1 GUARANTEE
Draper tools have been carefully tested and inspected before shipment and are guaranteed to be
free from defective materials and workmanship.
Should the tool develop a fault, please return the complete tool to your nearest distributor or
contact:
Draper Tools Limited, Chandler's Ford, Eastleigh, Hampshire, SO53 1YF. England.
Telephone Sales Desk: (023) 8049 4333 or:
Product Helpline (023) 8049 4344.
A proof of purchase must be provided.
If upon inspection it is found that the fault occurring is due to defective materials or workmanship,
repairs will be carried out free of charge. This guarantee period covering parts/labour is 12 months
from the date of purchase except where tools are hired out when the guarantee period is 90 days
from the date of purchase. This guarantee does not apply to normal wear and tear, nor does it
cover any damage caused by misuse, careless or unsafe handling, alterations, accidents, or
repairs attempted or made by any personnel other than the authorised Draper warranty repair
agent.
Note: If the tool is found not to be within the terms of warranty, repairs and carriage charges will be
quoted and made accordingly.
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its
terms are not authorised.
Your Draper guarantee is not effective unless you can produce upon request a dated receipt or
invoice to verify your proof of purchase within the guarantee period.
Please note that this guarantee is an additional benefit and does not affect your statutory rights.
Draper Tools Limited.
8. PREPARATION
- 4 -
- 9 -
The following is for guidance only. Please refer to OEM derived data such as the vehicle
manufacturer’s own data or Autodata. The use of this product is purely down to the user’s
discretion and Draper Tools Limited cannot be held responsible for any damage caused what so
ever.
2. CONTENTS
- 3 -
- 10 -
Depending on manufacture and model, some engine components do change. Please check with
Autodata or the manufacturer’s data before use.
1. TITLE PAGE
1.1 INTRODUCTION.......................................................................................................... 2
1.2 REVISION HISTORY .................................................................................................. 2
1.3 UNDERSTANDING THIS GUIDE................................................................................. 2
1.4 COPYRIGHT NOTICE .................................................................................................2
2. CONTENTS
2.1 CONTENTS ....................................................................................................................3
3. GUARANTEE
3.1 GUARANTEE ............................................................................................................... 4
4. GENERAL PRODUCT INFORMATION
4.1 GENERAL PRODUCT INFORMATION ....................................................................... 5
5. HEALTH AND SAFETY INFORMATION
5.1 GENERAL SAFETY INSTRUCTIONS FOR USE
Personal safety........................................................................................................... 6
6. CONTENTS
6.1 PARTS DRAWING AND LISTING ............................................................................... 7
7. APPLICATION
7.1 PRODUCT APPLICATION AND COMPATIBILITY LISTING ...................................... 8
8. PREPARATION
8.1 ADVISORIES BEFORE USE ...................................................................................... 9
9. PROCEDURE AND APPLICATION GUIDE
9.1 APPLICATION GUIDANCE........................................................................................10
10. EXPLANATION OF SYMBOLS
10.1 EXPLANATION OF SYMBOLS .................................................................................. 11
9. PROCEDURE AND APPLICATION GUIDE
Please note images are for guidance only and subject to change.
Warning:
• Always refer to OEM vehicle specific data
• Remove all spark plugs to aid turning of the engine
WARNING: do not start the engine while the K00885 is fitted.
Component A
Components A is used to assess the amount of chain stretch in the
camshaft timing chain. Remove the timing chain tensioner and washer
from the engine - FIG:1. Screw in component A complete with the spacer
ring as shown - Fig:2. Tight to 20Nm.
i
n
g
as s
h
own -
Fig
:
2
.
Tight
t
o
2
FIG:1
FIG:2
Turn the engine 4 complete turns by hand in the normal
direction of rotation while watching the sprung loaded centre
rod of the K00885. The centre rod will move in and out as
the engine is turned.
If the rod falls below the level of the head of the K00885 outer body the
chain has excessive stretch and should be replaced along with associated
guides and tensioners. Always check OEM instructions to confirm result.
WARNING: Never start or attempt to run the engine with the
K00885 installed or without the chain tensioner installed.
1. TITLE PAGE
1.2 REVISIONS:
Date first published June 2018.
- 11 -
10. EXPLANATION OF SYMBOLS
- 2 -
10.1 EXPLANATION OF SYMBOLS
Refer to website.
As our user manuals are continually updated, users should make sure that they use
the very latest version.
Downloads are available from: http://drapertools.com
Draper Tools Limited
Hursley Road
Chandler’s Ford
Eastleigh
Hampshire
SO53 1YF
UK
Website: drapertools.com
Product Helpline: +44 (0) 23 8049 4344
General Fax: +44 (0) 23 8026 0784
1.3 UNDERSTANDING THIS GUIDES SAFETY CONTENT:
WARNING! – Information that draws attention to the risk of injury or death.
CAUTION! – Information that draws attention to the risk of damage to the product or
surroundings.
1.4 COPYRIGHT © NOTICE:
Copyright © Draper Tools Limited.
Permission is granted to reproduce this publication for personal and educational use
only. Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in any
other form or means without written permission from Draper Tools Limited.
In all cases this copyright notice must remain intact.
Read the guide.
1.1 INTRODUCTION:
USER GUIDE FOR: Camshaft Drive Chain Wear Indicator
Stock No: 16239
Part No: ETK132
Draper Tools Limited, Hursley Road,
Chandler's Ford, Eastleigh, Hampshire. SO53 1YF. U.K.
Helpline: (023) 8049 4344
Sales Desk: (023) 8049 4333
Internet: drapertools.com
E-mail: [email protected]
General Enquiries: (023) 8026 6355
Service/Warranty Repair Agent:
For aftersales servicing or warranty repairs, please contact the
Draper Tools Helpline for details of an agent in your local area.
©Published by Draper Tools Limited.
No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means,
electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
16239
CONTACTS
YOUR DRAPER STOCKIST
CMDB0618
BRITISH
MADE
This document is part of the product, keep it for the life of the product passing it on to any subsequent holder of
the product. Read all information before operating product.
This guide has been compiled by Draper Tools describing the purpose for which the product has been designed,
and contains necessary information to ensure its correct and safe use. By following the information contained in
this guide, it will ensure both product and operator safety, together with longer life of the product itself.
AlI photographs and drawings in this guide are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this guide, the Draper
Tools policy of continuous improvement determines the right to make modifications without prior warning.
APPLICATION GUIDE FOR:
CAMSHAFT DRIVE CHAIN
WEAR INDICATOR
