72" Tool Hutch
CAUTION:
To Reduce The Risk Of Injury, User Must Read
And Understand Operator’s Manual. Save These Instructions
For Future Reference.
OPERATOR’S MANUAL
Actual product may differ
slightly from image shown
EACH UNIT SOLD SEPERATELY
Hutch Model #: 245-1989/245-1993/245-1995
Page 1
TABLE OF CONTENTS
Safety Symbols ......................................................................... 2
Safety Instructions ..................................................................... 3
Parts List ................................................................................... 4
Assembly and Operation ........................................................... 5
Maintenance and Safety ............................................................ 7
WARNING
Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Page 2
SAFETY SYMBOLS
Model #: ________________________________
Place of purchase: _______________________
Date of purchase: _______________________
Receipt # of purchase: ___________________
CAUTION:
1. Read and follow all safety and assembly
instructions before using this product for the
first time.
2. Fill in the following information and retain
the manual for future reference:
Do not allow children near the unit.
Lock the door before moving the unit.
Do not lift unit by yourself.
Page 3
SAFETY INSTRUCTIONS
The purpose of safety symbols is to attract your attention to possible dangers. The safety
symbols, and the explanations with them, deserve your careful attention and understanding.
The symbol warnings do not by themselves eliminate any danger. The instructions and warnings
they give are no substitute for proper accident prevention measures.
WARNING:
Be sure to read and understand all safety instructions in this
manual, including all safety alert symbols such as “DANGER,” “WARNING,” and
“CAUTION,” before using this product. Failure to follow all instructions listed below may
result in electric shock, re and/or serious personal injury.
SYMBOL MEANING
SAFETY ALERT SYMBOL: Indicates DANGER, WARNING, or CAUTION. May be
used in conjunction with other symbols or pictographs.
DANGER:
Failure to obey this warning WILL result in death or serious injury to
yourself or to others. Always follow the safety precautions to reduce the risk of personal
injury.
WARNING:
Failure to obey this safety warning CAN result in death or serious
injury to yourself or to others. Always follow the safety precautions to reduce the risk
of personal injury.
CAUTION:
Failure to obey this safety warning MAY result in personal injury to
yourself or others or property damage. Always follow the safety precautions to reduce
the risk of personal injury.
Page 4

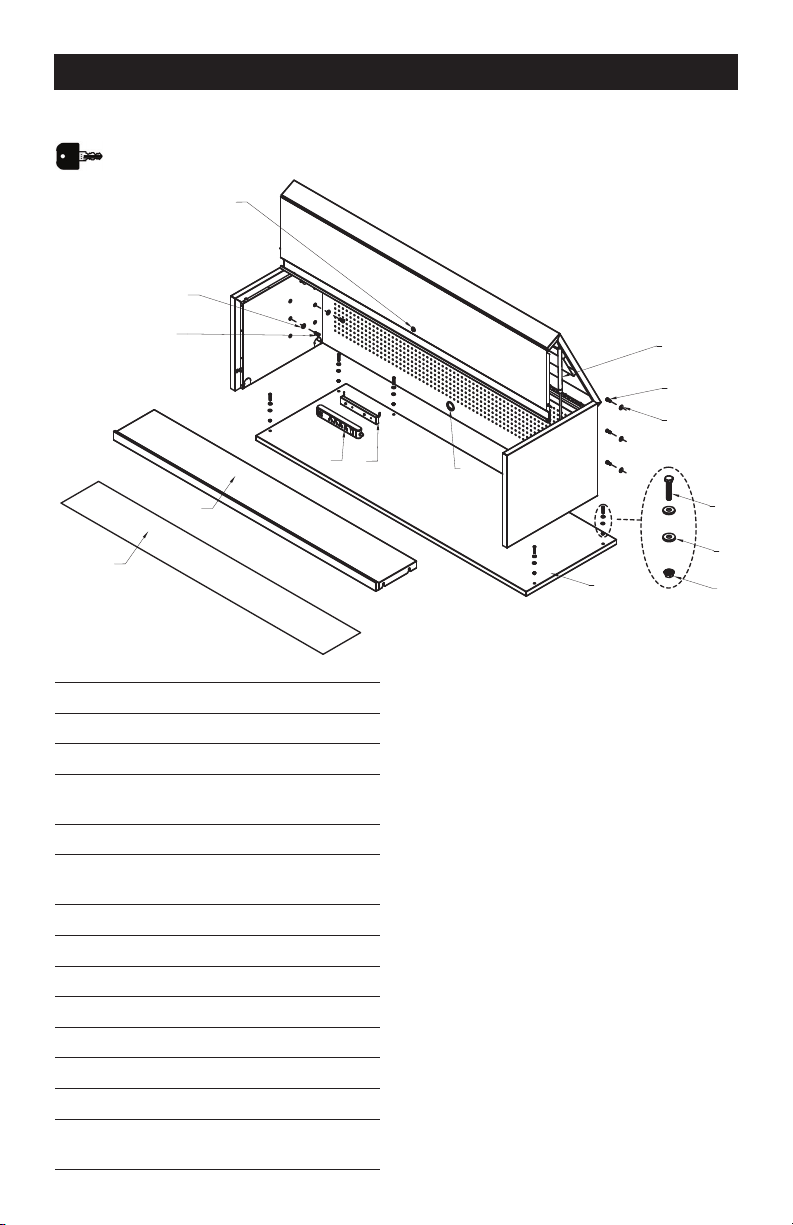

PARTS LIST
For service regarding parts, assembly or warranty information, please call: 1-800-459-4409.
The keys are taped
to the door.
Ref# Description Part# Qty
1 Gas Strut 303227 2 pcs
2 M8 x 20 Hex Bolt 321024 10 pcs
3 Washer
(8 x 22 x 1.5 mm)
324002 10 pcs
4 M8 x 40 Hex Bolt 321048 6 pcs
5 Washer
(8 x 21 x 3 mm)
324000 12 pcs
6 M8 Hex Flange Nut 323067 6 pcs
7 Work Top 121925 1 pc
8 Grommet 314027 2 pcs
9 Power Strip Bracket 243431 1 pc
10 Power Strip 333059 1 pc
11 Shelf 242211 1 pc
12 Shelf Liner 552249 1 pc
13 Lock and Key
(1201–1210)
304054 1 pc
31
2
3
1
3
2
9
8
4
5
7
11
21
6
01
NOTE:
1. Replacement keys may be ordered, using
the required code which appears on the
face of the lock.
2. Give the information for service parts:
part number and quantity.
Page 5
NECESSARY TOOLS REQUIRED
FOR ASS EMBLY
• An open end wrench is recommended to
tighten the hex bolts.
• Drill and 25/64" drill bit
ASSEMBLE THE
HUTCH BODY
Unfold the hutch body as shown.
Attach the left and right side panels to the
back of the hutch body using three M8 x 20
hex bolts and washers (#324002) per panel.
INSTALL THE
GAS STRUT
Open the hutch door and install the gas strut.
INSTALL HUTCH
ON CABINET
WARNING:
For your safety,
mount the hutch to the cabinet using only
the hardware provided.
NOTE: Two or more people may be required
to complete this step.
Remove the top drawer of the cabinet
for easier access. Pull the drawer out so
it is almost fully extended. PUSH UP on
the black release lever on one side, while
PULLING DOWN on the black release lever
on the other side. While holding the levers in
the positions as instructed above, pull the
drawer outward until it is released from the
drawer slide.
Place the work top that comes with the hutch
on top of the cabinet. Mark the holes in the
work top on the cabinet, then remove the
work top. Drill holes in the cabinet top using
a 25/64" drill bit.
ASSEMBLY AND OPERATION
Page 6
Put the work top and hutch onto the cabinet.
Make sure the hutch is flush with the back
of the worktop. Leave equal gaps on either
side.
Connect the hutch, work top and cabinet
together using six of M8 x 40 hex bolts,
washers (#324000) and M8 hex flange nuts.
INSTALL SHELF AND
POWER STRIP
Install the shelf in the hutch using four
M8 x 20 hex bolts and washers (#324002).
Hang the power strip on the pegboard.
Replace the top drawer of the cabinet.
Extend the drawer slides from the tool
cabinet. Insert the brackets on each side of
the drawer into the slots in the slides, being
careful that they are positioned properly.
Once properly inserted, completely close
the drawer to set the slides in their proper
positions.
ASSEMBLY AND OPERATION
Page 7
MAINTENANCE AND SAFETY
MAINTENANCE
Periodically clean the hutch front, trim, and
other surfaces with mild detergent and water.
Grease and oil can be removed with most
standard cleaning fluids. For safety, use a
nonflammable cleaning fluid.
SAFETY
WARNING:
Close and
lock the hutch before moving this
product.
WARNING:
DO NOT stand or lean
on this product.
WARNING:
DO NOT mount this
product on a truck bed or any other moving
object. This may cause personal injury or
product damage.
CAUTION:
Secure this product
properly before moving it with a forklift.
WARNING:
DO NOT alter this
product in any manner. For example, do not
weld external lockbars or attach electrical
equipment. This may cause product damage
or personal injury.
CAUTION:
Keep the product on
level surfaces. The product may become
unstable and tip if stored or moved on an
uneven surface, which may cause personal
injury or product damage.
WARNING:
To prevent the hutch
from easily tipping over, fasten the screws to
connect the hutch and cabinet.
POWER STRIP
MODEL: LTS-04C / CH-04C
SURGE PROTECTIVE DEVICES
RATING: 120V AC 15A 60Hz 1875W
USB: TOTAL 2.1 A
USB O/P: IT EQUIPMENT ONLY
VPR: 500-1000V (L-N) TYPE 3 SPD
CONFORMS TO UL STD. NO. 1363 AND
ANSI/UL STD. NO. 1449
CERTIFIED TO CSA STD. C22.2 NO. 308&8
Standard 2.1 A USB – Check your device
for compatibility.
WARNING:
RISK OF ELECTRIC
SHOCK. To reduce the risk of electric shock,
use indoors in a dry location only. Do not
plug into another power strip. Not for use for
a permanent installation.
WARNING:
Changes or
modifications to this unit not expressly
approved by the party responsible for
compliance could void the user's authority
to operate the equipment.
NOTE: This equipment has been tested and
found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there
is no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interference
to radio or television reception, which can be
determined by turning the equipment off and
on, the user is encouraged to try to correct
the interference by one or more the following
measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between the
equipment and receiver.
Page 8
• Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced
radio/TV technician for help.
MAINTENANCE AND SAFETY
31181173165047
Page 9
NOTES
Page 10
SAVE YOUR RECEIPTS
THIS WARRANTY IS VOID WITHOUT THEM
Page #
72" Tool Hutch
LIMITED LIFETIME WARRANTY
MASTERFORCE
®
Tool Hutches have been manufactured to the highest standards of
quality and workmanship and are warranted to be free from defects in materials and
workmanship under normal use for the lifetime that you own the product. If any part
of the product is found to be defective during normal use, the defective product or
part will be replaced at our discretion. This warranty does not cover products that
are damaged through accident, abuse, misuse, commercial/industrial applications
or neglect. This warranty also does not cover any losses, injuries or costs including
indirect, incidental or consequential damages. This warranty may not be transferred
or sold. When requesting warranty service please have the model number, cash
register receipt and the date of purchase available when you call. If the product is
defective, we will replace the defective part at no cost to you. Some states do not
allow the exclusion or limitation of incidental or consequential damages, so the above
limitations or exclusions may not apply to you. This warranty gives you specific legal
rights and you may have other rights, which vary from state to state.
For questions / comments, technical assistance or repair parts,
call toll free: 1-800-459-4409 (M–F, 8am–4:30pm, CST)
©2020 Menard, Inc., Eau Claire, WI 54703 V1 08/2020
