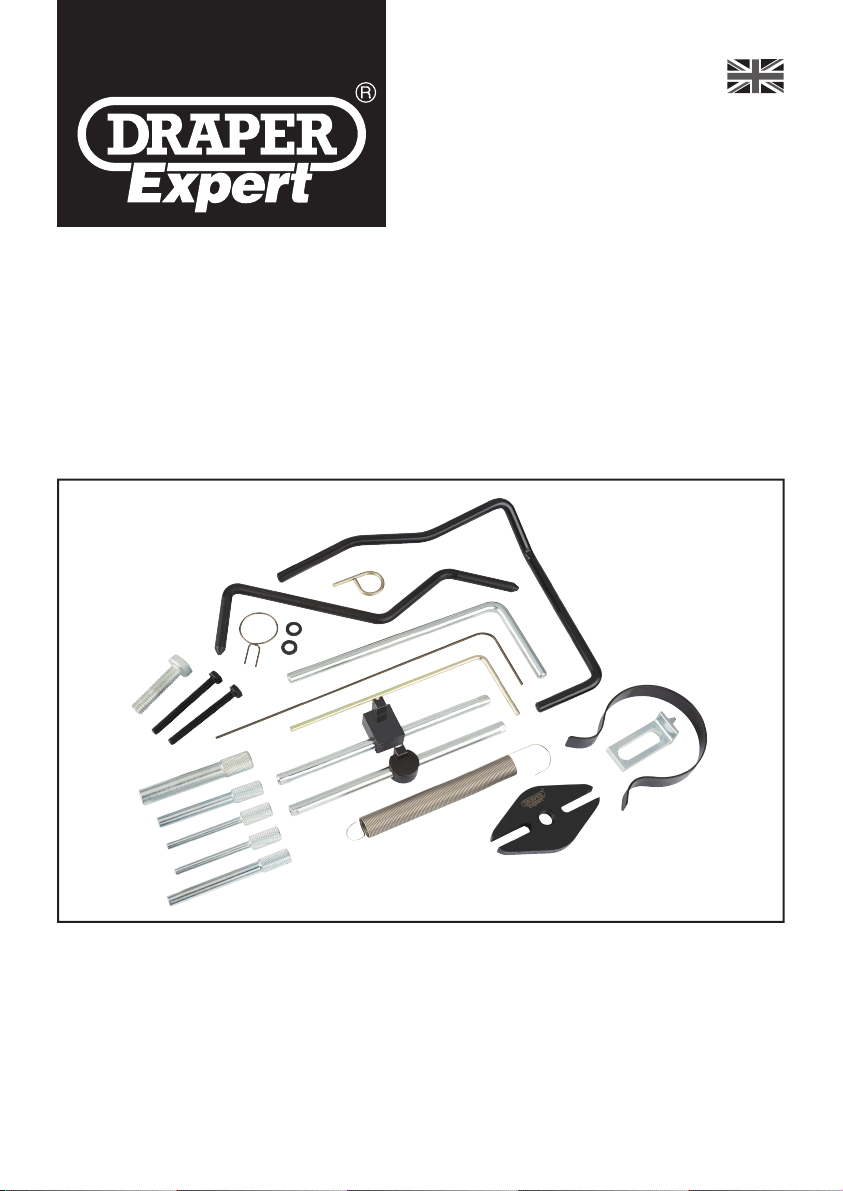

APPLICATION GUIDE FOR:
ENGINE TIMING AND
REBUILD SET
1. TITLE PAGE
1.2 REVISIONS:
Date first published June 2018.
- 15 -
NOTES
- 2 -
As our user manuals are continually updated, users should make sure that they use
the very latest version.
Downloads are available from: http://drapertools.com
Draper Tools Limited
Hursley Road
Chandler’s Ford
Eastleigh
Hampshire
SO53 1YF
UK
Website: drapertools.com
Product Helpline: +44 (0) 23 8049 4344
General Fax: +44 (0) 23 8026 0784
1.3 UNDERSTANDING THIS GUIDES SAFETY CONTENT:
WARNING! – Information that draws attention to the risk of injury or death.
CAUTION! – Information that draws attention to the risk of damage to the product or
surroundings.
1.4 COPYRIGHT © NOTICE:
Copyright © Draper Tools Limited.
Permission is granted to reproduce this publication for personal and educational use
only. Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in any
other form or means without written permission from Draper Tools Limited.
In all cases this copyright notice must remain intact.
1.1 INTRODUCTION:
USER GUIDE FOR: Engine Timing and Rebuild Set
Stock No: 18191
Part No: ETK203
2. CONTENTS
- 3 -
- 14 -
NOTES
1. TITLE PAGE
1.1 INTRODUCTION.......................................................................................................... 2
1.2 REVISION HISTORY .................................................................................................. 2
1.3 UNDERSTANDING THIS GUIDE................................................................................. 2
1.4 COPYRIGHT NOTICE .................................................................................................2
2. CONTENTS
2.1 CONTENTS ....................................................................................................................3
3. GUARANTEE
3.1 GUARANTEE ............................................................................................................... 4
4. GENERAL PRODUCT INFORMATION
4.1 GENERAL PRODUCT INFORMATION ....................................................................... 5
5. HEALTH AND SAFETY INFORMATION
5.1 GENERAL SAFETY INSTRUCTIONS FOR USE
Personal safety........................................................................................................... 6
6. CONTENTS
6.1 PARTS DRAWING AND LISTING ............................................................................... 7
7. APPLICATION
7.1 PRODUCT APPLICATION AND COMPATIBILITY LISTING ...................................... 8
8. PREPARATION
8.1 ADVISORIES BEFORE USE ...................................................................................... 9
9. PROCEDURE AND APPLICATION GUIDE
9.1 APPLICATION GUIDANCE...................................................................................10-12
10. EXPLANATION OF SYMBOLS
10.1 EXPLANATION OF SYMBOLS ..................................................................................13
3. GUARANTEE
3.1 GUARANTEE
Draper tools have been carefully tested and inspected before shipment and are guaranteed to be
free from defective materials and workmanship.
Should the tool develop a fault, please return the complete tool to your nearest distributor or
contact:
Draper Tools Limited, Chandler's Ford, Eastleigh, Hampshire, SO53 1YF. England.
Telephone Sales Desk: (023) 8049 4333 or:
Product Helpline (023) 8049 4344.
A proof of purchase must be provided.
If upon inspection it is found that the fault occurring is due to defective materials or workmanship,
repairs will be carried out free of charge. This guarantee period covering parts/labour is 12 months
from the date of purchase except where tools are hired out when the guarantee period is 90 days
from the date of purchase. This guarantee does not apply to normal wear and tear, nor does it
cover any damage caused by misuse, careless or unsafe handling, alterations, accidents, or
repairs attempted or made by any personnel other than the authorised Draper warranty repair
agent.
Note: If the tool is found not to be within the terms of warranty, repairs and carriage charges will be
quoted and made accordingly.
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its
terms are not authorised.
Your Draper guarantee is not effective unless you can produce upon request a dated receipt or
invoice to verify your proof of purchase within the guarantee period.
Please note that this guarantee is an additional benefit and does not affect your statutory rights.
Draper Tools Limited.
- 4 -
- 13 -
10. EXPLANATION OF SYMBOLS
10.1 EXPLANATION OF SYMBOLS
Refer to website.
Read the guide.
4. GENERAL PRODUCT INFORMATION
This product is designed to be used correctly and with care for the purpose for which it is intended.
No liability is accepted by Draper Tools Limited for incorrect use or application of any of our
products, and Draper Tools Limited cannot be held responsible for any damage to personnel,
property or equipment when using this product. Incorrect use will also invalidate any warranty.
The applications database and any instructional information provided has been designed to offer
general guidance for a particular product’s use and while all attention is given to the accuracy of
the data, no project should be attempted without referring first to the manufacturer’s technical
documentation (workshop or instruction manual) or the use of a recognised authority such as
Autodata.
It is our policy to continually improve our products and thus we reserve the right to alter
specifications and components without prior notice. It is the responsibility of the user to ensure the
suitability of the product and information prior to use.
- 5 -
- 12 -
9. PROCEDURE AND APPLICATION GUIDE
Please note images are for guidance only and subject to change.

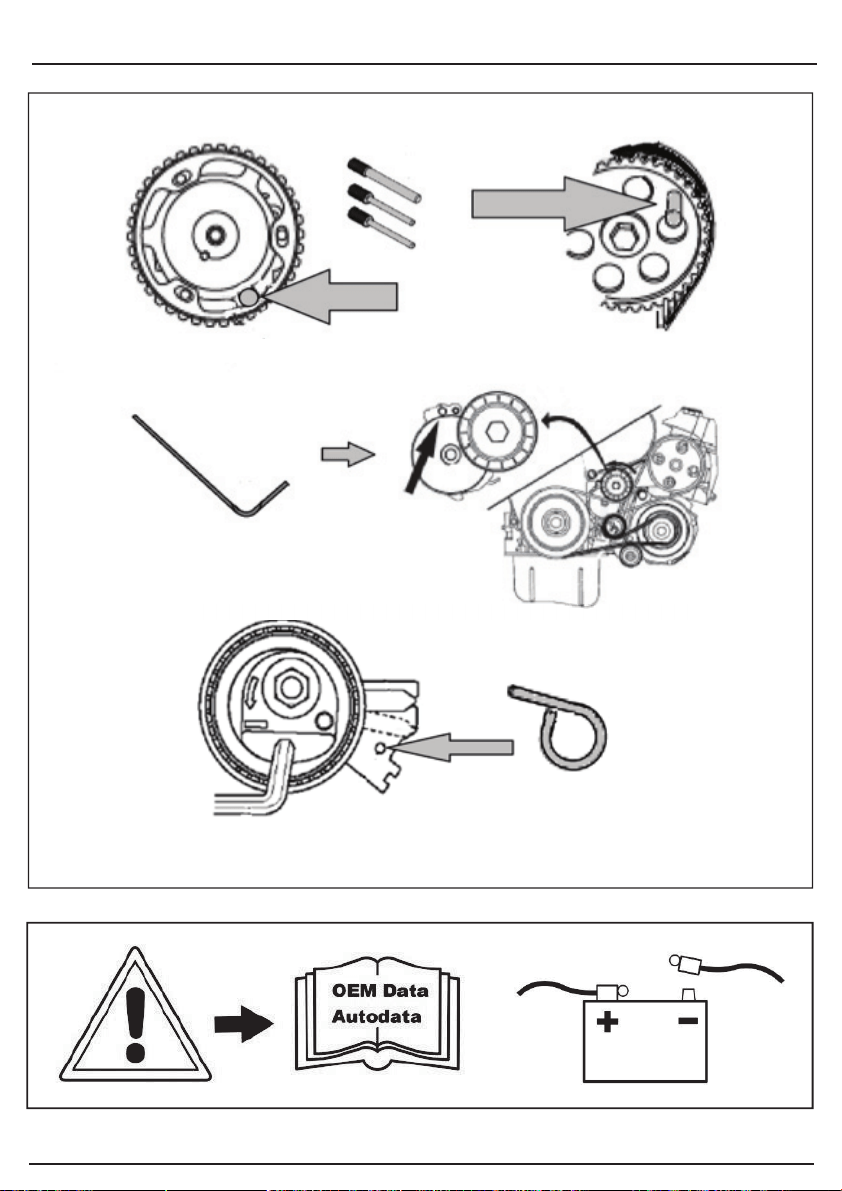

Components 11, 16 & 17 Camshaft Locking pins
Component 12, 13 &14 Tensioner Locking Pins
5. HEALTH AND SAFETY INFORMATION
- 6 -
- 11 -
GENERAL SAFETY INSTRUCTIONS
Warning: Please read all safety warnings and all details carefully. Failure to follow the warnings
may result in serious injury or major component damage.
Important: Draper Tools recommends that this product should not be modified or used for any
application other than that for which it was designed.
Save all warnings and instructions for future reference.
1) Personal safety
a) Stay alert, watch what you are doing and use common sense when using this product.
Do not use this product while you are tired or under the influence of drugs, alcohol or any
medication. A moment of inattention while using this product may result in serious personal
injury.
b) Use personal protective equipment as necessary.
c) Check and remove any part of the product before turning/testing the engine. A part left
attached to a rotating part of the engine may result in personal injury or major component
damage.
d) Carefully clean the tool components after every use.
f) Keep the tool components safe and tidy.
g) Do not use this product for any purpose other than for which it is designed.
Warning! Some of the packaging materials used may be harmful to children. Do not leave any of
these materials in the reach of children.
If any of the packaging is to be thrown away, make sure it is disposed of correctly; according to
local regulations.
9. PROCEDURE AND APPLICATION GUIDE

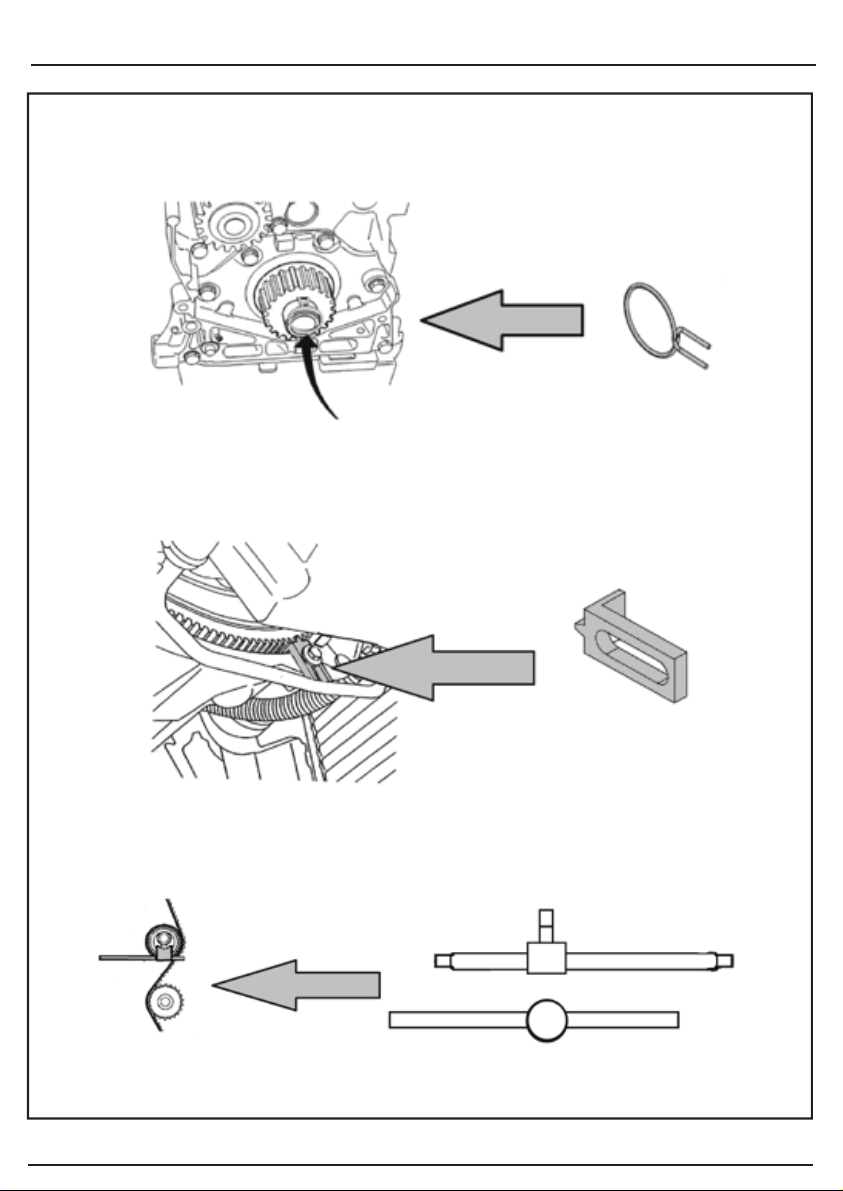

Component 8 Centraliser Spring
Component 8 is used to centralise the crankshaft cam belt sprocket when refitting it.
Component 9 Flywheel Lock (Citroen/Peugeot)
Component 9 is used to lock the flywheel while tightening or loosening the crankshaft front
pulley (PSA vehicles).
Components 10 & 15 Tensioner Adjuster tools
Always refer to OEM data when setting belt tension.
6. CONTENTS
- 10 -
- 7 -
Depending on manufacture and model, some engine components do change. Please check with
Autodata or the manufacturer’s data before use.
9. PROCEDURE AND APPLICATION GUIDE

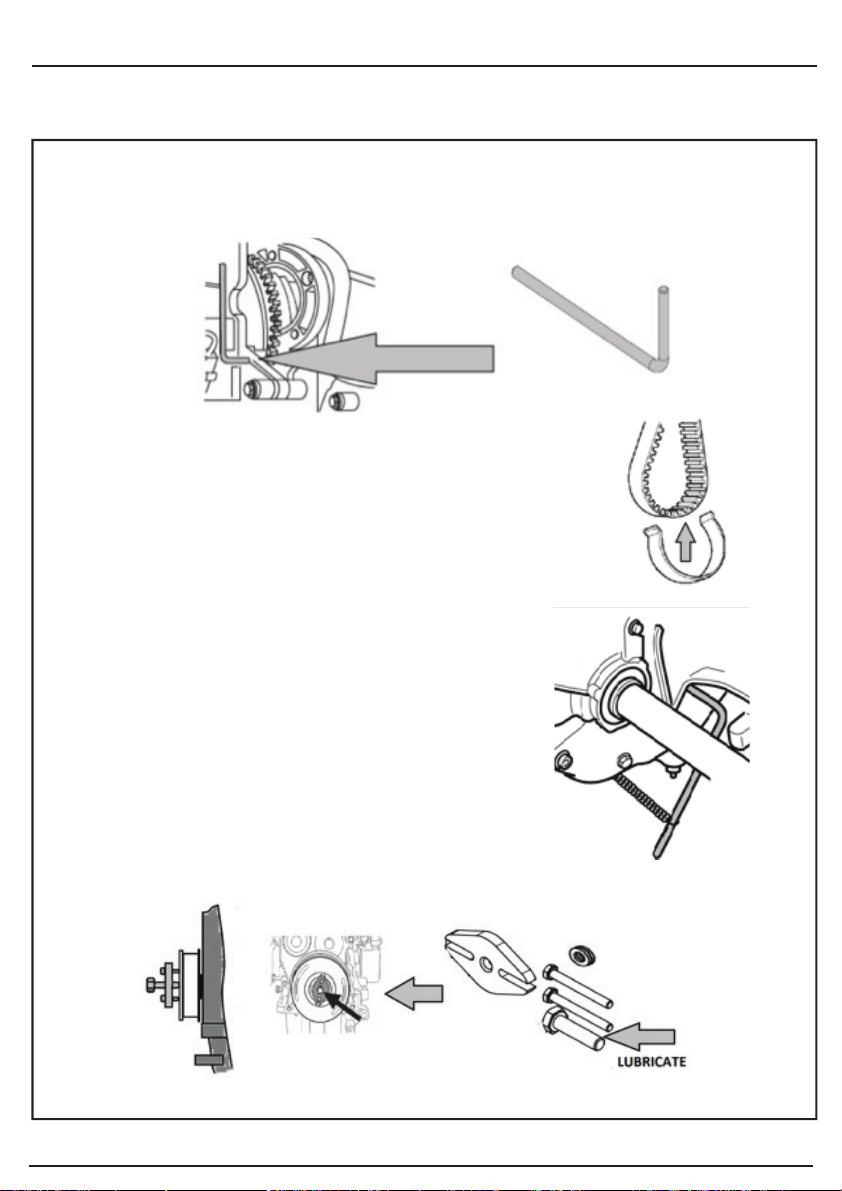

Components 1, 7, 18 & 19 Flywheel Locking Timing Pins
Used to set the crankshaft in its timed position by locking the Flywheel as shown.
NOTE: do not torque against component 1, 7, 18 or 19, use component 9.
Component 3 & 4 & 5 Crankshaft Pulley Puller
NOTE: Ensure threads well lubricated with Molybdenum Disulphide grease
Component 2 Timing Belt Retaining Clip.
Component 2 is used to hold the new belt in place on the crank-
shaft while fitting the belt around the camshaft pulleys.
Component 20 Retention Spring
Component 20 applies tension to component 7 once fitted
located into flywheel
M
P
I
A B
K
Q
R
E
T
O
D
N
G
S
L
J
H
C F

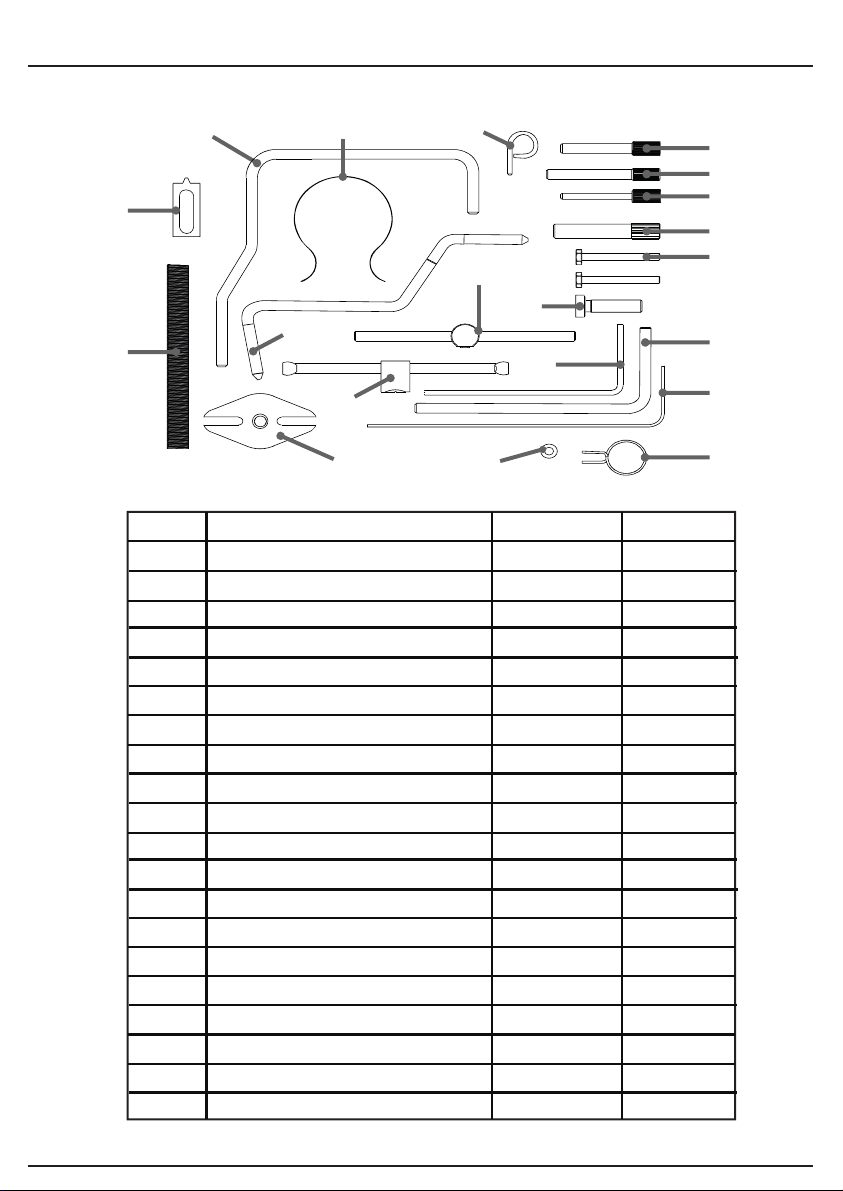

ITEM DESCRIPTION OEM STOCK No.
A Crankshaft Pin 0188-Y 33099
B Timing Belt Retaining Clip 0188-K 33159
C Puller Beam 0188-P 33185
D
M10 x 40 High-Tensile Set Screw
N/A 33190
E Hex-Head Bolt N/A 33194
F Washer N/A 33205
G Timing Pin 0188-X 33207
H Centraliser Spring 0188-AH 33214
I Flywheel Lock 0188-F 33364
J Tension Adjusting Tool 0188-J2 33626
K Locking Pin 0188-M 33631
L 2mm Formed Locking Pin 0188-Q2 33636
M 3mm Formed Locking Pin 0153-AL 33637
N Setting Pin 0188-Q1 33640
O Tension Adjusting Tool 0178-E 33650
P Locking Pin N/A 33656
Q Setting Pin N/A 33662
R Flywheel Locking Pin 0194-C 33666
S Multi-Bend Flywheel Timing Pin 0.532Y 33686
T Retention Spring N/A 33833
