1
OWNER’S MANUAL
INSTALLATION AND
OPERATION INSTRUCTIONS
1/3 HP STAINLESS STEEL
SUBMERSIBLE WATERFALL PUMP
To register your pump, please visit
www.watersourceusa.com/registration
If for any reason you have questions concerning your new Barracuda Pump, call us toll free at
1-844-251-7445.
MODEL: BAWF33
SKU: 691-3212
2
Carefully read and understand all of the warnings and installation instructions in this manual. Failure to
follow these instructions could lead to serious bodily injury and/or property damage. Retain these
instructions for future reference. This pump has been manufactured with your needs in mind. Properly
installed in the right application, your new Barracuda Pump will give you years of carefree performance.
DANGER
Do not pump flammable or explosive liquids such as oil, gasoline, kerosene, ethanol, etc. Do not
use in the presence of flammable or explosive vapors. Using this pump with or near flammable
liquids can cause explosion or fire, resulting in serious personal injury and/or property damage.
Always disconnect the pump from its power source before installing, inspecting, maintaining, or repairing.
Do not stand in water when the pump is connected.
Do not touch the pump while it is operating, as the pump may be HOT and can cause serious burns.
Do not disassemble the motor housing. The motor has NO repairable internal parts, and disassembling
may cause oil leakage or dangerous electrical wiring issues and will void warranty.
Never touch any electrical device, including this pump, when it is touching water, in water, or even in a
moist environment. Always unplug (disconnect the electricity) when working on or installing the unit.
RISK OF ELECTRICAL SHOCK. This pump is supplied with a grounding conductor and grounding-type
attachment plug. To reduce the risk of electrical shock, be certain that it is connected only to a properly
grounded, grounding-type receptacle.
Do not use the power cord or discharge hose to carry or handle the pump. Doing so may cause damage
to the power cord or discharge hose. Use the handle to lift the pump.
Follow all electrical and safety codes, particularly the National Electrical Code (NEC) and in the
workplace, the Occupational Safety and Health Act (OSHA).
NOTICE This unit is designed only for use on 115 volts (single phase), 60 Hz, and is equipped with
an approved 3-conductor cord and 3-prong grounded plug. DO NOT REMOVE THE GROUND PIN
UNDER ANY CIRCUMSTANCES. The 3-prong plug must be directly inserted into a properly installed
and grounded 3-prong, grounding-type receptacle. Do not use this pump with a 2-prong wall outlet.
Replace the 2-prong outlet with a properly grounded 3-prong receptacle (a GFCI outlet) installed in
accordance with the National Electrical Code and local codes and ordinances. All wiring should be
performed by a qualified electrician.
3
For safety, the pump motor has an automatic resetting thermal protector that will automatically turn off
the pump if it becomes too hot. Overuse of this feature will damage the pump and will void the
warranty.
Once the thermal protector detects that the pump has cooled to a safe temperature, it will allow the pump
to operate normally. If the pump is plugged in, it may restart unexpectedly.
DO NOT RUN THE PUMP DRY. The pump depends on water for cooling and lubrication. Operating the
pump without water may cause the motor to overheat or cause damage to parts of the pump. It may also
shorten the life of your pump and void the warranty.
NOTICE
EXTENSION CORDS
Connect the pump DIRECTLY to a grounded, GFCI outlet. Extension cords may not deliver sufficient
voltage to the pump motor. Extension cords present a life threatening safety hazard if the insulation
becomes damaged or the connection ends fall into water.
DANGER
Keep all electrical connections away from wet and moist environments. Wet connections can cause
electrical shock resulting in personal injury.
Materials Required:
⚫ 2 in. PVC fittings, 2 in. PVC pipe or 2 in. flexible hose, thread tape, PVC primer, PVC cement,
Hose Clamps, and Ball Valve (to regulate flow)
Tools Required:
⚫ Wrench, Phillips screwdriver, Hacksaw
GENERAL INFORMATION
Use this pump in a pond with a plastic liner. The pump should rest on a solid, level
bottom. Do not set pump directly on sand, dirt or mud as this can reduce performance
and/or damage the pump.
Do not handle or carry the pump by the power cord. Use the handle.
Extended usage of the pump in a partially submerged or non-submerged situation may
cause the pump to overheat due to lack of heat dissipation from the water. If this occurs,
the pump will shut itself off until the motor cools to its normal temperature. Repeated
overheating may cause damage to the pump.
The pump is not designed for application involving salt water or brine. Use with salt
water or brine will void warranty.
Estimated Assembly Time (New Installation): 60 Minutes
NOTE: Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list. If any part is missing or damaged, do not attempt to assemble the product.
4
• Do not attempt to cut, splice or modify the power cord in any way. Doing so will void the warranty.
• Do not suspend the pump by the discharge hose, pipe or power cord.
• Keep the pump inlet screen clear.
• The water-feature the pump is being placed into must have an underlayment laid down to prevent the
pump from being clogged with mud, debris etc.
• Be sure the pump is completely submersed to prevent the pump from overheating.
• If the pump is placed in the vertical position, it may pump the water level down completely exposing
the motor housing, which will cause the motor to overheat! Make sure there is enough water to
prevent this.
INSTALLATION
Note: It is important to use as few pipe fittings as possible to minimize friction loss which will lead to low
performance.
Note: This pump has a 2 in. discharge connection. This pump can also be installed in the vertical or
horizontal position to accommodate your application requirements.
1. Wrap threads of the included 2 in. barbed adapter with thread tape (sold separately). Thread the
adapter into the 2 in. discharge of the pump 1 turn past hand tight to prevent leaks.
2. Connect a 2 in. flexible hose and hose clamp (both sold separately) to the 2 in. barbed adapter. Using
a screwdriver, be sure hose clamp is tight to prevent leaks.
a. Rigid PVC pipe and fittings may be used rather than flexible pipe if desired.
3. Connect the 2 in. hose to your water feature. Ensure all connections are air tight to prevent any leaks
which could potentially hurt the performance of the pump.
4. Place the pump into the water feature or pond.
5. Plug pump into GFCI outlet and test to make sure there are no leaks and the pump is delivering the
desired performance.

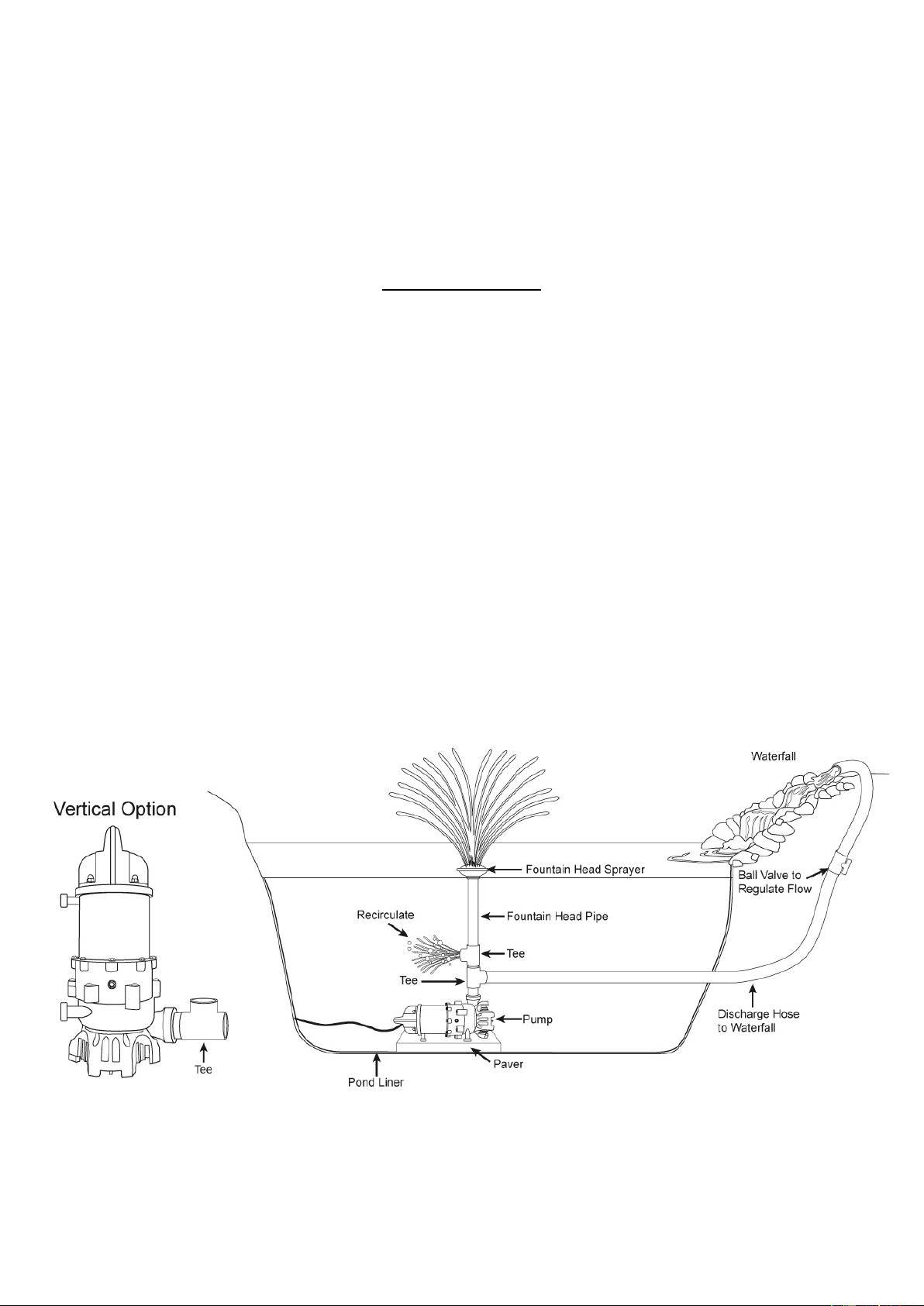

Example of a horizontal installation. Your water feature may differ.
5
OPERATION
1. Make sure there is ample water in your application for the pump. It is recommended there should be
at least 3,000-4,000 gallons in the area you are pumping so the pump does not recycle the water too
quickly.
2. Make certain the water level covers the top of the pump. This pump is water-cooled, and for
continuous operation, water must cover the pump to prevent the motor from overheating.
3. Plug the pump into a 115-volt GFCI power outlet. The pump will start operating.
4. The motor is equipped with an automatically resetting thermal overload protector. If the motor gets too
hot, the overload protector will shut off the pump before it is damaged. When the motor has cooled
sufficiently, the overload protector will reset and the motor will restart. Overuse of this feature can
permanently damage the motor.
NOTE: If the overload protector stops the pump repeatedly, disconnect the power from the pump and
after the motor cools down, check to find the problem. Low voltage, a long undersized extension cord,
clogged impeller, blocked screen or water that is too hot can cause the motor to overheat. See trouble
shooting section.
5. If the pump is operating and suddenly no water comes out of the discharge hose, shut the pump off
immediately. The water level is probably very low or the pump is clogged.
6. If the flow rate is too high, adjust by using a double union ball valve. DO NOT restrict the intake
screen.
MAINTENANCE SCHEDULE
This pump can run for 24 hours per day for up to 18-24 months, but its life can be extended with some
basic preventative maintenance. WARNING: Unplug the pump from the power source before all
maintenance.
EVERY 3 MONTHS – Check the intake screen and impeller for clogs
The screen and impeller must be free of clogs to deliver full performance. If clogged, perform the below
steps:
1. Remove the strainer by turning it counterclockwise.

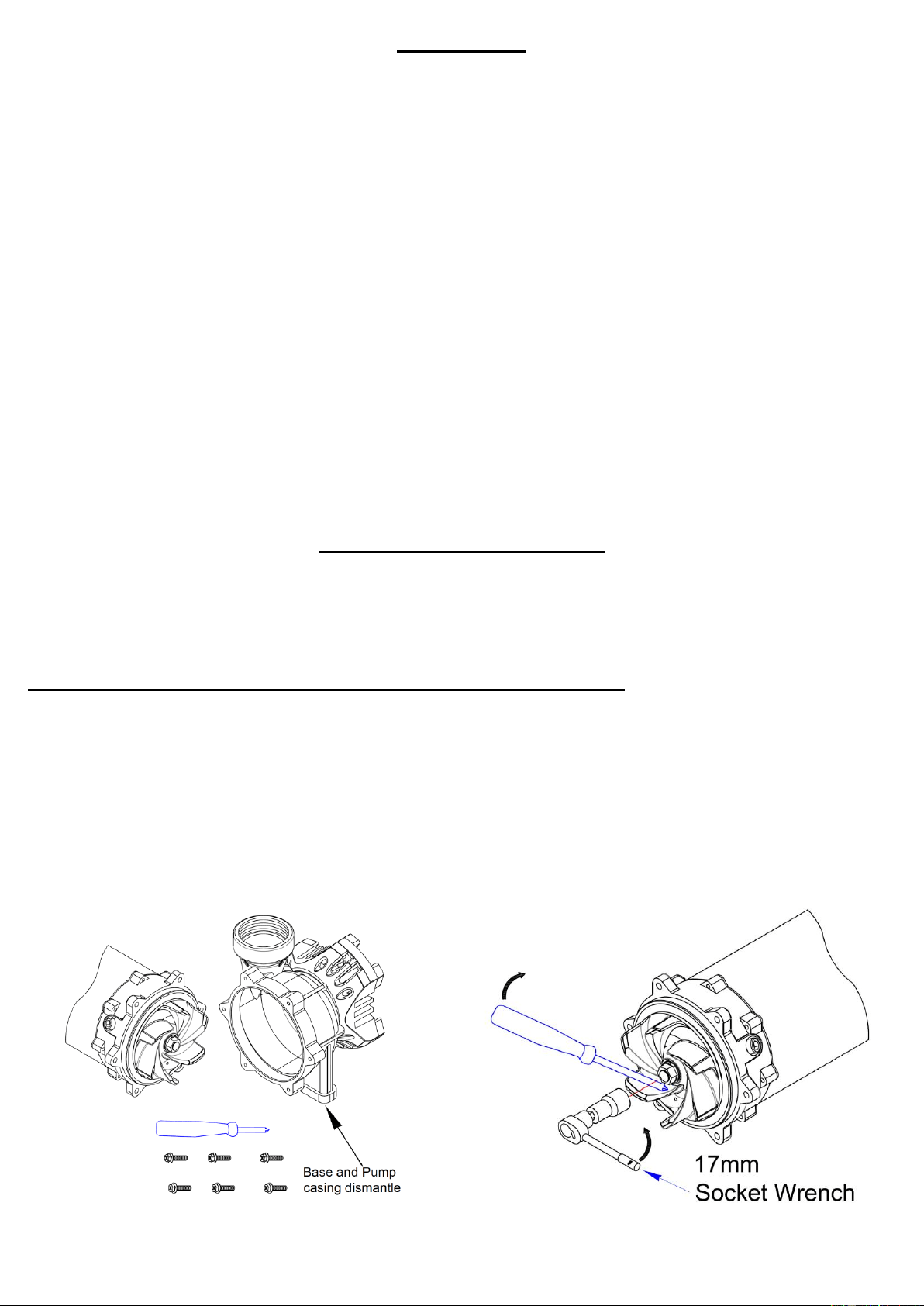

2. Unscrew the pump casing screws (Figure 1) and remove the pump casing.
3. Remove the impeller off the shaft (Figure 2) with a 17 mm socket wrench while bracing the impeller
with a flathead screwdriver.
4. Replace the impeller if damaged or worn (call 1-844-251-7445 for replacement orders).
Figure 1
Figure 2
Brace the impeller with
flathead screwdriver
6
EVERY 3 MONTHS - Check Lubricant Oil
The seals are bathed in 250 cc (8.5 fl. oz.) of oil that is safe for water and fish.
1. Make sure pump is horizontal.
2. Locate the oil port (Figure 3).
3. Using a 6 mm Allen wrench, remove the screw and rubber washer.
4. Drain a little oil from the oil port.
a. If oil appears to be milky in color, this means water is present.
b. The oil can be replaced with basic vegetable oil. See below diagrams on changing the oil.
Replacing Lubricant Oil
1. Make sure pump is horizontal.
2. Locate the oil port (Figure 3).
3. Using a 6 mm Allen wrench, remove the screw and rubber washer..
4. Drain oil from the oil port.
5. Using an oil can with 250 cc (8.5 fl. oz.) of any common vegetable oil, place the new oil in the pump
(Figure 4).
6. Tighten the screw and rubber washer back in the oil port.
WARNING: Do not overfill the oil chamber, as this can create a dangerous hydraulic pressure. Overfilling
voids the warranty.
Figure 3
Figure 4
EVERY 18 MONTHS – Replace the motor seals
The seals prevent water from entering the motor, but over time, they can become worn. Please call
1-844-251-7445 to order a replacement seal kit.
NOTE: The seals must be replaced before failure. If the seals fail, the motor could be permanently
damaged.
Please register your pump online so we can remind you to order seals. Go to
www.watersourceusa.com/registration to register your pump.
7
TROUBLESHOOTING (CAUTION: SHUT OFF POWER TO THE PUMP)
PROBLEMS
POSSIBLE CAUSES / SOLUTIONS
Pump does not
run or it hums
● Line circuit breaker is off, or fuse is burned out. Reset breaker or replace
fuse.
● Plug is disconnected. Secure the plug.
● Discharge shut-off valve (if used) may be closed.
● Impeller or volute openings are fully or partially clogged.
● Vertical pumping distance is too high. Reduce distance or change the
discharge fittings of the pump.
● Thermal overload. Unplug the pump for 30 minutes then plug in.
● Plug is corroded. Clean the plug prongs.
● GFCI outlet has failed. Replace outlet
● Motor failed. Call 1-844-251-7445
Pump cannot
pump water or
pumps very little
water
● Screen is blocked. Clean the screen
● Hose is kinked, bent sharply, or coiled. Straighten the hose.
● Hose diameter is too small. Use a larger diameter hose.
● Hose length is too long. Use a shorter hose.
● Impeller is loose on the shaft. Reassemble impeller.
● Impeller is broken. Call 1-844-251-7445
Fuse blows or
circuit breaker
trips when pump
starts
● Fuse or circuit breaker may be too small. Must be 15 amps
● Impeller or volute openings are fully or partially clogged. Remove pump
and clean
● Damaged seals. Replace seals. Call 1-844-251-7445 to order
8
1
2
3
4
5
6
7
8
9
11
10
13
14
12
17
16
15
REPLACEMENT PARTS
To order replacement parts, call:
1-844-251-7445
#
PART
1
Motor Assembly
2
Mechanical Seal*
3
Washer
4
Mechanical Seal*
5
Pump Casing O-ring***
6
Oil Seal Plate O-ring***
7
Oil Seal Plate
8
Lip Seal
9
Screws
10
Shaft Sleeve
11
Impeller**
12
Washer
13
Spring Washer
14
Nut
15
Strainer
16
Pump Stand
17
Discharge Fitting
* - Replacement Seal Kit available
** - Impeller available
*** - O-Rings available
9
PERFORMANCE
SPECIFICATIONS
Power supply requirement ....................................................................................................... 115 V, 60 Hz
Motor ....................................... 1/3 HP, Continuous Duty, Permanent Split Capacitor, Thermally Protected
Amps ...................................................................................................................................................... 3.8
Liquid Temperature Range: ............................................................................................. Max 104°F (40°C)
Circuit Requirements: .......................................................................................................15 amp minimum
Solids Handling: .................................................................................................................................... .1/2”
Discharge Size: .................................................................................................................................. 2” FIP
WARRANTY
LIMITED WARRANTY
Water Source LLC (The “Company”) warrants that the products specified in this warranty are free from
defects in material or workmanship for one year from the date of purchase. During the time period and
subject to the terms and conditions, the Company will repair or replace to the original purchaser or
consumer any portion of this product which proves to be defective due to materials or workmanship. At all
times the Company shall have and possess the sole right and option to determine whether to repair or
replace defective equipment, parts, or components. The Company has the option to inspect any product
returned under warranty to confirm that the warranty applies before repair or replacement under warranty
is approved. This warranty sets forth the Company’s sole obligation and purchaser’s exclusive remedy for
defective product.
For all warranty claims, CALL OUR CUSTOMER SERVICE DEPARTMENT BEFORE RETURNING!
Call us at 1-844-251-7445, Monday – Friday, 8:00 a.m. – 4:30 p.m., EST to discuss any claims and/or to
obtain a Return Merchandise Authorization. DO NOT RETURN PRODUCT TO STORE WHERE
PURCHASED. If deemed necessary, the Company will provide instructions for returning, prepaid at the
purchaser’s cost, to the Company’s warranty department along with your original purchase receipt.
WARRANTY PERIOD - PRODUCTS:
If, within the duration of product use by the original purchaser, this product proves to be defective due to
materials or workmanship, the product shall be repaired or replaced at the Company’s option, subject to
the terms and conditions set forth in this warranty statement. Proof of purchase is required for warranty
consideration. In the absence of suitable proof of the purchase date, the effective period of this warranty
is 12 months from the product’s date of manufacture.
LABOR, ETC. COSTS:
MODEL
#
MAX FLOW
(GPM) @ 0’
GPM FLOW @ HEAD
MAX
HEAD (FT)
5’
10’
15’
20’
25’
BAWF33
67
58
45
32
15
0
23
10
The Company shall IN NO EVENT be responsible or liable for the cost of field labor or other charges
incurred by any customer in removing and/or affixing any product, part, or component thereof.
PRODUCT IMPROVEMENTS:
The Company reserves the right to change or improve its products or any portions thereof without being
obligated to provide such a change or improvement for units sold and/or shipped prior to such change or
improvement.
GENERAL TERMS AND CONDITIONS:
This warranty shall not apply to damage due to acts of God, normal wear and tear, normal maintenance
services and the parts used in connection with such service, lightning or conditions beyond the control of
the Company, nor shall it apply to products which, in the sole judgment of the Company, have been
subject to negligence, abuse, accident, misapplication, tampering, alteration; nor due to improper
installation, operation, maintenance or storage; nor to excess of recommended maximums as set forth in
the instructions. Warranty will be VOID if any of the following conditions are found:
1. Product is used for purposes other than those for which it was designed and manufactured
2. Product not installed in accordance with applicable codes, ordinances, and good trade practices
3. Product connected to voltage other than indicated on nameplate
4. Pump exposed to but not limited to the following: sand, gravel, cement, grease, plaster, mud, tar, oil,
gasoline, solvents or other abrasive or corrosive substances
5. Pump has been used for pumping liquids above 104°F
6. Pump allowed to operate dry (liquid supply cut off)
7. Sealed motor housing has been opened or product dismantled by customer
DISCLAIMER:
Any oral statements about the product made by the seller, the Company, the representatives, or any
other parties do not constitute warranties, shall not be relied upon by the purchaser, and are not part of
the contract for sale. The Seller’s and the Company only obligation, and buyer’s only remedy, shall be the
replacement and/or repair by the Company of the product as described above. NEITHER SELLER NOR
THE COMPANY SHALL BE LIABLE FOR ANY INJURY, LOSS OR DAMAGE, DIRECT, INCIDENTAL
OR CONSEQUENTIAL (INCLUDING, BUT NOT LIMITED TO, INCIDENTAL OR CONSEQUENTIAL
DAMAGES FOR LOST PROFITS, LOST SALES, INJURY TO PERSON OR PROPERTY, OR ANY
OTHER INCIDENTAL OR CONSEQUENTIAL LOSS), ARISING OUT OF THE USE OR THE INABILITY
TO USE THE PRODUCT, AND THE PURCHASER AGREES THAT NO OTHER REMEDY SHALL BE
AVAILABLE TO IT. Before using, the purchaser shall determine the suitability of the product for his/her
intended use, and purchaser assumes all risk and liability whatsoever in connection therewith.
THE WARRANTY AND REMEDY DESCRIBED IN THIS LIMITED WARRANTY IS AN EXCLUSIVE
WARRANTY AND REMEDY AND IS IN LIEU OF ANY OTHER WARRANTY OR REMEDY,
EXPRESSED OR IMPLIED, WHICH OTHER WARRANTIES AND REMEDIES ARE HEREBY
EXPRESSLY EXCLUDED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, TO THE EXTENT EITHER
APPLIES TO A PRODUCT SHALL BE LIMITED IN DURATION TO THE PERIODS OF THE
EXPRESSED WARRANTIES GIVEN ABOVE.
Some states and countries do not allow the exclusion or limitations on how long an implied warranty lasts
or the exclusion or limitation of incidental or consequential damages, so the above exclusion or
limitations may not apply to you. This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state.
04/2020
