Whirlpool WEC310S0LW 30" 4.8 cu.ft. White Electric Range Coil Top

User Manual - Transcript

• Page 1 - English - : W11432244A 2020 All rights reserved Used under license in Canada FRONT CONTROL ELECTRIC FREESTANDING RANGE OWNERS MANUAL Table of Contents RANGE SAFETY 2 Range Safety2 RANGE MAINTENANCE AND CARE 4 SelfCleaning Cycle on some models 4 General Cleaning 4 INSTALLATION INSTRUCTIONS 6 REQUIREMENTS 6 Tools and Parts 6 Location Requirements 6 Electrical Requirements USA Only 7 INSTALLATION 8 Unpack Range 8 Install AntiTip Bracket 8 Adjust Leveling Legs 9 Level Range 10 Electrical Connection USA Only 10 Verify AntiTip Bracket Is Installed and Engaged 15 RemoveReplace Drawer 15 Oven Door 15 Complete Installation 16 IMPORTANT Save for local electrical inspectors use Moving the Range16
• Page 2 - English - : RANGE SAFETY Your safety and the safety of others are very important We have provided many important safety messages in this manual and on your appliance Always read and obey all safety messages This is the safety alert symbol This symbol alerts you to potential hazards that can kill or hurt you and others All safety messages will follow the safety alert symbol and either the word DANGER or WARNING These words mean DANGER You can be killed or seriously injured if you dont immediately follow instructions WARNING You can be killed or seriously injured if you dont follow instructions All safety messages will tell you what the potential hazard is tell you how to reduce the chance of injury and tell you what can happen if the instructions are not followed The range will not tip during normal use However the range can tip if you apply too much force or weight to the open door without having the antitip bracket fastened down properly WARNING Tip Over Hazard A child or adult can tip the range and be killed Install antitip bracket to floor or wall per installation instructions Slide range back so rear range foot is engaged in the slot of the antitip bracket Reengage antitip bracket if range is moved Do not operate range without antitip bracket installed and engaged Failure to follow these instructions can result in death or serious burns to children and adults To verify the antitip bracket is properly installed and engaged Slide range forward Look for the antitip bracket securely attached to floor or wall Slide range back so rear range foot is under the antitip bracket See Installation Instructions for details IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of fire electric shock or injury to persons when using the appliance follow basic precautions including the following WARNING TO REDUCE THE RISK OF TIPPING OF THE RANGE THE RANGE MUST BE SECURED BY PROPERLY INSTALLED ANTITIP DEVICES TO CHECK IF THE DEVICES ARE INSTALLED PROPERLY SLIDE RANGE FORWARD LOOK FOR ANTITIP BRACKET SECURELY ATTACHED TO FLOOR OR WALL AND SLIDE RANGE BACK SO REAR RANGE FOOT IS UNDER ANTITIP BRACKET CAUTION Do not store items of interest to children in cabinets above an appliance or on the backguard of an appliance children climbing on the appliance to reach items could be seriously injured Proper Installation The appliance when installed must be electrically grounded in accordance with local codes or in the absence of local codes with the National Electrical Code ANSINFPA 70 or the Canadian Electrical Code CSA C22102 In Canada the appliance must be electrically grounded in accordance with Canadian Electrical Code Be sure your appliance is properly installed and grounded by a qualified technician Never Use Your Appliance for Warming or Heating the Room SAVE THESE INSTRUCTIONS
• Page 3 - English - : IMPORTANT SAFETY INSTRUCTIONS Do Not Leave Children Alone Children should not be left alone or unattended in area where appliance is in use They should never be allowed to sit or stand on any part of the appliance Wear Proper Apparel Loosefitting or hanging garments should never be worn while using the appliance User Servicing Do not repair or replace any part of the appliance unless specifically recommended in the manual All other servicing should be referred to a qualified technician Storage in or on Appliance Flammable materials should not be stored in an oven or near surface units This appliance is not intended for storage Do Not Use Water on Grease Fires Smother fire or flame or use dry chemical or foamtype extinguisher Do not use replacement parts that have not been recommended by the manufacturer eg parts made at home using a 3D printer Use Only Dry Potholders Moist or damp potholders on hot surfaces may result in burns from steam Do not let potholder touch hot heating elements Do not use a towel or other bulky cloth DO NOT TOUCH SURFACE UNITS OR AREAS NEAR UNITS Surface units may be hot even though they are dark in color Areas near surface units may become hot enough to cause burns During and after use do not touch or let clothing or other flammable materials contact surface units or areas near units until they have had sufficient time to cool Among these areas are the coil elements the cooktop and surfaces facing the cooktop Use Proper Pan Size This appliance is equipped with one or more surface units of different size Select utensils having flat bottoms large enough to cover the surface unit heating element The use of undersized utensils will expose a portion of the heating element to direct contact and may result in ignition of clothing Proper relationship of utensil to burner will also improve efficiency Never Leave Surface Units Unattended at High Heat Settings Boilover causes smoking and greasy spillovers that may ignite Make Sure Reflector Pans or Drip Bowls Are in Place Absence of these pans or bowls during cooking may subject wiring or components underneath to damage Protective Liners Do not use aluminum foil to line surface unit drip bowls or oven bottoms except as suggested in the manual Improper installation of these liners may result in a risk of electric shock or fire Glazed Cooking Utensils Only certain types of glass glassceramic ceramic earthenware or other glazed utensils are suitable for rangetop service without breaking due to the sudden change in temperature Utensil Handles Should Be Turned Inward and Not Extend Over Adjacent Surface Units To reduce the risk of burns ignition of flammable materials and spillage due to unintentional contact with the utensil the handle of a utensil should be positioned so that it is turned inward and does not extend over adjacent surface units Do Not Soak Removable Heating Elements Heating elements should never be immersed in water Do Not Cook on Broken CookTop If cooktop should break cleaning solutions and spillovers may penetrate the broken cooktop and create a risk of electric shock Contact a qualified technician immediately Clean Cooktop With Caution If a wet sponge or cloth is used to wipe spills on a hot cooking area be careful to avoid steam burn Some cleaners can produce noxious fumes if applied to a hot surface Use Care When Opening Door Let hot air or steam escape before removing or replacing food Do Not Heat Unopened Food Containers Buildup of pressure may cause container to burst and result in injury Keep Oven Vent Ducts Unobstructed Placement of Oven Racks Always place oven racks in desired location while oven is cool If rack must be moved while oven is hot do not let potholder contact hot heating element in oven DO NOT TOUCH HEATING ELEMENTS OR INTERIOR SURFACES OF OVEN Heating elements may be hot even though they are dark in color Interior surfaces of an oven become hot enough to cause burns During and after use do not touch or let clothing or other flammable materials contact heating elements or interior surfaces of oven until they have had sufficient time to cool Other surfaces of the appliance may become hot enough to cause burns among these surfaces are oven vent openings and surfaces near these openings oven doors and windows of oven doors Care must be taken to prevent aluminum foil and meat probes from contacting heating elements For selfcleaning ranges Do Not Clean Door Gasket The door gasket is essential for a good seal Care should be taken not to rub damage or move the gasket Do Not Use Oven Cleaners No commercial oven cleaner or oven liner protective coating of any kind should be used in or around any part of the oven Clean Only Parts Listed in Manual Before SelfCleaning the Oven Remove broiler pan and other utensils For units with ventilating hood Clean Ventilating Hoods Frequently Grease should not be allowed to accumulate on hood or filter When flaming foods under the hood turn the fan on For smart enabled ranges and ovens Remote operation This appliance is configurable to allow remote operation at any time Do not store any flammable materials or temperature sensitive items inside on top or near surface units of the appliance SAVE THESE INSTRUCTIONS
• Page 4 - English - : RANGE MAINTENANCE AND CARE SelfCleaning Cycle on some models WARNING Burn Hazard Do not touch the oven during the SelfCleaning cycle Keep children away from the oven during SelfCleaning cycle Failure to follow these instructions can result in burns IMPORTANT The health of some birds is extremely sensitive to the fumes given off during the SelfCleaning cycle Exposure to the fumes may result in death to certain birds Always move birds to another closed and wellventilated room Keep the kitchen wellventilated during the SelfCleaning cycle to help get rid of heat odors and smoke Do not block the oven vents during the SelfCleaning cycle Air must be able to move freely Depending on your model see Oven Vent or Oven Vents section in your Quick Start Guide A Oven vent Do not clean rub damage or move the oven door gasket Prepare Range Remove the broiler pan grid cookware and bakeware all cooking utensils oven racks aluminum foil and on some models the temperature probe from the oven Use a damp cloth to clean inside door edge and the 1 quot 38 cm area around the inside oven cavity frame being certain not to move or bend the gasket Remove plastic items from the cooktop because they may melt Remove all items from the storage drawer How the Cycle Works IMPORTANT The heating and cooling of porcelain on steel in the oven may result in discoloring loss of gloss hairline cracks and popping sounds Before selfcleaning make sure the door is completely closed or the door will not lock and the SelfCleaning cycle will not begin Once the oven has completely cooled remove ash with a damp cloth To avoid breaking the glass do not apply a cool damp cloth to the inner door glass before it has completely cooled To stop the SelfCleaning cycle at any time press CANCEL or OFFCANCEL If the temperature is too high the oven door will remain locked and cool and locked or will be displayed The cooling fan may continue to run The oven light will not function during the SelfCleaning cycle Electronic Oven Control with Adjustable Clean Time on some models The SelfCleaning cycle is time adjustable between 2 hours 30 minutes and 4 hours 30 minutes in 30minute increments Suggested clean times are 2 hours 30 minutes for light soil and 4 hours 30 minutes for heavy soil IMPORTANT When cooktop is in use the SelfCleaning cycle will be disabled When the SelfCleaning cycle is in use the cooktop will be locked To SelfClean 1 Press CLEAN 2 Press the TempTime up or down arrow keypad to enter the desired SelfCleaning cycle time 3 Press START The oven door will automatically lock The Door Locked and Clean indicator lights will be displayed The time remaining will also be displayed 4 When the SelfCleaning cycle is complete and the oven cools the Door Locked and Clean indicator lights will turn off 5 When the oven is completely cooled remove ash with a damp cloth To exit the SelfCleaning cycle before completed press CANCEL or OFFCANCEL The door will unlock once the oven cools General Cleaning IMPORTANT Before cleaning make sure all controls are off and the oven and cooktop are cool Always follow label instructions on cleaning products Soap water and a soft cloth or sponge are suggested first unless otherwise noted EXTERIOR PORCELAIN ENAMEL SURFACES on some models Food spills containing acids such as vinegar and tomato should be cleaned as soon as the entire range is cool These spills may affect the finish Cleaning Method Glass cleaner mild liquid cleaner or nonabrasive scrubbing pad Gently clean around the modelserialrating plate because scrubbing may remove numbers Affresh Kitchen and Appliance Cleaner Part Number W10355010 not included See the Quick Start Guide for contact information STAINLESS STEEL on some models NOTE To avoid damage to stainless steel surfaces do not use soapfilled scouring pads abrasive cleaners Cooktop Cleaner steelwool pads gritty washcloths or abrasive paper towels Damage may occur to stainless steel surfaces even with onetime or limited use Cleaning Method Rub in direction of grain to avoid damaging Affresh Stainless Steel Cleaner Part Number W10355016 not included See the Quick Start Guide for contact information METALLIC PAINT on some models Do not use abrasive cleaners cleaners with bleach rust removers ammonia or sodium hydroxide lye because paint surface may stain

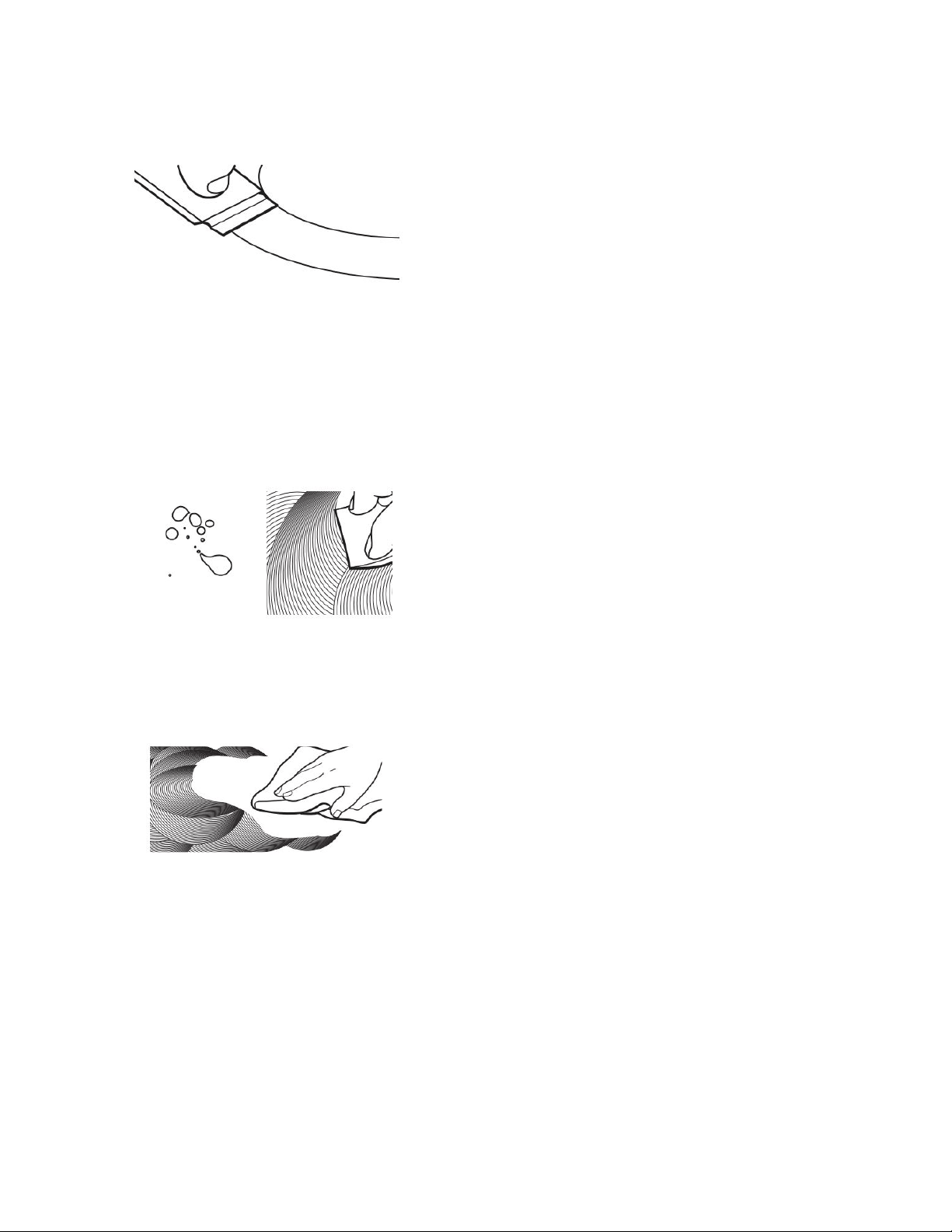

• Page 5 - English - : CERAMIC GLASS COOKTOP CLEANING Cleaning Method To avoid damaging the cooktop do not use steel wool abrasive powder cleansers chlorine bleach rust remover or ammonia 1 Remove foodresidue with the Cooktop Scraper For best results use the Cooktop Scraper while the cooktop is still warm but not hot to the touch It is recommended to wear an oven mitt while scraping the warm cooktop Hold the Cooktop Scraper at approximately a 45 angle against the glass surface and scrape the residue It will be necessary to apply pressure in order to remove the residue Allow the cooktop to cool down completely before proceeding to Step 2 2 Apply a few dimesized drops of Cooktop Cleaner to the affected areas Rub affresh Cleaner onto the cooktop surface with the blue Cooktop Cleaning Pad Some pressure is needed to remove stubborn stains Allow the cleaner to dry to a white haze before proceeding to Step 3 3 Polish with a clean dry cloth or a clean dry paper towel Repeat steps 1 through 3 as necessary for stubborn or burnedon stains The Complete Cooktop Cleaner Kit is available for order including the following Cooktop Scraper Affresh Cooktop Cleaner Blue Cooktop Cleaning Pads See the Quick Start Guide for ordering information COOKTOP CONTROLS To avoid damage to the cooktop controls do not use steel wool abrasive cleansers or oven cleaner To avoid damage do not soak knobs When replacing knobs make sure knobs are in the Off position On some models do not remove seals under knobs Cleaning Method Soap and water Pull knobs straight away from control panel to remove CONTROL PANEL AND OVEN DOOR EXTERIOR To avoid damage to the control panel do not use abrasive cleaners steelwool pads gritty washcloths or abrasive paper towels Cleaning Method Glass cleaner and soft cloth or sponge Apply glass cleaner to soft cloth or sponge not directly on panel Affresh Kitchen and Appliance Cleaner Part Number W10355010 not included See the Quick Start Guide for contact information COIL ELEMENTS on some models Cleaning Method Damp cloth Make sure control knobs are OFF and elements are cool Do not clean or immerse in water Soil will burn off when hot BURNER BOWLS on some models Before removing or replacing coil elements and burner bowls make sure they are cool and the control knobs are in the OFF position Remove the coil element by pushing the edge of the coil element toward the receptacle Lift it enough to clear the burner bowl Pull the coil element straight away from the receptacle to remove Lift out the burner bowl Cleaning Method Chrome burner bowls Wash frequently in warm soapy water It is not recommended to wash chrome bowls in a dishwasher A mild abrasive cleaner and a plastic scrubber can be used to remove stubborn stains For heavily soiled bowls place an ammoniasoaked paper towel on the stains and allow to soak for a short time then gently scrub with a plastic scrubber SURFACE UNDER COOKTOP on some models The coil cooktop will lift up to provide easy access for cleaning beneath Lift the cooktop by both front corners until the support locks into place Cleaning Method Glass cleaner mild liquid cleaner or nonabrasive scrubbing pad Affresh Kitchen and Appliance Cleaner Part Number W10355010 not included See the Quick Start Guide for contact information To avoid damage to the range do not remove the cooktop OVEN RACKS Cleaning Method Steelwool pad For racks that have discolored and are harder to slide a light coating of vegetable oil applied to the rack guides will help them slide Dishwasher steam rack water reservoir only not racks Although the water reservoir is durable it may lose its shine andor discolor when washed in a dishwasher STORAGE DRAWER OR WARMING DRAWER on some models Check that storage drawer or warming drawer is cool and empty before cleaning Cleaning Method Mild detergent
• Page 6 - English - : OVEN CAVITY Do not use oven cleaners Food spills should be cleaned when oven cools At high temperatures foods react with porcelain Staining etching pitting or faint white spots can result Cleaning Method Clean cycle See the SelfCleaning Cycle section INSTALLATION INSTRUCTIONS REQUIREMENTS Tools and Parts Gather the required tools and parts before starting installation Read and follow the instructions provided with any tools listed here Tools needed Tape measure Flatblade screwdriver Phillips screwdriver Level Hammer Hand or electric drill Wrench or pliers Marker or pencil Flashlight Masking tape 14quot 64 mm drive ratchet 14quot 64 mm nut driver 38quot 95 mm and 516quot 8 mm nut driver 18quot 32 mm drill bit for wood floors Tin snips or large wire cutters for cutting ground strap if necessary Parts supplied Check that all parts are included 1032 hex nuts attached to terminal block 3 Direct wire lugs 3 10 x 1 quot 41 cm screws for mounting antitip bracket 2 Antitip bracket inside oven cavity Antitip bracket must be securely mounted to the back wall or floor Thickness of flooring may require longer screws to anchor bracket to subfloor Longer screws are available from your local hardware store Parts needed If using a power supply cord kit A UL listed power supply cord kit marked for use with ranges The cord should be rated at 250 V minimum 40 A or 50 A that is marked for use with nominal 1 quot 35 cm diameter connection opening and must end in ring terminals or open end spade terminals with upturned ends A UL listed strain relief Check local codes Check existing electrical supply See the appropriate Electrical Requirements section It is recommended that all electrical connections be made by a licensed qualified electrical installer NOTE Be sure to purchase only Whirlpool factorycertified parts and accessories for your appliance Your installation may require additional parts To order refer to the contact information referenced in your Quick Start Guide Location Requirements IMPORTANT Observe all governing codes and ordinances It is the installers responsibility to comply with installation clearances specified on the modelserialrating plate The modelserialrating plate is located behind the oven door on the top righthand side of the oven frame The range should be located for convenient use in the kitchen Recessed installations must provide complete enclosure of the sides and rear of the range All openings in the wall or floor where range is to be installed must be sealed Cabinet opening dimensions that are shown must be used Given dimensions are minimum clearances The antitip bracket must be installed To install the antitip bracket shipped with the range see the Install AntiTip Bracket section Grounded electrical supply is required See the appropriate Electrical Requirements section Contact a qualified floor covering installer to check that the floor covering can withstand at least 200F 93C Use an insulated pad or 14quot 064 cm plywood under range if installing range over carpeting IMPORTANT To avoid damage to your cabinets check with your builder or cabinet supplier to make sure that the materials used will not discolor delaminate or sustain other damage This oven has been designed in accordance with the requirements of UL and CSA International and complies with the maximum allowable wood cabinet temperatures of 194F 90C Mobile Home Additional Installation Requirements The installation of this range must conform to the Manufactured Home Construction and Safety Standard Title 24 CFR Part 3280 formerly the Federal Standard for Mobile Home Construction and Safety Title 24 HUD Part 280 When such standard is not applicable use the Standard for Manufactured Home Installations ANSI A2251NFPA 501A or with local codes In Canada the installation of this range must conform with the current standards CANCSAZ2401latest edition or with local codes Mobile home installations require When this range is installed in a mobile home it must be secured according to the instructions in this document Fourwire power supply cord or cable must be used in a mobile home installation The appliance wiring will need to be revised See Electrical Connection USA Only section

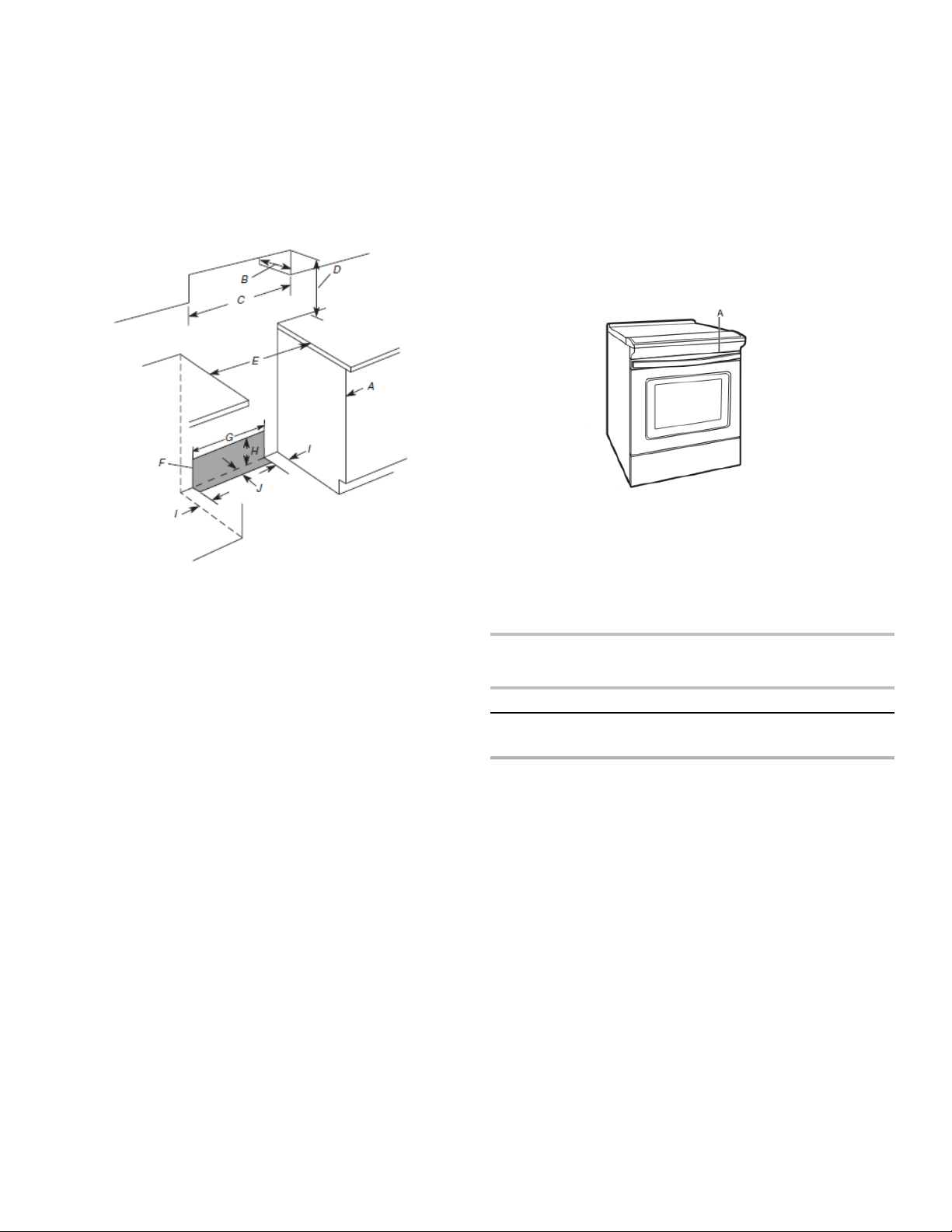

• Page 7 - English - : Cabinet Dimensions Cabinet opening dimensions shown are for 25quot 640 cm countertop depth 24quot 610 cm base cabinet depth and 36quot 914 cm countertop height IMPORTANT If installing a range hood or microwave hood combination above the range follow the range hood or microwave hood combination installation instructions for dimensional clearances above the cooktop surface Range may be installed next to combustible walls with zero clearance A Cabinet door or hinges should not extend into the cutout B 13quot 33 cm max upper cabinet depth C 30quot 762 cm min opening width D For minimum clearance to top of cooktop see NOTE E 30quot 762 cm min opening width F The shaded area is recommended for installation of grounded outlet G 13 quot 333 cm H 7 quot 195 cm I 4 quot 122 cm J 3 quot 94 cm NOTE 24quot 610 cm minimum when bottom of wood or metal cabinet is shielded by not less than 14quot 064 cm flame retardant millboard covered with not less than No 28 MSG sheet steel 0015quot 04 mm stainless steel 0024quot 06 mm aluminum or 0020quot 05 mm copper 30quot 762 cm minimum clearance between the top of the cooking platform and the bottom of an uncovered wood or metal cabinet Electrical Requirements USA Only If codes permit and a separate ground wire is used it is recommended that a qualified electrical installer determine that the ground path and wire gauge are in accordance with local codes Do not use an extension cord Be sure that the electrical connection and wire size are adequate and in conformance with the National Electrical Code ANSINFPA 70latest edition and all local codes and ordinances A copy of the above code standards can be obtained from National Fire Protection Association 1 Batterymarch Park Quincy MA 021697471 WARNING Improper connection of the equipmentgrounding conductor can result in a risk of electric shock Check with a qualified electrician or service technician if you are in doubt as to whether the appliance is properly grounded Do not modify the power supply cord plug If it will not fit the outlet have a proper outlet installed by a qualified electrician Electrical Connection To properly install your range you must determine the type of electrical connection you will be using and follow the instructions provided for it here Range must be connected to the proper electrical voltage and frequency as specified on the modelserialrating plate The modelserialrating plate is located behind the oven door on the top righthand side of the oven frame A Modelserialrating plate located behind the oven door on the top righthand side of the oven frame This range is manufactured with the neutral terminal connected to the cabinet Use a 3wire UL listed 40 or 50 A power supply cord pigtail See the following Range Rating chart If local codes do not permit ground through the neutral use a 4wire power supply cord rated at 250 V 40 or 50 A and investigated for use with ranges Range Rating Specified Rating of Power Supply Cord Kit and Circuit Protection 120240 V 120208 V Amps 88 165 kW 78 125 kW 40 or 50 166 225 kW 126 185 kW 50 The NEC calculated load is less than the total connected load listed on the modelserialrating plate If connecting to a 50 A circuit use a 50 A rated cord with kit For 50 A rated cord kits use kits that specify use with a nominal 1 quot 349 mm diameter connection opening A circuit breaker is recommended The range can be connected directly to the circuit breaker box or fused disconnect through flexible or nonmetallic sheathed copper or aluminum cable See the quotElectrical Connection U SA Onlyquot section Allow at least 6 ft 1829 cm of slack in the line so that the range can be moved if servicing is ever necessary A UL Listed conduit connector must be provided at each end of the power supply cable at the range and at the junction box Wire sizes and connections must conform with the rating of the range
• Page 8 - English - : If connecting to a 3wire system Local codes may permit the use of a UL listed 3wire 250 V 40 or 50 A range power supply cord pigtail This cord contains 3 copper conductors with ring terminals or openend spade terminals with upturned ends terminating in a NEMA Type 1050P plug on the supply end Connectors on the appliance end must be provided at the point the power supply cord enters the appliance This uses a 3wire receptacle of NEMA Type 1050R 3wire receptacle 1050R If connecting to a 4wire system This range is manufactured with the ground connected to the neutral by a link The ground must be revised so the green ground wire of the 4wire power supply cord is connected to the cabinet See Electrical Connection USA Only section Grounding through the neutral conductor is prohibited for new branchcircuit installations 1996 NEC mobile homes and recreational vehicles or an area where local codes prohibit grounding through the neutral conductor When a 4wire receptacle of NEMA Type 1450R is used a matching UL listed 4wire 250 V 40 or 50 A range power supply cord pigtail must be used This cord contains 4 copper conductors with ring terminals or openend spade terminals with upturned ends terminating in a NEMA Type 1450P plug on the supply end The fourth grounding conductor must be identified by a green or greenyellow cover and the neutral conductor by a white cover Cord should be Type SRD or SRDT with a UL listed strain relief and be at least 4 ft 122 m long 4wire receptacle 1450R The minimum conductor sized for the copper 4wire power cord are 40 A circuit 2 No8 conductors 1 No10 white neutral 1 No10 green grounding INSTALLATION Unpack Range WARNING Excessive Weight Hazard Use two or more people to move and install or uninstall appliance Failure to do so can result in back or other injury 1 Remove shipping materials tape and film from the range Keep cardboard bottom under range Do not dispose of anything until the installation is complete 2 Remove oven racks and parts package from oven and shipping materials 3 To remove cardboard bottom first take 4 cardboard corners from the carton Stack one cardboard corner on top of another Repeat with the other 2 corners Place them lengthwise on the floor behind the range to support the range when it is laid on its back 4 Using 2 or more people firmly grasp the range and gently lay it on its back on the cardboard corners 5 Remove cardboard bottom The leveling legs can be adjusted while the range is on its back See the Adjust Leveling Legs section NOTE To place range back up into a standing position put a sheet of cardboard or hardboard on the floor in front of range to protect the flooring Using 2 or more people stand range back up onto the cardboard or hardboard Install AntiTip Bracket WARNING Tip Over Hazard A child or adult can tip the range and be killed Install antitip bracket to floor or wall per installation instructions Slide range back so rear range foot is engaged in the slot of the antitip bracket Reengage antitip bracket if range is moved Do not operate range without antitip bracket installed and engaged Failure to follow these instructions can result in death or serious burns to children and adults 1 Remove the antitip bracket from the inside of the oven 2 Determine which mounting method to use floor or wall If you have a stone or masonry floor you can use the wall mounting method If you are installing the range in a mobile home you must secure the range to the floor This antitip bracket and screws can be used with wood or metal studs

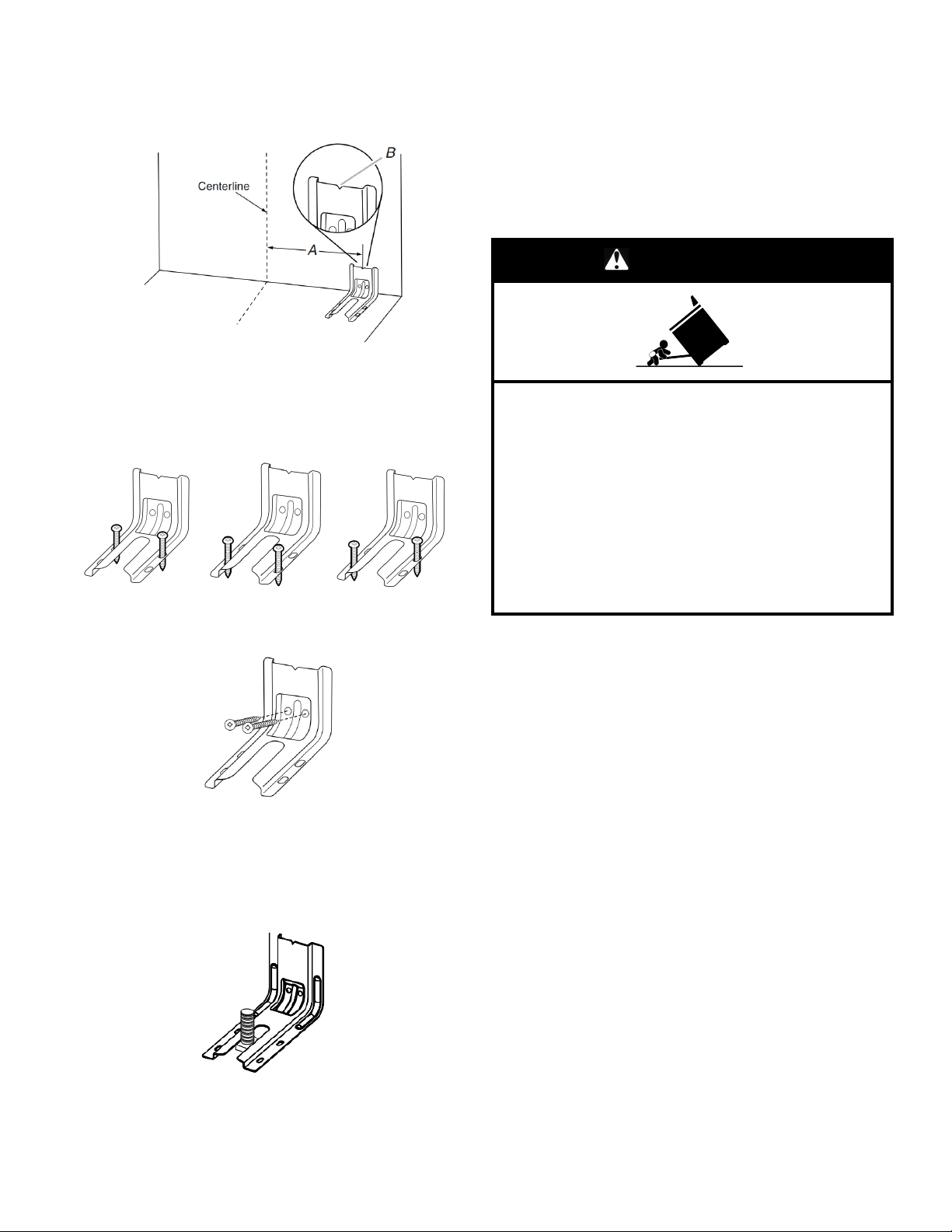

• Page 9 - English - : 3 Determine and mark centerline of the cutout space The mounting can be installed on either the leftside or rightside of the cutout Position mounting bracket against the wall in the cutout so that the Vnotch of the bracket is 12 quot 318 cm from centerline as shown A 12 quot 318 cm B Bracket Vnotch 4 Drill two 18quot 3 mm holes that correspond to the bracket holes of the determined mounting method See the following illustrations Floor Mounting Rear Position Front Position Diagonal 2 options Wall Mounting 5 Using the two 10 x 1 quot 41 cm Phillipshead screws provided mount antitip bracket to the wall or floor 6 Move range close enough to opening to allow for final electrical connections Remove shipping base cardboard or hardboard from under range 7 Move range into its final location making sure rear leveling leg slides into antitip bracket 8 Move range forward onto shipping base cardboard or hardboard to continue installing the range using the following installation instructions Adjust Leveling Legs 1 If range height adjustment is necessary use a wrench or pliers to loosen the four leveling legs This may be done with the range on its back or with the range supported on two legs after the range has been placed back to a standing position NOTE To place range back up into a standing position put a sheet of cardboard or hardboard in front of range Using two or more people stand range back up onto the cardboard or hardboard WARNING Tip Over Hazard A child or adult can tip the range and be killed Install antitip bracket to floor or wall per installation instructions Slide range back so rear range foot is engaged in the slot of the antitip bracket Reengage antitip bracket if range is moved Do not operate range without antitip bracket installed and engaged Failure to follow these instructions can result in death or serious burns to children and adults 2 Measure the distance from the top of the counter to the floor 3 Measure the distance from the top of the cooktop to the bottom of the leveling legs This distance should be the same If it is not adjust the leveling legs to the correct height The leveling legs can be loosened to add up to a maximum of 1quot 25 cm A minimum of 316quot 5 mm is needed to engage the antitip bracket NOTE If height adjustment is made when range is standing tilt the range back to adjust the front legs and then tilt forward to adjust the rear legs 4 When the range is at the correct height check that there is adequate clearance under the range for the antitip bracket Before sliding range into its final location check that the anti tip bracket will slide under the range and onto the rear leveling leg prior to antitip bracket installation NOTE If a Trim Kit will be used the top of the cooktop should be higher than the counter See the Installation Instructions included with the Trim Kit for the correct height
• Page 10 - English - : Level Range 1 Place level on the oven bottom as indicated in one of the two figures below depending on the size of the level Check with the level side to side and front to back 2 If range is not level use a wrench or pliers to adjust leveling legs up or down until the range is level NOTE Range must be level for satisfactory baking performance and best cleaning results using AquaLift Self Clean Technology Electrical Connection USA Only If your home has a 3 or 4wire receptacle continue with Install Using a Power Supply Cord If your home has a 3 or 4wire direct connection go to Install Using Direct Wire Install Using a Power Supply Cord WARNING Electrical Shock Hazard Disconnect power before servicing Use a new 40 amp power supply cord Plug into a grounded outlet Failure to follow these instructions can result in death fire or electrical shock Power Supply Cord Strain Relief 1 Disconnect power 2 Remove the lower access cover screws located on the back of the range Pull the bottom of the cover toward you and out to remove cover from range A Mounting tabs 3 B Lower access cover C Screws 2 3 Remove plastic tag holding three 1032 hex nuts from the middle post of the terminal block OR Remove the top 1032 hex nut from each of the 3 terminal blocks and set aside 4 Assemble a UL listed strain relief in the opening A UL listed strain relief 5 Complete installation following instructions for your type of electrical connection 4wire recommended 3wire if 4wire is not available Electrical Connection Options If your home has And you will be connecting to Go to Section 3wire receptacle NEMA type 1050R A UL listed 250 V minimum 40 or 50 A range power supply cord 3Wire Connection Power Supply Cord 4wire receptacle NEMA type 1450R A UL listed 250 V minimum 40 or 50 A range power supply cord 4Wire Connection Power Supply Cord
• Page 11 - English - : 4Wire Connection Power Supply Cord Use this method for New branchcircuit installations 1996 NEC Mobile homes Recreational vehicles In an area where local codes prohibit grounding through the neutral 1 Part of metal ground strap must be cut out and removed A Metal ground strap B Discard C Groundlink screw 2 Use a Phillips screwdriver to remove the groundlink screw from the back of the range Save the groundlink screw and the end of the ground link under the screw 3 Feed the power supply cord through the strain relief on the cordconduit plate on bottom of range Allow enough slack to easily attach the wiring to the terminal block A Terminal block B Groundlink screw C UL listed strain relief D Power supply cord wires 4 Use Phillips screwdriver to connect the green ground wire from the power supply cord to the range with the groundlink screw The ground wire must be attached first 5 Use 38quot 95 mm nut driver to connect the neutral white wire to the center terminal block post with one of the 1032 hex nuts A 1032 hex nut B Groundlink screw C Line 2 red D Green ground wire E Neutral center wire F Line 1 black 6 Connect line 2 red and line 1 black wires to the outer terminal block posts with 1032 hex nuts 7 Securely tighten hex nuts NOTE For power supply cord replacement use only a power cord rated at 250 V minimum 40 A or 50 A that is marked for use with nominal 1 quot 35 cm diameter connection opening with ring terminals and marked for use with ranges 8 Tighten strain relief screws 9 Replace terminal block access cover 3Wire Connection Power Supply Cord Use this method only if local codes permit connecting chassis ground conductor to neutral wire of power supply cord 1 Feed the power supply cord through the strain relief in the cordconduit plate on bottom of range Allow enough slack to easily attach the wiring to the terminal block A Terminal block B Groundlink screw C UL listed strain relief D Power supply cord wires large opening 2 Use 38quot 95 mm nut driver to connect the neutral white wire to the center terminal block post with one of the 1032 hex nuts A 1032 hex nut B Line 2 red C Groundlink screw D Neutral white wire E Line 1 black 3 Connect line 2 red and line 1 black wires to the outer terminal block posts with 1032 hex nuts 4 Securely tighten hex nuts NOTE For power supply cord replacement only use a power cord rated at 250 V minimum 40 A or 50 A that is marked for use with nominal 1 quot 35 cm diameter connection opening with ring terminals and marked for use with ranges 5 Tighten strain relief screws IMPORTANT Verify the tightness of the hex nuts 6 Replace terminal block access cover

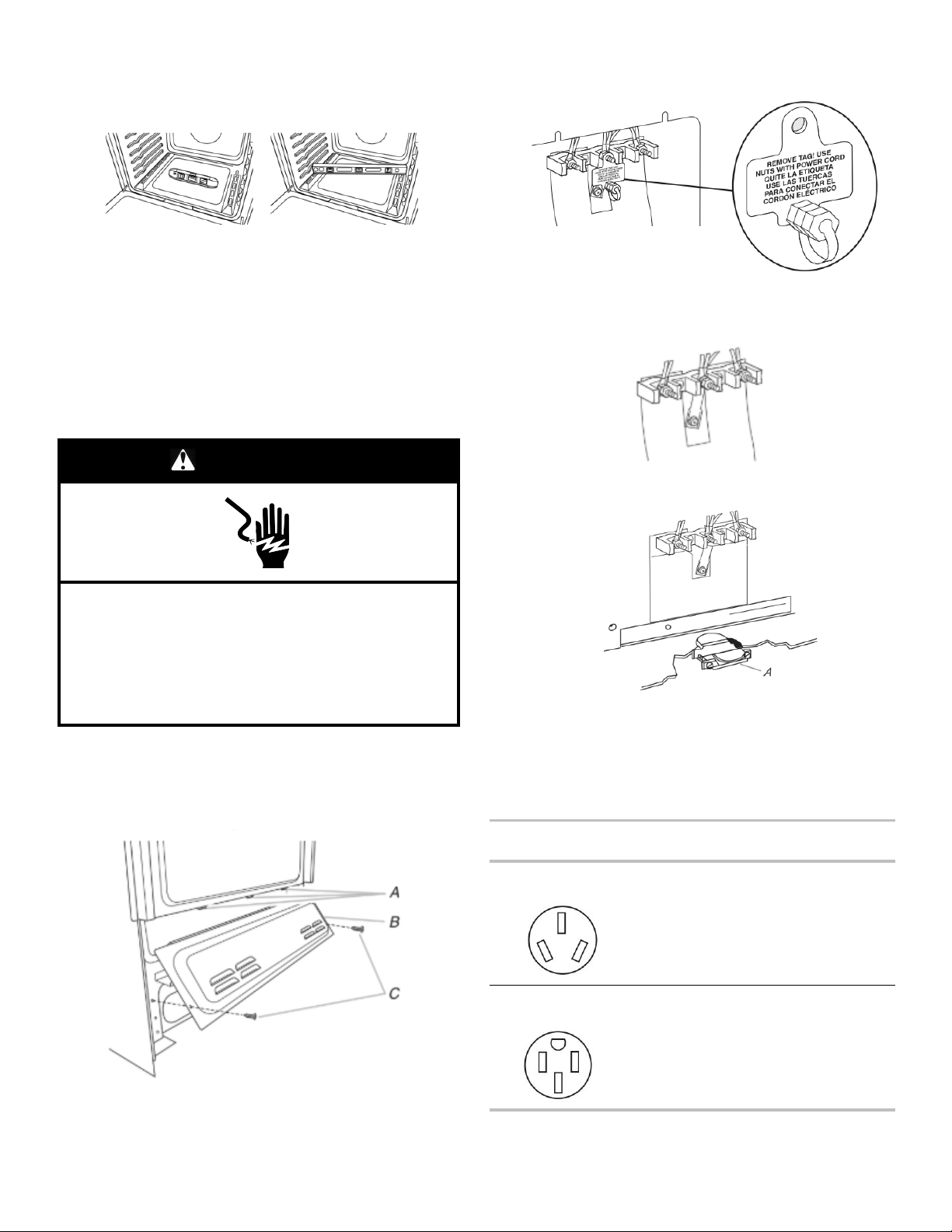

• Page 12 - English - : Install Using Direct Wire WARNING Electrical Shock Hazard Disconnect power before servicing Use 8 gauge copper or 6 gauge aluminum wire Electrically ground range Failure to follow these instructions can result in death fire or electrical shock Direct Wire Strain Relief 1 Disconnect power 2 Remove the lower access cover screws located on the back of the range Pull the bottom of the cover toward you and out to remove cover from range A Mounting tabs 3 B Lower access cover C Screws 2 3 Remove plastic tag holding three 1032 hex nuts from the middle post of the terminal block OR Remove the top 1032 hex nut from each of the 3 terminal blocks and set aside 4 Assemble a UL listed conduit connector in the opening A Removable retaining nut B Conduit 5 Tighten strain relief screw against the flexible conduit
• Page 13 - English - : Direct Wire Installation Copper or Aluminum Wire This range may be connected directly to the fuse disconnect or circuit breaker box Depending on your electrical supply make the required 3wire or 4wire connection 1 Strip outer covering back 3quot 76 cm to expose wires Strip the insulation back 1quot 25 cm from the end of each wire 2 Allow enough slack in the wire to easily attach the wiring terminal block 3 Complete electrical connection according to your type of electrical supply 4wire recommended 3wire if 4wire is not available Electrical Connection Options If your home has And you will be connecting to Go to Section 3wire direct A circuit breaker box or fused disconnect 3Wire Connection Direct Wire 4wire direct A circuit breaker box or fused disconnect 4Wire Connection Direct Wire 4Wire Connection Direct Wire Use this method for New branchcircuit installations 1996 NEC Mobile homes Recreational vehicles In an area where local codes prohibit grounding through the neutral 1 Part of metal ground strap must be cut out and removed A Metal ground strap B Discard C Groundlink screw 2 Use a Phillips screwdriver to remove the groundlink screw from the back of the range Save the groundlink screw and the end of the ground link under the screw 3 Pull the wires through the strain relief on bottom of range Allow enough slack to easily attach wiring to the terminal block A Terminal block B Groundlink screw C Cordconduit plate D Bare green ground wire E Line 2 red wire F Neutral white wire G Line 1 black wire 4 Attach terminal lugs to line 1 black neutral white and line 2 red wires Loosen do not remove the setscrew on the front of the terminal lug and insert exposed wire end through bottom of terminal lugs Securely tighten setscrew to torque as shown in the following Bare Wire Torque Specifications chart A Terminal lug B Setscrew C Line 2 red wire D Neutral white wire E Line 1 black wire Bare Wire Torque Specifications Attaching terminal lugs to the terminal block 20 lbsin 23 N m Wire Awg Torque 8 gauge copper 25 lbsin 28 Nm 6 gauge aluminum 35 lbsin 40 Nm 5 Use a hex or Phillips screwdriver to connect the bare green ground wire to the range with the groundlink screw and groundlink section The ground wire must be attached first and must not contact any other terminal

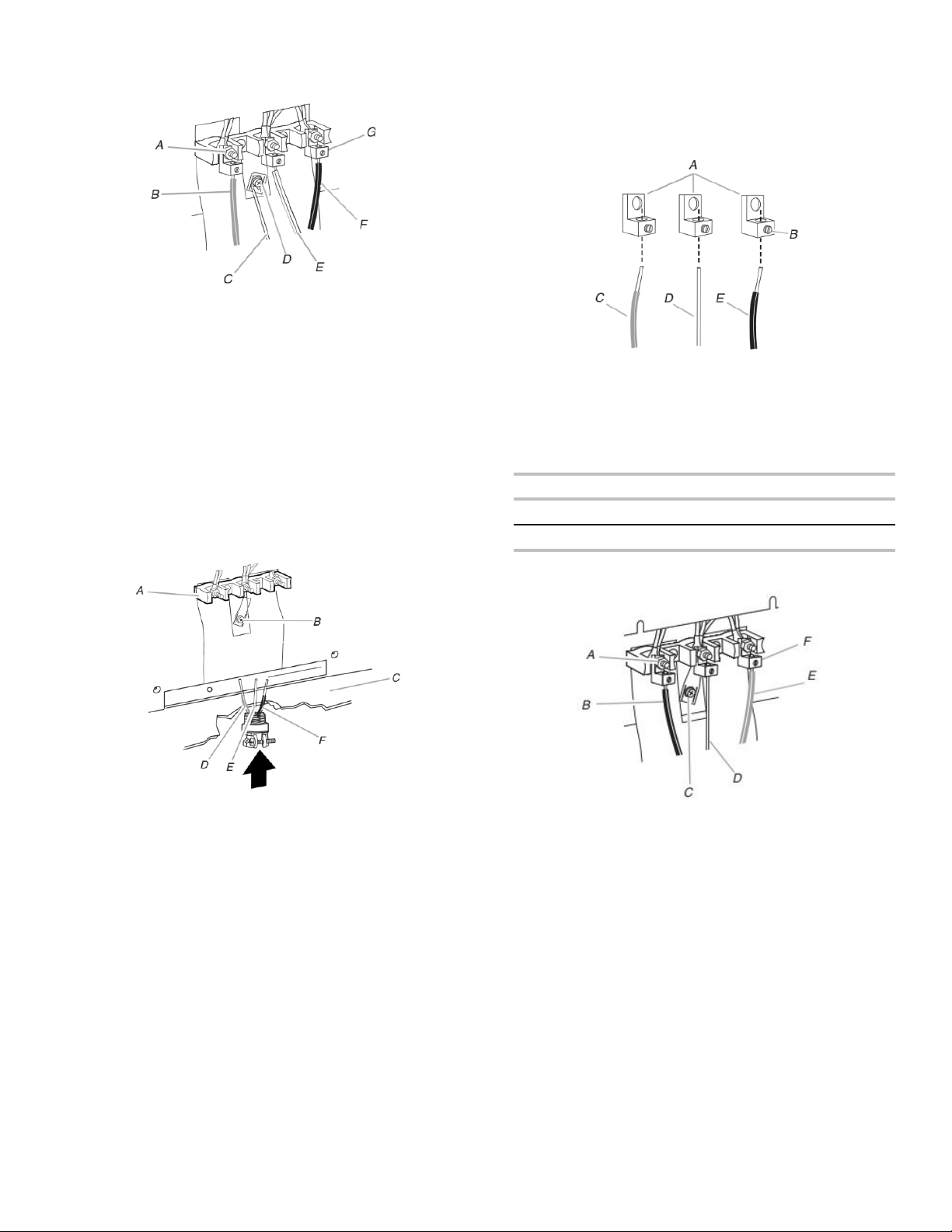

• Page 14 - English - : 6 Use 38quot nut driver to connect the neutral white wire to the center terminal block post with one of the 1032 hex nuts A 1032 hex nut B Line 2 red C Bare green ground wire D Groundlink screw E Neutral white wire F Line 1 black G Terminal lug 7 Connect line 2 red and line 1 black wires to the outer terminal block posts with 1032 hex nuts 8 Securely tighten hex nuts 9 Replace terminal block access cover 3Wire Connection Direct Wire Use this method only if local codes permit connecting ground conductor to neutral supply wire 1 Pull the wires through the conduit on cordconduit plate on bottom of range Allow enough slack to easily attach the wiring to the terminal block A Terminal block B Groundlink screw C Cordconduit plate D Line 2 red wire E Bare green ground wire F Line 1 black wire 2 Attach terminal lugs to line 2 red bare green ground and line 1 black wires Loosen do not remove the setscrew on the front of the terminal lug and insert exposed wire end through bottom of terminal lugs Securely tighten setscrew to torque as shown in the following Bare Wire Torque Specifications chart A Terminal lug B Setscrew C Line 2 red wire D Bare green ground wire E Line 1 black wire Bare Wire Torque Specifications Attaching terminal lugs to the terminal block 20 lbsin 23 N m Wire Awg Torque 8 gauge copper 25 lbsin 28 Nm 6 gauge aluminum 35 lbsin 40 Nm 3 Use 38quot nut driver to connect the bare green ground wire to the center terminal block post with one of the 1032 hex nuts A 1032 hex nut B Line 2 red C Groundlink screw D Bare green ground wire E Line 1 black F Terminal lug 4 Connect line 2 red and line 1 black wires to the outer terminal block posts with 1032 hex nuts 5 Securely tighten hex nuts 6 Replace terminal block access cover
• Page 15 - English - : Verify AntiTip Bracket Is Installed and Engaged On Ranges Equipped with a Premium Storage Drawer 1 Slide range into final location making sure rear leveling leg slides into antitip bracket 2 Remove the premium storage drawer See the Remove Replace Drawer section 3 Use a flashlight to look underneath the bottom of the range 4 Visually check that the rear range foot is inserted into the slot of the antitip bracket On Ranges Equipped with a Warming Drawer or Baking Drawer 1 Slide range into final location making sure rear leveling leg slides into antitip bracket Leave a 1quot 25 cm gap between the back of the range and the back wall 2 Place the outside of your foot against the bottom front of the warming drawer or baking drawer to keep the range from moving and then grasp the back of the range as shown 3 Slowly attempt to tilt the range forward If you encounter immediate resistance the range foot is engaged in the antitip bracket Go to Step 8 4 If the rear of the range lifts more than 12quot 13 cm off the floor without resistance stop tilting the range and lower it gently back to the floor The range foot is not engaged in the antitip bracket IMPORTANT If there is a snapping or popping sound when lifting the range the range may not be fully engaged in the bracket Check to see if there are obstructions keeping the range from sliding to the wall or keeping the range foot from sliding into the bracket Verify that the bracket is held securely in place by the mounting screws 5 Slide the range forward and verify that the antitip bracket is securely attached to the floor or wall 6 Slide range back so the rear range foot is inserted into the slot of the antitip bracket 7 Repeat steps 1 and 2 to ensure that the range foot is engaged in the antitip bracket If the rear of the range lifts more than 12quot 13 cm off the floor without resistance the antitip bracket may not be installed correctly Do not operate the range without antitip bracket installed and engaged Please reference the Quick Start Guide for contact information 8 Move the range into its final location Check that the range is level by placing a level on the oven bottom See the Level Range section IMPORTANT If the range is moved to adjust the leveling legs verify that the antitip bracket is engaged by repeating steps 1 to 8 RemoveReplace Drawer Remove all items from inside the baking drawer warming drawer or premium storage drawer and then allow the range to cool completely before attempting to remove the drawer To Remove 1 Open the drawer to its fully open position 2 Raise the front edge and then lift out To Replace 1 Align the forward drawer notches with the notches in the drawer rails on both sides Place the rear alignment tabs into the drawer rails on both sides 2 Push the drawer in all the way 3 Gently open and close the drawer to ensure it is seated properly on the rails on both sides Oven Door For normal range use it is not suggested to remove the oven door However if removal is necessary make sure the oven is off and cool Then follow these instructions The oven door is heavy To Remove 1 Open oven door all the way 2 Pinch the hinge latch between two fingers and pull forward Repeat on other side of oven door A Hinge latch 3 Close the oven door as far as it will shut 4 Lift the oven door while holding both sides Continue to push the oven door closed and pull it away from the oven door frame
• Page 16 - English - : To Replace 1 Insert both hanger arms into the door Be sure that the hinge notches are engaged in the oven door frame A Hinge notch 2 Open the oven door The door should be able to open all the way 3 Move the hinge levers back to the locked position Check that the door is free to open and close and is level while closed If it is not repeat the removal and installation procedures Complete Installation 1 Check that all parts are now installed If there is an extra part go back through the steps to see which step was skipped 2 Check that you have all of your tools 3 Check that you have all of the range accessories especially oven racks These accessories may be in the range packaging 4 Dispose ofrecycle all packaging materials 5 Check that the range is level See the Level Range section 6 Use a mild solution of liquid household cleaner and warm water to remove waxy residue caused by shipping material Dry thoroughly with a soft cloth For more information see the Range Maintenance and Care section 7 Read the Quick Start Guide and online Control Guide 8 Plug power cord into appropriate outlet Turn power on 9 Turn on surface burners and oven See the Quick Start Guide and online Control Guide for specific instructions on range operation NOTE Odors and smoke are normal when the oven is used the first few times If Range Does Not Operate Check the Following Household fuse is intact and tight or circuit breaker has not tripped Range is plugged into a grounded outlet Electrical supply is connected IMPORTANT If the range control displays an F9 or F9 E0 error code the electrical outlet in the home may be miswired Disconnect power and contact a qualified electrician to verify the electrical supply 10 When the range has been on for 5 minutes check for heat If the range is cold turn off the range and contact a qualified electrician If You Need Assistance or Service Please reference the Quick Start Guide for contact information Moving the Range WARNING Tip Over Hazard A child or adult can tip the range and be killed Install antitip bracket to floor or wall per installation instructions Slide range back so rear range foot is engaged in the slot of the antitip bracket Reengage antitip bracket if range is moved Do not operate range without antitip bracket installed and engaged Failure to follow these instructions can result in death or serious burns to children and adults When moving range slide range onto cardboard or hardboard to avoid damaging the floor covering If removing the range is necessary for cleaning or maintenance For power supply cordconnected ranges 1 Slide range forward 2 Unplug the power supply cord 3 Complete cleaning or maintenance 4 Plug in power supply cord 5 Check that the antitip bracket is installed and engaged See the Verify AntiTip Bracket Is Installed and Engaged section 6 Check that range is level For directwired ranges WARNING Electrical Shock Hazard Disconnect power before servicing Replace all parts and panels before operating Failure to do so can result in death or electrical shock 1 Disconnect power 2 Slide range forward 3 Complete cleaning or maintenance 4 Check that the antitip bracket is installed and engaged See the Verify AntiTip Bracket Is Installed and Engaged section 5 Check that range is level 6 Reconnect power
