ORIGINAL INSTRUCTIONS
Reciprocating Saw
R18RS
Important!
It is essential that you read the instructions in this manual before assembling,
operating, and maintaining the product.
Subject to technical modification.
Safety, performance, and dependability have been given
top priority in the design of your reciprocating saw.
INTENDED USE
The reciprocating saw is intended to be used only by
adults who have read and understood the instructions and
warnings in this manual and can be considered responsible
for their actions. With appropriate blades tted, the
reciprocating saw is designed to cut wood, plastic, drywall
and metal up to the depth described in the specication
table. The reciprocating saw is designed for handheld
use; it is not to be mounted onto a workbench unless
specic instructions are given about how to do this by the
manufacturer of the product.
Do not use the product in any way other than those stated
for intended use.
GENERAL POWER TOOL SAFETY WARNINGS
WARNING
Read all safety warnings and all instructions. Failure
to follow the warnings and instructions may result in
electric shock, re and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool’’ in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
1) WORK AREA SAFETY
■ Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
■ Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
■ Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
2) ELECTRICAL SAFETY
■ Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodied plugs and matching outlets will
reduce risk of electric shock.
■ Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
■ Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
■ Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
■ When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
■ If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
3) PERSONAL SAFETY
■ Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the influence of drugs, alcohol or medication. A
moment of inattention while operating power tools
may result in serious personal injury.
■ Use personal protective equipment. Always
wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat or
hearing protection used for appropriate conditions
will reduce personal injuries.
■ Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking up
or carrying the tool. Carrying power tools with your
nger on the switch or energising power tools that
have the switch on invites accidents.
■ Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
■ Do not overreach. Keep proper footing and
balance at all times. This enables better control of
the power tool in unexpected situations.
■ Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewellery
or long hair can be caught in moving parts.
■ If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
4) POWER TOOL USE AND CARE
■ Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the rate
for which it was designed.
■ Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must
be repaired.
■ Disconnect the plug from the power source and/
or the battery pack from the power tool before
making any adjustments, changing accessories
or storing power tools. Such preventive safety
1
measures reduce the risk of starting the power tool
accidentally.
■ Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are dangerous
in the hands of untrained users.
■ Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
■ Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
■ Use the power tool, accessories and tool bits
etc, in accordance with these instructions,
taking into account the working conditions and
the work to be performed. Use of the power tool
for operations different from those intended could
result in a hazardous situation.
5) BATTERY TOOL USE AND CARE
■ Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one
type of battery pack may create a risk of re when
used with another battery pack.
■ Use power tools only with specifically
designated battery packs. Use of any other
battery packs may create a risk of injury and re.
■ When battery pack is not in use, keep it away
from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects
that can make a connection from one terminal
to another. Shorting the battery terminals together
may cause burns or a re.
■ Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation
or burns.
6) SERVICE
■ Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
RECIPROCATING SAW SAFETY WARNINGS
■ Hold power tool by insulated gripping surfaces,
when performing an operation where the cutting
accessory may contact hidden wiring. Cutting
accessory contacting a “live” wire may make exposed
metal parts of the power tool “live” and could give the
operator an electric shock.
■ Protect your lungs. Wear a dust mask if operation is
dusty.
WARNING
The product is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the product by a person responsible
for their safety.
Children should be supervised to ensure that they do not
play with the product.
RESIDUAL RISKS
Even when the reciprocating saw is used as prescribed, it is
still impossible to completely eliminate certain residual risk
factors. The following hazards may arise and the operator
should pay special attention to avoid the following:
■ Injury caused by vibration
– Use the lowest speed setting which achieves the
task. Limit exposure. See risk reduction.
■ Injury caused by dust
– Wear eye protection at all times. Wear appropriate
dust mask with suitable filters that can protect
against particles from the material being worked on.
Do not eat, drink, or smoke in the work area. Ensure
adequate ventilation.
■ Electric shock
– The blade may contact hidden wiring causing
parts of the product to become live. Always hold
the product by the designated handles and take
care when blind cutting into walls and floors where
cables may be hidden.
NOTE: When working on walls, ceilings, or floors, take
care to avoid electric cables and gas or water pipes.
The product must be operated with both hands.
■ Injury from contact with the cutting blade
– The blades are very sharp and will become hot
during use. Wear gloves when changing blades.
Keep hands away from the cutting area at all times.
Clamp the workpiece whenever possible.
■ Injury caused by noise
– Prolonged exposure to noise will increase the risk
of hearing damage, and the effects are cumulative.
When using power tools for any extended period of
time, wear hearing protection.
RISK REDUCTION
It has been reported that vibrations from handheld tools
may contribute to a condition called Raynaud’s Syndrome
in certain individuals. Symptoms may include tingling,
numbness and blanching of the ngers, usually apparent
upon exposure to cold. Hereditary factors, exposure to
cold and dampness, diet, smoking, and work practices
are all thought to contribute to the development of these
symptoms. There are measures that can be taken by the
operator to possibly reduce the effects of vibration:
■ Keep your body warm in cold weather. When operating
2
the product, wear gloves to keep the hands and wrists
warm. It is reported that cold weather is a major factor
contributing to Raynaud’s Syndrome.
■ After each period of operation, exercise to increase
blood circulation.
■ Take frequent work breaks. Limit the amount of
exposure per day.
If you experience any of the symptoms of this condition,
immediately discontinue use and see your doctor about
these symptoms.
WARNING
Injuries may be caused or aggravated by prolonged use
of a tool. When using any tool for prolonged periods,
ensure you take regular breaks.
KNOW YOUR PRODUCT

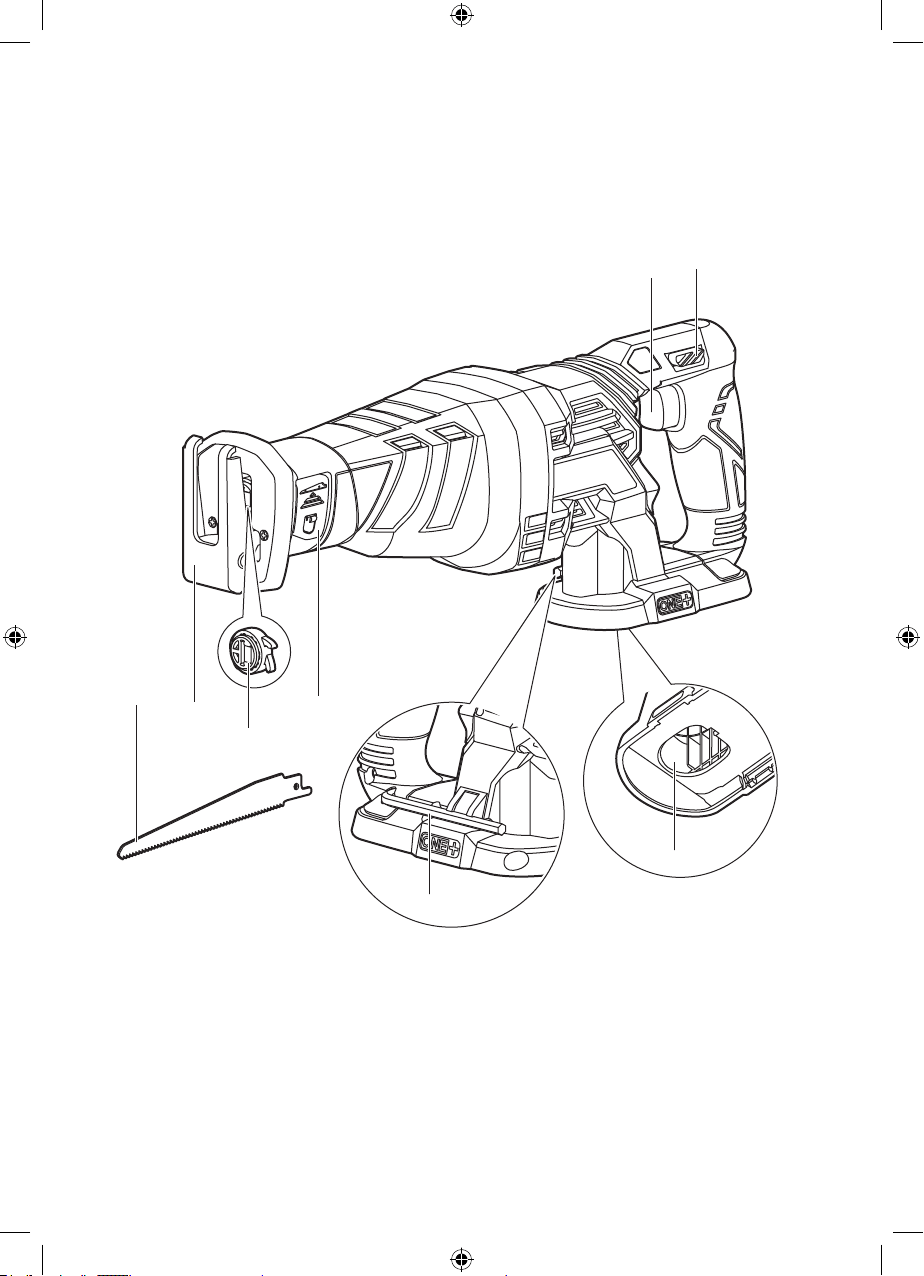

See page 5.
1. Blade
2. Shoe assembly
3. Blade clamp
4. Toolless blade change system
5. Hex key
6. Battery port
7. Switch trigger
8. Lock-off button
OPERATION

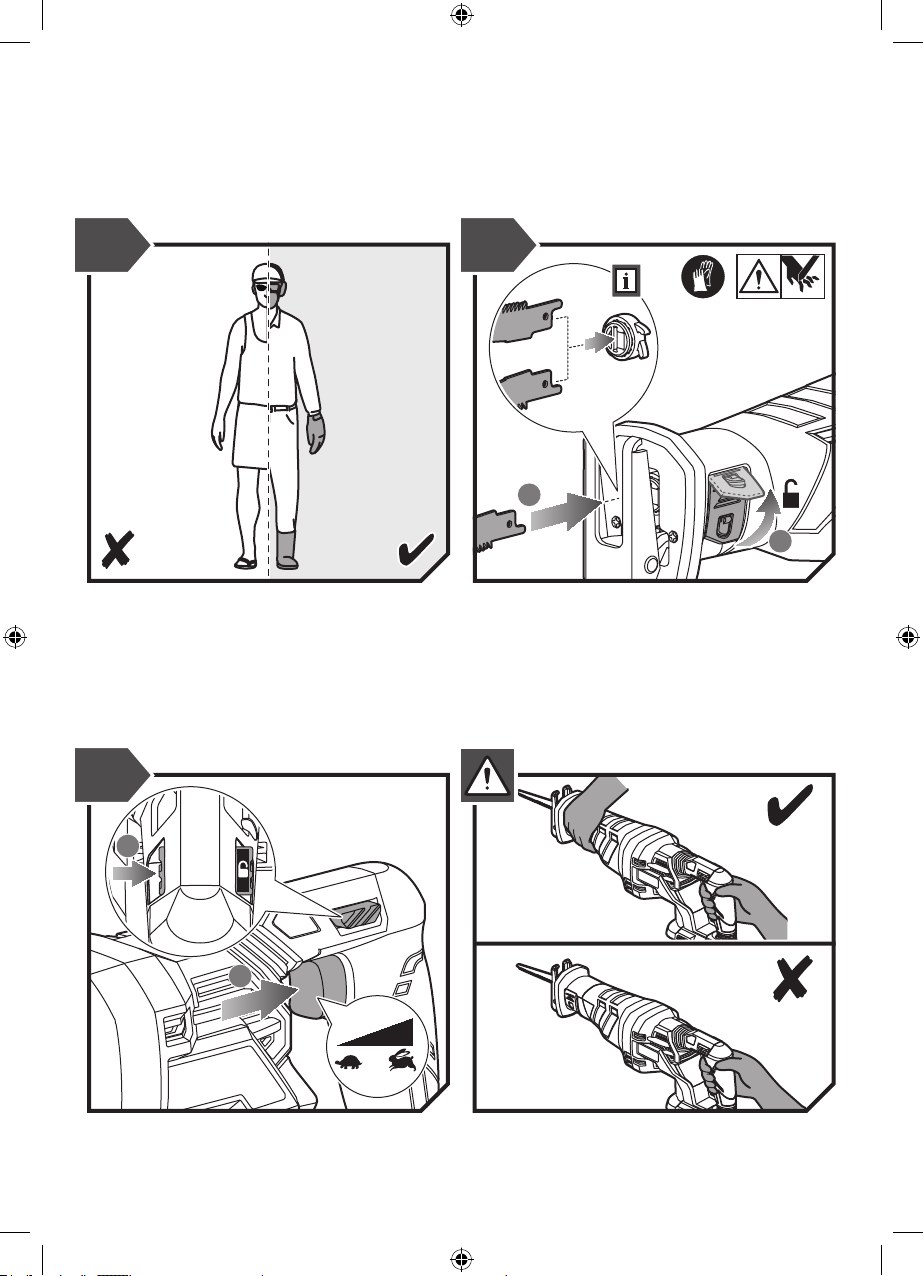

ADJUSTING THE SHOE ASSEMBLY
■ The product has a shoe assembly that pivots up and
down in both directions to ensure the shoe is flat
against the cutting surface at all times. The adjustable
shoe also slides in and out, which allows for the use of
the blade teeth at different positions on the blade.
■ Press the saw blade into the saw blade holder up to the
stop. Make sure that the saw blade is fixed securely.
OPERATION TIPS
WARNING
Be careful not to twist or bend the saw blade.
■ Do not force the product.
■ Use cutting oil when cutting soft metals and steel.
Cutting oil also keeps the blades cool, increases cutting
action, and prolongs blade life.
■ Clamp the workpiece firmly and cut close to the
clamping point to eliminate any vibration of the work.
When cutting conduit pipe or angle iron, secure the
workpiece with a vise, if possible, and cut close to the
vise. To cut a thin-sheet material, place the material
between two hardboards or plywood and clamp the
layers to eliminate vibration and material tearing.
■ Always keep a firm forward pressure on the tool to keep
the shoe in contact with the workpiece.
■ Do not use cracked or distorted saw blades. Do not use
saw blades that are damaged or deformed.
WARNING
Dust from certain paints, coatings, and materials may
cause irritation or allergic reactions. Dust from wood
such as oak, beech, MDF, and others are carcinogenic.
Materials containing asbestos should only be worked on
or processed by qualied specialist operators.
WARNING
Always wear safety goggles or safety glasses with
side shields when operating the product. Failure to do
so could result in objects being thrown into your eyes
resulting in possible serious injury.
MAINTENANCE
WARNING
The product should never be connected to a power
supply when assembling parts, making adjustments,
cleaning, performing maintenance, or when the product
is not in use. Disconnecting the product will prevent
accidental starting that could cause serious injury.
■ When servicing, use only identical replacement parts.
Use of any other parts may create a hazard or cause
product damage.
■ Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to various types of commercial
solvents and may be damaged by their use. Use clean
cloths to remove dirt and carbon dust.
■ Do not, at any time, let brake fluids, gasoline, petroleum-
based products, penetrating oils, etc., come in contact
with plastic parts. They contain chemicals that can
damage, weaken, or destroy plastic.
■ Always wear safety goggles or safety glasses with side
shields during power tool operation or when blowing
dust. If operation is dusty, also wear a dust mask.
■ For greater safety and reliability, all repairs should be
performed by an authorised service centre.
GENERAL
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to various types of commercial
solvents and may be damaged by their use. Use clean
cloths to remove dirt, carbon dust, etc.
Electrical tools used on berglass material, wallboard,
spackling compounds, or plaster are subject to accelerated
wear and possible premature failure because the berglass
chips and grindings are highly abrasive to bearings,
brushes, and commutators. We do not recommend using
the product for extended periods of time on these types
of materials.
3
WARNING
Do not use compressed air to blow dust from the product.
This practice is dangerous and can cause dirt and grit to
be blasted into someone’s eyes, causing injury.
LUBRICATION
All of the bearings in the product are lubricated with a
sufcient amount of high grade lubricant for the life span of
the product under normal operating conditions. Therefore,
no further lubrication is required.
ENVIRONMENTAL PROTECTION
Recycle raw materials instead of disposing
of as waste. The machine, accessories, and
packaging should be sorted for environment-
friendly recycling.
SYMBOLS ON THE PRODUCT
Safety Alert
Regulatory Compliance Mark (RCM). Product
meets applicable regulatory requirements.
Please read the instructions carefully before
starting the product.
No-load speed
V Volts
Direct current
min
-1
Revolutions or reciprocations per minute
Waste electrical products should not be
disposed of with household waste. Please
recycle where facilities exist. Check with your
local authority or retailer for recycling advice.
SYMBOLS IN THIS MANUAL
Note
Parts or accessories sold separately
Speed, minimum
Speed, maximum
Wood
Plastic
Metal
DANGER: Sharp blade
Wear non-slip, heavy duty gloves
The following signal words and meanings are intended to
explain the levels of risk associated with this product:
DANGER
Indicates an imminently hazardous situation, which, if not
avoided, will result in death or serious injury.
WARNING
Indicates a potentially hazardous situation, which, if not
avoided, could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation, which, if not
avoided, may result in minor or moderate injury.
CAUTION
(Without Safety Alert Symbol) Indicates a situation that
may result in property damage.
4
5
7
8
1
2
4
6
5
3
7
2
1
1 2
2
1
5
8
3
1
2
3 4
2
1
8
1
2
3
1
2
9
2
1
3
4
5
20161028v1
10
1
2
1
2
1
1
2
3
4
PRODUCT SPECIFICATIONS
Reciprocating saw
Model R18RS
Voltage 18 V
Strokes per minute 0 - 2900 min
-1
Length of stroke 28 mm
Maximum cut capacity in wood 200 mm
BATTERY AND CHARGER
Model Compatible battery
pack (not included)
Compatible charger
(not included)
Lithium-Ion
RB18L13
RB18L15
RB18L20
RB18L25
RB18L26
RB18L40
RB18L50
BCS618G
BCL14181H
BCL14183H
BCL1418IV*
RC18150U
* for vehicles with 12V DC outlets
Techtronic Industries (Australia) Pty. Ltd.
31 Gilby Road,
Mount Waverley VIC 3149,
Australia
Techtronic Industries New Zealand Ltd.
2 Landing Drive, Mangere,
Auckland, New Zealand 2022
Imported by:
961152664-01
