MODEL S9DFL/850/MOT/BZ & S9DFL/850/MOT/WH
WARNING:
This product may represent a possible shock or fire hazard if improperly installed
or attached in any way. Product should be installed in accordance with the owners
manual, current electrical codes and/or the current National Electric Code (NEC).
RISK OF ELECTRIC SHOCK: TURN OFF THE MAIN POWER AT
THE CIRCUIT BREAKER BEFORE INSTALLING.
Dual Head Motion Security Flood Light
IMPORTANT SAFETY INSTRUCTIONS AND INSTALLATION GUIDE
SAVE THESE INSTRUCTIONS
READ BEFORE INSTALLATION
FEIT ELECTRIC COMPANY | PICO RIVERA, CA, USA | (800) 543-3348 | FAX (562) 908-6360 | www.feit.comFEIT ELECTRIC COMPANY | PICO RIVERA, CA, USA | (800) 543-3348 | FAX (562) 908-6360 | www.feit.com
1. J-box (Not Included)
2. Ground Wire
3. Mounting Bar
4. J-box Screws (2 Pieces)
5. Spacers (2 Pieces)
6. Mounting Gasket
7. Mounting Plate
8. Mounting Plate Screws
9. Terminal Block
10. Mounting Bar Screw (1 Piece)
11. Mounting Holes
12. Rubber Washers (2 Pieces)
13. Fixture Body
14. Decorative Nuts (2pieces)

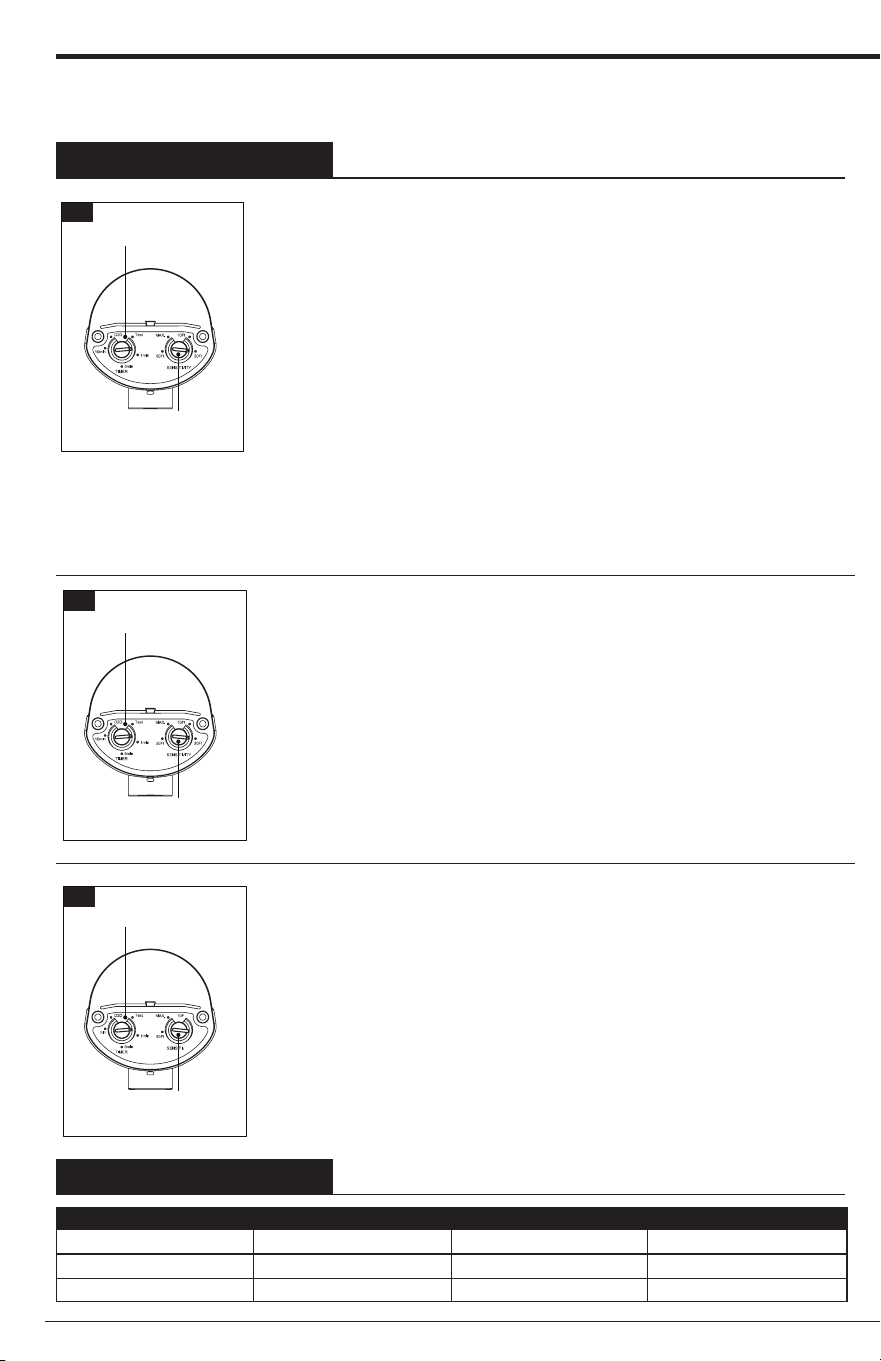

15. Motion And Photocell Sensor
PARTS INCLUDED
TOOLS REQUIRED
REV005

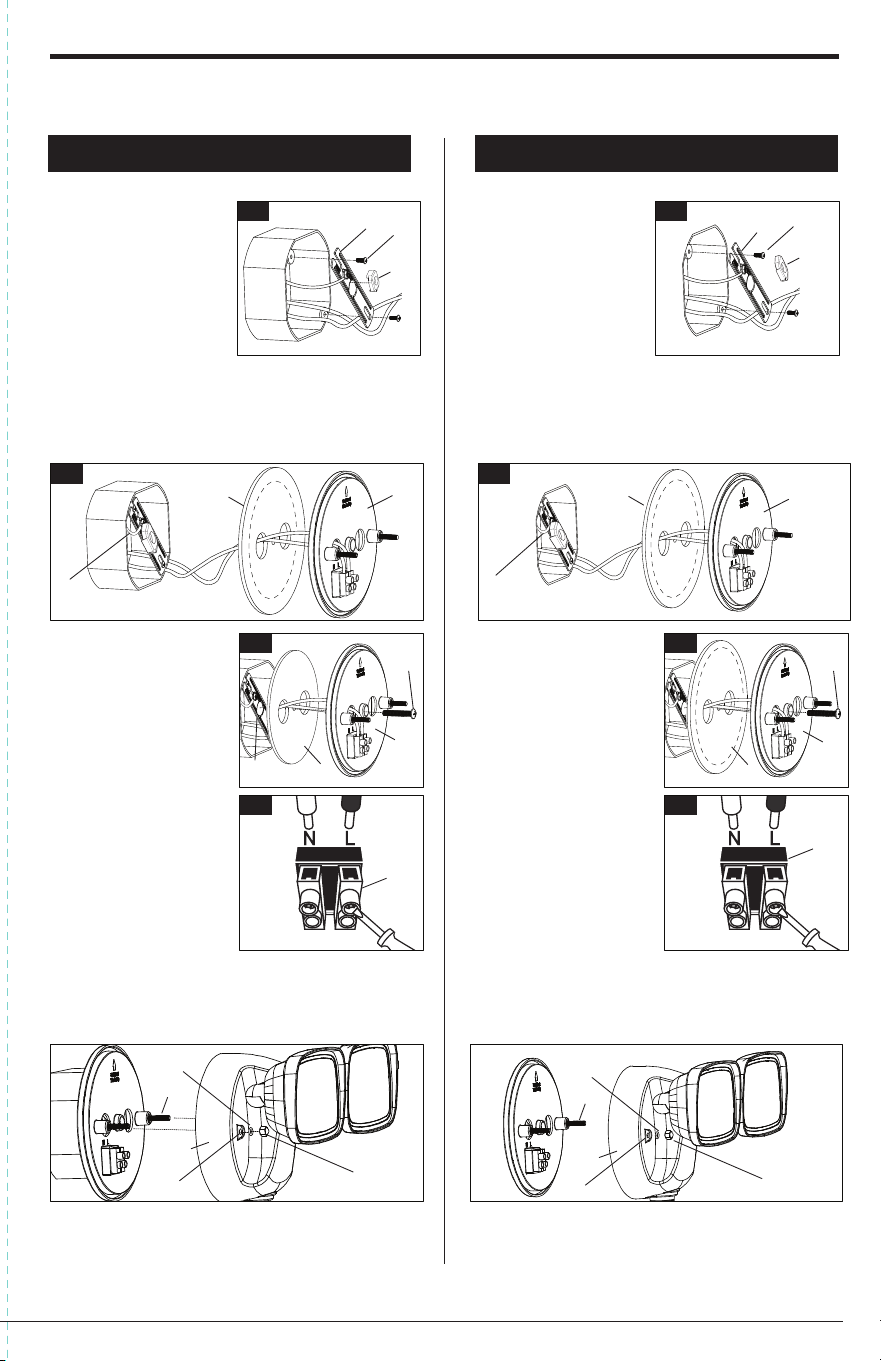

EXTERNAL JBOX INSTALLATION INTERNAL FLUSH JBOX INSTALLATION
1. Turn main power off at circuit breaker or fuse box. 1. Turn main power off at circuit breaker or fuse box.
2. Install mounting bar
(3) to an external j-box (1)
using provided j-box
screws (4) add spacer (5)
to eliminate gap
between mounting bar
and mounting plate.
2. Install mounting bar
(3) to a j-box (1) using
provided j-box screws
(4) add spacer (5) to
eliminate gap between
mounting bar and
mountig plate.
3. Extend and feed j-box wires through openings on
mounting gasket (6) and mounting plate (7). Connect
ground (2) wire to the ground screw on the bracket as
shown below.
Note: Do not tear away at perforation on mounting gasket (6)
4. Secure mounting
gasket (6) and mounting
plate (7) to mounting
bar (3) using mounting
bar screw (10). Do not
over tighten
5. Connect power supply
wires directly to terminal
block (9) secure wires to
terminal block by using a
small screwdriver.
Connect : black wire to "L"
input. White wire to
"N" input.
6. Position and align the mounting holes (11) on
fixture body (13) to mounting plate screws (8). Secure
fixture body to mounting plate using decorative
rubber washers (12) and decorative nuts (14)
7. Once fixture is tightly secured to j-box, apply a
silicone sealant around the base of the fixture to
prevent moisture from reaching the connections.
3. Extend and feed J-Box wires through openings on
mounting gasket (6) and mounting plate (7). Connect
ground (2) wire to the ground screw on the bracket as
shown below.
Note: Tear away at perforation on mounting gasket (6)
4. Secure mounting
gasket (6) and mounting
plate (7) to mounting
bar (3) using mounting
bar screw (10). Do not
over tighten
5. Connect power supply
wires directly to terminal
block (9) secure wires to
terminal block by using a
small screwdriver.
Connect : black wire to "L"
input. White wire to "N" input.
6. Position and align the mounting holes (11) on
fixture body (13) to mounting plate screws (8). Secure
fixture body to mounting plate using decorative
rubber washers (12) and decorative nuts (14)
7. Once fixture is tightly secured to j-box, apply a
silicone sealant around the base of the fixture to
prevent moisture from reaching the connections.
8. Turn power on at circuit breaker to replace the fuse
8. Turn power on at circuit breaker to replace the fuse
2
3
4
2
3
(2)
(2)
(10)
(3)
(3)
(7)
(7)
(7)
(7)
(9)
(9)
(6)
(6)
(6)
(6)
(3)
(4)
(5)
(14)
(14)
(13)
(13)
(12)
(12)
(11)
(11)
(8)
(8)
PREINSTALLATION
Remove the existing light fixture and disconnect house power supply wires.
5
4
(10)
5
(4)
(5)
(15)
THIS SIDE UP
(14)
(12)
(8)
(11)
(13)
(10)
(7)
(6)
(2)
(4)
(5)
(3)
(1)
(9)
(15)
THIS SIDE UP
(14)
(12)
(8)
(11)
(13)
(10)
(7)
(6)
(2)
(4)
(5)
(3)
(1)
(9)
EXTERNAL JBOX
INSTALLATION
FLUSH JBOX
INSTALLATION
