Important - This manual must be left with the user after Installation!
EC-Eau Cylinder Range
Installation and User Instructions
Heat Pump Cylinders
Up to 300L
HP Installatio
n and User Instructions R00918
-10 09/15
Page
2
The HWA Charter requires that all members adhere to the following:
supply fit for purpose products clearly and honestly described
supply products that meet, or exceed appropriate standards and
building and water regulations
provide pre and post sales technical support
provide clear and concise warranty details to customers
For further information on the HWA Charter Membership, please refer to the
HWA website www.hotwater.org.uk’
Dimplex is a licensed member of the Benchmark Scheme which aims to improve
the standards of installation and commissioning of domestic heating and hot
water systems in the UK and to encourage regular servicing to optimise safety,
efficiency and performance.
Benchmark places responsibilities on both manufacturers and installers. The
purpose is to ensure that customers are provided with the correct equipment for
their needs, that it is installed, commissioned and serviced in accordance with
the manufacturer’s instructions by competent persons and that it meets the
requirements of the appropriate Building Regulations. The Benchmark Checklist
can be used to demonstrate compliance with Building Regulations and should be
provided to the customer for future reference.
Installers are required to carry out installation, commissioning and servicing work
in accordance with the Benchmark Code of Practice which is available from the
Heating and Hot Water Industry Council who manage and promote the Scheme.
Visit www.centralheating.co.uk for more information.
HP Installatio
n and User Instructions R00918
-10 09/15
Page
3
Overall View
0 Overall View
Figure 1: Overall view of Heat Pump Cylinder installation process
* Secondary Return on cylinders ECS175HP-580, ECS210HP-580, ECS250HP-580, ECS300HP-580
02
03
08
01
06
04
07
05
09
HP Installatio
n and User Instructions R00918
-10 09/15
Page
4
Overall View
Figure 2: Overall view of Heat Pump and Buffer Cylinder installation Process
* Secondary Return only on cylinders ECS180HP75-580 & ECS210HP75-580
02
03
11
01
07
04
10
06
05
09
08
13
12
HP Installatio
n and User Instructions R00918
-10 09/15
Page
5
Contents
Contents
0 OVERALL VIEW ...........................................................................................3
CONTENTS .......................................................................................................5
1 INTRODUCTION ........................................................................................ 10
2 SCOPE OF DELIVERY ................................................................................. 10
3 PRE-INSTALLATION ADVICE ....................................................................... 13
3.1 RISK ASSESSMENT ..................................................................................... 13
3.2 SITING CONSIDERATIONS ............................................................................. 13
3.3 COLD WATER SUPPLY .................................................................................. 14
3.4 BUILDING REGULATION G3 DISCHARGE REQUIREMENTS ......................................... 15
3.4.1 Discharge pipe D2 ........................................................................ 16
3.4.2 Worked example .......................................................................... 17
3.4.3 Termination of discharge pipe ........................................................ 18
3.5 LIMITATIONS ............................................................................................ 19
4 INSTALLATION .......................................................................................... 19
4.1 COLD WATER INLET WITH INLET CONTROL GROUP ............................................... 19
4.1.1 Correctly site the cylinder .............................................................. 19
4.1.2 Install the inlet group .................................................................... 19
4.1.3 Expansion vessel .......................................................................... 19
4.1.4 Balanced cold water supply ............................................................ 20
4.1.5 Drain valve .................................................................................. 20
4.2 HOT WATER OUTLET .................................................................................. 20
4.2.1 Thermostatic mixing valve ............................................................. 20
4.2.2 Pipe insulation .............................................................................. 20
4.3 DISCHARGE PIPES FROM SAFETY DEVICES .......................................................... 20
4.3.1 Discharge pipe D1 ........................................................................ 20
4.3.2 Discharge pipe D2 ........................................................................ 21
4.3.3 Tundish ....................................................................................... 21
4.4 IMMERSION HEATER.................................................................................... 22
4.5 COIL FLOW CONNECTIONS ............................................................................ 22
4.6 COIL RETURN CONNECTIONS ......................................................................... 22
4.7 THERMOSTAT CONNECTION AND INSTALLATION OF THE HEAT PUMP DHW TEMPERATURE
SENSOR .................................................................................................. 23
4.7.1 Heat Pump and Buffer Cylinder Schematic ....................................... 24
4.7.2 Connection of the sensor ............................................................... 25

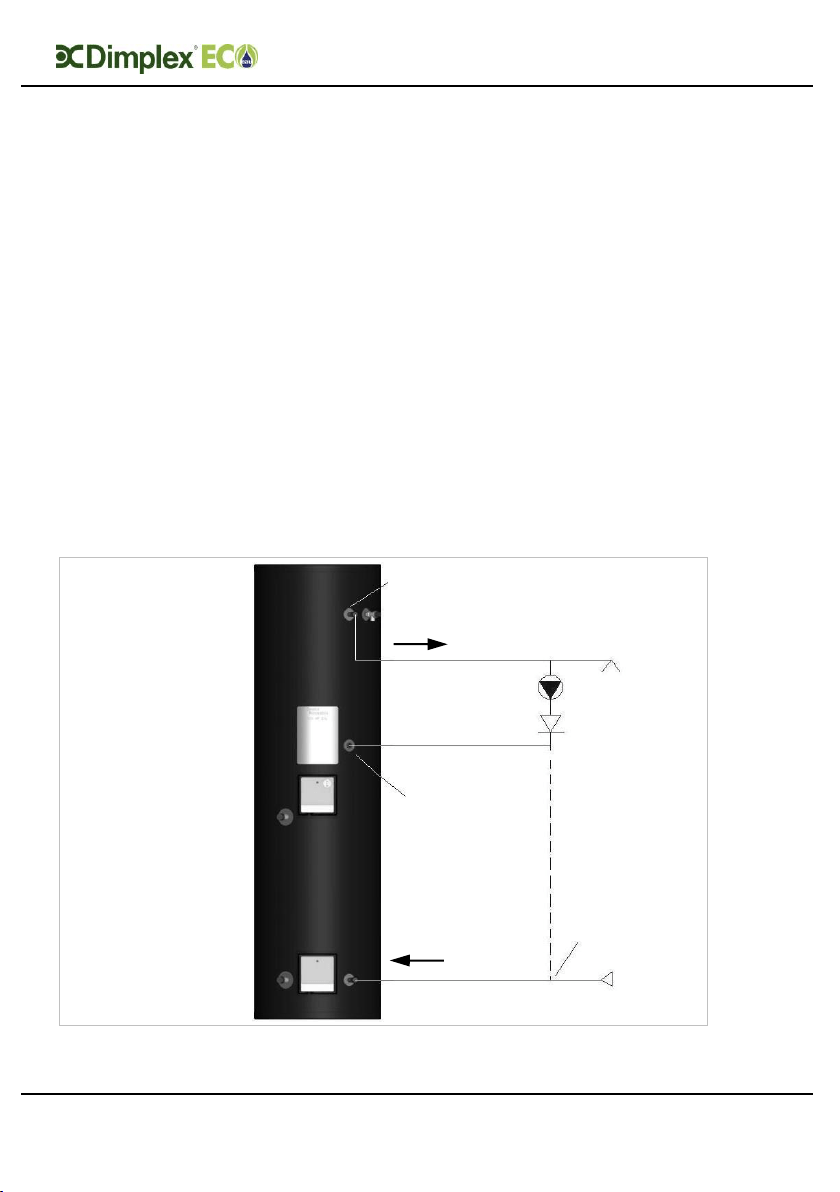

4.8 CONNECTION OF SECONDARY RETURN .............................................................. 28
5 COMMISSIONING ...................................................................................... 29
6 MAINTENANCE .......................................................................................... 30
7 SPARE PARTS ........................................................................................... 32
8 TECHNICAL INFORMATION AND PRODUCT FICHE .......................................... 33
HP Installatio
n and User Instructions R00918
-10 09/15
Page
6
Contents
8.1 CYLINDER HEAT EXCHANGER PRESSURE DROP ..................................................... 39
8.2 CYLINDER ATTAINABLE TEMPERATURE CURVES ..................................................... 41
9 USER INSTRUCTIONS ................................................................................ 44
9.1 GENERAL ................................................................................................ 44
9.2 OPERATION ............................................................................................. 45
9.2.1 Water temperature direct electric heating ........................................ 45
9.2.2 Water temperature auxiliary heating ............................................... 46
9.3 MAINTENANCE .......................................................................................... 46
9.4 TROUBLESHOOTING .................................................................................... 47
HP Installatio
n and User Instructions R00918
-10 09/15
Page
7
Important Information
Precaution: “This appliance can be used by children aged
from 8 years and above and persons with reduced physical
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understanding the hazards involved. Children shall
not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.”
Note: Between the
inlet group and the
cold water inlet on the
cylinder NO isolating
device may be fitted,
as by doing so
important safety
devices could be
isolated!
It is important to
check the pre-charge
pressure of the
expansion vessel
membrane before
filling the cylinder.
This has been factory
set to 3 bar. The pre-
charge should be
greater than or equal
to 3 bar.
It is important that the
tundish is positioned
away from any
electrical components.
Note: Means for
electrical
disconnection must be
incorporated in the
fixed wiring in
accordance with the
wiring rules.
Before removing the
cover from the
immersion heater
isolate appliance using
isolating switch!
Danger of electrical
shock! Only use
suitable electrically
insulated equipment
HP Installatio
n and User Instructions R00918
-10 09/15
Page
8
Important Information
when working inside
immersion housing.
Note: The cylinder
must be filled with
water before switching
on the immersion
heater. Failure to do so
will damage the
element and void any
guarantee on the
product.
The maintenance of
this appliance must
be carried out by a
suitably qualified
person only. It is
recommended to
maintain the unit on
an annual basis.
Isolate all electrical
supplies from the
unit before
commencing work.
Danger of electrical
shock!
CLEANING
INSTRUCTIONS:
Clean outer
cladding of cylinder
with a soft cloth
dampened with
warm water only.
Do not use abrasive
or aggressive
cleaning materials,
such as alcohol or
petroleum based
solvents, as this
may damage the
surface of the
product.
Temperature setting: A
high level cutout is
fitted to the product for
each heat source. This
should never activate
under normal
operation. The
maximum possible
cylinder temperature
attainable by the heat
pump is 65°C as set on
the User Interface. The
back-up immersion
heater can produce up
to 72°C at its maximum
setting, i.e 5. For
HP Installatio
n and User Instructions R00918
-10 09/15
Page
9
Important Information
convenience the
immersion heater is
preset to produce
60°C.
If an electronic copy of
this manual should be
required, please contact
the manufacturer at the
address at the back of this
manual.
Note: This appliance is
intended to be
permanently
connected to the water
mains and not
connected by a hose-
set.
Dimplex cannot take
responsibility for ensuring
safe operation of the
appliance outside of the
scope of intended use.ly
HP Installatio
n and User Instructions R00918
-10 09/15
Page
10
Scope of Delivery
1 Introduction
Thank you for choosing a Dimplex
product. The EC-Eau heat pump
cylinders are specified with large, high
surface area heat exchangers,
specifically sized to match the
requirements of Dimplex heat pumps.
They boast 60mm of low GWP
insulation foam, together with 100%
recyclable stainless steel inner
components and a sleek black, hard
wearing outer shell manufactured from
completely recycled materials. For
more detailed information on product
features, please see the Technical Data
section in this manual.
NOTE: This product has been designed
specifically for the purpose of
delivering heated, domestic and
sanitary hot water as part of a
pressurised water heating system. The
package is provided with fittings that
comply with Section G3 of Building
Regulations.
WARNING: Dimplex cannot take
responsibility for ensuring safe
operation of the appliance outside
of the scope of intended use.
2 Scope of delivery
Please ensure you check the scope of
delivery below before signing any
delivery documentation. Claims for
missing or damaged parts after signing
for the delivery will not be accepted.
Scope of Delivery
HP Installatio
n and User Instructions R00918
-10 09/15
Page
11
Table 1: Scope of Delivery for Heat Pump Cylinders
* These items are supplied factory fitted
** Only part of the scope of delivery when not supplied as a Dimplex Heat Pump
package
Scope of Delivery
HP Installatio
n and User Instructions R00918
-10 09/15
Page
12
Table 2: Scope of Delivery for Heat Pump with Buffer Cylinders
* These items are supplied factory fitted
** Only part of the scope of delivery when not supplied as a Dimplex Heat Pump
package
Pre-Installation
HP Installatio
n and User Instructions R00918
-10 09/15
Page
13
3 Pre-Installation
Advice
Please read the following section
carefully before commencing
installation. If in any doubt, please call
the appropriate help desk.
Disregarding the instructions given in
this manual in its entirety and any
relevant regulations, standards and
codes of practice will void the
guarantee of this product.
Handling – depending on the size of
the unit and access to its installation
location, consideration must be given
to the handling of the unit. Please note
that handling, installation and use of
this product is subject to the Health
and Safety at Work Act.
If the unit is not installed immediately,
it should remain in its protective
packaging with all pipe protectors/end
caps applied to prevent damage and
dirt deposit inside the cylinder and the
coils.
Pipe work – the pipe runs should be
executed as short as possible, unused
pipe work should be removed and all
remaining pipe work should be lagged
in accordance with regulatory
requirements to prevent heat loss and
the formation of condensation.
Taps and fittings – all taps and
fittings incorporated in the unvented
system should have a rated operating
pressure of 0.6 MPa (6 bar) or above.
3.1 Risk assessment
The compilation of a risk assessment is
strongly recommended before
installing the product. The following
areas require particular consideration
in addition to the information required
by the Health and Safety at Work Act.
- scalding: where appropriate or
required by law a thermostatic
mixing valve is to be fitted to the hot
water outlet of the cylinder (see also
water borne organisms).
- explosion: the unit is fully equipped
with all relevant safety equipment to
comply with current regulations. The
correct design and function has been
verified by independent third party
testing. The correct application
thereof is the responsibility of the
competent installer.
- water borne organisms (i.e.
Legionella): if applicable a risk
assessment should be carried out
following the recommendations
outlined in the Approved Code of
Practice L8.
- the user preference must be
considered when commissioning the
system, in particular when adjusting
the solar and auxiliary system
temperature and timer settings.
3.2 Siting considerations
When choosing a suitable location for
the cylinder the following aspects
should be considered:
- structural integrity
- access for installation, operation,
maintenance and replacement
- routing of discharge pipe work
- access to water mains supply, hot
and cold water distribution pipe work
- access to suitable electricity supply
- location in relation to remaining
system components such as
auxiliary and solar heating system
Pre-Installation
HP Installatio
n and User Instructions R00918
-10 09/15
Page
14
- frost protection
The heat pump cylinder range is
designed to be floor standing, vertically
mounted, indoors and in a frost free
environment. The cylinder may be
located on any flat and level surface,
provided it is sufficiently robust to
support the weight of the cylinder
when full of water (please see technical
data) and suitably accessible for
replacement/maintenance without
specialist tools or lifting equipment as
this will void the warranty conditions.
The position and orientation of the
cylinder should be such that easy
access is provided for servicing the
controls. A minimum distance of
400mm in front of the immersion is
recommended, to allow the
replacement of the immersion heater
should the need arise. When installing
the cylinder all labels should be clearly
visible and ensure that no pipework
hinders any work to be carried out on
the various cylinder components.
Particular care must be taken when
placing the cylinder in a garage or
outbuilding. All exposed pipe work
must be correctly insulated to avoid
frost damage.
CLEANING INSTRUCTIONS:
Clean outer cladding of
cylinder with a soft cloth
dampened with warm water
only. Do not use abrasive or
aggressive cleaning
materials, such as alcohol or
petroleum based solvents, as
this may damage the surface
of the product.
3.3 Cold water supply
For satisfactory and safe performance
of the unvented cylinder the water
supply must meet the following
criteria:
Minimum dynamic
pressure
150 kPa
(1.5 bar)
Maximum inlet supply
pressure
1200 kPa
(12 bar)
Minimum flow rate
15 l/min
Max. chlorine content
250mg/L
Max. water hardness
200mg/L
The following instructions have to be
followed when installing the cold water
mains supply to the cylinder:
- The cold water supply to the cylinder
must come directly from the cold
water mains after the mains stop
valve to the property.
- The cold water inlet pipe work should
have at least an inside diameter of
19mm and should meet the
requirements of the water
regulations for the supply of
wholesome water.
Pre-Installation
HP Installatio
n and User Instructions R00918
-10 09/15
Page
15
Dimplex recommend an annual
maintenance inspection is carried out
on the domestic hot water cylinder. In
hard water areas this should include
inspection of the heat exchanger and
immersion heater, [above 120ppm or
120mg/l]. A local water treatment
company should be able to offer free
water quality testing. The heating
elements may require periodic de-
scaling. The installer should do this as
part of a maintenance agreement.
If required, precautions can be taken
to minimise effects of water hardness,
i.e. installation of water conditioner or
water softener. These devices should
be installed in hard water areas where
high water storage temperatures are
required, i.e. greater than 60°C
storage temperatures, particularly
when water hardness exceeds
200ppm. Should the water cylinder
require de-scaling, this must be
performed by a qualified technician.
3.4 Building regulation G3
Discharge
requirements
As part of the requirements of Building
Regulation G3 any discharge from an
unvented system should be conveyed
to where it is visible, but will not cause
danger to persons in or about the
building. The tundish and the discharge
pipes should be fitted in accordance
with the requirements of Building
Regulation approved document G3,
(England and Wales), Part P of
Northern Ireland and Standard 4.9 of
Scotland.
Pre-Installation
HP Installatio
n and User Instructions R00918
-10 09/15
Page
16
3.4.1 Discharge pipe D2
The discharge pipe (D2) from the
Tundish should:
- “have a vertical section of pipe at
least 300mm long below the
tundish before any elbows or
bends in the pipework and be
installed with a continuous fall of
at least 1 in 200 thereafter.”
The discharge pipe (D2) should be
made of:
- “metal; or other material that has
been demonstrated to be capable
of safely withstanding
temperatures of the water
discharged and is clearly and
permanently marked to identify
the product and performance
standard”
Dimplex strongly recommends the use
of metal pipework only and Dimplex
does not take responsibility for any
damage caused from discharges.
The discharge pipe D2 should be at
least one pipe size larger than the
nominal outlet size of the safety device
unless its total equivalent hydraulic
resistance exceeds that of a straight
pipe 9m long, i.e. for discharge pipes
between 9m and 18m the equivalent
resistance length should be at least two
sizes larger than the nominal outlet
size of the safety device; between 18
and 27m at least 3 sizes larger, and so
on; bends must be taken into account
in calculating the flow resistance. See
Figure 3, Table 3 and the worked
example.
Note: An alternative approach for
sizing discharge pipes would be to
follow Annex D, section D.2 of BS
6700:2006 + A1:2009).
Figure 3: Typical discharge pipe arrangement
Pre-Installation
HP Installatio
n and User Instructions R00918
-10 09/15
Page
17
Table 3: Sizing of copper discharge pipe “D2” for common temperature relief valve outlet sizes
3.4.2 Worked example
This example is for a G½ temperature
relief valve with a discharge pipe (D2)
(as fitted on 125 to 300L cylinders)
having 4 No. 22mm elbows and length
of 7m from the tundish to the point of
discharge.
From Table 3, the maximum resistance
allowed for a straight length of 22mm
copper discharge pipe
(D2) from a G½ temperature relief
valve is 9.0m. Subtract the resistance
for 4 No. 22mm elbows at 0.8m each
= 3.2m.
Therefore the maximum permitted
length
equates to 5.8m, which is less than the
actual length of 7m, therefore calculate
the next largest size.
Maximum resistance allowed for a
straight length of 28mm copper
discharge pipe (D2) from a G½
temperature relief valve is: 18m
Subtract the resistance for 4 No. 28mm
elbows at 1.0m each = 4m
Therefore the maximum permitted
length equates to 14m.
As the actual length is 7m, a 28mm
(D2) copper pipe will be satisfactory.
Pre-Installation
HP Installatio
n and User Instructions R00918
-10 09/15
Page
18
- Where a single common discharge
pipe serves more than one system,
it should be at least one pipe size
larger than the largest individual
discharge pipe (D2) to be connected.
- The discharge pipe should not be
connected to a soil discharge stack
unless the soil discharge stack is
capable of safely withstanding
temperatures of the water
discharged, in which case, it should:
- contain a mechanical seal, which
allows water into the branch pipe
without allowing foul air from the
drain to be ventilated through the
tundish.
- there should be a separate branch
pipe with no sanitary appliances
connected to it.
- if plastic pipes are used as branch
pipes carrying discharge from a
safety device, they should be
either polybutalene (PB) or cross-
linked polyethylene (PE-X)
complying with national
standards.
- be continuously marked with a
warning that no sanitary
appliances should be connected to
the pipe.
3.4.3 Termination of
discharge pipe
- “The discharge pipe (D2) from the
tundish should terminate in a safe
place where there is no risk to
persons in the vicinity of the
discharge.”
- Examples of acceptable discharge
arrangements are:
- “to a trapped gully with the end of
the pipe below a fixed grating and
above the water seal;
- downward discharges at low level;
i.e. up to 100mm above external
surfaces such as car parks, hard
standings, grassed areas etc. are
acceptable providing that a wire
cage or similar guard is positioned to
prevent contact, whilst maintaining
visibility; and ,
- discharges at high level: e.g. into a
metal hopper and metal downpipe
with the end of the discharge pipe
clearly visible or onto a roof capable
of withstanding high temperature
discharges of water and 3m from any
plastic guttering system that would
collect such discharges.”
Note: As the discharge would
consist of high temperature water
and steam, asphalt, roofing felt
and non-metallic rainwater goods
may be damaged by such
discharges.
Installation
HP Installatio
n and User Instructions R00918
-10 09/15
Page
19
3.5 Limitations
- The heat pump must be specified
correctly, to ensure it is compatible
with the model of cylinder installed.
This is to prevent the heat pump
malfunctioning when preparing
domestic hot water.
- The heat exchangers in this range of
cylinders have been specifically
designed for heat pump applications.
Great care must be taken if using
these cylinders with other heat
sources, due to the heat exchange
capacity of the product.
4 Installation
4.1 Cold Water Inlet with
Inlet Control Group
4.1.1 Correctly site the
cylinder
Install the cylinder in an appropriate
location, ensuring all of the
recommendations have been
considered (see chapter 3.2).
4.1.2 Install the inlet group
The inlet group regulates the pressure
of the incoming mains water supply to
the cylinder and removes any debris
that might be water borne.
Note: Between the inlet group and
the cold water inlet on the cylinder
NO isolating device may be fitted,
as by doing so important safety
devices could be isolated!
4.1.3 Expansion vessel
The expansion vessel is mandatory on
all EC-Eau cylinders and can be
connected directly to the cold water
inlet group, utilising the flexible hose
supplied with the vessel. The
expansion vessel should always be
fitted in accordance with the
manufacturer’s instructions. No
isolating device should be fitted
between the water cylinder and the
cold water inlet group.
Furthermore, it is recommended to
mount the vessel higher than the
cylinder to avoid having to drain the
cylinder when maintaining and
replacing the expansion vessel.
Figure 4: Connection of the expansion
vessel to the inlet group
It is important to check the
pre-charge pressure of the
expansion vessel membrane
before filling the cylinder. The
pre-charge should be greater
than or equal to 3bar.
Note: The expansion vessel must
be installed to the side of the
expansion relief valve on the inlet
group. To do this the blanking plug
must be removed and the
expansion vessel connected, as
shown in Figure 5.
Installation
HP Installatio
n and User Instructions R00918
-10 09/15
Page
20
Figure 5: Detail showing the connection of
the expansion vessel to the inlet group
4.1.4 Balanced cold water
supply
If balanced cold water supply is
required a connection can be taken
from the bottom of the inlet group.
4.1.5 Drain valve
It is also recommended to install a
drain valve (not supplied) in the lowest
point of the cold water feed to the
cylinder. This allows the cylinder to be
drained in a controlled manner should
this become necessary.
4.2 Hot Water Outlet
The hot water pipe work is to be
directly connected to the hot water
outlet connection on the cylinder, see
Figure 1.
4.2.1 Thermostatic mixing
valve
A thermostatic mixing valve may be
required to limit the outlet
temperature. In this case, the valve
should be installed following the
manufacturer’s instructions, ensuring
none of the safety equipment has been
isolated, (i.e. make sure the
connection to the thermostatic mixing
valve is taken after the safety
equipment of the inlet group).
4.2.2 Pipe insulation
It is recommended to insulate the hot
water pipe work from the cylinder to
the outlets, to reduce the energy
requirements for providing hot water.
It is also recommended to insulate all
other exposed pipework, such as the
T&P to the tundish, the coil flow and
return and the cold water inlet pipes.
4.3 Discharge pipes from
safety devices
4.3.1 Discharge pipe D1
- The temperature and pressure relief
valve must be discharged directly or
by way of a manifold via a short
length of metal pipe (D1) into a
tundish; and the discharge pipe must
be installed in a continuously
downward direction and in a frost
free environment. Water may drip
from the discharge pipe of the
pressure relief device and this pipe
must be left open to the atmosphere.
- The diameter of discharge pipe (D1)
should not be less than the nominal
outlet size of the safety device, e.g.
temperature relief valve.
- Where a manifold is used it should be
sized to accept and discharge the
Expansion
Vessel
Connection
Balanced
Cold Water
Supply
Expansion
Relief
Valve
Cold
Water to
Cylinder
Cold
Water
from
Mains
Installation
HP Installatio
n and User Instructions R00918
-10 09/15
Page
21
total discharge from all the D1
discharge pipes connected to it.
- The discharge pipe work from the
expansion relief valve must be
installed constantly falling to an open
point of discharge. It is
recommended to combine it with the
discharge of the temperature and
pressure relief valve.
Note: The T&P valve is pre-sealed
and if moved the seal will be
broken, should this occur, it will
need to be resealed with an
appropriate sealant (Dimplex part
number R00836-1).
4.3.2 Discharge pipe D2
For a detailed description of the
discharge pipework D2 see chapter
3.4.1.
4.3.3 Tundish
- The tundish should be vertical,
located in the same space as the
unvented hot water storage system
and be fitted as close as possible to,
and lower than, the safety device,
with no more than 600mm of pipe
between the valve outlet and the
tundish (see Figure 3).
- Discharge should be visible at the
tundish, where discharges may not
be apparent, e.g. in dwellings
occupied by people with impaired
vision or mobility, consideration
should be given to the installation of
a suitable safety device to warn
when discharge takes place, e.g.
electronically operated.
Note: To comply with the Water
Supply (Water Fittings)
Regulations, the tundish should
incorporate a suitable air gap.
It is important that the tundish
is positioned away from any
electrical components.
Figure 6: Wiring diagram for Immersion Heater
Installation
HP Installatio
n and User Instructions R00918
-10 09/15
Page
22
4.4 Immersion heater
The immersion heater has to be
connected in accordance with IEE
Wiring Regulations and the installer
carrying out the work has to be suitably
qualified. It must be connected
through a double pole isolating switch
or suitable controller which must have
a contact separation of at least 3mm in
all poles. The wiring diagram can be
seen in Figure 6. For further details
please see instructions provided with
the immersion heater.
The immersion heater incorporates an
independent non-self resetting over
temperature cut-out. Should the over
temperature cut-out operate, the reset
pin will be pushed upwards, and
become level or slightly proud of the
cover at the position marked “Safety”.
Use a suitable sized implement to reset
the pin by pushing it hard into its
original position.
The immersion heater typically cannot
be directly switched by the heat pump
controller, but instead requires a relay.
Note: Should it be necessary to
remove the thermostat from the
immersion element, ensure that
the contacts are re-fitted correctly
into the positions on the element.
Failure to do so carries the risk of
overheating the contacts and thus
damaging the appliance.
Note: The immersion heater
thermostat should not be removed
from the immersion heater body.
A torque of 40 Nm is recommended
when tightening up the immersion
after it has been removed and refitted.
The immersion heater thermostat must
not be opened under any
circumstances.
Note: The cylinder must be filled
with water before switching on the
immersion heater. Failure to do so
will damage the element and void
any guarantee on the product.
4.5 Coil flow connections
If the flow connection is the highest
point in the heat pump loop and if the
system was not commissioned using a
flush and fill pump, an adequate device
for de-aeration must be installed.
4.6 Coil return connections
Equally, if the return connection is the
lowest point in the heat pump loop, a
suitable drain device should be
installed. For location of connections
see Figure 1.
It is recommended that the fittings
used to connect to the cylinder are
suitable for stainless steel, the flow and
return should use 28mm compression
fittings. Not all push fit fittings can be
used – please check with your supplier.
When using compression fittings,
ensure that the connection is not over-
tightened.
Installation
HP Installatio
n and User Instructions R00918
-10 09/15
Page
23
4.7 Thermostat
connection and
installation of the heat
pump DHW
temperature sensor
The heat pump can be wired to the
cylinder in various ways as described
by the chosen supplier.
To conform to building regulations, it is
imperative that the hot water
circulating pump is installed through
the twin thermostat.
If a non Dimplex heat pump is used in
combination with this cylinder or
another heat source, a two port valve
has to be wired after the thermostat,
ensuring compliance with building
regulations.
Figure 7: Heat Pump Loop Wiring
T
1
T
2
T
3
NOTE: T1 and T2 must be connected to the heat pump control panel,
see heat pump installation manual. T3 can replace T2 only when a
normally open configuration is required.
To HP Manager
From HP Manager
Temp
control
stat
High
temp cut
out stat
2
1
1
2
3
T4
Earth
Installation
HP Installatio
n and User Instructions R00918
-10 09/15
Page
24
4.7.1 Heat Pump and Buffer Cylinder Schematic
Figure 8: Heat Pump and Buffer Cylinder Schematic
Installation
HP Installatio
n and User Instructions R00918
-10 09/15
Page
25
4.7.2 Connection of the sensor
Step 1: Access the sensor mounting plate. To do this remove the Dual Cut Out cover
plate (A) by removing the fixing screw and insulation foam (B) to access the sensor
mounting plate (C). Remove the M5 fixing screws in the four corners of the plate.
Step 2: Orientate the sensor mounting plate to allow access to the phials (four clips in
the centre of the sensor mounting plate). Be careful not to kink the capillaries that
connect the thermostat bulbs. The sensor mounting plate will have two vacant slots for
additional sensors (D). Slide the solar sensor into place as shown (E).
A
B
C
D
E
Installation
HP Installatio
n and User Instructions R00918
-10 09/15
Page
26
Step 3: Move the sensor mounting plate back into its fixing position. Be careful not to
kink the capillaries that connect the thermostat bulbs. Fit the four M5 fixing screws into
the cylinder bracket (F). Tighten the screws until the thermostat bulbs and heat pump
sensor are held firmly against the wall of the inner cylinder.
Note: there should be no movement in the phials that are used to hold the bulbs and
sensor. Care should be taken not to overtighten the screws.
Step 4: Replace the insulating foam over the sensor mounting plate.
F
Installation
HP Installatio
n and User Instructions R00918
-10 09/15
Page
27
Step 5: Refit the Dual Cut Out cover plate. Enter the fixing tab into the slot provided
at the base of the enclosure and fit the fixing screw.
Installation
HP Installatio
n and User Instructions R00918
-10 09/15
Page
28
4.8 Connection of
Secondary Return
A secondary return port is installed on
the 210, 250 and 300L cylinders. For
cylinders that do not have a dedicated
secondary return connection, it is
possible to install a secondary return
by connecting a swept - T to the cold
water inlet of the cylinder (see Figure
9).
The secondary return pipe should
incorporate a check valve and a WRAS
approved circulation pump; timer and
thermostat to be provided separately.
Where secondary return circuits are
used, then an additional expansion
vessel may be required.
The secondary return loop must avoid:
- stagnant water in long pipe runs
- long waiting times at draw off point
for hot water
- undue water wastage
To minimise the energy consumption of
the secondary return circuit and to
ensure reliable operation it is important
to consider:
- the control of the circulation pump to
be time and temperature controlled
- the secondary return circuit pipe
work to be insulated
- the secondary return pump to be of
suitable material and specification
Figure 9: Secondary return loop
To Taps
From Taps
Secondary
Return
Swept-T
HW Outlet
Commissioning
HP Installatio
n and User
Instructions R00918
-10 09/15
Page
29
5 Commissioning
At the time of commissioning,
complete all relevant sections of the
Benchmark Checklist located on the
inside back pages of this document.
The following commissioning
procedures only detail the required
steps to be taken for the potable water
loop and not for the heat pump loop:
1) Before making any mains
connections to the inlet control
group, flush the mains pipework
out to ensure all debris has been
removed so as not to damage the
strainer within the combination
valve.
2) Make final mains connection on
combination valve and check all
connections and joints to ensure
they have been tightened and
secured correctly.
3) Before turning on the mains
supply to the cylinder a hot water
tap should be opened, preferably
on the same floor or the floor
below where the cylinder is
located.
4) Check the pre-charge in the
expansion vessel and ensure it is
at least 3 bar. Note actual
pressure on label on expansion
vessel.
5) Turn on the supply to the cylinder
and fill until water runs from the
open hot water tap. Continue to
flush the system until all debris
has been removed.
6) Close the hot water tap.
7) Check all joints for leaks, even
those not having been altered
especially when replacing a vented
cylinder.
8) Open temperature and pressure
relief valve to ensure proper
discharge and check after closing
that valve is not dripping.
9) Open expansion relief valve to
ensure proper discharge and
check after closing that valve is
not dripping.
10) Check all shower outlets, toilet
cisterns and other draw off points
for leaks or dripping (especially
when replacing a vented unit).
Open all water outlets to purge air
from pipe work and ensure proper
operation.
11) Adjust timer programmer and
cylinder thermostat settings in
accordance with client
requirements.
12) Instruct user in the operation of
the unit and hand over this manual
advising the owner of annual
service requirements.
13) Complete the technical data label
on the cylinder with legible and
permanent writing.
Maintenance
HP Installatio
n and User Instructions R00918
-10 09/15
Page
30
6 Maintenance
After servicing, complete the relevant
Service Record section of the
Benchmark Checklist located on the
inside back pages of this document. To
meet with warranty requirements the
cylinder must be serviced annually.
The maintenance of this
appliance must be carried
out by a suitably qualified
person only. It is
recommended to maintain
the unit on an annual basis.
Isolate all electrical
supplies from the unit
before commencing work.
Danger of electrical shock!
1) Draw some water from cold water
tap and retain in container.
2) Isolate cold water mains supply
from cylinder.
3) Briefly open temperature and
pressure relief valve, assure safe
discharge and check that valve is
not dripping when closed.
4) Briefly open expansion relief
valve, assure safe discharge and
check that valve is not dripping
when closed. The expansion relief
valve should be operated regularly
to remove lime deposits and to
verify that it is not blocked.
5) Open hot water tap and release
remaining pressure from unit.
6) If the system is drained
completely for an internal
inspection, ensure the hot water
tap remains open, connect a hose
to the drain valve and ensure a
safe discharge.
7) Note the set pressure of the
pressure reducing valve. Remove
cartridge and clean strainer in
water provided in container. Re-
assemble pressure reducing valve
ensuring the correct pressure is
set.
8) Periodically the immersion heaters
should be removed cleaned and
the unit flushed out. Check the O-
ring seal for damage and replace if
necessary. A torque of 40 Nm is
recommended when tightening up
the immersion after it has been
removed and refitted.
9) Check electrical wiring
connections and the condition of
the cable of the immersion heater
and the thermostat.
10) The immersion heater boss can
also be used for access to view the
internal components of the
cylinder.
11) Re-commission unit (see chapter
5).
Note: Air vent located on top of
buffer vessel; to access remove
end cap.
If the cylinder is not in use for
excess of 1 month, it must be
drained down by a competent
person and recommissioned before
use. Note: The immersion must be
switched off at the mains before
draining the cylinder.
Maintenance
HP Installatio
n and User Instructions R00918
-10 09/15
Page
31
If replacement parts are required,
please see Figure 10 for part
descriptions and part numbers.
CLEANING INSTRUCTIONS:
Clean outer cladding of
cylinder with a soft cloth
dampened with warm water
only. Do not use abrasive or
aggressive cleaning
materials, such as alcohol or
petroleum based solvents, as
this may damage the surface
of the product.
Waste electrical products
should not be disposed of with
household waste. Please
recycle where facilities exist.
Check with your Local
Authority or retailer for
recycling advice.
HP Installatio
n and User Instructions R00918
-10 09/15
Page
32
Spare Parts
7 Spare Parts
Figure 10: Replacement part numbers for Heat Pump range of cylinders
HP Installatio
n and User Instructions R00918
-10 09/15
Page
33
Technical Data
8 Technical Information and Product Fiche
Figure 11: Heat Pump Cylinder and Cross-section (for reference only)
HP Installatio
n and User Instructions R00918
-10 09/15
Page
34
Technical Data
Heat Pump Cylinder Range - Dimensions
Reference
125
150
175
210
250
300
Weight [kg]
30
35
38
42
47
53
Reheat time [mins]*
7
7
11
12
17
20
Average draw off temperature
[°C]*
61
60
63
62
63
62
Hot water draw off capacity (l)*
/ draw off flow rate (l/s)
97
120
142
180
238
267
0.25
0.25
0.25
0.25
0.25
0.50
Heat loss [kWh]*
0.95
1.10
1.12
1.41
1.51
1.96
Height [mm]
945
1115
1265
1490
1765
2065
Outer Diameter [mm]
580
580
580
580
580
580
HW Outlet [mm]
720
890
1040
1265
1540
1840
T&P Valve [mm]
720
890
1040
1265
1540
1840
Secondary Return [mm]
-
-
-
957
1095
1245
CW Inlet [mm]
180
180
180
180
180
180
Bottom Immersion [mm]
200
200
200
200
200
200
HP Return [mm]
180
180
180
180
180
180
HP Flow [mm]
700
835
835
885
885
920
Bottom Thermostat [mm]
450
535
610
722
860
1010
Table 4: Heat Pump Cylinder Dimensions
Note: All measurements are taken from the base of the cylinder to the mid-point on the item.
* Determined in accordance with EN12897 at 80°C flow temperature and 0.42l/s flow rate.
GDC Group Ltd
Heat Pump Cylinder Range – Product Fiche
Reference
Efficiency Class
Standing Loss [W]
Actual Capacity [L]
ECS125HP-580
B
40
117
ECS150HP-580
B
54
142
ECS175HP-580
B
56
174
ECS210HP-580
B
59
200
ECS250HP-580
B
66
245
ECS300HP-580
C
82
292
Table 5: Heat Pump Product Fiche
HP Installatio
n and User Instructions R00918
-10 09/15
Page
35
Technical Data
Heat Pump Cylinder Range – Product Features
Materials
- inner cylinder
Duplex stainless steel LDX2101
- outer cylinder
HIPS
- inlet/outlet
Stainless steel
- coils
Stainless steel
- insulation
60mm PU foam (GWP=1, ODP=0)
Maximum operating conditions
- potable water temperature
70°C
- heating water temperature
95°C
- operating pressure
3 bar
Cold water supply
- minimum dynamic pressure
1.5 bar
- maximum pressure
12 bar
- minimum flow rate
15 l/min
Connections
- cold water inlet
22mm stainless steel
- hot water outlet
22mm stainless steel
- coil flow and return
28mm stainless steel
Coil specification
- heat pump coil surface area [m²]
2.2
2.8
2.8
3.2
3.2
3.2
- HX performance heat pump coil [kW]
45
51
43
43
43
43
- max. working pres. [Bar]
3
Immersion heater
1 ¾ F BSP 3kW @ 240 V
Thermostatic control
- direct input
integral immersion heater thermostat and cut out
- indirect input
integral twin thermostat (10 to 70°C) and cut out
(~85°C)
Safety components
- pressure reducing valve and strainer
3 bar
- expansion relief valve
6 bar
- temperature and pressure relief valve
½” 7 bar/90°C
- factory pressure test
12 bar
Other features
Over 60% in volume from recycled materials#
Surface mounted sensor devices for compatibility
and ease of maintenance
Approvals
KIWA approval number:- 1112705
KIWA
KIWA
Guarantee
- inner cylinder
25 yrs
- immersion heaters
2 yrs - excluding the effects of lime scale or other
water borne contaminants
- other components
2 yrs - excluding expansion vessel membrane
pressure
Table 6: Heat Pump Product Fiche and Features
# Not including insulation
HP Installatio
n and User Instructions R00918
-10 09/15
Page
36
Technical Data
Figure 12: Heat Pump with Buffer Cylinder and Cross-section (for reference only)
HP Installatio
n and User Instructions R00918
-10 09/15
Page
37
Technical Data
Heat Pump with Buffer Cylinder Range - Dimensions
Reference
125/75
150/75
180/75
210/75
Weight [kg]
45
49
63
57
Reheat time [mins]*
7
7
11
12
Average draw off temperature [°C]*
61
60
63
62
Hot water draw off capacity (l)* /
draw off flow rate (l/s)
97
120
142
180
0.25
0.25
0.25
0.25
Heat loss [kWh/24h]*
0.95
1.10
1.12
1.41
Height [mm]
1520
1690
1840
2065
Outer Diameter [mm]
580
580
580
580
HW Outlet [mm]
720
890
1040
1265
T&P Valve [mm]
720
890
1040
1265
Secondary Return [mm]
-
-
957
CW Inlet [mm]
180
180
180
180
Bottom Immersion [mm]
200
200
200
200
Top Immersion [mm]
1112
1282
1432
1657
HP Return [mm]
180
180
180
180
HP Flow [mm]
700
835
835
885
HP Buffer Return [mm]
1087
1257
1407
1632
HP Buffer Flow [mm]
1297
1467
1617
1842
Bottom Thermostat [mm]
450
535
610
722
Table 7: Heat Pump with Buffer Cylinder Dimensions
Note: All measurements are taken from the base of the cylinder to the mid-point on the item.
* Determined in accordance with EN12897 at 80°C flow temperature and 0.42l/s flow rate.
GDC Group Ltd
Heat Pump with Buffer Cylinder Range – Product
Fiche
Reference
Efficiency
Standing Loss
[W]
Actual Capacity [L]
ECS150HP75-580
B
55
142
ECS180HP75-580
B
56
175
ECS210HP75-580
B
59
210
Table 8: Heat Pump with Buffer Product Fiche
HP Installatio
n and User Instructions R00918
-10 09/15
Page
38
Technical Data
Heat Pump with Buffer Cylinder Range – Product Features
Materials
- inner cylinder
Duplex stainless steel LDX2101
- outer cylinder
HIPS
- inlet/outlet
Stainless steel
- coils
Stainless steel
- insulation
60mm PU foam (GWP=1, ODP=0)
Maximum operating conditions
cylinder / buffer
- potable water temperature
70°C / N/A
- heating water temperature
95°C / 95°C
- operating pressure
3 bar / 3 bar (max)
Cold water supply
- minimum dynamic pressure
1.5 bar
- maximum pressure
12 bar
- minimum flow rate
15 l/min
Connections
- cold water inlet
22mm stainless steel
- hot water outlet
22mm stainless steel
- coil flow and return
28mm stainless steel
- buffer in and out
28mm stainless steel
Coil specification
- heat pump surface area [m²]
2.2
2.8
2.8
2.8
3.2
- HX performance heat pump coil [kW]
45
51
51
43
43
- max. working pres. [Bar]
3
Immersion heater
1 ¾ F BSP 3kW @ 240 V
Thermostatic control
- direct input
integral immersion heater thermostat and cut out
- indirect input
integral twin thermostat (10 to 70°C) and cut out
(~85°C)
Safety components (cylinder)
- pressure reducing valve and strainer
3 bar
- expansion relief valve
6 bar
- temperature and pressure relief valve
½” 7 bar/90°C
- factory pressure test
12 bar
Other features
Over 60% in volume from recycled materials#
Surface mounted sensor devices for compatibility and
ease of maintenance
Approvals
KIWA approval number:- 1112705
KIWA
KIWA
Guarantee
- inner cylinder
25 yrs
- immersion heaters
2 yrs - excluding the effects of lime scale or other
water borne contaminants
- other components
2 yrs - excluding expansion vessel membrane pressure
Table 9: Heat Pump with Buffer Product Fiche and Features
# Not including insulation
HP Installatio
n and User Instructions R00918
-10 09/15
Page
39
Technical Data
8.1 Cylinder heat exchanger pressure drop
Figure 13: Heat exchanger pressure drops for 2.2m² and 2.8m² coils
0
2000
4000
6000
8000
10000
12000
14000
0.0 0.5 1.0 1.5 2.0 2.5
Pressure Drop (Pa)
Flow Rate (m
3
/h)
2.2 m
2
Coil Pressure Drop
0
2000
4000
6000
8000
10000
12000
14000
0.0 0.5 1.0 1.5 2.0 2.5
Pressure Drop (Pa)
Flow Rate (m
3
/h)
2.8 m
2
Coil Pressure Drop
HP Installatio
n and User Instructions R00918
-10 09/15
Page
40
Technical Data
Figure 14: Heat exchanger pressure drop for and 3.2m² coils
0
2000
4000
6000
8000
10000
12000
14000
16000
0.0 0.5 1.0 1.5 2.0 2.5
Pressure Drop (Pa)
Flow Rate (m
3
/h)
3.2 m
2
Coil Pressure Drop
HP Installatio
n and User Instructions R00918
-10 09/15
Page
41
Technical Data
8.2 Cylinder attainable temperature curves
Figure 15: Cylinder attainable temperature curves for ECS125HP-580 and ECS150HP-580
HP Installatio
n and User Instructions R00918
-10 09/15
Page
42
Technical Data
Figure 16: Cylinder attainable temperature curves for ECS175HP-580 and ECS210HP-580
HP Installatio
n and User Instructions R00918
-10 09/15
Page
43
Technical Data
Figure 17: Cylinder attainable temperature curves for ECS250HP-580 and ECS300HP-580
HP Installatio
n and User Instructions R00918
-10 09/15
Page
44
Technical Data
9 User Instructions
9.1 General
“This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been
given supervision or instruction
concerning the use of the appliance by
person responsible for their safety.”
“Children should be supervised to
ensure they do not play with this
appliance.”
Please read the following
statements carefully as it affects
your warranty:
Please ensure that the installer has
fully completed the Benchmark
Checklist on the inside back pages of
this document and that you have
signed it to say that you have received
a full and clear explanation of its
operation. The installer is legally
required to complete a commissioning
checklist as a means of complying with
the appropriate Building Regulations
Part G3 (England and Wales), Part P of
Northern Ireland and Section 6 of
Scotland.
All installations must be notified to
Local Area Building Control either
directly or through a Competent
Persons Scheme. A Building
Regulations Compliance Certificate will
then be issued to the customer who
should, on receipt, write the
Notification Number on the Benchmark
Checklist.
This product should be serviced
annually to optimise its safety,
efficiency and performance. The
service engineer should complete the
relevant Service Record on the
Benchmark Checklist after each
service.
The Benchmark Checklist will be
required in the event of any warranty
work.
HP Installatio
n and User Instructions R00918
-10 09/15
Page
45
Operation
9.2 Operation
Once the system has been fully
commissioned, no user intervention
should be required to fully enjoy the
comfort and benefits of the unvented
hot water cylinder.
The hot water temperature can be set
to various requirements. For operation
with a heat pump it is recommended to
set the hot water temperature to
between 45°C and 55°C (this is
between 2 and 3 on the dial, please
refer to Figure 19 for approximate
settings). Higher temperatures can
cause tripping of the high limit
thermostat, introduce more heat loss
from the unit and increase the risk of
scalding significantly.
When turning on a hot tap for the first
time after a heat up period there might
be a short surge of water. This is
normal in unvented systems and does
not constitute a fault. Sometimes the
water may appear milky – this is due
to very fine air bubbles in the water
which will clear quickly.
9.2.1 Water temperature
direct electric heating
Before removing the cover
from the immersion heater
isolate appliance using
isolating switch! Danger of
electrical shock! Only use
suitable electrically insulated
equipment when working
inside immersion housing.
The hot water temperature achieved by
the direct electric heating element can
be adjusted by removing the cover
from the immersion heater and
adjusting the dial up or down as
indicated in Figure 18.
Figure 18: Adjustment water temperature direct electric heating element
Dial to adjust water
temperature
HP Installatio
n and User Instructions R00918
-10 09/15
Page
46
Operation
9.2.2 Water temperature
auxiliary heating
The water temperature achieved by the
auxiliary heating system depends on
the setting of the thermostat on:
- the cylinder AND
- the auxiliary heating source
The adjustment at the cylinder is
carried out on the twin thermostat
fitted to the cylinder as shown in Figure
19. In the event that the high
temperature cut-out engages, it will be
necessary to manually reset the
thermostat. Use a suitable electrically
insulated tool to push the manual reset
button and inform the installer.
If the domestic hot water temperature
is controlled by a sensor connected to
the heat pump control unit, the
thermostat on the cylinder should be
turned to maximum to avoid any
conflicting control signals.
Figure 19: Adjustment water temperature auxiliary source
9.3 Maintenance
The maintenance of this
appliance must be carried
out by a suitably qualified
person only. It is
recommended to maintain
the unit on an annual basis.
Isolate all electrical
supplies from the unit
before commencing work.
Danger of electrical shock!
See section 6.
Dial to adjust water
temperature
Manual re-set
HP Installatio
n and User Instructions R00918
-10 09/15
Page
47
Troubleshooting
9.4 Troubleshooting
Fault
Cause
Solution
A No water
from hot
water taps
A.1 Stop valve closed
A.2 Strainer blocked
A.3 Pressure reducing
valve fitted against
flow
A.1 Open stop valve
A.2 Turn water supply off, clean
strainer and re-commission
A.3 Re-fit with arrow showing in
direction of flow
B No hot water
B.1 Timer/Programmer not
set correctly
B.2 Auxiliary heating
malfunction
B.3 Direct heating mal
function
B.4 Auxiliary/direct heating
high limit thermostat
has tripped
B.1 Set timer/programmer
correctly
B.2 Consult auxiliary heating
system instructions
B.3 Call for qualified person to
check immersion heater
B.4 Reset limit thermostat(s)
and inform installer
C Intermittent
water
discharge
through
tundish on
warm-up
C.1 Expansion vessel lost
charge
C.1 Check expansion vessel (see
commissioning/maintenance
), top up or replace
D Continuous
discharge
D.1 Pressure reducing
valve not working
D.2 Pressure relief or T&P
valve not seating
correctly
D.3 Malfunction of high
limit thermostat or
appliance
D.1 Check pressure after valve
and replace if faulty
D.2 Manually lift valve once or
twice to clear debris,
otherwise replace
D.3 Check function of
thermostats and appliances
E Leakage
from casing
E.1 Compression/threaded
joints not formed
correctly
E.1 Re-seal joints with care
F Hot water
from cold tap
F.1 Hot pipe work being
routed adjacent to
cold pipe work
F.2 Leaking seal in mixer
tap
F.1 Insulate hot pipe work or re-
route
F.2 Replace seals in mixer tap
G Metallic
noise from
system
G.1 Pipe work not
sufficiently supported
G.1 Add extra pipe work fixings
H Humming
noise from
system
during re-
heat
H.1 Air in system
H.2 Flow rate well in
excess of specification
H.1 Bleed system thoroughly
and re-pressurize
H.2 Reduce pump speed
HP Installatio
n and User Instructions R00918
-10 09/15
Page
52
Dimplex a division of GDC Group Ltd
Millbrook House Grange Drive, Hedge End, Southampton SO30 2DF
Tel.: 0845 600 5111
e-mail: [email protected]
www.dimplex.co.uk
