KHB 6 Battery Set
KHB 6 Battery
Operating Instructions
Please read the operating instructions
carefully before using the unit.
59691510 (03/20)
2
2.
1.
1.
2.
1.
2.
C
B
D
F
G
1.
2.
E
A
1
4
7
6
5
8
9
10
3
*11
*12
2
3.
2
Details see
Illustration H
3
Appliance illustration only symbolically
PULL
1.
2.
3.
俺
NO PULLING
H
ABC
DE
4 English
Please read and comply
with these original in-
structions prior to the initial oper-
ation of your appliance and store
them for later use or subsequent
owners.
Also read the operating instruc-
tions included with the battery
pack and the charger.
DANGER
Pointer to immediate danger,
which leads to severe injuries or
death.
몇 WARNING
Pointer to a possibly dangerous
situation, which can lead to se-
vere injuries or death.
몇 CAUTION
Pointer to a possibly dangerous
situation, which can lead to mi-
nor injuries.
ATTENTION
Pointer to a possibly dangerous
situation, which can lead to
property damage.
Contents
Safety instructions . . . . . . . . . . . . 4
Safety Devices . . . . . . . . . . . . . . . 6
Symbols on the machine . . . . . . . 6
Environmental protection . . . . . . . 6
Proper use . . . . . . . . . . . . . . . . . . 6
Accessories and Spare Parts . . . . 6
Scope of delivery . . . . . . . . . . . . . 6
Description of the Appliance . . . . 7
Start up. . . . . . . . . . . . . . . . . . . . . 7
Operation . . . . . . . . . . . . . . . . . . . 8
Transport . . . . . . . . . . . . . . . . . . . 8
Storage. . . . . . . . . . . . . . . . . . . . . 8
Cleaning and care . . . . . . . . . . . . 8
Troubleshooting . . . . . . . . . . . . . . 9
Warranty. . . . . . . . . . . . . . . . . . . . 9
Helpline . . . . . . . . . . . . . . . . . . . . 9
Technical specifications . . . . . . . . 10
EU Declaration of Conformity. . . . 10
Safety instructions
Danger or hazard levels
English 5
DANGER
The user must use the appli-
ance as intended. The person
must consider the local condi-
tions and must pay attention
to other persons in the vicinity
when working with the appli-
ance.
The appliance may not be op-
erated in explosive atmos-
pheres.
If the appliance is used in
hazardous areas the corre-
sponding safety provisions
must be observed.
Do not use the appliance if it
fell down, is visibly damaged
or leaking.
The liquid must not be direct-
ed towards equipment con-
taining electrical compo-
nents.
Never use the appliance to
clean objects containing haz-
ardous substances (e.g. as-
bestos).
몇 WARNING
The appliance must not be
operated by children or per-
sons who have not been in-
structed accordingly.
This appliance is not intended
for use by persons with limit-
ed physical, sensory or men-
tal capacities or lacking expe-
rience and/or skills, unless
such persons are accompa-
nied and supervised by a per-
son in charge of their safety
or they have received precise
instructions on the use of this
appliance and have under-
stood the resulting risks.
Children must not play with
this appliance.
Supervise children to prevent
them from playing with the
appliance.
Operate or store the appli-
ance only in accordance with
the description or illustration!
Never direct the jet at people,
animals or loose objects!
The appliance contains elec-
trical components - do not
clean under running water.
According to applicable regu-
lations, the device must never
be used with the drinking wa-
ter network without a system
separator. Ensure that the
connection to your house wa-
ter system, with which the de-
vice is operated, is equipped
with a system separator ac-
cording to EN 12729 type BA.
Water that has flown through
a system separator is no
longer classified as drinking
water.
몇 CAUTION
Dry running may damage the
device.
Never leave the appliance
unattended as long as it is in
operation.
ATTENTION
Do not operate the appliance
at temperatures below 0 °C.
Safe handling
6 English
몇 CAUTION
Safety installations serve the protection of the user
and may not be modified or bypassed.
The lock blocks the power switch and prevents the de-
vice from switching on unintentionally.
Notes about the ingredients (REACH)
You will find current information about the ingredients
at:
www.kaercher.com/REACH
This battery powered pressure cleaner should be used
for private households only:
– for cleaning machines, vehicles, buildings, tools,
façades, terraces, garden machines etc. by means
of a water stream.
– with accessory parts and spare parts approved by
KÄRCHER.
Only use original accessories and spare parts, they en-
sure the safe and trouble-free operation of the device.
For information about accessories and spare parts,
please visit www.kaercher.com.
Only special accessories with the note "Handheld" (with
blue plug) can be used.
Note: Spray lances from high-pressure cleaners are not
compatible.
– Batteries / chargers that are not supplied in the
scope of delivery or are additionally required are
available as special accessories or can be pur-
chased later.
– Fast charger and battery pack with a larger capac-
ity are available as special accessories.
The scope of delivery of your appliance is illustrated on
the packaging. Check the contents of the appliance for
completeness when unpacking.
In the event of missing accessories or any transport
damage, please contact your dealer.
Safety Devices
Lock
Symbols on the machine
The appliance must not be directly connected
to the public drinking water network.
Environmental protection
Old appliances contain valuable recyclable mate-
rials that should be recycled properly. Batteries
and accumulators contain substances that must
not enter the environment. Please dispose of old
devices and batteries or accumulators in an envi-
ronmentally friendly way.
Electrical and electronic devices often contain
components which could potentially pose a dan-
ger to human health and the environment if han-
dled or disposed of incorrectly. However, these
components are necessary for the proper opera-
tion of the device. Devices marked with this sym-
bol must not be disposed of with regular house-
hold rubbish.
The packaging material can be recycled. Please
arrange for the environmentally appropriate dis-
posal of the packaging.
Cleaning operations which produce oily waste wa-
ter, e.g. engine washes, underbody washes, may
only be carried out using washing stations
equipped with an oil separator.
The extraction of water from public waters is pro-
hibited in some countries.
Proper use
Accessories and Spare Parts
Special accessories
Information on battery pack and charger
Scope of delivery
English 7
These operating instructions describe the maximum
equipment. Depending on the model, there are differ-
ences in the scopes of delivery (see packaging).
Illustrations on Page 2 - 3
Illustration
Illustration
1 Dirt blaster
For strong contaminations.
2 Nozzle release
3 Multi Jet nozzle (MJ 24)
5-in-1 Multi Jet with different jet setting options for
different cleaning tasks
4 Spray lance
5 Pressure cleaner (battery powered)
6 Water connection with fine filter
7 Power switch
8Lock
9 Battery pack release
10 Coupling element for water connection
Note:The device can only be operated with 18 V battery
packs and is not compatible with 36 V battery packs.
Illustration
See operating instructions for the battery pack and
charger used.
몇 CAUTION
Risk of personal injury or damage! Ensure that the bat-
tery pack properly snaps into place.
Illustration
Insert the battery pack into the intake of the device.
Illustration
Insert the spray lance and lock it by turning it 90°.
Press the desired nozzle onto the spray lance until
it audibly clicks into place.
Note: To disconnect the nozzle, press the nozzle
release down and pull the nozzle off.

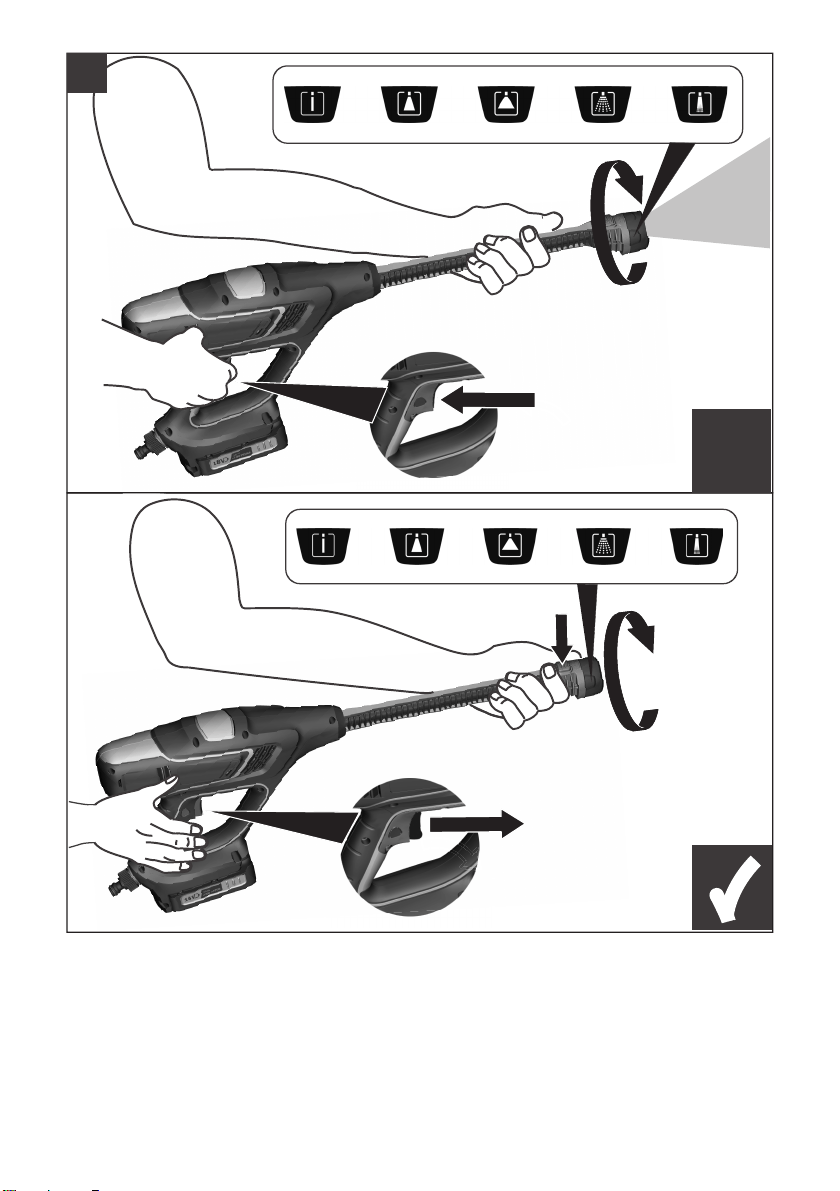

Illustration
While changing the Multi Jet nozzle jet settings, do
not pull the power switch.
For connection values, see type plate/technical data.
Observe regulations of water supplier.
Illustration
Screw the coupling element to the water connec-
tion on the appliance.
Use a 1/2 inch water hose (not included in the
scope of delivery) with a commercially available
coupling.
Attach the water supply hose to the coupling on the
water connection.
Connect the water supply hose to the water supply.
Completely open the water tap.
This pressure cleaner can be used with KÄRCHER suc-
tion hose SH 5 Handheld (special accessory, order no.
2.644-124.0) for suctioning surface water (e.g. from wa-
ter butts or ponds).
Note: The max. suction height is 0.5 m.
Screw the suction hose into the water connection of
the appliance and insert it into the water source
(e.g. rainwater drum).
Description of the Appliance
A Point jet
B Flat jet
C Rinse jet
D Mist jet
E Irrigation Jet
* Optional
11* Battery pack Battery Power 18/25
12* Standard charger Battery Power 18 V
Additionally required
– Fabric-reinforced water hose with commercially
available coupling.
Minimum diameter, 1/2 inches (13 mm).
– KÄRCHER suction hose SH 5 Handheld
(order no. 2.644-124.0)
Start up
Charging the battery pack
Inserting the battery pack
Attaching the spray lance
Water supply
Water supply from mains
Drawing in water from open reservoirs
8 English
ATTENTION
Dry running of more than 2 minutes leads to damage to
the pump. If the device does not build up pressure within
2 minutes, switch the device off and proceed in accord-
ance with the instructions in the chapter "Troubleshoot-
ing".
Illustration
Release the lock on the power switch.
Press the power switch.
Note
During use, the display shows the remaining operating
time.
Kärcher offers detergent spray bottles for vehicle
care.
Spray the detergent sparingly on the dry surface
and allow it to react, but not to dry.
Rinse off loose dirt with the pressure jet.
Release the power switch.
Secure the power switch with the lock.
Release the power switch.
Turn off tap.
Press the power switch to relieve the remaining
pressure in the system.
Detach the appliance from the water supply.
Secure the power switch with the lock.
Remove the battery pack from the device after comple-
tion of the work.
Illustration
Press the lock downwards.
Pull the battery pack backwards.
Recharge battery pack after work.
Note: Also charge partly discharged battery packs after
use.
몇 CAUTION
Risk of personal injury or damage!
Mind the weight of the appliance during transport.
Lift appliance by the carrying handle and carry it.
Secure the appliance against shifting and tipping
over.
몇 CAUTION
Risk of personal injury or damage!
Consider the weight of the appliance when storing it.
This appliance must only be stored in interior
rooms.
Park the machine on an even surface.
DANGER
Short circuit hazard!
Do not clean the device with a hose or high-pressure
water jet.
Switch the device off and remove the battery pack be-
fore working on the device.
ATTENTION
Risk of damage!
Do not use any abrasive or aggressive detergents for
cleaning purposes.
Regularly check the battery terminals and adapter
for soiling and clean them as necessary.
Recharge battery packs that are stored over a long-
er period of time.
Operation
Starting cleaning
Working with detergent
Recommended cleaning method
Interrupting operation
Finish operation
Removing the battery pack
Transport
When transporting by hand
When transporting in vehicles
Storage
Storing the Appliance
Cleaning and care
English 9
DANGER
Repair work and work on the electrical components may
only be performed by an authorised customer service.
You can rectify minor faults yourself with the help of the
following overview.
If in doubt, please consult the authorized customer ser-
vice.
The battery pack is not seated correctly in the bat-
tery holder, insert the battery pack into the battery
holder and let it click into place.
Charging state of the battery pack (see display) too
low, charge the battery if necessary.
Defect battery pack or charger, replace battery
pack or charger with new accessory.
Device/battery pack is overheated, wait briefly to
allow device/battery pack to cool down.
Note: Do not place the device and the battery pack
in direct sunlight and let the battery pack cool
down.
Charge battery pack.
The device shuts off due to the risk of the battery
overheating to prevent damage.
Check the water supply.
Check the fine filter in the water connection.
Clean the nozzle: Remove contamination and de-
bris from the nozzle drill, using a needle and rinse
through with water towards the front.
Check the water supply.
Dropwise leakage of the device is normal for tech-
nical reasons. If the leakage increases contact the
authorized customer service.
The warranty terms published by the relevant sales
company are applicable in each country. We will repair
potential failures of your appliance within the warranty
period free of charge, provided that such failure is
caused by faulty material or defects in manufacturing. In
the event of a warranty claim please contact your dealer
or the nearest authorized Customer Service centre.
Please submit the proof of purchase.
Addresses can be found under:
www.kaercher.com/dealersearch
KÄRCHER UK Limited operates a helpline allowing
customers to discuss any problems experienced with
our products.
The helpline operates during normal business hours
and may be busy at peak periods.If you have difficulty
getting through we would ask that you try to contact us
again later in the day.
The helpline number is 01295 752200, open from
8.30 am to 5.00 pm
Monday to Friday.
It helps us if you have the model number and data plate
details to hand before making your call so that we can
assist you with your query more effectively.
Alternatively you may write to us at the address be-
low:
KÄRCHER UK Ltd
Kärcher House
Beaumont Road
Banbury
Oxon, OX16 1TB
or E-mail us:
info@karcher.co.uk
Troubleshooting
Appliance is not running
The device switches off automatically
Appliance is not running
Pressure does not build up in the appliance
Strong pressure fluctuations
Appliance is leaking
Warranty
Helpline
10 English
We hereby declare that the machine described below
complies with the relevant basic safety and health re-
quirements of the EU Directives, both in its basic design
and construction as well as in the version put into circu-
lation by us. This declaration shall cease to be valid if
the machine is modified without our prior approval.
The signatories act on behalf of and with the authority of
the company management.
Documentation supervisor:
S. Reiser
Alfred Kärcher SE & Co. KG
Alfred-Kärcher-Straße 28-40
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2020/01/01
Technical specifications
Device
Battery pack nominal voltage 18 V =
Protective class III
Operating time when battery
fully charged (max.)
12 min
Max. permissible pressure 2.4 MPa
Water connection
Max. feed temperature 40 °C
Max. feed pressure 1.0 MPa
Max. Suction height 0.5 m
Dimensions and weights
Dimensions (L x W x H) 302 x 89 x 252 mm
Weight without battery pack 1.9 kg
Values determined as per EN 60335-2-79
Hand-arm vibration value
Uncertainty K
<2.5
0.3
m/s
2
m/s
2
Sound pressure level L
pA
Uncertainty K
pA
69
3
dB(A)
dB(A)
Sound power level L
WA
+
Uncertainty K
WA
84 dB(A)
Subject to technical changes.
EU Declaration of Conformity
Product: Pressure cleaner (battery powered)
Type:
KHB 6 Battery KHB 6 Battery Set
Relevant EU Directives
2014/35/EU 2014/35/EU
2014/30/EU 2014/30/EU
2011/65/EU 2011/65/EU
2000/14/EC –
Applied harmonized standards
EN 60335–1 EN 60335–1
– EN 60335-2-29
EN 60335–2–54 EN 60335–2–54
EN 62233: 2008 EN 62233: 2008
EN 55014–1:2017 EN 55014–1:2017
EN 55014–2: 2015 EN 55014–2: 2015
– EN 61000–3–2: 2014
– EN 61000–3–3: 2013
EN 50581 EN 50581
Applied conformity evaluation method
2000/14/EC: Appendix V
Sound power level dB(A)
Measured: 81
Guaranteed: 84
Chairman of the Board of Management
Director Regulatory Affairs & Certification
www.kaercher.com/serYLFH
Alfred Kärcher 6( & Co. KG
Alfred-Kärcher-Str. 28-40
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
