Quantum Electric Cylinders
Installation and User Instructions
R02889-8
Quantum Electric Cylinders
Installation and User Instructions
R02889-10
Please leave manual with end user
2
GDC Group is a licensed member of the Benchmark Scheme
which aims to improve the standards of installation and
commissioning of domestic heating and hot water systems in
the UK and to encourage regular servicing to optimise safety,
Benchmark places responsibility on both manufacturers and
installers. The purpose is to ensure that customers are
provided with the correct equipment for their needs, that it is
installed, commissioned and serviced in accordance with the
manufacturer’s instructions by competent persons and that it
meets the requirements of the appropriate Building Regulations
The Benchmark Checklist can be used to demonstrate compliance
with Building Regulations and should be provided to the
customer for future reference.
Installers are required to carry out installation, commissioning
and servicing work in accordance with the Benchmark Code of
Practice which is available from the Heating and Hot Water
Industry Council who manage and promote the Scheme.
Visit www.centralheating.co.uk for more information.
The HWA Charter requires that all members adhere to the
following:
described
• supply products that meet, or exceed appropriate
standards and
building and water regulations
• provide pre and post sales technical support
• provide clear and concise warranty
For further information on the HWA Charter Membership,
please refer to the HWA website www.hotwater.org.uk
These products are tested in accordance with EN12897:2006
3
Contents
1 Manual Information 4
2 Safety Information 4
3 Introduction 5
4 Scope of Delivery 5
5 Pre-Installation 6
5.1 Risk Assessment 6
5.2 Siting Considerations 6
5.3 Cold Water Supply 6
5.4 Building Regulation G3
Discharge Requirements 7
5.4.1 Discharge Pipe D2 7
5.4.2 Worked Example 8
5.4.3 Termination of Discharge
Pipe 8
5.5 Limitations 8
6 Installation 8
6.1 Cold Water Inlet with Inlet
Control Group 8
6.1.1 Correctly Site the Cylinder 8
6.1.2 Install the Inlet Group 8
6.1.3 Expansion Vessel 9
6.1.4 Balanced Cold Water Supply 9
6.1.5 Drain Valve 9
6.2 Hot Water Outlet 9
6.2.1 Thermostatic Mixing Valve 9
6.2.2 Pipe Insulation 9
6.3 Discharge Pipes from Safety
Devices 10
6.3.1 Discharge Pipe D1 10
6.3.2 Discharge Pipe D2 10
6.3.3 Tundish 10
6.4 Immersion Heaters 10

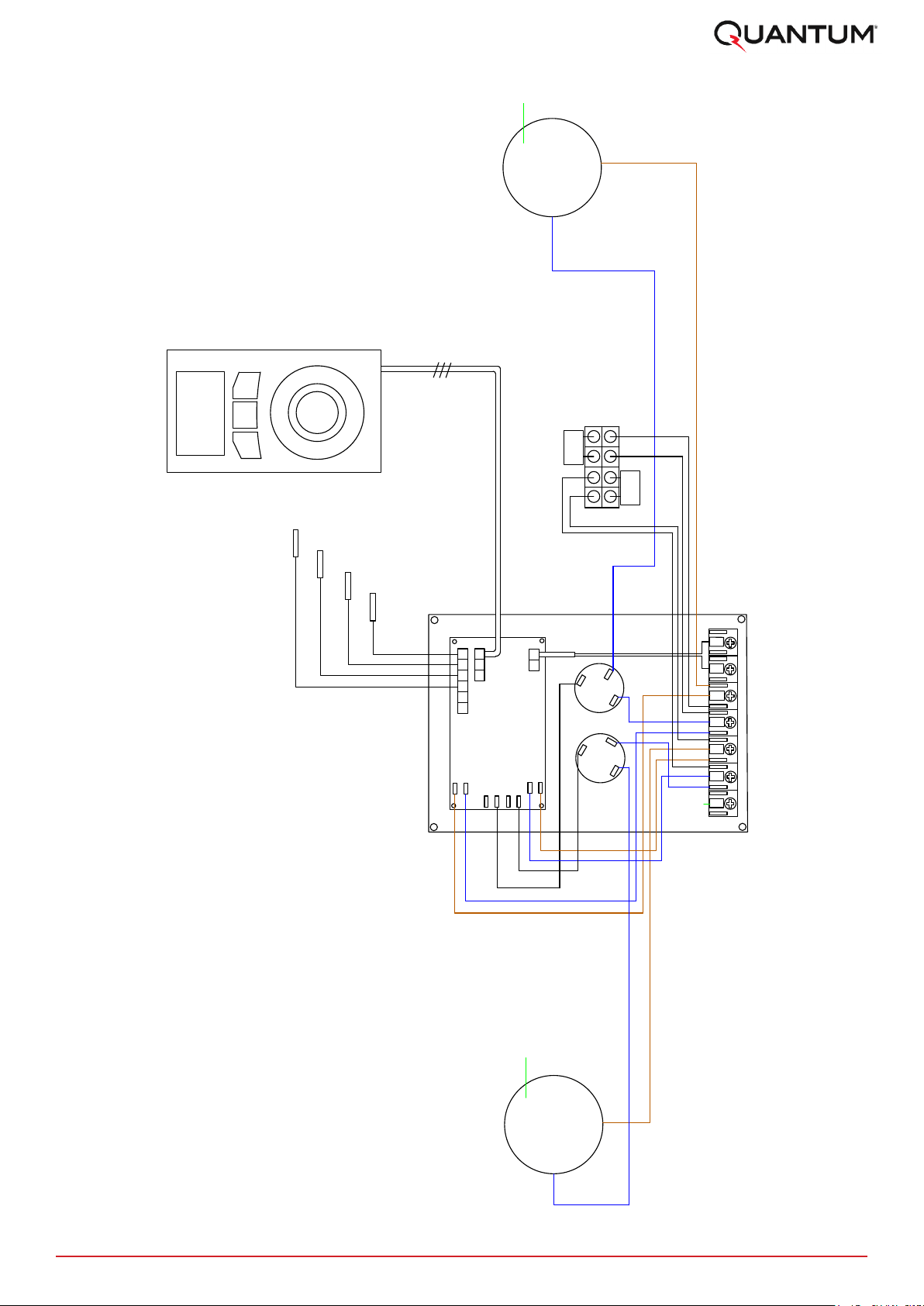

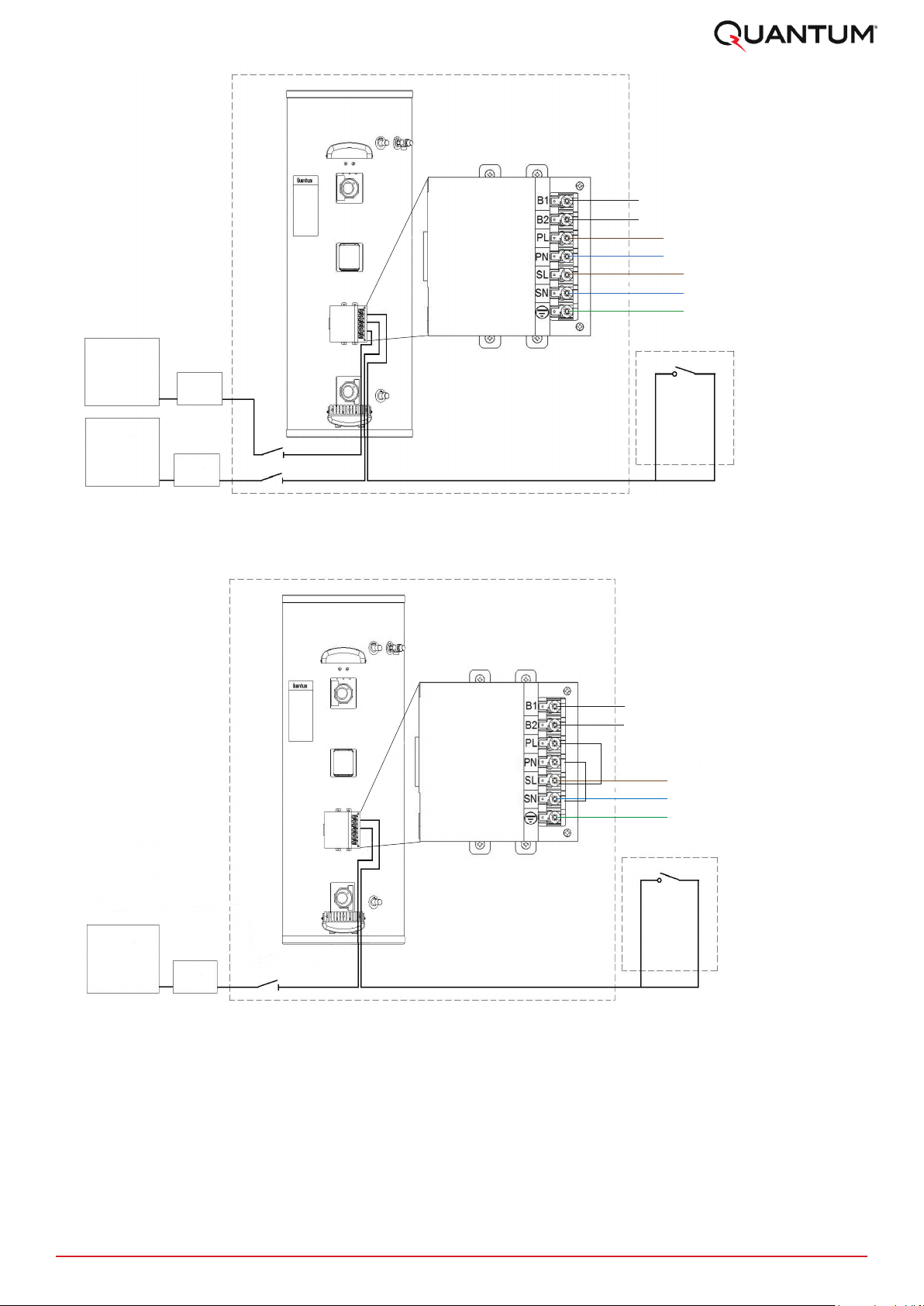

6.5 Electrical Connection 10
6.6 Connection of Secondary
Return 13
7 Commissioning 13
7.1 Verify Electronic Operation 14
7.2 Initialise System Settings and
Communications 14
7.2.1 Reset 14
7.2.2 Set Hygiene Mode 14
7.2.3 Set Communications Mode 14
7.2.4 Set Cylinder Size 14
7.2.5 RTC Calibration 14
7.2.6 Set Tariff 14
7.3 ConrmationofOperation 14
8 Maintenance 15

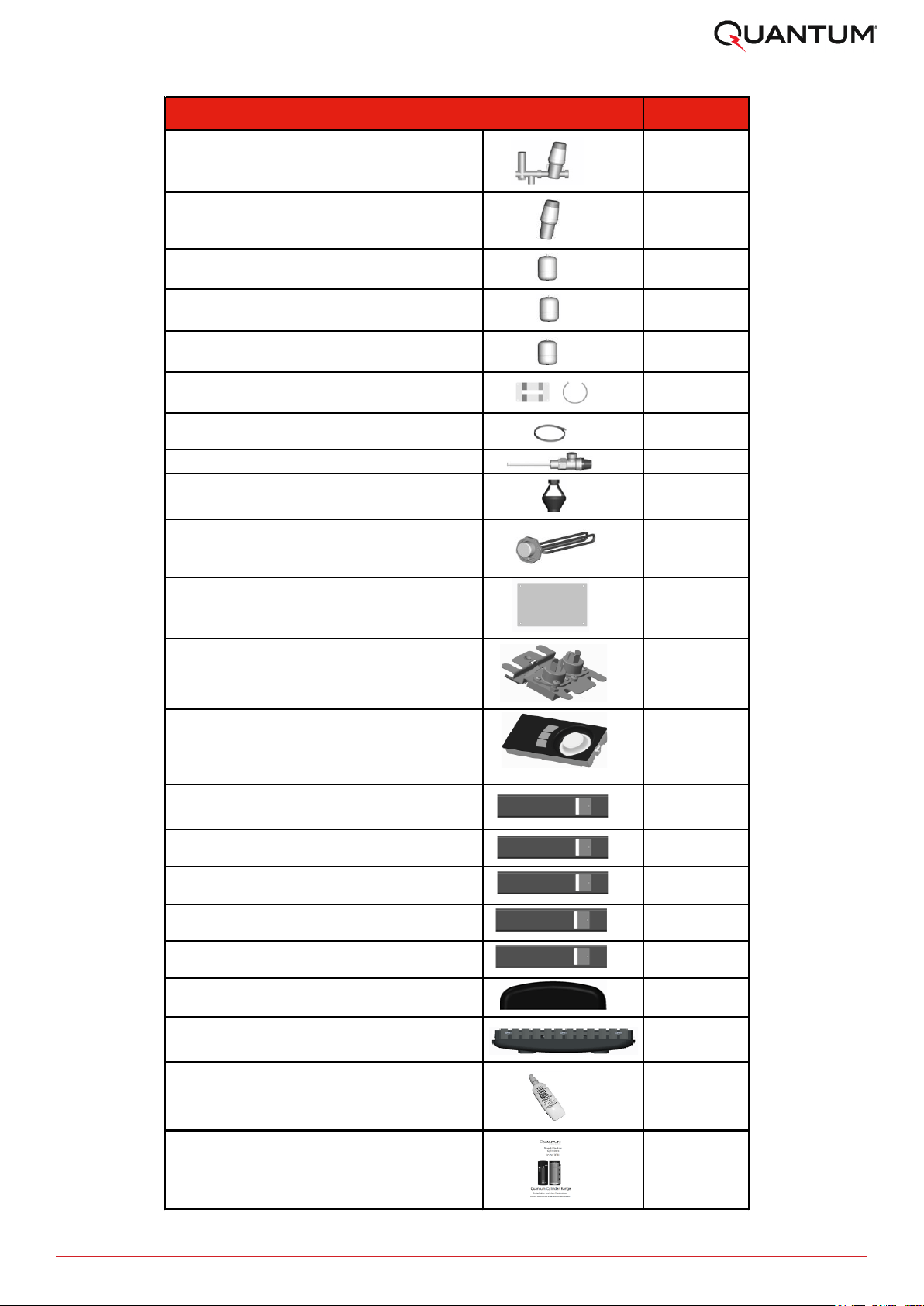

9 Spare Parts 17
10 Technical Data and
Product Fiche 18
CONTENTS
11 User Instructions 21
11.1 General 21
11.2 Operation 21

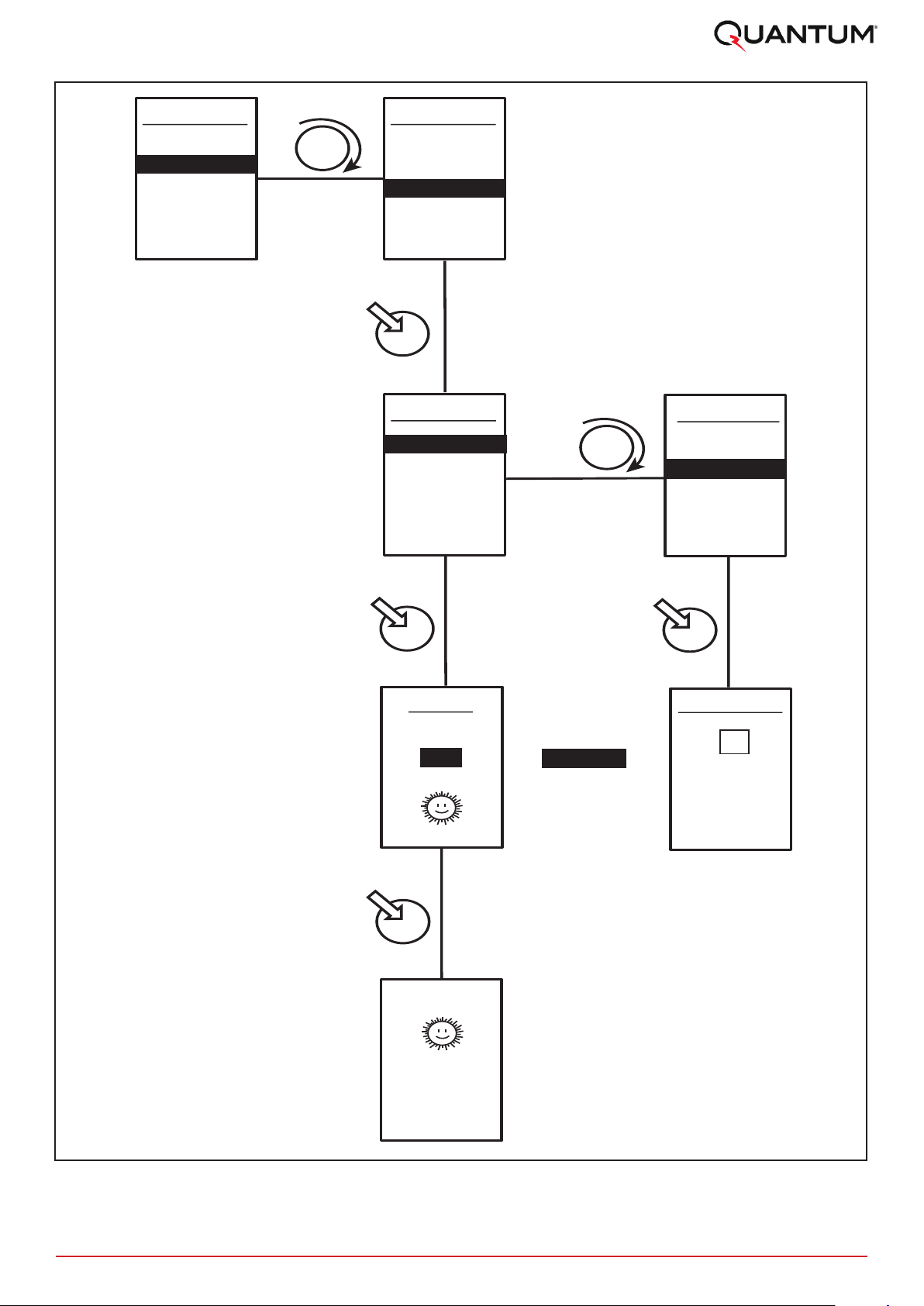

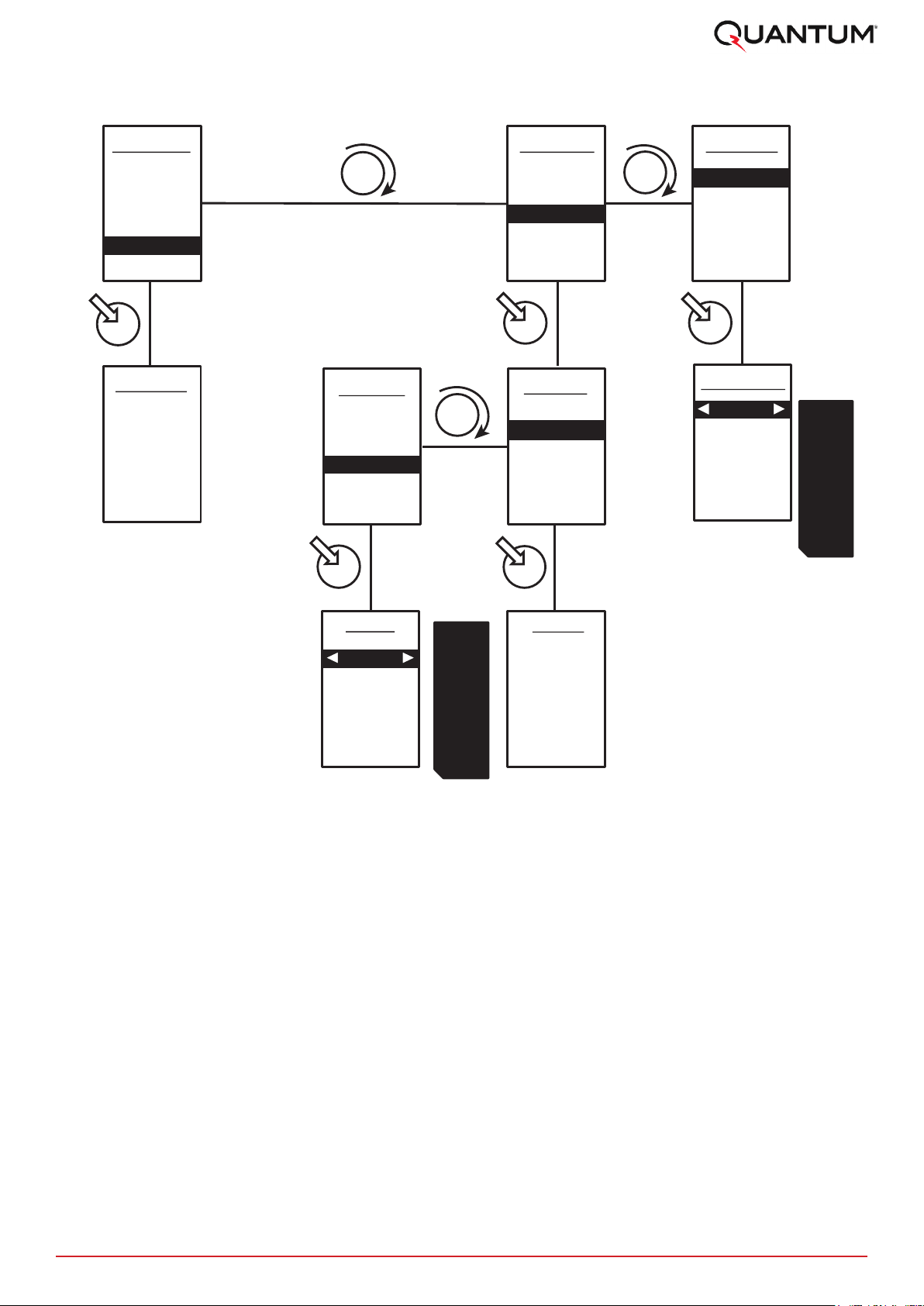

11.2.1 User Interface 21
11.2.2 Home Screen 21
11.2.3 Setting the Date and Time 22
11.2.4 Setting the Primary and Boost
Immersion Heater
Temperature 22
11.2.5 Activate Energy and
Temperature Information 22
11.2.6 Accessing Energy and
Temperature Information 22
11.2.7 Accessing and Setting Timer
Modes 22
12 Maintenance 22
13 Troubleshooting 27
14 Frequently Asked
Questions 28
4
Safety Information
This appliance can be used by
children aged 8 years and above
and persons with reduced
physical, sensory or mental
capabilities or lack of
experience and knowledge if
they have been given
supervision or instruction
concerning use of appliance in a
safe way and understanding the
hazards involved - some parts
of this product can become hot
and cause burns. Children shall
not play with the appliance.
Cleaning and user maintenance
shall not be made by children
without supervision.
No isolating device may be
ttedbetweentheinletgroup
and the cold water inlet on
the cylinder, as by doing so
important safety devices
could be isolated!
The maintenance of this
appliance must be carried out
bysuitablequaliedperson
only. It is recommended to
maintain the unit on an annual
basis. Isolate all electrical
supplies from the unit before
commencing work.
Danger of electrical shock!
It is important to check the
pre-charge pressure of the
expansion vessel membrane
beforellingthecylinder.
This has been factory set to
3 bar. The pre-charge should
be greater than or equal to 3
bar.
2 Safety Information
1 Manual Warnings
i
!
It is important that the tundish
is positioned away from any
electrical components.
Means for electrical
disconnection must be
incorporatedinthexedwiring
in accordance with the wiring
rules.
Before removing the cover
from the immersion heater
isolate appliance using
isolating switch!
Danger of electrical shock!
Only use suitable electrically
insulated equipment when
working inside immersion
housing.
A high level cut-out is
ttedtotheproductforeach
heat source. This should
never activate under normal
operation.
!
!
!
i
Electrical Warnings
Indicates any hazard of an electrical
nature.
Information
Indicates tips and advice for the
smooth operation of the system.
General Warnings
Indicates a general warning against
actions which could result in
damage to the system or personal
injury to the installer and/or user.
Please leave manual with end user.
If an electronic copy of this manual should be
required, please contact the manufacturer at the
address at the back of this manual.
3 Introduction
Thank you for choosing this product. The
Quantumdirectelectriccylindersarespecied
with high quality, immersion heaters for fast
reheat times. They boast 60mm of low GWP
insulation foam, together with 100%
recyclable stainless steel inner components and a
sleek black, hard wearing outer shell
manufactured from completely recycled materials.
Note: This product has been designed
specicallyforthepurposeofdelivering
heated, domestic and sanitary hot water as
part of a pressurised water heating system.
Thepackageisprovidedwithttingsthat
comply with Section G3 of Building
Regulations.
Dimplex cannot take responsibility for ensuring
safe operation of the appliance outside of the
scope of intended use.
!
5
Scope of Delivery
125l 135l 150l 180l 210l 250l 300l
2 2 2 2 2 2 2
1/2”, 7bar/90°C
18 l
15mm/22mm
15mm/22mm
12 l 24 l
15mm/22mm
Terms and conditions x 1
Inlet control group consisting of:-
Expansion vessel with fixing kit and
connection hose
Tundish
Installation & User Instructions x 1
- in line strainer
- 3 bar PRV
- 6 bar ERV
- non-return valve
- balanced cold water supply port
Scope of delivery
T+P valve *
Cylinder volume
Cylinder with 3kW immersion *
1/2”, 7bar/90°C 1/2”, 7bar/90°C
- connection for expansion vessel
4 Scope of Delivery
Table 1: Scope of Delivery for Edel Water Heater
*Theseitemsaresuppliedfactorytted
5 Pre-Installation
Please read the following section carefully before
commencing installation. If in any doubt, please
call the appropriate help desk. Disregarding the
instructions given in this manual in its entirety
and any relevant regulations, standards and codes
of practice will void the guarantee of this product.
Handling – depending on the size of the unit and
access to its installation location,
consideration must be given to the handling of the
unit. Please note that handling, installation and
use of this product is subject to the Health and
Safety at Work Act. If the unit is not installed im-
mediately, it should remain in its protective pack-
aging with all pipe protectors/end caps
applied to prevent damage and dirt deposit inside
the cylinder.
Pipe Work – the pipe runs should be executed
as short as possible, unused pipe work should be
removed and all remaining pipe work should be
lagged in accordance with regulatory
requirements to prevent heat loss and the
formation of condensation.
Taps and Fittings–alltapsandttingsincorpo-
rated in the unvented system should have a rated
operating pressure of 0.6 MPa (6 bar) or above.
5.1 Risk Assessment
The compilation of a risk assessment is strongly
recommended before installing the product. The
following areas require particular consideration in
addition to the information required by the Health
and Safety at Work Act.
Scalding - where appropriate or required by law
athermostaticmixingvalveistobettedtothe
hot water outlet of the cylinder (see also water
borne organisms).
Explosion - the unit is fully equipped with all
relevant safety equipment to comply with current
regulations. The correct design and function has
beenveriedbyindependentthirdpartytesting.
The correct application thereof is the responsibility
of the installer.
Water Borne Organisms (i.e. Legionella) -
if applicable a risk assessment should be carried
out following the recommendations outlined in the
Approved Code of Practice L8.
The user preference must be considered when
commissioning the system, in particular when
adjusting the temperature and timer settings.
6
Pre-Installation
5.2 Siting Considerations
When choosing a suitable location for the cylinder
the following aspects should be considered:
- structural integrity
- access for installation, operation, maintenance
and replacement
- routing of discharge pipe work
- access to water mains supply, hot and cold
water distribution pipes
- access to suitable electricity supply
- location in relation to remaining system
components
- frost protection
The Quantum direct electric cylinders are
designedtobeoorstanding,verticallymounted,
indoors and in a frost free environment. The
cylindermaybelocatedonanyatandlevel
surface,provideditissufcientlyrobustto
support the weight of the cylinder when full of
water (please see technical data) and suitably
accessible for replacement/maintenance without
specialist tools or lifting equipment as this will
void the warranty conditions.
The position and orientation of the cylinder should
be such that easy access is provided for servicing
the controls. A minimum distance of 400mm in
front of the immersion is recommended, to allow
the replacement of the immersion heater should
the need arise. When installing the cylinder all
labels should be clearly visible and ensure that no
pipework hinders any work to be carried out on
the various cylinder components.
Particular care must be taken when placing the
cylinder in a garage or outbuilding. All exposed
pipe work must be correctly insulated to avoid
frost damage.
5.3 Cold Water Supply
For satisfactory and safe performance of the
unvented cylinder the water supply must meet the
following criteria:
Minimum dynamic
pressure
150 kPa (1.5 bar)
Maximum inlet
supply pressure
1200 kPa (12 bar)
Minimumowrate 15 l/min
Max. chlorine
content
250mg/L
Max. water hardness 200mg/L
The following instructions have to be followed
when installing the cold water mains supply to the
cylinder:
- The cold water supply to the cylinder must come
directly from the cold water mains after the
mains stop valve to the property.
- The cold water inlet pipe work should have at
least an inside diameter of 19mm and should
meet the requirements of the water regulations
for the supply of wholesome water.
We recommend an annual maintenance inspection
is carried out on the domestic hot water cylinder.
In hard water areas this should include inspec-
tion of the immersion heater, [above 120ppm
or 120mg/l]. A local water treatment company
should be able to offer free water quality testing.
The heating
elements may require periodic de-scaling. The
installer should do this as part of a maintenance
agreement.
If required, precautions can be taken to minimise
effects of water hardness, i.e. installation of a
water conditioner or water softener. These devic-
es should be installed in hard water areas where
high water storage temperatures are required, i.e.
greater than 60°C storage temperatures, par-
ticularly when water hardness exceeds 200ppm.
Should the water cylinder require de-scaling, this
mustbeperformedbyaqualiedtechnician.
5.4 Building Regulation G3 Discharge
Requirements
As part of the requirements of Building
Regulation G3 any discharge from an unvented
system should be conveyed to where it is visible,
but will not cause danger to persons in or about
the building. The tundish and the discharge pipes
shouldbettedinaccordancewiththe
requirements of Building Regulation approved
document G3, (England and Wales), Part P of
Northern Ireland and Standard 4.9 of Scotland.
5.4.1 Discharge Pipe D2
According to the Building Regulations the
discharge pipe (D2) from the Tundish should:
“have a vertical section of pipe at least 300mm
long below the tundish before any elbows or
bends in the pipework and be installed with a
continuous fall of at least 1 in 200 thereafter.”
The discharge pipe (D2) should be made of:
“metal; or other material that has been
demonstrated to be capable of safely withstanding
temperatures of the water discharged and is
clearly and permanently marked to identify the
product and performance standard”.
7
We strongly recommends the use of metal pipe-
work only and GDC Group Ltd does not take
responsibility for any damage caused from
discharges.
The discharge pipe D2 should be at least one pipe
size larger than the nominal outlet size of the
safety device unless its total equivalent
hydraulic resistance exceeds that of a straight
pipe 9m long, i.e. for discharge pipes between 9m
and 18m the equivalent resistance length should
be at least two sizes larger than the nominal
outlet size of the safety device; between 18 and
27m at least 3 sizes larger than the nominal outlet
size of the safety device; between 18 and 27m at
least 3 sizes larger, and so on; bends must be
takenintoaccountincalculatingtheow
resistance. See Figure 1, Table 2 and the worked
example.
Note: An alternative approach for sizing
discharge pipes would be to follow Annex D,
section D.2 of BS 6700:2006 + A1:2009).
Trapped
gully
Fixed
grating
Discharge below
fixed grating
tundish
Metal discharge pipe (D1) from
temperature relief valve to tundish
Metal discharge pipe (D2) from tundish,
with continuous fall. See Table and
worked example
300mm
minimum
600mm maximum
Safety device
(eg. temperature
relief valve)
Figure 1: Typical Discharge Arrangement
Valve Outlet
Size [-]
Minimum size of discharge
pipe before tundish [mm]
Minimum size of discharge
pipe aer tundish [mm]
Maximum allowed length of
pipe aer tundish [mm]
Length to be substracted for
each elbow or bend [m]
22 9 0.8
28 18 1.0
35 27 1.4
28 9 1.0
35 18 1.4
42 27 1.7
35 9 1.4
42 18 1.7
54 27 2.3
15
22
28
G1/2
G3/4
G1/2
Table 2: Sizing of copper discharge pipe “D2”
for common temperature relief valve outlet sizes
Pre-Installation
This example is for a G½ temperature relief valve
withadischargepipe(D2)(asttedon125Lto
300L cylinders) having 4 No. 22mm elbows and
length of 7m from the tundish to the point of
discharge.
From Table 2, the maximum resistance allowed for
a straight length of 22mm copper discharge pipe
(D2) from a G½ temperature relief valve is 9.0m.
Subtract the resistance for 4 No. 22mm elbows at
0.8m each = 3.2m.
Therefore the maximum permitted length equates
to 5.8m, which is less than the actual length of
7m, therefore calculate the next largest size.
Maximum resistance allowed for a straight length
of 28mm copper discharge pipe (D2) from a G½
temperature relief valve equates to 18m.
Subtract the resistance for 4 No. 28m.m elbows at
1.0m each = 4m. Therefore the maximum
permitted length equates to 14m.
As the actual length is 7m, a 28mm (D2) copper
pipe will be satisfactory.
Notes:
1.) Where a single common discharge pipe
serves more than one system, it should
be at least one pipe size larger than the
largest individual discharge pipe (D2) to
be connected.
2.) The discharge pipe should not be
connected to a soil discharge stack
unless the soil discharge stack is
capable of safely withstanding
temperatures of the water discharged,
in which case, it should:
- contain a mechanical seal, which
allows water into the branch pipe
without allowing foul air from the
drain to be ventilated through the
tundish.
- there should be a separate branch
pipe with no sanitary appliances
connected to it.
- if plastic pipes are used as branch
pipes carrying discharge from a
safety device, they should be either
polybutalene (PB) or cross-linked
polyethylene (PE-X) complying with
national standards.
- be continuously marked with a
warning that no sanitary appliances
should be connected to the pipe.
5.4.2 Worked Example
8
Installation
The Building Regulations state that “The discharge
pipe (D2) from the tundish should terminate in a
safe place where there is no risk to persons in the
vicinity of the discharge.”
Examples of acceptable discharge arrangements
are:
- “to a trapped gully with the end of the pipe
belowaxedgratingandabovethewaterseal;
- downward discharges at low level; i.e. up to
100mm above external surfaces such as car
parks, hard standings, grassed areas etc. are
acceptable providing that a wire cage or similar
guard is positioned to prevent contact, whilst
maintaining visibility; and,
- discharges at high level: e.g. into a metal
hopper and metal downpipe with the end of the
discharge pipe clearly visible or onto a roof
capable of withstanding high temperature
discharges of water and 3m from any plastic
guttering system that would collect such
discharges.”
Note: As the discharge would consist of high
temperature water and steam, asphalt,
roongfeltandnon-metallicrainwatergoods
may be damaged by such discharges.
5.4.3 Termination of Discharge Pipe
5.5 Limitations
Due to the operating temperatures of direct
electric cylinders the water hardness can
considerablyinuencethelongevityofthe
immersion heater element. Please consult local
water board for advice on maintenance intervals.
5.6 Product Disposal
This product has been manufactured from
mostly recyclable materials. At the end of
the product’s life, it should be disposed of
at a Local Authority Recycling Centre.
Materials:
• Inner Cylinder - Duplex Stainless Steel
• Outer Cladding - Black HIPS/ABS
• Inlet/Outlet Pipe - Stainless Steel
• Coils - Corrugated Stainless Steel
• Insulation - 60mm PU Foam (GWP =1, ODP =0)
• T&P Valve - Brass & LDPE
• Immersion Heater - Incoloy and brass
• Tundish - LDPE
6 Installation
Install the cylinder in an appropriate location,
ensuring all of the recommendations have been
considered (see chapter 5.2).
6.1 Cold Water Inlet with Inlet Group
6.1.1 Correctly Site the Cylinder
The inlet group regulates the pressure of the
incoming mains water supply to the cylinder and
removes any debris that might be water borne.
Between the inlet group and the cold
water inlet on the cylinder NO isolating
devicemaybetted,asbydoingso
important safety devices could be isolated!
6.1.2 Install the Inlet Group
The expansion vessel is mandatory on all
Quantum cylinders and can be connected directly
tothecoldwaterinletgroup,utilisingtheexible
hose supplied with the vessel. The expansion
vesselshouldalwaysbettedinaccordancewith
the manufacturer’s instructions. No isolating
devicemustbettedbetweenthewatercylinder
and the cold water inlet group. Furthermore, it is
recommended to mount the vessel higher than
the cylinder to avoid having to drain the cylinder
when maintaining and replacing the expansion
vessel.
6.1.3 Expansion Vessel
Figure 2: Connection of the expansion vessel
to the inlet group
It is important to check the pre-charge pressure
oftheexpansionvesselmembranebeforelling
the cylinder. This has been factory set to 3 bar.
The pre-charge should be greater than or equal to
3bar.
Note: The expansion vessel must be installed
to the side of the expansion relief valve on
the inlet group. To do this, the blanking plug
must be removed and the expansion vessel
connected, as shown in Figure 3.
9
Installation
Cold water
from Mains
Balanced Cold
Water Supply
Expansion Vessel
Connection
Cold Water Inlet
Expansion Relief
Valve
Figure 3: Detail Showing the Connection of the
Expansion Vessel to the Inlet Group
If a balanced cold water supply is required a
connection can be taken from the bottom of the
inlet group.
6.1.4 Balanced Cold Water Supply
It is also recommended to install a drain valve
(not supplied) in the lowest point of the cold water
feed to the cylinder. This allows the cylinder to be
drained in a controlled manner should this become
necessary.
6.1.5 Drain Valve
6.2 Hot Water Outlet
The hot water pipe work is to be directly
connected to the hot water outlet connection on
the cylinder.
A thermostatic mixing valve may be required to
limit the outlet temperature. In this case, the
valve should be installed following the
manufacturer’s instructions, ensuring none of the
safety equipment has been isolated, (i.e. make
sure the connection to the thermostatic mixing
valve is taken after the safety equipment of the
inlet group).
6.2.1 Thermostatic Mixing Valve
It is recommended to insulate the hot water pipe
work from the cylinder to the outlets, to reduce
the energy requirements for providing hot water.
It is also recommended to insulate all other
exposed pipework, such as the T&P to the tundish,
thecoilowandreturnandthecoldwaterinlet
pipes.
6.2.2 Pipe Insulation
6.3 Discharge Pipes from Safety Devices
The temperature and pressure relief valve must
be discharged directly or by way of a manifold via
a short length of metal pipe (D1) into a tundish;
and the discharge pipe must be installed in a
continuously downward direction and in a frost
free environment. Water may drip from the
discharge pipe of the pressure relief device and
this pipe must be left open to the atmosphere.
The diameter of discharge pipe (D1) should not be
less than the nominal outlet size of the safety
device, e.g. temperature relief valve.
Where a manifold is used it should be sized to
accept and discharge the total discharge from all
the D1 discharge pipes connected to it.
The discharge pipe work from the expansion relief
valve must be installed constantly falling to an
open point of discharge. It is recommended to
combine it with the discharge of the temperature
and pressure relief valve.
Note: The T&P valve is pre-sealed and if
moved the seal will be broken, should this
occur, it will need to be resealed with an
appropriate sealant (see Figure 13)
6.3.1 Discharge Pipe D1
The tundish should be vertical, located in the
same space as the unvented hot water storage
systemandbettedascloseaspossibleto,and
lower than, the safety device, with no more than
600mm of pipe between the valve outlet and the
tundish.
Discharge should be visible at the tundish, where
discharges may not be apparent, e.g. in dwellings
occupied by people with impaired vision or
mobility, consideration should be given to the
installation of a suitable safety device to warn
when discharge takes place, e.g. electronically
operated.
Note: To comply with the Water Supply
(Water Fittings) Regulations, the tundish
should incorporate a suitable air gap.
6.3.3 Tundish
For a detailed description of the discharge pipe-
work D2 see chapter 6.3.1.
6.3.2 Discharge Pipe D2
It is important that the tundish is positioned away
from any electrical components.
10
Installation
6.4 Immersion Heaters
The main immersion heater and boost immersion
heater supplied with this cylinder come pre-wired.
A supply cable shall be connected to the unit
through the entry in the electrical enclosure, at
the bottom of the cylinder. Details are given on
how to do this in section 6.5 of this manual. The
electrical wiring diagram for the product is shown
in Figure 8.
The immersion heater incorporates an
independent non self-resetting over temperature
cut-out. Should the over temperature cut-out
operate, the reset pin will be pushed upwards,
and become level or slightly proud of the cover
at the position marked “Safety”, and the water in
the cylinder will fail to heat. This denotes a fault
somewhere in the system and an appropriate
investigation shall be carried out before the
cut-out is reset. Use a suitable sized implement
to reset the pin by pushing it hard into its original
position.
Should it be necessary to remove the
thermostat from the immersion
element, ensure that the contacts are
re-ttedcorrectlyintothepositionson
the element. Failure to do so carries
the risk of overheating the contacts
and thus damaging the appliance.
The immersion heater thermostat must not be
opened under any circumstances.
Figure 4: Correct Operation of Immersion Heater
Thecylindermustbelledwith
water before switching on the
immersion heater. Failure to do so
will damage the element and void any
guarantee on the product.
6.5.1 Access Connections
To access the electrical connection panel, remove
the enclosure hood by removing the retaining
screws on the sides, as shown in Figure 5. Please
take care when removing the hood, as it is
connected to the cylinder via an earth cable and
a cable to the UI. The water cylinder requires two
supply cables. Where an off-peak supply circuit is
available this can be used and connected to the
‘switched’ supply connections marked on the
terminal block. Where only one wiring circuit is
available two supplies from this circuit are
required. Both supplies must be connected
through a separate double pole isolating switch
which must have a contact separation of at least
3mm in all poles. The cables shall be connected to
the unit through the entry in the electrical
enclosure, at the bottom of the cylinder and
should be connected to the cylinder as shown in
Figure 6.
The cables should be cable-tied securely to the
strain relief provided and if required cable-tied to
the existing cabling on the right-hand side.
The protective tape should be removed from the
contact area between the hood and the cylinder
cladding before commissioning as per Figure 6.
Figure 5: Retaining Screw Positions
6.5 Electrical Connection
The water cylinder has to be connected in
accordance with IEE Wiring Regulations and the
installer carrying out the work has to be suitably
qualied.Beforeconnectingthecylinder,verify
that all the wiring connections on each of the
elements and thermostats have been installed
correctly, that they are secure and that none of
the wires are damaged.
The electrical installation of this cylinder can be
set-up for permanent supply or switched supply
(peak and off-peak). For information on how to
correctly wire either set-up please see Figures 7
or 8 in Section 6.5.2.
Remove protective tape before
commossioning.
The two supply cables must be
fed through the bottom of the
enclosure.
Cable ties [supplied] must be
used to secure the supply
cables into position along the
cable clamp
Figure 6: Supply Cable Anchorage
!
!
11
Installation
B
1
B
2
L
N
N
L
E
Boost Switch
Permanent Supply [Peak Supply]
Switched Switch [Off Peak Supply]
Switched Supply
[Off Peak Supply]
Permanent Supply
[Peak Supply]
16A MCB
16A MCB
Kitchen
Airing Cupboard
Note:
The Boost connections must be connected in series with a toggle switch which allows the external boost function to be utilised.
The external boost connection on the Quantum cylinder is a contact wire which must not be connected to the mains power supply.
If an electronic timer switch from a previous installation is in place it must be replaced with a single pole toggle switch which is
wired from the B1 and B2 connections as shown in Figure 7.
The water temperature required from the boost function can then be set from the UI and the boost element will automatically turn
off once this temperature is achieved in 55 litres of the water stored.
When connected to a permanent supply, the charge period must be programmed on the cylinder user interface, see Section 7.
Figure 7: Off Peak Wiring Conguration
B
1
B
2
Boost Switch
N
L
E
Permanent Supply [Peak Supply]
Permanent Supply/
Peak Supply
16A MCB
Boost Switch
Kitchen
Airing Cupboard
Figure 8: Energised or Always On Wiring Conguration
6.5.2 Wiring Congurations
12
Installation
A
B
A
B
Boost
Immersion
Primary
Immersion
X1 - Earth
X1 - Earth
X1 - Earth
3 Core UI cable
NTC 1
NTC 4
NTC 3
NTC 2
Figure 9: Wiring Schematic
13
Commissioning
6.6 Connection of Secondary Return
For cylinders that do not have a dedicated
secondary return connection, it is possible to
install a secondary return by connecting a swept -
T to the cold water inlet of the cylinder (see Figure
10).
The secondary return pipe should incorporate
a check valve and a WRAS approved circula-
tion pump; timer and thermostat to be provided
separately. Where secondary return circuits are
used, then an additional expansion vessel may be
required.
The secondary return loop must avoid:
- stagnant water in long pipe runs
- long waiting times at draw off point for hot water
- undue water wastage
To minimise the energy consumption of the sec-
ondary return circuit and to ensure reliable opera-
tion it is important to consider:
- the control of the circulation pump to be time
and temperature controlled
- the secondary return circuit pipe work to be
insulated
- the secondary return pump to be of suitable
materialandspecication
HW Outlet
To Taps
From Taps
Swept-T
Figure 10: Secondary Return Loop
7 Commissioning
At the time of commissioning, complete all
relevant sections of the Benchmark Checklist
located on the inside back pages of this
document.
The following commissioning procedures only
detail the required steps to be taken for the
potable water loop:
1) Before making any mains connections to
theinletcontrolgroup,ushthemains
pipework out
to ensure all debris has been removed so
as not to damage the strainer within the
combination valve.
2) Makenalmainsconnectionon
combination valve and check all
connections and joints to ensure they have
been tightened and secured correctly.
3) Before turning on the mains supply to the
cylinder a hot water tap should be opened,
preferablyonthesameoorortheoor
below where the cylinder is located.
4) Check the pre-charge in the expansion
vessel and ensure it is at least 3 bar. Note
actual pressure on label on expansion
vessel.
5) Turnonthesupplytothecylinderandll
until water runs from the open hot water
tap.Continuetoushthesystemuntilall
debris has been removed.
6) Close the hot water tap.
7) Check all joints for leaks, even those not
having been altered especially when
replacing a vented cylinder.
8) Open temperature and pressure relief valve
to ensure proper discharge and check after
closing that valve is not dripping.
9) Open expansion relief valve to ensure
proper discharge and check after closing
that valve is not dripping.
10) Check all shower outlets, toilet cisterns and
other draw off points for leaks or dripping
(especially when replacing a vented unit).
Open all water outlets to purge air from
pipe work and ensure proper operation.
11) Instruct user in the operation of the unit
and hand over this manual advising the
owner of annual service requirements.
12) Complete the technical data label on the
cylinder with legible and permanent
writing.
14
Commissioning
7.1 Verify Electronic Operation
After the plumbing of the cylinder has been fully
commissioned and the appliance connected to a
suitable electrical supply, the electrical supply to
the unit can be turned on.
The user interface should power up and a battery
symbol and temperature should be visible on the
display screen.
The user interface consists of the following
components as shown:
Figure 11: User Interface
1. Display Screen
2. “Menu” Button
3. “Back” Button
4. “Advance” Button
5. “Selector Dial”
1
3
44
45
2
7.2 Initialise System Settings and
Communications
The system settings of the cylinder can now be
veried,andorchanged.Toaccesstheservice
menu of the appliance the back button, menu
button and selector dial, should be pressed for 10
seconds.
- Enter the service menu.
- Ensure that reset is highlighted, and press the
selector dial.
- Select using the selector dial if you want to reset
the temperature log, the energy log or the full
system to the factory defaults. Once the required
option is highlighted press and hold the selector
dial for 5 seconds (see Figure 12 for how to
access the reset function).
7.2.6 Reset
- Enter the service menu.
- Rotate the dial to select hygiene and press the
dial to select
- Hygiene mode can be set to either Daily, Weekly,
Monthly or Off temperature for hygiene mode
operation can then be set between a range of
60-68˚C(seeFigure12forhowtoaccessthe
hygiene function).
7.2.2 Set Hygiene Mode
The water can be controlled by the utility via the
RF module installed. Where this communication
mode is not available the unit can be operated
in standalone mode (i.e. when communications
with the utility are cut off, the cylinder operates in
standalone mode). In this mode the heater tries
to achieve 60°C at T1 and tries to maintain this
throughout the day. The communications of the
appliance can be changed as shown in Figure 12.
7.2.3 Set Communication Mode
The water can be controlled by the utility via the
RF module installed. Where this communication
mode is not available the unit can be operated
in standalone mode (i.e. when communications
with the utility are cut off, the cylinder operates in
standalone mode). In this mode the heater tries
to achieve 60°C at T1 and tries to maintain this
throughout the day. The communications of the
appliance can be changed as shown in Figure 12.
7.2.4 Set Cylinder Size
Calibration of the Real Time Clock is performed on
initial commissioning and should not be required
by the user unless changes are required to the
electronic components on the cylinder.
7.2.5 RTC Calibration
- Enter the service menu.
- Rotate the dial to select tariff and press the dial
to select.
- The tariff can be set to either Off-peak or Timed.
- Off Peak tariff heats the cylinder using the
bottom immersion heater to the primary
set-point whenever an off peak power supply is
available. Section Figure 7 for wiring
conguration.
- Timed tariff requires that time period is set
during which the cylinder will be heated to the
primary temperature set-point. This heat up or
charge period on the cylinder to be aligned with
any low cost energy tariff available. See Figure 8
forwiringconguration.
7.2.1 Set Tariff
7.3 ConrmationofOperation
Operationofthecylindershallbeconrmedwith
a cold tank, use a current tester or verify that the
outlet pipe feels warm within 1hr of start-up.
Note: This should only be attempted if the
insulation may be disturbed slightly without
damage.
15
Maintenance
Hygiene
-
+
Daily
60°C
Daily/Weekly/Monthly/
OFF
60 … 65
-
+
Reset
Temp
Temp/Counter/
Energy/Factory
-
+
-
+
RF Module
0504030201
Disable
Enable
Push knob and
hold for 5 seconds
to reset
-
+
Service
Reset
Hygiene
RF Module
Cylinder
Tariff
-
+
-
+
-
+
Cylinder
Size
125
125/135 Slim/150
180 Slim/210/250/300
-
+
Tariff
Off Peak
Timed
-
+
Tariff
Off Peak
Timed
Off Peak
Time Period
ON 23:00
OFF 07:00
-
+
RTC Calibrate
Service
Reset
Hygiene
RF Module
Cylinder
Tariff
RTC Calibrate
Service
Reset
Hygiene
RF Module
Cylinder
Tariff
RTC Calibrate
Service
Reset
Hygiene
RF Module
Cylinder
Tariff
RTC Calibrate
Service
Reset
Hygiene
RF Module
Cylinder
Tariff
RTC Calibrate
Service
Reset
Hygiene
RF Module
Cylinder
Tariff
RTC Calibrate
-
+
Calibrate RTC
Oscillator
Cal Byte: 05
No
Yes
-
+
-
+
Selected
Hygiene
Daily
60°C
Menu
Menu
Back
Back
-
+
&
&
10s
Figure 12: Service Menu for Factory Reset and Communications Set Up
8 Maintenance
After servicing, complete the relevant Service
Record section of the Benchmark Checklist
located on the inside back pages of this
document. To meet with warranty requirements
the cylinder must be serviced annually.
The maintenance of this appliance must be car-
riedoutbyasuitablyqualiedpersononly.Itis
recommended to maintain the unit on an annual
basis. Isolate all
electrical supplies from the unit before
commencing work.
1) Draw some water from cold water tap and
retain in container.
2) Isolate cold water mains supply from
cylinder.
3) Brieyopentemperatureandpressure
relief valve, assure safe discharge and
check that valve is not dripping when
closed.
4) Brieyopenexpansionreliefvalve,assure
safe discharge and check that valve is not
dripping when closed. The expansion relief
valve should be operated regularly to
remove lime deposits and to verify that it
is not blocked.
5) Open hot water tap and release remaining
pressure from unit.
6) If the system is drained completely for
an internal inspection, ensure the hot
water tap remains open, connect a hose to
the drain valve and ensure a safe
discharge.
7) Note the set pressure of the pressure
reducing valve. Remove cartridge and
clean strainer in water provided in
container. Re-assemble pressure reducing
valve ensuring the correct pressure is set.
8) Periodically the immersion heaters should
beremovedcleanedandtheunitushed
out. Check the O-ring seal for damage and
replace if necessary.
9) Check electrical wiring connections and the
condition of the cable of the immersion
heater and the thermostat.
10) The immersion heater boss can also be
used for access to view the internal
components of the cylinder.
11) Re-commission unit (see chapter 7).
16
Maintenance
Note: If the cylinder has not been used in
excess of 1 month then it must be drained
down by a competent person and
recommissioned before use. The immersion
must be switched off at the mains before
draining the cylinder.
If replacement parts are required, please see
Figure 13 for part description and part numbers.
Waste electrical products should not
be disposed of with household waste.
Please recycle where facilities exist.
Check with your Local Authority or
retailer for recycling advice.
17
Spare Parts
Part No
22mm x 3bar Inlet control group R00041-1
Inlet control group PRV cartridge R00009-1
12 litre expansion vessel R00044-2
18 litre expansion vessel R00045-2
24 litre expansion vessel R00046-2
Expansion vessel fixing kit R00094-2
DN16 3/4" BSP x 1000 flex pipe R00095-1
1/2" BSP T&P valve R00020-1
15 x 22 straight PE tundish R00047-1
1 3/4" BSP 3kW Incoloy Imm &HLStat R02888-2
Quantum ECU Asm R02702-3
Quantum Sensor Triac Asm R02728-2
Quantum Cyl UI R02710-2
QWCd125 Hood R02936-3
QWCd150 Hood R02937-3
QWCd210 Hood R02938-3
QWCd250 Hood R02939-3
QWCd300 Hood R02940-3
Enclosure Top Asm R03728-1
Enclosure Bottom Asm R03731-1
Thread sealant R00836-1
Quantum direct electric cylinder installation &
User Instructions manual
R02889-10
Description
9 Spare Parts
Figure 13: Replacement Part Numbers for Quantum Electric Range of Cylinders
18
Technical Data and Product Fiche
10 Technical Data and Product Fiche
50
B
635
o
A
C
D
E
Figure 14: Quantum Direct Electric Cylinder and Top-Views (For Reference Only)
35
B
540
o
35
o
Quantum Slimline Cylinders
Quantum Cylinders
19
Technical Data and Product Fiche
GDC Group
Ltd
Quantum Direct Electric Cylinder Range - Product Fiche
Reference
QWCd125-
580
QWCd135-
480
QWCd150-
580
QWCd180-
480
QWCd210-
580
QWCd250-
580
QWCd300-
580
LoadProle-
Primary
M M M M M L L
Energy
Rating
C D C D C C C
Energy
Efciency
36% 35.1% 37% 35.1% 36% 37% 37%
Annual
Energy
Consumption
[kWh]
1411 1411 1389 1460 1435 2739 2774
LoadProle-
Secondary
- - - - - M M
Set Temper-
ature
60°C 60°C 60°C 60°C 60°C 60°C 60°C
Sound Level
[dB]
15dB 15dB 15dB 15dB 15dB 15dB 15dB
Operating
Mode
Off Peak Off Peak Off Peak Off Peak Off Peak Off Peak Off Peak
V-40
[litres]
204 214 242 303 355 415 490
Table 4: Quantum Electric Cylinder Product Fiche
Quantum Direct Electric Cylinder Range - Dimensions
Reference
QWCd125-
580
QWCd135-
480
QWCd150-
580
QWCd180-
480
QWCd210-
580
QWCd250-
580
QWCd300-
580
Weight [kg] 24 22 27 30 34 42 48
Reheat Time
[mins]*
122 132 150 175 218 284 313
Heat Loss
[kWh/24h]
0.95 1.35 1.10 1.68 1.41 1.51 1.96
Height [mm] A 945 1387 1115 1761 1490 1765 2065
Outer Diameter
[mm]
B 580 480 580 480 580 580 580
HW Outlet
[mm]
C 720 1180 890 1555 1265 1540 1840
T&P Valve
[mm]
D 720 1180 890 1555 1265 1540 1840
CW Inlet [mm] E 180 170 180 170 180 180 180
Table 3: Quantum Electric Cylinder Dimensions
Note: All measurements are taken from the base of the cylinder to the mid-point on the item.
* Determined in accordance with EN160335-2-21.
20
Technical Data and Product Fiche
Quantum Direct Electric Cylinder Range - Product Features
Materials
Inner cylinder Duplex stainless steel LDX2101
Outer cylinder HIPS
Inlet/outlet Stainless steel
Insulation 60mm PU foam (GWP=1, ODP=0)
Maximum Operating Conditions
Potable water temperature 70°C
Operating pressure 3 bar
Maximum design pressure 6 bar
Cold Water Supply
Minimum dynamic pressure 1.5 bar
Maximum pressure 12 bar
Minimumowrate 15 l/min
Connections
Cold water inlet 22mm stainless steel
Hot water outlet 22mm stainless steel
Immersion Heater
1 3/4 F BSP 3kW
Thermostatic Control
Direct Input Integral immersion heater thermostat and cut out
Safety Components
Pressure reducing valve and
strainer
3 bar
Expansion relief valve 6 bar
Temperature and pressure
relief valve
7 bar/90°C
Factory pressure test 12 bar
Other Features
Over 60% in volume from recycled material, not including insulation
Surface mounted sensor devices for compatibility and ease of maintenance
Approvals
KIWA approval number - 1112719
Guarantee
Inner cylinder 25 years
Immersion heaters
2 years - excluding the effects of lime scale or other water borne
contaminants
Other components 2 years - excluding expansion vessel membrane pressure
Table 5: Quantum Direct Electric Product Fiche and Features
21
User Instructions
Please read the following statements
carefully as it affects your warranty.
Please ensure that the installer has fully
completed the Benchmark Checklist on the inside
back pages of this document and that you have
signed it to say that you have received a full and
clear explanation of its operation. The installer
is legally required to complete a commissioning
checklist as a means of complying with the
appropriate Building Regulations Part G3 (England
and Wales), Part P of Northern Ireland and Section
6 of Scotland.
AllinstallationsmustbenotiedtoLocalArea
Building Control either directly or through a
Competent Persons Scheme. A Building
RegulationsComplianceCerticatewillthenbe
issued to the customer who should, on receipt,
writetheNoticationNumberontheBenchmark
Checklist.
This product should be serviced annually to
optimiseitssafety,efciencyandperformance.
The service engineer should complete the relevant
Service Record on the Benchmark Checklist after
each service.
The Benchmark Checklist will be required in the
event of any warranty work.
The permanent supply to the cylinder must be
maintained at all times. The cylinder will ensure
that heating only occurs during off-peak
periods. If hot water is not required for a number
of days Holiday mode should be activated. Fail-
ure to maintain the permanent supply can lead to
cylinder malfunction.
11 User Instructions
11.1 General
The hot water temperature can be set to various
requirements. It is recommended to set the hot
water temperature to between 45°C and 55°C.
Higher temperatures can introduce more heat loss
from the unit and increase the risk of scalding
signicantly.Athermostaticmixingvalveshould
be considered.
Whenturningonahottapforthersttimeafter
a heat up period there might be a short surge of
water. This is normal in unvented systems and
does not constitute a fault. Sometimes the water
mayappearmilky–thisisduetoveryneair
bubbles in the water which will clear quickly.
11.2 Operation
The user interface consists of the following
components as shown in Figure 15.
1. Display Screen
2. “Menu” Button
3. “Back” Button
4.”Advance” Button
5. “Selector Dial”
11.2.1 User Interface
1
3
44
45
2
Figure 15: User Interface
Access to the main menu is by pressing the menu
button on the User interface (labelled 2 in Figure
15).
The following parameters can then be set and
changed by the user:
- setting of date and time, primary and boost
immersion heater set temperature (see
Figure 17)
- setting of functions (see Figure 20)
- display settings (see Figure 18)
The Home screen displays live information on the
current status of the hot water cylinder.
1. Current outlet water temperature
2. Charge status of the cylinder section.
E.g. shaded when the temperature is greater
than or equal to 40°C.
3. Software version on the Charge Controller and
User Interface.
The colour of the display will turn red once 48 °C
is exceeded.
Above this temperature is generally considered
to be unsafe and could cause a serious scald. The
usershouldalwaysrunthecoldtaprstwhen
llingabathandtestthewaterbeforegettinginto
a bath or shower. The recommended temperature
for bathing is 37°C.
11.2.2 Home Screen
25°C
Quantum
UI:51 CC:45
25°C
Quantum
Figure 16:Home Screen
22
User Instructions
To adjust the time or date, follow the steps below:
- Press the Menu Button
- Select Time/Temp by pressing the control dial
- Rotate the dial to select Set and press the dial to
select
- Press the dial to select Set Date/Time
- Rotate the dial to select the correct day and
press the dial to select
- Rotate the dial to select the correct month and
year and press to select
- Rotate the dial to select the correct time and
press to select
11.2.3 Setting the Date and Time
This is accessed from the Home screen and will be
active until the boost temperature is achieved:
- press the advance button to activate
- press the advance button again to de-activate
(see Figure 19)
11.2.5 Activate and De-Activate the
Boost Immersion
The Quantum cylinder also provides information
about the hot water stored. Information is
provided on the current status of the cylinder as
well as some historical data. This information is
accessed by pressing the selector dial for 3
seconds to display the user information menu;
three choices are available:
1. Temperature – Displays the current, minimum
and maximum temperatures recorded by the
four temperature sensors
2. Energy
i. Current – Displays current energy
consumption by the immersion heater,
storage capacity is the remaining storage
capacity in the cylinder at that moment of
time and the available hot water volume
relating to the set temperature (stored
now). Should the temperature be higher
than the set temperature, then the mixed
water volume to the set temperature is
stated.
11.2.6 Accessing Energy and
Temperature Information
To access and select Holiday Mode or No Control,
follow the steps below:
- Press the menu button
- Rotate the dial to select Timer Mode and press
the dial to select
- Rotate the dial to select one of Holiday or No
Control and press the dial to select
- Set the desired timer conditions and press the
dialtoconrm
Holiday mode disables all heating during the
selected holiday period. The holiday period
consists of the remainder of the current day plus
the number of holidays selected in the timer mode
menu.
When in No Control the cylinder heats up to the
primary setpoint temperature when the supply is
active (off peak) or during the selected off peak
tariff window (timed) as selected in the tariff
menu, see section 7.2.1.
11.2.7 Accessing and Setting Functions
Setting the temperature is under the same menu
as the date and time:
- Press the Menu Button
- Select Date/Time/Temp by pressing the control
dial
- Rotate the dial to select Set and press the dial to
select
- Rotate the dial to select Set Temp and press the
dial to select
- Press the dial to select Primary Temp to set the
primary immersion temperature or rotate the
dial to Boost Temp and press the dial to select
the Boost temperature set point
11.2.4 Setting the Primary and Boost
Immersion Heater Temperature
ii. History – gives the energy consumption
in kWh available for day -1, week-1,
month-1, and the total energy that the unit
has consumed since it has been installed.
The colour of the display will turn red once 48 °C
is exceeded.
Above this temperature is generally considered
to be unsafe and could cause a serious scald. The
usershouldalwaysrunthecoldtaprstwhen
llingabathandtestthewaterbeforegettinginto
a bath or shower. The recommended temperature
for bathing is 37°C.
3. Counter - Displays the total number of hours
logged utilising the boost function.
12 Maintenance
The maintenance of this appliance must be carried
outbysuitablequaliedpersononly.Itis
recommended to maintain the unit on an annual
basis. Isolate all electrical supplies from the unit
before commencing work. Danger of electrical
shock! See Section 7.
The Immersion Heater thermostat should not be
removed from the immersion heater body.
Clean outer cladding of cylinder with a soft cloth
dampened with warm water only. Do not use
abrasive or aggressive cleaning materials, such as
alcohol or petroleum based solvents, as this may
damage the surface of the product.
23
User Instructions
Main Menu
Time/Temp
Function
Display
-
+
Set Time
Set Temp
THU
2014/01/01
08:46
SUN/MON/TUE/
WED/THU/FRI/SAT
1-31,01-12,2012-2050
00-24,00-12,00-59,AM/PM
-
+
Date/Time
-
+
Set Time
Set Temp
Primary
-
+
Set Temp
Boost
-
+
Primary
Temperature
60°C
25 … 75 °
C
-
+
Primary
Set Temp
Boost
-
+
Boost
Temperature
60°C
Time/Temp Time/Temp
Start by pressing Menu button to
access the main menu
55
°
C
Quantum
Figure 17: How to Set the Current Date, Time, Primary and Boost Temperature Set Point
24
User Instructions
Main Menu
Time/Temp
Function
Display
Main Menu
Time/Temp
Function
Display
Main Menu
Time/Temp
Function
Display
-
+
-
+
Display
Contrast
Brightness
-
+
Adjust
Contrast
50
Rotate knob
to adjust
-
+
%
-
+
Display
Contrast
Brightness
Adjust
Brightness
100%
Rotate knob
to adjust
-
+
-
+
-
+
Start by pressing Menu button to
access the main menu
Advance
55
°
C
55°C
Boost
Quantum Quantum
Figure 18: How to Adjust the Display Settings of the User Interface
Figure 19: How to Activate and De-Activate the Boost Immersion Heater
25
User Instructions
Main Menu
Time/Temp
Function
Display
Main Menu
Time/Temp
Function
Display
-
+
-
+
Function
No Control
Holiday
-
+
-
+
Function
-
+
Selected
No Control
Holiday
Active Days
14
1 … 180
Holiday
-
+
No Control
Holiday
Selected
Figure 20: How to Set Functions
26
User Instructions
User Info
Temperature
Energy
Energy
Counter
Boost
0 h 0 m
Current
History
Current
Capacity
-
+
-
+
Energy
Current
History
Consumption
3000 W
History
-
+
Day -1
Day-1/Week
Month
-
+
Temperature
T4 = 60
°
C
T3 = 60
°
C
T2 = 50
°
C
T1 = 15
°
C
Current
Current/Min/Max
Counter
User Info
Temperature
Energy
-
+
Counter
-
+
User Info
Temperature
Energy
Counter
-
+
-
+
Figure 21: How to Access the System Information on the User Interface
27
Troubleshooting
Fault Cause Solution
A No water from hot
water taps
A.1 Stop valve closed
A.2 Strainer blocked
A.3 Pressure reducing valve
ttedagainstow
A.1 Open stop valve
A.2 Turn water supply off, clean
strainer and re-commission
A.3Re-twitharrowshowingin
directionofow
B Intermittent water
discharge through
tundish on warm-up
B.1 Expansion vessel lost
charge
B.1 Check expansion vessel (see
commissioning/maintenance),
top-up or replace
C Continuous discharge
C.1 Pressure reducing valve
not working
C.2 Pressure relief or T&P
valve not seating
correctly
C.3 Malfunction of high limit
thermostat or appliance
C.1 Check pressure after valve and
replace if faulty
C.2 Manually lift valve once or twice to
clear debris, otherwise replace
C.3 Check function of thermostats
and appliances
D Leakage from casing
D.1 Compression/threaded
joints not formed
correctly
D.1 Re-seal joints with care
E Hot water from cold tap
E.1 Hot pipe work being
routed adjacent to cold
pipe work.
E.2 Leaking seal in mixer tap
E.1 Insulate hot pipe work or re-route
E.2 Replace seals in mixer tap
F Metallic noise from
system
F.1Pipeworknotsufciently
supported
F.1Addextrapipeworkxings
G Humming noise from
system during re-heat
G.1 Air in system
G.2 Flow rate well in excess
ofspecication
G.1 Bleed system thoroughly and
re-pressurise
G.2 Reduce pump speed
H Cylinder not charging
H.1 Power supply turned off
H.2 Tariff not set correctly
H.3 Temperature set-point
not set correctly
H.4 Direct heating
malfunction
H.5 Direct heating high limit
thermostat has tripped
H.1 Ensure both power supplies are
turned on
H.2 Set tariff correctly (Section 7.2.6)
H.3 Set Primary Set-point
(Section 11.2.5)
H.4Callforqualiedpersontocheck
immersion heater
H.5 Reset limit thermostat(s) and
inform installer
I The water in the
cylinder is too hot
1.1 Primary/Boost
temperature set point is
too high
I.2 Hygiene mode overriding
primary set-point
I.3 Temperature sensors
faulty or not installed
correctly
1.1 Check/Adjust the primary and
boost temperature set-points
(Section 11.2.5)
I.2 Check/Adjust the Hygiene Set
point (Section 7.2.2)
I.3 Check temperature displayed
for accuracy (Section 11.2.7),
if clearly incorrect contact
seller
J Hot water runs out
during the day
J.1 Cylinder not storing
enough energy to meet
daily requirements
J.2 Increased usage resulted
in hot water ran out
earlier than usual
J. 1 Raising the Primary set-point in
order to store additional energy
during the off peak period (Section
11.2.5)
J.2 Boost function heats a small
volume of water (Section 11.2.6)
13 Troubleshooting
28
14 Frequently Asked Questions
Issue Cause Solution
A Cylinder not charging
A.1 Power supply turned off
A.2 Tariff not set correctly
A.3 Temperature setpoint
not set correctly
A.1 Ensure both power supplies are
turned on
A.2 Set tariff correctly (Section 7.2.6)
A.3 Set Primary setpoint (Section
11.2.4)
B The water in the
cylinder is too hot
B.1 Primary/Boost
temperature setpoint is
too high
B.2 Hygiene mode overriding
primary setpoint
B.3 Temperature sensors
faulty or not installed
correctly
B.1 Check/adjust the primary and
boost temperature setpoints
(Section 11.2.4)
B.2 Check/adjust the Hygiene setpoint
(Section 11.2.5)
B.3 Check temperature displayed for
accuracy (Section11.2.7), if
clearly incorrect contact supplier
C Hot water runs out
during the day
C.1 Cylinder not storing
enough energy to meet
daily requirements
C.2 Increased usage
resulted in hot water
running out earlier than
usual
C.1 Raising the Primary setpoint in
order to store additional energy
during the off peak period
(Section 11.2.4)
D How can I minimise
energy consumption
D.1 Compression/threaded
joints not formed
correctly
D.2 Frequent use of Boost
function
D.3 Energy lost through
pipework
D.1 Store water at lower
temperatures. This means that
less energy will be consumed to
heat the water and also minimise
heat loss from the cylinder during
the day (Section 11.2.3)
D.2 Minimise boost usage during peak
rate electricity periods. Ensure
that adequate energy is stored
in the cylinder overnight to meet
the user’s daily requirements.
D.3 Ensure all pipework from the
outlet of the cylinder is well
insualted to minimise heat loss
through the pipework
Frequently Asked Questions
29
Advance
-
+
Menu
Menu
Main Menu
Time/Temp
Function
Display
Main Menu
Time/Temp
Function
Display
-
+
-
+
-
+
Function
No Control
Holiday
-
+
-
+
-
+
Function
-
+
Selected
No Control
-
+
Back
Back
& 3s
-
+
3s +
User Info
Temperature
Energy
55°C
55°C
55°C
55°C
Holiday
Active Days
14
1 … 180
Holiday
Selected
-
+
-
+
&
&
10s
Set Time
Set Temp
THU
2014/01/01
08:46
SUN/MON/TUE/
WED/THU/FRI/SAT
1-
31,01
-
12,2012
-
2050
00
-
24,00-12,00-59,AM/PM
-
+
Date/Time
-
+
Set Time
Set Temp
Primary
-
+
Set Temp
Energy
Counter
Boost
0 h 0 m
Boost
-
+
Primary
Temperature
60°C
40 … 65
°
C
-
+
Current
History
-
+
-
+
Energy
Current
History
-
+
-
+
Temperature
T4 = 60
°
C
T3 = 60
°
C
T2 = 50
°
C
T1 = 15
°
C
Current
Current/Min/Max
Counter
User Info
Temperature
Energy
-
+
Counter
-
+
User Info
Temperature
Energy
Counter
-
+
-
+
Time/Temp
Time/Temp
No Control
Holiday
-
Boost
Current
Capacity
Consumption
Hot Water
3000 W
5 kWh
125 litres
11.5 kWh
History
Day -1
Day-1/Week
Month
User Interface
30
Main Menu
Time/Temp
Function
Display
Display
Contrast
Brightness
-
+
Adjust
Contrast
50
Rotate knob
to adjust
-
+
%
-
+
Display
Contrast
Brightness
Adjust
Brightness
100%
Rotate knob
to adjust
-
+
-
+
-
+
Hygiene
-
+
Daily
60°C
Daily/Weekly/Monthly/
OFF
60 … 65
-
+
Reset
Temp
Temp/Counter/
Energy/Factory
-
+
-
+
RF Module
0504030201
Disable
Enable
C
Primary
Set Temp
Boost
-
+
Boost
Temperature
60°C
Push knob and
hold for 5 seconds
to reset
-
+
Service
Reset
Hygiene
RF Module
Cylinder
Tariff
-
+
-
+
-
+
Cylinder
Size
125
125/135 Slime/150/
180 Slim/210/250/300
-
+
Tariff
Off Peak
Timed
-
+
Tariff
Off Peak
Timed
Off Peak
Time Period
ON 23:00
OFF 07:00
-
+
RTC Calibrate
Service
Reset
Hygiene
RF Module
Cylinder
Tariff
RTC Calibrate
Service
Reset
Hygiene
RF Module
Cylinder
Tariff
RTC Calibrate
Service
Reset
Hygiene
RF Module
Cylinder
Tariff
RTC Calibrate
Service
Reset
Hygiene
RF Module
Cylinder
Tariff
RTC Calibrate
Service
Reset
Hygiene
RF Module
Cylinder
Tariff
RTC Calibrate
-
+
Calibrate RTC
Oscillator
Cal Byte: 05
No
Yes
-
+
-
+
Selected
Hygiene
Daily
60°C
User Interface
31
Notes
32
Notes
33
Notes
34
MAINS PRESSURE HOT WATER STORAGE SYSTEM COMMISSIONING CHECKLIST
*
All installations in England and Wales must be notified to Local Authority Building Control (LABC) either directly or through a Competent Persons Scheme.
A Building Regulations Compliance Certificate will then be issued to the customer.
©Heating and Hotwater Industry Council (HHIC) www.centralheating.co.uk
ALL SYSTEMS PRIMARY SETTINGS
(indirect heating only)
Is the primary circuit a sealed or open vented system? Sealed
Open
What is the maximum primary flow temperature?
°C
ALL SYSTEMS
What is the incoming static cold water pressure at the inlet to the system?
bar
Has a strainer been cleaned of installation debris (if fitted)? Yes
No
Is the installation in a hard water area (above 200ppm)? Yes
No
If yes, has a water scale reducer been fitted? Yes
No
What type of scale reducer has been fitted?
What is the hot water thermostat set temperature?
°C
What is the maximum hot water flow rate at set thermostat temperature (measured at high flow outlet)?
l/min
Time and temperature controls have been fitted in compliance with Part L of the Building Regulations? Yes
Type of control system (if applicable) Y Plan
S Plan
Other
Is the cylinder solar (or other renewable) compatible? Yes
No
What is the hot water temperature at the nearest outlet?
°C
All appropriate pipes have been insulated up to 1 metre or the point where they become concealed Yes
UNVENTED SYSTEMS ONLY
Where is the pressure reducing valve situated (if fitted)?
What is the pressure reducing valve setting?
bar
Has a combined temperature and pressure relief valve and expansion valve been fitted and discharge tested? Yes
No
The tundish and discharge pipework have been connected and terminated to Part G of the Building Regulations Yes
Are all energy sources fitted with a cut out device? Yes
No
Has the expansion vessel or internal air space been checked? Yes
No
THERMAL STORES ONLY
What store temperature is achievable?
°C
What is the maximum hot water temperature?
°C
ALL INSTALLATIONS
The hot water system complies with the appropriate Building Regulations Yes
The system has been installed and commissioned in accordance with the manufacturer’s instructions Yes
The system controls have been demonstrated to and understood by the customer Yes
The manufacturer’s literature, including Benchmark Checklist and Service Record, has been explained and left with the customer Yes
Commissioning Engineer’s Signature
Customer’s Signature
(To confirm satisfactory demonstration and receipt of manufacturer’s literature)
This Commissioning Checklist is to be completed in full by the competent person who commissioned the storage system as a means of
demonstrating compliance with the appropriate Building Regulations and then handed to the customer to keep for future reference.
Failure to install and commission this equipment to the manufacturer’s instructions may invalidate the warranty but does not affect statutory rights.
Customer Name Telephone Number
Address
Cylinder Make and Model
Cylinder Serial Number
Commissioned by (print name) Registered Operative ID Number
Company Name Telephone Number
Company Address
Commissioning Date
To be completed by the customer on receipt of a Building Regulations Compliance Certificate
*
:
Building Regulations Notification Number (if applicable)
35
SERVICE RECORD
It is recommended that your hot water system is serviced regularly and that the appropriate Service Record is completed.
Service Provider
Before completing the appropriate Service Record below, please ensure you have carried out the service as described in the manufacturer’s
instructions.
SERVICE 1
Date
Engineer Name
Company Name
Telephone Number
Comments
Signature
SERVICE 2
Date
Engineer Name
Company Name
Telephone Number
Comments
Signature
SERVICE 3
Date
Engineer Name
Company Name
Telephone Number
Comments
Signature
SERVICE 4
Date
Engineer Name
Company Name
Telephone Number
Comments
Signature
SERVICE 5
Date
Engineer Name
Company Name
Telephone Number
Comments
Signature
SERVICE 6
Date
Engineer Name
Company Name
Telephone Number
Comments
Signature
SERVICE 7
Date
Engineer Name
Company Name
Telephone Number
Comments
Signature
SERVICE 8
Date
Engineer Name
Company Name
Telephone Number
Comments
Signature
SERVICE 9
Date
Engineer Name
Company Name
Telephone Number
Comments
Signature
SERVICE 10
Date
Engineer Name
Company Name
Telephone Number
Comments
Signature
Disregarding the instructions given in this manual in its entirety and any relevant
regulations, standards and codes of practice will void the guarantee of this product.
GDC Group Ltd reserve the right to revise products, literature and guarantee terms without
prior notice due to a policy of continuous improvement.
To speak to customer please contact:
GDC Group Ltd
Millbrook House Grange Drive, Hedge End,
Southampton SO30 2DF
Telephone: 0845 600 5111
www.kiwa.co.uk
www.hotwater.org.uk
