We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance’s aesthetic and functional qualities.
For further information on the product: www.smeg.com
Instructions
38
1 Instructions
1.1 General safety instructions
Risk of personal injury
• During use the appliance and its
accessible parts become very hot.
Never touch the heating elements
during use.
• Protect your hands by wearing
heat-proof gloves during use.
• Never try to put out a fire or
flames with water: Turn off the
appliance and smother the flames
with a fire blanket or other
appropriate cover.
• This appliance may be used by
children aged at least 8 and by
people of reduced physical,
sensory or mental capacity, or
lacking in experience in the use of
electrical appliances, provided
that they are supervised or
instructed by adults who are
responsible for their safety.
• Children must not play with the
appliance.
• Keep children under the age of
eight at a safe distance unless they
are constantly supervised.
• Keep children under the age of 8
away from the appliance when it
is in use.
• Cleaning and maintenance must
not be carried out by unsupervised
children.
• Be aware of how rapidly the
cooking zones heat up. Do not let
pans heat up when dry, as there is
a danger of them overheating.
• Fats and oils can catch fire if they
overheat. Do not leave the
appliance unattended while
preparing foods containing oils or
fats. If fats or oils catch fire, never
put water on them. Place the lid
on the pan and turn off the
relevant cooking zone.
• The cooking process must always
be monitored. A short cooking
process must be continuously
monitored.
Instructions
39
EN
• Do not place metal objects, such
as dishes or cutlery, on the hob
surface during use as they may
overheat.
• Do not insert pointed metal objects
(cutlery or utensils) into the slots in
the appliance.
• Do not pour water directly onto
very hot trays.
• Do not use or store flammable
materials near the appliance or
directly underneath the hob.
• Do not use aerosols in the vicinity
of this appliance whilst it is in use.
• Switch off the appliance
immediately after use.
• Do not modify this appliance.
• Always use any necessary/
required personal protective
equipment (PPE) before
performing any work on the
appliance (installation,
maintenance, positioning or
movement).
• Before performing any work on
the appliance, switch off the
power supply.
• Have qualified personnel carry out
installation and assistance
interventions according to the
standards in force.
• Do not try to repair the appliance
yourself or without the intervention
of a qualified technician.
• If the power supply cable is
damaged, contact technical
support immediately and they will
replace it.
Risk of damaging the appliance
• Do not use abrasive or corrosive
detergents (e.g. scouring
powders, stain removers and
metallic sponges) on glass parts.
• Use wooden or plastic utensils.
• Do not seat on the appliance.
• Do not use the hob as a support
surface.
• Do not obstruct ventilation
openings and heat dispersal slots.
• Do not use steam jets to clean the
appliance.
Instructions
40
• Never leave the appliance
unattended during cooking
operations where fats or oils could
be released, as these could then
heat up and catch fire. Be very
careful.
• Fire hazard: Never leave objects
on the cooking surfaces.
• Do not use the appliance to heat
rooms for any reason.
• Cooking vessels or griddle plates
should be placed inside the
perimeter of the hob.
• All pans must have smooth, flat
bottoms.
• If any liquid does boil over or spill,
remove the excess from the hob.
• Take care not to spill acid
substances such as lemon juice or
vinegar on the hob.
• Do not spill sugar or sweet
mixtures on the hob during
cooking.
• Do not place materials or
substances that could melt (plastic
or aluminium foil).
• Do not put empty pans or frying
pans on switched on cooking
zones.
• Do not use rough or abrasive
materials or sharp metal scrapers.
• Do not use cleaning products
containing chlorine, ammonia or
bleach on parts made of steel or
that have metallic surface finishes
(e.g. anodizing, nickel- or
chromium-plating).
Installation
• This appliance must not be
installed in a boat or caravan.
• Position the appliance into the
cabinet cut-out with the help of a
second person.
• Check that the carcase material is
heat resistant.
• Check that the carcase has the
required openings.
Instructions
41
EN
• To avoid potential overheating, the
appliance must not be installed
behind a decorative door or a
panel.
• Have the electrical connection
performed by authorised technical
personnel.
• The appliance must be connected
to earth in compliance with
electrical system safety standards.
• Use cables withstanding a
temperature of at least 90°C.
• The tightening torque of the screws
of the terminal supply wires must
be 1.5 - 2 Nm.
• The power cable must only be
installed or replaced by a
qualified technician.
For this appliance
• If cracks or fissures form, or if the
glass ceramic cooking surface
breaks, turn off the appliance
immediately. Disconnect the
power supply and call Technical
Support.
• Avoid hard, solid objects falling
on the cooking surface.
• Do not use the hob if the pyrolytic
cycle is taking place inside any
oven installed below.
• Do not touch or clean the hob
surface during operation or when
the residual heat indicator lights
are still on.
• Activate the controls lock when
you have children or pets which
could reach the hob.
• After use the cooking zones
remain hot for a certain period of
time after they have been turned
off. Do not touch the hob surfaces.
• Keep sensor keys clean at all
times and do not rest any object
on them.
Instructions
42
1.2 Appliance purpose
• This appliance is intended for
cooking food in the home
environment. Every other use is
considered improper.
• The appliance is not designed to
operate with external timers or with
remote-control systems.
1.3 Manufacturer’s liability
The manufacturer declines all liability
for damage to persons or property
caused by:
• Use of the appliance other than
that specified;
• Failure to comply with the
instructions in the user manual;
• Tampering with any part of the
appliance;
• The use of non-original spare
parts.
1.4 Disposal
This appliance must be disposed of
separately from other waste
(Directives 2002/95/EC, 2002/
96/EC, 2003/108/EC). The appliance
does not contain substances in quantities
sufficient to be considered hazardous to
health and the environment, in accordance
with current European directives.
To dispose of the appliance:
• Deliver the appliance to the appropriate
recycling centre for electrical and
electronic equipment waste, or return it to
the retailer when purchasing an
equivalent product, on a one for one
basis.
Power voltage
Danger of electrocution
• Disconnect the mains power supply.
Instructions
43
EN
Our appliances are packaged in non-
polluting and recyclable materials.
• Deliver the packing materials to the
appropriate recycling centre.
1.5 Identification plate
The identification plate bears the technical
data, serial number and brand name of the
appliance. Do not remove the identification
plate for any reason.
1.6 This user manual
This user manual is an integral part of the
appliance and must therefore be kept in its
entirety and within the user’s reach for the
whole working life of the appliance.
Read this user manual carefully before using
the appliance.
1.7 How to read the user manual
This user manual uses the following reading
conventions:
1. Sequence of instructions for use.
• Standalone instruction.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or any part
of it unattended.
• Do not let children play with the plastic
bags.
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories,
cooking advice.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for the qualified
technician: Installation, operation
and inspection.
Safety instructions
Information
Advice
Description
44
2 Description
2.1 General Description
The appliance features cooking zones with
various diameters and power levels
depending on the model. The position and
the heat of the cooking zones are limited to
within the diameters of the circles traced on
the glass.
The cooking zones are of the HIGH-LIGHT
type, they turn on after a few seconds and
the heating is adjustable using the controls
on the front panel.
The cooking zones with two or three
concentric circles allow double or triple
heating: cooking is possible either within the
small circle or on both circles.
2.2 Cooking zones
Model with frame
60 cm
Description
45
EN
Model with straight edge
60 cm

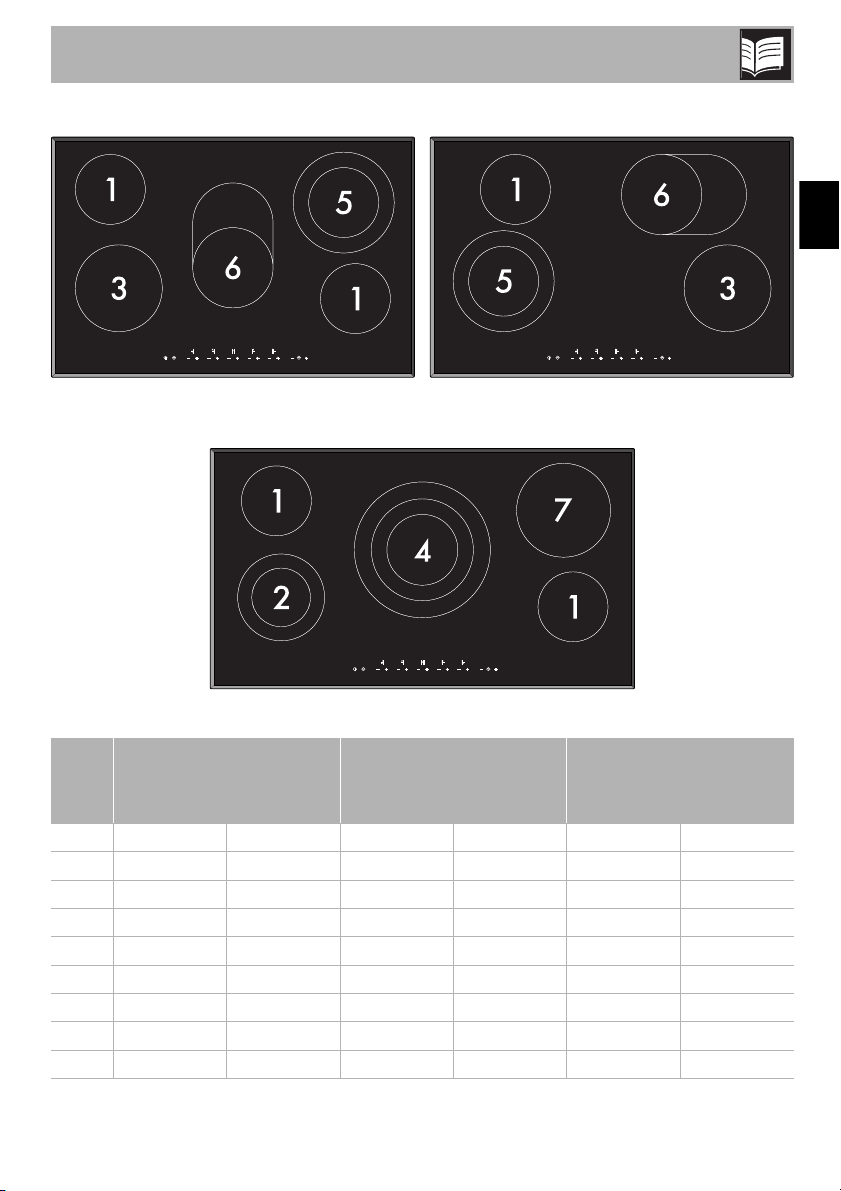

77 cm
90 cm
Description
46

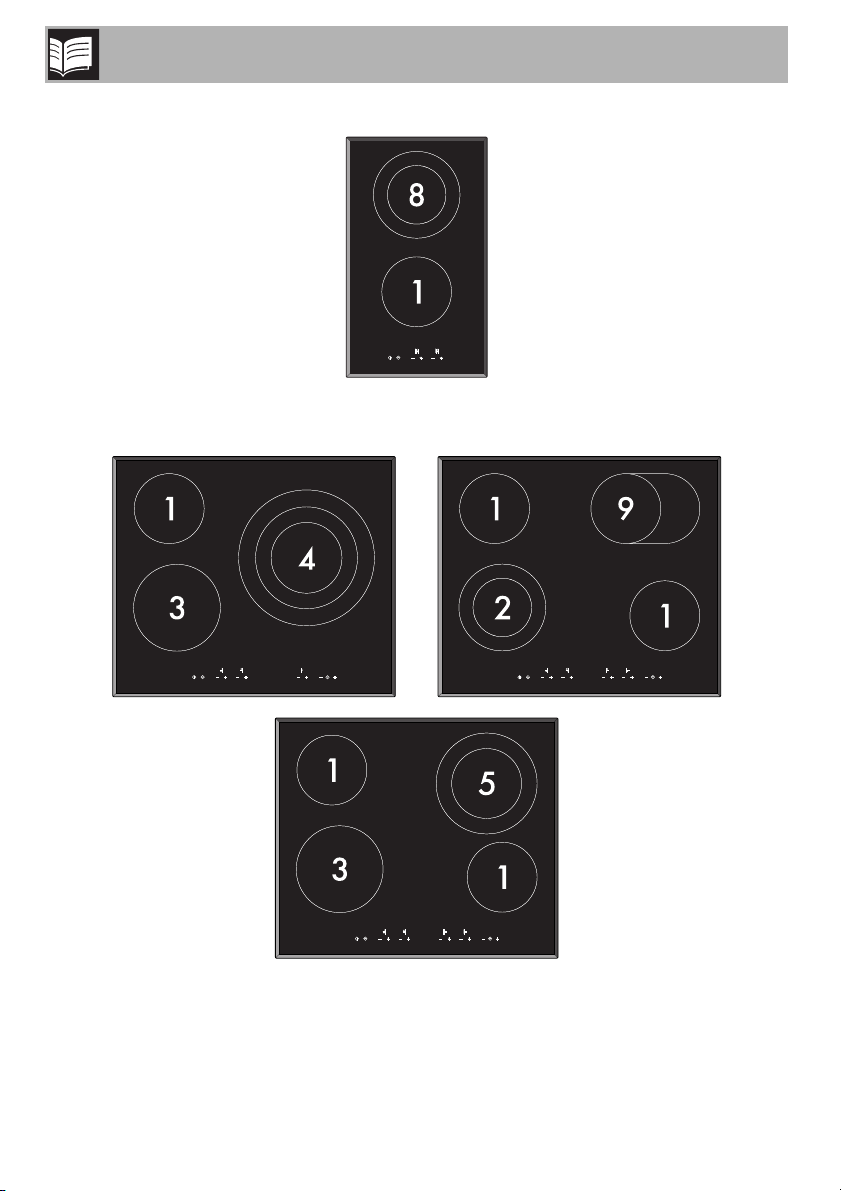

Model with bevelled edge
30 cm
60 cm
Description
47
EN
77 cm
90 cm
* power levels are approximate and may vary according to the settings made and the mains voltage.
Zone
Outer
diameter
(mm)
Max. power
draw
(W)*
Inner
diameter
(mm)
Max. power
draw
(W)*
Intermediate
diameter
(mm)
Max. power
draw
(W)*
1148
1200
-
-
-
-
2184
2000
124
800
-
-
3184
1800
-
-
-
-
4288
2700
150
1950
216
1050
5214
2200
148
1000
-
-
6oval plate
2200
170
1400
-
-
7199
2000
-
-
-
-
8184
1700
124
700
-
-
9oval plate
2000
148
1100
-
-
Description
48
2.3 Symbols
ON/OFF key
Turns the hob on or off.
Controls lock key
Activates or deactivates the controls lock if
pressed for 3 seconds.
Increase key
Increases the power level or cooking time.
Decrease key
Reduces the power level or cooking time.
Timer key (on some models only)
Activates the minute minder or the automatic
shut-down timer.
Cooking zones
Front left
Rear left
Central
Rear right
Front right
Central right
Front (30 cm model only)
Rear (30 cm model only)
Use
49
EN
3 Use
High temperature
Danger of burns
• Protect your hands by wearing heat-
proof gloves during use.
• Do not touch or clean the surface of the
hob while it is in use or when
appears on one or more displays.
• Do not put empty pans or frying pans on
switched on cooking zones.
• Keep children under the age of 8 away
from the appliance when it is in use.
• Activate the controls lock when you
have children or pets which could reach
the hob.
• After use the cooking zones remain hot
for a certain period of time after they
have been turned off. Do not touch the
hob surfaces.
High temperature
Danger of fire or explosion
• Do not use or leave flammable materials
near the appliance or directly
underneath the hob.
• Do not cook in closed tins or containers,
plastic kitchenware or containers.
• Do not leave the appliance unattended
during cooking operations where fats or
oils could be released.
• In case you notice cracks or fissures or
you cannot turn off the appliance,
disconnect the power supply and
contact the Assistance Centre.
Improper use
Risk of damage to surfaces
• Do not use the hob if the pyrolytic cycle
is taking place inside any oven installed
below.
• Never place pans with bases which are
not perfectly flat and smooth.
• Avoid hard, solid objects falling on the
cooking surface.
• In case you notice cracks or fissures, turn
off the appliance immediately,
disconnect the power supply and
contact Technical Support.
• Do not use the hob as a support surface.
Use
50
3.1 Preliminary operations
In order to remove any moisture that could
have accumulated during the manufacturing
process and for the electronic circuits and
control keypad to work properly:
1. Remove the protective films from the
external surfaces of the appliance and
accessories.
2. Remove any labels (apart from the
technical data plate).
3.2 Using the cooking hob
All the appliance’s control and monitoring
devices are located together on the front
panel. The hob is controlled by means of
the Touch Control sensor buttons.
The power in the cooking zones can be
adjusted to various levels.
Lightly touch a symbol on the glass ceramic
surface. A beep will sound to confirm every
effective touch.
Switching on the cooking hob
To switch on the hob, hold down the ON/
OFF key for at least 3 seconds.
If no cooking zone is activated within 30
seconds of switching on, the hob switches
off automatically.
On first connection to the electrical
mains, an automatic check will be
carried out that will switch on all
indicator lights for a few seconds. It
might happen that on the displays
the text appears to indicate
that during factory testing the hob
was switched off with residual heat
active. After 6 minutes this
indications deactivates
automatically.
Saucepans and other pans must
not cover the sensor buttons as
otherwise they could accidentally
deactivate the appliance.
Use
51
EN
Switching on a single cooking zone
1. After switching on the hob, use the
Increase keys to activate the
required cooking zone. The display
shows the symbol .
2. Press the Increase key again. The
display shows the symbol or
to indicate that the cooking zone is on
at the maximum power.
3. Press the Increase and
Decrease keys to increase or
decrease the required power level.
Switching on the double cooking zone
1. After setting the maximum power
or , press the Increase keys.
On the display a lighted dot comes on
beside the power setting to indicate that
the double cooking zone or
has switched on.
2. Press the Increase and
Decrease keys to increase or
decrease the required power level.
If the Increase key is pressed
when the cooking zone is at the
maximum power or , the
cooking zone deactivates ( ).
When the cooking zone is off ( ),
it cannot be activated by pressing
the Decrease key.
If the Increase key is pressed
when the cooking zone is at the
maximum power or , the
cooking zone deactivates ( ).
Use
52
Switching on the triple cooking zone
1. After setting the maximum power
or , press the Increase keys.
On the display a lighted dot comes on
beside the power setting to indicate that
the internal cooking zone or has
switched on.
2. Press the Increase key again to
completely activate the cooking zone.
On the display a lighted dot flashes
beside the power setting to indicate that
the entire cooking zone or has
switched on.
3. Press the Increase and
Decrease keys to increase or
decrease the required power level.
Melting function
To activate the Melting function, first turn on
the hob, then:
1. After having set the power to (or
for multiple cooking zones), press
the Increase key. appears on
the display.
2. Press the Increase key again.
appears on the display.
Residual heat
After switching off the cooking zone, if it is
still hot, is displayed.
If the Increase key is pressed
when the cooking zone is at the
maximum power or , the
cooking zone deactivates ( ).
This function can be used to melt
food such as butter, chocolate etc.
High temperature
Danger of burns
• Children cannot readily see the residual
heat indicator. The cooking zones
remain hot for a certain period of time
even after they have been turned off.
Make sure that children never touch the
hob.
Use
53
EN
Accelerator
This function can be used to reach the
selected heating level more quickly.
The cooking zones will start at maximum
power. Once the selected power level is
reached, power is reduced.
1. Using the Increase and
Decrease keys, select a power
level between 1 and 9 (also in double
or triple mode).
2. Press the Increase and
Decrease keys simultaneously for
the cooking zone to be heated using
the accelerator function. The display
alternately shows and the power
level just selected.
Controls lock
The controls lock is a device that protects
the appliance from accidental or
inappropriate use. Useful for preventing
accidental changes to set cooking values,
the lock can be activated while the hob is
on or off.
1. After switching on the hob, press the
Controls lock key for at least 2
seconds. A lighted dot appears on the
key to indicate that the controls are
locked. Pressing any key,
or is displayed (depending on
the model).
2. Press the Controls lock key for at
least 2 seconds. The lighted dot above
the symbol switches off to indicate that
the controls have been unlocked and
any key can be pressed.
Power
level
Heating time with
function activated
(minutes)
12
23
34
45
56
67
78
810
912
For safety reasons the ON/OFF
key stays active with at least one
cooking zone switched on. The
entire hob can be switched off at
any time, even if the controls lock is
active.
Use
54
Minute minder timer (on some models only)
This function allows you to set a minute
minder timer, which will sound a buzzer at
the end of the pre-set time (from 1 to 99
minutes).
1. Press the Timer key when the
appliance is off. The display shows
to indicate that the timer can
be modified.
2. Press the Increase or Decrease
key to set the required timer time (hold
the keys down to advance more
quickly).
3. At the end of the set time, the hob will
warn the user with a series of buzzers.
To stop this indication, press the
Timer key.
4. To deactivate the minute minder timer
during the countdown, zero its value
using the Decrease key. When the
display shows the timer will be
deactivated.
Automatic shut-down timer (on some
models only)
This function allows you to program the
automatic shut-down of each cooking zone
at the end of a set period of time (from 1 to
99 minutes).
1. Press the Timer key. The display
shows to indicate that the timer
can be modified.
2. Press the Timer key again. If at
least one cooking zone is active a
lighted dot comes on under the controls
of the first active zone (from left to right).
3. Press the Increase or Decrease
key to set the required automatic shut-
down time (hold the keys down to
advance more quickly), or select a
further cooking zone using the Timer
key.
4. To modify the set time, press the
Timer key until a lighted dot
appears under the controls of the
cooking zone for which you wish to
carry out the change.
5. At the end of the previously set time, the
hob deactivates the cooking zone and
warns the user with a series of buzzes.
Press any key to stop the indication.
Use
55
EN
Secondary menu
The hob has a secondary menu for
activating or deactivating some parameters:
1 = Automatic controls lock: activating this
mode, one minute after the last operation
by the user, the controls lock will
automatically activate.
2 = Showroom: activating this mode, the
appliance deactivates all heating elements,
while keeping the control panel active
(useful for demonstration purposes in store).
Every minute, appears for
one second on the display. To use the hob
normally, set this mode to .
3 = ECO-logic (on some models only):
activating this mode, the hob electronics
automatically adjust the power levels to stay
within the set maximum power absorbed: 3
or 4 kW. To use the hob at maximum
power, set this mode to .
On first installing, within two minutes of
powering on the hob, hold down the
Increase and Decrease keys for
the first cooking zone (the one near the
symbol).
The cooking zone display shows the
number of the setting currently being
modified (1 = Automatic controls lock, 2 =
Showroom, 3 = ECO-logic) with its setting
at the side ( : activated, :
deactivated).
For example, indicates that the
Automatic controls lock is deactivated.
Press the Increase or Decrease
key to change the settings for value or
.
If the ECO-logic parameter is modified you
can select the following values: (3 kW),
(4 kW), (maximum power draw).
To advance and change the subsequent
settings, press the Controls lock key .
If the automatic shut-down timer is
activated and no cooking zone is
active it functions like a minute
minder timer.
If the hob is already installed and
in use, cut the power supply to the
hob. Switch the power back on
and proceed as indicated above
within two minutes.
Use
56
Advice on energy-saving
• The diameter of the base of the pan must
correspond to the diameter of the
cooking zone.
• When buying a saucepan, check
whether the diameter indicated is that of
the base or the top of the container, as
the top is almost always larger than the
base.
• The base of the cookware must be thick
and completely flat. It should also be
clean and dry. The hob should be clean
and dry as well.
• When preparing dishes with long
cooking times, you can save time and
energy by using a pressure cooker,
which also makes it possible to preserve
the vitamins in the food.
• Make sure that the pressure cooker
contains enough liquid as, if there is not
enough and it overheats, this may cause
damage to both the pressure cooker and
the cooking zone.
• If possible, always cover saucepans with
a suitable lid.
• Choose a pan suitable for the quantity of
food to be cooked. A large, half-empty
saucepan leads to a waste of energy.
• Do not use cast-iron cookware or
cookware with a rough base.
Under certain circumstances, if the
hob and the oven are being used
at the same time, the maximum
power limit that can be used by the
electrical system might be
exceeded.
Use
57
EN
Cooking information table
* on some models only
Power
level
Cooking mode Suitable for...
0
OFF setting Off
U
Dishwarming Warming up dishes
1
Cooking small amounts of food (minimum
power)
Melting butter, chocolate or similar
products.
2
Cooking small amounts of food
Keeping small amounts of water on the
boil, whipping up sauces with egg yolk or
butter.
3 - 4
Normal cooking
Heating solid or liquid food, keeping water
on the boil, defrosting deep-frozen food,
cooking 2 or 3 egg omelettes, fruit and
vegetables, various cooking processes.
5
Cooking large amounts of food
Keeping water on the boil, cooking 4 or 6
egg omelettes, fruit and vegetables,
various cooking processes.
6
Cooking large amounts of food, roast
Stewing meat, fish and vegetables,
simmering food, making jams, etc.
7 - 8
Roasting larger pieces, frying with flour
Roasting meat, fish, steaks and liver;
sautéing meat, fish, eggs, etc.
9 - P *
Roasting, browning, cooking (maximum
power)
Deep-frying potatoes, etc., or bringing
water to the boil rapidly.
Use
58
Limiting the cooking time
The hob has an automatic device which
limits the duration of use.
If the cooking zone settings are not
changed, the maximum duration of
operation for each zone depends on the
power level selected.
When the device for limiting the duration of
use is activated, the cooking zone turns off,
a short alert sounds and, if the zone is hot,
the symbol appears on the display.
Protection from overheating
If you are using the hob at full power for a
long time, for the electronics it could be
difficult to cool down, especially if the room
temperature is high.
In this case a device intervenes to cut off the
power supply to the front cooking zones
and the display shows and
flashing.
If the temperature of the electronic circuit
board does not decrease, the device will
disconnect power to all the cooking zones
and will appear on the
display (on some models only).
Cooking can be resumed once the
temperature returns below alarm levels.
Other functions
If you press three or more controls at the
same time or for a long period, (e.g. due to
accidentally placing a saucepan on them
or due to an overflow of liquid), an
automatic device deactivates all the
cooking zones if they are on and the
display will show error .
Remove the cause of the error from the
keys.
Power level
Maximum cooking
time (min.)
U600
1600
2360
3300
4240
5180
6120
7120
8120
970
P70
Cleaning and maintenance
59
EN
4 Cleaning and maintenance
4.1 Cleaning the surfaces
To keep the surfaces in good condition,
they should be cleaned regularly after use.
Let them cool first.
4.2 Ordinary weekly cleaning
Clean and maintain the hob once a week
using an ordinary glass cleaning product.
Always follow the manufacturer’s
instructions. The silicon in these products
creates a protective, water-repellent
membrane which also resists dirt. All marks
stay on the membrane and can therefore be
removed easily. After cleaning, dry the
surface with a clean cloth. Make sure that
there is no detergent left on the cooking
surface as it will undergo a corrosive
reaction when heated up and could modify
the structure of the cooking surface.
4.3 Food stains or residues
Light coloured marks from pans with
aluminium bases can be easily cleaned off
with a cloth moistened in vinegar.
Remove any burnt-on residue after cooking;
rinse with water and dry thoroughly with a
clean cloth.
Dirt which may have fallen on the hob
while cleaning lettuce or potatoes can
scratch the hob when moving pans.
Consequently, remove any dirt from the
cooking surface immediately.
Changes in colour do not affect the
operation and stability of the glass. These
are not alterations to the material of the hob
but just residues which have not been
removed and have then carbonised.
Improper use
Risk of damage to surfaces
• Do not use steam jets to clean the
appliance.
• Do not spill sugar or sweet mixtures on
the hob during cooking.
• Do not place materials or substances
that could melt (plastic or aluminium foil).
• Keep sensor keys clean at all times and
do not rest any object on them.
• Do not use cleaning products containing
chlorine, ammonia or bleach on parts
made of steel or that have metallic
surface finishes (e.g. anodizing, nickel-
or chromium-plating).
• Do not use abrasive or corrosive
detergents (e.g. scouring powders, stain
removers and metallic sponges) on
glass parts. Use wooden or plastic
utensils.
Cleaning and maintenance
60
Shiny surfaces can form due to the bases
of pans, especially aluminium ones, rubbing
on the surface, and due to the use of
unsuitable detergents. They are difficult to
remove using conventional cleaning
products. It may be necessary to repeat the
cleaning process several times. Use of
corrosive detergents or rubbing of pan
bases can wear away the decoration on
the hob over time and contribute to the
formation of stains.
4.4 What to do if...
The hob does not work:
• Make sure that the hob is connected and
that the main switch is turned on.
• Make sure that there is no power failure.
• Make sure that the fuse has not blown. In
this case replace the fuse.
• Make sure that the circuit breaker of the
residential electrical system has not
tripped. In this case, reset the circuit
breaker.
• Make sure that the sensor key are not
locked by the Controls lock.
• Make sure that the keys are not partially
covered by a damp cloth, a liquid or a
metal object.
The cooking results are unsatisfactory:
• Make sure that the cooking temperature
is not too high or too low.
The hob smokes:
• Let the hob cool down and clean it once
cooking is complete.
• Make sure that the food has not spilled
out of the pan and use a larger cooking
vessel, if needed.
The display shows “E2”:
• Make sure that there is no spilled food
on the sensor keys.
• Remove any pan or object that are
partially resting on the sensor keys.
“E” appears on the display:
• One of the keys has been kept pressed
for a long time or a technical fault has
occurred. In the latter case, contact
Technical Support.
The fuses blow or the circuit breaker of the
residential electrical system trips repeatedly.
• Call Technical Support or an electrician.
There are cracks or fissures in the hob:
• Turn off the appliance immediately,
disconnect the power supply and
contact Technical Support.
Installation
61
EN
5 Installation
5.1 Safety instructions
Veneers, adhesives or plastic coatings on
adjacent furniture should be temperature-
resistant (>90°C), otherwise they might
warp over time.
The minimum clearance between a
ventilation hood and the cooking surface
must be at least the distance indicated in the
ventilation hood installation instructions.
The minimum clearances must also be
respected for the edges of the hob on the
back as indicated in the mounting
illustrations.
5.2 Section cut from the countertop
Make a hole in the countertop of the unit
according to the dimensions shown in the
figure (mm).
Hobs with a frame
Heat production during appliance
operation
Risk of fire
• Check that the carcase material is heat
resistant.
• Check that the carcase has the required
openings.
•
CAUTION: The surface temperature
exceeds 95°C. To avoid a hazard,
under bench access must be restricted.
The following operation requires
building and/or carpentry work
and must therefore be carried out
by a competent tradesman.
Installation can be carried out on
various materials such as masonry,
metal, solid wood or plastic
laminated wood as long as they
are heat resistant (>90°C).
L X Y
570 560 500
760 750 500
A B C D E
min.
50
min.
460
min.
750
20-60
min.
50
Installation
62
Hobs with bevelled edge Hob seal
To prevent leakage of liquid between the
frame of the hob and the countertop, place
the adhesive seal provided along the entire
outer edge of the hob before assembly.
L X Y
300 270 490
600 565 490
770 745 490
900 850 490
A B C D E
min.
50
min.
460
min.
750
20-60
min.
50
Do not use silicone to secure the
hob. This would make it impossible
to remove the hob, if necessary,
without damaging it.
Installation
63
EN
Hobs with a straight edge
For this kind of hobs additional milling is
needed in the recessed hole if you wish to
install the hob flush with the work surface.
After laying the adhesive seal (A) on the
glass surface and after positioning and
securing the hob, fill the edges with
insulating silicone (B) and wipe away any
excess.
In the event the hob needs to be removed,
cut the silicone using a cutter before
attempting to remove it (C).
L X Y G H
600 565 490 604 514
770 745 490 774 514
900 865 490 904 514
A B C D E
min.
50
min.
460
min.
750
20-60
min.
50
Installation
64
Spring clips
To ensure the hob is fixed and centred as
accurately as possible, the clips provided
must be positioned as described below:
1. Fit the clips by gently pressing them
horizontally into the appropriate space.
2. Then turn them upwards to fix them in
place.
Fixing brackets
• Screw the fixing brackets into the holes
on the sides of the bottom casing to
properly fasten the hob to the structure.
If tightened too much the glass
may be strained and crack.
Installation
65
EN

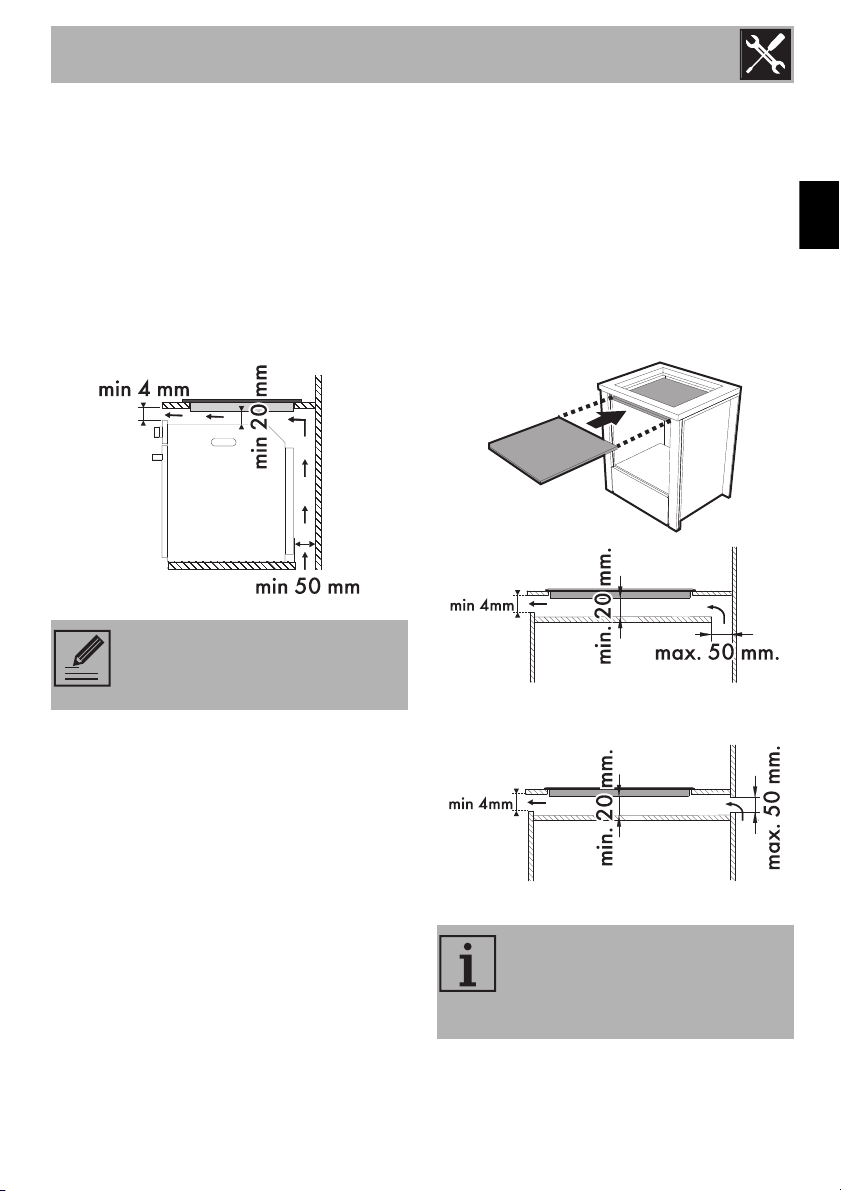

5.3 Mounting
Over built-in oven unit
The clearance between the hob and the
kitchen furniture or other installed
appliances must be enough to ensure
sufficient ventilation and air discharge.
If installed above an oven, a space must be
left between the bottom of the hob and the
top of the appliance installed below.
On top of an empty kitchen unit or
drawers
If there are other pieces of furniture (lateral
walls, drawers, etc.), dishwashers or fridges
under the hob, a double-layer wooden
base must be installed at least 20 mm from
the bottom of the hob to avoid any
accidental contact. It must only be possible
to remove the double-layer base by using
suitable tools.
opens on bottom
opens on rear
If installed on top of an oven, the
latter must be equipped with a
cooling fan.
Failure to install the double-layer
wooden base exposes the user to
possible accidental contact with
sharp or hot parts.
Installation
66
5.4 Electrical connection
General information
Check the grid characteristics against the
data indicated on the plate.
The identification plate bearing the
technical data, serial number and brand
name is visibly positioned on the appliance.
Do not remove this plate for any reason.
Perform the ground connection using a wire
that is 20 mm longer than the other wires.
The appliance can work in the following
modes:
30 cm models:
• 220-240 V 1N~
Use the 3 x 1.5 mm² three-core cable that
is fitted.
Connection with plug and socket
Make sure that the plug and socket are of
the same type.
Avoid using adapters and shunts as these
could cause overheating and a risk of
burns.
Power voltage
Danger of electrocution
• Have the electrical connection
performed by authorised technical
personnel.
• Use personal protective equipment.
• The appliance must be connected to
earth in compliance with electrical
system safety standards.
• Disconnect the mains supply.
• Use cables withstanding a temperature
of at least 90°C.
• The tightening torque of the screws of
the terminal supply wires must be 1.5 -
2 Nm.
• The power cable must only be
installed or replaced by a qualified
technician.
• Use the cable provided (depending on
the model) following the instructions
below.
Installation
67
EN
60 cm models:
The diagram below illustrates the power
supply terminal from below, with no cables
connected. Terminals 2 and 3 and terminals
4 and 5 must be connected at all times.
220-240 V 1N~
• 380-415 V 2N~
• 220-240 V 2~
• 220-240 V 3~
Use the 5 x 2.5 mm² five-core cable
provided.
Installation
68
60 - 77 - 90 cm models: The diagram below illustrates the power
supply terminal from below, with no cables
connected. Terminals 4 and 5 must be
connected at all times.
• 220-240 V 1N~
Use the 3 x 6 mm² three-core cable
provided.
• 220-240 V 2~
Use the 3 x 6 mm² three-core cable
provided.
Installation
69
EN
If the cable is replaced, the appliance can
also function in the following modes:
• 380-415 V 2N~
4 x 4 mm² four-core cable.
• 220-240 V 3~
4 x 4 mm² four-core cable.
• 380-415 V 3N~
5 x 2.5 mm² five-core cable.
60 - 90 cm models (only 3kW):
The diagram below illustrates the power
supply terminal from below, with no cables
connected. Terminals 1, 2 and 3 and
terminals 4 and 5 must be connected at all
times.
• 220-240 V 1N~
3 x 1.5 mm² three-core cable provided.
Installation
70
Fixed connection
Fit the power line with an omnipolar circuit
breaker in compliance with installation
regulations.
The circuit breaker should be located near
the appliance and in an easily reachable
position.
Testing
At the end of installation, carry out a brief
inspection test. If it fails to work, after
making sure that you have carried out the
instructions correctly, contact Technical
Support.
5.5 Instructions for the installer
• Do not bend or trap the power cable.
• The appliance must be installed
according to the installation diagrams.
• If the appliance does not work correctly
after having carried out all the checks,
contact your local Authorised Service
Centre.
• Once the appliance has been installed,
please explain to the user how to use it
correctly.
Run the power cable in the rear
part of the unit. Make sure that it
does not come into contact with
the lower part of the hob or a built-
in oven below it.
Be careful when connecting
additional electrical appliances.
Connection cables must not come
into contact with hot cooking zones.
