Thank you for purchasing a Canon product.
Canon RF24-240mm F4-6.3 IS USM is a high
magnification zoom lens for use with EOS R
series cameras.
z
“IS” stands for Image Stabilizer.
z
“USM” stands for Ultrasonic Motor.
Conventions used in these instructions
Warning to prevent lens or camera malfunction
or damage.
Supplementary notes on using the lens and
taking pictures.
Camera Firmware and
Camera Applications
Please use the latest versions of firmware and
applications with the camera in use. For details on
whether the firmware and applications in use are the
latest version or not, and for details on updating them,
please check the Canon website.
If the camera’s* firmware is not a compatible
version, the following limitations will apply.
z
Magnified view functionality is not available.
z
In some cases, the camera malfunction may
occur.
* Applies to the following camera models:
EOS R and EOS RP
ENG-2
Precautions to ensure that the camera is used
safely. Read these precautions thoroughly. Make
sure all details are observed in order to prevent
risks and injury to the user and other people.
Warning
Details pertaining to risks that
may result in death or serious
injury.
z
Do not look directly at the sun or other strong
light sources through a lens. This may result in
loss of sight.
z
Do not leave a lens in the sun without the lens
cap attached. The lens may concentrate entering
sunlight and cause a malfunction or fire.
Caution
Details pertaining to risks that
may result in injury or damage to
other objects.
z
Do not leave the product in places exposed to
extremely high or low temperatures. The product
may cause burns or injury when touched.
z
Do not insert your hand or fingers into the
product. This may result in injury.
Safety Precautions
ENG-3
Handling Precautions
z
Do not leave the product in excessive heat such as
in a car in direct sunlight. High temperatures can
cause the product to malfunction.
z
If the lens is taken from a cold environment into a
warm one, condensation may develop on the lens
surface and internal parts. To prevent condensation
in this case, first put the lens into an airtight
plastic bag before taking it from a cold to warm
environment. Then take out the lens after it has
warmed gradually. Do the same when taking the
lens from a warm environment into a cold one.
z
Please also read any lens related handling
precautions listed in your camera’s instruction
manual.
General Precautions
ENG-4
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
Do not make any changes or modifications to the equipment
unless otherwise specified in the instructions. If such
changes or modifications should be made, you could be
required to stop operation of the equipment.
This equipment has been tested and found to comply with
the limits for a class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
CAN ICES-3 (B) / NMB-3 (B)
ENG-5

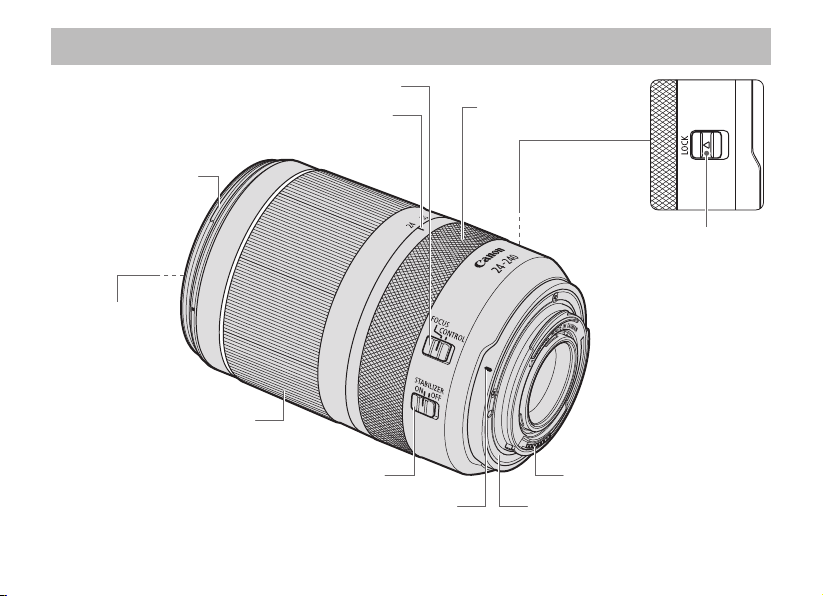

Focusing/control selector switch (→ 7)
Zoom position index (→ 8)
Hood mount (→ 12)
Filter mounting
thread (→ 13)
Zoom ring (→ 8)
Image stabilizer switch (→ 10)
Lens mount index (→ 6)
Focusing/control ring
(→ 7)
Zoom ring lock lever
(→ 9)
Contacts (→ 6)
Lens mount (→ 6)
z
For detailed information, reference page numbers are provided in parentheses (→ **).
Nomenclature
ENG-6
Lens mount index
Lens release button Dust cap
Attaching the Lens

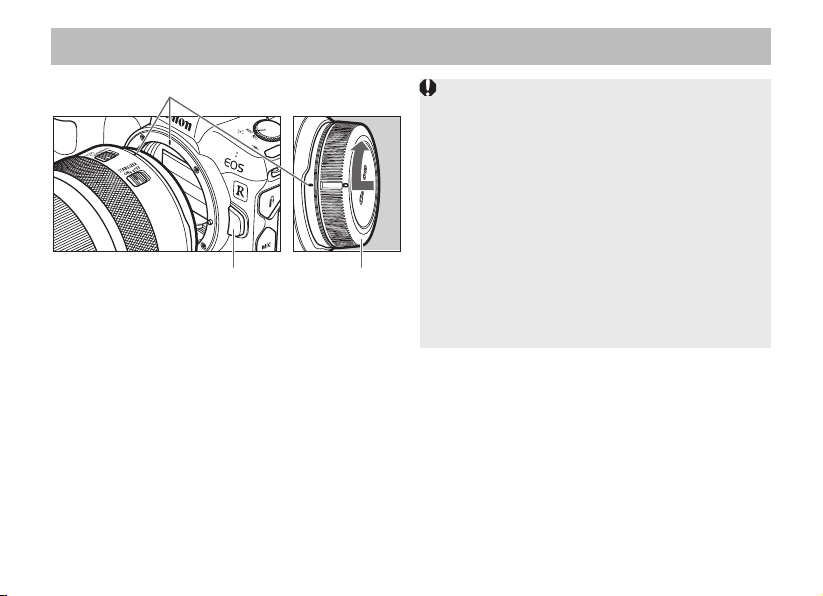

Align the lens mount indexes of the lens and
camera, and turn the lens clockwise until you
hear a click.
Detaching the Lens
Turn the lens counterclockwise while pressing
the camera’s lens release button. Detach the
lens once it has stopped turning.
Please refer to the camera’s instructions for
details.
z
Set the camera’s power switch to OFF when
attaching or detaching the lens.
z
Attach the lens cap before detaching the lens
from the camera.
z
After detaching the lens, place the lens with the
rear end up and attach the dust cap to prevent
the lens surface and contacts from getting
scratched. Make sure the lens and dust cap
mount indexes are aligned when attaching the
dust cap.
z
Contacts that are scratched, soiled, or have
fingerprints on them may result in faulty
connections or corrosion, which may lead to
malfunctions. If the contacts get soiled, clean
them with a soft cloth.
1.
Attaching and Detaching the Lens
ENG-7
2.
Focusing/control ring
The focusing/control ring can be used as either a
focusing ring or a control ring.
Focusing/control ring
Focusing/control selector switch
Use as a Focusing Ring
Set the Focusing/control selector switch to
FOCUS. Set the focus mode (AF/MF) using the
camera’s menu.
To shoot in autofocus (AF) mode, set the
camera’s focus mode to AF.
To use only manual focusing (MF), set the
camera’s focus mode to MF, and focus by turning
the focusing ring (focusing/control ring).
z
This lens does not have a focus mode switch.
z
Delayed focus may occur if the focusing ring
(focusing/control ring) is quickly turned.
z
The lens’ focusing ring (focusing/control ring) is
electronic.
z
Manual focus is possible even when the
camera’s focus mode is set to AF. (Full-time
manual focus)
However, the camera settings need to be
changed. Please refer to the camera's
instructions for details.
Use as a Control Ring
Set the Focusing/control selector switch to
CONTROL. Set the control ring function using
the camera’s menu. The control ring can be
assigned the functions that are commonly
used with cameras, such as shutter speed and
aperture settings.
Please refer to the camera’s instructions for
details on how to use the control ring.
ENG-8
To zoom, turn the lens’ zoom ring.
z
Be sure to finish zooming before focusing.
Zooming after focusing can affect the focus.
z
Blurring may temporarily occur if the zoom ring is
quickly turned.
3.
Zooming
ENG-9
4.

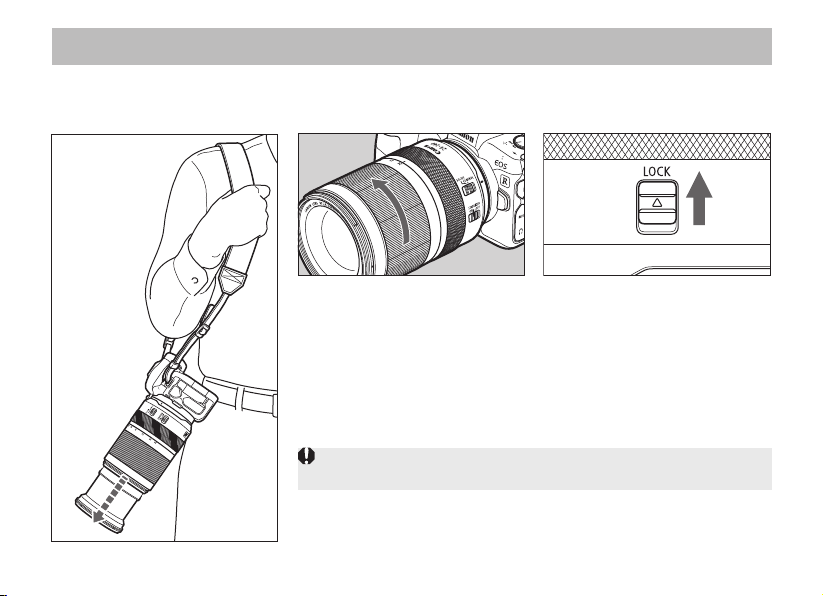

Fixing the Zoom Ring
The zoom ring can be fixed to keep the lens at the shortest point. This function is convenient for
carrying a camera on a strap because it prevents the lens from extending.
2 Slide the zoom ring lock
lever in the direction
indicated by the arrow.
z
To release the zoom ring, slide
the zoom ring lock lever in the
direction opposite to the arrow.
1 Turn the zoom ring to
the widest position (24
mm).
z
The zoom ring cannot be fixed in place at any position other than the
widest position.
ENG-10
This function provides image stabilization
appropriate for shooting conditions (such as
shooting still subjects and panning shots).
Set the image stabilizer switch to ON when you
want to use the Image Stabilizer.
z
Set the image stabilizer switch to OFF when
you are not going to use the Image Stabilizer.
5.
Image Stabilizer
z
The Image Stabilizer cannot compensate for a
blurred shot caused by a subject that moved.
z
The Image Stabilizer may not be fully effective if
you shoot from a violently shaking vehicle or other
transportation.
z
The Image Stabilizer operates for about two
seconds after turning off the camera. Do not
detach the lens during that time. This may cause
the lens to malfunction.
z
When using a tripod, it is recommended that you
set the image stabilizer switch to OFF.
z
Even with a monopod, the Image Stabilizer will
be as effective as during hand-held shooting.
However, depending on the shooting conditions,
there are cases in which the Image Stabilizer
effect may be less effective.
z
When shooting a still subject, it compensates for
camera shake in all directions.
z
It compensates for vertical camera shake during
panning shots in a horizontal direction, and
compensates for horizontal camera shake during
panning shots in a vertical direction.
ENG-11
The Image Stabilizer for this lens is suited to hand-held shots in the following conditions.
Image Stabilizer
z
In semi-darkened areas such as indoors or
outdoors at night.
z
In locations where a flash cannot be used,
such as art museums and theater stages.
z
In situations where your footing is uncertain.
z
In situations where fast shutter speed settings
cannot be used.
z
Panning shots of
vehicles, trains, etc.
Dynamic IS (for movie shooting only)
This lens is equipped with a Dynamic IS function
which is effective when shooting while walking,
etc. since it expands the IS range.
• Effective for wide-angle shooting.
• Automatically activates when the camera is set
to movie shooting.
ENG-12
The custom lens hood cuts out unwanted light and protects the front of the lens from rain, snow, and
dust.
6.
Hood
Attachment position mark
Stop position mark
Attachment position mark
Red dot
Red dot
Red dot

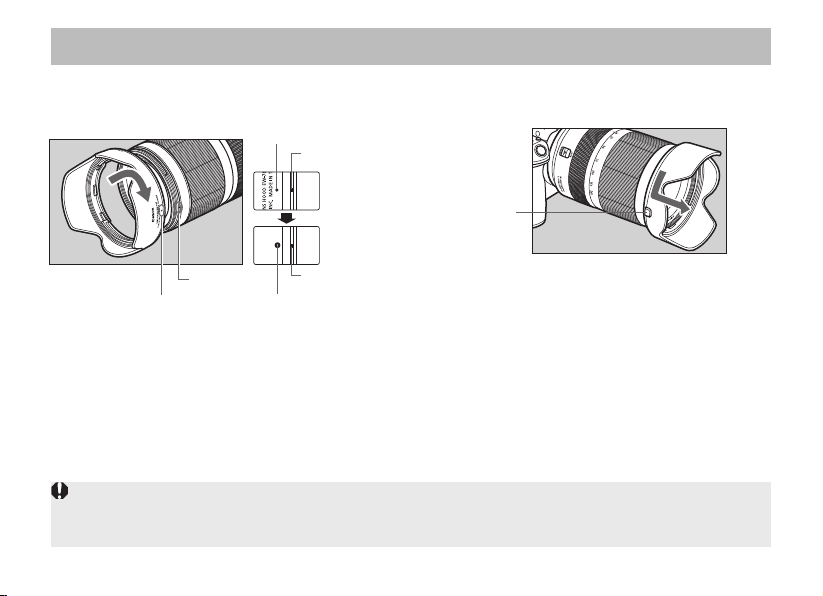

Attaching the Hood
Align the red attachment position mark on the
hood with the red dot on the front of the lens,
and then turn the hood in the direction of the
arrow until you hear a click.
Button
Detaching the Hood
Keep your finger pressed down on the button
located on the side of the hood, and then turn
the hood in the direction of the arrow until the
attachment position mark on the hood is aligned
with the red dot on the front of the lens to detach
it.
The hood can be reverse-mounted on the lens
for storage.
z
If the hood is not attached properly, vignetting (darkening of the perimeter of the picture) may occur.
z
Grasp and turn the base of the hood when attaching and detaching it. There are cases in which it may
become deformed if the hood is turned with it grasped near to the rim.
ENG-13
7.
Filters (Sold separately)
8.
Close-up Lenses
(Sold separately)
You can attach filters to the filter mounting thread
on the front of the lens.
z
Only one filter may be attached.
z
If you need a polarizing filter, use the Canon
Circular Polarizing Filter PL-C B.
z
Detach the hood when adjusting the polarizing
filter.
Attaching a 500D Close-up Lens enables close-
up photography.
It provides a magnification of 0.05x to 0.57x.
z
Close-up Lens 250D cannot be attached
because there is no size that fits the lens.
z
Manual focus is recommended for accurate
focusing.
ENG-14
Specifications
Focal Length/Aperture 24-240mm f/4-6.3
Lens Construction 15 groups, 21 elements
Minimum Aperture f/22-36*
Angle of View Horizontal: 74°- 8° 35′, Vertical: 53°- 5° 45′, Diagonal: 84°- 10° 20′
Min. Focusing Distance 0.5 m/1.64 ft. (at 24 mm), 0.78 m/2.56 ft. (at 240 mm)
Max. Magnification 0.26x (at 240 mm)
Field of View
Approx. 575 x 383 mm/22.64 x 15.08 in. (at 24 mm, 0.5 m/1.64 ft.)
Approx. 134 x 90 mm/5.28 x 3.54 in. (at 240 mm, 0.78 m/2.56 ft.)
Filter Diameter 72 mm
Max. Diameter and Length
Approx. 80.4 x 122.5 mm/3.17 x 4.82 in.
Weight Approx. 750 g/26.5 oz.
Hood EW-78F (Sold separately)
Lens Cap E-72 II
Case LP1219 (Sold separately)
* Based on one-third-stop f-number scale. f/22-38 when using one-half-stop f-number scale.
z
The lens length is measured from the lens mount surface to the front end of the lens.
Add 24.2 mm/0.95 in. when including the lens cap and dust cap.
z
The maximum diameter, length and weight listed are for the lens itself only.
z
All data listed is measured according to Canon standards.
z
Product specifications and appearance are subject to change without notice.
ENG-15
z
Multiple exposure shooting is not possible when using this lens.
z
There are cases in which using the zoom function during continuous shooting may result in
conspicuous image distortion.
z
There are cases in which excessive camera shake may result in conspicuous light irregularities.
z
When the aperture is changed from the maximum aperture by an amount equivalent to one click
only, the display of the aperture value may not change in some cases. This phenomenon is due to
restrictions related to the display of the aperture values, but the actual exposure control is being
performed properly.
Specications
CT1-D114-C 0819Ni © CANON INC. 2019
