Bosch SMV69T20GB User Manual
User Manual Bosch SMV69T20GB Dishwasher
Documents for Bosch SMV69T20GB
The following documents are available:
User Manual
User Manual - (English)
Read Online
|
Download pdf
Photos
Photos:
View Photos
User Manual
For SMV69T20GB.
Page 1/42
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 11
Page 12
Page 13
Page 14
Page 15
Page 16
Page 17
Page 18
Page 19
Page 20
Page 21
Page 22
Page 23
Page 24
Page 25
Page 26
Page 27
Page 28
Page 29
Page 30
Page 31
Page 32
Page 33
Page 34
Page 35
Page 36
Page 37
Page 38
Page 39
Page 40
Page 41
Page 42
Contents
Table of Contents
Search
Previous
Next
Bookmarks
XXXCPTDIIPNFDPNX
FMDPNF
3FHJTUFSZ
PVSOFX#PTDIOP
X
%JTIXBTIFS
FO
*OTUSVDUJPONBOVBM
SM…
SB…
Loading ...
Loading ...
Loading ...
1
2
3
4
5
6
>
Summary of Contents for Bosch SMV69T20GB:
( Safety instructions 4
1
7 Protection of the environment 8
1
* Getting to know your appliance 9
1
+ Water softening system/ Special salt 10
1
, Rinse aid 12
1
- Utensils 13
1
. Detergent 17
1
/ Overview of programmes 19
1
0 Additional options 20
1
1 Operating the appliance 21
1
2 Cleaning and maintenance 25
2
3 Fault, what to do? 27
2
4 Customer service 36
2
5 Installation and connection 36
2
8 Intended use
2
Intended use
2
( Safety instructions
2
Safety instructions
2
Before you switch ON the appliance
2
Delivery
3
1. Check the packaging and dishwasher immediately for damage caused in transit. Do not switch on a damaged appliance, but contact your supplier.
3
2. Please dispose of the packaging material in an environmentally friendly manner.
3
3. Do not let children play with packaging and its parts. There is a risk of suffocation from collapsible boxes and film.
3
Installation
3
In daily use
4
Childproof lock (door lock)Door lock *
4
Damage
4
Disposal
4
1. Make redundant appliances unusable to prevent subsequent accidents.
4
2. Dispose of the appliance in a n environmentally friendly manner.
4
m Warning
5
Risk of injury!
5
m Warning
5
Risk of explosion!
5
m Warning
5
Risk of scalding!
5
m Warning
5
Risks to children!
5
7 Protection of the environment
6
Protection of the environment
6
Packaging
6
Old appliances
6
* Getting to know your appliance
7
Getting to know your appliance
7
Control panel
7
Appliance interior
7
Overview of menu
7
+ Water softening system/Special salt
8
Water softening system/Special salt
8
Setting
8
1. Find out about the hardness value of your tap water. Your water utility company will help you with this.
8
2. Set value can be found in the water hardness table.
8
3. Open the door.
8
4. Switch on ON/OFF switch (.
8
5. Hold down programme button # and press START button )" until •:‹.... is indicated on the digital display.
8
6. Release both buttons.
8
To change the setting:
8
1. Press programme button 3.
8
2. Press START button )".
8
3. Close the door.
8
Water hardness table
8
Using special salt
9

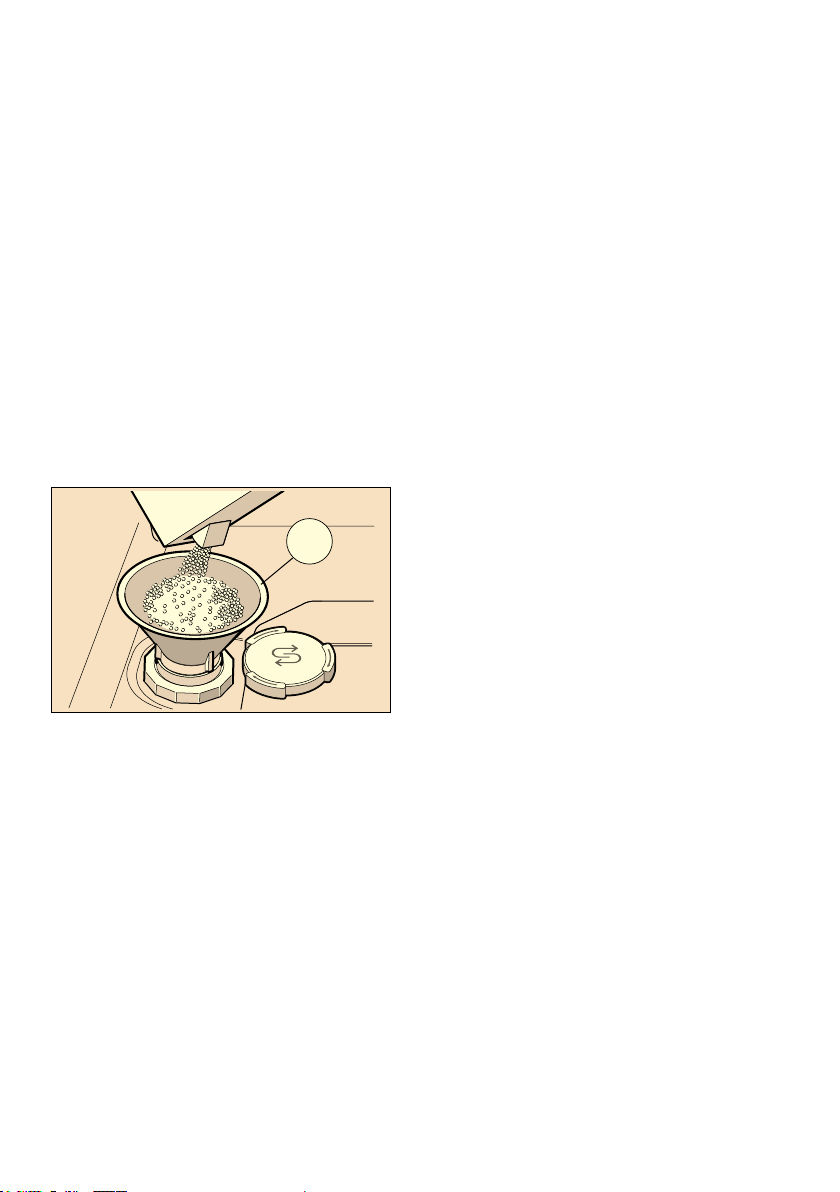

1. Open the screw-type cap of the compartment 1R.
9
2. Fill the tank with water (only required when switching on the appliance for the first time).
9
3. Then add dishwasher salt (not table salt or tablets).
9
Using detergents with salt componentDetergents with salt component
9
Switching off salt refill indicator/water softening systemSwitching off water softening system
9
m Caution
9
, Rinse aid
10
Rinse aid
10

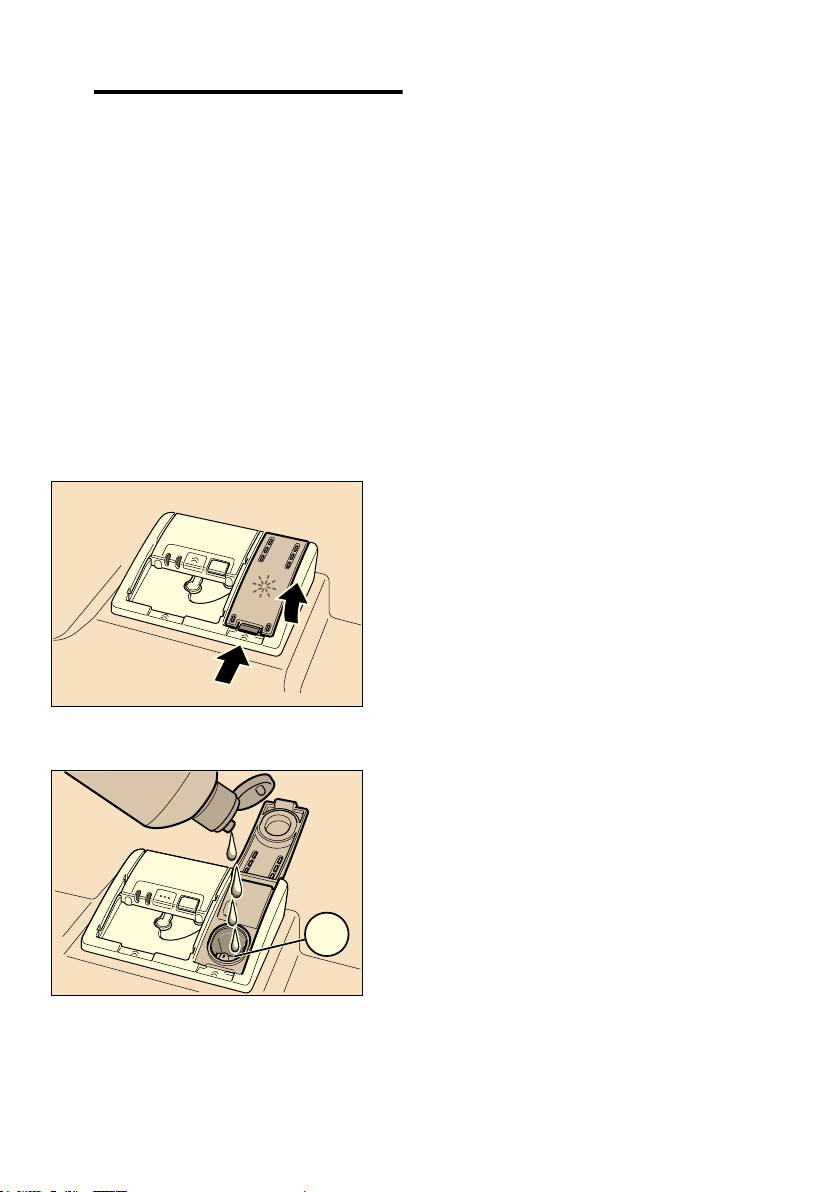

1. Open the dispenser 1j by pressing and lifting the plate on the cover.
10
2. Carefully pour rinse aid up to the max. mark in the filler opening.
10
3. Close cover until it clicks shut.
10
4. To prevent excessive foam formation during the next rinse cycle, remove any rinse aid which has run over with a cloth.
10
Setting amount of rinse aid
10
1. Open the door.
10
2. Switch on ON/OFF switch (.
10
3. Hold down programme button # and press START button )" until •:‹.... is indicated on the digital display.
10
4. Release both buttons.
10
5. Press programme button # until the factory set value §:‹† is indicated on the digital display 8.
10
To change the setting:
10
1. Press programme button 3.
10
2. Press START button )".
10
3. Close the door.
10
Switching off rinse aid refill indicator
11
- Utensils
11
Utensils
11
Not suitable
11
Glass and utensil damage
11
Loading the dishwasher
11

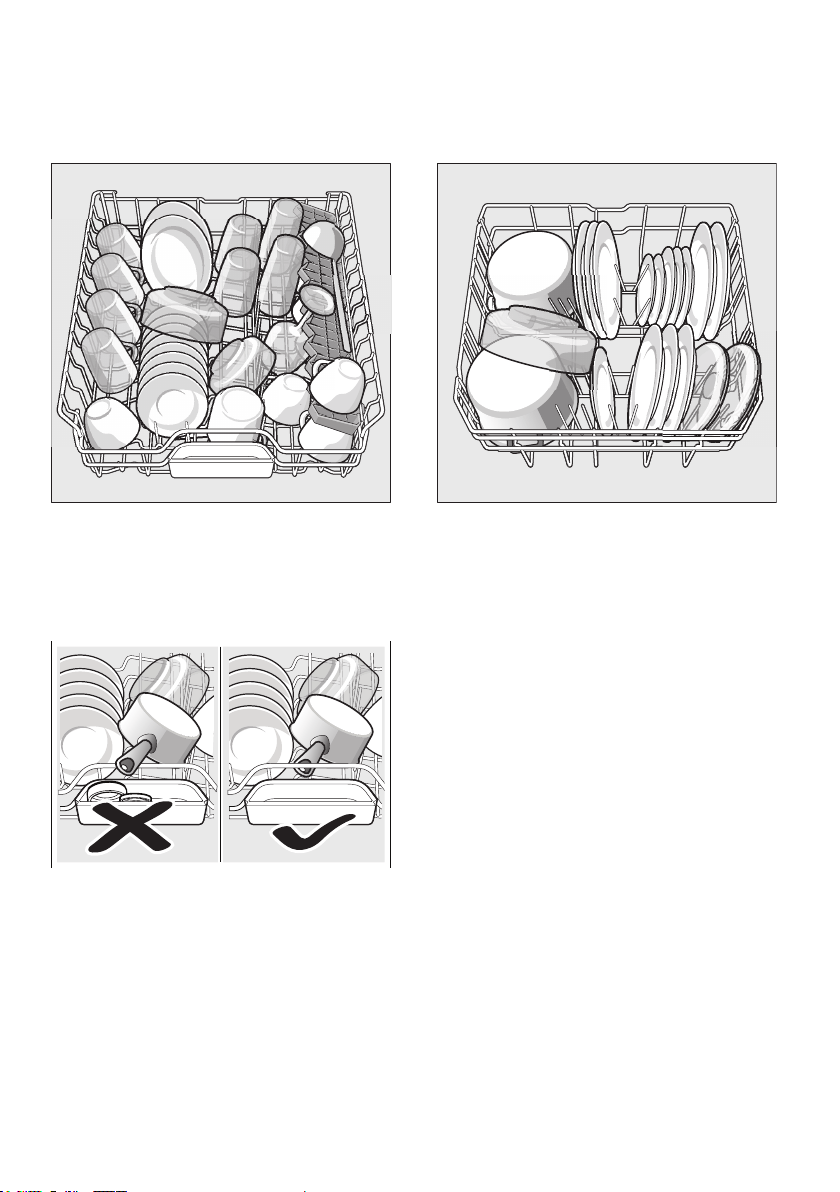

1. Remove large food remnants. It is not necessary to prerinse utensils under running water.
11
2. Place the utensils so that
11
Unloading the dishwasher
11
Note
11
Cups and glasses
12
Note
12
Pans
12
Tip
12
Tip
12

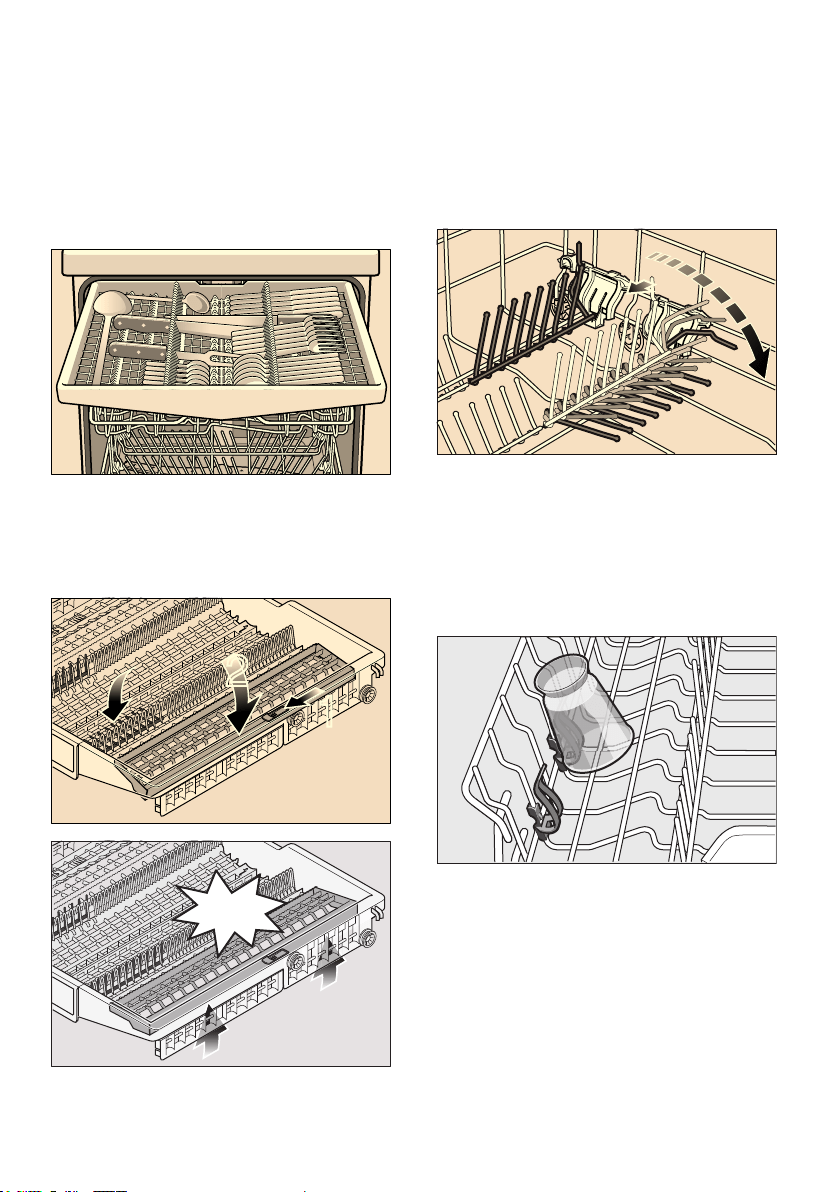

Cutlery drawer
13
Folding spikesFolding spikes *
13
Small accessories holder *Small accessories holder
13
Adjusting the height of the basket
14
Appliance height 81.5 cm
14
16 cm
14
30 cm
14
18.5 cm
14
27.5 cm
14
21 cm
14
25 cm
14
Appliance height 86.5 cm
14
18 cm
14
33 cm
14
20.5 cm
14
30.5 cm
14
23 cm
14
28 cm
14

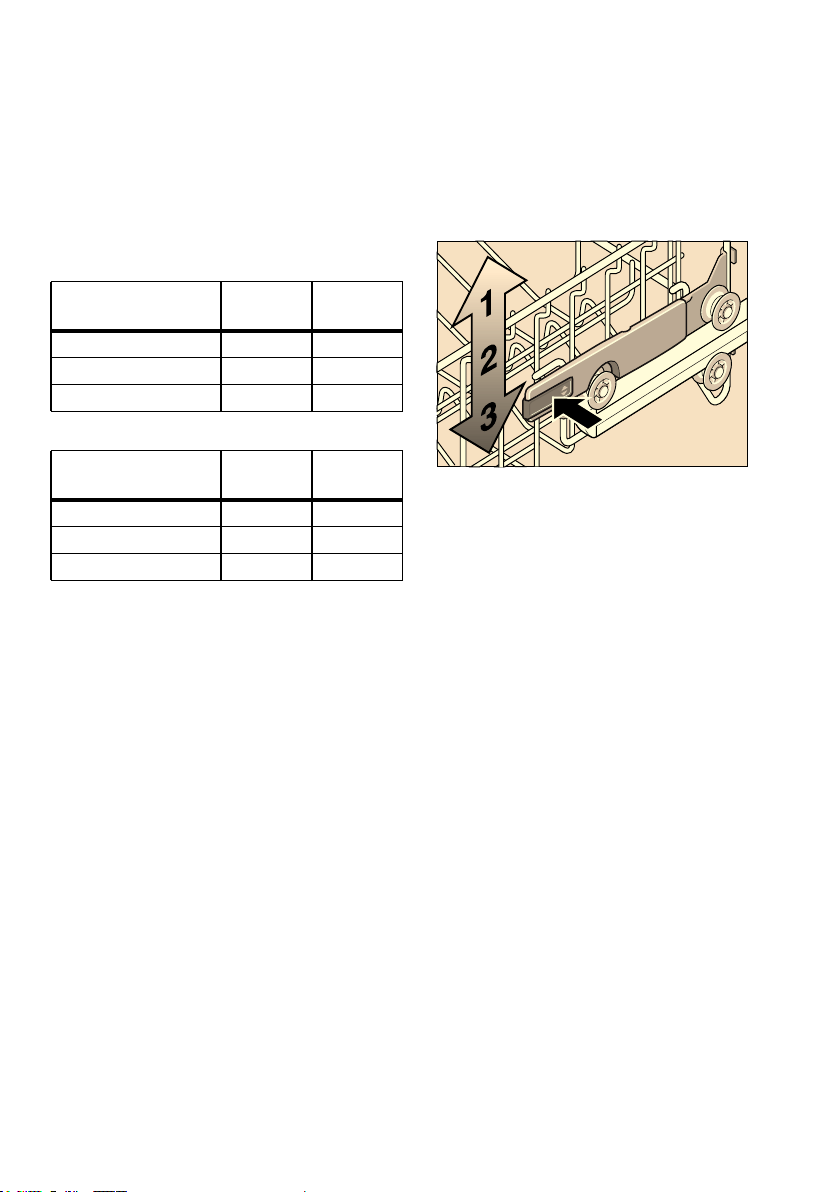

1. Pull out the top basket 12 out.
14
2. To lower the basket, press in the left and then the right lever on the outside of the basket. In doing so, hold the sides of the basket along the upper edge to prevent it from suddenly dropping.
14
3. To raise the basket, hold the basket on the sides of the upper edge and lift it up.
14
4. Before re-inserting the basket again, ensure that it is at the same height on both sides. Otherwise, the appliance door cannot be closed and the upper spray arm will not be connected to the water circuit.
14
. Detergent
15
Detergent
15
Note
15
m Warning
15
Adding detergent
15
1. If the detergent dispenser 9" is still closed, press the lock 9* to open the detergent dispenser.
15
2. Close the cover on the detergent dispenser by sliding it up until the lock engages without difficulty.
15
Tip
16
Combination detergent
16
m Warning
16
m Warning
16
Notes
16
/ Overview of programmes
17
Overview of programmes
17
The max. possible number of programmes is illustrated in this overview. The corresponding programmes and their arrangement can be found on the fascia.
17
Type of utensils
17
Type of soiling
17
Programme
17
Possible additional options
17
Programme sequence
17
Programme selection
17
Information for test institutes
18
0 Additional options
18
Additional options
18
Express Wash/ Speed Perfect (VarioSpeed)Ÿ Express Wash/ Speed Perfect/ (VarioSpeed) *
18
Half load§ Half load *
18
· Hygiene *Hygiene
18
Ï Intensive zone *Intensive zone
18
¿ Extra drying *Extra drying
18
1 Operating the appliance
19
Operating the appliance
19
Programme data
19
Aqua sensorAqua sensor *
19
Switching on the appliance
19
1. Turn on the tap fully.
19
2. Open the door.
19
3. Switch on ON/OFF switch (.
19
4. Press the START button )".
19
5. Close the door.
19
Note
19
Optical display while the programme is runningOptical display while the programme is running *
19
1. Open the door.
19
2. Switch on ON/OFF switch (.
19
3. Hold down programme button # and press START button )" until •:‹.... is indicated on the digital display.
19
4. Release both buttons.
20
5. Press programme button # until the factory set value ‚:‹‚ is indicated on the digital display 8.
20
To change the setting:
20
1. By pressing the button 3, you can switch the function off ‚:‹‹ or on ‚:‹‚.
20
2. Press START button )".
20
3. Close the door.
20
Remaining running time display
20
Timer programming
20
1. Open the door.
20
2. Switch on ON/OFF switch (.
20
3. Press the button ` + until ‹‚ is flaching in the timer programming display X.
20
4. Press + or – button until the ` displayed time corresponds with your requirements.
20
5. Press START button )", timer programming is activated.
20
6. To delete timer programming `, press the + or – button until ‹‹ is indicated on the digital display X.
20
7. Close the door.
20
End of programme
20
1. Open the door.
20
2. Switch on ON/OFF switch (.
20
3. Hold down programme button # and press START button )" until •:‹.... is indicated on the digital display.
20
4. Release both buttons.
20
5. Press programme button # until the factory set value ›:‹ƒ is indicated on the digital display 8.
20
To change the setting,
20
1. Press programme button 3. Each time the button is pressed, the set value increases by one level; when the value of ›:‹„ has been reached, the display jumps back to ›:‹‹ (off).
20
2. Press START button )", the set value is saved.
20
3. Close the door.
20
Automatic switch off after end of programme or interior light*Automatic switch off / interior light
21
1. Open the door.
21
2. Switch on ON/OFF switch (.
21
3. Hold down programme button # and press START button )" until •:‹... is indicated on the digital display.
21
4. Release both buttons.
21
5. Keep pressing programme button # until the value ˜:‹... is indicated on the numerical display 8.
21
To change the setting:
21
1. Press programme button 3.
21
2. Press START button )".
21
3. Close the door.
21
Switching off the appliance
21
1. Open the door.
21
2. Switch off ON/OFF switch (.
21
3. Turn off the tap (not applicable if Aqua-Stop fitted).
21
4. Remove the utensils when they have cooled down.
21
Note
21
Interrupting the programme
22
1. Open the door.
22
2. Switch off ON/OFF switch (.
22
3. To continue the programme, switch on the ON/OFF switch ( again.
22
4. Close the door.
22
Terminating the programmeTerminating the programme (Reset)
22
1. Open the door.
22
2. Press START button )" for approx. 3 sec.
22
3. Close the door.
22
4. Open the door.
22
5. Switch off ON/OFF switch (.
22
6. Close the door.
22
Changing the programme
22
Intensive drying
22
1. Open the door.
22
2. Switch on ON/OFF switch (.
22
3. Hold down programme button # and press START button )" until •:‹.... is indicated on the digital display.
22
4. Release both buttons.
22
5. Press programme button # until the factory set value š:‹‹ is indicated on the digital display 8.
22
To change the setting,
22
1. Press the button 3 to switch the Intensive drying on š:‹‚ or off š:‹‹.
22
2. Press START button )".
22
3. Close the door.
22
2 Cleaning and maintenance
23
Cleaning and maintenance
23
Overall condition of the machine
23
m Warning
23
Health hazard
23
Special salt and rinse aid
23
Filters
24
1. After each washing cycle check the filters for residue.
24
2. Unscrew filter cylinder as illustrated and take out filter system.
24
3. Remove any residue and clean filters under running water.
24
4. Re-install filter system in reverse sequence and ensure that the arrow marks are opposite each other after closing the filter system.
24

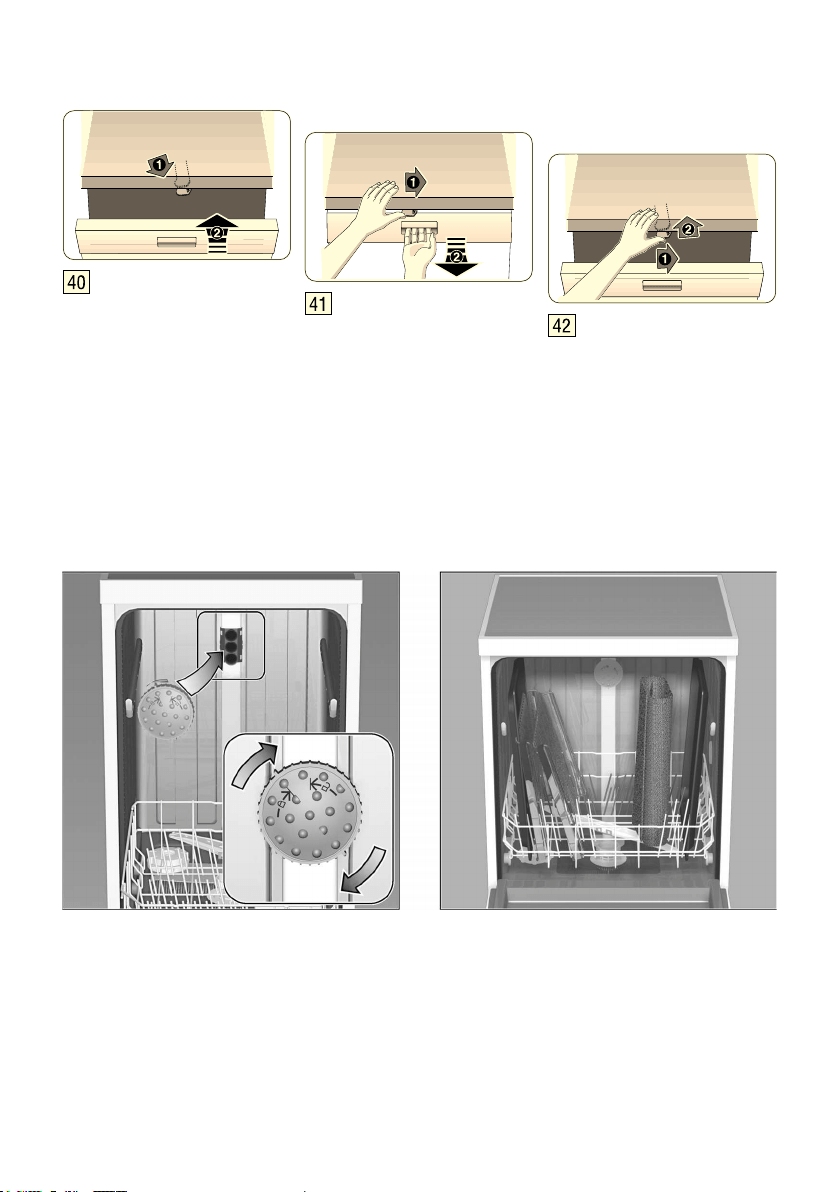

Spray arms
24
1. Check outlet nozzles on the spray arms for blockages.
24
2. Unscrew the upper spray arm 1:.
24
3. Remove the lower spray arm 1J upwards.
24
4. Clean spray arms under running water.
24
5. Re-engage or screw on spray arms.
24
3 Fault, what to do?
25
Fault, what to do?
25
Note
25
m Warning
25
Waste water pump
25
m Warning
25
Risk of cuts!
25
1. First always disconnect the appliance from the power supply.
25
2. Take out top basket 12 and bottom basket 1b.
25
3. Remove the filters 1Z.
25
4. Scoop out water, use a sponge if required.
25

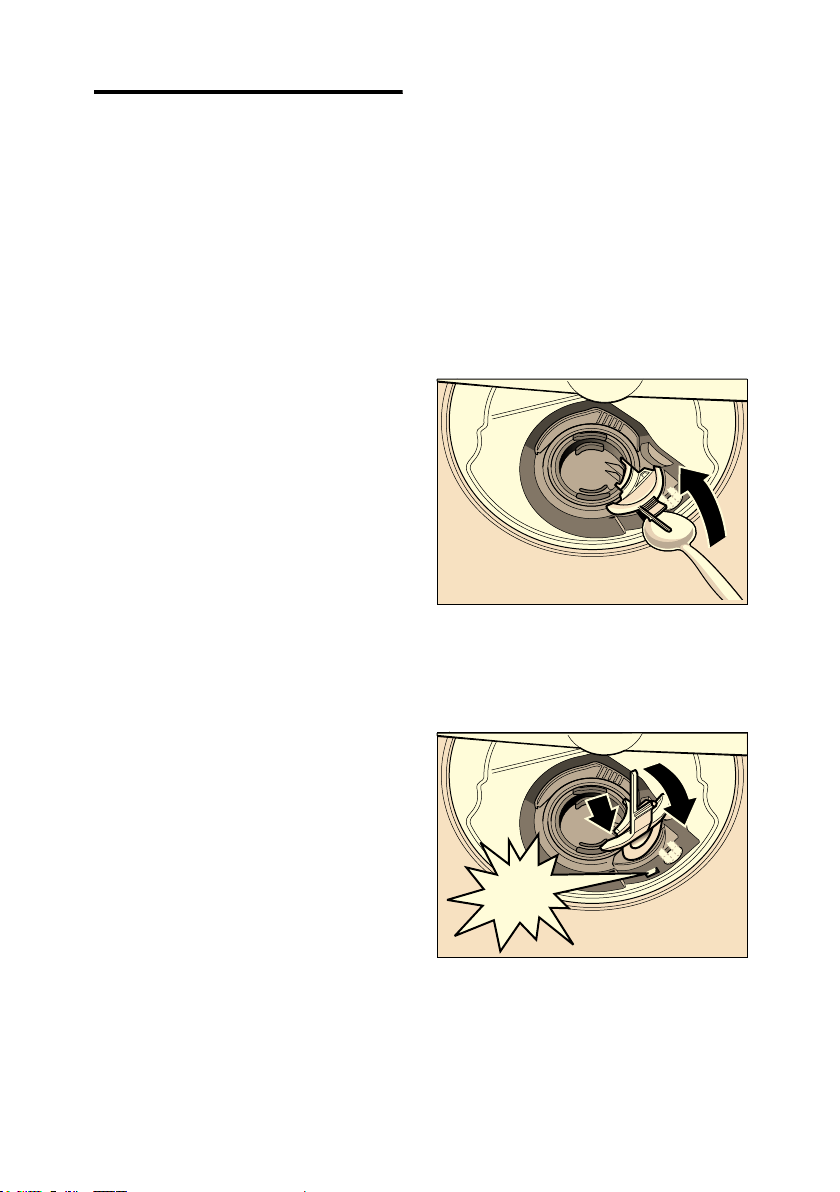

5. Prise out the white pump cover (as illustrated) using a spoon. Grip the cover on the crosspiece and lift diagonally inwards. Remove cover completely.
25
6. Check impeller wheel and remove any foreign objects.
25
7. Place cover in the original position and press down until it engages (click).
25
8. Install filters.
25
9. Re-insert baskets.
25
Fault table
26
Fault
26
Cause
26
Remedial action
26
4 Customer service
34
Customer service
34
5 Installation and connection
34
Installation and connection
34
1. Checking appliance on delivery
34
2. Installing the appliance
34
3. Waste water connection
34
4. Drinking water connection
34
5. Electrical connection
34
Product package
34
Safety instructions
34
Delivery
35
Technical specifications
35
Installation
35
Waste-water connection
35
1. The required work sequence can be found in the installation instructions. If required, fit a siphon with an drainage connection.
35
2. Connect the waste-water hose to the drainage connection of the siphon with the enclosed parts.
35
Drinking water connection
36
1. Fasten the drinking water connection to the tap according to the installation instructions using the enclosed parts.
36
2. When replacing the appliance, always use a new water supply hose.
36
Warm water connection *Warm water connection
36
Setting hot water:
37
1. Open the door.
37
2. Switch on ON/OFF switch (.
37
3. Hold down programme button # and press START button )" until •:‹... is indicated on the digital display.
37
4. Release both buttons.
37
5. Press programme button # until the factory set value ‘:‹‹ is indicated on the digital display 8.
37
To change the setting:
37
1. By pressing the 3 button, you can switch the hot water setting off ‘:‹‹ or on ‘:‹‚.
37
2. Press START button )".
37
3. Close the door.
37
Electrical connection
37
Removing the appliance
38
1. Disconnect the appliance from the power supply.
38
2. Turn off the water supply.
38
3. Undo the waste water and drinking water connection.
38
4. Loosen fastening screws for the furniture parts.
38
5. If fitted, remove the base panel.
38
6. Pull out the appliance, carefully pulling the hose behind.
38
Transportation
38
Drain the appliance according to the following steps:
38
1. Turn on the tap.
38
2. Open the door.
38
3. Switch on ON/OFF switch (.
38
4. Select programme with the highest temperature.
38
5. Press START button )".
38
6. Close the door.
38
7. Open door after approx. 4 minutes.
38
8. Press START button )" until ‹:‹‚ is indicated on the digital display.
38
9. Close the door.
38
10. Open door after approx. 1 minute.
38
11. Switch off ON/OFF switch (.
38
12. Turn off the tap, disconnect supply hose and drain water.
38
Protection against frostProtection against frost (Emptying the appliance)
38
File type: PDF
File name: Bosch SMV69T20GB Dishwasher.pdf
File size: 2.5 MB
File Language: English
Pages: 42
Author: Bosch
Published: 2018-07-31 17:00:00
Updated: 2023-08-08
Download File
Specifications
Brand:
Bosch
Model: SMV69T20GB
Category:
Dishwashers
View in the file:
Full Specifications
See other models:
SMV40C00GB
SMI50C12GB
SMI50C16GB
SMV50C10GB
SMI50C15GB
Photos
Download User Manual
Bosch in United States
1-800-944-2904
Twitter
Website
Related Products
Bosch SMI69T15GB
Bosch SMV69T10AU
Bosch SMV40C20GB
Bosch SMV53L20GB
Bosch SMV68TD06G
Bosch SMV68MD00G
Bosch SMV68MD02G
Bosch SMV68MD01G
Bosch SMI50C15GB
Bosch SMV50C10GB
Bosch SMI50C16GB
Bosch SMI50C12GB
Bosch SMV40C00GB
Bosch SMI53E05GB
Bosch SMV66MX01A
Table of Contents
×
( Safety instructions 4
1
7 Protection of the environment 8
1
* Getting to know your appliance 9
1
+ Water softening system/ Special salt 10
1
, Rinse aid 12
1
- Utensils 13
1
. Detergent 17
1
/ Overview of programmes 19
1
0 Additional options 20
1
1 Operating the appliance 21
1
2 Cleaning and maintenance 25
2
3 Fault, what to do? 27
2
4 Customer service 36
2
5 Installation and connection 36
2
8 Intended use
2
Intended use
2
( Safety instructions
2
Safety instructions
2
Before you switch ON the appliance
2
Delivery
3
1. Check the packaging and dishwasher immediately for damage caused in transit. Do not switch on a damaged appliance, but contact your supplier.
3
2. Please dispose of the packaging material in an environmentally friendly manner.
3
3. Do not let children play with packaging and its parts. There is a risk of suffocation from collapsible boxes and film.
3
Installation
3
In daily use
4
Childproof lock (door lock)Door lock *
4
Damage
4
Disposal
4
1. Make redundant appliances unusable to prevent subsequent accidents.
4
2. Dispose of the appliance in a n environmentally friendly manner.
4
m Warning
5
Risk of injury!
5
m Warning
5
Risk of explosion!
5
m Warning
5
Risk of scalding!
5
m Warning
5
Risks to children!
5
7 Protection of the environment
6
Protection of the environment
6
Packaging
6
Old appliances
6
* Getting to know your appliance
7
Getting to know your appliance
7
Control panel
7
Appliance interior
7
Overview of menu
7
+ Water softening system/Special salt
8
Water softening system/Special salt
8
Setting
8
1. Find out about the hardness value of your tap water. Your water utility company will help you with this.
8
2. Set value can be found in the water hardness table.
8
3. Open the door.
8
4. Switch on ON/OFF switch (.
8
5. Hold down programme button # and press START button )" until •:‹.... is indicated on the digital display.
8
6. Release both buttons.
8
To change the setting:
8
1. Press programme button 3.
8
2. Press START button )".
8
3. Close the door.
8
Water hardness table
8
Using special salt
9
1. Open the screw-type cap of the compartment 1R.
9
2. Fill the tank with water (only required when switching on the appliance for the first time).
9
3. Then add dishwasher salt (not table salt or tablets).
9
Using detergents with salt componentDetergents with salt component
9
Switching off salt refill indicator/water softening systemSwitching off water softening system
9
m Caution
9
, Rinse aid
10
Rinse aid
10
1. Open the dispenser 1j by pressing and lifting the plate on the cover.
10
2. Carefully pour rinse aid up to the max. mark in the filler opening.
10
3. Close cover until it clicks shut.
10
4. To prevent excessive foam formation during the next rinse cycle, remove any rinse aid which has run over with a cloth.
10
Setting amount of rinse aid
10
1. Open the door.
10
2. Switch on ON/OFF switch (.
10
3. Hold down programme button # and press START button )" until •:‹.... is indicated on the digital display.
10
4. Release both buttons.
10
5. Press programme button # until the factory set value §:‹† is indicated on the digital display 8.
10
To change the setting:
10
1. Press programme button 3.
10
2. Press START button )".
10
3. Close the door.
10
Switching off rinse aid refill indicator
11
- Utensils
11
Utensils
11
Not suitable
11
Glass and utensil damage
11
Loading the dishwasher
11
1. Remove large food remnants. It is not necessary to prerinse utensils under running water.
11
2. Place the utensils so that
11
Unloading the dishwasher
11
Note
11
Cups and glasses
12
Note
12
Pans
12
Tip
12
Tip
12
Cutlery drawer
13
Folding spikesFolding spikes *
13
Small accessories holder *Small accessories holder
13
Adjusting the height of the basket
14
Appliance height 81.5 cm
14
16 cm
14
30 cm
14
18.5 cm
14
27.5 cm
14
21 cm
14
25 cm
14
Appliance height 86.5 cm
14
18 cm
14
33 cm
14
20.5 cm
14
30.5 cm
14
23 cm
14
28 cm
14
1. Pull out the top basket 12 out.
14
2. To lower the basket, press in the left and then the right lever on the outside of the basket. In doing so, hold the sides of the basket along the upper edge to prevent it from suddenly dropping.
14
3. To raise the basket, hold the basket on the sides of the upper edge and lift it up.
14
4. Before re-inserting the basket again, ensure that it is at the same height on both sides. Otherwise, the appliance door cannot be closed and the upper spray arm will not be connected to the water circuit.
14
. Detergent
15
Detergent
15
Note
15
m Warning
15
Adding detergent
15
1. If the detergent dispenser 9" is still closed, press the lock 9* to open the detergent dispenser.
15
2. Close the cover on the detergent dispenser by sliding it up until the lock engages without difficulty.
15
Tip
16
Combination detergent
16
m Warning
16
m Warning
16
Notes
16
/ Overview of programmes
17
Overview of programmes
17
The max. possible number of programmes is illustrated in this overview. The corresponding programmes and their arrangement can be found on the fascia.
17
Type of utensils
17
Type of soiling
17
Programme
17
Possible additional options
17
Programme sequence
17
Programme selection
17
Information for test institutes
18
0 Additional options
18
Additional options
18
Express Wash/ Speed Perfect (VarioSpeed)Ÿ Express Wash/ Speed Perfect/ (VarioSpeed) *
18
Half load§ Half load *
18
· Hygiene *Hygiene
18
Ï Intensive zone *Intensive zone
18
¿ Extra drying *Extra drying
18
1 Operating the appliance
19
Operating the appliance
19
Programme data
19
Aqua sensorAqua sensor *
19
Switching on the appliance
19
1. Turn on the tap fully.
19
2. Open the door.
19
3. Switch on ON/OFF switch (.
19
4. Press the START button )".
19
5. Close the door.
19
Note
19
Optical display while the programme is runningOptical display while the programme is running *
19
1. Open the door.
19
2. Switch on ON/OFF switch (.
19
3. Hold down programme button # and press START button )" until •:‹.... is indicated on the digital display.
19
4. Release both buttons.
20
5. Press programme button # until the factory set value ‚:‹‚ is indicated on the digital display 8.
20
To change the setting:
20
1. By pressing the button 3, you can switch the function off ‚:‹‹ or on ‚:‹‚.
20
2. Press START button )".
20
3. Close the door.
20
Remaining running time display
20
Timer programming
20
1. Open the door.
20
2. Switch on ON/OFF switch (.
20
3. Press the button ` + until ‹‚ is flaching in the timer programming display X.
20
4. Press + or – button until the ` displayed time corresponds with your requirements.
20
5. Press START button )", timer programming is activated.
20
6. To delete timer programming `, press the + or – button until ‹‹ is indicated on the digital display X.
20
7. Close the door.
20
End of programme
20
1. Open the door.
20
2. Switch on ON/OFF switch (.
20
3. Hold down programme button # and press START button )" until •:‹.... is indicated on the digital display.
20
4. Release both buttons.
20
5. Press programme button # until the factory set value ›:‹ƒ is indicated on the digital display 8.
20
To change the setting,
20
1. Press programme button 3. Each time the button is pressed, the set value increases by one level; when the value of ›:‹„ has been reached, the display jumps back to ›:‹‹ (off).
20
2. Press START button )", the set value is saved.
20
3. Close the door.
20
Automatic switch off after end of programme or interior light*Automatic switch off / interior light
21
1. Open the door.
21
2. Switch on ON/OFF switch (.
21
3. Hold down programme button # and press START button )" until •:‹... is indicated on the digital display.
21
4. Release both buttons.
21
5. Keep pressing programme button # until the value ˜:‹... is indicated on the numerical display 8.
21
To change the setting:
21
1. Press programme button 3.
21
2. Press START button )".
21
3. Close the door.
21
Switching off the appliance
21
1. Open the door.
21
2. Switch off ON/OFF switch (.
21
3. Turn off the tap (not applicable if Aqua-Stop fitted).
21
4. Remove the utensils when they have cooled down.
21
Note
21
Interrupting the programme
22
1. Open the door.
22
2. Switch off ON/OFF switch (.
22
3. To continue the programme, switch on the ON/OFF switch ( again.
22
4. Close the door.
22
Terminating the programmeTerminating the programme (Reset)
22
1. Open the door.
22
2. Press START button )" for approx. 3 sec.
22
3. Close the door.
22
4. Open the door.
22
5. Switch off ON/OFF switch (.
22
6. Close the door.
22
Changing the programme
22
Intensive drying
22
1. Open the door.
22
2. Switch on ON/OFF switch (.
22
3. Hold down programme button # and press START button )" until •:‹.... is indicated on the digital display.
22
4. Release both buttons.
22
5. Press programme button # until the factory set value š:‹‹ is indicated on the digital display 8.
22
To change the setting,
22
1. Press the button 3 to switch the Intensive drying on š:‹‚ or off š:‹‹.
22
2. Press START button )".
22
3. Close the door.
22
2 Cleaning and maintenance
23
Cleaning and maintenance
23
Overall condition of the machine
23
m Warning
23
Health hazard
23
Special salt and rinse aid
23
Filters
24
1. After each washing cycle check the filters for residue.
24
2. Unscrew filter cylinder as illustrated and take out filter system.
24
3. Remove any residue and clean filters under running water.
24
4. Re-install filter system in reverse sequence and ensure that the arrow marks are opposite each other after closing the filter system.
24
Spray arms
24
1. Check outlet nozzles on the spray arms for blockages.
24
2. Unscrew the upper spray arm 1:.
24
3. Remove the lower spray arm 1J upwards.
24
4. Clean spray arms under running water.
24
5. Re-engage or screw on spray arms.
24
3 Fault, what to do?
25
Fault, what to do?
25
Note
25
m Warning
25
Waste water pump
25
m Warning
25
Risk of cuts!
25
1. First always disconnect the appliance from the power supply.
25
2. Take out top basket 12 and bottom basket 1b.
25
3. Remove the filters 1Z.
25
4. Scoop out water, use a sponge if required.
25
5. Prise out the white pump cover (as illustrated) using a spoon. Grip the cover on the crosspiece and lift diagonally inwards. Remove cover completely.
25
6. Check impeller wheel and remove any foreign objects.
25
7. Place cover in the original position and press down until it engages (click).
25
8. Install filters.
25
9. Re-insert baskets.
25
Fault table
26
Fault
26
Cause
26
Remedial action
26
4 Customer service
34
Customer service
34
5 Installation and connection
34
Installation and connection
34
1. Checking appliance on delivery
34
2. Installing the appliance
34
3. Waste water connection
34
4. Drinking water connection
34
5. Electrical connection
34
Product package
34
Safety instructions
34
Delivery
35
Technical specifications
35
Installation
35
Waste-water connection
35
1. The required work sequence can be found in the installation instructions. If required, fit a siphon with an drainage connection.
35
2. Connect the waste-water hose to the drainage connection of the siphon with the enclosed parts.
35
Drinking water connection
36
1. Fasten the drinking water connection to the tap according to the installation instructions using the enclosed parts.
36
2. When replacing the appliance, always use a new water supply hose.
36
Warm water connection *Warm water connection
36
Setting hot water:
37
1. Open the door.
37
2. Switch on ON/OFF switch (.
37
3. Hold down programme button # and press START button )" until •:‹... is indicated on the digital display.
37
4. Release both buttons.
37
5. Press programme button # until the factory set value ‘:‹‹ is indicated on the digital display 8.
37
To change the setting:
37
1. By pressing the 3 button, you can switch the hot water setting off ‘:‹‹ or on ‘:‹‚.
37
2. Press START button )".
37
3. Close the door.
37
Electrical connection
37
Removing the appliance
38
1. Disconnect the appliance from the power supply.
38
2. Turn off the water supply.
38
3. Undo the waste water and drinking water connection.
38
4. Loosen fastening screws for the furniture parts.
38
5. If fitted, remove the base panel.
38
6. Pull out the appliance, carefully pulling the hose behind.
38
Transportation
38
Drain the appliance according to the following steps:
38
1. Turn on the tap.
38
2. Open the door.
38
3. Switch on ON/OFF switch (.
38
4. Select programme with the highest temperature.
38
5. Press START button )".
38
6. Close the door.
38
7. Open door after approx. 4 minutes.
38
8. Press START button )" until ‹:‹‚ is indicated on the digital display.
38
9. Close the door.
38
10. Open door after approx. 1 minute.
38
11. Switch off ON/OFF switch (.
38
12. Turn off the tap, disconnect supply hose and drain water.
38
Protection against frostProtection against frost (Emptying the appliance)
38
Search:
×
Search
