Falcon PROP90FXDFGB-CH 90cm Freestanding Dual Fuel User Manual

Dual Fuel

ArtNo.000-0008 Falcon logo shaded

ArtNo.000-0025 - Professional + FX logo







User Guide

Installation & Service Instructions

U110008 - 01

Australia

1. Before You Start... 1

Installation and Maintenance 1

Peculiar Smells 1

If you smell gas: 1

Ventilation 1

Personal Safety 1

Cleaning 2

2. Overview 3

Hotplate Burners 3

Wok Burner 4

The Wok Cradle 4

The Griddle 5

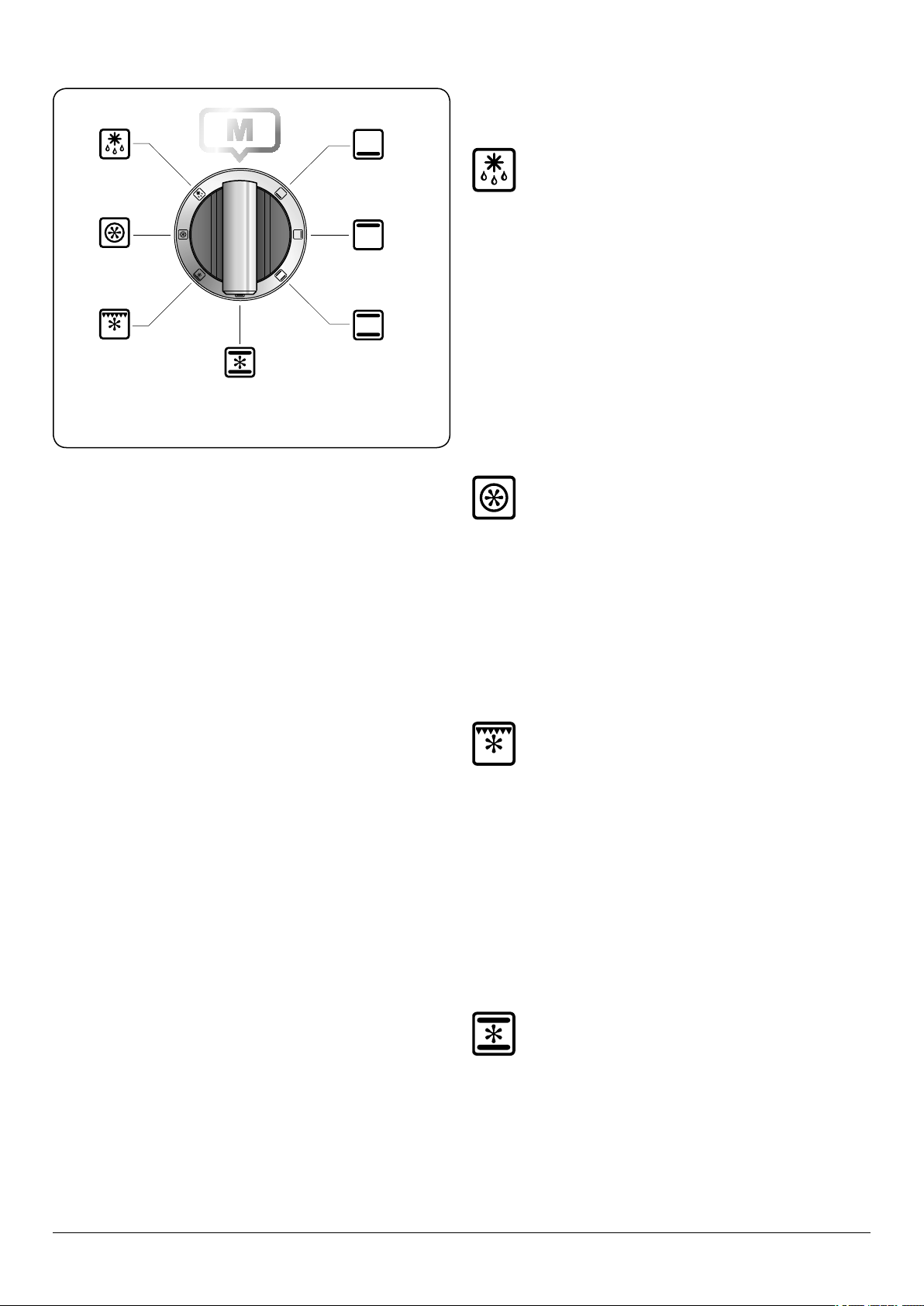

The Multi-function Oven 5

Energy Saving Feature 7

Operating the Oven 8

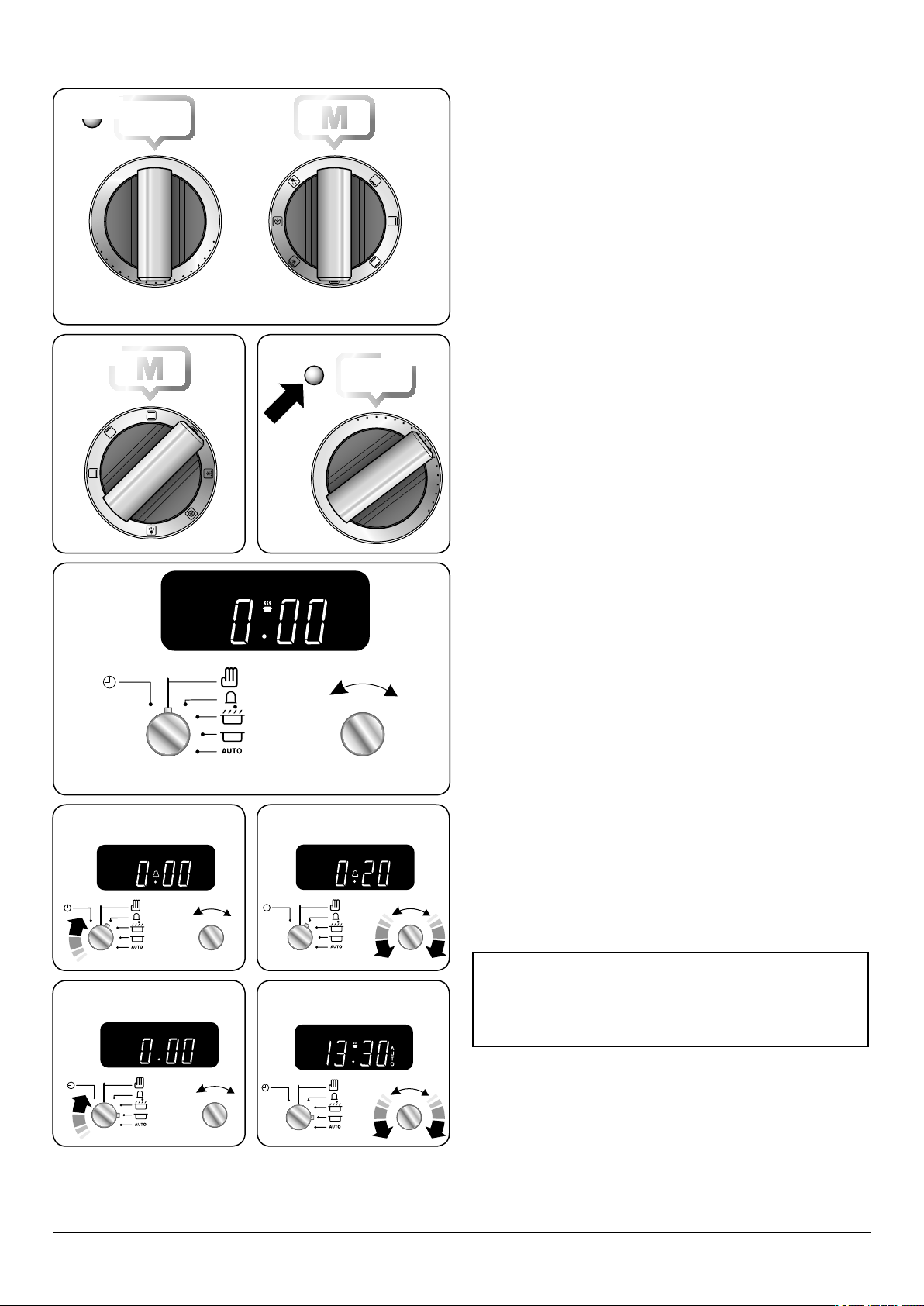

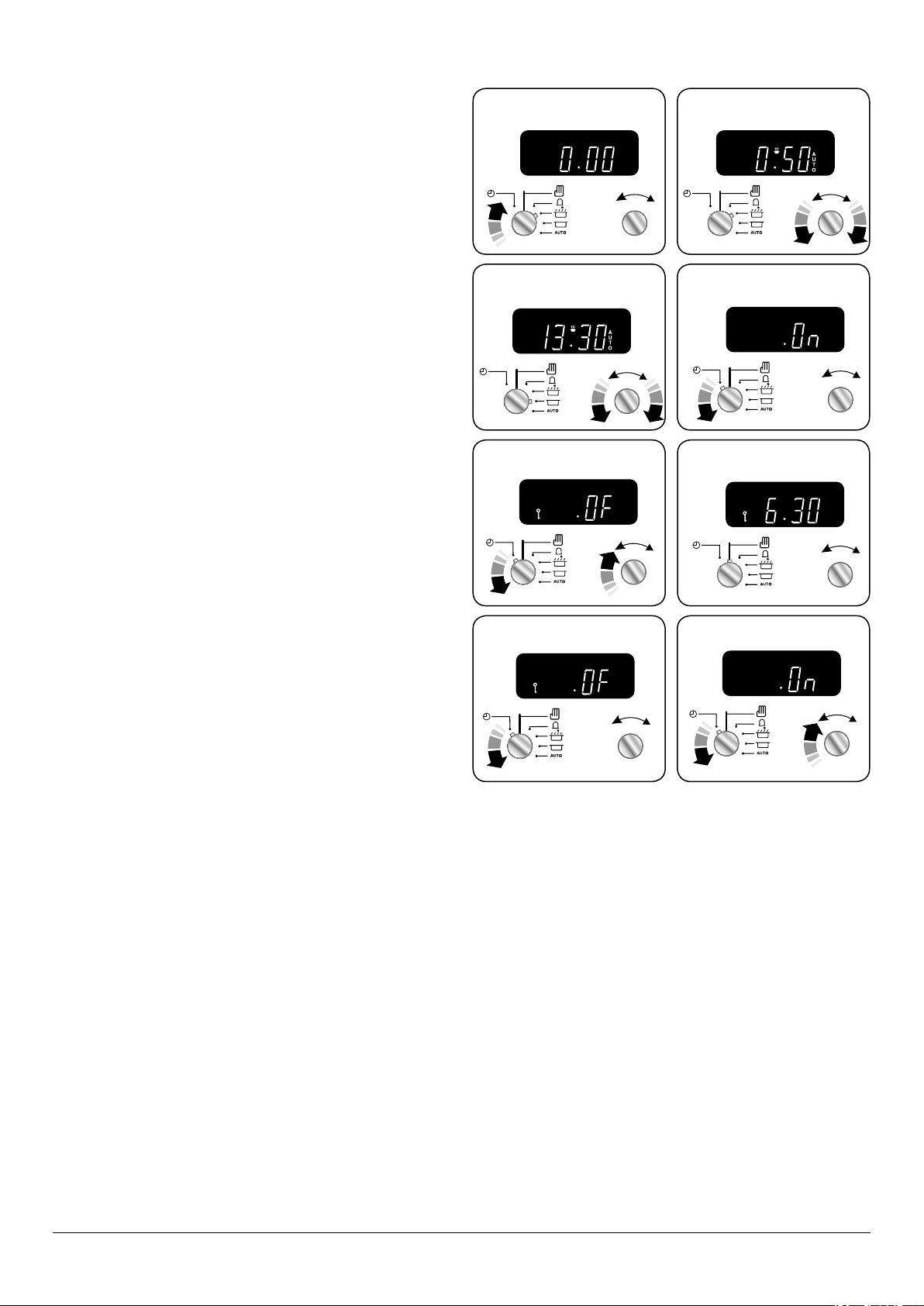

The Clock 8

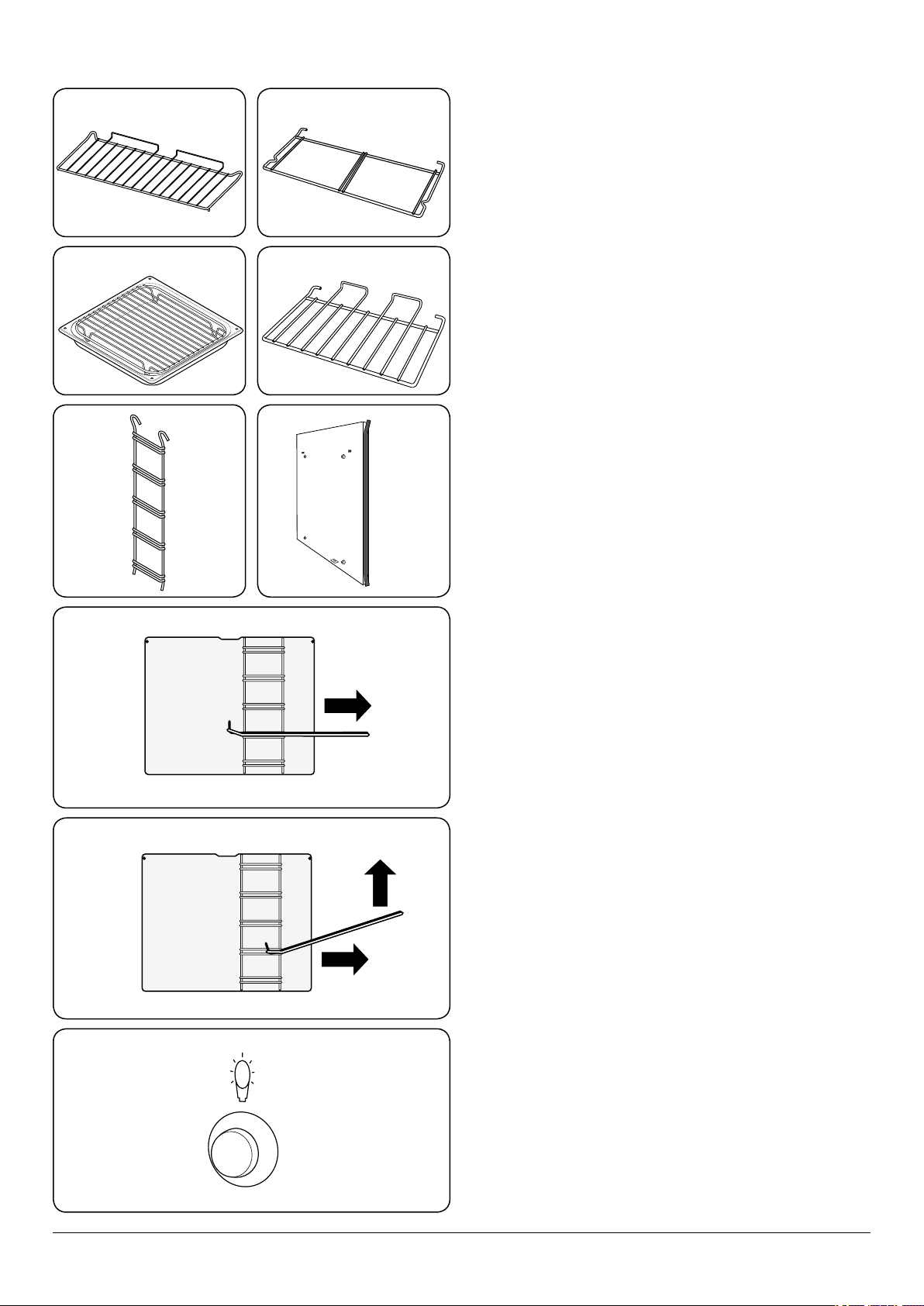

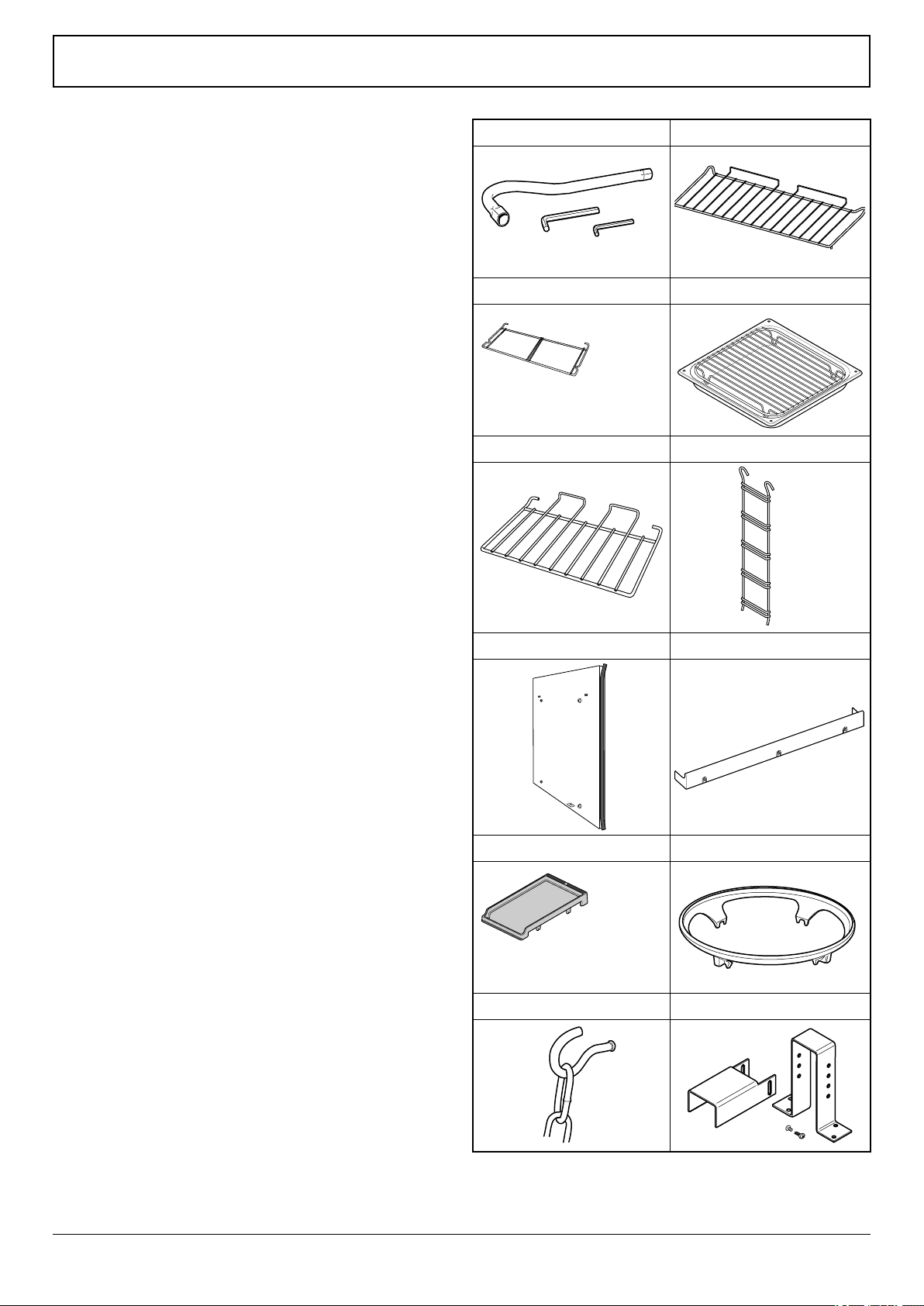

Accessories 10

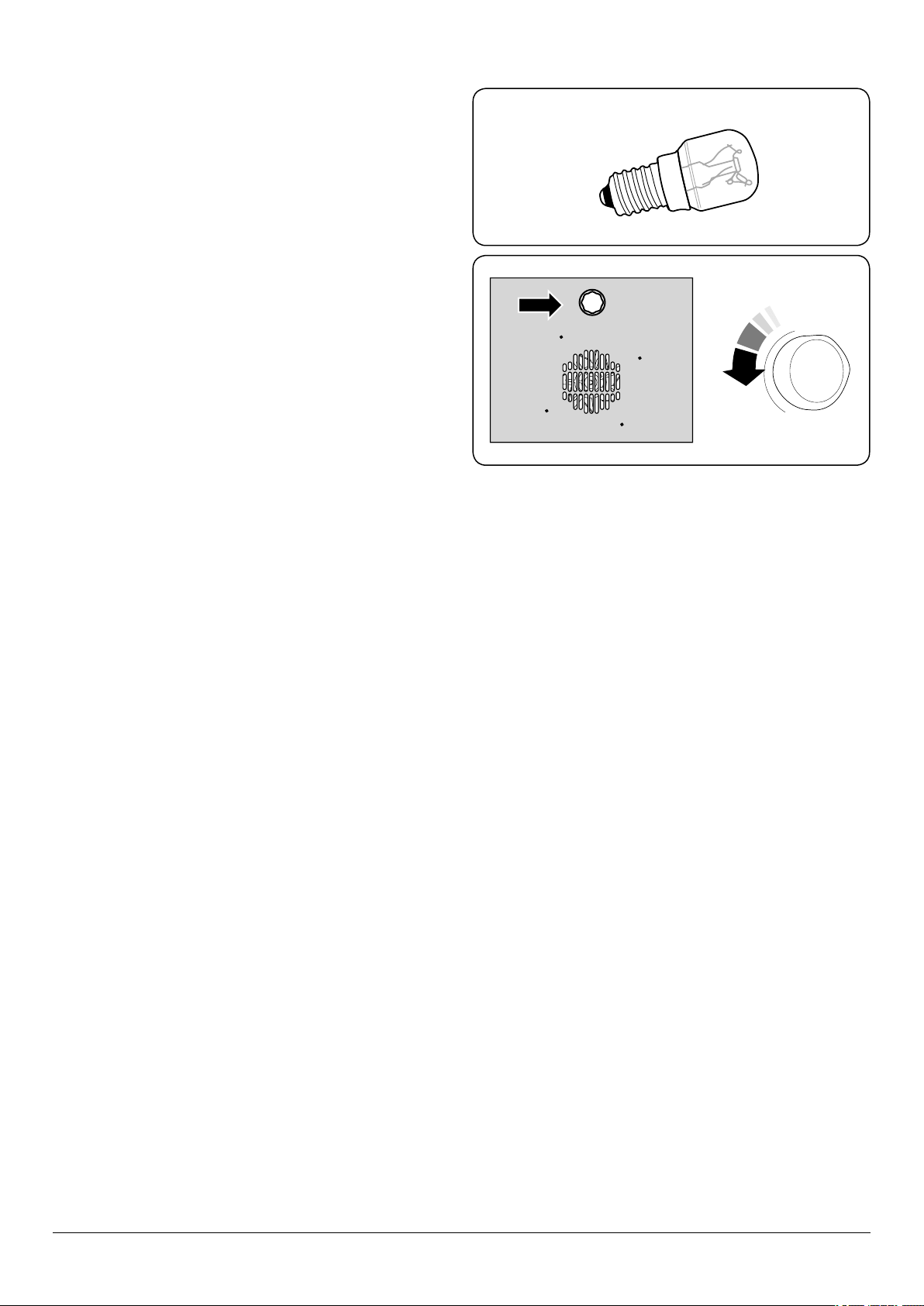

Oven Light 10

Storage 11

3. Cooking Tips 12

Cooking with a Multi-function Oven 12

General Oven Tips 12

4. Cooking Table 13

5. Troubleshooting 14

6. Cleaning Your Cooker 16

Daily Care 16

Cleaning for Spills 16

Hotplate Burners 17

Griddle 17

The Wok Cradle 17

Control Panel and Oven Doors 17

Cleaning Table 18

Contents

7. Installation 19

Service and Spares 19

Dear Installer 20

Provision of Ventilation 20

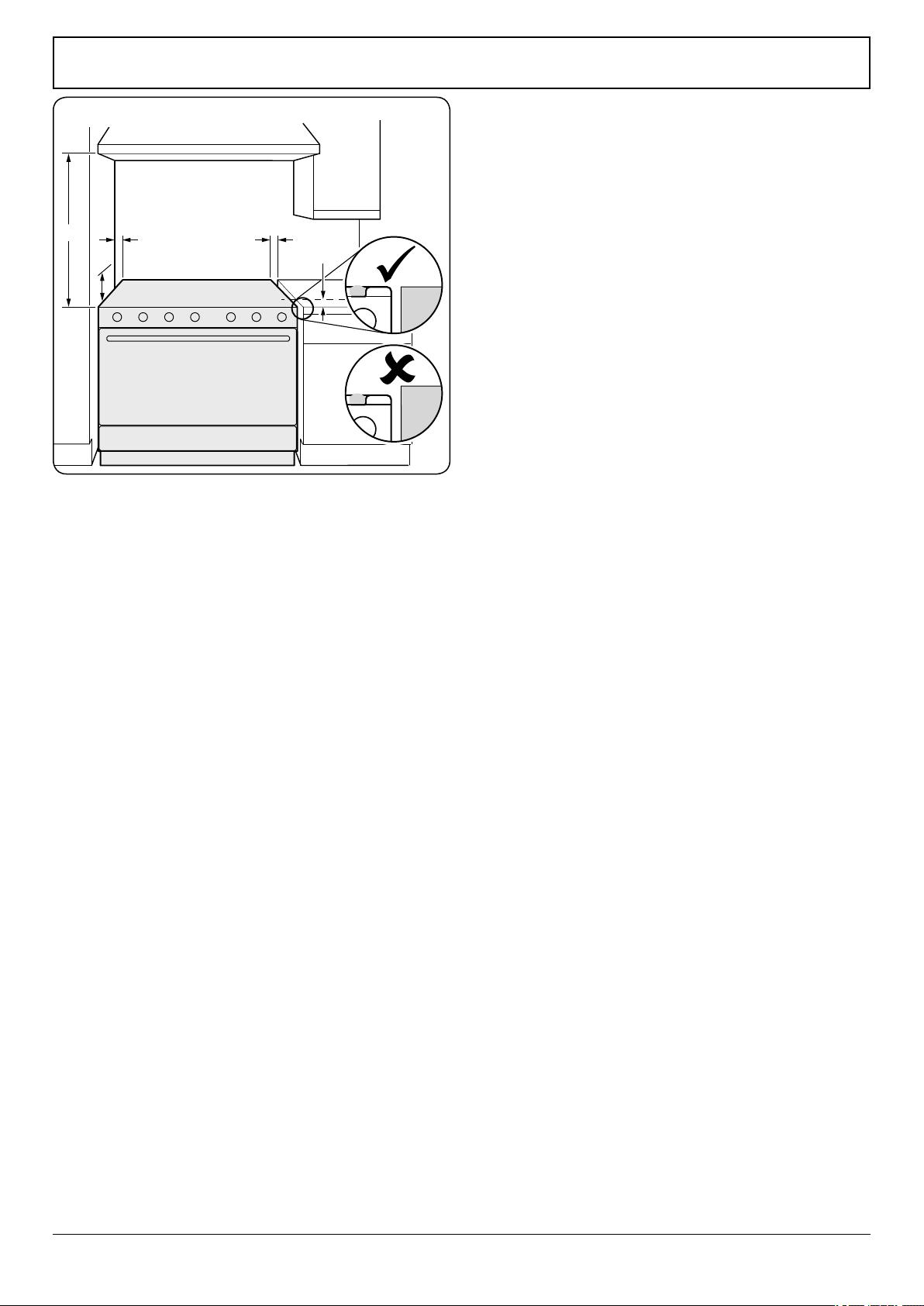

Location of Cooker 20

Conversion 20

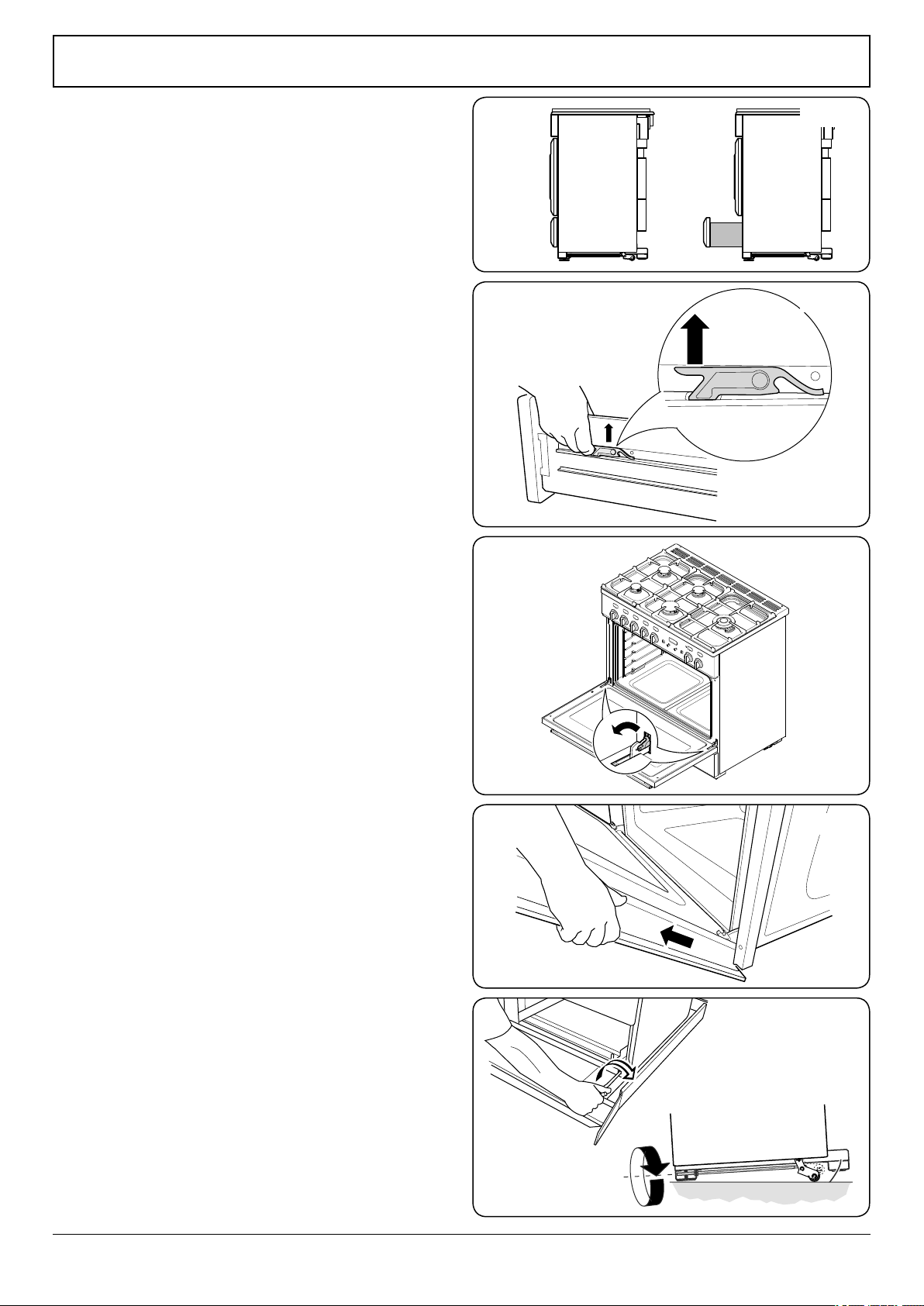

Positioning the Cooker 22

Moving the Cooker 22

Completing the Move 23

Levelling 23

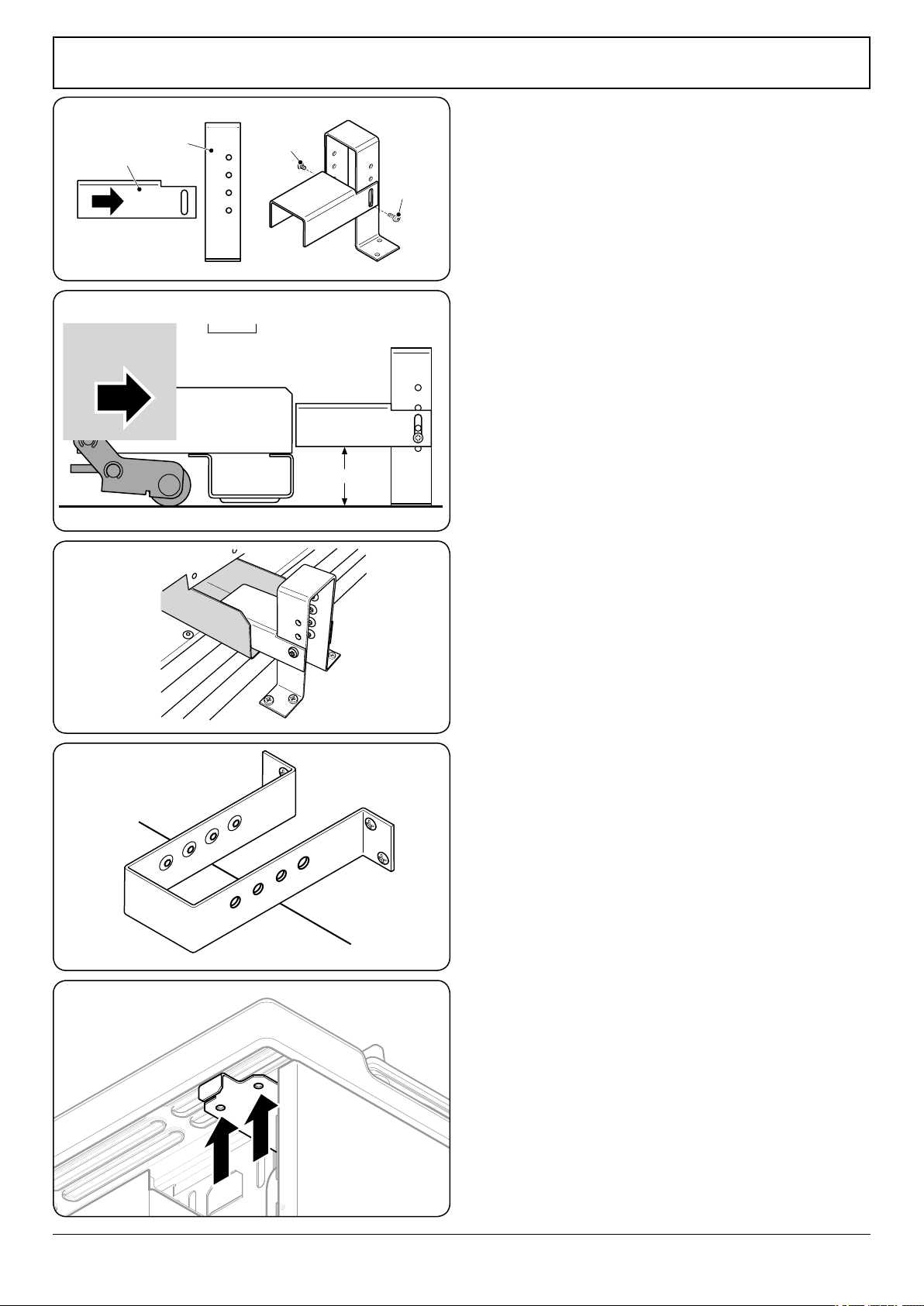

Stability Bracket and Chain 24

Fitting the Restraining Chain 24

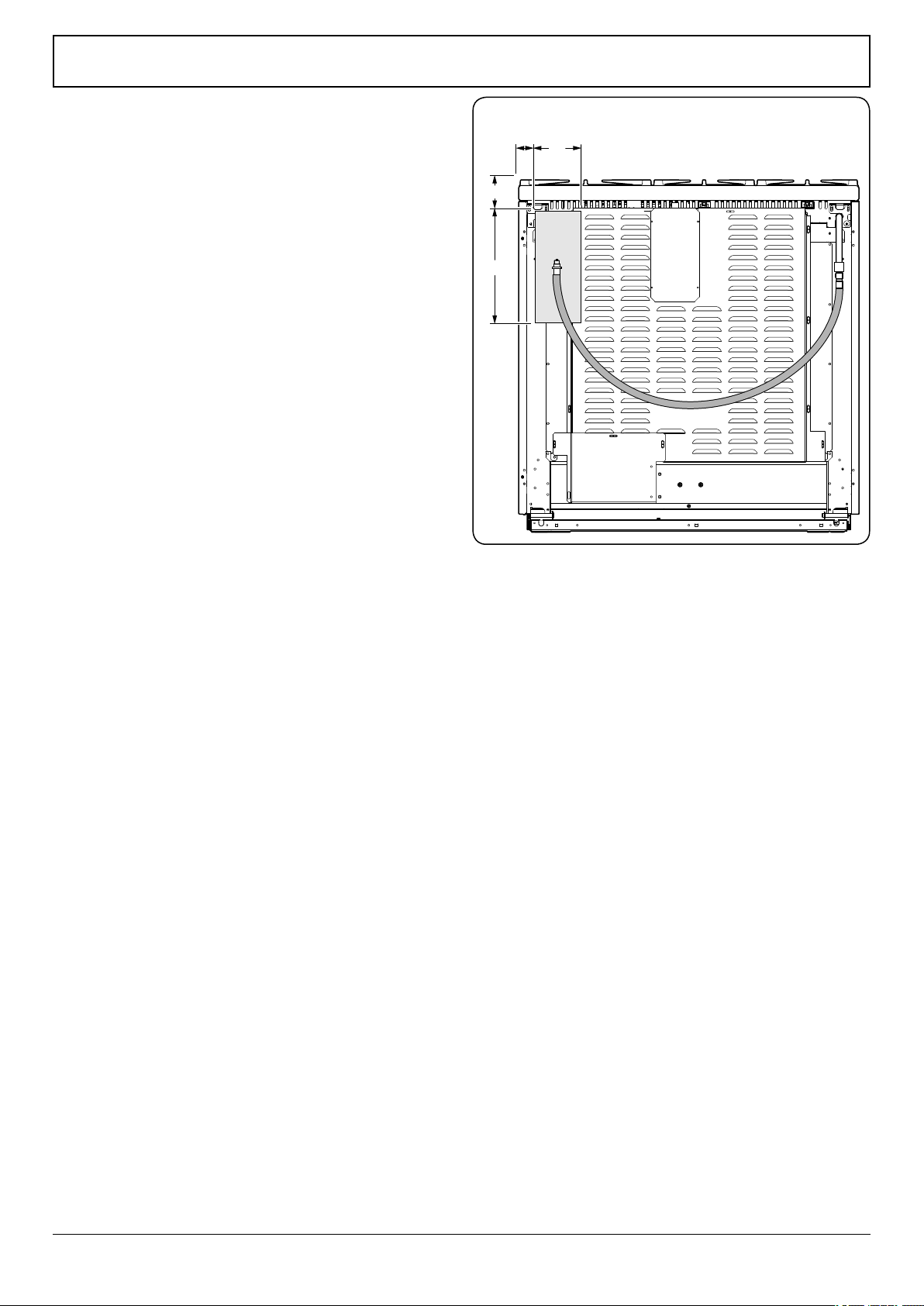

Gas Connection 25

Pressure Testing 25

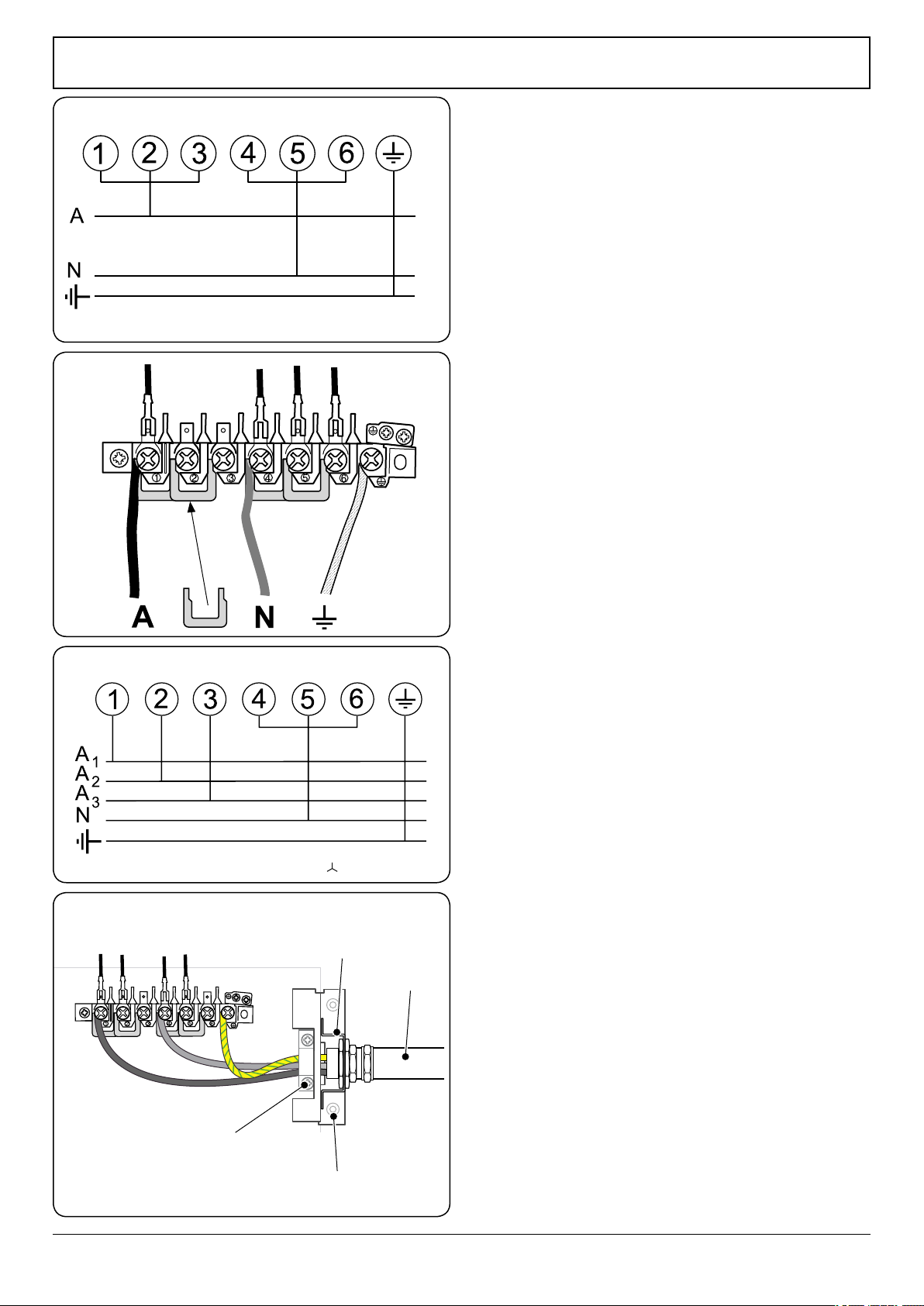

Electrical Connection 26

Fitting the Plinth 27

Reﬁt the Drawer 27

Reﬁtting the Oven Door 27

Customer Care 27

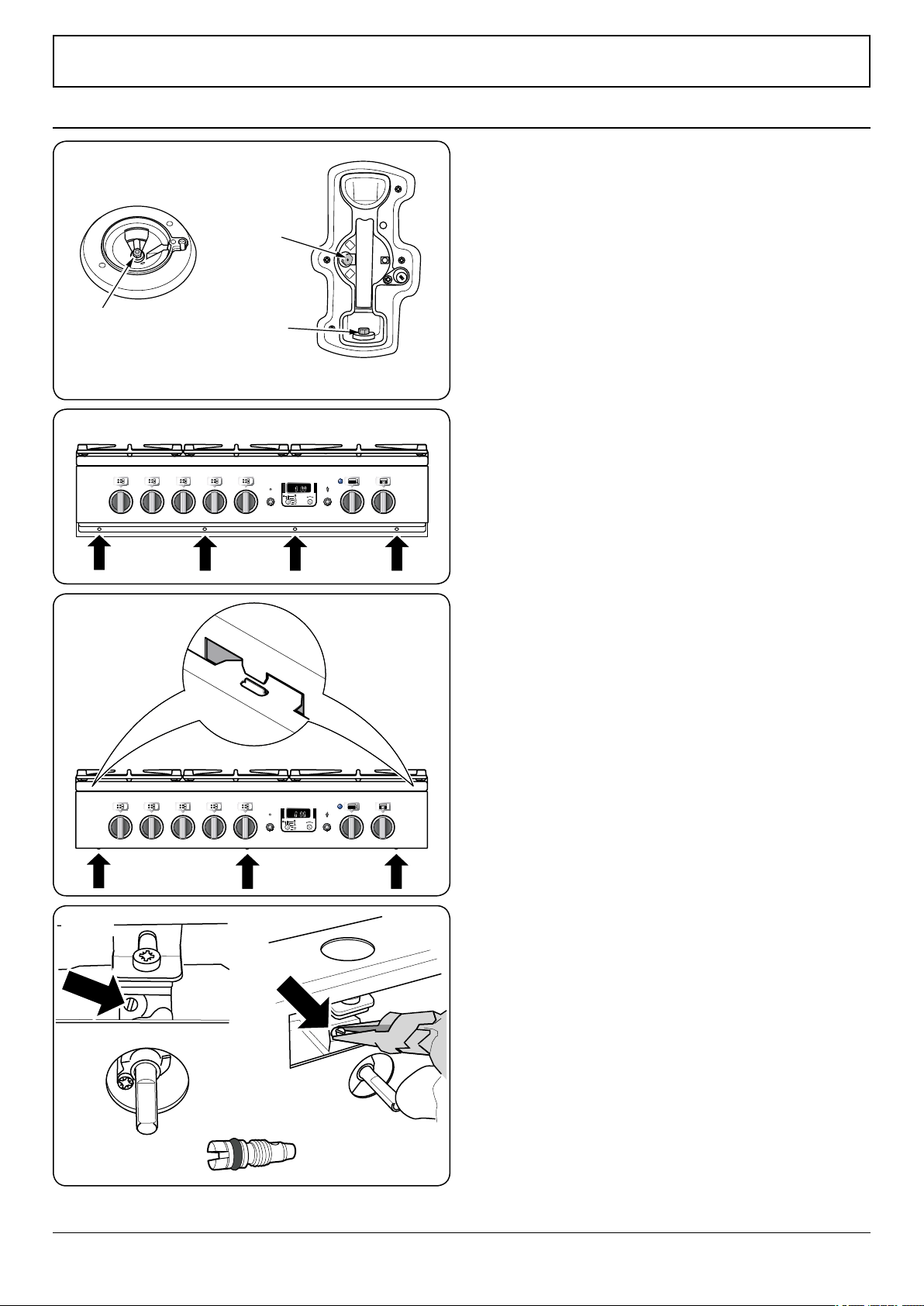

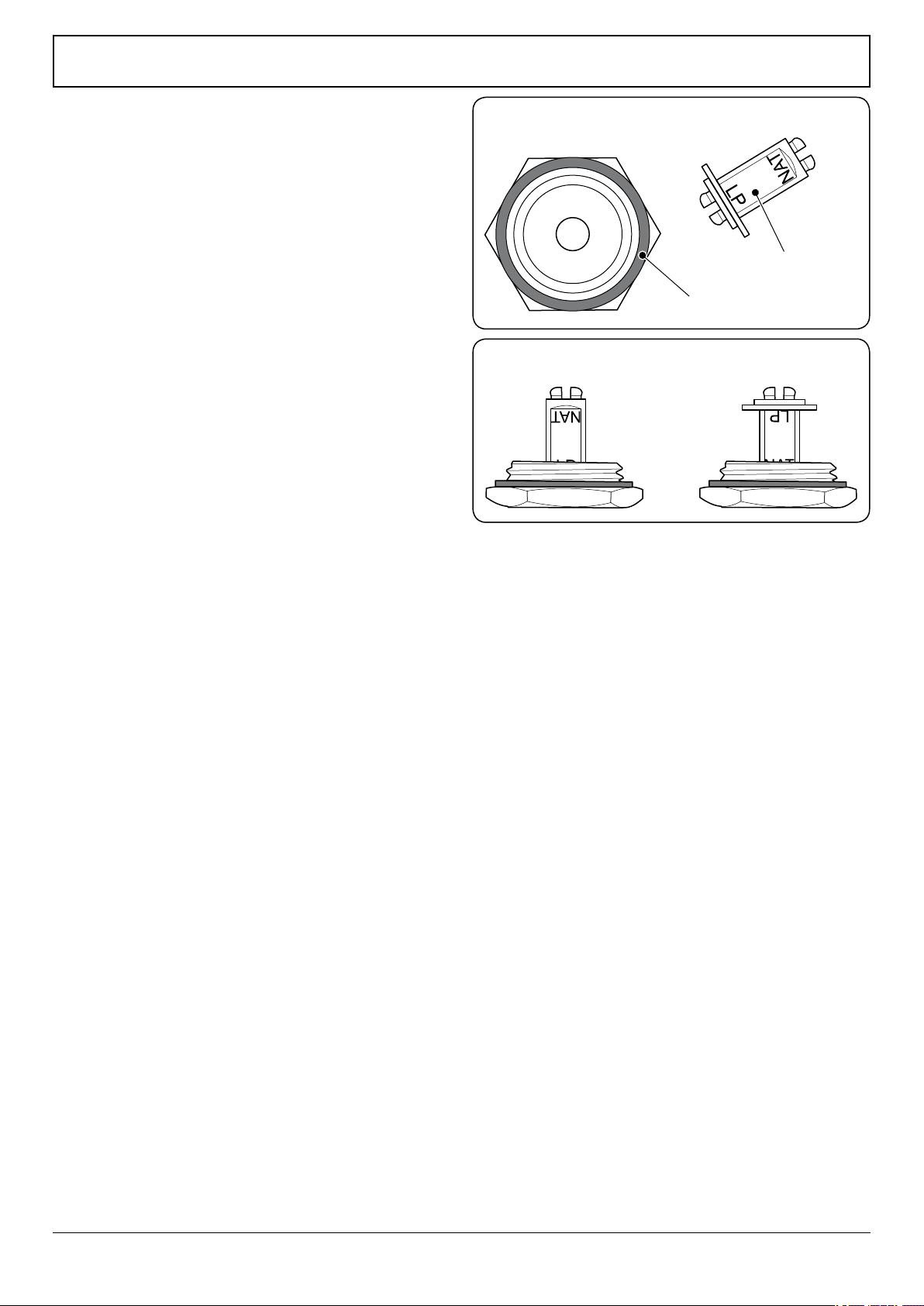

8. Conversion to Propane Gas 28

Injectors 28

Tap Adjustment 28

To Convert to Propane Gas 28

Set the Governor 29

Aﬃx Label 29

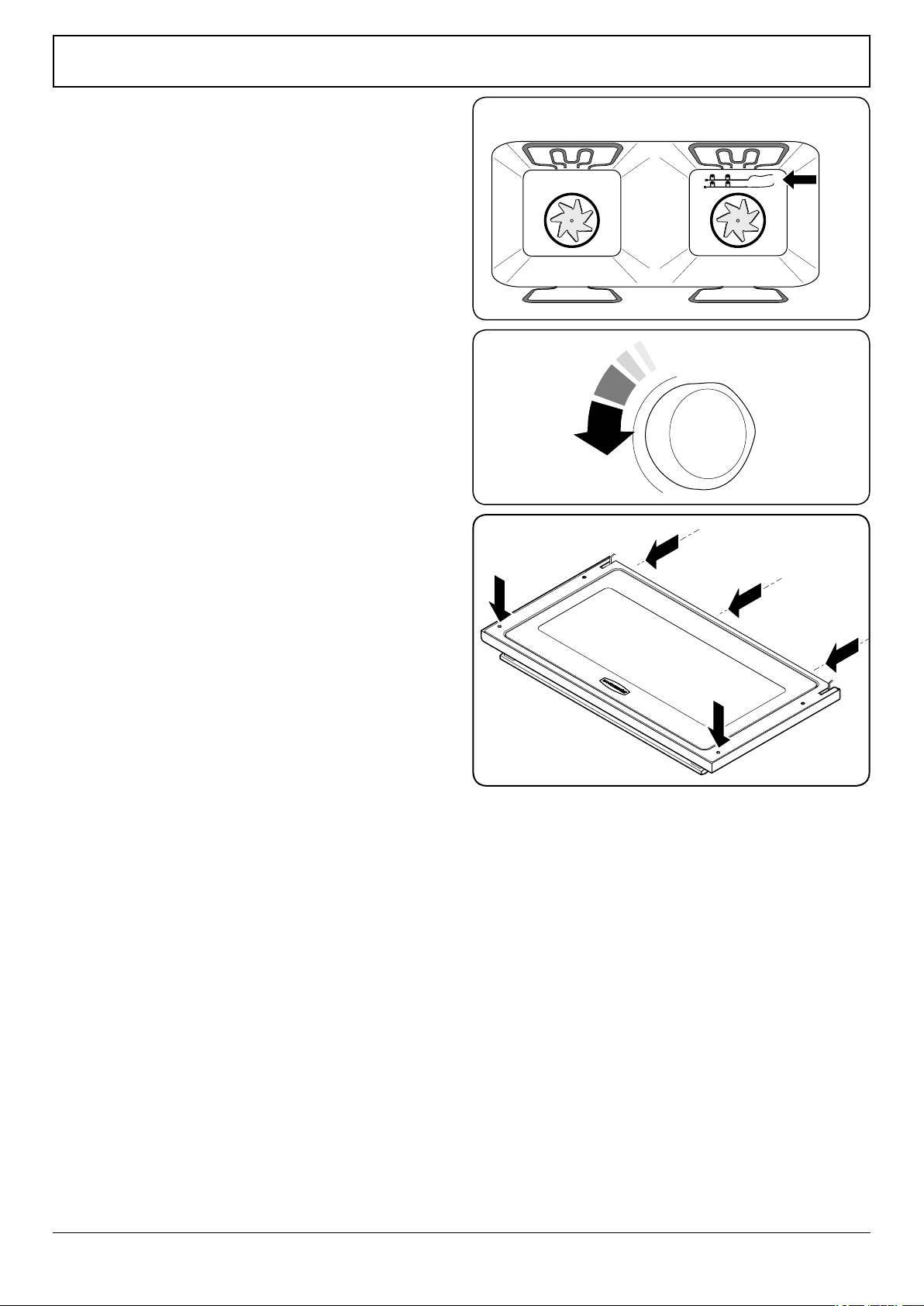

9. Servicing 30

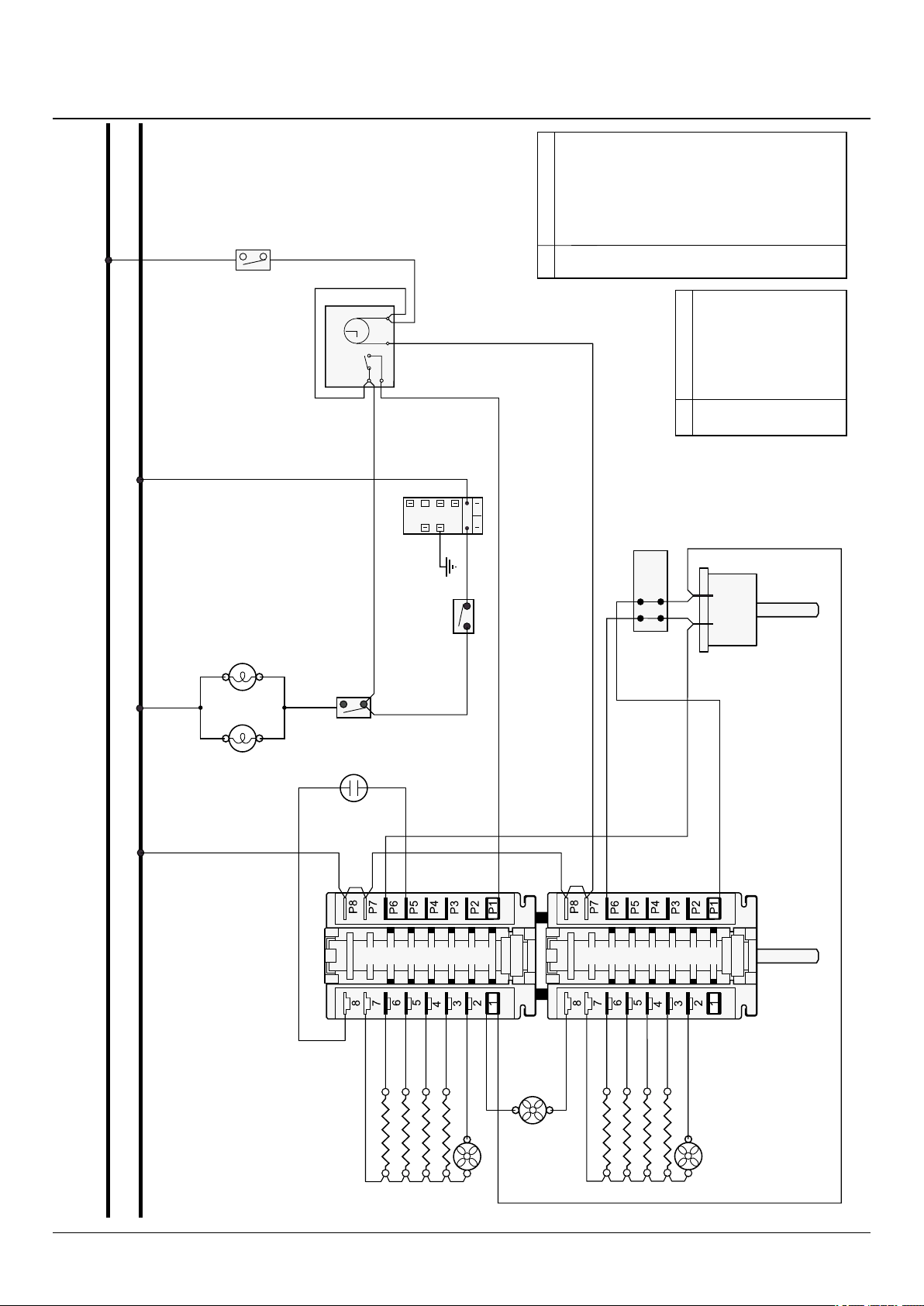

10. Circuit Diagram 35

11. Technical Data 36

Thank you for buying a Falcon cooker. It should give you

many years of trouble-free cooking if installed and operated

correctly. It is important that you read this section before

you start, particularly if you have not used a dual fuel cooker

before.



This appliance is designed for domestic cooking

only. Using it for any other purpose could invalidate

any warranty or liability claim. In particular, the

oven should NOT be used for heating the kitchen

– besides invalidating claims this wastes fuel and

may overheat the control knobs.

Installation and Maintenance

The installation must be in accordance with the relevant

instructions in this booklet, with the relevant national and

local regulations, and with the local gas and electricity supply

companies’ requirements.

Ensure that the gas supply is turned on and that the cooker is

wired in and switched on (the cooker needs electricity).

Set the clock to ensure that the oven is functional - see the

relevant section in this manual.

The cooker should be serviced only by a qualiﬁed service

engineer, and only approved spare parts should be used.

Always allow the cooker to cool and then switch it oﬀ at the

mains before cleaning or carrying out any maintenance work,

unless speciﬁed otherwise in this guide.

Peculiar Smells

When you ﬁrst use your cooker it may give oﬀ a slight odour.

This should stop after a little use.

Before using for the ﬁrst time, make sure that all packing

materials have been removed and then, to dispel

manufacturing odours, turn the ovens to 200°C and run for an

hour.

Make sure the room is well ventilated to the outside air

(see ‘Ventilation’ below). People with respiratory or allergy

problems should vacate the area for this brief period.

If you smell gas:

• DO NOT turn electric switches on or off.

• DO NOT smoke

• DO NOT use naked flames

• DO turn off the gas at the meter or cylinder

• DO open doors and windows to get rid of the gas

• DO keep people away from the area affected

• Call your gas supplier.

Ventilation

The use of a gas cooking appliance results in the production

of heat and moisture in the room in which it is installed.

Therefore, ensure that the kitchen is well ventilated: keep

natural ventilation holes open or install a powered cooker

hood that vents outside. If you have several burners on, or

use the cooker for a long time, open a window or turn on an

extractor fan.

Personal Safety



DO NOT modify this appliance.



This appliance is not intended for use by persons

(including children) with reduced physical, sensory

or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a

person responsible for their safety.



Children or inﬁrm persons should be supervised to

ensure that they do not play with the appliance.



DO NOT use a steam cleaner to clean the cooker.



Accessible parts will become hot during use and

will retain heat even after you have stopped

cooking.

Keep babies and children away from the

cooker and never wear loose-ﬁtting or hanging

clothes when using the appliance.



Always be certain that the controls are in the OFF

position when the oven is not in use, and before

attempting to clean the cooker.



When the oven is on, DO NOT leave the oven door

open for longer than necessary – otherwise, the

control knobs may become very hot.

Cooking high moisture content

foods can create a ‘steam burst’

when the oven door is opened.

When opening the oven stand

well back and allow any steam to

disperse.

ArtNo.062-0003 - 90SC - Prof+ steam burst



DO NOT use harsh abrasive cleaners or sharp metal

scrapers to clean the oven door glass since they can

scratch the surface, which may result in shattering of

the glass.



Always keep combustible materials, e.g. curtains,

and ﬂammable liquids a safe distance away from

your cooker.



Do not store ﬂammable materials in the storage

drawer or near this appliance.



DO NOT spray aerosols in the area of the cooker

while it is on.

1. Before You Start...

Use dry oven gloves when applicable – using damp gloves

might result in steam burns when you touch a hot surface.

Do not use a towel or other bulky cloth in place of a glove – it

might catch ﬁre if brought into contact with a hot surface.



NEVER operate the cooker with wet hands.



DO NOT use aluminium foil to cover shelves, linings

or the oven roof.



NEVER heat unopened food containers. Pressure

build up may cause the containers to burst and

cause injury.



DO NOT use unstable saucepans. Always ensure that

you position the handles away from the edge of the

hotplate.

Never leave the hotplate unattended at high heat settings.

Pans boiling over can cause smoking, and greasy spills may

catch on ﬁre. Use a deep fat thermometer whenever possible

to prevent fat overheating beyond the smoking point.



Never leave a chip pan unattended. Always heat fat

slowly, and watch as it heats. Deep fry pans should

be only one third full of fat. Filling the pan too full

of fat can cause spill over when food is added. If you

use a combination of oils or fats in frying, stir them

together before heating, or as the fats melt.

Foods for frying should be as dry as possible. Frost on frozen

foods or moisture on fresh foods can cause hot fat to bubble

up and over the sides of the pan. Carefully watch for spills or

overheating of foods when frying at high or medium high

temperatures. Never try to move a pan of hot fat, especially a

deep fat fryer. Wait until the fat is cool.

Do not use the top of the ﬂue (the slot along the back of

the cooker) for warming plates, dishes, drying tea towels or

softening butter.



DO NOT use water on grease ﬁres and never pick

up a ﬂaming pan. Turn the controls oﬀ and then

smother a ﬂaming pan on a surface unit by covering

the pan completely with a well ﬁtting lid or baking

tray. If available, use a multipurpose dry chemical or

foam-type ﬁre extinguisher.

Take care that no water seeps into the appliance.

Only certain types of glass, glass-ceramic, earthenware or other

glazed containers are suitable for hotplate cooking; others may

break because of the sudden change in temperature.



This appliance is heavy so take care when moving it.

Cleaning

In the interests of hygiene and safety, the cooker should be

kept clean at all times as a build up in fats and other food

stuﬀ could result in a ﬁre.

Clean only the parts listed in this guide.

Clean with caution. If a wet sponge or cloth is used to wipe

spills on a hot surface, be careful to avoid steam burns. Some

cleansers can produce noxious fumes if applied to a hot

surface.

ArtNo.270-0001

Proplus control to high

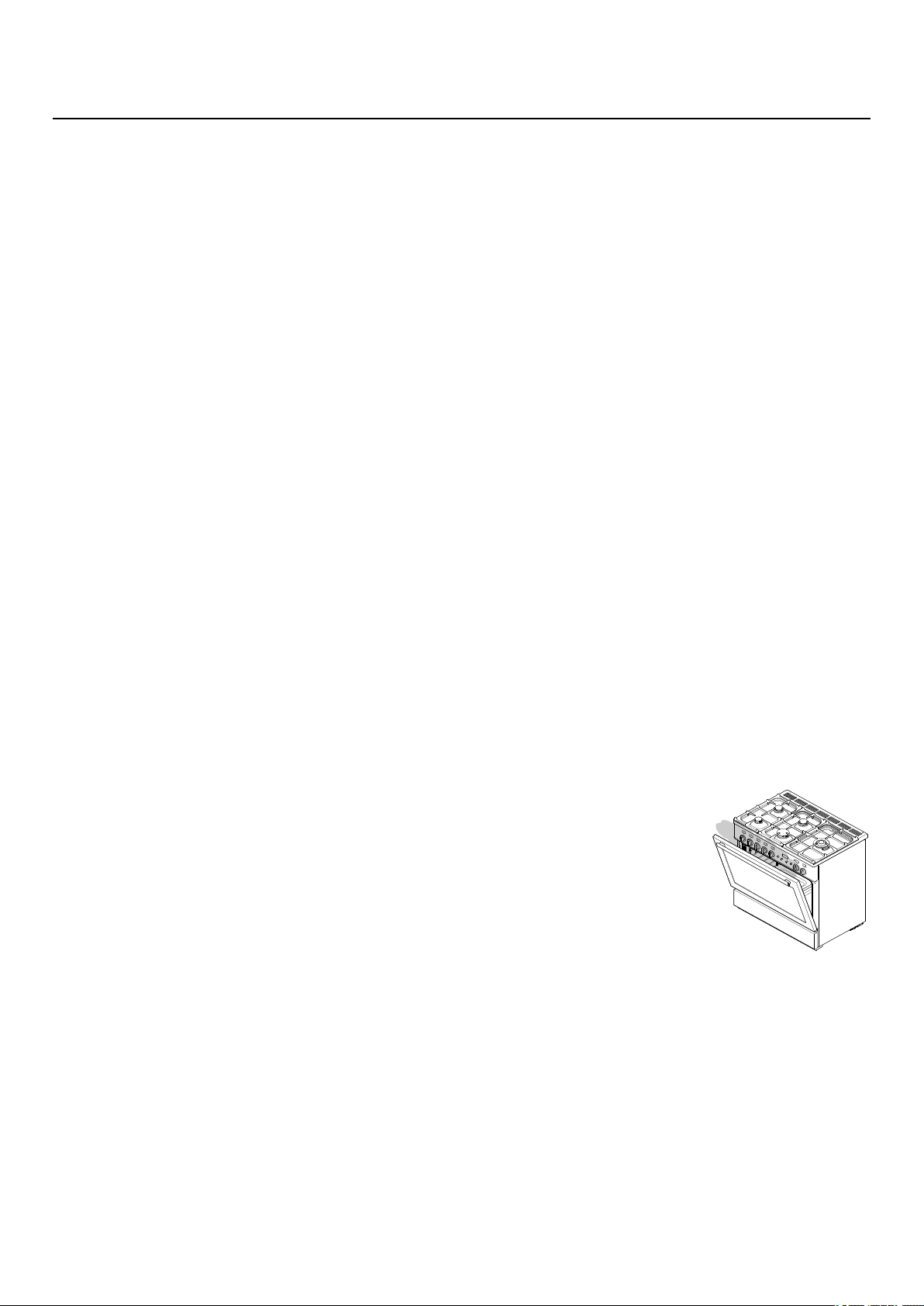

2. Overview

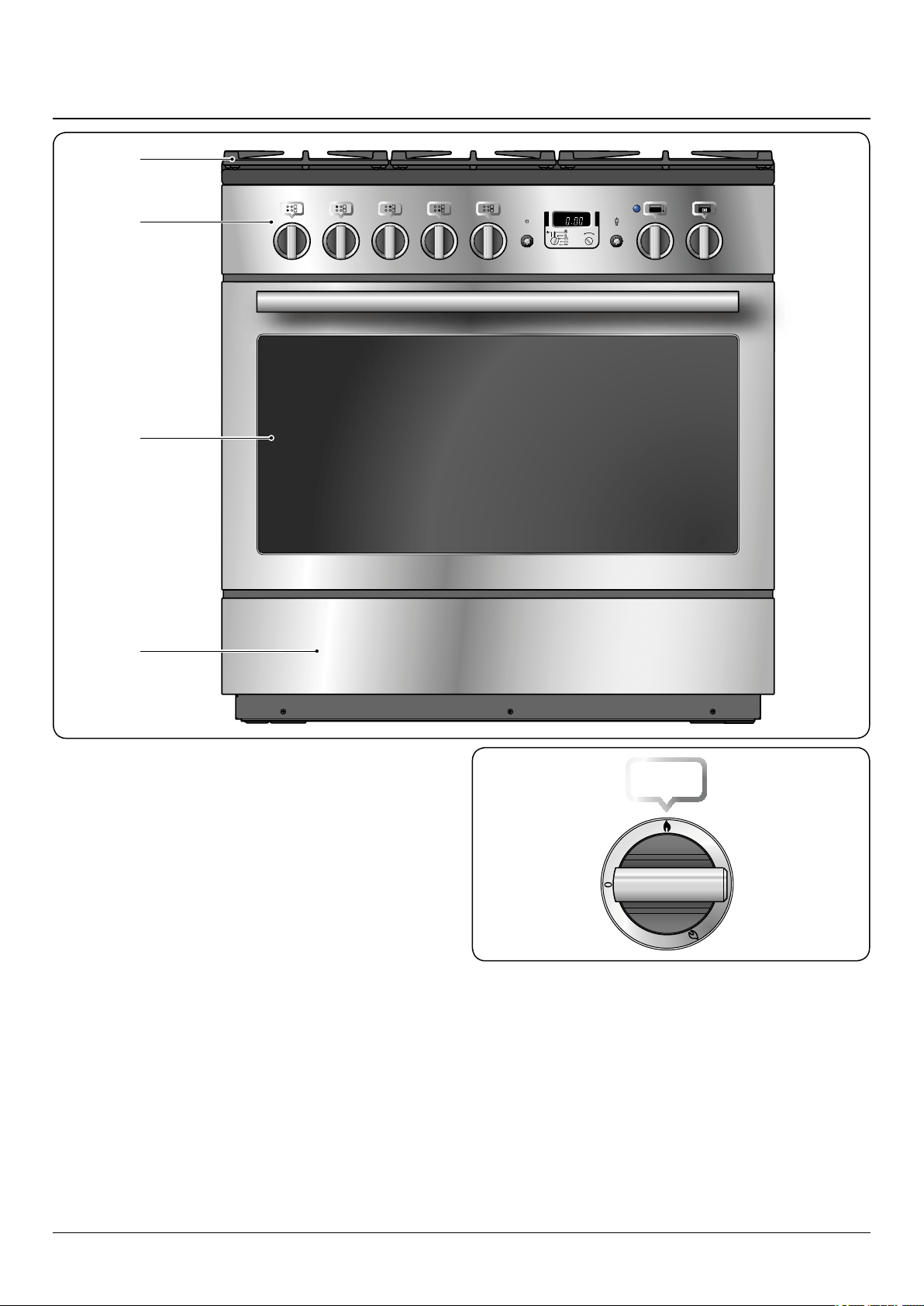

The dual fuel single cavity cooker (Fig.2-1) has the following

features:

A. 5 hotplate burners including a wok burner

B. A control panel incorporating a timer

C. A multi-function oven

D. A storage drawer

Hotplate Burners

The drawing by each of the central knobs indicates which

burner that knob controls.

Each burner has an FSD that prevents the ﬂ ow of gas if the

ﬂ ame goes out.

When the igniter button is pressed in, sparks will be

made at every burner – this is normal. Do not attempt to

disassemble or clean around any burner while another

burner is on, otherwise an electric shock could result.

To light a burner, press the igniter button, and push in and

turn the associated control knob to the high position as

indicated by the large ﬂ ame symbol (



), (Fig.2-2).

The igniter should spark and light the gas. Keep holding the

knob pressed in to let the gas through to the burner for about

ten seconds.

Fig.2-2

ArtNo.270-0029 - Prof+ 90SC annotated

Professional + FX









Fig.2-1

DocNo.025-0101 - Overview - 90 DF SC - Prof+ FX

ArtNo.311-0006 Correct wok sizes

Fig.2-9

ArtNo.311-0002 Pan with rim

If, when you let go of the control knob, the burner goes out,

then the FSD has not been bypassed. Turn the control knob

to the OFF position and wait for one minute before you try

again, this time making sure to hold in the control knob for

slightly longer.

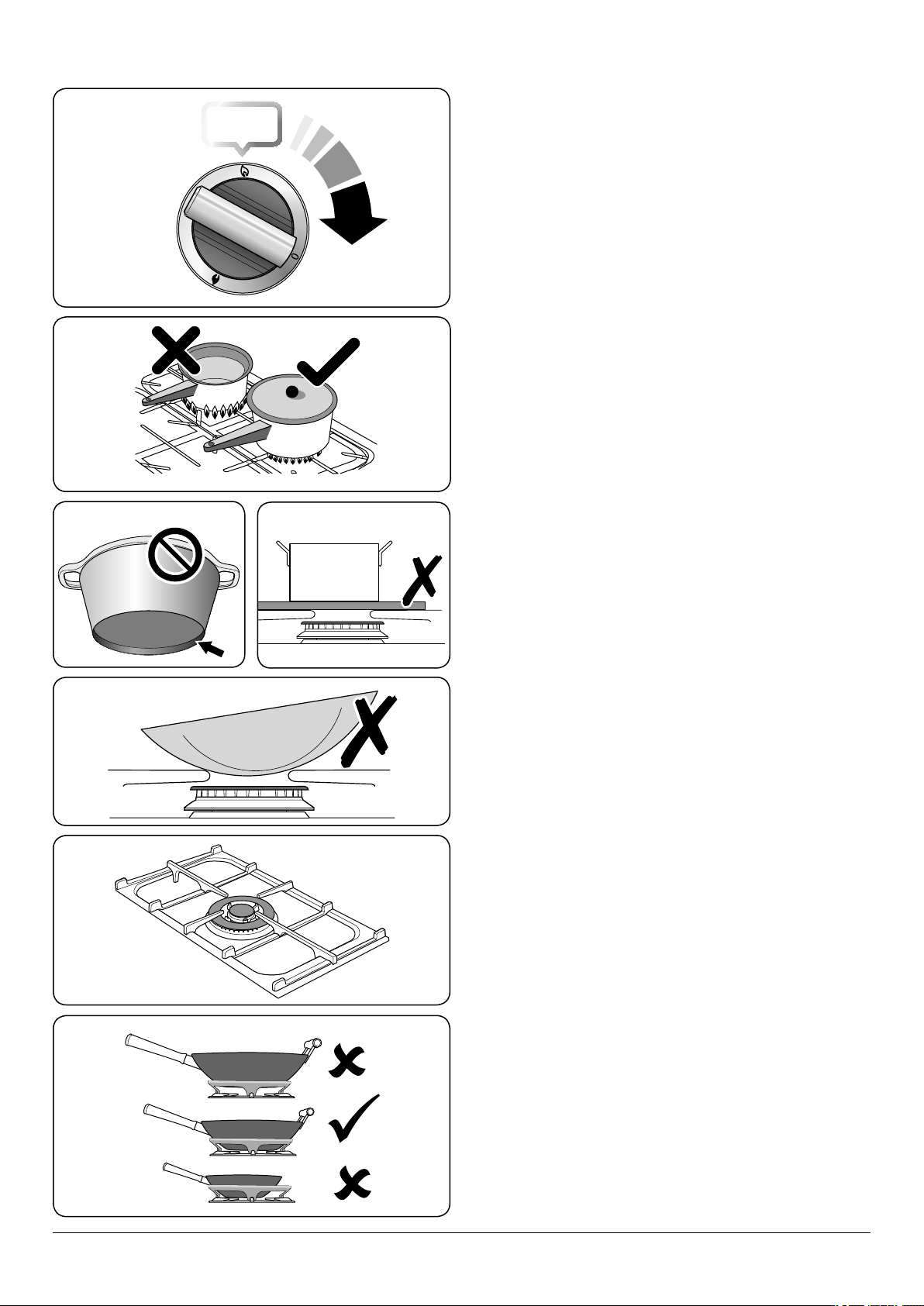

Adjust the ﬂame height to suit by turning the knob clockwise

(Fig.2-3).

If a burner ﬂame goes out, turn oﬀ the control knob and

leave it for one minute before relighting it.

Ensure that the ﬂames are under the pans. Using a lid will

help the contents boil more quickly (Fig.2-4).

Large pans should be spaced well apart.

Pans and kettles with concave bases or down turned base

rims should not be used (Fig.2-5).

Simmering aids, such as asbestos or mesh mats, are

NOT recommended (Fig.2-6). They will reduce burner

performance and could damage the pan supports.

You should also avoid using unstable and misshapen pans

that may tilt easily, and pans with a very small base diameter,

e.g. milk pans, single egg poachers (Fig.2-7).

The minimum recommended pan diameter is 120mm. The

maximum allowable pan base diameter is 250mm.

DO NOT use cooking vessels on the hotplate that overlap the

edges.

Wok Burner

The wok burner is designed to provide even heat over a large

area. It is ideal for large pans and stir frying (Fig.2-8).

For heating smaller pans, the aforementioned hotplate

burners may be more eﬃcient.

You can remove the burner parts for cleaning; see ‘Cleaning

your cooker’.

You should wipe the enamel top surface of the cooker around

the hotplate burners as soon as possible after spills occur. Try

to wipe them oﬀ while the enamel is still warm.

Note:

The use of aluminium pans may cause metallic marking

of the pan supports. This does not aﬀect the durability of the

enamel and may be cleaned oﬀ with an appropriate metal

cleaner.

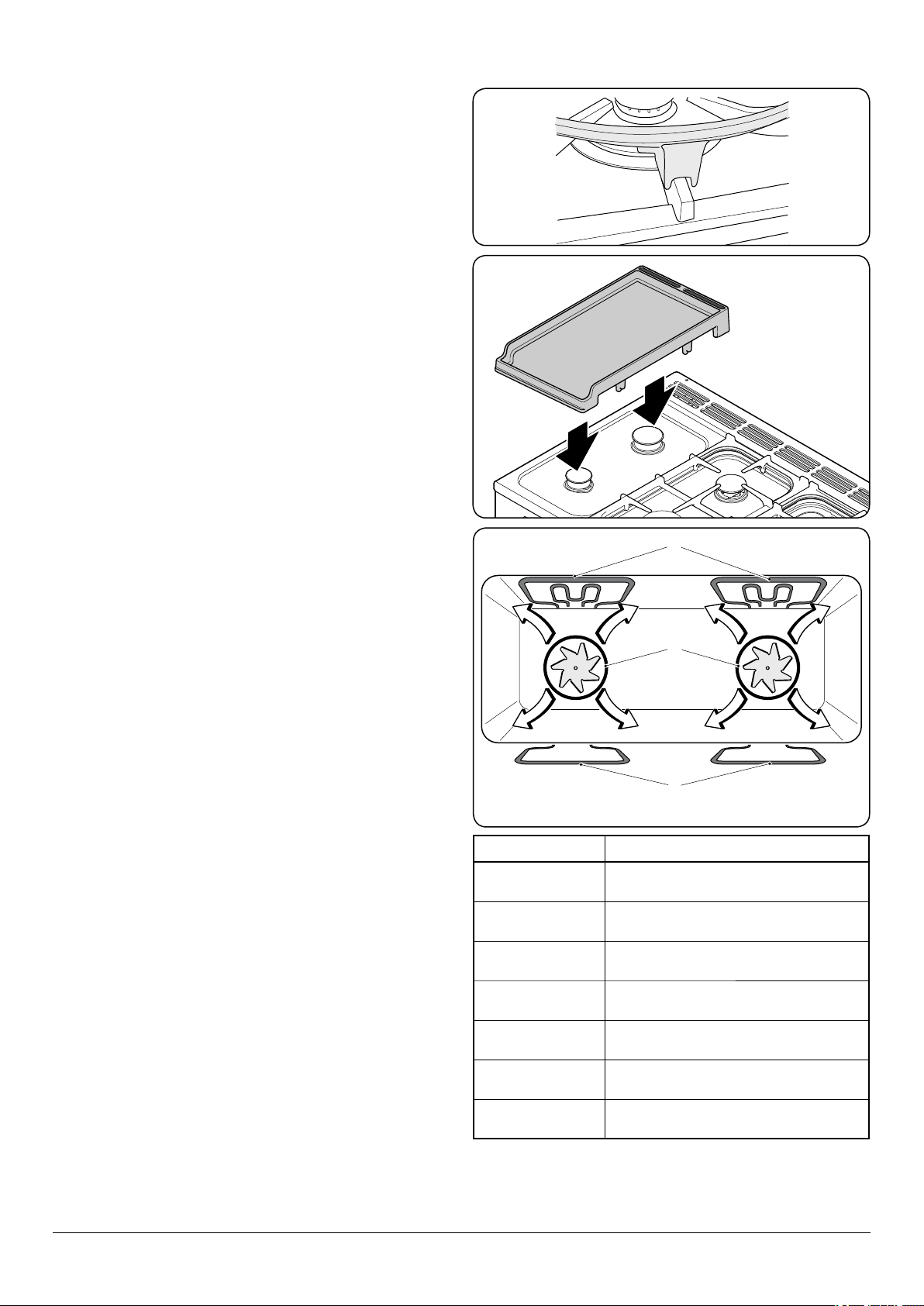

The Wok Cradle

The wok cradle is designed to ﬁt a Professional 35cm Wok

(available from our cookware collection – Part Code RM095). If

you use a diﬀerent Wok, make sure that it ﬁts the cradle. Woks

vary very widely in size and shape. It is important that the

Wok sits down on the pan support – however, if the Wok is

too small, the cradle will not support it properly (Fig.2-9).

The cradle should be used on the triple ring wok burner

only. When you ﬁt the cradle, check that the wok is properly

located on the front and rear ﬁngers and that it is supported

properly on a pan support (Fig.2-10).

Make sure that the cradle is stable and that the Wok is sitting

level in the ring.

Fig.2-5

ArtNo.311-0001 Right pans gas

Fig.2-4

ArtNo.270-0003

Proplus control to low

Fig.2-3

ArtNo.311-0004 Tipping wok

Fig.2-7



Fig.2-6

ArtNo.311-0005 Wok burner & pan support

Fig.2-8

ArtNo.311-0007 Wok stand close-up

ArtNo.311-0044 - Positioning the griddle 09

Fig.2-10

Fig.2-11

The cradle will get very hot in use – allow plenty of time for it

to cool before you pick it up.

The Griddle

The griddle ﬁts the left-hand well, front to back (Fig.2-11).

It is designed for cooking food on directly. DO NOT use pans

of any kind on it. The griddle surface is non-stick and metal

cooking utensils (e.g. spatulas) will damage the surface. Use

heat resistant plastic or wooden utensils.



DO NOT put it crossways – it will not ﬁt properly and

will be unstable.



DO NOT put it on any other burner – it is not

designed to ﬁt in any of the other cooker wells.

Remove the left-hand pan support. Position the griddle over

the well. Check that it is securely located.

The griddle can be lightly brushed with cooking oil before

use. Light the hotplate burners. Adjust the ﬂame heights to

suit.

Preheat the griddle for a maximum of 5 minutes before

adding food. Leaving it longer may cause damage. Turn the

control knobs towards the low position, marked with the

small ﬂame symbol, to reduce the burner ﬂames.

Always leave space around the griddle for the gases to

escape.

After cooking, allow the griddle to cool before cleaning.

The Multi-function Oven

The oven is a multi-function oven (Fig.2-12). In addition to

convection elements around the fans, it is ﬁtted with extra

heating elements, in the top of the oven and under the oven

base. Take care to avoid touching the top elements when

placing or removing items from the oven.

The multifunction oven has 3 main cooking functions, fan,

fan assisted and conventional cooking. These functions

should be used to complete most of your cooking.

The browning element and base heat can be used in the

latter part of the cooking process to ﬁne tune the results to

your particular requirements.

Use fanned grilling for all your grilling needs and defrost to

safely thaw small items of frozen food.

Table 2-1 gives a summary of the multi-function modes.

The multi-function oven has many varied uses. We suggest

you keep a careful eye on your cooking until you are familiar

with each function. Remember, not all functions will be

suitable for all food types.

ArtNo.326-0009 - Albertine SC - MF oven elements EU







Fig.2-12

A - Grill elements, B - Convection element, C - Base heat elements

Function Use

Defrost

To thaw small items in the oven without

heat

Fan oven

A full cooking function, even heat

throughout, great for baking

Fanned grilling

Grilling meat and fish with the door

closed

Fan assisted

A full cooking function good for roasting

and baking

Conventional oven

A full cooking function for roasting and

baking in the lower half of the oven

Browning element

To brown and crisp cheese topped

dishes

Base heat

To crisp up the bases of quiche, pizza or

pastry

Table 2-1

Multi-function oven modes (Fig.2-13)

Defrost

This function operates the fan(s) to circulate cold air

only. No heat is applied. This enables small items such

as desserts, cream cakes and pieces of meat, ﬁsh and

poultry to be defrosted.

Defrosting in this way speeds up the process and protects

the food from contamination. Pieces of meat, ﬁsh and poultry

should be placed on a rack, over a tray to catch any drips. Be

sure to wash the rack and tray after defrosting.

Defrost with the oven door closed. Defrosting should not

be carried out in a warm oven. Large items, such as whole

chickens and meat roasts should not be defrosted in this way.

We recommend this be carried out in a refrigerator.

Ensure that dairy foods, meat and poultry are completely

defrosted before cooking.

Fan Oven

This function operates the fans and the heating

element around them. An even heat is produced

throughout the oven, allowing you to cook large

amounts quickly.

Convection oven cooking is particularly suitable for multi-

rack cooking and is a good ‘all-round’ function. It may be

necessary to reduce the temperature by approximately 10°C

for recipes previously cooked in a conventional oven.

If you wish to preheat the oven, wait until the indicator light

has gone out before inserting the food.

Fanned Grilling

This function operates the fan while the top element

is on. It produces a more even, less ﬁerce heat than a

conventional grill. For best results place the food to

be grilled on the pan provided. Thick pieces of meat or ﬁsh

are ideal for cooking in this way, as the circulated air reduces

the ﬁerceness of the heat from the grill. The oven door

should be kept closed while cooking is in progress, so saving

energy. You will also ﬁnd that the food needs to be watched

and turned less than for normal grilling. Preheat this function

before cooking.

Note: When grilling full width, to allow suﬃcient access

for tending foods we recommend placing the grill pan tray

support on the second from top level.

Fan Assisted Oven

This function operates the fans, circulating air heated

by the elements at the top and the base of the oven.

The combination of fan and conventional cooking

(top and base heat) makes this function ideal for cooking

large items that need thorough cooking, such as a large

meat roast. It is also possible to bake on two racks at one

time, although they will need to be changed over during the

cooking time, as the heat at the top of the oven is greater

than at the base, when using this function.

This is a fast intensive form of cooking; keep an eye on the

food cooking until you are familiar with this function.

ArtNo.030-0028 - Elan MF symbols

ArtNo.270-0025

Proplus MF oven annotated











 

OFF

Fig.2-13

A - Defrost, B - Fan oven, C - Fanned grilling, D - Fan assisted oven,

E - Conventional oven, F - Browning element, G - Base heat

Conventional Oven (Top and Base Heat)

This function combines the heat from the top and

base elements. It is particularly suitable for roasting

and baking pastry, cakes and biscuits.

The exposed top element may cook some foods too quickly,

so we recommend that the food be positioned in the lower

half of the oven to cook. The oven temperature may also need

to be lowered.

Similar items being cooked will need to be swapped around

for even cooking.

Browning Element

This function uses the element in the top of the

oven only. It is a useful function for the browning or

ﬁnishing of pasta dishes, vegetables in sauce and

lasagne, the item to be browned being already hot before

switching to the top element.

Base Heat

This function uses the base element only. It will crisp

up your pizza or quiche base or ﬁnish oﬀ cooking

the base of a pastry case on a lower rack. It is also

a gentle heat, good for slow cooking of casseroles in the

middle of the oven or for plate warming.

The Browning and Base heat functions are useful additions

to your oven, giving you ﬂexibility to ﬁnish oﬀ items to

perfection. With use, you will soon realize how these

functions can combine to extend your cooking skills.

Energy Saving Feature

The oven has a divider feature (Fig.2-14). With this in place

only one half of the oven is heated and only the right-hand

side elements are used. This saves energy and is ideal for

cooking most foods. When using the divider, condensation

may appear in the left-hand oven - this is normal.

For very large loads, or large dishes for special occasions then

the divider can be removed. This brings into use the elements

on the left-hand side as well as those on the right when a

function is selected.

All oven functions are available in full and divided forms and

shelves are provided for use in both forms.



WARNING!

Take great care when removing the divider NOT to

scratch the inner glass door surface. Scratches in the

glass can cause stress and may cause the door to fail.

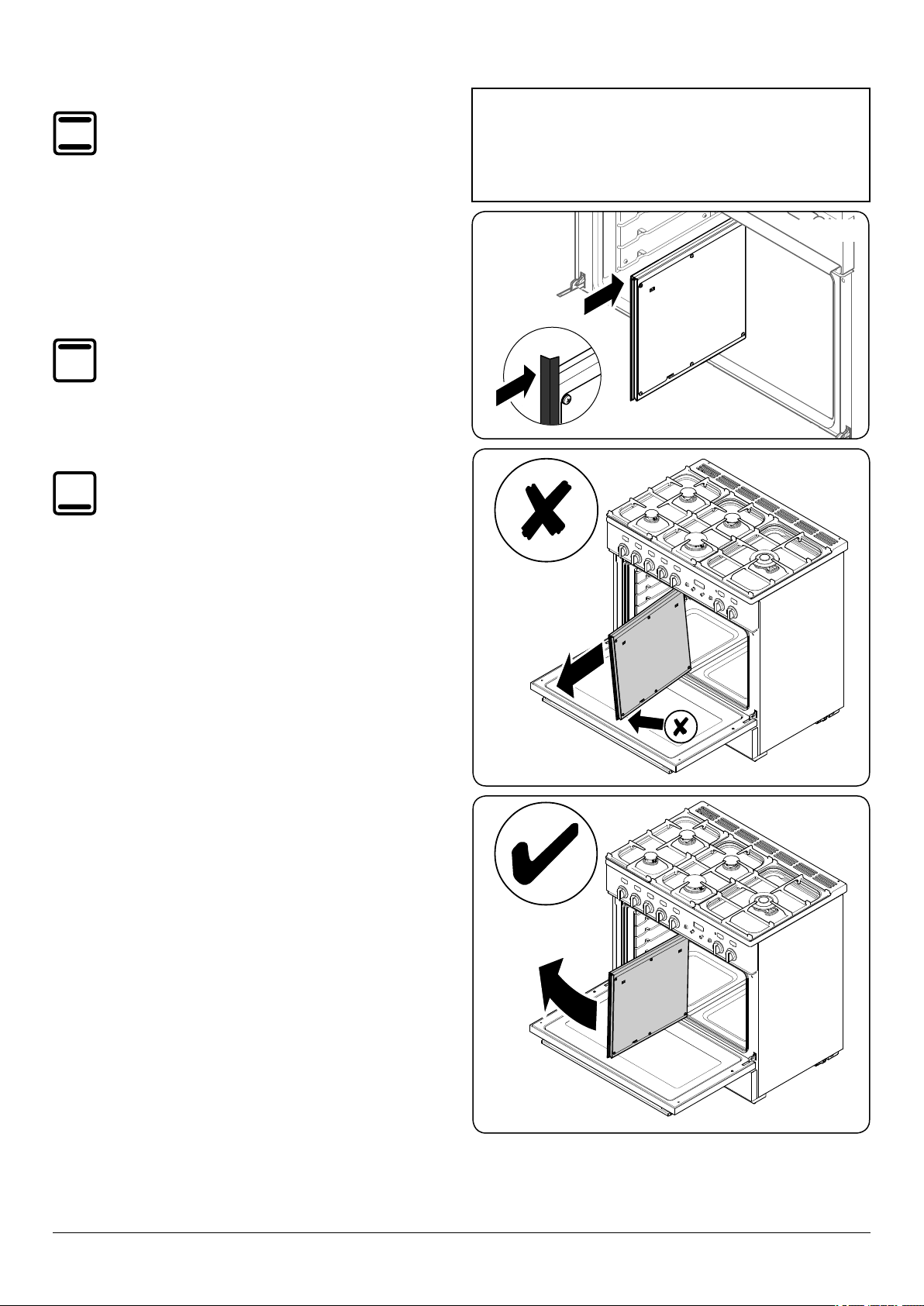

Removing the Divider



Make sure the cooker is cool before attempting to

remove the divider.

Fully open the door and remove the oven shelves. When

removing the divider, tilt it slightly upwards and grip the

underside to prevent the metal base making contact with the

door glass (Fig.2-15 and Fig.2-16).

We recommend that you place a tea towel or similar on the

door glass before removing the divider. This should prevent

the door inner from scratching.

ArtNo.030-0028 - Elan MF symbols

 WARNING! 

Take great care when removing the divider NOT to

scratch the inner glass door surface. Scratches in the

glass can cause stress and may cause the door to fail.

ArtNo.062-0005 - Removing the divider (wrong)

Fig.2-15

ArtNo.062-0004 - Removing the divider (right)

Fig.2-16

ArtNo.281-0150 - Oven Divider

Fig.2-14

ArtNo.300-0004 2-button clock annotated

 

A – Timer knob, B – Adjusting knob

Fig.2-20

ArtNo.300-0005 2BC

minute minder setting

ArtNo.301-0008 2BC

Stopping the oven 2

Fig.2-21

Fig.2-24

DO NOT place or slide metallic objects, including cookware,

on the door glass as this may cause scratching and

subsequent failure to occur.

Operating the Oven

The multi-function oven has two controls: a function selector

and a temperature setting knob (Fig.2-17).

Turn the function selector control to a cooking function.

Fig.2-18 shows the control set for convectional oven cooking.

Turn the oven temperature knob to the temperature you

need. The oven heating light will glow until the oven has

reached the temperature you selected. It will then cycle on

and oﬀ during cooking as the oven maintains the selected

temperature (Fig.2-19).

The Clock

Setting the time of day

The LCD clock is shown in (Fig.2-20). When the clock is ﬁrst

connected, the display ﬂashes ( 0.00) and (



) alternately.

To set the time, turn and hold the Timer knob to the clock

symbol (



) and at the same time turn the Adjusting knob left

or right until the clock shows the time of day. Remember this

is a 24-hour clock. Let go of the Timer knob and it will spring

back to the vertical, oven manual setting.

IMPORTANT: The cooker will not operate unless the clock

has been set.

Note: When using the following functions, ﬁrst set the clock

as required before selecting the oven function and setting

the temperature.

Setting the minute minder

To activate the minute minder turn the Timer knob to the

right to the (



) minute minder setting – it should click into

position (Fig.2-21).

Rotate the Adjusting knob to set the time required (Fig.2-22).

You can either turn the knob back to the vertical manual

setting (



) to keep an eye on the time of day, or leave it in the

(



) minute minder position as the time ticks down.

To stop the beeper when it sounds, turn the Adjusting knob

anti-clockwise.

• The ‘cook period’, which is the length of time you

want the oven to cook for.

• The ‘stop time’, which is the time of day you

want the oven to stop cooking.

To stop the oven at a speciﬁc time of day

Turn the Timer knob to the (



) position (Fig.2-23).

Use the Adjusting knob to set the ‘stop time’. You can set

the oven to turn on at any time over the following 24-hour

period. AUTO shows in the display (Fig.2-24).

Turn the Timer knob to the bottom ‘AUTO’ setting to return to

the clock display.

ArtNo.270-0027

Proplus MF oven selector

control

OFF

Fig.2-18

ArtNo.270-0026

Proplus MF oven controls (2)

OFF

140

100

180

220

Fig.2-17

ArtNo.270-0028

Proplus MF temp control

indicator light

140

100

180

220

Fig.2-19

ArtNo.300-0006 2BC

minute minder setting 2

ArtNo.301-0007 2BC

Stopping the oven 1

Fig.2-22

Fig.2-23

Temperature selector Function selector

Once the ‘stop time’ is reached, the beeper sounds. Turn the

Timer knob to the vertical (



) to return to manual cooking.

To start and then stop the oven using the Timer

You cannot set a start time directly – this is set

automatically by a combination of the ‘cook time’ and

‘stop time’.

Turn the Timer knob to the (



) position (Fig.2-25).

Turn the Adjusting knob to set the ‘cooking time’ you need

(Fig.2-26).

Turn the Timer knob to the (



) position. The display will

show the current time of day plus the ‘cook time’ you just set.

Use the Adjusting knob to set the ‘stop time’ required

(Fig.2-27).

The ‘stop time’ is displayed, followed by ‘AUTO’. Set the oven(s)

to the cooking temperature you need. Turn the Timer knob to

the ‘Auto’ setting.

When your cooking is ﬁnished, the beeper sounds. Turn the

Timer knob to the vertical (



) to return to manual cooking.

If you are out, don’t worry about the beeper going oﬀ – it

stops on its own after a while. When you return, turn the

Timer knob to the vertical (



) to return to manual cooking.

AUTO is showing, but you want to revert to

manual cooking

You can cancel any automatic settings by brieﬂy turning the

Timer knob to the clock symbol (



) and then releasing it.

Key Lock

When the key lock is activated, both ovens are locked and will

not come on.

To activate the key lock

Make sure that the clock is in manual mode and cancel any

active programs.

Turn and hold the Timer knob to the clock symbol (



) for

about 8 seconds. ‘On’ appears on the display (Fig.2-28).

While still holding the Timer knob turned to the clock symbol

(



), turn the Adjusting knob clockwise until the key symbol

(



) and ‘Of’ shows on the display (Fig.2-29). Release the

knobs.

The ovens are now locked, as is conﬁrmed by the display

showing the time of day alongside the key symbol.

When the key lock is activated, both ovens are locked and will

not come on (Fig.2-30).

To turn oﬀ the key lock

Turn and hold the Timer knob to the clock symbol (



) for

about 8 seconds. ‘Of’ will appear on the display (Fig.2-31).

While still holding the Timer knob turned to the clock symbol

(



), turn the Adjusting knob clockwise until the key symbol

(



) goes out on the display and ‘On’ shows (Fig.2-32). Let go

of the knobs.

After a few seconds, the display reverts to showing the time

of day. The oven can now be used normally.

ArtNo.301-0009 2BC

Setting the cooking timer

ArtNo.301-0010 2BC

Setting the cooking time

Fig.2-25

Fig.2-26

ArtNo.301-0008 2BC

Stopping the oven 2

Fig.2-27

Art No. 301-0011 2BC

Activating the key lock 1

ArtNo.301-0012 2BC

Activating the key lock 2

ArtNo.301-0013 2BC

Activating the key lock 3

ArtNo.301-0014 2BC

Deactivating the key lock 1





Fig.2-28

Fig.2-29

Fig.2-30

Fig.2-31 Fig.2-32

Accessories

Oven racks

Each oven is supplied with:

Two full capacity shelves (Fig.2-33)

Grill pan tray support (Fig.2-34)

Two grill pans with trivets (Fig.2-35)

Three energy saving shelves (Fig.2-36)

Four ladder shelf supports (Fig.2-37)

And one divider (Fig.2-38)

Any shelf can be ﬁtted in any of the positions. The oven

shelves are retained when pulled forward but can be easily

removed and reﬁtted.

To remove and reﬁt the ladder shelf supports

Lift the ladder support hooks out of the two locating holes in

the oven side (or divider) before lifting the support clear of

the bottom ladder restraint.

Reﬁt by inserting the bottom of the ladder into the restraint

before ﬁtting the hooks through the locating holes.

To remove and reﬁt the shelves

Pull the shelf forwards until the back of the shelf is stopped

by the shelf support (Fig.2-39). Lift up the front of the shelf

so the back of the shelf will pass between the supports and

then pull the shelf forward (Fig.2-40).

Reﬁt in the reverse order, making sure to push it fully back.

Oven Light

Press the button to turn on the oven lights.

If one of the oven lights fail, turn oﬀ the range circuit breaker

before you change the bulb. See the ‘Troubleshooting’ section

for details on how to change an oven light bulb (Fig.2-41).

ArtNo.326-0013 - Full capacity shelf

(Falcon)

Fig.2-33

ArtNo.326-0004 - Cradle shelf

Fig.2-34

ArtNo.331-0008 - 90SC

grill pan & trivet

Fig.2-35

ArtNo.326-0002 - Energy saving shelf

Fig.2-36

ArtNo.320-0030

90SC ladder support

Fig.2-37

ArtNo.281-0028 - Albertine divider

Fig.2-38

ArtNo.320-0017

Main oven light

ArtNo.320-0031 90SC

removing the shelf 1

Fig.2-39

ArtNo.320-0032 90SC

removing the shelf 2

Fig.2-40

Fig.2-41

Storage

The bottom drawer is for storing oven trays and other

cooking utensils.

It can get very warm, so do not store anything in it that may

melt or catch ﬁre. Never store ﬂammable materials in the

drawer. This includes paper, plastic and cloth items, such as

cookbooks, plastic ware and towels, as well as ﬂammable

liquids. Do not store explosives, such as aerosol cans, on or

near the appliance.

Flammable materials may explode and result in ﬁre or

property damage.

The drawer can be removed completely for cleaning, etc.

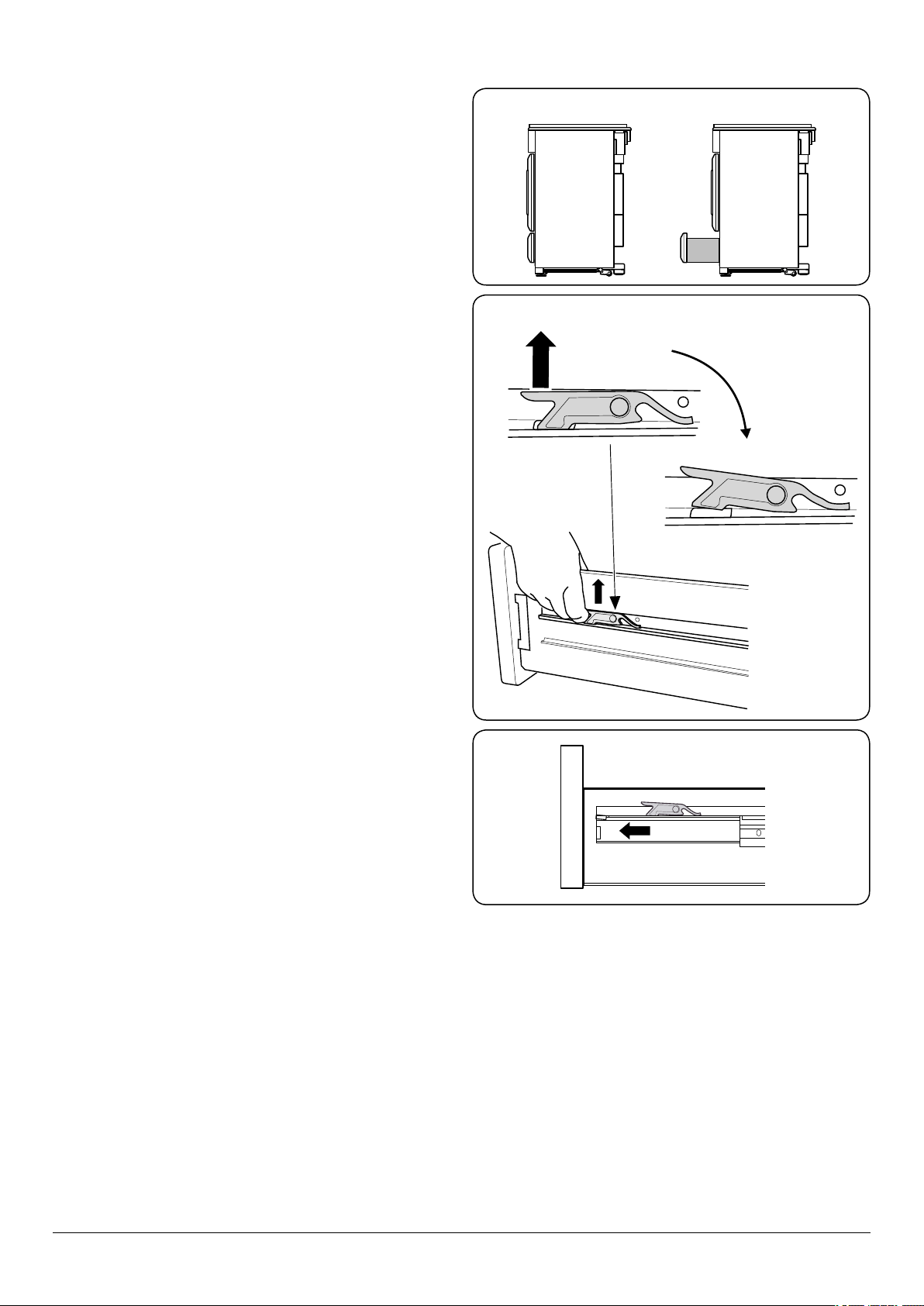

To Remove the Drawer

Pull the drawer right out (Fig.2-42).

Lift up the ends of the plastic clips (one each side) to release

the catches holding the drawer to the side rails and at the

same time pull the drawer forward and away from the side

rails (Fig.2-43).

For safety’s sake push the drawer rails back out of the way.

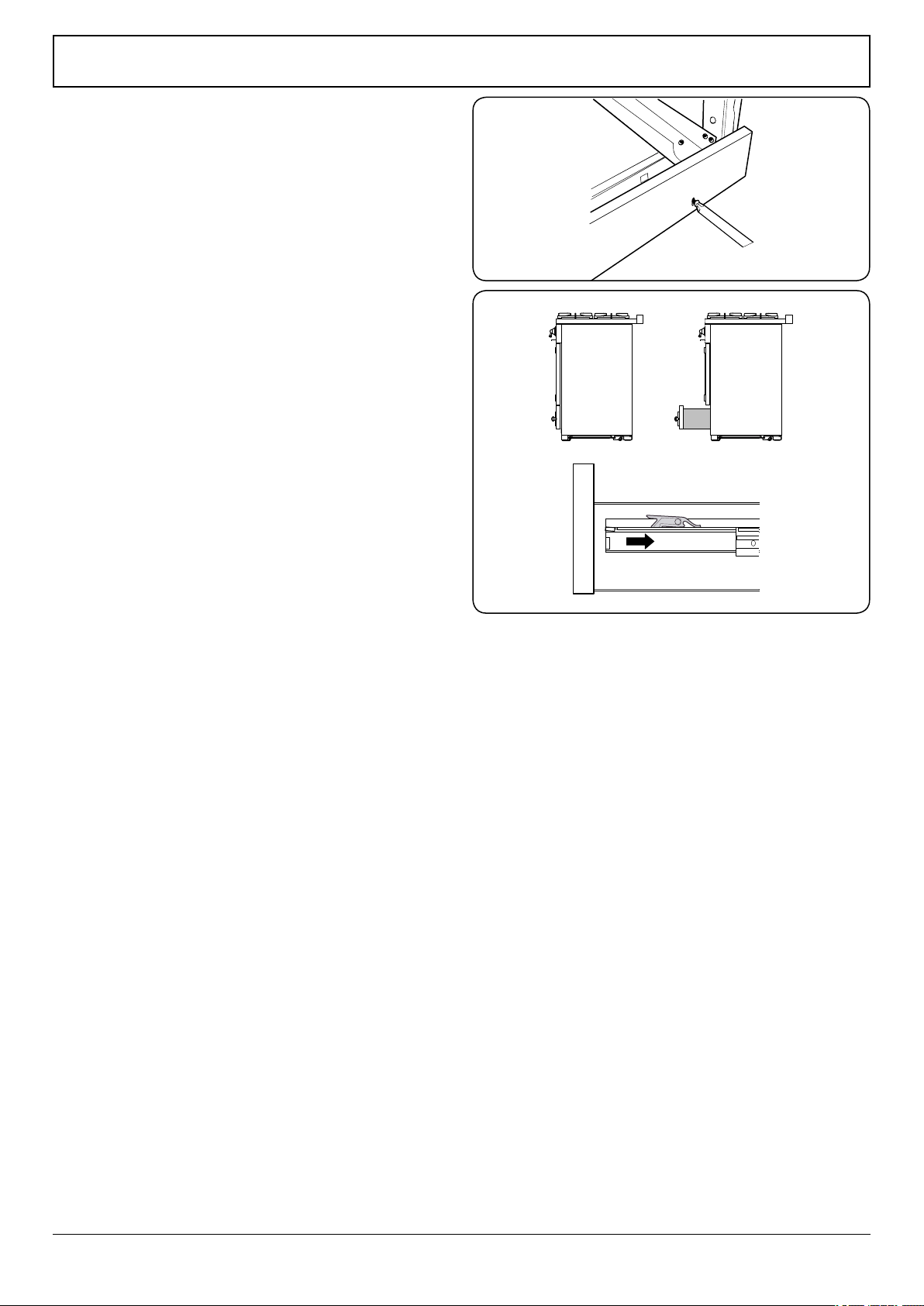

Replace the storage drawer

To replace the drawer in the range, pull the side rails fully out.

Carefully move the drawer back between the rails and rest it

on the side rails (Fig.2-44).

At each side hold the front of the drawer and pull the side

rail forward so that the clips click into position holding the

drawer to the side rails.

ArtNo.281-0138 - Drawer pulled out

ArtNo.341-0002 - 90 Drawer clip lift





Fig.2-43

Fig.2-42

Fig.2-44

Cooking with a Multi-function Oven

Remember: not all modes are suitable for all food types. The

oven cooking times given are intended for a guide only.

General Oven Tips

The wire shelves should always be pushed ﬁrmly to the back

of the oven.

Baking trays with food cooking on them should be placed level

with the front edge of the oven’s wire shelves. Other containers

should be placed centrally. Keep all trays and containers away

from the back of the oven, as overbrowning of the food may

occur.

When the oven is on, do not leave the door open for

longer than necessary, otherwise the knobs may get very

hot.

• Always leave a ‘fingers width’ between dishes on the

same shelf. This allows the heat to circulate freely

around them.

• To reduce fat splashing when you add vegetables to hot

fat around a roast, dry them thoroughly or brush lightly

with cooking oil.

• Where dishes may boil and spill over during cooking,

place them on a baking tray.

• Sufficient heat rises out of the oven while cooking to

warm plates in the grill compartment.

• If you want to brown the base of a pastry dish, preheat

the baking tray for 15 minutes before placing the dish in

the centre of the tray.

To help keep your oven clean, cover meat when roasting with

foil or use a roasting bag. Brush vegetables with fat before

placing around the meat.

3. Cooking Tips

4. Cooking Table

ArtNo.050-0007

Oven shelf positions

Oven Shelf Positions

Top

Centre

Base

The oven control settings and cooking times given in the table below are intended to be used

AS A GUIDE ONLY. Individual tastes may require the temperature to be altered to provide a

preferred result.

Food is cooked at lower temperature in a fan oven than in a conventional oven. When using

recipes, reduce the fan oven temperature by 10°C and the cooking time by 5-10 minutes. The

temperature in the fanned oven does not vary with height in the oven so you can use any shelf.

ArtNo.050-0065 - Cooking table - electric & fan single cavity

Shelf

position

C/B

Food

Meat

Beef (no bone)

Lamb

Pork

Poultry

Chicken

Turkey

Duck

Casserole

Yorkshire pudding

Fish

Fillet

Whole

Steak

Cake

Very rich fruit - Christmas,

wedding, etc.

Fruit 180 mm tin

Fruit 230 mm tin

Madeira 180 mm

Queen cakes

Scones

Victoria sandwich

180 mm tin

210 mm tin

Desserts

Shortcrust tarts

Fruit pies

Tartlets

Puff pastry

Meringues

Baked egg custard

Baked sponge pudding

Milk pudding

Bread

Approximate cooking time

30-35 minutes per 500g +30-35 minutes.

20-25 minutes per 500g +20-25 minutes.

30-35 minutes per 500g +30-35 minutes.

25-30 minutes per 500g +25-30 minutes.

35-40 minutes per 500g +35-40 minutes.

25-30 minutes per 500g +25-30 minutes.

20-25 minutes per 500g +20-25 minutes.

15-20 minutes per 500g +15-20 minutes.

20 minutes per 500g +20 minutes.

15 minutes per 500g +15 minutes.

25-30 minutes per 500g.

20 minutes per 500g.

2-4 hours according to recipe.

Large tins 30-35 minutes; individual 10-20 minutes.

15-20 minutes.

15-20 minutes per 500g.

Steaks according to thickness.

45-50 minutes per 500g of mixture.

2-2½ hours.

Up to 3½ hours.

80-90 minutes.

15-25 minutes.

10-15 minutes.

20-30 minutes.

30-40 minutes.

20-30 minutes on a preheated tray.

35-45 minutes.

10-20 minutes according to size.

20-40 minutes according to size.

2-3 hours.

45-60 minutes.

40-45 minutes.

2 to 3 hours.

20-30 minutes.

Temperature

°C

150

190

150

190

150

190

150

190

150

190

150

190

130-140

210

180

130

140

150

180

210

170

190

220

150

180

130-140

210

Temperature

°C

160

200

160

200

160

200

160

200

160

200

160

200

140-150

220

190

140

150

160

190

220

180

200

230

100

160

190

140-150

220

Conventional Oven Fan Oven

Thoroughly thaw frozen joints before

cooking. Meat may be roasted at

220°C (210°C for fan oven) and the

cooking time adjusted accordingly.

For stuffed and rolled meats, add

approximately 10 minutes per 500g,

or cook at 200°C (190°C) for 20

minutes then 160°C (150°C) for the

remainder.

For stuffed poultry, you could cook

at 200°C (190°C) for 20 minutes

then 160°C (150°C) for remainder.

Do not forget to include the weight

of the stuffing.

For fresh or frozen prepacked

poultry, follow instructions on the

pack. Thoroughly thaw frozen

poultry before cooking.

Using the conventional oven: when

two tier cooking leave at least one

runner space between shelves.

Position the baking tray with the

front edge along the front of the

oven shelf.

ArtNo.050-0001 Gas cooking table

If cooking a two tier load, the trays

should be interchanged

approximately halfway though the

cooking time.

Up to three tiers can be cooked in a

fan oven at the same time but make

sure to leave at least one runner

space between each shelf being

cooked on.

DocNo.031-0004 - Cooking table - electric & fan single cavity

Steam is coming from the oven

When cooking foods with a high water content (e.g.

oven fries) there may be some steam visible at the rear

grille. Take care when opening the oven door, as there

may be a momentary puﬀ of steam when the oven

door is opened. Stand well back and allow any steam to

disperse.

An oven fan is noisy

The note of the oven fan may change as the oven heats

up – this is perfectly normal.

What cleaning materials are recommended for the range?

See the ‘Cleaning’ section for a full list of recommended

cleaning materials.



We do not recommend corrosive or caustic cleaners

as these may damage your range.

The knobs get hot when I use the oven, can I avoid this?

Yes, this is caused by heat rising from the oven, and

heating them up. Do not leave the oven door open.

If there is an installation problem and I don’t get my

original installer to come back to ﬁx it who pays?

You do. Service organizations will charge for their call

outs if they are correcting work carried out by your

original installer. It is in your interest to track down your

original installer.

If there is an installation problem and I don’t get my

original installer to come back to ﬁx it, who pays?

You do. Service organisations will charge for their call

outs if they are correcting work carried out by your

original installer. It’s in your interest to track down your

original installer.

Current Operated Ground Fault Circuit Breaker

Where the range installation is protected by a 30mA

sensitivity residual current device (RCD), the combined

use of your range and other domestic appliances may

occasionally cause nuisance tripping.

Food is cooking too slowly, too quickly, or burning

Cooking times may diﬀer from your previous

oven. Check that you are using the recommended

temperatures and rack positions. See the oven cooking

guide section of the instructions. The oven control

settings and cooking times are intended to be used

only as a guide. Individual tastes may require the

temperature to be altered either way, to get the results

you want. Try cooking at a higher temperature setting.

The oven is not cooking evenly

If you are cooking a large item, be prepared to turn it

round during cooking.

5. Troubleshooting

If two racks are used, check that space has been left for

the heat to circulate. When a baking sheet is put into the

oven, make sure it is placed centrally on the rack.

Check that the door seal is not damaged.

A dish of water when placed on the rack should be the

same depth all over. (For example, if it is deeper at the

back, then the back of the range should be raised up or

the front lowered).

If the range is not level arrange for your supplier to level

it for you.

The oven is not coming on when turned on manually

Is the power on? Is the clock illuminated? If not, there

may be something wrong with the power supply. Is the

cooker supply on at the isolator switch?

Has the time of day been set?

Is the key symbol (



) showing in the display to signify

that the oven is locked? See the ‘Clock’ section of the

instructions for more information on the key lock

feature.

The oven is not coming on when automatic cooking

Has the oven knob been left in the OFF position by

mistake? Is the oven locked (see above)?

Oven temperature getting hotter as the range gets older

If turning the knob down has not worked or only

worked for a short time then you may need a new

thermostat. This should be installed by a service

technician (see the ‘Service and Parts’ section of the

instructions).

Oven temperature getting hotter as the cooker gets older

If turning the knob down has not worked or only

worked for a short time then you may need a new

thermostat. This should be ﬁtted by a service person.

An oven light is not working

The bulb has probably burnt out. You can buy a

replacement bulb (which is not covered under the

warranty) from a good electrical shop. Ask for a 15W

– 230V lamp, FOR OVENS. It must be a special bulb, heat

resistant to 300°C (Fig.5-1).

Turn oﬀ the power at the circuit breaker.

Make sure the oven is cool. Open the oven door and

remove the oven racks.

Unscrew the bulb cover by turning counter clockwise. It

may be very stiﬀ (Fig.5-2).

Taking care to protect your ﬁngers in case the bulb

should shatter, unscrew the old bulb.

Screw in the new bulb; screw back the bulb cover. Turn

on the circuit breaker and check that the bulb now

lights.

Hotplate ignition or cooktop burners faulty

Is the power on?

Are the sparker (ignition electrode) or burner holes

blocked by debris?

Are the burner heads correctly located? See the section

entitled ‘Cleaning’.

Remember that each cooktop burner has a special

safety device that stops the ﬂow of gas if the ﬂame goes

out. When lighting a cooktop burner the safety device

has to be overridden by holding in the control knob so

that the gas can ﬂow. This allows the ﬂame sensor to

heat up and operate the safety device. Keep holding the

knob pressed in to let the gas through to the burner for

few seconds. The igniter should spark and light the gas.

If, when you let go of the control knob, the burner goes

out, the safety device has not held in. Turn the control to

the oﬀ position and wait one minute, then try again this

time holding in the control knob for slightly longer.

Hotplate burners will not light

If only one or all the cooktop burners will not light,

make sure that the parts have been replaced correctly

after wiping or removing for cleaning.

Check that there is not a problem with your gas

supply. You can do this by making sure that other gas

appliances you may have are working.

Do the burners spark when you push in the control

knob? If not check the power is on.

The door is misaligned.

The cooker has not been levelled corectly. To level the

cooker, adjust the feet and rear rollers. Use a spirit level

to check that the cooker is level - at the front and at

both sides - within the oven cavity.

ArtNo.324-0005 Oven light bulb

Fig.5-1

ArtNo.324-0007 Unscrewing the bulb cover

Fig.5-2

ArtNo.311-0013 Burner layout











Isolate the electricity supply before carrying out any major

cleaning. Allow the cooker to cool.

Never use paint solvents, washing soda, caustic cleaners,

biological powders, bleach, chlorine based bleach

cleaners, coarse abrasives or salt. Do not mix diﬀerent

cleaning products – they may react together with

hazardous results.

All parts of the cooker can be cleaned with hot soapy water

– but take care that no surplus water seeps into the

appliance.

We have developed a range of cleaning products that give

maximum performance without damaging the enamel and

painted surfaces, in particular a Ceramic Hob Cleaner set

with scraper. More information is available through either the

Cookware Collection brochure supplied with your cooker or our

website www.rangemastercookshop.co.uk.

Remember to switch the electricity supply back on and reset

the clock before reusing the cooker.

Daily Care

Cleaning the range is not a welcomed chore, but it has to be

done to maintain eﬃciency and appearance. Remember it

is better to wipe up any spills as they occur, this will prevent

them burning on and becoming more diﬃcult to remove

later.



Make sure the ﬂow of combustion and ventilation air

to the range is unobstructed – for example by build-

up of fats or grease.

On Natural Gas the burners ﬂames should be a bluish colour

with, at most, a slight yellowish fringe.

On LP gas the ﬂames may be “softer”. The cooktop burner

ﬂames may have a slight yellowish tip.

If the ﬂame burns with a long white tip you should call for

service.

Cleaning for Spills

For spills and boil-overs that occur while cooking, turn oﬀ the

burner as soon as possible and allow it to cool. Do not clean

until the area is completely cooled down. Wipe up spills as

soon as possible.

Do not allow surplus water to seep into the cooker.

6. Cleaning Your Cooker

Fig.6-1

A - Cap, B - Head, C - Notch, D - Electrode, E - Base

ArtNo.311-0014 Wok burner details











ArtNo.311-0016 Fitting the burner inner head





Fig.6-2

Fig.6-4

Hotplate Burners

The burner heads and caps can be removed for cleaning.

Make sure they are absolutely dry before replacing.

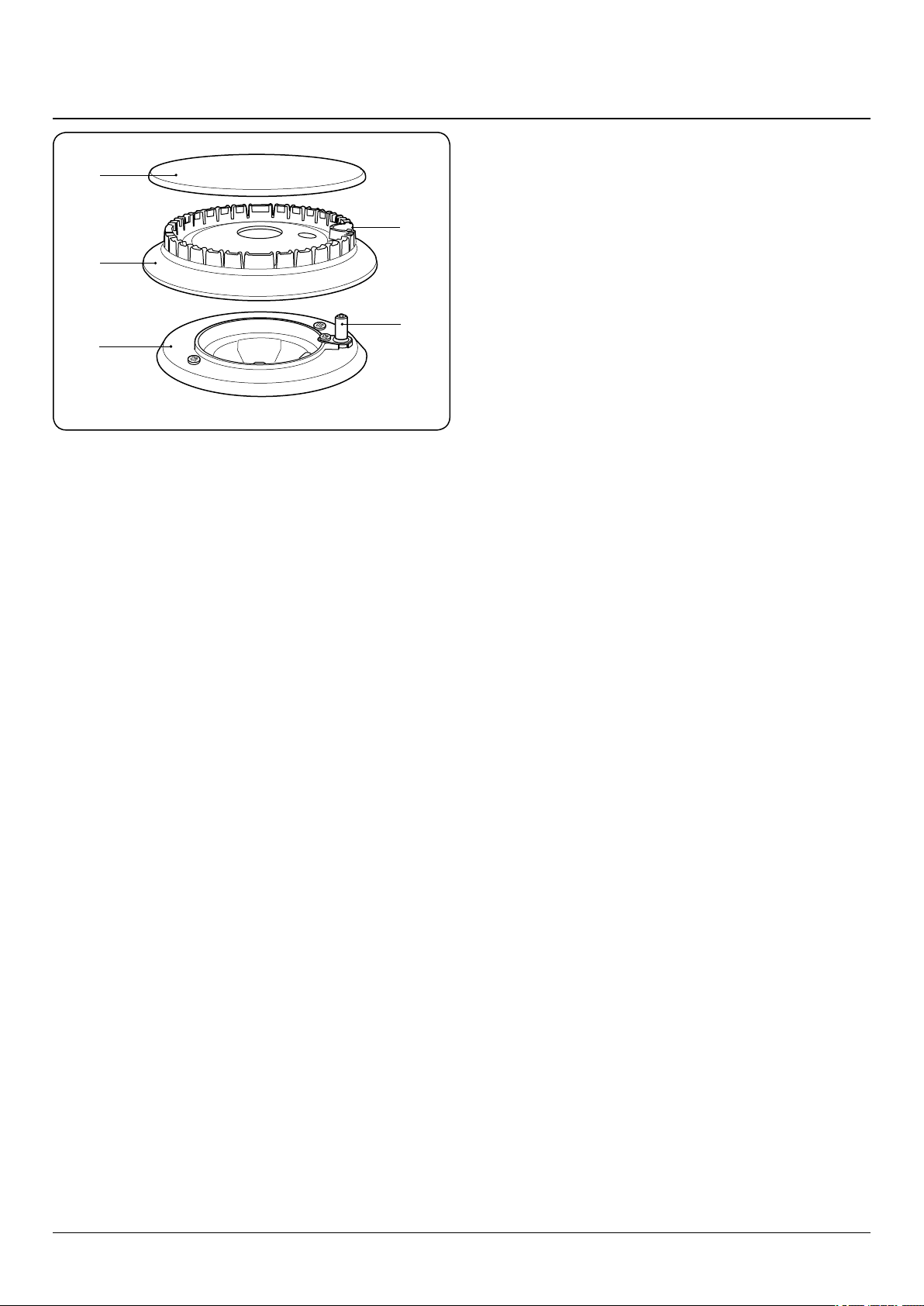

The Single Ring Burners

When reﬁtting the burner head, ensure that the notch lines

up with the electrode or hole in the base. Check that the

burner head is level and that the cap is ﬁtted centrally on the

burner head (Fig.6-1).

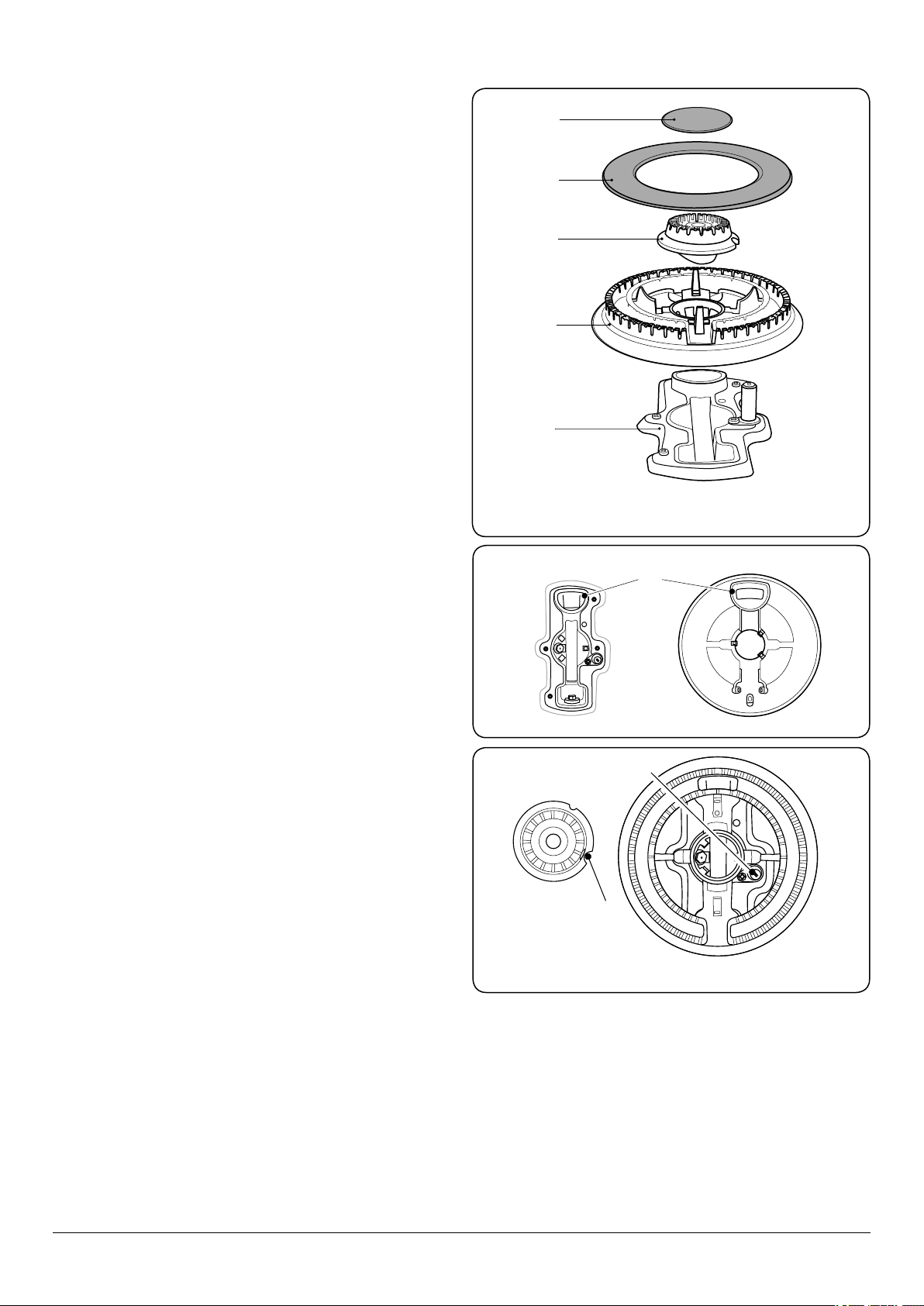

The Wok Burner

When reassembling the wok burner (Fig.6-2) turn over the

large base ring and ﬁnd the ‘D’ shaped area (Fig.6-3). Turn the

head until the ‘D’ matches the one on the burner base. Flip

the burner over once again and place it on the burner base.

To ﬁt the small inner burner, ﬁnd the larger electrode notch

in the burner rim. Line this up with the ignition electrode and

place the inner burner on the large base ring (Fig.6-4).

Now ﬁt the two burner caps, ensuring that they are seated

properly.

Check the burner ports are not blocked. If a blockage occurs,

remove stubborn particles using a piece of fuse wire.

Griddle

Always clean the griddle after use. Allow it to cool completely

before removing. Immerse the griddle plate in hot soapy

water. Use a soft cloth or, for stubborn stains, a nylon washing

up brush.

The Wok Cradle

Recommended cleaning materials are hot soapy water, a

moistened soap pad, cream cleaner or nylon scourer.

Control Panel and Oven Doors

Avoid using any abrasive cleaners including cream cleaners,

on brushed stainless steel surfaces. For best results use liquid

detergents.

The control panel and control knobs should only be cleaned

with a soft cloth wrung out in clean hot soapy water – but

take care that no surplus water seeps into the appliance. Wipe

with a clean dampened cloth then polish with a dry cloth. The

oven doors should only be cleaned with a soft cloth wrung

out in clean hot soapy water.

A - Inner burner cap, B - Outer burner cap, C - Inner burner head,

D - Outer burner head, E - Wok burner base

ArtNo.311-0015 Burner alignment



Fig.6-3

A - Electrode notch, B - Ignition electrode

Hotplate

Part Finish Recommended Cleaning Method

Hob Top Enamel or stainless steel Hot soapy water, soft cloth. Any stubborn stains remove gently

with a nylon scourer.

Electric Sealed Hob Plate Cast iron Remove rust and food debris with a well soaped steel wool pad

along the grain. Rinse and allow to dry. Apply Sealed Hot Plate

Restorer Easy-Do Products (Electrical retailers) to restore colour and

protect the plates.

Ceramic/Induction hob Toughened glass Hot soapy water; cream cleaner/scourer if necessary.

Griddle Plate Non-stick surface Allow to cool. Wash in hot soapy water. Do not use abrasive

cleaners/scourers. Dishwasher.

Warming Zone Toughened glass Hot soapy water, cream cleaner/scourer if necessary.

Outside of cooker

Part Finish Recommended Cleaning Method

Door, Door surround and Storage

Drawer exterior.

Enamel or paint Hot soapy water, soft cloth.

Any stubborn stains, remove gently with a liquid detergent.

Stainless steel E Cloth (Electrical retailers) or Vileda Microfibre Plus All Purpose

Cloth Freudenberg Household Products LP (supermarket)

Sides and plinth Painted surface Hot soapy water, soft cloth

Splashback/rear grille Enamel or stainless steel Hot soapy water, soft cloth. Cream cleaner, with care, if necessary.

Control panel Paint, enamel or stainless steel Warm soapy water. Do not use abrasive cleaners on lettering.

Control knobs/handles & trims Plastic/chrome or copper Warm soapy water, soft cloth.

Brass Brass polish.

Oven Door Glass/Glass Lid Toughened glass Hot soapy water, cream cleaner/scourer if necessary.

Oven and Grill

Part Finish Recommended Cleaning Method

Sides, floor & roof of oven NOT

COOK & CLEAN OVEN PANELS (see

below)

Enamel Any proprietary oven cleaner that is suitable for enamel.

CAUTION: CORROSIVE/CAUSTIC OVEN CLEANERS: FOLLOW

MANUFACTURERS INSTRUCTIONS.

Do not allow contact with the oven elements.

Cook & Clean Oven Panels (some

models only)

Special enamel that partly

cleans itself

This surface cleans itself at 200°C and above, or the panels can be

removed and washed with hot soapy water and a nylon brush (see

‘The Ovens’ in ‘Cleaning your cooker’).

Oven Shelves, Handyrack, Grill

Trivet, Handygrill rack

Chrome An oven interior cleaner that is suitable for chrome. Soap filled

pad. Dishwasher.

Grill Pan/Meat Tin Enamel Hot soapy water. Soap filled pad. Dishwasher.

Cleaning Table

Cleaners listed are available from supermarkets or electrical

retailers as stated. Cleaner manufacturer in Italics. For

enamelled surfaces use a cleaner that is approved for use on

vitreous enamel.

Regular cleaning is recommended. For easier cleaning, wipe

up any spillages immediately.

To help keep your oven clean, cover meat when roasting, with

foil or use a roasting bag. Brush vegetables with fat before

placing around the meat.

INSTALLATION

Check the appliance is electrically safe and gas sound when you have ﬁnished.

Service and Spares

Firstly, please complete the appliance details below and keep them safe for future reference – this information will enable us

to accurately identify the particular appliance and help us to help you. Filling this in now will save time and inconvenience

if you later have a problem with the appliance. It may also be of beneﬁt to keep your purchase receipt with this leaﬂet. You

may be required to produce the receipt to validate a warranty ﬁeld visit.

* This information is on the appliance data badge

If you have a problem

In the unlikely event that you have a problem with your appliance, please refer to rest of this booklet, especially the problem

solving section, ﬁrst to check that you are using the appliance correctly.

If you are still having diﬃculty, contact you retailer

Please note

If your appliance is outside the 12-month warranty period, our service provider may charge for this visit.

If you request an engineer to visit and the fault is not the responsibility of the manufacture, our service provider reserves

the right to make a charge.

Appointments not kept by you may be subject to a charge.

Out of Warranty

We recommend that our appliances are serviced regularly throughout their life to maintain the best performance and

eﬃciency. The frequency of service will depend on usage – for normal usage once a year should suﬃce.

Service work should only be carried out by an suitably Authorised Person.

Spare Parts

To maintain optimum and safe performance, we recommend that only genuine spare parts are used. Do not use re-

conditioned or unauthorised controls. Contact your retailer.

Retailer’s Name and Address Andi-Co Appliance Pty Ltd.

1 Stamford Road,

Oakleigh,

VIC 3166

Tel: (03) 9569 1225

Fax: (03) 9569 1450

Email: Service@andico.com.au

Name of Appliance

Appliance Serial Number*

Fuel Type Dual Fuel

Date of Purchase

Installer’s Name, Address and

Telephone No.

Date of Installation

7. Installation

INSTALLATION

Check the appliance is electrically safe and gas sound when you have ﬁnished.

Dear Installer

Before you start your installation, please complete the details

below, so that, if your customer has a problem relating to

your installation, they will be able to contact you easily.

You must be aware of the following safety requirements &

regulations.

Prior to installation, ensure that the local distribution

conditions (nature of the gas and gas pressure) and the

adjustment of the appliance are compatible.

The appliance must be installed in accordance with the

regulations in force and only in a well ventilated space.

Read the instructions before installing or using this

appliance.

The regulations and standards are as follows:

 AS 5601 – ‘Gas Installations’

In your own interest and that of safety, it is law that all gas

appliances be installed by competent persons.



Failure to install the appliance correctly could

invalidate any warranty or liability claims and lead

to prosecution.

The cooker must be installed in accordance with all local gas

ﬁtting regulations, municipal building codes, electrical wiring

regulations and any other relevant statutory regulations.



WARNING! Where this appliance is installed in

marine craft or in caravans, it shall NOT be used as a

space heater.

Provision of Ventilation

This appliance is not connected to a combustion products

evacuation device. Particular attention shall be given to the

relevant requirements regarding ventilation.

The room containing the cooker should have an adequate air

supply.

Install the cooker in a location to allow the complete

combustion of gas, proper ﬂueing and to maintain ambient

temperature of the immediate surroundings at safe limits,

under normal condition.

Location of Cooker

The cooker may be installed in a kitchen/kitchen diner but

NOT in a room containing a bath or shower.

Note: An appliance for use on Propane must not be installed

in a room or internal space below ground level, e.g. in a

basement.

Conversion

All models are supplied set for use on Natural gas. A

conversion kit for Propane gas is included with the appliance.

See the instructions that are supplied with the conversion

kit. After converting the appliance, please attach the Gas

Conversion sticker over the appropriate area of the data

badge – this will identify the gas type for which the appliance

is now set.

INSTALLATION

Check the appliance is electrically safe and gas sound when you have ﬁnished.

Checking the Parts:You will need the following equipment to complete the

cooker installation satisfactorily:

• Restraining chain: If the cooker is to be supplied with

gas through a ﬂexible hose, a restraining chain must be

ﬁtted.

• Flexible gas hose.

• Gas pressure tester/manometer

• Multimeter: For electrical checks

You will also need the following tools:

1. Electric drill

2. Masonry drill bit (only required if fitting the cooker on a

stone or concrete floor)

3. Wall plugs (only required if fitting the cooker on a stone

or concrete floor)

4. Steel tape measure

5. Cross head screwdriver

6. Flat head screwdriver

7. 4mm & 3mm Allen keys

8. Spirit level

9. Pencil

10. Adjustable spanner

11. Screws for fitting the restraining chain

Levelling tool & Allen keys Full capacity shelf

ArtNo.000-0002 Classic tools

ArtNo.326-0013 - Full capacity shelf

(Falcon)

Grill pan tray support 2 grill pans & trivets

ArtNo.326-0004 - Cradle shelf

ArtNo.331-0008 - 90SC

grill pan & trivet

3 energy saving shelves 4 ladder side supports

ArtNo.326-0002 - Energy saving shelf

ArtNo.320-0030

90SC ladder support

Divider Plinth

ArtNo.281-0028 - Albertine divider

ArtNo.350-0008 - 90 SC plinth

Griddle Wok cradle

ArtNo.311-0043 - Griddle 09

ArtNo.000-0009 Wok ring, cast

Restraining chain & hook Stability bracket

ArtNo.020-0021 - Restraining

chain & hook

ArtNo.070-0003 -

Anti-tip bracket V2

INSTALLATION

Check the appliance is electrically safe and gas sound when you have ﬁnished.

ArtNo.280-0105 36” wide oven dimensions FrC

ArtNo.092-0004 - 90DF SC -

cooker clearances (AUS)











Fig.7-1

Positioning the Cooker

The diagram (Fig.7-1) shows the minimum recommended

distance from the cooker to nearby surfaces as given in

AS 5601.

1. Overhead – Measurement A

The minimum height of any surface above the cooker is

650mm above the hotplate.

Range hoods and exhaust fans shall be installed in

accordance with the manufacturer’s instructions. However, in

no case shall the clearance between the highest part of the

hob of the cooking appliance and a range hood be less than

650mm or, for an overhead exhaust fan, 750mm.

2. Side Clearances – Measurements B & C

Where B, measured from the periphery of the nearest burner

to any vertical combustible surface, or vertical combustible

surface covered with toughened glass or sheet metal, is

less than 200mm, the surface shall be protected to ensure

that the combustible surface does not exceed 65ºC above

ambient*. Even with the surface protected, the dimension B

should not be less than 135mm above hotplate level.

*The ﬁxing of 5mm thick ceramic tiles to the surface, or

attaching ﬁre resistant material to the surface and covering with

sheet metal with a minimum thickness of 0.4mm to a height C

of not less than 150mm above the hotplate, should satisfy this

requirement.

3. Side Clearances – Measurement D & E

Where D, the distance from the periphery of the nearest

burner to a horizontal combustible surface is less than

200mm, then E shall be 10mm or more, or the horizontal

surface shall be above the trivet.

A clearance of 130mm is required if the cooker is near a corner of

the kitchen, to allow the oven doors to open. The actual opening

of the doors is slightly less, but this allows for some protection of

your hand as you open the door.

We recommend a gap of 905mm between units to allow for

moving the cooker. Do not box the cooker in - it must still

be possible to move the cooker in and out for cleaning and

servicing.

Moving the Cooker



On no account try and move the cooker while it is

plugged into the electricity supply.

The cooker is very heavy, so take great care.

We recommend two people manoeuvre the cooker. Ensure

that the ﬂoor covering is ﬁrmly ﬁxed, or removed to prevent

it being disturbed when moving the cooker around. To help

you, there are two levelling rollers at the back and two screw-

down levelling feet at the front. You will need the levelling

tool.

INSTALLATION

Check the appliance is electrically safe and gas sound when you have ﬁnished.

ArtNo.010-0010 Lowering the rear rollers (90)

x10



Fig.7-5

Fig.7-6

ArtNo.281-0138 - Drawer pulled out

Fig.7-2

ArtNo.342-0002 - Elan - drawer position

Fig.7-3

ArtNo.062-0001 - 90 Prof+ FX - Removing the door

Fig.7-4

Removing the Storage Drawer

Pull the drawer out to its furthest point (Fig.7-2).

Lift up the ends of the plastic clips (one each side) to release

the catches holding the drawer to the side runners and at the

same time pull the drawer forward and away from the side

runners (Fig.7-3).

For safety’s sake push the drawer runners back out of the

way. Put the drawer somewhere safe - do not reﬁt it until the

installation is complete.

Removing the Oven Door

To remove the oven door, open the door fully. Swivel the

locking ‘U’ clips forward to the locking position (Fig.7-4). Grip

the sides of the door, lift upwards and then slide the door

forwards (Fig.7-5).

When you have removed the oven door continue as follows:

First ﬁt the levelling tool on the hexagonal adjusting nut

(Fig.7-6).

Make 10 complete (360°) turns clockwise (Fig.7-6). This

means turning and removing the levelling tool 20 times.

Completing the Move

Unfold the rear edge of the pack base tray. Grip the fascia

panel and lift the front of the cooker slightly.

Carefully push the cooker backwards oﬀ the pack base.

Remove the pack base. Position the cooker close to its ﬁnal

position, leaving just enough space to get behind it.

DO NOT use the control knobs to manoeuvre the cooker.

Levelling

You are recommended to use a spirit level on a shelf in one of

the ovens to check for level.

Place the cooker in its intended position, taking care not to

twist it within the gap between the kitchen units as damage

may occur to the cooker or the units.

The front feet and rear rollers can be adjusted to level the

cooker. To adjust the height of the rear of the cooker use the

levelling tool supplied to turn the adjusting nuts at the front

bottom corners of the cooker. To set the front feet turn the

bases to raise or lower. Make sure the oven door is aligned to

the cooker face.

Leave the levelling tool in the storage drawer, so that the

customer can use it if they wish to move the cooker.

INSTALLATION

Check the appliance is electrically safe and gas sound when you have ﬁnished.

ArtNo.280-0032 - Assembling the Anti-tip bracket









ArtNo.070-0006 - Anti-tip mounted to wall

ArtNo.280-0033 - Anti-Tip fixed to floor

ArtNo.070-0001 - Fitting the restaining chain

Fig.7-7

Fig.7-10

Fig.7-9

Fig.7-11

ArtNo.011-0020 - Positioning anti-tip bracket





�



Fig.7-8

Stability Bracket and Chain



A stability bracket and chain should be ﬁtted when

the cooker is connected to a ﬂexible gas supply.

Unless properly installed, the cooker could be tipped by

leaning on the door. Injury might result from spilled hot

liquids or from the cooker itself.

IMPORTANT: The cooker must be set to the correct height

and levelled before the stability bracket is installed.

Floor Attachment

Fit the bracket base (1) and bracket extension (2) together

and secure using the screws (3) supplied (Fig.7-7).

Dimension ‘A’ should be set to give a clearance of about 6 mm

above the centre channel of the cooker base (Fig.7-8).

The assembled bracket should be ﬁrmly secured to the ﬂoor

(Fig.7-9) to give a minimum engagement of 50 mm in the

centre channel of the cooker base.

Wall Attachment

When ﬂoor attachment is impracticable and provided that

the stability bracket base can be securely ﬁxed to a solid wall

or wall stud (Fig.7-10). Discard the bracket extension (2).



For both ﬂoor and wall attachment it is essential to

use the appropriate ﬁxing screws and to ensure that

the stability bracket is ﬁrmly attached.

Fitting the Restraining Chain

The restraining chain MUST be ﬁtted.

The length of chain between the appliance and the wall ﬁxing

should prevent strain on the gas and electricity connections,

but still allow access to unhook the chain when the cooker is

pull forward.

Fix the supplied hook securely to the wall.

Measure the length of chain required. Use the hexagon-

headed screw, washers and bolt supplied in the restraining

chain kit to ﬁx the chain to one of the holes at the top of the

ﬂue trim bracket (Fig.7-11).

Hook the other end of the chain to the wall ﬁxing.

INSTALLATION

Check the appliance is electrically safe and gas sound when you have ﬁnished.

Gas Connection

Must be in accordance with the relevant standards.

The gas supply needs to terminate with a down facing

bayonet.

Because the height of the cooker can be adjusted and

each connection is diﬀerent it is diﬃcult to give precise

dimensions. The hose should be ﬁtted so that both inlet

and outlet connections are vertical so that the hose hangs

downwards in a ‘U’ shape (Fig.7-12).

The connector is located just below the hotplate level at the

rear of the cooker.

A ﬂexible connection is supplied with the cooker. If it is

necessary to use another hose it must be to A.S. 1869 class B

and be suitable for your gas type.

If in doubt contact your supplier. Screw connect the threaded

end of the hose into the gas inlet.

After completing the gas connection, check the cooker is gas

sound with a pressure test.

Pressure Testing

The pressure test point is accessible on the inlet pipe at the

rear. Remove the test nipple screw and ﬁt a pressure gauge to

the test point. Turn on and light two of the hotplate burners.

For Natural Gas cookers the pressure should be 1kPa.

For Propane X cookers the pressure should be 2.54kPa.

ArtNo.062-0002 - 90SC - Prof+ - Gas connection











Fig.7-12

INSTALLATION

Check the appliance is electrically safe and gas sound when you have ﬁnished.

ArtNo.132-0001 - 1 phase 240Vac 50Hz



Fig.7-13

ArtNo.132-0003 - Single-phase connections (AUS)

Fig.7-14

ArtNo.132-0002 - 3 phase 240/415Vac 50Hz







Fig.7-15

ArtNo.132-0004 - Fixed wiring connection (AUS)

















Fig.7-16

Electrical Connection

This appliance must be installed by a qualiﬁed electrician

to comply with the relevant regulations (AS/NZS

60335.2.6:2002) and also the local electricity supply

company requirements.

Ensure that the mains characteristics (voltage, nominal,

power, etc.) match the ratings indicated on the data plate

aﬃxed to the cooker.

The cooker is preset for a single-phase earthed electrical

connection. It is essential to install a multi-pole circuit breaker

that completely disconnects the appliance from the mains,

with a minimum contact break distance of 3mm.

WARNING: THIS APPLIANCE MUST BE EARTHED

The appliance must be connected to an eﬃcient earthing

circuit. If the electricity network is not equipped with an

earth connection, then it must be installed separately in

compliance with local regulations.

Earthing is a safety measure required by law, and must be

performed with particular care by a qualiﬁed technician,

who must also check that the electricity supply

characteristics are correct.

The total electrical load of the appliance is approximately

3.9kW. The cable size used should be suitable for this load and

comply with all local requirements.

Access to the mains terminal is gained by removing the

electrical terminal cover box on the back panel. Connect

the mains cable to the correct terminals for your electrical

supply type (Fig.7-13 and Fig.7-14). Check that the links are

correctly ﬁtted and that the terminal screws are tight. Secure

the mains cable using the cable clamp.

Fixed Wiring

For connection to ﬁxed wiring, i.e. ﬂexible conduit, remove

the electrical terminal cover box on the back panel. Using the

two screws, ﬁx the strain relief bracket in position.

Fix the conduit-to-conduit mounting bracket onto the

strain relief bracket. Connect the mains cable to the correct

terminals for your electrical supply type (Fig.7-15 and

Fig.7.16). Check that the links are correctly ﬁtted and that the

terminal screws are tight.

Replace the electric terminal cover box; make sure that the

conduit is clear of the bottom ﬂange.

Hotplate Check

Check each burner in turn. There is a ﬂame safety device (FSD)

that stops the ﬂow of gas to the burner if the ﬂame goes out.

For each burner, turn the control knob to the solid ﬂame

symbol. Press in the control knob. This lets gas through to

the burner. Keep holding the knob pressed in and press the

igniter button or light with a match. Keep holding the control

knob pressed in for about 10 seconds.

If, when you let go of the control knob the burner goes out,

the safety device has not held in. Wait one minute then try

again this time holding the control pressed in for slightly

longer.

INSTALLATION

Check the appliance is electrically safe and gas sound when you have ﬁnished.

Oven Check

Turn on the oven and check that it starts to heat up. Check

that the oven lights are working.

Note: The oven light bulb is not included in the guarantee.

Turn oﬀ the oven.

Fitting the Plinth

Remove the 3 screws for the plinth mounts along the front

bottom edge of the range (Fig.7-17). Fasten the plinth using

these screws (alternative colour screws can be found in the

loose parts pack).

Refit the Drawer

Rest the drawer back on the side runners and, keeping it level,

push it right back. The clips should click into position holding

the drawer to the side runners (Fig.7-18).

Refitting the Oven Door

To reﬁt the door, slide the hinges back into their slots. Rotate

the locking ‘U’ clips back to ﬁt onto the hinges.

Customer Care

Installer: Please complete your details in this Guide, inform

the user how to operate the cooker and hand oven the

instructions.

Thank you

ArtNo.341-0001 - 90SC - Drawer pulled forward

ArtNo.342-0007 - 90 Prof+ FX

- drawer locking

ArtNo.281-0026 - Front plinth

Fig.7-17

Fig.7-18

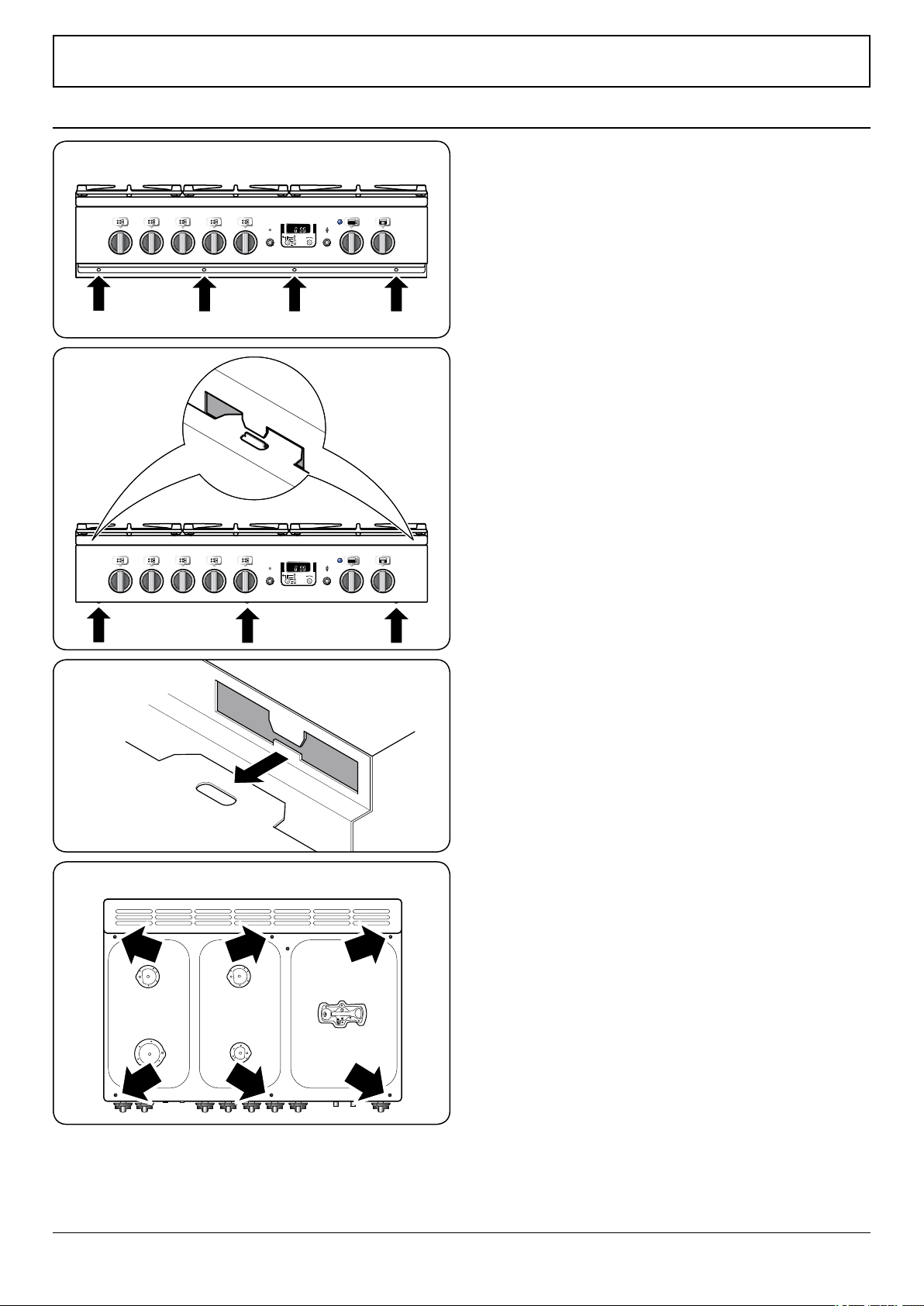

WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON

Disconnect from electricity and gas before servicing. Check appliance is safe when you have ﬁnished.

Check in the ‘Technical Data’ section at the back of these

instructions that the cooker is convertible to the type of

gas you want to use.

This conversion must be performed by a competent person,

in accordance with these instructions and with the local

supply company requirements.

Failure to convert the appliance correctly could invalidate any

warranty or liability claims and lead to prosecution.

The conversion instructions must be used in conjunction

with the rest of the appliance instruction, in particular for

information on Standards, cooker positioning, connection,

hose suitability, etc.

When servicing or replacing gas-carrying components,

disconnect from the gas before starting, and check that the

appliance is gas sound after completion.

DO NOT use reconditioned or unauthorised gas controls.



Disconnect from the electricity supply before

conversion. Before electrical reconnection, check

that the appliance is electrically safe.

Injectors

Remove the burner caps and heads. Remove the old jets.

Fit the new jets: see ‘Technical Data’ section for correct jets.

Reassemble in the reverse order (Fig.8-1).

Tap Adjustment

Disconnect from the electricity supply.

Remove all control knobs. Open the oven door. Undo the

4 screws on the oven beak (Fig.8-2). Remove the 3 ﬁxing

screws on the underside of the control. The control panel

should drop down slightly. It is held at each end by two holes

in the top edge (Fig.8-3) that locate on the tags on the inner

panel.

Lift the control panel clear of the tags and pull the control

panel forward.

Take care not to damage or strain the wiring.

To Convert to Propane Gas

Using a pair of long nosed pliers, carefully remove the bypass

screw and ﬁt the correct replacement screw (Fig.8-4): see

‘Technical Data’ for the correct size. Tighten the screw down.

Reﬁt the control panel.

8. Conversion to Propane Gas







ArtNo.311-0010 Injectors

Fig.8-1

A - Jet, B - Internal injector, C - External injector

ArtNo.102-0012 - Removing the gas bypass screw

Fig.8-4

ArtNo.270-0031 - 90 Prof+ FX - Removing the splitter

Professional + FX

Fig.8-2

ArtNo.270-0032 - 90 Prof+ FX - Removing the control panel

Professional

+ FX

Fig.8-3

DocNo.071-0003 - LP gas conversion - 90 single cavity

WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON

Disconnect from electricity and gas before servicing. Check appliance is safe when you have ﬁnished.

Set the Governor

Unscrew the governor’s brass top. In the base of the brass top

is a plastic snap-in converter device (Fig.8-5). To convert the

governor, snap the device out of the top and reﬁt it the other

way round. The snap-in converter device is marked to show

the gas for which it is set (Fig.8-6).

Make sure the device is secure in the top cap and reﬁt the cap

to the governor.

Affix Label

Stick the appropriate gas label over the natural gas part of the

appliance data labels (one on the rear of the appliance and

one in the storage drawer).



Ensure that the appliance is gas sound (refer to

‘Pressure Testing’ in the ‘Installation’ section).



Check the operation of all the burners.

ArtNo.102-0007 - Maxitrol converter device positions

Fig.8-6

ArtNo.103-0006 - Maxitrol cap & converter





Fig.8-5

WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON

Disconnect from electricity and gas before servicing. Check appliance is safe when you have ﬁnished.

ArtNo.270-0031 - 90 Prof+ FX - Removing the splitter

Professional + FX

ArtNo.090-0021 Hotplate removal

9. Servicing



BEFORE SERVICING ANY GAS CARRYING

COMPONENTS. TURN OFF THE GAS SUPPLY

DO NOT modify this appliance!

Check the appliance is gas sound after completion

of service. When checking for gas leaks DO NOT use

washing up liquid – this can corrode. Use a product

speciﬁcally manufactured for leak detection.

DO NOT use reconditioned or unauthorised gas

controls.

Disconnect from the electricity supply before

servicing, particularly before removing any of the

following: control panel, side panels, hotplate tray

or any electrical components or covers.

Before electrical reconnection, check that the

appliance is electrically safe.

1. To Remove the Control Panel

Disconnect the cooker from the electricity supply.

Remove all control knobs. Open the oven door. Undo the 4

screws on the oven beak (Fig.9-1). Remove the 3 ﬁxing screws

on the underside of the control. The control panel should drop

down slightly. It is held at each end by two holes in the top

edge (Fig.9-2) that locate on the tags on the inner panel.

Lift the control panel clear of the tags and pull the control

panel forward (Fig.9-3).

Disconnect the wiring from the rear. Lift the panel clear of the

cooker.

Replace all parts in reverse order.

When replacing any electrical connections refer to the wiring

diagram.

2. To Remove the Hotplate

Disconnect the cooker from the electricity supply.

Remove pan supports and burner heads.

Remove the 10 screws holding the hotplate burners to the

hotplate.

Remove the 6 screws holding the hotplate tray to the cooker

(Fig.9-4).

Taking care not to damage the burner heads, lift the hotplate

clear of the cooker.

Reassemble in reverse order, ensuring that the leads are

reconnected correctly.

Check the burner operation.

3. To Remove the Side Panels

Disconnect the cooker from the electricity supply.

Remove the control panel. Undo the 3 screws securing the

plinth and remove.

Undo the lower retaining screw situated below the edge at

the panel front corner. Remove the side panel retaining screw

on the upper front edge and the two ﬁxings on the rear or

the side panel. Remove the panel by pulling it away from the

cooker.

Fig.9-1

Fig.9-4

ArtNo.270-0032 - 90 Prof+ FX - Removing the control panel

Professional

+ FX

Fig.9-2

ArtNo.270-0019 - Proplus tags 2

Fig.9-3

WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON

Disconnect from electricity and gas before servicing. Check appliance is safe when you have ﬁnished.

Fit the replacement in reverse order.

Ensure the phial is clipped securely to the oven rear cover.

To change the protect thermostat

Follow the same procedure as above except that the control is

situated on the rear cover.

7. To Replace a Hotplate Control Taps

Disconnect the cooker from the electricity supply.

Remove the control panel (see 1) and hotplate (see 2).

Unplug the FSD lead from the rear of the tap. Undo

compression ﬁtting at the rear of the tap. Remove the ﬁxings

that secure the tap to the gas rail.

Disconnect the ignition switch wiring. Remove the tap, then

remove and discard the gasket seal.

Fit the new gasket seal to the replacement tap.

Re-assemble in reverse order. Check the cooker is gas sound.

Check the hotplate ignition.

8. To Change Hotplate Burner Injector

Disconnect the cooker from the electricity supply.

Remove the pan support, burner cap and head. Remove the

old jet. Fit the new injector.

Reassemble in the reverse order. Check the cooker is gas

sound.

9. To Replace a Hotplate Burner Electrode

Disconnect the cooker from the electricity supply.

Lift oﬀ the pan supports and remove the burner cap. Remove

the screw holding the electrode. Pull the electrode vertically

up suﬃciently to grip the lead between thumb and foreﬁnger.

Pull oﬀ the electrode but keep hold of the lead.

Fit the new electrode to the lead and ﬁx the electrode to the

burner. Replace the burner cap.

Check the burner ignition.

10. To Replace a Hotplate Burner

Disconnect the cooker from the electricity supply.

Remove the hotplate (see 2). The burners except the right-

hand wok burner are mounted on support struts. For these

burners, disconnect the burner feed pipes at the burner.

Remove the screws at the front and rear holding the support

struts. Lift the strut and burners clear. The burners are ﬁxed to

the support struts with two screws. Remove the appropriate

burner and ﬁt the new one. Reassemble in reverse order.

Check that the burner operation is satisfactory.

Right-hand Wok Burner

Disconnect the burner feed pipes at the burner. Fit the new

one and reassemble in reverse order. Check that the burner

operation is satisfactory.

4. To Change Oven or Light Switch

Disconnect the cooker from the electricity supply.

Remove the control panel (see 1).

Note: The old switch may be destroyed during removal.

Remove the switch button and old switch from its bezel

by gripping the switch body behind the control panel and

twisting sharply. Remove the switch bezel by folding back the

locking wings and pushing forwards.

Fit the new bezel to the control panel by ﬁrst lining up the

raised key on its body with the cut-out in the control panel

and pushing it in from the front. Assemble the new switch to

the bezel by lining up the key sections and pushing home. Fit

the new button by pushing in from the front.

Replace control panel in reverse order and test for correct

operation.

5. To Replace the Clock

Disconnect the cooker from the electricity supply.

Remove the Control Panel (see 1). Pull oﬀ the timer control

buttons.

Remove the timer/mounting bracket assembly from the

control panel by removing the ﬁxing screws.

Remove the timer from its mounting bracket by depressing

the plastic lugs on the timer case, while at the same time

pulling the unit forward.

Reassemble in the reverse order.

When replacing the leads, refer to the wiring diagram.

Check the operation of the timer.

6. To Replace a Thermostat

Disconnect the cooker from the electricity supply.

Note: Two thermostats are used in the oven. One is a primary

thermostat, which controls the oven temperature and can

be adjusted by the customer using the control knob. The

maximum housing temperature limit for this thermostat is

T120 (UL) and has an oven control temperature limit of 250°C.

The other is a protection thermostat to prevent the oven

overheating should the primary oven thermostat fail. The

maximum housing temperature limit for this thermostat is

T120 (UL) and the safety cut-oﬀ temperature is 325°C ±10°C.

The protect thermostat only operates if the primary

thermostat has failed.

To change the primary thermostat

Remove the control panel (see 1) and hotplate (see 2).

Remove the oven shelves.

Undo the cooker rear cover screws and covers.

Track the route of the thermostat capillary from the rear of the

control on the fascia to where it disappears into the oven. By

moving the capillary it will become obvious which of the two

phials in the oven it is connected to (Fig.9-5). The phial can be

removed by loosening the p-clips.

Feed the thermostat capillary out and clear of the oven, noting

the routing.

Remove the two screws ﬁxing the thermostat to the inner

control panel and disconnect the wiring from the thermostat.

WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON

Disconnect from electricity and gas before servicing. Check appliance is safe when you have ﬁnished.

ArtNo.281-0116 - Oven Thermostat Phial



Fig.9-5

11. To Remove a Hotplate Burner Thermocouple

Disconnect the cooker from the electricity supply.

Remove the hotplate (see 2).

Identify the thermocouple to be removed. Pull oﬀ the

connection at the tap end and lift the thermocouple away at

the burner end.

Fit the new thermocouple in the reverse order.

Replace the hotplate. Check the thermocouple for correct

operation at full rate and turndown.

12. To Change the Ignition Spark Generator

Disconnect the cooker from the electricity supply.

Remove the hotplate (see 2).

Disconnect all the leads from the generator, taking note of

their positions. Unclip the generator from the cooker.

Fit the new generator and reconnect the leads. Check for

correct ignition.

13. To Change an Oven Light Bulb

Disconnect the cooker from the electricity supply.

Make sure the oven is cool. Open the oven door and remove

the oven racks.

Unscrew the bulb cover by turning counter clockwise. It may

be very stiﬀ (Fig.9-6).

Taking care to protect your ﬁngers in case the bulb should

shatter, unscrew the old bulb.

Screw in the new bulb and then screw the bulb cover back on.

Turn on the circuit breaker and check that the bulb now lights.

Replacement bulb must be 15W 240V lamp, FOR OVENS, heat

resistant to 300°C.

14. To Change the Oven Multi-function Switch

Move the cooker away from the wall to allow access to the

rear.

Remove the pan supports and burner heads. Remove the

control panel (see 1) and hotplate (see 2).

Remove the ﬁxing screws from the front of the oven multi-

function switch. Disconnect the leads and remove the switch.

Fit the new switch.

15. To Replace a Door Inner Panel

Remove the door (see page 23, ‘Removing the Oven Door’).

Carefully place the door, outer side up, on a clean level surface.

Remove the 2 hexagon headed screws from the inside face

and the 3 hexagon headed screws on the bottom edge

(Fig.9-7).

Remove the corner brackets, and then lift oﬀ the inner door

panel. Take care not to damage the inner glass.

Reassemble in the reverse order.

16. To Replace an Over Door Hinge

Remove the door (see page 23, ‘Removing the Oven Door’).

Carefully place the door, inner side up, on a clean level surface.

Remove the 2 hexagon headed screws from the inside face

and the 3 hexagon headed screws on the bottom edge

(Fig.9-7).



Fig.9-7

ArtNo.324-0007 Unscrewing the bulb cover

Fig.9-6

WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON

Disconnect from electricity and gas before servicing. Check appliance is safe when you have ﬁnished.

Lift out the inner panel and place it, outer side up, on a clean

level surface. Undo the screws securing the hinge in place.

Remove the hinge. Replace the hinge and rebuild the door in

the reverse order.

17. To Remove the Oven Door Seal

Open the oven door. The seal is held in place by small hooks to

the cooker front. At the corner, pull the seal diagonally away

from the door centre until that hook is released

(Fig.9-8).

Proceed to the next hook and release it in a similar way, and

so on. Use force if the hooks are stiﬀ, as the old seal will be

discarded.

When ﬁtting the new seal, position the seal join at the bottom.

Hook the new seal in one of the corner holes of the door, and

proceed round the door snapping in each hook in turn.

18. To Remove the Oven Inner Backs

Disconnect the cooker from the electricity supply.

Open the oven door. For the right-hand side unscrew the 4

thermostat phial ﬁxing screws.

Remove the ﬁxings that secure the inner back to the oven rear

(Fig.9-9). Lift the removable panels away.

Re-assemble in reverse order. Ensure that the retaining ﬁxings

are fully tightened.

19. To Replace an Oven Fan

Disconnect the cooker from the electricity supply.

Pull the cooker forward to access the cover boxes at the rear of

the cooker.

Remove the inner back (see 18).

Hold the fan blades and undo the centre nut (LH thread), brass

washers, fan blade and circlip (Fig.9-10). Undo the screws that

retain the fan and remove it from the cavity rear.

Fit the replacement and re-assemble parts in reverse order.

Check that the oven operates satisfactorily.

20. To Remove an Oven Fan Element

Disconnect the cooker from the electricity supply.

Remove the inner back (see 18).

Remove the screws that secure the element within the oven

and carefully lift the element away (Fig.9-11).

Disconnect the leads and connect to the replacement element

and re-assemble parts in reverse order.

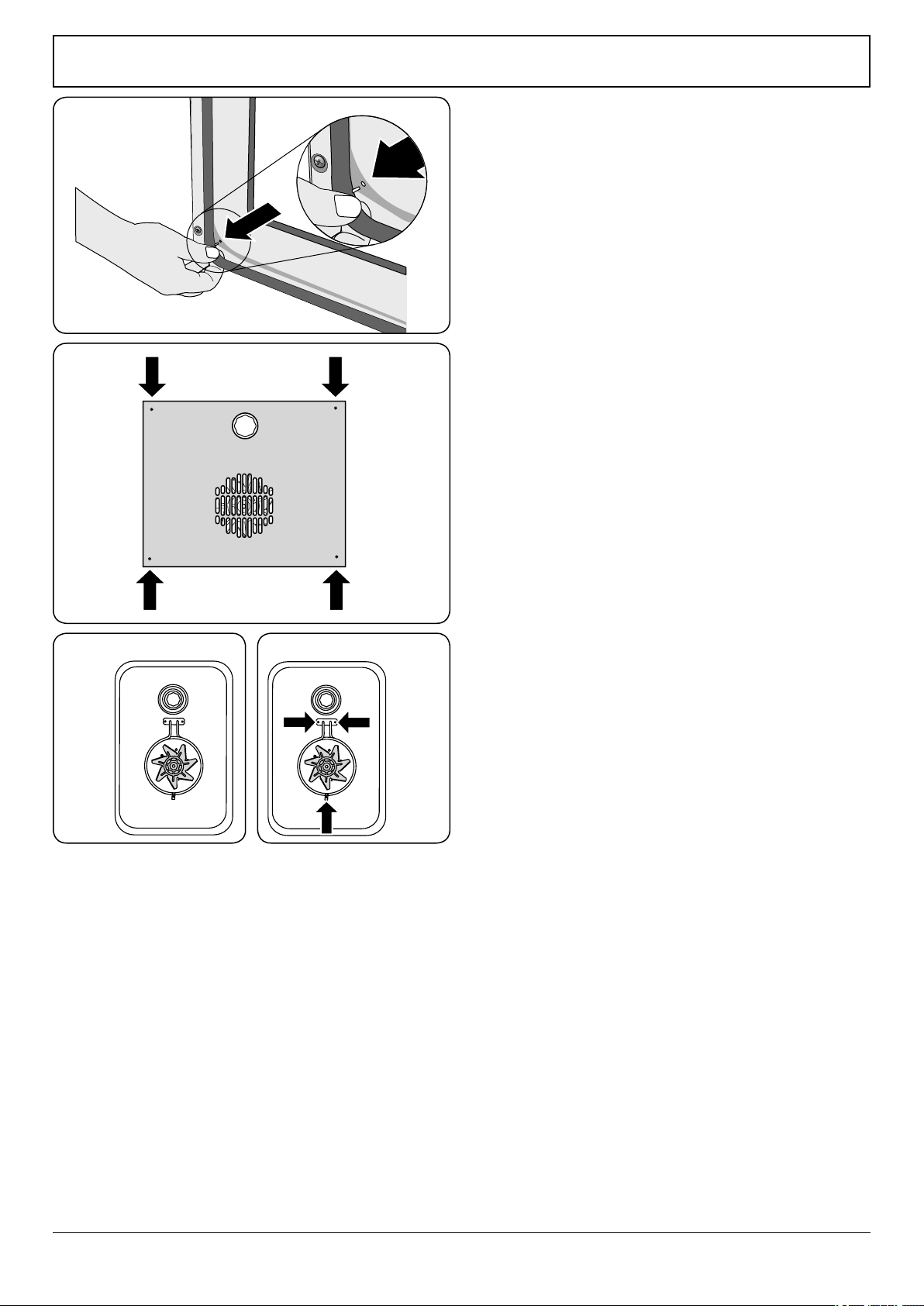

ArtNo.281-0148

- USA Oven Fan

ArtNo 281-0149

- USA oven fan element

Fig.9-10 Fig.9-11

ArtNo.320-0005 Oven door rubber seal

Fig.9-8

ArtNo.281-0149 - Fan oven inner

Fig.9-9

WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON

Disconnect from electricity and gas before servicing. Check appliance is safe when you have ﬁnished.



 





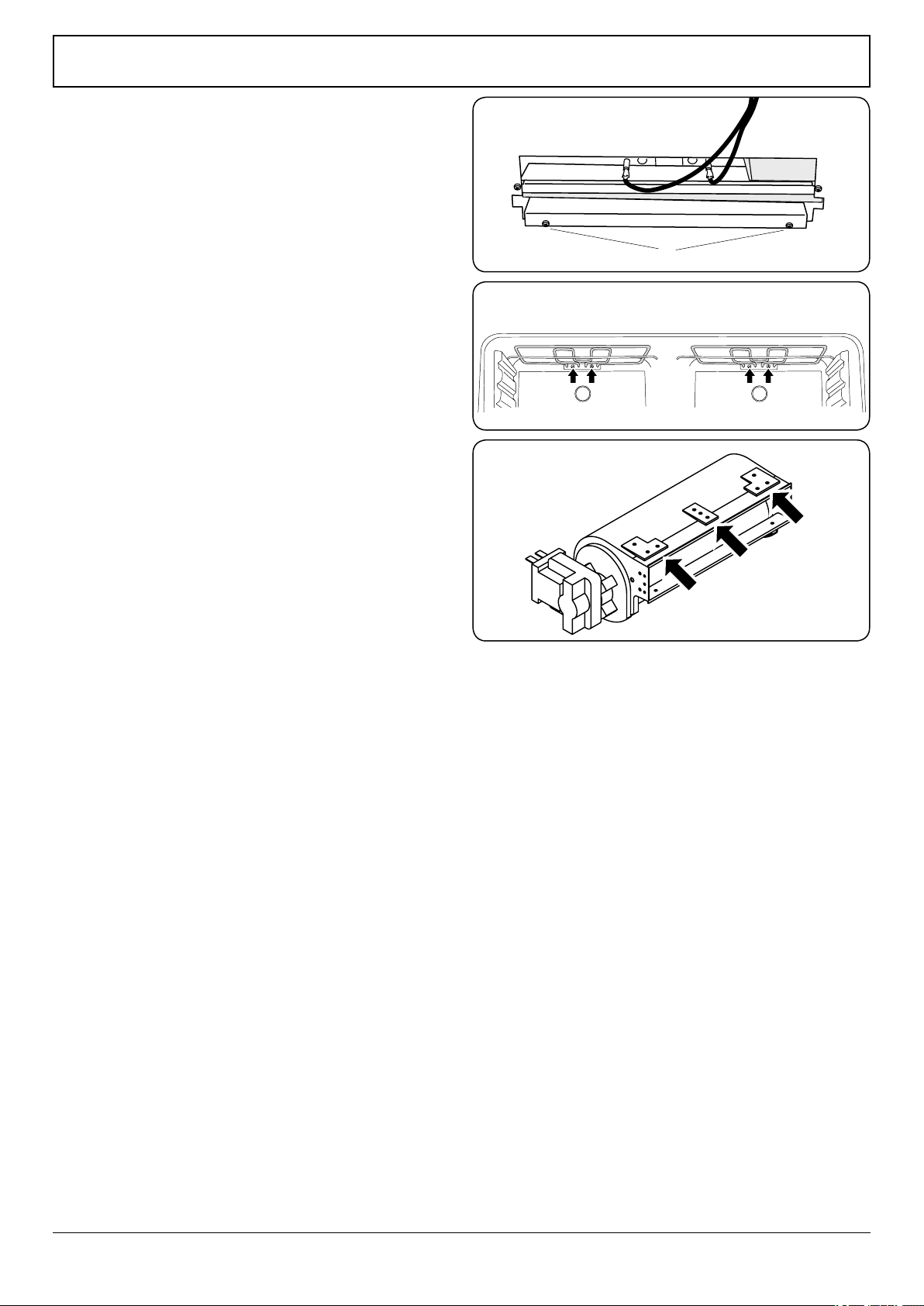

Fig.9-12

Fig.9-13

Fig.9-14

21. To Remove the Oven Bottom and Top Elements

Disconnect the cooker from the electricity supply.

Bottom Element

Pull the cooker forward to access the cover boxes at the rear of

the cooker. Remove the ﬁxings that secure the cover and lift it

clear.

Remove the 2 screws ‘A’ and allow the plate to drop down.

Remove the 2 screws ‘B’, then lower the upper plate and

remove it through the slot in the cooker back (Fig.9-12).

Undo the terminal connections, noting their positions.

Remove the element ﬁxings and withdraw the element.

Replace the element and re-assemble parts in reverse order.

Top Element

Remove the top element bracket ﬁxings and withdraw the

elements carefully, lifting to clear the clips on the support bar

(Fig.9-13).

Replace the element and re-assemble the parts in reverse

order.

Check that the oven operates satisfactorily.

22. To Change the Cooling Fan

Remove the hotplate (see 2).

Remove the screws that hold the cooling fan to the duct

(Fig.9-14), and then lift out the fan.

Re-assemble in the reverse order.

ArtNo.080-0023 - LC Albertine 36 USA circuit diagram







1 2





















































































 













































































































































































































10. Circuit Diagram

11. Technical Data

This cooker is designed for use on natural gas but can be converted to LP (Propane X (2.54kPa).

A conversion kit from Natural Gas to Propane is supplied with the cooker.

Installer: Please leave these instructions with the user.

DATA BADGE LOCATION: Inside base drawer of cavity and on rear of the appliance.

COUNTRY OF DESTINATION: Australia

Connections

Gas Rp½ at right rear Electric

Natural Gas 1kPa 240V 50Hz

Propane 2.54kPa

(See appliance data badge for test pressures)

Dimensions

Overall height

minimum 904mm maximum 931mm

Overall width

900mm; see ‘Positioning of Cooker’.

Overall depth

720mm

Minimum space for cooktop

800mm

Ratings

Oven

Full Divided

Fan element 3.31 kW 1.65 kW

Top element 3.49 kW 1.75 kW

Browning element 2.11 kW 1.06 kW

Bottom element 1.38 kW 0.69 kW

Natural Gas 1kPa Propane 2.54kPa

Hotplate Input

Injector

Bypass

marking

Input

Injector

Bypass

marking

Marking Size Ø Marking Size Ø

Wok burner 15.2Mjh

-1

Internal 112 1.12mm

90 15Mjh

-1

Internal 66 0.67mm

External 164 1.65mm External 91 0.87mm

Large burner 12.3Mjh

-1

165 1.65mm 80 12Mjh

-1

89 0.96mm 41

Medium burners 6.2Mjh

-1

115 1.15mm 56 6.2Mjh

-1

67 0.68mm 33

Small burner 3.7Mjh

-1

92 0.92mm 48 3.3Mjh

-1

48 0.50mm 25

Maximum total electric load 240V = 3.9kW (including oven fans, lights, etc.)

ArtNo.000-0003 CE logo

ArtNo.000-0001 Aga address block

Falcon PROP90FXDFGB-CH 90cm Freestanding Dual Fuel Oven/Stove

Product's Documents

User Manual

Specifications

Falcon PROP90FXDFGB-CH Questions and Answers

Related Products

ELS90DFCBN Falcon 90cm Elise Freestanding Dual Fuel Oven/Stove Charcoal Black and Nickel

Falcon PROP90FXPDFGBCH 90cm Freestanding Dual Fuel Oven/Stove

Falcon PROP90FXPDFSSCH 90cm Freestanding Dual Fuel Oven/Stove

CDL90DFSBCH Falcon Classic Deluxe Freestanding Dual Fuel Oven Stove 90cm

Falcon CLAS90NGFCY-CH 90cm Freestanding Dual Fuel Oven/Stove

Falcon ELS90DFSBN 90cm Elise Freestanding Dual Fuel Oven/Stove
