ii
IMPORTANT
• For your assistance in reporting the loss
or theft of your Projector, please record
the Model and Serial Number located on
the bottom of the projector and retain this
information.
• Before recycling the packag ing, please
ensure that you have checked the con-
tents of the carton thoroughly against the
list of “Supplied accessories” on page
11.
Model No.:
Serial No.:
iii
SPECIAL NOTE FOR USERS IN THE U.K.
The mains lead of this product is fi tted with a non-rewireable (moulded) plug incorporating
a 10A fuse. Should the fuse need to be replaced, a BSI or ASTA approved BS 1362 fuse
marked
or and of the same rating as above, which is also indicated on the pin face
of the plug, must be used.
Always refi t the fuse cover after replacing the fuse. Never use the plug without the fuse
cover fi tted.
In the unlikely event of the socket outlet in your home not being compatible with the plug
supplied, cut off the mains plug and fi t an appropriate type.
DANGER:
The fuse from the cut-off plug should be removed and the cut-off plug destroyed immedi-
ately and disposed of in a safe manner.
Under no circumstances should the cut-off plug be inserted elsewhere into a 13A socket
outlet, as a serious electric shock may occur.
To fi t an appropriate plug to the mains lead, follow the instructions below:
WARNING:
THIS APPARATUS MUST BE EARTHED.
IMPORTANT:
The wires in this mains lead are coloured in accordance with the following code:
Green-and-yellow : Earth
Blue : Neutral
Brown : Live
As the colours of the wires in the mains lead of this apparatus may not correspond with
the coloured markings identifying the terminals in your plug proceed as follows:
x
The wire which is coloured green-and-yellow must be connected to the terminal in the
plug which is marked by the letter E or by the safety earth symbol
or coloured green
or green-and-yellow.
x
The wire which is coloured blue must be connected to the terminal which is marked
with the letter N or coloured black.
x
The wire which is coloured brown must be connected to the terminal which is marked
with the letter L or coloured red.
IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELECTRICIAN.
Authorized representative responsible for the European Union Community Market
SHARP ELECTRONICS (Europe) GmbH
Sonninstraße 3, D-20097 Hamburg
E.U. ONLY
iv
The supplied CD-ROM contains operation instructions in English, German, French, Spanish,
Italian, Dutch, Swedish, Portuguese, Chinese, Korean and Arabic. Carefully read through the
operation instructions before operating the projector.
Die mitgelieferte CD-ROM enthält Bedienungsanleitungen in Englisch, Deutsch, Französisch,
Spanisch, Italienisch, Niederländisch, Schwedisch, Portugiesisch, Chinesisch, Koreanisch
und Arabisch. Bitte lesen Sie die Bedienungsanleitung vor der Verwendung des Projektors
sorgfältig durch.
Le CD-ROM fourni contient les instructions de fonctionnement en anglais, allemand, français,
espagnol, italien, néerlandais, suédois, portugais, chinois, coréen et arabe. Veuillez lire at-
tentivement ces instructions avant de faire fonctionner le projecteur.
El CD-ROM suministrado contiene instrucciones de operación en inglés, alemán, francés,
español, italiano, holandés, sueco, portugués, chino, coreano y árabe. Lea cuidadosamente
las instrucciones de operación antes de utilizar el proyector.
Il CD-ROM in dotazione contiene istruzioni per l’uso in inglese, tedesco, francese, spagnolo,
italiano, olandese, svedese, portoghese, cinese, coreano e arabo. Leggere attentamente le
istruzioni per l’uso prima di usare il proiettore.
De meegeleverde CD-ROM bevat handleidingen in het Engels, Duits, Frans, Spaans,
Italiaans, Nederlands, Zweeds, Portugees, Chinees, Koreaans en Arabisch. Lees de
handleiding zorgvuldig door voor u de projector in gebruik neemt.
Den medföljande CD-ROM-skivan innehåller bruksanvisningar på engelska, tyska, franska,
spanska, italienska, holländska, svenska, portugisiska, kinesiska, koreanska och arabiska.
Läs noga igenom bruksanvisningen innan projektorn tas i bruk.
O CD-ROM fornecido contém instruções de operação em Inglês, Alemão, Francês,
Espanhol, Italiano, Holandês, Sueco, Português, Chinês, Coreano e Árabe. Leia
cuidadosamente todas as instruções de operação antes de operar o projetor.
1
Introduction
Before using the projector, please read this operation manual carefully.
Introduction
ENGLISH
There are two important reasons for prompt warranty registration of your new
SHARP Projec tor, using the REGISTRATION CARD packed with the projector.
1. WARRANTY
This is to assure that you immediately receive the full benefi t of the parts,
service and labor warranty applicable to your purchase.
2. CONSUMER PRODUCT SAFETY ACT
To ensure that you will promptly receive any safety notifi cation of inspection,
modifi cation, or recall that SHARP may be required to give under the 1972
Consumer Product Safety Act, PLEASE READ CAREFULLY THE IMPORTANT
“LIMITED WARRANTY” CLAUSE.
U.S.A. ONLY
The enclosed computer cable must be used with the device. The cable is
provided to ensure that the device complies with FCC Class A verifi cation.
U.S.A. ONLY
WARNING:
FCC Regulations state that any unauthorized changes or modifi cations
to this equipment not expressly approved by the manufacturer could
void the user's authority to operate this equip ment.
U.S.A. ONLY
WARNING:
This is a Class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate
measures.
The lightning fl ash with arrowhead sym-
bol, within an equilateral triangle, is in-
tended to alert the user to the presence
of uninsulated “dangerous voltage”
within the product's enclosure that may
be of suffi cient magnitude to constitute
a risk or electric shock to persons.
The exclamation point within a triangle
is intended to alert the user to the pres-
ence of important operating and main-
tenance (servicing) instructions in the
literature accompanying the product.
See bottom of projector.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER.
NO USER-SERVICEABLE PARTS EXCEPT LAMP UNIT.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT REMOVE SCREWS
EXCEPT SPECIFIED USER
SERVICE SCREW.
WARNING:
To reduce the risk of fi re or electric shock, do not
expose this product to rain or mois ture.
WARNING:
High brightness light source. Do not stare into the beam of light, or view
directly. Be especially careful that children do not stare directly into the
beam of light.
2
INFORMATION
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with
the operation manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference, in which case the user will be required to correct the interference at
his own expense.
U.S.A. ONLY
PRODUCT DISPOSAL
This product utilizes tin-lead solder, and lamp containing a small
amount of mercury. Disposal of these materials may be regulated due
to environmental considerations. For disposal or recycling information,
please contact your local authorities, the Electronics Industries Alliance:
www.eiae.org, the lamp recycling organization www.lamprecycle.org, or
Sharp at 1-800-BE-SHARP.
U.S.A. ONLY

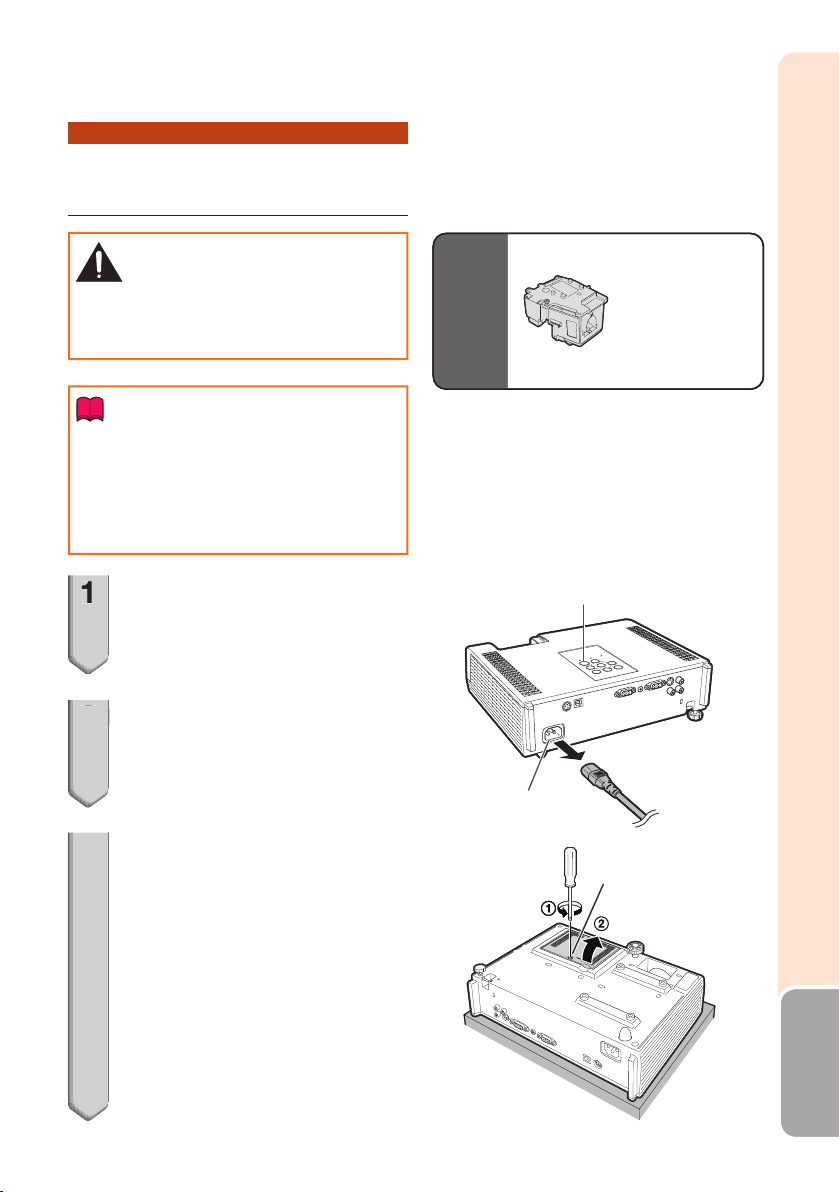

Caution Concerning Lamp Replacement
This projector utilizes a pressurized mercury lamp. A loud sound may indicate lamp failure. Lamp
failure can be attributed to numerous sources such as: excessive shock, improper cooling, surface
scratches or deterioration of the lamp due to a lapse of usage time.
The period of time up to failure largely varies depending on the individual lamp and/or the condition
and the frequency of use. It is important to note that failure can often result in the bulb cracking.
When the lamp replacement indicator and on-screen display icon are illuminated, it is recommended
that the lamp be replaced with a new one immediately, even if the lamp appears to be operating
normally.
Should the lamp break, there is also a possibility that glass particles may spread inside of the
projector. In such a case, it is recommended you contact your nearest Sharp Authorized Projector
Dealer or Service Center to assure safe operation.
Should the lamp break, the glass particles may spread inside the lamp cage or gas contained in the
lamp may be vented into the room from the exhaust vent. Because the gas in this lamp includes
mercury, ventilate the room well if the lamp breaks and avoid all exposure to the released gas. In
case of exposure to the gas, consult a doctor as soon as possible.
Caution
Do not remove the lamp unit from the projector right after use. The lamp will be very hot and may
cause burns or injury.
Wait at least one hour after the power cord is disconnected to allow the surface of the lamp unit to
fully cool before removing the lamp unit.
Do not touch the glass surface of the lamp unit or the inside of the projector.
Do not loosen other screws except for the lamp unit cover and lamp unit.
Make sure to reset the lamp timer only when replacing the lamp. If you reset the lamp timer and
continue to use the same lamp, this may cause the lamp to become damaged or explode.

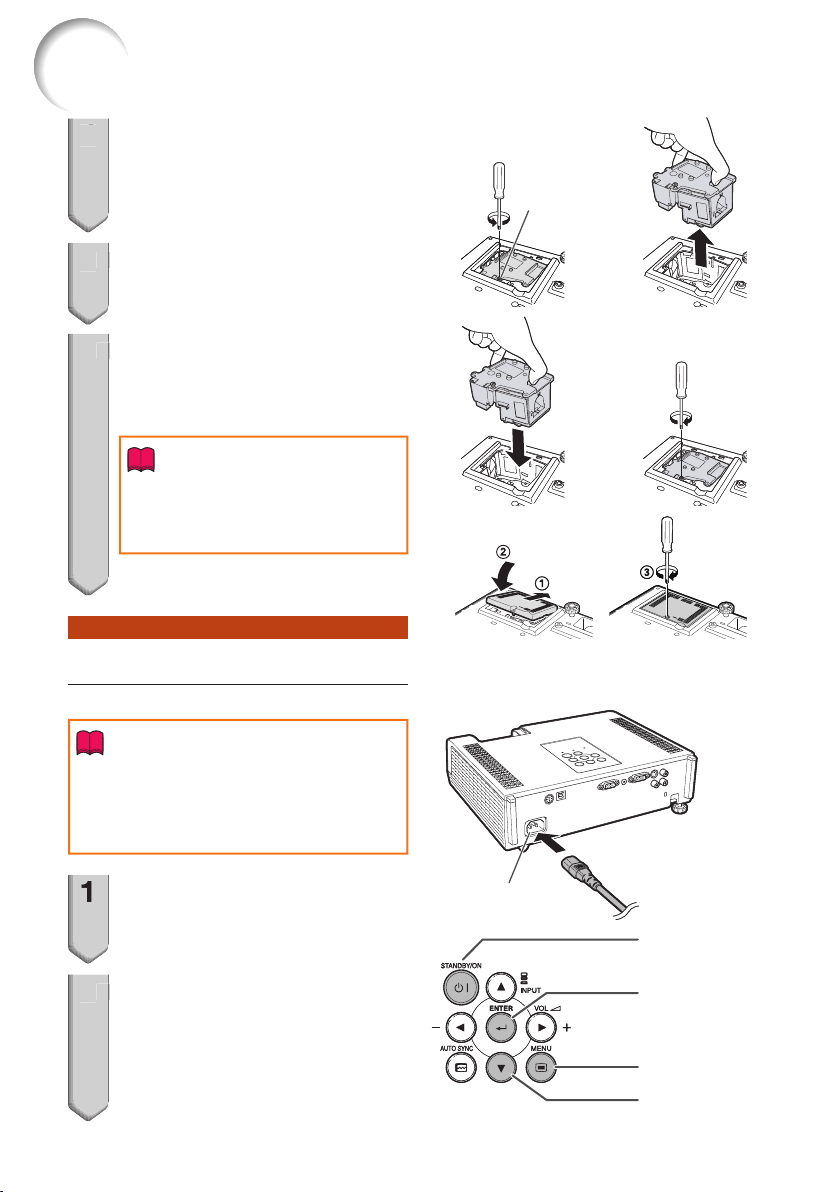

Carefully change the lamp by following the instructions described on pages
56 to 58.
* If you wish, you may have the lamp replaced at your nearest Sharp Authorized Projector
Dealer or Service Center.
* If the new lamp does not light after replacement, take your projector to the nearest Sharp Authorized
Projector Dealer or Service Center for repair.
■
■
■
■
•
•
•
•
•
■
3
Introduction
How to Read this Operation Manual
The specifi cations are slightly different, depending on the model. However, you can connect
and operate all models in the same manner.
In this operation manual, the illustration and the screen display are simplifi ed for explanation, and
may differ slightly from the actual display.
38
Adjustment buttons
(P/R/O/Q)
ENTER button
RETURN button
Press RETURN to return
to the previous screen
when the menu is
displayed.
•
MENU button
Adjustment buttons (P/R/O/Q)
MENU button
ENTER button
Menu Selections (Quick Start Menu)
This operation can also be performed by using the buttons on the projector.•
1
Press MENU.
The “Quick Start Menu” screen for the
selected Input mode is displayed.
2
Press P or R to select the
desired item, then press ENTER.
3
Press P/R/O/Q to adjust the
item selected, then press
ENTER.
Info
To display the advanced settings and
adjustments, select “Go To Complete Menu”.
Press ENTER to display the Complete Menu
screen.
If you do not want to display the Quick Start
Menu, set “Go To Complete Menu” - “PRJ-ADJ2”
- “Quick Start Menu” to “Off”. (See page
51.)
•
•
•
1
2
3
Example
SEL./ADJ. ENTER END
Input Search Start
Resolution
Resize
0
Eco+Quiet
Language
Keystone
Information
1024×768
Normal
English
Off
Quick Start Menu
Go To Complete Menu…
Using the Menu Screen
Select from the Quick Start Menu, which is a collection of the most frequently used
functions, or the Complete Menu, which enables advanced settings and adjustments.
Buttons used in
this operation
On-screen
display
Button used in
this step
Info
.........Indicates safeguards for using the projector.
Note
.......
Indicates additional information for setting up and operating the
projector.
For Future Reference

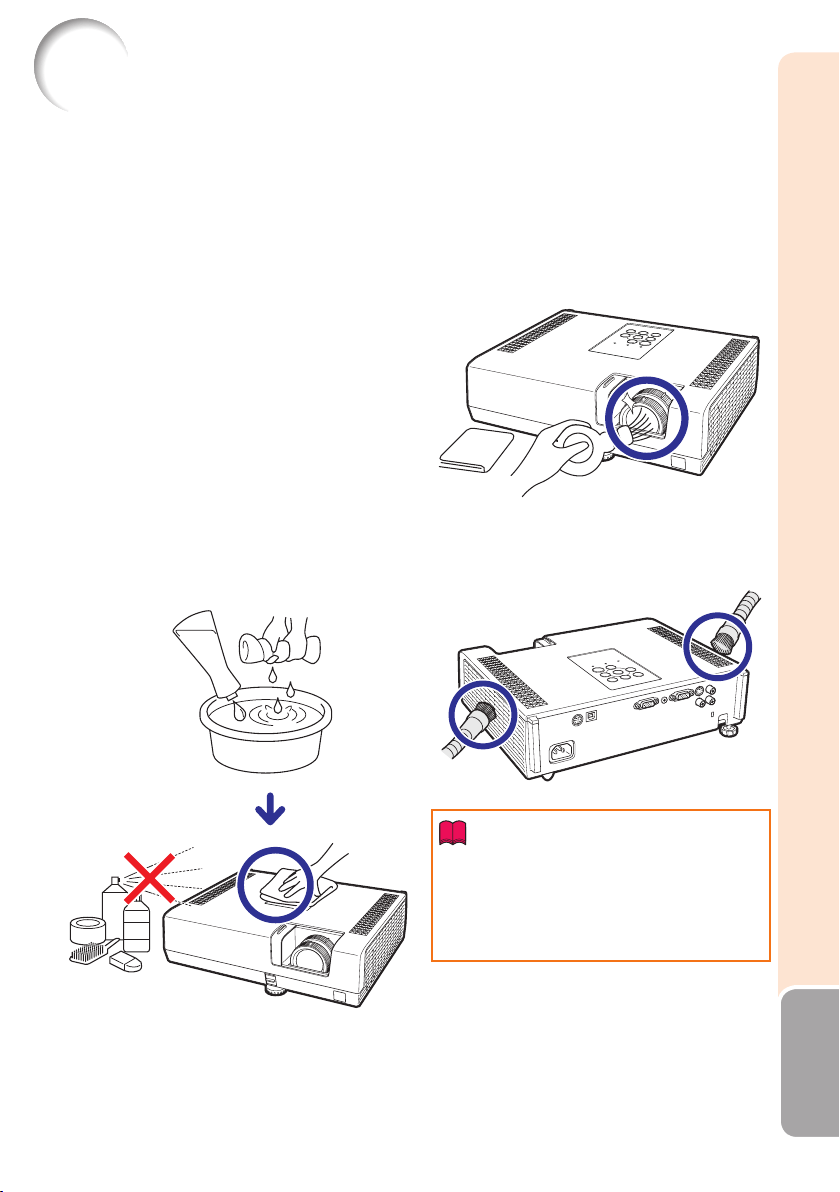

Maintenance
P. 53
Troubleshooting
PP. 67 and 68
Index
P. 72
■
•
4
Contents
Preparing
Introduction
How to Read this Operation Manual ......3
Contents .................................................4
IMPORTANT SAFEGUARDS ..................6
How to Access the PDF Operation
Manuals..............................................10
Accessories ..........................................11
Part Names and Functions ...................12
Front View .............................................. 12
Top View ................................................ 12
Rear View (Terminals) .............................. 13
Inserting the Batteries ............................. 15
Usable Range ......................................... 15
Easy Start
Easy Start .............................................16
Setup and Projection .............................. 16
Setup
Setting Up the Projector .......................18
Setting Up the Projector ......................... 18
Standard Setup (Front Projection) ........... 18

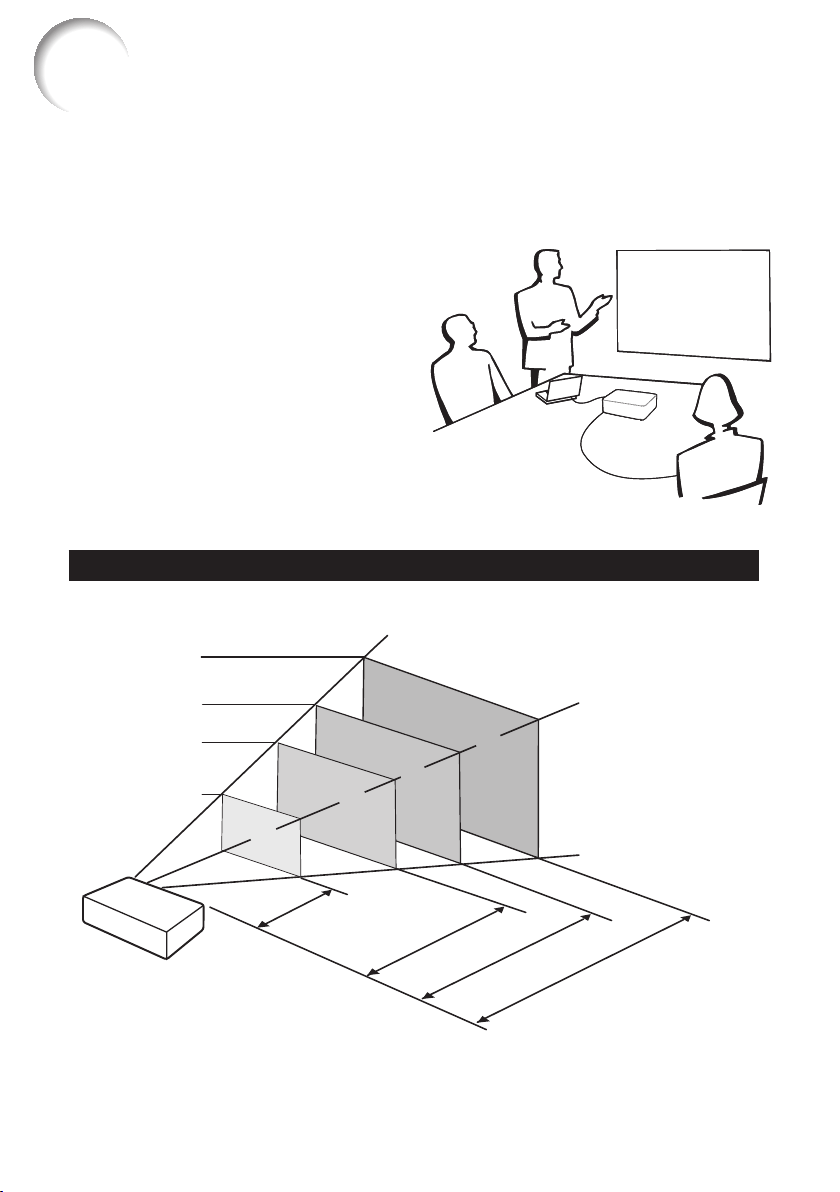

Screen Size and Projection Distance ...... 19
Projection (PRJ) Mode ............................ 20
Ceiling-Mount Setup ............................... 20
Connections
Connecting the Projector to
Other Equipment ................................21

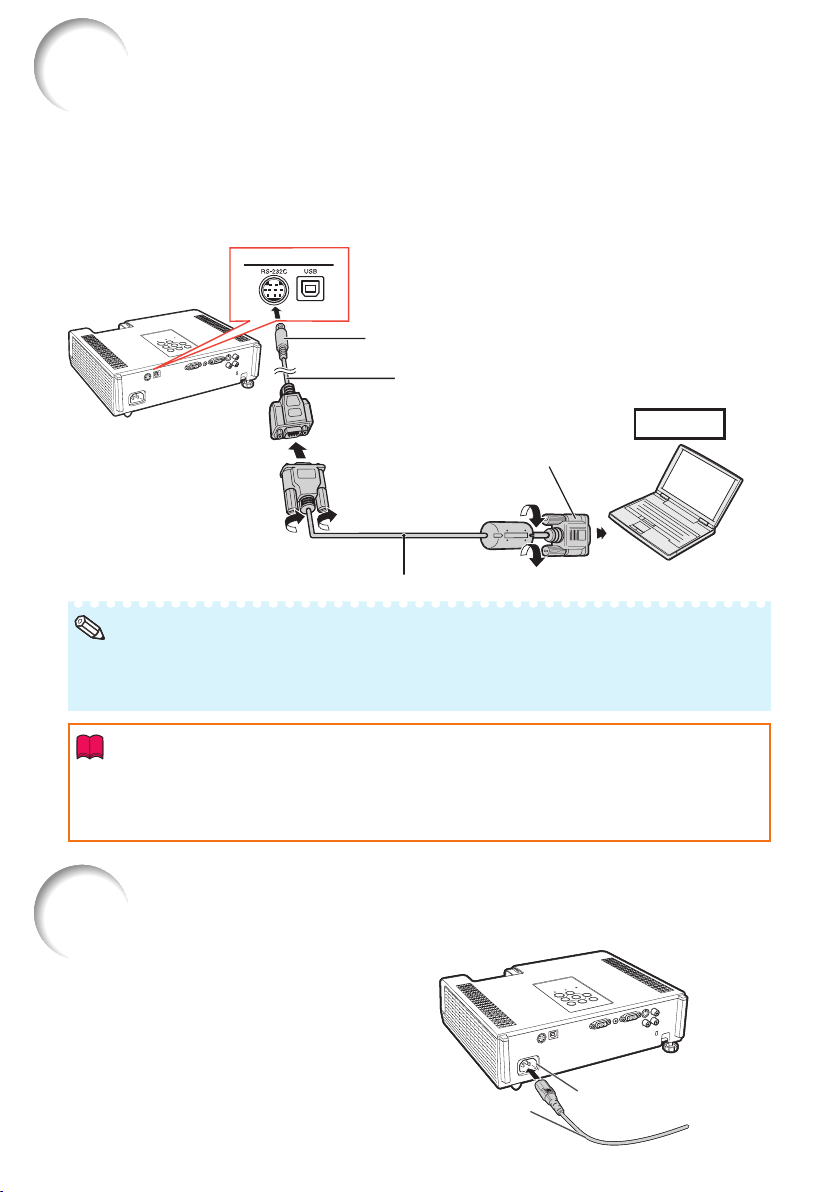

Controlling the Projector by
a Computer ........................................24
Connecting the Power Cord .................24
Displaying the Black Screen and
Turning Off the Sound Temporarily ....... 29

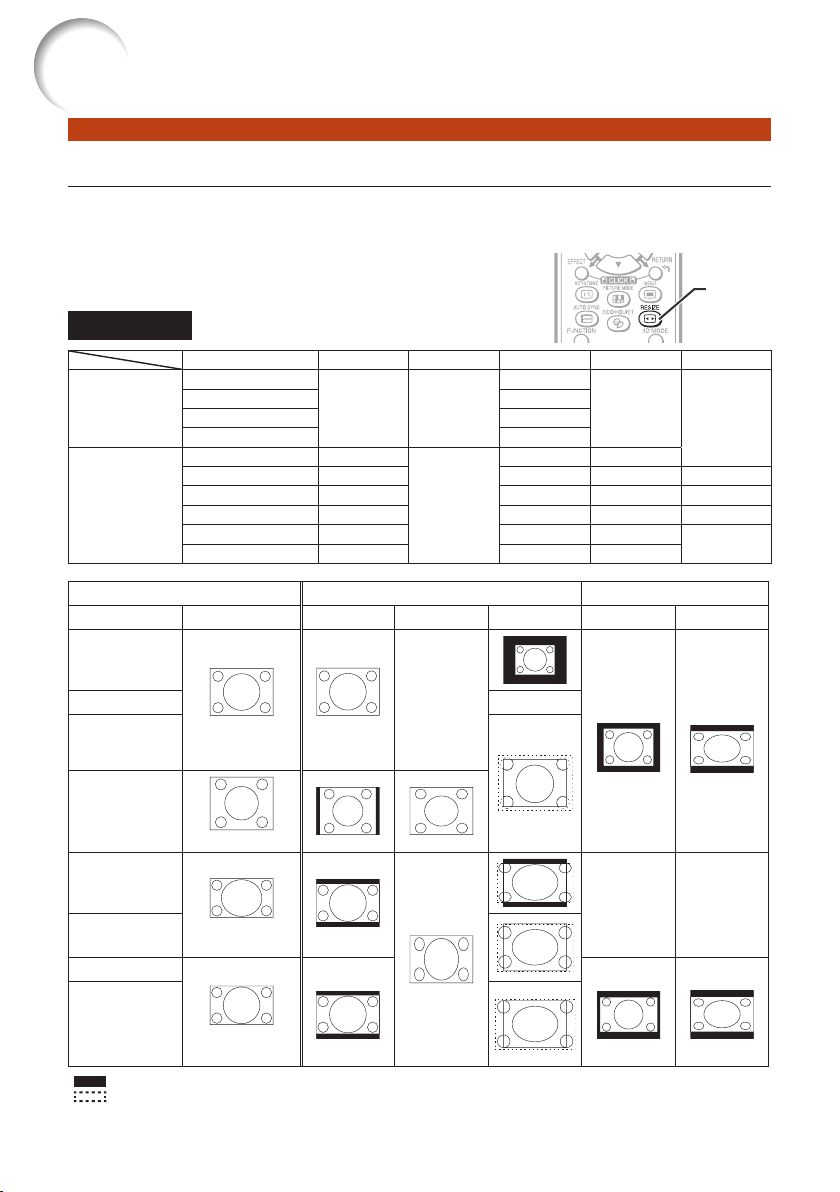

Resize Mode .......................................... 30
Useful Features
Operating with the Remote Control......32
Displaying and Setting the
Break Timer ......................................... 32
Displaying the Pointer ............................. 32
Using the Spot Function ......................... 32
Switching the Eco+Quiet Mode .............. 32
Auto Sync (Auto Sync Adjustment) ......... 33
Freezing a Moving Image ........................ 33
Selecting the Picture Mode ..................... 33
Displaying an Enlarged Portion of
an Image ............................................. 33
Using the Remote Control as the
Wireless Computer Mouse ................... 34
Menu Items ...........................................35
Using the Menu Screen ........................38
Menu Selections (Quick Start Menu) .........38
Quick Start Menu .................................... 39
Menu Selections (Complete Menu) .......... 39
Picture Adjustment (“Picture” Menu) ....41
Selecting the Picture Mode ..................... 41

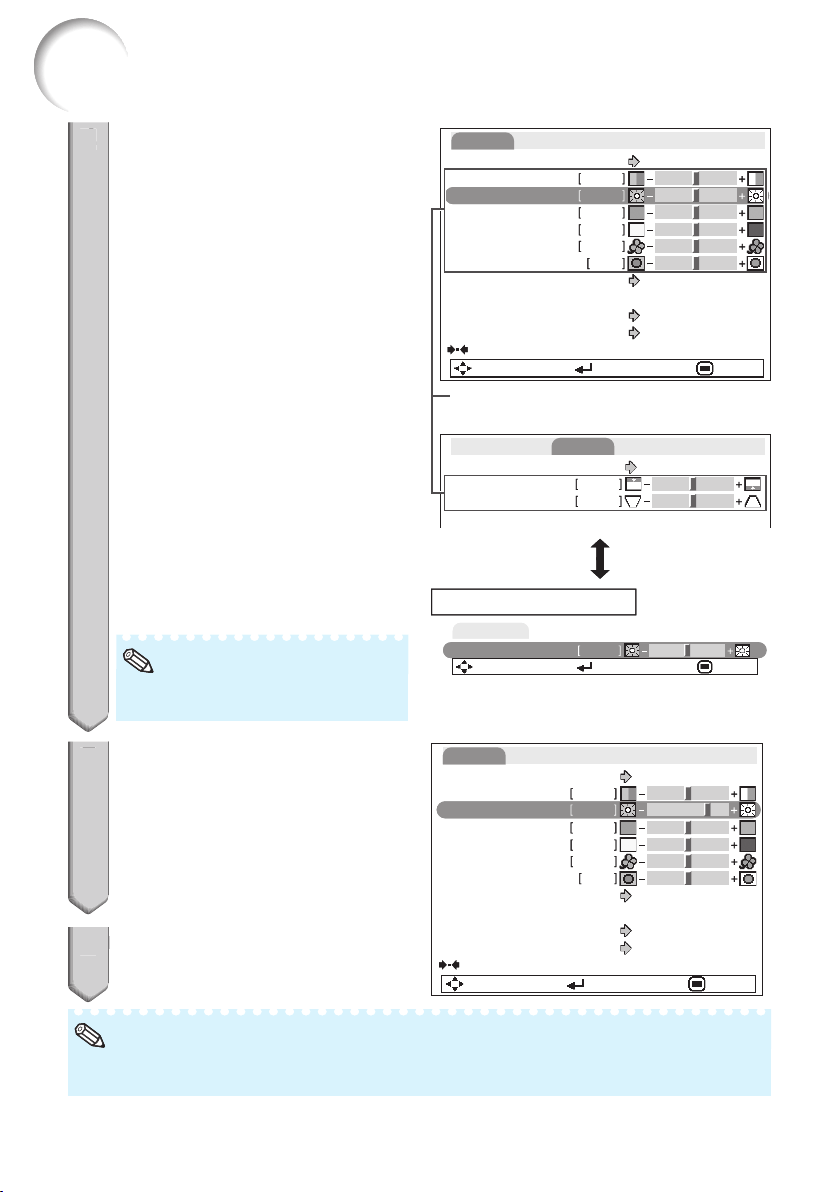

Adjusting the Image ................................ 42
Adjusting the Color Temperature ............. 42
Adjusting the Colors ............................... 42
Selecting the Film Mode ......................... 43
Reducing Image Noise (DNR) ................. 43
Eco+Quiet .............................................. 43
Signal Adjustment (“SIG-ADJ” Menu) ..44
Adjusting the Computer Image ............... 44
Resolution Setting .................................. 44
Signal Type Setting ................................. 44
Setting the Video System ....................... 45
Setting the Video Setup .......................... 45
Checking the Input Signal ....................... 45
Adjusting the Projected Image
(“SCR - ADJ” Menu) ...........................46
Setting the Resize Mode ......................... 46
Adjusting the Image Position .................. 46
Keystone Correction ............................... 46
Setting the Overscan .............................. 47
Setting the On-screen Display ................ 47
Closed Caption ...................................... 47
Selecting the Background Image ............ 48
Selecting the Setup Guide ...................... 48
Reversing/Inverting Projected Images ..... 48
Selecting the Wall Color .......................... 48
Selecting the On-screen Display Language
... 48
Using
Basic Operation
Turning the Projector On/Off ................25
Turning the Projector On ......................... 25
Turning the Power Off (Putting the
Projector into Standby Mode) .............. 25
Image Projection ..................................26
About the Setup Guide ........................... 26
Adjusting the Projected Image ................ 26
Correcting Trapezoidal Distortion ............ 28
Switching the Input Mode ....................... 29

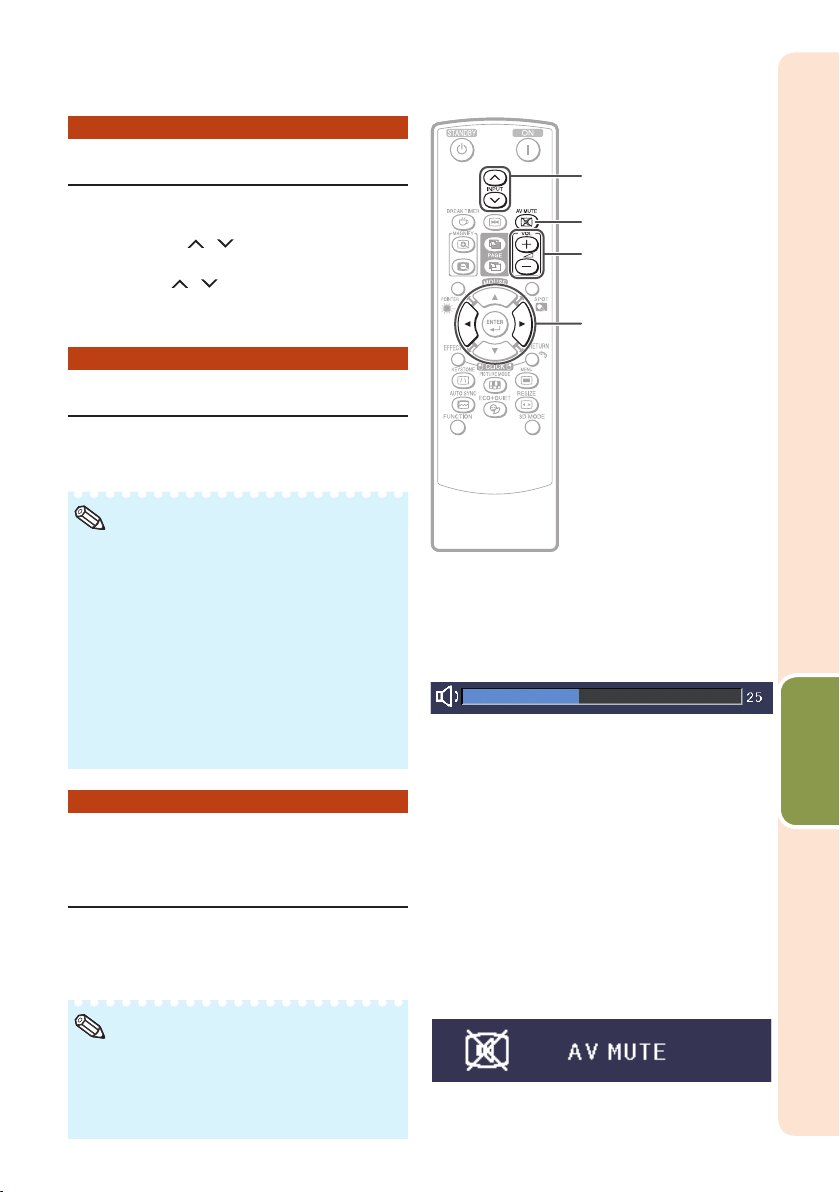

Adjusting the Volume .............................. 29
5
Introduction
Adjusting the Projector Function
(“PRJ-ADJ1/2” Menu) ........................49
Auto Sync (Auto Sync Adjustment) ......... 49
Auto Power Off Function ........................ 49
Auto Restart Function ............................. 49
Speaker Setting ...................................... 49
Selecting the Transmission Speed
(RS-232C) ........................................... 49
Fan Mode Setting ................................... 50
System Lock Function ............................ 50

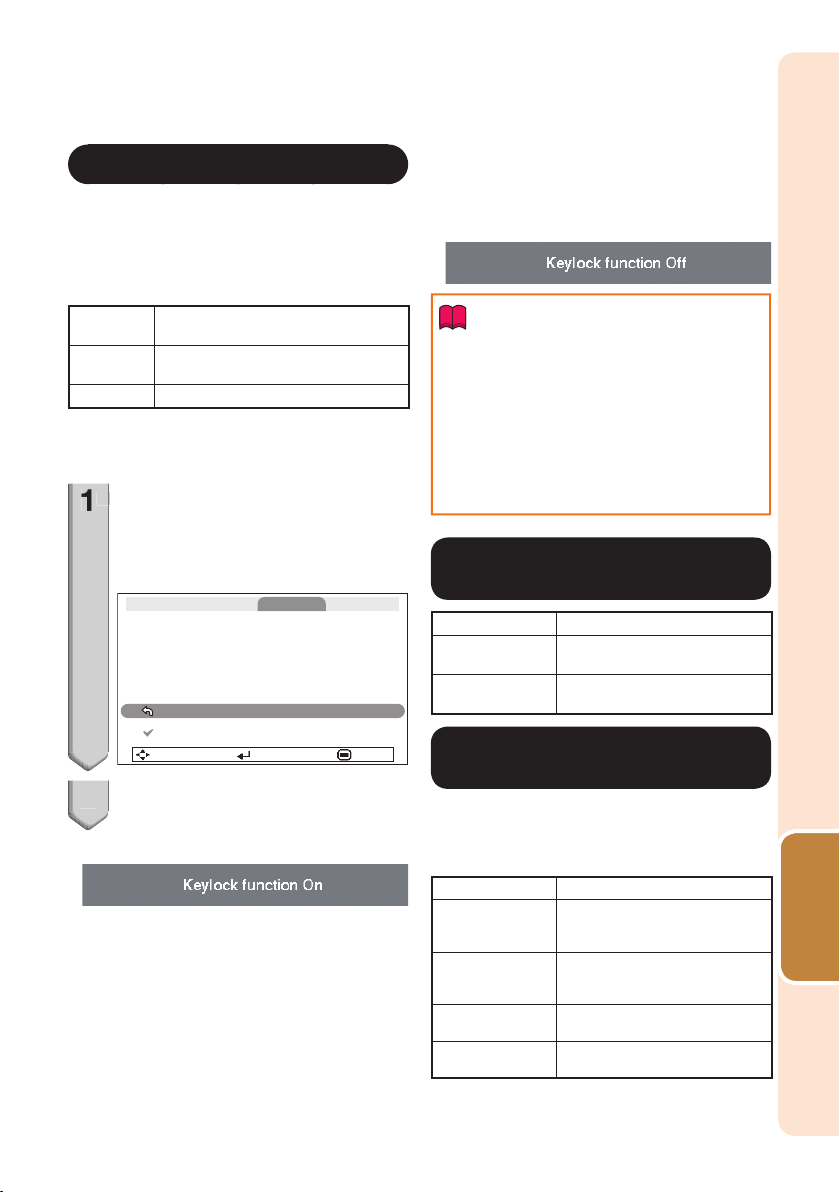

Keylock Function .................................... 51
Selecting the Quick Start Menu .............. 51
Setting the FUNCTION Button Operation
.. 51
STANDBY Mode ..................................... 52
DLP
®
Link
TM
............................................ 52
DLP
®
Link
TM
Invert .................................. 52
Returning to the Default Settings ............ 52
Checking the Lamp Life Status ............... 52
Appendix
Maintenance .........................................53
Maintenance Indicators ........................54
Regarding the Lamp .............................56
Lamp...................................................... 56
Caution Concerning the Lamp ................ 56
Replacing the Lamp ............................... 56
Removing and Installing the
Lamp Unit ............................................ 57
Resetting the Lamp Timer ...................... 58
Connecting Pin Assignments ...............59
RS-232C Specifi cations and
Commands ........................................61
Computer Compatibility Chart .............66
Troubleshooting ....................................67
For SHARP Assistance .........................69
Specifi cations .......................................70
Dimensions ...........................................71
Index .....................................................72
Reference
6
IMPORTANT SAFEGUARDS
CAUTION: Please read all of these instructions before you operate this
product and save these instructions for later use.
Electrical energy can perform many useful functions. This product has been engineered
and manufactured to assure your personal safety. BUT IMPROPER USE CAN RESULT IN
POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARDS. In order not to defeat the
safeguards incorporated in this product, observe the following basic rules for its
installation, use and servicing.
1. Read Instructions
All the safety and operating instructions
should be read before the product is
operated.
2. Retain Instructions
The safety and operating instructions
should be retained for future reference.
3. Heed Warnings
All warnings on the product and in the
operating instructions should be adhered to.
4. Follow Instructions
All operating and use instructions should
be followed.
5. Cleaning
Unplug this product from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
6. Attachments
Do not use attachments not recommended by the
product manufacturer as they may cause hazards.
7. Water and Moisture
Do not use this product near water–for
example, near a bath tub, wash bowl, kitchen
sink, or laundry tub; in a wet basement; or
near a swimming pool; and the like.
8. Accessories
Do not place this product on an unstable
cart, stand, tripod, bracket, or table. The
product may fall, causing serious injury to a
child or adult, and serious damage to the
product. Use only with a cart, stand, tripod,
bracket, or table recommended by the
manufacturer, or sold with the product. Any
mounting of the product should follow the
manufacturer's instructions, and should use a
mounting accessory recom mended by the
manufacturer.
9. Transportation
A product and cart
combination should be
moved with care. Quick
stops, excessive force, and
uneven surfaces may
cause the product and cart
combination to overturn.
10. Ventilation
Slots and openings in the cabinet are provided
for ventilation to ensure reliable operation of
the product and to protect it from overheating,
and these openings must not be blocked or
covered. The open ings should never be
blocked by placing the product on a bed, sofa,
rug, or other similar surface. This prod uct
should not be placed in a built-in installation
such as a book case or rack unless proper
ventilation is provided or the manufacturer's
instruc tions have been adhered to.
11. Power Sources
This product should be operated only from
the type of power source indicated on the
marking label. If you are not sure of the
type of power supply to your home, consult
your product dealer or local power
company. For products intended to operate
from battery power, or other sources, refer
to the operating instructions.
12. Grounding or Polarization
This product is provided with one of the
following types of plugs. If the plug should
fail to fi t into the power outlet, please contact
your electrician.
Do not defeat the safety purpose of the plug.
a. Two-wire type (mains) plug.
b. Three-wire grounding type (mains) plug
with a grounding terminal.
This plug will only fi t into a grounding
type power outlet.
13. Power-Cord Protection
Power-supply cords should be routed so
that they are not likely to be walked on or
pinched by items placed upon or against
them, paying particular attention to cords
at plugs, convenience receptacles, and the
point where they exit from the product.
14. Lightning
For added protection for this product during
a lightning storm, or when it is left
unattended and unused for long periods of
time, unplug it from the wall outlet and
disconnect the cable system. This will
pre vent damage to the product due to
lightning and power-line surges.
7
Introduction
15. Overloading
Do not overload wall outlets, extension cords,
or integral convenience receptacles as this
can result in a risk of fi re or electric shock.
16. Object and Liquid Entry
Never push objects of any kind into this
product through openings as they may touch
dangerous voltage points or short-out parts
that could result in a fi re or electric shock.
Never spill liquid of any kind on the product.
17. Servicing
Do not attempt to service this product
yourself as opening or removing covers
may expose you to dan ger ous voltage or
other hazards. Refer all servicing to
qualifi ed service personnel.
18. Damage Requiring Service
Unplug this product from the wall outlet
and refer servicing to qualifi ed service
personnel under the following conditions:
a. When the power-supply cord or plug is
damaged.
b. If liquid has been spilled, or objects
have fallen into the product.
c. If the product has been exposed to rain
or water.
d. If the product does not operate normally
by following the operating instructions.
Adjust only those con trols that are
covered by the operating instructions,
as an improper adjustment of other
controls may result in damage and will
often require extensive work by a
qualifi ed technician to restore the
product to normal operation.
e. If the product has been dropped or
damaged in any way.
f. When the product exhibits a distinct
change in performance, this indicates a
need for service.
19. Replacement Parts
When replacement parts are required, be
sure the service technician has used
replace ment parts specifi ed by the
manufacturer or have the same
characteristics as the original part.
Unauthorized substitutions may result in
fi re, electric shock, or other hazards.
20. Safety Check
Upon completion of any service or repairs
to this product, ask the service technician
to per form safety checks to determine that
the product is in proper operating
condition.
21. Wall or Ceiling Mounting
This product should be mounted to a wall
or ceiling only as recommended by the
manufacturer.
22. Heat
This product should be situated away from
heat sources such as radiators, heat
registers, stoves, or other products
(including amplifi ers) that produce heat.
DLP
®
and the DLP logo are registered trademarks of Texas Instruments and
BrilliantColor
TM
and DLP
®
Link
TM
are trademarks of Texas Instruments.
Microsoft
®
and Windows
®
are registered trademarks of Microsoft Corporation in the
United States and/or other countries.
PC/AT is a registered trademark of International Business Machines Corporation in the
United States.
Adobe
®
Reader
®
is a trademark of Adobe Systems Incorporated.
Macintosh
®
is a registered trademark of Apple Computer, Inc. in the United States and/or
other countries.
All other company or product names are trademarks or registered trademarks of their
respective companies.
Some IC chips in this product include confi dential and/or trade secret property belonging
to Texas Instruments. Therefore you may not copy, modify, adapt, translate, distribute,
reverse engineer, reverse assemble or discompile the contents thereof.
•
•
•
•
•
•
•
8
Observe the following safeguards when setting up your
projector.
Caution concerning the lamp unit
Potential hazard of glass particles if lamp
ruptures. In case of lamp rupture, contact
your nearest Sharp Authorized Projector
Dealer or Service Center
for replacement.
See “Regarding the Lamp”
on page
56.
Caution concerning the setup of the
projector
For minimal servicing and to maintain high
image quality, SHARP recommends that
this projector be installed in an area free
from humidity, dust and cigarette smoke.
When the projector is subjected to these
environments, the vents and lens must be
cleaned more often. As long as the
projector is regularly cleaned, use in these
environments will not reduce the overall
operation life of the unit. Internal cleaning
should only be performed by a Sharp
Authorized Projector Dealer or Service
Center.
Rest your eyes occasionally.
Continuously watching the screen for long
hours will cause eye strain. Take regular
breaks to rest your eyes.
Do not set up the projector in places
exposed to direct sunlight or bright light.
Position the screen so that it is not in direct
sunlight or room light. Light falling directly
on the screen washes out the colors,
making viewing diffi cult. Close the curtains
and dim the lights when setting up the
screen in a sunny or bright room.
Caution regarding placing of the projector
Place the projector on a level site within the
adjustment range (9 degrees) of the
adjustment foot.
After the projector is purchased, a faint
smell from the vent may appear when the
power is fi rst turned on. This is normal and
is not a malfunction. It will disappear after
the projector is used for a while.
■
■
■
■
■
■
When using the projector in high-
altitude areas such as mountains (at
altitudes of approximately 1,500
meters (4,900 feet) or more)
When you use the projector in high-altitude
areas with thin air, set “Fan Mode” to
“High”. Neglecting this can affect the
longevity of the optical system.
Use the projector at altitudes of 2,300
meters (7,500 feet) or less.
Warning about placing the projector in
a high position
When placing the projector in a high
position, make certain it is carefully secure
to avoid personal injury caused by the
projector falling down.
Do not subject the projector to hard
impact and/or vibration.
Protect the lens so as not to hit or damage
the surface of the lens.
Avoid locations with extremes of
temperature.
The operating temperature of the projector
is from 41°F to 95°F (+5°C to +35°C).
The storage temperature of the projector is
from –4°F to 140°F (–20°C to +60°C).
Do not block the exhaust and intake
vents.
Allow at least 11
13
/
16
inches (30 cm) of
space between the exhaust vent and the
nearest wall or obstruction.
Ensure that the intake vent and the exhaust
vent are not obstructed.
If the cooling fan becomes obstructed, a
protection circuit will automatically put the
projector into Standby mode to prevent
overheat damage. This does not indicate a
malfunction. (See pages 54 and 55.)
Remove the projector power cord from the
wall outlet and wait at least 10 minutes.
Place the projector where the intake and
exhaust vents are not blocked, plug the
power cord back in and turn on the
projector. This will return the projector to
the normal operating condition.
■
■
■
■
■
■
■
■
■
9
Introduction
Caution regarding usage of the projector
If you are not to use the projector for a long
time or before moving the projector, make
certain you unplug the power cord from the
wall outlet, and disconnect any other
cables connected to it.
Do not carry the projector by holding the
lens.
When storing the projector, ensure that you
close the lens shutter.
Do not expose the projector to direct
sunlight or place next to heat sources.
Doing so may affect the cabinet color or
cause deformation of the plastic cover.
Other connected equipment
When connecting a computer or other
audio-visual equipment to the projector,
make the connections AFTER unplugging
the power cord of the projector from the
AC outlet and turning off the equipment to
be connected.
Please read the operation manuals of the
projector and the equipment to be
connected for instructions on how to make
the connections.
■
■
■
■
■
■
Using the projector in other countries
The power supply voltage and the shape of
the plug may vary depending on the region
or country you are using the projector in.
When using the projector overseas, make
sure you use an appropriate power cord for
the country you are in.
Temperature monitor function
If the temperature inside the projector
increases, due to blockage of the air vents,
or the setting location, the temperature
warning indicator will blink. And if the
temperature keeps on rising, “ ” will
illuminate in the lower left corner of the
picture with the temperature warning
indicator blinking. If this state continues,
the lamp will turn off, the cooling fan will
run and then the projector will enter
Standby mode. Refer to “Maintenance
Indicators” on pages 54 and 55 for details.
Info
The cooling fan regulates the internal
temperature, and its performance is automatically
controlled. The sound of the fan may change
during projector operation due to changes in the
fan speed. This does not indicate malfunction.
■
■
•
Closed Caption uses Bitstream Vera fonts
Copyright (c) 2003 by Bitstream, Inc. All Rights Reserved. Bitstream Vera is a trademark of Bitstream, Inc.
Permission is hereby granted, free of charge, to any person obtaining a copy of the fonts accompanying this
license (“Fonts”) and associated documentation fi les (the “Font Software”), to reproduce and distribute the
Font Software, including without limitation the rights to use, copy, merge, publish, distribute, and/or sell
copies of the Font Software, and to permit persons to whom the Font Software is furnished to do so, subject
to the following conditions:
The above copyright and trademark notices and this permission notice shall be included in all copies of one
or more of the Font Software typefaces.
The Font Software may be modifi ed, altered, or added to, and in particular the designs of glyphs or
characters in the Fonts may be modifi ed and additional glyphs or characters may be added to the Fonts,
only if the fonts are renamed to names not containing either the words “Bitstream” or the word “Vera”.
This License becomes null and void to the extent applicable to Fonts or Font Software that has been
modifi ed and is distributed under the “Bitstream Vera” names.
The Font Software may be sold as part of a larger software package but no copy of one or more of the Font
Software typefaces may be sold by itself.
THE FONT SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO ANY WARRANTIES OF MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE AND NONINFRINGEMENT OF COPYRIGHT, PATENT, TRADEMARK, OR OTHER
RIGHT. IN NO EVENT SHALL BITSTREAM OR THE GNOME FOUNDATION BE LIABLE FOR ANY CLAIM,
DAMAGES OR OTHER LIABILITY, INCLUDING ANY GENERAL, SPECIAL, INDIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING
FROM, OUT OF THE USE OR INABILITY TO USE THE FONT SOFTWARE OR FROM OTHER DEALINGS IN
THE FONT SOFTWARE.
Except as contained in this notice, the names of Gnome, the Gnome Foundation, and Bitstream Inc., shall
not be used in advertising or otherwise to promote the sale, use or other dealings in this Font Software
without prior written authorization from the Gnome Foundation or Bitstream Inc., respectively. For further
information, contact: fonts at gnome dot org.
10
How to Access the PDF Operation Manuals
PDF operation manuals in several languages are included in the CD-ROM. To
utilize these manuals, you need to install Adobe
®
Reader
®
on your computer
(Windows
®
or Macintosh
®
).
Please download Adobe
®
Reader
®
from the Internet (http://www.adobe.com).
Accessing the PDF Manuals for Windows
®
(For Macintosh
®
, skip step ).
Insert the CD-ROM in the CD-ROM drive.
Double click the “My Computer” icon.
Double click the “CD-ROM” drive.
Double click the “MANUALS” folder.
Double click the model (name of the folder) that you want to view.
Double click the language (name of the folder) that you want to view.
Double click the pdf fi le to access the projector manuals.
If the desired pdf fi le cannot be opened by double clicking the mouse, start Adobe
®
Reader
®
fi r s t ,
then specify the desired fi le using the “File”, “Open” menu.
•
Note
11
Introduction
Accessories
Supplied accessories
Power cord*
For U.S. and
Canada, etc.
(6' (1.8 m))
<QACCDA007WJPZ>
For Europe,
except U.K.
(6' (1.8 m))
<QACCVA011WJPZ>
For U.K. and
Singapore
(6' (1.8 m))
<QACCBA036WJPZ>
For Australia, New
Zealand and Oceania
(6' (1.8 m))
<QACCLA018WJPZ>
(1) (2) (3) (4)
* Which power cords are supplied along with your projector depends on the region. Use the power
cord that corresponds to the wall outlet in your country.
Operation manuals (this manual <TINS-E389WJZZ>, OPERATION MANUAL FOR STEREOSCOPIC
3D PROJECTION <TINS-E500WJZZ> and CD-ROM <UDSKAA121WJZZ>)
•
Remote control
<RRMCGA837WJSA>
Two R-6 batteries
(“AA” size, UM/SUM-3,
HP-7 or similar)
RGB cable
(10' (3.0 m))
<QCNWGA086WJPZ>
Codes in “< >” are Replacement parts codes.•
Note
Optional accessories
■ Lamp unit
■ Ceiling-mount adaptor
■ Ceiling-mount bracket
■ Ceiling-mount unit
■ Ceiling-mount extension tube
■ Remote receiver
■ 3 RCA to mini D-sub 15 pin cable (10 n (3.0 m))
■
DIN-D-sub RS-232C adaptor (5
57
/
64
o (15 cm))
AN-D350LP
AN-60KT
AN-XRCM30 (for U.S.A. only)
AN-TK201 <for AN-60KT>
AN-TK202 <for AN-60KT>
AN-EP101B <for AN-XRCM30>
(for U.S.A. only)
AN-MR2
AN-C3CP2
AN-A1RS
Some of the optional accessories may not be available depending on the region. Please check with
your nearest Sharp Authorized Projector Dealer or Service Center.
•
Note
12
Part Names and Functions
Numbers in Z refer to the main pages in this operation manual where the
topic is explained.
2
45 6
3
7 8
9
1
11
12
13
15
14
10
16
17
18
19
2
45 6
3
7 8
9
1
11
12
13
15
14
10
16
17
18
19
Front View
1 Exhaust vent
53
2 Zoom ring
27
For enlarging/reducing the picture.
3 Focus ring
26
For adjusting the focus.
4 Lens shutter
25, 29
5 HEIGHT ADJUST lever
27
6 Adjustment foot
27
7 Remote control sensor
15
8 Speaker
49
9 Intake vent
53
Top View
10 Temperature warning indicator
54
11 Lamp indicator
54
12 Power indicator
54
13 STANDBY/ON button
25
For turning the power on and putting the
projector into Standby mode.
14 INPUT buttons (P/R)
29
For switching Input mode.
15 AUTO SYNC button
33
For automatically adjusting images when
connected to a computer.
16 Adjustment buttons (P/R/O/Q)
38
For selecting menu items.
17 ENTER button
38
For setting items selected or adjusted on
the menu.
18 MENU button
38
For displaying adjustment and setting
screens.
19 VOL (Volume) buttons (–O/Q+)
29
For adjusting the speaker sound level.
13
Introduction
12
7
11109
12 3 4 5 6
8
12
7
11109
12 3 4 5 6
8
Rear View (Terminals)
1 RS-232C terminal
24
Terminal for controlling the projector using a
computer.
2 USB terminal
34
Terminal connecting with the USB terminal
on the computer for using the supplied
remote control as the computer mouse.
3 MONITOR OUT terminal
23
(Output terminal for computer RGB and
component signals)
Terminal for connecting a monitor.
4 AUDIO 1 input terminal
23
5 COMPUTER/COMPONENT input
terminal
21, 22
Terminal for computer RGB and component
signals.
6 S-VIDEO input terminal
22
Terminal for connecting video equipment
with an S-video terminal.
7 VIDEO input terminal
22
Terminal for connecting video equipment.
8 AUDIO 2 input terminal
23
9 AC socket
24
Connect the supplied power cord.
10 Kensington Security Standard
connector
11 Rear adjustment foot
27
12 Security bar
Using the Kensington Lock
This projector has a Kensington Security Standard connector for use with a Kensington
MicroSaver Security System. Refer to the information that came with the system for
instructions on how to use it to secure the projector.
•
14
2
3
4
7
8
10
6
1
9
11
12
13
14
15
16
18
20
21
22
23
19
17
5
Part Names and Functions (Continued)
Numbers in Z refer to the main pages in this operation manual where the
topic is explained.
1 ON button
25
For turning the power on.
2 STANDBY button
25
For putting the projector into the Standby
mode.
3 INPUT buttons ( / )
29
For switching Input mode.
4 BREAK TIMER button
32
For displaying the break time.
5 MAGNIFY buttons
33
For enlarging/reducing part of the image.
6 PAGE UP/PAGE DOWN buttons
34
Same as the [Page Up] and [Page Down]
keys on a computer keyboard, when with
the USB connection (using a USB cable or
the optional remote receiver).
7 POINTER button
32
For displaying the pointer.
8
MOUSE/Adjustment buttons (P/R/O/Q)
34, 38
For moving the computer cursor when with the
USB connection (using a USB cable or the
optional remote receiver).
For selecting and adjusting menu items.
•
•
9 L-CLICK/EFFECT button
34, 32
For the Left click when with the USB
connection (using a USB cable or the optional
remote receiver).
For changing the pointer or spot area.
10 KEYSTONE button
28
For entering the Keystone Correction
mode.
11 AUTO SYNC button
33, 49
For automatically adjusting images when
connected to a computer.
12 FUNCTION button
51
For operating and executing a function
assigned to “FUNCTION Button”.
13 ECO+QUIET button
32
For lowering the noise of the cooling fan
and extending the lamp life.
14 FREEZE but ton
33
For freezing images.
15 AV MUTE button
29
For temporarily displaying a black screen
and turning off the sound.
16 VOL +/– (Volume) buttons
29
For adjusting the speaker sound level.
17 SPOT button
32
For displaying the spotlight.
18 ENTE R bu tton
38
For setting items selected or adjusted on
the menu.
19 R-CLICK /RETURN but ton
34, 38
For the Right click when with the USB
connection (using a USB cable or the optional
remote receiver).
For returning to the previous menu screen
during menu operations.
20 MENU button
38
For displaying adjustment and setting
screens.
21 RESIZE button
30
For switching the picture size (NORMAL,
16:9, etc.).
22 3D MODE button
See the OPERATION MANUAL FOR
STEREOSCOPIC 3D PROJECTION
provided separately.
23 PICTURE MODE button
33
For selecting the appropriate picture.
•
•
•
•
15
Introduction
Inserting the Batteries
1
Pull down the tab on the cover and remove the
cover towards the direction of the arrow.
2
Insert the batteries.
Insert the batteries making sure the polarities correctly match
the m and n marks inside the battery compartment.
3
Insert the lower tab of the cover into the opening,
and lower the cover until it clicks in place.
Incorrect use of the batteries may cause them to leak or explode.
Please follow the precautions below
Caution
Danger of explosion if battery is incorrectly replaced.
Replace only with alkaline or manganese batteries.
Insert the batteries making sure the polarities correctly match the m and n marks inside the battery
compartment.
Batteries of different types have different properties, therefore do not mix batteries of different types.
Do not mix new and old batteries.
This may shorten the life of new batteries or may cause old batteries to leak.
Remove the batteries from the remote control once they have run out, as leaving them in can cause them to leak.
Battery fl uid from leaked batteries is harmful to skin, therefore ensure you wipe them fi rst and then
remove them using a cloth.
The batteries included with this projector may run down in a short period, depending on how they are kept.
Be sure to replace them as soon as possible with new batteries.
Remove the batteries from the remote control if you will not be using the remote control for a long time.
Comply with the rules (ordinance) of each local government when disposing of worn-out batteries.
•
•
•
•
•
•
•
•
•
1
2
3
Usable Range
The remote control can be used to control the
projector within the ranges shown in the
illustration.
The signal from the remote control can be
refl ected off a screen for easy operation.
However, the effective distance of the signal
may differ depending on the screen material.
•
Note
When using the remote control
Ensure that you do not drop it or expose it to
moisture or high temperature.
The remote control may malfunction under a
fl uorescent lamp. In this case, move the
projector away from the fl uorescent lamp.
•
•
Remote control sensor
Remote control signal
transmitters
Remote control
33n (10 m)
30°
30°
Remote control sensor
Remote control signal
transmitters
Remote control
33n (10 m)
30°
30°
16
Easy Start
This section shows the basic operation (projector connecting with the computer). For details,
see the page described below for each step.
Setup and Projection
In this section, connection of the projector and the computer is explained using one example.
STANDBY button
8
KEYSTONE button
5
3
ON button
6
INPUT buttons
5
Adjustment
buttons
(P/R/O/Q)
6
INPUT buttons
6
STANDBY/ON
button
3
8
Focus ring
4
HEIGHT
ADJUST lever
4
Zoom ring
4
6
O/Q buttons
1. Place the projector facing a wall or a screen
B
P. 18
When connecting equipment other than a computer, see pages
22 and 23.
2. Connect the projector to the computer and plug the power
cord into the AC socket of the projector
BPP. 21, 24
On the projector On the remote control
3. Open the lens shutter fully and then turn the projector on
BP. 25
17
Easy Start
1 After the projector turns on, the Setup Guide appears.
(When “Setup Guide” is set to “On”. See page
48.)
2
Follow the steps in the Setup Guide and adjust the focus, height (angle) and picture size.
3 After adjusting the focus, height (angle) and picture size, press ENTER to fi nish the
Setup Guide.
4. Adjust the projected image with the Setup Guide
BP. 26
Correcting trapezoidal distortion using Keystone Correction.
On the remote control
Shrinks
upper side.
Shrinks
lower side.
5. Correct trapezoidal distortion
BP. 28
Press INPUT P/R to display the INPUT list. Use INPUT P/R to select the Input mode,
and use O/Q to select the audio input terminal.
On the
projector
On the remote
control
INPUT list
COMPUTER
INPUT Audio
S-VIDEO
S
VIDEO
V
On the
projector
On the remote
control
6. Select the Input mode
BP. 29
7. Turn the computer on
BP. 25
8. Turn the power off
Press STANDBY/ON on the projector or STANDBY on the remote control, and then press
the button again while the confi rmation message is displayed to put the projector into
Standby mode.
On-screen display
On the
projector
On the remote
control
18
Setting Up the Projector
Setting Up the Projector
For optimal image quality, position the projector perpendicular to the screen with the projector's
feet fl at and level. Doing so will eliminate the need for Keystone correction and provide the best
image quality. (See page
28.)
Standard Setup (Front Projection)
Place the projector at the required distance
from the screen according to the desired
picture size. (See page 19.)
300" (762 cm)
200" (508 cm)
100" (254 cm)
40" (102 cm)
34'0
"
–41'3"
(10.4 m – 12.6 m)
22'8
"–
27'6
"
(6.9 m – 8.4 m)
11'4
"–
13'9
"
(3.5 m – 4.2 m)
4'6
"–
5'6
"
(1.4 m – 1.7 m)
240"×180"
(610 cm × 457 cm)
160"
×
120"
(406 cm
×
305 cm)
80"
×
60"
(203 cm
×
152 cm)
32"
×
24"
(81 cm
×
61 cm)
Picture Size
Projection
Distance
Indication of the Projection Image Size and Projection Distance
Example: 4:3 Signal Input (Normal Mode)
■
19
Setup
Screen Size and Projection Distance
Screen
Lens center
H
L
4:3 Signal Input (Normal Mode)
Picture (Screen) size Projection distance [L]
Distance from the lens center
to the bottom of the image [H]
Diagonal [
F
]
Width Height Minimum [L1] Maximum [L2]
300
"
(762 cm) 610 cm (240
"
) 457 cm (180
"
) 10.4 m (34
'
0
"
) 12.6 m (41
'
3
"
) 18 cm
(7
1
/
4
")
250
"
(635 cm) 508 cm (200
"
) 381 cm (150
"
) 8.6 m (28
'
4
"
) 10.5 m (34
'
4
"
) 15 cm
(6
1
/
32
")
200
"
(508 cm) 406 cm (160
"
) 305 cm (120
"
) 6.9 m (22
'
8
"
) 8.4 m (27
'
6
"
) 12 cm
(4
53
/
64
")
150
"
(381 cm) 305 cm (120
"
) 229 cm (90
"
) 5.2 m (17
'
0
"
) 6.3 m (20
'
7
"
) 9 cm
(3
5
/
8
")
120
"
(305 cm) 244 cm (96
"
) 183 cm (72
"
) 4.1 m (13
'
7
"
) 5.0 m (16
'
6
"
) 7 cm
(2
57
/
64
")
100
"
(254 cm) 203 cm (80
"
) 152 cm (60
"
) 3.5 m (11
'
4
"
) 4.2 m (13
'
9
"
) 6 cm
(2
27
/
64
")
80
"
(203 cm) 163 cm (64
"
) 122 cm (48
"
) 2.8 m (9
'
1
"
) 3.3 m (11
'
0
"
) 5 cm
(1
15
/
16
")
70
"
(178 cm) 142 cm (56
"
) 107 cm (42
"
) 2.4 m (7
'
11
"
) 2.9 m (9
'
7
"
) 4 cm
(1
11
/
16
")
60
"
(152 cm) 122 cm (48
"
) 91 cm (36
"
) 2.1 m (6
'
10
"
) 2.5 m (8
'
3
"
) 4 cm
(1
29
/
64
")
40
"
(102 cm) 81 cm (32
"
) 61 cm (24
"
) 1.4 m (4
'
6
"
) 1.7 m (5
'
6
"
) 2 cm
(
31
/
32
")
16:9 Signal Input (16:9 Mode)
Picture (Screen) size Projection distance [L]
Distance from the lens center
to the bottom of the image [H]
Adjustable range of
image position [S]
Diagonal [
F
]
Width Height Minimum [L1] Maximum [L2]
300
''
(762 cm) 664 cm (261
''
) 374 cm (147
''
) 11.3 m (37
'
1
"
) 13.7 m (44
'
11
"
) 82 cm
(32
13
/
32
")
±62 cm
(±24
33
/
64
")
250
''
(635 cm) 553 cm (218
''
) 311 cm (123
''
) 9.4 m (30
'
11
"
) 11.4 m (37
'
5
"
) 69 cm (27
"
) ±52 cm
(±20
27
/
64
")
200
''
(508 cm) 443 cm (174
''
) 249 cm (98
''
) 7.5 m (24
'
9
"
) 9.1 m (29
'
11
"
) 55 cm
(21
39
/
64
")
±42 cm
(±16
11
/
32
")
150
''
(381 cm) 332 cm (131
''
) 187 cm (74
''
) 5.6 m (18
'
6
"
) 6.8 m (22
'
5
"
) 41 cm
(16
13
/
64
")
±31 cm
(±12
1
/
4
")
120
''
(305 cm) 266 cm (105
''
) 149 cm (59
''
) 4.5 m (14
'
10
"
) 5.5 m (18
'
0
"
) 33 cm
(12
31
/
32
")
±25 cm
(±9
13
/
16
")
100
''
(254 cm) 221 cm (87
''
) 125 cm (49
''
) 3.8 m (12
'
4
"
) 4.6 m (15
'
0
"
) 27 cm
(10
51
/
64
")
±21 cm
(±8
11
/
64
")
80
''
(203 cm) 177 cm (70
''
) 100 cm (39
''
) 3.0 m (9
'
11
"
) 3.6 m (12
'
0
"
) 22 cm
(8
41
/
64
")
±17 cm
(±6
17
/
32
")
60
''
(152 cm) 133 cm (52
''
) 75 cm (29
''
) 2.3 m (7
'
5
"
) 2.7 m (9
'
0
"
) 16 cm
(6
31
/
64
")
±12 cm
(±4
29
/
32
")
40
''
(102 cm) 89 cm (35
''
) 50 cm (20
''
) 1.5 m (4
'
11
"
) 1.8 m (6
'
0
"
) 11 cm
(4
21
/
64
")
±8 cm
(±3
17
/
64
")
When using the projector with screen sizes not listed in the above charts, calculate the values according to the formulas.
4:3 Signal 16:9 Signal
[m/cm] [Feet/inches] [m/cm] [Feet/inches]
L1: Minimum projection distance (m/ft) 0.03457
F
0.03457
F
/ 0.3048 0.03766
F
0.03766
F
/ 0.3048
L2: Maximum projection distance (m/ft) 0.04187
F
0.04187
F
/ 0.3048 0.04562
F
0.04562
F
/ 0.3048
H:
Distance from the lens center to the bottom of the image (cm/in)
0.06134
F
0.06134
F
/ 2.54 0.27437
F
0.27437
F
/ 2.54
S:
Adjustable range of image position (cm/in) See page 46.
— — ±0.20754
F
±0.20754
F
/ 2.54
F
: Picture diagonal size : 40
''
-300
''
Allow a margin of error in the values in the diagrams above.•
Note
20
Setting Up the Projector (Continued)
Projection (PRJ) Mode
The projector can use any of the 4 projection modes shown in the diagram below. Select the
mode most appropriate for the projection setting in use. (You can set the PRJ mode in “SCR-
ADJ” menu. See page 48.)
Table mounted, front projection
[Menu item ➞ “Front”]
Table mounted, rear projection
(with a translucent screen)
[Menu item ➞ “Rear”]
■
■
Ceiling mounted, front projection
[Menu item ➞ “Ceiling + Front”]
Ceiling mounted, rear projection
(with a translucent screen)
[Menu item ➞ “Ceiling + Rear”]
■
■
a
Ceiling-Mount Setup
It is recommended that you use the optional Sharp ceiling-mount adaptor and unit for this
installation. Before mounting the projector, contact your nearest Sharp Authorized Projector
Dealer or Service Center to obtain the recommended ceiling-mount adaptor and unit (sold
separately).
21
Connections
Connecting the Projector to Other Equipment
Before connecting, ensure that the power cord of the projector is unplugged from the AC outlet
and turn off the equipment to be connected. After making all connections, turn on the projector
and then the other pieces of equipment. When connecting a computer, ensure that it is the last
equipment to be turned on after all the connections are made.
For more details of connection and cables, refer to the operation manual of the connecting equipment.
You may need other cables or connectors not listed below.
Terminals on the Projector
Equipment
Terminal on
connected equipment
Cable
Terminal on the
projector
Computer
RGB
output
terminal
RGB cable (supplied) COMPUTER/
COMPONENT
See page 66 “Computer Compatibility Chart” for a list of computer signals compatible with the
projector. Use with computer signals other than those listed may cause some of the functions to not
work.
A Macintosh adaptor may be required for use with some Macintosh computers. Contact your nearest
Macintosh Dealer.
Depending on the computer you are using, an image may not be projected unless the
computer's external output port is switched on (e.g. Press “Fn” and “F5” keys
simultaneously when using a SHARP notebook computer). Refer to the specifi c instructions in
your computer's operation manual to enable your computer's external output port.
•
•
•
Note
•
•
22
Connecting the Projector to Other Equipment (Continued)
Equipment
Terminal on
connected equipment
Cable
Terminal on the
projector
Video equipment
Component
video output
terminal
3 RCA to mini D-sub 15 pin cable
(optional, AN-C3CP2)
COMPUTER/
COMPONENT
S-video
output
terminal
S-video cable (commercially available) S-VIDEO
Video output
terminal
Video cable (commercially available) VIDEO
Camera/Video game
Component
video
output
terminal
Cables for a camera or a video game/3 RCA to
mini D-sub 15 pin cable (optional, AN-C3CP2)
RCA adaptor plug
(commercially available)
COMPUTER/
COMPONENT
S-video
output
terminal
Cables for a camera or a video game
S-VIDEO
Video
output
terminal
Cables for a camera or a video game
VIDEO
When you connect video equipment with a 21-pin RGB output (Euro-scart) to the projector, use a
commercially available cable that fi ts in the projector terminal you want to connect.
The projector does not support RGBC signals via the Euro-scart.
•
•
Note
23
Connections
Equipment
Terminal on
connected equipment
Cable
Terminal on the
projector
Audio equipment
ø3.5 mm
audio output
terminal
ø3.5 mm stereo or mono audio cable
(commercially available or available
as Sharp service part QCNWGA038WJPZ)
AUDIO 1
RCA audio
output
terminal
RCA audio cable (commercially available)
AUDIO 2
Audio
output
terminal
Cables for a camera or a video game
Monitor RGB
input
terminal
RGB cable (supplied or commercially
available)
MONITOR OUT
When using the ø3.5 mm mono audio cable, the volume level will be half of when using the ø3.5 mm
stereo audio cable.
You can select AUDIO 1 or AUDIO 2 in the INPUT list. (See page
29.)
RGB signals and Component signals can be output to the monitor.
•
•
•
Note
24
Controlling the Projector by a Computer
When the RS-232C terminal on the projector is connected to a computer with a DIN-D-sub RS-
232C adaptor (optional, AN-A1RS) and an RS-232C serial control cable (cross type,
commercially available), the computer can be used to control the projector and check the status
of the projector. See page 61 for details.
When connecting to a computer using a DIN-D-sub RS-232C adaptor (optional,
AN-A1RS) and an RS-232C serial control cable
RS-232C serial control cable (cross type, commercially available)
Computer
DIN-D-sub RS-232C
adaptor (optional, AN-A1RS)
To RS-232C terminal
To RS-232C terminal
The RS-232C function may not operate if your computer terminal is not correctly set up. Refer to the
operation manual of the computer for details.
See pages
59 and 60 for connection of an RS-232C serial control cable.
•
•
Note
Info
Do not connect the RS-232C cable to a port other than the RS-232C terminal on the computer. This
may damage your computer or projector.
Do not connect or disconnect an RS-232C serial control cable to or from the computer while it is on.
This may damage your computer.
•
•
Connecting the Power Cord
Plug the supplied power cord into the
AC socket on the rear of the projector.
Then plug into AC outlet.
AC socket
To AC outlet
Power cord
(supplied)
AC socket
To AC outlet
Power cord
(supplied)
25
Basic
Operation
Turning the Projector On/Off
Info
When “Auto Restart” is set to “On”:
If the power cord is unplugged from the outlet
or the breaker switch is turned off when the
projector is on, then the projector
automatically turns on when the power cord
is plugged into the AC outlet or the breaker
switch is turned on. (See page
49.)
English is the factory default language. If you
want to change the on-screen display to
another language, change the language
according to the procedure on page
48.
•
•
STANDBY/ON button
Lamp indicator
Power indicator
STANDBY
button
ON button
On-screen display (confi rmation message)
Info
Direct Power Off function:
You can unplug the power cord from the AC
outlet even if the cooling fan is still running.
•
Turning the Projector On
Note that the connections to external
equipment and power outlet should be
done before performing the operations
written below. (See pages
21 to 24.)
Open the lens shutter fully and press
STANDBY/ON on the projector or ON
on the remote control.
The power indicator illuminates green.
After the lamp indicator illuminates, the projector
is ready to start operation.
About the Lamp Indicator
The lamp indicator illuminates to indicate the
status of the lamp.
Green: The lamp is on.
Blinking in green: The lamp is warming up.
Red: The lamp is shut down
abnormally or the lamp should be
replaced.
When switching on the projector, a slight
fl ickering of the image may be experienced
within the fi rst minute after the lamp has been
illuminated. This is normal operation as the
lamp's control circuitry is stabilising the lamp
output characteristics. It should not be
regarded as faulty operation.
If the projector is put into Standby mode and
immediately turned on again, the lamp may
take some time to start projection.
When System Lock is set, the keycode input
box appears. To cancel the keycode setting,
input the keycode that you have already set.
See page
50 for details.
•
•
•
•
Note
Turning the Power Off (Putting
the Projector into Standby Mode)
Press STANDBY/ON on the projector
or STANDBY on the remote control,
then press that button again while the
confi rmation message is displayed, to
put the projector into Standby mode.
The projector cannot be turned on while cooling.
•
•
•
26
Image Projection
About the Setup Guide
After turning on the projector, the Setup
Guide screen appears to assist you with
projector setup.
Guidance items
1 FOCUS
2 HEIGHT ADJUST
3 ZOOM
Press ENTER to exit the Setup Guide
screen.
The Setup Guide screen automatically
highlights the items in the following order:
1 FOCUS
3 ZOOM4 ENTER
2 HEIGHT ADJUST
However, you can adjust the focus or height
(angle) regardless of the highlighted item.
If you do not want to display the Setup Guide
for the next time, set “Menu” - “SCR - ADJ” -
“Setup Guide” to “Off”. (See page
48.)
•
•
Note
Adjusting the Projected Image
1 Adjusting the Focus
You can adjust the focus with the focus
ring on the projector.
Rotate the focus ring to adjust the
focus while watching the projected
image.
Using the knob on the focus ring will make the
adjustments easier.
•
Setup Guide screen
ENTER button
Focus ring
27
Basic
Operation
2 Adjusting the Height
The height of the projector can be
adjusted using the adjustment feet at the
front and rear of the projector.
When the screen is above the projector,
the projection image can be made higher
by adjusting the projector.
1
Lift the projector to adjust its
height while lifting the HEIGHT
ADJUST lever.
2
Remove your hands from the
HEIGHT ADJUST lever of the
projector after its height has
been fi nely adjusted.
The angle of projection is adjustable up to
9 degrees from the surface on which the
projector is placed.
3
Use the rear adjustment foot to
make the projector level.
The projector is adjustable ±2 degrees
from the standard position.
When adjusting the height of the projector,
trapezoidal distortion occurs. Follow the
procedures in Keystone Correction to correct
the distortion. (See pages
28 and 46.)
•
Note
3 Adjusting the Picture Size
You can adjust the picture size using the
zoom ring on the projector.
Rotate the zoom ring to enlarge or
shrink the picture size.
Using the knob on the zoom ring will make the
adjustments easier.
•
Zoom ringZoom ring
•
•
1
2
3
Rear adjustment footRear adjustment foot
HEIGHT ADJUST lever
Make small
adjustments.
Info
Do not apply too much pressure on the
projector when the front adjustment foot
comes out.
When lowering the projector, be careful not to
get your fi ngers caught in the area between
the adjustment foot and the projector.
Hold the projector fi rmly while lifting or carrying.
Do not hold by the lens area.
•
•
•
•
28
Correcting Trapezoidal
Distortion
When the image is projected either from
the top or from the bottom towards the
screen at an angle, the image becomes
distorted trapezoidally. The function for
correcting trapezoidal distortion is called
Keystone Correction.
The Keystone Correction can be adjusted up
to an angle of approximately ±40 degrees and
the screen can also be set up to an angle of
approximately ±40 degrees.
•
Note
1
Press KEYSTONE to enter the
Keystone Correction mode.
2
Press P/Q or O/R to adjust the
Keystone Correction.
To return to the default setting, press
RETURN while the on-screen display of the
Keystone Correction mode is on the screen.
•
Note
3
Press KEYSTONE.
The on-screen display of the Keystone
Correction mode will disappear.
•
1
2
3
KEYSTONE button
Adjustment buttons
(P/R/O/Q)
RETURN button
On-screen display
(Keystone Correction mode)
0KEYSTONE
ADJUST END
Shrinks upper side.
(Move the slide bar in the + direction.)
Shrinks lower side.
(Move the slide bar in the - direction.)
Info
While adjusting the image using Keystone
Correction, straight lines and the edges of the
image may appear jagged.
•
Image Projection (Continued)
29
Basic
Operation
Switching the Input Mode
Select the appropriate Input mode for the
connected equipment.
Press INPUT
/ to display the
INPUT list.
Use INPUT
/ to select the Input
mode, and use O/Q to select the
audio input terminal.
Adjusting the Volume
Press VOL +/– on the remote control
or –O/Q+ on the projector to adjust
the volume.
Pressing VOL–/–O will lower the volume.
Pressing VOL+/Q+ will raise the volume.
When the projector is connected to external
equipment, the volume level of the external
equipment changes in accordance with the
volume level of the projector. Set the projector's
volume to the lowest level when turning the
projector on/off or when changing the input signal.
When you do not want to output the sound
from the projector's speaker while the
projector is connected to external equipment,
set “Speaker” in the “PRJ-ADJ1” menu to
“Off”. (See page
49.)
•
•
•
•
Note
Displaying the Black Screen
and Turning Off the Sound
Temporarily
Press AV MUTE on the remote control
or close the lens shutter to temporarily
display a black screen and turn off the
sound.
Pressing AV MUTE again will turn the
projected image back on.
When you close the lens shutter, the projector will
be set to AV Mute mode and then the projector will
be turned off automatically after about 30 minutes.
•
•
Note
VOL +/– (Volume)
buttons
INPUT buttons
AV MUTE button
O/Q buttons
VOL +/– (Volume)
buttons
INPUT buttons
AV MUTE button
O/Q buttons
On-screen displayOn-screen display
On-screen displayOn-screen display
30
Resize Mode
This function allows you to modify or customize the Resize mode to enhance the input
image. Depending on the input signal, you can choose a desired image.
Press RESIZE.
See page 46 for setting on menu screen.
COMPUTER
Main resolution NORMAL FULL NATIVE BORDER 16:9
4:3 aspect ratio
SVGA (800 × 600)
1024 × 768 —
800 × 600
768 × 576
1024 × 576
XGA (1024 × 768) —
SXGA (1152 × 864) 1152 × 864
UXGA (1600 × 1200) 1600 × 1200
Other aspect ratios
SXGA (1280 × 1024) 968 × 768
1024 × 768
1280 × 1024 720 × 576
1280 × 720 1024 × 576 1280 × 720 — —
1360 × 768 1024 × 578 1360 × 768 — —
1366 × 768 1024 × 576 1366 × 768 — —
1280 × 768 1024 × 614 1280 × 768 960 × 576
1024 × 576
1280 × 800 1024 × 640 1280 × 800 922 × 576
Input signal For 4:3 screen For 16:9 screen
Computer Image type NORMAL FULL NATIVE BORDER 16:9
Resolution
lower than
XGA
4:3 aspect ratio
—
*2
*1
*1
XGA
—
*2
Resolution
higher than
XGA
SXGA (1280 × 1024)
5:4 aspect ratio
1280 × 720
16:9 aspect ratio
*1
—
*2
—
*2
1360 × 768
1366 × 768
1280 × 768
16:10 aspect ratio
*1
*1
*1
1280 × 800
: Cutout area on which images cannot be projected
: Area where the signals are off screen
*1 The Image Shift function can be used for these images.
*2 Same as NORMAL mode
•
RESIZE
button
RESIZE
button
Image Projection (Continued)
31
Basic
Operation
VIDEO/DTV
Input signal For 4:3 screen For 16:9 screen
Video/DTV Image type NORMAL AREA ZOOM V-STRETCH BORDER 16:9
480
I, 480P,
576
I, 576P,
NTSC, PAL,
SECAM
4:3 aspect ratio
*1
*1
Squeeze
*1
*1
Letter box
*1 *1
720P, 1035I,
1080
I, 1080P
16:9 aspect ratio
*1
—
*2
—
*2
540P
16:9 aspect ratio
(4:3 aspect ratio in 16:9)
*1
: Cutout area on which images cannot be projected
: Area on which the image is not included in the original signals
*1 The Image Shift function can be used for these images.
*2 Same as NORMAL mode.
About Copyrights
When using the Resize function to select an image size with a different aspect ratio to a TV
program or video image, the image will look different from its original appearance. Keep this
in mind while choosing an image size.
The use of the Resize or Keystone Correction function to compress or stretch the image for
commercial purposes/public displays in a café, hotel, etc. may be an infringement of
copyright protected by law for copyright holders. Please use caution.
•
•
32
Operating with the Remote Control
POINTER button
ECO+QUIET button
Adjustment buttons
(P/R/O/Q)
BREAK TIMER button
SPOT button
AUTO SYNC button
FREEZE button
PICTURE MODE button
MAGNIFY buttons
EFFECT button
Displaying and Setting the
Break Timer
1
Press BREAK TIMER.
The timer starts to count down from 5
minutes.
On-screen display
2
Press P/R/O/Q to adjust the
length of the break time.
Increases with P or Q
5 minutes ➞ 6 minutes ➞ 60 minutes
Shortens with O or R
4 minutes ➞ 3 minutes ➞1 minute
The break time can be set in units of one
minute (up to 60 minutes).
Canceling the break timer display function
Press BREAK TIMER.
The Break Timer is not available while the
projector is operating the following functions.
- Auto Sync
- Freeze
- AV Mute
- Input Search
•
Note
•
•
•
•
1
2
Displaying the Pointer
1
Press POINTER and press P/R/
O/Q on the remote control to
move the pointer.
Press EFFECT to change the pointer icon
(5 types).
Star
Finger1 Finger2 Heart Underline
2
Press POINTER again.
The pointer will disappear.
Using the Spot Function
1
Press SPOT and press P/R/O/Q
on the remote control to move
the spot area.
Press EFFECT to change the spot area
size (3 types).
1/9 1/25 1/8
2
Press SPOT again.
The spot area will disappear.
Switching the Eco+Quiet
Mode
Press ECO+QUIET to switch the
Eco+Quiet mode between on and off.
When the Eco+Quiet Mode is set to “ON”, the
sound of the cooling fan will turn down, the power
consumption will decrease, and the lamp life will
extend.
Refer to “Eco+Quiet” on page 43 for details.•
Note
•
•
•
•
•
1
2
1
2
33
Useful
Features
Auto Sync
(Auto Sync Adjustment)
Auto Sync function works when detecting
input signal after the projector turns on.
Press AUTO SYNC to manually adjust
with Auto Sync function.
When the optimum image cannot be achieved
with Auto Sync adjustment, use manual
adjustments. (See page
44.)
•
Note
Freezing a Moving Image
1
Press FREEZE.
The projected image is frozen.
2
Press FREEZE again to return to
the moving image from the
currently connected device.
Selecting the Picture Mode
You can select the appropriate Picture
mode for the projected image, such as
movie or video game.
Press PICTURE MODE.
When pressing PICTURE MODE, the Picture
mode changes in the following order:
STANDARD PRESENTATION MOVIE GAME sRGB
*
See page 41 for details on the Picture mode.•
Note
* “sRGB” is displayed only when RGB signal is input.
•
•
1
2
Displaying an Enlarged
Portion of an Image
Graphs, tables and other portions of
projected images can be enlarged. This
is helpful when providing more detailed
explanations.
1
Press MAGNIFY on the
remote control.
Enlarges the image.
Pressing
or MAGNIFY enlarges
or reduces the projected image.
×1 ×2 ×3 ×4
Press
.
Press
.
You can change the location of the
enlarged image using P, R, O and Q.
•
Note
2
Press RETURN on the remote
control to cancel the operation.
The magnifi cation then returns to u1.
The selectable magnifi cations differ
depending on the input signal.
In the following cases, the image will
return to the normal size (u1).
- When switching the Input mode.
- When RETURN has been pressed.
- When the input signal is changed.
- When the input signal resolution and
refresh rate (vertical frequency)
change.
- When the Resize mode is changed.
•
•
Note
•
•
•
1
2
34
Using the Remote Control as the Wireless Computer Mouse
When connecting the projector and the computer with a USB cable, you can use the
remote control as the computer mouse.
If the computer is placed too far away from the projector to be connected via the USB
cable, the remote receiver (optional, AN-MR2) makes it possible to operate the
projector with the remote control. For details, see the operation manual of the
receiver.
Connecting with a USB cable
or
R
emote receiver
(optional, AN-MR2)
To USB terminal
USB cable
(commercially available or available as
Sharp service part QCNWGA014WJPZ)
To USB terminal
Computer
The mouse pointer can be
operated in the following way
after it is connected.
When moving the cursor
Press MOUSE/Adjustment buttons (P/R/O/Q).
When left-clicking
Press L-CLICK.
When right-clicking
Press R-CLICK.
When your computer supports only a
one-click mouse (such as Macintosh)
Press L-CLICK or R-CLICK.
L-CLICK and R-CLICK have common function.
When using [Page Up] or [Page Down]
■
■
■
■
■
MOUSE/Adjustment
buttons (//?/_)
R-CLICK button
L-CLICK button
PAGE UP/
PAGE DOWN button
s
MOUSE/Adjustment
buttons (//?/_)
R-CLICK button
L-CLICK button
PAGE UP/
PAGE DOWN button
s
Same as the [Page Up] and [Page Down] keys
on a computer keyboard.
Press PAGE UP or PAGE DOWN.
This function only works with the Microsoft
®
Windows
®
OS and Mac OS
®
that support USB.
You cannot use this function when displaying the menu screen.
Confi rm that the computer recognizes the USB connection.
•
•
•
Note
Operating with the Remote Control (Continued)
35
Useful
Features
Menu Items
The following shows the items that can be set in the projector.
“Picture” menu
Main menu Sub menu
Page 41 Page 41
Page 42
Page 42
Page 42
Page 42
Page 42
Page 43
Page 43
+30-30
Contrast
+30-30
+30-30
+30-30
1-1
20
+30-30
+30-30
+30-30
Tint
Color
Sharp
Bright
Film Mode
Eco+Quiet
[On/Off]
Reset
Auto
Off
CLR Temp
BrilliantColor™
C.M.S. Setting [On/Off]
C.M.S.
Standard
Presentation
Movie
Game
sRGB*1
Picture Mode
*2
*2
*2
Red
Blue
*2
Page 43
DNR Level 1
Level 2
Level 3
C.M.S.-Hue
C.M.S.-Saturation
C.M.S.-Value
Page 42
Page 42
Page 42
Reset
Return
+30-30
R
+30-30
+30-30
+30-30
+30-30
+30-30
C
G
B
Y
M
Reset
*1 Item when inputting RGB signal through
COMPUTER.
*2 Items when inputting component signal through
COMPUTER, or when selecting S-VIDEO or VIDEO.
“Quick Start Menu”
Main menu
Normal
Full
Native
Area Zoom
V-Stretch
Border
16:9
Quick Start Menu
Input Search Start
Resolution
Eco + Quiet
[On/Off]
Resize
Information
Go To Complete Menu
Keystone
Language
Sub menu
Page 39
Page 39
Page 39
Page 39
Page 39
Page 39
Page 39
Page 39
+80-80
English
Deutsch
Español
Nederlands
Français
Italiano
Svenska
Português
polski
Magyar
Türkçe
36
“Screen adjustment (SCR-ADJ)” menu
Main menu Sub menu
SCR - ADJ
Page 46
Language
Image Shift
Resize
Page 46
Page 46
Page 46
Page 47
Page 48
Page 48
Page 48
Keystone
OSD Display [On/Off]
Page 47
Closed Caption
Page 47
Overscan [On/Off]
Background
PRJ Mode
Logo
Blue
None
Page 48
Wall Color
Off
Blackboard
Whiteboard
Page 48
Setup Guide [On/Off]
Off
CC1
CC2
Front
Ceiling + Front
Rear
Ceiling + Rear
+80-80
+96-96
Normal
Full
Native
Area Zoom
V-Stretch
Border
16:9
English
Deutsch
Español
Nederlands
Français
Italiano
Svenska
Português
polski
Magyar
Türkçe
“Signal adjustment (SIG-ADJ)” menu
Main menu Sub menu
SIG-ADJ
Page 44
Page 44
Page 44
Page 44
Page 45
Signal Type
Video Setup
Signal Info
Auto
RGB
YPbPr
Resolution
0 IRE
7.5 IRE
Page 45
Page 45
Video System Auto
PAL
SECAM
NTSC4.43
NTSC3.58
PAL-M
PAL-N
PAL-60
+30-30
+60-60
+150-150
+150-150
Clock
Phase
H-Pos
V-Pos
Reset
*3
*3
*4
*4
*4
*5
*6
*3 Items when inputting RGB signal through
COMPUTER/COMPONENT.
*4 Items when inputting COMPUTER/COMPONENT.
*5 Item when selecting COMPUTER/COMPONENT.
*6 Item when selecting S-VIDEO or VIDEO.
Menu Items
(Continued)
37
Useful
Features
“Projector adjustment (PRJ-ADJ1/2)” menu
Main menu Sub menu
PRJ-ADJ1
Page 49
Speaker [On/Off]
System Lock
[Enable/Disable]
Keylock [On/Off]
Auto Restart [On/Off]
Page 49
Auto Power Off [On/Off]
Page 49
Page 49
Page 50
Page 51
Fan Mode
Page 50
Normal
High
RS-232C
Page 49
9600bps
38400bps
115200bps
Auto Sync [On/Off]
Page 49
Main menu Sub menu
Page 51
Page 52
Page 52
Page 52
Page 52
Page 51
PRJ-ADJ2
FUNCTION Button
Input Search
Audio Mute
Image Shift
Signal Info
STANDBY Mode
Quick Start
Eco
All Reset
Lamp Timer (Life)
Page 52
DLP
®
Link
TM
[On/Off]
DLP
®
Link
TM
Invert
Quick Start Menu [On/Off]
Page 49
38
Adjustment buttons
(P/R/O/Q)
ENTER button
RETURN button
Press RETURN to return
to the previous screen
when the menu is
displayed.
•
MENU button
Adjustment buttons (P/R/O/Q)
MENU button
ENTER button
Menu Selections (Quick Start Menu)
This operation can also be performed by using the buttons on the projector.•
1
Press MENU.
The “Quick Start Menu” screen for the
selected Input mode is displayed.
2
Press P or R to select the
desired item, then press ENTER.
3
Press P/R/O/Q to adjust the
item selected, then press
ENTER.
Info
To display the advanced settings and
adjustments, select “Go To Complete Menu”.
Press ENTER to display the Complete Menu
screen.
If you do not want to display the Quick Start
Menu, set “Go To Complete Menu” - “PRJ-ADJ2”
- “Quick Start Menu” to “Off”. (See page
51.)
•
•
•
1
2
3
Example
SEL./ADJ. ENTER END
Input Search Start
Resolution
Resize
0
Eco+Quiet
Language
Keystone
Information
1024×768
Normal
English
Off
Quick Start Menu
Go To Complete Menu…
Using the Menu Screen
Select from the Quick Start Menu, which is a collection of the most frequently used
functions, or the Complete Menu, which enables advanced settings and adjustments.
39
Useful
Features
Quick Start Menu
The following items can be confi gured on the Quick Start Menu.
Selectable items Description
Input Search Start Automatically searches for and switches to the appropriate Input mode.
Pressing an operation button during input searching cancels the search.
Resolution Manually change the resolution.
Use this function when the image and screen size do not match with the
resolution selected automatically. (See page
44.)
Resize Changes the Resize mode.
Use this function to stretch the image vertically or horizontally or when the
edges of the image cannot be seen. (See page
46.)
Keystone Corrects the keystone distortion of projected images.
Use this function to correct the trapezoidal distortion of images caused when
projecting images at an angle to the screen. (See page
46.)
Eco+Quiet When set to “On”, this function reduces the cooling fan noise and power
consumption, thereby prolonging the operating life of the lamp. (See page
43.)
Language Selects the language displayed on the screen. (See page
48.)
Information Displays the input signal, lamp use time, remaining lamp life, etc.
Go To Complete Menu Displays the Complete Menu for advanced settings and adjustments.
The setting of Resize mode will be made independently for each Input mode.
The setting of Eco+Quiet mode will be made independently for each Input mode and each Picture
mode.
•
•
Note
Menu Selections (Complete Menu)
Example: Adjusting “Bright”.
This operation can also be performed by using the buttons on the projector.
1
Press MENU.
The “Quick Start Menu” screen is
displayed.
•
•
1
2
Press P or R to select “Go To
Complete Menu”.
3
Press Q or O and select
“Picture” to adjust.
Info
When “PRJ-ADJ2” - “Quick Start Menu” is
set to “On”, pressing MENU displays the
Quick Start Menu screen.
•
2
3
Example: “Picture” screen menu for
COMPUTER (RGB) input
Menu item
Picture Mode
Contrast 0
0
0
Bright
Standard
SEL./ADJ. ENTER END
0
0
Red
Blue
CLR Temp
BrilliantColor
TM
C.M.S. Setting
C.M.S.
Eco+Quiet
0
1
On
Off
DNR
Level 2
Reset
SIG SCR PRJ1 PRJ2Picture
Menu item
Picture Mode
Contrast 0
0
0
Bright
Standard
SEL./ADJ. ENTER END
0
0
Red
Blue
CLR Temp
BrilliantColor
TM
C.M.S. Setting
C.M.S.
Eco+Quiet
0
1
On
Off
DNR
Level 2
Reset
SIG SCR PRJ1 PRJ2Picture
40
4
Press P or R and select “Bright”
to adjust.
The selected item is highlighted.
To adjust the projected
image while watching it
Press ENTER.
The selected item (e.g. “Bright”) is
displayed by itself at the bottom of the
screen.
When pressing P or R, the following item
(“Red” after “Bright”) will be displayed.
Press ENTER again to return to the
previous screen.
•
Note
5
Press O or Q to adjust the item
selected.
The adjustment is stored.
6
Press MENU.
The menu screen will disappear.
•
•
•
•
•
4
0Bright
SEL./ADJ. Rtn. Menu END
Picture Mode
Standard
SEL./ADJ. Single ADJ END
Resize
Image Shift 0
0
Keystone
Normal
Picture Mode
Contrast 0
0
Standard
SEL./ADJ. END
0
0
Red
Blue
CLR Temp
BrilliantColor
TM
C.M.S. Setting
C.M.S.
Eco+Quiet
0
1
On
Off
Reset
Bright 0
DNR
Level 2
Pict. SCR-ADJ
SIG
PRJ1 PRJ2
SIG SCR PRJ1 PRJ2Picture
Items to be adjusted
The item displayed by itself
Press ENTER.
0Bright
SEL./ADJ. Rtn. Menu END
Picture Mode
Standard
SEL./ADJ. Single ADJ END
Resize
Image Shift 0
0
Keystone
Normal
Picture Mode
Contrast 0
0
Standard
SEL./ADJ. END
0
0
Red
Blue
CLR Temp
BrilliantColor
TM
C.M.S. Setting
C.M.S.
Eco+Quiet
0
1
On
Off
Reset
Bright 0
DNR
Level 2
Pict. SCR-ADJ
SIG
PRJ1 PRJ2
SIG SCR PRJ1 PRJ2Picture
Items to be adjusted
The item displayed by itself
Press ENTER.
5
Picture Mode
Contrast 0
0
Standard
SEL./ADJ. Single ADJ END
0
0
Red
Blue
CLR Temp
BrilliantColor
TM
C.M.S. Setting
C.M.S.
Eco+Quiet
0
1
On
Off
Reset
15Bright
DNR
Level 2
Picture SIG SCR PRJ1 PRJ2
Picture Mode
Contrast 0
0
Standard
SEL./ADJ. Single ADJ END
0
0
Red
Blue
CLR Temp
BrilliantColor
TM
C.M.S. Setting
C.M.S.
Eco+Quiet
0
1
On
Off
Reset
15Bright
DNR
Level 2
Picture SIG SCR PRJ1 PRJ2
6
The MENU button is not available while the projector is operating:
- Auto Sync/Break Timer/Freeze/AV Mute/Input Search
•
Note
Using the Menu Screen
(Continued)
41
Useful
Features
Picture Adjustment (“Picture” Menu)
Menu operation n Page 39
Q PAGE1 Q PAGE2
Picture Mode
Contrast 0
0
0
0
Bright
Color
Tint
0Sharp
Standard
SEL./ADJ. ENTER END
0
0
Red
Blue
Picture SIG SCR PRJ1 PRJ2
1
2
Picture Mode
CLR Temp
BrilliantColor
TM
C.M.S. Setting
C.M.S.
Standard
SEL./ADJ. ENTER END
Film Mode
Eco+Quiet
0
1
On
Auto
Off
DNR
Level 2
Reset
7
6
5
4
2
3
Picture SIG SCR PRJ1 PRJ2
1
Selecting the Picture Mode
Selectable
items
Description
The default settings of each item when selecting Picture Mode
CLR Temp BrilliantColor
TM
Eco+Quiet
Standard For standard image 0 1 Off
Presentation Brightens portions of image for
more enhanced presentations.
02Off
Movie Gives natural tint to the
projected image.
–1 0 On
Game Gives sharpness to the
projected image.
01Off
*sRGB For high fi delity reproduction of
images from a computer.
––Off
“sRGB” is displayed only when RGB signal is input.
You can set or adjust each item in the “Picture” menu to your preference. Any changes you make are
retained in memory.
You can also press PICTURE MODE on the remote control to select the Picture mode. (See page 33.)
*sRGB is an international standard of color reproduction regulated by the IEC (International
Electrotechnical Commission). As the fi xed color area has been decided by the IEC, the images are
displayed in a natural tint based on an original image, when “sRGB” is selected.
You cannot set the items, “Red”, “Blue”, “CLR Temp”, “BrilliantColor
TM
”, when “sRGB” is selected.
•
•
Note
Info
When “sRGB” is selected, the projected image may become dark, but this does not indicate a
malfunction.
•
•
•
42
Picture Adjustment (“Picture” Menu)
(Continued)
Menu operation n Page 39
2
Adjusting the Image
Adjustment
items
O button Q button
Contrast For less
contrast.
For more
contrast.
Bright For less
brightness.
For more
brightness.
Color*
1
For less color
intensity.
For more color
intensity.
Tint*
1
For making skin
tones purplish.
For making skin
tones greenish.
Sharp*
1
For less
sharpness.
For more
sharpness.
Red*
2
For weaker red. For stronger
red.
Blue*
2
For weaker
blue.
For stronger
blue.
BrilliantColor™*
2
*
3
For making the
effect weaker.
For making the
effect stronger.
*1 Not displayed in the RGB input mode.
*2 Not adjustable/selectable when selecting “sRGB”.
*3 BrilliantColor™ uses Texas Instruments'
BrilliantColor™ technology. As the BrilliantColor™
level is increased, the image becomes brighter
while the color reproduction is kept at a high level.
“Red”, “Blue”, “BrilliantColor
TM
” and “CLR
Temp” cannot be set when “sRGB” is
selected.
To reset all adjustment items, select “Reset”
and press ENTER.
•
•
Note
Adjusting the Color
Temperature
Selectable
items
Description
–1
0
1
For lower color temperature for
warmer, reddish incandescent-like
images.
For higher color temperature for
cooler, bluish, fl uorescent-like images.
Values on “CLR Temp” are only for general
standard purposes.
•
Note
4
Adjusting the Colors
This function adjusts each of the six main
colors that comprise the color wheel, altering
their “Hue”, “Saturation”, or “Value”.
Selectable items Description
C.M.S.-Hue Sets the hue of the main colors.
C.M.S.-Saturation Sets the saturation of the main
colors
C.M.S.-Value Sets the brightness of the main
colors.
Reset The adjustments of “Hue”,
“Saturation” and “Value” of all
colors are reset to the default
setting.
Return Returns to the “Picture” menu
screen.
Adjusting “Hue”, “Saturation”, or “Value”.
1 Select “On” for “C.M.S. Setting” in the “Picture”
menu and then press ENTER.
2 Select “C.M.S.” in the “Picture” menu and then
press ENTER.
3 Press P or R to select either “Hue”, “Saturation”, or
“Value” and then press ENTER.
4 Select the color to be adjusted with P or R and
adjust it with O or Q.
Example of adjusting the “Hue”
Main colors O button Q button
R (Red)
Closer to magenta
Closer to yellow
Y (Yellow) Closer to red Closer to green
G (Green) Closer to yellow Closer to cyan
C (Cyan) Closer to green Closer to blue
B (Blue) Closer to cyan
Closer to magenta
M (Magenta) Closer to blue Closer to red
When “Saturation” is selected, the selected
color becomes
O: lighter. Q: thicker.
When “Value” is selected, the selected color
becomes
O: darker. Q: brighter.
To reset the adjustment values of each color to
the default settings, select “Reset” and press
ENTER.
•
•
•
43
Useful
Features
5
Selecting the Film Mode
This function provides high-quality playback
of images originally projected at 24 fps, such
as movies on DVDs.
Selectable
items
Description
Auto Films are detected automatically.
Off Films are not detected.
This function is available for the following
signals.
With COMPUTER/COMPONENT input:
- 480I
- 576I
- 1035I
- 1080I
With S-VIDEO or VIDEO input:
- All signals
•
Note
6
Reducing Image Noise (DNR)
Video digital noise reduction (DNR) provides
high quality images with minimal dot crawl
and cross color noise.
Selectable
items
Description
Level 1
Sets the DNR level for viewing a
clearer picture.
Level 2
Level 3
This function is not available for some signals.•
Note
Menu operation n Page 39
7
Eco+Quiet
Selectable
items
Brightness and Power consumption
On Approx. 75%
Off 100%
When “Eco+Quiet” is set to “On”, the fan
sound and power consumption are lower than
they are when “Off” is selected. (Projection
brightness decreases as shown in the chart.)
•
Note
44
Signal Adjustment (“SIG-ADJ” Menu)
Menu operation n Page 39
0
0
0
0
Phase
Clock
H-Pos
V-Pos
Reset
Auto
1024 x 768
0 IRE
Resolution
Signal Type
Video Setup
Auto
Video System
Signal Info 1024 x 768
H 48.3 kHz / V
60.0 Hz
SEL./ADJ. ENTER END
Pict. SIG-ADJ SCR PRJ1 PRJ2
1
3
4
5
6
2
1
Adjusting the Computer Image
If the optimum image cannot be obtained with
Auto Sync adjustment, use the SIG-ADJ function.
Selectable
items
Description
Clock Adjusts vertical noise.
Phase Adjusts horizontal noise (similar to
tracking on your VCR).
H-Pos Centers the on-screen image by
moving it to the left or right.
V-Pos Centers the on-screen image by
moving it up or down.
To reset all adjustment items, select “Reset”
and press ENTER.
The adjustable range of “H-Pos” (H-Position)
and “V-Pos” (V-Position) may vary depending
on the screen resolution of the computer.
•
•
Note
2
Resolution Setting
Ordinarily, the type of input signal is detected and
the correct Resolution mode is automatically
selected. However, for some signals, the optimal
Resolution mode in “Resolution” may need to be
selected to match the computer display mode.
See “Checking the Input Signal” on page 45
for information on the currently selected input
signal.
•
Note
3
Signal Type Setting
This function allows you to select the input signal
type RGB or Component for COMPUTER/
COMPONENT.
Selectable
items
Description
Auto Input signals are automatically
recognized as RGB or component.
RGB Set when RGB signals are received.
YPbPr Set when Component signals are
received.
45
Useful
Features
4
Setting the Video System
The video input system mode is factory preset
to “Auto”; however, a clear picture from the
connected audio-visual equipment may not be
received, depending on the Video signal
difference.
In that case, switch the Video signal.
Selectable items
Auto
PAL
SECAM
*NTSC4.43
NTSC3.58
PAL-M
PAL-N
PAL -60
* When reproducing NTSC signals in PAL
video equipment.
The Video signal can only be set in S-VIDEO
or VIDEO mode.
When “Video System” is set to “Auto”, you
may not receive a clear picture due to signal
differences. Should this occur, switch to the
video system of the source signal.
•
•
Note
5
Setting the Video Setup
Selectable
items
Description
0 IRE Sets the black level to 0 IRE.
7.5 IRE Sets the black level to 7.5 IRE.
This function is available for the following
signals.
With COMPUTER/COMPONENT input:
- 480I
With S-VIDEO or VIDEO input:
- NTSC3.58
•
Note
Menu operation n Page 39
6
Checking the Input Signal
This function allows you to check the current
input signal information.
46
Adjusting the Projected Image (“SCR-ADJ” Menu)
Menu operation n Page 39
SEL./ADJ. ENTER END
Resize
Image Shift 0
0
Keystone
OSD Display
Closed Caption
Overscan
Background
Setup Guide
PRJ Mode
On
Front
Wall Color
Language
Off
English
On
Off
Logo
On
Normal
Pict. PRJ1 PRJ2SIG SCR-ADJ
9
8
0
5
6
4
3
2
1
7
1
Setting the Resize Mode
Use this function to stretch the image
vertically or horizontally or when the edges of
the image cannot be seen.
For details of the Resize mode, see pages
30 and 31.
You can also press RESIZE on the remote
control to set the Resize mode. (See page
30.)
•
•
Note
2
Adjusting the Image
Position
You can move the projected image vertically.
Q buttonO button
This function only works in some Resize
modes. (See pages
30 and 31.)
•
Note
3
Keystone Correction
When the image is projected either from the top
or from the bottom towards the screen at an
angle, the image becomes distorted trapezoidally.
The function for correcting trapezoidal distortion
is called Keystone Correction.
Select “Keystone” on the “SCR-ADJ”
menu and adjust with the slide bar.
See page 28 for details of Keystone Correction.
O buttonQ button
The Keystone Correction can be adjusted up
to an angle of approximately ±40 degrees.
You can also press KEYSTONE on the
remote control to adjust Keystone Correction.
•
•
Note
47
Useful
Features
4
Setting the Overscan
This function allows you to set the overscan area
(display area).
Selectable
items
Description
On The input area is displayed without the
screen edges.
Off The whole input area is displayed.
This function is available for the following
signals.
With COMPUTER/COMPONENT input:
- 480P
- 540P
- 576P
- 720P
- 1035I
- 1080I/1080P
If noise appears at the screen edges when
“Off” is selected, set the function to “On”.
Also see “About Copyrights” on page
31.
•
•
•
Note
5
Setting the On-screen
Display
Selectable
items
Description
On All on-screen displays are displayed.
Off VOLUME/AV MUTE/FREEZE/AUTO
SYNC/RESIZE/PICTURE MODE/
ECO+QUIET/MAGNIFY/Input Search/
Audio Mute/“An invalid button has
been pressed.” are not displayed.
6
Closed Caption
<For Americas only>
Info
This function is available for NTSC3.58 signal.
This function does not work when the Resize
mode is set to “Border”.
This function is available in the following cases
only:
Resize mode Keystone Correction
Normal
Area Zoom
V-Stretch
-40 − +40
16:9 -12 − +12
•
•
•
“Closed Caption” is a system which allows
conversations, narration, and sound effects in TV
programs (Limited regions) and home videos to
be viewed as captions on the screen.
Not all programs and videos will offer closed
captioning. Please look for the symbol to
ensure that captions will be shown.
Two channels are available: CC1 and CC2.
Selectable
items
Description
Off —
CC1 Closed Caption mode for CH1 data
CC2 Closed Caption mode for CH2 data
Closed Caption may malfunction (white blocks,
strange characters, etc.) if signal conditions are
poor or if there are problems at the broadcast
source. This does not necessarily indicate a
problem with the projector.
If any button is pressed to call up the on-
screen display while viewing a Closed Caption
broadcast, the closed captions will disappear.
•
•
Note
•
•
•
Menu operation n Page 39
48
7
Selecting the Background
Selectable items Description
Logo Sharp logo screen
Blue Blue screen
None —
8
Selecting the Setup Guide
Selectable items Description
On Displaying the Setup Guide
when turning the projector on.
Off Not displaying the Setup Guide.
9
Reversing/Inverting
Projected Images
Selectable items Description
Front Normal image (Projected from
the front of the screen)
Ceiling + Front Inverted image (Projected from
the front of the screen with an
inverted projector)
Rear Reversed image (Projected from
the rear of the screen or with a
mirror)
Ceiling + Rear Reversed and inverted image
(Projected with a mirror)
See page
20 for details of Projection (PRJ) Mode.
Adjusting the Projected Image (“SCR-ADJ” Menu)
(Continued)
Menu operation n Page 39
0
Selecting the Wall Color
This function allows you to project the image
to a colored (white or dark green) surface or
wall without using a screen.
Selectable items Description
Off The Wall Color function is not
activated.
Blackboard Projects images onto a
blackboard (dark green).
Whiteboard
Projects images onto a
whiteboard.
Selecting the On-screen
Display Language
The projector can switch the on-screen
display language among 17 languages.
English
Deutsch
Español
Nederlands
Français
Italiano
Svenska
Português
Türkçe
polski
Magyar
49
Useful
Features
Adjusting the Projector Function (“PRJ-ADJ1/2” Menu)
Menu operation n Page 39
Q PRJ-ADJ1
SEL./ADJ. ENTER END
Auto Power Off On
Auto Restart On
Speaker On
OffKeylock
9600bps
System Lock
RS-232C
Fan Mode Normal
Disable
Auto Sync On
Pict. SCR PRJ-ADJ1SIG PRJ2
1
2
3
4
5
7
6
8
1
Auto Sync (Auto Sync
Adjustment)
Selectable
items
Description
On Auto Sync adjustment will occur when
the projector is turned on or when the
input signals are switched, when
connected to a computer.
Off Auto Sync adjustment is not
automatically performed.
Auto Sync adjustment is also performed by
pressing AUTO SYNC.
The Auto Sync adjustment may take some
time to complete, depending on the image of
the computer connected to the projector.
When the optimum image cannot be achieved
with Auto Sync adjustment, use manual
adjustments. (See page
44.)
•
•
•
Note
2
Auto Power Off Function
Selectable
items
Description
On When no input signal is detected for
more than 15 minutes, the projector will
automatically enter Standby mode.
Off The Auto Power Off function will be
disabled.
When the Auto Power Off function is set to
“On”, 5 minutes before the projector enters
Standby mode, the message “Enter STANDBY
mode in X min.” will appear on the screen to
indicate the remaining minutes.
•
Note
Q PRJ-ADJ2
Pict. SCR PRJ-ADJ2SIG
SEL./ADJ. ENTER END
DLP
®
Link
TM
h
Off
FUNCTION Button Input Search
STANDBY Mode Quick Start
0 min0Lamp Timer(Life) 100%
DLP
®
Link
TM
Invert
Quick Start Menu On
PRJ1
All Reset
9
0
3
Auto Restart Function
Selectable
items
Description
On
If the power cord is unplugged from the
outlet or the breaker switch is turned off
when the projector is on, then the
projector automatically turns on when
the power cord is plugged into the AC
outlet or the breaker switch is turned on.
Off The projector does not turn on
automatically when the power cord is
plugged into the AC outlet or the
breaker switch is turned on.
4
Speaker Setting
Selectable
items
Description
On The audio signal is output from the
internal speaker.
Off The audio signal is not output from the
internal speaker.
5
Selecting the Transmission
Speed (RS-
232C)
Make sure that both the projector and
computer are set for the same baud rate.
Selectable
items
Description
9600bps
38400bps
115200bps
Transmission speed is slow.
Transmission speed is rapid.
50
Menu operation n Page 39
6
Fan Mode Setting
This function changes the fan rotation speed.
Selectable
items
Description
Normal Suitable for normal environments.
High Set when using the projector at
altitudes of approximately 1,500 meters
(4,900 feet) or more.
When “Fan Mode” is set to “High”, the fan rotation
speeds up, and the fan noise becomes louder.
7
System Lock Function
This function prevents unauthorized use of the
projector. Once this function is activated,
users must enter the correct keycode each
time the projector is turned on. We suggest
you record the keycode in a safe place
where only authorized users have access.
Info
If you lose or forget your keycode, contact
your nearest Sharp Authorized Projector
Dealer or Service Center (see page
69). Even
if the product warranty is valid, the keycode
reset will incur a charge.
•
a
Setting/Changing the Keycode
1
Select “System Lock”, then press
ENTER or Q.
2
Select “Next”, then press ENTER.
The screen for entering the keycode
appears.
3
Press the 4 buttons on the remote
control or on the projector to enter
the preset keycode in “Old Code”.
When setting the keycode for the fi rst time,
press R on the projector for four times.
Setting the System Lock
PRJ - ADJ1
Old Code
New Code
Reconfirm
––––
––––
––––
•
•
1
2
3
Adjusting the Projector Function (“PRJ-ADJ1/2” Menu)
(Continued)
If you input a wrong keycode, the cursor returns to
the fi rst point of the “Old Code”.
The preset keycode is 4 R buttons on the
projector. When you press the R button four
times, the keycord input screen disappears.
•
•
Note
4
Press the 4 buttons on the remote
control or on the projector to enter
the new keycode in “New Code”.
You cannot use the following buttons
for keycode: STANDBY/ON, ON,
STANDBY, ENTER, L-CLICK, R-
CLICK/RETURN and MENU
System Lock function recognizes
each button on the remote control
or on the projector as an individual
button, even if they share the same
button name. If you used the buttons
on the projector in setting your
keycode, the keycode cannot be
canceled with the remote control.
•
•
Note
Setting the System Lock
Old Code
New Code
Reconfirm
****
– –––
––––
PRJ - ADJ1
5
Enter the same keycode in “Re-
confi rm”.
To cancel the keycode that you have
already set
Press R on the projector for four times in
steps 4 and 5 above.
When the System Lock is set
When System Lock is set, the keycode input
screen appears after the power is turned on.
When it appears, enter the right keycode to
start projection.
Input screen for keycode
System Lock
––––
•
•
Note
4
5
51
Useful
Features
8
Keylock Function
Use this function to lock the operation buttons
on the projector.
This function can be set using either the menu
screen or ENTER on the projector.
a
Setting with the menu screen
Selectable
items
Description
On All buttons on the projector, except
STANDBY/ON, are locked.
Off Turns off the Keylock function.
a
Setting with the projector buttons
Locking the Operation Buttons
1
Hold down ENTER on the
projector for about 5 seconds
while the projector is being
turned on.
The Keylock function screen is displayed.
Use this function to lock the operation buttons
on the projector.
(Except STANDBY/ON button)
Note: You can release the keylock by holding
down ENTER on the projector for about 5 seconds.
PRJ - ADJ1
Return
On
SEL. ENTER END
2
Select “On”, then press
ENTER
.
On-screen display
The Keylock function does not affect the
operation with the remote control buttons.
You cannot use the Keylock function while the
projector is warming up.
•
•
•
1
2
Taking the Keylock Off
Hold down ENTER on the projector for about
5 seconds.
On-screen display
Info
Even when Keylock function is set to “On”,
STANDBY/ON on the projector can be used
to turn on and off the power.
Keylock cannot be set while the projector is:
displaying the “Setup Guide” or “Menu”
screens, in Standby mode, warming up,
changing input signals, operating the Auto
Sync or Input Search function, in Freeze
mode or on the “System Lock” screen during
warming up.
•
•
9
Selecting the Quick
Start Menu
Selectable items Description
On Pressing MENU displays the
Quick Start Menu screen.
Off Pressing MENU displays the
Complete Menu screen.
0
Setting the FUNCTION
Button Operation
You can assign one of the following functions
to the FUNCTION button on the remote con-
trol. The assigned function can be performed
by just pressing FUNCTION.
Selectable items Description
Input Search Automatically searches for and
switches to the appropriate Input
mode.
Audio Mute For temporarily turning off the
sound. Press FUNCTION again
to turn on the sound
Image Shift For moving the projected image
vertically. (See page
46.)
Signal Info Input signal information is
displayed.
Menu operation n Page 39
52
STANDBY Mode
When set to “Eco”, power consumption is
reduced in Standby mode.
Selectable
items
Description
Eco The monitor output and RS-232C are
switched off in Standby mode.
Quick Start The monitor output and RS-232C are
activated even if the projector is in
Standby mode.
DLP
®
Link
TM
See the OPERATION MANUAL FOR
STEREOSCOPIC 3D PROJECTION provided
separately.
DLP
®
Link
TM
Invert
See the OPERATION MANUAL FOR
STEREOSCOPIC 3D PROJECTION provided
separately.
Returning to the Default
Settings
This function allows you to initialize the
settings you have made in the projector.
The following items or menu cannot be
initialized.
- Resolution
- Language
- Lamp Timer (Life)
- System Lock
•
Note
Menu operation n Page 39
Checking the Lamp
Life Status
You can confi rm the cumulative lamp usage
time and the remaining lamp life (percentage).
Lamp usage condition Remaining lamp life
“Life” 100% 5%
Operated exclusively
with “Eco+Quiet”
set to “On”
Approx.
4,000 hours
Approx.
200 hours
Operated exclusively
with “Eco+Quiet”
set to “Off”
Approx.
2,000 hours
Approx.
100 hours
It is recommended that the lamp be changed
when the remaining lamp life becomes 5%.
The lamp life may vary depending on the
usage condition.
•
•
Note
Adjusting the Projector Function (“PRJ-ADJ1/2” Menu)
(Continued)
53
Appendix
Maintenance
Cleaning the projector
Ensure that you have unplugged the power
cord before cleaning the projector.
The cabinet as well as the operation panel is
made of plastic. Avoid using benzene or
thinner, as these can damage the fi nish on
the cabinet.
Do not use volatile agents such as
insecticides on the projector.
Do not attach rubber or plastic items to the
projector for long periods.
The effects of some of the agents in the
plastic may cause damage to the quality or
fi nish of the projector.
Wipe off dirt gently with a soft fl annel cloth.
Using a chemical cloth (wet/dry sheet type
cloth, etc.) may deform the components of
the cabinet or cause cracking.
Wiping with a hard cloth or using strong
force may scratch the cabinet surface.
When the dirt is hard to remove, soak a cloth
in a mild detergent diluted with water, wring
the cloth well and then wipe the projector.
Strong cleaning detergents may discolor,
warp or damage the coating on the projector.
Make sure to test on a small, inconspicuous
area on the projector before use.
Mild detergent
Mild detergent diluted
with water
Thinner
Wax
■
■
■
■
■
■
Cleaning the lens
Use a commercially available blower or lens
cleaning paper (for glasses and camera
lenses) for cleaning the lens. Do not use any
liquid type cleaning agents, as they may
wear off the coating fi lm on the surface of the
lens.
As the surface of the lens can easily get
damaged, be careful not to scrape or hit the
lens.
Cleaning the exhaust and intake vents
Use a vacuum cleaner to clean dust from the
exhaust vent and the intake vent.
Info
If you want to clean the air vents during
projector operation, ensure you press
STANDBY/ON on the projector or
STANDBY on the remote control and put the
projector into Standby mode. After the
cooling fan has stopped, clean the vents.
•
■
■
■
54
Maintenance Indicators
The warning lights (power indicator, lamp indicator and temperature warning indicator) on the
projector indicate problems inside the projector.
If a problem occurs, either the temperature warning indicator or the lamp indicator will
illuminate red, and the projector will enter Standby mode. After the projector has entered
Standby mode, follow the procedures given below.
Top View
Lamp indicator
Temperature warning indicator
Power indicator
About the temperature warning indicator
If the temperature inside the projector increases, due to blockage of the air vents, or the setting
location, the temperature warning indicator will blink. And if the temperature keeps on rising,
“ ” will illuminate in the lower left corner of the picture with the temperature warning
indicator blinking. If this state continues, the lamp will turn off, the cooling fan will run and then
the projector will enter Standby mode. When you fi nd the temperature warning indicator
blinking, be sure to perform the measures described on page 55.
About the lamp indicator
When the remaining lamp life becomes 5% or less, (yellow) and “Change The Lamp” will
be displayed on the screen. When the percentage becomes 0%, it will change to (red), the
lamp will automatically turn off and then the projector will automatically enter Standby mode.
At this time, the lamp indicator will illuminate in red.
If you try to turn on the projector a fourth time without replacing the lamp, the
projector will not turn on.
■
■
Indicators on the Projector
Power indicator Red on Normal (Standby)
Green on Normal (Power on)
Red blinks Abnormal (See page
55.)
Green blinks Normal (Cooling)
Green and orange
blink alternately
The lens shutter is closed. (See page
29.)
Lamp indicator Green on Normal
Green blinks The lamp is warming up.
Red on The lamp is shut down abnormally or requires to be
changed. (See page
55.)
Temperature
warning indicator
Off Normal
Red on/Red blinks The internal temperature is abnormally high. (See page
55.)
■
■
55
Appendix
Maintenance indicator
Problem Cause Possible Solution
Normal Abnormal
Temperature
warning
indicator
Off Red blinks
(On)/
Red on
(Standby)
The internal
temperature is
abnormally high.
Temperatures
around the projector
are high.
Blocked air intake
•
•
Use the projector in an
area with a temperature of
lower than 95°F (+35ºC).
Relocate the projector to
an area with proper
ventilation. (See page
8.)
•
•
Cooling fan
breakdown
Internal circuit failure
Clogged air intake
•
•
•
Take the projector to your
nearest Sharp Authorized
Projector Dealer or Service
Center (see page
69) for
repair.
•
Lamp
indicator
Green on
(Green
blinks
when the
lamp is
warming
up.)
Red on The lamp does
not illuminate.
The lamp is shut
down abnormally.
• Disconnect the power cord
from the AC outlet, and
then connect it again.
•
Time to change
the lamp.
Remaining lamp life
becomes 5% or less.
• Carefully replace the lamp.
(See page
56.)
Take the projector to your
nearest Sharp Authorized
Projector Dealer or Service
Center (see page
69) for
repair.
Please exercise care when
replacing the lamp.
Securely install the cover.
•
•
•
•
Red on
(Standby)
The lamp does
not illuminate.
Burnt-out lamp
Lamp circuit failure
•
•
Power
indicator
Green on/
Red on
Green
blinks
(Cooling)
Red blinks The power
indicator blinks in
red when the
projector is on.
The lamp unit cover
is open.
• If the power indicator blinks
in red even when the lamp
unit cover are securely
installed, contact your
nearest Sharp Authorized
Projector Dealer or Service
Center (see page
69) for
advice.
•
Info
If the temperature warning indicator illuminates, and the projector enters Standby mode, follow the
possible solutions above and then wait until the projector has cooled down completely before
plugging in the power cord and turning the power back on. (At least 10 minutes.)
If the power is turned off for a brief moment due to power outage or some other cause while using
the projector, and the power supply recovers immediately after that, the lamp indicator will illuminate
in red and the lamp may not be lit. In this case, unplug the power cord from the AC outlet, replace
the power cord in the AC outlet and then turn the power on again.
The cooling fan keeps the internal temperature of the projector constant and this function is
controlled automatically. The sound of the cooling fan may change during operation because the fan
speed may change and this is not a malfunction.
•
•
•
56
Regarding the Lamp
Lamp
It is recommended that the lamp (sold separately) be replaced when the remaining lamp life becomes
5% or less, or when you notice a signifi cant deterioration in the picture and color quality. The lamp life
(percentage) can be checked with the on-screen display. (See page
52.)
Purchase a replacement lamp of type AN-D350LP from your place of purchase, nearest Sharp
Authorized Projector Dealer or Service Center.
IMPORTANT NOTE TO U.S. CUSTOMERS:
The lamp included with this projector is backed by a 90-day parts and labor limited
warranty. All service of this projector under warranty, including lamp replacement,
must be obtained through a Sharp Authorized Projector Dealer or Service Center.
For the name of the nearest Sharp Authorized Projector Dealer or Service Center,
please call toll-free: 1-888-GO-SHARP (1-888-467-4277).
Hg LAMP CONTAINS MERCURY For State Lamp Disposal
Information
www.lamprecycle.org or 1-800-BE-SHARP
U.S.A ONLY
Caution Concerning the Lamp
This projector utilizes a pressurized mercury lamp. A loud sound may indicate lamp failure. Lamp failure
can be attributed to numerous sources such as: excessive shock, improper cooling, surface scratches
or deterioration of the lamp due to a lapse of usage time.
The period of time up to failure largely varies depending on the individual lamp and/or the condition and
the frequency of use. It is important to note that failure can often result in the bulb cracking.
When the lamp replacement indicator and on-screen display icon are illuminated, it is recommended
that the lamp be replaced with a new one immediately, even if the lamp appears to be operating
normally.
Should the lamp break, there is also a possibility that glass particles may spread inside of the projector.
In such a case, it is recommended you contact your nearest Sharp Authorized Projector Dealer or
Service Center to assure safe operation.
Should the lamp break, the glass particles may spread inside the lamp cage or gas contained in the
lamp may be vented into the room from the exhaust vent. Because the gas in this lamp includes
mercury, ventilate the room well if the lamp breaks and avoid all exposure to the released gas. In case of
exposure to the gas, consult a doctor as soon as possible.
Replacing the Lamp
Caution
Do not remove the lamp unit from the projector right after use. The lamp will be very hot and may cause
burns or injury.
Wait at least one hour after the power cord is disconnected to allow the surface of the lamp unit to fully
cool before removing the lamp unit.
Carefully change the lamp by following the instructions described in this section.
* If you wish, you may have the lamp replaced at your nearest Sharp Authorized Projector
Dealer or Service Center.
* If the new lamp does not light after replacement, take your projector to the nearest Sharp Authorized Projector
Dealer or Service Center for repair.
■
■
■
■
■
■
•
•
■
57
Appendix
Removing and Installing the
Lamp Unit
Warning!
Do not remove the lamp unit from the
projector right after use. The lamp and parts
around the lamp will be very hot and may
cause burns or injury.
•
Info
Do not touch the glass surface of the lamp
unit or the inside of the projector.
To avoid injury to yourself and damage to the
lamp, make sure you carefully follow the
steps below.
Do not loosen other screws except for the
lamp unit cover and lamp unit.
•
•
•
1
Press STANDBY/ON on the
projector or STANDBY on the
remote control to put the
projector into Standby mode.
2
Disconnect the power cord.
Unplug the power cord from the AC
socket.
Leave the lamp until it has fully cooled
down (about 1 hour).
3
Remove the lamp unit cover.
Close the lens shutter and turn the
projector over. Loosen the user service
screw (1) that secures the lamp unit
cover. Remove the lamp unit cover (2).
•
•
•
Lamp unit
AN-D350LP
Optional
accessory
Lamp unit
AN-D350LP
Optional
accessory
1
STANDBY/ON button
AC socket
STANDBY/ON button
AC socket
2
3
User service screw
(for lamp unit cover)
User service screw
(for lamp unit cover)
58
4
Remove the lamp unit.
Loosen the securing screw from the lamp
unit. Hold the lamp unit and pull it in the
direction of the arrow. At this time, keep
the lamp unit horizontal and do not tilt it.
5
Insert the new lamp unit.
Press the lamp unit fi rmly into the lamp unit
compartment. Fasten the securing screw.
6
Replace the lamp unit cover.
Align the tab on the lamp unit cover
(1) and close it (2). Then tighten the user
service screw (3) to secure the lamp unit
cover.
Info
If the lamp unit and lamp unit cover
are not correctly installed, the power
will not turn on, even if the power
cord is connected to the projector.
•
Resetting the Lamp Timer
Reset the lamp timer after replacing the lamp.
Info
Make sure to reset the lamp timer only when
replacing the lamp. If you reset the lamp timer
and continue to use the same lamp, this may
cause the lamp to become damaged or
explode.
•
1
Connect the power cord and
open the lens shutter fully.
Plug the power cord into the AC socket of
the projector.
2
Reset the lamp timer.
While simultaneously holding down
MENU, ENTER and
R on the projector,
press STANDBY/ON on the projector and
keep all four buttons pressed down until
the lamp indicator starts blinking green.
“LAMP 0000H” is displayed, indicating
that the lamp timer is reset.
•
•
•
•
•
•
4
Securing
screw
Securing
screw
5
6
AC socketAC socket
1
ENTER button
MENU button
R button
STANDBY/ON
button
ENTER button
MENU button
R button
STANDBY/ON
button
2
Regarding the Lamp (Continued)
59
Appendix
Connecting Pin Assignments
COMPUTER/COMPONENT input and COMPUTER/COMPONENT output
Terminals: mini D-sub 15 pin female connector
COMPUTER Input/Output COMPONENT Input/Output
Pin No. Signal Pin No. Signal
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
Video input (red)
Video input (green/sync on green)
Video input (blue)
Not connected
Not connected
Earth (red)
Earth (green/sync on green)
Earth (blue)
Not connected
GND
Not connected
Bi-directional data
Horizontal sync signal: TTL level
Vertical sync signal: TTL level
Data clock
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
PR (CR)
Y
PB (CB)
Not connected
Not connected
Earth (PR)
Earth (Y)
Earth (PB)
Not connected
Not connected
Not connected
Not connected
Not connected
Not connected
Not connected
RS-232C Terminal: mini DIN 9 pin female connector
Pin No. Signal Name I/O Reference
1.
2.
3.
4.
5.
6.
7.
8.
9.
RD
SD
SG
RS
CS
Receive Data
Send Data
Signal Ground
Request to Send
Clear to Send
Input
Output
Not connected
Connected to internal circuit
Connected to internal circuit
Not connected
Connected to internal circuit
Not connected
Connected to CS in internal circuit
Connected to RS in internal circuit
Not connected
RS-232C Terminal: D-sub 9 pin male connector of the DIN-D-sub RS-232C adaptor
(optional, AN-A1RS)
Pin No. Signal Name I/O Reference
1.
2.
3.
4.
5.
6.
7.
8.
9.
RD
SD
SG
RS
CS
Receive Data
Send Data
Signal Ground
Request to Send
Clear to Send
Input
Output
Not connected
Connected to internal circuit
Connected to internal circuit
Not connected
Connected to internal circuit
Not connected
Connected to CS in internal circuit
Connected to RS in internal circuit
Not connected
5
10
15
1
11
6
5
10
15
1
11
6
8
9
6
5
21
4
3
7
8
9
6
5
21
4
3
7
15
69
15
69
60
Connecting Pin Assignments (Continued)
RS-232C Cable recommended connection: D-sub 9 pin female connector
Pin No. Signal Pin No. Signal
1.
2.
3.
4.
5.
6.
7.
8.
9.
CD
RD
SD
ER
SG
DR
RS
CS
CI
1.
2.
3.
4.
5.
6.
7.
8.
9.
CD
RD
SD
ER
SG
DR
RS
CS
CI
Projector
Pin No.
Computer
Pin No.
4
5
6
4
5
6
USB Terminal: Type B USB connector
Pin No. Signal Name
1.
2.
3.
4.
VCC
USB–
USB+
SG
USB power
USB data–
USB data+
Signal Ground
51
96
51
96
Depending on the controlling device used, it may be necessary to connect Pin 4 and Pin 6 on
the controlling device (e.g. computer).
•
Note
Depending on the controlling device used, it may be necessary to connect Pin 4 and Pin 6 on
the controlling device (e.g. computer).
•
Note
43
12
43
12
61
Appendix
RS-232C Specifi cations and Commands
Computer control
A computer can be used to control the projector by connecting an RS-232C serial
control cable (cross type, commercially available) to the projector. (See page
24.)
Communication conditions
Set the serial port settings of the computer to match that of the table.
Signal format: Conforms to RS-232C standard. Parity bit: None
Baud rate*: 9,600 bps / 38,400 bps / 115,200 bps Stop bit: 1 bit
Data length: 8 bits Flow control: None
*Set the projector's baud rate to the same rate as used by the computer.
Basic format
Commands from the computer are sent in the following order: command,
parameter, and return code. After the projector processes the command from the
computer, it sends a response code to the computer.
Command format
C1 C2 C3 C4 P1 P2 P3 P4
Return code (0DH)
Command 4-digit Parameter 4-digit
Response code format
Normal response
Problem response (communication error or incorrect command)
OK
Return code (0DH)
ERR
Return code (0DH)
Info
When controlling the projector using RS-232C commands from a computer, wait for at least 30
seconds after the power has been turned on, and then transmit the commands.
After sending an input selection or picture adjustment command and then receiving an “OK” response
code, the projector may take some time to process the command. If a second command is sent while
the projector is still processing the fi rst command, you may receive an “ERR” response code. If this
happens, try resending the second command.
When more than one code is being sent, send each command only after the response code for the
previous command from the projector is verifi ed.
“POWR????”, “TABN _ _ _ 1”, “TLPS _ _ _ 1”, “TPOW _ _ _ 1”, “TLPN _ _ _ 1”, “TLTT _ _ _ 1”,
“TLTM _ _ _ 1”, “TLTL _ _ _ 1”, “TNAM _ _ _ 1”, “MNRD _ _ _ 1”, “PJN0 _ _ _ 1”
− When the projector receives the special commands shown above:
* The on-screen display will not disappear.
* The “Auto Power Off” timer will not be reset.
− The special commands are available for applications that require continuous polling.
•
•
•
•
If an underbar (_) appears in the parameter column, enter a space.
If an asterisk (*) appears in the parameter column, enter a value in the range indicated in brackets
under Control Contents.
•
•
Note
62
RS-232C Specifi cations and Commands
(Continued)
Commands
Example: When turning on the projector, make the following setting.
Computer Projector
POWR___1
o
m
OK
CONTROL CONTENTS COMMAND PARAMETER
RETURN
Power ON
Standby mode
(or 30-second startup time)
Power
On POWR
___
1 OK or ERR OK
Off POWR
___
0 OK OK or ERR
Status POWR????10
Projector Condition
TABN
___
1 0: Normal
1: Temp High
8: Lamp Life 5% or less
16: Lamp Burn-out
32: Lamp Ignition Failure
0: Normal
1: Temp High
2: Fan Error
4: Cover Open
8: Lamp Life 5% or less
16: Lamp Burn-out
32: Lamp Ignition Failure
64:
Temp Abnormally High
Lamp
Status TLPS
___
1 0: Off, 1: On, 2: Retry
3: Waiting, 4: Lamp Error
0: Off, 4: Lamp Error
Power Status TPOW
___
1 1: On, 2: Cooling 0: Standby
Quantity TLPN
___
1 1
Usage Time(Hour) TLTT
___
1 0 – 9999(Integer)
Usage Time(Minute) TLTM
___
1 0, 15, 30, 45
Life(Percentage) TLTL
___
1 0% – 100%(Integer)
Name
Model Name Check TNAM
___
1 PGD2500X
Model Name Check MNRD
___
1 PG-D2500X
Projector Name Setting 1
(First 4 characters) *1
PJN1****OK or ERR
Projector Name Setting 2
(Middle 4 characters) *1
PJN2****OK or ERR
Projector Name Setting 3
(Last 4 characters) *1
PJN3****OK or ERR
Projector Name Check PJN0
___
1 Projector Name
Input Change
COMPUTER I RGB
___
1 OK or ERR ERR
S-VIDEO IVED
___
1 OK or ERR ERR
VIDEO IVED
___
2 OK or ERR ERR
Input RGB Check I RGB? ? ? ?1: COMPUTER or ERR ERR
Input Video Check IVED????
1: S-VIDEO, 2: VIDEO or ERR
ERR
Input Mode Check IMOD????1: RGB, 2: VIDEO ERR
Input Check ICHK????1: COMPUTER
2: S-VIDEO
3: VIDEO
ERR
Volume
Volume(0 – 60) VOLA
__
**OK or ERR ERR
Volume up/down(-10 – +10) VOUD
_
***OK or ERR ERR
Keystone
-80 – +80 KEYS****OK or ERR ERR
AV Mute
On IMBK
___
1 OK or ERR ERR
Off IMBK
___
0 OK or ERR ERR
Freeze
On FREZ
___
1 OK or ERR ERR
Off FREZ
___
0 OK or ERR ERR
Auto Sync
Start ADJS
___
1 OK or ERR ERR
Resize COMPUTER
Normal RASR
___
1 OK or ERR ERR
16:9 RASR
___
2 OK or ERR ERR
Native RASR
___
3 OK or ERR ERR
Full RASR
___
5 OK or ERR ERR
Border RASR
___
6 OK or ERR ERR
Area Zoom RASR
__
10OK or ERR ERR
V-Stretch RASR
__
11OK or ERR ERR
S-VIDEO
Normal RASV
___
1 OK or ERR ERR
16:9 RASV
___
2 OK or ERR ERR
Border RASV
___
3 OK or ERR ERR
Area Zoom RASV
__
10OK or ERR ERR
V-Stretch RASV
__
11OK or ERR ERR
VIDEO
Normal RBSV
___
1 OK or ERR ERR
16:9 RBSV
___
2 OK or ERR ERR
Border RBSV
___
3 OK or ERR ERR
Area Zoom RBSV
__
10OK or ERR ERR
V-Stretch RBSV
__
11OK or ERR ERR
All Reset
ALRE
___
1 OK or ERR ERR
63
Appendix
CONTROL CONTENTS COMMAND PARAMETER
RETURN
Power ON
Standby mode
(or 30-second startup time)
COMPUTER Input Picture Mode
Standard RAPS
__
10OK or ERR ERR
Presentation RAPS
__
11OK or ERR ERR
Movie RAPS
__
12OK or ERR ERR
Game RAPS
__
13OK or ERR ERR
sRGB RAPS
__
14OK or ERR ERR
Contrast -30 – +30 RAP I
_
***OK or ERR ERR
Bright -30 – +30 RABR
_
***OK or ERR ERR
Red -30 – +30 RARD
_
***OK or ERR ERR
Blue -30 – +30 RABE
_
***OK or ERR ERR
Color -30 – +30 RACO
_
***OK or ERR ERR
Tint -30 – +30 RAT I
_
***OK or ERR ERR
Sharp -30 – +30 RASH
_
***OK or ERR ERR
CLR Temp -1 – +1 RACT
__
**OK or ERR ERR
BrilliantColor™
0 – +2 RAWE
___
* OK or ERR ERR
Film Mode
Auto RAFM
___
0 OK or ERR ERR
Off RAFM
___
1 OK or ERR ERR
DNR
Level 1 RANR
___
1 OK or ERR ERR
Level 2 RANR
___
2 OK or ERR ERR
Level 3 RANR
___
3 OK or ERR ERR
Picture Reset RARE
___
1 OK or ERR ERR
Signal Type
Auto IASI
___
0 OK or ERR ERR
RGB IASI
___
1 OK or ERR ERR
YPbPr IASI
___
2 OK or ERR ERR
Audio Input
AUDIO 1 RAA I
___
1 OK or ERR ERR
AUDIO 2 RAA I
___
2 OK or ERR ERR
S-VIDEO Input Picture Mode
Standard VAPS
__
10OK or ERR ERR
Presentation VAPS
__
11OK or ERR ERR
Movie VAPS
__
12OK or ERR ERR
Game VAPS
__
13OK or ERR ERR
Contrast -30 – +30 VAP I
_
***OK or ERR ERR
Bright -30 – +30 VABR
_
***OK or ERR ERR
Red -30 – +30 VARD
_
***OK or ERR ERR
Blue -30 – +30 VABE
_
***OK or ERR ERR
Color -30 – +30 VACO
_
***
OK or ERR ERR
Tint -30 – +30 VAT I
_
***OK or ERR ERR
Sharp -30 – +30 VASH
_
***OK or ERR ERR
CLR Temp -1 – +1 VACT
__
**OK or ERR ERR
BrilliantColor™
0 – +2 VAWE
___
* OK or ERR ERR
Film Mode
Auto VAFM
___
0 OK or ERR ERR
Off VAFM
___
1 OK or ERR ERR
DNR
Level 1 VANR
___
1 OK or ERR ERR
Level 2 VANR
___
2 OK or ERR ERR
Level 3 VANR
___
3 OK or ERR ERR
Picture Reset VARE
___
1 OK or ERR ERR
Audio Input
AUDIO 1 VAA I
___
1 OK or ERR ERR
AUDIO 2 VAA I
___
2 OK or ERR ERR
VIDEO Input Picture Mode
Standard VBPS
__
10OK or ERR ERR
Presentation VBPS
__
11OK or ERR ERR
Movie VBPS
__
12OK or ERR ERR
Game VBPS
__
13OK or ERR ERR
Contrast -30 – +30 VBP I
_
***OK or ERR ERR
Bright -30 – +30 VBBR
_
***OK or ERR ERR
Red -30 – +30 VBRD
_
***OK or ERR ERR
Blue -30 – +30 VBBE
_
***OK or ERR ERR
Color -30 – +30 VBCO
_
***OK or ERR ERR
Tint -30 – +30 VBT I
_
***OK or ERR ERR
Sharp -30 – +30 VBSH
_
***OK or ERR ERR
CLR Temp -1 – +1 VBCT
__
**OK or ERR ERR
BrilliantColor™
0 – +2 VBWE
___
* OK or ERR ERR
Film Mode
Auto VBFM
___
0 OK or ERR ERR
Off VBFM
___
1 OK or ERR ERR
DNR
Level 1 VBNR
___
1 OK or ERR ERR
Level 2 VBNR
___
2 OK or ERR ERR
Level 3 VBNR
___
3 OK or ERR ERR
Picture Reset VBRE
___
1 OK or ERR ERR
Audio Input
AUDIO 1 VBA I
___
1 OK or ERR ERR
AUDIO 2 VBA I
___
2 OK or ERR ERR
64
CONTROL CONTENTS COMMAND PARAMETER
RETURN
Power ON
Standby mode
(or 30-second startup time)
C.M.S. Setting
On CMCS
__
11OK or ERR ERR
Off CMCS
__
00OK or ERR ERR
C.M.S. Hue
Red CMHR
_
***OK or ERR ERR
Yellow CMHY
_
***OK or ERR ERR
Green CMHG
_
***OK or ERR ERR
Cyan CMHC
_
***OK or ERR ERR
Blue CMHB
_
***OK or ERR ERR
Magenta CMHM
_
***OK or ERR ERR
Reset CMR E
___
2 OK or ERR ERR
Saturation
Red CMSR
_
***OK or ERR ERR
Yellow CMS Y
_
***OK or ERR ERR
Green CMSG
_
***OK or ERR ERR
Cyan CMSC
_
***OK or ERR ERR
Blue CMSB
_
***OK or ERR ERR
Magenta CMSM
_
***OK or ERR ERR
Reset CMR E
___
3 OK or ERR ERR
Value
Red CMV R
_
***OK or ERR ERR
Yellow CMV Y
_
***OK or ERR ERR
Green CMVG
_
***OK or ERR ERR
Cyan CMVC
_
***OK or ERR ERR
Blue CMV B
_
***OK or ERR ERR
Magenta CMVM
_
***OK or ERR ERR
Reset CMR E
___
4 OK or ERR ERR
C.M.S. All Reset CMR E
___
1 OK or ERR ERR
Clock -150 – +150 INCL****OK or ERR ERR
Phase -30 – +30 I NPH
_
***OK or ERR ERR
H-position -150 – +150 IAHP****OK or ERR ERR
V-position -60 – +60 IAVP
_
***OK or ERR ERR
Fine Sync Adjustment Reset IARE
___
1 OK or ERR ERR
Image Shift -96 – +96 LNDS
_
***OK or ERR ERR
Overscan
On OVSN
___
1 OK or ERR ERR
Off OVSN
___
0 OK or ERR ERR
OSD Display
On IMDI
___
1 OK or ERR ERR
Off IMDI
___
0 OK or ERR ERR
Video System
Auto MESY
___
1 OK or ERR ERR
PAL MESY
___
2 OK or ERR ERR
SECAM MESY
___
3 OK or ERR ERR
NTSC4.43 MESY
___
4 OK or ERR ERR
NTSC3.58 MESY
___
5 OK or ERR ERR
PAL-M MESY
___
6 OK or ERR ERR
PAL-N MESY
___
7 OK or ERR ERR
PAL-60 MESY
___
8 OK or ERR ERR
Background
Logo IMBG
___
1 OK or ERR ERR
Blue IMBG
___
3 OK or ERR ERR
None IMBG
___
4 OK or ERR ERR
Eco+Quiet
On THMD
___
1 OK or ERR ERR
Off THMD
___
0 OK or ERR ERR
Auto Sync
On AADJ
___
1 OK or ERR ERR
Off AADJ
___
0 OK or ERR ERR
Auto Power Off
On APOW
___
1 OK or ERR ERR
Off APOW
___
0 OK or ERR ERR
Auto Restart
On ARES
___
1 OK or ERR ERR
Off ARES
___
0 OK or ERR ERR
STANDBY Mode
Quick Start MOU T
___
1 OK or ERR ERR
Eco MOU T
___
0 OK or ERR ERR
PRJ Mode
Reverse
On IMRE
___
1 OK or ERR ERR
Off IMRE
___
0 OK or ERR ERR
Invert
On IMIN
___
1 OK or ERR ERR
Off
IMIN
___
0 OK or ERR ERR
RS-232C Specifi cations and Commands
(Continued)
65
Appendix
CONTROL CONTENTS COMMAND PARAMETER
RETURN
Power ON
Standby mode
(or 30-second startup time)
Language
English MEL A
___
1 OK or ERR ERR
Deutsch MEL A
___
2 OK or ERR ERR
Español ME LA
___
3 OK or ERR ERR
Nederlands ME L A
___
4 OK or ERR ERR
Français ME LA
___
5 OK or ERR ERR
Italiano ME L A
___
6 OK or ERR ERR
Svenska MELA
___
7 OK or ERR ERR
ME LA
___
8 OK or ERR ERR
Português ME LA
___
9 OK or ERR ERR
ME LA
__
10OK or ERR ERR
ME LA
__
11OK or ERR ERR
ME LA
__
12OK or ERR ERR
ME LA
__
13OK or ERR ERR
polski MEL A
__
14OK or ERR ERR
Türkçe ME LA
__
15OK or ERR ERR
ME LA
__
16OK or ERR ERR
Magyar ME LA
__
17OK or ERR ERR
Setup Guide
On SEGU
___
1 OK or ERR ERR
Off SEGU
___
0 OK or ERR ERR
Internal Speaker
On ASPK
___
1 OK or ERR ERR
Off ASPK
___
0 OK or ERR ERR
RGB Frequency Check
Horizontal TFRQ
___
1 kHz(***.* or ERR) ERR
Vertical TFRQ
___
2 Hz(***.* or ERR) ERR
Fan Mode
Normal HLMD
___
0 OK or ERR ERR
High HLMD
___
1 OK or ERR ERR
Input Search *2 Start ISES
___
1 OK or ERR ERR
Video Setup
0 IRE VISU
___
0 OK or ERR ERR
7.5 IRE VISU
___
1 OK or ERR ERR
Wall Color
Off WLCO
___
0 OK or ERR ERR
Blackboard WLCO
___
1 OK or ERR ERR
Whiteboard WLCO
___
2 OK or ERR ERR
Quick Start Menu
On QSMN
___
0 OK or ERR ERR
Off QSMN
___
1 OK or ERR ERR
DLP
®
Link
TM
Off 3DEN
___
0 OK or ERR ERR
On 3DEN
___
1 OK or ERR ERR
DLP
®
Link
TM
Invert 3D I V
___
1 OK or ERR ERR
Closed Caption
(For Americas only)
Off CLCA
___
0 OK or ERR ERR
CC1 CLCA
___
1 OK or ERR ERR
CC2 CLCA
___
2 OK or ERR ERR
Lamp Timer Reset *3
LPRE0001ERR OK or ERR
*1 For setting the projector name, send the commands in the order of PJN1, PJN2 and PJN3.
*2 When the next command is sent during input search, you may receive an “ERR” response code, and the input
search is canceled.
*3 The Lamp Timer Reset command is available only in standby mode.
66
Computer Compatibility Chart
Computer
• Multiple signal support
Horizontal Frequency: 15-110 kHz,
Vertical Frequency: 45-85 Hz,
Pixel Clock: 12-165 MHz
Sync signal: Compatible with TTL level
• Compatible with sync on green signal
PC/MAC Mode Resolution
Horizontal frequency
[kHz]
Vertical
frequency[Hz]
Display
PC
VGA
640 × 400
27.0 60
Upscale
31.5 70
37.9 85
720 × 400
27.0 60
31.5 70
37.9 85
640 × 480
26.2 50
31.5 60
34.7 70
37.9 72
37.5 75
43.3 85
SVGA 800 × 600
31.3 50
35.2 56
37.9 60
46.6 70
48.1 72
46.9 75
53.7 85
XGA 1024 × 768
40.3 50
TRUE
48.4 60
56.5 70
60.0 75
68.7 85
WXGA
1280 × 720 45.0 60
Intelligent
Compression
1280 × 768 47.8 60
1280 × 800
49.7 60
62.8 75
1360 × 768 47.7 60
1366 × 768 47.8 60
WXGA+ 1440 × 900 55.9 60
SXGA
1152 × 864
55.0 60
66.2 70
67.5 75
1280 × 960
60.0 60
75.0 75
1280 × 1024
64.0 60
80.0 75
SXGA+ 1400 × 1050
64.0 60
65.3 60
WSXGA+ 1680 × 1050 65.3 60
UXGA 1600 × 1200 75.0 60
MAC 13” VGA 640 × 480 34.9 67
Upscale
MAC 16” SVGA 832 × 624 49.7 75
MAC 19” XGA 1024 × 768 60.2 75 TRUE
MAC 21” SXGA 1152 × 870 68.7 75
Intelligent
Compression
Optimum image quality will be achieved by matching your computer's output resolution to the
resolution that corresponds to “TRUE” in the “Display” column shown above.
When “Screen resolution” of the computer is different from the resolution displayed on the projected
image, follow the procedures shown below.
– Refer to “Resolution” on the “SIG-ADJ” menu and select the same resolution as the resolution in
“Screen resolution” of the computer.
–
Depending on the computer you are using, the output signal may not be faithful to the “Screen resolution”
adjustment. Check the settings of the computer's signal output. If the settings cannot be changed, it is
recommended that the resolution be set to the one that corresponds to “TRUE” in the “Display” column.
•
•
Note
DTV
Signal
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
Signal
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
480
I
15.7 60 720P 45.0 60
480P 31.5 60
1035
I
33.8 60
540P 33.8 60
1080
I
28.1 50
576
I
15.6 50
1080
I
33.8 60
576P 31.3 50 1080P 56.3 50
720P 37.5 50 1080P 67.5 60
67
Appendix
Troubleshooting
Problem Check Page
No picture and no sound
or projector does not
start.
Projector power cord is not plugged into the wall outlet.•
24
Power to the external connected devices is off.• –
The lens shutter is closed.•
25, 29
The selected Input mode is wrong.• 29
The AV Mute function is working.• 29
Cables are incorrectly connected to the projector.• 21–24
Remote control battery has run out.• 15
External output has not been set when connecting a notebook computer.
• 21
The lamp unit cover is not installed correctly.• 57, 58
Sound is heard but no
picture appears
(or picture is dark).
Cables are incorrectly connected to the projector.•
21–24
“Bright” is set to minimum position.• 42
Depending on the computer you are using, an image may not be
projected unless the signal output setting of the computer is switched
to the external output. Refer to the computer's operation manual for
how to switch its signal output settings.
Is “On” selected in “DLP
®
Link
TM
”?
•
•
–
52
Dark or bluish image
Check that “Wall Color” is confi gured correctly.•
48
Color is faded or poor.
Image adjustments are incorrectly set.
Make adjustments of “Color” and “Tint” in “Picture Mode” and lower the
“BrilliantColor
TM
” value.
•
•
42
(S-Video, Video Input only)
Video input system is incorrectly set.
(COMPUTER/COMPONENT Input only)
Input signal type (RGB/Component) is incorrectly set.
•
•
45
44
Picture is blurred;
noise appears.
Adjust the focus.•
26
The projection distance exceeds the focus range.• 19
There is fog on the lens. If the projector is carried from a cold room into a
warm room, or if it is suddenly heated, condensation may form on the surface
of the lens and the image will become blurred. Set up the projector at least
one hour before it is to be used. If condensation should form, remove the
power cord from the wall outlet and wait for it to clear.
• –
(Computer Input only)
Perform “SIG-ADJ” Adjustments (“Clock” and “Phase” Adjustment)
Noise may appear depending on the computer.
•
•
44
–
Picture appears but no
sound is heard.
Cables are incorrectly connected to the projector.•
21–24
Volume is set to minimum.
When the projector is connected to an external device and the volume
is set to minimum, the sound is not output even if you turn up the
volume of the external device.
•
•
29
“Speaker” is set to “Off”.
The Audio Mute function is working.
•
•
49
51
Data image is not
centered.
Make the necessary adjustments of each item in the “SIG-ADJ” menu.•
44
Depending on the computer you are using, the output resolution signal
may be different from the one you have set. For details, refer to the
operation manual of the computer.
• –
An unusual sound is
occasionally heard from
the cabinet.
If the picture is normal, the sound is due to cabinet shrinkage caused
by room temperature changes. This will not affect operation or
performance.
• –
68
Problem Check Page
Maintenance indicator on
the projector illuminates
or blinks in red.
See “Maintenance Indicators”.•
54
Picture is green on
COMPUTER (Component)
Change the input signal type setting.•
44
Picture is pink
(no green) on
COMPUTER (RGB)
Picture is too bright and
whitish.
Image adjustments are incorrectly set.•
42
The cooling fan becomes
noisy.
When temperature inside the projector increases, the cooling fan runs
faster.
•
8, 9
53, 54, 55
The lamp does not light
up even after the
projector turns on.
The lamp indicator is illuminating in red.
Replace the lamp.
The lens shutter is closed.
•
•
54, 57, 58
25, 29
The lamp suddenly turns
off during projection.
The image sometimes
fl i c k e r s .
Cables are incorrectly connected to the projector or the connected
equipment works improperly.
If this happens frequently, replace the lamp.
•
•
21–24
57
The lamp needs much
time to turn on.
The lamp will eventually need to be changed.
While the remaining lamp life draws to a close, replace the lamp.
•
57
Picture is dark.
The remote control
cannot be used.
Operate the remote control while pointing it at the projector's remote
control sensor.
The remote control may be too far away from the projector.
If direct sunlight or a strong fl uorescent lamp is shining on the
projector's remote control sensor, place the projector where it will not
be affected by strong light.
•
•
•
15
The batteries may be depleted or inserted incorrectly. Make sure the
batteries are inserted correctly or insert new ones.
• 15
This unit is equipped with a microprocessor. Its performance could be adversely affected by incorrect
operation or interference. If this should happen, unplug the Unit and plug it in again after more than 5
minutes.
Troubleshooting (Continued)
69
Appendix
U.S.A. Sharp Electronics Corporation
1-888-GO-SHARP (1-888-467-4277)
http://www.sharpusa.com
Canada Sharp Electronics of Canada Ltd.
(905) 568-7140
http://www.sharp.ca
Mexico Sharp Electronics Corporation
Mexico Branch
(525) 716-9000
http://www.sharp.com.mx
Latin America Sharp Electronics Corp. Latin
American Group
(305) 264-2277
http://www.siempresharp.com
Germany Sharp Electronics (Europe) GMBH
01805-234675
http://www.sharp.de
U.K. Sharp Electronics (U.K.) Ltd.
08705 274277
http://www.sharp.co.uk/customersupport
Italy Sharp Electronics (Italy) S.P.A.
(39) 02-89595-1
http://www.sharp.it
France Sharp Electronics France
01 49 90 35 40
http://www.sharp.fr
Spain Sharp Electronica Espana, S.A.
93 5819700
http://www.sharp.es
Switzerland Sharp Electronics (Schweiz) AG
0041 1 846 63 11
http://www.sharp.ch
Sweden Sharp Electronics ( Nordic ) AB
(46) 8 6343600
http://www.sharp.se
Austria Sharp Electronics (Europe) GMBH
Branch Offi ce Austria
0043 1 727 19 123
http://www.sharp.at
Benelux SHARP Electronics Benelux BV
0900-SHARPCE (0900-7427723)
Nederland
9900-0159 Belgium
http://www.sharp.nl
http://www.sharp.be
http://www.sharp.lu
Australia Sharp Corporation of Australia Pty.
Ltd.
1300-135-022
http://www.sharp.net.au
New Zealand Sharp Corporation of New Zealand
Phone: (09) 573-0111
Fax: (09) 573-0112
http://www.sharp.net.nz
Singapore Sharp-Roxy Sales (S) Pte. Ltd.
65-226-6556
http://www.sharp.com.sg
Hong Kong Sharp-Roxy (HK) Ltd.
(852) 2410-2623
http://www.sharp.com.hk
Taiwan Sharp Corporation (Taiwan)
0800-025111
http://www.sharp-scot.com.tw
Malaysia Sharp-Roxy Sales & Service Co.
(60) 3-5125678
U.A.E. Sharp Middle East Fze
971-4-81-5311
Thailand Sharp Thebnakorn Co. Ltd.
02-236-0170
http://www.sharp-th.com
Korea Sharp Electronics Incorporated of
Korea
(82) 2-3660-2002
http://www.sharpkorea.co.kr
India Sharp Business Systems (India)
Limited
(91) 11- 6431313
For SHARP Assistance
If you encounter any problems during setup or operation of this projector, fi rst
refer to the “Troubleshooting” section on pages
67 and 68. If this operation
manual does not answer your question, please contact the SHARP Service
departments listed below.
70
Specifi cations
Model PG-D2500X
Display devices 0.55" DLP
®
Chip ×1
Resolution XGA (1024 × 768)
Lens F number F 2.4 – 2.6
Zoom Manual, ×1.20 (f = 19.0 – 22.7 mm)
Focus Manual
Input terminals Computer/Component
(mini D-sub 15 pin)
×1
S-Video (mini DIN 4 pin) ×1
Video (RCA) ×1
Audio (ø3.5 mm stereo minijack) ×1
Audio (RCA) ×1 (L/R)
Output terminal Computer/Component
(mini D-sub 15 pin)
×1
Control and
communication
terminals
USB (Type B) ×1
RS-232C (mini DIN 9 pin) ×1
Speaker 7W (Mono)
Projection lamp 210 W
Rated voltage AC 100 – 240 V
Rated frequency 50/60 Hz
Input current 2.8 A
Power consumption Eco+Quiet
Off
AC 100 V 274 W
AC 240 V 265 W
Eco+Quiet
On
AC 100 V 215 W
AC 240 V 210 W
Power consumption
(STANDBY Mode)
Quick Start AC 100 V 3.0 W
AC 240 V 3.7 W
Eco AC 100 V 0.32 W
AC 240 V 0.77 W
Operation temperature 41ºF to 95ºF (+5ºC to +35ºC)
Cabinet Plastic
Dimensions (main body only) [W × H × D] 11
52
/
64
" × 3
1
/
8
" × 9
19
/
64
"
(300 × 79 × 236 mm)
Weight (approx.) 6.2 lbs. (2.8 kg)
As a part of policy of continuous improvement, SHARP reserves the right to make design and
specifi cation changes for product improvement without prior notice. The performance specifi cation
fi gures indicated are nominal values of production units. There may be some deviations from these
values in individual units.
This SHARP projector uses a DLP
®
chip. This very sophisticated panel contains 786,432
pixels (micromirrors). As with any high technology electronic equipment such as large screen
TVs, video systems and video cameras, there are certain acceptable tolerances that the
equipment must conform to.
This unit has some inactive pixels within acceptable tolerances which may result in inactive dots
on the picture screen. This will not affect the picture quality or the life expectancy of the unit.
71
Appendix
Dimensions
Units: inches (mm)
9
19
/64 (236)
13
/32 (10)
13
/32 (10)
3
1
/8 (79)
11
52
/64 (300)
2
61
/64 (75)
1
21
/32
(41.7)
2
5
/16 (58.5)
1
15
/32
(37.3)
1
1
/2 (38)
1
31
/32 (50)
1
9
/32 (32.5)
M4
4
7
/64 (104)
8
19
/32 (218)
1
15
/16 (49)
21
/32
(16.5)
2
61
/64 (75)
4
21
/32 (118)5
27
/64 (137.5)
M4
M4 M4
72
16:9······································································30, 31
3D MODE button ······················································· 14
Accessories ······························································· 11
AC socket ··································································24
Adjustment buttons ············································· 38, 39
Adjustment foot ·························································27
All Reset ····································································52
AREA ZOOM ·····························································31
Aspect ratio ·······························································30
Audio input ································································ 29
AUDIO 1, 2 terminals ················································· 23
Audio Mute ································································ 51
Auto Power Off ··························································49
Auto Restart ······························································49
Auto Sync (Auto Sync adjustment) ····················· 33, 49
AUTO SYNC button···················································33
AV MUTE button ························································ 29
Background ······························································· 48
Batteries ····································································15
Blue ···········································································48
BORDER ······························································30, 31
BREAK TIMER button ···············································32
Bright ········································································· 42
BrilliantColor
TM
··························································42
Clock ·········································································44
Closed Caption ·························································· 47
CLR Temp (Color Temperature) ································· 42
C.M.S. ·······································································42
Color ·········································································· 42
Complete Menu ·························································39
COMPUTER/
COMPONENT input terminal
········· 21, 22
Contrast ·····································································42
DIN-D-sub RS-232C adaptor ····································11
DLP
®
Link
TM
·······························································52
DLP
®
Link
TM
Invert ·····················································52
DNR ··········································································· 43
Eco+Quiet···························································· 32, 43
ECO+QUIET button ···················································32
ENTER button ···························································· 38
Exhaust vent ························································ 12, 53
Fan Mode ·································································· 50
Film Mode ·································································· 43
Focus ring ··································································26
FREEZE button ·························································· 33
FULL ·········································································· 30
FUNCTION button ·····················································14
FUNCTION Button setting ·········································51
HEIGHT ADJUST lever ··············································27
H-Pos ········································································44
Image shift ·································································46
Information ································································39
INPUT modes ····························································29
Input Search Start ·····················································39
Intake vent ···························································12, 53
Kensington Security Standard connector ·················13
Keycode ···································································50
Keylock ····································································· 51
KEYSTONE button ··················································· 28
Keystone Correction ············································ 28, 46
Lamp ·········································································56
Lamp indicator ··························································54
Lamp Timer (Life) ·······················································52
Lamp unit ··································································57
Language (on-screen display language) ··················· 48
L-CLICK/EFFECT button ····································· 32, 34
Lens shutter ························································· 25, 29
MAGNIFY buttons ·····················································33
MENU button ····························································· 38
MONITOR OUT terminal ············································23
MOUSE/Adjustment buttons ······························· 34, 38
NATIVE ······································································· 30
NORMAL ·····························································30, 31
ON button ·································································· 25
Optional accessories ·················································11
OSD Display ····························································· 47
Overscan ···································································47
PAGE DOWN button ··················································34
PAGE UP button ························································ 34
PDF············································································ 10
Phase·········································································44
Picture Adjustment ···················································41
Picture Mode ······················································· 33, 41
PICTURE MODE button ············································33
POINTER button ························································ 32
Power cord ································································ 24
Power indicator ·························································54
PRJ-ADJ1/2·······························································49
PRJ Mode ···························································· 20, 48
Quick Start Menu ······················································39
R-CLICK/RETURN button ··································· 34, 38
Red ············································································ 42
Remote control ·························································· 14
Remote control sensor ·············································· 15
Replacing the lamp··············································56, 57
Resize ·································································· 30, 46
RESIZE button ··························································· 30
Resolution ·································································44
RGB cable ·································································21
RS-232C terminal ······················································24
SCR-ADJ ··································································· 46
Screen Size and Projection Distance ························ 19
Security bar ·······························································13
Setup Guide ························································26, 48
Sharp ········································································· 42
SIG-ADJ ····································································44
Signal Info ·································································· 45
Signal Type ································································ 44
Speaker ·····································································49
SPOT button ······························································ 32
STANDBY button ······················································· 25
STANDBY Mode ························································ 52
STANDBY/ON button ················································ 25
Supplied accessories ················································11
S-VIDEO terminal ······················································22
System Lock ······························································ 50
Temperature warning indicator ··································54
Tint·············································································42
USB terminal ·····························································34
Video Setup ·······························································45
Video System ····························································45
VIDEO terminal ·························································· 22
VOL (Volume) buttons ················································ 29
V-Pos ········································································· 44
V-STRETCH ······························································· 31
Wall Color ·································································· 48
Zoom ring ·································································· 27
Index
