REFRIGERATOR
LSC27911**
Owner´s Manual
Manuel d’utilisateur
Prière de lire attentivement le présent manuel
avant d’utiliser le réfrigérateur. Conserver à portée
de main pour pouvoir le consulter à tout moment.
REFRIGERATEUR
2
TABLE OF CONTENTS
Important Safety Instructions
Grounding Requirements
Refrigerator Features
Refrigerator Installation
Unpacking you Refrigerator
Installation
Base Grille Installation
Handle Removal
Removing and Replacing Refrigerator Doors
Door Alignment
Using Your Refrigerator
Ensuring Proper Air Circulation
Control Panel Features
Adjusting Control Settings
Food Storage Guide
Storing Frozen Food
Water Dispenser
Door Rack and Support
Crisper and Crisper cover
Snack Pan
Refrigerator Shelves
Freezer Shelf
Ice storage Bin
Icemaker cover
Water Filter
Care and Cleaning
General Cleaning Tips
Outside
Inside Walls
Door Liners and Gaskets
Plastic Parts
Back Cover
Lamp Replacement
Power Interruptions
When you go on vacation
When you move
Operations Instructions
When You Should Set The Icemaker Power
Switch To (off)
Normal Sound you may Hear
Connecting the Water Line
Before you begin
What you will need
Installation Instructions
Troubleshooting Guide
Warranty
17-19
17
17
17
17
17
17
17-18
18
18
18-19
19
19
19
20-22
20
20
21-22
23-27
28
3
4
5
6 - 9
6
6
6
7
7 - 8
9
10-16
10
10-11
12
12
13
13-14
14
14
14
15
15
15
15
16
3
SAVE THESE INSTRUCTIONS
This guide contains many important safety messages. Always read and obey.
This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can
kill or hurt you or others, or cause damage to the product. All safety messages will be preceded by
the safety alert symbol and the hazard signal word DANGER, WARNING, or CAUTION. These
words mean:
You will be killed or seriously injured if you don’t follow instructions.
You can be killed or seriously injured if you don’t follow instructions.
Indicates an imminently hazardous situation which, if not avoided, may result in minor or
moderate injury, or product damage only.
All safety messages will identify the hazard, tell you how to reduce the change of injury and tell you what can
happen if the instructions are not followed.
To reduce the risk of fire, electric shock or injury to
persons when using your product, basic safety
precautions should be followed, including the
following. Read all instructions before using this
appliance:
• NEVER unplug your refrigerator by pulling on the
power cord. Always grip the plug firmly and pull it
straight out from the outlet.
• Repair or replace immediately all electric service cords
that have become frayed or otherwise damaged. Do
not use a cord that shows cracks or abrasion damage
along its length or at either the plug or connector end.
• When moving your refrigerator away from the wall, be
careful not to roll over or damage it in any way.
• Do not crush or damage the water line.
• Do not store or use gasoline or other flammable (vapors
or liquids) in the vicinity of this or any other appliance.
• Do not allow children to climb, stand or hang on the
refrigerator doors or shelves in the refrigerator. They
could damage the refrigerator and seriously injure
themshelves.
• Keep fingers out of ‘pinch point’ areas; clearances
between the doors and cabinet are necessarily small.
Be careful when you open the doors when children are
in the area.
• Unplug your refrigerator before cleaning or making any
repairs.
NOTE: We strongly recommend that any servicing be
performed by a qualified individual.
• Before replacing a burned-out light bulb, unplug the
refrigerator or turn off power at the circuit breaker or
fuse box in order to avoid contact with a live
filament. (A burned-out light bulb may break when
being replaced).
NOTE: Setting either or both controls to the OFF
position does not remove power to the light circuit.
• Do not store bottles in the freezer compartment, they
may break when frozen, causing damage.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
• The refrigerator-freezer should be positioned so that
supply plug is accessible for quick disconnection when
accident happens.
• For personal safety, this appliance must be properly
grounded. Have the wall outlet and the circuit checked
by a qualified electrician to make sure the outlet is
properly grounded.
• This refrigerator must be properly installed in
accordance with the Attention Installer Instructions that
were taped to the front of the refrigerator.
• After your refrigerator is in operation, do not touch the
cold surfaces in the freezer compartment when hands
are damp or wet. Skin may adhere to the extremely
cold surfaces.
• In refrigerator with automatic icemakers, avoid contact
with the moving parts of the ejector mechanism, or with
the heating element that releases the cubes.
DO NOT place fingers or hands on the automatic ice
making mechanism while the refrigerator is plugged in.
• DO NOT refreeze frozen foods which have thawed
completely. The United States Department of
Agriculture in Home and Garden Bulletin No. 69 says:
“...You may safely refreeze frozen foods that have
thawed if they still contain ice crystals or if they are still
cold below 40 °F (4 °C).”
“Thawed ground meats, poultry, or fish that have any
off-odor or off-color should not be frozen and should not
be eaten. Thawed ice cream should be discarded. If the
odor or color of any food is poor or questionable, get rid
of it. The food may be dangerous to eat.”
“Even partial thawing and refreezing reduces the eating
quality of foods, particulary fruits, vegetables and
prepared foods. The eating quality of red meats is
affected less than that of many other foods. Use
refrozen foods as soon as possible to save as much of
their quality as you can.”
SAVE THESE INSTRUCTIONS
IMPORTANT:
Please read carefully.
TO CONNECT ELECTRICITY
Electrical Shock Hazard
FOR PERSONAL SAFETY,this appliance must be
properly grounded. Have the wall outlet and the
circuit checked by a qualified electrician to make sure
the outlet is properly grounded.
WARNING
4
RECOMMENDED GROUNDING METHOD
The refrigerator should always be plugged into its own
individual properly grounded electrical outlet rated for
115 V / 60 Hz, AC only, and fused at 15 or 20 amperes.
This provides the best performance and also prevents
overloading house wiring circuits which could cause a
fire hazard from overheated wires. It is recommended
that a separate circuit serving only this appliance be
provided. Use a receptacle which cannot be turned off
with a switch or pull chain. Do not use an extension
cord.
USE OF EXTENSION CORD
Because of potential safety hazards under certain
conditions, we strongly recommend against the use of
an extension cord. However, if you still elect to use an
extension cord, it is absolutely necessary that it be a
UL-listed (in the United States), 3-wire grounding type
appliance extension cord having a grounding type plug
and outlet, and that the electrical rating of the cord be
15 amperes (minimum) and 120 V.
Use of an extension cord will increase the clearance
needed for the back of the refrigerator.
3-prong
grounding type
Ensure proper
ground exists
before use.
3-prong
grounding
plug
Child entrapment and suffocation are not problems of
the past. Junked or abandoned refrigerators are still
dangerous… even if they will sit for “just a few days”.
If you are getting rid of your old refrigerator, please
follow the instructions at right to help prevent accidents.
Your old refrigerator may have a cooling system that
used CFCs (chlorofluorocarbons). CFCs are believed to
harm stratospheric ozone. If you are throwing away your
old refrigerator, make sure the CFC refrigerant is
removed for proper disposal by a qualified servicer. If
you intentionally release this CFC refrigerant, you can
be subject to fines and imprisonment under provisions
DANGER: RISK OF CHILD ENTRAPMENT
Before you throw away your old
Refrigerator or freezer:
• Take off the doors.
• Leave the shelves in place so that children
may not easily climb inside.
CFC DISPOSAL
GROUNDING REQUIREMENTS
of environmental legislation. This appliance contains
fluid (refrigerant, lubricant), and is made of parts and
materials which are reusable and / or recyclable. All the
important materials should be sent to the collection
center of waste material and can be reused after rework
(recycling). To recycle, please contact your local agency.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do
not play with the appliance.
Where a standard two-prong wall outlet is encountered,
it is your personal responsibility and obligation to have
it replaced with a properly grounded three-prong wall
outlet. Do not, under any circumstances, cut or remove
the third (Ground) prong from the power cord.
NOTE: Before performing any type of installation,
cleaning, or removing a light bulb, turn the control
(Thermostat, Refrigerator Control or Freezer Control,
depending on the model) to OFF and then disconnect
the refrigerator from the electrical source. When you
are finished, reconnect the refrigerator to the electrical
source and reset the control (thermostat, refrigerator
control or freezer control, depending on the model) to
the desired setting.
WARNING
POWER CORD REPLACEMENT
If the power cord is damaged, it must be replaced
by the manufacturer, by our service center or by
qualified personal by LG Electronics, to avoid some
risk.
wall receptacle
5

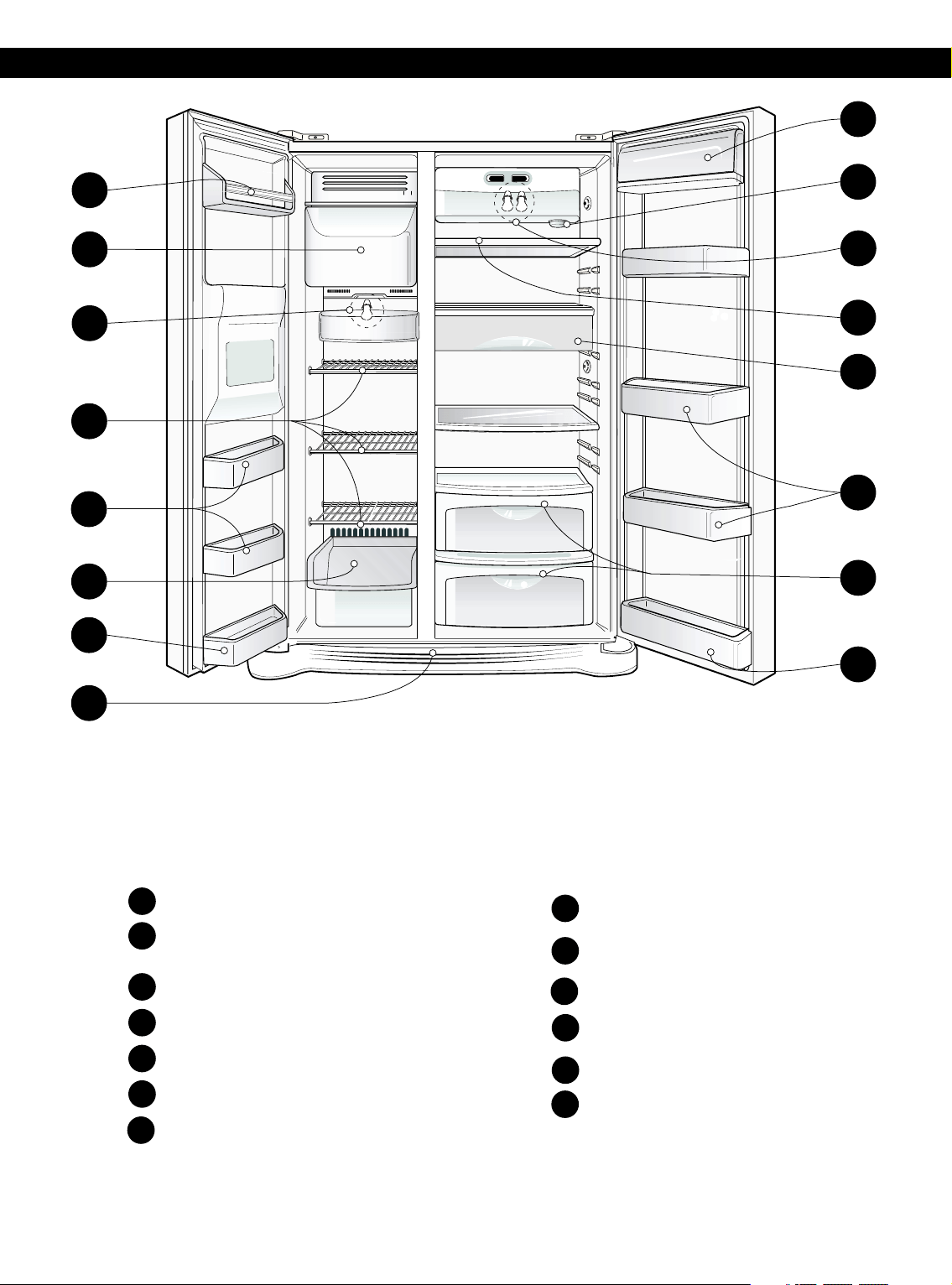

REFRIGERATOR FEATURES
Use this page to become more familiar with the parts and features. Page references are included for your
convenience.
Note: This guide covers several different models.The refrigerator you have purchased may have some or
all of the items listed below. The locations of the features shown below may not match your model.
Refrigerator Door Rack
Dairy Corner
J
L
M
K
Refrigerator Shelf
Freezer Door Rack
Freezer Shelf
Drawer
B
C
D
A
E
Vegetable Drawer
F
G
I
Ice Bin
For storage of dairy products
such as butter and cheese.
Freezer Lamp
Base Grille
Snack Pan
For storage of meat or fresh food.
Water Filter
H
Refrigerator Lamp
A
B
C
D
A
A
E
F
M
J
L
L
K
For storage of ice cubes made by the icemaker.
Do not store anything except ice in the ice bin.
G
H
I
REFRIGERATOR INSTALLATION
6
UNPACKING YOUR REFRIGERATOR

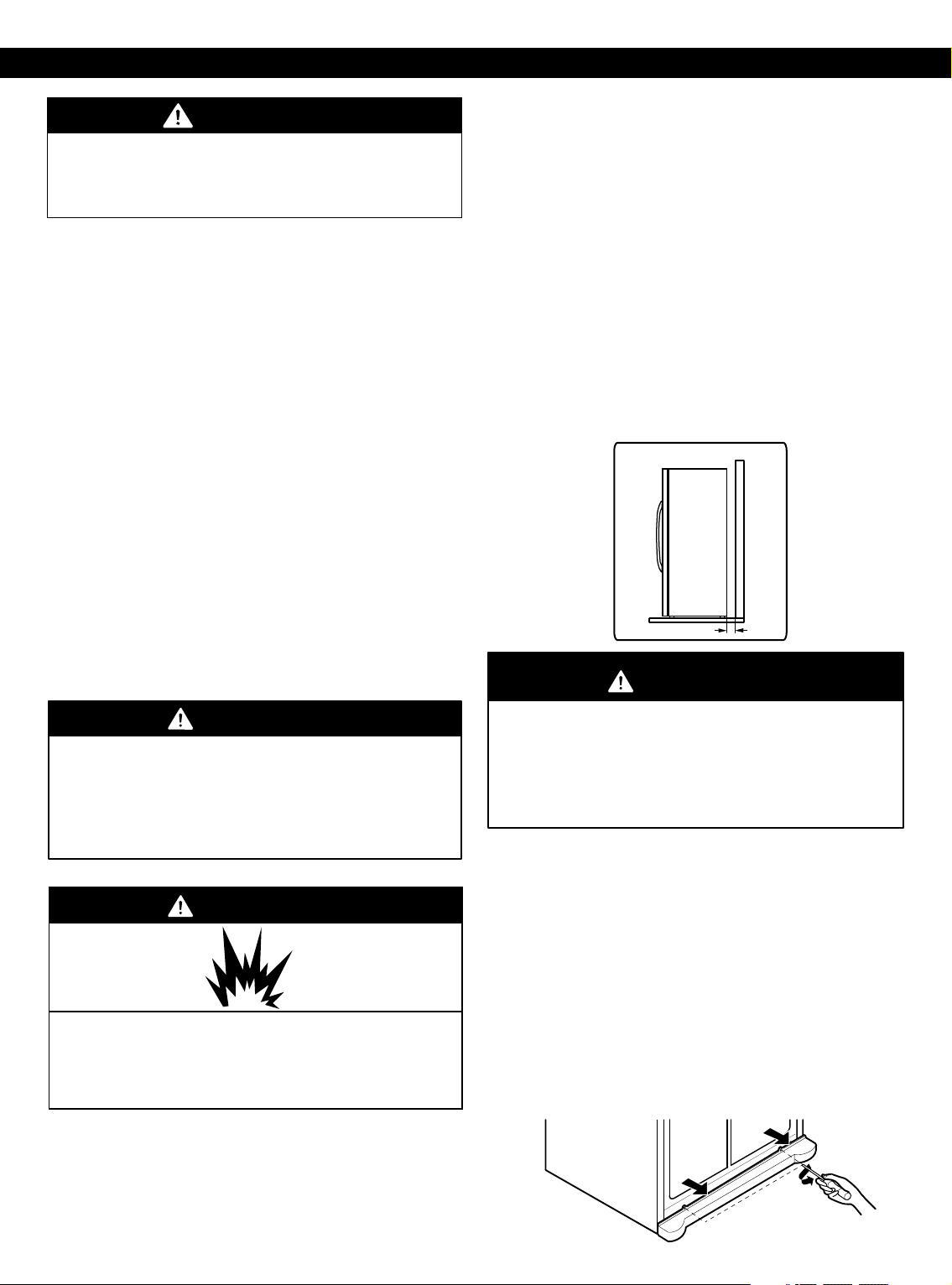

When Moving Your Refrigerator:
Your refrigerator is heavy. When moving the
refrigerator for cleaning or service, be sure to protect
the floor. Always pull the refrigerator straight out when
moving it. Do not wiggle or walk the refrigerator when
trying to move it, as floor damage could occur.
INSTALLATION
WARNING
Excessive Weight Hazard
Use two or more people to move and install
Refrigerator.
WARNING
Keep flammable materials and vapors, such as
gasoline, away from refrigerator.
Failure to do so can result in death, explosion or fire.
Explosion Hazard
WARNING
1. Avoid placing unit near heat sources, direct sunlight or
moisture.
2. To minimize noise and vibration, the refrigerator
MUST be installed on a solidly constructed floor.
3. Carpeting and soft tile surfaces are not recommended.
4. NEVER install the refrigerator on a platform or a
weakly supported structure.
5. Install this appliance in an area where the
temperature is between 41 °F (5 °C) and 110 °F
(43 °C). If the temperature around the appliance is too
low or high, cooling ability may be adverseley affected.
NOTE: For proper air circulation, best cooling and
energy consumption results, maintain a minimum
distance of 2 inches (5.08cm) from adjacent items and
surfaces.
2” (5.08 cm)
WARNING
• Be careful when you work with hinge, base grille,
stopper, etc. You may be injured.
• Do not put hands or metal sticks into air vents, base
grille or bottom or refrigerator. You may be injured or
receive an electrical shock.
Remove tape and any temporary labels from your
refrigerator before using. Do not remove any warning
type labels the model and serial number label.
To remove any remaining tape or glue, rub the area
briskly with your thumb. Tape or glue residue can also
be easily removed by rubbing a small amount of liquid
dish soap over the adhesive with your fingers. Wipe with
warm water and dry.
Do not use sharp instruments, rubbing alcohol,
flammable fluids or abrasive cleaners to remove tape or
glue. These products can damage the surface of your
refrigerator. For more information, see the Important
Safety Instructions section.
Refrigerator shelves are installed in the shipping
position.
Please reinstall shelves according to your individual
storage needs.
Failure to do so can result in back or other injury.
BASE GRILLE INSTALLATION
To remove the base grille
To install or replace Base Grille:
1. Open the doors (Refrigerator and Freezer).
2. Remove the 2 screws from the bottom front part of
Refrigerator.
3. Place Base Grille into position and insert and tighten
screws.
1. Open the doors (Refrigerator and Freezer).
2. Once doors are open, remove screws from Base
Grille and remove.
3. Reattach screws to the base of refrigerator.
REFRIGERATOR INSTALLATION
7
REMOVING AND REPLACING
REFRIGERATOR DOORS
WARNING
Electric Shock Hazard
• Disconnect electrical supply to the refrigerator
before installing. Failure to do so could result in
death or serious injury.
• Do not put hands or feet or other objects into the
air vents, base grille, or bottom of the refrigerator.
You may be injured or receive an electrical shock.
• Be careful when you work with the hinge, base
grille, and stopper. You may be injured.
Before remove the doors, remove the Base Grille.
See BASE GRILLE INSTALLATION for reference.
To remove the right (refrigerator) door:
HANDLE REMOVAL
NOTE: It is ALWAYS recommended to remove the
refrigerator doors when it is necessary to move the
refrigerator through a narrow opening. If necessary,
follow the directions below to remove the door handles.
•
NOTE: If
Loosen the set screws with a 3/32” (2.38 mm) Allen
wrench and remove the handle.
the handle mounting fasteners need to be
tightened or moved, use a 1/4” (6.35 mm) Allen wrench.
Mounting
fasteners
Set screw
Allen Wrench
CAUTION: When lifting the hinge free of the latch,
be careful that the door does not fall forward.
(1)
(2)
(3
)
(4)
(5)
1. Open the door. Remove the top hinge cover screw
3. Rotate the hinge lever (3) clockwise. Lift the top hinge
2. Use a flat blade screwdriver to pry back the hooks
(not shown) on the cabinet underside of the cover (2).
Lift up the cover.
4. Lift the door from the lower hinge pin.
5. Place the door, inside facing up, on a nonscratching
surface.
(1).
Type 2
Type 1
(4) free of the hinge lever latch (5).
(3
)
(4)
(5)
Rivet
NOTE: Regardless the type of hinge lever (3);
type1: without rivet or type 2: with rivet the
removal process is the same.
REFRIGERATOR INSTALLATION
8
Removing the left (freezer) door with water line
connection.
• Pull up the water feed tube while pressing area
(Figure 1) as shown in the figure below.
If a tube end is deformed or abraded, trim the
part away. Disconnecting the tube under the door
causes about 1.5 liters water to flow out. Put a large
container at end of tube to prevent water from draining
onto the floor.
• NOTE:
Figure 1
1. Open the door. Remove the top hinge cover screw (1).
2. Use a flat blade screwdriver to pry back the hooks
(not shown) on the cabinet underside of the cover (2).
Lift up the cover.
3. Disconnect all the wire harnesses (3).
4. Remove the grounding screw (4).
5. Rotate hinge lever (5) counterclockwise. Lift the top
CAUTION: When lifting the hinge free of the latch,
be careful that the door does not fall forward.
7. Place the door, inside facing up, on a nonscratching
surface.
6. Lift the door from the lower hinge pin being careful to
pull the water lines through the lower hinge pin.
hinge (6) free of the hinge lever latch (7).
(1)
(2)
(3)
(5)
(6)
(7)
(4)
Type 2
Type 1
(6)
(5)
Rivet
NOTE: Regardless the type of hinge lever (5);
type1: without rivet or type 2: with rivet the
removal process is the same.
(7)
Reinstalling the rigth (Refrigerator) door
2. Fit top hinge (4) over hinge lever latch (5) into
place. Rotate lever (3) counterclockwise to secure
3. Hook tab on switch side of corner under edge of wire
opening in cabinet top. Position cover (2) into place.
Insert and tighten cover screw (1).
hinge.
1. Place the door onto the lower hinge pin.
2. Fit top hinge (6) over hinge lever latch (7) and into
place. Rotate lever (5) clockwise to secure hinge
3. Install the grounding screw (4) and connect all the
wire harnesses (3).
4. Hook tab on door switch side of cover (2) under edge
of wire opening in cabinet top. Position cover into
place. Insert and tighten cover screw (1).
1. Feed the water tubes through the lower hinge pin and
place the door onto the lower hinge pin.
Reinstalling the left (Freezer) door
(1)
(2)
(3)
(5)
(6)
(7)
(4)
(1)
(2)
(3)
(4)
(5)
5. Reconnect the water tubes by inserting the tubes into
the connectors.
NOTE: Regardless the type of hinge lever (5);
type1: without rivet or type 2: with rivet the
removal process is the same.
Type 2
Type 1
(5)
(6)
(7)
Rivet
NOTE: Regardless the type of hinge lever (3);
type1: without rivet or type 2: with rivet the
removal process is the same.
Type 2
Type 1
(3
)
(4)
(5)
Rivet
REFRIGERATOR INSTALLATION
9
DOOR ALIGNMENT
Before adjust the doors, remove the Base Grille.
See BASE GRILLE INSTALLATION for reference.
If the freezer compartment door is lower than
the refrigerator compartment door, make them
level by inserting flat blade screwdriver into the
groove of the left leveling leg and rotating it
clockwise.
Left leveling
leg
Height
If the freezer compartment door is higher than the
refrigerator compartment door, make them level by
inserting flat blade screwdriver into the groove of
the right leveling leg and rotating it clockwise.
Left leveling leg
Height
difference
Adjust the level when the refrigerator door is lower than
the freezer door during the installation of the refrigerator.
Tools you need
• Wrench 5/16 in (8 mm)
• Wrench 3/4 in (19 mm)
AFTER LEVELING THE DOOR HEIGHT
Make sure the front leveling legs are completely
touching the floor.
difference
Height
difference
Height
difference
Height
difference
Height
difference
Using a ¾” (19 mm) wrench, turn the keeper nut clockwise
to lossen the keeper nut.
Keeper nut
Adjustment
hinge pin
Wrench
Up
Down
Using a 5/16” (8 mm) wrench, turn the adjustment hinge pin
clockwise or counterclockwise to level the refrigerator and
After setting the level door, turn the keeper nut
counterclockwise to tighten.
Do not over tightening the door adjustment screw. The
hinge pin can be pulled out. (Adjustable range of height is a
maximum of ½” (1.27 cm)).
freezer door.
• Do not block any of these vents with food packages.
If the vents are blocked, airflow will be interruped and
temperature and moisture problems may occur.
IMPORTANT:
Because air circulates between both sections, any odors
formed in one section will transfer to the other. You must
thorougly clean both sections to eliminate odors.
To prevent odor transfer and drying out food, wrap or
cover foods tightly. (See the Food Storage Guide
section for details.)
Note: If you
close the
refrigerator
forcefully, the
freezer
door may open
and close again
due to pressure
from internal air
flow.
NEXT
1. Clean your refrigerator thoroughly and wipe off dust
accumulated during shipping.
2. Install accessories such as ice cube bin, drawers,
shelves, etc., in their proper places. They are packed
together to prevent possible damage during shipment.
3. Let your refrigerator run for at least 2 or 3 hours
before putting food in it. Check the flow of cold air in
the freezer compartment to ensure proper cooling.
Your refrigerator is now ready for use.
USING YOUR REFRIGERATOR
ENSURING PROPER AIR CIRCULATION
In order to ensure proper temperatures, air must flow
between the refrigerator and freezer sections. As shown
in the illustration below, cool air enters through the
refrigerator of the freezer section and moves up. Most of
the air then flows through the freezer section vents and
recirculates under the freezer floor. The rest of the air
enters the refrigerator section through the top vent.
CONTROL PANEL FEATURES
10
Display Off Mode
The display lights up and stays lit when the refrigerator
is plugged in. You can change the display so that it
lights up only when the door is opened. Press
"FRZ TEMP" and "ICE PLUS" buttons at the same time
for 5 seconds. A tone will sound indicating that the
display is Off. Once in Display Off mode, display only
lights when door is opened or display button is pressed.
Display turns off 30 seconds after door is closed or by
pressing display button a second time. Deactivate
Display Off Mode in same manner as activation.
REFRIGERATOR AND FREEZER
CONTROLS:
Initially set the refrigerator and freezer controls to the
recommended (middle) settings by pressing
(REF.TEMP Graphic) and (FRZ. TEMP Graphic).
NOTE: When changing control settings, wait 24 hours
before making additional adjustments. After 24 hours,
adjust the compartments temperatures as desired. The
more lit bars, the colder the refrigerator and freezer
will be.
USING YOUR REFRIGERATOR
11
Buzzer sound mute mode
The buzzer sound is set to OFF. It activates by sounding
the recognition sound of “Ding~” after pressing and
holding “Ice Plus” button more than 5 seconds. It
inactivates when resetting the mode power.
Dispenser selection
You can select water or ice.
• Select Water, Crushed Ice or Cubed Ice by pressing
the button as to the selection desired. The Water,
Crushed Ice or Cubed Ice icon will light up to indicate
selection.
Light the cubed ice lamp by pressing the
selection button.
Light the water lamp by pressing the
selection button.
Light the crushed ice lamp by pressing the
selection button.
To dispense water or ice, gently push your cup against
the dispenser pad.
NOTE: Hold your cup in place for a couple of seconds
after dispensing ice or water so the last few drops go in
your cup instead of on the floor.
Door Alarm
When either refrigerator or freezer door is left open for
more than 60 seconds, an alarm will sound 3 times at
thirty-second intervals if the refrigerator or freezer door
is left open for more than sixty seconds. To let you know
the door is open.
Please contact the local service center if warning tone
continues to sound even after closing the door.
Filter condition
(filter replacement cycle)
• There is a replacement indicator light for the water
filter cartridge on the dispenser.
• Water filter needs replacement once every six months.
• Filter light comes on to let you know when to replace
filter.
• After the filter, press and hold the lock button more
than 3 seconds. FILTER RESET, HOLD 3 SECS text
turn off filter light.
* Whenever pressing button, setting is repeated in order
Freezer Compartment temperature adjustment.
Bar Indication
Refrigerator Compartment temperature adjustment.
(Cold) (Colder) (Medium Cold) (Very Cold) (Coldest)
of:
• The actual inner temperature varies depending on the
food status, as the indicated setting temperature is the
target temperature, not actual temperature within
refrigerator.
• Please adjust temperature as above after using
refrigerator for a minimum 2-3 days.
→ →
→
→
The Lock button deactivates the temperature
controls and dispenser functions.
Press and hold button for 3 seconds or until the Lock
indicator light is lit.
To disable the Lock function, press and hold button for 3
seconds or until the Lock indicator light is off.
Ice Plus
Lock
• “OFF-ON-OFF” is repeated whenever pressing button.
• The arrow mark graphic remains at the ON status after
flikering 4 times when selecting special refrigeration
ON.
• Prompt freezer function automatically turns off after a
fixed time passes.
Bar Indication
USING YOUR REFRIGERATOR
12
CONDITION/
REASON :
RECOMMENDED
ADJUSTMENT:
REFRIGERATOR section too
warm
– Door opened often
– Large amount of food added
–
Room temperature very warm
FREEZER section too
warm/ice not made fast enough
– Door opened often
– Large amount of food added
– Very cold room temperature
(Compressor doesn't cycle
often enough)
– Heavy ice usage
– Air vents blocked by items
REFRIGERATOR section too
cold
– Controls not set correctly for
your conditions
FREEZER section too cold
– Controls not set correctly for
your conditions
Turn REFRIGERATOR
control to next highest
level, wait 24 hours
Move items out of
airstream
Turn FREEZER control
to next highest
level, wait 24 hours
Set REFRIGERATOR
control to next lower
level, wait 24 hours
Set FREEZER
control to next lower
level, wait 24 hours
FOOD STORAGE GUIDE
Wrap or store food in the refrigerator in airtight and
moisture-proof material unless otherwise noted. This
prevents food odor and taste transfer throughout the
refrigerator. For dated products, check date code to
ensure freshness.
Items How to
Butter or
margarine
Cheese
Milk
Eggs
Fruit
Leafy
Vegetables with
skins (carrots,
peppers)
Fish
Leftovers
Keep opened butter in a covered
dish or closed compartment.
When storing an extra supply,
wrap in freezer packaging and
freeze.
Store in the original wrapping until
you are ready to use it. Once
opened, rewrap tightly in plastic
wrap or aluminum foil.
Wipe milk cartons. For best
storage, place milk on interior
shelf, not on door shelf.
Store in original carton or Utility Bin
door shelf.
Wash, let dry, and store in
refrigerator in plastic bags or in
the crisper. Do not wash or hull
berries until you are ready to use
them. Sort and keep berries in
their original container in a
crisper, or store in a loosely
closed paper bag on a refrigerator
shelf.
Remove store wrapping and trim
or tear off bruised and discolored
areas. Wash in cold water and
drain. Place in plastic bag or
plastic container and store in
crisper.
Place in plastic bags or plastic
container and store in crisper.
Use fresh fish and shellfish the
same day purchased.
Cover leftovers with plastic wrap
or aluminum foil. Plastic
containers with tight lids can
also be used.
vegetables
(Optional) on interior shelf, not on
ADJUSTING CONTROL SETTINGS
Give the refrigerator time to cool down completely
before making final adjustments. It is best to wait 24
hours before doing this. The initial settings mentioned in
CONTROL PANEL FEATURES section should be
correct for normal household refrigerator use. The
controls are set correctly when milk or juice is as cold as
you like and when ice cream is firm.
The refrigerator control functions as the thermostat for
the entire appliance (refrigerator and freezer sections).
The colder the setting, the longer the compressor will
run to keep the temperature colder. The freezer control
Adjusts the cold air flow from the freezer to the
refrigerator. Setting the freezer control to a lower
temperature keeps more cold air in the Freezer
compartment to make it colder.
If you need to adjust temperatures in the refrigerator or
freezer, start by adjusting the refrigerator. Then wait 24
hours before checking the freezer temperature. If it is
too warm or too cold, then adjust the freezer control.
Use the settings listed in the chart below as a guide.
Always remember to wait at least 24 hours between
adjustments.
USING YOUR REFRIGERATOR
13

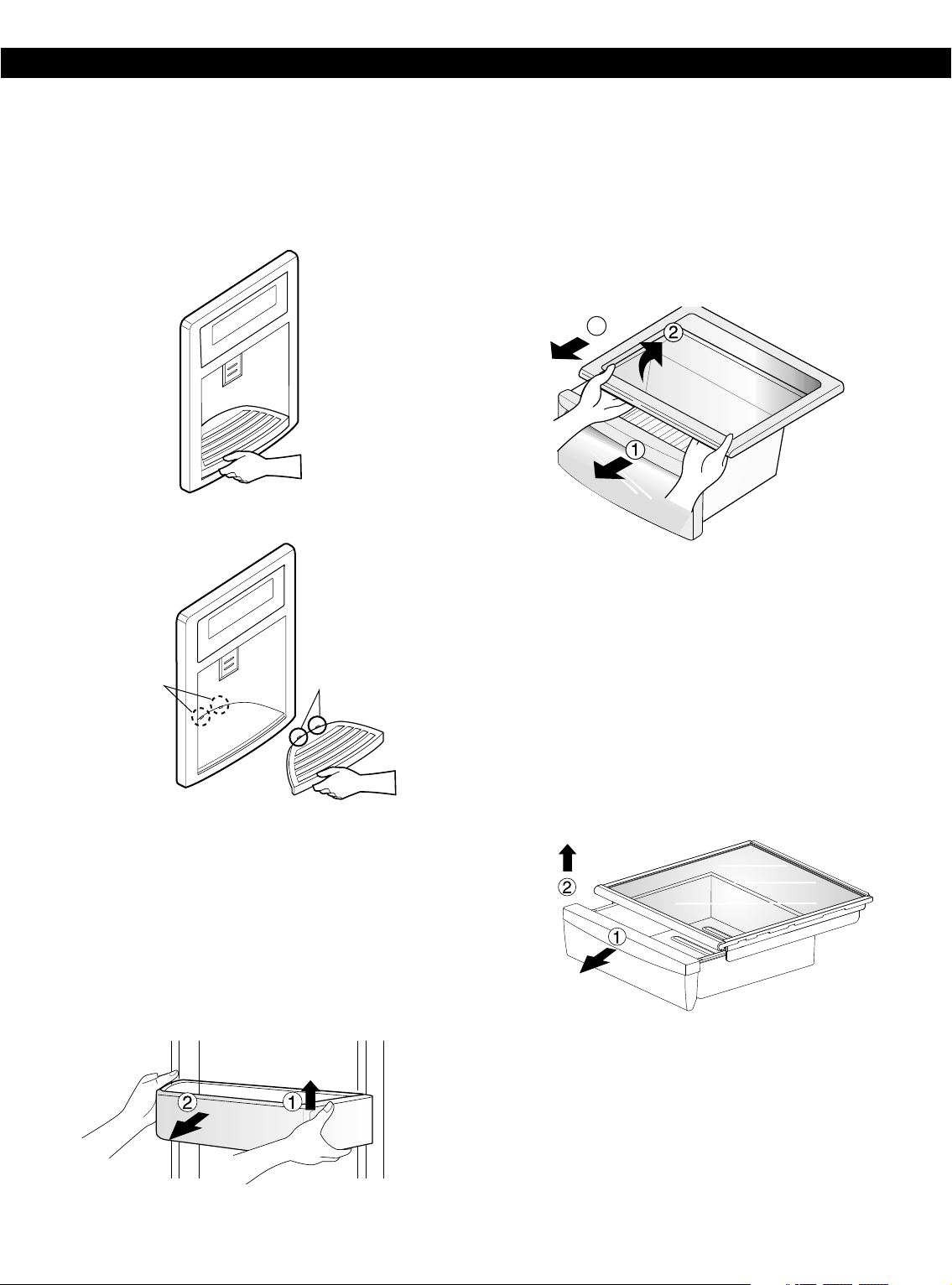

WATER DISPENSER
Your refrigerator has a mechanism that dispatch cool
water and ice cubes without open the door.
• Tray can be easily removed by pressing and pulling it.
STORING FROZEN FOOD
NOTE: For further information about preparing food for
freezing or food storage times, check a freezer guide or
a reliable cookbook.
Packaging
Successful freezing depends on correct packaging.
When you close and seal the package, it must not allow
air or moisture in or out. If it does, you could have food
odor and taste transfer throughout the refrigerator and
also dry out frozen food.
Packaging recommendations:
• Rigid plastic containers with "tight-fitting lids”
• Straight-sided canning/freezing jars
• Heavy-duty aluminum foil
• Plastic-coated paper
• Non-permeable plastic wraps
• Specied freezer-grade self-sealing plastic bags
Follow package or container instructions for proper
freezing methods.
Do not use
• Bread wrappers
• Non-polyethylene plastic containers
• Containers without tight lids
• Wax paper or wax-coated freezer wrap
• Thin, semi-permeable wrap
CAUTION: Do not keep beverage cans or plastic
food containers in the freezer compartment. They
may be break if they freeze.
Freezing
Your freezer will not quick-freeze any large quantity of
food. Do not put more unfrozen food into the freezer
than will freeze within 24 hours [no more than 2 to 3 lbs
of food per cubic foot (0.9 to 1.35 kg per cubic meter) of
freezer space]. Leave enough space in the freezer for
air to circulate around packages. Be careful to leave
enough room at the front so the door around packages.
Storage times will vary according to the quality and type
of food, the type of packaging or wrap used (airtight and
moisture-proof) and the storage temperature. Ice
crystals inside a sealed package are normal. This simply
means that moisture in the food and air inside the
package have condensed, creating ice crystals.
NOTE: Allow hot foods to cool at room temperature for
30 minutes, then package and freeze. Cooling hot foods
before freezing saves energy.
Can close tightly.
• Tilt up the front of tray slightly and snap the ribs into
the holes to reinstall the tray.
Holes
Ribs
WARNING
Do not put your hands into the water&ice dispenser
opening. Doing so maycause an injury to your hand.
USING YOUR REFRIGERATOR
14
CRISPER AND CRISPER COVER
The crisper allows a better conservation of the fruits and
vegetables, letting keep moisture in the interior easily.
• To remove the crisper compartment cover, pull out
the crisper compartment a bit to the front , lift the
front part of the cover as shown in ‚, and take it out l.
SNACK PAN
Air is entered in the refrigerator when the door is open,
unaffected cold meat due to the position of this tray.
• To remove the snack pan cover, pull out the snack pan
compartment a bit to the front , then lift the front part
of the snack pan compartment later raises a little the
snack pan compartment until it leaves the top of the
shelf as shown in ‚, and take it out.
3
DOOR RACK AND SUPPORT
Your refrigerator features with racks where you can
easily arrange packaged products.
• Lift the door rack holding both sides and pull it out in
‚ direction.
After dispenser is used
The water collector has no self-draining function. It
should be cleaned regularly. Remove the cover by
pulling the front side of water collector cover and dry it
with a cloth.
Holes
Ribs
USING YOUR REFRIGERATOR
15

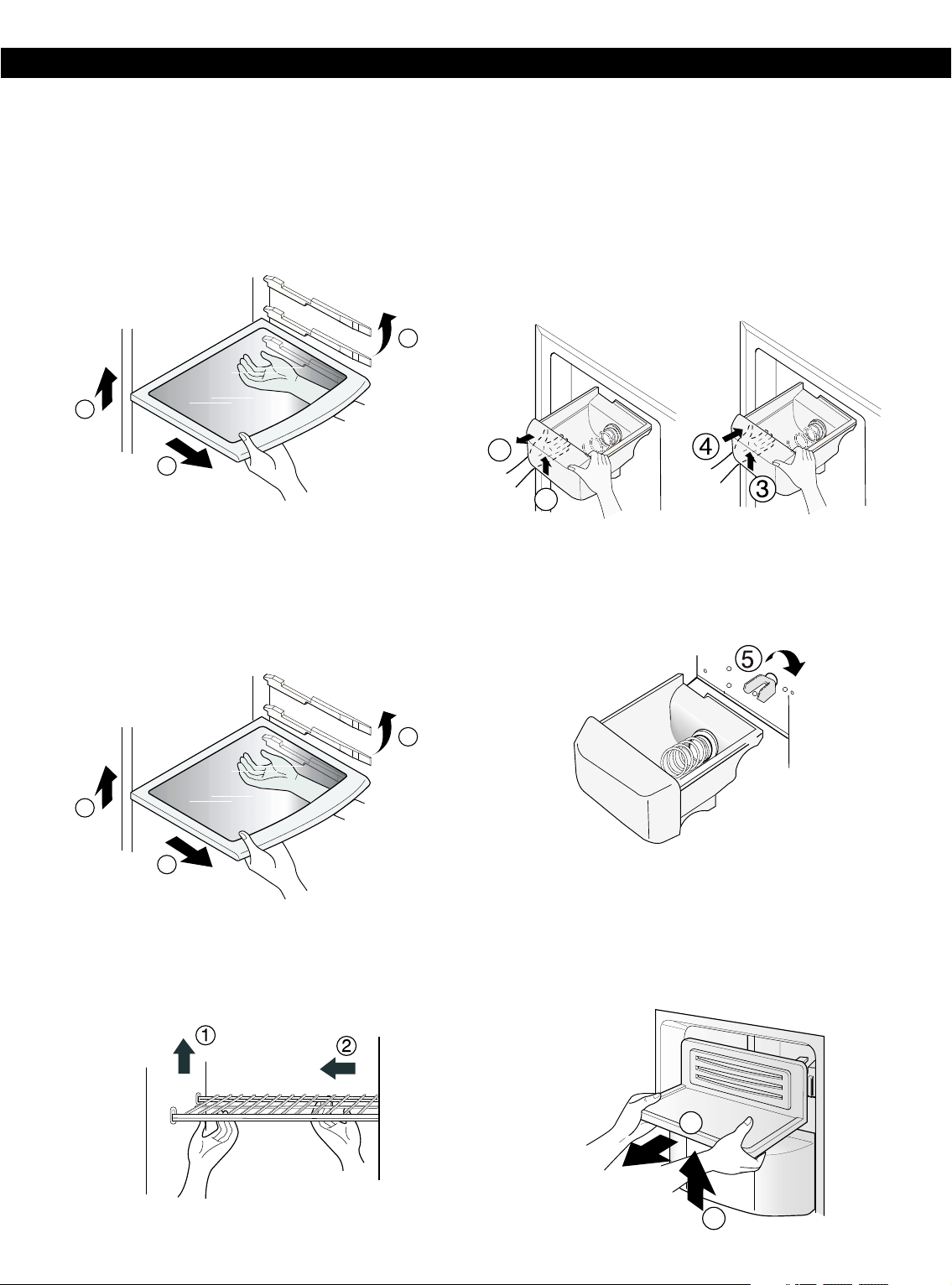

Car e and Mai nt enance
REFRIGERATOR SHELVES
The refrigerator compartment shelf is adjustable so that
you can place it at a height according to space
requirement of foods.
• Fixed shelf
Lightly lift up the front part of shelf to pull it ahead
‚, then take it out while lifting the rear part of shelf ƒ.
• Slide shelf
Pull the shelf ahead , then lift both front and rear ‚
while taking out ƒ.
NOTE: Make sure to keep shelf horizontal while
removing; otherwise it may drop.
FREEZER SHELF
• Lift the left part of the shelf a bit. Lift it to the direction
¬, push the right part to the direction k, and take it
out.
1
2
3
1
3
2
• To assemble the ice storage bin, push it ƒ while
slightly lifting it „.
Make sure it is fully engaged into the auger drive ….
If you need remove the Ice storage bin, please follow the
next steps:
NOTE: Use both hands to remove the ice bin to avoid
dropping it. If the ice bin does not slide into place easily,
twist the drive device slightly.
• Hold the ice storage bin as shown in the right figure
and pull it out while slightly lifting it ‚.
ICE STORAGE BIN
1
2
ICEMAKER COVER
If you need acces to the Icemaker, follow these steps:
1
2
• Lift the ice shelf as shown in the right figure and
pull it out ‚.
USING YOUR REFRIGERATOR
16
Removing the water filter:
1. For first-time installation, remove filter substitute cap
(A) by turning it counterclockwise a quarter turn and
pulling it down.
2. For subsequent installation, remove old filter by
slowly turning it to the left a quarter turn and pulling it
down.
Installing the water filter
Remove red cap from the filter and insert the two
tabs on the filter tip into the two slots in the
refrigerator filter receptacle. You should feel the filter
entering completely. Turn the filter to the right a quarter
turn clockwise to lock it into place. The locked symbol
will be lined up with the indicator arrow.
WATER FILTER
Before removing or installing water filter:
1. Take out the top shelf and move it to the lowest level.
2. Remove the lamp cover by pressing the tab under
the cover and pulling cover to the front.
3. IMPORTANT: Turn off household water supply.
After installing water filter
a) Replace the cover lamp and shelf to the initial
position.
b) Dispense 2.5 gallons (9.46 L) of water to purge the
system (dispense for approximately 5 minutes). Open
the refrigerator door and check the shelf area for
leaks.
c) After installing filter, turn on household water supply.
To purchase replacement water filters, call
1-877-714-7486 and ask for replacement
part no. 5231JA2002A.
A
CARE AND CLEANING
17
Both the refrigerator and freezer sections defrost
automatically. However, clean both sections about once
a month to prevent odors. Wipe up spills immediately.
GENERAL CLEANING TIPS
• Unplug refrigerator or disconnect power.
• Remove all removable parts, such as shelves,
crispers, etc. Refer to sections in Using Your
Refrigerator for removal instructions.
• Use a clean sponge or soft cloth and a mild detergent
in warm water. Do not use abrasive or harsh cleaners.
• Hand wash, rinse and dry all surfaces thoroughly.
• Plug in refrigerator or reconnect power.
OUTSIDE
Waxing external painted metal surfaces helps provide rust
protection. Do not wax plastic parts. Wax painted metal
surfaces at least twice a year using appliance wax (or auto .
paste wax). Apply wax with a clean, soft cloth..
INSIDE WALLS (allow freezer to warm up so
cloth won’t stick)
To help remove odors, you can wash the inside of the
refrigerator with a mixture of baking soda and warm water.
Mix 2 tablespoons baking soda to 1 quart of water (26 g
soda to 1 liter water.) Be sure the baking soda is
Completely dissolved so it does not scratch the surfaces of
the refrigerator.
DOOR LINERS AND GASKETS
PLASTIC PARTS (covers and panels)
WARNING
Explosion Hazard
Use non-fammable cleaner.
Failure to do so can result in death, explosion, or fire.
Do not use wax stainless steel exteriors. Use a product
specially designed for polishing stainless steel
appliances, or clean with a soft cloth or clean sponge
and a mild detergent dissolved in warm water. Dry
thoroughly with a soft cloth.
NOTE: Avoid door surface contact with chemical
products that contain Phosphate or Chlorine.
Do not use cleaning waxes, concentrated detergent,
bleaches, or cleaners containing petroleum on plastic
refrigerator parts.
Use a clean sponge or soft cloth and a mild detergent in
warm water. Wash, rinse and dry all surfaces thoroughly.
Do not use windows sprays, abrasive cleaners, or
flammable fluids. These can scratch or damage the
material. Use a clean sponge or soft cloth and a mild
detergent in warm water. Wash, rinse and dry all
surfaces thoroughly.
WARNING
ELECTRICAL SHOCK HAZARD
BACK COVER
Before you begin, either unplug the refrigerator or
turn off power at the circuit breaker or fuse box.
Failure to do so could result in death or serious injury.
NOTE: Back cover should only be removed by a
qualified technician.
Clean the vents on the
back cover. Use a vacuum
cleaner with the brush
attachment, at least twice a
year to keep your
refrigerator working
efficiently.
NOTE: Not all appliance bulbs will fit your refrigerator
Be sure to replace the bulb with one of the same size,
shape and wattage.
Electrical Shock Hazard
Before replacing a burned-out light bulb, either unplug
the refrigerator or turn off power at the circuit breaker
or fuse box.
WARNING
LAMP REPLACEMENT
CARE AND CLEANING
18
POWER INTERRUPTIONS
1. If the power will be out for 24 hours or less, keep all
refrigerator doors closed to help foods stay cold and
frozen.
2. If the power will be out for more than 24 hours:
a) Remove all frozen food and store it in a frozen
food locker.
OR
b) Place 2 lbs. (1 kg) of dry ice in the freezer for
every cubic foot (28 L) of freezer space. This will
keep the food frozen for two to four days. While
handling dry ice, wear gloves to protect your hands
WHEN YOU GO ON VACATION
To change the refrigerator lamp:
Remove cover by pressing upward on bottom and
rotating outward ‚ turn the bulb counterclockwise.
Replace with 40 watt (maximum) appliance bulb.
from frostbite.
WARNING
c) If neither a food locker nor dry ice is available,
consume or dispose of food at once.
REMEMBER: In a power failure, a full freezer
stays cold longer than a partially filled one. If you see
that food contains ice crystals, it may be affected. If
the condition of the food is poor, or if you feel it is
unsafe, dispose of it.
• DO NOT refreeze frozen foods which have thawed
completely.
The United States Department of Agriculture in Home and
Garden Bulletin No. 69 says:
...You may safely refreeze frozen foods that have thawed if
they still contain ice crystals or if they are still cold-below
4 °C.
...Thawed ground meats, poultry or fish that have any
off-odor or off-color should not be frozen and should not be
eaten.
Thawed ice cream should be discarded. If the odor or color
of any food is poor or questionable, dispose of it. The food
may be dangerous to eat.
Even partial thawing and refreezing reduces the eating
quality of foods, particulary fruits, vegetables and prepared
foods.
The eating quality of red meats is affected less than that of
many other foods. Use refrozen foods as soon as possible
to save as much of their quality as you can.
If you choose to leave the refrigerator ON while you
are away, follow these steps to prepare your refrigerator
before you leave.
1. Use up any perishables and freeze other items.
2. Empty the ice bin.
3. Turn OFF the Icemaker. NOTE: If the ambient
temperature will drop below freezing, have a qualied
service technician drain the water supply system (on
some models) to prevent serious property damage
due to possible flooding from ruptured water lines or
connections.
If you choose to turn the refrigerator OFF before you
leave, follow these steps.
1. Remove all food from the refrigerator and empty ice
bin.
2. Unplug refrigerator.
3. Clean refrigerator, wipe, and dry well.
4. Tape rubber or wood blocks to the tops of both doors
to prop them open far enough for air to get in. This
stops odor and mold from building up.
WHEN YOU MOVE
When you are moving your refrigerator to a new home,
follow these steps to prepare it for the move.
1. Remove all food from the refrigerator and pack all
frozen food in dry ice.
2. Unplug refrigerator.
3. Clean refrigerator, wipe, and dry well.
4. Empty water from the defrost pan.
5. Clean, wipe and dry thoroughly.
To change the Dispenser lamp:
Remove lamp by carefully turning
it out of socket.
Replace with a 15 watt (maximum)
appliance bulb.
CARE AND CLEANING
OPERATION INSTRUCTIONS
A newly-installed refrigerator may take
12 to 24 hours to begin making ice.
The icemaker will produce 8 cubes per cycle,
approximately 120-150 cubes in a 24-hour period,
depending on freezer compartment temperature,
room temperature, number of door openings and other
If the refrigerator is used before the water connection is
made to the icemaker, set the power switch to
O (Off).
When the refrigerator has been connected to the water
supply, set the power switch to I (On).
The icemaker will fill with water when it cools to freezing.
A newly-installed refrigerator may take 12 to 24 hours to
begin making ice cubes.
Throw away the first few batches of ice to allow the
water line to clear.
Personal Injury Hazard
Avoid contact with the moving parts of the ejector
mechanism, or with the heating element that releases
the cubes. DO NOT place fingers or hands on the
automatic icemaking mechanism while the refrigerator
is plugged in.
WARNING
operating conditions.
arm.
Be sure nothing interferes with the sweep of the feeler
When the bin fills to the level of the feeler arm, the
icemaker will stop producing ice.
It is normal for several cubes to be stuck together.
If ice is not used frequently, old ice cubes will become
cloudy, taste stale, and shrink.
NOTE: If the cube size is smaller or larger than you
expected, you can regulate the size with the cube size
button.
Every time you press the cube size button, the indicator
moves up one light. The higher the light position the
larger cubes will be. Pressing at highest position returns
WHEN YOU SHOULD SET THE ICEMAKER
POWER SWITCH TO O (OFF)
When the water supply will be shut off for several
When the ice storage bin is removed for more than a
minute or two.
When the refrigerator will not be used for several
NORMAL SOUNDS YOU MAY HEAR
The icemaker water valve will buzz as the icemaker
fills with water. If the power switch is in the I (On)
position, it will buzz even if it has not yet been hooked
up to water. To stop the buzzing, move the power
NOTE:
Keeping the power switch in the I (On) position
before the water line is connected can damage the
icemaker.
You will hear the sound of cubes dropping into the bin
and water running in the pipes as the icemaker refills.
Indicator to lowest position.
hours.
days.
switch to O (Off) position.
19
Indicator Light
Power
Switch
Feeler Arm
6. Take out all removable parts, wrap them well and
tape together so they don’t shift and rattle during the
move. Refer to sections in Using your Refrigerator for
removal instructions.
7. Depending on the model, raise the front of the
refrigerator so it rolls more easily OR screw in the
leveling legs all the way so they don’t scrape the
floor. See the DOOR ALIGNMENT section.
8. Tape the doors shut and tape the power cord to the
refrigerator cabinet.
When you get to your new home, put everything back
and refer to the REFRIGERATION INSTALLATION
section for setup instructions.
Cube size
Indicator light
CONNECTING THE WATER LINE
20
BEFORE YOU BEGIN
This water line installation is not warranted by the
refrigerator or icemaker manufacturer. Follow these
instructions carefully to minimize the risk of expensive
water damage.
Water hammer (water banging in the pipes) in house
plumbing can cause damage to refrigerator parts and
lead to water leakage or flooding. Call a qualified
plumber to correct water hammer before installing the
water supply line to the refrigerator.
To prevent burns and product damage, do not hook up
the water line to the hot water line.
If you use your refrigerator before connecting the water
line, make sure the icemaker power switch is in the O
(off) position.
Do not install the icemaker tubing in areas where
temperatures fall below freezing.
When using any electrical device (such as a power
drill) during installation, be sure the device is double-
insulated or grounded in a manner to prevent the hazard
of electric shock, or is battery-powered.
All installations local must be in accordance with
plumbing code requirements.
NOTE: Wear eye protection.
WHAT YOU WILL NEED
Copper Tubing,
1/4” (6.35 mm) outer
diameter to connect the refrigerator
to the water supply. Be sure both
ends of the tubing are cut square.
To determine how much tubing you need: measure
the distance from the water valve on the back of the
refrigerator to the water supply pipe. Then add 8 feet
(2.4 m). Be sure there is sufficient extra tubing (about 8
feet [2.4 m] coiled into 3 turns of about 10” [25 cm]
diameter) to allow the refrigerator to move out from the
wall after installation.
Be sure that the kit you select allows at least 8 feet
(2.4 m) as described above.
A cold water supply
.The water pressure must be
between 0.137 and 0.82 MPa (20 and 120 PSI or 1.4
bar and 8.2 bar) on models without a water filter and
between 0.275 and 0.82 MPa (40 and 120 PSI or 2.8
Power drill
.
Adjustable Wrench.
Flat head-and Phillips-
screwdrivers.
½” (12.7 mm) or
• Two 1/4” (6.35 mm) outer diameter
compression nuts and 2
Ferrules (sleeves) to
connect the copper tubing to
the shutoff valve and the
• If your existing copper water
line has a flared fitting at the
end, you will need an
adapter
(available at
plumbing supply stores) to
connect the water line to the refrigerator OR you can
cut off the flared fitting with a tube cutter and then use
a compression fitting.
Shutoff valve to connect to
the cold water line
. The
shutoff valve should have a
water inlet with a minimum
inside diameter of 5/32”
(3.96 mm) the point of connection to theat
COLD WATER LINE. Saddle-type shutoff valves are
included in many water supply kits. Before purchasing,
make sure a saddle-type valve complies with your
local plumbing codes.
refrigerator water valve.
bar and 8.2 bar) on models with a water filter.
• If a reverse osmosis water filtration system is
connected to your cold water supply. This water line
installation is not warranted by the refrigerator or
icemaker manufacturer. Follow next instruction
carefully to minimize the risk of expensive water
damage.
• If a reverse osmosis water filtration system is
connected to your cold water supply, the water
pressure to the reverse osmosis system needs to be a
minimum of 40 to 60 PSI
(2.8 kg•f/cm ~ 4.2 kg•f/cm , less than 2~3 sec to fill a
cup of 7 oz capacity).
If the water pressure from the reverse osmosis system
is less than 21 PSI or (1.5 kg•f/cm , more
than 4 sec to fill a cup of 7 oz capacity).
• Check to see whether the sediment filter in the reverse
osmosis system is blocked. Replace the filter if
necessary.
• Allow the storage tank on the reverse osmosis system
to refill after heavy usage.
• If the issue about water pressure from reverse osmosis
remains, call a licensed, qualified plumber.
0.27 MPa to 0.41 MPa or
0.14 MPa
2
2
2
CONNECTING THE WATER LINE
21
Drill a 1/4” (6.35 mm) hole in the water
pipe (even if using a self-
piercing valve) using a
sharp bit. Remove any burrs
resulting from drilling the
hole in the pipe. Take care
not to allow water to drain
into the drill. Failure to drill a 1/4” (6.35 mm) hole
may result in reduced ice production or smaller cubes.
3. DRILL THE HOLE FOR THE VALVE
NOTE: The hookup line cannot be white, plastic
tubing NDA tubing #49595 or 49499 or Cross Link
Polyethylene (PEX) tubing.
4. FASTEN THE SHUTOFF VALVE
Fasten the shutoff valve to the cold water pipe with
the pipe clamp.
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle valves
are illegal and use is not permitted in Massachusetts.
Consult with your licensed plumber.
5. TIGHTEN THE PIPE CLAMP
Tighten the clamp screws until the sealing washer
begins to swell.
NOTE: Do not overtighten or you may crush
the tubing.
6. ROUTE THE TUBING
Route the tubing between the cold water line and the
refrigerator.
Route the tubing through a hole drilled in the wall or
floor (behind the refrigerator or adjacent base
cabinet) as close to the wall as possible.
NOTE: Be sure there is sufficient extra tubing [about
8 feet (244 mm) coiled into 3 turns of about 10”
(25 cm) diameter] to allow the refrigerator to move
out from the wall after installation.
Vertical Cold
Water Pipe
Saddle-Type
Shutoff Valve
Pipe Clamp
Washer
Inlet End
Pipe Clamp
Clamp Screw
7. CONNECT THE TUBING TO THE VALVE
Place the compression nut and ferrule (sleeve)
for copper tubing onto the end of the tubing and
connect it to the shutoff valve. Make sure the tubing
is fully inserted into the valve. Tighten the
compression nut securely..
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle valves
are illegal and use is not permitted in Massachusetts.
Consult with your licensed plumber.
Saddle-Type
Shutoff Valve
Packing
Nut
Outlet
Valve
Ferrule (sleeve)
Compression
Nut
1. SHUTOFF THE MAIN WATER SUPPLY
Turn on the nearest faucet to relieve the pressure on
the line.
Choose a location for the valve that
is easily accessible. It is best to connect
into the side of a vertical water pipe.
When it is necessary to connect into a
horizontal water pipe, make the
connection to the top or side, eather
than at the bottom, to avoid drawing
off any sediment from the water pipe.
2. CHOOSE THE VALVE LOCATION
INSTALLATION INSTRUCTIONS
Install the shutoff valve on the nearest frequently used
drinking
water line. Only connect to the potable water
provision.
CONNECTING THE WATER LINE
22
9. CONNECT THE TUBING TO THE
REFRIGERATOR
2. Place the compression nut and ferrule (sleeve) onto
the end of the tubing.
3. Insert the end of the tubing into the connection as
far as possible. While holding the tubing, tighten the
Fasten the tubing into the tubing Clamp attached to
the back of the refrigerator.
First, loosen the screw fastening the clamp. Next,
insert the tubing in the groove. Finally, re-fasten the
screw.
10. TURN THE WATER ON AT THE
SHUTOFF VALVE
Tighten any connections that
leak.
Reattach the compressor
compartment access cover.
11. PLUG IN THE REFRIGERATOR
Arrange the coil of tubing so
that it does not vibrate against
the back of the refrigerator or
against the wall. Push the
refrigerator back to the wall.
12. START THE ICE MAKER
Set the icemaker power switch to the ON position.
The icemaker will not begin to operate until it
Reaches its operating temperature of 15 °F (-9 °C)
or below. It will then begin operation automatically if
the icemaker power switch is in the I (on) position.
fitting.
NOTES:
Before making the connection to the refrigerator, be
sure the refrigerator power cord is not plugged into
the wall outlet.
If your refrigerator does not have a water filter,
we recommend installing one. If your water supply
has sand or particles that could clog the screen of
the refrigerator’
s water valve. Install the filter in the
water line near the refrigerator
1. Remove the plastic flexible cap from the refrigerator
connection.
Do not uses old hoses, only uses new hoses provided
by the manufacturer.
CAUTION: Review not occuring leakage in the
water line.
8. FLUSH OUT THE TUBING
Turn the main water supply on
and flush out the tubing until the
water is clear.
Shut the water off at the water
valve after about one quart of
gallon of water has been
flushed through the tubing.
1/4" (6.35 mm) Tubing
Refrigerator
Connection
Tubing Clamp
1/4" (6.35 mm)
Compression
Nu
t
Ferrule
(Sleeve)
1
2
TROUBLESHOOTING GUIDE
23
REFRIGERATOR DOES NOT OPERATE
Check if... Then...
The power supply cord is unplugged. Firmly plug the cord into a live outlet with proper voltage.
A household fuse has blown or circuit
Replace the fuse or reset the circuit breaker.
breaker tripped.
The refrigerator control is set to the OFF position. Refer to the CONTROL PANEL FEATURES.
Refrigerator is in the defrost cycle.
Wait about 30 minutes for defrost cycle to end.
VIBRATION OR RATTLING NOISE
The refrigerator is not resting solidly on Floor is weak or uneven or leveling legs need adjusting.
the floor. See DOOR ALIGNMENT Section.
LAMPS DO NOT WORK
The power supply cord is unplugged. Firmly plug the cord into a live outlet with proper voltage.
Light bulb is loose in the socket.
Unplug the refrigerator. Gently remove the bulb and
reinsert. Then plug in refrigerator and reset the
UNDERSTANDING SOUNDS YOU MAY
Your new refrigerator may make sounds that your old
one didn’t make. Because the sounds are new to you,
you might be concerned about them. Most of the new
sounds are normal. Hard surfaces, like the floor, walls
and cabinets, can make the sounds seem louder than
they actually are. The following describes the kinds of
sounds and what may be making them.
• The defrost timer will click when the automatic defrost
cycle begins and ends. The thermostat control (or
refrigerator control, depending on the model) will also
click when cycling on and off.
• Rattling noises may come from the flow of refrigerant,
the water line, or items stored on top of the
• Your refrigerator is designed to run more efficiently
to keep your food items at the desired temperature.
The high efficiency compressor may cause your new
refrigerator to run longer than your old one, and you
may hear a pulsating or high-pitched sound.
• You may hear the evaporator fan motor circulating the
air through the refrigerator and freezer compartments.
• As each cycle ends, you may hear a gurgling sound
due to the refrigerant flowing in your refrigerator.
• Contraction and expansion of the inside walls may
cause a popping noise.
• Water dripping on the defrost heater during a defrost
cycle may cause a sizzling sound.
• You may hear air being forced over the condenser by
the condenser fan.
• You may hear water running into the drain pan during
the defrost cycle.
Check if... Then...
Check if... Then...
HEAR
refrigerator.
refrigerator control.
TROUBLESHOOTING GUIDE
24
Light bulb has burned out. Replace with an appliance bulb of the same wattage,
size and shape available at your local hardware store.
(See the LAMP REPLACEMENT Section.)
Turn the temperature control to the OFF position and
unplug the refrigerator prior to replacement.
COMPRESSOR MOTOR SEEMS TO RUN TOO MUCH
Check if...
Then...
The refrigerator that was replaced was an Modern refrigerators with more storage space require
older model. more operating time.
The room temperature is hotter than normal. The motor will run longer under warm conditions. At
normal room temperatures, expect your motor to run
about 40% to 80% of the time. Under warmer
conditions, expect it to run even more often.
The door is opened often or a large amount Adding food and opening the door warms the
of food has just been added. refrigerator. It is normal for the refrigerator to run longer
in order to cool the refrigerator back down. Adding a
large amount of food warms the refrigerator. See the
FOOD STORAGE GUIDE Section. In order to conserve
Energy, try to get everything you need out of the
refrigerator at once, keep food organized so it is easy to
find and close the door as soon as the food is removed.
The refrigerator was recently plugged in and
The refrigerator will take up to 24 hours to cool
See the ADJUSTING CONTROL SETTING Section.
surrounding conditions.
The doors are not closed completely.
Push the doors firmly shut. If they will not shut all the
way, see Doors will not close completely below.
The condenser coils are dirty.
This prevents air transfer and makes the motor work
harder. Clean the condenser coils. Refer to the CARE
AND CLEANING section.
the refrigerator control was set correctly
The refrigerator control was not set correctly for the
LAMPS DO NOT WORK
Check if... Then...
completely.
DOORS WILL NOT CLOSE COMPLETELY
The refrigerator is not level.
See the REFRIGERATOR INSTALLATION AND
Food packages are blocking the door open.
Rearrange food containers to clear door and door
The ice bin, crisper cover, pans, shelves, door bins
Push bins all the way in and put crisper cover, pans,
or baskets are out of position.
shelves and baskets into their correct positions. See
the USING YOUR REFRIGERATOR Section.
The gaskets are sticking.
Clean gaskets and the surface that they touch. Rub a
thin coat of paraffin wax on the gaskets after cleaning.
Check if... Then...
DOOR ALIGNMENT Section to level refrigerator.
shelves.
TROUBLESHOOTING GUIDE
25
THE ICEMAKER IS NOT PRODUCING ICE OR ICE CUBES ARE FREEZING TOO SLOWLY
The freezer temperature is cold enough to produce ice.
Wait 24 hours after hook-up for ice production. See the
CONTROL PANEL FEATURES section.
Door left open. Check to see if something is holding the door open.
THE DOORS ARE DIFFICULT TO OPEN
The gaskets are dirty or sticky.
Clean gaskets and the surfaces that they touch. Rub
a thin coat of appliance polish or kitchen wax on the
gaskets after cleaning
The door is reopened within a short time after having
When you open the door, warmer air enters the
been opened.
refrigerator. As the warm air cools, it can create a
vacuum. If the door is hard to open, wait 5 minutes
to allow the air pressure to equalize, then see if it
CUBES PRODUCED BY ICEMAKER ARE TOO SMALL
Smaller cube size level is selected. Select larger cube size using cube size selector.
Water shutoff valve connecting refrigerator to water
Call a plumber to clear the valve.
line may be clogged.
Check if... Then...
Check if... Then...
Check if... Then...
opens more easily.
AUTOMATIC ICEMAKER DOES NOT WORK
Icemaker power switch in the O (off) position. Move the switch to the I (on) position.
Water supply turned off or not connected. See the CONNECTING THE WATER LINE section.
Freezer compartment too warm. Wait 24 hours for the freezer to reach its ideal
Piled up cubes in the storage bin cause the icemaker Level cubes by hand or shake the bin occasionally.
to shut off.
Check if... Then...
temperature.
TEMPERATURE IS TOO WARM OR THERE IS INTERIOR MOISTURE BUILDUP
The air vents are blocked. Cold air circulates Locate air vents by using your hand to sense airflow and
from the freezer to the fresh food section and move all packages that block vents and restrict airflow.
back again through air vents in the wall dividing Refer to ENSURING PROPER AIR CIRCULATION
the two sections. section for the location of air vents.
Check if... Then...
TROUBLESHOOTING GUIDE
26
TEMPERATURE IS TOO WARM OR THERE IS INTERIOR MOISTURE BUILDUP
Check if... Then...
The control is not set correctly for the surrounding Refer to the ADJUSTING CONTROL SETTING section.
conditions. Wait 24 hours for temperatures to stabilize or even out.
If the temperature is too cold or too warm, move the dial
one number at a time.
Alarge amount of food has just been added Adding food warms the refrigerator. It can take a few
to the refrigerator or freezer. hours for the refrigerator to return to normal temperature.
The food is not packaged correctly.
Wrap food tightly and wipe off damp containers prior to
storing in the refrigerator to avoid moisture accumulation.
If necessary, repackage food according to the guidelines
in the FOOD STORAGE GUIDE section.
The weather is humid. In humid weather, air carries moisture into refrigerator
when doors are opened.
Aself-defrost cycle was completed. It is normal for droplets to form on the back wall after the
refrigerator self-defrosts.
The doors are not closing completely. See “Doors will not close completely”.
The doors are opened often. When the door is opened, warm humid air is allowed into
the refrigerator. The more the door is opened, the faster
the humidity builds up, and the more warm air the
refrigerator must cool. In order to keep the refrigerator
cool, try to get everything you need out of the
refrigerator at once, keep food organized so it is easy
to find and close the door as soon as the food is
removed.
(CONTINUED)
DOORS WILL NOT CLOSE COMPLETELY
Check if... Then...
The doors were removed during product installation
and not properly replaced.
The refrigerator wobbles or seems unstable.
Level the refrigerator. Refer to the DOOR ALIGNMENT
section.
FROST OR ICE CRYSTALS ON FROZEN FOOD
The door is not closing properly. See “Doors will not close completely” above.
The door is opened often. When the door is opened, warm, humid air is allowed in
the freezer resulting in frost.
Check if... Then...
Remove and replace the doors according to the
REMOVING AND REPLACING REFRIGERATOR
DOORS section, or call qualified service technician.
TROUBLESHOOTING GUIDE
27
ICE HAS OFF-TASTE OR ODOR
The icemaker was recently installed.
Discard first few batches of ice to avoid discolored or
off-flavored ice.
The ice has been stored for too long. Throw away old ice and make new supply.
The food has not been wrapped tightly in
Rewrap foods since odors may migrate to the ice if food
either compartment.
is not wrapped properly
.
The water supply contains minerals such as sulfur.
A filter may need to be installed to eliminate taste and
odor problems.
The interior of refrigerator needs cleaning.
See CARE AND CLEANING section.
Ice storage bin needs cleaning.
Empty and wash bin. Discard old cubes.
THERE IS WATER IN THE DEFROST DRAIN PAN
The refrigerator is defrosting. The water will evaporate. It is normal for water to drip
into the defrost pan.
It is more humid than normal. Expect that the water in the defrost pan will take longer
to evaporate. This is normal when it is hot or humid.
THE REFRIGERATOR SEEMS TO MAKE TOO MUCH NOISE
The sounds may be normal for your refrigerator.
Refer to the UNDERSTANDING SOUNDS YOU MAY
Check if... Then...
Check if... Then...
Check if... Then...
HEAR section.
WARRANTY
28
LG ELECTRONICS CANADA, INC.
LG REFRIGERATOR LIMITED WARRANTY - Canada
WARRANTY: Should your LG Refrigerator (“Product”) fail due to a defect in material or workmanship under normal home use during the warranty
period set forth below, LG Canada will at its option repair or replace the Product upon receipt of proof of original retail purchase. This warranty is
valid only to the original retail purchaser of the product and applies only to a Product distributed in Canada by LG Canada or an authorized
Canadian distributor thereof. The warranty only applies to Products located and used within Canada.
WARRANTY PERIOD: (Note: If the original date of purchase can not be verified, the warranty will begin sixty
(60) days from the date of manufacture).
Refrigerator/Freezer Sealed System (Compressor, Condenser, and Evaporator only)
Parts and Labor Parts only
(Consumer will be charged for labor)
Parts and Labor
(internal/functional parts only)
µ Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.
µ
µ
LG Authorized Service Center warranties their repair work for thirty (30) days
Replacement products and parts may be new or remanufactured.
.
LG CANADA’S SOLE LIABILITY IS LIMITED TO THE WARRANTY SET OUT ABOVE. EXCEPT AS EXPRESSLY PROVIDED ABOVE, LG
CANADA MAKES NO AND HEREBY DISCLAIMS ALL OTHER WARRANTIES AND CONDITIONS RESPECTING THE PRODUCT, WHETHER
EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE, AND NO REPRESENTATIONS SHALL BE BINDING ON LG CANADA. LG CANADA DOES
NOT AUTHORIZE ANY PERSON TO CREATE OR ASSUME FOR IT ANY OTHER WARRANTY OBLIGATION OR LIABILITY IN CONNECTION
WITH THE PRODUCT. TO THE EXTENT THAT ANY WARRANTY OR CONDITION IS IMPLIED BY LAW, IT IS LIMITED TO THE EXPRESS
WARRANTY PERIOD ABOVE. LG CANADA, THE MANUFACTURER OR DISTRIBUTOR SHALL NOT BE LIABLE FOR ANY INCIDENTAL,
CONSEQUENTIAL, SPECIAL, DIRECT OR INDIRECT DAMAGES, LOSS OF GOODWILL, LOST PROFITS, PUNITIVE OR EXEMPLARY
DAMAGES OR ANY OTHER DAMAGE, WHETHER ARISING DIRECTLY OR INDIRECTLY FROM ANY CONTRACTUAL BREACH,
FUNDAMENTAL OR OTHERWISE, OR FROM ANY ACTS OR OMISSIONS, TORT, OR OTHERWISE.
This warranty gives you specific legal rights. You may have other rights which may vary from province to province depending on applicable
provincial laws. Any term of this warranty that negates or varies any implied condition or warranty under provincial law is severable where
it conflicts with provincial law without affecting the remainder of this warranty’s terms.
All costs associated with the above excluded circumstances shall be borne by the consumer.
One (1) year from the date of original
retail purchase
One (1) year from the date of original
retail purchase
Seven (7) years from the date of original
retail purchase
For complete warranty details and customer assistance,
please call or visit our website:
Call 1-888-542-2623 (24 hours a day, 365 days a year) and
select the appropriate option from the menu, or visit our website
at http://www.lg.ca
Write your warranty information below:
Product Registration Information:
Model:
Serial Number:
Date of Purchase:
THIS LIMITED WARRANTY DOES NOT COVER:
1. Service trips to deliver, pick up, or install the product; instructing a customer on operation of the product; repair or replacement of
fuses or correction of wiring, or correction of unauthorized repairs/installation.
2. Failure of the product to perform during power failures and interruptions or inadequate electrical service.
3. Damage caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or interrupted water supply or
inadequate supply of air.
4. Damage resulting from operating the Product in a corrosive atmosphere or contrary to the instructions outlined in the Product
owner’s manual.
5. Damage to the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, or acts of God.
6. Damage resulting from the misuse, abuse, improper installation, repair, or maintenance of the Product. Improper repair includes use
of parts not approved or specified by LG Canada.
7. Damage or product failure caused by unauthorized modification or alteration, or use for other than its intended purpose, or resulting
from any water leakage due to improper installation.
8. Damage or Product failure caused by incorrect electrical current, voltage, commercial or industrial use, or use of accessories,
components, or cleaning products that are not approved by LG Canada.
9. Damage caused by transportation and handling, including scratches, dents, chips, and/or other damage to the finish of your product,
unless such damage results from defects in materials or workmanship and is reported within one (1) week of delivery.
10. Damage or missing items to any display, open box, discounted, or refurbished Product.
11. Products with original serial numbers that have been removed, altered, or cannot be readily determined. Model and Serial numbers,
along with original retail sales receipt, are required for warranty validation.
12. Increases in utility costs and additional utility expenses.
13. Replacement of light bulbs, filters, or any consumable parts.
14. Repairs when your Product is used in other than normal and usual household use (including, without limitation, commercial use, in
offices or recreational facilities) or contrary to the instructions outlined in the Product owner’s manual.
15. Costs associated with removal of the Product from your home for repairs.
16. The removal and reinstallation of the Product if it is installed in an inaccessible location or is not installed in accordance with
published installation instructions, including the Product owner’s and installation manuals.
17. Accessories to the Product such as door bins, drawers, handles, shelves, etc. Also excluded are parts besides those that were
originally included with the Product.
:
MFL56716902
