User care Whirlpool W11211074C Freezer
TABLE OF CONTENTS
- SAFETY
- INSTALLING YOUR FREEZER
- Unpacking
- Location Requirements
- Electrical Requirements
- Water Supply Requirements
- (on some models)
- Connect the Water Supply
- (on some models)
- Remove and Replace the Handle

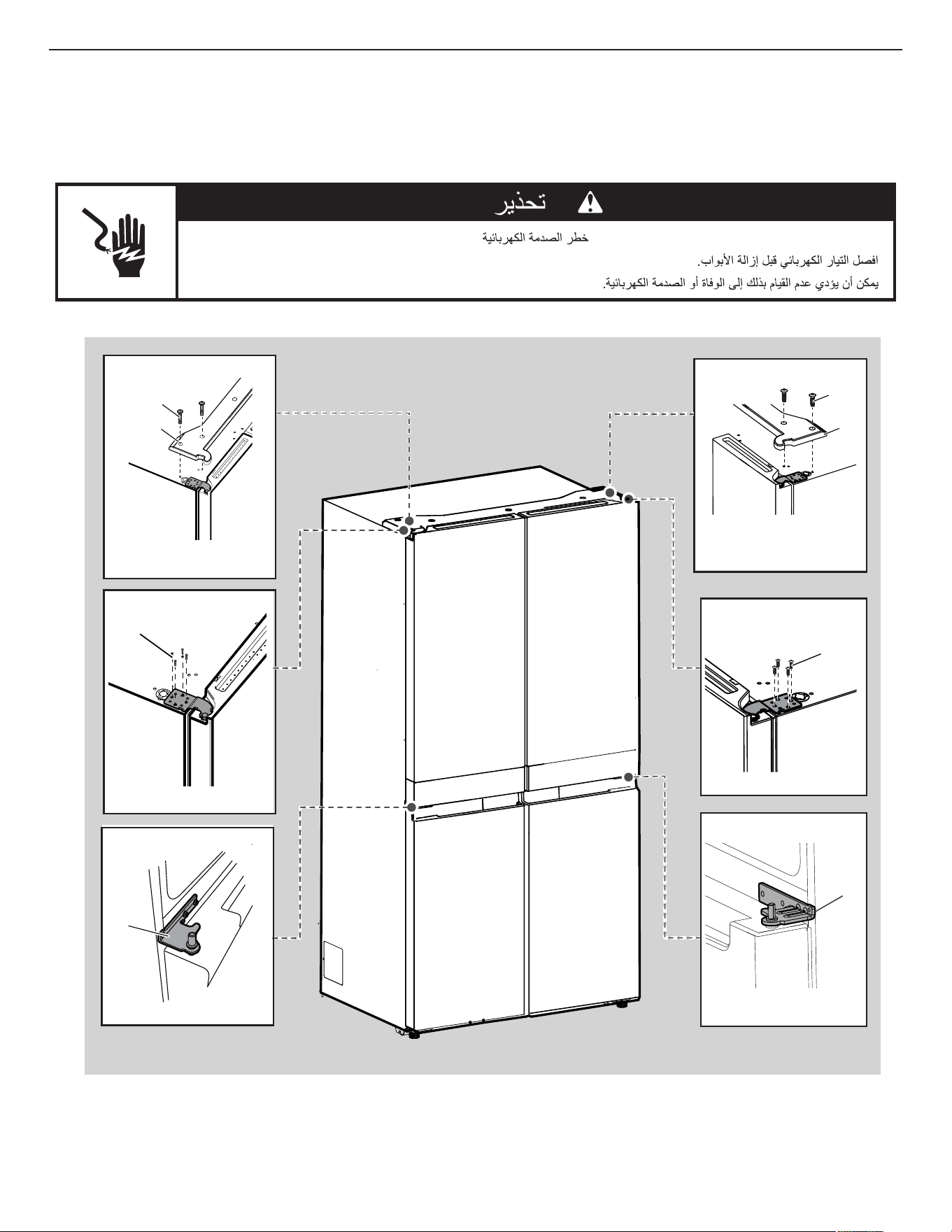

- Freezer Door
- Freezer Leveling and Door Closing
- OPERATING YOUR FREEZER
- Ensuring Proper Air Circulation
- Using the Control
- Key Eject Lock (on some models)
- Ice Maker (on some models)
- Freezer Features
- CARING FOR YOUR FREEZER
- Cleaning Your Frost-Free Freezer
- Changing the Light Bulb
- TROUBLESHOOTING
- Power Interruptions
- Moving Care
- Freezer Operation
- Ice Production
- Ice Quality
- WARRANTY
Adjusting Control
If you need to adjust the temperature in the freezer compartment, press TEMP SETTING to display the desired temperature setting from the snowflake on the left (least cold) to the snowflake on the right (coldest).
NOTE: Except when starting the freezer, do not adjust the control more than one setting at a time. Wait 24 hours between adjustments for the temperature to stabilize.
Cooling On/Off
Your freezer will not cool when cooling is turned off.
To turn cooling off, press and hold TEMP SETTING for 3 seconds. In the Off condition, none of the lights on the control panel will be illuminated. The main freezer light bulb will still operate.
To turn cooling on, press and hold TEMP SETTING for 3 seconds. When cooling is On, the control panel lights will be illuminated.
Fast Freeze
Use this feature before adding large amounts of unfrozen food. For the best food quality, do not exceed 3 lbs (1,361 g) per cu. ft (28.32 L) of freezer space.
To activate Fast Freeze, press TEMP SETTING until all the snowflake positions are illuminated simultaneously.
The freezer will remain in the Fast Freeze setting for 24 hours after the extra-low temperature is reached. Once the time has expired, the freezer will return to the previous temperature setting. Fast Freeze may be manually turned off by pressing TEMP SETTING to select the desired temperature setting from the snowflake on the left (least cold) to the snowflake on the right (coldest).
Over Temperature Alert (on some models)
The Over Temperature Alert lets you know if the freezer temperature has risen to 19°F (-7°C) or higher. This alert feature will sound a continuous alert tone and repeatedly flash a red light on the control panel. The tone can be turned off by pressing TEMP SETTING on the control panel once. As you press TEMP SETTING, the red light will then also change from flashing to continuously illuminated. The red light will remain illuminated until the freezer temperature falls below 19°F (-7°C).
NOTE: If the red light on the control panel is repeatedly flashing, but the alert tone is not sounding, this means that an overtemperature condition has occurred, but the freezer temperature has since returned to below 19°F (-7°C). To turn off the red light indicator for this condition, press TEMP SETTING on the control panel once. Door Ajar Alarm.
PERMITTED USE
CAUTION: The appliance is not intended to be operated by means of an external switching device, such as a timer, or separate remote controlled system. fy This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels, bed & breakfast and other residential environments.
- This appliance is not for professional use. Do not use the appliance outdoors.
- The appliance is designed for operation in places where the ambient temperature comes within the following ranges, according to the climatic class given on the rating plate. The appliance may not work properly if it is left for a long time at a temperature outside the specified range.
