The Components Guide
Preparations
Shooting
Playback/Erasing
Menus and Settings
CDI-E293-010 XX06XXX
Camera User Guide
Please Read This First
This guide explains how to prepare the camera and use its basic features.
© 2006 CANON INC. PRINTED IN JAPAN
ENGLISH
Basic
Downloading Images

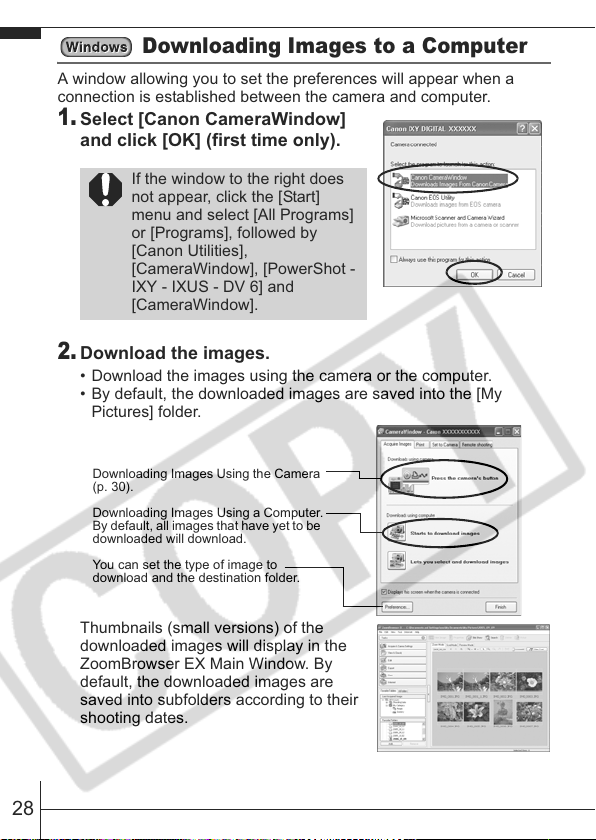

to a Computer

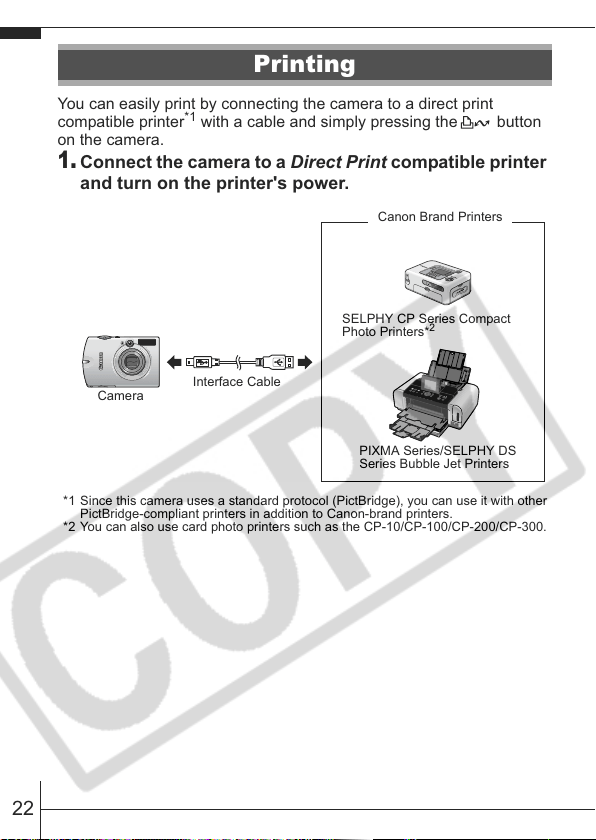

Printing
The following guides are available. Refer to them as necessary according
to the flowchart below.

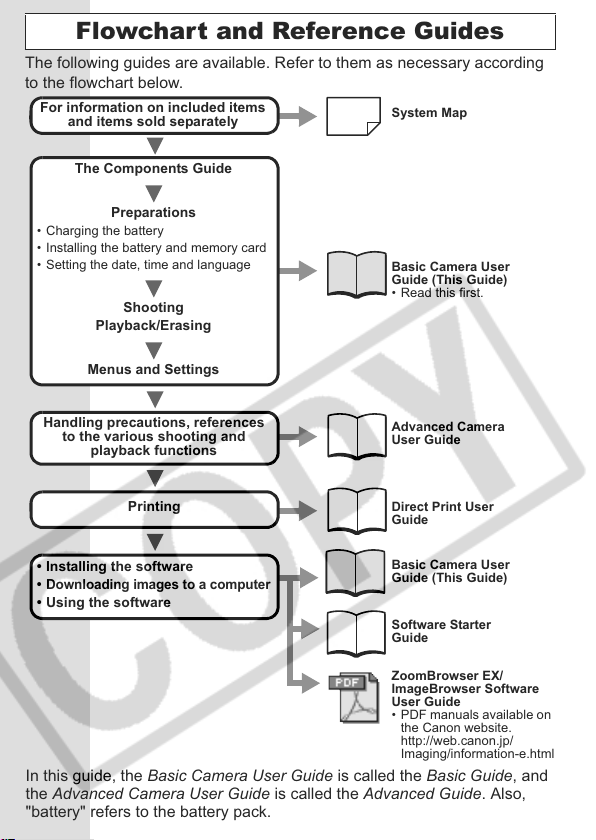

Flowchart and Reference Guides
System Map
Basic Camera User
Guide (This Guide)
• Read this first.
Advanced Camera
User Guide
Direct Print User
Guide
Basic Camera User
Guide (This Guide)
Software Starter
Guide
ZoomBrowser EX/
ImageBrowser Software
User Guide
• PDF manuals available on
the Canon website.
http://web.canon.jp/
Imaging/information-e.html
For information on included items
and items sold separately
The Components Guide
Preparations
• Charging the battery
• Installing the battery and memory card
• Setting the date, time and language
Shooting
Playback/Erasing
Menus and Settings
Handling precautions, references
to the various shooting and
playback functions
Printing
• Installing the software
• Downloading images to a computer
• Using the software
In this guide, the Basic Camera User Guide is called the Basic Guide, and
the Advanced Camera User Guide is called the Advanced Guide. Also,
"battery" refers to the battery pack.
1
Front View
Wrist Strap Mount
Microphone (Advanced Guide pp. 42, 86)
AF-assist Beam (Advanced Guide p. 24)
Red-Eye Reduction Lamp (Advanced Guide p. 33)
Self-Timer Lamp (p. 16)
Viewfinder Window (Advanced Guide p. 18)
Flash (p. 14)
Lens
* When carrying the camera by the strap, be careful not to swing the camera or catch
it on other items.
The Components Guide
Attaching the Wrist Strap*
The Components Guide
2
Back View
LCD Monitor (Advanced Guide pp. 12, 15)
Viewfinder (Advanced Guide p. 18)
DIGITAL Terminal (p. 27)
A/V OUT (Audio/Video output) Terminal (Advanced Guide p. 103)
Terminal Cover
Tripod Socket
Memory Card Slot/Battery Cover Lock Release Switch (p. 7)
DC Coupler Terminal Cover (Advanced Guide p. 125)
Memory Card Slot/Battery Cover (p. 7)
The interface cable and AV cable cannot be connected
simultaneously.
3
Controls
Speaker
Indicators (p. 5)
Power Lamp
Power Button (p. 10)
Zoom Lever (p. 14, Advanced Guide p. 73)
Shooting: (Wide Angle)/ (Telephoto)
Playback: (Index)/ (Magnify)
Shutter Button (p. 10)
Mode Dial (pp. 10, 11)
(Print/Share) Button (pp. 22, 30)
DISP. (Display) Button (Advanced Guide p. 12)
FUNC./SET (Function/Set) Button (p. 20, Advanced Guide p. 22)
Touch Control Dial (pp. 4, 18)
MENU Button (p. 21, Advanced Guide p. 23)
(Macro)/ (Infinity)/ Button (p. 15)
(ISO Speed)/ (Jump)/ Button (Advanced Guide pp. 65, 76)
(Flash)/ Button (p. 14)
(Single Image Erase)/ (Continuous)/ (Self-timer)
/ Button (pp. 16, 19, Advanced Guide p. 37)
The Components Guide
4
Touch Control Dial
Placing a finger on the touch control dial displays the playback mode
and shooting mode touch icons on the LCD monitor. You can confirm
the functions assigned to each button.
• Unavailable buttons are grayed out.
• Place a finger on the touch control dial over a function you want to
set, and the icon will enlarge on the LCD monitor.
• You can easily select images using the touch control dial during play-
back (p. 18).
• You can easily select time zones for the world clock using the touch
control dial (Advanced Guide p. 20).
• You can set the touch icons to On/Off in the (Set up) menu
(Advanced Guide p. 26).
Sample of shooting mode
Touch Icons
5

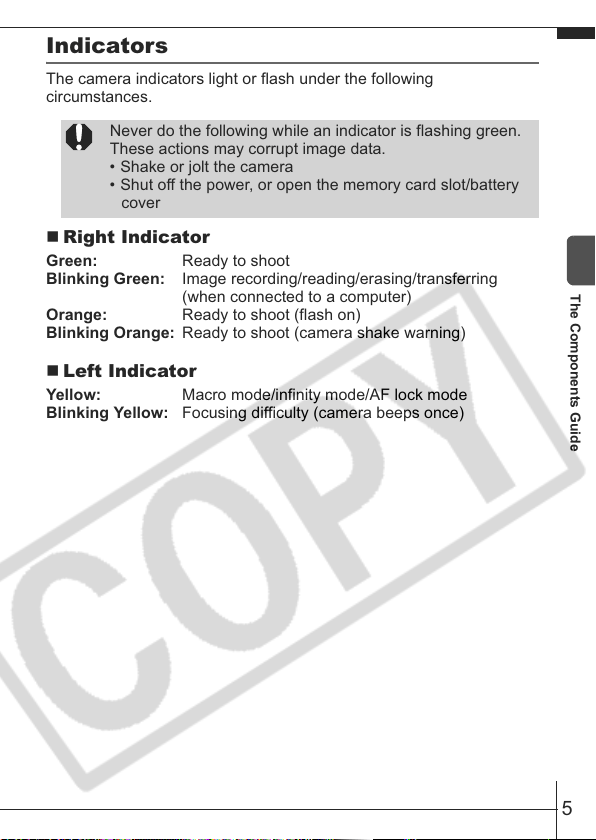

Indicators
The camera indicators light or flash under the following
circumstances.
Right Indicator
Green: Ready to shoot
Blinking Green: Image recording/reading/erasing/transferring
(when connected to a computer)
Orange: Ready to shoot (flash on)
Blinking Orange: Ready to shoot (camera shake warning)
Left Indicator
Yellow: Macro mode/infinity mode/AF lock mode
Blinking Yellow: Focusing difficulty (camera beeps once)
Never do the following while an indicator is flashing green.
These actions may corrupt image data.
• Shake or jolt the camera
• Shut off the power, or open the memory card slot/battery
cover
The Components Guide
6
1.
Charging the Battery.
Charge the battery before use under the following circumstances.
• When using the battery for the first time.
• When the "Change the battery pack" message displays.
1. Insert the battery into the battery charger.
2. Plug the battery charger (CB-2LX) into a power outlet, or
attach the power cord to the battery charger (CB-2LXE) and
plug it into a power outlet.
• Battery charger model names and types vary by region.
The charge indicator will light orange while the battery is
charging. It will change to green when the charge is complete.
Charging takes approximately 2 hours 5 minutes.
Preparations
To protect the battery and prolong its life, do not charge it
for longer than 24 hours continuously.
Î See the Advanced Guide: Battery Handling (p. 121).
Charge Indicator
For CB-2LX For CB-2LXE
Align these symbols
7

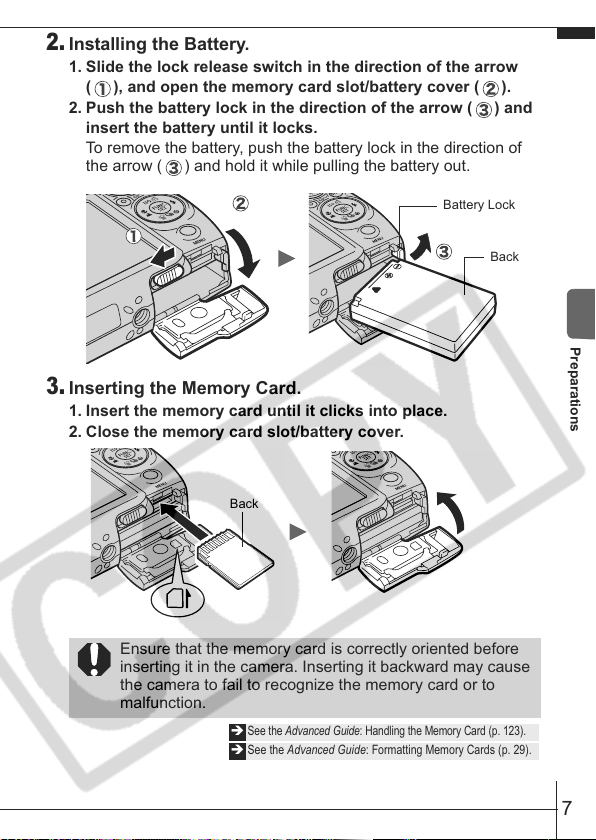

2.
Installing the Battery.
1. Slide the lock release switch in the direction of the arrow
( ), and open the memory card slot/battery cover ( ).
2. Push the battery lock in the direction of the arrow ( ) and
insert the battery until it locks.
To remove the battery, push the battery lock in the direction of
the arrow ( ) and hold it while pulling the battery out.
3.
Inserting the Memory Card.
1. Insert the memory card until it clicks into place.
2. Close the memory card slot/battery cover.
Ensure that the memory card is correctly oriented before
inserting it in the camera. Inserting it backward may cause
the camera to fail to recognize the memory card or to
malfunction.
Î
See the Advanced Guide: Handling the Memory Card (p. 123).
Î See the Advanced Guide: Formatting Memory Cards (p. 29).
Battery Lock
Back
Back
Preparations
8

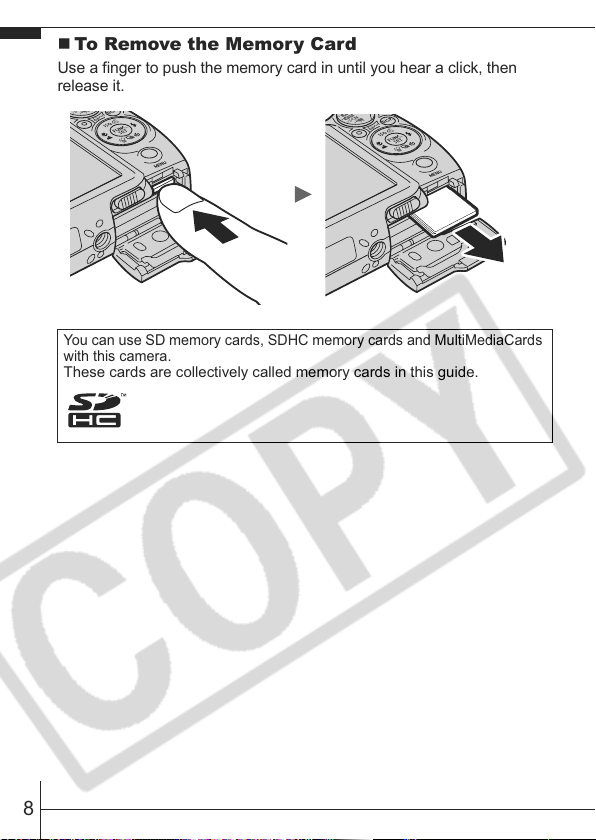

To Remove the Memory Card
Use a finger to push the memory card in until you hear a click, then
release it.
You can use SD memory cards, SDHC memory cards and MultiMediaCards
with this camera.
These cards are collectively called memory cards in this guide.
9

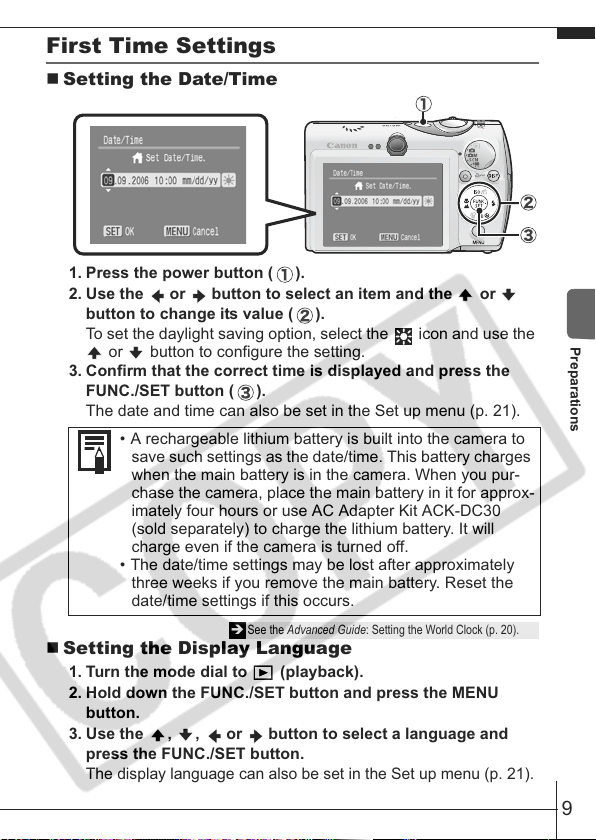

First Time Settings
Setting the Date/Time
1. Press the power button ( ).
2. Use the or button to select an item and the or
button to change its value ( ).
To set the daylight saving option, select the icon and use the
or button to configure the setting.
3. Confirm that the correct time is displayed and press the
FUNC./SET button ( ).
The date and time can also be set in the Set up menu (p. 21).
Setting the Display Language
1. Turn the mode dial to (playback).
2. Hold down the FUNC./SET button and press the MENU
button.
3. Use the , , or button to select a language and
press the FUNC./SET button.
The display language can also be set in the Set up menu (p. 21).
• A rechargeable lithium battery is built into the camera to
save such settings as the date/time. This battery charges
when the main battery is in the camera. When you pur-
chase the camera, place the main battery in it for approx-
imately four hours or use AC Adapter Kit ACK-DC30
(sold separately) to charge the lithium battery. It will
charge even if the camera is turned off.
• The date/time settings may be lost after approximately
three weeks if you remove the main battery. Reset the
date/time settings if this occurs.
Î See the Advanced Guide: Setting the World Clock (p. 20).
Preparations
10
1.
Press the power button.
The start-up sound will play and the
start-up image will display in the LCD
monitor.
• Pressing the power button again
turns the power off.
• To switch to the setting that mutes all
sounds (except for the warning
sound), press and hold the DISP. button while pressing the power
button.
2.
Turn the mode dial to (Auto).
3.
Aim the camera at the subject.
4.
Focus and shoot.
1. Press the shutter button
halfway to focus.
When the camera focuses, it
beeps twice and the indicator
lights green (orange when the
flash fires). In addition, a
green AF frame appears in the
LCD monitor on the portion of the image used to set the focus.
Shooting
Î See the Advanced Guide: Using the LCD Monitor (p. 12).
Î See the Advanced Guide: Power Saving Function (p. 19).
Î See the Advanced Guide: Set up Menu (p. 26).
Î See the Advanced Guide: My Camera Menu (p. 28).
Power button
Indicators
11
2. Press the shutter button fully to
shoot.
The shutter sound will play and the
image will record. The indicator will
blink green while the image is
recorded to the memory card.
Reviewing an Image Right After Shooting
After a shot is taken, the image appears in the LCD monitor for
approximately 2 seconds.
You can continue to display images regardless of the review duration
setting with the following procedures.
• Keeping the shutter button pressed after a shot.
• Pressing the FUNC./SET or DISP. button while the image is dis-
played in the LCD monitor.
To stop displaying the image, press the shutter button halfway.
Selecting a Shooting Mode
1.
Turn the mode dial to the desired mode ( ).
In the , and modes, press the FUNC./SET button
( ) and use the or button to select a shooting mode ( ),
then press the FUNC./SET button ( ).
Î See Indicators (p. 5).
Î
See the Advanced Guide for the various shooting methods
available.
Î See the Advanced Guide: Review (p. 24).
Î
See the Advanced Guide: Checking for Focus Right After
Shooting (p. 67).
Î See Erasing (p. 19).
Shooting
12
Shooting Modes
AUTO
The camera automatically selects settings.
MANUAL
Manual
Allows you to select settings yourself, such as the exposure compensation, white
balance, my colors or ISO speed.
Digital Macro
Allows you to shoot when the distance from the lens (at
maximum wide angle) to the subject is within 5 – 50 cm (2.0
in. – 1.6 ft.). The subject can be shown larger than in
standard macro mode because the camera trims the image
edges and zooms in with the digital zoom.
Color Accent
Use this option to
have only the color
specified in the LCD
monitor remain and to
transform all others to
black and white.
Color Swap
Use this option
to transform a
color specified
in the LCD
monitor into
another.
Stitch Assist
Allows you to shoot overlapping images that can later be
merged (stitched) to create one panoramic image on a
computer.
SPECIAL
SCENE
Portrait
Produces a soft effect
when photographing
people.
Night
Snapshot
Allows you to take
snapshots of
people against
twilight or night backgrounds by
reducing the effects of camera shake
even without using a tripod.
Kids&Pets
Allows you to capture
subjects that move
around, such as
children and pets,
without missing photo
opportunities.
Indoor
Prevents camera
shake and
maintains the
subject's true color
when shooting
under fluorescent or tungsten lighting.
Foliage
Shoots trees and
leaves—such as new
growth, autumn
leaves or blossoms—
in vivid colors.
Snow
Shoots without a
blue tinge and
without making
people appear
dark against a
snowy background.
Î
See the Advanced Guide (p. 32).
Î
See the Advanced Guide (p. 34).
Î See the Advanced Guide (p. 60).
Î See the Advanced Guide (p. 62).
Î
See the Advanced Guide (p. 44).
13
SPECIAL
SCENE

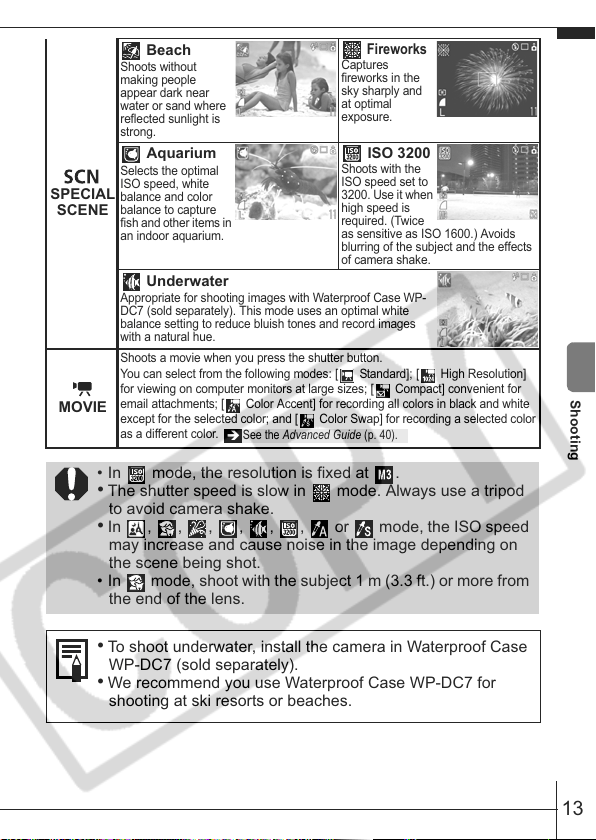

Beach
Shoots without
making people
appear dark near
water or sand where
reflected sunlight is
strong.
Fireworks
Captures
fireworks in the
sky sharply and
at optimal
exposure.
Aquarium
Selects the optimal
ISO speed, white
balance and color
balance to capture
fish and other items in
an indoor aquarium.
ISO 3200
Shoots with the
ISO speed set to
3200. Use it when
high speed is
required. (Twice
as sensitive as ISO 1600.) Avoids
blurring of the subject and the effects
of camera shake.
Underwater
Appropriate for shooting images with Waterproof Case WP-
DC7 (sold separately). This mode uses an optimal white
balance setting to reduce bluish tones and record images
with a natural hue.
MOVIE
Shoots a movie when you press the shutter button.
You can select from the following modes: [ Standard]; [ High Resolution]
for viewing on computer monitors at large sizes; [ Compact] convenient for
email attachments; [ Color Accent] for recording all colors in black and white
except for the selected color; and [ Color Swap] for recording a selected color
as a different color.
• In mode, the resolution is fixed at .
• The shutter speed is slow in mode. Always use a tripod
to avoid camera shake.
• In , , , , , , or mode, the ISO speed
may increase and cause noise in the image depending on
the scene being shot.
• In mode, shoot with the subject 1 m (3.3 ft.) or more from
the end of the lens.
• To shoot underwater, install the camera in Waterproof Case
WP-DC7 (sold separately).
• We recommend you use Waterproof Case WP-DC7 for
shooting at ski resorts or beaches.
Î
See the Advanced Guide (p. 40).
Shooting
14
Using the Zoom
1.
Press the zoom lever toward or .
The zoom can be adjusted from 37 – 111 mm (focal length) in
35mm film equivalent terms.
Using the Flash
1.
Press the button ( ) and use the or button to
switch between modes ( ).
Î
See the Advanced Guide: Red-Eye Reduction Function (p. 33).
Î
See the Advanced Guide: Setting the Slow Synchro (p. 33).
You are recommended to shoot with the camera attached
to a tripod or other device if the camera shake warning
icon appears.
The option cannot be set in (Auto) mode.
Telephoto: Zooms in
on the subject.
Wide Angle: Zooms
out from the subject.
Auto
On
Off
Î
See the Advanced Guide: Functions Available in Each Shooting Mode (p. 144).
See Selecting a Shooting Mode (p. 11).
Î
15
Shooting Close-Ups/Infinity Shots
1.
Press the / button ( ) and use the or button
to switch between modes ( ).
To Cancel: press the / button and use the or button to
display .
Macro
Use this mode to shoot close-ups of flowers or small items.
Image Area at Minimum Shooting Distance from End of Lens to Subject
• Maximum wide angle setting: 57 × 42 mm (2.2 × 1.7 in.)
Minimum shooting distance: 5 cm (2 in.)
• Maximum telephoto setting: 107 × 80 mm (4.2 × 3.1 in.)
Minimum shooting distance: 30 cm (12 in.)
Infinity
Use this mode to record subjects 3 m (9.8 ft.) or more from the end of
the lens.
• Use the LCD monitor to compose close-ups in macro
mode since images composed with the viewfinder may
be off-center.
• The exposure may not be optimal when the flash is used
in macro mode.
The option cannot be set in (Auto) mode.
Î
See the Advanced Guide: Functions Available in Each Shooting Mode (p. 144).
See Selecting a Shooting Mode (p. 11).
Î
Shooting
16

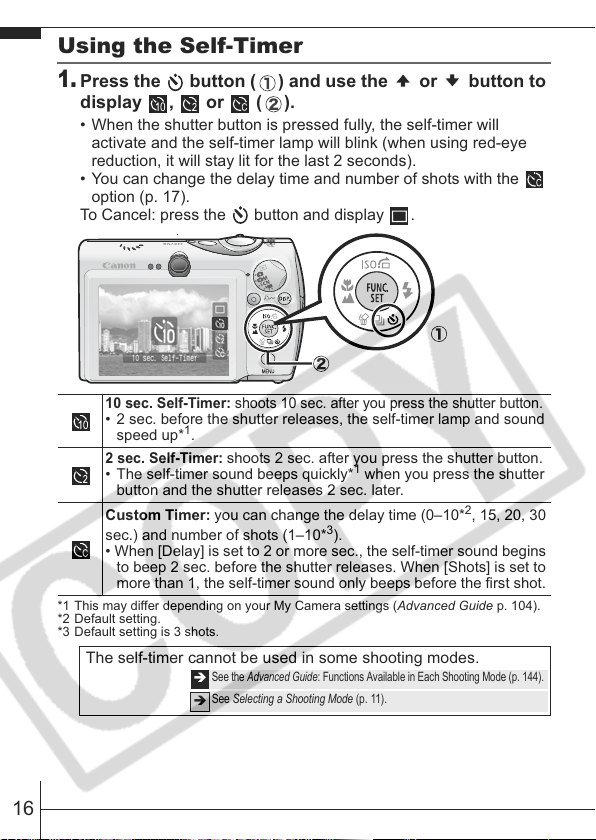

Using the Self-Timer
1.
Press the button ( ) and use the or button to
display , or ( ).
• When the shutter button is pressed fully, the self-timer will
activate and the self-timer lamp will blink (when using red-eye
reduction, it will stay lit for the last 2 seconds).
• You can change the delay time and number of shots with the
option (p. 17).
To Cancel: press the button and display .
*1 This may differ depending on your My Camera settings (Advanced Guide p. 104).
*2 Default setting.
*3 Default setting is 3 shots.
10 sec. Self-Timer:
shoots 10 sec. after you press the shutter button.
• 2 sec. before the shutter releases, the self-timer lamp and sound
speed up*
1
.
2 sec. Self-Timer:
shoots 2 sec. after you press the shutter button.
• The self-timer sound beeps quickly*
1
when you press the shutter
button and the shutter releases 2 sec. later.
Custom Timer
:
you can change the delay time (0–10*
2
, 15, 20, 30
sec.) and number of shots (1–10*
3
).
• When [Delay] is set to 2 or more sec., the self-timer sound begins
to beep 2 sec. before the shutter releases. When [Shots] is set to
more than 1, the self-timer sound only beeps before the first shot.
The self-timer cannot be used in some shooting modes.
Î
See the Advanced Guide: Functions Available in Each Shooting Mode (p. 144).
See Selecting a Shooting Mode (p. 11).
Î
17

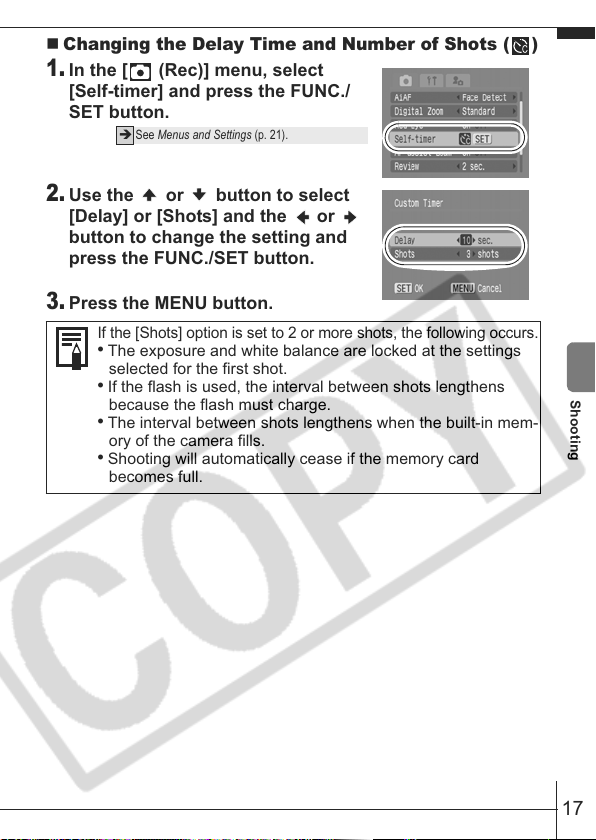

Changing the Delay Time and Number of Shots ( )
1.
In the [ (Rec)] menu, select
[Self-timer] and press the FUNC./
SET button.
2.
Use the or button to select
[Delay] or [Shots] and the or
button to change the setting and
press the FUNC./SET button.
3.
Press the MENU button.
Î See Menus and Settings (p. 21).
If the [Shots] option is set to 2 or more shots, the following occurs.
• The exposure and white balance are locked at the settings
selected for the first shot.
• If the flash is used, the interval between shots lengthens
because the flash must charge.
• The interval between shots lengthens when the built-in mem-
ory of the camera fills.
• Shooting will automatically cease if the memory card
becomes full.
Shooting
18

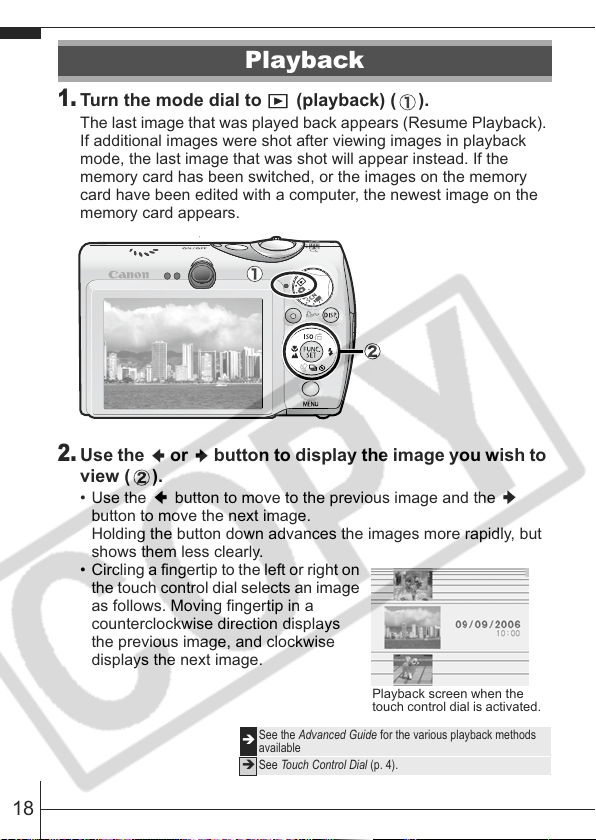

1.
Turn the mode dial to (playback) ( ).
The last image that was played back appears (Resume Playback).
If additional images were shot after viewing images in playback
mode, the last image that was shot will appear instead. If the
memory card has been switched, or the images on the memory
card have been edited with a computer, the newest image on the
memory card appears.
2.
Use the or button to display the image you wish to
view ( ).
• Use the button to move to the previous image and the
button to move the next image.
Holding the button down advances the images more rapidly, but
shows them less clearly.
• Circling a fingertip to the left or right on
the touch control dial selects an image
as follows. Moving fingertip in a
counterclockwise direction displays
the previous image, and clockwise
displays the next image.
Playback
Î
See the Advanced Guide for the various playback methods
available
Î See Touch Control Dial (p. 4).
Playback screen when the
touch control dial is activated.
19
1.
In the playback mode, use the or button to select
an image to erase ( ) and press the button ( ).
You can also select an image with the touch control dial.
2.
Confirm that [Erase] is selected and
press the FUNC./SET button ( ).
To exit instead of erasing, select [Cancel].
Erasing
Please note that erased images cannot be recovered.
Exercise adequate caution before erasing an image.
Î See the Advanced Guide: Erasing Images (p. 95).
Playback/Erasing
20

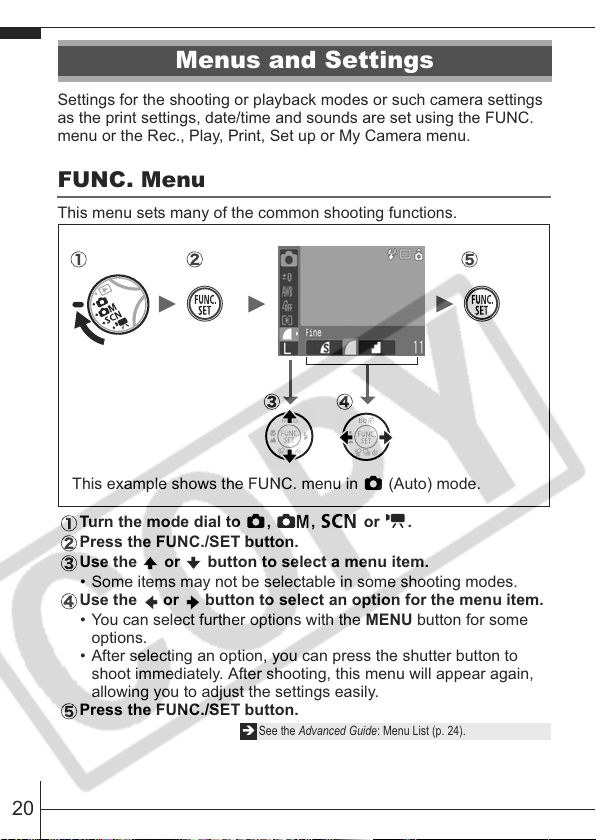

Settings for the shooting or playback modes or such camera settings
as the print settings, date/time and sounds are set using the FUNC.
menu or the Rec., Play, Print, Set up or My Camera menu.
FUNC. Menu
This menu sets many of the common shooting functions.
Turn the mode dial to , , or .
Press the FUNC./SET button.
Use the or button to select a menu item.
• Some items may not be selectable in some shooting modes.
Use the or button to select an option for the menu item.
• You can select further options with the MENU button for some
options.
• After selecting an option, you can press the shutter button to
shoot immediately. After shooting, this menu will appear again,
allowing you to adjust the settings easily.
Press the FUNC./SET button.
Menus and Settings
Î See the Advanced Guide: Menu List (p. 24).
This example shows the FUNC. menu in (Auto) mode.
21

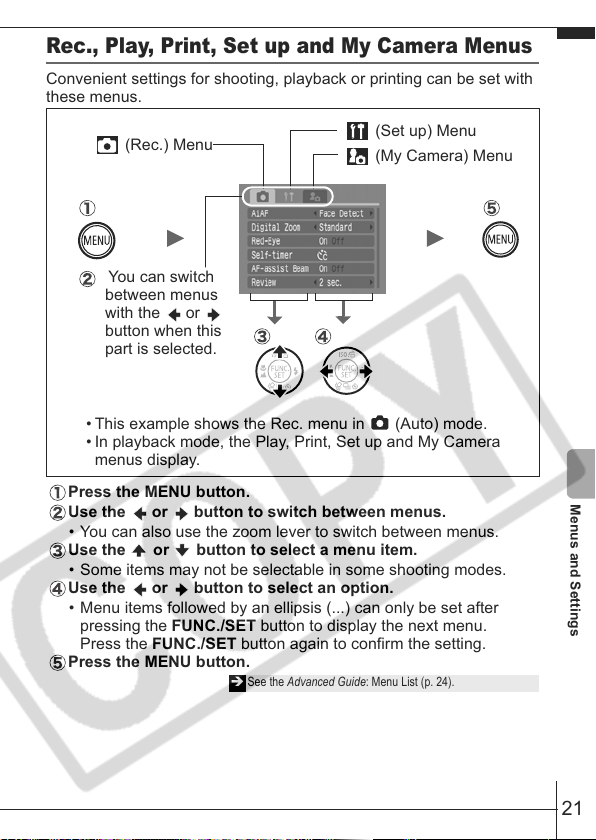

Rec., Play, Print, Set up and My Camera Menus
Convenient settings for shooting, playback or printing can be set with
these menus.
Press the MENU button.
Use the or button to switch between menus.
• You can also use the zoom lever to switch between menus.
Use the or button to select a menu item.
• Some items may not be selectable in some shooting modes.
Use the or button to select an option.
• Menu items followed by an ellipsis (...) can only be set after
pressing the FUNC./SET button to display the next menu.
Press the FUNC./SET button again to confirm the setting.
Press the MENU button.
Î See the Advanced Guide: Menu List (p. 24).
(My Camera) Menu
• This example shows the Rec. menu in (Auto) mode.
• In playback mode, the Play, Print, Set up and My Camera
menus display.
You can switch
between menus
with the or
button when this
part is selected.
(Rec.) Menu
(Set up) Menu
Menus and Settings
22
You can easily print by connecting the camera to a direct print
compatible printer
*1
with a cable and simply pressing the button
on the camera.
1.
Connect the camera to a Direct Print compatible printer
and turn on the printer's power.
*1 Since this camera uses a standard protocol (PictBridge), you can use it with other
PictBridge-compliant printers in addition to Canon-brand printers.
*2 You can also use card photo printers such as the CP-10/CP-100/CP-200/CP-300.
Printing
Canon Brand Printers
SELPHY CP Series Compact
Photo Printers*
2
PIXMA Series/SELPHY DS
Series Bubble Jet Printers
Interface Cable
Camera
23

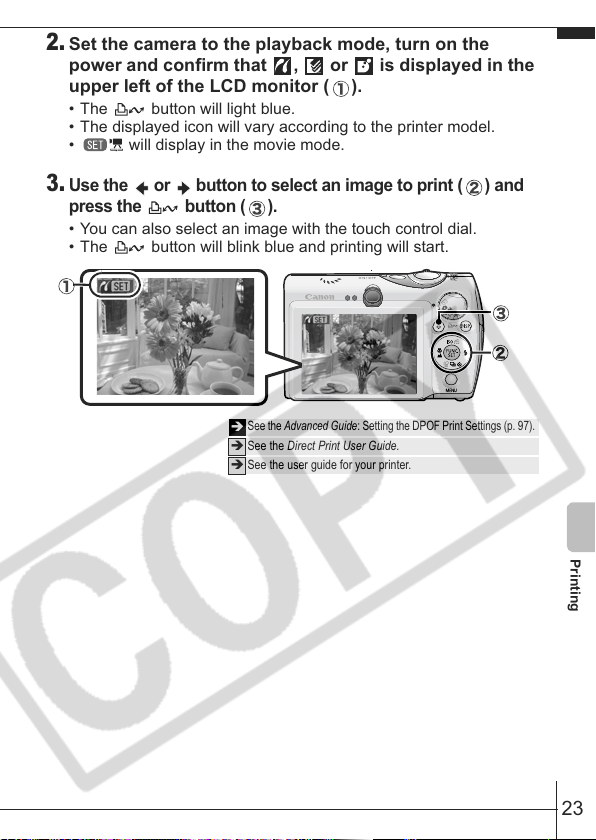

2.
Set the camera to the playback mode, turn on the
power and confirm that , or is displayed in the
upper left of the LCD monitor ( ).
• The button will light blue.
• The displayed icon will vary according to the printer model.
• will display in the movie mode.
3.
Use the or button to select an image to print ( ) and
press the button ( ).
• You can also select an image with the touch control dial.
• The button will blink blue and printing will start.
Î
See the Advanced Guide: Setting the DPOF Print Settings (p. 97).
Î See the Direct Print User Guide.
Î See the user guide for your printer.
Printing
24
The following methods can be used to download images recorded by
the camera to a computer. Some methods, depending on the OS
used, may not be available. Please read System Requirements (p. 25)
in advance.
Camera to Computer Connection
Using a Memory Card Reader
A memory card reader can be used with all the operating systems
listed above. See the Software Starter Guide for details.
Downloading Images to a Computer
Supplied Software Install It Do Not Install It
Downloading Method
Computer
Procedure
Camera
Procedure
Computer
Procedure
OS Windows 98
Second Edition (SE)
zz
–
Windows Me
zz
–
Windows 2000
zz
–
Windows XP
zzz
Mac OS X
zzz
Computer System
Requirements
•Basic Guide (p. 25)
•Software Starter Guide
Connecting the Camera to
a Computer
•Basic Guide (p. 27)
•Windows
®
XP
and Mac OS X
Users leaflet
Downloading Images to
a Computer
•Basic Guide (pp. 28–29)
•Software Starter Guide
25
System Requirements
Please install the software on a computer meeting the following
minimum requirements.
Windows
Macintosh
* EOS Utility (software for EOS DIGITAL series cameras) is only supported by
PowerPC.
OS
Windows 98 Second Edition (SE)
Windows Me
Windows 2000 Service Pack 4
Windows XP (including Service Pack 1 and Service Pack 2)
Computer Model
The above OS should be pre-installed on computers with built-in USB
ports.
CPU
Pentium 500 MHz or higher processor
RAM
Windows 98 SE/Windows Me 128 MB or more
Windows 2000/Windows XP 256 MB or more
Interface
USB
Free Hard Disk
Space
• Canon Utilities
- ZoomBrowser EX 200 MB or more
- PhotoStitch 40 MB or more
• Canon Camera TWAIN Driver 25 MB or more
• Canon Camera WIA Driver 25 MB or more
Display
1,024 x 768 pixels/High Color (16 bit) or better
OS
Mac OS X (v10.2–v10.4)
Computer Model
The above OS should be pre-installed on computers with built-in USB
ports.
CPU
PowerPC G3/G4/G5 or Intel Processor*
RAM
256 MB or more
Interface
USB
Free Hard Disk
Space
• Canon Utilities
- ImageBrowser 200 MB or more
- PhotoStitch 40 MB or more
Display
1,024 x 768 pixels/32,000 Colors or better
Downloading Images to a Computer
26
Preparing to Download Images
Items to Prepare
• Camera and computer
• Canon Digital Camera Solution Disk supplied with the camera
• Interface cable supplied with the camera
1.
Install the software.
1. Place the Canon Digital Camera Solution Disk in the
computer's CD-ROM drive.
2. Click [Easy Installation].
Proceed with the installation while
reviewing installation settings.
3. When the installation is finished, the
[Finish] or [Restart] button appears.
Click the one that appears.
4. When the screen returns to the desktop display, remove the
Canon Digital Camera Solution Disk from the CD-ROM
drive.
Ensure that you install the software first before connecting the
camera to the computer.
Double-click the [Canon
Digital Camera Installer] icon in the
CD-ROM window. When the installer
panel appears, click [Install].
Select [Easy Installation] as
the setup type and click [Next].
When the installation is
finished, click [Exit].
27
2.
Connecting the camera to a computer.
1. Connect the supplied interface cable to the computer's USB
port and to the camera's DIGITAL terminal.
Slip a fingernail under the bottom edge of the camera's DIGITAL
terminal cover, lift up and plug the interface cable in all the way.
2. Turn the camera's mode dial to
(playback) and turn on the power.
The camera and computer will be able
to communicate.
Always grasp the sides of the connector when
disconnecting the interface cable from the camera's
DIGITAL terminal.
USB Port DIGITAL Terminal
Interface Cable
Interface Cable
If the Digital Signature Not Found window appears,
click [Yes]. The USB driver will automatically finish installing
onto the computer when you attach the camera and open a
connection.
Downloading Images to a Computer
28
Downloading Images to a Computer
A window allowing you to set the preferences will appear when a
connection is established between the camera and computer.
1.
Select [Canon CameraWindow]
and click [OK] (first time only).
2.
Download the images.
• Download the images using the camera or the computer.
• By default, the downloaded images are saved into the [My
Pictures] folder.
Thumbnails (small versions) of the
downloaded images will display in the
ZoomBrowser EX Main Window. By
default, the downloaded images are
saved into subfolders according to their
shooting dates.
If the window to the right does
not appear, click the [Start]
menu and select [All Programs]
or [Programs], followed by
[Canon Utilities],
[CameraWindow], [PowerShot -
IXY - IXUS - DV 6] and
[CameraWindow].
Downloading Images Using the Camera
(p. 30).
Downloading Images Using a Computer.
By default, all images that have yet to be
downloaded will download.
You can set the type of image to
download and the destination folder.
29

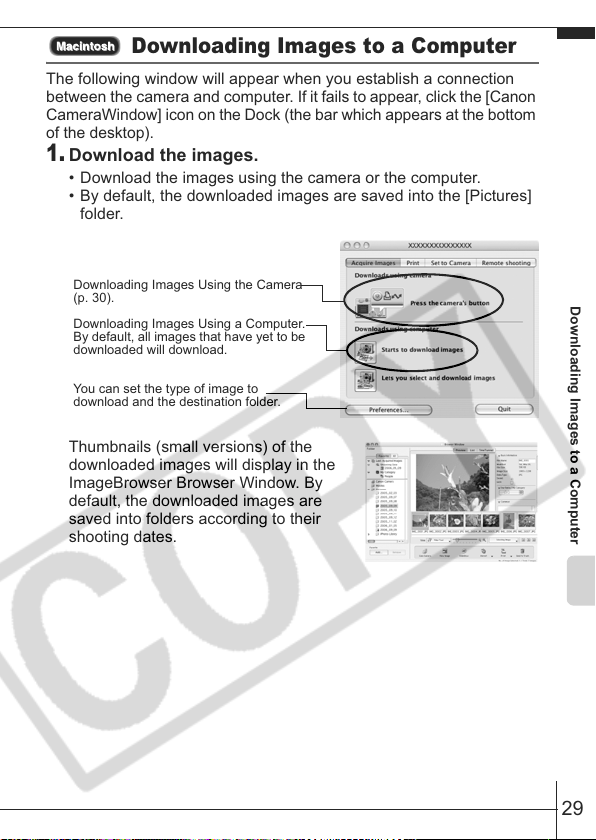

Downloading Images to a Computer
The following window will appear when you establish a connection
between the camera and computer.
If it fails to appear, click the [Canon
CameraWindow] icon on the Dock (the bar which appears at the bottom
of the desktop).
1.
Download the images.
• Download the images using the camera or the computer.
• By default, the downloaded images are saved into the [Pictures]
folder.
Thumbnails (small versions) of the
downloaded images will display in the
ImageBrowser Browser Window. By
default, the downloaded images are
saved into folders according to their
shooting dates.
Downloading Images Using the Camera
(p. 30).
Downloading Images Using a Computer.
By default, all images that have yet to be
downloaded will download.
You can set the type of image to
download and the destination folder.
Downloading Images to a Computer
30

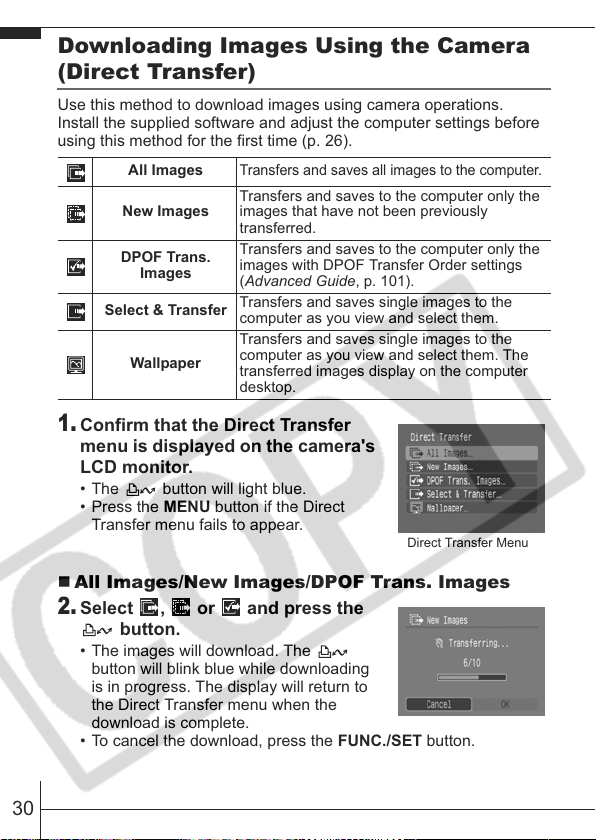

Downloading Images Using the Camera
(Direct Transfer)
Use this method to download images using camera operations.
Install the supplied software and adjust the computer settings before
using this method for the first time (p. 26).
1.
Confirm that the Direct Transfer
menu is displayed on the camera's
LCD monitor.
• The button will light blue.
• Press the MENU button if the Direct
Transfer menu fails to appear.
All Images/New Images/DPOF Trans. Images
2.
Select , or and press the
button.
• The images will download. The
button will blink blue while downloading
is in progress. The display will return to
the Direct Transfer menu when the
download is complete.
• To cancel the download, press the FUNC./SET button.
All Images
Transfers and saves all images to the computer.
New Images
Transfers and saves to the computer only the
images that have not been previously
transferred.
DPOF Trans.
Images
Transfers and saves to the computer only the
images with DPOF Transfer Order settings
(Advanced Guide, p. 101).
Select & Transfer
Transfers and saves single images to the
computer as you view and select them.
Wallpaper
Transfers and saves single images to the
computer as you view and select them. The
transferred images display on the computer
desktop.
Direct Transfer Menu
31
Select & Transfer/Wallpaper
2.
Select or and press the button (or the
FUNC./SET button).
3.
Select images to download and press the button
(or the FUNC./SET button).
• The images will download. The
button will blink blue while downloading
is in progress.
• Images can also be selected during
index playback (Advanced Guide p. 74).
• Press the MENU button to return to the
Direct Transfer menu.
Only JPEG images can be downloaded as wallpaper for a
computer. On the Windows platform, the files are
automatically created as BMP images.
The option selected with the button is retained even
when the camera's power is turned off.
The previous setting will be in effect the next time the
Direct Transfer menu is displayed. The image selection
screen will appear directly when the [Select & Transfer] or
the [Wallpaper] option was last selected.
Downloading Images to a Computer
32
MEMO
Safety Precautions
Be sure to read, understand and follow the safety precautions below
when using the camera, in order to prevent injury, burns or electrical
shock to yourself and others.
Be sure to also read the safety precautions listed in the
Advanced Camera User Guide.
Warnings
• Do not trigger the flash in close proximity to human or animal eyes.
• Store this equipment out of the reach of children and infants.
• Avoid dropping or subjecting the camera to severe impacts. Do not
touch the flash portion of the camera if it has been damaged.
• Stop operating the equipment immediately if it emits smoke or nox-
iousfumes.
• Do not handle the power cord if your hands are wet.
• Use only recommended batteries and accessories.
• The battery charger and compact power adapter are designed for
exclusive use with your camera. Do not use it with other products or
batteries.
Caution
• Do not sit with the camera in a back pocket as it may cause the
camera to malfunction or damage the LCD monitor.
