All about the
Use & Care
of your
TABLE OF CONTENTS
www.frigidaire.com USA 1-800-944-9044 www.frigidaire.ca Canada 1-800-668-4606
Electric Range
316417024 Rev C (April 2015)
Important Safety Instructions ...........................3-5
Before Setting Oven Controls ..............................5
Oven Control Functions (100) ..............................6
Setting Surface Controls .....................................7
Setting Oven Controls ......................................7-8
Adjusting Oven Temperature (some models) ........8
Care & Cleaning ............................................9-11
Before You Call ................................................11
Major Appliance Warranty .................................12
2
Thank you for choosing Frigidare.
This Use & Care Guide is part of our commitment to
customer satisfaction and product quality throughout the
service life of your new appliance. We view your purchase
as the beginning of a relationship. To ensure our ability
to continue serving you, please use this page to record
important product information.
Need help??
Visit the Frigidaire web site at www.frigidaire.com
Before you call for service, there are a few things you can
do to help us serve your better.
Read this Use & Care manual.
It contains instructions to help you use and maintain your
range properly.
If you received a damaged range ...
immediately contact the dealer (or builder) that sold you
the range.
Save time and money.
Check the section titled “Before you call”. This section
helps step you through some common problems that
might occur. If you do need service, help is only a phone
call away. A list of toll-free customer service numbers
are included in the back of this manual. Or call Frigidaire
Customer Services at 1-800-944-9044, 24 hours a day,
7 days a week.
Product Registration
Registering your product with Frigidaire enhances our
ability to serve you. You can register online at www.
frigidaire.com or by dropping your Product Registration
Card in the mail.
©2015 Electrolux Home Products, Inc.
All rights reserved. Printed in the USA
PRODUCT RECORD AND REGISTRATION
Product Registration ............................................... 2
Important Safety Instructions .............................3-5
Before Setting Oven Controls .................................. 5
The element ON indicator light ....................................5
Oven vent ..................................................................5
Arranging oven racks ..................................................5
Oven Controls Functions ......................................... 6
To set the clock ..........................................................6
To set the minute timer ..............................................6
Changing the temperature display mode ...................... 6
Setting Surface Controls ......................................... 7
To operate the surface elements .................................7
Suggested surface control settings ..............................7
Setting Oven Controls ..........................................7-8
To set or change the temperature for baking ................ 7
Broiling ......................................................................8
Adjusting your oven temperature ........................... 8
Care & Cleaning ..................................................9-11
Cleaning recommendations table ................................. 9
Cleaning recommendations for coil element cooktop ..... 9
Cleaning the oven bottom ......................................... 10
Care & cleaning of stainless steel .............................. 10
Changing the interior oven light ................................ 10
Removing & replacing oven door .......................... 10-11
Before You Call
Solutions to common problems ................................. 11
Appliance Warranty ...............................................12
Contents
Serial plate location:
open storage drawer (some models) or
remove lower front panel (some models).
Serial plate location
Purchase date
Model number
Serial number
Record model & serial numbers here
3
Read all instructions before using this appliance.
Do not attempt to install or operate your appliance until
you have read the safety precautions in this manual.
Safety items throughout this manual are labeled with a
WARNING or CAUTION statement based on the risk type.
This is the safety alert symbol. It is used to alert you to
potential personal injury hazards. Obey all safety messages
that follow this symbol to avoid possible injury or death.
Save these instructions for future reference.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
Stepping, leaning or sitting on the door or
drawers of a range can result in serious injuries
and also cause damage to the appliance. DO NOT
allow children to climb or play around the range. The
weight of a child on an open oven door may cause the
range to tip, resulting in serious burns or other injury.
Never use your appliance for warming or heating
the room.
Do not use the oven or warmer drawer (if
equipped) for storage.
range. Destroy the carton and plastic bags after unpacking
the range. Never allow children to play with packaging
material.
accordance with the National Electrical Code ANSI/
NFPA No. 70 latest edition and local electrical code
requirements. Install only per installation instructions
provided in the literature package for this range.
the manuals. All other servicing should be done only by
a qualied technician. This may reduce the risk of personal
injury and damage to the range.
Ask your dealer to recommend a qualied technician and
an authorized repair service. Know how to disconnect the
power to the range at the circuit breaker or fuse box in case
of an emergency.
by removing the leveling legs, panels, wire covers,
product.
is to be stored or discarded.

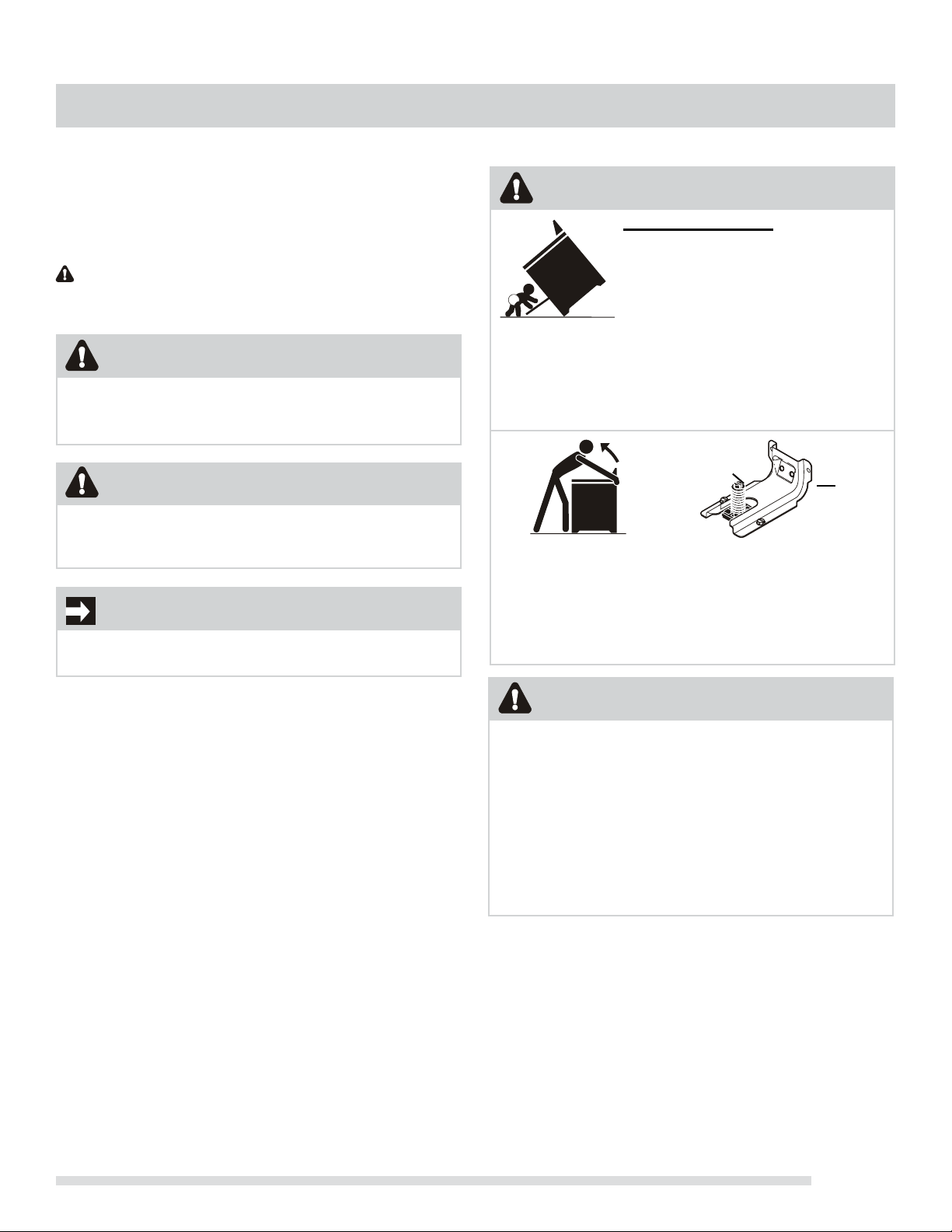

WARNING
Tip Over Hazard
device in place and engaged.
death or serious burns to children and adults.
To check if the anti-tip bracket is installed properly,
use both arms and grasp the rear edge of range back.
Carefully attempt to tilt range forward. When properly
installed, the range should not tilt forward.
Refer to the anti-tip bracket installation instructions
supplied with your range for proper installation.
Range
leveling leg
Anti-Tip
bracket
WARNING indicates a potentially hazardous
situation which, if not avoided, may result in
death or serious injury.
WARNING
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in
minor or moderate injury.
CAUTION
IMPORTANT
IMPORTANT indicates installation, operation, maintenance
or valuable information that is not hazard related.
chemical or foam-type extinguisher.
Fat or
grease may catch re if allowed to become too hot.
hot surfaces may result in burns from steam. Do not
let potholders touch hot heating elements. Do not use a
towel or other bulky cloth instead of a potholder.
pressure may cause container to burst and result
in injury.
4
IMPORTANT SAFETY INSTRUCTIONS
CAUTION
the range. Children climbing on the range to reach
items could be seriously injured.
heating elements or interior surfaces of the oven.
Both surface units and oven heating elements may be hot
even though they are dark in color. Areas near surface
units may become hot enough to cause burns. During
and after use, do not touch, or let clothing or other
ammable materials touch these areas until they have
had sufcient time to cool. Among these areas are the
cook top, surfaces facing the cook top, the oven vent
openings and surfaces near these openings, oven door
and oven door window.
garments should never be worn while using the
appliance. Do not let clothing or other ammable
materials contact hot surfaces.
Do not attempt to operate the range during a power
failure. If the power fails, always turn off the range. If the
range is not turned off and the power resumes, the range
will begin to operate again. Once the power resumes, reset
the clock and oven function.
IMPORTANT
should not be stored in an oven, warmer drawer,
near surface units or in the storage drawer.
This includes paper, plastic and cloth items, such as
cookbooks, plasticware and towels, as well as ammable
liquids. Do not store explosives, such as aerosol cans,
on or near the range.
should not be left alone or unattended in the
area where appliance is in use. They should never
be allowed to sit or stand on any part of the appliance..
WARNING
IMPORTANT INSTRUCTIONS FOR USING
YOUR COOKTOP
unit. Place a pan of food on the unit before turning it on,
and turn the unit off before removing the pan.
—This appliance is equipped with
one or more surface units of different sizes. Select utensils
having at bottoms large enough to cover the surface unit
heating element. The use of undersized utensils will expose
a portion of the heating element to direct contact and may
result in ignition of clothing. Proper relationship of utensil
to element will also improve efciency.
Extend Over Adjacent Surface Elements—To reduce the
risk of burns, ignition of ammable materials, and spillage
due to unintentional contact with the utensil, the handle of
the utensil should be positioned so that it is turned inward,
and does not extend over adjacent surface units.
Heat Settings—Boilovers cause smoking and greasy spillovers
that may ignite, or a pan that has boiled dry may melt.
Heating elements should never be immersed in water. Heating
elements clean themselves during normal operation.
—Only certain types of glass,
glass/ceramic, ceramic, earthenware, or other glazed
utensils are suitable for cook top service without breaking
due to the sudden change in temperature. Check the
manufacturer’s recommendations for cook top use.
the fan on.
IMPORTANT INSTRUCTIONS FOR USING
YOUR OVEN
Drawer (if equipped)—Stand to the side of the range
when opening the door of a hot oven. Let hot air or steam
escape before you remove or replace food in the oven.
The oven vent
is located under the left rear surface element if your model
is equipped with coil elements. The oven vent is located
below the backguard for models equipped with ceramic-
glass cook tops. Touching the surfaces in this area when
the oven is operating may cause severe burns. Also, do not
place plastic or heat-sensitive items on or near the oven
vent. These items could melt or ignite.
Always place oven racks in
desired location while oven is cool. If rack must be moved
while oven is hot use extreme caution. Use potholders and
grasp the rack with both hands to reposition. Do not let
potholders contact the hot heating elements in the oven.
Remove all utensils from the rack before moving.
The
broiler pan and its insert allow dripping fat to drain and
be kept away from the high heat of the broiler.
Exposed fat and grease could ignite.
—Do not use aluminum foil to line the
oven bottom. Only use aluminum foil as recommended in
this manual. Improper installation of these liners may result
in risk of electric shock, or re.
YOUR RANGE
Pay particular attention to
the area underneath each surface element. Do not allow
grease to accumulate.
5

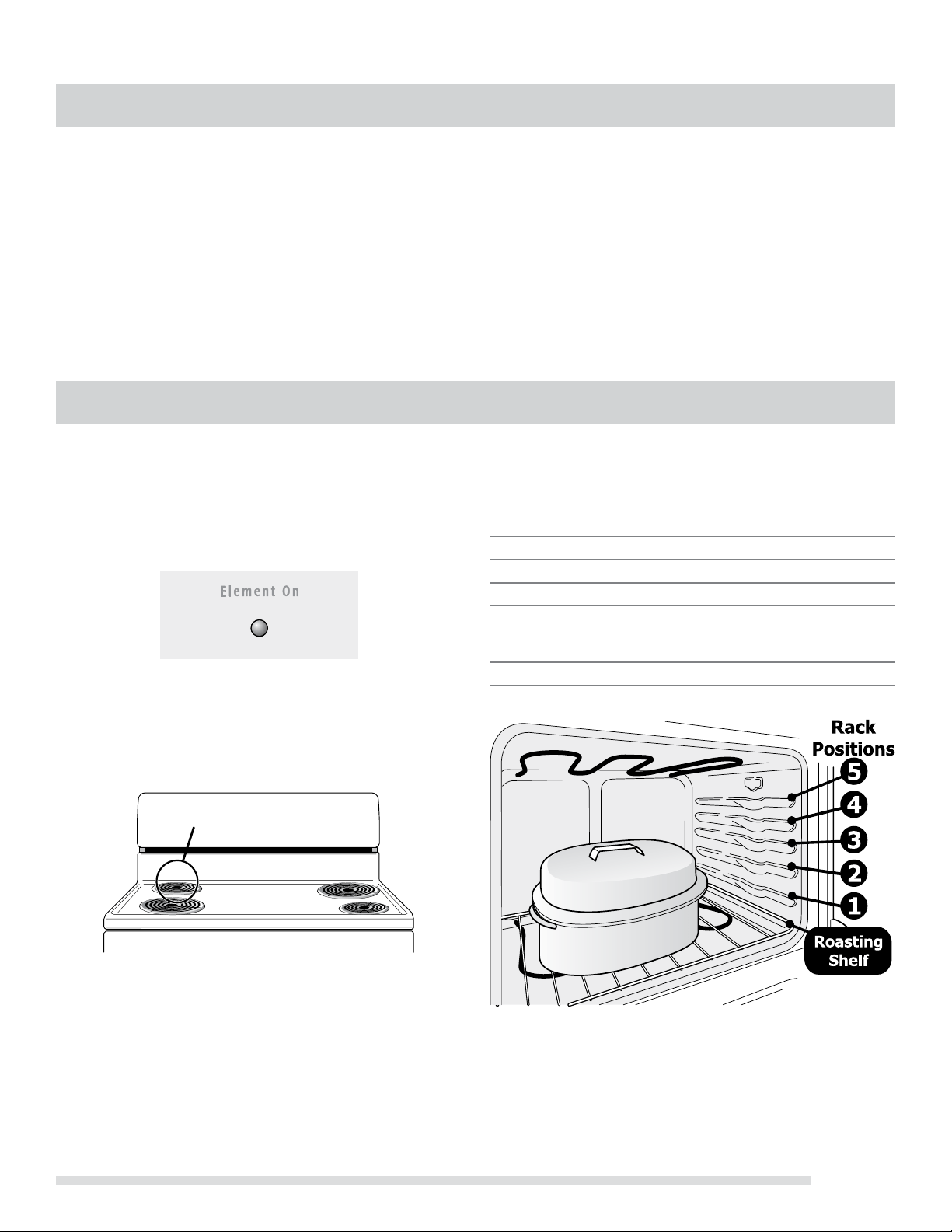

For models equipped with coil surface elements, the oven vent is
located under the left rear surface element. When the oven
is on, warm air ows through the left rear element. This venting
is necessary for proper air circulation in the oven and good baking
results. DO NOT BLOCK THE OVEN VENT.
Always use oven
mitts when using the oven.
To remove, pull the rack forward until it stops. Lift up front of
rack and slide out. To replace, t the rack onto the guides on
the oven walls. Tilt the front of the rack upward and slide the rack
back into place.
The Coil Cook Top range is equipped with a surface control light
that will glow on your range—the Element ON indicator light. The
Element ON indicator light (all models) located on the control panel,
will glow when any surface element is turned ON. A quick glance
at this light after cooking is an easy check to be sure all surface
controls are turned OFF.
manufacturer’s recommended directions for use.
Be aware that excess residue from cleaners and aerosols
may ignite causing damage and injury.
Follow manufacturer’s instructions for cleaning.
Place—Absence of these pans or bowls during cooking
may subject wiring or components underneath to damage.
—Do not use aluminum foil to line surface
unit drip bowls, or reector pans. Only use aluminum foil
as recommended in this manual. Improper installation of
these liners may result in risk of electric shock, or re.
Improper installation of these liners may result in risk of
electric shock, or re.
IMPORTANT SAFETY NOTICE
The California Safe Drinking Water and Toxic Enforcement
Act requires the Governor of California to publish a list of
substances known to the state to cause cancer, birth defects
or other reproductive harm, and requires businesses to warn
customers of potential exposure to such substances.
IMPORTANT SAFETY INSTRUCTIONS
, place the rack on position 2 or 3. To
place the racks on positions 1 & 3.
Roasting:
Food
Broiling meats, chicken or sh. (See Broiling section)
Cookies, cakes, pies, biscuits & mufns. 2 or 3
Frozen pies, angel food cake, yeast,
bread, casseroles, small cuts of meat or
poultry.
1
Turkey, roast or ham. 1 or Roasting Shelf
Oven vent located under
rear element
6
When the range is rst plugged in, or when the power supply
to the range has been interrupted, the display will ash “12:00”.
1. Press .
2. Within 5 seconds, press and hold the or until
the correct time of day appears in the display.
To Set the Minute Timer:
1. Press .
2. Press the to increase the time in one minute
increments. Press and hold the to increase the time
in 10 minute increments. The timer can be set for any
amount of time from 1 minute to 11 hours and 59 minutes.
THE OVEN. For satisfactory use of your oven, become familiar
with the various functions of the oven as described below.
To Change the Minute Timer while it is in use:
While the timer is active and shows in the display, press
and hold the
or to increase or decrease the
time.
To Cancel the Minute Timer before the set time has
run out: Press .
Changing the Temperature Display Mode
(some models)
The electronic oven control temperature display mode was
factory preset to display (Fahrenheit) °F oven temperatures.
Note: Oven cooking temperatures may be set from 170°F to
550°F (77°C to 287°C).
To change the Temperature Display Mode to °C
(Celsius) or from °C to °F (do not use Bake or Broil
while changing the Temperature Display Mode):
1. Press & hold the key pad for 6-8 seconds until F or
C appears in the display. Note: At this time the display
will show the current Temperature Display Mode whether
set for F or C .
2. Press the key pad once to choose the (Fahrenheit)
°F mode; or press the key pad once to choose the
(Celsius) °C mode.
3. After 5 seconds, the display will ash. To accept the
change, wait 5 more seconds until the oven control beeps
once. To complete the change skip step 4 below, OR;
4. If at any time during the process of changing the
Temperature Display Mode (F or C ) you decide the
change is not desired, press the key pad before
the oven control beeps once to cancel the process.
5. The control will beep once. The display will then return
to the time of day with any temperature display mode
change you may have requested.
PAD—
Used to
select the
variable
broil
function.
UP & DOWN ARROW PADS— Used along with
the function pads to select oven temperature,
time of day, clean time & minute timer.
BAKE PAD—Used
to select the bake
function.
PAD— Used
to set the
time of day.
— Used to
clear any function previously
entered except the time of
day and minute timer. Press
to stop cooking.
TIMER ON/OFF PAD—
Used to set or cancel the
minute timer. The minute
timer does not start or
stop cooking.
While the minute timer is counting down, the “:” will
ash. The minute timer does not start or stop cooking. It
serves as an extra timer in the kitchen that will beep when
the set time has run out. The minute timer can be used
alone or during any of the other oven functions. When
the minute timer is in use with any other function, the
minute timer will be shown in the display. To view other
functions, press the pad for that function.
NOTE
If you press the rst, the timer will advance to 11
hours and 59 minutes.
NOTE
The time of day must rst be set in order to operate the oven.
NOTE
3. The display shows the timer count down in minutes
until one minute remains. Then the display will count
down in seconds.
4. When the set time has run out, the timer will sound
a 3 second beep. 0:00 will appear in the display until
is pressed.
7
To Operate the Surface Elements
1. Place cooking utensil on the surface element.
2. Push in and turn the surface control knob in either direction
to the desired setting (See Fig. 1). Start most cooking
operations on a higher setting and then turn to a lower
setting to nish cooking. The control knobs do not have
to be set exactly on a particular setting. Use the settings
as a guide and adjust the control knob as needed.
3. When cooking is completed, turn the surface element
off before removing the pan. Note: The surface
“Element On” indicator light(s) will glow when one or
more elements are turned ON. A quick glance at these
indicator light(s) when cooking is nished is an easy
check to be sure all surface elements are turned OFF.
Suggested Surface Control Settings
The suggested settings found in the chart below are
based on cooking in medium-weight metal pans with lids.
Settings may vary when using other types of pans. Note:
The size and type of utensil used, and the amount and
type of food being cooked will inuence the setting needed
for best cooking results.
Do not place plastic items such as salt and pepper shakers,
spoon holders or plastic wrappings on top of the range when
it is in use. These items could melt or ignite. Potholders,
towels or wooden spoons could catch re if placed too
close to the element.
CAUTION
Setting
HIGH (HI - 9) Start most foods, bring water to a
boil, pan broiling
MEDIUM HIGH
(7 - 8)
Continue a rapid boil, fry, deep fat
fry
MEDIUM (5 - 6) Maintain a slow boil, thicken
sauces & gravies, steam vegetables
MEDIUM LOW
(2 - 4)
Keep foods cooking, poach, stew
LOW (LO - 1) Keep warm, melt, simmer.
The oven can be programmed to bake at any temperature
from 170°F to 500°F.
1. Press . “— — —°” appears in the display.
2. Within 5 seconds, press the or . The display
will show “350°F.” By pressing and holding the
or , the temperature can then be adjusted in 5°F
increments.
3. When the or is released, the oven will
begin heating to the selected temperature. When the
displayed temperature reaches the desired baking
temperature, the control will beep once (1 time).
4. To cancel the baking function, press .
Started:
1. Press
and make sure the bake temperature is
displayed.
2. Press the or to increase or decrease the set
temperature.
8

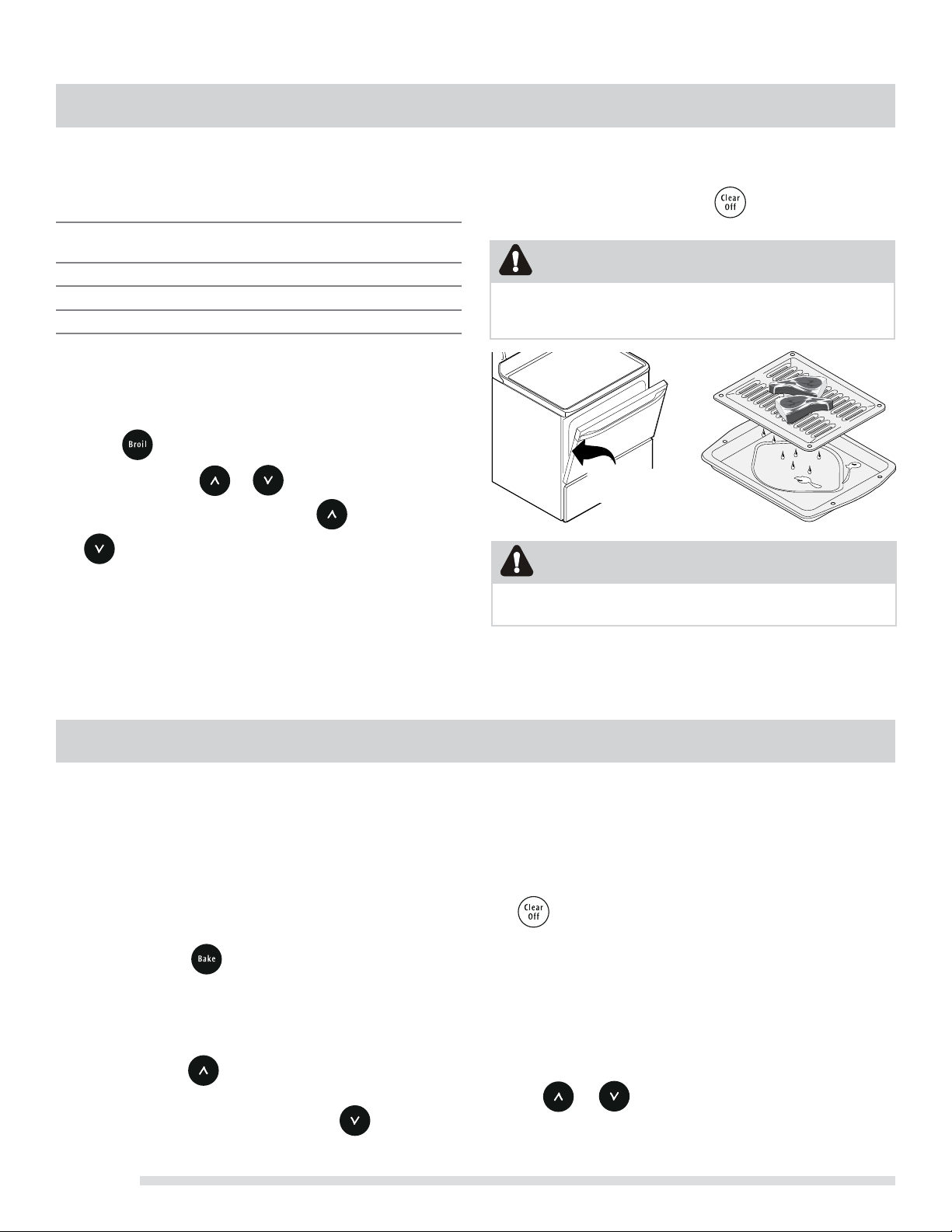

The broiler pan & the insert (some models) allows grease to
drain and be kept away from the high heat of the broiler. DO
NOT use the pan without the insert. DO NOT cover the insert
with foil; the exposed grease could ignite.
Broiling
Broiling is direct heat cooking and will produce some smoke.
If smoke is excessive, place food further away from the
element. Always watch food carefully to prevent burning.
Your new oven has been factory calibrated and tested to ensure
an accurate baking temperature. For the rst few uses, follow your
recipe times and temperature recommendations carefully. If you
feel your oven is too hot or too cool from your baking experience,
the oven temperature may be adjusted to your liking.
Note: DO NOT adjust your oven temperature based on oven
thermometers, such as those found in grocery stores, they may
not be accurate.
To Adjust the Oven Temperature (do not use Bake or Broil while
adjusting the oven temperature):
1. Press & hold the
key pad and release after the display
begins ashing the factory temperature setting of 00.
Note: If the oven temperature has been previously adjusted
from the factory setting, the current temperature adjusted
value will ash in the display instead.
2. You may increase the oven temperature in 5°F increments with
each press of the
key pad to a maximum oven adjustment
of +35°F. You may also adjust the oven temperature downward
in 5°F increments with each press of the
key pad (total
To insure proper results when broiling use ONLY Electrolux Home
Products, Inc. approved Broil Pan & Insert (some models).
CAUTION
Should an oven re occur, close the oven door and turn off the
oven. If the re continues, use a re extinguisher. DO NOT put
water or our on the re. Flour may be explosive.
CAUTION
Position Food
3 or 4 Medium-rare steaks
3 Fish, medium-well done hamburgers & chops
1 or 2 Well-done foods such as chicken & lobster
Consuming raw or undercooked meats, poultry, seafood
or shellsh may increase your risk of food borne illness.
1. Arrange oven rack while oven is still cool. Position the rack as
suggested in the chart below. See “Arranging Oven Racks” in
Before Setting Oven Controls.
2. Press
.
3. Press and hold the or until the desired broil setting
level appears in the display. Press the for HI broil or the
for broil. Most foods can be broiled at the HI broil
setting. Select the broil setting to avoid excess browning or
drying of foods that should be broiled to the well-done stage.
4. Place the insert on the broiler pan (some models), then place
the food on the insert. DO NOT use the broiler pan without
the insert or cover the insert with aluminum foil. The exposed
grease could ignite.
5. Place the pan on the oven rack. Open the oven door to the
broil stop position when broiling (see illustration).
adjustment range of -35 to +35 F. Note: Your oven control was
factory set in the (Fahrenheit) °F Temperature Display Mode.
To change for (Celsius) °C, see Changing the Temperature
Display Mode in the Oven Control Functions section of this
Use & Care Manual.
3. If no other key pad is pressed after 5 seconds the display will
begin to ash.
4. If you do not want to keep the display adjustment, press the
key pad before the oven control beeps. This will cancel
the temperature adjustment procedure. To start this procedure
over again begin with step 1 above OR;
5. If you want to keep the adjustment, wait until the display
quits ashing and the oven control beeps once.
6. The oven temperature adjustment has be accepted by the oven
control and the display will return to the time of day.
Notes: The oven temperature adjustment may be made if
your oven control has been set to operate in the (Celsius) °C
Temperature Display Mode. In this case each press of
the
or key will adjust in 1°C increments upward
(maximum +18°C) or downward (maximum -18°C), depending
on which arrow key pad is pressed.
ADJUSTING YOUR OVEN TEMPERATURE (some models)
6. Broil on one side until food is browned; turn and cook on the
second side. Note: Always pull the rack out to the stop position
before turning or removing food.
7. When broiling is nished, press
.
Broil stop
position
9
Never immerse a surface element in water.
Be sure the range is cool before removing elements or drip bowls.
Be careful not to bend terminal ends when replacing elements
after cleaning.
CAUTION
Surfaces How to Clean
Glass, Painted Plastic
Body Parts & Control
Knobs
For general cleaning, use a soft cloth, clean with mild dish detergent & water or a 50/50 solution of
vinegar & water. Follow by rinsing the area with clean water; dry & polish with a soft cloth. Glass cleaners
may be used if sprayed on a soft cloth 1st. DO NOT spray liquids directly on the control pad and display
areas. DO NOT use large amounts of water on the control panel - excess water on the control area may
cause damage to the appliance. DO NOT use other liquid cleaners, abrasive cleaners, scouring pads, or
some paper towels - they will damage the nish.
Painted Control Panels
& Display areas
Before cleaning the control panel, turn all controls to OFF & remove the control knobs. To remove, pull
each knob straight off the shaft. Use the general cleaning instructions provided in the paragraph above.
Porcelain Enamel
Burner Grates,
Broiler Pan & Insert,
Broiler Drawer, Door
Clean burner grates, broiler pan & insert in the dishwasher and dry upon removal. If soils are not
removed, follow the cooktop cleaning instructions below.
Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1 solution of clean water
& ammonia. If necessary, cover difcult spots with an ammonia-soaked paper towel for 30 to 40 minutes.
Rinse with clean water and a damp cloth, then scrub with a soap-lled scouring pad. Rinse & wipe dry with a
clean cloth. Remove all cleaners or the porcelain may become damaged during future heating. DO NOT use
spray oven cleaners on the range top.
Remove racks. See “Removing & Replacing Oven Racks” under Before Setting Oven Controls. Use a
mild, abrasive cleaner, following the cleaner’s recommendations. Rinse with clean water & let dry. After
cleaning the racks, rub the sides of the racks with wax paper or a cloth containing a small amount of baby
oil or salad oil (this will make the racks glide easier into the oven rack positions).
Oven Door Use soap & water to thoroughly clean the top, sides & front of the oven door. Rinse well. You may use a
glass cleaner on the outside glass of the oven door. DO NOT immerse the door in water. DO NOT spray
or allow water or the glass cleaner to enter the door vents. DO NOT use oven cleaners, cleaning
powders or any harsh abrasive cleaning materials on the outside of the oven door. DO NOT clean the oven
door gasket. The oven door gasket is made of a woven material, on Self-Cleaning models, which is essential
for a good seal. Care should be taken not to rub, damage or remove this gasket.
Stainless
Steel
Clean stainless steel with hot soapy water & a dishcloth. Rinse with clean water and a cloth. DO NOT use
cleaners with high concentrations of chlorides or chlorines. DO NOT use harsh scrubbing cleaners. Only use
kitchen cleaners that are especially made for cleaning stainless steel. Always be sure to rinse the cleaners
form the surface as bluish stains may occur during heating that cannot be removed.
Cleaning Recommendations for Coil Element
Surface elements can be unplugged and removed to make cleaning
the drip pans easier. The surface elements clean themselves when
they are turned on. Food spilled on a hot element will burn off. Food
spilled on a cool element may be cleaned with a damp cloth—any
remaining soil will burn off the next time the element is used.
Removing the Surface Elements & Drip Bowls
1. Lift the edge of the drip bowl across from the terminal end.
the surface element & drip bowl together just enough to
clear the cooktop.
2. While holding the drip bowl and surface element, gently pull
the terminal end out from the terminal plug. If equipped, DO
NOT remove the hold down clip from the drip bowl.
Cleaning the Drip Bowls
Wash in hot soapy water or in the dishwasher. Rinse & dry while
still warm. Hard to remove or burned on soil can be removed by
soaking the drip bowls for about 20 minutes in a lightly diluted liquid
cleanser or a solution of ammonia & water (1/2 cup ammonia to 1
gallon of water). A nylon scrubber may be used after soaking. DO
NOT use abrasive cleaners or steel wool, as they will scratch the
surface. Always rinse with clean water & polish dry with a soft cloth.
Replacing Drip Bowls & Surface Elements
1. Slide the terminal end on the element through the opening in
the drip bowl.
2. Align the element support to rest on the rim inside the drip bowl.
If your drip bowl is equipped with a hold down clip, align the
element support opposite the terminal end with the slot in the
hold down clip & snap into place.
3. After the element is positioned in the drip bowl, line up the
terminal end with the terminal plug as shown.
4. Hold the surface element & drip bowl together as level as possible
& rmly push the terminal end into the terminal plug. Make sure
element terminal is seated properly into terminal plug. Make sure
the surface element is level to reduce the hazard of pans sliding
off the element.
Terminal
plug
Terminal end
Element
support
Hold down clip
(if equipped)
Allow element
support to rest
on drip pan
inside rim.
10

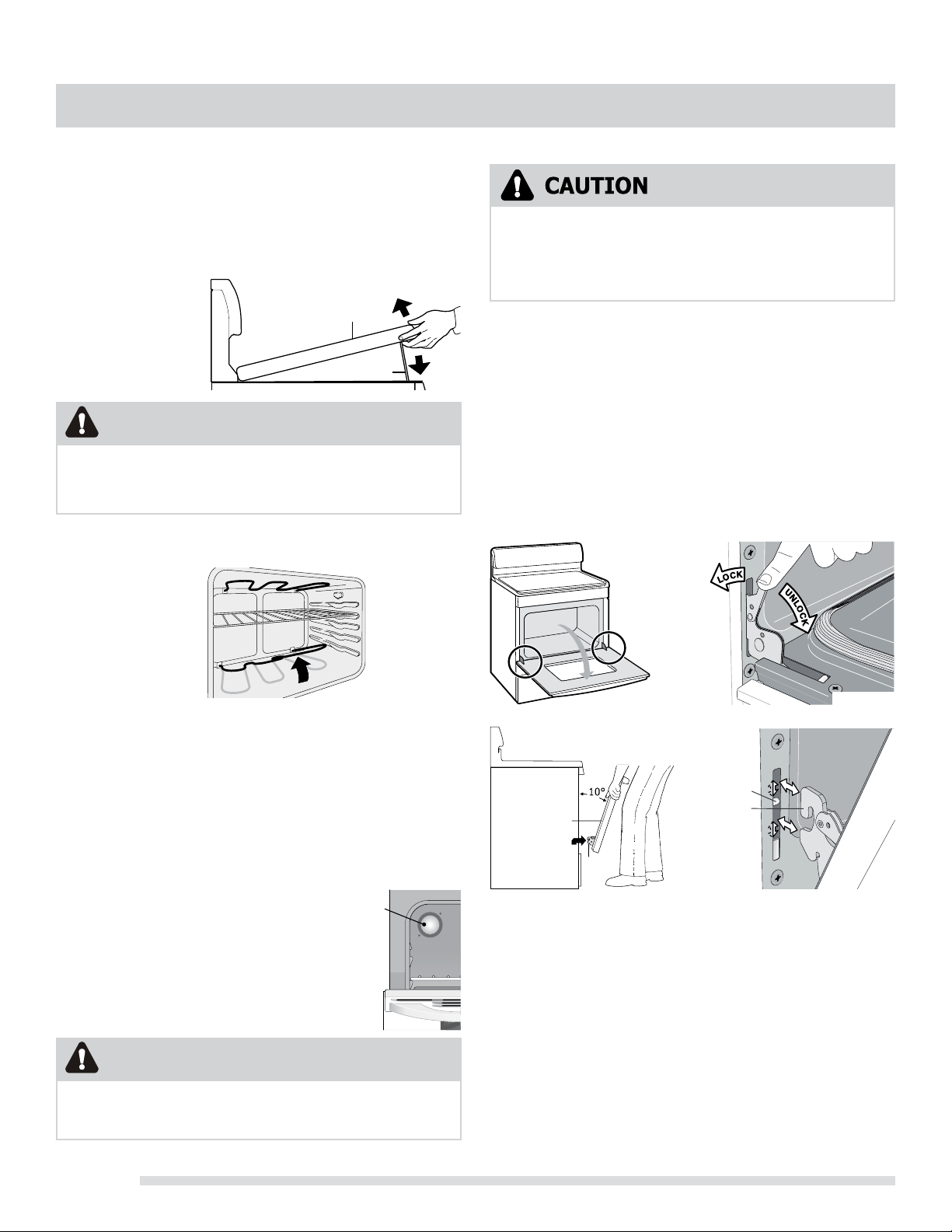

Raising the Top for Cleaning
1. Grasp the sides &lift from the front. Lift-up rods will support the
top in a raised position. Only lift the top far enough to allow the
support rods to snap into place.
2. Clean underneath using a clean cloth & hot soapy water.
3. To lower the top,
gently push back on
each rod to release
the notched support.
Hold the range top
and slide the lift rods
down into the range
frame.
(some models)
On some models, the oven light automatically turns on when the door
is opened. Some models have a switch located on the control panel
to turn on the light. The oven light is located at the rear of the oven.
Care & Cleaning of Stainless Steel
Some models are equipped with stainless steel exterior parts.
Special care and cleaning are required for maintaining the
appearance of stainless parts. Please refer to the Cleaning Chart
provided at the beginning of the General Care & Cleaning
section in this Use & Care Manual.
Cleaning the Oven Bottom
The bake element is designed to be gently tilted up using your
The baking
element may
be tilted
about 4 or
5 inches to
clean the
oven bottom.
Cleaning Recommendations for Coil Element
(continued)
When lowering the lift-up range top, grasp the sides with nger-
tips only. Be careful not to pinch ngers. DO NOT drop or bend
the range top when raising or lowering. This could damage the
surface.
CAUTION
Be sure the range is unplugged and all parts are COOL before
replacing oven light. Wear a leather-faced glove for protection
against possible broken glass.
CAUTION
hand from the front
of the bake element.
This will allow easier
access to the oven
bottom for cleaning.
Be careful not to raise
the element more than
4 or 5 inches from the
resting position.
To replace the oven light:
1. Turn electrical power off at the main source
or unplug the range.
2. Replace bulb with a new 40 watt appliance bulb.
3. Turn power back on again at the main source
(or plug the range back in).
4. The clock will then need to be reset. To reset,
see Setting Oven Controls in this Use &
Care Manual.
• To avoid possible injury when removing or replacing the oven
door, follow the instructions below carefully and always hold the
door with both hands positioned away from the door hinge area.
• The door is heavy. For safe, temporary storage, lay the door
at with the inside of the door facing down.
To remove oven door:
1. Open oven door completely (horizontal with oor - See Fig. 1).
2. Pull the door hinge locks on both left and right door hinges
down from the oven frame completely towards the oven
door to unlock (See Fig. 2). A tool such as a small at-blade
screwdriver may be required.
3. Firmly grasp both sides of oven door along the door sides (Do
not use the oven door handle).
4. Close the door to the broil stop position. The oven door will
stop into this position just before fully closing.
5. With the oven door in the broil stop position lift the oven door
hinge arms over the roller pins located on each side of the
oven frame (see g. 4)
Removing and replacing the lift-off oven door
Oven door
hinge
locations
Fig. 1
Fig. 4
roller
pin
hinge
arm
Fig. 2
To replace oven door:
1. Firmly grasp both sides of oven door along the door sides (Do not
use the oven door handle - see g 3).
2. Holding the oven door at the same angle as the removal position,
sit the hook of the hinge arm over the roller pins located on each
side of the oven door frame (See Fig. 4). The hook of the hinge
arms must be fully seated onto the roller pins.
3. Fully open the oven door (horizontal with oor - See Fig. 1).
4. Push the door hinge locks up towards and into the oven frame for
both left and right oven door hinges to the locked position (See Fig.
2).
5. Close the oven door.
Oven
door
Hinge
About
Fig. 3
Oven
light
11
Removing and replacing the lift-off oven door (continued)
1. Do not close the oven door until all the oven racks are fully positioned into the oven interior.
2. Do not hit the glass with pots, pans, or any other object.
3. Scratching, hitting, jarring or stressing the glass may weaken its structure causing an increased risk of breakage at a later time.
Solutions to common problems •
Before you call for service, review the following list. It may save you time & expense. The list includes common occurrences (shown in bold)
that are not the result of defective workmanship or materials in this appliance. The possible corrections to these problems are provided with the
problem listed:
Problem Solution
Range is not level (1) Poor installation. Place oven rack in center of oven. Place a level on the oven rack. Adjust leveling legs at base of
range until the oven rack is level. (2) Be sure oor is level, strong & stable enough to adequately support range. (3)
If oor is sagging or sloping, contact a carpenter to correct the situation. (4) Kitchen cabinet alignment may make
range appear not level. Be sure cabinets are square & have sufcient room for range clearance.
Cannot move appliance
easily. Appliance must
be accessible for service
(1) Cabinets not square or are built in too tightly. Contact builder or installer to make appliance accessible. (2)
Carpet interferes with range. Provide sufcient space so range can be lifted over carpet.
Surface element too
hot or not hot enough
Incorrect control setting. Be sure the correct control is ON for the element to be used.
Surface element does
not heat
(1) Lightweight or warped pans used. Use only at, evenly balanced, medium or heavyweight cookware. Flat pans
heat better than warped pans. Cookware materials and weight of the material affect heating. Heavy & medium-weight
pans heat evenly. Because lightweight pans heat unevenly, foods may burn easily. (2) No power to the appliance.
Check steps under “Entire Appliance Does Not Operate” in this checklist. (3) Incorrect control setting. Make
sure the correct control is ON for the surface element to be used.
Entire appliance does
not operate
(1) The time of day is not set. The time of day must rst be set in order to operate the oven. See “To Set the Clock”
in the Setting Oven Controls section.(2) Make sure cord/plug is plugged correctly into outlet. (3) Service wiring is
not complete. Contact your dealer, installing agent or authorized service agent. (4) Electrical power outage. Check
house lights to be sure. Call your local electric company for service.
Oven does not operate Be sure the oven controls are set properly for the desired function. See Setting Oven Controls in this Use &
Care Manual or read the instructions “Entire appliance does not operate” in this checklist.
Oven light does not
(some models)
Replace or tighten bulb. See section in this Use & Care Manual.
excessively during
broiling
(1) Control(s) not set properly. Follow Broil instructions under Setting Oven Controls. (2) Make sure oven door is
opened to broil stop position. (3) Meat too close to the broil element. Reposition the broil rack to provide proper
clearance between the meat & the element. Preheat the broil element for searing. (4) Meat not properly prepared.
Remove excess fat from meat. Cut remaining fatty edges to prevent curling, but do not cut into lean. (5) Insert on
broiler pan wrong side up & grease not draining. Always place grid on the broiler pan with ribs up & slots down to
allow grease to drip into pan (some models). (6) Grease has built up on oven surfaces. Regular cleaning is necessary
when broiling frequently. Old grease or food spatters cause excessive smoking.
Flames inside oven or
vent
Excessive spillovers in oven. For example this will happen for pie spillovers or large amounts of grease left on the
oven bottom. Wipe up excessive spillovers before starting oven. If ames or excessive smoke are present see
“Broiling” in the Setting Oven Controls section.
Oven control beeps &
displays any F code
error (for example
F11)
Electronic control has detected a fault condition. Press to clear the display & stop beeping. Try the
Bake or Broil function again. If the F code error repeats, remove power suppy to appliance, wait 5 minutes and
then repower the appliance and set clock time of day. Try the Bake or Broil function again. If the fault recurs,
record fault number, press & contact an authorized service agent.
Many factors affect baking results. Make sure the proper oven rack position is used. Center food in the oven &
space pans to allow air to circulate. Allow the oven to preheat to the set temperature before placing food in the
oven. Try adjusting the recipe’s recommended temperature or baking time. If you feel the oven is too hot or
cool, see Adjusting Your Oven Temperature in this Use & Care Manual.
Drip bowls are pitting
or rusting
(1) Foods with acids, such as tomatoes if allowed to stand in or on drip bowls will cause corrosion. Remove &
wash drip bowls as soon as possible after a spillover. (2) Normal environment. Houses along coastal areas are
exposed to salt air. Protect bowls as much as possible from direct exposure to salt air.
Drip bowls turning
color or distorted
Bottom surface of cookware extends beyond surface elements and touches cooktop surface. This can cause
high enough temperatures to discolor the drip bowls. DO NOT use cookware of this type. Pan sizes should be
matched to the size of the element. Replacement drip bowls may be purchased from your appliance dealer.
12
Your appliance is covered by a one year limited warranty. For one year from your original date of purchase,
Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective
in materials or workmanship when such appliance is installed, used and maintained in accordance with the
provided instructions.
Canada
1.800.668.4606
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
L5V 3E4
USA
1.800.944.9044
Electrolux Major Appliances
North America
10200 David Taylor Drive
Charlotte, NC 28262
This warranty does not cover the following:
1 Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA or
Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased “as-is” are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances not in
ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc.,
which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air lters, water lters, other consumables, or knobs,
handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip
charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the nish of appliance or home incurred during installation, including but not limited to oors,
cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than genuine
Electrolux parts or parts obtained from persons other than authorized service companies; or external causes
such as abuse, misuse, inadequate power supply, accidents, res, or acts of God.
CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR
OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE
SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE
FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES
RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME
STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR
EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU
MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should
service be required. If service is performed, it is in your best interest to obtain and keep all receipts. Service under
this warranty must be obtained by contacting Electrolux at the addresses or phone numbers below
This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances North
America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux
authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under this warranty
must be performed by Electrolux or an authorized service company. Product features or specications as described or illustrated
are subject to change without notice.
If You Need
Service
Exclusions
