Kenmore Elite 91782 7.4 cu. ft. Smart Gas Dryer User Manual

MFL69702016

Sears Brands Management Corporation

Hoﬀ man Estates, IL 60179 U.S.A.

www.kenmore.com

Use & Care Guide

Models: 796.8178*, 796.9178*

Kenmore Elite

Steam Dryer

* = color number

TABLE OF CONTENTS

PRODUCT RECORD

In the space below, record the date of purchase, model,

and serial number of your product. You will ﬁ nd the

model and serial number printed on an identiﬁ cation

plate located inside the dryer door. Have these items of

information available whenever you contact Sears

concerning your product.

Model No.

Date of Purchase

Serial No.

Save these instructions and your sales receipt for future

reference.

IMPORTANT SAFETY INSTRUCTIONS ....................3-6

Grounding Requirements ............................................ 4

FEATURES AND BENEFITS

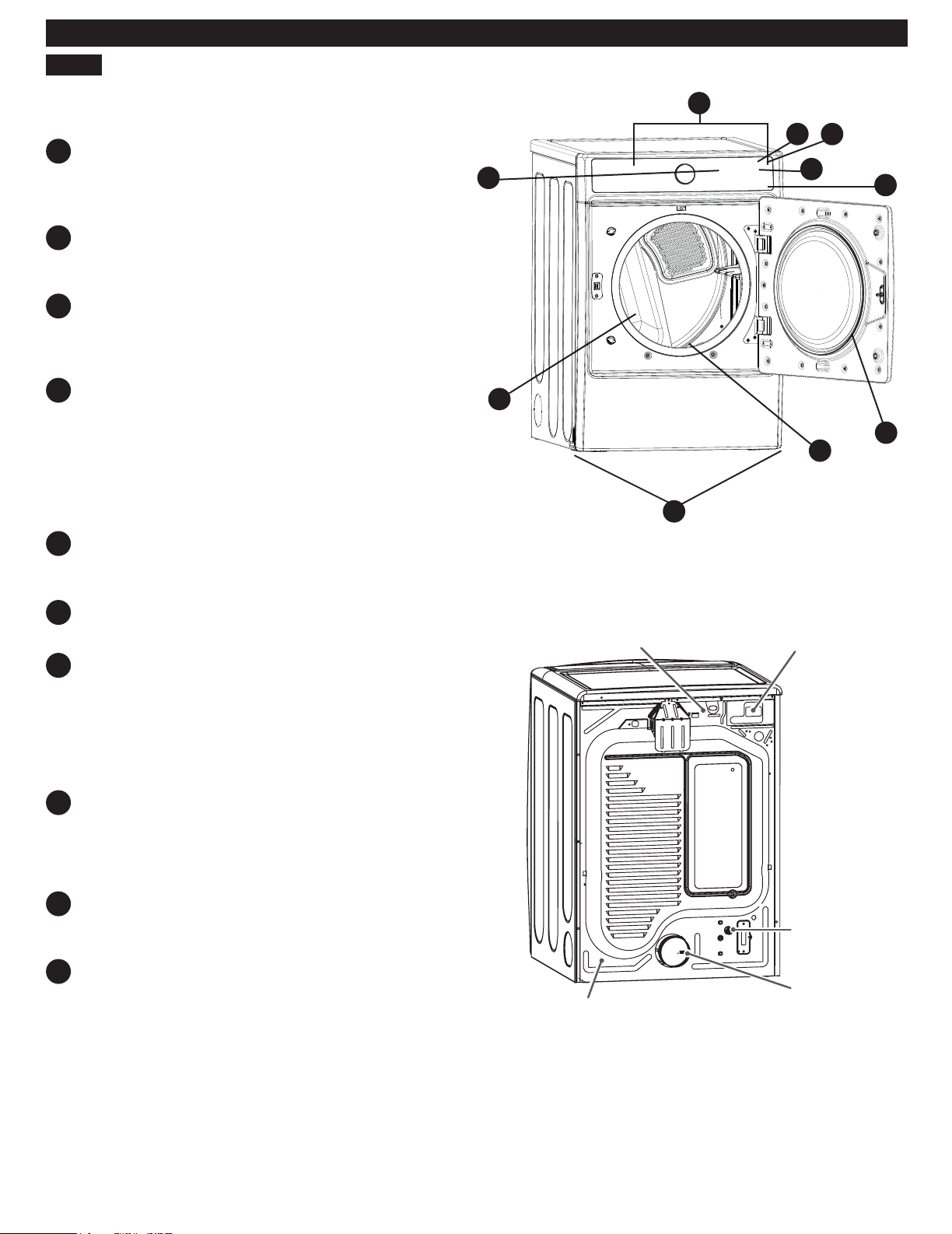

Key Parts and Components ........................................7

INSTALLATION INSTRUCTIONS

Key Dimensions and Speciﬁ cations ..........................8

Location Requirements ................................................8

Choose the Proper Location .......................................8

Clearances ....................................................................8

Installation with Optional Pedestal Base

or Stacking Kit .............................................................9

Accessories ...................................................................9

Connecting Gas Dryers ........................................10-11

Gas Requirements (Gas Models Only) ............10

Electrical Requirements ......................................10

Connecting Electric Dryers ................................... 12-1

Electrical Requirements ...................................... 12

Venting the Dryer .................................................14-15

Connecting the Inlet Hose .........................................16

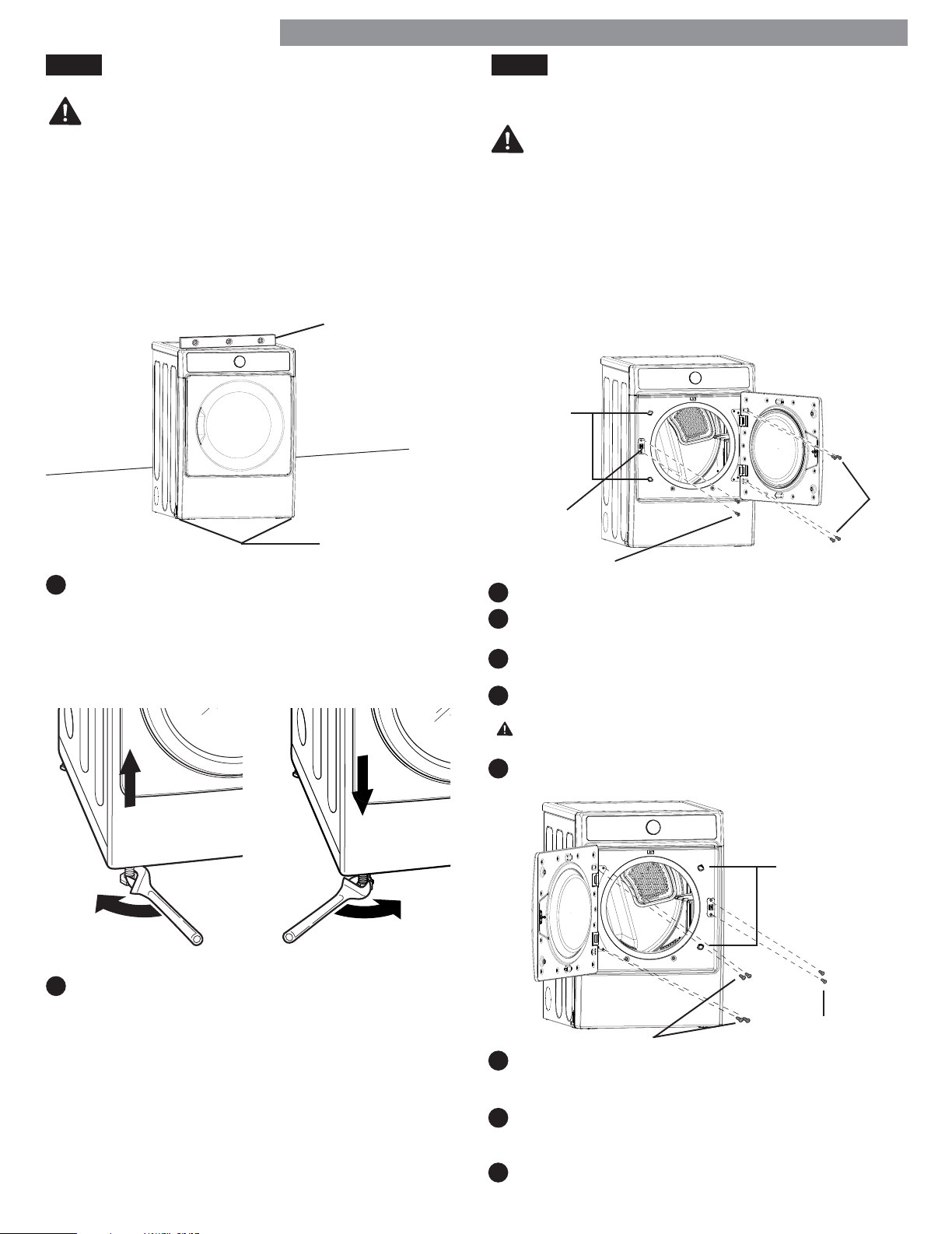

Leveling the Dryer .....................................................17

Reversing the Door Swing ........................................17

Final Installation Check ............................................ 18

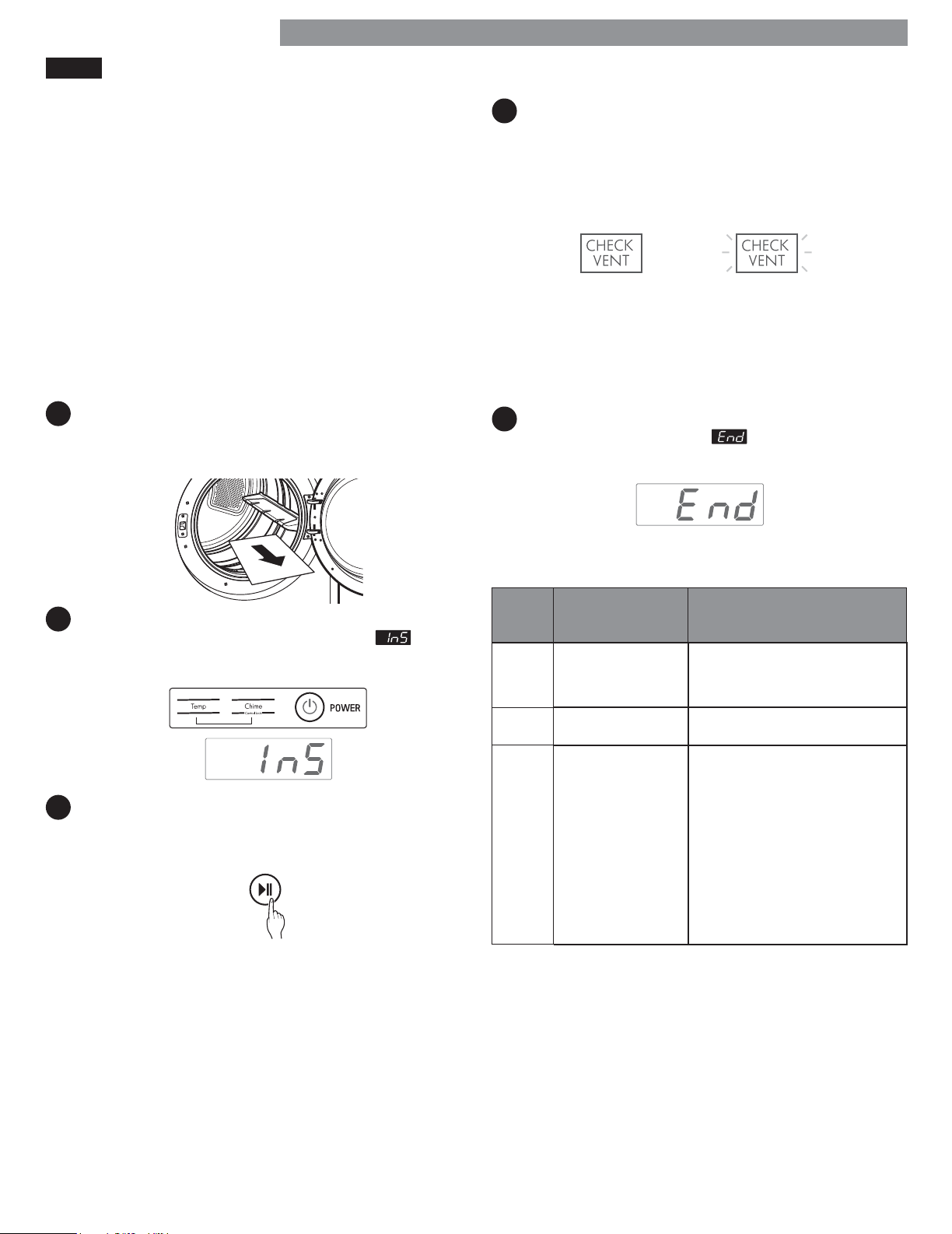

Installation Test (Duck Check) .................................. 19

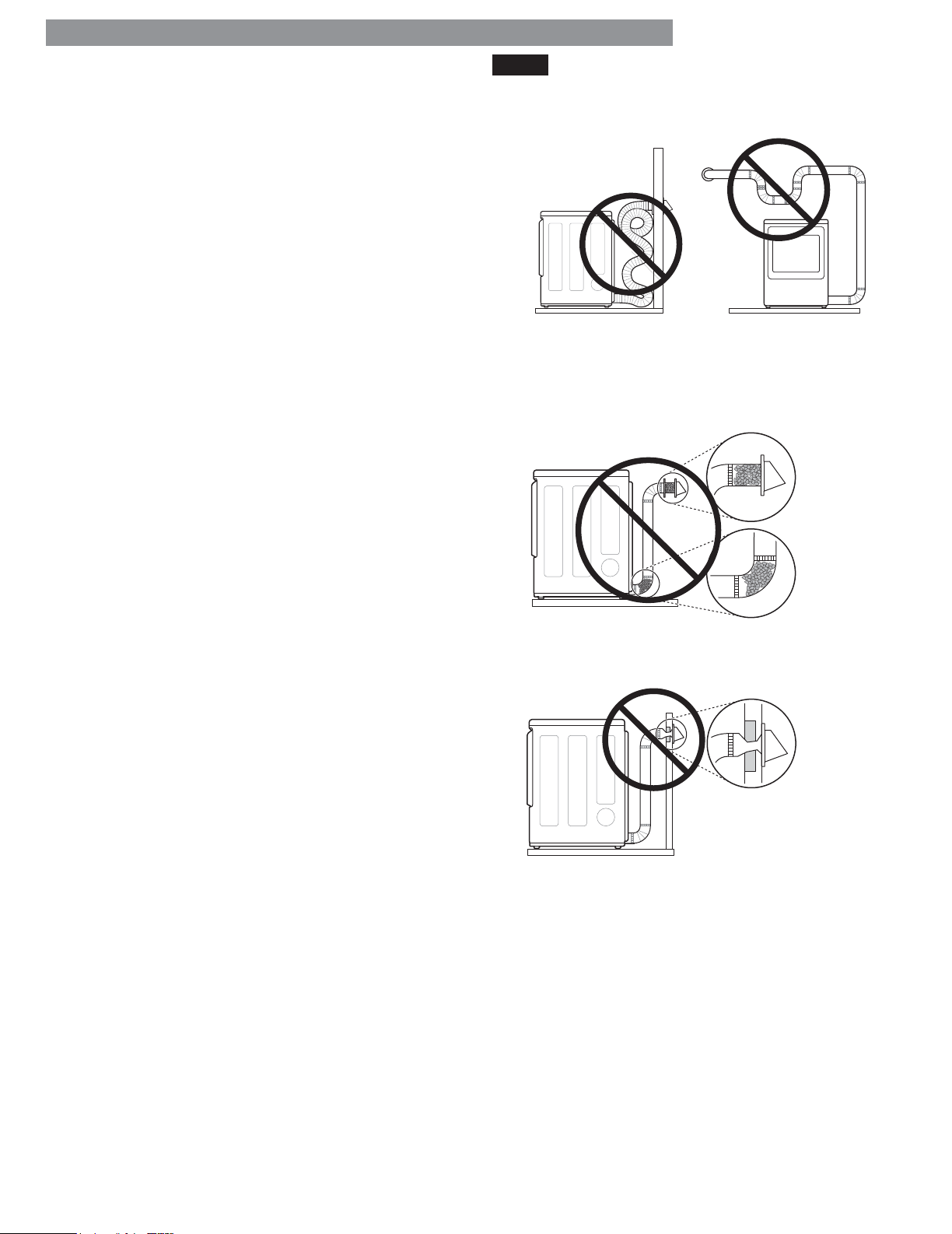

Restricted or Blocked Airﬂ ow .................................. 20

HOW TO USE

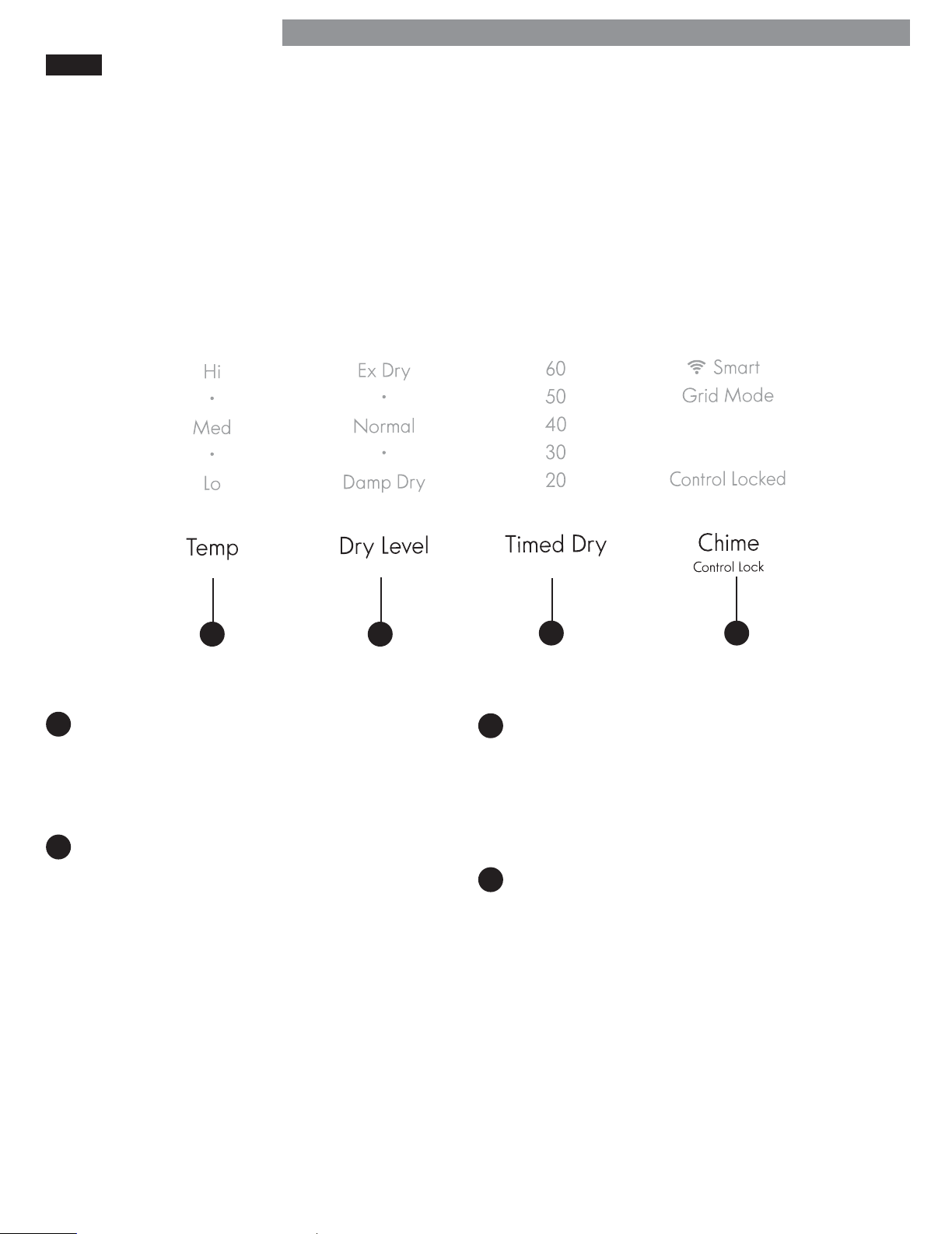

Control Panel Features ............................................. 21

Operating the Dryer .................................................22

Sorting Loads .............................................................23

Loading the Dryer .....................................................23

Cycle Guide ........................................................ 24-25

Time and Status Display ......................................... 26

Cycle Modiﬁ er Buttons ............................................ 27

Cycle Options and Special Features ..................... 28

Installing and Using the Optional Drying Rack .. 28

Steam Features ......................................................... 29

Important Notes About Steam Functions ....... 29

Using the STEAM SANITIZE Cycle.................... 29

Using the STEAM REFRESH Cycle ................... 29

Using the STATIC SHIELD Option .................... 29

ACCELA STEAM .................................................. 29

Steam Cycle Guide ................................................... 30

Smart Features .......................................................... 30

FCC Notice ..................................................................31

Wireless Module Speciﬁ cations ...............................31

Open Source Software Notice .................................. 31

USER MAINTENANCE INSTRUCTIONS

Regular Cleaning ......................................................32

Maintaining the Exhaust System ..............................33

DIAGNOSTICS .............................................................. 34

TROUBLESHOOTING GUIDE

FAQs ............................................................................35

Before Calling for Service .................................35-38

WARRANTY ................................................................... 39

SERVICE ..........................................................Back Cover

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

WARNING:

DANGER:

WARNING:

For your safety, the information in this manual must be followed to

minimize the risk of ﬁ re or explosion, electric shock, or to prevent property damage, personal injury,

or loss of life.

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual and on your appliance. Always read and

obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word DANGER or WARNING.

These words mean:

Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

Indicates a hazardous situation which, if not avoided, will result in death or serious injury.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and

tell you what can happen if the instructions are not followed.

CAUTION:

Indicates a hazardous situation which, if not avoided, could result in minor or

moderate injury.

SAVE THESE INSTRUCTIONS

WARNING:

FIRE HAZARD

Failure to follow safety warnings exactly could result in serious injury, death or property damage.

• Do not install a booster fan in the exhaust duct.

• Install all clothes dryers in accordance with the installation instructions of the manufacturer of the dryer.

FIRE OR EXPLOSION HAZARD

Failure to follow safety warnings exactly could result in serious injury, death or property damage.

• Do not store or use gasoline or other ﬂ ammable vapors and liquids in the vicinity of this appliance or any

other appliances.

• Installation and service must be performed by a qualiﬁ ed installer, service agency, or the gas supplier.

WHAT TO DO IF YOU SMELL GAS:

1. Do not try to light a match or cigarette, or turn on any gas or electrical appliance.

2. Do not touch any electrical switches. Do not use any phones in your building.

3. Clear the room, building, or area of all occupants.

4. Immediately call your gas supplier from a neighbor’s phone. Carefully follow the gas supplier’s instructions

5. If you cannot reach your gas supplier, call the ﬁ re department.

• Do not install a clothes dryer with ﬂ exible plastic venting materials. If a ﬂ exible metal (foil type) duct is installed,

it must be of a speciﬁ c type identiﬁ ed by the appliance manufacturer as suitable for use with clothes dryers.

Flexible venting materials are known to collapse, be easily crushed, and trap lint. These conditions will obstruct

clothes dryer airﬂ ow and increase the risk of ﬁ re.

IMPORTANT SAFETY INSTRUCTIONS

• Read all instructions before using the dryer.

• Before use, the dryer must be properly installed, as

described in this manual.

• Do not place items exposed to cooking oils in your

dryer. Items contaminated with cooking oils may

contribute to a chemical reaction that could cause a

load to catch ﬁ re.

• Do not dry articles that have been previously cleaned

in, washed in, soaked in, or spotted with gasoline,

dry-cleaning solvents, or other ﬂ ammable or explosive

substances, as they give oﬀ vapors that could ignite

or explode.

• Do not reach into the dryer if the drum or any other

part is moving.

• Do not repair or replace any part of the dryer or

attempt any servicing unless speciﬁ cally recommended

in this Use and Care Guide or in published user-repair

instructions that you understand and have the skills to

carry out.

• Do not tamper with controls.

• Before the dryer is removed from service or discarded,

remove the door to the drying compartment.

• Do not allow children to play on or in the dryer. Close

supervision of children is necessary when the dryer is

used near children.

GROUNDING REQUIREMENTS

This appliance must be grounded. In the event of

malfunction or breakdown, grounding will reduce

the risk of electric shock by providing a path of least

resistance for electric current. This appliance must be

equipped with a cord having an equipment-grounding

conductor and a grounding plug. The plug must be

plugged into an appropriate outlet that is properly

installed and grounded in accordance with all local

codes and ordinances.

• Do not use fabric softeners or products to eliminate

static unless recommended by the manufacturer of the

fabric softener or product.

• Do not use heat to dry articles containing foam rubber

or similarly textured rubber-like materials.

• Keep area around the exhaust opening and adjacent

surrounding areas free from the accumulation of lint,

dust, and dirt.

• The interior of the dryer and exhaust vent should be

cleaned periodically by qualiﬁ ed service personnel.

• Do not install or store the dryer where it will be

exposed to the weather.

• Always check the inside of the dryer for

foreign objects.

• Clean the lint ﬁ lter before or after each load.

• Gas appliances can cause minor exposure to four

potentially harmful substances, namely benzene,

carbon monoxide, formaldehyde, and soot, caused

primarily by the incomplete combustion of natural

gas or LP fuels.Properly adjusted dryers will minimize

incomplete combustion. Exposure to these substances

can be minimized further by properly venting the dryer

to the outdoors.

BASIC SAFETY PRECAUTIONS

WARNING:

To reduce the risk of ﬁ re, electric shock, or injury to persons when using this appliance,

follow basic precautions, including the following:

Improper connection of the

equipment-grounding

conductor can result in a risk of electric shock.

Check with a qualiﬁ ed electrician or service person if

you are in doubt as to whether the appliance is properly

grounded. Do not modify the plug provided with the

appliance. If it will not ﬁ t the outlet, have a proper

outlet installed by a qualiﬁ ed electrician. This appliance

must be connected to a grounded metal, permanent

wiring system or an equipment grounding conductor

must be run with the circuit conductors and connected

to the equipment grounding terminal or lead on the

appliance. Electrical shock can result if the dryer is not

properly grounded.

• Properly ground dryer to conform with all governing

codes and ordinances. Follow details in the installation

instructions. Electrical shock can result if the dryer is not

properly grounded.

• Before use, the dryer must be properly installed as

described in this manual. Electrical shock can result if

the dryer is not properly grounded.

• Install and store the dryer where it will not be exposed

to temperatures below freezing or exposed to

the weather.

• All repairs and servicing must be performed by an

authorized service technician unless speciﬁ cally

recommended in this Use & Care Guide. Use only

authorized factory parts. Failure to follow this warning

can cause serious injury, ﬁ re, electrical shock, or death.

• To reduce the risk of electrical shock, do not install the

dryer in humid spaces. Failure to follow this warning

can cause serious injury, ﬁ re, electrical shock, or death.

• Connect to a properly rated, protected, and sized

power circuit to avoid electrical overload. Improper

power circuits can melt, creating risk of electrical shock

and/or ﬁ re hazard.

• Gas dryers MUST be exhausted to the outside. Failure

to follow these instructions can result in ﬁ re or death.

• The dryer exhaust system must be exhausted to the

outside of the dwelling. If the dryer is not exhausted

outdoors, some ﬁ ne lint and large amounts of

moisture will be expelled into the laundry area. An

accumulation of lint in any area of the home can

create a health and ﬁ re hazard.

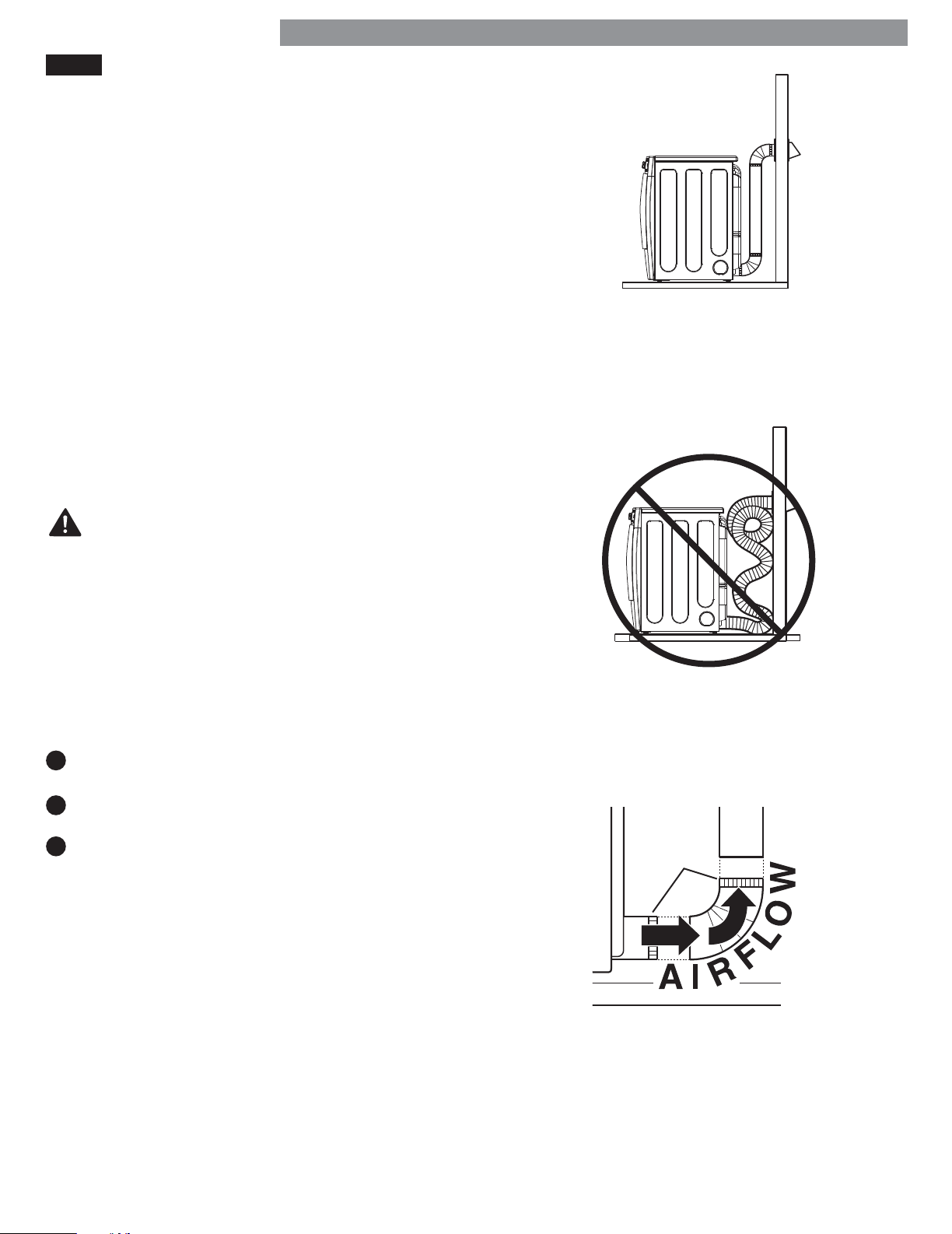

• Use only rigid metal or ﬂ exible metal 4-inch

(10.2-cm) diameter duct inside the dryer cabinet or

for exhausting to the outside. Use of plastic or other

combustible ductwork can cause a ﬁ re. Punctured

ductwork can cause a ﬁ re if it collapses or becomes

otherwise restricted in use or during installation.

• Ductwork is not provided with the dryer, and you

should obtain the necessary ductwork locally. The end

cap should have hinged dampers to prevent backdraft

when the dryer is not in use. Failure to follow these

instructions can result in ﬁ re or death.

• Remove all packing items and dispose of all shipping

materials properly. Failure to do so can result in death,

ﬁ re, explosion, burns, or death.

• Place dryer at least 18 inches (45.7 cm) above the ﬂ oor

for a garage installation. Failure to do so can result in

ﬁ re, explosion, burns, or death.

• Keep all packaging from children. Packaging material

can be dangerous for children. There is a risk of

suﬀ ocation.

• Do not install near items that produce heat or open

ﬂ ame such as stoves or cooking ovens. Failure to follow

this warning can cause product deformation, smoke and

ﬁ re.

• Do not place candles or cigarettes on top of the

product. Failure to follow this warning can cause

product deformation, smoke and ﬁ re.

• Remove all protective vinyl ﬁ lm from the product.

Failure to do so can cause product deformation, smoke

and ﬁ re.

• The exhaust duct must be 4 inches (10.2 cm) in

diameter with no obstructions. The exhaust duct

should be kept as short as possible. Make sure to

clean any old ducts before installing your new dryer.

Failure to follow these instructions can result in ﬁ

re or

death.

• Rigid or semi rigid metal ducting is recommended

for use between the dryer and the wall. In special

installations when it is impossible to make a

connection with the above recommendations, a UL

listed ﬂ exible metal transition duct may be used

between the dryer and wall connection only. The

use of this ducting will aﬀ ect drying time. Failure to

follow these instructions can result in ﬁ re or death.

• DO NOT use sheet metal screws or other fasteners

which extend into the duct that could catch lint and

reduce the eﬃ ciency of the exhaust system. Secure

all joints with duct tape. For complete details, follow

the Installation Instructions. Failure to follow these

instructions can result in ﬁ re or death.

SAFETY INSTRUCTIONS FOR INSTALLATION

Exhaust/Ducting:

WARNING:

To reduce the risk of ﬁ re, electric shock, or injury to persons when using this appliance,

follow basic precautions, including the following:

IMPORTANT SAFETY INSTRUCTIONS

SAFETY INSTRUCTIONS FOR STEAM FUNCTIONS

SAFETY INSTRUCTIONS FOR CONNECTING ELECTRICITY

SAVE THESE INSTRUCTIONS

WARNING:

To reduce the risk of ﬁ re, electric shock, or injury to persons when using this appliance,

follow basic precautions, including the following:

To reduce the risk of ﬁ re, electric shock, or injury to persons when using this appliance,

follow basic precautions, including the following:

• Do not open the dryer door during steam cycles.

Failure to follow these instructions can result in a

burn hazard.

• Do not dry articles that have been previously cleaned

in, washed in, soaked in, or spotted with gasoline,

dry-cleaning solvents, or other ﬂ ammable or explosive

substances, as they give oﬀ vapors that could ignite or

explode. Failure to follow these instructions can result in

ﬁ re or death.

• Do not, under any circumstances, cut or remove

the ground prong from the power cord. To prevent

personal injury or damage to the dryer, the electrical

power cord must be plugged into a properly

grounded outlet.

• For personal safety, this dryer must be properly

grounded. Failure to do so can result in electrical

shock or injury.

• Refer to the installation instructions in this manual

for speciﬁ c electrical requirements for your model.

Failure to follow these instructions can create an

electrical shock hazard and/or a ﬁ re hazard.

• This dryer must be plugged into a properly grounded

outlet. Electrical shock can result if the dryer is not

properly grounded. Have the wall outlet and circuit

checked by a qualiﬁ ed electrician to make sure the

outlet is properly grounded. Failure to follow these

instructions can create an electrical shock hazard

and/or a ﬁ re hazard.

• The dryer should always be plugged into its own

individual electrical outlet which has a voltage rating

that matches the rating plate. This provides the best

performance and also prevents overloading house

wiring circuits which could cause a ﬁ re hazard from

overheated wires.

• Do not touch the steam nozzle in the drum during

or after the steam cycle. Failure to follow these

instructions can result in a burn hazard.

• Never unplug your dryer by pulling on the power

cord. Always grip the plug ﬁ rmly and pull straight

out from the outlet. The power cord can be damaged,

resulting in a risk of ﬁ re and electrical shock.

• Repair or replace immediately all power cords that

have become frayed or otherwise damaged. Do not

use a cord that shows cracks or abrasion damage

along its length or at either end. The power cord can

melt, creating electrical shock and/or ﬁ re hazard.

• When installing or moving the dryer, be careful not

to pinch, crush, or damage the power cord. This will

prevent injury and prevent damage to the dryer from

ﬁ re and electrical shock.

IMPORTANT SAFETY INSTRUCTIONS

FEATURES AND BENEFITS

KEY PARTS AND COMPONENTS

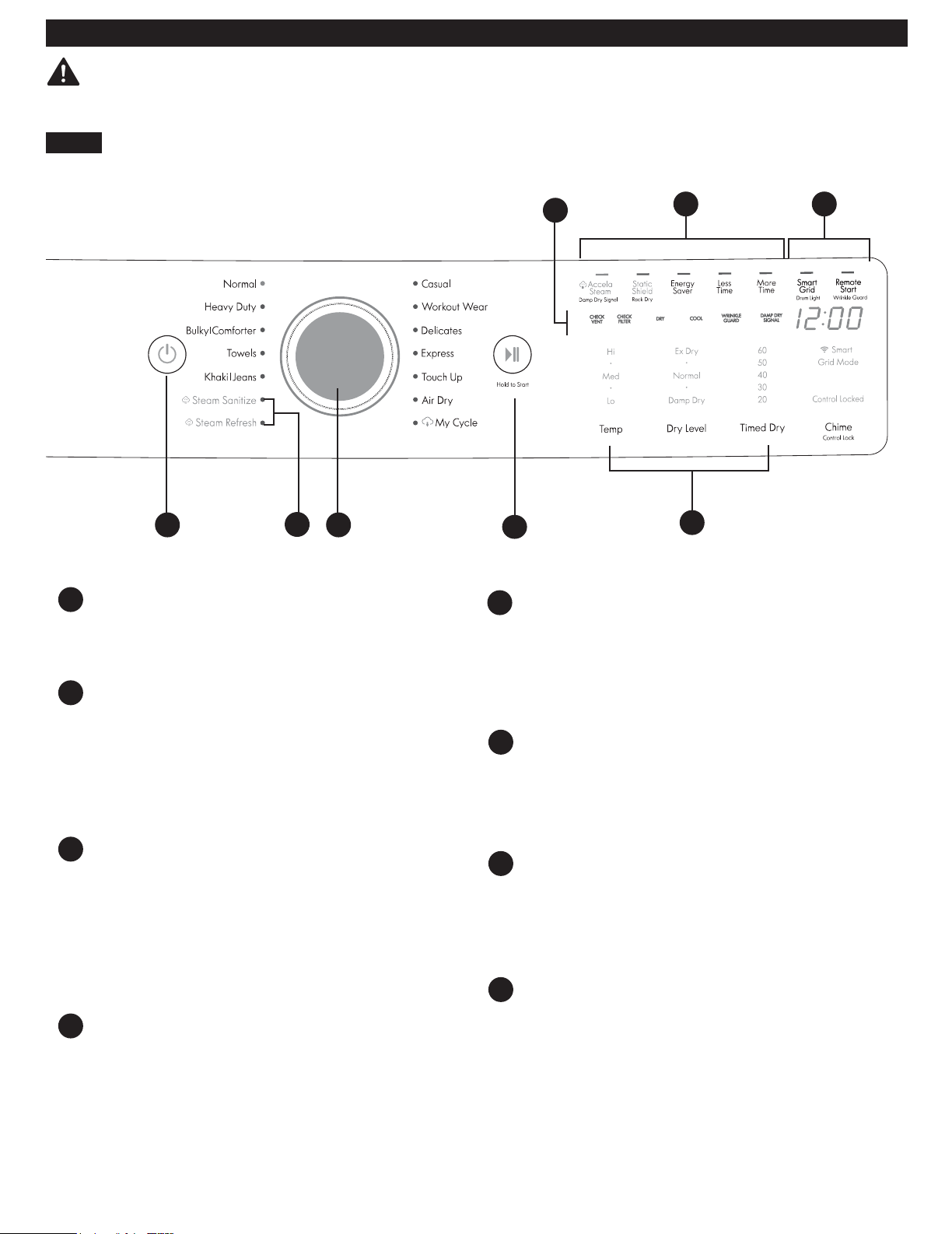

EASY-TO-USE CONTROL PANEL

Rotate the cycle selector knob to select the desired

dry cycle. Add cycle options or adjust settings with

the touch of a button.

TIME AND STATUS DISPLAY

The easy-to-read LED display shows cycle status

and estimated time remaining.

CYCLE MODIFIERS

Adjust the cycle settings such as temperature and

dry level with the touch of a button.

NOTE: Not all settings are available for all cycles.

CHECK VENT

(Duct Blockage Sensing System)

The Check Vent (Duct blockage sensing system)

detects and alerts you to blockages in the exhaust

system that reduce airﬂ ow from the dryer.

Maintaining clean exhaust system ducts improves

operating eﬃ ciency and helps minimize service

calls, saving you money.

SMART GRID

Lower your energy costs when you dry your

clothes by avoiding peak usage times.

REMOTE START

Use a smart phone to control your dryer remotely.

ULTRA-CAPACITY STAINLESS STEEL DRUM

WITH DRUM LIGHT

The ultra-large stainless steel drum oﬀ ers superior

durability. The drum light can be turned on during a

cycle by pressing and holding the WRINKLE GUARD

button for three seconds. The light also comes on

when the door is opened, if the control is ON.

EASY-ACCESS REVERSIBLE DOOR

The wide-opening, see-through glass door

provides easy access for loading and unloading.

Door swing can be reversed to adjust for

installation location.

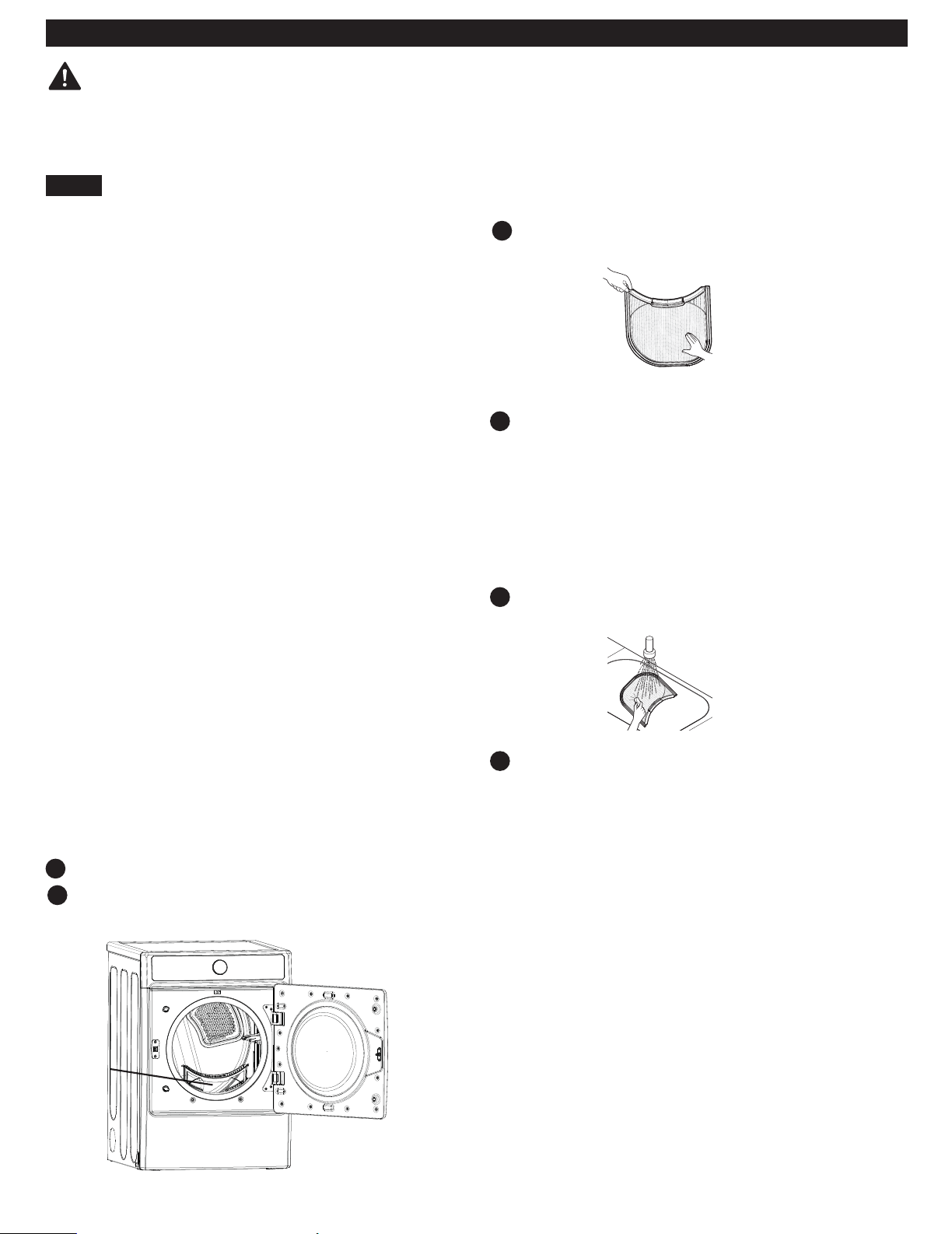

FRONT-MOUNT LINT FILTER

The front-mount lint ﬁ lter allows for easy access

and cleaning between loads.

LEVELING FEET

Four leveling feet (two in front, and two in back)

adjust to improve dryer stability on uneven ﬂ oors.

There are several important components that are

referenced in this manual.

Rear of Dryer

Power Cord

Location

(Gas Models)

Gas Connection

Location

(Gas Models)

Terminal Block

Access Panel

(Electric Models)

Duct

Exhaust

Outlet

Inlet Valve

INSTALLATION INSTRUCTIONS

KEY DIMENSIONS AND SPECIFICATIONS

LOCATION REQUIREMENTS

IMPORTANT: Read all installation instructions

completely before installing and operating your dryer.

It is important that you review this entire manual before

installing and using your dryer. It contains detailed

instructions concerning electrical connections, gas

connections and exhaust requirements.

CHOOSE THE PROPER LOCATION

• Store and install the dryer where it will not be exposed

to temperatures below freezing or exposed to outdoor

weather conditions.

• Choose a location with a solid, level ﬂ oor.

• If the dryer is being installed in a garage, place the

dryer at least 18 inches (45.7cm) above the ﬂ oor.

• Properly ground the dryer to conform with all

governing codes and ordinances.

• To reduce the risk of electric shock, do not install the

dryer in damp or wet locations.

NOTE: Installing the dryer in a humid space, or installing or

storing the dryer where it will be exposed to the weather

or freezing temperatures, may result in rust or other

damage that is not covered by the product warranty.

IMPORTANT: If you are installing your dryer in a

manufactured or mobile home, please refer to the

Special Electrical Requirements for Mobile or

Manufactured Homes section.

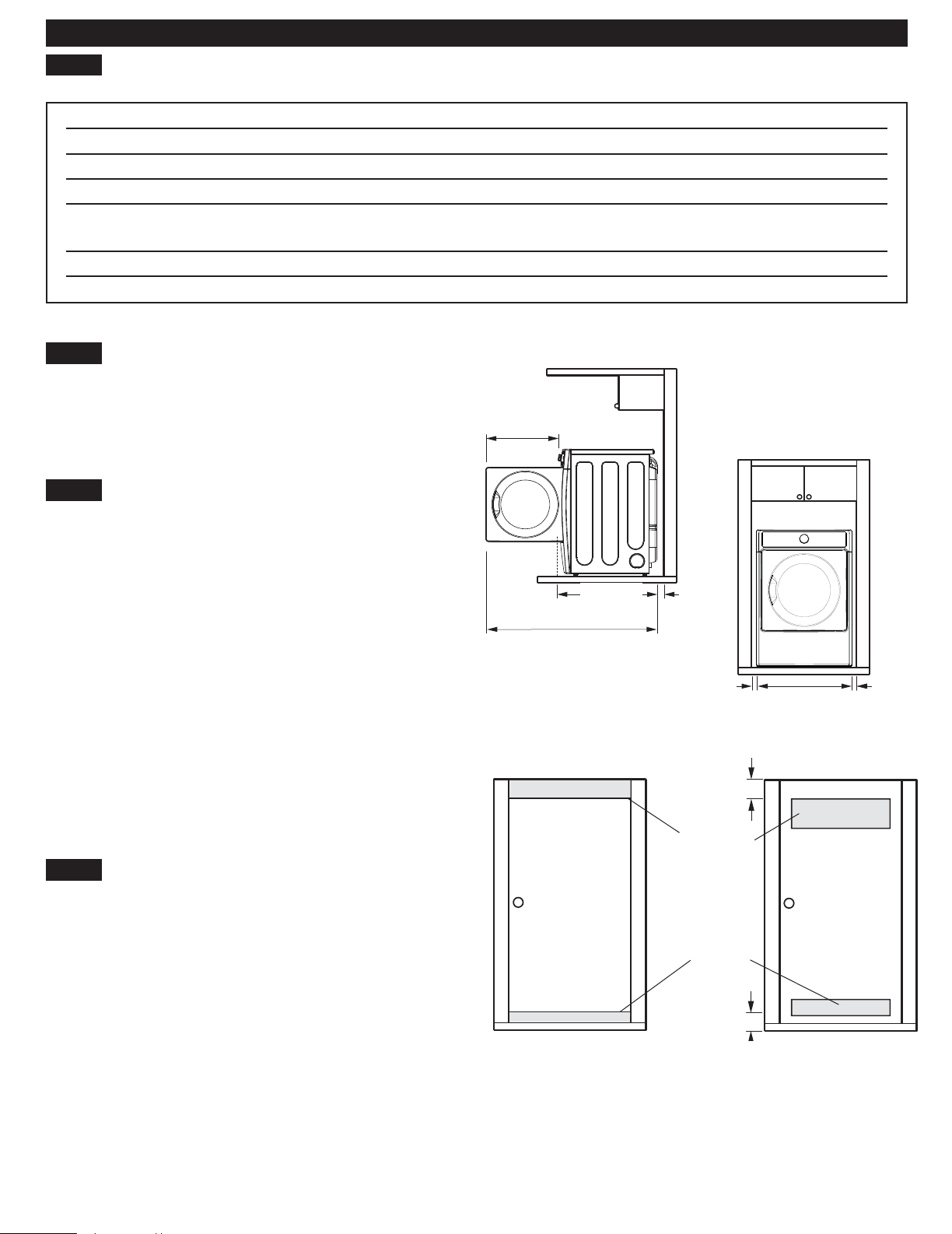

CLEARANCES

• Most installations require a minimum of 5 ½ inches

(14 cm) of clearance behind the dryer for the exhaust

ducting.

• Allow minimum clearances of at least 1 inch (2.5 cm)

on the sides and back to minimize vibration and noise.

• Allowing additional clearance for installation and

servicing is recommended.

• Be sure to allow for wall, door, or ﬂ oor moldings that

may increase the required clearances.

• Allow at least 22

inches (57.3 cm) in front of the

dryer to open the door.

• Allow a minimum clearance of at least 4 inches

(10cm) behind the dryer for closet installation.

Additional instructions for closet installations:

The closet door must allow for suﬃ cient airﬂ ow. Refer to the

diagram above for minimum vent opening requirements. A

louvered door is also acceptable.

Description Dryer: 796.8178* Electric and 796.9178* Gas

Electrical Requirements Refer to the rating label

Gas Requirements** NG: 4–10.5 inches WC (Water Column)

Gas Requirements** LP: 8–13 inches WC

Dimensions 27 in. (W) X 30

⁄4 in. (D) X 38

⁄16 in. (H), 52

⁄4 in. (D with door open)

68.6 cm (W) X 76.7cm (D) X 98.3 cm (H), 132.7 cm (D with door open)

Net Weight Electric: 140.2 lb (63.6 kg) Gas: 143.1 lb (64.9 kg)

Drying Capacity IEC 7.4 cu. ft.

**Gas Models Only

22 ¹⁄2 in.

(57.3 cm)

⁄4 in.

(76.7 cm)

4 in.

(10 cm)

⁄4 in.

(132.7 cm)

1 in.

(2.5 cm)

1 in.

(2.5 cm)

27 in.

(68.6 cm)

Standard Installation – Side View

Standard Installation – Front View

48 sq. in.

(310 sq. cm.)

24 sq. in.

(155 sq. cm.

)

(7.6 cm)

Vent

in.

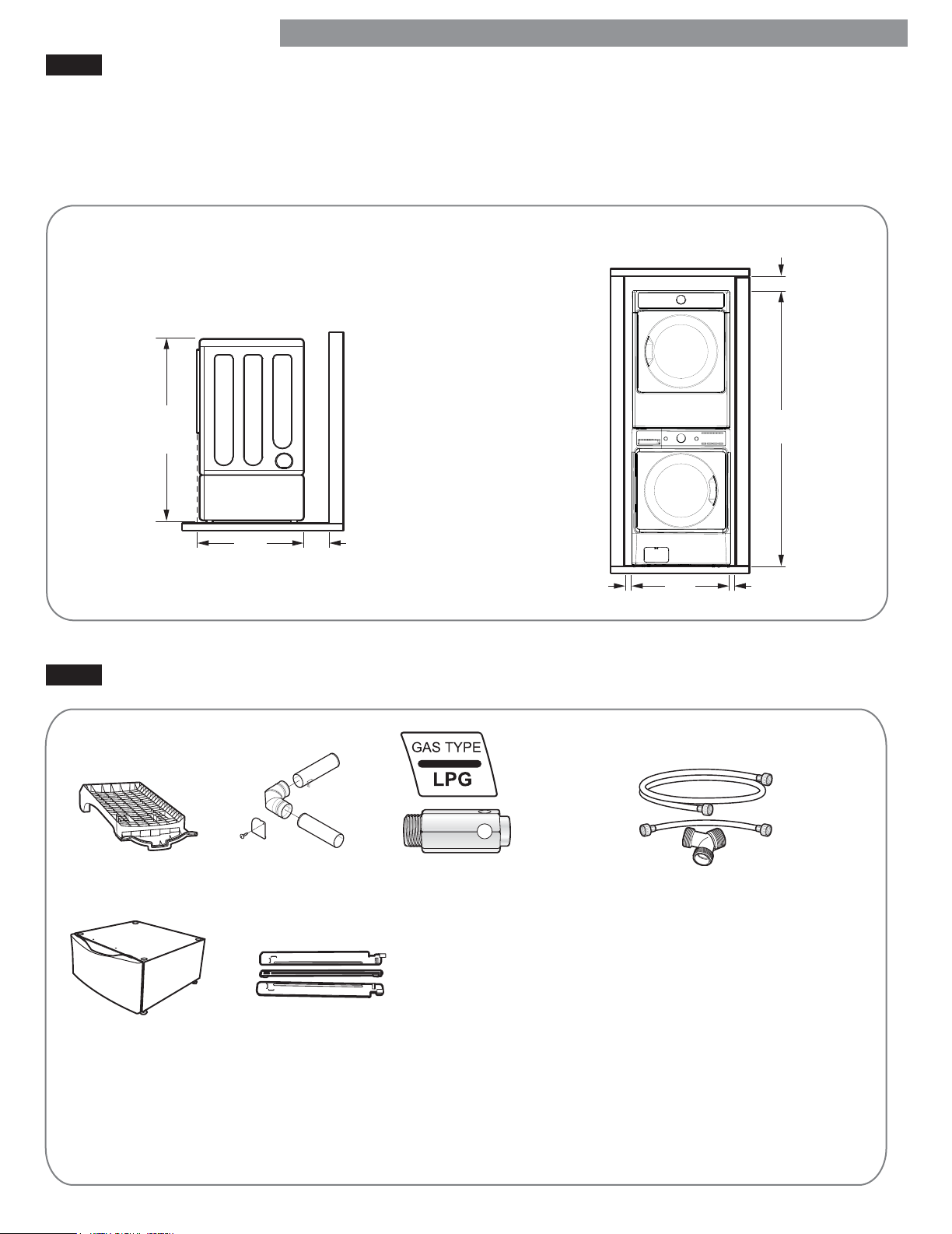

INSTALLATION WITH OPTIONAL PEDESTAL BASE OR STACKING KIT

ACCESSORIES

IMPORTANT: If you are installing your dryer using

an optional pedestal base or stacking kit, refer to the

instructions included with the accessory.

Required Dimensions for

Installation with Pedestal

4 in.

(10 cm)

30 ¼ in.

(76.7 cm)

52 ½ in.

(133.4 cm)

Required Dimensions for

Installation with Stacking Kit

6 in.

(15.2 cm)

in.

(198 cm)

1 in.

(2.5 cm)

27 in.

(68.6 cm)

1 in.

(2.5 cm)

Optional Accessories

(sold separately)

Hoses and Y connector*

Kit No. 26-59029

side vent kit*

Kit No. 26-49670

drying rack**

No. 3751EL1001B

Required Accessories

(sold separately)

LP conversion kit*

No. D26-17025

pedestal*

White = 51122

Metallic Silver = 51123

stacking kit*

Chrome Look = D26-17013

* at Sears.com

** at SearsPartsDirect.com

Use the LP conversion kit for changing the dryer gas connections from natural gas (NG) to propane gas (LP).

NOTE: Installation of the LP conversion kit must be performed by a qualiﬁ ed service technician.

INSTALLATION INSTRUCTIONS

CONNECTING GAS DRYERS

GAS REQUIREMENTS (GAS MODELS ONLY)

To reduce the risk of ﬁ re,

electric shock, or injury to persons when using this

appliance, follow basic precautions, including

the following:

WARNING:

• Gas supply requirements: As shipped from the

factory, this dryer is conﬁ gured for use with natural

gas (NG). It can be converted for use with propane

(LP) gas. Gas pressure must not exceed 8 inches

water column (203.2 mm H

0) for NG, or 13 inches

water column (330.2 mm H

0) for LP.

• A qualiﬁ ed service or gas company technician must

connect the dryer to the gas service. Failure to follow

these instructions can result in ﬁ re, explosion, or death.

• Isolate the dryer from the gas supply system by

closing its individual manual shutoﬀ valve during any

pressure testing of the gas supply. Failure to do so can

result in ﬁ re, explosion, or death.

• Supply line requirements: Your laundry room must

have a rigid gas supply line to your dryer. In the

United States, an individual manual shutoﬀ valve

MUST be installed within at least 6 ft. (1.8 m) of the

dryer, in accordance with the National Fuel Gas Code

ANSI Z223.1 or Canadian gas installation code CSA

B149.1. A ⅛-inch (0.3 cm) NPT pipe plug must be

installed. Failure to do so can result in ﬁ re, explosion,

or death.

• If using a rigid pipe, the rigid pipe should be ½ inch

(1.2 cm) IPS. If acceptable under local codes and

ordinances and when acceptable to your gas supplier,

⅜-inch (0.95-cm) approved tubing may be used

where lengths are less than 20 ft. (6.1 m). Larger

tubing should be used for lengths in excess of 20 ft.

(6.1 m). Failure to do so can result in ﬁ re, explosion, or

death.

ELECTRICAL REQUIREMENTS FOR

GAS MODELS ONLY

• Do not, under any circumstances, cut or remove the

third (ground) prong from the power cord. Failure

to follow this warning can result in ﬁ re, explosion, or

death.

• For personal safety, this dryer must be properly

grounded. Failure to follow this warning can result in

ﬁ re, explosion, or death.

• The power cord of this dryer is equipped with

a 3-prong (grounding) plug which mates with a

standard 3-prong (grounding) wall outlet to minimize

the possibility of electric shock hazard from this

appliance. Failure to follow this warning can result in

ﬁ re, explosion, or death.

• This dryer must be plugged into a 120-VAC, 60-Hz.

grounded outlet protected by a 15-ampere fuse or

circuit breaker. Failure to follow this warning can result

in ﬁ re, explosion, or death.

• Where a standard 2-prong wall outlet is encountered,

it is your personal responsibility and obligation to

have it replaced with a properly grounded 3-prong

wall outlet. Failure to follow this warning can result in

ﬁ re, explosion, or death.

• Connect the dryer to the type of gas shown on

the nameplate. Failure to do so can result in ﬁ re,

explosion, or death.

• To prevent contamination of the gas valve, purge the

gas supply of air and sediment before connecting

the gas supply to the dryer. Before tightening the

connection between the gas supply and the dryer,

purge remaining air until the odor of gas is detected.

Failure to do so can result in ﬁ re, explosion, or death.

• DO NOT use an open ﬂ ame to inspect for gas leaks.

Use a noncorrosive leak detection ﬂ uid. Failure to do

so can result in ﬁ re, explosion, or death.

• Use only a new AGA- or CSA-certiﬁ ed gas supply

line with ﬂ exible stainless steel connectors. Failure to

do so can result in ﬁ re, explosion, or death.

• Securely tighten all gas connections. Failure to do so

can result in ﬁ re, explosion, or death.

• Use Teﬂ on tape or a pipe-joint compound that is

insoluble in propane (LP) gas on all pipe threads.

Failure to do so can result in ﬁ re, explosion,

or death.

• DO NOT attempt any disassembly of the dryer;

disassembly requires the attention and tools of

an authorized and qualiﬁ ed service technician or

company. Failure to follow this warning can result in ﬁ re,

explosion, or death.

3-prong

grounding

plug

3-prong

grounding

type wall

receptacle

Ensure proper

ground exists

before use.

INSTALLATION INSTRUCTIONS

To reduce the risk of ﬁ re,

electric shock, or injury to persons when using this

appliance, follow basic precautions, including

the following:

• Installation and service must be performed by a

qualiﬁ ed installer, service agency, or the gas supplier.

Failure to do so can result in ﬁ re, explosion, or death.

• Use only a new stainless steel ﬂ exible connector and

a new AGA-certiﬁ ed connector. Failure to do so can

result in ﬁ re, explosion, or death.

• A gas shutoﬀ valve must be installed within 6 ft.

(1.8 m) of the dryer. Failure to do so can result in ﬁ re,

explosion, or death.

• The dryer is conﬁ gured for natural gas when

shipped from the factory. Make sure that the dryer

is equipped with the correct burner nozzle for the

type of gas being used (natural gas or propane gas).

Failure to do so can result in ﬁ re, explosion, or death.

Connecting the Gas Supply

NOTE: This dryer is conﬁ gured from the factory set for

natural gas (NG). If dryer is to be used with propane

(LP) gas, it must be converted by a qualiﬁ ed

service technician.

Make sure that the gas supply to the laundry room is

turned OFF and the dryer is unplugged. Conﬁ rm that

the type of gas available in your laundry room is

appropriate for the dryer.

Remove the shipping cap from the gas ﬁ tting at the

back of the dryer. Be careful not to damage the

threads of the gas connector when removing the

shipping cap.

Connect the dryer to your laundry room’s gas supply

using a new ﬂ exible stainless steel connector with a ⅜

inches NPT ﬁ tting.

NOTE: DO NOT use old connectors.

Securely tighten all connections between the dryer

and your laundry room’s gas supply.

Turn on the gas supply.

Check all pipe connections (both internal and external)

for gas leaks with a noncorrosive leak-detection ﬂ uid.

Proceed to Venting the Dryer.

High-Altitude Installations

The BTU rating of this dryer is AGA-certiﬁ ed for

elevations below 10,000 feet.

If your gas dryer is being installed at an elevation

above 10,000 feet, it must be derated by a qualiﬁ ed

technician or gas supplier.

• If necessary, the correct nozzle (for the LP nozzle kit,

order part number D26-17025) should be installed

by a qualiﬁ ed technician and the change should be

noted on the dryer. Failure to do so can result in ﬁ re,

explosion, or death.

• All connections must be in accordance with local

codes and regulations. Failure to do so can result in

ﬁ re, explosion, or death.

• Gas dryers MUST exhaust to the outdoors. Failure to do

so can result in ﬁ re, explosion, or death.

WARNING:

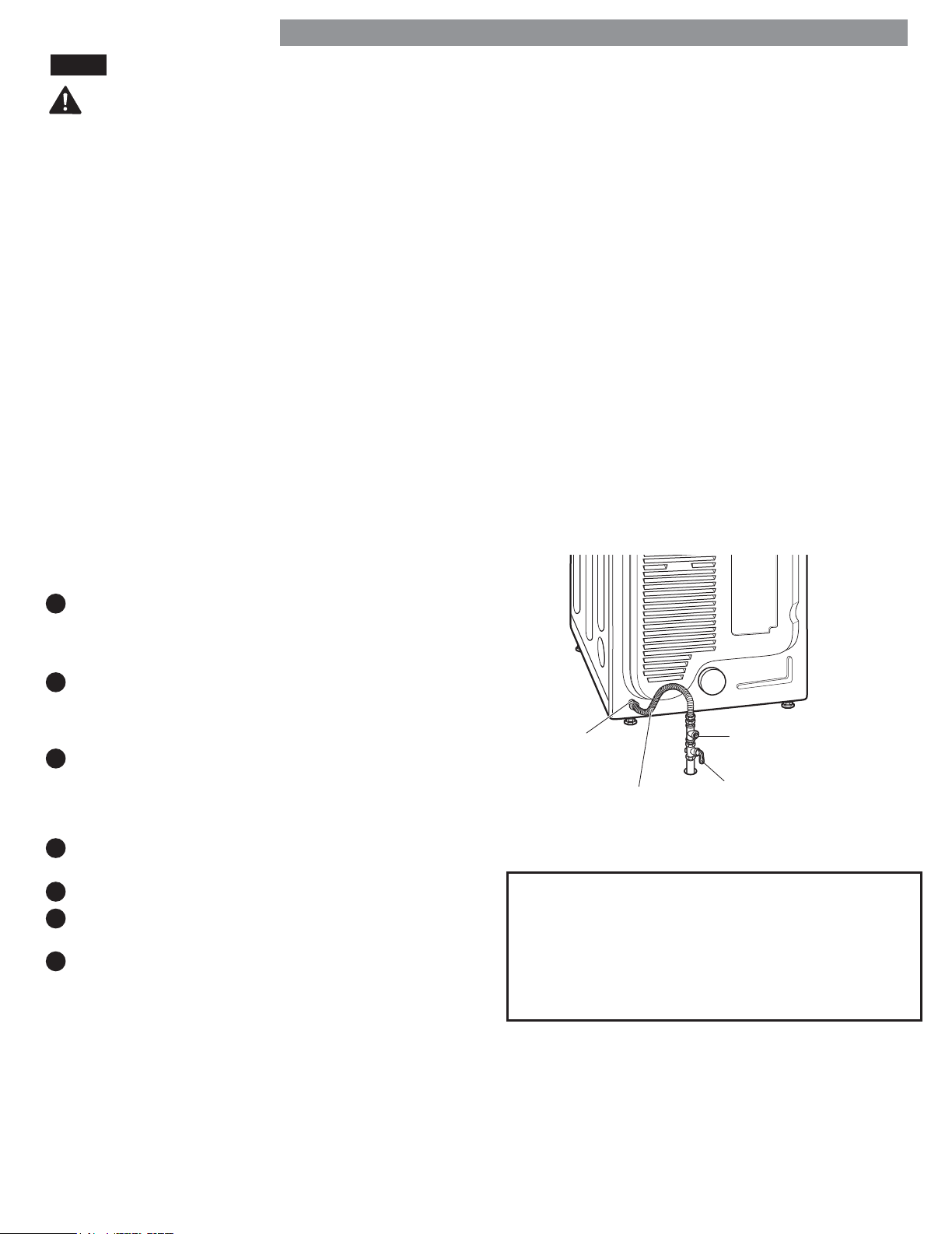

CONNECTING GAS DRYERS (continued)

⅜ in. (0.95 cm) NPT

Gas Connection

⅛ in. (0.3 cm) NPT

Pipe Plug

AGA/CSA-Certified

Stainless Steel Flexible

Connector

Gas Supply

Shutoff Valve

CONNECTING ELECTRIC DRYERS

ELECTRICAL REQUIREMENTS

To help prevent ﬁ re,

electrical shock, serious injury, or death, the wiring

and grounding must conform to the latest edition of

the National Electrical Code, ANSI/NFPA 70 and all

applicable local regulations. Please contact a qualiﬁ ed

electrician to check your home’s wiring and fuses to

ensure that your home has adequate electrical power to

operate the dryer.

To reduce the risk of

ﬁ re, electric shock, or injury to persons when using this

appliance, follow basic precautions, including

the following:

• Any installation in a manufactured or mobile

home must comply with the Manufactured Home

Construction and Safety Standards Title 24 CFR, Part

3280 or Standard CAN/CSA Z240 MH and local codes

and ordinances.

• A 4-wire connection is required for all mobile and

manufactured home installations, as well as all new

construction after January 1, 1996. Failure to do so

can result in ﬁ re, explosion, or death.

• This dryer must be connected to a grounded metal,

permanent wiring system, or an equipment grounding

conductor must be run with the circuit conductors and

connected to the equipment grounding terminal or

lead on the dryer. Failure to do so can result in ﬁ re,

explosion, or death.

• The dryer has its own terminal block that must be

connected to a separate 240 VAC, 60-Hertz, single

phase circuit, fused at 30 amperes (the circuit must be

fused on both sides of the line). ELECTRICAL SERVICE

FOR THE DRYER SHOULD BE OF THE MAXIMUM

RATE VOLTAGE LISTED ON THE NAMEPLATE. DO

NOT CONNECT DRYER TO 110-, 115-, OR 120-VOLT

CIRCUIT. Failure to follow these instructions can result

in ﬁ re, explosion, or death.

• If branch circuit to dryer is 15 ft. (4.5 m) or less in

length, use UL (Underwriters Laboratories) listed No.-

10 AWG wire (copper wire only), or as required by

local codes. If over 15 ft. (4.50 m), use UL-listed No.-8

AWG wire (copper wire only), or as required by local

codes. Allow suﬃ cient slack in wiring so dryer can

be moved from its normal location when necessary.

Failure to do so can result in ﬁ re, explosion, or death.

• The power cord (pigtail) connection between wall

receptacle and dryer terminal block IS NOT supplied

with the dryer. Type of pigtail and gauge of wire

must conform to local codes and with instructions on

the following pages. Failure to follow these instructions

can result in ﬁ re, explosion, or death.

• A 4-wire connection is required for all new

construction after January 1, 1996. A 4-wire

connection must be used where local codes do not

permit grounding through the neutral wire. Failure to

do so can result in ﬁ re, explosion, or death.

To reduce the risk of ﬁ re,

electric shock, or injury to persons when using this

appliance, follow basic precautions, including the

following:

WARNING:

Special Electrical Requirements for Mobile

or Manufactured Homes

Electrical Requirements for Electric Models Only

INSTALLATION INSTRUCTIONS

CONNECTING ELECTRIC DRYERS (continued)

Connect the power cord to the terminal block. Connect

each power cord wire to the terminal block screw that

has the same colored wire. For example, connect the

black power cord wire to the terminal block screw

with the black wire. Failure to follow these instructions

may result in a short or overload.

Four-Wire Power Cord

• A 4-wire connection is required for all

mobile and manufactured home installations,

as well as all new construction after

January 1, 1996.

• A UL-listed strain relief is required.

• Use a 30-amp, 240-volt, 4-wire, UL-listed power cord

with #10 AWG-minimum copper conductor and closed

loop or forked terminals with upturned ends.

Remove the terminal block access cover on the upper

back of the dryer.

Install a UL-listed strain relief into the power cord

through-hole.

Thread a 30-amp, 240-volt, 4-wire, UL-listed power

cord with #10 AWG-minimum copper conductor

through the strain relief.

Transfer the neutral grounding wire from behind the

green ground screw to the center screw of the terminal

block.

Attach the two hot leads (black and red) of the power

cord to the outer terminal block screws.

Attach the power cord white neutral wire to the cen-

ter screw of the terminal block.

Attach the power cord ground wire to the green

ground screw.

TIGHTEN ALL SCREWS SECURELY.

Reinstall the terminal block access cover.

Attach the two hot leads (black and red) of the

power cord to the outer terminal block screws.

Attach the power cord neutral (white) wire to the center

terminal block screw.

Connect the external ground (if required by local

codes) to the green ground screw.

TIGHTEN ALL SCREWS SECURELY.

Reinstall the terminal block access cover.

Grounding through the neutral wire is prohibited for: (1)

new branch-circuit installations, (2) mobile homes, (3)

recreational vehicles, and (4) areas where local codes

prohibit grounding through the neutral wire.

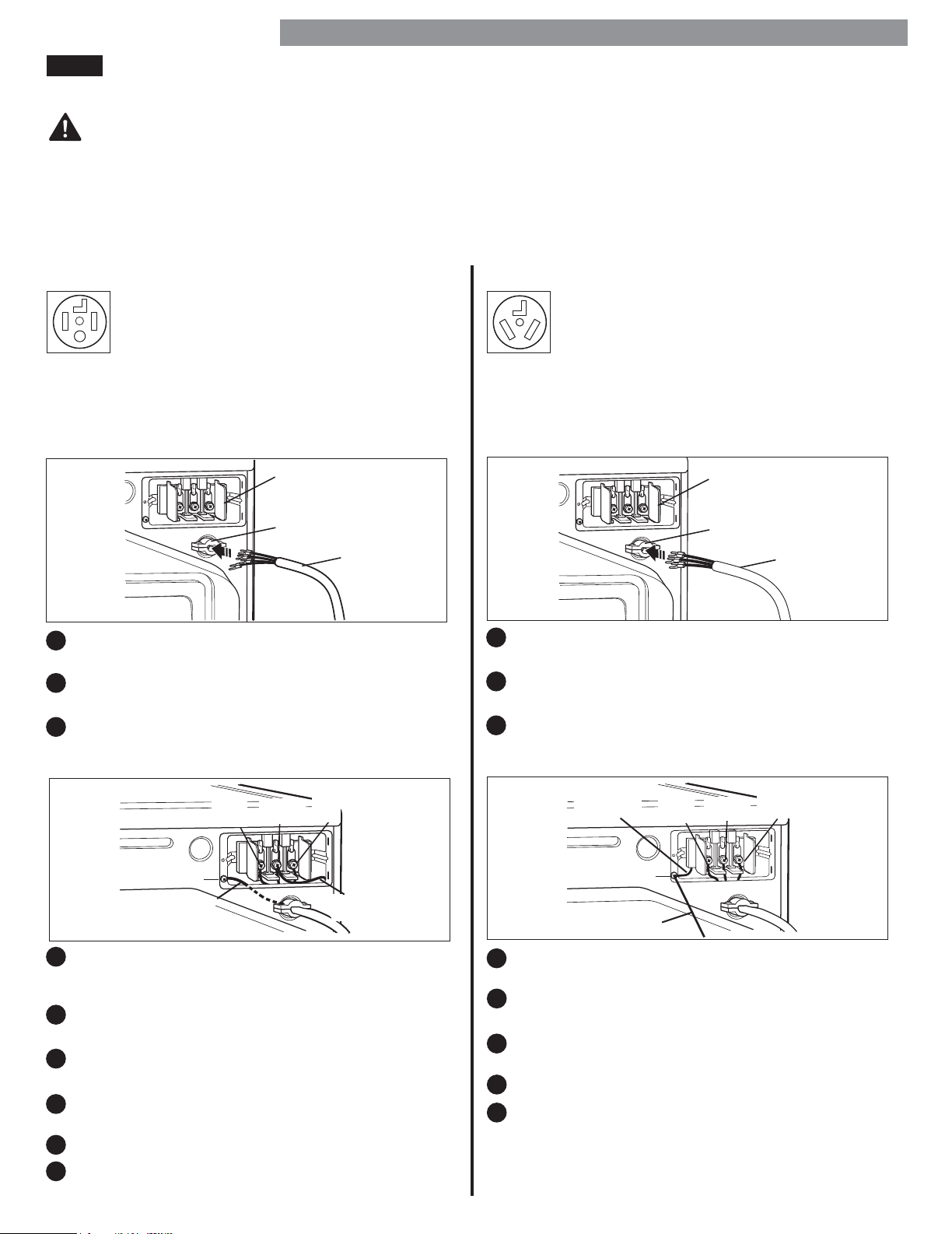

Three-Wire Power Cord

• A 3-wire connection is NOT permitted on

new construction after January 1, 1996.

• A UL-listed strain relief is required.

• Use a 30-amp, 240-volt, 3-wire, UL-listed power cord

with #10 AWG-minimum copper conductor and closed

loop or forked terminals with upturned ends.

Remove the terminal block access cover on the upper

back of the dryer.

Install a UL-listed strain relief into the power cord

through-hole.

Thread a 30-amp, 240-volt, 3-wire, UL-listed power

cord with #10 AWG-minimum copper conductor

through the strain relief.

WARNING:

Terminal

Block

UL-Listed

Strain Relief

UL-Listed

4 Wire

Power

Cord

Terminal

Block

UL-Listed

Strain Relief

UL-Listed

3 Wire

Power

Cord

Green Ground Screw

Hot

(Black)

Neutral

Grounding

Wire

Green Wire of

Power Cord

Neutral

(White)

Hot

(Red)

Green Ground Screw

Hot

(Black)

Neutral

Grounding

Wire

Neutral

(White)

Hot

(Red)

Ground WireExternal

INSTALLATION INSTRUCTIONS

VENTING THE DRYER

CHECK YOUR EXHAUST SYSTEM FOR PROBLEMS

IMPORTANT!

The most common cause of dryer problems is poor

exhaust venting. Before installing your new dryer,

check the items listed below to make sure you get the

best possible performance. This can save you time and

money by reducing cycle times and increasing energy

eﬃ ciency.

• DIRTY OR DAMAGED EXHAUST DUCTS. Lint builds

up in exhaust ducts over time. This decreases the

airﬂ ow and makes the dryer work harder. Visually

inspect your ducts from both ends and have them

cleaned if they have not been cleaned recently.

• WRONG VENT MATERIAL. Check your vent to make

sure it is rigid or semi-rigid metal ducting. If your

venting is plastic or ﬂ exible foil, have it replaced

before using the dryer.

NOTE: Deduct 6 ft. (1.8 m) for each additional elbow. Using more than four 90° elbows is not recommended.

• RESTRICTED OR DAMAGED VENT HOOD. Check

your vent hood outside. It must be clean and free of lint

buildup. Check the damper and make sure it opens fully

and easily.

• EXCESSIVELY LONG VENT. Measure the length of your

exhaust system and count the elbows. Use the chart

below to see if your duct is too long. If it is too long,

have the duct routed to another location that is within

the venting guidelines.

• DO NOT USE PLASTIC OR FOIL VENTING. The

transition duct from your dryer to the wall must be rigid

or semi-rigid metal ducting. If your old transition duct is

plastic or foil, REPLACE IT with semi-rigid metal ducting.

Using the DUCT LENGTH CHART (below)

Find your vent hood type in the chart below.

Select the row that matches the number of elbows in your dryer duct run.

Look to the right of the elbow number for the maximum duct length for your installation. Longer duct length will result

in reduced drying performance, longer dry times and increased energy consumption. Extremely long ducts can even

shorten the life of the dryer.

DO NOT exceed the maximum length for the vent hood type and number of elbows used.

Recommended

Only for Short-Run Installations

(10.2 cm )

1/2

(6.35 cm )

Number of 90°

Elbows

Vent Hood Type

Maximum length of 4" (10.2 cm )

diameter rigid metal duct

65 feet (19.8 m)

55 feet (16.8 m)

47 feet (14.3 m)

36 feet (11.0 m)

28 feet (8.5 m)

55 feet (16.8 m)

47 feet (14.3 m)

41 feet (12.5 m)

30 feet (9.1 m)

22 feet (6.7 m)

INSTALLATION INSTRUCTIONS

VENTING THE DRYER (continued)

Routing and Connecting Ductwork

Follow the guidelines below to maximize dryer

performance and reduce lint buildup and condensation

in the ductwork.

NOTE: Transition duct (from dryer to wall) and ﬁ ttings

are NOT included and must be purchased separately.

• Use 4-inch (10.2 cm) diameter rigid or semi-rigid

metal duct.

• The exhaust duct run should be as short as possible.

• Use as few elbow joints as possible.

• The male end of each section of exhaust duct must

point away from the dryer. See ﬁ gure on lower right of

page.

• Use duct tape on all joints. Never use screws.

• Insulate ducts that runs through unheated areas in

order to reduce condensation and lint buildup on

duct surfaces.

• The total length of semi-rigid metal transition duct

should not exceed 8 ft. (2.4 m).

IMPORTANT: Failure to exhaust the dryer, per the

guidelines included within these instructions, may

result in unsatisfactory dryer performance. All venting

and ductwork beyond the exterior of the dryer is the

responsibility of the consumer. Product failure, as a

result of improper venting, is not covered by the dryer

warranty.

Connecting the Dryer Vent

Verify all ducts and elbows are clean and free

from any blockages.

Measure duct length. DO NOT exceed the

maximum length listed in the Duct Length Chart.

Connect dryer exhaust to existing duct.

Failure to follow these

guidelines will result in poor performance, product

failure, and/or result in ﬁ re or death.

WARNING:

• Only use duct tape or clamps.

• DO NOT use screws to secure ductwork.

• Use rigid or semi-rigid metal ducts.

• DO NOT use plastic or thin metal foil tubing

for ductwork.

• The male end of each elbow must always point in

the direction of the airﬂ ow.

Correct Venting

Incorrect Venting

Male

Ends

INSTALLATION INSTRUCTIONS

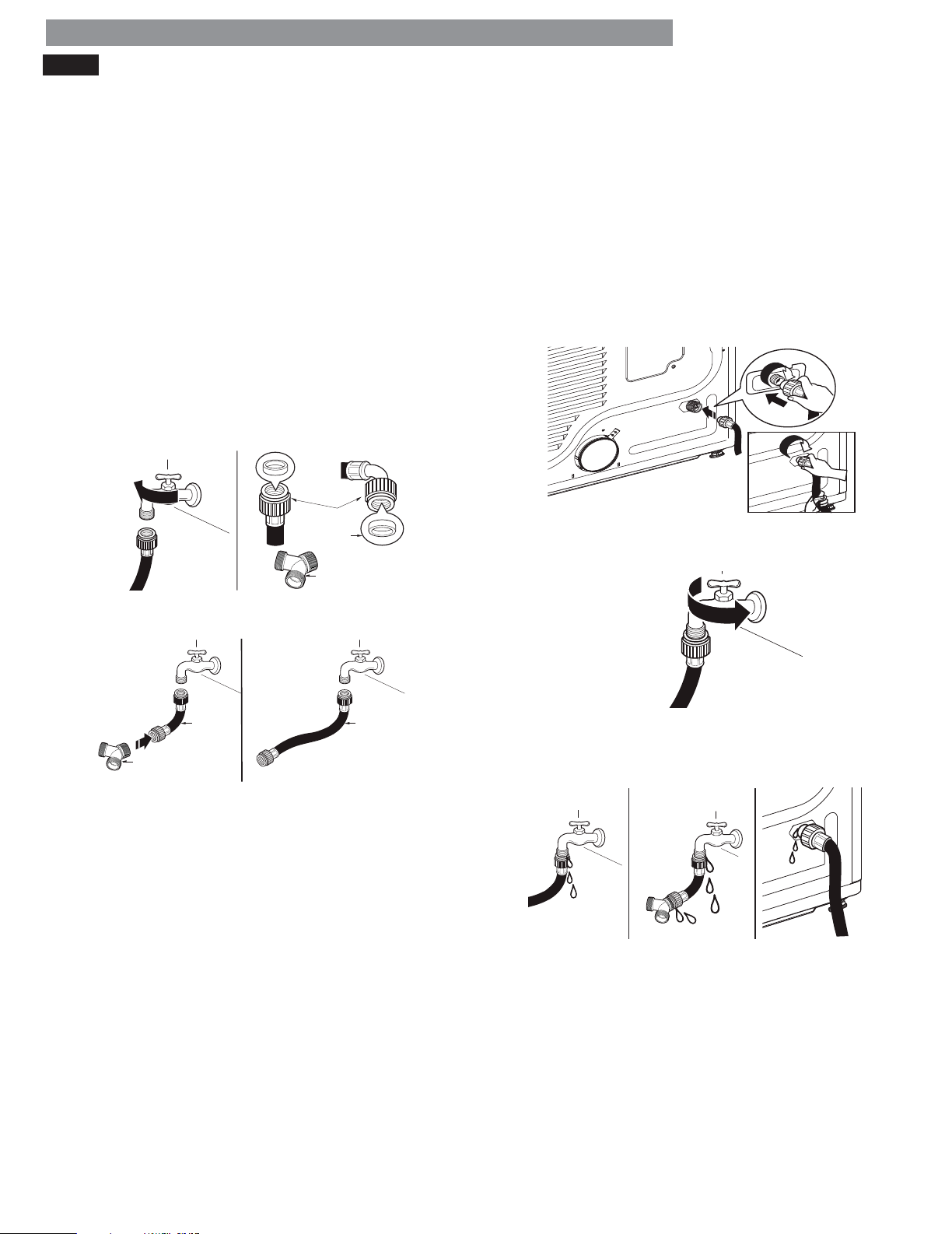

CONNECTING THE INLET HOSE

The dryer must be connected to the cold water tap

using the new water supply hose. Do not use old hoses.

NOTE:

• Water supply pressure must be between 20 psi and

120 psi (138–827 kPa).

• Do not strip or cross-thread when connecting inlet hose

to the valve.

• If the water supply pressure is more than 120 psi

(827kPa), a pressure reducing valve should be

installed.

• Periodically check the condition of the hose and

replace the hose if necessary.

• Replace inlet hoses after 5 years of use to reduce the

risk of hose failure.

• Record hose installation or replacement dates on the

hoses for future reference.

1. Check the rubber seal in the inlet hose. Two rubber

seals are supplied with each inlet hose. They are used

for preventing water leaks. Make sure the connection

to the cold water tap is tight.

2. Check the installation type.

Connect all water supply hoses tightly by hand and

then tighten another 2/3 turn with pliers.

WITH WASHER: When connecting the dryer to the same

faucet as a washer.

a. Shut oﬀ the cold water tap and remove the washer

hose.

b. Connect the short hose to the Y-connector.

c. Connect the other end of the short hose to the cold

water faucet.

d. Connect the long dryer hose to one side of the Y-connector

and connect the washer hose to the other side.

WITHOUT WASHER: If the dryer does not share the

cold water tap with a washer.

a. Connect the straight end of the long hose to the cold

water faucet.

NOTE:

• Before connecting the water line to the dryer, ﬂ ush

several gallons of water into a drain or bucket. This

will help prevent foreign particles such as sand and

scale from cloggong the dryer inlet valve.

• Do not overtighten. Damage to the coupling can

result.

3. Connect the hose to the dryer.

• Connect the water supply hose to the dryer inlet

valve tightly by hand and then tighten another 2/3

turn with pliers. Make sure that there are no kinks in

the hoses and that they are not crushed.

4. Turn on the cold water faucet.

5. Check for leaks at the Y-connector (if used) and all

hoses.

NOTE:

• If any leaks are found, shut oﬀ the water faucet,

remove the hose and check the condition of the hose

washer.

Hose

connector

Y connector

Rubber

seal

Long

hose

WITH WASHER WITHOUT WASHER

Short

hose

Y connector

INSTALLATION INSTRUCTIONS

LEVELING THE DRYER REVERSING THE DOOR SWING

• Wear gloves during installation.

• Failure to follow these instructions can result in injury.

To ensure that the dryer provides optimal drying

performance, it must be level. To minimize vibration,

noise, and unwanted movement, the ﬂ oor must be a

level, solid surface.

NOTE: Adjust the leveling feet only as far as necessary

to level the dryer. Extending the leveling feet more than

necessary can cause the dryer to vibrate.

Position the dryer in the ﬁ nal location. Place a level

across the top of the dryer.

All four leveling feet must rest solidly on the ﬂ oor.

Gently push on the top corners of the dryer to make

sure that the dryer does not rock from corner to corner.

Use a wrench to turn the leveling feet. Turn the

leveling foot clockwise to raise the dryer; turn the

foot counterclockwise to lower the dryer. Using a

level, adjust the feet until the dryer is level from side

to side and front to back. Make sure all four feet

are in ﬁ rm contact with the ﬂ oor.

NOTE: If you are installing the dryer on the optional

pedestal, the dryer leveling feet should be fully retracted.

Use the leveling feet on the pedestal to level the dryer.

Open the dryer door.

Using a Phillips screwdriver, remove the two latch

screws and the latch.

Remove the two hole caps, one each above and

below the latch by rotating them slightly clockwise.

While supporting the weight of the door, remove the

four hinge screws.

CAUTION: Be sure to support the weight of the door

before removing the hinge screws.

Carefully turn the door upside down and reinstall it on

the opposite side using the screws removed in step 4.

Install the door latch in the opening on the side from

which the door was removed using the screws from

step 2.

Install the hole caps removed in step 3 in the holes

above and below the latch where the door was

originally mounted.

Test the door for proper operation and make sure it

latches properly.

THE DRYER DOOR IS VERY LARGE AND HEAVY.

Failure to follow the instructions below can result in

damage to the dryer, property damage or personal injury.

• To avoid damage to the dryer or the door, support the

door with a stool or box that ﬁ ts under the door, or

have an assistant support the weight of the door.

• Always reverse the door BEFORE stacking the dryer on

top of the washer

• Avoid dropping the door to avoid damage to the door

or the ﬂ oor.

The swing of the dryer door can be reversed to ﬁ t your

installation location.

WARNING:

Hinge Screws

Insert Hole

Cap

Latch Screws

Door

Latch

Screws

Hinge

Screws

Remove

Hole Cap

Leveling Feet

Level

INSTALLATION INSTRUCTIONS

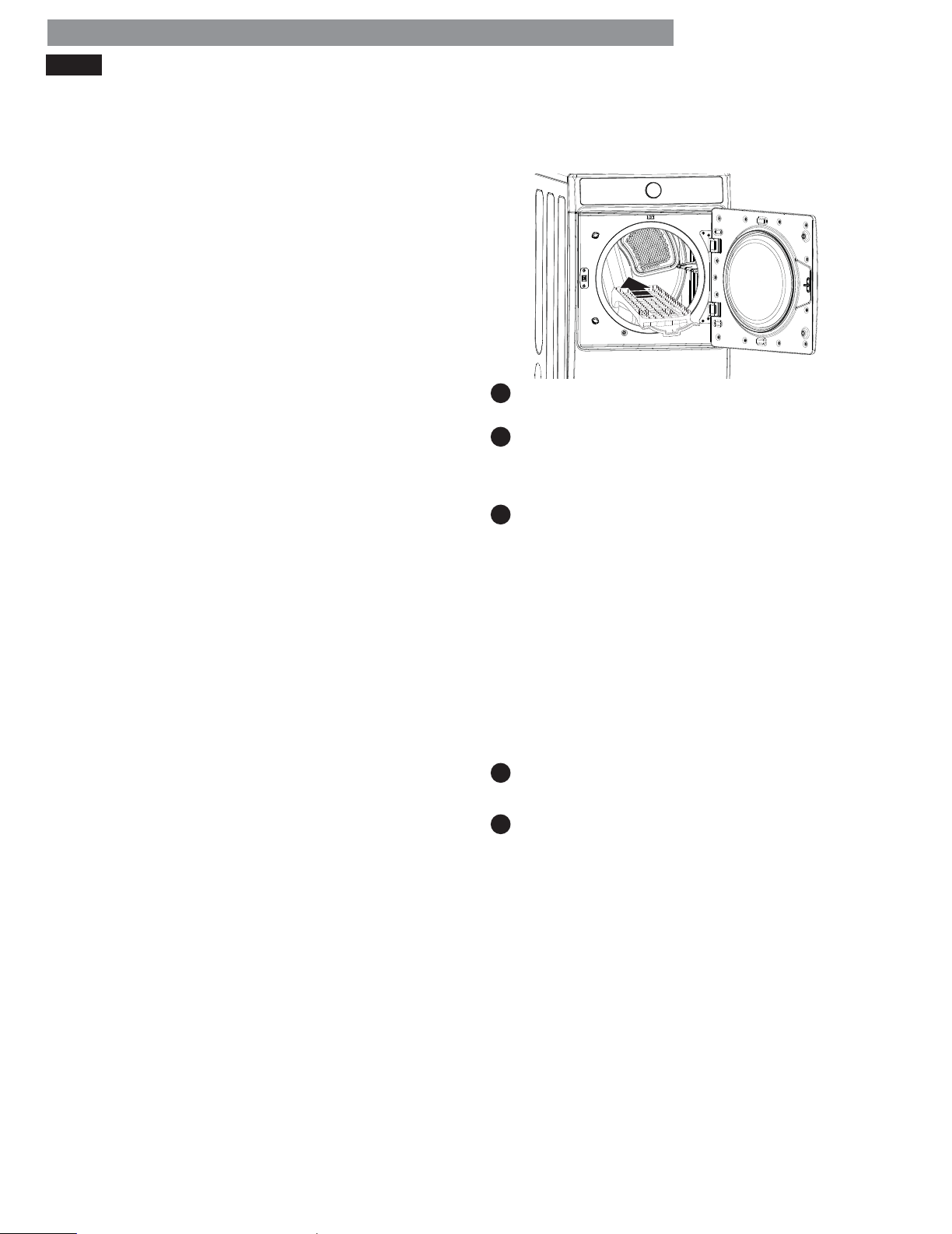

FINAL INSTALLATION CHECK

Once you have completed the installation of the dryer

and it is in its ﬁ nal location, conﬁ rm proper operation

with the following steps and tests.

Is gas turned on? (Gas models only)

Is dryer plugged in? Dryer should always be

plugged into the proper outlet.

Gas dryer should use a

120-VAC, 60-Hz. grounded

3-prong outlet.

Electric dryer should use a

4-wire connection which is

required for all mobile

and manufactured home

installations, as well as all new

construction after

January 1, 1996.

-- OR --

A 3-wire connection.

NOTE: A 3-wire connection

is NOT permitted on new

construction after

January 1, 1996.

Is the dryer transition duct from dryer to wall

connected? Make sure the transition duct behind the

dryer is properly connected and is not crushed or

damaged.

Is dryer level? Once the dryer is in its ﬁ nal location,

recheck the dryer to be sure it is level. Make sure it is

level front to back and side to side, and that all four

leveling feet rest ﬁ rmly on the ﬂ oor.

Is the dryer heating normally? Perform the following

dryer heating test.

Testing Dryer Heating

Close the dryer door.

Press the POWER button to turn the dryer on.

Turn the cycle selector knob to Normal drying cycle.

Press the START/PAUSE to start the dryer. After three

minutes, open the dryer door and check that the air

inside is warm.

NOTE: If the air inside the dryer is not warm after

three minutes, there may be air in the gas supply line to

the dryer, and the gas igniter may turn oﬀ before the

main burner ignites. When this happens, the igniter will

continue to attempt main burner ignition until all air is

purged from the line. Once ignition occurs, the air inside

the dryer will become warm.

GAS MODELS

Close the dryer door, press the POWER button to turn

the dryer on, and start the dryer on a heat setting.

When the dryer starts, the igniter should ignite the main

burner.

ELECTRIC MODELS

Close the dryer door, press the POWER button to turn

the dryer on, and start the dryer on a heat setting. The

exhaust air should be warm after the dryer has been

operating for 3 minutes.

Checking Airﬂ ow

Eﬀ ective dryer operation requires proper airﬂ ow. The

adequacy of the airﬂ ow can be measured by evaluating

the static pressure. Static pressure in the exhaust duct

can be measured with a manometer, placed on the ex-

haust duct approximately 2 ft. (60.9 cm) from the dryer.

Static pressure in the exhaust duct should not exceed

0.6 inches (1.5 cm). The dryer should be checked while

the dryer is running with no load.

Checking Levelness

Once the dryer is in its ﬁ nal location, recheck the dryer

to be sure it is level. Make sure it is level front to back

and side to side, and that all four leveling feet are

ﬁ rmly on the ﬂ oor.

Checking Venting

Vent ductwork should be checked for lint buildup

and cleaned at least once per year. If any noticeable

reduction in drying performance occurs, check duct for

obstructions and blockages.

INSTALLATION INSTRUCTIONS

INSTALLATION TEST (DUCT CHECK)

Once you have completed the installation of the dryer,

use this test to make sure the condition of the exhaust

system is adequate for proper operation of the dryer.

This test should be performed to alert you to any serious

problems in the exhaust system of your home.

The dryer features Check Vent, an innovative sensing system

that automatically detects blockages and restrictions in dryer

ductwork. Keeping ductwork clean of lint buildup and free of

restrictions allows clothes to dry faster and reduces energy

use.

NOTE: The dryer should be cool before starting this test. If the

dryer was warmed up during installation, run the Air Dry cycle

for a few minutes to reduce the interior temperature.

To activate the installation test:

Remove the literature and any other items from inside

the dryer, then close the dryer door.

Do not load anything in the drum for this test, as it may

aﬀ ect the accuracy of the results.

Press the Power button, then immediately press and

hold both the Temp and Chime buttons until

appears in the display.

Press the START/PAUSE button.

The dryer will start the test, which lasts about 2 minutes.

The heat is turned on and the temperatures in the drum

are measured.

Check the display for results.

During the test cycle, monitor the CHECK VENT LED on

the control panel. If the LED does not blink by the time the

cycle ends, the exhaust system is adequate. If the exhaust

system is severely restricted, the CHECK VENT LED blinks.

Have the exhaust system checked immediately, as dryer

performance will be poor.

Not blinking:

Blinking:

RESTRICTED

Other problems may also be shown with error codes.

Refer to the table below for error code details and

solutions.

End of cycle.

At the end of the test cycle, appears in the display.

The test cycle ends and the dryer shuts oﬀ automatically

after a short delay.

Check any error codes in the chart below before

calling for service.

Error

Code

Possible Causes Solutions

tE1

tE2

Temperature

sensor failure

Turn oﬀ dryer and call for

service.

Humidity sensor

failure

Turn oﬀ dryer and call for

service.

or PF

or nP

• Electric dryer

power cord is

not connected

correctly, or

house power

supply is

incorrect.

• House fuse is

blown, circuit

breaker has

tripped, or

power outage

has occurred.

• Check power supply or

connection of power cord to

terminal block. Refer to the

Connecting Electric Dryers

section of this guide for

complete instructions.

• Reset circuit breaker

or replace fuse. Do not

increase fuse capacity.

If problem is a circuit

overload, have it corrected

by a qualiﬁ ed electrician.

INSTALLATION INSTRUCTIONS

RESTRICTED OR BLOCKED AIRFLOW

Check the duct condition.

If the CHECK VENT LED is blinking, check the exhaust

system for restrictions and damage. Repair or replace

the exhaust system as needed.

NOTE: When the dryer is ﬁ rst installed, this test should

be performed to alert you to any existing problems

with the exhaust ducts in your home. However, since the

test performed during normal operation provides more

accurate information on the condition of the exhaust

duct than does the installation test, the results of the two

tests may not be the same.

Do not interrupt the test cycle, as this could result in

inaccurate results.

Even if the LED is not blinking during the test cycle,

some restrictions may still be present in the exhaust

system. Refer to the Venting the Dryer section of

this guide for complete exhaust system and venting

requirements.

Avoid long runs or runs with multiple elbows or bends.

Excess or crushed

transition duct

Check for blockages and lint buildup.

Too many elbows or

exhaust too long

Lint

blockage

buildup or

Make sure the ductwork is not crushed or restricted.

Crushed

damaged

exhaust

INSTALLATION INSTRUCTIONS

HOW TO USE

CONTROL PANEL FEATURES

POWER (ON/OFF) BUTTON

Press to turn the dryer ON or OFF. Pressing the

POWER button during a cycle will cancel that cycle

and any settings will be lost.

CYCLE SELECTOR KNOB

The cycle selector knob is used to select the desired

dry cycle by rotating the knob in either direction until

the desired cycle LED is illuminated. Once the desired

cycle has been selected, the standard presets for that

cycle will show in the display. These settings can be

adjusted using the cycle modiﬁ er or option buttons

any time before starting the cycle.

START/PAUSE BUTTON

Press this button to start the selected cycle. The

dryer will display the estimated time (AUTO DRY) or

set time (TIMED DRY) remaining and start tumbling.

To pause the cycle at any time, open the dryer door

or press START/PAUSE. To resume the cycle where it

was stopped, press START/PAUSE again.

NOTE: If the dryer has been stopped for more than

60 minutes, the dryer will turn oﬀ automatically.

OPTION BUTTONS

These buttons allow you to select cycle options.

Some of the option buttons have secondary

functions. The controls can be locked or unlocked

by pressing and holding the CHIME button for three

seconds.

CYCLE MODIFIER BUTTONS

Use these buttons to adjust the settings for the

selected cycle. The settings light up above the

buttons to show the current selection. The default

temperature setting cannot be changed in AUTO

DRY cycles. AUTO DRY cycles are modiﬁ ed using

the DRY LEVEL button.

TIME AND STATUS DISPLAY

The display shows the estimated time remaining for

auto cycles and actual time for timed cycles. The

status of the cycle is also displayed. The CHECK

VENT indicator will illuminate if there is a serious

restriction in the exhaust system.

SMART FUNCTIONS

Lower energy costs by avoiding peak usage times

using Smart Grid. Control the dryer remotely from a

smart phone using Remote Start. See page 30 in this

guide and the Quick Start Guide shipped with your

dryer for more information.

STEAM FUNCTIONS

The STEAM REFRESH cycle uses a swirling jet of

steam to refresh clothes. The STATIC SHIELD option

is also available for most cycles.

WARNING:

To reduce the risk of ﬁ re, electric shock, or injury to persons, read this entire

manual, including the Important Safety Instructions, before operating this dryer.

NOTE: To protect your fabrics, not all settings are allowed in all cycles.

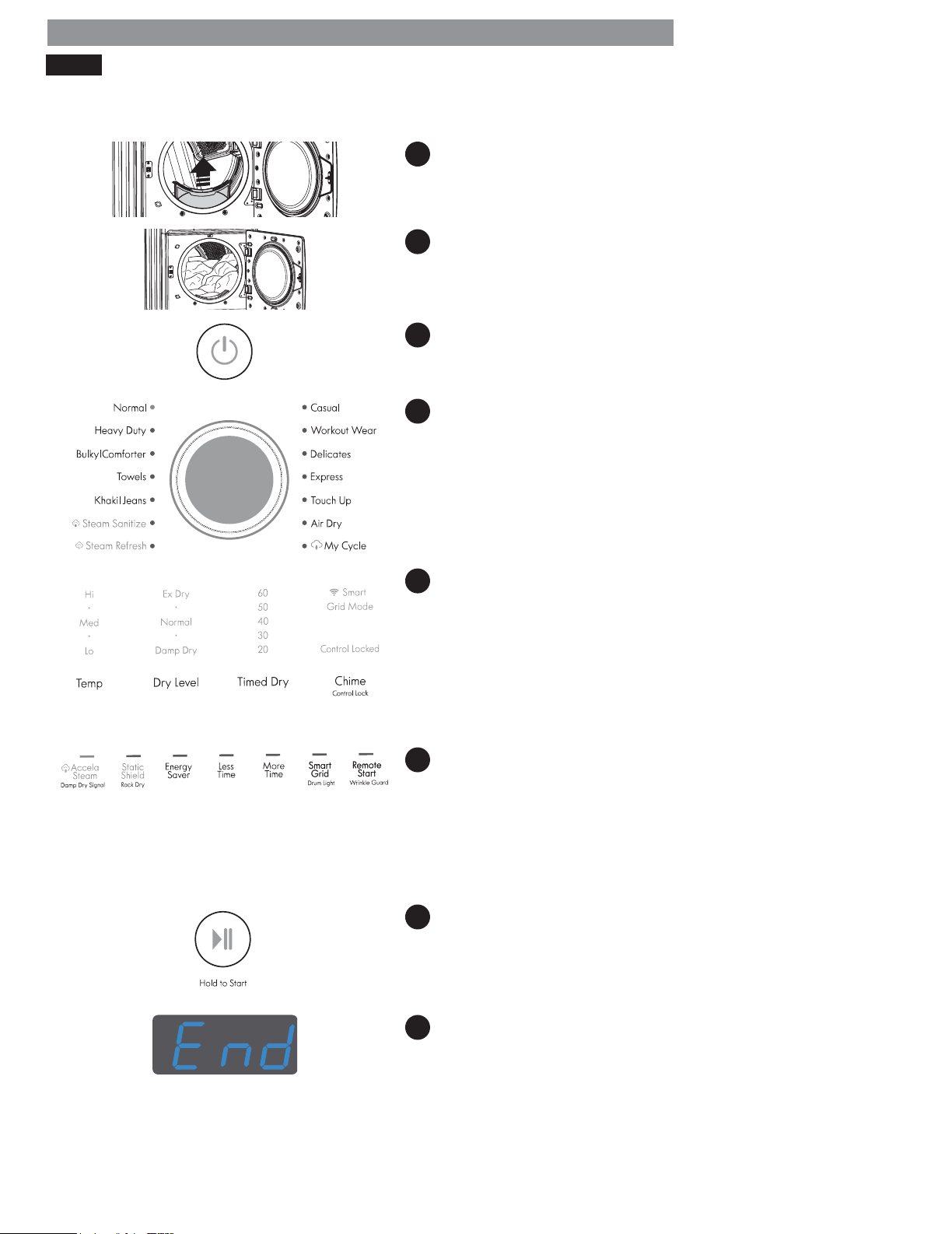

OPERATING THE DRYER

CLEAN THE LINT FILTER

If the lint ﬁ lter has not already been cleaned, lift out the ﬁ lter

and remove the lint from the last load. This will help ensure the

fastest and most eﬃ cient drying performance.

LOAD THE DRYER

Load the dryer with the wet laundry from the washer. If the load

is extra large, you may need to divide it into smaller loads for

proper performance and fabric care.

TURN ON THE DRYER

Press the POWER button to turn ON the dryer. The cycle LEDs

will illuminate and a chime will sound.

SELECT A CYCLE

Turn the cycle selector knob in either direction until the LED for

the desired cycle is illuminated. The preset temperature, dry

level, and option settings for that cycle will display.

SELECT CYCLE MODIFIERS

Default settings for the selected cycle can now be changed, if

desired, using the Temp and Dry Level buttons.

NOTE: Not all options or modiﬁ ers are available on all cycles.

Temperature can only be adjusted on Timed Dry cycles; Dry

Level is only available on Auto Dry cycles. A diﬀ erent chime

will sound and the LED will not illuminate if the selection is not

allowed.

SELECT CYCLE OPTIONS

Cycle options can be added using the option buttons (Accela

Steam, Damp Dry Signal, Static Shield, Rack Dry, Energy Saver,

and Wrinkle Guard).

NOTE: Not all options or modiﬁ ers are available on all cycles.

A diﬀ erent chime will sound and the LED will not come on if the

selection is not allowed.

BEGIN CYCLE

Press the START/PAUSE button to begin the cycle. The cycle can

be paused at any time by opening the door or by pressing the

START/PAUSE button. If the cycle is not restarted within 60 minutes

of being paused, the dryer will shut oﬀ and the settings will be lost.

END OF CYCLE

When the cycle is ﬁ nished, the chime will sound. Immediately

remove your clothing from the dryer to reduce wrinkling. If

WRINKLE GUARD is selected, the dryer will tumble brieﬂ y every

few minutes to help prevent wrinkles from setting in the clothes.

HOW TO USE

Fabric Care Labels

Most articles of clothing feature fabric care labels that

include instructions for proper care.

Group Similar Items

For best results, sort clothes into loads that can be dried

with the same drying cycle.

Diﬀ erent fabrics have diﬀ erent care requirements, and

some fabrics will dry more quickly than others. For best

fabric care results, always dry fabrics with similar care

requirements together.

SORTING LOADS

LOADING THE DRYER

WARNING:

To reduce the risk of ﬁ re, electric shock, or injury to persons, read this entire manual,

including the Important Safety Instructions, before operating this dryer.

To reduce the risk of

ﬁ re, electric shock, or injury to persons when using

this appliance, follow basic precautions, including the

following:

• Check all pockets to make sure that they are empty.

Items such as clips, pens, coins, and keys can damage

both your dryer and your clothes. Flammable objects

such as lighters or matches could ignite, causing a ﬁ re.

Failure to do so can result in ﬁ re, explosion, or death.

• Never dry clothes that have been exposed to oil,

gasoline, or other ﬂ ammable substances. Washing

clothes will not completely remove oil residues. Failure

to obey this warning can result in ﬁ re, explosion,

or death.

Loading Tips

• Combine large and small items in the same load.

• Damp clothes will expand as they dry. Do not overload

the dryer; clothes require room to tumble and

dry properly.

• Close zippers, hooks, and drawstrings to prevent these

items from snagging or tangling on other clothes.

CHECK THE LINT FILTER BEFORE EVERY LOAD

Every time the dryer is turned on, the CHECK FILTER

light turns on as a reminder to make sure the ﬁ lter is

clean. Always make sure the lint ﬁ lter is clean before

starting a new load; a clogged lint ﬁ lter will increase

drying times. To clean, pull the lint ﬁ lter straight up and

roll any lint oﬀ the ﬁ lter with your ﬁ ngers. Do not rinse

or wash the ﬁ lter to remove lint. Push the lint ﬁ lter ﬁ rmly

back into place.

Always ensure the lint ﬁ lter is properly installed before

running the dryer. Running the dryer with a loose or

missing lint ﬁ lter may damage the dryer and articles in

the dryer.

WARNING:

Tumble

dry

Heat

setting

Dry

Normal

Permanent Press/

wrinkle resistant

Gentle/

delicate

Do not

tumble dry

Do not dry

(used with do

not wash)

High

Medium Low

No heat/air

HOW TO USE

The cycle guide below shows the available options and recommended fabric types for Auto Dry cycles.

*NOTE: The default time and actual time will vary depending on the size of the load and moisture content.

NOTE: To protect your garments, not every dry level, or option is available with every cycle. Temperature settings cannot be

changed. A diﬀ erent chime will sound and the LED will not illuminate or the selection will not change if the selection is not allowed.

CYCLE GUIDE

Modifi snoitpOsre

Type Cycle Fabric Typ Temperature Dry Level

Time/Less

Time

Wrinkle

Guard

Damp

Dry

Signal

Static

Shield

Accela

Steam

Energy

Saver

AUTO DRY

Normal Work clothes, etc.

Medium Normal

Adjustable

Heavy Duty

Jeans, heavyweight

items

High Normal

Adjustable

Bulky/

Comforter

Comforter, pillows,

shirts

Medium Normal

Adjustable

Towels

Denims, towels, heavy

cottons

Med. High Normal

Adjustable

Khaki/Jeans

Jeans, color fading

material

Medium Auto

Steam Sanitize

Comforter, bedding,

children’s clothing, etc.

High Auto

Steam Refresh

Comforter, shirts, trousers

1-5 garments (DO NOT

use for delicate fabrics)

Med. High Auto

Garment

Count

Adjustable

Casual

Permanent press,

synthetic items

Med. Low Normal

Adjustable

Workout Wear Workout wear

Auto Auto

Delicates

Lingerie, sheets,

blouses

Med. Low Normal

Adjustable

Small Load

(Default for

My Cycle)

Only normal & cotton/

towel fabric type (Max

3 lb)

High Normal

Adjustable

= available option

= default setting

CERTIFIED BY NSF

NSF International (formerly the National Sanitation Foundation), certifi es that the Steam Sanitize cycle reduces 99.9% of bacteria on

laundry, and none of the bacteria will carry over onto the next laundry load.

• The default settings for the Steam Sanitize cycle are HIGH temperature and EXTRA DRY. These default settings cannot be

changed.

• Do NOT use this cycle with delicate items or fabrics.

• Steam cannot be added to the Steam Sanitize cycle.

Auto Dry Cycles

Auto Dry cycles utilize a sensor that detects moisture levels in the clothes and adjusts the drying time as needed to ensure superior

results. The dryer automatically sets the dry level and temperature at the recommended setting for each cycle. The estimated time

remaining will be shown in the display.

HOW TO USE

Timed Dry Cycles

Use Timed Dry cycles to select a specifi c amount of drying time and the drying temperature. When a Timed Dry cycle

is selected, the display shows the actual time remaining in your cycle.

You can change the actual time for the cycle by pressing MORE TIME or LESS TIME. Press and hold the MORE TIME or

LESS TIME buttons to rapidly change the time.

Modifi snoitpOsre

Type Cycle Fabric Type Temperature Dry Level

Time/Less

Time

Wrinkle

Guard

Damp

Dry

Signal

Static

Shield

Accela

Steam

Energy

Saver

TIMED DRY

Express Dry

For small loads with

short drying times

High Off

Adjustable

Touch Up

For removing light

wrinkles

Med. High Off

Adjustable

Air Dry

For items that

require heat-free

drying such as

plastics or rubber

No heat Off

Timed Dry*

For general drying.

Time, temperature,

and options can be

set manually

High Off

Adjustable

Rack Dry*

Wool sweaters, silk,

lingerie

Off Off

Adjustable

The cycle guide below shows the available options and recommended fabric types for Timed Dry cycles.

CYCLE GUIDE

NOTE: To protect your garments, not every temperature or option is available with every cycle. Temperature settings

cannot be changed. A diﬀ erent chime will sound and the LED will not illuminate if the selection is not allowed.

= available option

= default setting

* The Timed Dry cycle is accessed by pressing the TIMED DRY button on the control panel. The Rack Dry cycle is

accessed by pressing and holding the STATIC SHIELD button for three seconds.

TIME AND STATUS DISPLAY

The Time and Status Display shows the cycle time, cycle

progress, and vent status. When the dryer is turned on, the

display will illuminate.

TIME DISPLAY

When a cycle is selected, the display will indicate

the default time for that cycle including selected

options or adjustments. In AUTO DRY cycles, the

time remaining will be estimated and may change

during the cycle, depending on the condition of the

load. In TIMED DRY, the time displayed will be the

actual time remaining.

CHECK FILTER LIGHT

The CHECK FILTER light turns on before each load,

as a reminder to check the lint ﬁ lter. Always clean

the lint ﬁ lter before every cycle.

CYCLE STATUS INDICATORS

This portion of the display shows which stage of the

drying cycle is currently under way (DRY, COOL, or

WRINKLE GUARD).

CHECK VENT INDICATOR

(DUCT BLOCKAGE SENSING SYSTEM)

The CHECK VENT duct blockage sensing system

detects and alerts you to blockages in the ductwork

that reduce exhaust ﬂ ow from the dryer. This light

does not indicate any problems with your dryer. If

this light blinks, it indicates that your home’s exhaust

system has a serious restriction, which is not covered

by your dryer’s warranty.

DAMP DRY SIGNAL

If you select DAMP DRY SIGNAL, the dryer chimes

when the clothes are just short of completely dry, in

case you want to remove them for ironing or hang

drying.

HOW TO USE

Each cycle has default settings that are selected

automatically. You may also customize these settings

using the cycle modiﬁ er buttons.

AUTO DRY cycles are designed to properly care for

speciﬁ c fabrics and loads. As a result, not all settings are

available for each cycle selection.

TIMED DRY cycles have default settings, but you may

also customize the temperature setting and add options.

Settings are not limited in most timed dry cycles. Use

care when setting options and modiﬁ ers for these cycles

to prevent damage to your clothing.

NOTE: To protect your garments, not every dry level,

temperature, or option is available with every cycle.

CYCLE MODIFIER BUTTONS

TEMP

Adjusts the temperature setting from LOW to

HIGH. This allows precise care of your fabrics and

garments. Press the TEMP button repeatedly to scroll

through available settings. Temperature setting is not

adjustable in AUTO DRY cycles.

DRY LEVEL

Sets the level of dryness for the selected AUTO DRY

cycle. Press the DRY LEVEL button repeatedly to

scroll through available settings. Use this button to

adjust the dryness of the articles in the load to

your preference.

• This option is not available with TIMED DRY cycles.

• The dryer will automatically adjust the cycle time.

Selecting EXTRA DRY or MORE DRY will increase

the cycle time and dry level, while LESS DRY or

DAMP DRY will decrease the cycle time and

dry level.

• Use a LESS DRY or DAMP DRY setting for items

that you wish to iron or hang for ﬁ nal drying.

TIMED DRY

Allows you to manually select the drying time in

10-minute increments. Use this cycle for small loads

or to remove wrinkles. Use the MORE TIME/LESS

TIME buttons to increase or decrease the selected

drying time in 1-minute increments. Press and hold

the MORE TIME or LESS TIME buttons to rapidly

change the time.

CHIME

Adjusts the volume of the chime or turns oﬀ the

chime. Press the button repeatedly until the desired

volume setting is illuminated.

A B

C D

HOW TO USE

CYCLE OPTIONS AND SPECIAL FEATURES

Your dryer features several additional cycle options and special features to meet your individual needs. For all steam

features, see the following pages.

WRINKLE GUARD

Selecting this option will tumble the clothes after the

cycle ends for a few seconds every few minutes without

heat. This option is active for 180 minutes after the end of

the cycle, or until the door is opened. This helps prevent

wrinkles if the clothes are not removed immediately after

the cycle has ﬁ nished.

Press and hold the Remote Start button for three seconds

to activate or deactivate WRINKLE GUARD.

CONTROL LOCK

Use this option to disable the controls.

All controls will be disabled except for the POWER

button. Once set, the Control Lock must be turned oﬀ

before the controls can be used. After the dryer has shut

oﬀ , the POWER button will allow the dryer to be turned

on, but the controls will remain locked. When the Control

Lock is set, the LED will illuminate and “CL” will display

alternately with the cycle time.

Press and hold the CHIME button for three seconds to

activate or deactivate the Control Lock.

DAMP DRY SIGNAL

If you activate the Damp Dry Signal, the dryer will emit

a chime when the clothes are just short of completely

dry, in case you want to remove them for ironing or

hang drying. To activate or deactivate the Damp Dry

Signal, press and hold the ACCELA STEAM button for

three seconds.

DRUM LIGHT

The drum is equipped with a blue LED that illuminates

when the dryer is turned on. This light automatically

turns oﬀ when the door is closed and the cycle starts.

To turn on the light during a cycle, press and hold the

SMART GRID button for three seconds. The drum light

will illuminate and then turn oﬀ automatically after 60

minutes.

MY CYCLE

The MY CYCLE feature allows you to download new and

specialized cycles that are not included in the standard

cycles on the appliance.

After successfuly registering the appliance using the

Kenmore Smart application, you can download a

variety of specialty cycles speciﬁ c to the appliance.

Only one cycle can be stored in the MY CYCLE slot on

the appliance at a time. Once you have downloaded a

cycle to the appliance, it is stored until you download a

new MY CYCLE. The default My Cycle is Small Load.

NOTE: You must ﬁ rst connect to a Wi-Fi network and

function.

INSTALLING AND USING THE OPTIONAL

DRYING RACK

With the dryer door open, slide the rack into the

dryer drum.

Make sure the front of the rack is seated properly in

the recess on the lint ﬁ lter housing at the front of the

drum. The two rear legs of the rack should be resting

on the rear wall just above the drum.

Place items to be dried on the rack. Make sure that

no parts of the items hang over the edges of the

rack, as they might be contacted by the rotating

drum, causing noise or damage to the drum

or the items.

NOTE: Be sure to remove the drying rack after using

the RACK DRY cycle.

Using the RACK DRY Cycle

Use Rack Dry with items, such as wool sweaters, silk,

and lingerie, that should dry ﬂ at. Rack Dry can also

be used with items that should not be tumbled dry,

such as gym shoes or stuﬀ ed animals.

Press and hold the STATIC SHIELD button for three

seconds to access the RACK DRY cycle.

Press the TEMP button to select from Low or Med.

Low temperature options. If no temperature is

selected, the cycle defaults to no heat.

HOW TO USE

Using the STATIC SHIELD Option

This option uses steam late in the drying cycle to reduce

the static electricity caused by dry fabrics rubbing

together. Change the steam time by pressing the MORE

TIME and LESS TIME buttons to display the approximate

number of articles in the load: 7, 9, 11, 14, 16 or 18.

NOTE: When STATIC SHIELD is added to auto dry

cycles, the LESS and DAMP dry level cannot be

selected.

ACCELA STEAM

The ACCELA STEAM technology creates more steam in

less time than conventional steam technology. ACCELA

STEAM helps reduce the shrinkage and wrinkles

resulting from the overdrying of clothes by injecting

steam during the drying process. This feature is used by

default in the steam cycles, but it can also be added to

the standard Normal, Casual and Heavy Duty cycles.

Adding Steam to a Standard Cycle

Turn on the dryer and turn the cycle selector knob to

select the Normal, Casual or Heavy Duty cycle.

Use the cycle modiﬁ er buttons to adjust the settings

for that cycle.

Press the ACCELA STEAM button.

Press START/PAUSE to start the cycle.

IMPORTANT NOTES ABOUT STEAM FUNCTIONS:

• Steam may not be clearly visible during the steam

functions. This is normal.

• Do not use Steam Refresh with items such as wool,

wool blankets, leather jackets, silk, wet clothes, lingerie,

foam products, or electric blankets.

• For best results, load articles of similar size and fabric

type. Do not overload.

• If the dryer exhaust system installed in the home is

restricted, the performance of the steam functions will

be reduced.

• During steam operation, the clothes will tumble for

only a few seconds, once a minute.

WARNING:

• Do not open the dryer door during Steam Cycles.

Steam can cause severe burns.

• Do not touch the steam nozzle in the drum during or

after the steam cycle.

Using the STEAM SANITIZE Cycle

The STEAM SANITIZE cycle is ideal for sanitizing non-

washable items quickly and easily using only steam. This

cycle is recommended for use with cotton and polyester

materials only. (DO NOT use for urethane foam, down

feathers or delicate items.)

Using the STEAM REFRESH Cycle

The STEAM REFRESH cycle uses the power of steam to

quickly reduce wrinkles and odor in fabrics. It brings

new life to wrinkled clothes that have been stored for

an extended period of time, and it can make heavily

wrinkled clothes easier to iron. STEAM REFRESH can

also be used to help reduce odors in clothes, such as

clothes that were worn in a room where people had

been smoking. This cycle can refresh from one to ﬁ ve

garments, or one bulky item such as a comforter.

There are four settings available. Use

for one

garment. Use

for up to three garments and

for four

or ﬁ ve garments. The

(big) setting should be used

for bulky items. Best results are achieved with 70/30

cotton/polyblend fabrics.

Turn the dryer ON and select the STEAM REFRESH

cycle.

The default number of garments is three. Press the

MORE TIME or LESS TIME button to adjust the load

size, as described above.

Press the START/PAUSE button to start the cycle.

STEAM FEATURES

HOW TO USE

SMART FEATURES

GETTING CONNECTED

You need the following devices and applications to use

the Smart Grid and other smart features on your dryer.

Required Devices: A wireless router, Kenmore Elite

Smart Dryer, and a mobile device.

Required Application: Kenmore Smart App.

IMPORTANT: You must download the Kenmore Smart

app to your mobile device, connect your Kenmore Smart

appliance to the internet, and register the appliance to

your account in order to use the Smart Grid function.

Connecting the Dryer to the Internet

Refer to the Quick Start Guide that came with your smart

appliance for detailed instructions on creating a Kenmore

account and setting up the appliance for connected

operation from your smart phone. For additional

assistance, visit http://www.kenmore.com/smart

SMART GRID

Lower your energy costs to wash and dry your clothes by

avoiding peak usage periods, with information supp

lied by

your local electric utility company.

This feature responds to notification events from your utility

company to run high energy-consuming tasks during oﬀ -peak

periods when demand is lower. These notification events are

known as Demand Response signals.

NOTE: When Smart Grid is enabled, you may experience

delays or extended cycle times during peak usage periods. To

do laundry during peak usage periods without any delays, refer

to the information below to cancel the Smart Grid function.

Using Smart Grid:

Smart Grid is initially enabled. Press the SMART GRID

button once to disable the function. Once Smart Grid

is set, the settings will be maintained even when the

appliance is turned oﬀ .

Press the SMART GRID button before the cycle starts,

to cancel the function completely. The Smart Grid LED

(blue) will turn oﬀ .

Press the SMART GRID button during the cycle, to

cancel the function for that cycle only. The Grid

Mode LED (red) will turn oﬀ and Smart Grid will be

canceled for the cycle in process. Smart Grid will

resume for the next cycle.

REMOTE START

Use a smart phone to control your appliance remotely.

NOTE: For better performance and to protect your

clothes, this function can only be used with certain

cycles and options. You must first close the door and

connect to a gateway to use this function. The assurelink

LED should be illuminated.

To use Remote Start:

Select a cycle and options.

Press the REMOTE START button. The Remote Start

LED will turn on.

Start the dryer from the application on your smart

phone. (For more information, see the booklet

shipped with your dryer.) If you do not start the dryer

remotely, the dryer will wait to start the cycle until

the START button is pressed.

STEAM CYCLE GUIDE

Cycle Steam Temp. Control Dry Level

Fabric

State

Fabric Type

Maximum

Amount

Steam Sanitize

dry

comforter, bedding single (1 each)

children's clothing 3 lb

Steam Refresh

dry

comforter single (1 each)

shirts* 5 each

Auto Dry Cycle

Steam Option

Static Shield

wet

varies by

selected cycle

8 lb (18 items)

Accela Steam

wet

varies by

selected cycle

8 lb (18 items)

Static Shield

wet

varies by

selected cycle

8 lb (18 items)

* Shirt: 70% cotton / 30% poly blend. Except especially delicate fabrics.

• When the lint filter or exhaust duct is clogged, steam options will not give proper results.

• For best results, load articles of similar size and fabric type. Do not overload.

NOTE:

• When an Auto Dry cycle is selected with the STATIC SHIELD or ACCELA STEAM option, a dry level of Less or Damp

cannot be selected.

• The STATIC SHIELD option may also be selected during Timed Dry cycles.

• After the steam option is selected in Timed Dry, the MORE TIME or LESS TIME buttons will change the steam time only.

• After pressing Start/Pause, the MORE TIME or LESS TIME buttons will be disabled.

HOW TO USE

MY CYCLE

Use the My Cycle feature in the Kenmore Smart app to select and download an additional cycle to your dryer.

The default My Cycle on the dryer is SMALL LOAD.

leveL yrDerutarepmeTepyT daoL ro cirbaFelcyC

Wrinkle

Guard

Static

Shield

Small Load (default) Only normal & cotton/towel fabric type (Max 3 lb) High Normal

Super Dry yrD xEhgiHsehtolc nottoc yrd ylhguoroht oT

Denim NAmuideMsnaeJ

Kids' Clothes High temperature to sanitize kids' clothes High Normal

Ultra Delicate Low heat to gently dry delicate items Low Normal

Freshen Up Helps reduce odors and remove light wrinkles Med. High NA

Gym Clothes NANAraewstrops nottoc ,sehtolc myG

Blankets yrD xEmuideMsteknalb yklub seird yletelpmoC

Blanket Refresh 20 minute timed dry cycle to warm up blankets Low NA

Rainy Day Dries oﬀ clothes made damp by rain or snow High Normal

Lingerie lamroNwoLeiregniL

Socks 35 minute timed dry cycle to dry 20 pairs of socks High NA

Overnight Dry Energy eﬃ cient cycle to dry a small load overnight High Normal

Bedding/Curtains yrD xEmuideMsniatruc ,gniddeB

Kids' Gym Clothes NA

Med. High

raewstrops nottoc s'nerdlihC

Deodorization Reduces odors in clothes that do not require washing

HOW TO USE

FCC NOTICE

(for transmitter module contained in this product)

This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful

interference in a residential installation. This equipment

generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio

communications. However, there is no guarantee that

interference will not occur in a particular installation.

If this equipment does cause harmful interference to

radio or television reception, which can be determined

by turning the equipment oﬀ and on, the user is

encouraged to try to correct the interference by one or

more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment to an outlet on a circuit

diﬀ erent from that to which the receiver is

connected.

- Consult the dealer or an experienced radio/TV

technician for help.

This device complies with part 15 of the FCC rules.

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received,

including interference that may cause undesired

operation of the device.

Any changes or modifi cations in construction of this

device which are not expressly approved by the

party responsible for compliance could void the user's

authority to operate the equipment.

FCC RF Radiation Exposure Statement

This equipment complies with FCC radiation exposure

limits set forth for an uncontrolled environment. This

transmitter must not be co-located or operating in

conjunction with any other antenna or transmitter.

This equipment should be installed and operated with

a minimum distance of 20 cm (7.8 inches) between

the antenna and your body. Users must follow the

specific operating instructions for satisfying RF

exposure

compliance.

WIRELESS MODULE SPECIFICATIONS

Model 2AHU4-KMTD17

Frequency

Range

2412–2462 MHz

Maximum

Output

Power

IEEE 802.11b: 18.26 dBm

IEEE 802.11g: 20.10 dBm

IEEE 802.11n: 20.07 dBm

OPEN SOURCE SOFTWARE NOTICE

To obtain the source code that is contained in this product

under LGPL and other open source licenses, visit

http://kenmore.com/opensource. In addition to the source

code, all referred license terms, warranty disclaimers, and

USER MAINTENANCE INSTRUCTIONS

REGULAR CLEANING

WARNING:

To reduce the risk of ﬁ re, electric shock, or injury to persons, read this entire manual,

including the Important Safety Instructions, before operating this dryer.

• Unplug the dryer or turn the power oﬀ before cleaning to avoid the risk of electric shock. Failure to follow this

warning can cause serious injury, ﬁ re, electrical shock, or death.

• Never use harsh chemicals, abrasive cleaners, or solvents to clean the dryer. They will damage the ﬁ nish.

Roll any lint oﬀ the ﬁ lter with your ﬁ ngers.

Insert the lint ﬁ lter back into the dryer.

Periodic thorough cleaning:

Some fabric softeners can build up on the lint ﬁ lter over

time. This buildup can restrict the airﬂ ow through the

ﬁ lter reducing dryer eﬃ ciency and lengthening drying

times. After removing lint, if the ﬁ lter looks dark or dirty

when held up to the light, follow these steps to clean:

Use hot soapy water and a stiﬀ brush to clean

the ﬁ lter.

Make sure that the ﬁ lter is completely dry before

reinstalling it and using the dryer.

NOTE: NEVER operate the dryer with a wet lint ﬁ lter.

Maintaining Ductwork

Vent ductwork should be checked for lint buildup once per

month and cleaned at least once per year. If any noticeable

reduction in airﬂ ow or drying performance occurs, immedi-

ately check the ductwork for obstruction and blockages. Con-

tact a qualiﬁ ed technician or service provider.

Cleaning the Exterior

Proper care of your dryer can extend its life. The outside

of the machine can be cleaned with warm water and

a mild, nonabrasive household detergent. Immediately

wipe oﬀ any spills with a soft, damp cloth.

IMPORTANT: Do not use cleaning alcohols, solvents, or

similar products.

NEVER use steel wool or abrasive cleansers because

they can damage the surface.

Cleaning the Interior

Wipe around the door opening and seal with a soft,

damp cloth to prevent lint and dust buildup that could

damage the door seal.

Clean the window with a soft cloth dampened with

warm water and a mild, nonabrasive household

detergent, then wipe dry.

NEVER use steel wool or abrasive cleansers; they can

scratch or damage the surface.

Cleaning Around and Under the Dryer

Vacuum lint and dust from around the dryer and

underneath it regularly.

Cleaning the Lint Filter

ALWAYS make sure the lint ﬁ lter is clean before every

cycle. The Check Filter light on the control panel will

blink before every cycle to remind you.

NOTE: NEVER operate the dryer without the lint ﬁ lter.

To remove lint between cycles:

Open the dryer door.

Pull the lint ﬁ lter straight up.

Lint

Filter

• DIRTY OR DAMAGED EXHAUST DUCTS

• WRONG VENT MATERIAL

• RESTRICTED OR DAMAGED VENT HOOD

• EXCESSIVELY LONG VENT

• THE USE OF PLASTIC OR FOIL VENTING

Maintaining the Exhaust System

Vent ducts should be checked for lint buildup and

cleaned at least once per year. If any noticeable

reduction in drying performance occurs, check the ducts

for obstructions and blockages.

If the CHECK VENT indicator illuminates, the exhaust

system should be checked immediately for damage

or obstructions. The CHECK VENT indicator signals a

serious reduction in exhaust airﬂ ow which will greatly

reduce energy eﬃ ciency and increase drying times.

Damaged or restricted exhaust systems are not covered

by the dryer warranty. Damage to the dryer that is

caused by damaged, restricted, or otherwise inadequate

exhaust systems is not covered by the dryer warranty.

CHECK VENT Indicator

The CHECK VENT warning system is designed to

help you avoid the reduced performance caused by

restrictions in the household exhaust system. The CHECK

VENT indicator illuminates to alert you when problems

in the system occur, so you can have them repaired.

While you should always check and maintain your

exhaust system regularly, the CHECK VENT warning

system will detect and alert you if serious problems

develop in your home’s exhaust system. This includes

exhaust systems that are unsatisfactory for any reason

including a blockage in the venting, crushed/kinked

venting, or venting which exceeds the maximum

recommended length requirement as described in the

installation section.

NOTE: The total length includes the length from the

back of the dryer to the outside vent hood, PLUS a

factor for every 90° elbow in the exhaust system. For

example, if the distance from the back of the dryer to

the vent hood is 30 feet, and there are four elbows in

the system, then it exceeds the 28-foot maximum length

allowed for those conditions as speciﬁ ed in the Duct

Length Chart.

The CHECK VENT indicator on the control panel will

alert you that the exhaust system is not moving enough

air from the dryer to the outside. This lack of airﬂ ow will

lead to long dry times, poor drying and possibly dryer

failure.

As a reminder, external dryer venting is considered

part of your home and is not covered by the product

warranty or protection agreements. There are services

available for cleaning/maintaining the external venting.

MAINTAINING THE EXHAUST SYSTEM

CHECK VENT Operation

The CHECK VENT system uses components already

in the dryer. By monitoring these components over the

course of several cycles, the control is able to determine

how much restriction there is in the exhaust system. If

it detects a high level of restriction, it will turn on the

CHECK VENT light to alert you to the condition. The

dryer will continue to operate after the light comes

on, but you should have the exhaust system cleaned or

repaired immediately to avoid longer dry times and

higher energy consumption.

IMPORTANT: In order for a dryer to properly and

eﬃ ciently dry your clothes, it is extremely important that

the exhaust system is as short and clean as possible. It

MUST be less than the maximum length speciﬁ cations

as outlined in the installation section. It is also very

important that you make sure that when the dryer is

installed, the exhaust system is clean and clear of any

restrictions and is not kinked or crushed.

Failure to meet these guidelines will result in long dry

times, increased energy consumption and possibly even

clothing damage or dryer failure. When exhaust system

restrictions become extreme, the CHECK VENT light will

blink to alert you to the condition so you can have the

exhaust system cleaned or repaired.

To prevent false alarms and for increased reliability,

the dryer will monitor the exhaust condition for

several loads. If multiple, consecutive cycles exceed

the restriction limits, the control will blink the CHECK

VENT indicator.

A blinking CHECK VENT indicator means the external

venting should be checked for potential restrictions as

soon as possible.

The CHECK VENT indicator will remain active

(blinking) until the restriction is resolved AND the

control has veriﬁ ed the improved airﬂ ow for

several cycles.

After the exhaust is cleaned or repaired, it will take

several cycles for the CHECK VENT indicator to reset

and turn oﬀ the light.

NOTE: The CHECK VENT indicator is designed to

measure performance over several consecutive cycles

before activating or deactivating, to avoid false alarms.

A very large load, such as a large comforter, could

cause the CHECK VENT system to sense that the exhaust

system is restricted, but this would not cause the light to

blink. However, if several large loads were to run back

to back, the CHECK VENT indicator could be activated.

The most common cause of dryer problems is poor exhaust venting. Poor exhaust venting may result from the

following conditions:

USER MAINTENANCE INSTRUCTIONS

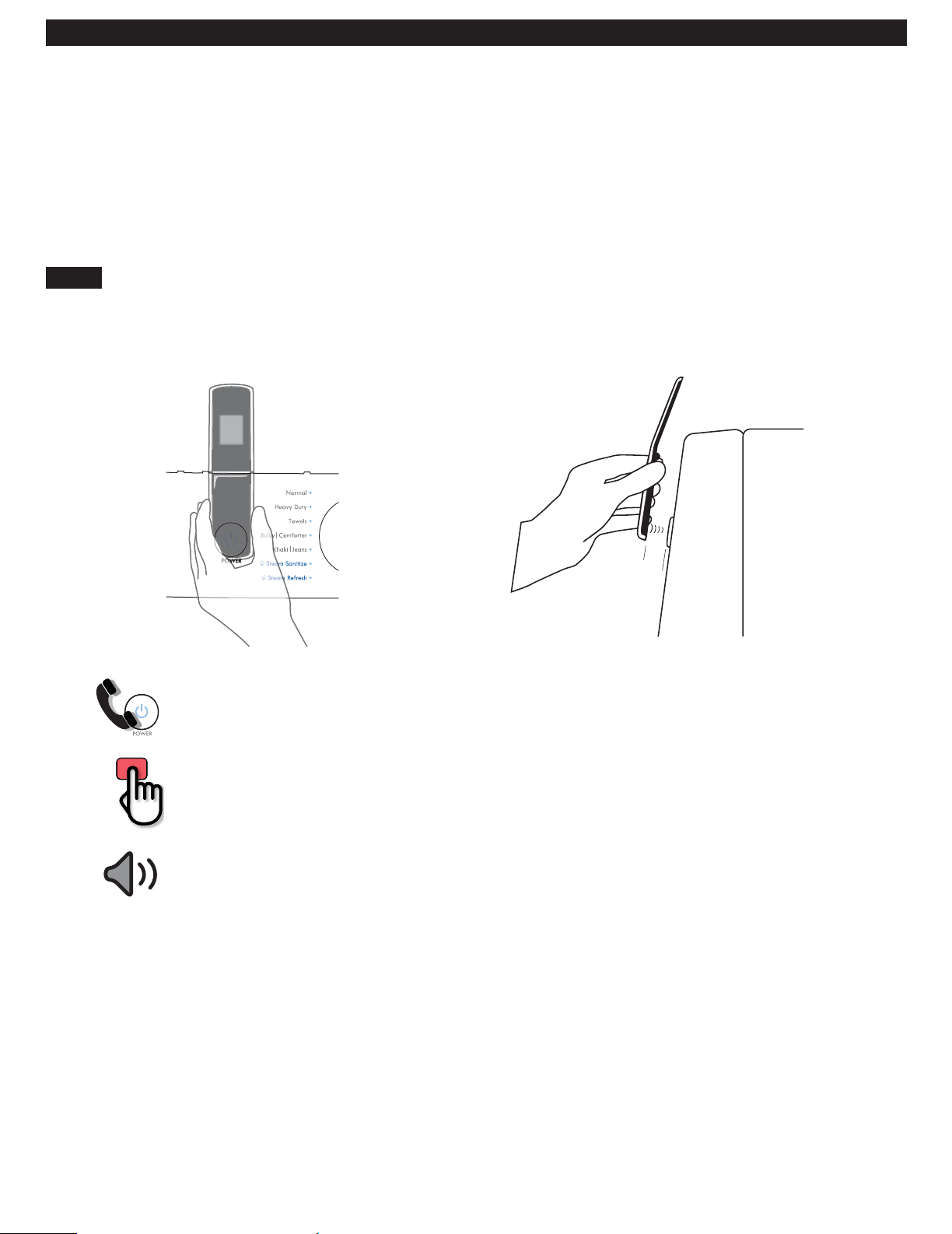

DIAGNOSTICS

HOLD the mouthpiece of your phone over the POWER button, when instructed to do so by

the call center, no more than 1 in. (2.5 cm) from (but not touching) the machine.

NOTE: Do not press any other buttons or turn the cycle selector knob.

PUSH and hold the TEMP button while continuing to hold your phone to the

POWER button.

LISTEN for two beeps. After you hear the two beeps, release the TEMP button. A tone

transmission will begin. Keep the phone in place until the tone transmission has ﬁ nished. The

display will count down the time. Once the countdown is over and the tones have stopped,

resume your conversation with the technician, who will then be able to assist you in using the

information transmitted for analysis.

Should you experience any problems with your dryer,

it has the capability of transmitting data via your

telephone to the Diagnostics Team. This gives you

the capability of speaking directly to our specially

trained technicians. The technician records the data

transmitted from your machine and uses it to analyze

the issue, providing a fast and eﬀ ective diagnosis.

If you experience problems with your dryer, call

1-844-553-6667.

Only use the Diagnostics feature

when instructed to do so by the Diagnostics Team. The

transmission sounds that you will hear are normal and

sound similar to a fax machine.

Diagnostics cannot be activated unless your dryer is

turned on by pressing the POWER button. If your dryer

is unable to turn on, then troubleshooting must be done

without using Diagnostics.

NOTE:

• For best results, do not move the phone while the tones are being transmitted.

• If the call center agent is not able to get an accurate recording of the data, you may be

asked to try again.

• Pressing the POWER button during the transmission will shut oﬀ Diagnostics.

Diagnostics

is a troubleshooting feature designed to assist, not replace, the traditional method

of troubleshooting through service calls. The eﬀ ectiveness of this feature depends upon

various factors, including, but not limited to, the reception of the cellular phone being used

for transmission, any external noise that may be present during the transmission, and the

acoustics of the room where the machine is located. Accordingly, Sears does not guarantee

that Diagnostics will accurately troubleshoot any given issue.

Using Diagnostics

First, call 1-844-553-6667. If the number of the phone you are using is on ﬁ le and is asociated with your dryer, you will

be quickly relayed to a

Diagnostics Team agent. Follow the technician’s instructions and perform the following steps only

when requested to by the Diagnostics Team agent.

1 in.

(2.5 cm)

TROUBLESHOOTING GUIDE

FAQs

Q: When I press a button, why does my dryer beep and then nothing happens?

A: The Control Lock feature is turned on. To turn oﬀ Control Lock, turn the dryer on, then press and hold the

button that has *Control Lock on or under it for 3 seconds.

Q: Why does my dryer take so long to dry clothes?

A: Proper airﬂ ow is critical to the eﬃ cient operation of clothes dryers. A lint ﬁ lter which is full of lint or

clogged with fabric softener sheet residue can reduce the airﬂ ow to the point that the time required to

dry clothing will be greatly increased. Another factor aﬀ ecting dry time is your home exhaust system.

An exhaust system which is dirty and clogged with lint, or is excessively long, needs to be professionally

cleaned or repaired.

Q: Why does my dryer start by itself every few minutes?

A: This is how the Wrinkle Guard feature works. The dryer runs brieﬂ y every few minutes for up to 3 hours

after the cycle ﬁ nishes. This feature is designed to help prevent wrinkles from setting in when the dryer is

not unloaded immediately after the cycle is ﬁ nished.

Q: Why does my dryer show 3 minutes when I select the Steam Refresh cycle?

A: When the Steam Refresh cycle is selected, the dryer displays the number of garments rather than the

estimated cycle time, until the cycle is started. Use the MORE TIME or LESS TIME buttons to adjust the

load size setting for the number of garments you desire. For a large load or single bulky item use the

(big) setting.

BEFORE CALLING FOR SERVICE

Problem Possible Cause Solutions

*CHECK VENT indicator

is blinking

* This warning light is

not a dryer failure and

is not covered by the

dryer warranty. Contact

a duct cleaning service to

have your exhaust system

cleaned and inspected.

Exhaust system is too long or has

too many turns/restrictions.

Partial blockage of the ductwork due

to lint buildup or other foreign object.

The appliance has detected a

restriction in the external dryer

venting.

Install a shorter or straighter duct run. See the

Installation Instructions for details.

Ductwork should be checked/cleaned immediately.

Dryer can be used in this condition, but drying times

will be longer and energy consumption will increase.

See the CHECK VENT INDICATOR and CHECK

VENT OPERATION sections for details regarding

this function.

The display shows d80,

d90, or d95

The ductwork is about 80%-95%

blocked. These error codes are only

displayed for 2 hours.

Do not use the dryer until the exhaust system has

been cleaned and/or repaired. Using the dryer

with a severely restricted exhaust is dangerous and

could result in a ﬁ re or other property damage.

Check the outside dryer vent while the dryer is

operating to make sure there is strong airﬂ ow.

If the exhaust system is extremely long, have it

repaired or rerouted.

Keep the area around the dryer clean and free of

clutter.

Check vent hood for damage or lint clogging.

Make sure the area around the vent hood is clear.

The CHECK VENT

indicator remains active

(blinking) after clearing the

restriction in the venting.

After clearing the restriction, the

CHECK VENT system requires

multiple, consecutive cycles to

determine that the performance

value has improved before the

CHECK VENT indicator is reset.

If the CHECK VENT indicator remains active for

more than ﬁ ve cycles after the restriction has been

cleared, call for service.

TROUBLESHOOTING GUIDE

BEFORE CALLING FOR SERVICE (continued)

Problem Possible Cause Solutions

Dryer will not turn on Power cord is not properly

plugged in.

House fuse is blown, circuit

breaker has tripped, or power

outage has occurred.

Make sure that the plug is securely plugged into a

grounded outlet matching the dryer’s rating plate.

Reset circuit breaker or replace fuse. Do not increase

fuse capacity. If the problem is a circuit overload,

have it corrected by a qualiﬁ ed electrician.

Buttons are disabled or

CL shows in display

CONTROL LOCK function is

engaged.

Press and hold the CHIME button for three seconds to

activate or deactivate the function.

Error code: tE1 through tE7 Temperature sensor failure. Turn oﬀ the dryer and call for service.

Display shows error

code PS (electric dryers

only)

Power cord is connected

incorrectly.

White (N) and red (L2) wires on power cord. Check

power cord connections for neutral connection on the

center terminal. 240 volts applied to the control, so it

will protect itself.

Display shows error

code nP or gAS

Power cord connection is incorrect.

Gas supply or service turned oﬀ

(gas models only).

Check the connection of power cord to terminal block.

Conﬁ rm that house gas shutoﬀ and dryer gas shutoﬀ

are both fully open.

Light does not turn on

when door is opened

Dryer has been oﬀ for more than

four minutes and light is disabled.

Press the POWER button to turn on the dryer, which will

enable the drum light.

Dryer does not heat House fuse is blown, circuit

breaker has tripped, or power

outage has occurred.

Gas supply or service is turned oﬀ

(gas models only).

Reset circuit breaker or replace fuse. Do not increase

fuse capacity. If the problem is a circuit overload,

have it corrected by a qualiﬁ ed electrician.

NOTE: Due to the design of electric dryers, it is possible

for a circuit problem to allow an electric dryer to run

without heat.

Conﬁ rm that the house gas shutoﬀ and the dryer gas

shutoﬀ valves are both fully open. Even if gas is not

supplied to the dryer, it will run and no error codes

will display. Verify that other gas appliances in the

home are working normally.

Greasy or dirty spots on

clothes

Clean and dirty clothes are being

dried together.

Clothes were not properly cleaned

or rinsed before being placed in

the dryer.

Only use your dryer to dry clean items. Soil from dirty

clothes can transfer to the clean clothes in the same or

later loads.

Stains on dried clothes could be stains that weren’t

removed during the washing process. Make sure

that clothes are being completely cleaned or rinsed

according to the instructions for your washer and

detergent. Some diﬃ cult soils may require pre-

treating prior to washing.

Lint on clothes Lint ﬁ lter not cleaned properly.

Laundry not sorted properly.

Excess static in clothes.

Dryer is overloaded.

Tissue, paper, etc., left in pockets.

Remove the lint from the ﬁ lter before every load.

With the lint removed, hold the ﬁ lter up to a light to

see if it is dirty or clogged. If it looks dirty, follow the

cleaning instructions. With some loads that produce

high amounts of lint, it may be necessary to clean the

ﬁ lter during the cycle.

Some fabrics are lint producers (i.e., a fuzzy white cotton

towel) and should be dried separately from clothes that

are lint trappers (i.e., a pair of black linen pants).

Use a fabric softener to reduce static electricity. Be

sure to follow the manufacturer’s instructions. Over

drying a load of laundry can cause a buildup of

static electricity. Adjust settings and use a shorter

drying time, or use AUTO DRY cycles.

Divide extra large loads into smaller loads for drying.

Check pockets thoroughly before washing and drying

clothes.

TROUBLESHOOTING GUIDE

BEFORE CALLING FOR SERVICE (continued)

Problem Possible Cause Solutions

Drying time is not

consistent

Heat settings, load size, or dampness

of clothing is not consistent.

The drying time for a load will vary

depending on the type of heat used (electric,

natural gas, or LP gas), the size of the load,

the type of fabrics, the wetness of the clothes,

and the condition of the exhaust duct and lint

ﬁ lter. Even an unbalanced load in the washer

can cause poor spinning, resulting in wetter

clothes which will take longer to dry.

Clothes take too long to dry Exhaust ducts are blocked, dirty, or

duct run is too long.

Load is not properly sorted.

Large load of heavy fabrics.

Dryer controls are not set properly.

Lint ﬁ lter needs to be cleaned.

House fuse is blown, circuit breaker

has tripped, or power outage has

occurred.

Dryer is overloaded.

Dryer is under loaded.

Conﬁ rm that the exhaust duct is properly

conﬁ gured and free of debris, lint, and

obstructions. Make sure that outside wall

dampers can open properly and are not

blocked, jammed, or damaged.

Separate heavy items from lightweight items.

Larger and heavier items take longer to dry.

Light items in a load with heavy items can fool

the sensor because the light items dry faster.

Heavy fabrics take longer to dry because they

tend to retain more moisture. To help reduce

and maintain more consistent drying times for

large and heavy fabrics, separate these items

into smaller loads of a consistent size.

Use the appropriate control settings for the

type of load you are drying. Some loads

may require an adjustment of the DRY LEVEL

setting for proper drying.

Remove the lint from the ﬁ lter before every

load. With the lint removed, hold the ﬁ lter up

to a light to see if it is dirty or clogged. If it

looks dirty, follow the cleaning instructions on.

With some loads that produce high amounts

of lint, such as new bath towels, it may be

necessary to pause the cycle and clean the

ﬁ lter during the cycle.

Reset circuit breaker or replace fuse. Do

not increase fuse capacity. If the problem

is a circuit overload, have it corrected by a

qualiﬁ ed electrician.

NOTE: Due to the design of electric dryers, it

is possible for a circuit problem to allow an

electric dryer to run without heat.

Divide extra large loads into smaller loads for

better drying performance and eﬃ ciency.

If you are drying a very small load, add a

few extra items to ensure proper tumbling

action. If the load is very small and you are

using AUTO DRY cycles, the electronic control

cannot properly sense the dryness of the load

and may shut oﬀ too soon. Use TIMED DRY or

add some extra wet clothes to the load.

TROUBLESHOOTING GUIDE

BEFORE CALLING FOR SERVICE (continued)

Problem Possible Cause Solutions

Clothes are

wrinkled

Clothes dried too long (over

dried).

Clothes left in dryer too long

after cycle ends.

Overdrying a load of laundry can lead to wrinkled clothes. Try a

shorter drying time or LESS DRY setting and remove items while

they still retain a slight amount of moisture.

Use the WRINKLE GUARD option. This feature will tumble the

clothes brieﬂ y every few minutes for up to 180 minutes to help

prevent wrinkling.

Clothes are

shrinking

Garment care instructions are

not being followed.

To avoid shrinking your clothes, always consult and follow fabric

care instructions. Some fabrics will naturally shrink when washed.

Other fabrics can be washed but will shrink when dried in a dryer.

Use a low or no heat setting.

Excess static in

clothes after

drying

Fabric softener is not used or

used incorrectly.

Clothes dried too long (over

dried).

Drying synthetics, permanent

press, or synthetic blends.

Use a fabric softener or the STATIC SHIELD option, if equipped,

to reduce static electricity. Be sure to follow the manufacturer’s

instructions.

Overdrying a load of laundry can cause a buildup of static

electricity. Adjust settings and use a shorter drying time, or use

AUTO DRY cycles. Select a LESS DRY setting on AUTO DRY

cycles, if necessary.

These fabrics are naturally more prone to static buildup. Try using fabric

softener, or use LESS DRY and/or shorter TIMED DRY time settings.

Steam Features

Not Working

Water drips from nozzle

when steam cycle starts.

Steam is not visible during

steam cycle.

Steam is not generated and

no error code is displayed.

Garments are still wrinkled

at the end of the STEAM

REFRESH cycle.

Creases or pleats are gone

from garments after Steam

Refresh.

Garments have static after

using the Static Shield option.

Garments are too damp or

too dry after using Static

Shield option.

Water drips down the door

during steam cycles.

Drum does not turn during

steam cycles.

Cannot see steam vapor at

the beginning of the cycle.

Odors are not completely

removed at the end of the

STEAM REFRESH cycle.

This is normal steam condensation. The dripping water will stop after

a short time.

This is normal. Check for condensation on the inside of the door

during the steam portion of the cycle. Steam is not directly visible.

Water level error. Unplug the dryer and call for service.

Load only one to ﬁ ve garments (or a single bulky item). Do not

mix fabric types. STEAM REFRESH is most eﬀ ective on 70/30

cotton/polyblends. Do not use on 100% cotton items.

This cycle removes wrinkles from fabric. Use an iron to replace

creases and pleats in garments.

The amount of static that builds up when wearing garments

depends on the individual moisture level in the skin.

Select the load weight manually before starting the Static Shield

option.

Steam is invisible. However, under some conditions, the condensed

fog may be seen, or condensation will form on the inside of the

door glass and may be seen dripping down the glass.

The drum is turned oﬀ so that the steam vapor remains in the

drum. The drum will turn for only a few seconds, once a minute.

Steam is released at diﬀ erent stages of the cycle for each

option. Steam cannot be seen, but condensation may form on the

inside of the door when steam is being generated.

Some odors are diﬃ cult to remove. Fabrics containing certain

diﬃ cult odors or very strong odors may not refresh well and

should be washed or dry cleaned instead.

WARRANTY

Kenmore Elite Limited Warranty

WITH PROOF OF SALE the following warranty coverage applies when this appliance is correctly installed,

operated and maintained according to all supplied instructions.

One Year on Appliance

FOR ONE YEAR from the date of sale this appliance is warranted against defects in material or

workmanship. A defective appliance will receive free repair. If the appliance cannot be repaired it will be

replaced free of charge.

Lifetime on Dryer Drum and Baﬄ es

FOR AS LONG AS IT IS USED from the date of sale, a free replacement will be supplied for a defective

dryer drum, including baﬄ es.* If the defect appears within the ﬁ rst year, a new drum or baﬄ es will be

installed at no charge. If the defect appears after the ﬁ rst year, a new drum or baﬄ es will be supplied

but not installed at no charge. This Lifetime warranty covers only the dryer drum and baﬄ es, and does not

apply to any other related component or mechanism. You are responsible for the labor cost of drum or

baﬄ es installation after the ﬁ rst year from the date of sale. *Defects must be veriﬁ ed by a Sears authorized

service technician.

For warranty coverage details to obtain free repair or replacement, visit the web page:

www.kenmore.com/warranty

This warranty applies for only 90 DAYS from the sale date in the United States if this appliance is ever used

for other than private household purposes.

This warranty covers ONLY defects in material and workmanship, and will NOT pay for:

1. Expendable items that can wear out from normal use, including but not limited to ﬁ lters, belts, bags or

screw-in base light bulbs.

2. A service technician to clean or maintain this appliance, or to instruct the user in correct appliance

installation, operation and maintenance.

3. Service calls to correct appliance installation not performed by Sears authorized service agents, or to

repair problems with house fuses, circuit breakers, house wiring, and plumbing or gas supply systems

resulting from such installation.

4. Damage to or failure of this appliance resulting from installation not performed by Sears authorized

service agents, including installation that was not in accord with electrical, gas or plumbing codes.

5. Damage to or failure of this appliance, including discoloration or surface rust, if it is not correctly

operated and maintained according to all supplied instructions.

6. Damage to or failure of this appliance, including discoloration or surface rust, resulting from accident,

alteration, abuse, misuse or use for other than its intended purpose.

7. Damage to or failure of this appliance, including discoloration or surface rust, caused by the use of

detergents, cleaners, chemicals or utensils other than those recommended in all instructions supplied with

the product.

8. Damage to or failure of parts or systems resulting from unauthorized modiﬁ cations made to this

appliance.

9. Service to an appliance if the model and serial plate is missing, altered, or cannot easily be determined

to have the appropriate certiﬁ cation logo.

Disclaimer of implied warranties; limitation of remedies

Customer’s sole and exclusive remedy under this limited warranty shall be product repair or replacement

as provided herein. Implied warranties, including warranties of merchantability or ﬁ tness for a particular

purpose, are limited to one year or the shortest period allowed by law. Seller shall not be liable for incidental

or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental

or consequential damages, or limitation on the duration of implied warranties of merchantability or ﬁ tness, so

these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the United States.

This warranty gives you speciﬁ c legal rights, and you may also have other rights which vary from state to state.

Sears Brands Management Corporation, Hoﬀ man Estates, IL 60179

Kenmore ®

Customer Care Hotline

To schedule in-home repair service

or order replacement parts

Para pedir servicio de reparación

a domicilio, y ordenar piezas

1-844-553-6667

Kenmore Elite 91782 7.4 cu. ft. Smart Gas Dryer

Product's Documents

Use & Care Guide

Specifications

Kenmore 91782 Questions and Answers

Related Products

Kenmore Elite 91983 9.0 cu. ft. Smart Gas Dryer w/ Accela Steam Technology – Metallic Silver

Kenmore Elite 91783 7.4 cu. ft. Smart Gas Dryer

Kenmore Elite 91982 9.0 cu. ft. Smart Gas Dryer

Kenmore Elite 71433 7.3 cu. ft. Smart Gas Dryer with Steam Refresh
