User Manual Insignia NS-CZ50WH6 5.0 Cu. Ft. Chest Freezer

• User Manual - (English)
• User Guide - (Spanish)
• User Guide - (French)

• Warranty - (English)

Table of contents

• Features
• Setting up your freezer
• Using your freezer
• Defrosting your freezer
• Maintaining your freezer
• Storing your freezer
• Moving your freezer
• Tips on saving energy
• Troubleshooting

Features

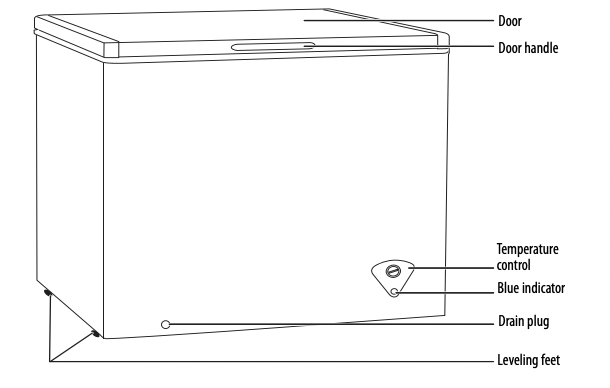

Exterior (NS-CZ70WH6 shown)

Setting up your freezer

Before using your freezer

• Remove the exterior and interior packing.
• Let the freezer stand upright for approximately two hours before connecting it to power. This reduces the possibility of a malfunction in the cooling system from improper handling during transportation.
• Wash the inside with a damp, warm cloth and a baking soda solution (two tablespoons in a quart of water), then wipe dry with a dry cloth. Do this periodically to keep your freezer looking new.

Finding a suitable location

• This freezer is designed to be free standing only, and should not be recessed or built-in.
• Place your freezer on a floor that is strong enough to support the freezer when it is fully loaded.
• Allow six inches (15 cm) of space between the back and sides of the freezer and any surrounding walls to allow for proper air ventilation. Adjust the feet to keep the freezer level.
• Locate the freezer away from direct sunlight and sources of heat, such as a stove, heater, or radiator. Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extremely cold temperatures may also prevent the freezer from performing properly.
• Avoid locating the freezer in moist areas.

Providing a proper power supply

Check your local power source. This freezer requires a 115V, 60Hz power supply.

Use a receptacle that accepts the grounding prong. The power cord is equipped with a 3-prong (grounding) plug which mates with a standard prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this freezer.

Using a 3-prong plug and outlet

Using a grounding adapter

Notes

• The freezer should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate.
• Never unplug your freezer by pulling on the power cord. Always grip the plug firmly and pull straight out from the outlet.

Using your freezer

The storage life of frozen foods varies and the recommended storage time should not be exceeded.

Place frozen food into the freezer as quickly as possible after purchase. If there are instructions on the packet, carefully follow these instructions regarding storage times.

Pre-packed commercially frozen food should be stored in accordance with the frozen foods manufacturer's instructions for a three star frozen food storage compartment or home freezer.

A storage basket is provided for the organization of odd-shaped items. To reach other packages in the freezer, just slide the basket to one side, or lift it out.

1. The first time you turn the freezer on, adjust the temperature control to the setting you want and run for two to three hours before putting food in.
2. After it is fully cooled, adjust the temperature control to the setting that best suits your needs. Settings include MIN, MAX, and OFF.

Notes

• Turning the temperature control to OFF stops the cooling cycle but does not shut off the power to the freezer.
• If the freezer is unplugged, loses power, or is turned off, you must wait three to five minutes before restarting the it. The freezer will not start if you attempt to restart it sooner.
• Large amounts of food lower the cooling efficiency of the freezer.
• If you choose to change the thermostat setting, adjust the thermostat control by one increment at a time. Allow several hours for the temperature to stabilize between adjustments.

Defrosting your freezer

For your freezer to operate most efficiently and with minimum energy consumption, it should be defrosted when the frost on the freezer walls is in excess of .2 to .4 inches (5 to 10 mm) thick. To minimize food spoilage, choose a time when your stock of frozen food is low.

The instructions regarding the care of frozen foods should be followed when defrosting the freezer. Defrosting usually takes a few hours. Leaving the top open helps speed the process.

Cautions

• Do not use boiling water to defrost your freezer because it may damage the plastic parts. You can use warm water to speed up the process.
• Never use a sharp or metallic instrument to remove frost as it may damage the cooling coils and will void the warranty.

1. Remove the frozen food from your freezer and place it in a refrigerator or cooler to protect the food.
2. Turn the thermostat knob to OFF and unplug the freezer.
3. During defrosting the ice melts into the cabinet, so remove the drain plug on the inside of the freezer, then place a shallow pan under the drain outlet so the defrost water can drain into something. Check the pan occasionally so that the water does not overflow.
4. When your freezer has defrosted, clean the interior of the freezer, then replace the drain plug.
5. Reset the thermostat to desired setting, then allow the freezer to cool for one hour.
6. Return the food to the freezer.

Maintaining your freezer

Your freezer is designed for year-round use with only minimal cleaning and maintenance. We recommend that you do the following every time you defrost it to keep your freezer running odor free and efficiently:

Caution

To prevent damage to the finish, do not use:

• Gasoline, benzine, thinner, or other similar solvents.
• Abrasive cleaners.

1. Turn off the freezer and unplug it from the wall outlet.
2. Remove all food.
3. Wash the storage basket with a mild detergent solution.
4. Wash the inside with a damp warm cloth soaked in a solution of one quart of water lukewarm water to two tablespoons of baking soda solution.
5. Dry the interior and exterior with a soft cloth.
6. Be sure to keep the door gasket (seal) clean to keep the unit running efficiently.

Storing your freezer

1. Turn off the freezer and unplug it from the wall outlet.
2. Remove all food.
3. Clean the freezer.
4. Leave the door open slightly to avoid possible formation of condensation, mold, or odor.

Caution Use extreme caution with children. The unit should not be accessible to child's play.

Moving your freezer

1. Turn off the freezer and unplug it from the wall outlet.
2. Remove all food.
3. Securely tape down all loose items inside your freezer.
4. Tape the door shut. Be sure the freezer stays in the upright position during transportation.

Tips on saving energy

• Locate your freezer in the coolest area of the room, away from heat producing appliances or heating ducts and out of the direct sunlight.
• Let hot foods cool to room temperature before placing them in the freezer. Overloading the freezer forces the compressor to run longer. Foods that freeze too slowly may lose quality or spoil.
• Wrap foods properly and wipe containers dry before placing them in the freezer. This cuts down on frost build-up inside the freezer.
• The freezer storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the freezer less efficient.
• Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

Troubleshooting

Caution Do not try to repair your freezer yourself. Doing so invalidates the warranty.
