Summary of Contents for Bosch SMV88TX03E/04:
Table of contents
3
en Instruction manual
3
8 Intended use 5
3
( Safety instructions 5
3
7 Environmental protection 10
3
* Getting to know your appliance 10
3
+ Water softening system / special salt 15
3
, Rinse aid 16
3
- Utensils 18
3
. Detergent 24
3
/ Overview of programmes 26
3
0 Additional functions 28
3
1 Operating the appliance 29
4
2 Cleaning and maintenance 34
4
3 Fault, what to do? 36
4
4 Customer service 47
4
5 Installation and connection 47
4
8 Intended use
5
Intended use
5
( Safety instructions
5
Safety instructions
5
Before you switch ON the appliance
5
Delivery
5
1. Check the packaging and dishwasher immediately for damage caused in transit. Do not switch on a damaged appliance, but contact your supplier.
5
2. Please dispose of the packaging material in an environmentally friendly manner.
5
3. Do not let children play with packaging and its parts. There is a risk of suffocation from collapsible boxes and film.
5
Installation
6
In daily use
7
Damage
7
Disposal
7
1. Make redundant appliances unusable to prevent subsequent accidents.
7
2. Dispose of the appliance in an environmentally friendly manner.
7
: Warning
7
Risk of injury!
7
: Warning
8
Risk of explosion!
8
: Warning
8
Risk of scalding!
8
: Warning
8
Risk to children!
8

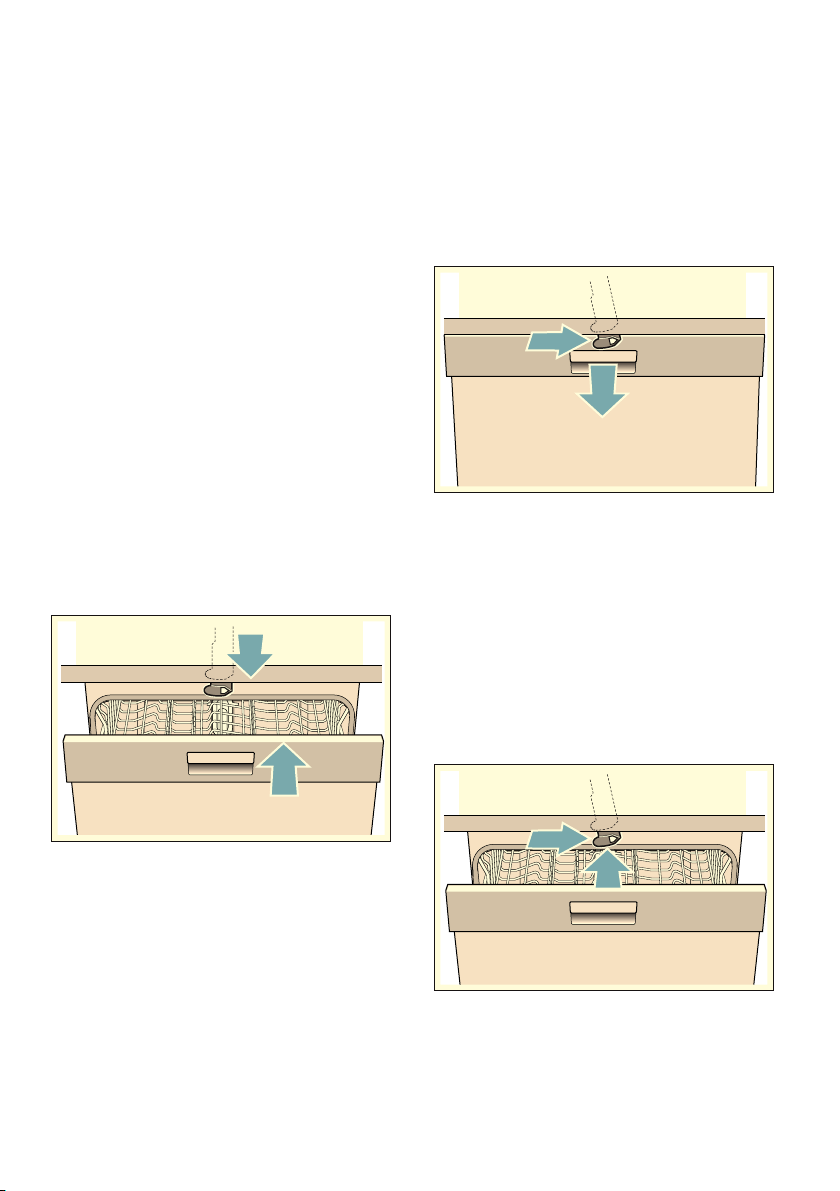

Childproof lock (door lock) *
9
Door lock
9
: Warning
9
Risk of suffocation!
9
Activate the child-proof lock (door lock) as follows:
9
1. Pull the catch of the child-proof lock towards yourself (1).
9
2. Close the door (2).
9
Open the door with activated child-proof lock (door lock) as follows:
9
1. Press the catch of the child-proof lock to the right (1).
9
2. Open the door (2).
9
Deactivate the child-proof lock (door lock) as follows:
9
1. Press the catch of the child-proof lock to the right (1).
9
2. Press the catch of the child-proof lock backwards (2).
9
7 Environmental protection
10
Environmental protection
10
Packaging
10
Old appliances
10
* Getting to know your appliance
10
Getting to know your appliance
10
Control panel
10
Appliance interior
11
Info button {
11
Info button
11
1. Press the Info button { 8.
11
2. Press the programme button.
11
3. To leave, press Info button { 8.
11
Time setting
11
Time setting
11
Set the time as follows:
11
1. Open the door.
11
2. Switch on ON/OFF switch (.
11
3. Press Info button { 8 for 3 seconds until the following text is indicated on the display window at the top @:
11
4. Keep pressing button > )* until the time setting is indicated on the display window at the top @.
11
5. Make the setting with setting buttons + - X. If the selection buttons + - X are held down, the set values are changed in 10-minute steps.
11
6. Press and hold the Info button { 8 for 3 seconds.
11
Note:
11
Switching on the appliance for the first time
12
Change the setting as follows:
12
1. Keep pressing button > )* until the required setting is displayed.
12
2. Make the setting with setting buttons + - X.
12
3. Press and hold the Info button { 8 for 3 seconds.
12
Settings Switching on the appliance for the first time
12
Factory setting
12
Infotext by pressing Info button {
12
--------
12
Settings
13
Change the setting as follows:
13
1. Open the door.
13
2. Switch on ON/OFF switch (.
13
3. Press Info button { 8 for 3 seconds until the following text is indicated on the display window at the top @:
13
4. Keep pressing button > )* until the required setting is displayed.
13
5. Make the setting with setting buttons + - X.
13
6. Press and hold the Info button { 8 for 3 seconds.
13
Note:
13
Setting
13
Factory setting
13
Infotext by pressing Info button {
13
--------
14
+ Water softening system / special salt
15
Water softening system/special salt
15
Water hardness table
15
Adjusting the water softening system
15
Set the softening system as follows:
15
1. Ask your local water utility company for the water hardness value of the tap water.
15
2. Required setting can be found in the water hardness table.
15
3. Open the door.
15
4. Switch on ON/OFF switch (.
15
5. Press Info button { 8 for 3 seconds until the following text is indicated on the display window at the top @:
15
6. Keep pressing button > )* until the water hardness is indicated on the display window at the top @.
15
7. Make the setting with setting buttons + - X.
15
8. Press and hold the Info button { 8 for 3 seconds.
15
Using special salt
16
Caution!
16
Top up the salt as follows:
16
1. Undo the screw plug on the dispenser 1b.
16
2. Fill the dispenser with water (required only when switching on the appliance for the first time).
16
3. Add salt as illustrated (do not use table salt or tablets).
16
Using detergents with salt component
16
Detergent with a salt component
16
Switching off low salt indicator / water softening system
16
Switching off water softening system
16
, Rinse aid
16
Rinse aid
16

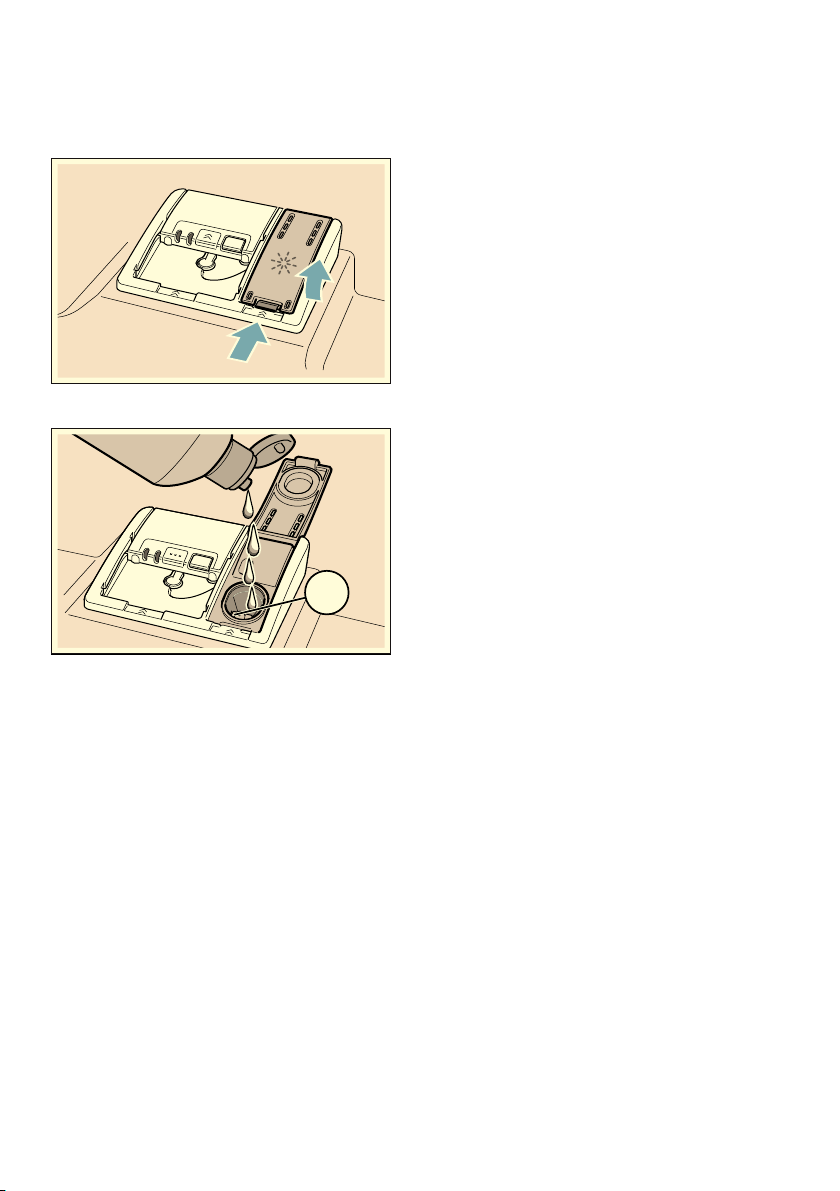

Top up the rinse-aid as follows:
17
1. Open dispenser 92; press lug on the lid (1) and lift (2).
17
2. Add rinse-aid up to the max. mark.
17
3. Close the lid.
17
4. Remove overflowed rinse aid with a cloth.
17
Setting amount of rinse aid
17
Set the amount of rinse aid as follows:
17
1. Open the door.
17
2. Switch on ON/OFF switch (.
17
3. Press Info button { 8 for 3 seconds until the following text is indicated on the display window at the top @:
17
4. Keep pressing button > )* until the rinse aid dispenser is indicated on the display window at the top @.
17
5. Make the setting with setting buttons + - X.
17
6. Press and hold the Info button { 8 for 3 seconds.
17
Switching off rinse aid refill indicator
17
- Utensils
18
Utensils
18
Not suitable
18
Glass and utensil damage
18
Causes:
18
Recommendation:
18
Loading the dishwasher
18
1. Remove large food remnants. It is not necessary to prerinse utensils under running water.
18
2. Place the utensils so that
18
Upper basket
18
Note:
19
Lower basket
19
Tip:
19
Tip:
19

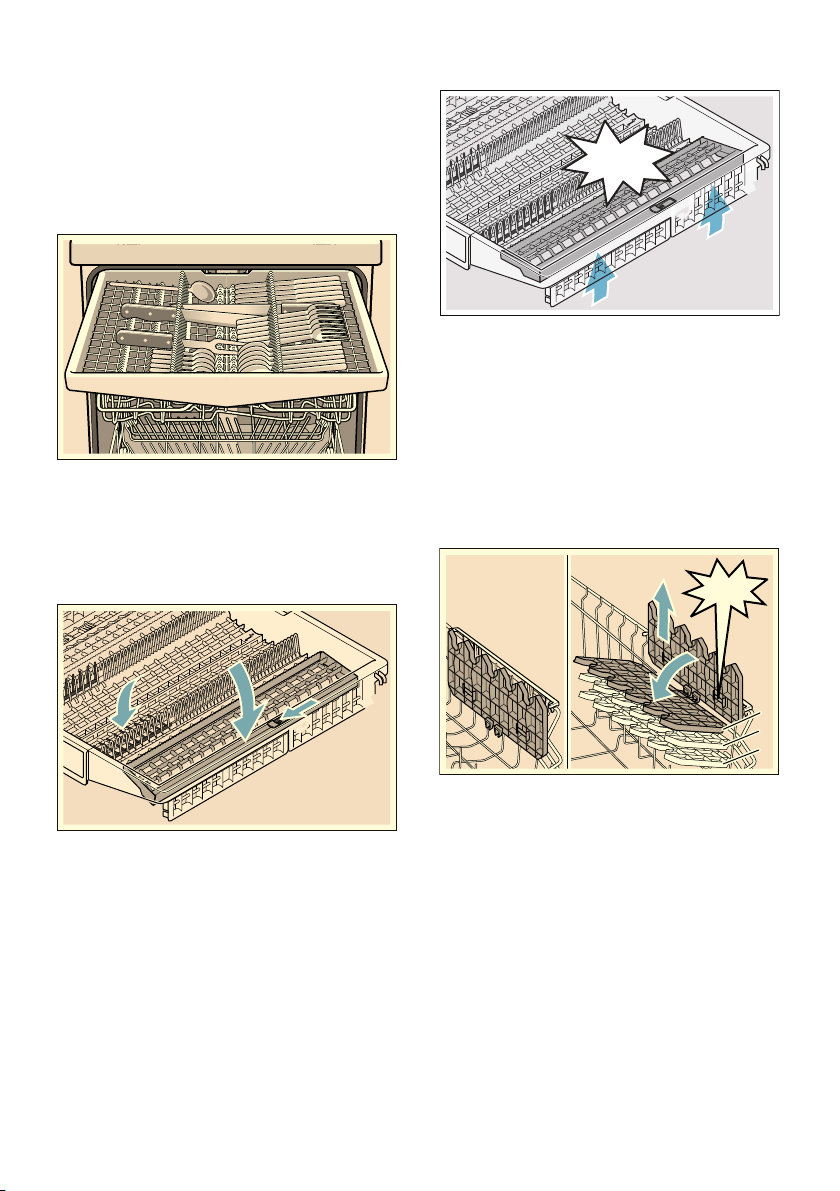

Cutlery basket *
19
Cutlery basket
19
Cutlery drawer *
20
Cutlery drawer
20
Etagere *
20
Etagere
20
Adjust the height of the etagere as follows:
20
1. Position the etagere vertically and pull upwards.
20
2. Push etagere at a slight angle downwards to the required height (1, 2, or 3).
20
3. Engage etagere.
20

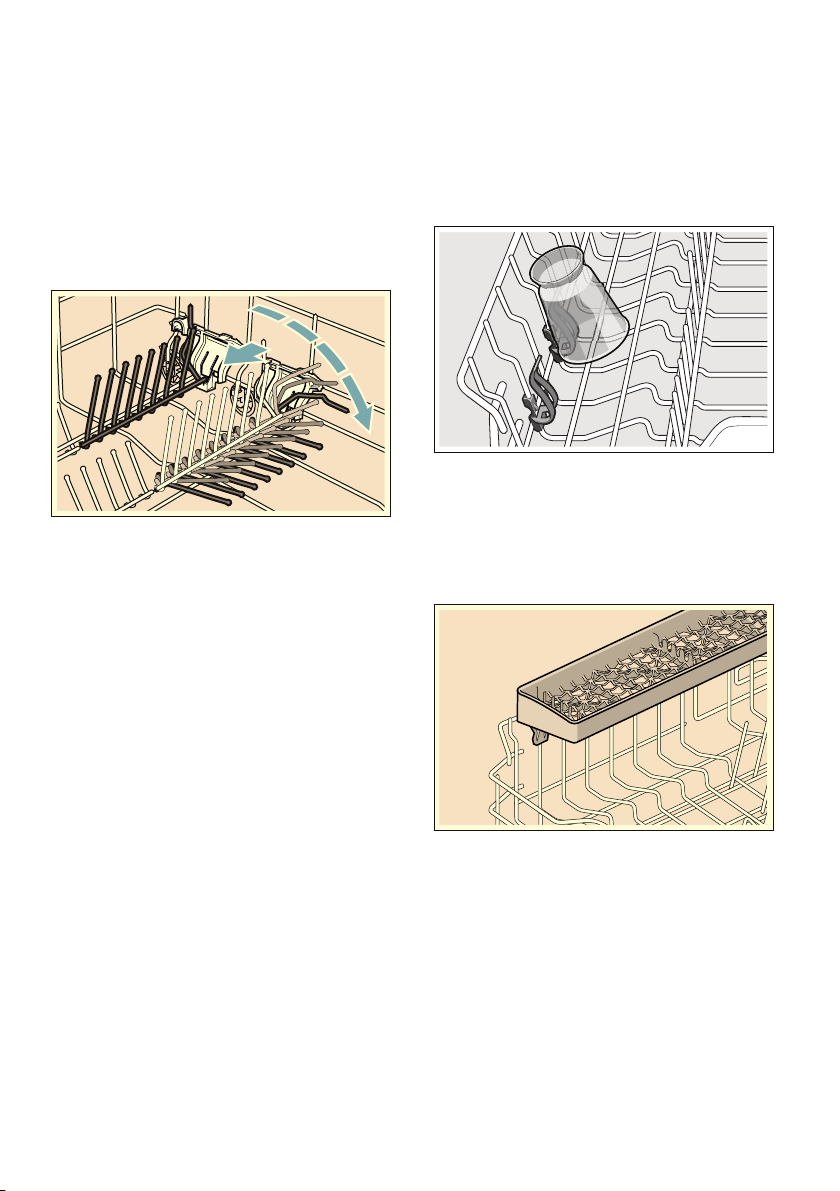

Folding spikes *
21
Folding spikes
21
Fold down the spikes as follows:
21
1. Press lever forwards (1).
21
2. Fold down spikes (2).
21
Small items holder *
21
Small items holder
21
Knife rack *
21
Knife rack
21
Baking sheet spray head *
22
Baking sheet spray head
22
Insert the spray head as follows:
22
1. Remove upper basket 12.
22
2. Insert spray head as illustrated and turn to the right.
22
Note:
22
Unloading the dishwasher
22
Tip:
22
Note:
22
Adjusting the height of the basket *
22
Adjusting the height of the basket
22
Appliance height 81.5 cm
22
With cutlery basket
22
22 cm
22
31 cm
22
24.5 cm
22
27.5 cm
22
27 cm
22
25 cm
22
With cutlery drawer
22
16 cm
22
31 cm
22
18.5 cm
22
27.5 cm
22
21 cm
22
25 cm
22
Appliance height 86.5 cm
23
With cutlery basket
23
24 cm
23
34 cm
23
26.5 cm
23
30.5 cm
23
29 cm
23
28 cm
23
With cutlery drawer
23
18 cm
23
34 cm
23
20.5 cm
23
30.5 cm
23
23 cm
23
28 cm
23
Upper basket with side levers
23
1. Pull out upper basket 12.
23
2. Hold the sides of the basket along the upper edge.
23
3. To lower the upper basket; press in both levers on the left and right on the outside of the basket. The upper basket lowers.
23
4. To lift the upper basket; grip the sides of the upper basket along the upper edge and lift.
23
5. Ensure that both sides of the upper basket are at the same height.
23
6. Push in upper basket.
23
Upper basket with upper and lower pairs of rollers
23
1. Pull out upper basket 12.
23
2. Remove upper basket.
23
3. Re-attach upper basket to the upper (Setting 3) or lower (Setting 1) rollers.
23
4. Push in upper basket.
23
. Detergent
24
Detergent
24
Note:
24
: Warning
24
Risk of injury and damage due to non-observance of the safety instructions for detergent and rinse-aid products!
24

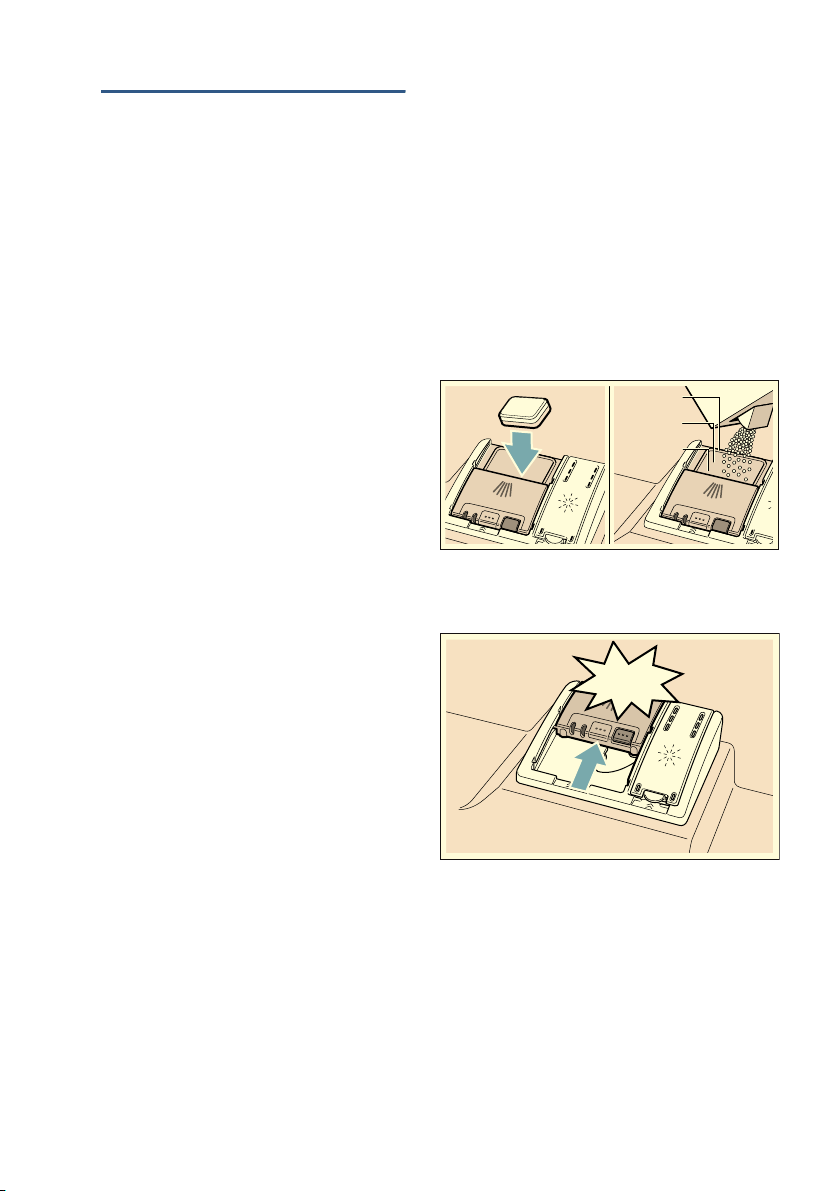

Adding detergent
24
1. If the detergent dispenser 9: is still closed, actuate locking bar 9B to open it.
24
2. Pour detergent into the dry detergent dispenser 9: only (insert tablet flat, not on its edge).
24
3. Dosage: see manufacturer’s instructions on the packaging. Use graduated detergent dispenser.
24
4. Close cover on the detergent dispenser. Cover “clicks” into position.
24
Tip:
25
Combination detergent
25
Notes
25
/ Overview of programmes
26
Overview of programmes
26
The max. possible number of programmes is illustrated in this overview. The corresponding programmes and their arrangement can be found on the fascia.
26
Type of utensils
26
Type of soiling
26
Programme
26
Possible additional options
26
Programme sequence
26
--------
27
Programme selection
27
Information for test institutes
27
0 Additional functions
28
Additional functions
28
Å Save time (VarioSpeedPlus) *
28
Save time (VarioSpeedPlus)
28
§ Half load *
28
Half load
28
µ hygienePlus (HygienePlus) *
28
hygienePlus (HygienePlus)
28
Ï intensiveZone *
28
intensiveZone
28
ï Shine and Dry *
28
Shine and Dry
28
ß Energy Save *
28
Energy Save
28
1 Operating the appliance
29
Operating the appliance
29
Programme data
29
Changing the settings
29
Change the setting as follows:
29
1. Open the door.
29
2. Switch on ON/OFF switch (.
29
3. Press Info button { 8 for 3 seconds until the following text is indicated on the display window at the top @:
29
4. Keep pressing button > )* until the required setting is indicated on the display window at the top @.
29
5. Make the setting with setting buttons + - X.
29
6. Press and hold the Info button { 8 for 3 seconds.
29
Tip:
29
AquaSensor *
29
AquaSensor
29
Zeolith drying ¼
30
Zeolith drying
30
: Warning
30
Risk of burns from touching the blow opening 1R!
30
Caution!
30
Time display
30
Sensor setting
30
extraDry
31
Eco forecast
31
AutoPowerOff (Switching off automatically after the end of the programme)
31
Auto Power Off
31
Possible settings are:
31
emotionLight (interior light) *
31
emotionLight
31
Note:
31
Front display *
31
Front display
31
TimeLight (Optical display while the programme is running) *
31
timeLight
31
Infolight *
31
infoLight
31
Changing start programme
31
Tone volume
32
Button volume
32
Child-proof lock *
32
Child-proof lock
32
Greeting
32
Factory setting
32
Switching the appliance on
32
1. Turn on tap fully.
32
2. Open the door.
32
3. Switch on ON/OFF switch (.
32
4. Press START button )".
32
5. Close the door.
32
Note:
32
Time preselection
33
1. Open the door.
33
2. Switch on ON/OFF switch (.
33
3. Selects programme 0.
33
4. Press time preselection button `.
33
5. Keep pressing the setting buttons + - X until the displayed time corresponds with your requirements.
33
6. Press START button )", timer programming is activated.
33
7. To delete the time preselection, press START button )" for approx. 3 seconds.
33
8. Close the door.
33
Programme end
33
Switching off the appliance
33
Short time after the end of the programme:
33
1. Open the door.
33
2. Switch off ON/OFF switch (.
33
3. Turn off tap (does not apply to appliances with Aqua-Stop).
33
4. Remove the utensils when they have cooled down.
33
Note:
33
Interrupting the programme
33
Caution!
33
1. Open the door.
33
2. Switch off ON/OFF switch (.
33
3. To continue the programme, switch on the ON/OFF switch ( again.
33
4. Close the door.
33
Terminating the programme (Reset)
34
Terminating the programme
34
1. Open the door.
34
2. Press the START button )" and hold for 3 seconds
34
3. Close the door.
34
4. Open the door.
34
5. Switch off ON/OFF switch (.
34
6. Close the door.
34
Changing the programme
34
2 Cleaning and maintenance
34
Cleaning and maintenance
34
Overall condition of the machine
34
If you find such deposits:
34
: Warning
34
Health hazard due to detergents containing chlorine!
34
Special salt and rinse aid
35
Filters
35

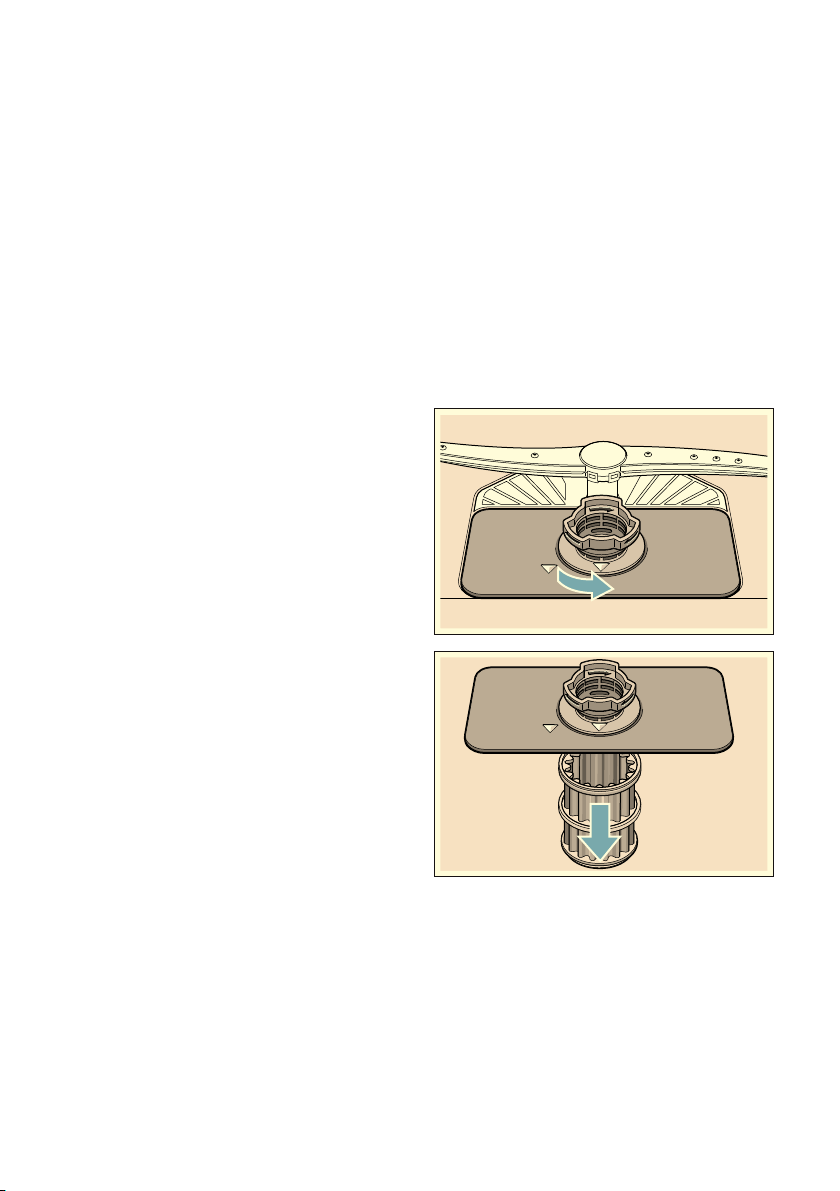

1. After each washing cycle check the filters for residue.
35
2. Unscrew filter cylinder as illustrated and take out filter system.
35
3. Remove any residue and clean filters under running water.
35
4. Re-install filter system in reverse sequence and ensure that the arrow marks are opposite each other after closing the filter system.
35
Spray arms
36
1. Check outlet nozzles on the spray arms for blockages.
36
2. Unscrew the upper spray arm 1: (1) and remove downwards (2).
36
3. Remove the lower spray arm 1Z upwards.
36
4. Clean spray arms under running water.
36
5. Re-engage or screw on spray arms.
36
3 Fault, what to do?
36
Fault, what to do?
36
Note:
36
: Warning
36
Improper repairs or use of non-original spare parts may cause considerable damage and put the user at considerable risk!
36
Error message
36
Waste water pump
37
: Warning
37
Danger of cutting!
37
Clean the waste water pump as follows:
37
1. Disconnect the dishwasher from the power supply.
37
2. Take out top basket 12 and bottom basket 9*.
37
3. Remove the filters 1j.
37
4. Scoop out water, use a sponge if required.
37

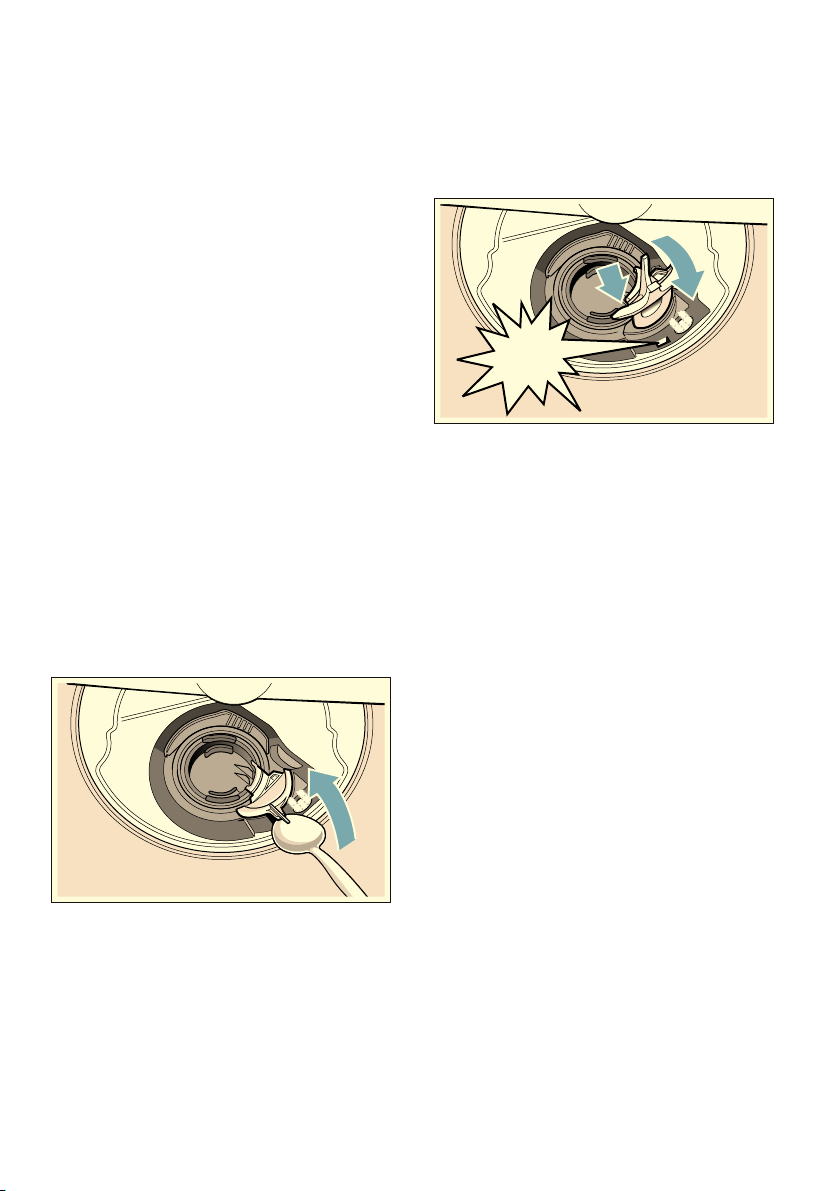

5. Prise off the pump cover (as shown) using a spoon. Grip the pump cover by the crosspiece and lift diagonally inwards (1). Remove cover completely.
37
6. Check impeller wheel and remove any foreign objects.
37
7. Place pump cover in the original position (2) and press down until it engages (3).
37
8. Install filters.
37
9. Re-insert baskets.
37
Fault table
38
Fault
38
Cause
38
Remedial action
38
--------
46
4 Customer service
47
Customer service
47
5 Installation and connection
47
Installation and connection
47
Install the appliance in the correct sequence:
47
1. Checking appliance on delivery
47
2. Installation
47
3. Drainage connection
47
4. Drinking water connection
47
5. Electrical connection
47
Contents of package
47
Safety instructions
47
Delivery
48
Technical specifications
48
Installation
48
Drainage connection
48
1. The required work sequence can be found in the installation instructions. If required, fit a siphon with an drainage connection.
48
2. Connect the waste-water hose to the drainage connection of the siphon with the enclosed parts.
48
Drinking water connection
49
1. Fasten the drinking water connection to the tap according to the installation instructions using the enclosed parts.
49
2. When replacing the appliance, always use a new water supply hose.
49
Warm water connection *
49
Warm water connection
49
To change the setting:
49
1. Open the door.
49
2. Switch on ON/OFF switch (.
49
3. Press Info button { 8 for 3 seconds until the following text is indicated on the display window at the top @:
49
4. Keep pressing the button > )* until water connection appears of the display window at the top @.
49
5. Make the setting with setting buttons + - X.
49
6. Press and hold the Info button { 8 for 3 seconds.
49
Electrical connection
50
Removal
50
Also observe the sequence of worksteps here.
50
1. Disconnect the appliance from the power supply.
50
2. Turn off the tap.
50
3. Undo the waste water and drinking water connection.
50
4. Loosen fastening screws for the furniture parts.
50
5. If fitted, remove the base panel.
50
6. Pull out the appliance, carefully pulling the hose behind.
50
Transporting
51
Drain the appliance according to the following steps:
51
1. Turn on the tap.
51
2. Open the door.
51
3. Switch on ON/OFF switch (.
51
4. Select programme with the highest temperature.
51
5. Press START button )".
51
6. Close the door.
51
7. Open the door after approx. 4 minutes.
51
8. Press START button )" until “Program was terminated”/“Ready in one minute.” is indicated at the top of the display window @.
51
9. Close the door.
51
10. Open the door after approx. 1 minute.
51
11. Switch off ON/OFF switch (.
51
12. Turn off the tap, disconnect supply hose and drain water.
51
Note:
51
Protection against frost
51
Protection against frost (Emptying the appliance)
51
File type: PDF
File name: smv88tx03e-04.pdf
File size: 3.11 MB
File Language: English
Pages: 52
Author: Bosch
Updated: 2023-06-01
Download File
Specifications
Brand:
Bosch
Model: SMV88TX03E/04
Category:
Dishwashers
View in the file:
Full Specifications
See other models:
KGN39XW4P/16
KID24A30/01
KIL24V60/85
BGL3A414/01
KIL82AF30/02
Download User Manual
Bosch in United States
1-800-944-2904
Twitter
Website
Related Products
Bosch SMV88TX02A
Bosch SMV8YCX03E
Bosch SMV88PX00E/01
Bosch SME46MX03E/24
Bosch SMS88TI03E
Bosch SMV8ZCX07N
Bosch SMV8YCX01E
Bosch SMV68TX02E
Bosch SMV46UX03E
Bosch SMV46TX03E
Bosch SMV46KX03E
Bosch SMV68TX06E
Bosch SMV8ZCX09N
Bosch SMV6ZCX03E
Bosch SMV8TCX01E
Table of Contents
×
Table of contents
3
en Instruction manual
3
8 Intended use 5
3
( Safety instructions 5
3
7 Environmental protection 10
3
* Getting to know your appliance 10
3
+ Water softening system / special salt 15
3
, Rinse aid 16
3
- Utensils 18
3
. Detergent 24
3
/ Overview of programmes 26
3
0 Additional functions 28
3
1 Operating the appliance 29
4
2 Cleaning and maintenance 34
4
3 Fault, what to do? 36
4
4 Customer service 47
4
5 Installation and connection 47
4
8 Intended use
5
Intended use
5
( Safety instructions
5
Safety instructions
5
Before you switch ON the appliance
5
Delivery
5
1. Check the packaging and dishwasher immediately for damage caused in transit. Do not switch on a damaged appliance, but contact your supplier.
5
2. Please dispose of the packaging material in an environmentally friendly manner.
5
3. Do not let children play with packaging and its parts. There is a risk of suffocation from collapsible boxes and film.
5
Installation
6
In daily use
7
Damage
7
Disposal
7
1. Make redundant appliances unusable to prevent subsequent accidents.
7
2. Dispose of the appliance in an environmentally friendly manner.
7
: Warning
7
Risk of injury!
7
: Warning
8
Risk of explosion!
8
: Warning
8
Risk of scalding!
8
: Warning
8
Risk to children!
8
Childproof lock (door lock) *
9
Door lock
9
: Warning
9
Risk of suffocation!
9
Activate the child-proof lock (door lock) as follows:
9
1. Pull the catch of the child-proof lock towards yourself (1).
9
2. Close the door (2).
9
Open the door with activated child-proof lock (door lock) as follows:
9
1. Press the catch of the child-proof lock to the right (1).
9
2. Open the door (2).
9
Deactivate the child-proof lock (door lock) as follows:
9
1. Press the catch of the child-proof lock to the right (1).
9
2. Press the catch of the child-proof lock backwards (2).
9
7 Environmental protection
10
Environmental protection
10
Packaging
10
Old appliances
10
* Getting to know your appliance
10
Getting to know your appliance
10
Control panel
10
Appliance interior
11
Info button {
11
Info button
11
1. Press the Info button { 8.
11
2. Press the programme button.
11
3. To leave, press Info button { 8.
11
Time setting
11
Time setting
11
Set the time as follows:
11
1. Open the door.
11
2. Switch on ON/OFF switch (.
11
3. Press Info button { 8 for 3 seconds until the following text is indicated on the display window at the top @:
11
4. Keep pressing button > )* until the time setting is indicated on the display window at the top @.
11
5. Make the setting with setting buttons + - X. If the selection buttons + - X are held down, the set values are changed in 10-minute steps.
11
6. Press and hold the Info button { 8 for 3 seconds.
11
Note:
11
Switching on the appliance for the first time
12
Change the setting as follows:
12
1. Keep pressing button > )* until the required setting is displayed.
12
2. Make the setting with setting buttons + - X.
12
3. Press and hold the Info button { 8 for 3 seconds.
12
Settings Switching on the appliance for the first time
12
Factory setting
12
Infotext by pressing Info button {
12
--------
12
Settings
13
Change the setting as follows:
13
1. Open the door.
13
2. Switch on ON/OFF switch (.
13
3. Press Info button { 8 for 3 seconds until the following text is indicated on the display window at the top @:
13
4. Keep pressing button > )* until the required setting is displayed.
13
5. Make the setting with setting buttons + - X.
13
6. Press and hold the Info button { 8 for 3 seconds.
13
Note:
13
Setting
13
Factory setting
13
Infotext by pressing Info button {
13
--------
14
+ Water softening system / special salt
15
Water softening system/special salt
15
Water hardness table
15
Adjusting the water softening system
15
Set the softening system as follows:
15
1. Ask your local water utility company for the water hardness value of the tap water.
15
2. Required setting can be found in the water hardness table.
15
3. Open the door.
15
4. Switch on ON/OFF switch (.
15
5. Press Info button { 8 for 3 seconds until the following text is indicated on the display window at the top @:
15
6. Keep pressing button > )* until the water hardness is indicated on the display window at the top @.
15
7. Make the setting with setting buttons + - X.
15
8. Press and hold the Info button { 8 for 3 seconds.
15
Using special salt
16
Caution!
16
Top up the salt as follows:
16
1. Undo the screw plug on the dispenser 1b.
16
2. Fill the dispenser with water (required only when switching on the appliance for the first time).
16
3. Add salt as illustrated (do not use table salt or tablets).
16
Using detergents with salt component
16
Detergent with a salt component
16
Switching off low salt indicator / water softening system
16
Switching off water softening system
16
, Rinse aid
16
Rinse aid
16
Top up the rinse-aid as follows:
17
1. Open dispenser 92; press lug on the lid (1) and lift (2).
17
2. Add rinse-aid up to the max. mark.
17
3. Close the lid.
17
4. Remove overflowed rinse aid with a cloth.
17
Setting amount of rinse aid
17
Set the amount of rinse aid as follows:
17
1. Open the door.
17
2. Switch on ON/OFF switch (.
17
3. Press Info button { 8 for 3 seconds until the following text is indicated on the display window at the top @:
17
4. Keep pressing button > )* until the rinse aid dispenser is indicated on the display window at the top @.
17
5. Make the setting with setting buttons + - X.
17
6. Press and hold the Info button { 8 for 3 seconds.
17
Switching off rinse aid refill indicator
17
- Utensils
18
Utensils
18
Not suitable
18
Glass and utensil damage
18
Causes:
18
Recommendation:
18
Loading the dishwasher
18
1. Remove large food remnants. It is not necessary to prerinse utensils under running water.
18
2. Place the utensils so that
18
Upper basket
18
Note:
19
Lower basket
19
Tip:
19
Tip:
19
Cutlery basket *
19
Cutlery basket
19
Cutlery drawer *
20
Cutlery drawer
20
Etagere *
20
Etagere
20
Adjust the height of the etagere as follows:
20
1. Position the etagere vertically and pull upwards.
20
2. Push etagere at a slight angle downwards to the required height (1, 2, or 3).
20
3. Engage etagere.
20
Folding spikes *
21
Folding spikes
21
Fold down the spikes as follows:
21
1. Press lever forwards (1).
21
2. Fold down spikes (2).
21
Small items holder *
21
Small items holder
21
Knife rack *
21
Knife rack
21
Baking sheet spray head *
22
Baking sheet spray head
22
Insert the spray head as follows:
22
1. Remove upper basket 12.
22
2. Insert spray head as illustrated and turn to the right.
22
Note:
22
Unloading the dishwasher
22
Tip:
22
Note:
22
Adjusting the height of the basket *
22
Adjusting the height of the basket
22
Appliance height 81.5 cm
22
With cutlery basket
22
22 cm
22
31 cm
22
24.5 cm
22
27.5 cm
22
27 cm
22
25 cm
22
With cutlery drawer
22
16 cm
22
31 cm
22
18.5 cm
22
27.5 cm
22
21 cm
22
25 cm
22
Appliance height 86.5 cm
23
With cutlery basket
23
24 cm
23
34 cm
23
26.5 cm
23
30.5 cm
23
29 cm
23
28 cm
23
With cutlery drawer
23
18 cm
23
34 cm
23
20.5 cm
23
30.5 cm
23
23 cm
23
28 cm
23
Upper basket with side levers
23
1. Pull out upper basket 12.
23
2. Hold the sides of the basket along the upper edge.
23
3. To lower the upper basket; press in both levers on the left and right on the outside of the basket. The upper basket lowers.
23
4. To lift the upper basket; grip the sides of the upper basket along the upper edge and lift.
23
5. Ensure that both sides of the upper basket are at the same height.
23
6. Push in upper basket.
23
Upper basket with upper and lower pairs of rollers
23
1. Pull out upper basket 12.
23
2. Remove upper basket.
23
3. Re-attach upper basket to the upper (Setting 3) or lower (Setting 1) rollers.
23
4. Push in upper basket.
23
. Detergent
24
Detergent
24
Note:
24
: Warning
24
Risk of injury and damage due to non-observance of the safety instructions for detergent and rinse-aid products!
24
Adding detergent
24
1. If the detergent dispenser 9: is still closed, actuate locking bar 9B to open it.
24
2. Pour detergent into the dry detergent dispenser 9: only (insert tablet flat, not on its edge).
24
3. Dosage: see manufacturer’s instructions on the packaging. Use graduated detergent dispenser.
24
4. Close cover on the detergent dispenser. Cover “clicks” into position.
24
Tip:
25
Combination detergent
25
Notes
25
/ Overview of programmes
26
Overview of programmes
26
The max. possible number of programmes is illustrated in this overview. The corresponding programmes and their arrangement can be found on the fascia.
26
Type of utensils
26
Type of soiling
26
Programme
26
Possible additional options
26
Programme sequence
26
--------
27
Programme selection
27
Information for test institutes
27
0 Additional functions
28
Additional functions
28
Å Save time (VarioSpeedPlus) *
28
Save time (VarioSpeedPlus)
28
§ Half load *
28
Half load
28
µ hygienePlus (HygienePlus) *
28
hygienePlus (HygienePlus)
28
Ï intensiveZone *
28
intensiveZone
28
ï Shine and Dry *
28
Shine and Dry
28
ß Energy Save *
28
Energy Save
28
1 Operating the appliance
29
Operating the appliance
29
Programme data
29
Changing the settings
29
Change the setting as follows:
29
1. Open the door.
29
2. Switch on ON/OFF switch (.
29
3. Press Info button { 8 for 3 seconds until the following text is indicated on the display window at the top @:
29
4. Keep pressing button > )* until the required setting is indicated on the display window at the top @.
29
5. Make the setting with setting buttons + - X.
29
6. Press and hold the Info button { 8 for 3 seconds.
29
Tip:
29
AquaSensor *
29
AquaSensor
29
Zeolith drying ¼
30
Zeolith drying
30
: Warning
30
Risk of burns from touching the blow opening 1R!
30
Caution!
30
Time display
30
Sensor setting
30
extraDry
31
Eco forecast
31
AutoPowerOff (Switching off automatically after the end of the programme)
31
Auto Power Off
31
Possible settings are:
31
emotionLight (interior light) *
31
emotionLight
31
Note:
31
Front display *
31
Front display
31
TimeLight (Optical display while the programme is running) *
31
timeLight
31
Infolight *
31
infoLight
31
Changing start programme
31
Tone volume
32
Button volume
32
Child-proof lock *
32
Child-proof lock
32
Greeting
32
Factory setting
32
Switching the appliance on
32
1. Turn on tap fully.
32
2. Open the door.
32
3. Switch on ON/OFF switch (.
32
4. Press START button )".
32
5. Close the door.
32
Note:
32
Time preselection
33
1. Open the door.
33
2. Switch on ON/OFF switch (.
33
3. Selects programme 0.
33
4. Press time preselection button `.
33
5. Keep pressing the setting buttons + - X until the displayed time corresponds with your requirements.
33
6. Press START button )", timer programming is activated.
33
7. To delete the time preselection, press START button )" for approx. 3 seconds.
33
8. Close the door.
33
Programme end
33
Switching off the appliance
33
Short time after the end of the programme:
33
1. Open the door.
33
2. Switch off ON/OFF switch (.
33
3. Turn off tap (does not apply to appliances with Aqua-Stop).
33
4. Remove the utensils when they have cooled down.
33
Note:
33
Interrupting the programme
33
Caution!
33
1. Open the door.
33
2. Switch off ON/OFF switch (.
33
3. To continue the programme, switch on the ON/OFF switch ( again.
33
4. Close the door.
33
Terminating the programme (Reset)
34
Terminating the programme
34
1. Open the door.
34
2. Press the START button )" and hold for 3 seconds
34
3. Close the door.
34
4. Open the door.
34
5. Switch off ON/OFF switch (.
34
6. Close the door.
34
Changing the programme
34
2 Cleaning and maintenance
34
Cleaning and maintenance
34
Overall condition of the machine
34
If you find such deposits:
34
: Warning
34
Health hazard due to detergents containing chlorine!
34
Special salt and rinse aid
35
Filters
35
1. After each washing cycle check the filters for residue.
35
2. Unscrew filter cylinder as illustrated and take out filter system.
35
3. Remove any residue and clean filters under running water.
35
4. Re-install filter system in reverse sequence and ensure that the arrow marks are opposite each other after closing the filter system.
35
Spray arms
36
1. Check outlet nozzles on the spray arms for blockages.
36
2. Unscrew the upper spray arm 1: (1) and remove downwards (2).
36
3. Remove the lower spray arm 1Z upwards.
36
4. Clean spray arms under running water.
36
5. Re-engage or screw on spray arms.
36
3 Fault, what to do?
36
Fault, what to do?
36
Note:
36
: Warning
36
Improper repairs or use of non-original spare parts may cause considerable damage and put the user at considerable risk!
36
Error message
36
Waste water pump
37
: Warning
37
Danger of cutting!
37
Clean the waste water pump as follows:
37
1. Disconnect the dishwasher from the power supply.
37
2. Take out top basket 12 and bottom basket 9*.
37
3. Remove the filters 1j.
37
4. Scoop out water, use a sponge if required.
37
5. Prise off the pump cover (as shown) using a spoon. Grip the pump cover by the crosspiece and lift diagonally inwards (1). Remove cover completely.
37
6. Check impeller wheel and remove any foreign objects.
37
7. Place pump cover in the original position (2) and press down until it engages (3).
37
8. Install filters.
37
9. Re-insert baskets.
37
Fault table
38
Fault
38
Cause
38
Remedial action
38
--------
46
4 Customer service
47
Customer service
47
5 Installation and connection
47
Installation and connection
47
Install the appliance in the correct sequence:
47
1. Checking appliance on delivery
47
2. Installation
47
3. Drainage connection
47
4. Drinking water connection
47
5. Electrical connection
47
Contents of package
47
Safety instructions
47
Delivery
48
Technical specifications
48
Installation
48
Drainage connection
48
1. The required work sequence can be found in the installation instructions. If required, fit a siphon with an drainage connection.
48
2. Connect the waste-water hose to the drainage connection of the siphon with the enclosed parts.
48
Drinking water connection
49
1. Fasten the drinking water connection to the tap according to the installation instructions using the enclosed parts.
49
2. When replacing the appliance, always use a new water supply hose.
49
Warm water connection *
49
Warm water connection
49
To change the setting:
49
1. Open the door.
49
2. Switch on ON/OFF switch (.
49
3. Press Info button { 8 for 3 seconds until the following text is indicated on the display window at the top @:
49
4. Keep pressing the button > )* until water connection appears of the display window at the top @.
49
5. Make the setting with setting buttons + - X.
49
6. Press and hold the Info button { 8 for 3 seconds.
49
Electrical connection
50
Removal
50
Also observe the sequence of worksteps here.
50
1. Disconnect the appliance from the power supply.
50
2. Turn off the tap.
50
3. Undo the waste water and drinking water connection.
50
4. Loosen fastening screws for the furniture parts.
50
5. If fitted, remove the base panel.
50
6. Pull out the appliance, carefully pulling the hose behind.
50
Transporting
51
Drain the appliance according to the following steps:
51
1. Turn on the tap.
51
2. Open the door.
51
3. Switch on ON/OFF switch (.
51
4. Select programme with the highest temperature.
51
5. Press START button )".
51
6. Close the door.
51
7. Open the door after approx. 4 minutes.
51
8. Press START button )" until “Program was terminated”/“Ready in one minute.” is indicated at the top of the display window @.
51
9. Close the door.
51
10. Open the door after approx. 1 minute.
51
11. Switch off ON/OFF switch (.
51
12. Turn off the tap, disconnect supply hose and drain water.
51
Note:
51
Protection against frost
51
Protection against frost (Emptying the appliance)
51
Search:
×
Search
