GETTING STARTED
SAVE THESE AND ALL INSTRUCTIONS! For more details and additional important information, see the other instructions provided inside your refrigerator.
W10803562A
© 2015. All rights reserved.
06/15
Printed in Mexico
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
WARNING
INSTALLATION CHECKLIST
✔Unpack the Refrigerator
❑ Remove all shipping material.
❑ Use ¹⁄2" socket wrench to remove skids (socket extension
is recommended).
✔Electrical Power
❑ Plug refrigerator into a grounded 3 prong outlet.
✔Doors
❑ Install the handles according to instructions.
❑ Make sure the refrigerator is steady and level.
❑ After food has been placed inside, check that the doors
are even across the top.
❑ Make sure the base grille is properly attached to the
refrigerator.
✔Adjusting the Temperature
❑ After installation, allow 24 hours for the refrigerator
to reach the recommended temperature setting.
Under some conditions, you may need to adjust the
controls to a colder or warmer setting than is normally
recommended. Make adjustments only one setting at a
time, and wait 24 hours between adjustments.
✔ Ice and Water System
(on some models)

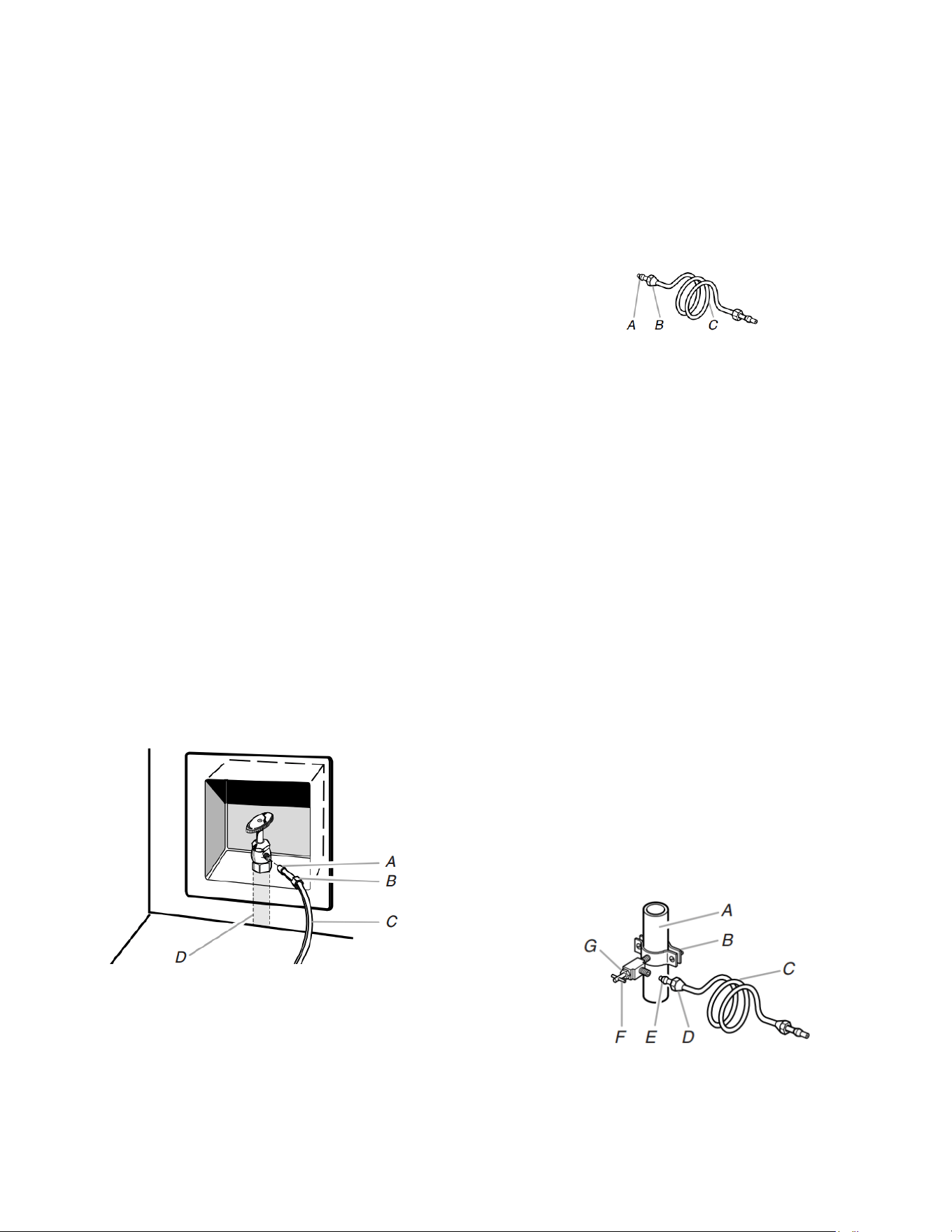

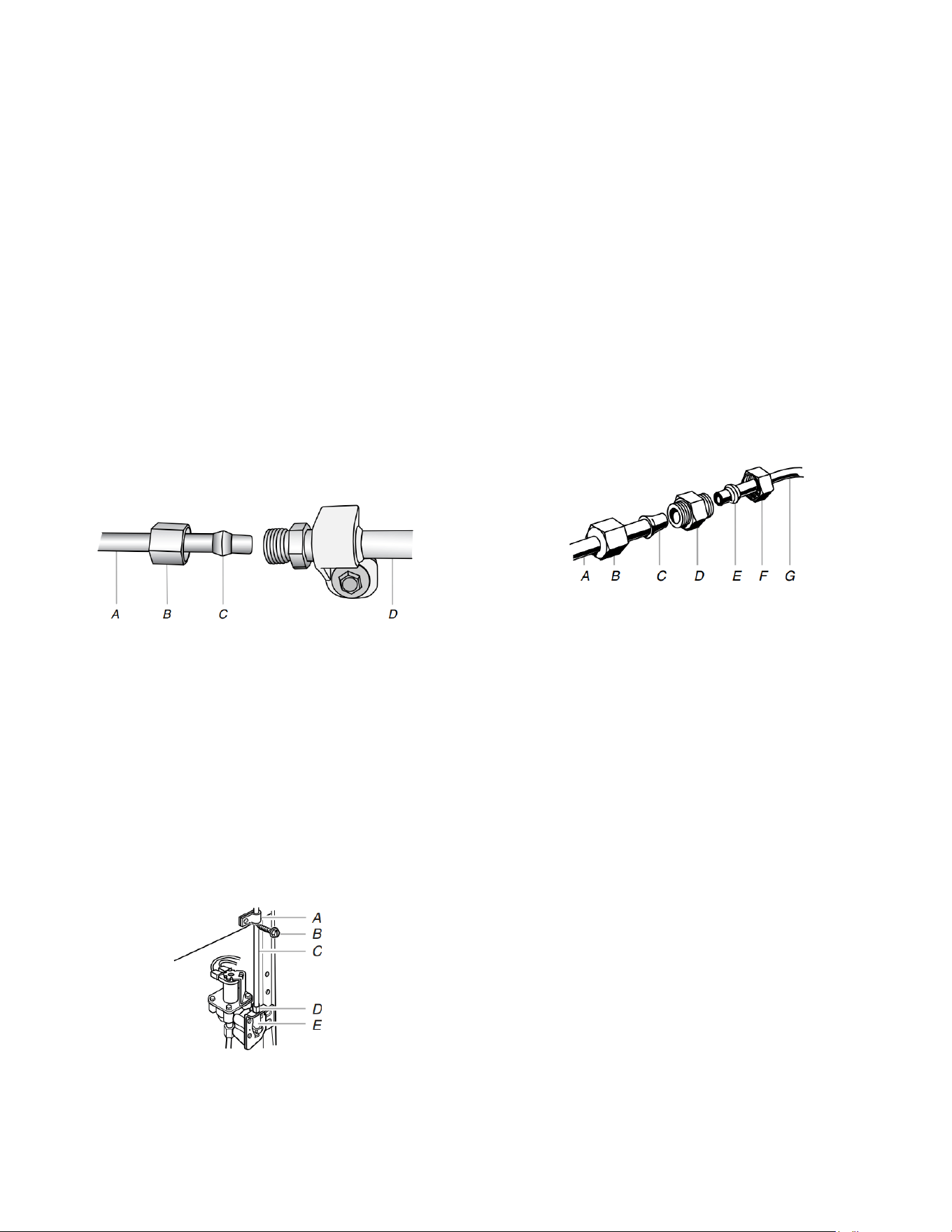

❑ Connect the refrigerator to the household water supply,
and turn it on.
❑ Make sure the water supply line behind the refrigerator
is not kinked.
❑ Flush the water system according to instructions.
❑ Check for water leaks at all connections.
❑ To make ice, the ice maker must be turned on. Allow 24
hours for the freezer to get cold enough to begin making
ice. Discard the first three batches of ice produced. Allow
up to 3 days to fill the ice storage bin.
✔Accessories (on some models)
❑ Install Air Filter(s) and/or Produce Preserver(s) according
to instructions.
✔Final Steps
❑ Save instructions and other literature.
❑ Send in Registration Card or register your product online.
TOOLS REQUIRED
The following tools may be required to remove or align the
refrigerator doors or to level the refrigerator.
Tools Needed:
n Phillips screwdriver – Base grille removal
n ¹⁄
4" hex-head socket wrench – Electrical wiring
connections
n ³⁄
16" hex key – Top hinge removal
n Internal star drive or ³⁄
8" hex-head socket wrench –
Bottom hinge removal
n Bubble level – Check leveling
n ¹⁄
4" open-ended or adjustable wrench – Adjust
leveling feet
n
5
⁄16" and
11
/16" open-ended or adjustable wrench – Adjust
door alignment
Tools Provided:
n ¹⁄
8" hex key – Handle setscrews (on some models)
ENERGY AND NORMAL OPERATING SOUNDS
Your new refrigerator has been designed to optimize energy
efficiency and better regulate temperatures to match
cooling demand. You may notice that it operates differently
from your previous refrigerator.
It is normal for the high-efficiency compressor to run for
extended periods of time at varying speeds in order to
consume only the energy necessary for optimum efficiency.
In addition, during various stages of the cooling cycle and
ice production, you may hear normal operating sounds that
are unfamiliar to you. Normal sounds may include cracking/
crashing, popping, pulsating/whirring, rattling, water
running or gurgling, and sizzling.
LEVELING AND DOOR ALIGNMENT
✔ To level the product or align the doors, you must first
remove the base grille as follows:
❑ Open both doors to 90°. Remove the base grille by
removing the two screws and then pulling out on the
outside corners.
NOTE: The doors must only be opened to 90°. If they
are opened all the way, the base grille will not come off.
To view an animated video about
the leveling and door alignment
process, scan the code at left
with your mobile device.
✔ If the refrigerator doors do not close easily or pop open,
or if the refrigerator seems unsteady or rolls when a door
is pulled open:
❑ Use a ¹⁄4" open-ended or adjustable wrench to adjust the
leveling feet, which are located on the brackets on each
side of the product.
n Turn the leveling foot to the left to raise that side
of the product, or turn it to the right to lower that
side of the product.
NOTE: Having someone push against the top of the
refrigerator takes some weight off the leveling feet,
making it easier to turn the feet.
PRODUCE PRESERVER INSTALLATION
(on some models)
✔ Install Produce Preserver(s) and status indicator(s)
according to instructions.
NOITUAC
IRRITAN
T
.
kcab no
snoi
t
uac da
e
R
NOITNETTA
IRR
ATI TN
.
s
rever
el ru
s
s
ec
nedu
rp
sed
z
e
s
i
L
MONTHS
REPLACE
ICE MAKER OPERATION
Models with the Ice Storage Bin on the Door:
❑ Open the freezer door and remove the ice storage bin.
❑ Locate the ice maker switch on the left wall
of the storage
Models with the Ice Storage Bin in the Freezer:
❑ Open the freezer and locate the wire shutoff arm.
❑ Arm lowered – ON; Arm up – OFF.
ON
OFF
ON
OFF
B
A
Raise
Lower
B
A
A. Hex Nut
B. Alignment Screw
A. On/Off switch
B. Sensor cover
A
B
C
Raise
Lower

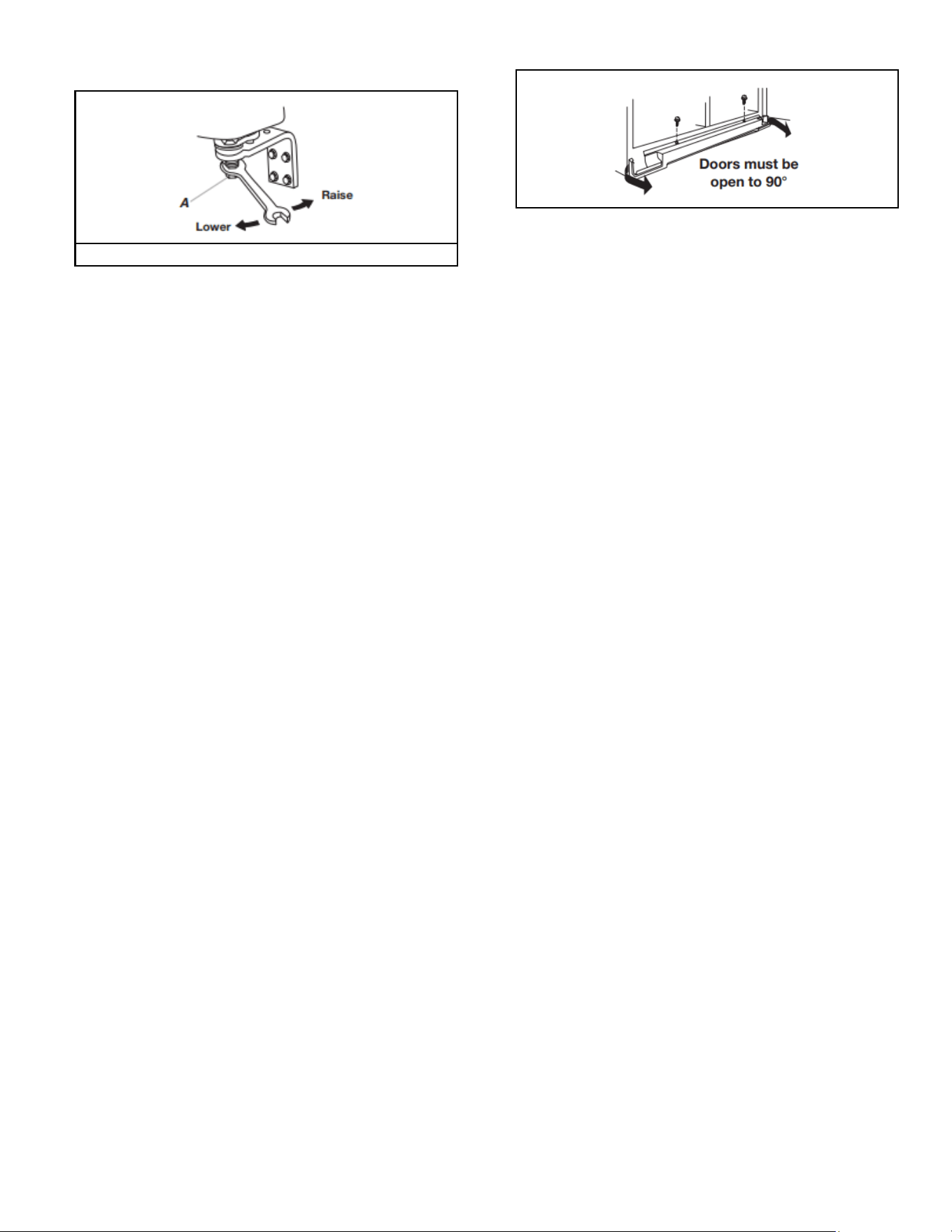

✔ The doors are designed to be slightly different heights
when the refrigerator is empty, in order to account for the
weight of food that will be placed on the doors. If doors
are uneven after food has been placed inside:

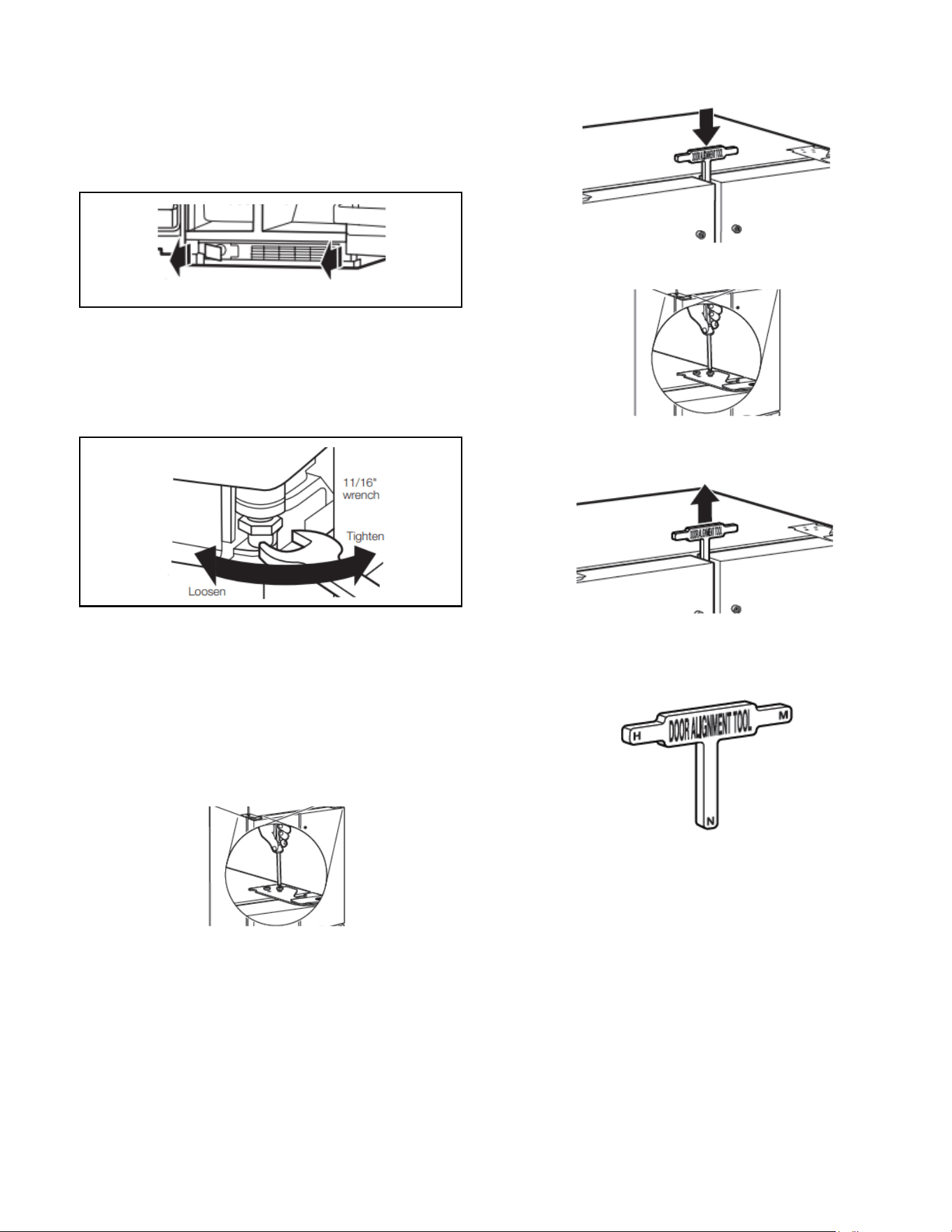

❑ Locate the alignment screw on the bottom hinge
of the refrigerator door.
❑ Use a 11/16" open-ended or adjustable wrench to loosen
the hex nut, which will allow the alignment screw to turn.
❑ Use a 5/16" open-ended wrench to turn the alignment
screw.
n Turn the screw to the right to raise the refrigerator
door, or turn it to the left to lower the door.
A. Bottom hinge
B. Leveler bracket
C. Leveling foot
AIR FILTER INSTALLATION
(on some models)
✔ Install Air Filter(s) and status indicator(s) according
to instructions.
MONTHS
REPLACE
Pour les instructions en français, voir au verso.
