Operating Instructions
LED TV
Model No.
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before operating this product and
retain them for future reference.
Please carefully read the “Safety Precautions” of this manual before use.
The images shown in this manual are for illustrative purposes only.
M0419-0 English
TQB4GD0214
English
For more detailed instructions, please refer to [eHELP]
(Built-in Operating Instructions).
●
How to use [eHELP]
(p. 17)
TH-55GX740A TH-49GX740Z
TH-55GX800A TH-55GX740Z
(image: TH-55GX740A)
TH_49_55GX740_800AZ.indb 1TH_49_55GX740_800AZ.indb 1 3/12/2019 6:00:07 PM3/12/2019 6:00:07 PM
English
2
The terms HDMI and HDMI High-Definition Multimedia
Interface, and the HDMI Logo are trademarks or
registered trademarks of HDMI Licensing Administrator,
Inc. in the United States and other countries.
Dolby, Dolby Vision, Dolby Atmos, Dolby Audio, and the
double-D symbol are trademarks of Dolby Laboratories.
Manufactured under license from Dolby Laboratories.
Confidential unpublished works. Copyright © 2013-2015
Dolby Laboratories. All rights reserved.
Speech Powered by Dragon
2002-2019 Nuance Communications, Inc. All rights
reserved.
The Bluetooth
®
word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc. and any use of
such marks by Panasonic Corporation is under license.
Other trademarks and trade names are those of their
respective owners.
x.v.Colour™ is a trademark.
●
For the information of the trademarks, refer to
[eHELP] (Search by Purpose > Read First > Before
use > Licence).
The illustration for TH-55GX740A is used in this
manual unless otherwise mentioned.
Illustrations shown may be different between models
and countries.
Contents
Be Sure to Read
Important Notice··················································· 3
Safety Precautions ··············································· 4
Accessories ························································ 6
Installing the TV ··················································· 7
Installing the wall-hanging bracket ··························· 8
Connections ························································ 9
Identifying Controls ··············································14
First time Auto Tuning···········································16
Watching TV·······················································17
How to Use eHELP ··············································17
FAQs ································································19
Maintenance ······················································20
Specifications ·····················································20
TH_49_55GX740_800AZ.indb 2TH_49_55GX740_800AZ.indb 2 3/12/2019 6:00:07 PM3/12/2019 6:00:07 PM
English
3
Important Notice
Internet apps are provided by their respective service
providers, and may be changed, interrupted, or
discontinued at any time. Panasonic assumes no
responsibility and makes no warranty for the availibility
or the continuity of the services.
Panasonic does not guarantee operation and
performance of peripheral devices made by other
manufacturers; and we disclaim any liability or damage
arising from operation and/or performance from usage of
such other maker’s peripheral devices.
Handling of customer information
Certain customer information such as IP address of your
device (this TV)’s network interface will be collected as
soon as you connect your Panasonic-branded smart
television (this TV) or other devices to the internet
(excerpted from our privacy policy). We do this to protect
our customers and the integrity of our Service as well as
to protect the rights or property of Panasonic. If you wish
to know more about the processing of your information
in this context, please refer to the full text of our privacy
policy displayed at [eHELP] (Search by Purpose >
Network > Network settings > Terms of Service and
Settings).
When using Internet connecting function of this TV,
after agreeing (in the jurisdictions where customer’s
consent is required to collect personal information under
applicable privacy laws) to or reviewing Panasonic’s
terms of service / privacy policy (hereinafter referred to
as terms and conditions etc.), customer information on
the use of this unit may be collected and used according
to terms and conditions etc.
For details of terms of service / privacy policy, refer
to [eHELP] (Search by Purpose > Network > Network
settings > Terms of Service and Settings).
Customer’s personal information may be recorded on
this TV by broadcasting organization or application
provider. Before repairing, transferring or discarding
this TV, erase all the information recorded on this TV
according to the following procedure.
[eHELP] (Search by Purpose > Functions > Shipping
Condition).
Customer Information may be collected by provider
via application provided by third parties on this TV or
website. Please confirm the terms and conditions etc. of
provider in advance.
•
Panasonic will not be held responsible for collecting
or using customer information via application provided
by third party on this TV or website.
•
When entering your credit card number, name, etc.,
pay special attention to the trustworthiness of the
provider.
•
Registered information may be registered in the
server etc. of provider. Before repairing, transferring
or discarding this TV, be sure to erase the information
according to the terms and conditions etc. of provider.
The recording and playback of content on this or any
other device may require permission from the owner
of the copyright or other such rights in that content.
Panasonic has no authority to and does not grant
you that permission and explicitly disclaims any right,
ability or intention to obtain such permission on your
behalf. It is your responsibility to ensure that your use
of this or any other device complies with applicable
copyright legislation in your country. Please refer to that
legislation for more information on the relevant laws and
regulations involved or contact the owner of the rights in
the content you wish to record or playback.
This product is licensed under the AVC patent portfolio
license for the personal and non-commercial use of a
consumer to (i) encode video in compliance with the
AVC Standard (“AVC Video”) and/or (ii) decode AVC
Video that was encoded by a consumer engaged in
a personal and non-commercial activity and/or was
obtained from a video provider licensed to provide AVC
Video. No license is granted or shall be implied for any
other use.
Additional information may be obtained from MPEG LA,
LLC.
See http://www.mpegla.com.
Panasonic and its affiliates make no representations or
warranties of any kind with respect to the USB devices
and the performance of communication between the
USB devices and the USB port of Panasonic products,
and expressly disclaims any and all warranties, whether
express or implied or otherwise, including without
limitation any implied warranty of fitness for a particular
purpose, any loss of data, and any implied warranties
arising from course of dealing or course of performance
of data communication between the USB devices and
the USB port of Panasonic products.
Transport only in upright position.
This mark indicates the product operates on AC voltage.
This mark indicates a Class II or double insulated
electrical appliance wherein the product does not
require a safety connection to electrical earth (ground).
TH_49_55GX740_800AZ.indb 3TH_49_55GX740_800AZ.indb 3 3/12/2019 6:00:08 PM3/12/2019 6:00:08 PM
English
4
●
Do not expose the TV to rain
or excessive moisture.
This
TV must not be exposed to
dripping or splashing water
and objects filled with liquid,
such as vases, must not be
placed on top of or above
the TV.
●
Do not insert foreign objects into the TV through the
air vents.
●
If the TV is used in an area where insects may easily
enter the
TV.
It is possible for insects to enter the TV, such as small
flies, spiders, ants, etc. which may cause damage to
the TV or become trapped in an area visible on the
TV, e.g. within the screen.
●
Do not use an unapproved pedestal / mounting
equipment. Be sure to ask your local Panasonic
dealer to perform the setup or installation of approved
wall-hanging brackets.
●
Do not apply any strong force or impact to the display
panel.
●
Ensure that children do not climb on the TV.
●
Do not place the TV on sloping
or unstable surfaces, and
ensure that the
TV does not
hang over the edge of the
base.
Important information
If the TV is not positioned in a sufficiently stable
location, it can be potentially hazardous due to
falling. Many injuries, particularly to children, can
be avoided by taking simple precautions such as:
•
Using cabinets or stands recommended by the
manufacturer of the TV.
•
Only using furniture that can safely support the
TV.
•
Ensuring the TV is not overhanging the edge of
the supporting furniture.
•
Not placing the TV on tall furniture (for example,
cupboards or bookcases) without anchoring
both the furniture and the TV to a suitable
support.
•
Not standing the TV on cloth or other materials
placed between the TV and supporting furniture.
•
Educating children about the dangers of
climbing on furniture to reach the TV or its
controls.
●
This TV is designed for indoor use.
●
This TV is designed for table-top use.
●
Do not expose the TV to direct
sunlight and other sources of
heat.

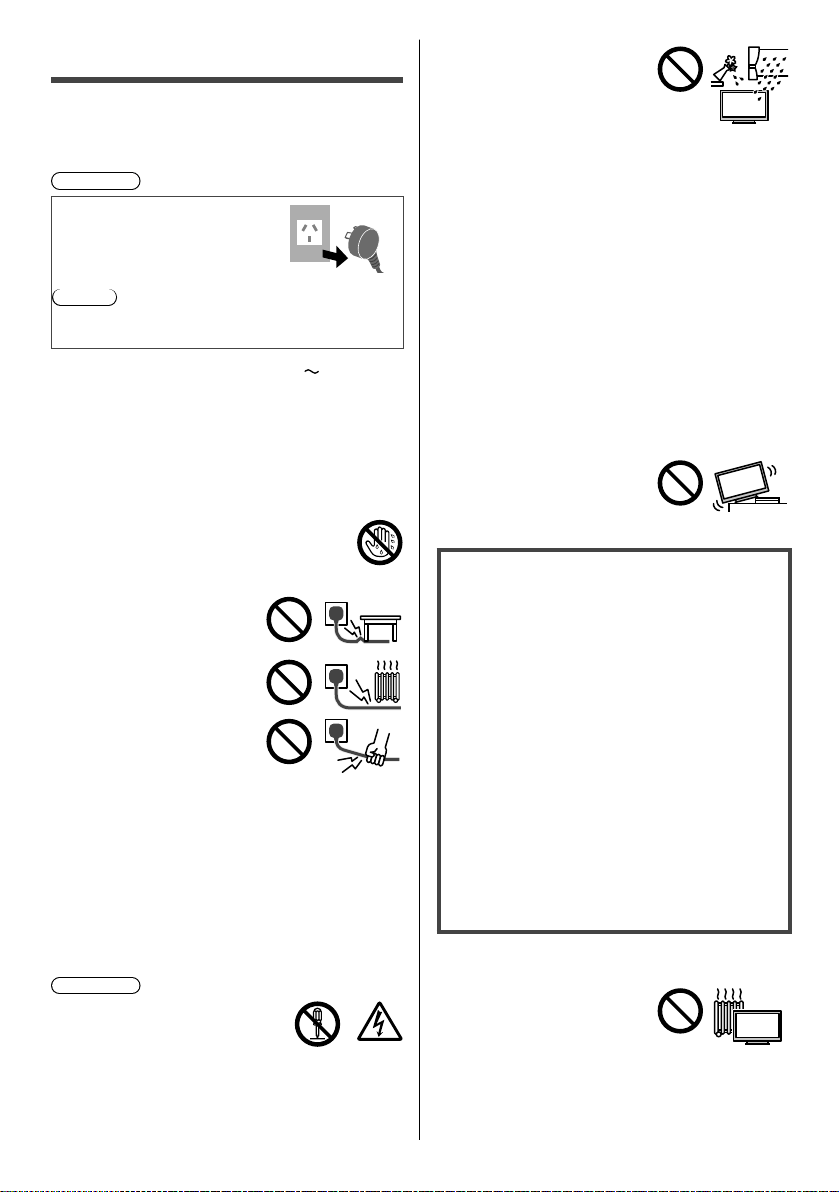

Safety Precautions
To help avoid risk of electrical shock, fire, damage or
injury, please follow the warnings and cautions below:
■ Mains plug and lead
Warning
If you detect anything unusual,
immediately remove the mains
plug.
Note
●
Mains Plug and lead types vary depending on the
model and countries.
●
This TV is designed to operate on AC
220-240 V,
50 / 60 Hz.
●
Insert the mains plug fully into the mains socket.
●
To turn Off the apparatus completely, you must pull
the mains plug out of the mains socket.
Consequently
, the mains plug should be easily
accessible at all times.
●
Disconnect the mains plug when cleaning the TV.
●
Do not touch the mains plug with wet
hands.
●
Do not damage the mains lead.
•
Do not place a heavy
object on the lead.
•
Do not place the lead near
a high temperature object.
•
Do not pull on the lead.
Hold onto the mains plug
body when disconnecting
the plug.
•
Do not move the TV with the lead plugged into a
mains socket.
•
Do not twist the lead, bend it excessively or stretch it.
•
Do not use a damaged mains plug or mains
socket.
•
Ensure the TV does not crush the mains lead.
●
Do not use any mains lead other than that provided
with this
TV.
■ Take care
Warning
●
Do not remove covers and never
modify the
TV yourself as live
parts are accessible and risk
of electric shock when they are
removed. There are no user
serviceable parts inside.
TH_49_55GX740_800AZ.indb 4TH_49_55GX740_800AZ.indb 4 3/12/2019 6:00:08 PM3/12/2019 6:00:08 PM
English
5
To prevent the
spread of fire, keep
candles or other
open flames away
from this product at
all times
■ Suffocation / Choking Hazard
Warning
●
The packaging of this product may cause suffocation,
and some of the parts are small and may present a
choking hazard to young children. Keep these parts
out of reach of young children.
■ Display
Caution
●
Do not spray water or
detergent directly on
TV
screen for cleaning purpose.
Leaking liquid substance will
cause damage to TV.
●
Be careful of cats, rats or other
animals that may urinate on
the
TV (front and rear). It may
lead to TV failure.
●
Do not use sharp or hard objects (finger nails, knife
and etc.) on
TV screen. This may cause damage to
the screen surface.
■ Pedestal
Warning
●
Do not disassemble or modify the pedestal.
Caution
●
Do not use any pedestal other than the one provided
with this
TV.
●
Do not use the pedestal if it becomes warped or
physically damaged. If this occurs, contact your
nearest Panasonic dealer immediately
.
●
During setup, make sure that all screws are securely
tightened.
●
Ensure that the TV does not suffer any impact during
installation of the pedestal.
●
Ensure that children do not climb onto the pedestal.
●
Install or remove the TV from the pedestal with at
least two people.
●
Install or remove the TV according to the specified
procedure.
■ Radio waves
Warning
●
Do not use the TV in any medical institutions or
locations with medical equipment. Radio waves may
interfere with the medical equipment and may cause
accidents due to malfunction.
●
Do not use the TV near any automatic control
equipment such as automatic doors or fire alarms.
Radio waves may interfere with the automatic
control equipment and may cause accidents due to
malfunction.
●
Keep at least 15 cm away from the TV if you have a
cardiac pacemaker
. Radio waves may interfere with
the operation of the pacemaker.
●
Do not disassemble or alter the TV in any way.
■ Built-in wireless LAN
Caution
●
Do not use the built-in wireless LAN to connect to any
wireless network (SSID
*
) for which you do not have
usage rights. Such networks may be listed as a result
of searches. However
, using them may be regarded
as illegal access.
*
SSID is a name for identifying a particular wireless
network for transmission.
●
Do not subject the built-in wireless LAN to high
temperatures, direct sunlight or moisture.
●
Data transmitted and received over radio waves may
be intercepted and monitored.
●
The built-in wireless LAN uses 2.4 GHz and
5 GHz frequency bands.
To avoid malfunctions or
slow response caused by radio wave interference
when using the built-in wireless LAN, keep the TV
away from other devices that use 2.4 GHz and
5 GHz signals such as other wireless LAN devices,
microwave ovens, and mobile phones.
●
When problems occur due to static electricity, etc., the
TV might stop operating to protect itself. In this case,
turn the
TV off at the Mains power On/Off switch, then
turn it back on.
■ Bluetooth
®
wireless technology
Caution
●
The TV use the 2.4 GHz radio frequency ISM band
(Bluetooth
®
). To avoid malfunctions or slow response
caused by radio wave interference, keep the TV away
from the devices such as other wireless LAN devices,
other Bluetooth devices, microwaves, mobile phones
and the devices that use 2.4 GHz signal.
■ Ventilation
Caution
Allow sufficient space (at least 10 cm) around the TV in
order to help prevent excessive heat, which could lead
to early failure of some electronic components.
(cm)
10
10
10
10
●
Ventilation should not be
impeded by covering the
ventilation openings with
items such as newspapers,
tablecloths and curtains.
●
Whether you are using a pedestal or not, always
ensure the vents at the bottom of the
TV are not
blocked and there is sufficient space to enable
adequate ventilation.
TH_49_55GX740_800AZ.indb 5TH_49_55GX740_800AZ.indb 5 3/12/2019 6:00:08 PM3/12/2019 6:00:08 PM
English
6

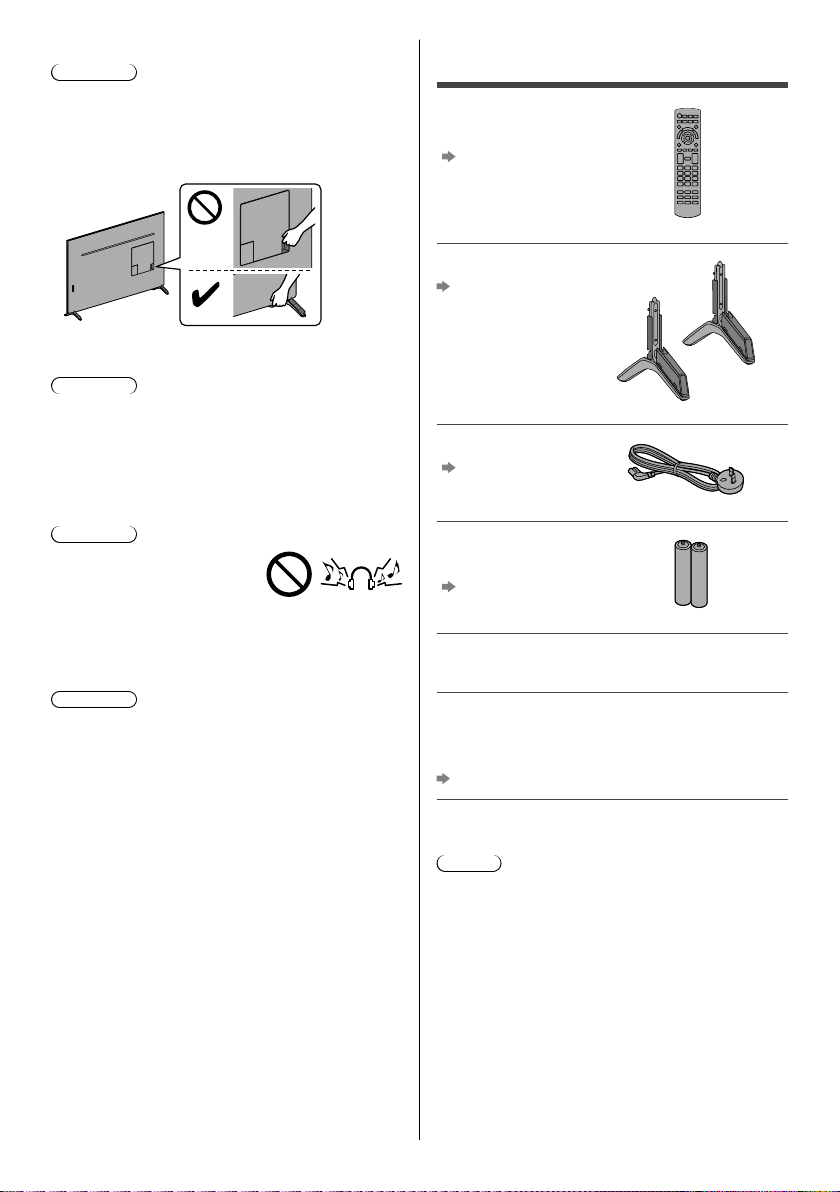

■ Moving the TV
Caution
Before moving the TV, disconnect all cables.
●
At least two people are required to move the TV.
Support the
TV as shown below to prevent injury that
may be caused by the tipping or falling of TV
(GX800 series)
■ When not in use for a long time
Caution
This TV will still consume some power even in the Off
mode, as long as the mains plug is still connected to a
live mains socket.
●
Remove the mains plug from the wall socket when
the
TV is not in use for a prolonged period of time.
■ Excessive volume
Caution
●
Do not expose your ears to
excessive volume from the
headphones. Irreversible
damage can be caused.
●
If you hear a drumming noise in your ears, turn down
the volume or temporarily stop using the headphones.
■ Battery for the Remote Control
Caution
●
Incorrect installation may cause battery leakage,
corrosion and explosion.
●
Replace only with the same or equivalent type.
●
Do not mix old and new batteries.
●
Do not mix different battery types (such as alkaline
and manganese batteries).
●
Do not use rechargeable batteries (Ni-Cd, etc.).
●
Do not burn or break up batteries.
●
Do not expose batteries to excessive heat such as
sunshine, fire or the like.
●
Make sure you dispose of batteries correctly.
●
Remove the battery from the unit when not using for
a prolonged period of time to prevent battery leakage,
corrosion and explosion.
Accessories
Remote Control
●
N2QAYB001189
(p. 14)
Pedestal
(p. 7)
Mains lead
(p. 10)
Batteries (2)
●
R6
(p. 15)
Operating Instructions with
Warranty statement
Fall prevention parts
●
Wood screw
●
Band
(p. 8)
●
Accessories may not be placed all together. Take care
not to throw them away unintentionally
.
Note
●
Illustrations shown above may be different between
models and countries.
TH_49_55GX740_800AZ.indb 6TH_49_55GX740_800AZ.indb 6 3/12/2019 6:00:08 PM3/12/2019 6:00:08 PM
English
7
■ <Style2>
1
2
Removing the pedestal from the TV
Be sure to remove the pedestal in the following
procedures when you use the wall-hanging bracket or
repack the TV.
1 Put the TV onto a work table with the screen panel
down on the clean and soft cloth.
2 Pull out the pedestal from the TV.
Installing the TV
Assembling / Removing the pedestal
Preparations
Take out the pedestal and the TV from the packing case
and put the TV onto a work table with the screen panel
down on the clean and soft cloth (blanket, etc.)
●
Use a flat and firm table bigger than the TV.
●
Do not hold the screen panel part.
●
Make sure not to scratch or break the TV.
Assembling the pedestal
●
Select a method to assemble the pedestal from the
following styles.
●
Do not assemble the pedestal by any method other
than those specified below
.
■ <Style1>
1
2
TH_49_55GX740_800AZ.indb 7TH_49_55GX740_800AZ.indb 7 3/12/2019 6:00:09 PM3/12/2019 6:00:09 PM
English
8

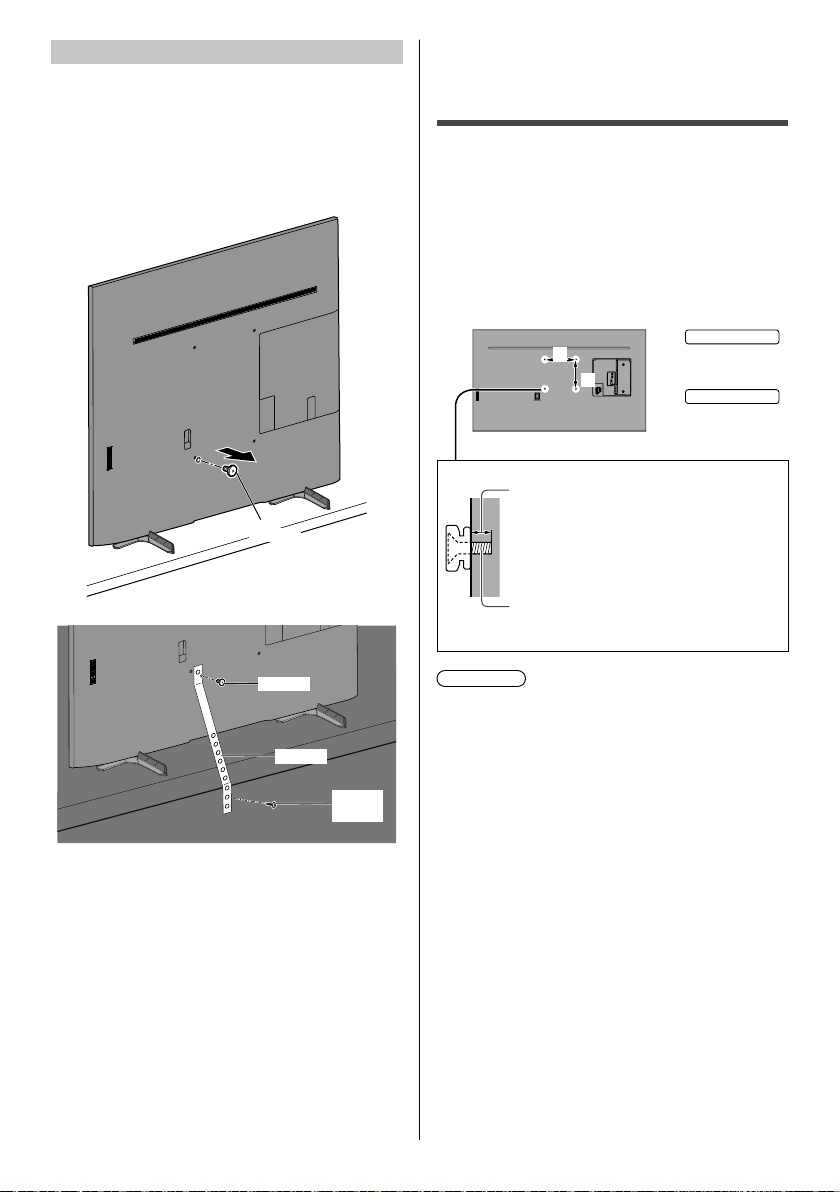

Installing the wall-
hanging bracket
■ When using the wall-hanging bracket
Choosing to wall mount the TV shall be done at the
owner’s risk. Always use a qualified installer to perform
a TV wall bracket installation. Incorrect fitting may cause
equipment to fall, resulting in injury and product damage.
Any such damage will void your warranty.
●
Holes for wall-hanging bracket installation
Rear of the TV
a
b
49-inch model
a: 200 mm
b: 200 mm
55-inch model
a: 300 mm
b: 300 mm
(View from the side)
Depth of screw
minimum: 9 mm
maximum: 21 mm
Type of screw: M6
Screw for fixing the TV onto the
wall-hanging bracket (not supplied with
the TV)
Warning
●
When optional accessories such as wall brackets, etc.
are used, always read and follow the manufactures
installation and usage instructions.
●
Do not mount the unit directly below ceiling lights
(such as spotlights or halogen lights) which typically
give of
f high heat. Doing so may warp or damage
plastic cabinet parts.
●
When installing wall brackets you must ensure the
wall bracket is not electrically grounded to metal wall
studs.
Always ensure that there are no electrical
cables, pipes, etc. in the wall before you begin the
wall bracket installation.
●
To prevent fall and injury, remove the TV from its fixed
wall position when it is no longer in use.
Preventing the TV from falling over
It is recommended to secure the pedestal to a furniture
as shown to prevent the TV from falling over.
●
This information is designed to reduce the risk of
injuries caused by the
TV falling over. However, no
measure can guarantee protection in all cases.
Attaching the fall-prevention parts
1 Remove the screw.
Screw
2 Attach the fall-prevention parts.
Band
Wood
screw
Screw
TH_49_55GX740_800AZ.indb 8TH_49_55GX740_800AZ.indb 8 3/12/2019 6:00:14 PM3/12/2019 6:00:14 PM
English
9
Connections
●
External equipment and cables shown are not
supplied with this
TV.
●
Please ensure that the unit is disconnected from the
mains socket before attaching or disconnecting any
cables.
●
Check the terminal type and cable plugs are correct
for connection.
●
Use a fully wired HDMI compliant cable.
●
Keep the TV away from electronic equipment (video
equipment, etc.) or equipment with an infrared sensor
,
otherwise distortion of image / sound may occur or
operation of other equipment may be affected.
●
Please also read the manual of the equipment being
connected.
Removing the cable cover / terminal
cover from the TV
●
Be sure to remove the cable cover / terminal cover
before connecting or disconnecting cables.
●
When the connections are completed, attach the
cable cover / terminal cover
. (p. 13)
(Applicable for GX800 series only)
Terminal
cover
Cable
cover
Terminals
Australia
1
2
3
5
6
4
AV IN
7
8
9
TH_49_55GX740_800AZ.indb 9TH_49_55GX740_800AZ.indb 9 3/12/2019 6:00:15 PM3/12/2019 6:00:15 PM
English
10

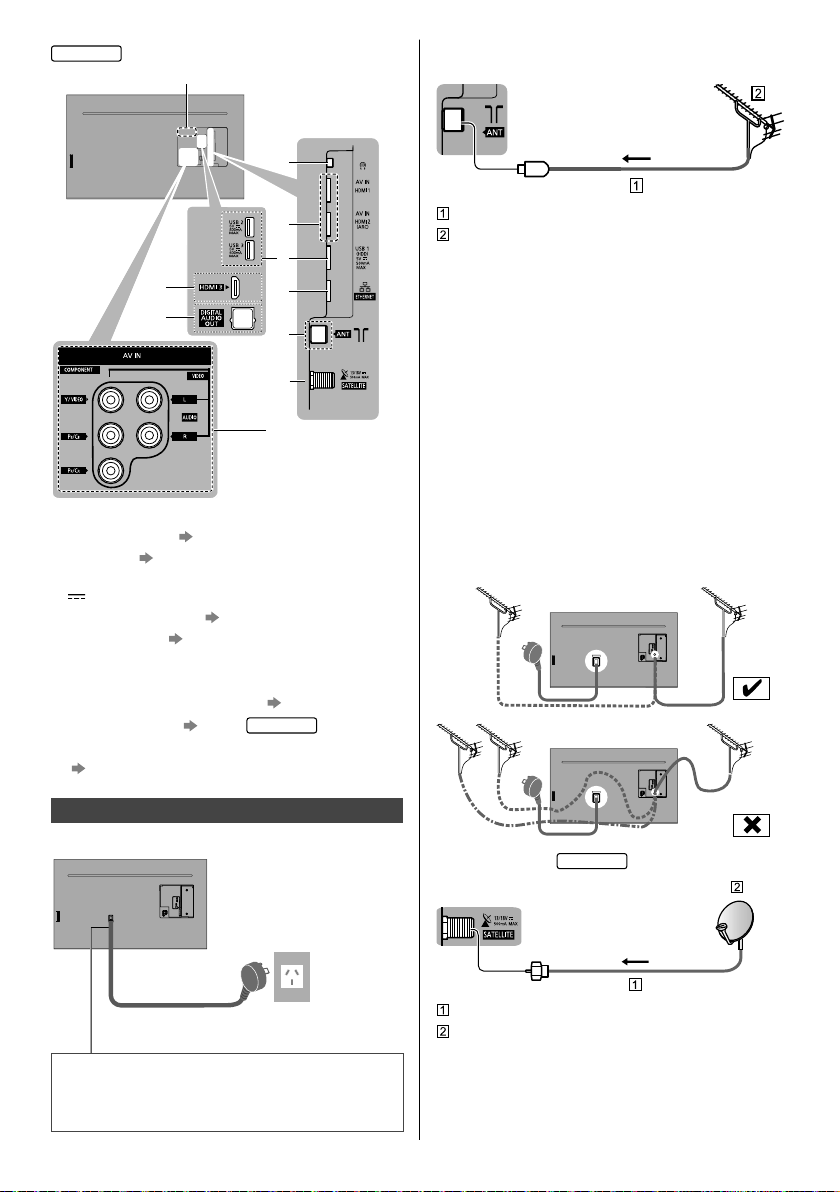

New Zealand
1
2
3
5
6
4
AV IN
7
8
9
10
1 Model name plate
2 Headphone jack
(p. 12)
3 HDMI 1 - 2
(p. 11 - 12)
4 USB 1 - 3 port
This symbol indicates DC operation.
5 ETHERNET terminal
(p. 11)
6 Aerial terminal
(p. 10)
7 HDMI 3
8 DIGITAL AUDIO OUT
9 AV IN (COMPONENT / VIDEO)
(p. 12)
10 Satellite terminal
(p. 10)
New Zealand
●
To watch content in 4K format, use HDMI terminal.
(p. 11)
Basic connections
■ Mains lead
AC 220-240 V, 50 / 60 Hz
Mains lead
Insert the mains plug firmly into place.
●
When disconnecting the mains lead, be absolutely
sure to disconnect the mains plug from the mains
socket first.
■ Aerial
TV
RF cable
Aerial
●
For Digital TV, Analogue TV
●
Keep RF (aerial) cable away from the mains lead to
avoid and minimise mains interference pickup.
●
Do not place the RF cable under the TV.
●
An aerial, correct cable (75 coaxial) and correct
terminating plug are required to obtain optimum
quality picture and sound.
●
If a communal aerial system is used, you may require
the correct connection cable and plug between the
wall aerial socket and the
TV.
●
Your local Television Service Centre or dealer may
be able to assist you in obtaining the correct aerial
system for your particular area and the accessories
required.
●
Any matters regarding aerial installation, upgrading
of existing systems or accessories required, and
the costs incurred, are the responsibility of you, the
customer.
●
If the aerial is placed in the wrong location,
interference might happen.
■ Satellite dish
New Zealand
Satellite cable
Satellite dish
●
For Satellite TV
●
To ensure your satellite dish is correctly installed,
please consult your local dealer
. Also consult the
received satellite broadcasting companies for details.
TH_49_55GX740_800AZ.indb 10TH_49_55GX740_800AZ.indb 10 3/12/2019 6:00:16 PM3/12/2019 6:00:16 PM
English
11
AV devices
■ DVD Recorder / Blu-ray Recorder, etc.
TV
RF cable
HDMI cable
DVD Recorder / Blu-ray Recorder, etc.
Aerial
■ Set top box
TV
HDMI cable
Set top box
Satellite dish
Network
A broadband network environment is required to be able
to use internet services.
●
If you do not have any broadband network services,
please consult your retailer for assistance.
●
Prepare the internet environment for wired connection
or wireless connection.
●
Setup of the network connection will start when first
using the
TV.
(p. 16)
■ Wired connection
TV
Internet environment
LAN cable (Shielded)
●
Use Shielded Twist Pair (STP) LAN cable.
■ Wireless connection
Internet
environment
Built-in wireless LAN
Access point
Connections for 4K / HDR compatible
equipment
TV
HDMI cable
4K / HDR compatible equipment
●
To watch high-definition 4K more accurately or HDR
content, connect the 4K / HDR compatible equipment
to HDMI1 or 2 terminal.
●
Connect the 4K compatible equipment to HDMI
terminal using a 4K compatible cable and you can
watch content in 4K format.
●
Supporting HDR does not increase the peak
brightness capabilities of the
TV panel.
■ [HDMI Auto Setting] (Setup Menu)
Reproduces the image more precisely with the
expanded colour gamut when connecting the 4K
compatible equipment. Select the mode depending on
the equipment.
[Mode1]:
For better compatibility. Set to [Mode1] when the
image or sound in HDMI input is not played properly.
[Mode2]:
For the 4K compatible equipment that has the
function to output the image precisely with the
expanded colour gamut.
●
To change the mode
1.
Select the HDMI input mode connected to the
equipment.
2. Display the menu and select [HDMI Auto Setting]
(Setup Menu).
●
For information about the valid format, refer to
[eHELP] (Search by Purpose > W
atching > 4K
resolution > HDMI Auto Setting).
TH_49_55GX740_800AZ.indb 11TH_49_55GX740_800AZ.indb 11 3/12/2019 6:00:16 PM3/12/2019 6:00:16 PM
English
12

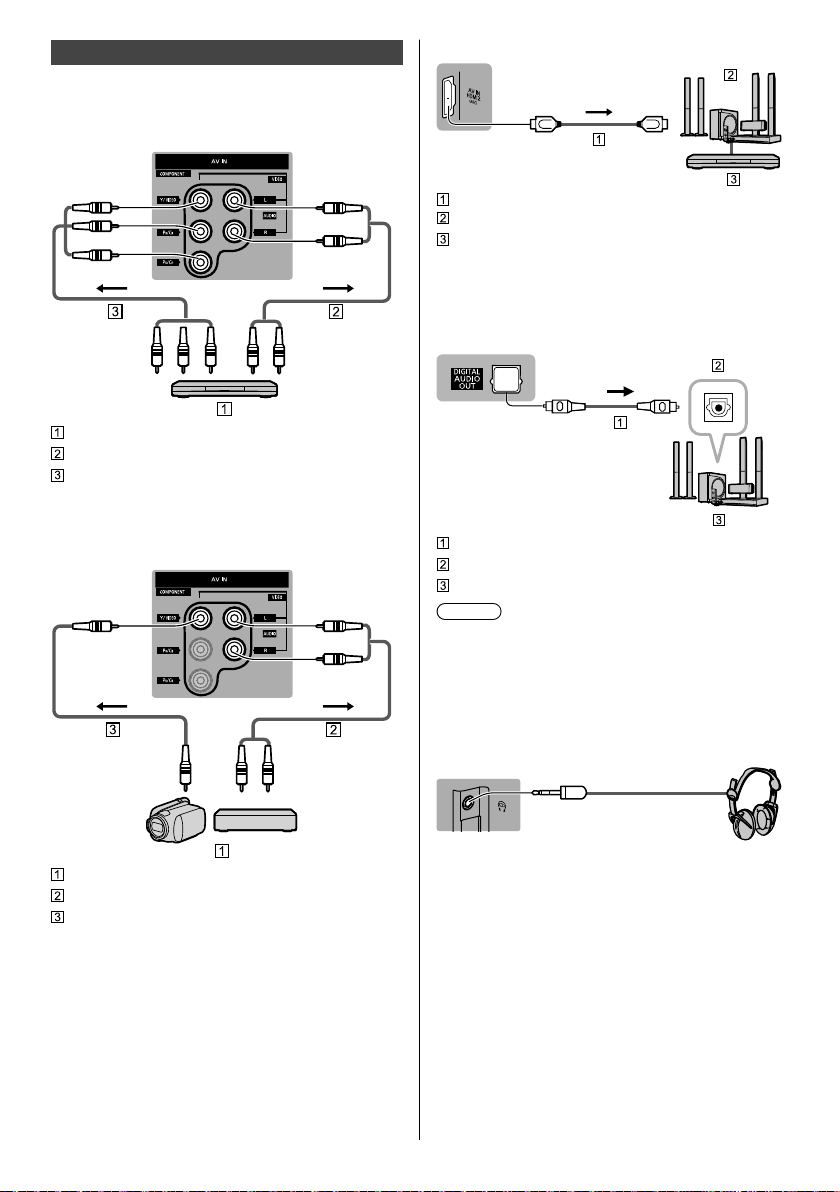

Other connections
■ DVD Player
(COMPONENT equipment)
TV
(Viewing)
(Listening)
DVD Player
Audio cable (Shielded)
Component video cable (Shielded)
■ Camcorder / Game equipment
(VIDEO equipment)
TV
(Viewing)
(Listening)
Camcorder / Game equipment
Audio cable (Shielded)
Composite video cable (Shielded)
■ Amplifier (listening with external speakers)
●
To enjoy multi-channel sound from external
equipment (e.g. Dolby Digital 5.1ch), connect the
equipment to the amplifier
. For information about the
connections, read the manuals of the equipment and
amplifier.
TV
HDMI cable
Amplifier with speaker system
External equipment (DVD Player, etc.)
●
Use HDMI2 to connect the TV to an amplifier which
has
ARC (Audio Return Channel) function.
If connecting to an amplifier without ARC function,
use DIGITAL AUDIO OUT.
TV
Optical cable
DIGITAL AUDIO IN
e.g. Amplifier with speaker system
Note
●
ARC function is not supported when performing
mirroring on the
TV set.
■ Headphones
●
For information about the volume settings, refer to
[eHELP] (Search by Purpose > Settings > Sound).
TV
(3.5 mm stereo mini plug)
■ USB HDD (for recording)
●
Use USB 1 port for connecting the USB HDD.
●
For details, refer to [eHELP] (Search by Purpose >
Recording).
■ VIERA Link
●
Use HDMI1 - 3 for VIERA Link connection.
●
For details, refer to [eHELP] (Search by Purpose >
Functions > VIERA
Link “HDAVI Control™”).
TH_49_55GX740_800AZ.indb 12TH_49_55GX740_800AZ.indb 12 3/12/2019 6:00:16 PM3/12/2019 6:00:16 PM
English
13
Cable arrangement
Fix the cables using the pedestal cover.
Pedestal Cover
1 To remove the pedestal cover, push at the knob area
(A-A & B-B).
B
A
B
A
2 Fix the cable dressing to pedestal and then close the
pedestal cover. Please ensure the pedestal cover fully
fix.
3 Arrange left and right side of the cable dressing as
shown below:
Type 1 (Outside pedestal)
Type 2 (Inside pedestal)
Note
●
Fix cables as necessary.
●
Follow the assembly manual to fix cables.
Attaching the cable cover / terminal cover
●
Do not apply load to the cable cover / terminal cover.
●
Be careful not to nip the cables between the TV and
the cable cover / terminal cover
.
●
When using USB 2 port, USB 3 port or HDMI3
terminal or DIGIT
AL AUDIO OUT, you cannot attach
the cable cover. Keep the removed cable cover for
future use.
●
When using AV terminal, you cannot attach the
terminal cover
. Keep the removed terminal cover for
future use.
(Applicable for GX800 series only)
Terminal
cover
Cable
cover
TH_49_55GX740_800AZ.indb 13TH_49_55GX740_800AZ.indb 13 3/12/2019 6:00:17 PM3/12/2019 6:00:17 PM
English
14
8 [Option Menu]
●
Easy optional setting for viewing, sound, etc.
9 Coloured
buttons
(red-green-yellow-blue)
●
Used for the selection, navigation and operation of
various functions.
10
Volume Up / Down
11
Numeric buttons
●
Changes channel.
Australia
●
Changes channel and teletext pages.
New Zealand
●
Sets characters.
●
When in Standby mode, switches TV on.
12
[eHELP]
●
Displays [eHELP] (Built-in Operating Instructions).
13
[My App]
●
Assigns a favourite application. After setting, starts
the application easily by pressing this button.
●
For details, refer to [eHELP] (Search by Purpose >
Home >
Apps > My App)
14
Input mode selection
●
TV - switches to Digital TV / Analogue TV.
Australia
●
TV - switches to Satellite TV / Digital TV / Analogue
TV
.
New Zealand
●
AV - switches to AV input mode from Input
Selection list.
15
Audio Description
●
Displays [Audio Description].
16
Subtitles
●
Displays [Subtitle Menu].
17
Exit
●
Returns to normal viewing screen.
18
HOME
●
Displays [Home].
●
For details, refer to [eHELP]
(Search by Purpose > Read first > Features).
19
APPS
●
Displays [Apps] (applications list).
20
Cursor buttons
●
Makes selections and adjustments.
21
Return
●
Returns to the previous menu / page.
22
Channel Up / Down
23
Sound Mute On / Off
24
Last view
●
Switches to previously viewed channel or input
mode.
25
Operations for contents, connected equipment,
etc.
26
Aspect
●
Changes aspect ratio.
Identifying Controls
Remote Control
1 [ ]: Switches TV On or Off (Standby)
2 TV Guide
3 [Main Menu]
●
Press to access Picture, Sound, Network, Timer,
Setup and Help Menus, etc.
4 T
eletext button
●
This button is not used for this model.
Australia
●
Switches to teletext mode.
New Zealand
5 Information
●
Displays channel and programme information.
6 Netflix
●
Accesses NETFLIX service directly.
●
A broadband network environment is required in
order to fully use this function.
●
This service may be stopped or changed without
notice.
7 OK
●
Confirms selections and choices.
●
Press after selecting channel positions to quickly
change channel.
●
Displays channel list.
TH_49_55GX740_800AZ.indb 14TH_49_55GX740_800AZ.indb 14 3/12/2019 6:00:18 PM3/12/2019 6:00:18 PM
English
15
5 Channel Up / Down
Cursor Up / Down (when in the menu system)
6 Volume Up / Down
Cursor Left / Right (when in the menu system)
7 Mains power On / Off switch
●
Use to switch the mains power.
●
To turn Off the apparatus completely, you must pull
the mains plug out of the mains socket.
●
[
]: Standby / On
■ Installing / Removing batteries
Pull open
Hook
Note the correct
polarity (+ or -)
Close
Indicator / Control panel
●
When pressing 4, 5, 6 buttons, the control panel
guide appears on the right side of the screen for
3 seconds to highlight which button has been
pressed.
123
7
5
4
6
Rear side of the TV
Note
●
Location of indicators may vary depending on the
models.
1 Power
LED
Red: Standby
Green: On
• Depending on the ambient brightness,
adjusts the brightness of LED to easy-to-
view levels automatically.
Orange: Standby with some functions (recording,
etc.) active
●
The LED blinks when the TV receives a command
from the remote control.
2 Ambient
sensor
●
Senses brightness to adjust picture quality when
[Ambient Sensor] in the Picture Menu is set to
[On].
3
Remote control signal receiver
●
Do not place any objects between the TV remote
control signal receiver and remote control.
4
Input mode selection
●
Press repeatedly until you reach the desired mode.
[Main Menu]
●
Press and hold for about 3 seconds to display main
menu.
OK (when in the menu system)
TH_49_55GX740_800AZ.indb 15TH_49_55GX740_800AZ.indb 15 3/12/2019 6:00:18 PM3/12/2019 6:00:18 PM
English
16
Tick the TV signal mode to tune, and then select
[Start Auto Tuning]
: Digital TV
: Digital TV (DVB-T2)
: Analogue TV
If satellite TV is selected, select your preferred
Satellite TV search mode
New Zealand
Satellite TV Auto Setup (Select region)
New Zealand
Auto Tuning is now complete and
your TV is ready for viewing.
If tuning has failed check the RF cable, and the network
connection, and then follow the on-screen instructions.
Note
●
The TV goes into Standby mode when no operation
is performed for 4 hours if [Auto Standby] in the
Timer
Menu is set to [On].
●
The TV goes into Standby mode when no signal is
received and no operation is performed for
10 minutes if [No signal Power of
f] in the Timer Menu
is set to [On].
●
To retune all channels
[Auto Tuning] in [Tuning Menu] (Setup Menu)
●
If no satellite channel is found, set [LNB Band
Frequency] to suit your environment.
New Zealand
[LNB Configuration] in [Satellite TV Tuning
Menu] (Setup Menu)
●
To add the available TV signal mode later
[Add TV Signal] in [Tuning Menu] (Setup Menu)
●
Only available when either Analogue or Digital
Signal are selected.
●
To initialise all settings
[Shipping Condition] in [System Menu] (Setup
Menu)
First time Auto
Tuning
When the TV is turned on for the first time, it will
automatically search for available TV channels and give
options to set up the TV.
●
These steps are not necessary if the setup has been
completed by your local dealer
.
●
Please complete connections (p. 9 - 13) and settings
(if necessary) of the connected equipment before
starting
Auto Tuning. For information about the
settings for the connected equipment, read the
manual of the equipment.
1 Plug the TV into a live mains socket
and turn the power on
●
Takes a few seconds to be displayed.
2 Select the following items
Set up each item by following the on-screen instructions.
Example:
Please select your viewing environment.
Home Shop
Viewing environment
■ How to use remote control
Move the cursor
Access the item / store the setting
Return to the previous item (if available)
Select OSD language
Select your State / Territory
Australia
Select [Home]
Select your viewing environment to use in your home
environment.
●
[Shop] is for shop display.
●
To change viewing environment later on, you will
need to initialise all settings by accessing Shipping
Condition.
OTT service advertisement screen
Set up the network connection
TH_49_55GX740_800AZ.indb 16TH_49_55GX740_800AZ.indb 16 3/12/2019 6:00:18 PM3/12/2019 6:00:18 PM
English
17

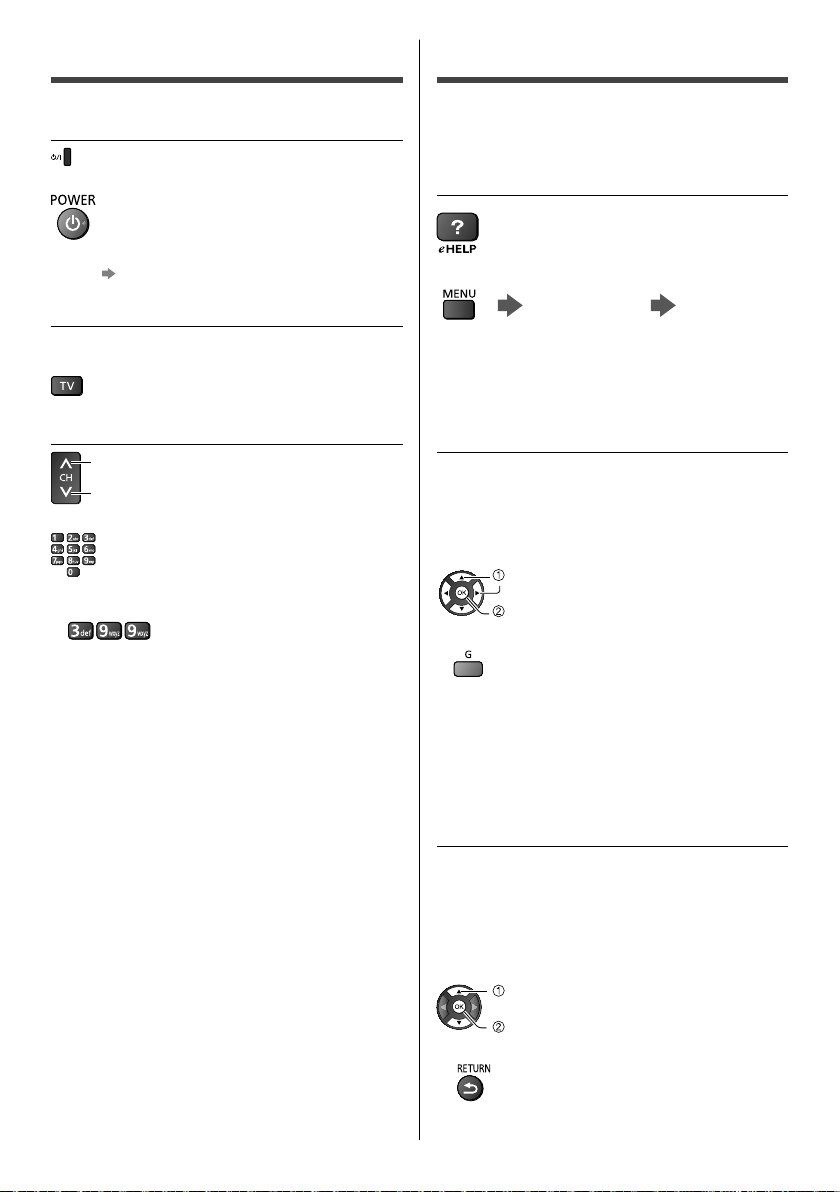

How to Use eHELP
[eHELP] is the detailed operating instructions built into
the TV, and gives a more detailed explanation for a
better understanding of the operation of each feature.
1 Display [eHELP]
or
[Help] [eHELP]
●
If the [eHELP] has been accessed previously since
the
TV was turned on, the confirmation screen is
displayed to select whether to go to the [First page] or
to the [Last viewed page].
2 Select the menu
select
access
●
To access [How to use]
(green)
[Keyword Search]:
Search the content of eHELP in the keyword.
[Search by Purpose]:
Search the content of eHELP for each item.
[Support]:
Access the support information (FAQs, etc.).
3 Select the item
Example:
select item
access
●
To return to the previous screen / field
Watching TV
1 Turn power on
(TV)
or
(Remote Control)
●
Mains power On / Off switch should be on.
(p. 15)
2 Select the mode
●
Selectable modes vary depending on the channels
stored.
3 Select a channel
up
down
or
●
To select a channel position with 2 or more-digit, e.g.
399
TH_49_55GX740_800AZ.indb 17TH_49_55GX740_800AZ.indb 17 3/12/2019 6:00:19 PM3/12/2019 6:00:19 PM
English
18
●
To scroll the description (if more than 1 page)
While the description is highlighted
●
To open the reference screen (
)
●
To display the menu related to the description (only
for some descriptions)
(red)
●
To check the features of this TV
Search by Purpose > Read first > Features
TH_49_55GX740_800AZ.indb 18TH_49_55GX740_800AZ.indb 18 3/12/2019 6:00:19 PM3/12/2019 6:00:19 PM
English
19
FAQs
Before requesting service or assistance, please follow
these simple guides to solve the problem.
●
For details, refer to [eHELP] (Support > FAQs).
The TV does not switch on
●
Check the mains lead is plugged into the TV and the
mains socket.
The TV goes into Standby mode
●
Auto power standby function is activated.
The remote control does not work or is intermittent
●
Are the batteries installed correctly?
(p. 15)
●
Has the TV been switched on?
●
The batteries may be running low. Replace them with
new ones.
●
Point the remote control directly at the TV’s remote
control signal receiver (within about 7 m and a
30 degree angle of the signal receiver).
●
Situate the TV away from sunshine or other sources
of bright light so they do not shine on the
TV’s remote
control signal receiver.
No image is displayed
●
Check the TV is turned on.
●
Check the mains lead is plugged into the TV and the
mains socket.
●
Check the correct input mode is selected.
●
Check the setting of [AV] ([COMPONENT] / [VIDEO])
in [Input Selection] to match the signal being output
by the external equipment.
●
Is [Backlight], [Contrast], [Brightness] or [Colour] in
the Picture Menu set to the minimum?
●
Check all required cables and connections are firmly
in place.
An unusual image is displayed
●
This TV has a built-in Self Test. Makes a diagnosis of
picture or sound problems.
[TV Self Test] (Help Menu)
●
Turn the TV off with Mains power On / Off switch,
then turn it on again.
●
If the problem persists, initialise all settings.
[Shipping Condition] in [System Menu] (Setup
Menu)
The image or sound from external equipment are
unusual when the equipment is connected via HDMI
●
Set [HDMI Auto Setting] (Setup Menu) to [Mode1]
(p. 11)
Parts of the TV become hot
●
Parts of the TV may become hot. These temperature
rises do not pose any problems in terms of
performance or quality
.
When pushed with a finger, the display panel moves
slightly and makes a noise
●
There is a little gap around the panel to prevent
damage to the panel.
This is not a malfunction.
About the inquiry
●
Please contact your local Panasonic dealer for
assistance.
If you make an inquiry from a place where this
TV
is not present, we cannot answer about contents
that require visual confirmation for connection,
phenomenon, etc. of this TV itself.
TH_49_55GX740_800AZ.indb 19TH_49_55GX740_800AZ.indb 19 3/12/2019 6:00:20 PM3/12/2019 6:00:20 PM
English
20
Specifications
■ TV
Model No.
49-inch model
TH-49GX740Z
55-inch model
TH-55GX740A
TH-55GX740Z
TH-55GX800A
Dimensions (W × H × D)
49-inch model
GX740Z:
1 099 mm × 692 mm × 197 mm (With Pedestal)
1 099 mm × 640 mm × 45 mm (TV only)
55-inch model
GX740A/Z:
1 235 mm × 771 mm × 218 mm (With Pedestal)
1 235 mm × 716 mm × 45 mm (TV only)
GX800A:
1 231 mm × 769 mm × 218 mm (With Pedestal)
1 231 mm × 714 mm × 44 mm (TV only)
Mass
49-inch model
16.0 Net (With Pedestal)
15.5
Net (TV only)
55-inch model
19.5 Net (With Pedestal)
19.0
Net (TV only)
Power Rating
49GX740Z:
AC 220-240 V, 50 / 60 Hz, 0.75 A
55GX740A:
AC 220-240 V, 50 / 60 Hz, 0.72 A
55GX740Z:
AC 220-240 V, 50 / 60 Hz, 0.77 A
55GX800A:
AC 220-240 V, 50 / 60 Hz, 0.90 A
Normal (Home) mode
49GX740Z:
77.4 W
55GX740A/Z:
83.1 W
55GX800A:
108.7 W
Maintenance
First, remove the mains plug from the
mains socket.
Display panel, Cabinet, Pedestal
Regular care:
Gently wipe the surface of the display panel, cabinet,
or pedestal by using a soft cloth to remove dirt or
fingerprints.
For stubborn dirt:
(1) First clean the dust from the surface.
(2) Dampen a soft cloth with clean water or diluted
neutral detergent (1 part detergent to 100 parts
water).
(3) Wring out the cloth firmly. (Please note, do not let
liquid enter the TV inside as it may lead to product
failure.)
(4) Carefully wipe moisten and wipe away the stubborn
dirt.
(5) Finally, wipe away all the moisture.
Caution
●
Do not use a hard cloth or rub the surface too hard,
otherwise this may cause scratches on the surface.
●
Take care not to subject the surfaces to insect
repellent, solvent, thinner or other volatile substances.
This may degrade surface quality or cause peeling of
the paint.
●
The surface of the display panel is specially treated
and may be easily damaged.
Take care not to tap or
scratch the surface with your fingernail or other hard
objects.
●
Do not allow the cabinet and pedestal to make
contact with a rubber or PVC substance for a long
time.
This may degrade surface quality.
Mains plug
Wipe the mains plug with a dry cloth at regular intervals.
Moisture and dust may cause fire or electrical shock.
TH_49_55GX740_800AZ.indb 20TH_49_55GX740_800AZ.indb 20 3/12/2019 6:00:20 PM3/12/2019 6:00:20 PM
English
21
DIGITAL AUDIO OUT
PCM / Dolby Digital, Fibre optic
Receiving systems / Band name
Satellite TV
New Zealand
Digital satellite services
Receiver frequency range - 950 MHz to 2150 MHz
DiSEqC - Version 1.0
Digital TV
Australia
7 MHz VHF / UHF (Australia) free-to-air TV
broadcast reception
New Zealand
8 MHz VHF / UHF (New Zealand) free-to-air TV
broadcast reception
PAL B / G
Reception of Off air broadcast
PAL 60 Hz
Playback of NTSC tape from some PAL Video
recorders (VCR)
M.NTSC
Playback from M.NTSC Video recorders (VCR)
NTSC
Playback from NTSC Video recorders (VCR)
Satellite dish input
New Zealand
Female F-type 75 x 1
Aerial input
Standard Belling & Lee connector
VHF / UHF
Operating conditions
Temperature
0 °C - 35 °C
Humidity
20 % - 80 % RH (non-condensing)
Built-in wireless LAN
Standard compliance and Frequency range
*
1
IEEE802.11a/n/ac
5.15 GHz -5.35 GHz, 5.47 GHz -5.85 GHz
IEEE802.11b/g/n
2.400 GHz -2.4835 GHz
Standby power consumption
0.50 W
Visible screen size (diagonal)
49-inch model
123 cm
55-inch model
139 cm
Display resolution
3 840 (W) × 2 160 (H)
Panel
LED backlight Liquid Crystal Display
Sound
Speaker output
20 W (10 W + 10 W)
AUDIO OUT
3.5 mm stereo mini jack × 1
Connection terminals
AV IN (COMPONENT / VIDEO)
VIDEO
Pin Jack × 1
1.0 V[p-p] (75 )
AUDIO L - R
Pin Jack × 2
0.5 V[rms]
Y
1.0 V[p-p] (including synchronisation)
P
B/CB, PR/CR
±0.35 V[p-p]
HDMI 1 / 2 / 3 input
TYPE A Connectors
HDMI1 / 3:
4K, Content Type, Deep Colour, x.v.Colour™
HDMI2:
4K, Content Type, Audio Return Channel,
Deep Colour, x.v.Colour™
●
This TV supports “HDAVI Control 5” function.
ETHERNET
10BASE-T
/ 100BASE-TX
USB 1 / 2 / 3
USB1: DC
5 V, Max. 900 mA [SuperSpeed USB
(USB 3.0)]
USB2: DC
5 V, Max. 500 mA [Hi-Speed USB
(USB 2.0)]
USB3: DC
5 V, Max. 500 mA [Hi-Speed USB
(USB 2.0)]
TH_49_55GX740_800AZ.indb 21TH_49_55GX740_800AZ.indb 21 3/12/2019 6:00:20 PM3/12/2019 6:00:20 PM
English
22
Security
WPA2-PSK (TKIP/AES)
WPA-PSK (TKIP/AES)
WEP (64 bit/128 bit)
Bluetooth wireless technology
*
2
Standard Compliance
Bluetooth 4.2
Frequency Range
2.402 GHz - 2.480 GHz
*1
: The frequency and channel differ depending on the
country.
*2
: Not all the Bluetooth compatible devices are
available with this TV. Up to 5 devices can be used
simultaneously.
Note
●
Design and Specifications are subject to change
without notice. Mass and Dimensions shown are
approximate.
●
For information about the open source software, refer
to [eHELP] (Search by Purpose > Read First > Before
use > License).
TH_49_55GX740_800AZ.indb 22TH_49_55GX740_800AZ.indb 22 3/12/2019 6:00:20 PM3/12/2019 6:00:20 PM
Australia
Panasonic Warranty
1.
Subject to the conditions of this warranty Panasonic or its Authorised Service Centre will perform necessary service on
the product, without charge for parts or labour, if in the opinion of Panasonic the product is found to have a
manufacturing defect within one (1) year or (12 months) (the “warranty period”) from the date of purchase appearing
on your purchase receipt.
2. This warranty only applies to Panasonic products purchased in Australia and sold by Panasonic Australia, it’s Authorised
Distributors, or Dealers, and only where the products are used and serviced within Australia or its territories. Warranty
cover only applies to the services that are carried out by a Panasonic Authorised Service Centre and only if valid proof of
purchase is presented when the warranty service is requested.
3. This warranty only applies if the product has been installed and/or used in accordance with the manufacturer’s
recommendations (as noted in the operating instructions) under normal use and reasonable care (in the opinion of
Panasonic). The warranty does not cover damage, malfunction or failure resulting from use of incorrect voltages,
incorrect installation, accident, misuse, neglect, build-up of dirt or dust, abuse, maladjustment of customer controls,
mains supply problems, thunderstorm activity, infestation by insects or vermin, tampering or repair by unauthorised
persons (including unauthorised alterations), exposure to abnormally corrosive conditions, or any foreign object or
matter having entered the product.
4. This warranty does not cover the following items unless the fault or defect existed at the time of purchase:
(a) Consumable parts
(b) Cosmetic parts
(c) Worn or damaged parts
(d) Information stored on Hard Disk Drives, Optical Discs, USB Devices, SD Cards, Tapes
(e) DTV reception issues caused by TV Aerial / Cabling / Wall socket(s)
5. Some products may be supplied with Ethernet connection hardware. The warranty is limited on such products and will
not cover:
(a) Internet and or DLNA connection / setup related problems
(b) Access fees and or charges incurred for internet connection
(c) Incompatible software or software not specifically stipulated in the product operations manual; and
(d) Any indirect or consequential costs associated with the incorrect use or misuse of the hardware, its connection to
the internet or any other device.
6. To claim warranty service, when required, you should:
Contact Panasonic’s Customer Care Centre on 132 600 for Service Centre information.
Confirm the opening and acceptance times with the Authorised Service Centre that you choose.
Then send or take the product to a Panasonic Authorised Service Centre together with your proof of purchase
receipt.
Any freight and insurance costs associated with the transport of the product to and/or from your nearest
Authorised Service Centre must be arranged and paid for by you.
7. The warranties hereby conferred do not extend to, and exclude, any costs associated with the installation, de-installation
or re-installation of a product, including costs related to the mounting, de-mounting or remounting of any screen, (and
any other ancillary activities), delivery, handling, freighting, transportation or insurance of the product or any part thereof
or replacement of and do not extend to, and exclude, any damage or loss occurring by reason of, during, associated with,
or related to such installation, de-installation, re-installation or transit.
Panasonic Authorised Service Centres are located in major metropolitan areas and most regional centres of Australia,
however, coverage will vary dependant on product. For advice on exact Authorised Service Centre locations for your product,
please telephone our Customer Care Centre on 132 600 or visit our website and use the Service Centre Locator.
In addition to your rights under this warranty, Panasonic products come with consumer guarantees that cannot be excluded
under the Australian Consumer Law. If there is a major failure with the product, you can reject the product and elect to have
a refund or to have the product replaced or if you wish you may elect to keep the goods and be compensated for the drop
in value of the goods. You are also entitled to have the product repaired or replaced if the product fails to be of acceptable
quality and the failure does not amount to a major failure.
If there is a major failure in regard to the product which cannot be remedied then you must notify us within a reasonable
period by contacting the Panasonic Customer Care Centre. If the failure in the product is not a major failure then Panasonic
may choose to repair or replace the product and will do so in a reasonable period of time from receiving notice from you.
THIS WARRANTY CARD AND THE PURCHASE DOCKET (OR SIMILAR PROOF OF PURCHASE)
SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES
If you require assistance regarding warranty conditions or any other enquiries, please visit the Panasonic
Australia website
www.panasonic.com.au
or
contact by phone on
132 600
If phoning in, please ensure you have your operating instructions available.
Panasonic Australia Pty. Limited
ACN 001 592 187 ABN 83 001 592 187
1 Innovation Road, Macquarie Park NSW 2113
www.panasonic.com.au
PRO-031-F11 Issue: 5.0 23-01-2018
TH_49_55GX740_800AZ.indb 23TH_49_55GX740_800AZ.indb 23 3/12/2019 6:00:20 PM3/12/2019 6:00:20 PM
Customer’s Record
The model number and serial number of this product may be found on its rear panel. You should note this serial
number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of
your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.
Model Number Serial Number
Web Site: http://www.panasonic.com
© Panasonic Corporation 2019
English
Printed in Malaysia
04-2019
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union. If you wish to discard this product, please contact
your local authorities or dealer and ask for the correct method of disposal.
New Zealand
WARRANTY - New Zealand only
Distributed in New Zealand by Panasonic New Zealand Limited
18 Sir Woolf Fisher Drive, Highbrook, East Tamaki, Private Bag 14911, Panmure, Auckland
Tel. 09 272 0100
Customer Care Center
Email: [email protected]
www.panasonic.co.nz
