Thank you for choosing this washer. This
owner's guide will explain proper operation
and care.
Read and Save These Instructions
Model Number:
Número de Modelo:
Numéro de modèle:
Serial Number:
Número de Serie:
Numéro de série:
Purchase Date:
Fecha de compra:
Date d’achat:
Register Your Product
The self-addressed PRODUCT
REGISTRATION CARD should be filled in
completely, signed and returned.
Registro del Producto
Le agradecemos que haya seleccio-nado esta
lavadora. En este manual del usuario encontrará
las intrucciones apropiadas para su
funcionamiento y cuidado.
Registre su Producto
La TARJETA DE REGISTRO DEL PRODUCTO ya
dirigida debe ser llenada, firmada y enviada.
Record Your Model and Serial Numbers
The model and serial numbers of your washer are found on the washer serial
plate located at the top, inside of the door opening. Record and retain these
numbers.
Anote su Número de Modelo y de Serie
Anote a continuación el número de modelo y de serie que se encuentran en la placa
de serie situada en el interior de la puerta de la lavadora. Conserve estos números
para referencia futura.
TUMBLE ACTION WASHER
Use & Care Guide
MACHINE À LAVER PAR CULBUTAGE
Guide de L’utilisateur
LAVADORA CON TAMBOREACCIÓN
Manual de Uso & Mantenimiento
Enregistrement du produit
Merci d’avoir choisi cette laveuse. Le présent
Guide de l’utilisateur décrit les normes
d’utilisation et d’entretien du produit.
Enregistrer le produit
La CARTE D’ENREGISTREMENT préalablement
adressée doit être remplie en entier, signée et
retournée.
Lisez et conservez ces instructions
Le numéro de modèle et de série de votre machine à laver par culbutage se
trouve, sur la plaque signalétique située sur la partie supérieure de la contre-
porte. Notez et conservez ces numéros.
Contents
2
Read all instructions before using this washer.
To reduce the risk of fire, electrical shock, or injury to persons when using this washer,
comply with the basic warnings listed below.
Failure to comply with these warnings could result in serious personal injuries.
Prevent Fire
Do not wash items that have been previously cleaned in, soaked in, or spotted with
gasoline, cleaning solvents, kerosene, cooking oils, waxes, etc. Do not store these items on or near
the washer. These substances give off vapors or chemical reactions that could ignite or explode.
Do not put oily or greasy rags or clothing on top of the washer. These substances give
off vapors that could ignite the materials.
Do not add gasoline, cleaning solvents, or other flammable or explosive substances to
the wash water. These substances give off vapors that could ignite or explode.
Under certain conditions, hydrogen gas may be produced in a hot water system that
has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system
has not been used for such a period, before using the washer, turn on all hot water faucets and
let the water flow from each for several minutes. This will release any accumulated hydrogen gas.
Hydrogen gas is flammable; do not smoke or use an open flame during this time.
Failure to comply with these warnings could result in fire, explosion, serious bodily injury and/
or damage to the rubber or plastic parts of the washer.
Protect Children
Do not allow children to play on or in the washer. Close supervision of children is necessary
when the washer is used near children. As children grow, teach them the proper, safe use of all
appliances.
Destroy the carton, plastic bag and other packing materials after the washer is
unpacked. Children might use them for play. Cartons covered with rugs, bedspreads or plastic
sheets can become airtight chambers.
Keep laundry products out of children's reach. To prevent personal injury, observe all
warnings on product labels.
Before the washer is removed from service or discarded, remove the washer door to
prevent accidental entrapment.
Failure to comply with these warnings could result in serious personal injuries.
Prevent Injury
To prevent shock hazard and assure stability during operation, the washer must be
installed and electrically grounded by a qualified service person in accordance with local codes.
Installation instructions are packed in the washer for installer's reference. Refer to INSTALLATION
INSTRUCTIONS for detailed grounding procedures. If the washer is moved to a new location, have
it checked and reinstalled by a qualified service person.
To prevent personal injury or damage to the washer, the electrical power cord of the
washer must be plugged into a properly grounded and polarized 3-prong outlet. The third
grounding prong must never be removed. Never ground the washer to a gas pipe. Do not
use an extension cord or an adaptor plug.

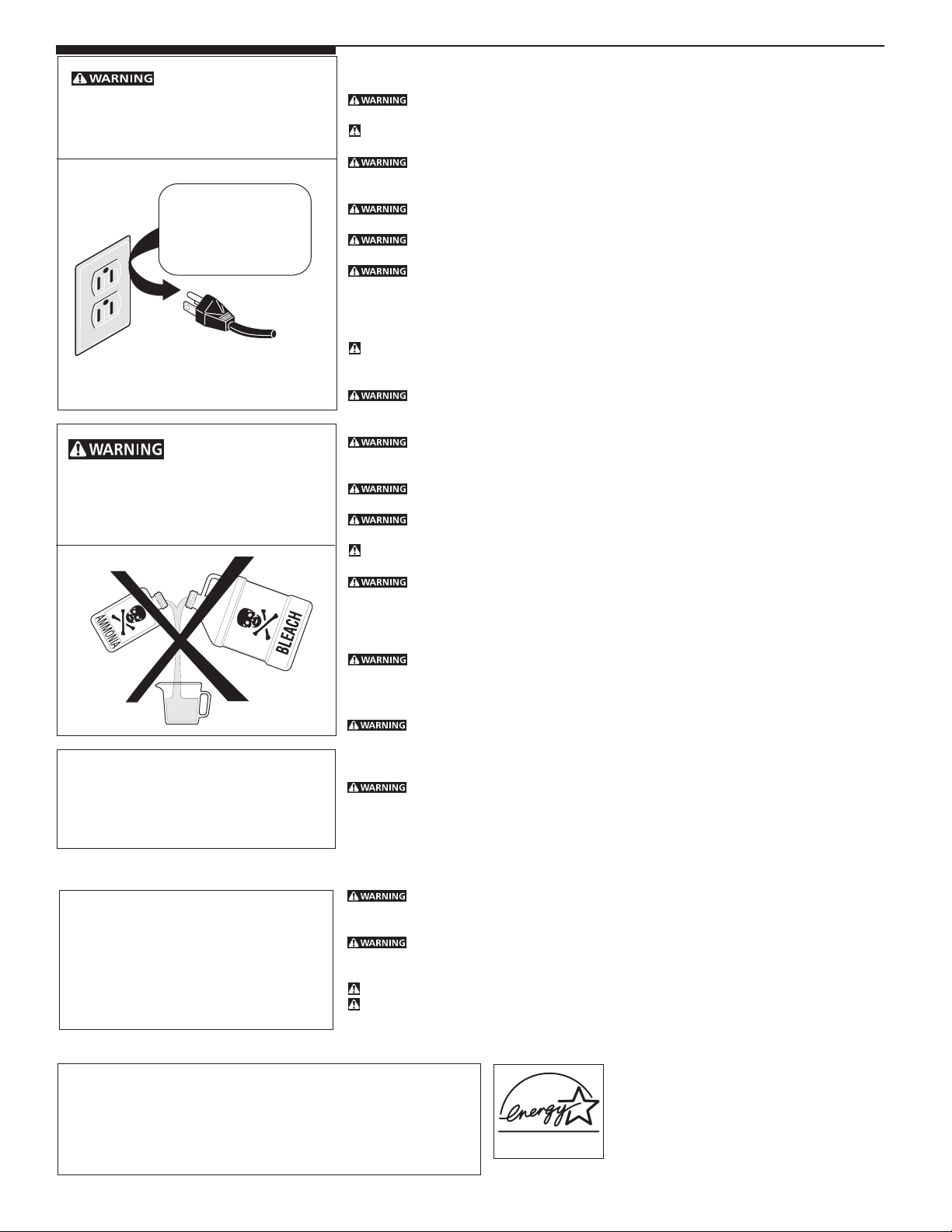

Important Safety Instructions
FOR YOUR SAFETY
Do not store or use gasoline or other
flammable vapors or liquids in the
vicinity of this or any other appliance.
This Owner's Guide provides general operating
instructions for your washer. It also contains
information about features for several other
models. Your washer may not have every
feature included here.
Use the washer only as instructed in this Owner's
Guide and the Operating Instructions
included with your washer.
Note: The instructions appearing in this Owner's Guide are not
meant to cover every possible condition and situation that may
occur. Common sense and caution must be practiced when
installing, operating and maintaining any appliance.
Avoid fire hazard or electrical
shock. Do not use an adaptor plug or extension
cord or remove grounding prong from electrical
power cord. Failure to follow this warning can
cause serious injury, fire or death.
CORRECT Use this way ONLY
Grounding type
wall receptacle
Power supply cord with 3-prong
grounding plug
Do not under any
circumstances, cut,
remove, or bypass the
grounding prong from
this plug.
Do not use or mix liquid
chlorine bleach with other household chemicals
such as toilet cleaners, rust removers, acid or
products containing ammonia. These mixtures
can produce dangerous fumes which can cause
serious injury or death.
SAVE THESE INSTRUCTIONS
As an ENERGY STAR Partner,
Frigidaire Home Products has
determined that this product meets
the ENERGY STAR guidelines for
energy efficiency.
®
®
Follow package directions when using laundry products. Incorrect usage can produce
poisonous gas--resulting in serious injury or death.
• Do not combine laundry products for use in 1 load unless specified on the label.
• Do not mix chlorine bleach with ammonia or acids such as vinegar.
To prevent serious personal injury and damage to the washer:
• All repairs and servicing must be performed by an authorized servicer unless specifically
recommended in this Owner's Guide. Use only authorized factory parts.
•Do not tamper with controls.
• Do not install or store the washer where it will be exposed to the weather.
• Do not install on carpet. Install washer on a solid floor. It may be necessary to reinforce the
floor to prevent vibration or movement.
To reduce the risk of electric shock, disconnect this appliance from the power supply
before attempting any user maintenance. Turning the controls to the OFF position does not
disconnect this appliance from the power supply.
To prevent injury, do not reach into the washer while parts are moving. Before loading,
unloading or adding items, push in the cycle selector knob and allow the drum to coast to a complete
stop before reaching inside.
Failure to comply with these warnings could result in serious personal injuries.
This washer is equipped with an electrical overload protector. The motor will stop if it becomes
overheated. The washer will automatically restart after a cool down period of up to 30 minutes,
if the washer has not been manually turned off during this time.
ENERGY STAR
3

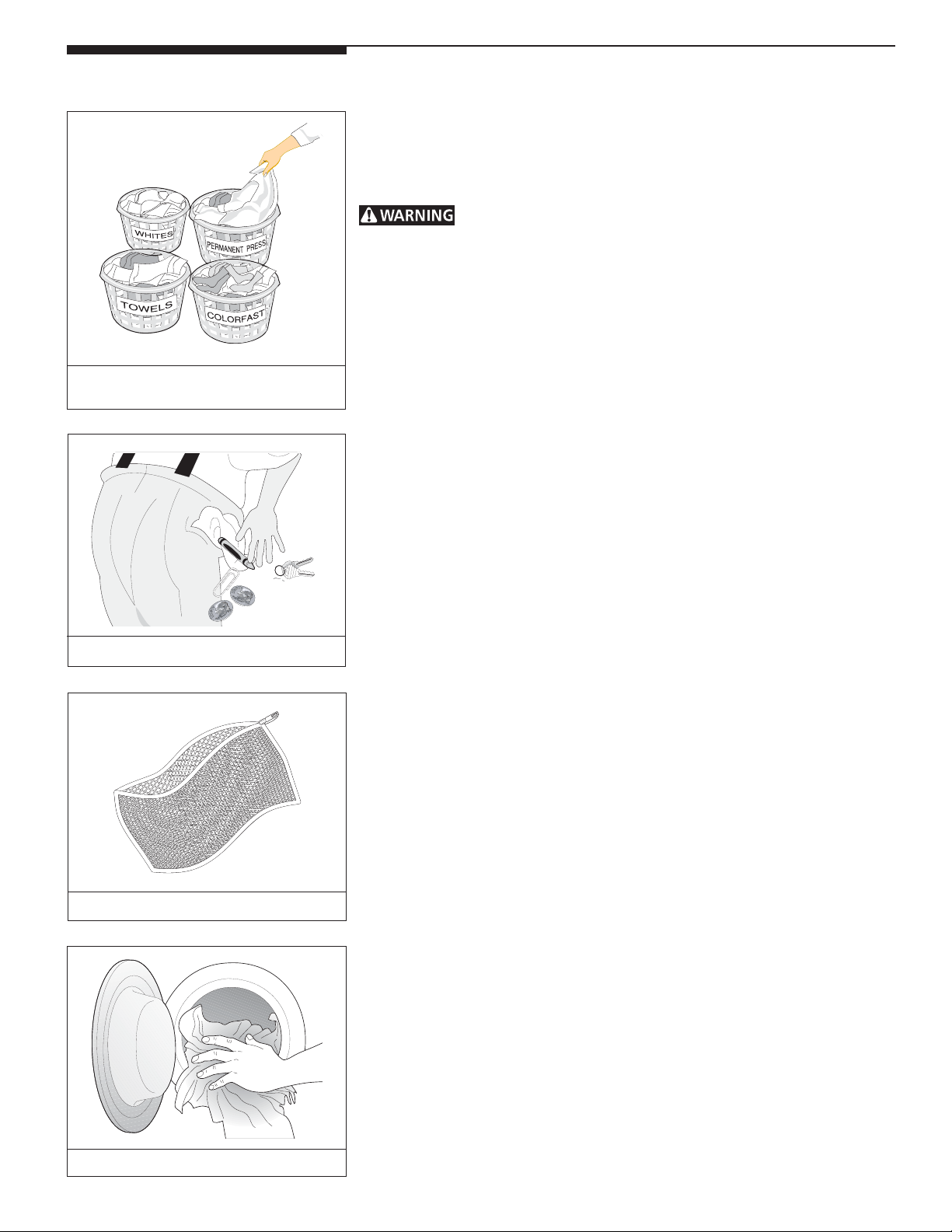

Washing Procedures
• Follow the guidelines below for preparing the wash load.
• Read the Operating Instructions card for operating your specific model.
• Always read and follow fabric care and laundry product labels.
To reduce the risk of fire, electrical shock, or injury to persons, read
Important Safety Instructions before operating this washer.
1. Sort laundry into loads that can be washed together.
Sort items by recommended water temperatures and wash time.
• Separate white, light, and colorfast items from dark and noncolorfast items.
• Separate items which shed lint from items which attract lint. Permanent
press, synthetic, knit and corduroy items will pick up lint from towels, rugs
and chenille bedspreads.
• Separate heavily soiled items from lightly soiled items.
• Separate lacy, sheer and loosely knit items from sturdy items.
• Do not machine wash items containing fiberglass. Small particles of
fiberglass left in the drum may stick to fabrics in other loads and cause skin
irritation.
2. Prepare items for washing.
• Empty pockets.
• Brush off lint and dirt. Shake out rugs and beach towels.
• Close zippers, fasten hooks, tie strings and sashes, and remove nonwashable
trims and ornaments.
• Remove pins, decorative buttons, belt buckles, and other objects which
could be damaged. This also helps protect other items in the wash load.
• Mend rips and tears to prevent further damage during washing.
• Place delicate items such as bras, shoulder pads, hosiery, and belts in a mesh
bag to prevent tangling during the wash cycle.
• Turn knit items inside out to prevent pilling.
3. Pretreat stains and heavy soil.
See Stain Removal for details.
4. Add laundry load to washer.
• Combine large and small items in a load. Load large items first. Large items
should not be more than half the total wash load.
• Washing single items such as a sweater, towel or jeans may cause an out-
of-balance load. Add 1 or 2 similar items to help balance the load.
• Single heavy items such as a bedspread can be washed separately.
• The washer can be fully loaded, but the items should not be tightly packed.
The door should close easily.
Sort laundry into loads that can be
washed together.
Empty pockets.
Place delicate items in a mesh bag.
Add laundry load to washer.
4

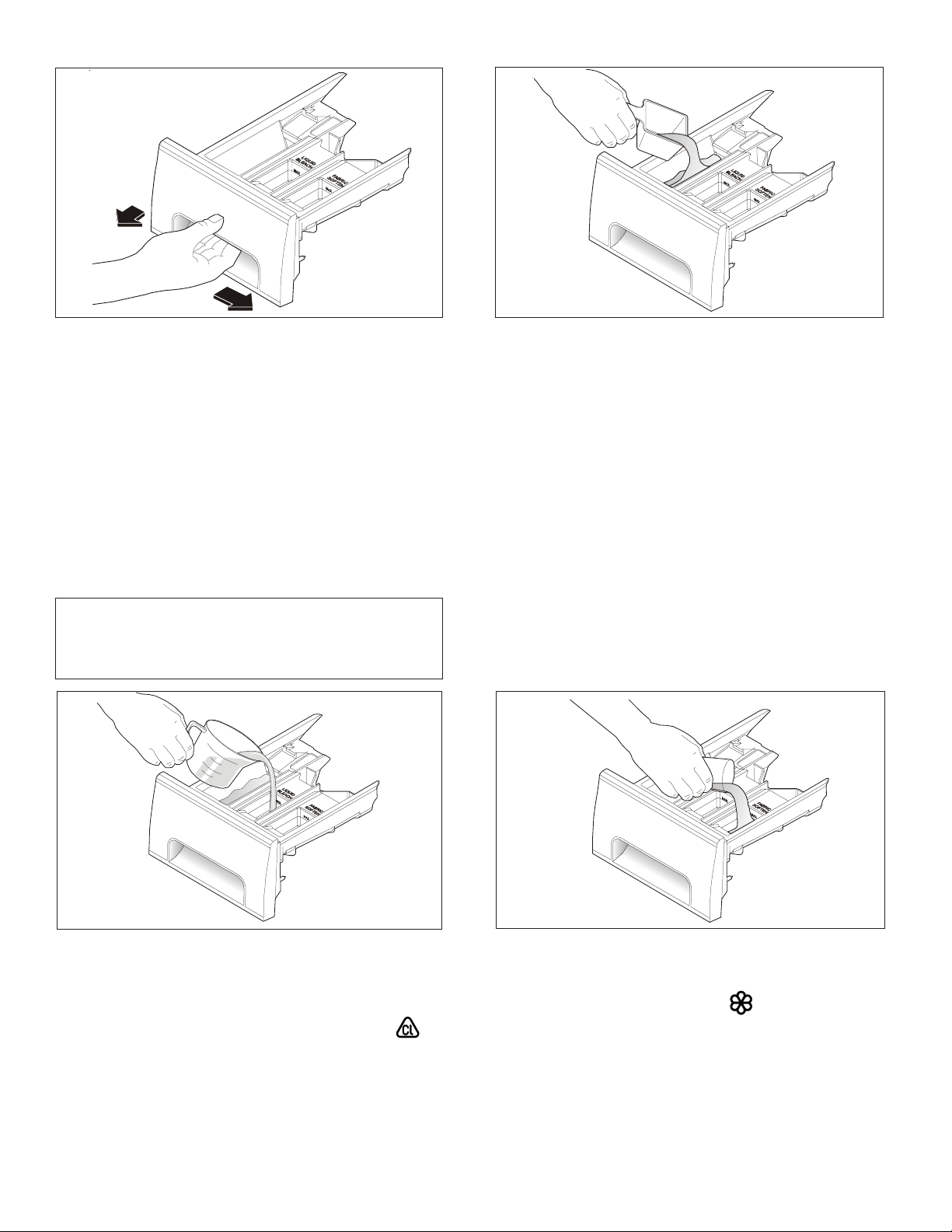

B. DETERGENT
• Add measured detergent to the detergent compartment
of the dispenser drawer.
• Detergent is flushed from the dispenser at the beginning
of the cycle. Either powdered or liquid detergent can
be used. Note: Liquid detergent will drain into the
washer drum as it is added.
• Low sudsing detergent is recommended for this washer.
Use the manufacturer's recommended amount.
• If low sudsing detergent is not available, a reduced
amount of regular detergent may be used. Because
reducing the amount of detergent may reduce cleaning,
it is important to pretreat stains, sort carefully by color
and soil level, and avoid overloading.
• Detergent usage may need to be adjusted for water
temperature, water hardness, size and soil level of the
load.
• For best results, avoid oversudsing.
• Laundry products used with powder or liquid detergent,
such as color-safe bleach, water conditioner, detergent
booster, and enzyme products should be added to the
empty tub before loading.
5.5.
5.5.
5.
Add detergent, bleach and fabric softener to automatic dispenser following these steps:Add detergent, bleach and fabric softener to automatic dispenser following these steps:
Add detergent, bleach and fabric softener to automatic dispenser following these steps:Add detergent, bleach and fabric softener to automatic dispenser following these steps:
Add detergent, bleach and fabric softener to automatic dispenser following these steps:
Note: From time to time you may see water in the bleach
and fabric softener compartments. This is a result of the
siphoning action and is part of the normal operation of the
washer.

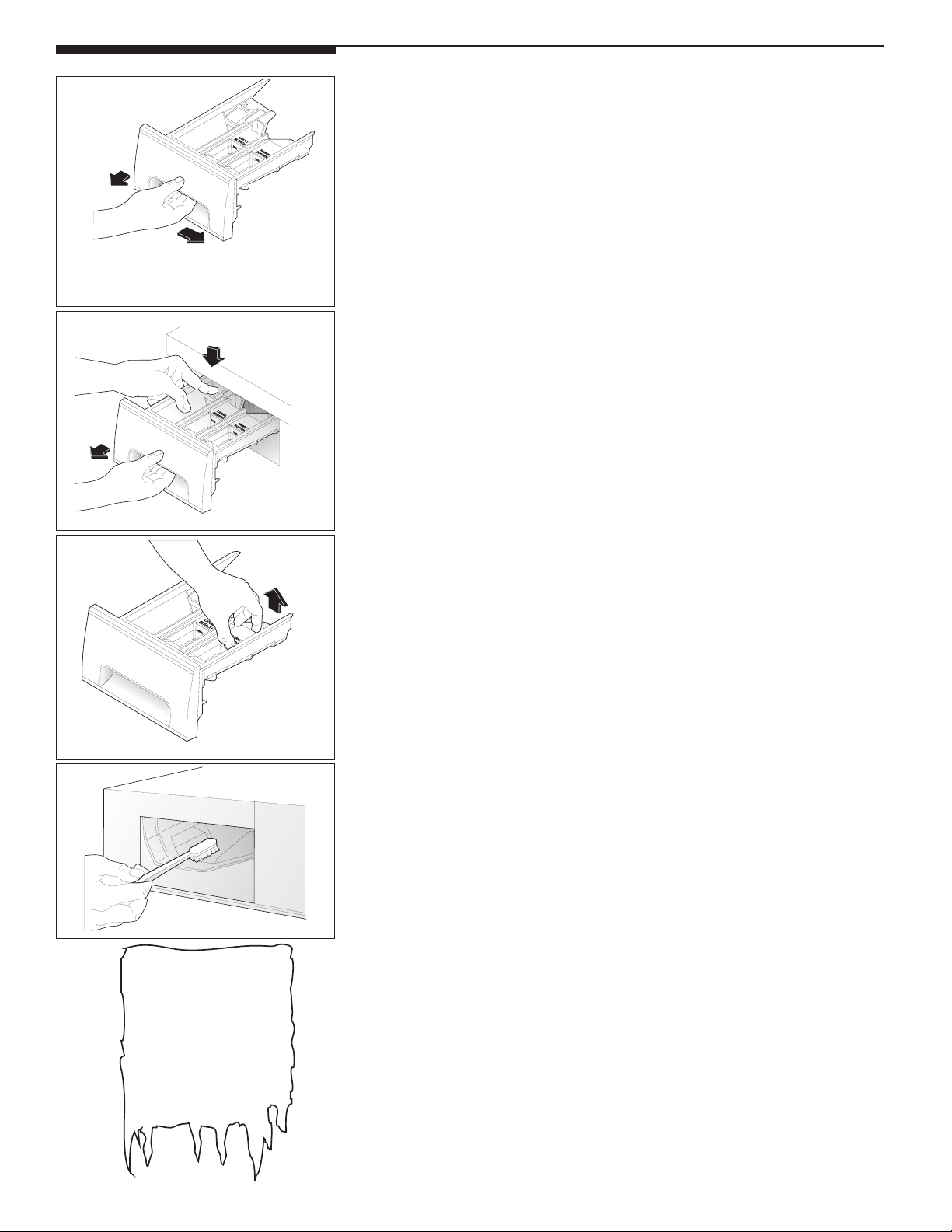

A. OPENING AND CLOSING THE DISPENSER DRAWER
• Slowly open the dispenser drawer by first sliding the
safety latch to the right, then pulling the drawer out
until it stops.
• After adding laundry products, slowly close the dispenser
drawer. Closing the drawer too quickly could result in
early dispensing of the bleach and fabric softener.
• Dispenser drawer should be completely closed for
powdered detergent, bleach and fabric softener to
despense.
C. LIQUID BLEACH
• If desired, measure out the recommended amount of
liquid chlorine bleach (not to exceed 1/3 cup (80 mL))
and pour it into the center compartment labeled
"Liquid Bleach" and marked with this symbol .
• Do not exceed the maximum fill line. Overfilling can
cause early dispensing of the bleach which could result
in damaged clothes.
• Do not pour undiluted liquid chlorine bleach directly
onto the load or into the drum. Fabric damage can
occur.
• Do not use powdered bleach in the dispenser.
D. FABRIC SOFTENER
• If desired, pour the recommended amount of fabric
softener into the compartment labeled "Fabric Softener"
and marked with this symbol .
• Dilute concentrated softeners with warm water to the
Fill Line.
• Do not exceed the maximum fill line. Overfilling can
cause early dispensing of the fabric softener which
could result in stained clothes.
• Do not pour fabric softener directly on the wash
load.
• Use of a fabric softener dispensing ball is not
recommended in tumble action washers.
5
WW
WW
W
ashing Prashing Pr
ashing Prashing Pr
ashing Pr
ocedurocedur
ocedurocedur
ocedur
eses
eses
es
(continued)(continued)
(continued)(continued)
(continued)
6. Set cycle selector knob and washer controls according to
type, size, and soil level of each load.
(See Operating Instructions for your specific model controls.)
7. Start the washer.
Close the washer door and pull out the cycle selector knob. For your safety, the
door will automatically lock during the entire wash cycle. The Door Lock indicator
light will remain lit until the cycle ends.
• Washer will fill and tumble.
• To stop the washer, push in the cycle selector knob.
• To open the door during tumbling, push in the cycle selector knob. Wait for
the water to run off of the door.
• To change a cycle, push in the cycle selector knob and turn it clockwise to
the desired setting. Pull out the knob to restart the washer.
• To open the door during a spin cycle, push in the cycle selector knob. The Door
Lock indicator light will turn off. Wait 1-2 minutes for the lock to release. The
door can then be opened. Do not force open the locked door.
8. Remove items when the cycle is completed.
Place washed items in automatic dryer, line dry, or dry flat as directed by fabric
care label. Excess wrinkling, color transfer or odors may develop in items left in the
washer after the cycle has ended.
9. General Precautions
• Dispenser drawer should be closed completely during operation.
• Do not slam the washer door closed or try to force the door open when
locked (Door Lock light ON). This could result in damage to the washer.

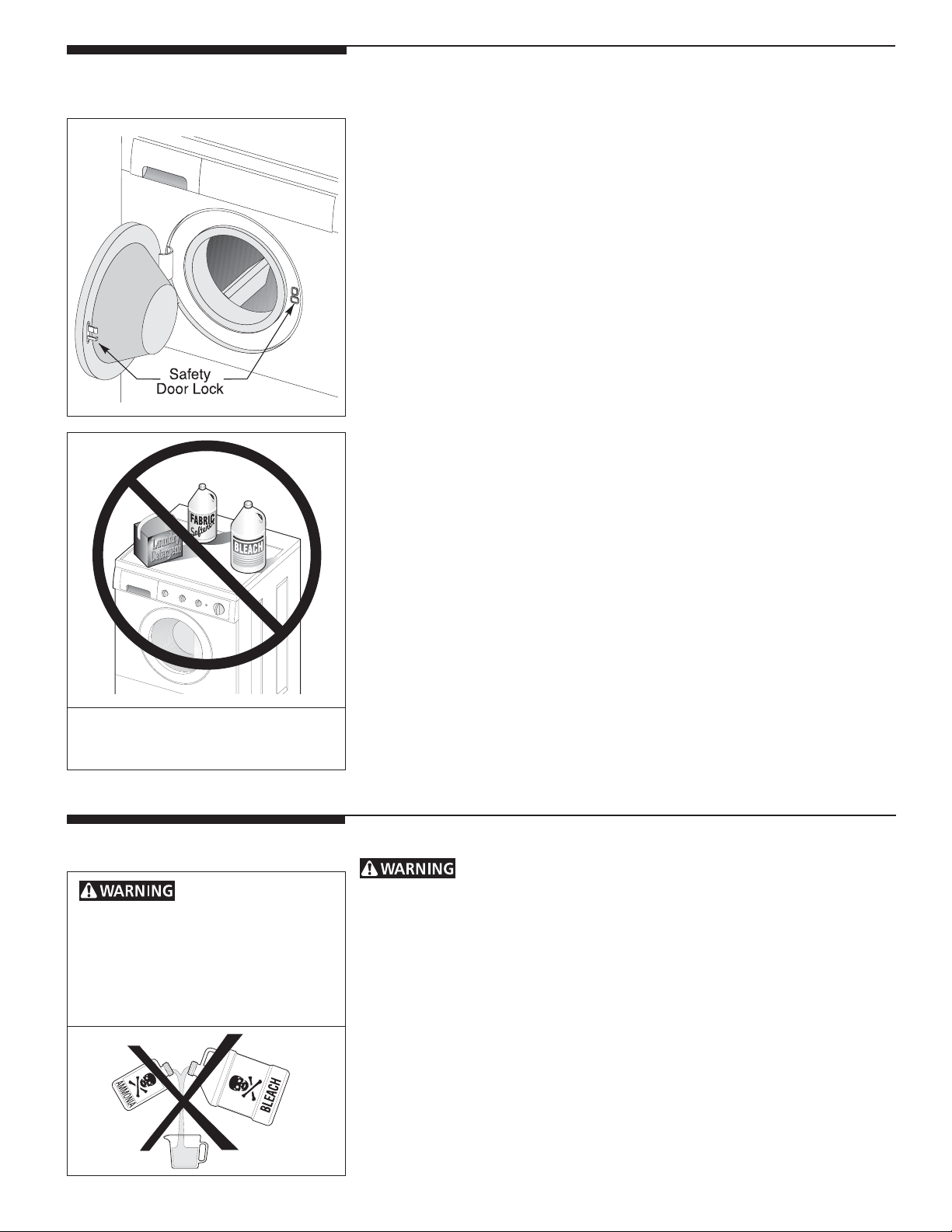

• DO NOT leave the washer door open. An open door could entice children to
hang on the door or crawl inside the washer.
• To avoid damaging the washer and personal injury, DO NOT hang on or lean
against the washer door.
• Do not place detergent, bleach or fabric softener containers on top of the
washer. They can damage the finish or controls.
Safe Stain Removal Procedures
To reduce the risk of fire or serious injury to persons or property,
comply with the basic warnings listed below:
• Read and comply with all instructions on stain removal products.
• Keep stain removal products in their original labeled containers and out of
children's reach.
• Thoroughly wash any utensil used.
• Do not combine stain removal products, especially ammonia and chlorine
bleach. Dangerous fumes may result.
• Never wash items which have been previously cleaned in, washed in, soaked
in or spotted with gasoline, dry cleaning solvents or other flammable or
explosive substances because they give off vapors that could ignite or
explode.
• Never use highly flammable solvents, such as gasoline, inside the home.
Vapors can explode on contact with flames or sparks.
Stain RemovalStain Removal
Stain RemovalStain Removal
Stain Removal
Do not use or mix
liquid chlorine bleach with other
household chemicals such as toilet
cleaners, rust removers, acid or
products containing ammonia. These
mixtures can produce dangerous
fumes which can cause serious injury
or death.
Do not store or place laundry products
on top of washer at any time. They can
damage the finish or controls.
6
For successful stain removal:
• Remove stains promptly.
• Determine the kind of stain, then follow the recommended treatment in the
stain removal chart below.
• To pretreat stains, use a prewash product, liquid detergent, or a paste made
from granular detergent and water.
• Use cold water on unknown stains because hot water can set stains.
• Check care label instructions for treatments to avoid on specific fabrics.
• Check for colorfastness by testing stain remover on an inside seam.
• Rinse and wash items after stain removal.
STAINSTAIN
STAINSTAIN
STAIN
Adhesive tape, chewing
gum, rubber cement
Baby formula, dairy
products, egg
Beverages (coffee, tea,
soda,
juice, alcoholic beverages)
Blood
Candle wax, crayon
Chocolate
Collar or cuff soil, cosmetics
Dye transfer on white
fabric
Grass
Grease, oil, tar (butter, fats,
salad dressing, cooking oils,
car grease, motor oils)
Ink
Mildew, scorch
Mud
Mustard, tomato
Nail polish
Paint, varnish
Perspiration
Rust, brown or yellow
discoloration
Shoe polish
Urine, vomit, mucus, feces
Apply ice. Scrape off excess. Place stain face down on paper towels. Saturate with prewash stain remover or
nonflammable dry cleaning fluid.
Use product containing enzymes to pretreat or soak stains. Soak for 30 minutes or more. Wash.
Pretreat stain. Wash using cold water and bleach safe for fabric.
Rinse with cold water. Rub with bar soap. Or, pretreat or soak with product containing enzymes. Wash using
bleach safe for fabric.
Scrape off surface wax. Place stain face down between paper towels. Press with warm iron until wax is
absorbed. Replace paper towels frequently. Treat remaining stain with prewash stain remover or nonflammable
dry cleaning fluid. Hand wash to remove solvent. Wash using bleach safe for fabric.
Pretreat or soak in warm water using product containing enzymes. Wash using bleach safe for fabric.
Pretreat with prewash stain remover or rub with bar soap.
Use packaged color remover. Wash using bleach safe for fabric.
Pretreat or soak in warm water using product containing enzymes. Wash using bleach safe for fabric.
Scrape residue from fabric. Pretreat. Wash using hottest water safe for fabric. For heavy stains and tar, apply
nonflammable dry cleaning fluid to back of stain. Replace towels under stain frequently. Rinse thoroughly. Wash
using hottest water safe for fabric.
Some inks may be impossible to remove. Washing may set some inks. Use prewash stain remover, denatured
alcohol or nonflammable dry cleaning fluid.
Wash with chlorine bleach if safe for fabric. Or, soak in oxygen bleach and hot water before washing. Badly
mildewed fabrics may be permanently damaged.
Brush off dry mud. Pretreat or soak with product containing enzymes.
Pretreat with prewash stain remover. Wash using bleach safe for fabric.
May be impossible to remove. Place stain face down on paper towels. Apply nail polish remover to back of stain.
Repeat, replacing paper towels frequently. Do not use on acetate fabrics.
WATER BASED: Rinse fabric in cool water while stain is wet. Wash. Once paint is dry, it cannot be removed. OIL
BASED AND VARNISH: Use solvent recommended on can label. Rinse thoroughly before washing.
Use prewash stain remover or rub with bar soap. Rinse. Wash using nonchlorine bleach in hottest water safe for
fabric.
For spots, use rust remover safe for fabric. For discoloration of an entire load, use phosphate detergent and
nonchlorine bleach. Do not use chlorine bleach because it may intensify discoloration.
LIQUID: Pretreat with a paste of granular detergent and water. PASTE: Scrape residue from fabric. Pretreat
with prewash stain remover or nonflammable dry cleaning fluid. Rinse. Rub detergent into dampened area.
Wash using bleach safe for fabric.
Pretreat or soak in product containing enzymes. Wash using bleach safe for fabric.
TREATMENTTREATMENT
TREATMENTTREATMENT
TREATMENT
Stain RemovalStain Removal
Stain RemovalStain Removal
Stain Removal
Follow fabric care label instructions.
7
•Avoid overfilling detergent and fabric
softener compartments of dispenser.
•Sort items by soil level and color.
•Use correct amount of detergent, hottest
water and bleach safe for fabric.
•Use correct amount of detergent and
hottest water safe for fabric.
•Do not pour liquid fabric softener
directly on fabric. See Washing
Procedures for directions on adding
softener.
•Never pour chlorine bleach directly on
fabric.
•Check condition of items before washing.
See Washing Procedures for preparing
and loading the wash load and adding
chlorine bleach.
•See Washing Procedures for sorting and
preparing the wash load.
•Do not overload washer.
•Use correct temperature and amount of
detergent, water and wash time.
•Use fabric softener in the washer to
lubricate fibers.
•When ironing, use spray starch or fabric
finish on collars and cuffs.
•Turn items inside out to reduce abrasion.
•Increase water temperature using hottest
water safe for fabric.
•Do not overload washer.
•Use liquid detergent or use nonprecipitating
water conditioner with nonphosphate
granular detergent.
•Do not overload washer.
•Remove items from washer as soon as cycle
is completed.
•Use liquid fabric softener.
•Select correct wash cycle.
•Use correct amount of detergent.
•Wash synthetics frequently using hot or
warm water.
•Use nonprecipitating water softener.
•Before washing, run hot water for a few
minutes to clear lines.
•Drain water heater occasionally.
•For an ongoing problem, install an iron filter
in your water supply system.
Common WCommon W
Common WCommon W
Common W
ashing Prashing Pr
ashing Prashing Pr
ashing Pr
oblemsoblems
oblemsoblems
oblems
SOLUTIONSSOLUTIONS
SOLUTIONSSOLUTIONS
SOLUTIONS
PROBLEMPROBLEM
PROBLEMPROBLEM
PROBLEM
PREVENTIVE MEASURESPREVENTIVE MEASURES
PREVENTIVE MEASURESPREVENTIVE MEASURES
PREVENTIVE MEASURES
•If caused by detergent, mix 1 cup (240
ml) white vinegar with 1 quart (.95 L)
water in a plastic container. Soak item 1
hour. Rinse.
•If caused by fabric softener, rub stains
with bar soap. Wash.
•Rewash with correct amount of
detergent and hottest water safe for
fabric. Add bleach safe for fabric.
•Treat with prewash stain remover or
liquid detergent.
•Increase detergent and water
temperature. Rewash.
•Rub fabric softener stains with bar soap.
•May be irreversible if rips, tears and
seams cannot be mended.
•Reduce load size. Rewash using correct
water temperature, water level, and
amount of detergent.
•Add nonprecipitating water conditioner
to wash water to remove detergent
residue.
• Add liquid fabric softener to final rinse.
•Dry load in dryer.
•Remove lint with lint brush or roller.
•Use a lint brush or shaver to remove
pills.
•Rewash load.
•Reduce load size.
•Rinse in cold water with liquid fabric
softener using the Perm Press or Delicate
cycle.
•Soak in detergent booster or product
containing enzymes.
•Wash in hot water (120°F/49°C) using full
permanent press cycle. Increase
detergent.
Add bleach safe for fabric.
•Or, treat with color remover.
•To restore discolored load of whites, use
rust remover safe for fabric.
•Do not use chlorine bleach to remove
rust stains. It may intensify
discoloration.
POSSIBLE CAUSESPOSSIBLE CAUSES
POSSIBLE CAUSESPOSSIBLE CAUSES
POSSIBLE CAUSES
Many washing problems involve poor soil and stain removal, residues of lint and scum, and fabric damage. For satisfactory washing
results, follow these suggestions provided by The Soap and Detergent Association.
•Undiluted liquid detergent or
fabric softener dispensed directly
onto fabric.
•Not enough detergent.
•Wash water temperature too
low.
•Incorrect sorting.
•Not enough detergent.
•Undiluted liquid fabric softener
poured directly on fabric.
•Incorrect use of chlorine bleach.
•Unfastened zippers, hooks,
buckles.
•Rips, tears and broken threads.
Overloading the washer.
•Degradation of fabric.
•Incorrect sorting.
•Tissues left in pocket.
•Overloading the washer.
•Not enough detergent.
•Undissolved detergent has left a
residue resembling lint.
•Static cling is attracting lint.
•Load washed too long.
•Pilling is normal with synthetic and
permanent press fabrics. This is
due to abrasion from normal
wear.
•Undissolved detergent.
•Some nonphosphate granular
detergents can combine with
hard water minerals to form a
residue.
•Overloading the washer.
•Overloading the washer.
•Incorrect wash cycle for wash
load.
•Agitation time too short.
•Wash water temperature too
low.
•Not enough detergent.
•Iron or manganese in water
supply, water pipes, or water
heater.
Blue stains
Discoloration,
graying
Greasy, oily stains
Holes, tears, or
snags
Lint
Pilling
(Fibers break off,
ball up and cling to
fabric.)
Residue or powder
on dark items;
Stiff, harsh fabrics.
Wrinkling
Yellow buildup of
body soil on
synthetic fabrics
Yellow or brown
rust stains
8
Care and CleaningCare and Cleaning
Care and CleaningCare and Cleaning
Care and Cleaning
Figure 1
Remove the drawer by first sliding the safety
latch to the right, then pulling the drawer out
until it stops.
(Lock tab is visible only after drawer has been
pulled out)
Figure 2
Outside
• When washing is completed, wipe top and sides of washer with a damp cloth.
Turn water faucets off to prevent pressure build-up in the hoses.
• As needed, clean the cabinet with mild soap and water. Never use harsh, gritty
or abrasive cleansers. If door or console becomes stained, clean with diluted
chlorine bleach [1/2 cup (120 ml) in 1 quart (.95 L) water]. Rinse several times
with clear water.
• Remove glue residue from tape or labels with a mixture of warm water and mild
detergent. Or, touch residue with the sticky side of the tape or label.
• Before moving the washer, place a strip of cardboard or thin fiberboard under
the front leveling legs to prevent floor damage.
Cleaning the Dispenser Drawer Area
Detergent and fabric softener may build up in the dispenser drawer. Residue should
be removed once or twice a month.
• Remove the drawer by first sliding the safety latch to the right, then pulling
the drawer out until it stops. (Figure 1)
• Reach back into the left rear corner of the drawer cavity and press down
firmly on the lock tab (left rear portion of the drawer). Pull out the drawer.
(Figure 2)
• Remove the inserts from the bleach and fabric softener compartments.
(Figure 3)
• Rinse the drawer and inserts with hot tap water to remove traces of
accumulated powders and liquids. Large amounts of fabric softener residue
may indicate improper dilution or more frequent cleaning is required.
• To clean the drawer opening, use a small brush to clean the recess. Remove
all residue from the upper and lower parts of the recess. (Figure 4)
• Return the bleach and fabric softener inserts to their proper compartments.
Replace the dispenser drawer and run the Prewash cycle without any wash
load in the drum.
Inside
• Remove items from the washer as soon as the cycle ends. Excess wrinkling, color
transfer, and odors may develop in items left in the washer.
• Before cleaning the washer interior, unplug the electrical power cord to avoid
electrical shock hazards.
• Dry around the washer door opening, flexible gasket, and door glass. These areas
should always be clean to ensure a water tight seal.
• When extremely soiled items have been washed, a dirty residue may remain on
the drum. Remove this by wiping the drum with a nonabrasive household
cleanser. Rinse thoroughly with water.
• The plastic drum vanes may become stained from fabric dye. Clean these parts
with a nonabrasive household cleanser. This prevents dye transfer to future loads.
Winterizing Instructions
If the washer is stored in an area where freezing can occur or moved in freezing
temperatures, follow these winterizing instructions to prevent damage to the washer:
1. Turn off water supply faucets.
2. Disconnect hoses from water supply and drain water from hoses.
3. Plug electrical cord into a properly grounded electrical outlet.
4. Add 1 gallon (3.8 L) nontoxic recreational vehicle (RV) antifreeze to empty wash
drum. Close door.
5. Set cycle selector knob at a spin setting. Pull out knob and let washer spin for
1 minute to drain out all water. Not all of the RV antifreeze will be expelled.
6. Push in knob, unplug electrical power cord, dry drum interior, and close door.
7. Remove dispenser drawer. Drain any water in compartments and dry
compartments. Replace drawer.
8. Store washer in an upright position.
9. To remove antifreeze from washer after storage, run empty washer through a
complete cycle using detergent. Do not add wash load.
Figure 3
Figure 4
Follow Winterizing
Instructions for cold
weather care.
9
Warm or hot water is not hot enough.
Washer won't spin.
Residue left in drum.
Water collects in bleach and fabric softener
compartments.
WATER
Wash load too wet after spin.
Water in washer does not drain or drains
slowly.
Water does not enter washer or it enters
slowly.
Water leaks.
Incorrect wash and rinse temperatures.
Water is entering washer but tub does not
fill.
• Electrical power cord may not be plugged in or connection may be loose. Make sure plug fits tightly
in wall outlet.
• House fuse blown, circuit breaker tripped, or a power outage has occurred. Reset circuit breaker
or replace fuse. Do not increase fuse capacity. If problem is a circuit overload, have it corrected
by a qualified electrician. If problem is a power outage, call local electric company.
• Water supply faucets are not turned on. Turn on water supply faucets.
• Cycle selector is not in correct position. Move indicator clockwise slightly. Pull out knob.
• Motor is overheated. Washer motor will stop if it becomes overheated. It will automatically restart
after a cool down period of up to 30 minutes (if washer has not been manually turned off).
• Washer door is not completely closed. Close door completely.
• Load is too small. Add 1 or 2 similar items to help balance the load.
• Heavily soiled items. Wipe drum with a nonabrasive household cleanser, then rinse. Shake or brush
excess dirt and sand from items before washing.
• Dispenser drawer open. Drawer should be completely closed for laundry additive to dispense.
• This is a result of the siphoning action and is part of the normal operation of the washer. Water
may be removed by removing the dispenser drawer (see Page 8, Figures 1 and 2) and draining water
into the empty drum or sink.
• Washer is overloaded. Do not overload washer. See Washing Procedures.
• Load is too small. Add 1 or 2 similar items to help balance the load.
• Load is out of balance. Rearrange load to allow proper spinning.
• Drain hose is kinked. Straighten drain hose.
• Water supply is not adequate in area. Check another faucet in the house. Wait until water supply
and pressure increase.
• Water supply faucets are not completely open. Fully open hot and cold faucets.
• Water is being used elsewhere in the house. Water pressure must be at least 30 psi (260 kPa). Avoid
running water elsewhere while washer is filling.
• Water inlet hoses are kinked. Straighten hoses.
• Hot water heater is set too low or is a distance from washer. Measure hot water temperature
at nearby faucet with candy or meat thermometer. Water temperature should be at least 130°F
(70°C). Adjust water heater as necessary.
• Hot water is being used elsewhere in the house. Avoid using hot water elsewhere before or during
washer use. There may not be enough hot water available for proper cleaning. If problem persists,
your hot water system may be unable to support more than 1 use at a time.
• Drain hose is kinked or clogged. Clean and straighten the drain hose.
• House drain pipes are clogged. Unclog drain pipes. Contact plumber if necessary.
• Fill hose connection is loose at faucet or washer. Check and tighten hose connections. Install rubber
sealing washers provided.
• Oversudsing.Use less detergent.
• Dispenser drawer is open. Close drawer when washer is operating..
• Hot and cold water hoses are connected to wrong supply faucets. Connect hot water hose to hot
water faucet and cold water hose to cold water faucet.
• Drain hose standpipe is incorrect height. Standpipe must be a minimum of 23.6" (60 cm) high to
prevent siphoning. See INSTALLATION INSTRUCTIONS.
OPERATING
Avoid Service Checklist
Before calling for service, review this list. It may save both time and expense. The list includes common concerns that are not the result of defective
workmanship or materials in this washer.
POSSIBLE CAUSE / SOLUTION
OCCURRENCE
"Clicking" noise.
High pitch "jet engine" noise.
Rattling and clanking noise.
Squealing sound or hot rubber odor.
Thumping sound.
Vibrating noise.
Washer does not start.
NOISE
• A normal sound made by the timer.
• A certain amount of motor whine is normal during the spin cycle.
• Foreign objects such as coins or safety pins may be in drum or pump. Stop washer and check drum.
If noise continues after washer is restarted, objects may be in pump. Call your authorized servicer.
• Belt buckles and metal fasteners are hitting wash drum. To prevent unnecessary noise and damage
to drum, fasten fasteners and turn items inside out.
• Washer is overloaded. Do not overload washer. Stop washer and reduce load.
• Heavy wash loads may produce a thumping sound. This is usually normal. If sound continues, washer
is probably out of balance. Stop washer and redistribute wash load.
• Washer is not resting firmly on floor. Move washer so it rests firmly on floor. Adjust leveling legs
and tighten lock nuts. See INSTALLATION INSTRUCTIONS for details.
• Shipping bolts and foam block have not been removed during installation. See INSTALLATION
INSTRUCTIONS for removing shipping bolts and foam block.
• Wash load unevenly distributed in drum. Stop washer and rearrange wash load.
Laundry additives didn't dispense.
Your appliance is covered by a one year limited warranty. For one year from your original date of
purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to
be defective in materials or workmanship when such appliance is installed, used and maintained in
accordance with the provided instructions.
This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA or
Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased "as-is" are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,
etc.,which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or
knobs, handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip
charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not limited to floors,
cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES,
INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR.
ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS
PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN
LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE
DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO
YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER
RIGHTS THAT VARY FROM STATE TO STATE.
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period
should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.
Service under this warranty must be obtained by contacting Electrolux at the addresses or phone
numbers below.
Exclusions
If You Need
Service
This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances
North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada
Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and
parts under this warranty must be performed by Electrolux or an authorized service company. Product features or
specifications as described or illustrated are subject to change without notice.
USA
1.800.944.9044
Electrolux Major Appliances
North America
P.O. Box 212378
Augusta, GA 30907
Canada
1.800.668.4606
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
L5V 3E4
Major Appliance Warranty Information
