User Manual
For SMI53E05GB.
Summary of Contents for Bosch SMI53E05GB:
- ( Safety instructions 41
- 7 Protection of the environment 91
- * Getting to know your appliance 91
- + Water softening system/ Special salt 101
- , Rinse aid 121
- - Utensils 131
- . Detergent 171
- / Overview of programmes 201
- 0 Additional options 211
- 1 Operating the appliance 221
- 2 Cleaning and maintenance 252
- 3 Fault, what to do? 272
- 4 Customer service 362
- 5 Installation and connection 362
- 8 Intended use2
- Intended use2
- ( Safety instructions2
- Children from 8 years of age or people whose physical, sensory or mental abilities or their lack of experience or knowledge prevent them from using the appliance safely must not use this appliance without supervision or instruction by a responsible p...2
- Please read the operating and installation instructions carefully. They contain important information on how to install, use and maintain the appliance.2
- Retain all documents for subsequent use or for the next owner.2
- Delivery3
- Installation3
- In daily use4
- Childproof lock (door lock)Door lock *4
- Childproof lock (button lock)Button lock4
- You can secure your appliance from being unintentionally the programme terminated (e.g. improper operation by children).4
- Activating the button lock:4
- If any button is pressed while the programme is running, this ’– is indicated on the digital display. It is not possible to end (Reset) the programme.4
- Deactivating the button lock:5
- When the programme ends (‹:‹‹ on the digital display), the button lock is cancelled. If there is a power failure, the button lock is retained. Whenever a programme is restarted, the button lock must be reactivated.5
- Damage5
- Disposal5
- 1. Make redundant appliances unusable to prevent subsequent accidents.5
- ■ To prevent injuries, e.g. caused by stumbling, open the dishwasher only briefly in order to load and unload the dishwasher.5
- ■ Knives and other utensils with sharp points must be placed in the cutlery basket with the points downwards or horizontally on the knife shelf*.5
- ■ Do not lean or sit on the open door.5
- ■ In the case of free-standing appliances, ensure that the baskets are not overloaded.5
- ■ If the appliance is not in a cavity and a side panel is accessible, the door hinge area must be covered at the side for reasons of safety (risk of injury). The covers are available as optional accessories from customer service or specialist outlets.5
- ■ If fitted, use the childproof lock. An exact description can be found in the back of the enve lope.6
- ■ Do not allow children to play with or operate the appliance.6
- ■ Keep children away from detergents and rinse aid. These may cause chemical burns in the mouth, throat and eyes or asphyxiation.6
- ■ Keep children away from open dishwasher. There may be small parts in the dishwasher which children could swallow and the water inside the dishwasher is not drinking water as it may contain detergent residue.6
- ■ Ensure that children do not place fingers in the tablet collecting tray 1:. Small fingers could become caught in the slots.6
- ■ When opening and closing the door on an eye-level appliance, ensure that children do not become jammed or crushed between the appliance door and the cupboard door below.6
- ■ Children could become locked in the appliance (danger of suffocation) or get into another dangerous situation.6
- 7 Protection of the environment7
- Protection of the environment7
- Both the packaging of new appliances and the old appliances themselves contain valuable raw materials and recyclable materials.7
- Please dispose of the individual parts separated according to type.7
- Please ask your dealer or inquire at your local authority about current means of disposal.7
- All plastic parts of the appliance are identified with internationally standardised abbreviations (e.g. >PS< polystyrene). Therefore, plastic waste can be sorted out when the appliance is being disposed of.7
- Please follow the safety instructions under “Delivery”.7
- Old appliances7
- Please follow the safety instructions under “Disposal of your appliance”.7
- This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling o...7
- * Getting to know your appliance7
- Getting to know your appliance7
- Diagrams of the control panel and the interior of the appliance can be found in the envelope at the front.7
- Individual positions are referred to in the text.7
- ON/OFF switch7
- Programme buttons **7
- Display “Check water supply”7
- Salt refill indicator7
- Rinse aid refill indicator7
- Door opener7
- Timer programming *7
- Additional options **7
- START button7
- Programme sequence indicator7
- Digital display7
- * depending on model7
- ** Number depending on model7
- Appliance interior8
- Overview of menu8
- + Water softening system/Special salt8
- Water softening system/Special salt8
- To ensure good washing results, the dishwasher requires soft water, i.e. containing low amounts of lime, otherwise white limescale will be deposited on the utensils and inner container.8
- Tap water above 1.2 mmol/l must be softened. The water is softened with special salt (regeneration salt) in the water softening system of the dishwasher.8
- The setting and therefore the required amount of salt depends on the degree of hardness of your tap water (see table).8
- The amount of salt dispensed can be set from •:‹‹ to •:‹ˆ.8
- Salt is not required at the set value •:‹‹.8
- Water hardness table9
- Using special salt9
- Using detergents with salt componentDetergents with salt component9
- Switching off salt refill indicator/ water softening systemSwitching off water softening system10
- , Rinse aid10
- Rinse aid10
- As soon as the rinse-aid refill indicator H is lit on the fascia, there is still a rinse-aid reserve of 1-2 rinsing processes. Refill with rinse aid.10
- The rinse aid is required for stain-free utensils and clear glasses. Use only rinse aid for domestic dishwashers.10
- Combined detergents with rinse-aid component may be used up to a water hardness of 21° dH (37° fH, 26° Clarke, 3.7 mmol/l) only. If the water hardness is over 21° dH, rinse aid must be used.10
- The amount of rinse aid can be set from §:‹‹ to §:‹‡. Please set rinse aid on §:‹† to obtain very good drying results (§:‹† is already set in factory).10
- Change this setting, only if streaks (select lower setting) or water stains (select higher setting) are left on the utensils.10
- Switching off rinse aid refill indicator11
- - Utensils11
- Utensils11
- Not suitable11
- Aluminium and silver parts have a tendency to discolour and fade during the wash cycle. Even some types of glass (e.g. crystal glass objects) may turn cloudy after many wash cycles.11
- Glass and utensil damage11
- Loading the dishwasher12
- Unloading the dishwasher12
- To prevent water from dripping off the upper basket onto the utensils in the lower basket, it is recommended to empty the appliance from the bottom up.12
- Hot utensils are sensitive to shock! Therefore, when the programme ends, leave the utensils to cool down in the dishwasher until they can be handled.12
- Cups and glasses12
- Pans13

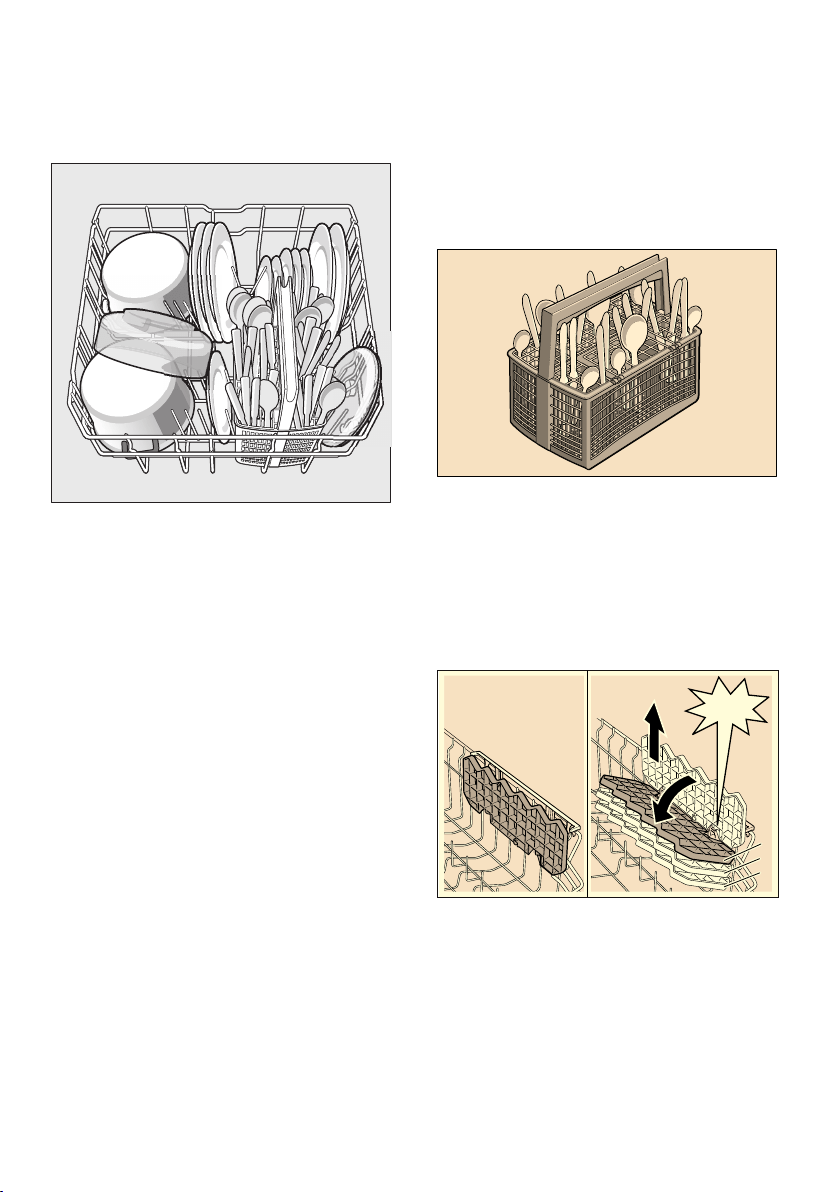

- Cutlery basket13
- EtagereEtagere *13
- The etagere and the space underneath can be used for small cups and glasses or for larger items of cutlery, such as wooden spoons or serving cutlery. The etagere can be folded up if not required.13
- * Depending on the model, a 3-fold height adjustment is possible. To do this, first place the etagere vertically and pull up, then place at a slight angle, push down to the required height (1, 2, or 3) and snap into place.13
- Folding spikesFolding spikes *14
- Small accessories holder *Small accessories holder14
- Knife shelf *Knife shelf14
- Adjusting the height of the basketAdjusting the height of the basket *14
- Top basket with side levers15
- 1. Pull out the top basket 1* out.15
- 2. To lower the basket, press in the left and then the right lever on the outside of the basket. In doing so, hold the sides of the basket along the upper edge to prevent it from suddenly dropping.15
- 3. To raise the basket, hold the basket on the sides of the upper edge and lift it up.15
- 4. Before re-inserting the basket again, ensure that it is at the same height on both sides. Otherwise, the appliance door cannot be closed and the upper spray arm will not be connected to the water circuit.15
- 1. Pull out the top basket 1* out.15
- Top basket with upper and lower roller pairs15
- . Detergent15
- Detergent15
- You can use tablets as well as powder or liquid detergents for dishwashers, but never use washing up liquid. The dosage can be individually adjusted with powder or a liquid detergent according to the degree of soiling. Tablets contain an adequately l...15
- Adding detergent16
- Combination detergent17
- Apart from conventional detergents (Solo), a number of products are offered with additional functions. These products contain not only the detergent but also rinse-aid and salt replacement substances (3in1) and, depending on the combination (4in1, 5i...17
- As soon as combined detergents are used, the rinse programme is adjusted automatically to ensure the best possible rinsing and drying result.17
- / Overview of programmes18
- Overview of programmes18
- The max. possible number of programmes is illustrated in this overview. The corresponding programmes and their arrangement can be found on the fascia.18
- Programme selection18
- Information for test institutes19
- Test institutes receive the information for comparability tests (e.g. according to EN60436).19
- These are the conditions for conducting the tests, however these are not the results or consumption values.19
- Request by e-mail to:19
- [email protected]19
- The product number (E no.) and the production number (FD) are required which you can find on the rating plate 9: on the appliance door.19
- 0 Additional options19
- Additional options19
- * depending on model19
- Additional options can be set with the buttons `.19
- This function can reduce the running time by approx. 20% to 50% depending on the selected rinse programme. The change in the running time is indicated on the digital display )*. To obtain optimum cleaning results at a reduced running time, water and ...19
- Half load§ Half load *19
- · Hygiene *Hygiene19
- Ï Intensive zone *Intensive zone19
- ¿ Extra drying *Extra drying19
- 1 Operating the appliance20
- Operating the appliance20
- Programme data20
- The programme data (consumption values) can be found in the summary of instructions. They refer to normal conditions and the water hardness set value •:‹…. Different influencing factors such as e.g. water temperature or line pressure may result...20
- Aqua sensorAqua sensor *20
- * depending on model20
- The Aqua sensor is an optical measuring device (light barrier) which measures the turbidity of the rinsing water.20
- The Aqua sensor is used according to the programme. If the Aqua sensor is active, “clean” rinsing water can be transferred to the next rinse bath and water consumption can be reduced by 3–6 litres. If the turbidity is greater, the water is drai...20
- Switching on the appliance20
- Programme sequence indicatorProgramme sequence indicator )"20
- Remaining running time display20
- When the programme is selected, the remaining running time of the programme is indicated on the digital display )*.20
- The running time is determined during the programme by the water temperature, the number of utensils as well as the degree of soiling and may vary (depending on the selected programme).20
- Timer programmingTimer programming *21
- * depending on model21
- You can delay the start of the programme in 1-hour steps up to 24 hours.21
- 1. Close the door.21
- 2. Switch on ON/OFF switch (.21
- 3. Press button X + until the digital display )* jumps to œ:‹‚.21
- 4. Press X + or – button until the displayed time corresponds with your requirements.21
- 5. Press START button h, timer programming is activated.21
- 6. To delete timer programming, press the X + or – button until )* œ:‹‹ is indicated on the digital display.21
- 1. Close the door.21
- End of programme21
- Automatic switch off after end of programme or interior light*Automatic switch off / interior light21
- * depending on model21
- To save energy, the dishwasher can be automatically switched off 1 min or 120 min after the programme ends.21
- The setting can be selected from ˜:‹‹ to ˜:‹ƒ.21
- Appliance does not switch off automatically.21
- The interior light 1" comes on when the door is opened irrespective of whether the ON/OFF switch ( is switched on or off. When the door is closed the light is off. If the door is open for longer than 60 min., the light switches off automatically. The...21
- Appliance switches off after 1 min.21
- Appliance switches off after 120 min.21
- Switching off the appliance22
- Interrupting the programme22
- Terminating the programmeTerminating the programme (Reset)22
- Changing the programme22
- Intensive drying22
- 2 Cleaning and maintenance23
- Cleaning and maintenance23
- A regular inspection and maintenance of your machine will help to prevent faults. This saves time and prevents problems.23
- If you find such deposits:23
- Clean the appliance with detergents/ appliance cleaners which are particularly suitable for use with dishwashers.23
- Never use a steam cleaner to clean your dishwasher. The manufacturer is not liable for any consequential damage.23
- Regularly wipe the front of the appliance and fascia with a damp cloth; water and a little washing up liquid are adequate. Do not use sponges with a rough surface or abrasive detergents, as these could scratch the surfaces.23
- Stainless steel appliances: To prevent corrosion, avoid using sponge cloths or wash them out thoroughly several times before using for the first time.23
- Special salt and rinse aid23
- Filters24
- Spray arms24
- 3 Fault, what to do?25
- Fault, what to do?25
- Experience has shown that you can rectify most faults which occur in daily operation yourself. This ensures that the machine is quickly available to you again. In the following overview you can find possible causes of malfunctions and helpful informa...25
- Waste water pump25
- Large food remnants or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will then be above the filter.25
- In this case:25
- 1. First always disconnect the appliance from the power supply.25
- 2. Take out top basket 1* and bottom basket 1j.25
- 3. Remove the filters 1Z.25
- 4. Scoop out water, use a sponge if required.25
- 5. Prise out the white pump cover (as illustrated) using a spoon. Grip the cover on the crosspiece and lift diagonally inwards. Remove cover completely.25
- 6. Check impeller wheel and remove any foreign objects.25
- 7. Place cover in the original position and press down until it engages (click).25
- 8. Install filters.25
- 9. Re-insert baskets.25
- Fault table26
- 1. First always disconnect the appliance from the power supply.25
- 4 Customer service34
- Customer service34
- If you are unable to rectify the fault, please contact your customer service. We always find a suitable solution, even to avoid unnecessary visits by technicians. Contact information for your nearest customer service can be found on the back of these...34
- Rely on the competence of the manufa cturer. Contact us. You can therefore be sure that the repair is carried out by trained service technicians who carry original spare parts for your domestic appliances.34
- * depending on model34
- 5 Installation and connection34
- Installation and connection34
- The dishwasher must be connected correctly, otherwise it will not function properly. The specifications for the inlet and outlet as well as the electrical connected loads must correspond with the required criteria as specified in the following paragr...34
- Install the appliance in the correct sequence:34
- If you have any complaints, contact the dealer where you purchased the appliance or our customer service.34
- * depending on model34
- Safety instructions34
- Delivery35
- Technical specifications35
- Weight:35
- max. 60 kg35
- Voltage:35
- 220–240 V, 50 Hz or 60 Hz35
- Connected load:35
- 2.0–2.4 kW35
- Fuse:35
- 10/16 A (UK 13A)35
- Power input:35
- switched off 0.10 W35
- not switched off 0.10 W35
- Water pressure:35
- at least 0.05 MPa (0.5 bar), maximum 1 MPa (10 bar). At a higher water pressure: connect pressure-reducing valve ahead.35
- Inlet rate:35
- minimum 10 litres/minute35
- Water temperature:35
- cold water; hot water max. temperature 60 °C.35
- Capacity:35
- 12–15 place settings (depending on model).35
- Installation35
- Waste-water connection35
- Drinking water connection36
- 1. Fasten the drinking water connection to the tap according to the installation instructions using the enclosed parts.36
- Water pressure:36
- At least 0.05 MPa (0.5 bar), maximum 1 MPa (10 bar). At a higher water pressure: connect pressure-reducing valve ahead.36
- Inlet rate:36
- Minimum 10 litres/minute36
- Water temperature:36
- Cold water; hot water max. temperature 60 °C.36
- Warm water connection *Warm water connection36
- * depending on model36
- The dishwasher can be connected to cold or hot water up to max. 60 °C.36
- Connection to hot water is recommended if the hot water can be supplied by energetically favourable means and from a suitable installation, e.g. solar heating system with circulation line.36
- This will save energy and time.36
- The hot water setting ‘:‹‚ allows you to adjust your appliance optimally to operation with hot water.36
- It is recommended to have a water temperature (temperature of the incoming water) of at least 40 °C and no more than 60 °C.36
- It is not recommended to connect the appliance to hot water if the water is supplied from an electric boiler.36
- Electrical connection37
- Removing the appliance37
- Transportation38
- Empty the dishwasher and secure loose parts.38
- Drain the appliance according to the following steps:38
- 1. Turn on the tap.38
- 2. Close the door.38
- 3. Switch on ON/OFF switch (.38
- 4. Select programme with the highest temperature.38
- 5. Press START button h.38
- 6. After approx. 4 minutes press the START button h until ‹:‹‚ is indicated on the digital display.38
- 7. Switch off ON/OFF switch (.38
- 8. Turn off the tap, disconnect supply hose and drain water.38
- Transport appliance upright only.38
- (This prevents residual water from running into the machine control and damaging the programme sequence.)38
- Empty the dishwasher and secure loose parts.38
- Protection against frostProtection against frost (Emptying the appliance)38
