OPEL Adam
Owner's Manual
Introduction .................................... 2
In brief ............................................ 6
Keys, doors and windows ............ 21
Seats, restraints ........................... 34
Storage ........................................ 54
Instruments and controls ............. 73
Lighting ...................................... 105
Climate control ........................... 113
Driving and operating ................. 123
Vehicle care ............................... 154
Service and maintenance .......... 203
Technical data ........................... 206
Customer information ................ 217
Index .......................................... 220
Contents
2 Introduction
Introduction
Introduction 3
Vehicle specific data
Please enter your vehicle's data on
the previous page to keep it easily
accessible. This information is
available in the sections "Service and
maintenance" and "Technical data"
as well as on the identification plate.
Introduction
Your vehicle is a designed
combination of advanced technology,
safety, environmental friendliness
and economy.
This Owner's Manual provides you
with all the necessary information to
enable you to drive your vehicle
safely and efficiently.
Make sure your passengers are
aware of the possible risk of accident
and injury which may result from
improper use of the vehicle.
You must always comply with the
specific laws and regulations of the
country that you are in. These laws
may differ from the information in this
Owner's Manual.
When this Owner's Manual refers to a
workshop visit, we recommend your
Opel Service Partner.
For gas vehicles we recommend an
Opel Repairer authorised for
servicing gas vehicles.
All Opel Service Partners provide
first-class service at reasonable
prices. Experienced mechanics
trained by Opel work according to
specific Opel instructions.
The customer literature pack should
always be kept ready to hand in the
vehicle.
Using this manual
■ This manual describes all options
and features available for this
model. Certain descriptions,
including those for display and
menu functions, may not apply to
your vehicle due to model variant,
country specifications, special
equipment or accessories.
■ The "In brief" section will give you
an initial overview.
■ The table of contents at the
beginning of this manual and within
each section shows where the
information is located.
■ The index will enable you to search
for specific information.
■ This Owner's Manual depicts left-
hand drive vehicles. Operation is
similar for right-hand drive vehicles.
■ The Owner's Manual uses the
factory engine designations. The
corresponding sales designations
can be found in the section
"Technical data".
■ Directional data, e.g. left or right, or
front or back, always relate to the
direction of travel.
■ The vehicle display screens may
not support your specific language.
■ Display messages and interior
labelling are written in bold letters.
4 Introduction
Danger, Warnings and
Cautions
9 Danger
Text marked 9 Danger provides
information on risk of fatal injury.
Disregarding this information may
endanger life.
9 Warning
Text marked 9 Warning provides
information on risk of accident or
injury. Disregarding this
information may lead to injury.
Caution
Text marked Caution provides
information on possible damage to
the vehicle. Disregarding this
information may lead to vehicle
damage.
Symbols
Page references are indicated with 3.
3 means "see page".
We wish you many hours of
pleasurable driving.
Adam Opel AG
Introduction 5
In brief 7

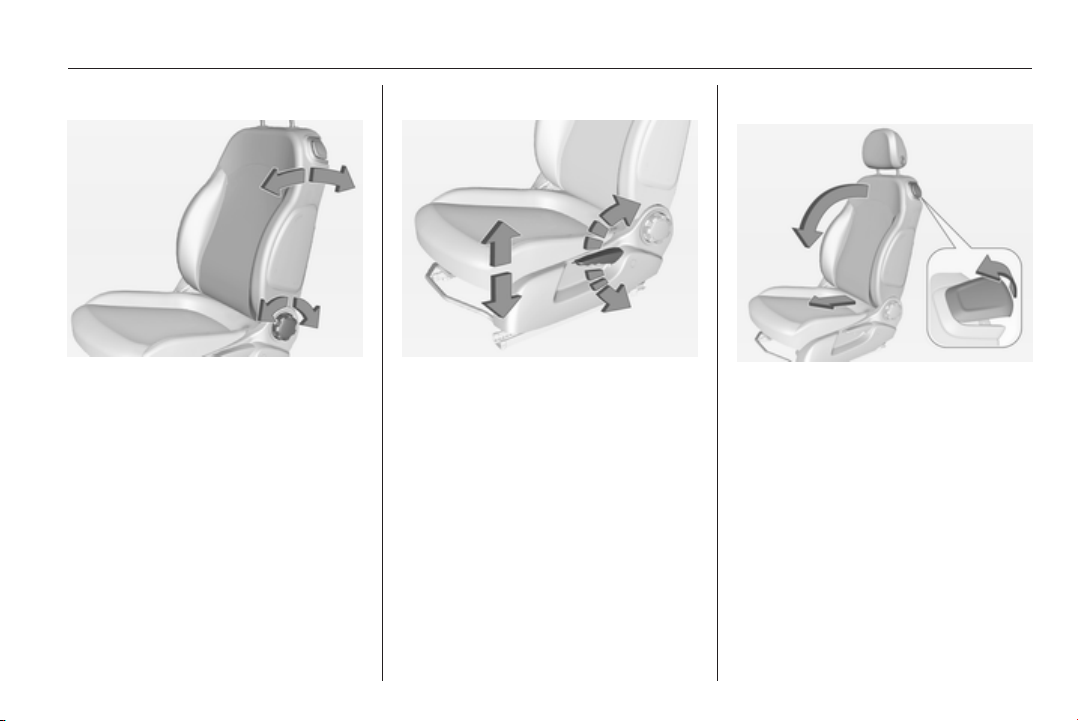

Seat adjustment
Seat positioning
Pull handle, slide seat, release
handle.
Seat position 3 35, Seat adjustment
3 36.
9 Danger
Do not sit nearer than 25 cm from
the steering wheel, to permit safe
airbag deployment.
Seat backrests
Turn handwheel to adjust inclination.
Do not lean on backrest while
adjusting.
Seat position 3 35, Seat adjustment
3 36, Seat folding 3 37.
Seat height
Lever pumping motion
up = seat higher
down = seat lower
Seat position 3 35, Seat adjustment
3 36.
8 In brief
Head restraint adjustment
Press release button, adjust height,
engage.
Head restraints 3 34.
Seat belt
Pull out the seat belt and engage in
belt buckle. The seat belt must not be
twisted and must fit close against the
body. The backrest must not be tilted
back too far (maximum approx. 25 °).
To release belt, press red button on
belt buckle.
Seat position 3 35, Seat belts
3 38, Airbag system 3 41.
Mirror adjustment
Interior mirror
Manual anti-dazzle
To reduce dazzle, adjust the lever on
the underside of the mirror housing.
Interior mirror 3 30.
Automatic anti-dazzle
Depending on the version, there is an
automatic anti-dazzle interior mirror.
In brief 9
Dazzle from following vehicles at
night is automatically reduced.
Automatic anti-dazzle interior mirror
3 30.
Exterior mirrors
Select the relevant exterior mirror and
adjust it.
Convex exterior mirrors 3 29,
Electric adjustment 3 29, Folding
exterior mirrors 3 29.
Heated exterior mirrors 3 29.
Steering wheel adjustment
Unlock the lever, adjust the steering
wheel, then engage the lever and
ensure it is fully locked.
Do not adjust the steering wheel
unless the vehicle is stationary and
the steering wheel lock has been
released.
Airbag system 3 41, Ignition
positions 3 124.
10 In brief

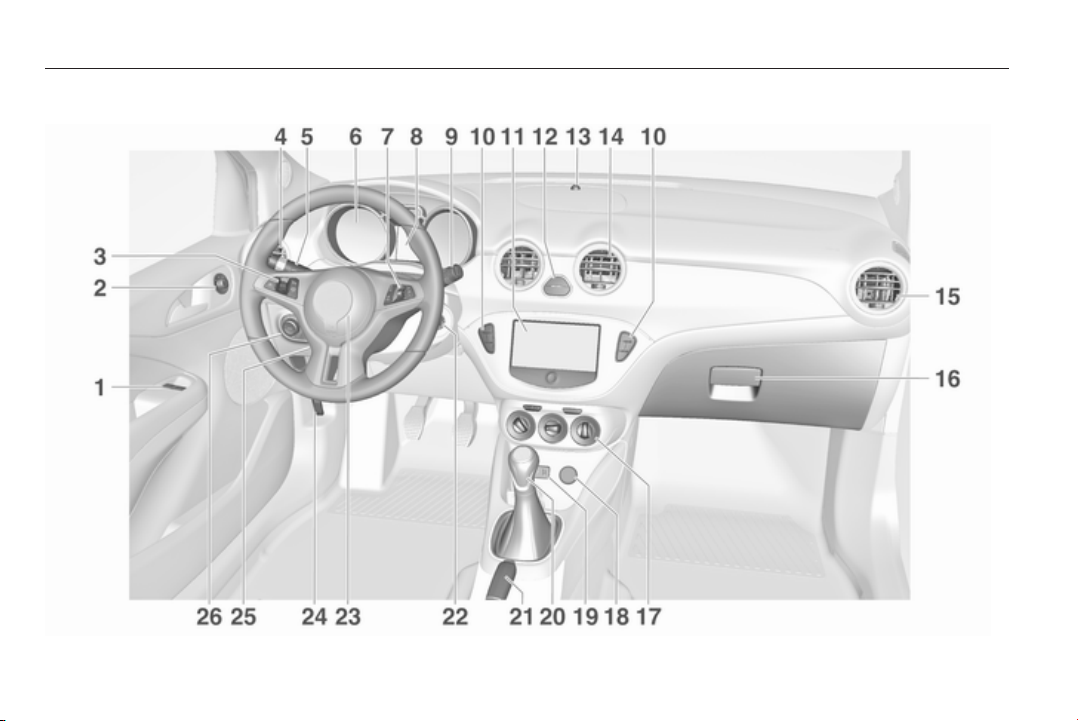

Instrument panel overview
In brief 11
1 Power windows ..................... 30
2 Exterior mirrors ..................... 29
3 Cruise control ..................... 134
Speed limiter ....................... 136
4 Side air vents ...................... 121
5 Turn and lane-change
signals, headlight flash,
low beam and high beam .... 108
Exit lighting ......................... 111
Parking lights ...................... 108
Buttons for Driver
Information Centre ................ 91
6 Instruments .......................... 81
7 Infotainment controls ........... 73
8 Driver Information Centre ...... 91
9 Windscreen wiper,
windscreen washer
system, rear wiper, rear
washer system ...................... 75
10 Central locking system .......... 23
City mode ............................ 133
Fuel selector ......................... 82
Eco button for stop-start
system ................................. 125
Parking assist ..................... 137
Seat heating .......................... 38
Heated steering wheel .......... 74
11 Colour-Info-Display .............. 96
Graphic-Info-Display ............. 97
12 Hazard warning flashers .... 107
Control indicator for airbag
deactivation .......................... 87
Control indicator for front
passenger seat belt ............. 86
13 Anti-theft alarm system
status LED ........................... 27
14 Centre air vents .................. 121
15 Side air vents passenger
side ..................................... 121
16 Glovebox .............................. 54
17 Climate control system ........ 113
18 Power outlet .......................... 80
19 AUX input, USB input ........... 10
20 Selector lever, manual
transmission ....................... 129
21 Parking brake ...................... 130
22 Ignition switch with
steering wheel lock ............ 124
23 Horn ..................................... 74
Driver airbag ........................ 44
24 Bonnet release lever .......... 156
25 Steering wheel adjustment ..73
26 Light switch ........................ 105
Headlight range
adjustment ......................... 107
Rear fog light ...................... 108
Fuse box ............................ 174
Brightness of instrument
panel illumination ................ 109
Brightness of ambient light 109
12 In brief
In brief 13
1 Power windows ..................... 30
2 Exterior mirrors ..................... 29
3 Cruise control ..................... 134
Speed limiter ....................... 136
4 Side air vents ...................... 121
5 Turn and lane-change
signals, headlight flash,
low beam and high beam .... 108
Exit lighting ......................... 111
Parking lights ...................... 108
Buttons for Driver
Information Centre ................ 91
6 Instruments .......................... 81
7 Steering wheel controls ....... 73
8 Driver Information Centre ...... 91
9 Windscreen wiper,
windscreen washer
system, headlight washer
system, rear wiper, rear
washer system ...................... 75
10 Central locking system .......... 23
City mode ............................ 133
Fuel selector ......................... 82
Eco button for stop-start
system ................................. 125
Parking assist ..................... 137
Seat heating .......................... 38
Heated steering wheel .......... 74
11 Colour-Info-Display .............. 96
Graphic-Info-Display ............. 97
12 Hazard warning flashers .... 107
Control indicator for airbag
deactivation .......................... 87
Control indicator for front
passenger seat belt ............. 86
13 Anti-theft alarm system
status LED ........................... 27
14 Centre air vents .................. 121
15 Side air vents passenger
side ..................................... 121
16 Glovebox .............................. 54
Fuse box ............................ 174
17 Climate control system ........ 113
18 Power outlet .......................... 80
19 AUX input, USB input ........... 10
20 Selector lever, manual
transmission ....................... 129
21 Parking brake ...................... 130
22 Ignition switch with
steering wheel lock ............ 124
23 Horn ..................................... 74
Driver airbag ........................ 44
24 Bonnet release lever .......... 156
25 Steering wheel adjustment ..73
26 Light switch ........................ 105
Headlight range
adjustment ......................... 107
Rear fog light ...................... 108
Brightness of instrument
panel illumination ................ 109
Brightness of ambient light 109
14 In brief
Exterior lighting

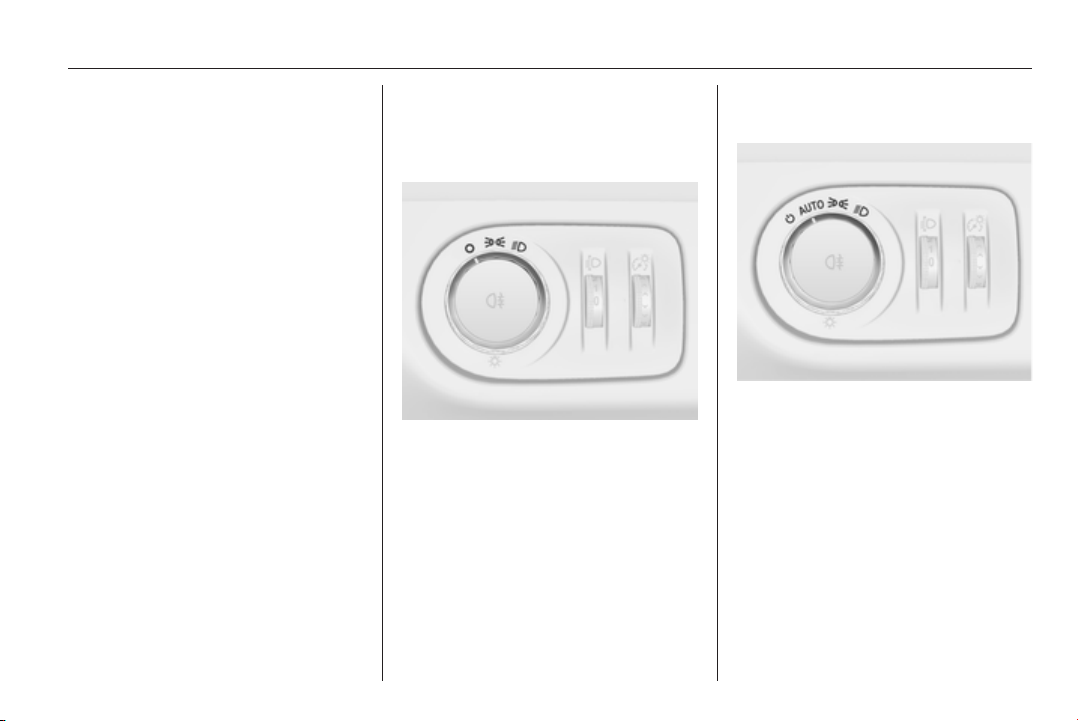

Light switch
Turn light switch:
7
= lights off
8
= sidelights
9
= headlights
Light switch with automatic light
control
AUTO = automatic light control:
exterior lighting is switched
on and off automatically
m
= activation or deactivation of
the automatic light control
8
= sidelights
9
= headlights
Automatic light control 3 106.
Rear fog light
Press r in the light switch.
Headlight flash, high beam and
low beam
headlight flash = pull lever
high beam = push lever
low beam = push or pull lever
High beam 3 106, Headlight flash
3 106.
16 In brief
Washer and wiper systems
Windscreen wiper
HI = fast
LO = slow
INT = interval wiping
or
automatic wiping with rain
sensor
OFF = off
For a single wipe when the
windscreen wiper is off, press the
lever down to position 1x.
Windscreen wiper 3 75, Wiper
blade replacement 3 161.
Windscreen washer
Pull lever.
Windscreen washer system 3 75,
Washer fluid 3 158.
In brief 17
Rear window wiper
Press the rocker switch to activate the
rear window wiper:
upper switch = continuous
operation
lower switch = intermittent
operation
middle position = off
Rear window washer
Push lever.
Washer fluid is sprayed on the rear
window and the wiper wipes a few
times.
Rear window wiper/washer 3 76.
Climate control
Heated rear window
The heating is operated by pressing
the Ü button.
Heated rear window 3 32.
Heated exterior mirrors
Pressing the Ü button also activates
the heated exterior mirrors.
Heated exterior mirror 3 29.
18 In brief
Demisting and defrosting the
windows
■
Set air distribution control to l.
■
Press button V.
■ Set temperature control to warmest
level.
■ Set fan speed to highest level.
■
Switch on heated rear window Ü.
■ Open side air vents as required and
direct them towards the door
windows.
Climate control system 3 113.
Transmission
Manual transmission
Reverse: with the vehicle stationary,
depress clutch pedal and press the
release button on the selector lever
and engage the gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then repeat
gear selection.
Manual transmission 3 129.
Starting off
Check before starting off
■ tyre pressure and condition 3 178,
3 216
■ engine oil level and fluid levels
3 156
■ all windows, mirrors, exterior
lighting and number plates are free
from dirt, snow and ice and are
operational
■ proper position of mirrors, seats,
and seat belts 3 29, 3 35,
3 39
■ brake function at low speed,
particularly if the brakes are wet
In brief 19
Starting the engine
■ Turn key to position 1.
■ Move the steering wheel slightly to
release the steering wheel lock.
■ Operate clutch and brake.
■ Do not operate accelerator pedal.
■ Turn key to position 3 and release.
Starting the engine 3 124.
Stop-start system
If the vehicle is at a low speed or at a
standstill and certain conditions are
fulfilled, activate an Autostop as
follows:
■ Depress the clutch pedal.
■ Set the lever in neutral.
■ Release the clutch pedal.

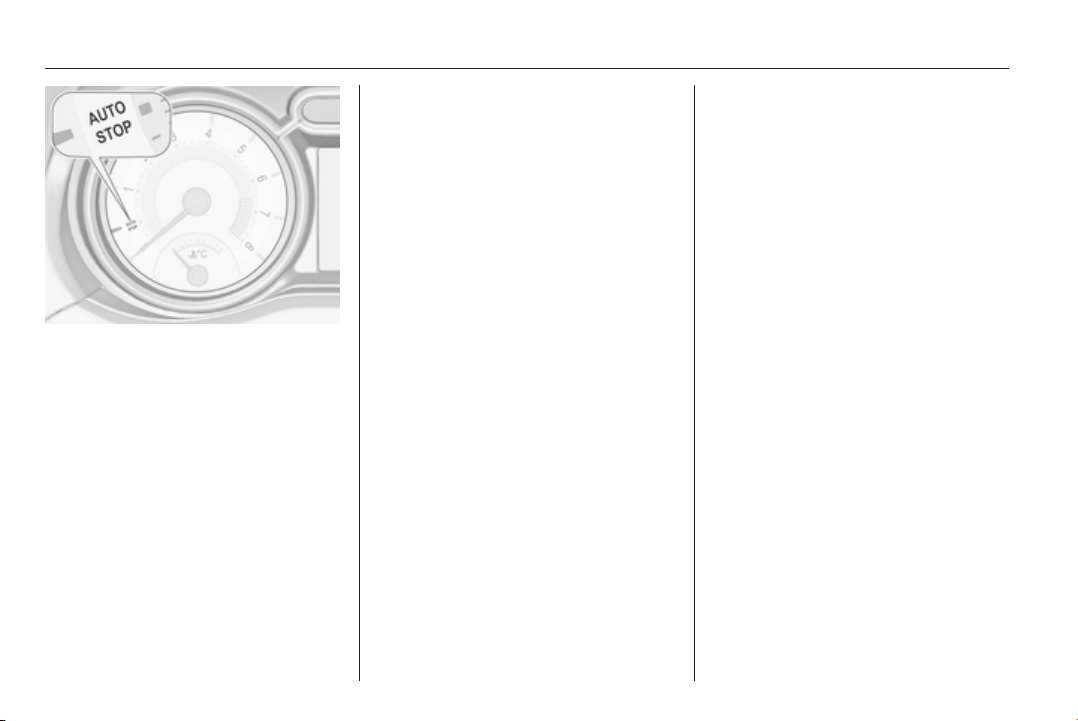

An Autostop is indicated by the
needle at the AUTOSTOP position in
the tachometer.
To restart the engine, depress the
clutch pedal again.
Stop-start system 3 125.
Parking
9 Warning
■ Do not park the vehicle on an
easily ignitable surface. The
high temperature of the exhaust
system could ignite the surface.
■ Always apply the parking brake.

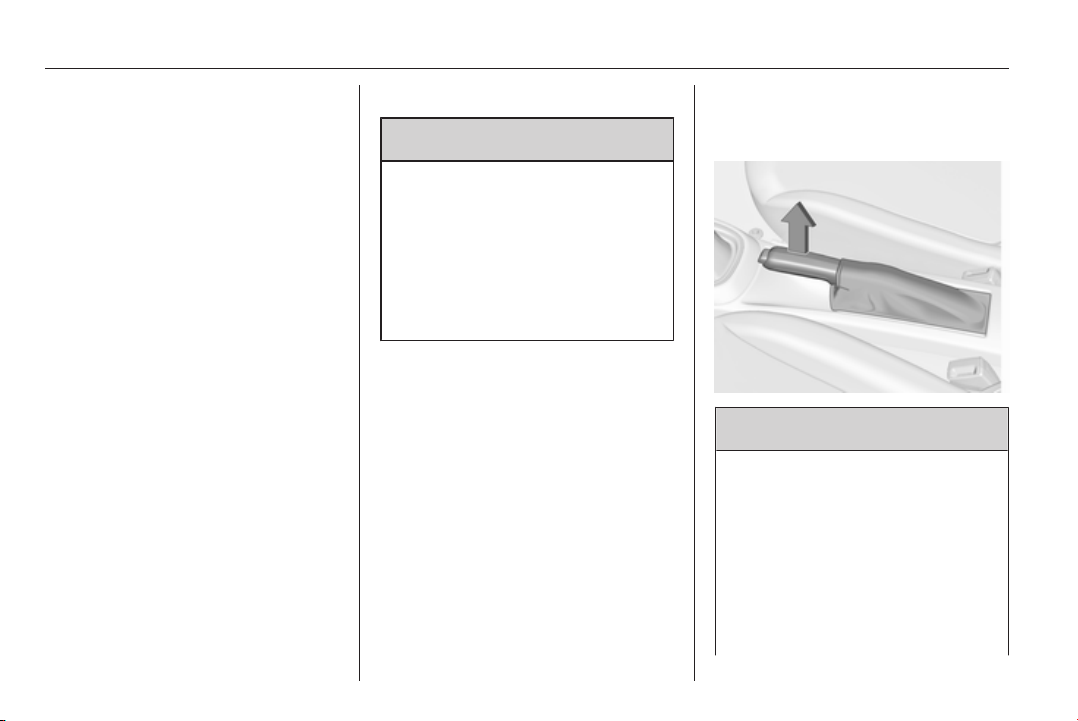

Activate the parking brake
without pressing the release
button. Apply as firmly as
possible on a downhill slope or
uphill slope. Depress foot brake
at the same time to reduce
operating force.
■ Switch off the engine.
■ If the vehicle is on a level
surface or uphill slope, engage
first gear before removing the
ignition key. On an uphill slope,
turn the front wheels away from
the kerb.
If the vehicle is on a downhill
slope, engage reverse gear
before removing the ignition
20 In brief
key. Turn the front wheels
towards the kerb.
■ Close the windows.
■ Remove the ignition key. Turn
the steering wheel until the
steering wheel lock is felt to
engage.
■
Lock the vehicle with button e on
the radio remote control.
Activate the anti-theft alarm system
3 27.
■ The engine cooling fans may run
after the engine has been switched
off 3 155.
■ After running at high engine speeds
or with high engine loads, operate
the engine briefly at a low load or
run in neutral for
approx. 30 seconds before
switching off, in order to protect the
turbocharger.
Keys, locks 3 21, Laying-up the
vehicle for a long period of time
3 154.
Keys, doors and windows 21
Keys, doors and
windows
Keys, locks ................................... 21
Doors ........................................... 26
Vehicle security ............................ 27
Exterior mirrors ............................ 29
Interior mirrors ............................. 30
Windows ...................................... 30
Roof ............................................. 32
Keys, locks
Keys
Replacement keys
The key number is specified in the
Car Pass or on a detachable tag.
The key number must be quoted
when ordering replacement keys as it
is a component of the immobiliser
system.
Locks 3 199.
The code number of the key adapter
for the locking wheel bolts is specified
on a card. It must be quoted when
ordering a replacement key adapter.
Wheel changing 3 188.
Key with foldaway key section
Press button to extend. To fold the
key, first press the button.
Car Pass
The Car Pass contains security-
related vehicle data and should
therefore be kept in a safe place.
When the vehicle is taken to a
workshop, this vehicle data is needed
in order to perform certain operations.
22 Keys, doors and windows
Radio remote control
Used to operate:
■ central locking system
■ anti-theft locking system
■ anti-theft alarm system
■ power windows
The radio remote control has a range
of approx. 20 metres. It can be
restricted by external influences. The
hazard warning flashers confirm
operation.
Handle with care, protect from
moisture and high temperatures and
avoid unnecessary operation.
Fault
If the central locking system cannot
be operated with the radio remote
control, it may be due to the following:
■ The range is exceeded.
■ The battery voltage is too low.
■ Frequent, repeated operation of the
radio remote control while not in
range, which will require re-
synchronisation.
■ Overload of the central locking
system by operating at frequent
intervals, the power supply is
interrupted for a short time.
■ Interference from higher-power
radio waves from other sources.
Unlocking 3 23.
Basic settings
Some settings can be changed in the
Info-Display.
Vehicle personalisation 3 101.
Radio remote control battery
replacement
Replace the battery as soon as the
range reduces.
Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.
Key with foldaway key section
Keys, doors and windows 23
Extend the key and open the unit.
Replace the battery (battery type
CR 2032), paying attention to the
installation position. Close the unit
and synchronise.
Key with fixed key section
Have the battery replaced by a
workshop.
Radio remote control
synchronisation
After replacing the battery, unlock the
door with the key in the driver's door
lock. The radio remote control will be
synchronised when the ignition is
switched on.
Memorised settings
Whenever the key is removed from
the ignition switch, the following
settings are automatically memorised
by the key:
■ lighting
■ Infotainment system presets
■ central locking system
■ comfort settings
■ climate control
The saved settings are automatically
used the next time the memorised key
is inserted into the ignition switch and
turned to position 1 3 124.
A precondition is that Personalization
by driver is activated in the personal
settings of the Info-Display. This must
be set for each key used.
Vehicle personalisation 3 101.
Central locking system
Unlocks and locks doors, load
compartment and fuel filler flap.
A pull on an interior door handle
unlocks the respective door. Pulling
the handle once more opens the door.
Note
In the event of an accident in which
airbags or belt pretensioners are
deployed, the vehicle is
automatically unlocked.
Note
Three minutes after unlocking with
the remote control, the doors are
relocked automatically if no door has
been opened.
Unlocking
Press button
c.
24 Keys, doors and windows
Two settings are selectable in the
Info-Display:
■ To unlock only the driver's door,
load compartment and fuel filler
flap, press button c once. To unlock
both doors, press button c twice.
■
Press button c once to unlock
doors, load compartment and fuel
filler flap.
Vehicle personalisation 3 101.
The setting can be saved for the key
being used.
Memorised settings 3 23.
Unlocking and opening the tailgate
3 26.
Locking
Close doors, load compartment and
fuel filler flap.
Press button e.
If the driver's door is not closed
properly, the central locking system
will not work.
Central locking buttons
Locks or unlocks doors, the load
compartment and fuel filler flap from
inside the passenger compartment.
Press the e button to lock.
Press the c button to unlock.
Delayed door lock
Switch off engine and remove key
from the lock. Press the e button with
at least one door opened and three
chimes will sound. When the last door
is closed, the vehicle will
automatically lock all doors after five
seconds and a feedback is given.
After ten minutes, the vehicle will
automatically lock all doors even if a
door is still open. This function may be
Keys, doors and windows 25
activated or deactivated in the Info-
Display. Vehicle personalisation
3 101.
Fault in radio remote control
system
Unlocking
Manually unlock the driver's door by
turning the key in the lock. Switch on
the ignition and press the central
locking button c to unlock the
passenger door, load compartment
and fuel filler flap.
By switching on the ignition, the anti-
theft locking system is deactivated.
Locking
Manually lock the driver's door by
turning the key in the lock.
Fault in central locking system
Unlocking
Manually unlock the driver's door by
turning the key in the lock. The
passenger door can be opened by
pulling the interior handle twice. The
load compartment and fuel filler flap
cannot be opened.
To deactivate the anti-theft locking
system, switch on the ignition 3 27.
Locking
Press inside locking knob of
passenger door. Then close the
driver's door and lock it from the
outside with the key. The fuel filler flap
and tailgate cannot be locked.
Automatic locking
This security feature can be
configured to automatically lock
doors, load compartment and fuel
filler flap as soon as a certain speed
is exceeded.
Additionally it is configurable to
unlock the driver's door or both doors
after the ignition is switched off and
the ignition key is removed.
Settings can be changed in the
Info-Display.
Vehicle personalisation 3 101.
The settings can be saved for the key
being used 3 23.
26 Keys, doors and windows
Doors
Load compartment
Tailgate
Opening

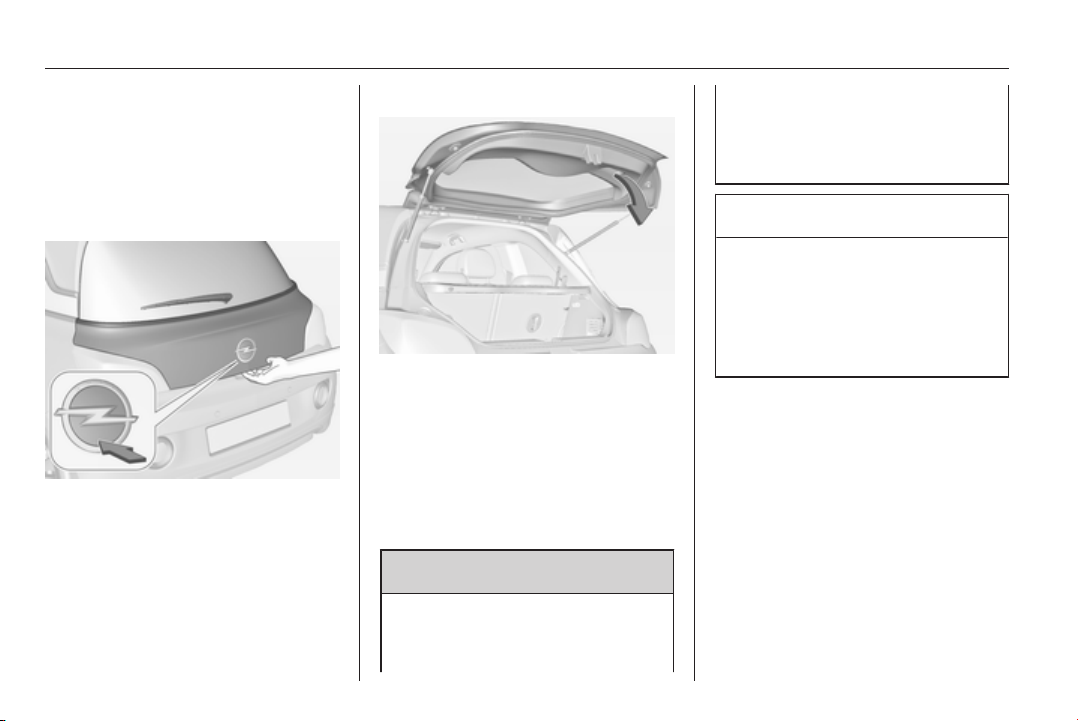

Press the brand emblem at the
bottom half to unlock and open the
tailgate.
Closing
Use interior handle.
Do not press the emblem whilst
closing as this will unlock the tailgate
again.
Central locking system 3 23.
General hints for operating
tailgate
9 Danger
Do not drive with the tailgate open
or ajar, e.g. when transporting
bulky objects, since toxic exhaust
gases, which cannot be seen or
smelled, could enter the vehicle.
This can cause unconsciousness
and even death.
Caution
Before opening the tailgate, check
overhead obstructions, e.g. a
garage door, to avoid damage to
the tailgate. Always check the
moving area above and behind the
tailgate.
Note
The installation of certain heavy
accessories onto the tailgate may
affect its ability to remain open.
Keys, doors and windows 27
Vehicle security
Anti-theft locking system
9 Warning
Do not use the system if there are
people in the vehicle! The doors
cannot be unlocked from the
inside.
The system deadlocks all the doors.
All doors must be closed otherwise
the system cannot be activated.
If the ignition was on, the driver's door
must be opened and closed once so
that the vehicle can be secured.
Unlocking the vehicle disables the
mechanical anti-theft locking system.
This is not possible with the central
locking button in the passenger
compartment.
Activating
Press button e on the radio remote
control twice within 5 seconds.
Anti-theft alarm system
The anti-theft alarm system is
combined with the anti-theft locking
system.
It monitors:
■ doors, tailgate, bonnet
■ ignition
Activation
■ Self-activated 30 seconds after
locking the vehicle by pressing e
once.
■
Directly by pressing e twice within
5 seconds.
Status LED
Status LED is integrated in the sensor
on top of the instrument panel.
28 Keys, doors and windows
Status during the first 30 seconds of
anti-theft alarm system activation:
LED illuminates = test, arming delay
LED flashes
quickly
= doors, tailgate or
bonnet not
completely closed,
or system fault
Status after system is armed:
LED flashes
slowly
= system is armed
Seek the assistance of a workshop in
the event of faults.
Deactivation
Unlocking the vehicle by pressing
button c deactivates anti-theft alarm
system.
The system is not deactivated by
unlocking the driver's door with the
key or with the central locking button
in the passenger compartment.
Alarm
When triggered, the alarm horn
sounds and the hazard warning lights
flash simultaneously. The number
and duration of alarm signals are
stipulated by legislation.
The alarm can be silenced by
pressing any button on the radio
remote control or by switching on the
ignition.
The anti-theft alarm system can only
be deactivated by pressing button c
on the radio remote control or by
switching on the ignition.
A triggered alarm, which has not been
interrupted by the driver, will be
indicated by the hazard warning
lights. They will flash quickly three
times when the vehicle is unlocked
with the radio remote control.
Vehicle messages 3 98.
Immobiliser
The system is part of the ignition
switch and checks whether the
vehicle is allowed to be started with
the key being used.
The immobiliser is activated
automatically after the key has been
removed from the ignition switch.
If the control indicator d flashes when
the ignition is on, there is a fault in the
system; the engine cannot be started.
Switch off the ignition and repeat the
start attempt.
If the control indicator continues
flashing, attempt to start the engine
using the spare key and seek the
assistance of a workshop.
Note
The immobiliser does not lock the
doors. You should always lock the
vehicle after leaving it.
Switch on the anti-theft alarm
system 3 23, 3 27.
Control indicator d 3 90.

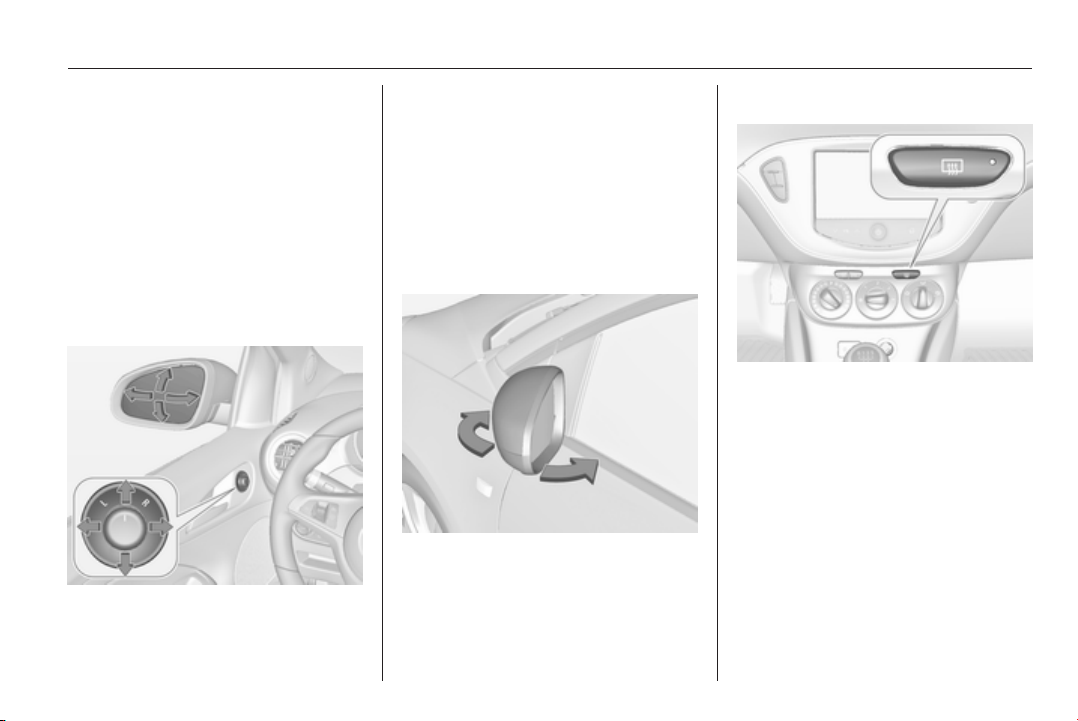

Keys, doors and windows 29
Exterior mirrors
Convex shape
The convex exterior mirror contains
an aspherical area and reduces blind
spots. The shape of the mirror makes
objects appear smaller, which will
affect the ability to estimate
distances.
Electric adjustment
Select the relevant exterior mirror by
turning the control to left (L) or right
(R). Then swivel the control to adjust
the mirror.
In position 0 no mirror is selected.
Folding mirrors
For pedestrian safety, the exterior
mirrors will swing out of their normal
mounting position if they are struck
with sufficient force. Reposition the
mirror by applying slight pressure to
the mirror housing.
Parking position
The exterior mirrors can be folded in
by pressing gently on the outer edge
of the housing, e.g. when in a
confined parking situation.
Heated mirrors
Operated by pressing the Ü button.
Heating works with the engine
running and is switched off
automatically after a short time.
30 Keys, doors and windows
Interior mirrors
Manual anti-dazzle
To reduce dazzle, adjust the lever on
the underside of the mirror housing to
the front or rear. Lever in the middle
position is the normal driving position.
Versions with illuminated starlight
panel
When the starlight panel is
illuminated, adjust the lever to the
front. Starlight panel 3 109.
Automatic anti-dazzle
Dazzle from following vehicles at
night is automatically reduced.
Windows
Windscreen
Windscreen stickers
Do not attach stickers, e.g. toll road
stickers or similar, on the windscreen
in the area of the interior mirror.
Otherwise the detection zone of the
sensor in the mirror housing could be
restricted.
Power windows
9 Warning
Take care when operating the
power windows. Risk of injury,
particularly to children.
Be careful when closing the
windows. Ensure that nothing
becomes trapped in them as they
move.
Switch on ignition to operate power
windows.
Retained power off 3 124.
Keys, doors and windows 31
Operate the switch for the respective
window by pushing to open or pulling
to close.
Pushing or pulling gently to the first
detent: window moves up or down as
long as the switch is operated.
Pushing or pulling firmly to the second
detent and then releasing: window
moves up or down automatically with
safety function enabled. To stop
movement, operate the switch once
more in the same direction.
Safety function
If the window glass encounters
resistance above the middle of the
window during automatic closing, it is
immediately stopped and opened
again.
Override safety function
In the event of closing difficulties due
to frost or the like, switch on the
ignition, then pull the switch to the first
detent and hold. The window moves
up without safety function enabled.
To stop movement, release the
switch.
Operating windows from outside
The windows can be operated
remotely from outside the vehicle.
Press and hold c button to open
windows.
Press and hold e button to close
windows.
Release button to stop window
movement.
If the windows are fully opened or
closed, the hazard warning lights will
flash twice.
Overload
If the windows are repeatedly
operated within short intervals, the
window operation is disabled for
some time.
32 Keys, doors and windows
Initialising the power windows
If the windows cannot be closed
automatically (e.g. after
disconnecting the vehicle battery), a
warning message or a warning code
is displayed in the Driver Information
Centre.
Vehicle messages 3 98.
Activate the window electronics as
follows:
1. Close the doors.
2. Switch on the gnition.
3. Pull switch until the window is
closed and keep pulling for
additional 2 seconds.
4. Repeat for each window.
Heated rear window
Operated by pressing the Ü button.
Heating works with the engine
running and is switched off
automatically after a short time.
Sun visors
The sun visors can be folded down or
swivelled to the side to prevent
dazzling.
The integral mirrors should be closed
when driving.
A ticket holder is located on the
backside of the sun visor.
Roof
Sunroof
Foldable power sunroof
9 Warning
Take care when operating the
sunroof. Risk of injury, particularly
to children.
Keep a close watch on the
movable parts when operating
them. Ensure that nothing
becomes trapped in them as they
move.
Operable with ignition on (position 2)
3 124.
The foldable power sunroof can be
opened and closed while driving up to
a speed of 140 km/h.
Retained power off 3 124.
Keys, doors and windows 33
Switch can be operated in two ways:
short press for automatic run and hold
depressed for manual run.
Open
Short press on >: sunroof opens
automatically up to endposition. To
stop movement operate switch once
more.
Hold > depressed: sunroof opens as
long as switch is operated.
Close
Short press on <: sunroof closes
automatically up to a gap of approx.
30 cm for safety reasons. Following
hold < depressed to close the
sunroof completely. To stop
movement during automatic run
operate switch once more.
Hold < depressed: sunroof closes as
long as switch is operated.
Glass panel
Sunblind
Press the button in the handle to open
the sunblind and guide it backwards.
It rolls up automatically.
No intermediate positions are
possible.
To close, draw the sunblind to the
front and allow the button to engage.
34 Seats, restraints
Seats, restraints
Head restraints ............................ 34
Front seats ................................... 35
Seat belts ..................................... 38
Airbag system .............................. 41
Child restraints ............................. 47

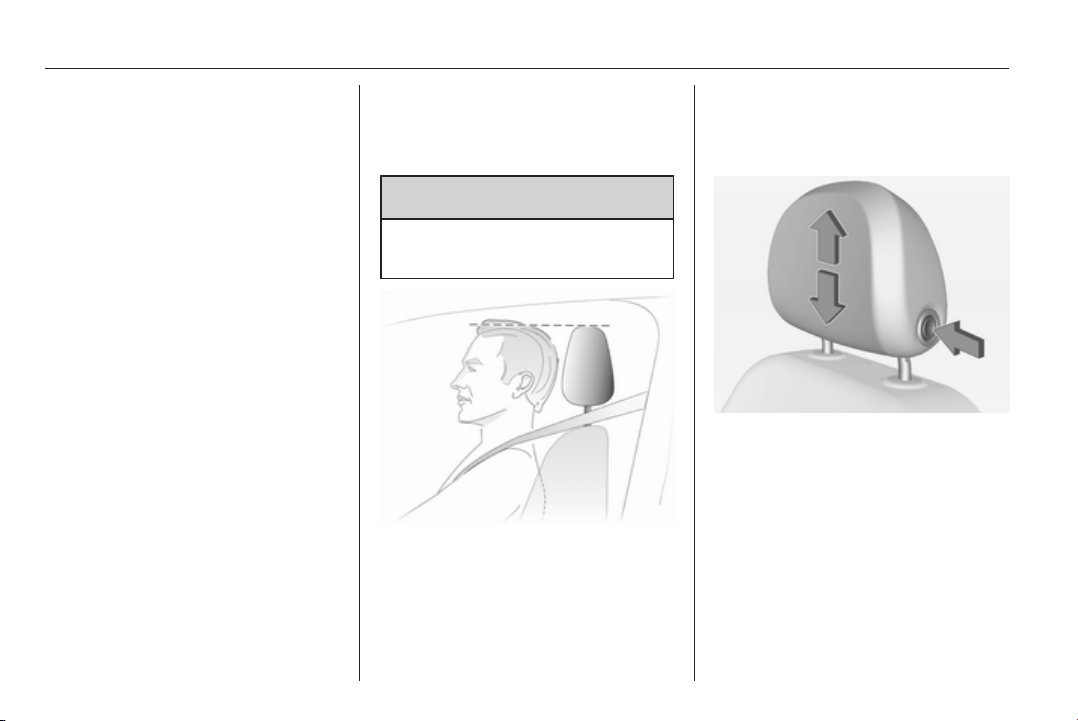

Head restraints
Position
9 Warning
Only drive with the head restraint
set to the proper position.
The upper edge of the head restraint
should be at upper head level. If this
is not possible for extremely tall
people, set to highest position, and
set to lowest position for small people.
Adjustment
Front head restraints, height
adjustment
Press release button, adjust height,
engage.
Seats, restraints 35
Rear head restraints, height
adjustment
Pull the head restraint upwards and
let engage. To move downwards,
press the catch to release and push
the head restraint downwards.
Removal of rear head restraint
E.g. when using a child restraint
system 3 47.
Press both catches, pull the head
restraint upwards and remove.
Place the head restraint in a net bag
and secure the underside of the bag
with Velcro fasteners to the load
compartment floor. A suitable net bag
is available from your workshop.
Front seats
Seat position
9 Warning
Only drive with the seat correctly
adjusted.
■
Sit with buttocks as far back against
the backrest as possible. Adjust the
distance between the seat and the
pedals so that legs are slightly
angled when pressing the pedals.
Slide the front passenger seat as
far back as possible.

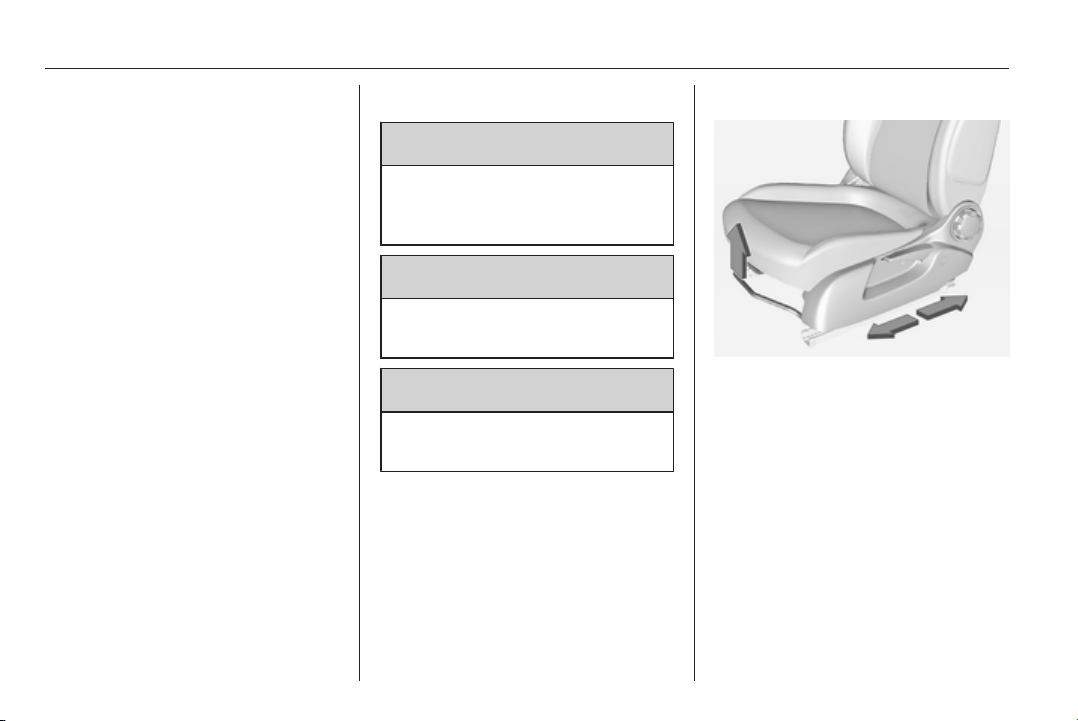

36 Seats, restraints
■ Sit with shoulders as far back
against the backrest as possible.
Set the backrest rake so that it is
possible to easily reach the
steering wheel with arms slightly
bent. Maintain contact between
shoulders and the backrest when
turning the steering wheel. Do not
angle the backrest too far back. We
recommend a maximum rake of
approx. 25°.
■ Adjust the steering wheel 3 73.
■ Set seat height high enough to
have a clear field of vision on all
sides and of all display instruments.
There should be at least one hand
of clearance between head and the
roof frame. Your thighs should rest
lightly on the seat without pressing
into it.
■ Adjust the head restraint 3 34.
Seat adjustment
9 Danger
Do not sit nearer than 25 cm from
the steering wheel, to permit safe
airbag deployment.
9 Warning
Never adjust seats while driving as
they could move uncontrollably.
9 Warning
Never store any objects under the
seats.
Seat positioning
Pull handle, slide seat, release
handle. Allow seat to engage in
position.
Seats, restraints 37
Seat backrests
Turn handwheel to adjust inclination.
Do not lean on backrest while
adjusting.
Seat height
Lever pumping motion
up = seat higher
down = seat lower
Seat folding
Pull release lever towards the front
and fold backrest forwards. Then
slide seat forwards to the stop.
To restore, slide the seat backwards
to the stop. Lift backrest to upright
position without operating the release
lever. Allow backrest to engage.
The memory function allows the seat
to engage in its original position after
folding.
Do not operate handwheel for
backrest inclination when backrest is
folded forwards.
38 Seats, restraints
Caution
When seat height is in the highest
position, push head restraints
down and fold up sun visors before
folding backrest forwards.
Heating
Activate seat heating by pressing
ß
button for the respective front seat.
Activation is indicated by the LED in
the button.
Pressing button ß once more
deactivates seat heating.
Seat heating is operational when
engine is running.
During an Autostop seat heating is
also operational.
Stop-start system 3 125.
Seat belts
The seat belts are locked during
heavy acceleration or deceleration of
the vehicle holding the occupants in
the sitting position. Therefore the risk
of injury is considerably reduced.
9 Warning
Fasten seat belt before each trip.
In the event of an accident, people
not wearing seat belts endanger
their fellow occupants and
themselves.
Seats, restraints 39
Seat belts are designed to be used by
only one person at a time. Child
restraint system 3 47.
Periodically check all parts of the belt
system for damage, pollution and
proper functionality.
Have damaged components
replaced. After an accident, have the
belts and triggered belt pretensioners
replaced by a workshop.
Note
Make sure that the belts are not
damaged by shoes or sharp-edged
objects or trapped. Prevent dirt from
getting into the belt retractors.
Seat belt reminder
Each seat is equipped with a seat belt
reminder, indicated for driver seat as
control indicator X in the tachometer
3 86, for front passenger seat as
control indicator k in the centre
console 3 84, and for rear seats by
symbols X in the Driver Information
Centre 3 91.
Belt force limiters
On the front seats, stress on the body
is reduced by the gradual release of
the belt during a collision.
Belt pretensioners
In the event of a head-on or rear-end
collision of a certain severity, the front
seat belts are tightened.
9 Warning
Incorrect handling (e.g. removal or
fitting of belts) can trigger the belt
pretensioners.
Deployment of the belt pretensioners
is indicated by continuous illumination
of control indicator v 3 87.
Triggered belt pretensioners must be
replaced by a workshop. Belt
pretensioners can only be triggered
once.
Note
Do not affix or install accessories or
other objects that may interfere with
the operation of the belt
pretensioners. Do not make any
modifications to belt pretensioner
components as this will invalidate
the vehicle type approval.
Three-point seat belt
Fastening
Withdraw the belt from the retractor,
guide it untwisted across the body
and insert the latch plate into the
buckle. Tighten the lap belt regularly
while driving by pulling the shoulder
belt.

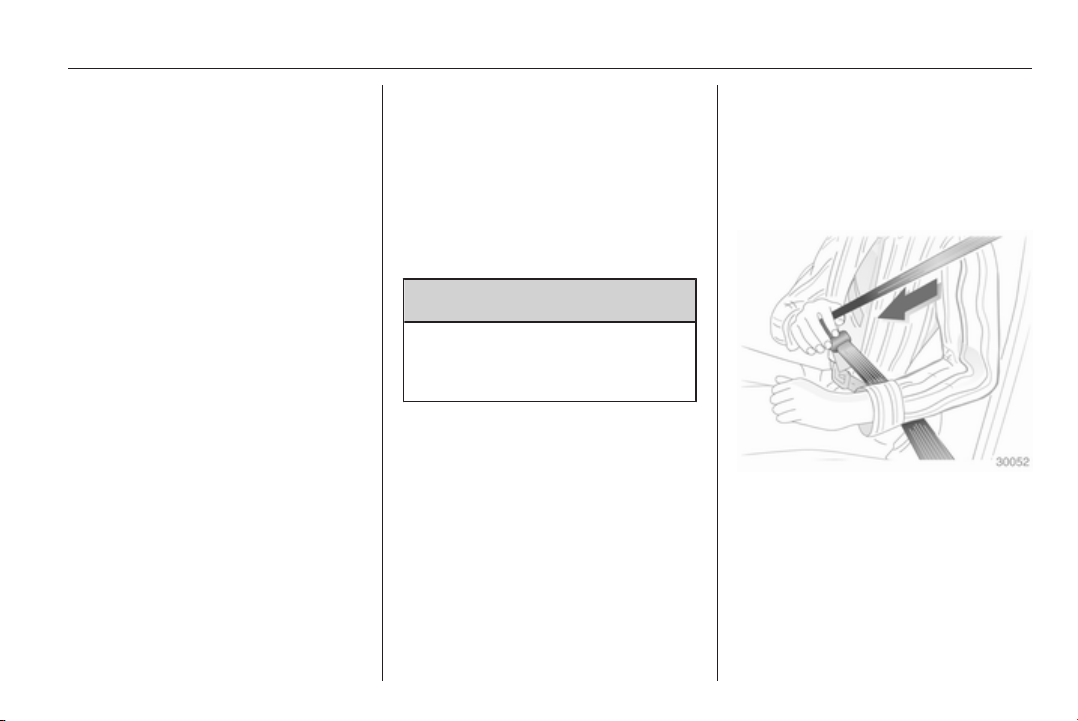

40 Seats, restraints
Loose or bulky clothing prevents the
belt from fitting snugly. Do not place
objects such as handbags or mobile
phones between the belt and your
body.
9 Warning
The belt must not rest against hard
or fragile objects in the pockets of
your clothing.
Seat belt reminder X 3 86.
Removing
To release belt, press red button on
belt buckle.
Using the seat belt while
pregnant
9 Warning
The lap belt must be positioned as
low as possible across the pelvis
to prevent pressure on the
abdomen.
Seats, restraints 41
Airbag system
The airbag system consists of a
number of individual systems
depending on the scope of
equipment.
When triggered, the airbags inflate
within milliseconds. They also deflate
so quickly that it is often unnoticeable
during the collision.
9 Warning
If handled improperly the airbag
systems can be triggered in an
explosive manner.
Note
The airbag systems and belt
pretensioner control electronics are
located in the centre console area.
Do not put any magnetic objects in
this area.
Do not affix any objects onto the
airbag covers and do not cover them
with other materials.
Each airbag is triggered only once.
Have deployed airbags replaced by
a workshop. Furthermore, it may be
necessary to have the steering
wheel, the instrument panel, parts of
the panelling, the door seals,
handles and the seats replaced.
Do not make any modifications to
the airbag system as this will
invalidate the vehicle type approval.
When the airbags inflate escaping hot
gases may cause burns.
Fault
If there is a fault in the airbag system,
the control indicator v illuminates and
a message or a warning code
appears in the Driver Information
Centre. The system is not
operational.
Have the cause of the fault remedied
by a workshop.
Control indicator for airbag systems
3 87.
Child restraint systems on front
passenger seat with airbag
systems
Warning according to ECE R94.02:
EN: NEVER use a rearward-facing
child restraint on a seat protected by
an ACTIVE AIRBAG in front of it;
DEATH or SERIOUS INJURY to the
CHILD can occur.
DE: Nach hinten gerichtete
Kindersitze NIEMALS auf einem Sitz
verwenden, der durch einen davor
befindlichen AKTIVEN AIRBAG
42 Seats, restraints
geschützt ist, da dies den TOD oder
SCHWERE VERLETZUNGEN DES
KINDES zur Folge haben kann.
FR: NE JAMAIS utiliser un siège
d'enfant orienté vers l'arrière sur un
siège protégé par un COUSSIN
GONFLABLE ACTIF placé devant lui,
sous peine d'infliger des
BLESSURES GRAVES, voire
MORTELLES à l'ENFANT.
ES: NUNCA utilice un sistema de
retención infantil orientado hacia
atrás en un asiento protegido por un
AIRBAG FRONTAL ACTIVO. Peligro
de MUERTE o LESIONES GRAVES
para el NIÑO.
RU: ЗАПРЕЩАЕТСЯ
устанавливать детское
удерживающее устройство лицом
назад на сиденье автомобиля,
оборудованном фронтальной
подушкой безопасности, если
ПОДУШКА НЕ ОТКЛЮЧЕНА! Это
может привести к СМЕРТИ или
СЕРЬЕЗНЫМ ТРАВМАМ
РЕБЕНКА.
NL: Gebruik NOOIT een achterwaarts
gericht kinderzitje op een stoel met
een ACTIEVE AIRBAG ervoor, om
DODELIJK of ERNSTIG LETSEL van
het KIND te voorkomen.
DA: Brug ALDRIG en bagudvendt
autostol på et forsæde med AKTIV
AIRBAG, BARNET kan komme i
LIVSFARE eller komme ALVORLIGT
TIL SKADE.
SV: Använd ALDRIG en bakåtvänd
barnstol på ett säte som skyddas med
en framförvarande AKTIV AIRBAG.
DÖDSFALL eller ALLVARLIGA
SKADOR kan drabba BARNET.
FI: ÄLÄ KOSKAAN sijoita taaksepäin
suunnattua lasten turvaistuinta
istuimelle, jonka edessä on
AKTIIVINEN TURVATYYNY, LAPSI
VOI KUOLLA tai VAMMAUTUA
VAKAVASTI.
NO: Bakovervendt
barnesikringsutstyr må ALDRI brukes
på et sete med AKTIV
KOLLISJONSPUTE foran, da det kan
føre til at BARNET utsettes for
LIVSFARE og fare for ALVORLIGE
SKADER.
PT: NUNCA use um sistema de
retenção para crianças voltado para
trás num banco protegido com um
AIRBAG ACTIVO na frente do
mesmo, poderá ocorrer a PERDA DE
VIDA ou FERIMENTOS GRAVES na
CRIANÇA.
IT: Non usare mai un sistema di
sicurezza per bambini rivolto
all'indietro su un sedile protetto da
AIRBAG ATTIVO di fronte ad esso:
pericolo di MORTE o LESIONI
GRAVI per il BAMBINO!
EL: ΠΟΤΕ μη χρησιμοποιείτε παιδικό
κάθισμα ασφαλείας με φορά προς τα
πίσω σε κάθισμα που προστατεύεται
από μετωπικό ΕΝΕΡΓΟ ΑΕΡΟΣΑΚΟ,
διότι το παιδί μπορεί να υποστεί
ΘΑΝΑΣΙΜΟ ή ΣΟΒΑΡΟ
ΤΡΑΥΜΑΤΙΣΜΟ.
PL: NIE WOLNO montować fotelika
dziecięcego zwróconego tyłem do
kierunku jazdy na fotelu, przed
którym znajduje się WŁĄCZONA
PODUSZKA POWIETRZNA.
Niezastosowanie się do tego
Seats, restraints 43
zalecenia może być przyczyną
ŚMIERCI lub POWAŻNYCH
OBRAŻEŃ u DZIECKA.
TR: Arkaya bakan bir çocuk emniyet
sistemini KESİNLİKLE önünde bir
AKTİF HAVA YASTIĞI ile
korunmakta olan bir koltukta
kullanmayınız. ÇOCUK ÖLEBİLİR
veya AĞIR ŞEKİLDE
YARALANABİLİR.
UK: НІКОЛИ не використовуйте
систему безпеки для дітей, що
встановлюється обличчям назад,
на сидінні з УВІМКНЕНОЮ
ПОДУШКОЮ БЕЗПЕКИ, інакше це
може призвести до СМЕРТІ чи
СЕРЙОЗНОГО ТРАВМУВАННЯ
ДИТИНИ.
HU: SOHA ne használjon hátrafelé
néző biztonsági gyerekülést előlről
AKTÍV LÉGZSÁKKAL védett ülésen,
mert a GYERMEK HALÁLÁT vagy
KOMOLY SÉRÜLÉSÉT okozhatja.
HR: NIKADA nemojte koristiti sustav
zadržavanja za djecu okrenut prema
natrag na sjedalu s AKTIVNIM
ZRAČNIM JASTUKOM ispred njega,
to bi moglo dovesti do SMRTI ili
OZBILJNJIH OZLJEDA za DIJETE.
SL: NIKOLI ne nameščajte otroškega
varnostnega sedeža, obrnjenega v
nasprotni smeri vožnje, na sedež z
AKTIVNO ČELNO ZRAČNO
BLAZINO, saj pri tem obstaja
nevarnost RESNIH ali SMRTNIH
POŠKODB za OTROKA.
SR: NIKADA ne koristiti bezbednosni
sistem za decu u kome su deca
okrenuta unazad na sedištu sa
AKTIVNIM VAZDUŠNIM
JASTUKOM ispred sedišta zato što
DETE može da NASTRADA ili da se
TEŠKO POVREDI.
MK: НИКОГАШ не користете детско
седиште свртено наназад на
седиште заштитено со АКТИВНО
ВОЗДУШНО ПЕРНИЧЕ пред него,
затоа што детето може ДА ЗАГИНЕ
или да биде ТЕШКО ПОВРЕДЕНО.
BG: НИКОГА не използвайте
детска седалка, гледаща назад,
върху седалка, която е защитена
чрез АКТИВНА ВЪЗДУШНА
ВЪЗГЛАВНИЦА пред нея - може да
се стигне до СМЪРТ или
СЕРИОЗНО НАРАНЯВАНЕ на
ДЕТЕТО.
RO: Nu utilizaţi NICIODATĂ un scaun
pentru copil îndreptat spre partea din
spate a maşinii pe un scaun protejat
de un AIRBAG ACTIV în faţa sa;
acest lucru poate duce la DECESUL
sau VĂTĂMAREA GRAVĂ a
COPILULUI.
CS: NIKDY nepoužívejte dětský
zádržný systém instalovaný proti
směru jízdy na sedadle, které je
chráněno před sedadlem AKTIVNÍM
AIRBAGEM. Mohlo by dojít k
VÁŽNÉMU PORANĚNÍ nebo ÚMRTÍ
DÍTĚTE.
SK: NIKDY nepoužívajte detskú
sedačku otočenú vzad na sedadle
chránenom AKTÍVNYM AIRBAGOM,
pretože môže dôjsť k SMRTI alebo
VÁŽNYM ZRANENIAM DIEŤAŤA.
LT: JOKIU BŪDU nemontuokite atgal
atgręžtos vaiko tvirtinimo sistemos
sėdynėje, prieš kurią įrengta AKTYVI
ORO PAGALVĖ, nes VAIKAS GALI
ŽŪTI arba RIMTAI SUSIŽALOTI.
44 Seats, restraints
LV: NEKĀDĀ GADĪJUMĀ
neizmantojiet uz aizmuguri vērstu
bērnu sēdeklīti sēdvietā, kas tiek
aizsargāta ar tās priekšā uzstādītu
AKTĪVU DROŠĪBAS SPILVENU, jo
pretējā gadījumā BĒRNS var gūt
SMAGAS TRAUMAS vai IET BOJĀ.
ET: ÄRGE kasutage tahapoole
suunatud lapseturvaistet istmel, mille
ees on AKTIIVSE TURVAPADJAGA
kaitstud iste, sest see võib
põhjustada LAPSE SURMA või
TÕSISE VIGASTUSE.
MT: QATT tuża trażżin għat-tfal li
jħares lejn in-naħa ta’ wara fuq sit
protett b’AIRBAG ATTIV quddiemu;
dan jista’ jikkawża l-MEWT jew
ĠRIEĦI SERJI lit-TFAL.
Beyond the warning required by
ECE R94.02, for safety reasons a
forward-facing child restraint system
must only be used subject to the
instructions and restrictions in the
table 3 49.

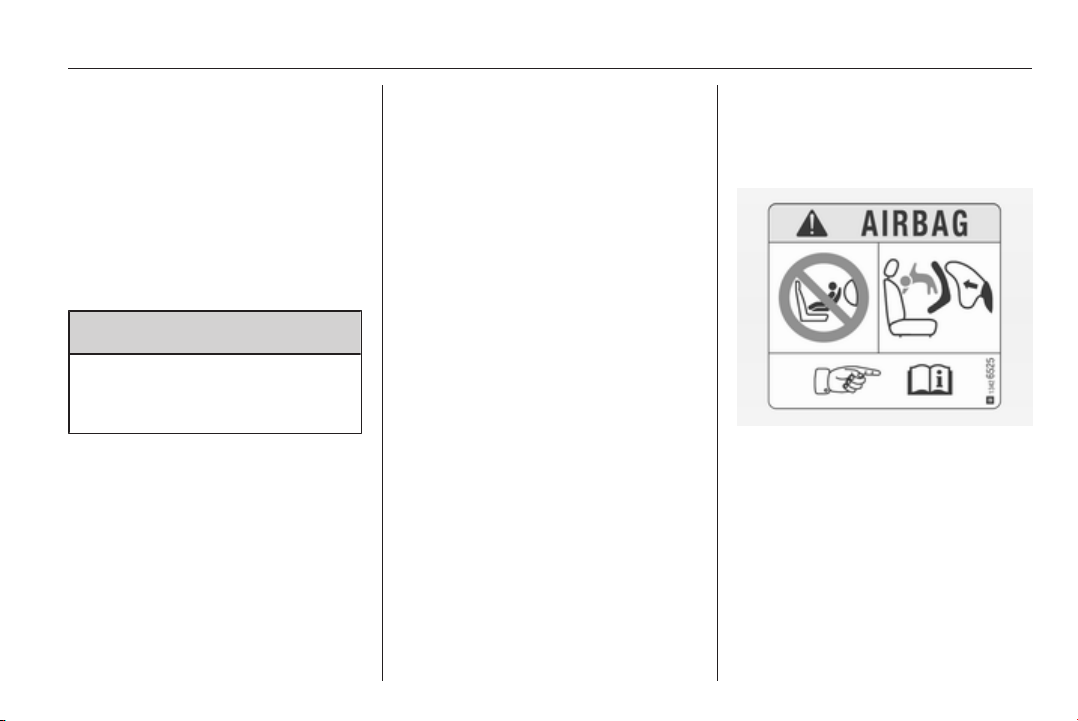

The airbag label is located on both
sides of the front passenger sun visor.
Airbag deactivation 3 46.

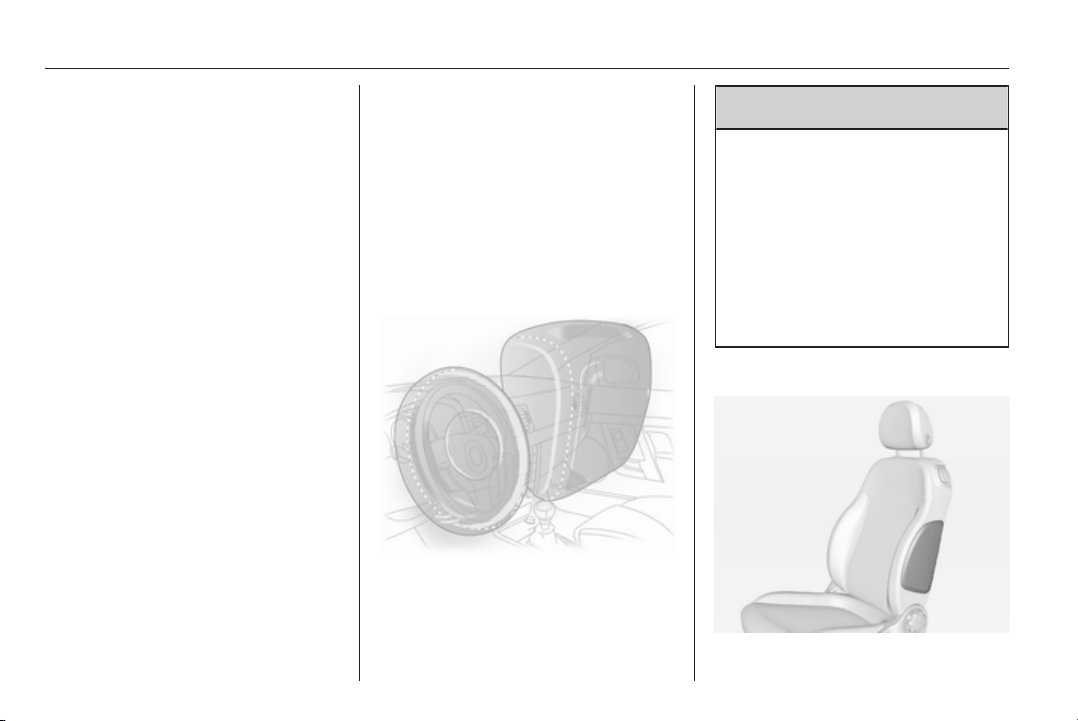

Front airbag system
The front airbag system consists of
one airbag in the steering wheel and
one in the instrument panel on the
front passenger side. The location is
identified by the word AIRBAG.
The front airbag system is triggered in
the event of a front-end impact of a
certain severity. The ignition must be
switched on.
The inflated airbags cushion the
impact, thereby reducing the risk of
injury to the upper body and head of
the front seat occupants
considerably.
9
Warning
Optimum protection is only
provided when the seat is in the
proper position.
Seat position 3 35.
Keep the area in which the airbag
inflates clear of obstructions.
Fit the seat belt correctly and
engage securely. Only then is the
airbag able to protect.
Side airbag system
Seats, restraints 45
The side airbag system consists of an
airbag in each front seat backrest.
The location is identified by the word
AIRBAG.
The side airbag system is triggered in
the event of a side impact of a certain
severity. The ignition must be
switched on.
The inflated airbags cushion the
impact, thereby reducing the risk of
injury to the upper body and pelvis in
the event of a side-on collision
considerably.
9 Warning
Keep the area in which the airbag
inflates clear of obstructions.
Note
Only use protective seat covers that
have been approved for the vehicle.
Be careful not to cover the airbags.
Curtain airbag system
The curtain airbag system consists of
an airbag in the roof frame on each
side. The location is identified by the
word AIRBAG on the roof pillars.
The curtain airbag system is triggered
in the event of a side-on impact of a
certain severity. The ignition must be
switched on.
The inflated airbags cushion the
impact, thereby reducing the risk of
injury to the head in the event of a
side-on impact considerably.
9 Warning
Keep the area in which the airbag
inflates clear of obstructions.
The hooks on the handles in the
roof frame are only suitable for
hanging up light articles of
clothing, without coat hangers. Do
not keep any items in these
clothes.
46 Seats, restraints
Airbag deactivation
The front passenger airbag system
must be deactivated for child restraint
system on the passenger seat
according to the instructions in the
table 3 49. The side airbag and
curtain airbag systems, the belt
pretensioners and all driver airbag
systems will remain active.

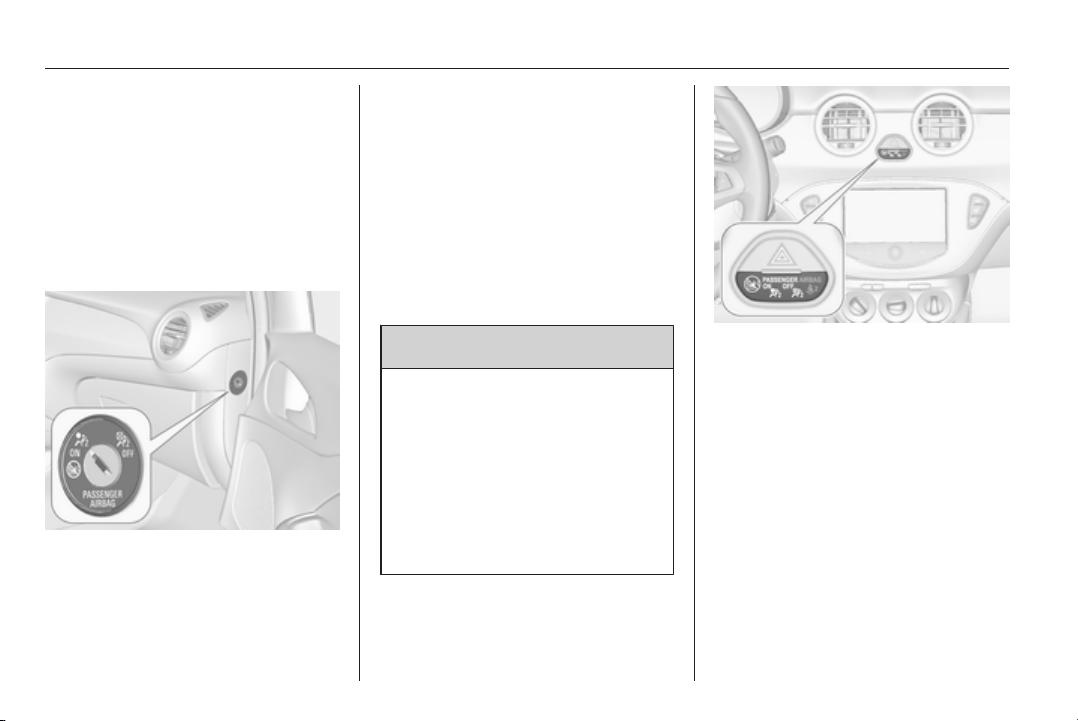

Use the ignition key to choose the
switch position:
*OFF
= front passenger airbag is
deactivated and will not
inflate in the event of a
collision. Control indicator
*OFF illuminates
continuously in the centre
console
VON = front passenger airbag is
active
9 Danger
Deactivate passenger airbag only
in combination with the use of a
child restraint system, subject to
the instructions and restrictions in
the table 3 49.
Otherwise, there is a risk of fatal
injury for a person occupying a
seat with a deactivated front
passenger airbag.
If the control indicator V illuminates
for approx. 60 seconds after the
ignition is switched on, the front
passenger airbag system will inflate
in the event of a collision.
If both control indicators are
illuminated at the same time, there is
a system failure. The status of the
system is not discernible, therefore
no person is allowed to occupy the
front passenger seat. Contact a
workshop immediately.
Change status only when the vehicle
is stopped with the ignition off.
Status remains until the next change.
Seats, restraints 47
Control indicator for airbag
deactivation 3 87.
Child restraints
Child restraint systems
We recommend the following Opel
child restraint systems which are
tailored specifically to the vehicle:
■ Group 0, Group 0+
OPEL Baby cradle, with or without
ISOFIX base, for children up to
13 kg.
■ Group I
FAIR G 0/1 S ISOFIX, for children
from 9 kg to 13 kg in this group.
OPEL Duo, for children from 13 kg
to 18 kg in this group.
■ Group II, Group III
OPEL Kid, OPEL Kidfix, TAKATA
MAXI 2/3 for children from 15 kg up
to 36 kg.
When a child restraint system is being
used, pay attention to the following
usage and installation instructions
and also those supplied with the child
restraint system.
Always comply with local or national
regulations. In some countries, the
use of child restraint systems is
forbidden on certain seats.
9 Danger
If using a rear-facing child restraint
system on the front passenger
seat, the airbag system for the
front passenger seat must be
deactivated. This also applies to
certain forward-facing child
restraint systems as indicated in
the table 3 49.
Airbag deactivation 3 46.
Airbag label 3 41.
Selecting the right system
The rear seats are the most
convenient location to fasten a child
restraint system.
Children should travel facing
rearwards in the vehicle as long as
possible. This ensures that the child's
backbone, which is still very weak, is
under less strain in the event of an
accident.
48 Seats, restraints
Suitable are restraint systems that
comply with valid UN ECE
regulations. Check local laws and
regulations for mandatory use of child
restraint systems.
Ensure that the child restraint system
to be installed is compatible with the
vehicle type.
Ensure that the mounting location of
the child restraint system within the
vehicle is correct, see following
tables.
Allow children to enter and exit the
vehicle only on the side facing away
from the traffic.
When the child restraint system is not
in use, secure the seat with a seat belt
or remove it from the vehicle.
Note
Do not affix anything on the child
restraint systems and do not cover
them with any other materials.
A child restraint system which has
been subjected to stress in an
accident must be replaced.
Seats, restraints 49
Child restraint installation locations
Permissible options for fitting a child restraint system
Weight and age class
On front passenger seat
On rear seatsactivated airbag deactivated airbag
Group 0: up to 10 kg
or approx. 10 months
X
U
1
U*
Group 0+: up to 13 kg
or approx. 2 years
X
U
1
U*
Group I: 9 to 18 kg
or approx. 8 months to 4 years
X
U
1
U
2
*
Group II: 15 to 25 kg
or approx. 3 to 7 years
U ** X U *
Group III: 22 to 36 kg
or approx. 6 to 12 years
U ** X U *
50 Seats, restraints
1
= if the child restraint system is being secured using a three-point seat belt, move seat height adjustment in the uppermost
position. Adjust seat backrest inclination as far as necessary to a vertical position to ensure that the belt is tight on the
buckle side
2
= remove rear head restraint when using child restraint systems in this group 3 34
* = move the respective front seat ahead of the child restraint system to one of the foremost adjustment positions
** = move the front passenger seat to the rearmost adjustment position. Move seat height adjustment to the uppermost
position and the headrest to the lowest position. Adjust seat backrest inclination as far as necessary to a vertical position
to ensure that vehicle seat belt runs forwards from the upper anchorage point
U = universal suitability in conjunction with three-point seat belt
X = no child restraint system permitted in this weight class
Permissible options for fitting an ISOFIX child restraint system
Weight class Size class Fixture On front passenger seat On rear seats
Group 0: up to 10 kg
or approx. 10 months
E ISO/R1 X IL *
Group 0+: up to 13 kg
or approx. 2 years
E ISO/R1 X IL *
D ISO/R2 X X
C ISO/R3 X X
Seats, restraints 51
Weight class Size class Fixture On front passenger seat On rear seats
Group I: 9 to 18 kg
or approx. 8 months to 4 years
D ISO/R2 X X
C ISO/R3 X X
B ISO/F2 X IL, IUF**
B1 ISO/F2X X IL, IUF**
A ISO/F3 X IL, IUF**
Group II: 15 to 25 kg
or approx. 3 to 7 years
X IL
Group III: 22 to 36 kg
or approx. 6 to 12 years
X IL
IL = suitable for particular ISOFIX restraint systems of the "specific-vehicle", "restricted" or "semi-universal" categories.
The ISOFIX restraint system must be approved for the specific vehicle type
IUF = suitable for ISOFIX forward-facing child restraint systems of universal category approved for use in this weight class
X = no ISOFIX child restraint system approved in this weight class
* = move the respective front seat ahead of the child restraint system to one of the foremost adjustment positions
** = remove respective rear head restraint when using child restraint systems in this size class 3 34
52 Seats, restraints
ISOFIX size class and seat device
A – ISO/F3 = forward-facing child restraint system for children of maximum size in the weight class 9 to 18 kg
B – ISO/F2 = forward-facing child restraint system for smaller children in the weight class 9 to 18 kg
B1 – ISO/F2X = forward-facing child restraint system for smaller children in the weight class 9 to 18 kg
C – ISO/R3 = rear-facing child restraint system for children of maximum size in the weight class up to 18 kg
D – ISO/R2 = rear-facing child restraint system for smaller children in the weight class up to 18 kg
E – ISO/R1 = rear-facing child restraint system for young children in the weight class up to 13 kg
Seats, restraints 53

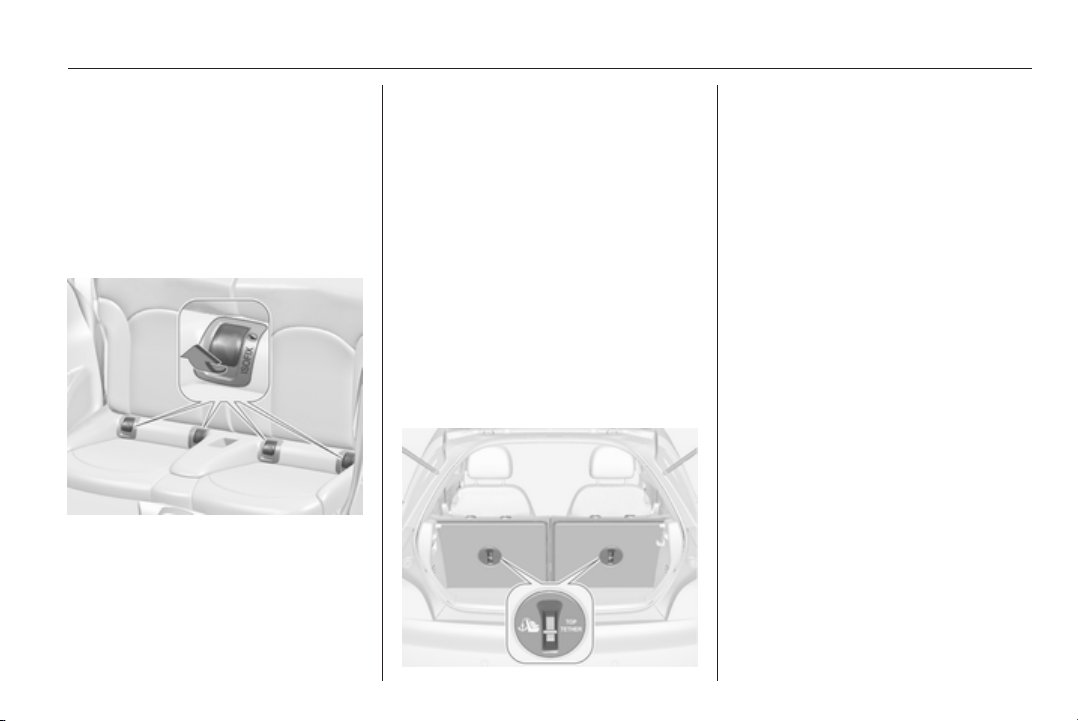

ISOFIX child restraint
systems
Fasten vehicle-approved ISOFIX
child restraint systems to the ISOFIX
mounting brackets. Specific vehicle
ISOFIX child restraint system
positions are marked in the table by
IL.
ISOFIX mounting brackets are
indicated by the ISOFIX logo on the
backrest.
The vehicle is equipped with guides in
the backrests to support the
installation of the child restraint
system. Open the flaps of the guides
to mount a child restraint system.
Remove rear head restraint before
mounting a child restraint system, if
required 3 49.
Top-tether fastening eyes
The vehicle has two fastening eyes
on the backside of the rear seats.
Top-Tether fastening eyes are
marked with the symbol : for a child
seat.
In addition to the ISOFIX mounting,
fasten the Top-Tether strap to the
Top-Tether fastening eyes.
ISOFIX child restraint systems of
universal category positions are
marked in the table by IUF.
Remove rear head restraint before
mounting a child restraint system, if
required 3 49.
54 Storage
Storage
Storage compartments ................ 54
Load compartment ....................... 65
Roof rack system ......................... 71
Loading information ..................... 71
Storage compartments
9 Warning
Do not store heavy or sharp
objects in the storage
compartments. Otherwise, the
storage compartment lid could
open and vehicle occupants could
be injured by objects being thrown
around in the event of hard
braking, a sudden change in
direction or an accident.

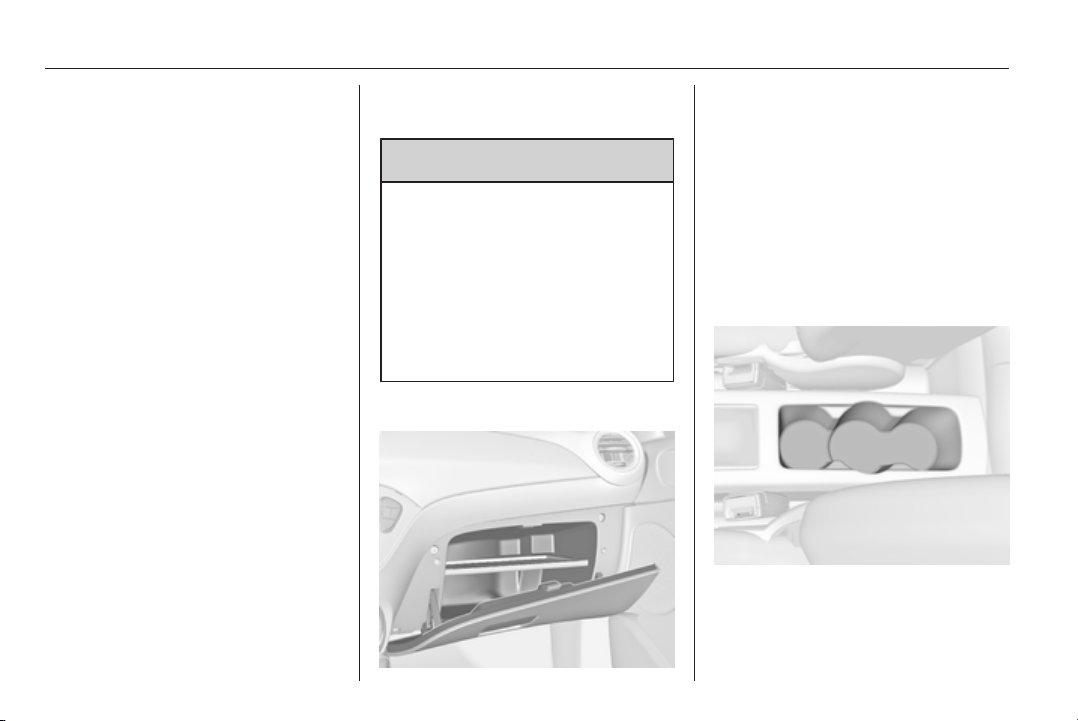

Glovebox
Pull lever to open the glovebox cover.
The glovebox features a coin holder
and an adapter for the locking wheel
bolts.
The intermediate shelf can be
removed.
The glovebox should be closed whilst
driving.
Cupholders
Cupholders are located in the console
between the front seats. They are
designed for cups of different sizes.
Storage 55
Door pockets in both doors are
designed to carry bottles.
Additional cupholders or
bottleholders are located in the rear
side panels.
Flexible cupholder strap
A movable rubber strap is located in
the storage compartment in front of
the gear selector lever. Pull out the
strap to fix a cup or ashtray.
Front storage
Storage compartments are located
below the light switch, in the centre
console in front of the gear selector
lever, in the door pockets and in the
side panels near the rear seats.
56 Storage

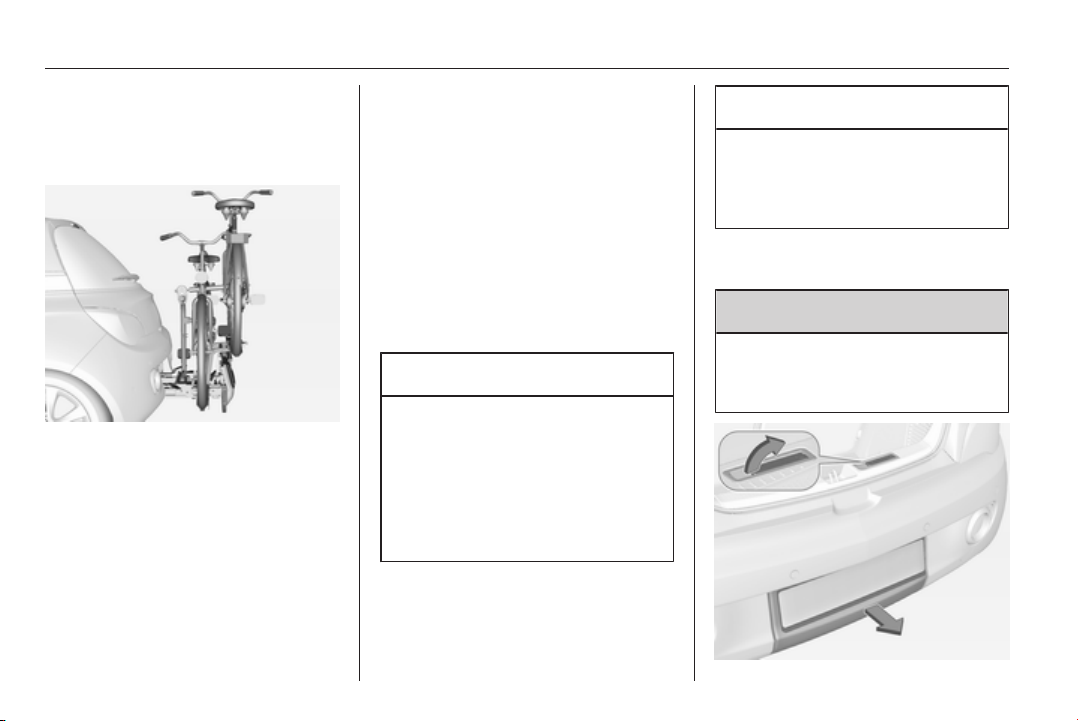

Rear carrier system
Rear carrier system for two
bicycles
The rear carrier system (Flex-Fix
system) allows one bicycle to be
attached to a pull-out carrier
integrated into the vehicle floor. It is
possible to attach one further bicycle
on an adapter. The transportation of
other objects is not permitted.
The maximum load of the rear carrier
system is 50 kg with attached adapter
and 30 kg without attached adapter.
This allows the attachment of an
electrically-powered bicycle to the
pull-out carrier. The maximum load on
the adapter is 20 kg.
The wheelbase of a bicycle must not
exceed 1.15 metres. Otherwise the
secure fastening of a bicycle is not
possible.
If not in use, the carrier system must
be slid back into the vehicle floor.
There must not be any objects on the
bicycles that could become loose
during transportation.
Caution
If the rear carrier system is
extended and the vehicle is fully
loaded, the chassis clearance will
be reduced.
Drive carefully whenever the road
has a strong inclination or when
driving over a ramp, bump, etc.
Caution
Consult your bicycle dealer before
attaching bicycles with carbon
frames. The bicycles might get
damaged.
Extending
Open the tailgate.
9 Warning
No-one should be in the extension
zone of the rear carrier system,
risk of injury.
Storage 57

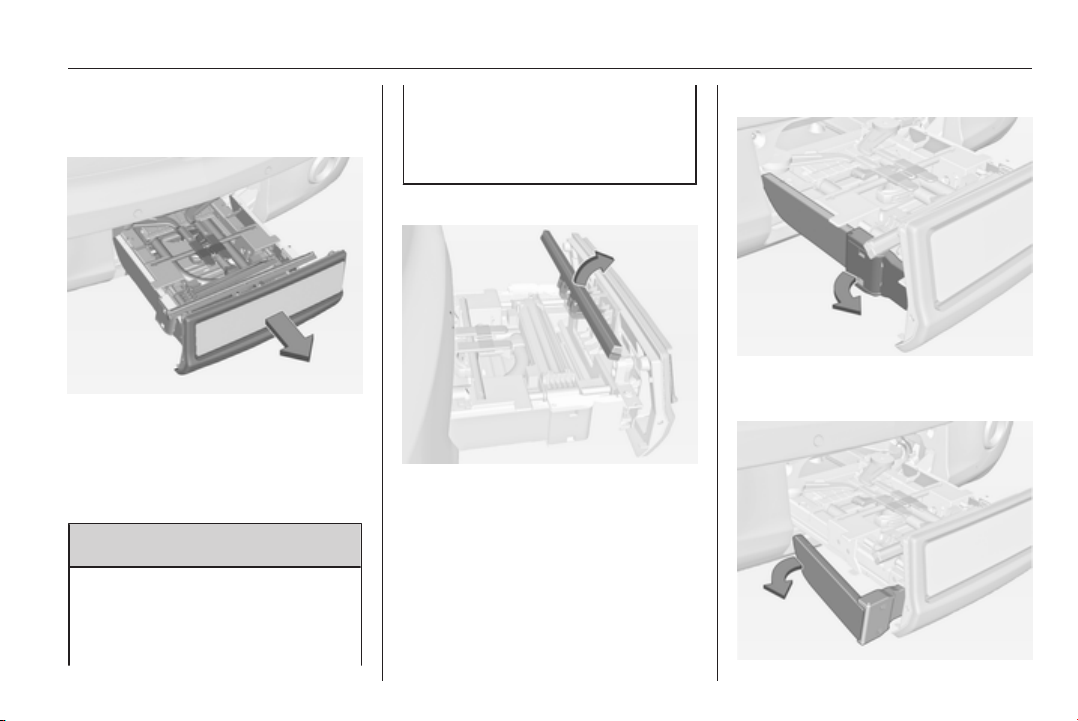

Pull release lever up. The system
disengages and travels quickly out of
the bumper.
Completely pull out the rear carrier
system until you hear it engage.
Ensure that it is not possible to push
in the rear carrier system without
pulling the release lever again.
9 Warning
It is only permissible to fit objects
to the rear carrier system if the
system has been correctly
engaged. If the rear carrier system
will not engage correctly, do not fit
objects to the system and slide the
system back. Seek the assistance
of a workshop.
Unfold number plate light
Lift the number plate light and fold it
backwards.
Fold out tail lamps
Swivel hinges of both tail lamps
backwards as far as it will go.

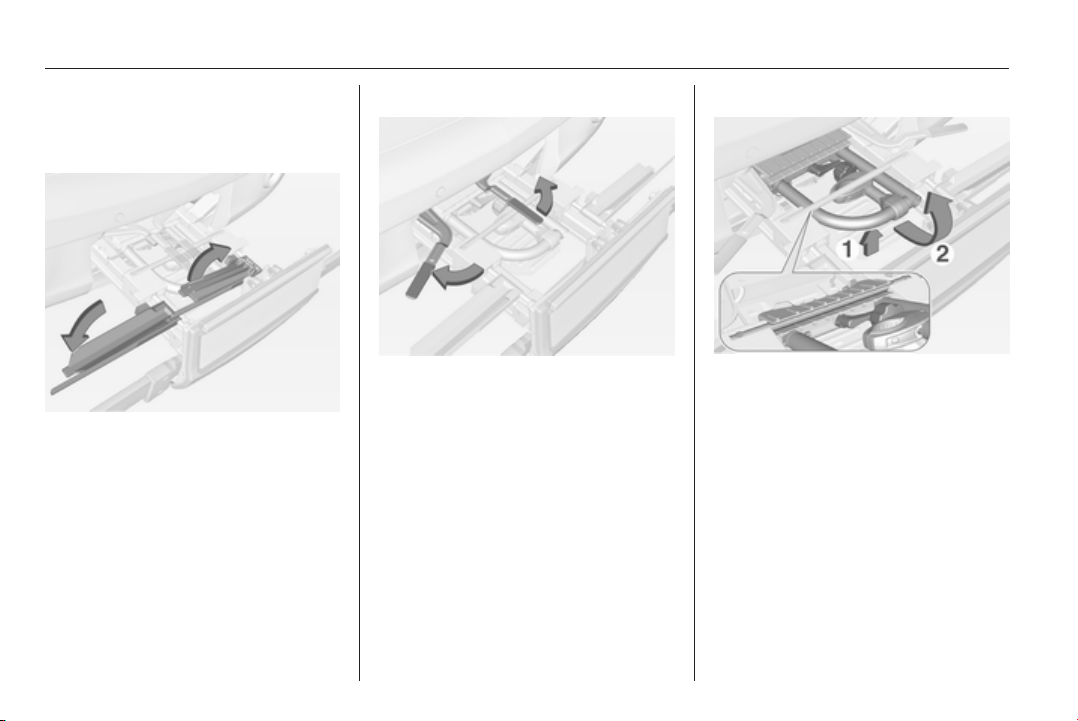

58 Storage
Swivel both tail lamps backwards as
far as it will go.
Fold out wheel recess
Remove strap and fold out the wheel
recess.
Lock the rear carrier system
Remove strap and swivel both
clamping levers sidewards as far as it
will go.
Otherwise safe functionality is not
guaranteed.
Assembling the bicycle rack
Lift the rack at the rear (1) and pull it
backwards.
Fold up the rack (2).
Storage 59
Push down the rack (1) and swivel
handle (2) backwards to engage.
Press button (1) and remove left part
of rack (2).
Press button (1) and insert left part of
rack into the right part (2).
Attaching the adapter
When carrying two bicycles, the
adapter must be fixed before
attaching the first bicycle.
1. Apply the adapter to the rear
carrier system as shown in the
illustration.
60 Storage
2. Turn the lever (1) forwards and
hold, then lower the adapter (2) at
the rear.
3. Release lever and check if the
adapter is engaged securely.
4. Guide the strap attached to the
adapter underneath the lever for
folding back the rear carrier
system. Fasten the strap.

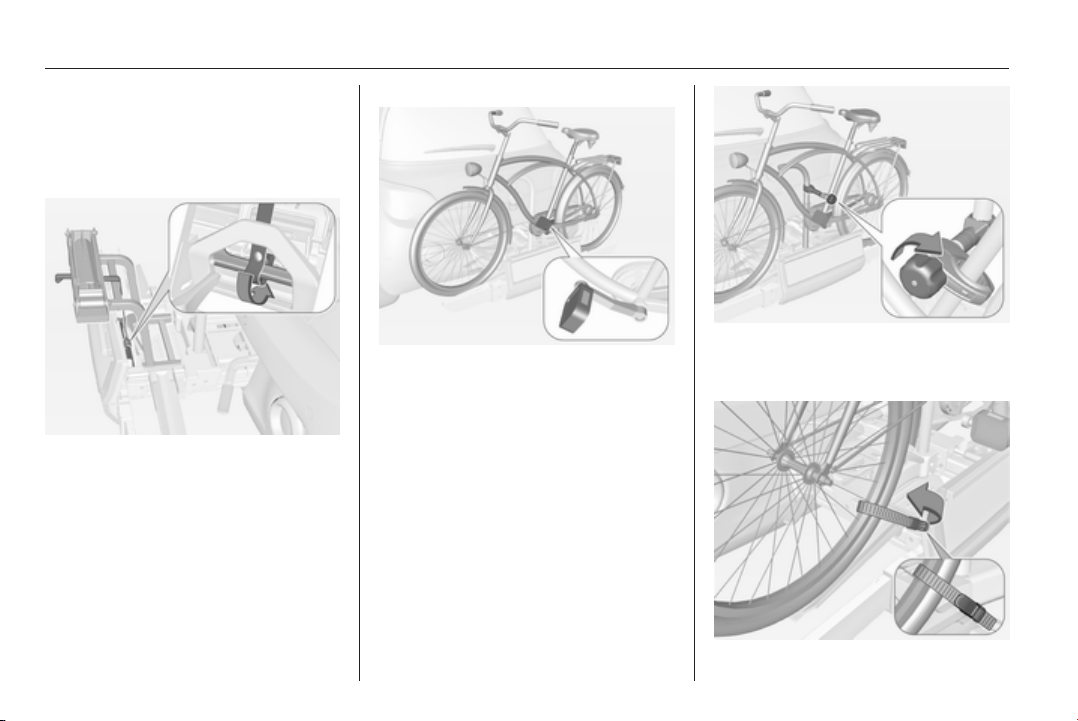

Attaching the first bicycle
1. Rotate the pedals into position as
shown in the illustration and put
the bicycle on the wheel recess.
Make sure that the bicycle stands
centrally on the wheel recesses.
2. Attach the short mounting bracket
to the bicycle frame. Turn the
knob clockwise to fasten.
Storage 61
3. Secure both bicycle wheels to the
wheel recesses using the strap
retainers.
4. Check the bicycle to make sure it
is secure.
Caution
Ensure gap between bicycle and
vehicle is at least 5 cm. If
necessary, loosen handlebar and
swivel sideways.

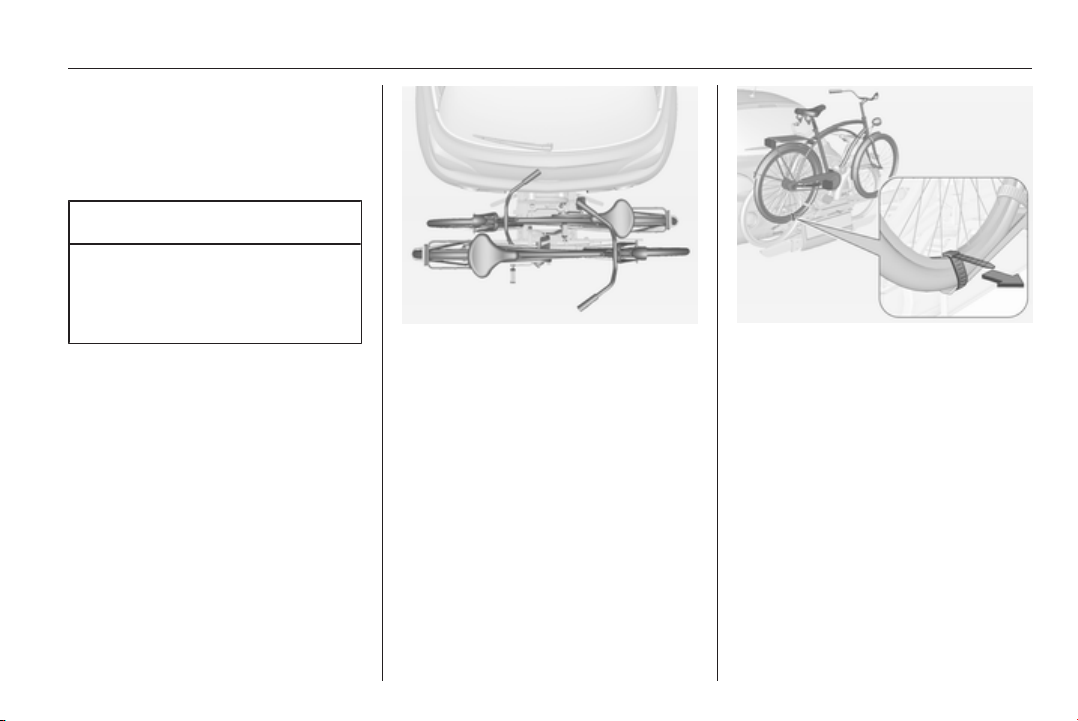

Attaching the second bicycle
The attachment of a second bicycle is
similar to the attachment of the first
bicycle. Additionally some steps must
be considered:
1. Always rotate the pedals into an
appropriate position before
putting on the bicycle.
2. Position the bicycles on the rear
carrier system alternately aligned
to the left and to the right.
3. Align the rear bicycle to the front
bicycle. The wheel hubs of the
bicycles must not touch each
other.
4. Attach the rear bicycle with the
longer mounting bracket and the
strap retainers as described for
the front bicycle. The mounting
brackets should be fixed in
parallel.
5. Additionally secure both bicycle
wheels of the rear bicycle to the
wheel recesses using the
tensioning straps.
It is recommended to attach a
warning sign at the rearmost bicycle,
to increase visibility.
Fold the rear carrier system
backwards
The rear carrier system can be folded
backwards to gain access to the load
compartment.
62 Storage
■ Without attached adapter:
Push the lever (1) to disengage and
hold.
Pull the rack (2) backwards to fold
the rear carrier system.
■ With attached adapter:
9 Warning
Take care when disengaging the
rear carrier system as it will tilt
backwards. Risk of injury.
Hold frame (1) of rear bicycle with
one hand and pull the loop (2) to
disengage.
Hold rear bicycle with both hands
and fold the rear carrier system
backwards.
To increase visibility, the tail lights of
the vehicle are activated when the
rear carrier system is folded back.
9 Warning
When folding the rear carrier
system forwards again, take care
that the system is engaged
securely.
Removing bicycles
Undo strap retainers on both bicycle
tyres.
Turn knob anticlockwise and remove
mounting brackets.
Detaching adapter
1. Fold in wheel recesses.
2. Unbutton the strap.
Storage 63
3. Turn the lever (1) forwards and
hold.
4. Lift the adapter (2) at the rear and
remove.
Disassembling the bicycle rack
Press button (1) and remove upper
part of rack (2).
Press button (1) and reinstall rack (2).
Arrange mounting bracket as shown
in the illustration.
Swivel handle (1) sidewards to
disengage and lift the rack (2).
64 Storage
Fold the rack backwards, then push
forwards until it stops (1).
Press the rack down at the rear (2).
Fold in wheel recess
Fold in wheel recess. Fasten strap.
Stow the strap retainers accurately.
Unlock the rear carrier system
Swivel both clamping levers inwards
as far as it will go. Fasten strap.
Fold in tail lamps
First swivel tail lamps (1) forwards as
far as it will go.
Then swivel hinges (2) forwards as far
as it will go.
Storage 65
Fold in number plate light
Fold number plate light forwards.
Retracting the rear carrier system
Caution
Take care that all foldable parts,
e.g. wheel recesses and mounting
brackets, are stowed accurately.
Otherwise the rear carrier system
might get damaged when trying to
retract it.
Push the release lever up and hold.
Lift the system slightly and push it into
the bumper until it engages.
Release lever must return to original
position.
9 Warning
If the system cannot be correctly
engaged, please seek the
assistance of a workshop.
Load compartment
The rear seat backrest is divided into
two parts. Both parts can be folded
down separately.
Load compartment extension
Remove the load compartment cover
if necessary.
Press the catch and push down the
head restraint.
Insert seat belt latch plate into side
holder to protect the belt against
damage.
66 Storage
Pull the strap on one or both
backrests and fold them down onto
the seat cushion.
To fold up, raise the backrests into
upright position and let them engage
audibly.
The backrests are properly engaged
when the red marks on both release
straps are not visible.
9 Warning
When folding up, ensure that
backrests are securely locked in
position before driving. Failure to
do so may result in personal injury
or damage to load or vehicle in the
event of heavy braking or collision.
Hook for carrier bags
Use the hook at the right sidewall of
the load compartment for hanging up
carrier bags. Maximum load: 5 kg.
Rear storage

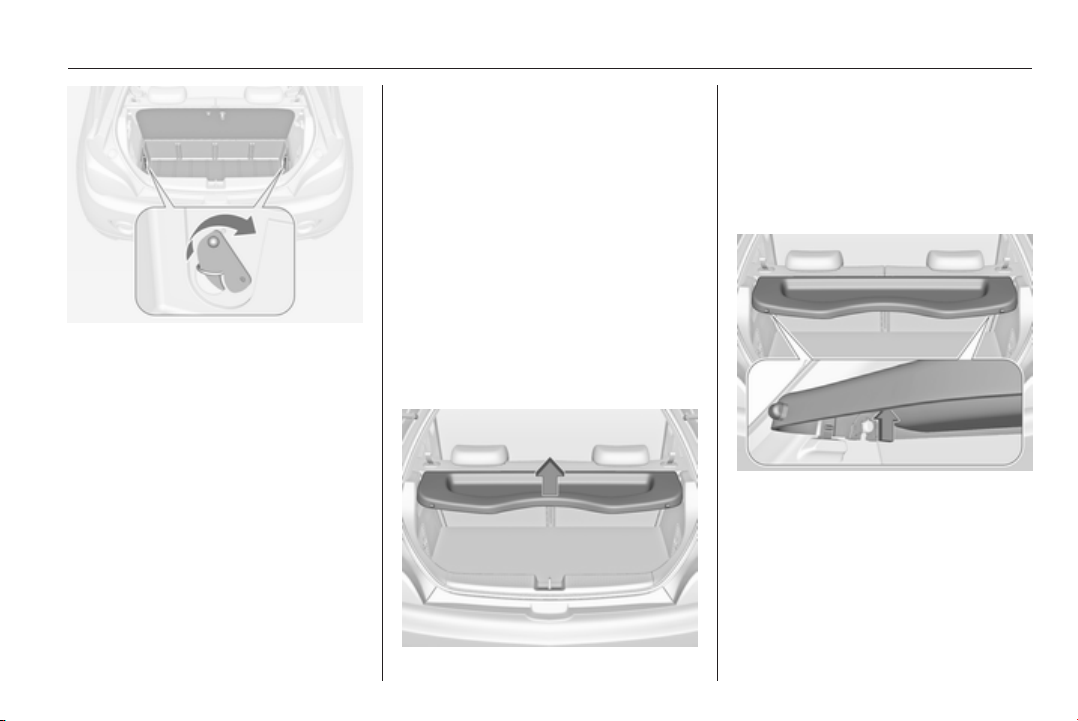

Storage box
A closable storage box is located in
the load compartment. The cover is
lockable by turning the knob. It must
be locked while driving.
To open, unlock and lift up the cover.
To remove the cover, open it and slide
sideways to the left.
The box can be separated by a
divider.
The storage box cover can be loaded
with max. 20 kg.
Removal
To gain access to emergency
breakdown equipment or for bulb
replacement of the tail lights, the
storage box must be removed:
■ Remove the load compartment
cover 3 67.
■ Fold down the rear backrests 3 65.
■ Open the storage box.

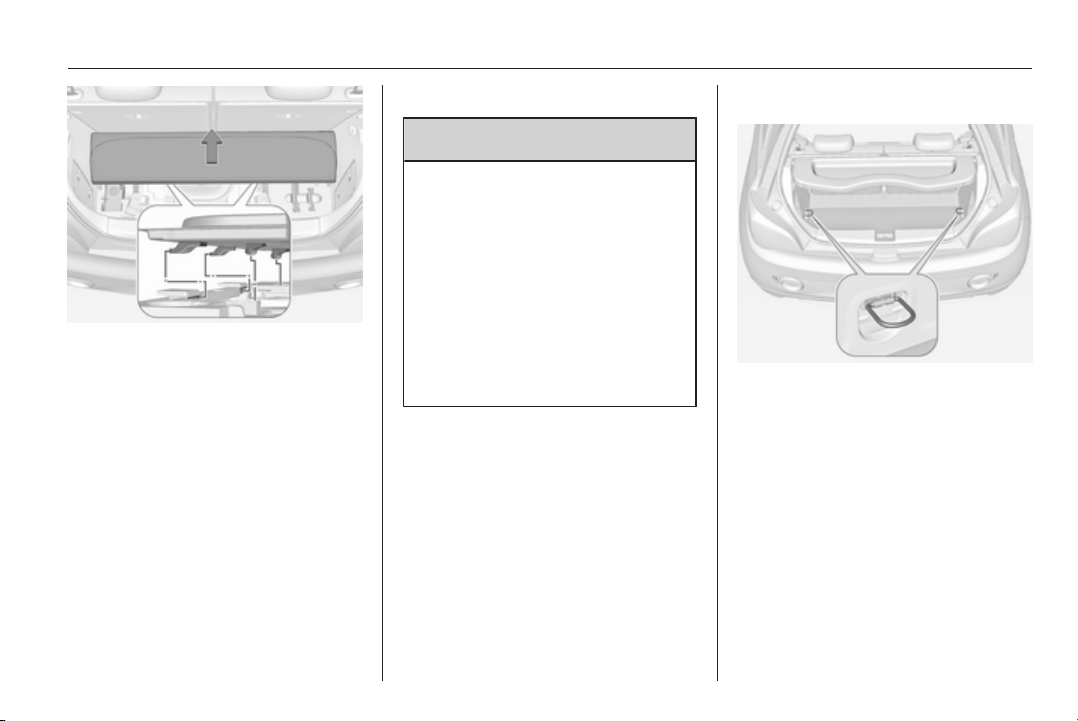

Storage 67
■ Turn the lock hooks on both sides
to the rear and push down the
lashing eyes in the recesses.
■ Raise the storage box and place it
on the folded backrests.
■ Remove the storage box out of the
load compartment.
Installation
■ Place the storage box on the folded
backrests.
■ Lower the box in the load
compartment.
■ Open the storage box.
■ Raise the lashing eyes on both
sides and turn the lock hooks to the
front to fix the box to the lashing
eyes.
■ Raise the rear backrests and install
the load compartment cover.
■ Stow the suitcase with tyre repair kit
in a chamber of the storage box.
■ Close and lock the cover.
Load compartment cover
Do not place any objects on the cover.
Opening
Lift up the cover at the rear end. It
engages in a nearly vertical position.
Further opening is possible. To close,
move down the cover beyond the
engage point.
Removing
Push cover upwards at the left and
right from the lower side and remove.
Fitting
Engage cover by pushing into guides
on both sides.
68 Storage
Rear floor storage cover
Rear floor cover
Lift up rear floor cover to gain access
to emergency breakdown equipment.
Tools 3 176.
Subwoofer cover
Lift up rear part of floor cover to gain
access to the warning triangle.
When closing floor cover, ensure it is
fixed with the Velcro fastener.
Removal
Remove floor cover to gain access to
emergency breakdown equipment
and for bulb replacement of tail lights:
■ Lift up and fold the rear part to the
front.
■ Pull out the cover to the rear, it will
be lifted slightly by a guide.
■ Detach the cover from the load
compartment.
To gain access to the right cover in
the load compartment, e.g. for bulb
replacement, fold down rear right
backrest and pull out the tool box
beside the subwoofer.
Bulb replacement 3 165.
Installation
■ Install the tool box if removed.
■ Place the floor cover in load
compartment.
Storage 69
■ Move the floor cover slowly to the
front, taking care that the guiding
bolts slide into the attachments of
the load compartment, and allow
the floor cover to lower into
position.
■ Close the floor cover by folding the
upper part to the rear, and fix it with
the Velcro fastener.
■ Fold up the rear backrests.
General hint
9 Warning
For safety reasons, stow all parts
in the load compartment in its
position, always drive with a
closed rear floor cover and, if
possible, with folded up rear
backrests.
Otherwise, vehicle occupants
could be injured by objects being
thrown around in the event of
sharp braking, a sudden change in
direction or an accident.
Lashing eyes
The lashing eyes are designed to
secure items against slippage, e.g.
using lashing straps or luggage net.
70 Storage

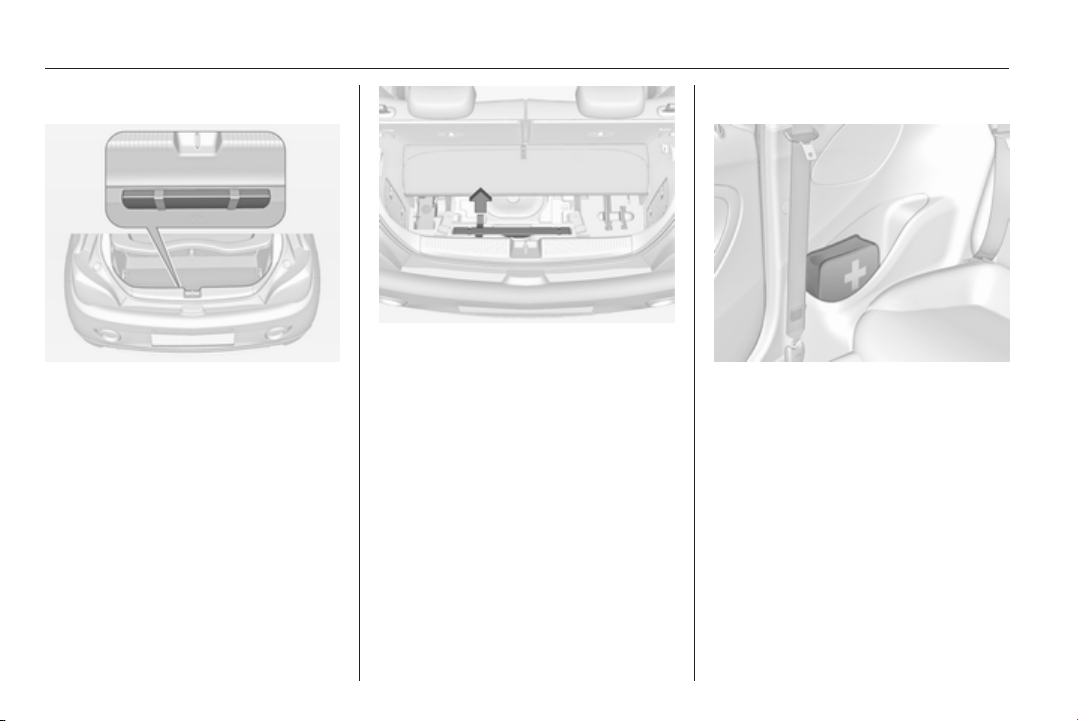

Warning triangle
The warning triangle is stowed with
elastic straps in the load
compartment below the tailgate.
If the vehicle is equipped with a
storage box in the load compartment,
remove the storage box to gain
access to the warning triangle 3 66.
Version with subwoofer box
Lift up the rear part of the floor cover.
Pull the handle to remove the warning
triangle.
Rear floor storage cover 3 68.
First aid kit
Stow the first aid kit in the side panel
storage near the rear seats.
Storage 71
Roof rack system
Roof rack
For safety reasons and to avoid
damage to the roof, the vehicle
approved roof rack system is
recommended. For further
information contact your workshop.
Follow the installation instructions
and remove the roof rack when not in
use.
Mounting roof rack
Open the cover from each mounting
point by using a coin.
Loading information
■ Heavy objects in the load
compartment should be placed
against the seat backrests. Ensure
that the backrests are securely
engaged. If objects can be stacked,
heavier objects should be placed at
the bottom.
■ Secure objects with lashing straps
attached to the lashing eyes 3 69.
■ Use the hook at the right sidewall of
the load compartment for hanging
up carrier bags. Maximum load:
5 kg.
■ Secure loose objects in the load
compartment to prevent them from
sliding.
■ When transporting objects in the
load compartment, the backrests of
the rear seats must not be angled
forward.
■ Do not allow the load to protrude
above the upper edge of the
backrests.
■ Do not place any objects on the
load compartment cover or the
instrument panel, and do not cover
the sensor on top of the instrument
panel.
■ The load must not obstruct the
operation of the pedals, parking
brake and gear selector lever, or
hinder the freedom of movement of
the driver. Do not place any
unsecured objects in the interior.
■ Do not drive with an open load
compartment.
72 Storage
9 Warning
Always make sure that the load in
the vehicle is securely stowed.
Otherwise objects can be thrown
around inside the vehicle and
cause personal injury or damage
to the load or car.
■ The payload is the difference
between the permitted gross
vehicle weight (see identification
plate 3 207) and the EC kerb
weight.
To calculate the payload, enter the
data for your vehicle in the Weights
table at the front of this manual.
The EC kerb weight includes
weights for the driver (68 kg),
luggage (7 kg) and all fluids (tank
90 % full).
Optional equipment and
accessories increase the kerb
weight.
■ Driving with a roof load increases
the sensitivity of the vehicle to
cross-winds and has a detrimental
effect on vehicle handling due to
the vehicle's higher centre of
gravity. Distribute the load evenly
and secure it properly with retaining
straps. Adjust the tyre pressure and
vehicle speed according to the load
conditions. Check and retighten the
straps frequently.
Do not drive faster than 120 km/h.
The permissible roof load is 50 kg.
The roof load is the combined
weight of the roof rack and the load.
Instruments and controls 73
Instruments and
controls
Controls ....................................... 73
Warning lights, gauges and indi‐
cators ........................................... 81
Information displays ..................... 91
Vehicle messages ........................ 98
Vehicle personalisation .............. 101
Controls
Steering wheel adjustment
Unlock lever, adjust steering wheel,
then engage lever and ensure it is
fully locked.
Do not adjust steering wheel unless
vehicle is stationary and steering
wheel lock has been released.
Steering wheel controls
The Infotainment system, the cruise
control and a connected mobile
phone can be operated via the
controls on the steering wheel.
Further information is available in the
Infotainment system manual.
Driver assistance systems 3 134.
74 Instruments and controls
Heated steering wheel
Activate heating by pressing *
button. Activation is indicated by the
LED in the button.
The highlighted grip areas of the
steering wheel are heated quicker
and to a higher temperature than the
other areas.
Heating is operational when the
engine is running and during an
Autostop.
Stop-start system 3 125.
Horn
Press j.
Instruments and controls 75
Windscreen wiper/washer
Windscreen wiper
HI = fast
LO = slow
INT = interval wiping
or
automatic wiping with rain
sensor
OFF = off
For a single wipe when the
windscreen wiper is off, press the
lever down to position 1x.
Do not use if the windscreen is frozen.
Switch off in car washes.
Adjustable wiper interval
Wiper lever in position INT.
Turn the adjuster wheel to adjust the
desired wipe interval:
short interval = turn adjuster
wheel upwards
long interval = turn adjuster
wheel downwards
Automatic wiping with rain sensor
INT = automatic wiping with rain
sensor
The rain sensor detects the amount of
water on the windscreen and
automatically regulates the frequency
of the windscreen wiper.
If the wiper frequency is above
20 seconds the wiper arm moves
slightly down to park position.
76 Instruments and controls
Adjustable sensitivity of the rain
sensor
Turn the adjuster wheel to adjust the
sensitivity:
low sensitivity = turn adjuster
wheel downwards
high sensitivity = turn adjuster
wheel upwards
Keep the sensor free from dust, dirt
and ice.
Windscreen washer
Pull lever. Washer fluid is sprayed
onto the windscreen and the wiper
wipes a few times.
Rear window wiper/washer
Press the rocker switch to activate the
rear window wiper:
upper position = continuous
operation
lower position = intermittent
operation
middle position = off
Instruments and controls 77
Push lever. Washer fluid is sprayed
onto the rear window and the wiper
wipes a few times.
Do not use if the rear window is
frozen.
Switch off in car washes.
The rear window wiper comes on
automatically when the windscreen
wiper is switched on and reverse gear
is engaged.
Activation or deactivation of this
function can be changed in the menu
Settings in the Info-Display.
Vehicle personalisation 3 101.

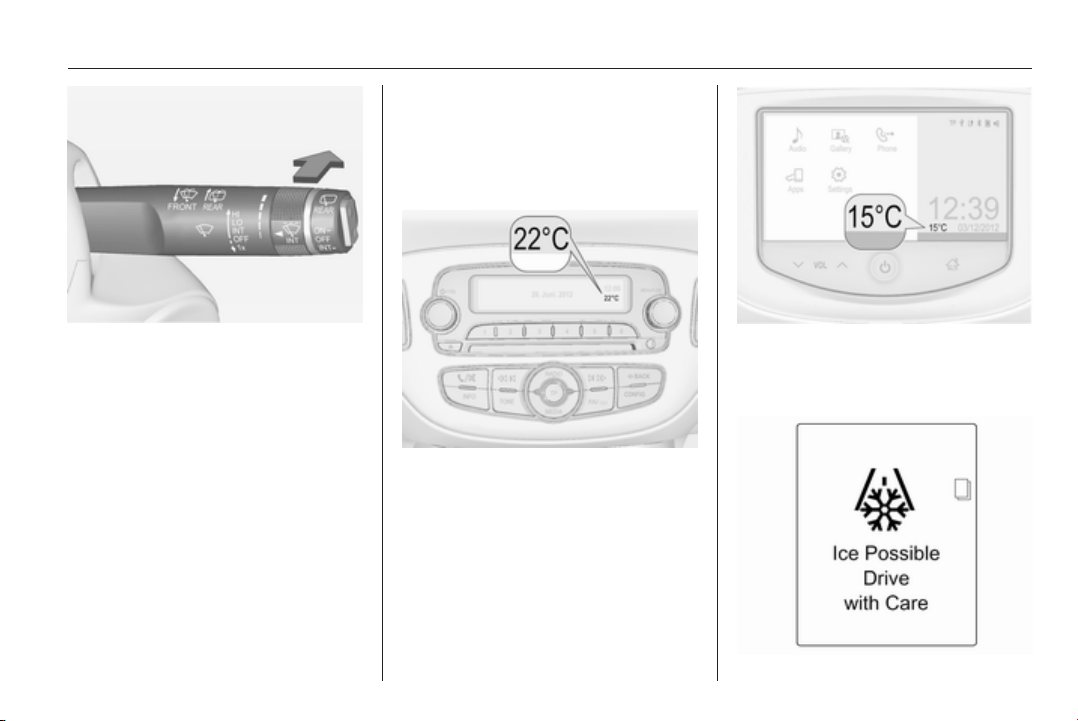

Outside temperature
A drop in temperature is indicated
immediately and a rise in temperature
after a time delay. Temperatures
below 3 °C are displayed flashing.
Illustration shows Graphic-Info-
Display.
Illustration shows Colour-Info-
Display.
Uplevel-Display
78 Instruments and controls
If outside temperature drops to 3 °C,
a warning message is displayed in the
Driver Information Centre.
9 Warning
The road surface may already be
icy even though the display
indicates a few degrees above
0 °C.
Clock

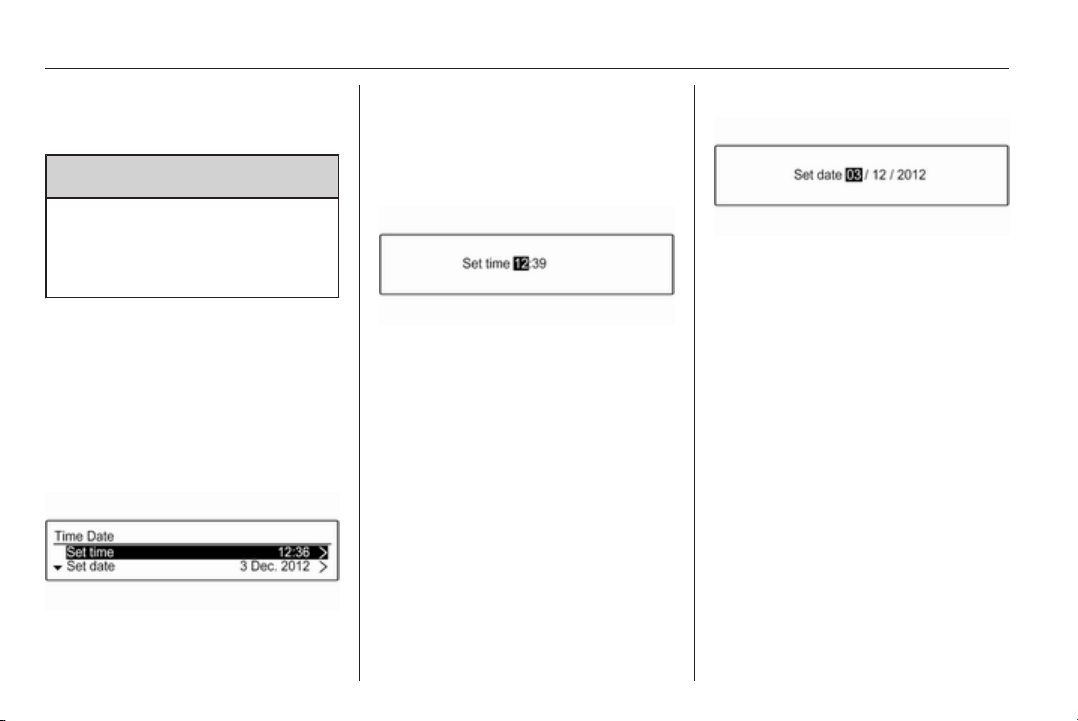

Graphic-Info Display
Press the CONFIG button to open the
Settings menu.
Scroll through the list and select the
menu item Time Date to display the
respective submenu.
Note
For a detailed description of menu
operation, refer to the Infotainment
system manual.
Set time
Press the MENU-TUNE knob to enter
the Set time submenu.
Turn the MENU-TUNE knob to
change the current value of the first
setting.
Press the MENU-TUNE knob to
confirm the set value.
The cursor then switches to the next
value. If all values are set, you are
automatically returned to the next
higher menu level.
Set date
Press the MENU-TUNE knob to enter
the Set date submenu.
Turn the MENU-TUNE knob to
change the current value of the first
setting.
Press the MENU-TUNE knob to
confirm the set value.
The cursor then switches to the next
value. If all values are set, you are
automatically returned to the next
higher menu level.
Set time format
To switch between the available
options, repeatedly press the
MENU-TUNE knob.
Instruments and controls 79
Set date format
To switch between the available
options, repeatedly press the
MENU-TUNE knob.
RDS clock synchronization
The RDS signal of most VHF
transmitters automatically sets the
time. RDS time synchronisation can
take a few minutes. Some
transmitters do not send a correct
time signal. In such cases, it is
recommended to switch off the
automatic time synchronisation.
To switch between the options On
and Off, repeatedly press the
MENU-TUNE knob.

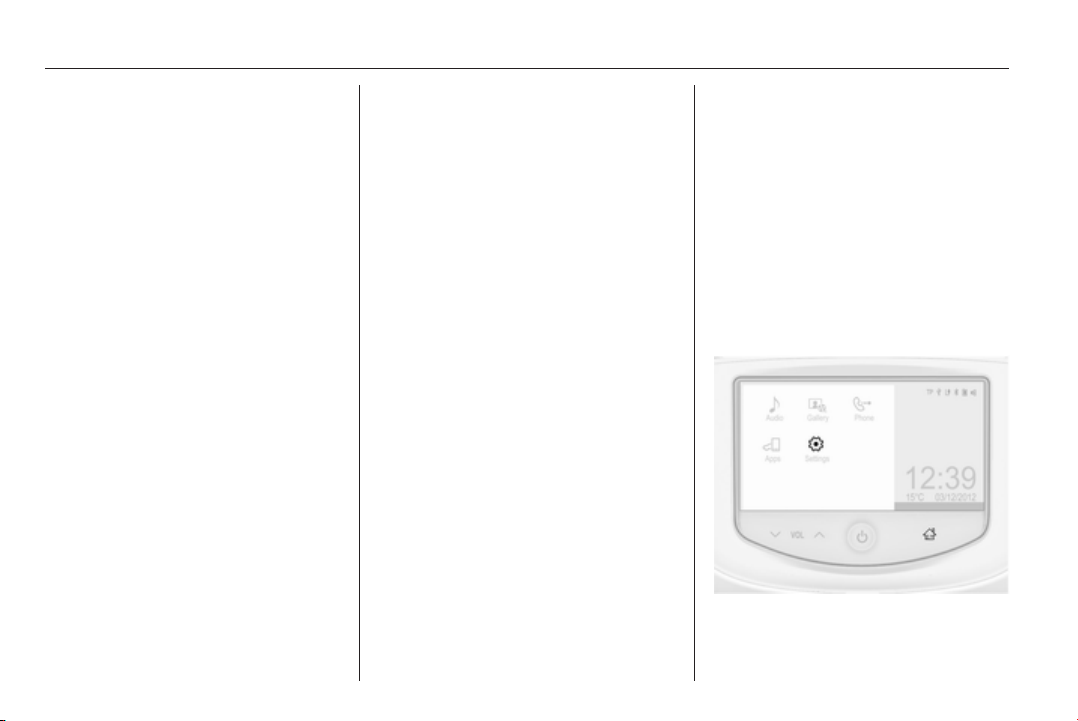

Colour-Info Display
Press the ; button and then select
the Settings screen button.
Select Time & date settings to display
the respective submenu.
Note
For a detailed description of menu
operation, refer to the Infotainment
system manual.
Set time format
To select the desired time format, tap
on the screen buttons 12 h or 24 h.
Set date format
To select the desired date format, tap
on the < and > screen buttons and
choose between the available
options.
Set time and date
To adjust the time and date settings,
tap on the H and I screen buttons.
RDS clock synchronization
The RDS signal of most VHF
transmitters automatically sets the
time. RDS time synchronisation can
take a few minutes. Some
transmitters do not send a correct
time signal. In such cases, it is
recommended to switch off the
automatic time synchronisation.
To activate or deactivate RDS clock
synchronization, tap on the screen
buttons On or Off.
80 Instruments and controls

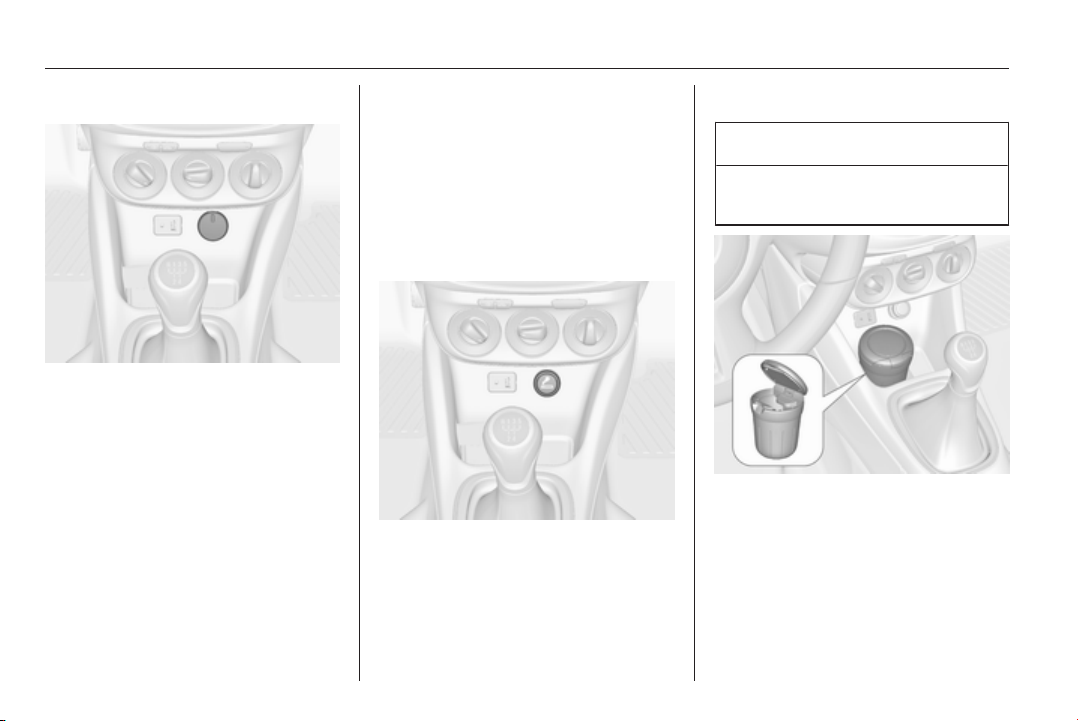

Power outlets
A 12 Volt power outlet is located in the
centre console.
Do not exceed the maximum power
consumption of 120 watts.
With ignition off, the power outlet is
deactivated. Additionally the power
outlet is deactivated in the event of
low vehicle battery voltage.
Electrical accessories that are
connected must comply with the
electromagnetic compatibility
requirements laid down in
DIN VDE 40 839.
Do not connect any current-delivering
accessories, e.g. electrical charging
devices or batteries.
Do not damage the outlet by using
unsuitable plugs.
Stop-start system 3 125.
Cigarette lighter
The cigarette lighter is located in the
centre console.
Press in cigarette lighter. It switches
off automatically once the element is
glowing. Pull out lighter.
Ashtrays
Caution
To be used only for ash and not for
combustible rubbish.
The portable ashtray can be placed in
the cupholders.
Instruments and controls 81
Warning lights, gauges
and indicators
Instrument cluster
The needles of the instruments briefly
rotate to the end position when the
ignition is switched on.

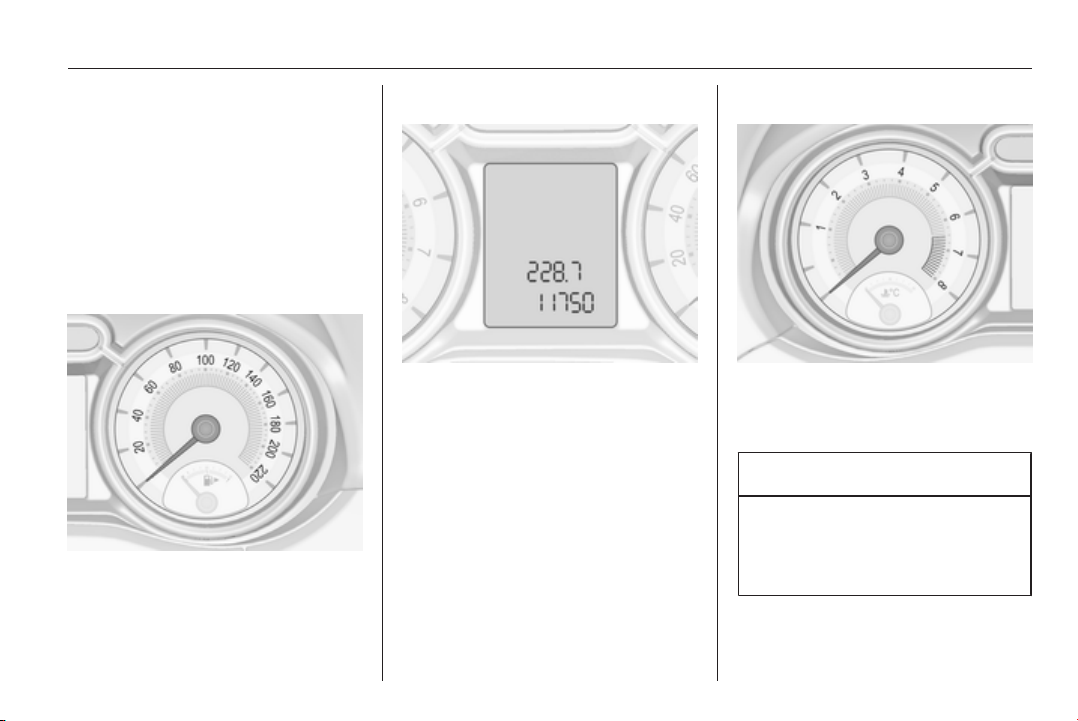

Speedometer
Indicates vehicle speed.
Odometer
The bottom line displays the recorded
distance in km.
Trip odometer
The top line displays the recorded
distance since the last reset.
To reset, press the SET/CLR button
on the turn signal lever for a few
seconds 3 91.
Trip odometer counts up to a distance
of 2,000 km and then restarts at 0.
Tachometer
Displays the engine speed.
Drive in a low engine speed range for
each gear as much as possible.
Caution
If the needle is in the red warning
zone, the maximum permitted
engine speed is exceeded. Engine
at risk.
82 Instruments and controls

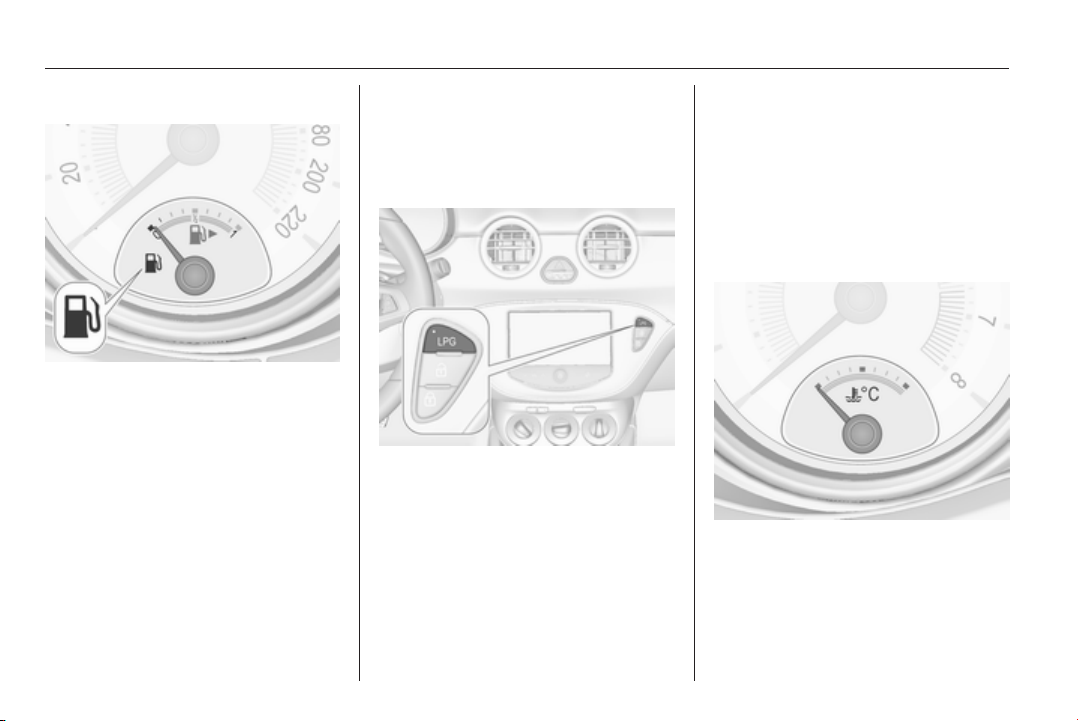

Fuel gauge
Displays the fuel level.
During liquid gas operation, the gas
level in the tank is displayed.
Control indicator Y illuminates if the
level in the tank is low. Refuel
immediately if it flashes.
During liquid gas operation, the
system automatically switches over to
petrol operation when gas tanks are
empty 3 82.
Never run the tank dry.
Because of the fuel remaining in the
tank, the top-up quantity may be less
than the specified tank capacity.
Fuel selector
Press button LPG to switch between
petrol and liquid gas operation. The
LED in the button shows the current
operating mode.
LED off = petrol operation
LED illuminates = liquid gas
operation
LED flashes = no switching is
possible, one type
of fuel is empty
As soon as the liquid gas tank is
empty, petrol operation is
automatically engaged until the
ignition is switched off.
Fuel for liquid gas operation 3 148.
Engine coolant
temperature gauge
Displays the coolant temperature.
Instruments and controls 83
left area = engine operating
temperature not
yet reached
central area = normal operating
temperature
right area = temperature too
high
Caution
If engine coolant temperature is
too high, stop vehicle, switch off
engine. Danger to engine. Check
coolant level.
Service display
The engine oil life system lets you
know when to change the engine oil
and filter. Based on driving
conditions, the interval at which an
engine oil and filter change will be
indicated can vary considerably.
The remaining engine oil life duration
is displayed in percent by the control
indicator I on the Midlevel-Display.
The remaining oil life duration is
displayed in percent in the Vehicle
Information Menu on the Uplevel-
Display.
To display the remaining engine oil
life duration use turn signal lever
buttons:
Press the MENU button to select the
Vehicle Information Menu.
Turn the adjuster wheel to select
Remaining Oil Life.

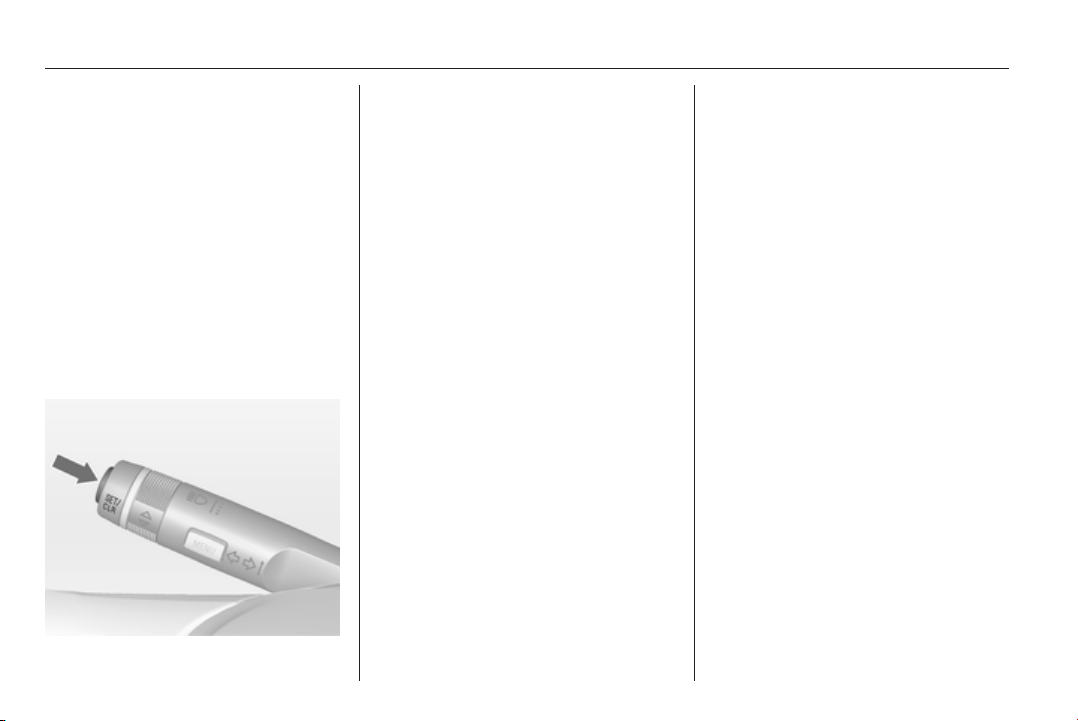

Reset
Press the SET/CLR button on turn
signal lever for several seconds to
reset. The remaining engine oil life
duration page must be active. Switch
on ignition, but engine off.
The system must be reset every time
the engine oil is changed to ensure
proper functionality. Seek the
assistance of a workshop.
84 Instruments and controls
Next service
When the system has calculated that
engine oil life has diminished, a
warning message appears in the
Driver Information Centre. Have
engine oil and filter changed by a
workshop within one week or
500 km (whichever occurs first).
Driver Information Centre 3 91.
Service information 3 203.
Control indicators
The control indicators described are
not present in all vehicles. The
description applies to all instrument
versions. Depending on the
equipment, the position of the control
indicators may vary. When the
ignition is switched on, most control
indicators will illuminate briefly as a
functionality test.
The control indicator colours mean:
red = danger, important reminder
yellow = warning, information, fault
green = confirmation of activation
blue = confirmation of activation
white = confirmation of activation
Instruments and controls 85
Control indicators in the instrument cluster
86 Instruments and controls
Control indicators in the centre
console
Turn signal
O illuminates or flashes green.
Illuminates briefly
The parking lights are switched on.
Flashes
A turn signal or the hazard warning
flashers are activated.
Rapid flashing: failure of a turn signal
light or associated fuse.
Bulb replacement 3 161, Fuses
3 170.
Turn signals 3 108.
Seat belt reminder
Seat belt reminder on front
seats
X for driver's seat illuminates or
flashes red in the tachometer.
k for front passenger seat illuminates
or flashes red in the centre console,
when the seat is occupied.
Illuminates
After the ignition has been switched
on until the seat belt has been
fastened.
Flashes
After having started the engine for a
maximum of 100 seconds until the
seat belt has been fastened.
Fastening the seat belt 3 39.
Seat belt status on rear seats
X in the Driver Information Centre
flashes or illuminates.
Illuminates
After having started the engine for a
minimum of 35 seconds until the seat
belt has been fastened.
If an unfastened seat belt is fastened
whilst driving.
Flashes
After starting off when the seat belt is
unfastened.
Fastening the seat belt 3 39.
Instruments and controls 87
Airbag and belt tensioners
v illuminates red.
When the ignition is switched on, the
control indicator illuminates for
approx. 4 seconds. If it does not
illuminate, does not go out after
4 seconds or illuminates whilst
driving, there is a fault in the airbag
system. Seek the assistance of a
workshop. The airbags and belt
pretensioners may fail to trigger in the
event of an accident.
Deployment of the belt pretensioners
or airbags is indicated by continuous
illumination of v.
9 Warning
Have the cause of the fault
remedied immediately by a
workshop.
Belt pretensioners, airbag system
3 38, 3 41.
Airbag deactivation
V illuminates yellow.
Illuminates for approx. 60 seconds
after the ignition is switched on. The
front passenger airbag is activated.
* illuminates yellow.
The front passenger airbag is
deactivated 3 46.
9 Danger
Risk of fatal injury for a child using
a child restraint system together
with activated front passenger
airbag.
Risk of fatal injury for an adult
person with deactivated front
passenger airbag.
Charging system
p illuminates red.
Illuminates when the ignition is
switched on and extinguishes shortly
after the engine starts.
Illuminates when the engine is
running
Stop, switch off engine. Vehicle
battery is not charging. Engine
cooling may be interrupted. The
brake servo unit may cease to be
effective. Seek the assistance of a
workshop.
Malfunction indicator light
Z illuminates or flashes yellow.
Illuminates when the ignition is
switched on and extinguishes shortly
after the engine starts.
Illuminates when the engine is
running
Fault in the emission control system.
The permitted emission limits may be
exceeded. Seek the assistance of a
workshop immediately.
88 Instruments and controls
Flashes when the engine is
running
Fault that could lead to catalytic
converter damage. Ease up on the
accelerator until the flashing stops.
Seek the assistance of a workshop
immediately.
Service vehicle soon
g illuminates yellow.
Additionally a warning message is
displayed in the Driver Information
Centre.
The vehicle needs a service.
Seek the assistance of a workshop.
Vehicle messages 3 98.
Brake and clutch system
R illuminates red.
The brake and clutch fluid level is too
low 3 158.
9 Warning
Stop. Do not continue your
journey. Consult a workshop.
Illuminates after the ignition is
switched on if the manual parking
brake is applied 3 130.
Operate pedal
- illuminates or flashes yellow.
Illuminates
Clutch pedal needs to be depressed
to start the engine in Autostop mode.
Stop-start system 3 125.
Flashes
Clutch pedal needs to be depressed
for a main start of the engine 3 18,
3 124.
On some versions, the operate pedal
message is indicated in the Driver
Information Display 3 98.
Antilock brake system
(ABS)
u illuminates yellow.
Illuminates for a few seconds after the
ignition is switched on. The system is
ready for operation when the control
indicator extinguishes.
If the control indicator does not go out
after a few seconds, or if it illuminates
while driving, there is a fault in the
ABS. The brake system remains
operational but without ABS
regulation.
Antilock brake system 3 129.
Upshift
[ illuminates green as control
indicator or is shown as a symbol in
the Driver Information Centre with
Uplevel-Display, when upshifting is
recommended for fuel saving
reasons.
Eco information menu
The gear shift indication is popped-up
as a full page in the Driver Information
Centre.
Instruments and controls 89
EcoFlex drive assistant 3 91.
Power steering
c illuminates yellow.
Illuminates with power steering
reduced
Power steering is reduced due to
overheating of the system. Control
indicator extinguishes when the
system has cooled down.
Stop-start system 3 125.
Illuminates with power steering
disabled
Failure in the power steering system.
Consult a workshop.
Illumination of c and b
simultaneously
Power steering system must be
calibrated, system calibration 3 133.
Ultrasonic parking assist
r illuminates yellow.
Fault in system
or
Fault due to sensors that are dirty or
covered by ice or snow
or
Interference due to external sources
of ultrasound. Once the source of
interference is removed, the system
will operate normally.
Have the cause of the fault in the
system remedied by a workshop.
Ultrasonic parking assist 3 137.
Electronic Stability Control
and Traction Control
system
b flashes or illuminates yellow.
Flashes
The system is actively engaged.
Engine output may be reduced and
the vehicle may be braked
automatically to a small degree.
Illuminates
A fault in the system is present. A
warning message appears in the
Driver Information Centre. Continued
driving is possible. The system is not
operational. Driving stability,
however, may deteriorate depending
on road surface conditions.
Have the cause of the fault remedied
by a workshop.
Electronic Stability Control 3 132,
Traction Control system 3 131.
Tyre pressure monitoring
system
w illuminates or flashes yellow.
Illuminates
Tyre pressure loss. Stop immediately
and check tyre pressure.
Flashes
Fault in system or tyre without
pressure sensor mounted (e.g. spare
wheel). After 60-90 seconds the
control indicator illuminates
continuously. Consult a workshop.
90 Instruments and controls
Tyre pressure monitoring system
3 179.
Engine oil pressure
I illuminates red.
Illuminates when the ignition is
switched on and extinguishes shortly
after the engine starts.
Illuminates when the engine is
running
Caution
Engine lubrication may be
interrupted. This may result in
damage to the engine and/or
locking of the drive wheels.
1. Depress the clutch.
2. Select neutral gear.
3. Move out of the flow of traffic as
quickly as possible without
impeding other vehicles.
4. Switch off ignition.
9
Warning
When the engine is off,
considerably more force is needed
to brake and steer.
During an Autostop the brake
servo unit will still be operational.
Do not remove key until vehicle is
stationary, otherwise the steering
wheel lock could engage
unexpectedly.
Check oil level before seeking the
assistance of a workshop 3 156.
Low fuel
Y illuminates or flashes yellow.
Illuminates
Level in fuel tank is too low.
Flashes
Fuel used up. Refuel immediately.
Never run the tank dry.
Catalytic converter 3 128.
Immobiliser
d flashes yellow.
Fault in the immobiliser system. The
engine cannot be started.
Exterior light
8 illuminates green.
The exterior lights are on 3 105.
High beam
C illuminates blue.
Illuminated when high beam is on or
during headlight flash 3 106.
Rear fog light
r illuminates yellow.
The rear fog light is on 3 108.
Cruise control
m illuminates white or green.
Illuminates white
The system is on.
Instruments and controls 91
Illuminates green
Cruise control is active.
Cruise control 3 134.
Door open
h illuminates red.
A door or the tailgate is open.
Information displays
Driver Information Centre
The Driver Information Centre (DIC)
is located in the instrument cluster.
It is available as Midlevel-Display or
Uplevel-Display.

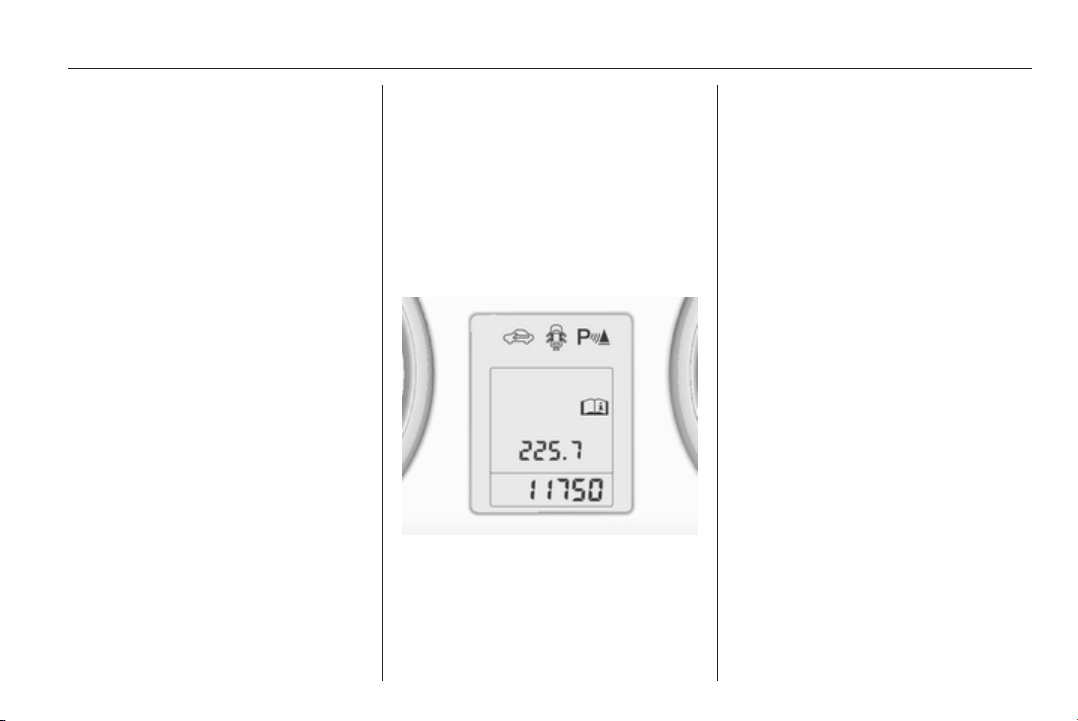

Midlevel-Display
Indication of:
■ overall odometer
■ trip odometer
■ control indicators
■ vehicle information menu, see
following
■ trip/fuel information menu, see
following
■ vehicle messages, displayed as
code numbers 3 98.
Select menu pages by pressing the
MENU button on the turn signal lever.
Some of the displayed functions differ
when the vehicle is being driven or at
a standstill. Some functions are only
available when the vehicle is being
driven.
Vehicle information menu and trip/
fuel information menu are selectable
pages, vehicle messages and control
indicators pop-up when required.
92 Instruments and controls
Uplevel-Display
Indication of:
■ Vehicle Information Menu X
■ Trip/Fuel Information MenuW
■ EcoFlex Drive Assist Menu s
Select menu pages by pressing the
MENU button on the turn signal lever;
main Menu symbols are indicated in
the top line of the display.
Some of the displayed functions differ
when the vehicle is being driven or at
a standstill. Some functions are only
available when the vehicle is being
driven.
Vehicle messages pop-up when
required.
Vehicle personalisation 3 101.
Memorised settings 3 23.
Selecting menus and functions
The menus and functions can be
selected via the buttons on the turn
signal lever.
Press the MENU button to switch
between the menus or to return from
a submenu to the next higher menu
level.
Turn the adjuster wheel to highlight a
menu option or to set a numeric value.
Press the SET/CLR button to select a
function or to confirm a message.
Vehicle Information Menu
Press the MENU button to select the
Vehicle Information Page.
Turn the adjuster wheel to select a
submenu.
Follow the instructions given in the
submenus.
■ Unit
Press SET/CLR while page is
displayed. Select imperial (unit 1) or
metric (unit 3) by turning the
adjuster wheel. Press SET/CLR to
set the unit.
■ Tyre Pressure
Tyre pressure of all wheels is
displayed on this page during
driving 3 179.

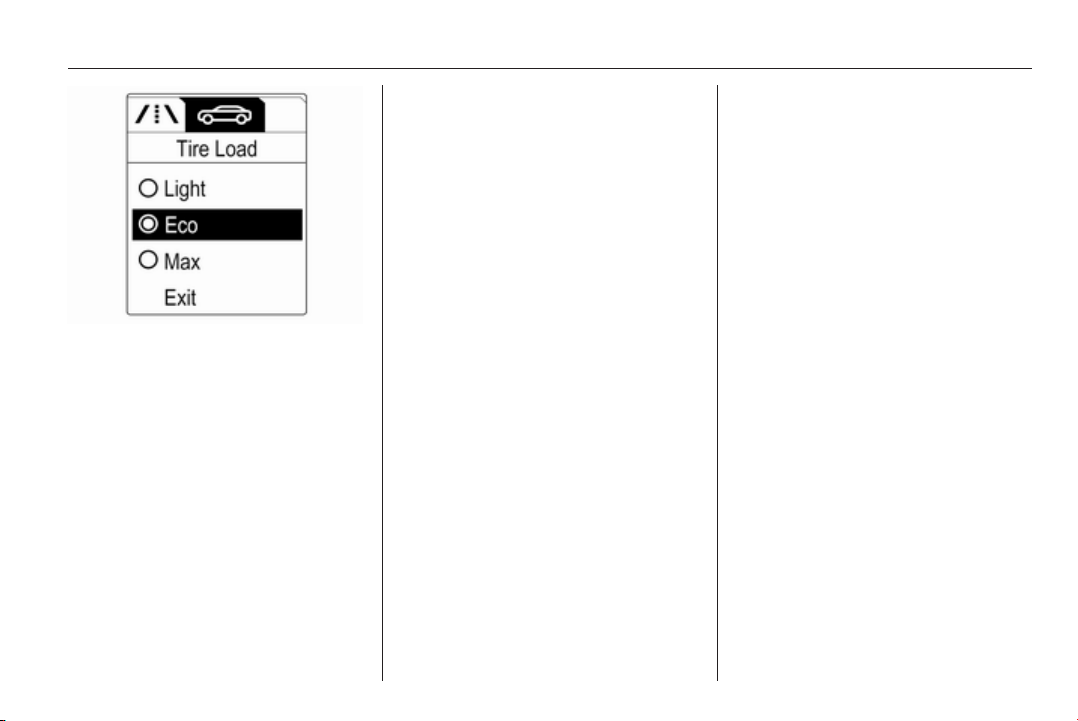

■ Tyre Load
The tyre loading display selects
tyre pressure category Light, Eco or
Max according to the actual inflated
tyre pressure. Select category by
turning the adjuster wheel. Press
Instruments and controls 93
SET/CLR to set the category
3 179.
■ Remaining Oil Life
Indicates an estimate of the oil's
useful life. The number in % means
the current remaining oil life and
indicates when to change the
engine oil and filter 3 83.
■ Speed Warning
The speed warning display alarms
when a set speed is exceeded.
To set the speed warning, press
SET/CLR while the page is
displayed. Turn the adjuster wheel
to select the value. Press
SET/CLR to set the speed.
If the selected speed limit is
exceeded, a warning chime
sounds. Once the speed is set, this
feature can be turned off by
pressing SET/CLR while viewing
this page.
Selection and indication can be
different between Midlevel- and
Uplevel-Display.
Trip/Fuel Information Menu
Press the MENU button to select the
Trip/Fuel Information Page.
Turn the adjuster wheel to select a
submenu.
■ trip odometer
■ average consumption
■ average speed
■ trip odometer 2
■ average consumption 2
94 Instruments and controls
■ average speed 2
■ digital speed
■ range
■ instantaneous consumption
Selection and indication can be
different between Midlevel- and
Uplevel-Display.
Two Trip computer
The information of two trip computer
can be reset separately for odometer,
average consumption and average
speed, making it possible to display
different trip information.
Trip odometer
Trip odometer displays the current
distance since a certain reset.
Trip odometer counts up to a distance
of 2,000 km and then restarts at 0.
Reset trip odometer by pressing the
SET/CLR button for a few seconds on
respective page.
Average consumption
Display of average consumption. The
measurement can be reset at any
time and starts with a default value.
To reset, press the SET/CLR button
for a few seconds on respective page.
On vehicles with LPG engines:
Average consumption is indicated for
the currently selected mode LPG or
petrol.
Average speed
Display of average speed. The
measurement can be reset at any
time.
To reset, press the SET/CLR button
for a few seconds on respective page.
Digital speed
Digital display of the instantaneous
speed.
Fuel range
Range is calculated from current fuel
tank content and current
consumption. The display shows
average values.
After refuelling, the range is updated
automatically after a brief delay.
When the fuel level in the tank is low,
a message appears on the display.
Y in the fuel gauge illuminates.
When the tank must be refuelled
immediately, a warning message
pops-up on the display. Y in the fuel
gauge flashes.
Y 3 90.
Fuel range LPG version
Display of approximate fuel range
available with the remaining fuel in
each respective fuel tank of petrol and
LPG fuel, along with a total range of
both fuel types together. Switch
between the mode by pressing
SET/CLR button.
Instruments and controls 95
Instantaneous consumption
Display of the instantaneous
consumption.
On vehicles with LPG engines:
Instantaneous consumption is
indicated for the currently selected
mode; LPG or petrol.
ECO Information Menu s
Press the MENU button to select
s in the top line of the Display.
Turn the adjuster wheel to select a
submenu. Press the SET/CLR button
to confirm.
Submenus are:
■ Shift indication: Current gear is
indicated inside an arrow. The
figure above recommends
upshifting for fuel saving reasons.
Eco index display: The current fuel
consumption is indicated on a
segment display. For economical
driving, adapt your driving style to
keep the filled segments within the
Eco area. The more segments are
filled, the higher the fuel
consumption. Simultaneously the
current consumption value is
indicated.
■ Top Consumers: List of top comfort
consumers currently switched on is
displayed in descending order. Fuel
saving potential is indicated. A
switched-off consumer disappears
from the list and the consumption
value will be updated.
■ Economy Trend: Displays the
average consumption development
over a distance of 50 km. Filled
segments display the consumption
in 5 km steps and shows the effect
of topography or driving behaviour
on fuel consumption.
96 Instruments and controls
Colour-Info-Display
Depending on the vehicle
configuration, the vehicle has a
Colour-Info-Display with touchscreen
functionality.
The Colour-Info-Display with
touchscreen functionality indicates in
colour:
■ time 3 78
■ outside temperature 3 77
■ date 3 78
■ electronic climate control settings
3 116
■ parking assist and advanced
parking assist instructions 3 137
■ Infotainment system, see
description in the Infotainment
system manual
■ system messages
■ vehicle messages 3 98
■ settings for vehicle personalisation
3 101
The type of information and how it is
displayed depends on the settings
made.
Selecting menus and settings
Menus and settings are selected via
the touchscreen display.
Press button ;: Home page is
displayed.
Tap display icon Settings: Menu page
Settings is displayed. Select a setting
by tapping.
Tap selection once more to confirm a
setting or value.
Press display button q to exit a menu
or setting without changing or delete
the last character in a character
sequence.
To exit the Settings menu, press
display button q in steps or press
button ; after confirming the
changes.
Instruments and controls 97
Vehicle personalisation 3 101.
Memorised settings 3 23.
Graphic-Info-Display
Depending on the vehicle
configuration, the vehicle has a
Graphic-Info-Display.
The Graphic-Info-Display indicates:
■ time 3 78
■ outside temperature 3 77
■ date 3 78
■ electronic climate control settings
3 116
■ Infotainment system, see
description in the Infotainment
system manual
■ settings for vehicle personalisation
3 101
Selecting menus and settings
Menus and settings are accessed via
the display.
Press button CONFIG: Menu page
Settings is displayed.
Turn knob MENU-TUNE to select a
setting or value.
Press knob MENU-TUNE to confirm
a setting or value.
Press button BACK to exit a menu or
setting without changing or delete the
last character in a character
sequence. Press the button for a few
seconds to delete the entire entry.
To exit the Settings menu, press
button BACK in steps or press button
CONFIG after confirming the
changes.
Vehicle personalisation 3 101.
Memorised settings 3 23.
98 Instruments and controls
Vehicle messages
Messages are indicated mainly in the
Driver Information Centre (DIC), in
some cases together with a warning
and signal buzzer.
Press the SET/CLR button, the
MENU button or turn the adjuster
wheel to confirm a message.
Vehicle messages on the
Midlevel-Display
The vehicle messages are displayed
as code numbers.
No. Vehicle message
1 change engine oil
3 engine coolant level low
4 air conditioning off
5 steering wheel is locked
7 turn steering wheel, switch igni‐
tion off and then on
No. Vehicle message
9 turn steering wheel, start
engine again
12 vehicle overloaded
13 compressor overheated
15 centre high-mounted brake light
failure
16 brake light failure
17 headlight levelling malfunction
18 left low beam failure
19 rear fog light failure
20 right low beam failure
21 left sidelight failure
22 right sidelight failure
23 reversing light failure
24 number plate light failure
25 left front turn signal failure
26 left rear turn signal failure
Instruments and controls 99
No. Vehicle message
27 right front turn signal failure
28 right rear turn signal failure
35 replace battery in radio remote
control
48 clean side blind spot alert
system
53 tighten gas cap
56 tyre pressure imbalance on
front axle
57 tyre pressure imbalance on rear
axle
58 winter tyres detection
59 open and then close driver
window
60 open and then close front
passenger window
66 service theft alarm system
67 service steering wheel lock
68 service power steering
No. Vehicle message
75 service air conditioning
76 service side blind spot alert
system
79 top up engine oil
82 change engine oil soon
84 engine power reduced
89 service vehicle soon
95 service airbag
128 bonnet open
134 park assist fault, clean bumper
136 service parking assist
174 low vehicle battery
258 park assist off
Vehicle messages on the
Uplevel-Display
The vehicle messages are displayed
as text. Follow the instructions given
in the messages.
The system displays messages
regarding the following topics:
■ fluid levels
■ anti-theft alarm system
■ brakes
■ ride control systems
■ cruise control, speed limiter
■ parking assist systems
100 Instruments and controls
■ lighting, bulb replacement
■ wiper/washer system
■ doors, windows
■ radio remote control
■ seat belts
■ airbag systems
■ engine and transmission
■ tyre pressure
■ vehicle battery
Vehicle messages on the
Colour-Info-Display
Some important messages appear
additionally in the
Colour-Info-Display. Some
messages only pop-up for a few
seconds.
Warning chimes
When starting the engine or
whilst driving
Only one warning chime will sound at
a time.
The warning chime regarding
unfastened seat belts has priority
over any other warning chime.
■ If seat belt is not fastened.
■ If a door or the tailgate is not fully
closed when starting off.
■ If a certain speed is exceeded with
parking brake applied.
■ If a programmed speed is
exceeded.
■ If a warning message appears in
the Driver Information Centre or
Info-Display.
■ If the parking assist detects an
object.
■ If the reverse gear is engaged and
the rear end carrier extended.
When the vehicle is parked and/
or the driver's door is opened
■ When the key is in the ignition
switch.
■ With exterior lights on.
During an Autostop
■ If the driver's door is opened.
Battery voltage
Uplevel-Display
When the vehicle battery voltage is
running low, a warning message will
appear in the Driver Information
Centre.
Midlevel-Display
When the vehicle battery voltage is
running low, a warning code 174 will
appear in the Driver Information
Centre.
1. Switch off immediately electrical
consumers which are not required
for a safe ride, e.g. seat heating,
heated rear window or other main
consumers.
2. Charge the vehicle battery by
driving continuously for a while or
by using a charging device.
The warning message or warning
code will disappear after the engine
has been started twice consecutively
without a voltage drop.
If the vehicle battery cannot be
recharged, have the cause of the fault
remedied by a workshop.
Instruments and controls 101
Vehicle personalisation
The vehicle's behaviour can be
personalised via changing the
settings in the Info-Display.
Some of the personal settings for
different drivers can be memorised
individually for each vehicle key.
Memorised settings 3 23.
Depending on vehicle equipment and
country-specific regulations some of
the functions described below might
not be available.
Some functions are only displayed or
active when the engine is running.

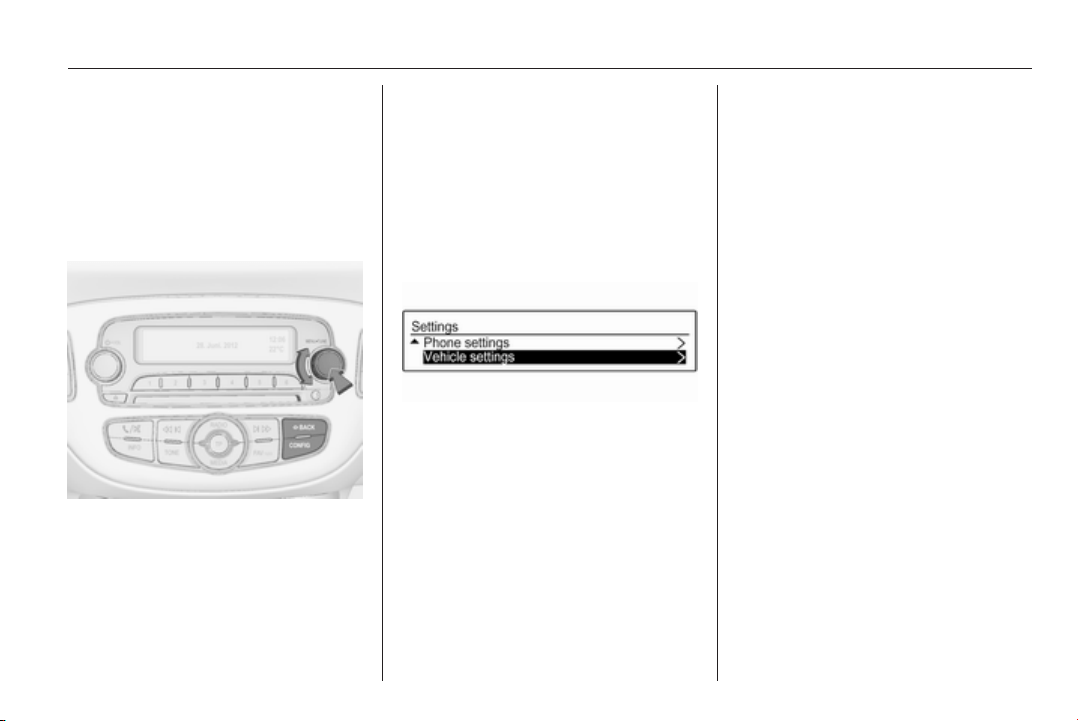

Personal settings
Graphic-Info-Display

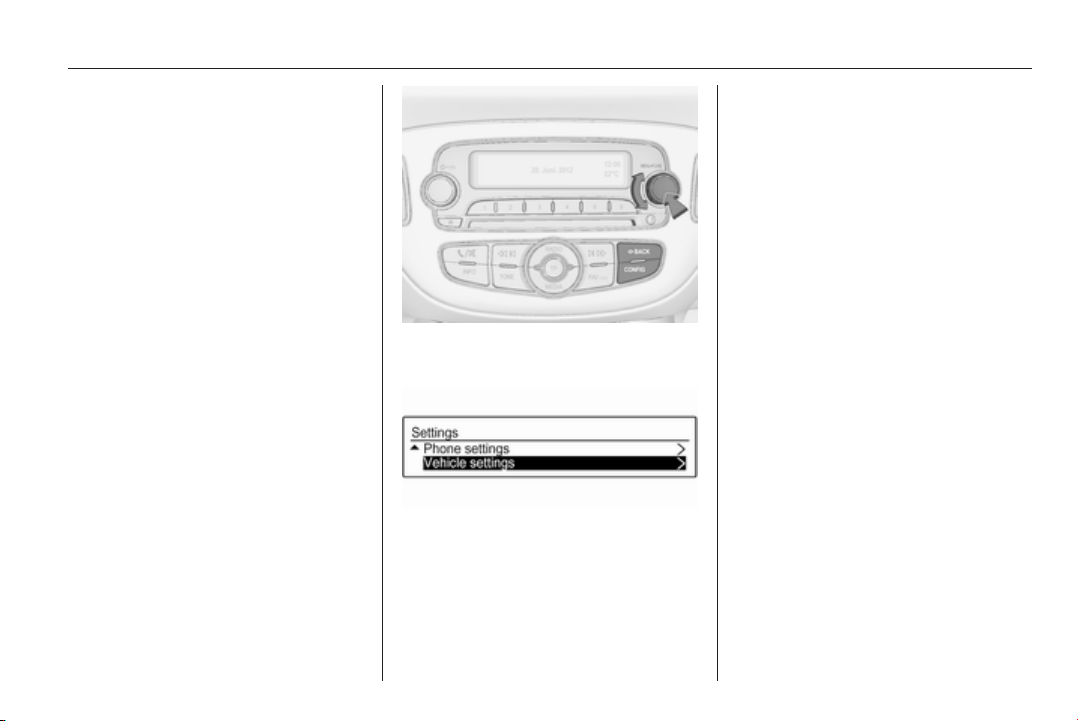

Press the CONFIG button for the
Settings menu.
Turn the MENU-TUNE control to
move to the desired setup menu, and
then press MENU-TUNE button.
The following settings can be
selected:
■ Languages
■ Time Date
■ Radio settings
■ Phone settings
■ Vehicle settings
In the corresponding submenus the
following settings can be changed:
Languages
Selection of the desired language.
Time Date
See Clock 3 78.
Radio settings
See Infotainment system manual for
further information.
Phone settings
See Infotainment system manual for
further information.
Vehicle settings
■ Climate and air quality
Auto fan speed: Modifies the level
of the cabin airflow of the climate
control in automatic mode.
Air conditioning mode: Controls the
state of the cooling compressor
when the vehicle is started. Last
setting (recommended) or at
vehicle start is either always ON or
always OFF.
102 Instruments and controls
Auto rear demist: Activates
automatically rear heated window.
■ Comfort settings
Chime volume: Changes the
volume of warning chimes.
Personalization by driver: Activates
or deactivates the personalisation
function.
Rear auto wipe in reverse:
Activates or deactivates automatic
switching on of the rear window
wiper when reverse gear is
engaged.
■ Park assist / Collision detection
Park assist: Activates or
deactivates the ultrasonic sensors.
Side blind zone alert: Changes the
settings for the side blind spot alert
system.
■ Exterior ambient lighting
Exterior lighting by unlocking:
Activates or deactivates the entry
lighting.
Duration upon exit of vehicle:
Activates or deactivates and
changes the duration of exit
lighting.
■ Power door locks
Auto door lock: Activates or
deactivates the automatic door
locking function after switching on
ignition.
Stop door lock if door open:
Activates or deactivates the door
locking function while a door is
open.
Delayed door lock: Activates or
deactivates the delayed door
locking function. This menu option
is displayed with Stop door lock if
door open deactivated. Central
locking system 3 23.
■ Remote locking, unlocking, starting
Remote unlock feedback:
Activates or deactivates the hazard
warning flasher feedback whilst
unlocking.
Passive door unlock: Changes the
configuration to unlock only the
driver's door or the whole vehicle
whilst unlocking.
Auto relock doors: Activates or
deactivates the automatic relock
function after unlocking without
opening the vehicle.
■ Restore factory settings:
Resets all settings to the default
settings.
Personal settings
Colour-Info-Display
When audio is switched on, press ;
on the control panel.
Press Settings.

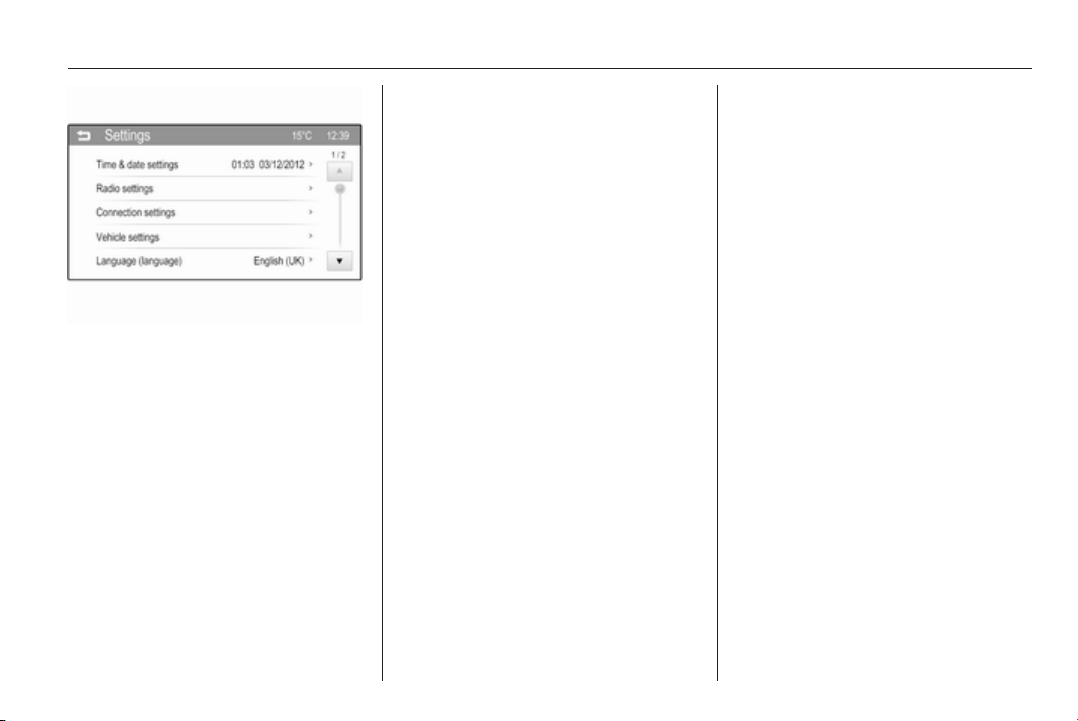

The following settings can be
selected:
Instruments and controls 103
■ Time & date settings
■ Radio settings
■ Connection settings
■ Vehicle settings
■ Language
■ Text scroll
■ Touch beep volume
■ Max startup volume
■ System version
■ DivX(R) VOD
In the corresponding submenus the
following settings can be changed:
Time & date settings
See Clock 3 78.
Radio settings
See Infotainment system manual for
further information.
Connection settings
See Infotainment system manual for
further information.
Vehicle settings
■ Climate & air quality
Auto fan speed: Modifies the level
of the cabin airflow of the climate
control in automatic mode.
Air conditioning mode: Controls the
state of the cooling compressor
when the vehicle is started. Last
setting (recommended) or at
vehicle start is either always ON or
always OFF.
Auto rear defog: Activates
automatically rear heated window.
■ Comfort & convenience
Chime volume: Changes the
volume of warning chimes.
Personalization by driver: Activates
or deactivates the personalisation
function.
Auto wipe in reverse gear:
Activates or deactivates automatic
switching on of the rear window
wiper when reverse gear is
engaged.
■ Collision / detection
Park assist: Activates or
deactivates the ultrasonic sensors.
Side blind zone alert: Changes the
settings for the side blind spot alert
system.
■ Lighting
Exit lighting: Activates or
deactivates and changes the
duration of exit lighting.
Vehicle locator lights: Activates or
deactivates the welcome lighting.
■ Power door locks
Auto door lock: Activates or
deactivates the automatic door
locking function after switching on
ignition.
104 Instruments and controls
Unlocked door anti lock out:
Activates or deactivates the door
locking function while a door is
open.
Delayed door lock: Activates or
deactivates the delayed door
locking function. This menu option
is displayed with Unlocked door
anti lock out deactivated. Central
locking system 3 23.
■ Lock, unlock settings
Remote unlock light feedback:
Activates or deactivates the hazard
warning flasher feedback whilst
unlocking.
Remote door unlock: Changes the
configuration to unlock only the
driver's door or the whole vehicle
whilst unlocking.
Relock remotely unlocked doors:
Activates or deactivates the
automatic relock function after
unlocking without opening the
vehicle.
■ Vehicle factory settings: Restores
the setting values back to the
factory default settings.
Language
Selection of the desired language.
Text scroll
See Infotainment system manual for
further information.
Touch beep volume
See Infotainment system manual for
further information.
Max startup volume
See Infotainment system manual for
further information.
System version
See Infotainment system manual for
further information.
DivX(R) VOD
See Infotainment system manual for
further information.
Lighting 105
Lighting
Exterior lighting .......................... 105
Interior lighting ........................... 109
Lighting features ........................ 111
Exterior lighting
Light switch
Turn light switch:
7
= lights off
8
= sidelights
9
= headlights
Control indicator 8 3 90.
Light switch with automatic light
control
Turn light switch:
AUTO = automatic light control: low
beam is switched on and off
automatically depending on
external lighting conditions
m
= activation or deactivation of
the automatic light control.
Switch turns back to AUTO
8
= sidelights
9
= headlights
The current status of the automatic
light control is displayed In the Driver
Information Centre.
106 Lighting
When switching on the ignition,
automatic light control is active.
When headlights are on, 8
illuminates. Control indicator 8
3 90.
Tail lights
Tail lights are illuminated together
with headlights and sidelights.
Automatic light control
When the automatic light control
function is switched on and the
engine is running, the system
switches between daytime running
light and headlights automatically
depending on the lighting conditions
and information given by the rain
sensor system.
Daytime running light 3 107.
Automatic headlight activation
When the automatic light control
function is switched on and the
engine is running, the headlights are
switched on during poor lighting
conditions.
Furthermore the headlights are
switched on if the windscreen wipers
have been activated for several
wipes.
Tunnel detection
When a tunnel is entered the
headlights are switched on without
any delay.
High beam
To switch from low to high beam,
push lever.
To switch to low beam, push lever
again or pull.
Headlight flash
To activate the headlight flash, pull
lever.
Lighting 107
Headlight range
adjustment
Manual headlight range
adjustment
To adapt headlight range to the
vehicle load to prevent dazzling: turn
thumb wheel ? to required position.
0 = front seats occupied
1 = all seats occupied
2 = all seats occupied and load
compartment laden
3 = driver's seat occupied and load
compartment laden
Headlights when driving
abroad
The asymmetrical headlight beam
extends visibility at the edge of the
road at the passenger side.
However, when driving in countries
where traffic drives on the opposite
side of the road, adjust the headlights
to prevent dazzling of oncoming
traffic.
Turn adjuster on both headlight
housings
1
/
4
turn clockwise to set
tourist mode.
Daytime running lights
Daytime running light increases
visibility of the vehicle during daylight.
They are switched on automatically
when ignition is on.
Hazard warning flashers
Operated by pushing the ¨ button.
In the event of an accident with airbag
deployment the hazard warning
flashers are activated automatically.
108 Lighting
Turn and lane-change
signals
lever up = right turn signal
lever down = left turn signal
If the lever is moved past the
resistance point, the turn signal is
switched on constantly. When the
steering wheel moves back, the turn
signal is automatically deactivated.
For three flashes, e.g. when changing
lanes, press the lever until resistance
is felt and then release.
Move the lever to the resistance point
and hold for longer indication.
Switch the turn signal off manually by
moving the lever to its original
position.
Rear fog lights
Operated by pushing the r button.
Light switch in position AUTO:
switching on rear fog light will switch
on headlights automatically.
Parking lights
When the vehicle is parked, the
parking lights on one side can be
activated:
1. Switch off ignition.
2. Move turn signal lever all the way
up (right parking lights) or down
(left parking lights).
Confirmed by a signal and the
corresponding turn signal control
indicator.
Lighting 109
Reversing lights
The reversing light comes on when
the ignition is on and reverse gear is
selected.
Misted light covers
The inside of the light housing may
mist up briefly in poor, wet and cold
weather conditions, in heavy rain or
after washing. The mist disappears
quickly by itself; to help switch on the
headlights.
Interior lighting
Instrument panel
illumination control
Brightness of the following lights can
be adjusted when the exterior lights
are on:
■ instrument panel illumination
■ ambient light
■ dome light
■ Info-Display
■ illuminated switches and operation
elements
Turn thumb wheel A and hold until
the desired brightness is obtained.
Interior lights
Front courtesy light
During entry and exit of the vehicle,
the courtesy light automatically
switches on and then off after a delay.
Operate rocker switch:
w
= automatic switching on
and off
press u = on
press v = off
110 Lighting
Note
In the event of an accident with
airbag deployment the courtesy
lights are turned on automatically.
Dome light
Spotlight incorporated in the interior
lighting comes on when headlights
are switched on.
Dome light illuminates gear shifting
console indirectly.

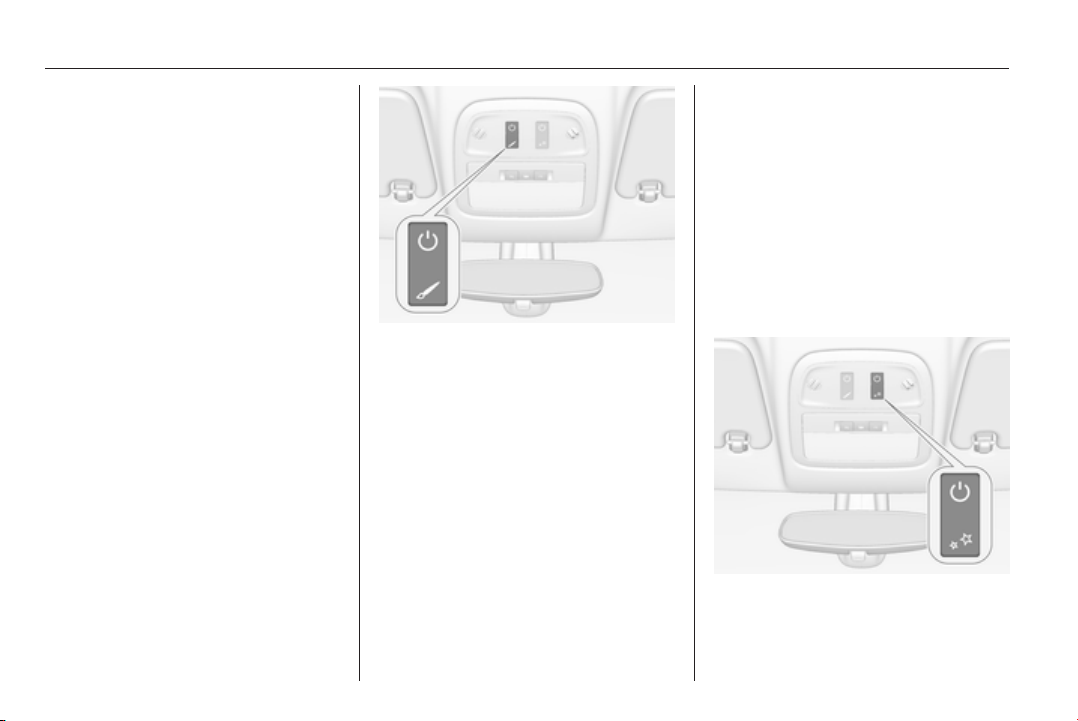

Ambient light
Ambient light consists of indirect
lights in the doors, in the instrument
panel below the heating and
ventilation unit and in the passenger
foot well. 8 colours can be selected by
a button in the roof console.
Operate button with ignition switched
on:
m one brief
press
= on or off
S repeated
brief presses
= colours change in
steps
S long press = colours change
continuously
Ambient light can be dimmed with the
thumb wheel A together with the
instrument panel illumination 3 109.
The selected colour remains the next
time the ignition is switched on.
Ambient light comes on automatically
when switching off ignition and
extinguishes after opening a door.
Pressing button m after switching off
ignition; ambient light remains on for
60 minutes.
Starlight panel
Starlight panel consists of approx.
64 LEDs. The intensity can be
dimmed with a button in the roof
console.
Lighting 111
Operate button with ignition switched
on:
m one brief
press
= on or off
T repeated
brief presses
= dimming
stepwise
T long press = dimming
continuously
The selected intensity remains the
next time the ignition is switched on.
Starlight comes on automatically
when switching off ignition and
extinguishes after opening a door.
Pressing button m after switching off
ignition; starlight remains on for
60 minutes.
Lighting features
Entry lighting
Welcome lighting
The following lights are switched on
for a short time by unlocking the
vehicle with the radio remote control:
■ headlights
■ tail lights
■ number plate lights
■ instrument panel light
■ interior lights
Some functions are only operable
when it is dark outside to facilitate
locating the vehicle.
The lighting switches off immediately
when the ignition key is turned to
position 1 3 124.
Activation or deactivation of this
function can be changed in the
Info-Display.
Vehicle personalisation 3 101.
The settings can be saved for the key
being used 3 23.
The following lights will additionally
switch on when the driver's door is
opened:
■ all switches
■ Driver Information Centre
■ ambient light
■ starlight panel
Exit lighting
The following lights switch on if the
key is removed from the ignition
switch:
■ interior lights
■ instrument panel light (only when it
is dark)
■ ambient light
■ starlight panel
They will switch off automatically after
a delay and will be activated again if
the driver's door is opened.
Path lighting
Headlights, tail lights and number
plate lights illuminate the surrounding
area for an adjustable time after
leaving the vehicle.
112 Lighting
Activating
1. Switch off the ignition.
2. Remove the ignition key.
3. Open the driver's door.
4. Pull the turn signal lever.
5. Close the driver's door.
If the driver's door is not closed the
lights switch off after two minutes.
Exit lighting is switched off
immediately if the turn signal lever is
pulled while the driver's door is open.
Activation, deactivation and duration
of this function can be changed in the
Info-Display. Vehicle personalisation
3 101.
The settings can be saved for the key
being used 3 23.
Battery discharge
protection
Vehicle battery state of charge
function
The function guarantees longest
vehicle battery life via a generator
with controllable power output and
optimised power distribution.
To prevent discharge of the vehicle
battery when driving, following
systems are reduced automatically in
two stages and finally switched off:
■ auxiliary heater
■ heated rear window
■ heated mirrors
■ heated seats
■ fan
In the second stage a message which
confirms the activation of the vehicle
battery discharge protection will be
displayed in the Driver Information
Centre.
Switching off electric lights
To prevent discharge of the vehicle
battery when the ignition is switched
off, some interior lights are switched
off automatically after some time.
Climate control 113
Climate control
Climate control systems ............. 113
Air vents ..................................... 121
Maintenance .............................. 121
Climate control systems

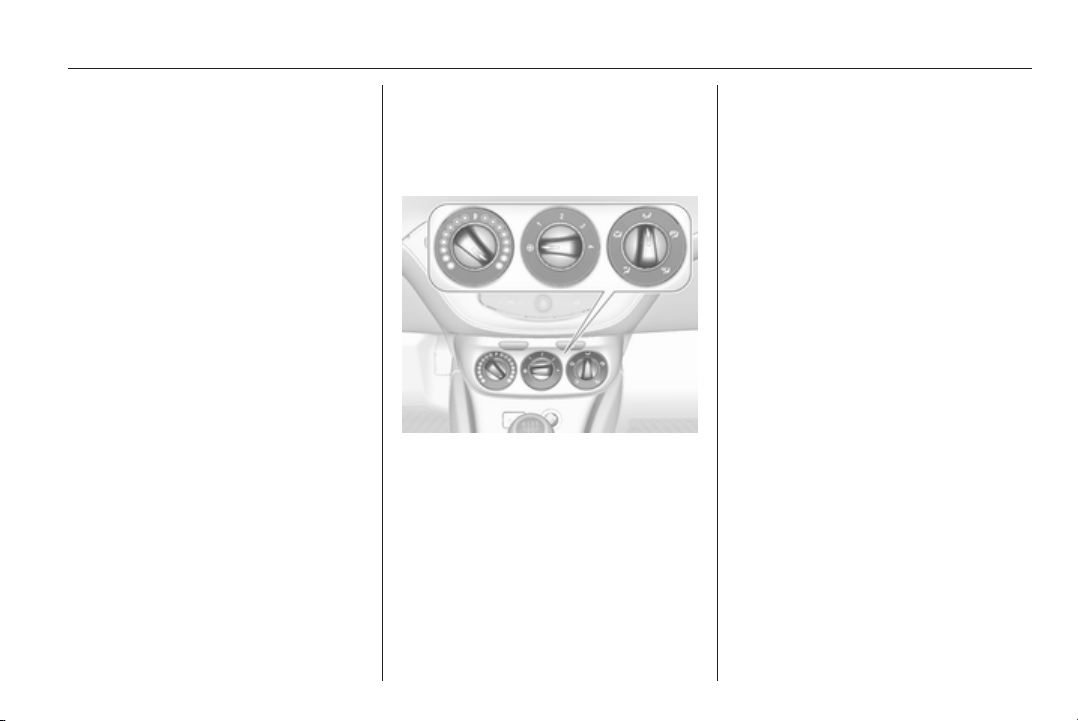

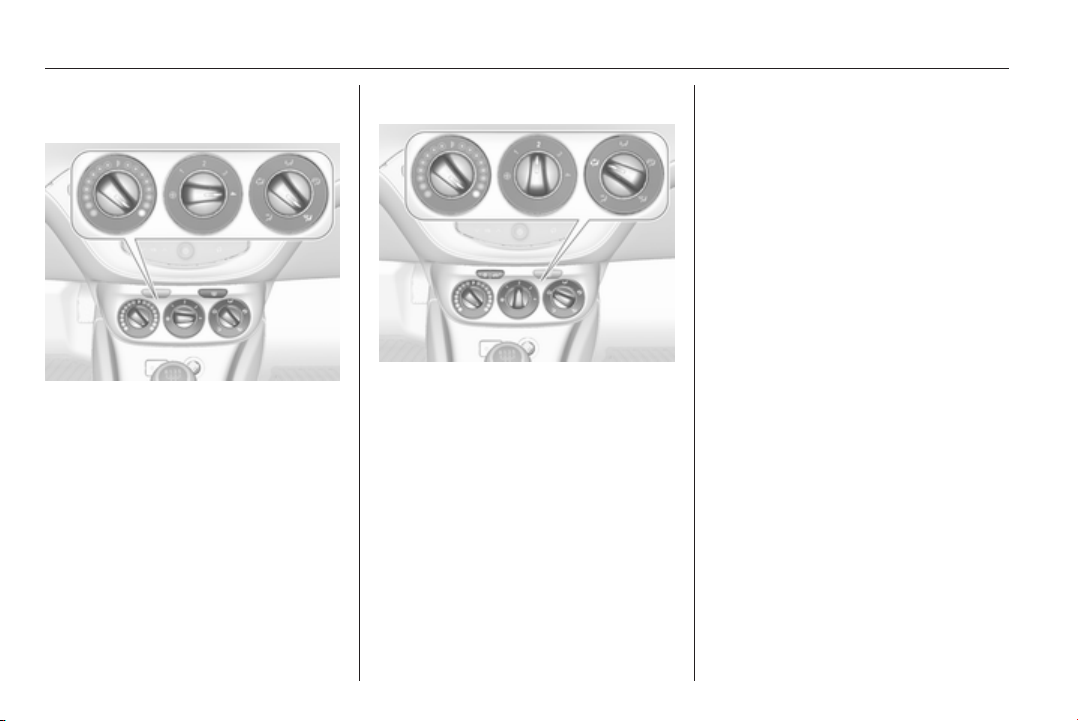

Heating and ventilation
system
Controls for:
■ temperature
■ fan speed
■ air distribution
Heated rear window Ü 3 32.
Heated seats ß 3 38.
Heated steering wheel * 3 74.
Temperature
red = warm
blue = cold
Heating will not be fully effective until
the engine has reached normal
operating temperature.
Fan speed
Adjust the air flow by switching the fan
to the desired speed.
Air distribution
M
= to head area
L
= to head area and foot well
K
= to foot well
J
= to windscreen, front door
windows and foot well
l
= to windscreen and front door
windows
Intermediate settings are possible.
114 Climate control
Demisting and defrosting the
windows
■ Set temperature control to warmest
level.
■ Set fan speed to highest speed.
■
Set air distribution control to l.
■
Switch on heated rear window Ü.
■ Open side air vents as required and
direct them towards door windows.
■ For simultaneous warming of the
foot well, set air distribution control
to J.

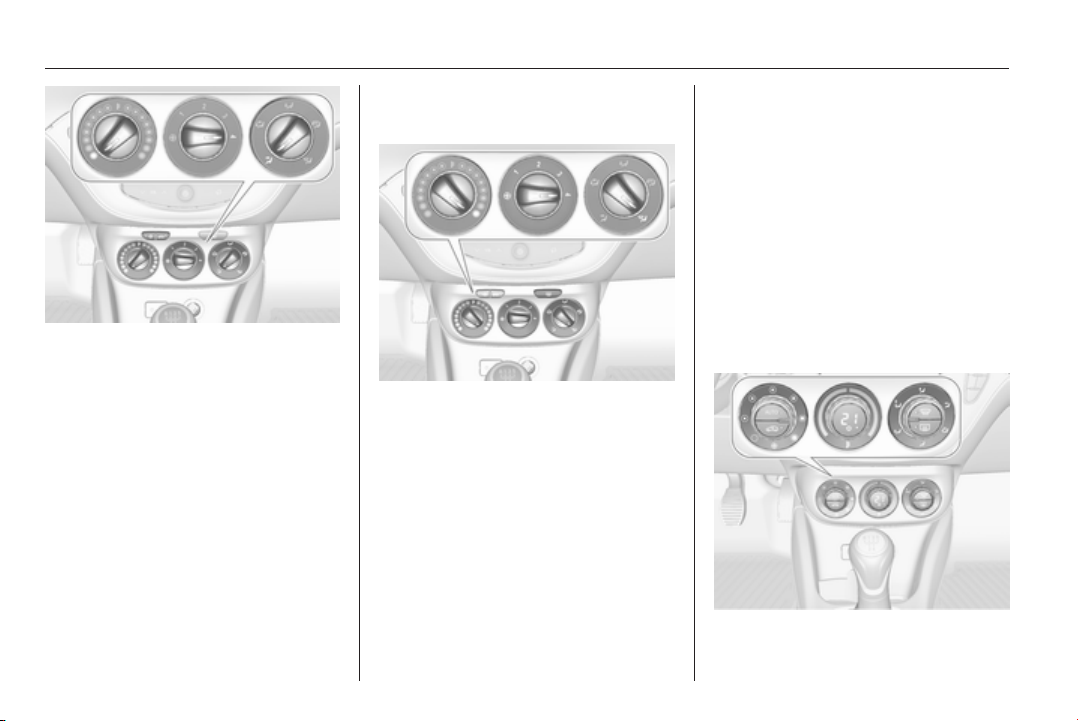

Air conditioning system
Controls for:
■ temperature
■ fan speed
■ air distribution
n
= cooling
4
= air recirculation
Ü
= heated rear window 3 32
Heated seats ß 3 38.
Heated steering wheel * 3 74.
Temperature
red = warm
blue = cold
Heating will not be fully effective until
the engine has reached normal
operating temperature.
Fan speed
Adjust the air flow by switching the fan
to the desired speed.
Air distribution
M
= to head area
L
= to head area and foot well
K
= to foot well
J
= to windscreen, front door
windows and foot well
l
= to windscreen and front door
windows (air conditioning is
activated in the background to
help preventing windows from
fogging)
Intermediate settings are possible.
Climate control 115
Cooling n
Press button
n to switch on cooling.
Activation is indicated by the LED in
the button. Cooling is only functional
when the engine is running and
climate control fan is switched on.
Press button n again to switch off
cooling.
The air conditioning system cools and
dehumidifies (dries) as soon as the
outside temperature is slightly above
the freezing point. Therefore
condensation may form and drip from
under the vehicle.
If no cooling or drying is required,
switch off the cooling system for fuel
saving reasons.
Activated cooling might inhibit
Autostops.
Stop-start system 3 125.
Air recirculation system 4
Press button to activate air
recirculation mode. Activation is
indicated by the LED in the button.
Press button 4 again to deactivate
recirculation mode.
9 Warning
The exchange of fresh air is
reduced in air recirculation mode.
In operation without cooling the air
humidity increases, so the
windows may mist up from inside.
The quality of the passenger
compartment air deteriorates,
which may cause the vehicle
occupants to feel drowsy.
In warm and very humid ambient air
conditions, the windscreen might mist
up from outside, when cold air is
directed to it. If windscreen mists up
from outside, activate windscreen
wiper and deactivate l.
Maximum cooling
Briefly open the windows so that hot
air can disperse quickly.
116 Climate control
■
Switch on cooling n.
■
Air recirculation system 4 on.
■ Set temperature control to coldest
level.
■ Set fan speed to highest level.
■
Set air distribution control to M.
■ Open all vents.
Demisting and defrosting the
windows l
■ Set temperature control to warmest
level.
■ Set fan speed to highest level.
■
Set air distribution control to l.
■
Switch on heated rear window Ü.
■ Open side air vents as required and
direct them towards the door
windows.
Note
If air distribution mode l is selected
while engine is running, an Autostop
will be inhibited until another air
distribution is selected.
If air distribution mode l is selected
while the engine is in an Autostop,
the engine will restart automatically.
Stop-start system 3 125.
Electronic climate control
system
Climate control 117
Controls for:
■ fan speed
■ temperature
■ air distribution
n
= cooling
AUTO = automatic mode
4
= manual air recirculation
V
= demisting and defrosting
Ü
= heated rear window 3 32
Heated seats ß 3 38.
Heated steering wheel * 3 74.
In Automatic mode temperature, fan
speed and air distribution are
regulated automatically.
Climate control settings are shown on
the Info-Display. Setting
modifications are briefly popped-up,
superimposed over the currently
displayed menu.
The electronic climate control system
is only fully operational when the
engine is running.
Automatic mode AUTO
Basic setting for maximum comfort:
■ Press AUTO button, the air
distribution and fan speed are
regulated automatically. Activation
is indicated by the LED in the
button.
■ Open all air vents to allow
optimised air distribution in
automatic mode.
■
Press n to switch on optimal
cooling and demisting. Activation is
indicated by the LED in the button.
■ Set the preselected temperature
using the centre rotary knob.
Recommended temperature is
22 °C.
Temperature preselection
Set temperature by turning the centre
rotary knob to the desired value. It is
indicated in the display of the switch.
For reasons of comfort, change
temperature only in small increments.
118 Climate control
If the minimum temperature Lo is set,
the climate control system runs at
maximum cooling, if cooling n is
switched on.
If the maximum temperature Hi is set,
the climate control system runs at
maximum heating.
Note
If n is switched on, reducing the set
cabin temperature can cause the
engine to restart from an Autostop or
inhibit an Autostop.
Demisting and defrosting the
windows V
■
Press button V. Activation is
indicated by the LED in the button.
■ Temperature and air distribution
are set automatically and the fan
runs at high speed.
■
Switch on heated rear window Ü.
■ To return to previous mode: press
button V, to return to automatic
mode: press button AUTO.
Setting of automatic rear window
heating can be changed in the
Info-Display. Vehicle personalisation
3 101.
Note
If the V button is pressed while the
engine is running, an Autostop will
be inhibited until the V button is
pressed again.
If the s button with activated fan is
pressed while the engine is running,
an Autostop will be inhibited until the
s button is pressed again or until the
fan is deactivated.
If the V button is pressed while the
engine is in an Autostop, the engine
will restart automatically.
If the s button is pressed with
activated fan while the engine is in
an Autostop, the engine will restart
automatically.
Stop-start system 3 125.
Manual settings
Climate control system settings can
be changed by activating the buttons
and rotary knobs as follows.
Changing a setting will deactivate the
automatic mode.
Climate control 119
Fan speed Z
Turn left rotary knob to decrease or
increase fan speed. The fan speed is
indicated in the Info-Display.
Turning knob to $: fan and cooling
are switched off.
To return to automatic mode: Press
AUTO button.
Air distribution
Turn right rotary knob for desired
adjustment. Setting is indicated in the
Info-Display.
K
= to foot well
9
= to windscreen, front door
windows and foot well
s
= to windscreen and front door
windows (air conditioning is
activated in the background to
help preventing windows from
fogging)
M
= to head area via adjustable air
vents
L
= to head area and foot well
Return to automatic air distribution:
press button AUTO.
Cooling n
Press button
n to switch on cooling.
Activation is indicated by the LED in
the button. Cooling is only functional
when the engine is running and
climate control fan is switched on.
Press button n again to switch off
cooling.
The air conditioning system cools and
dehumidifies (dries) as soon as the
outside temperature is slightly above
120 Climate control
the freezing point. Therefore
condensation may form and drip from
under the vehicle.
If no cooling or drying is required,
switch off the cooling system for fuel
saving reasons.
When the cooling system is switched
off, no engine restart will be
requested by the climate control
system during an Autostop.
Exception: defrost system is activated
and outside temperature above 0° C
requests a restart.
The status of cooling operation is
indicated in the Info-Display.
Activation or deactivation of cooling
operation after engine start can be
changed in the Info-Display. Vehicle
personalisation 3 101.
Air recirculation mode 4
Press button
4 to activate air
recirculation mode. Activation is
indicated by the LED in the button.
Press button 4 again to deactivate
recirculation mode.
9 Warning
The exchange of fresh air is
reduced in air recirculation mode.
In operation without cooling the air
humidity increases, so the
windows may mist up from inside.
The quality of the passenger
compartment air deteriorates,
which may cause the vehicle
occupants to feel drowsy.
In warm and very humid ambient air
conditions, the windscreen might mist
up from outside, when cold air is
directed to it. If windscreen mists up
from outside, activate windscreen
wiper and deactivate s.
Basic settings
Some settings can be changed in the
Info-Display. Vehicle personalisation
3 101.
Climate control 121

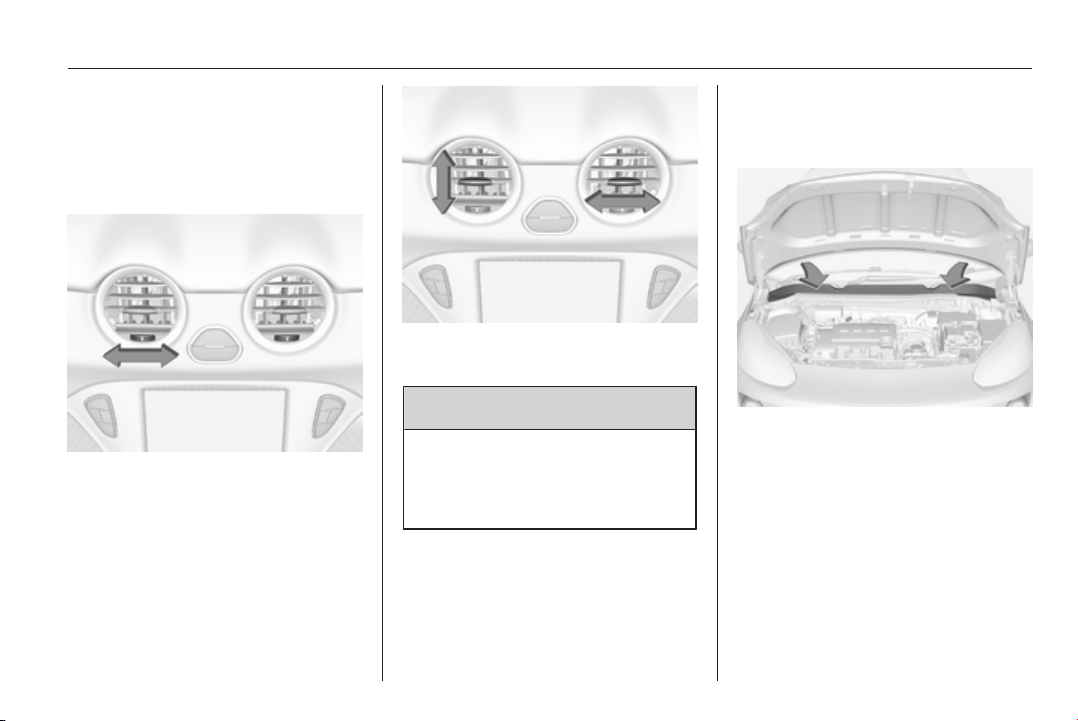

Air vents
Adjustable air vents
At least one air vent must be open
while the cooling is on.
Adjust the air amount at the vent
outlet by turning the adjuster wheel.
The vent is closed when the adjuster
wheel is turned close to the left or
right.
Direct the flow of air by tilting and
swivelling the slats.
9 Warning
Do not attach any objects to the
slats of the air vents. Risk of
damage and injury in case of an
accident.

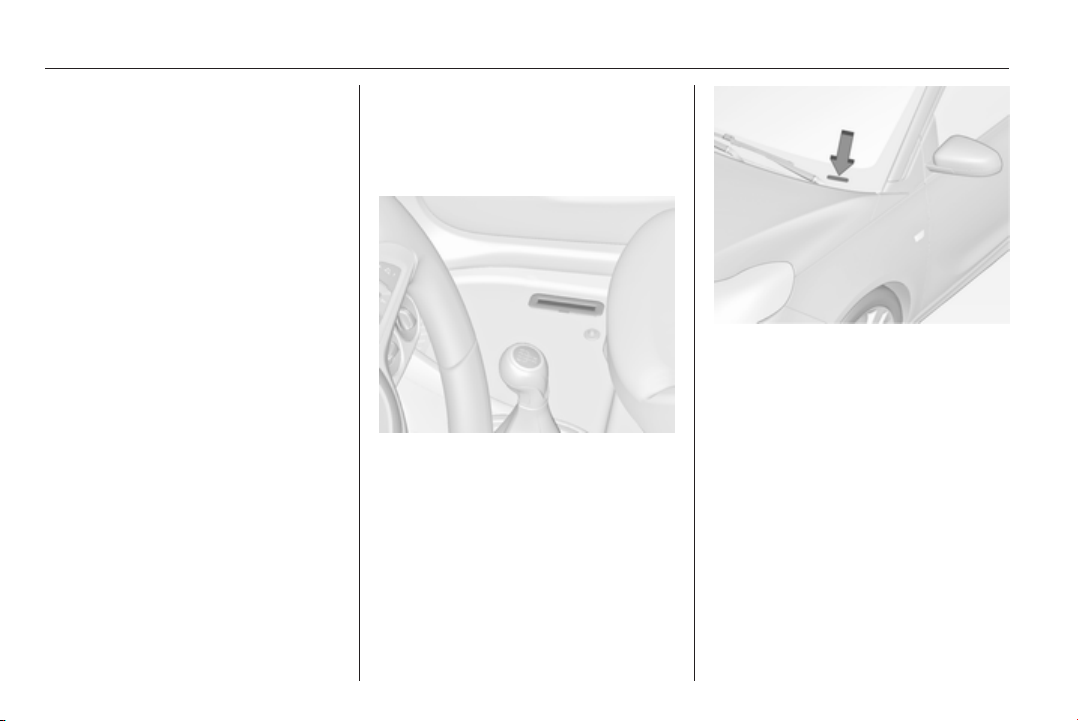

Fixed air vents
Additional air vents are located
beneath the windscreen and door
windows and in the foot wells.
Maintenance
Air intake
The air intake in front of the
windscreen in the engine
compartment must be kept clear to
allow air intake. Remove any leaves,
dirt or snow.
Pollen filter
The pollen filter cleans dust, soot,
pollen and spores from the air
entering the vehicle through the air
intake.
122 Climate control
Air conditioning regular
operation
In order to ensure continuously
efficient performance, cooling must
be operated for a few minutes once a
month, irrespective of the weather
and time of year. Operation with
cooling is not possible when the
outside temperature is too low.
Service
For optimal cooling performance, it is
recommended to annually check the
climate control system, starting
three years after initial vehicle
registration, including:
■ functionality and pressure test
■ heating functionality
■ leakage check
■ check of drive belts
■ cleaning of condenser and
evaporator drainage
■ performance check
Driving and operating 123
Driving and operating
Driving hints ............................... 123
Starting and operating ............... 123
Engine exhaust .......................... 128
Manual transmission .................. 129
Brakes ........................................ 129
Ride control systems ................. 131
Driver assistance systems ......... 134
Fuel ............................................ 148
Driving hints
Control of the vehicle
Never coast with engine not
running
Many systems will not function in this
situation (e.g. brake servo unit, power
steering). Driving in this manner is a
danger to yourself and others.
All systems function during an
Autostop.
Stop-start system 3 125.
Idle boost
If charging of the vehicle battery is
required due to battery condition, the
power output of the generator must
be increased. This will be achieved by
an idle boost which may be audible.
A message appears in the Driver
Information Centre.
Pedals
To ensure the pedal travel is
uninhibited, there must be no mats in
the area of the pedals.
Starting and operating
New vehicle running-in
Do not brake unnecessarily hard for
the first few journeys.
During the first drive, smoke may
occur because of wax and oil
evaporating off the exhaust system.
Park the vehicle in the open for a
while after the first drive and avoid
inhaling the fumes.
During the running-in period fuel and
engine oil consumption may be
higher.
Autostop may be inhibited to allow for
charging the vehicle battery.
124 Driving and operating

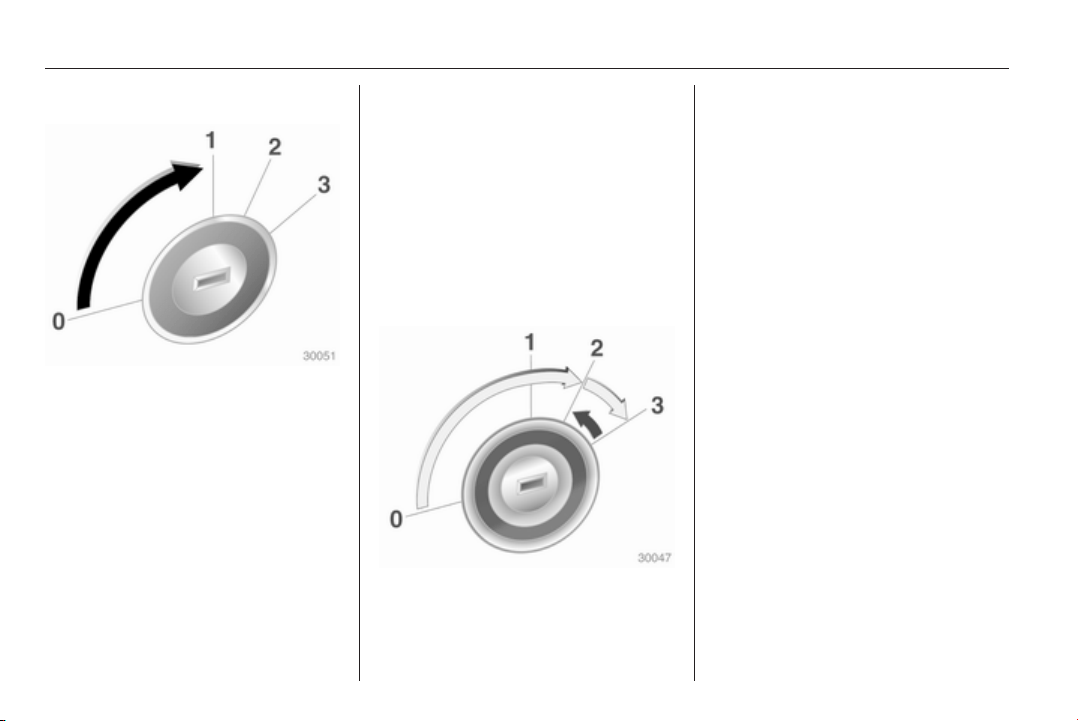

Ignition switch positions
0 = ignition off
1 = steering wheel lock released,
ignition off
2 = ignition on
3 = starting
Retained power off
The following electronic systems can
work until the driver's door is opened
or at the latest for 10 minutes after the
ignition is switched off:
■ power windows
■ power outlets
■ power sunroof
Power to the Infotainment system will
continue to operate for 30 minutes or
until the key is removed from the
ignition switch, regardless of whether
any door will be opened.
Starting the engine
Operate clutch.
Do not operate the accelerator pedal.
Turn key briefly to position 3 and
release: an automatic procedure
operates the starter after a brief
delay, until the engine is running. See
Automatic Starter Control.
Before restarting or to switch off the
engine, turn the key back to position
0.
During an Autostop, the engine can
be started by depressing the clutch
pedal.
Starting the vehicle at low
temperatures
The start of the engine without
additional heaters is possible down to
-30 °C. Required is an engine oil with
the correct viscosity, the correct fuel,
performed services and a sufficiently
charged vehicle battery.
Automatic Starter Control
This function controls the engine
starting procedure. The driver does
not have to hold the key in position 3.
Once applied, the system will go on
starting automatically until the engine
Driving and operating 125
is running. Because of the checking
procedure, the engine starts running
after a short delay.
Possible reasons for a non-starting
engine:
■ Clutch pedal is not operated.
■ Timeout occurred.
Turbo engine warm-up
Upon start-up, engine available
torque may be limited for a short time,
especially when the engine
temperature is cold. The limitation is
to allow the lubrication system to fully
protect the engine.
Overrun cut-off
The fuel supply is automatically cut off
during overrun, i.e. when the vehicle
is driven with a gear engaged but
accelerator is released.
Stop-start system
The stop-start system helps to save
fuel and to reduce the exhaust
emissions. When conditions allow, it
switches off the engine as soon as the
vehicle is at a low speed or at a
standstill, e.g. at a traffic light or in a
traffic jam. It starts the engine
automatically as soon as the clutch is
depressed. A vehicle battery sensor
ensures that an Autostop is only
performed if the vehicle battery is
sufficiently charged for a restart.
Activation
The stop-start system is available as
soon as the engine is started, the
vehicle starts-off and the conditions
as stated below in this section are
fulfilled.

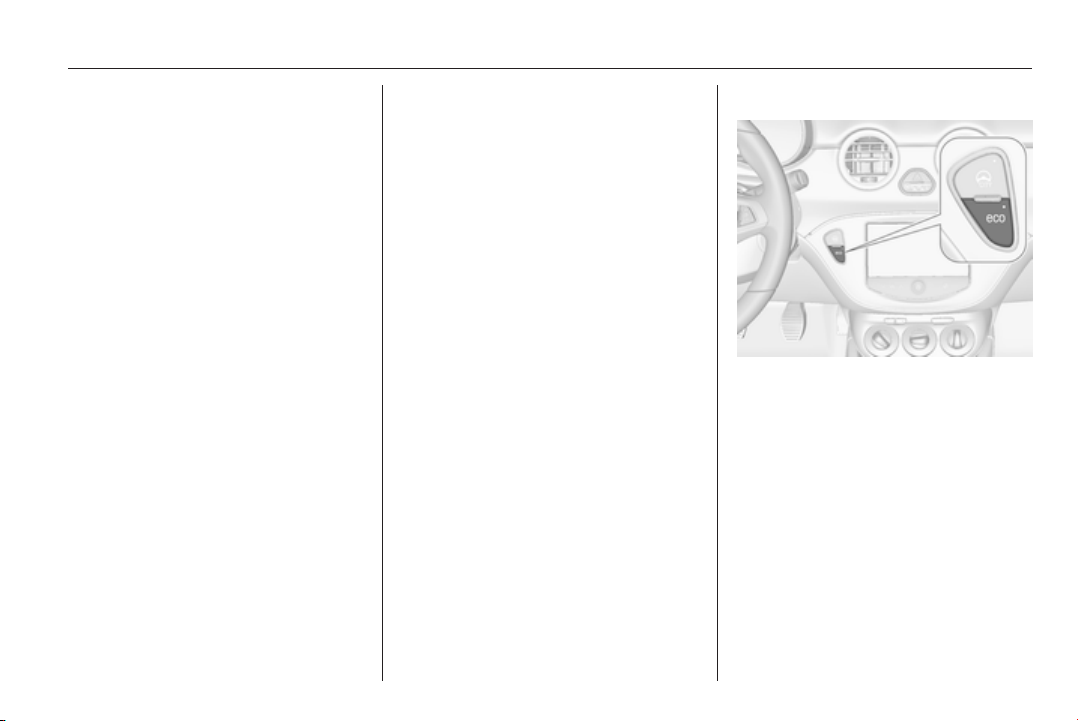

Deactivation
Deactivate the stop-start system
manually by pressing the eco button.
The deactivation is indicated when
the LED in the button extinguishes.
Autostop
If the vehicle is at a low speed or at a
standstill, activate an Autostop as
follows:
■ Depress the clutch pedal.
■ Set the lever in neutral.
■ Release the clutch pedal.
The engine will be switched off while
the ignition stays on.
126 Driving and operating
An Autostop is indicated by the
needle at the AUTOSTOP position in
the tachometer.
During an Autostop, the heating and
brake performance will be
maintained.
Conditions for an Autostop
The stop-start system checks if each
of the following conditions is fulfilled:
■ The stop-start system is not
manually deactivated.
■ The bonnet is fully closed.
■ The driver's door is closed or the
driver's seat belt is fastened.
■ The vehicle battery is sufficiently
charged and in good condition.
■ The engine is warmed up.
■ The engine coolant temperature is
not too high.
■ The engine exhaust temperature is
not too high, e.g. after driving with
high engine load.
■ The ambient temperature is above
-5 °C.
■ The climate control system allows
an Autostop.
■ The brake vacuum is sufficient.
■ The vehicle was driven at least at
walking speed since the last
Autostop.
Otherwise an Autostop will be
inhibited.
Certain settings of the climate control
system may inhibit an Autostop. See
Climate control chapter for more
details 3 116.
Immediately after motorway driving
an Autostop may be inhibited.
New vehicle running-in 3 123.
Vehicle battery discharge protection
To ensure reliable engine restarts,
several vehicle battery discharge
protection features are implemented
as part of the stop-start system.
Power saving measures
During an Autostop, several electrical
features, e.g. the rear window
heating, are disabled or switched into
a power saving mode. The fan speed
of the climate control system is
reduced to save power.
Restart of the engine by the
driver
Depress the clutch pedal to restart the
engine.
The engine start is indicated by the
needle at the idle speed position in
the tachometer.
If the selector lever is shifted out of
neutral before depressing the clutch
first, control indicator - illuminates
or is shown as a symbol in the Driver
Information Centre.
Control indicator - 3 88.
Driving and operating 127
Restart of the engine by the
stop-start system
The selector lever must be in neutral
to enable an automatic restart.
If one of the following conditions
occurs during an Autostop, the
engine will be restarted automatically
by the stop-start system:
■ The stop-start system is manually
deactivated.
■ The bonnet is opened.
■ The driver's seat belt is unfastened
and the driver's door is opened.
■ The engine temperature is too low.
■ The charging level of the vehicle
battery is below a defined level.
■ The brake vacuum is not sufficient.
■ The vehicle is driven at least at
walking speed.
■ The climate control system
requests an engine start.
■ The air conditioning is manually
switched on.
If the bonnet is not fully closed, a
warning message is displayed in the
Driver Information Centre.
If an electrical accessory, e.g. a
portable CD player, is connected to
the power outlet, a brief power drop
during restart might be noticeable.
Parking
9 Warning
■ Do not park the vehicle on an
easily ignitable surface. The
high temperature of the exhaust
system could ignite the surface.
■ Always apply the parking brake.
Activate the parking brake
without pressing the release
button. Apply as firmly as
possible on a downhill slope or
uphill slope. Depress foot brake
at the same time to reduce
operating force.
■ Switch off the engine.
■ If the vehicle is on a level
surface or uphill slope, engage
first gear before removing the
ignition key. On an uphill slope,
turn the front wheels away from
the kerb.
If the vehicle is on a downhill
slope, engage reverse gear
before removing the ignition
key. Turn the front wheels
towards the kerb.
■ Close the windows.
■ Remove the ignition key. Turn
the steering wheel until the
steering wheel lock is felt to
engage.
■ Lock the vehicle.
■ Activate the anti-theft alarm
system.
■ The engine cooling fans may run
after the engine has been switched
off 3 155.
■ After running at high engine speeds
or with high engine loads, operate
the engine briefly at a low load or
run in neutral for
approx. 30 seconds before
switching off, in order to protect the
turbocharger.
128 Driving and operating
Note
In the event of an accident with
airbag deployment, the engine is
turned off automatically if the vehicle
comes to a standstill within a certain
time.
Engine exhaust
9 Danger
Engine exhaust gases contain
poisonous carbon monoxide,
which is colourless and odourless
and could be fatal if inhaled.
If exhaust gases enter the interior
of the vehicle, open the windows.
Have the cause of the fault
rectified by a workshop.
Avoid driving with an open load
compartment, otherwise exhaust
gases could enter the vehicle.
Catalytic converter
The catalytic converter reduces the
amount of harmful substances in the
exhaust gases.
Caution
Fuel grades other than those listed
on pages 3 148, 3 211 could
damage the catalytic converter or
electronic components.
Unburnt petrol will overheat and
damage the catalytic converter.
Therefore avoid excessive use of
the starter, running the fuel tank
dry and starting the engine by
pushing or towing.
In the event of misfiring, uneven
engine running, a reduction in engine
performance or other unusual
problems, have the cause of the fault
rectified by a workshop as soon as
possible. In an emergency, driving
can be continued for a short period,
keeping vehicle speed and engine
speed low.
Driving and operating 129
Manual transmission
To engage reverse, depress the
clutch pedal and press the release
button on the selector lever and
engage the gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then repeat
gear selection.
Do not slip the clutch unnecessarily.
When operating, depress the clutch
pedal completely. Do not use the
pedal as a foot rest.
Caution
It is not advisable to drive with the
hand resting on the selector lever.
Brakes
The brake system comprises two
independent brake circuits.
If a brake circuit fails, the vehicle can
still be braked using the other brake
circuit. However, braking effect is
achieved only when the brake pedal
is depressed firmly. Considerably
more force is needed for this. The
braking distance is extended. Seek
the assistance of a workshop before
continuing your journey.
When the engine is not running, the
support of the brake servo unit
disappears once the brake pedal has
been depressed once or twice.
Braking effect is not reduced, but
braking requires significantly greater
force. It is especially important to bear
this in mind when being towed.
Control indicator R 3 88.
Antilock brake system
Antilock brake system (ABS)
prevents the wheels from locking.
130 Driving and operating
ABS starts to regulate brake pressure
as soon as a wheel shows a tendency
to lock. The vehicle remains
steerable, even during hard braking.
ABS control is made apparent
through a pulse in the brake pedal
and the noise of the regulation
process.
For optimum braking, keep the brake
pedal fully depressed throughout the
braking process, despite the fact that
the pedal is pulsating. Do not reduce
the pressure on the pedal.
After starting off the system performs
a self-test which may be audible.
Control indicator u 3 88.
Adaptive brake light
During full braking, all three brake
lights flash for the duration of ABS
control.
Fault
9 Warning
If there is a fault in the ABS, the
wheels may be liable to lock due
to braking that is heavier than
normal. The advantages of ABS
are no longer available. During
hard braking, the vehicle can no
longer be steered and may
swerve.
Have the cause of the fault remedied
by a workshop.
Parking brake
Manual parking brake
9 Warning
Always apply parking brake firmly
without operating the release
button, and apply as firmly as
possible on a downhill or uphill
slope.
To release the parking brake, pull
the lever up slightly, press the
release button and fully lower the
lever.
Driving and operating 131
To reduce the operating forces of
the parking brake, depress the
foot brake at the same time.
Control indicator R 3 88.
Brake assist
If the brake pedal is depressed
quickly and forcefully, maximum
brake force is automatically applied
(full braking).
Maintain steady pressure on the
brake pedal for as long as full braking
is required. Maximum brake force is
automatically reduced when the
brake pedal is released.
Hill start assist
The system helps prevent unintended
movement when driving away on
inclines.
When releasing the foot brake after
stopping on an incline, the brakes
remain on for a further two seconds.
The brakes release automatically as
soon as the vehicle begins to
accelerate or the two seconds holding
time is over.
The hill start assist is not active during
an Autostop.
Ride control systems
Traction Control system
The Traction Control system (TC) is a
component of the Electronic Stability
Control (ESC).
TC improves driving stability when
necessary, regardless of the type of
road surface or tyre grip, by
preventing the drive wheels from
spinning.
As soon as the drive wheels starts to
spin, engine output is reduced and
the wheel spinning the most is braked
individually. This considerably
improves the driving stability of the
vehicle on slippery road surfaces.
132 Driving and operating

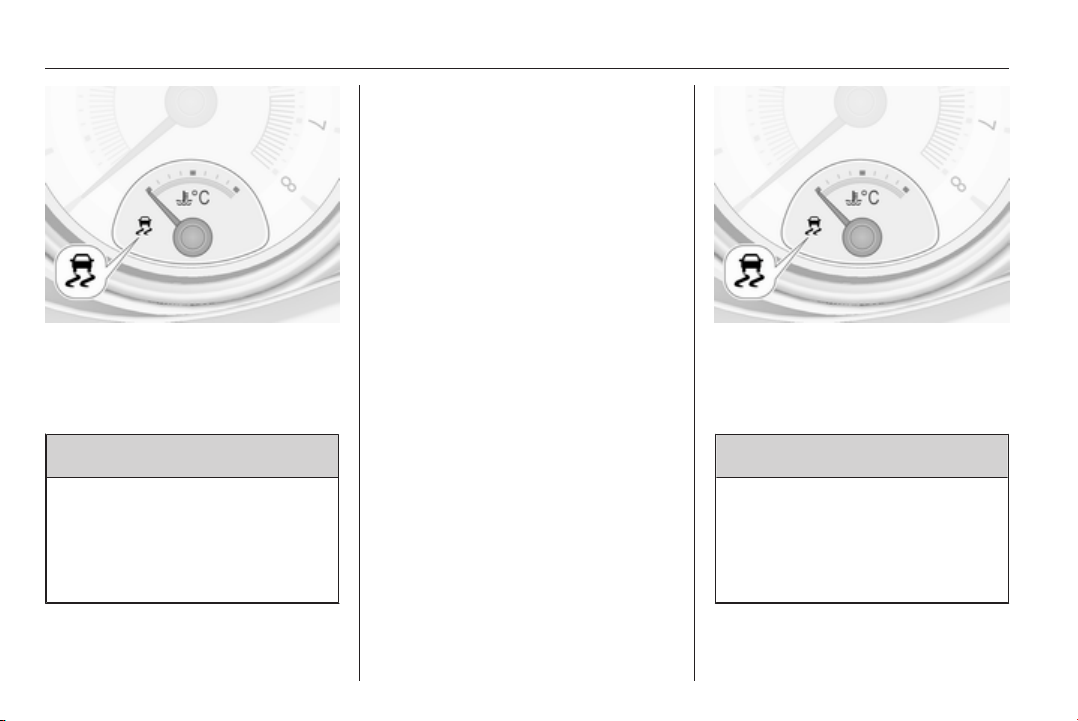

TC is operational after each engine
start as soon as the control indicator
b extinguishes.
When TC operates b flashes.
9 Warning
Do not let this special safety
feature tempt you into taking risks
when driving.
Adapt speed to the road
conditions.
Fault
If there is a fault in the system the
control indicator b illuminates
continuously and a message or a
warning code appears in the Driver
Information Centre. The system is not
operational.
Have the cause of the fault remedied
by a workshop.
Electronic Stability Control
Electronic Stability Control (ESC)
improves driving stability when
necessary, regardless of the type of
road surface or tyre grip. It also
prevents the drive wheels from
spinning. ESC operates in
combination with the Traction Control
system (TC).
As soon as the vehicle starts to
swerve (understeer/oversteer),
engine output is reduced and the
wheels are braked individually. This
considerably improves the driving
stability of the vehicle on slippery road
surfaces.
ESC is operational after each engine
start as soon as the control indicator
b extinguishes.
When ESC operates b flashes.
9 Warning
Do not let this special safety
feature tempt you into taking risks
when driving.
Adapt speed to the road
conditions.
Driving and operating 133
Fault
If there is a fault in the system the
control indicator b illuminates
continuously and a message or a
warning code appears in the Driver
Information Centre. The system is not
operational.
Have the cause of the fault remedied
by a workshop.

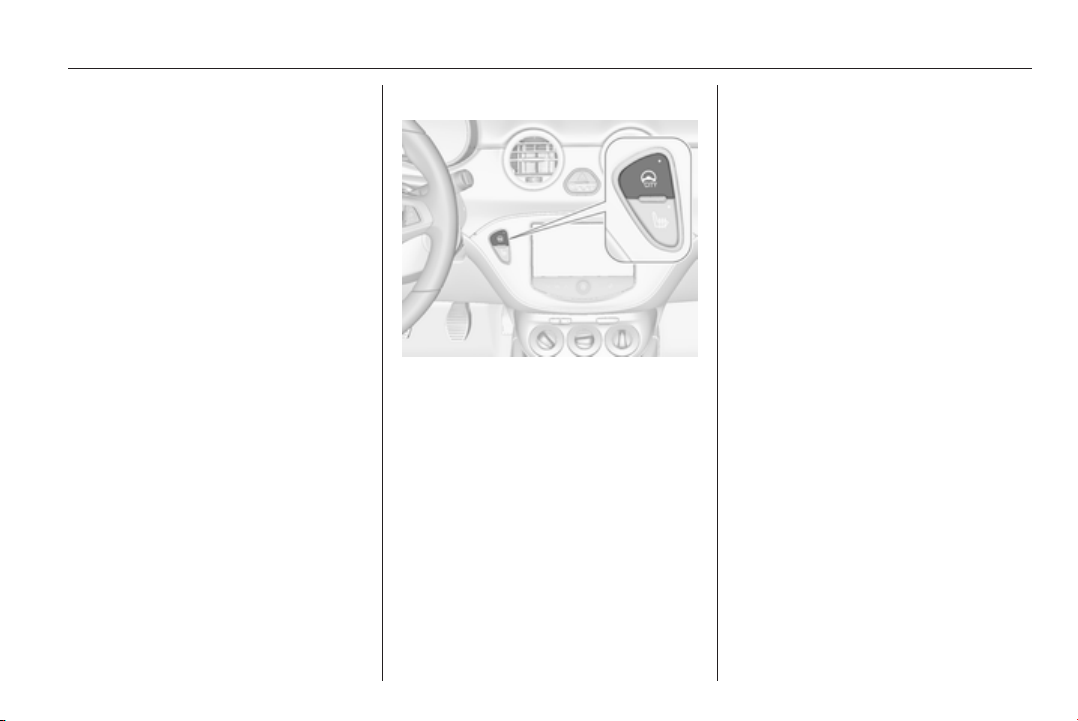

City mode
City mode is a feature which enables
increased steering assistance during
lower speed conditions, e.g. city
traffic or parking. Steering assistance
is increased for greater convenience.
Activation
Press button B when engine is
running. The system works from
standstill up to 35 km/h, and in
reverse gear. Above this speed the
system changes to normal mode.
When activated, City mode engages
automatically below 35 km/h.
An illuminated LED in the City mode
button indicates that the system is
active.
Additionally, a message pops-up in
the Driver Information Centre.
City mode remains active during an
Autostop, but is only operational
when the engine is running.
Stop-start system 3 125.
Deactivation
Press button B; LED in the button
extinguishes and a message pops-up
in the Driver Information Centre.
Each time the engine is started, City
mode is deactivated.
Overload
If the steering in City mode is heavily
loaded, e.g. in long parking
manoeuvres or heavy city traffic, the
system is deactivated for overheat
protection. Steering operates in
normal mode until City mode
activates automatically.
134 Driving and operating

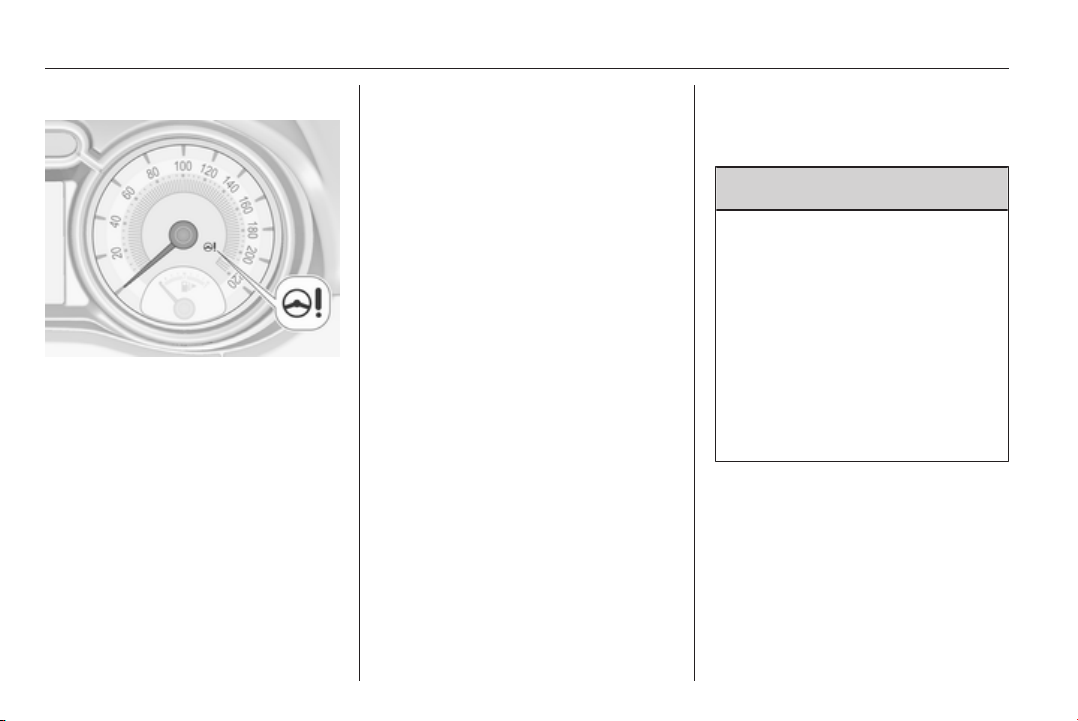

Fault
In the event of a fault in the system,
c illuminates and a message is
displayed in the Driver Information
Centre.
Vehicle messages 3 98.
System calibration
If control indicators c and b
illuminate simultaneously, a
calibration of the power steering
system is necessary. This can occur
e.g. when turning the steering wheel
for one rotation with ignition switched
off. In this case switch on ignition and
turn steering wheel once from lock to
lock.
If control indicators c and b do not
extinguish after calibration, seek the
assistance of a workshop.
Driver assistance
systems
9 Warning
Driver assistance systems are
developed to support the driver
and not to replace the driver's
attention.
The driver accepts full
responsibility when driving the
vehicle.
When using driver assistance
systems, always take care
regarding the current traffic
situation.
Cruise control
The Cruise control can store and
maintain speeds of approx. 30 to
200 km/h. Deviations from the stored
speeds may occur when driving uphill
or downhill.
Driving and operating 135
For safety reasons the cruise control
cannot be activated until the foot
brake has been operated once.
Activating in first gear is not possible.
Do not use the cruise control if it is not
advisable to maintain a constant
speed.
Control indicator m 3 90.
Switching on
Press button m, control indicator m in
instrument cluster illuminates white.
Activation
Accelerate to the desired speed and
turn thumb wheel to SET/-, the
current speed is stored and
maintained. Control indicator m in
instrument cluster illuminates green.
Accelerator pedal can be released.
Vehicle speed can be increased by
depressing the accelerator pedal.
When the accelerator pedal is
released, the previously stored speed
is resumed.
Cruise control remains activated
while gearshifting.
Increase speed
With cruise control active, hold thumb
wheel turned to RES/+ or briefly turn
to RES/+ repeatedly: speed
increases continuously or in small
increments.
Alternatively accelerate to the desired
speed and store by turning to SET/-.
Reduce speed
With cruise control active, hold thumb
wheel turned to SET/- or briefly turn to
SET/- repeatedly: speed decreases
continuously or in small increments.
Deactivation
Press button y, control indicator m in
instrument cluster illuminates white.
Cruise control is deactivated. Last
used cruising speed is stored for later
speed resume.
136 Driving and operating
Automatic deactivation:
■ Vehicle speed is below approx.
30 km/h.
■ vehicle speed is above approx.
200 km/h.
■ The brake pedal is depressed.
■ The clutch pedal is depressed for a
few seconds.
■ Engine speed is in a very low range.
■ The Traction Control system or
Electronic Stability Control is
operating.
Resume stored speed
Turn thumb wheel to RES/+ at a
speed above 30 km/h. The stored
speed will be obtained.
Switching off
Press button m, control indicator m in
instrument cluster extinguishes. The
stored speed is deleted.
Switching off the ignition also
switches off cruise control and
deletes the stored speed.
Speed limiter
The speed limiter prevents the
vehicle exceeding a preset maximum
speed.
The maximum speed can be set at a
speed above 25 km/h.
The driver can only accelerate up to
the preset speed. Deviations from the
limited speed may occur when driving
downhill.
The preset speed limit is displayed in
the top line of the Driver Information
Centre when the system is active.
Activation
Press button L. If cruise control has
been activated before, it is switched
off when speed limiter is activated
and the control indicator m
extinguishes.
Set speed limit
With speed limiter active, hold thumb
wheel turned to RES/+ or briefly turn
to RES/+ repeatedly until the desired
maximum speed is displayed in the
Driver Information Centre.
Alternatively accelerate to the desired
speed and briefly turn thumb wheel to
SET/-: the current speed is stored as
maximum speed. Speed limit is
displayed in the Driver Information
Centre.
Driving and operating 137
Change speed limit
With speed limiter active, turn thumb
wheel to RES/+ to increase or SET/-
to decrease the desired maximum
speed.
Exceeding the speed limit
In the event of an emergency it is
possible to exceed the speed limit by
depressing the accelerator pedal
firmly beyond the point of resistance.
The limited speed will flash in the
Driver Information Centre and a
chime sounds during this period.
Release the accelerator pedal and
the speed limiter function is
reactivated once a speed lower than
the limit speed is obtained.
Deactivation
Press button y: speed limiter is
deactivated and the vehicle can be
driven without speed limit.
The limited speed is stored.
Additionally, a corresponding
message appears in the Driver
Information Centre.
Resume limit speed
Turn thumb wheel to RES/+. The
stored speed limit will be obtained.
Switching off
Press button L, the speed limit
indication in the Driver Information
Centre extinguishes. The stored
speed is deleted.
By pressing button m to activate
cruise control or by switching off the
ignition, speed limiter is also
deactivated and the stored speed is
deleted.
Parking assist
Rear parking assist
9 Warning
It is the driver who bears full
responsibility for the parking
manoeuvre.
Always check the surrounding
area while reversing and using the
rear parking assist system.
The rear parking assist makes
parking easier by measuring the
distance between the vehicle and
rear obstacles. It informs and warns
the driver by giving acoustic and
visual signals.
138 Driving and operating
The system has four ultrasonic
parking sensors in the rear bumper.
Activation
When reverse gear is engaged, the
system is ready to operate
automatically.
An illuminated LED in the parking
assist button r indicates that the
system is ready to operate.
Indication
The system warns the driver with
acoustic signals against potentially
hazardous obstacles behind the
vehicle in a distance range up to
1.5 metres. The interval between the
sounds becomes shorter as the
vehicle gets closer to that obstacle.
When the distance is less than about
30 cm, the sound is continuous.
Additionally the distance to obstacles
is shown in the Driver Information
Centre 3 91 or, depending on the
version, on the Colour-Info-Display
3 96.
Deactivation
The system automatically switches
off when reverse gear is disengaged.
Manual deactivation is also possible
by pressing the parking assist button
r.
In both cases the LED in the button
extinguishes.
Fault
In the event of a fault or if the system
does not work temporarily, e.g.
because of high external noise level
or other interference factors, the LED
in the button flashes for 3 seconds
and then extinguishes. Control
indicator r illuminates in the
instrument cluster 3 89 and a
message pops-up in the Driver
Information Centre.
Front-rear parking assist
9 Warning
The driver bears full responsibility
for the parking manoeuvre.
Always check the surrounding
area when driving backwards or
forwards while using parking
assist system.
The front-rear parking assist
measures the distance between the
vehicle and obstacles in front and
Driving and operating 139
behind the vehicle. The system gives
acoustic signals and display
messages.
The system has six ultrasonic parking
sensors each in the rear and front
bumper.
It uses two different acoustic warning
signals for the front and rear
monitoring areas, each with a
different tone frequency.
Front-rear parking assist is always
combined with advanced parking
assist, see Advanced parking assist
section below.
Parking assist button and operation
logic
Front-rear parking assist and
advanced parking assist both use the
same button for activation and
deactivation:
A brief press of button D activates
or deactivates the parking assist.
Long press of button D (approx.
one second) activates or deactivates
the advanced parking assist, see
separate description.
Button logic operates the systems by
pressing as follows:
■ If only front-rear parking assist is
active, a brief press deactivates
front-rear parking assist.
■ If only front-rear parking assist is
active, long press activates
advanced parking assist.
■ If only advanced parking assist is
active, a brief press activates front-
rear parking assist.
■ If only advanced parking assist is
active, long press deactivates
advanced parking assist.
■ If a forward gear or neutral is
selected, a brief press activates or
deactivates only front parking
assist.
■ If reverse gear is selected, a brief
press activates or deactivates front
and rear parking assist.
Operation
When reverse gear is engaged, the
front and rear parking assist is ready
to operate.
140 Driving and operating
An illuminated LED in the parking
assist button D indicates that the
system is ready to operate.
The front parking assist can also be
activated at a speed up to 11 km/h
with a brief press of the parking assist
button.
If the D button is switched on once
within an ignition cycle, the front
parking assist is deactivated at a
speed above 11 km/h. It will be
reactivated if vehicle speed has not
exceeded 25 km/h beforehand. If
vehicle speed has exceeded
25 km/h beforehand, front parking
assist remains deactivated when
speed drops below 11 km/h.
When the system is deactivated, the
LED in the button extinguishes and
Park Assist Off pops-up in the Driver
Information Centre.
The system is deactivated
automatically when exceeding
25 km/h.
Indication
The system warns the driver with
acoustic signals against potentially
hazardous obstacles behind the
vehicle in a distance range up to
1.5 metres and in front up to
1.2 metres. Depending on which side
of the vehicle is closer to an obstacle,
you will hear acoustic warning signals
in the vehicle on the respective side.
The interval between the sounds
becomes shorter as the vehicle gets
closer to that obstacle. When the
distance is less than approx. 30 cm,
the sound is continuous.
Additionally the distance to obstacles
is shown in the Driver Information
Centre 3 91 or, depending on the
version, on the Colour-Info-Display
3 96.
The distance to a front and rear
obstacle is displayed by changing
distance lines in the Driver
Information Centre.
The distance indication can be
inhibited by vehicle messages with a
higher priority. After approving the
message by pressing the SET/CLR
button on the turn signal lever,
distance indication appears again.
Driving and operating 141
The distance to obstacles is shown on
the Colour-Info-Display by coloured
zones in front of or behind the vehicle
3 96.
Fault
In the event of a fault or if the system
does not work temporarily, e.g.
because of high external noise level
or other interference factors, the LED
in the button flashes for 3 seconds
and then extinguishes. Control
indicator r illuminates in the
instrument cluster 3 89 and a
message pops-up in the Driver
Information Centre.
Vehicle messages 3 98.
Advanced parking assist
9 Warning
The driver bears full responsibility
for accepting the parking slot
suggested by the system and the
parking manoeuvre.
Always check the surrounding
area in all directions when using
the advanced parking assist.
The advanced parking assist
measures a suitable parking slot
while passing, calculates the
trajectory and automatically steers
the vehicle into a parallel or
perpendicular parking slot.
Instructions are given on the Colour-
Info-Display supported by acoustic
signals. The driver must control
acceleration, braking and gear
shifting, while steering is done
automatically.
Advanced parking assist can only be
activated when driving forwards.
Advanced parking assist is always
combined with front-rear parking
assist, see previous section. Both
systems use the same sensors in the
front and rear bumper.
Button D and operation logic
Advanced parking assist and front-
rear parking assist both use the same
button for activation and deactivation:
A brief press of button D activates
or deactivates the parking assist.
Long press of button D (approx. one
second) activates or deactivates the
advanced parking assist, see
separate description below.
142 Driving and operating
Button logic operates the systems by
pressing as follows:
■ If only front-rear parking assist is
active, a brief press deactivates
front-rear parking assist.
■ If only front-rear parking assist is
active, long press activates
advanced parking assist.
■ If only advanced parking assist is
active, a brief press activates front-
rear parking assist.
■ If only advanced parking assist is
active, long press deactivates
advanced parking assist.
■ If forward gear or neutral is
selected, a brief press activates or
deactivates only front parking
assist.
■ If reverse gear is selected, a brief
press activates or deactivates front
and rear parking assist.
Activation
When searching for a parking slot, the
system is ready to operate with a long
press of button D.
The system recognises and
memorises (10 metres for parallel
parking slots or 6 metres for
perpendicular parking slots) even in
the parking assist mode. Long press
of button D activates advanced
parking assist to start parking
manoeuvre.
The system can only be activated at
a speed up to 30 km/h and the system
searches for a parking slot at a speed
up to 30 km/h.
The maximum allowed parallel
distance between the vehicle and a
row of parked cars is 1.8 metres for
parallel parking and 2.5 metres for
perpendicular parking.
Functionality
Parking slot searching mode
Driving and operating 143
Select parallel or perpendicular
parking slot in Driver Information
Centre by pressing the SET/CLR
button.
When a slot is detected, a visual
feedback in the Driver Information
Centre and an acoustic signal is
given.
Select parallel or perpendicular
parking slot by tapping the icon 6 or
7 on the Colour-Info-Display.
When a slot is detected, a visual
feedback on the Colour-Info-Display
and an acoustic signal is given.
If the driver does not stop the vehicle
within 10 metres for parallel parking
slots or 6 metres for perpendicular
parking slots after a parking slot is
proposed, the system starts to search
for another suitable parking slot.
Park guiding mode
The parking slot suggestion of the
system is accepted when the vehicle
is stopped by the driver within
10 metres for parallel parking slots or
6 metres for perpendicular parking
144 Driving and operating
slots after the Stop message is given.
The system calculates the optimal
path into the parking slot.
A brief vibration in the steering wheel
after engaging reverse gear indicates
that the steering is controlled by the
system. Then the vehicle is steered
into the slot automatically by giving
the driver detailed instructions for
braking, accelerating and gear
shifting. The driver must keep hands
away from the steering wheel.
Always pay attention to the sound of
the front-rear parking assist.
Continuous sound means that the
distance to an obstacle is less than
approx. 30 cm.
If, for any reason, the driver must take
over control of the steering, hold the
steering wheel only at the outer edge.
Automatic steering is cancelled in this
event.
Changing the parking side
The system is configured to detect
parking slots by default on the
passenger side. To detect parking
slots on the driver side, switch on turn
indicator to the driver side for the
durance of the search.
As soon as the turn indicator is
switched off, the system searches for
parking slots on the passenger side
again.
Display indication
The instructions in the display show:
■ general hints and warning
messages,
■ a hint when driving faster than
30 km/h during parking slot
searching mode, or 8 km/h in
guiding mode,
■ the demand to stop the vehicle,
when a parking slot is detected,
■ the direction of driving during the
parking manoeuvre,
■ the demand to shift rearwards or
forwards,
■ the demand to accelerate or brake,
■ for some of the instructions a
progress bar is shown in the Driver
Information Centre,
■ the successful parking indicated by
a pop-up symbol and a chime,
■ the cancelling of a parking
manoeuvre.
Display priorities
Advanced parking assist indication on
the Driver Information Centre can be
inhibited by vehicle messages with a
higher priority. After approving the
message by pressing the SET/CLR
button on the turn signal lever,
advanced parking assist instructions
appear again and the parking
manoeuvre can be continued.
Deactivation
The system is deactivated by:
■ long press of button D,
■ parking manoeuvre successfully
ended,
■ driving faster than 30 km/h during
parking slot search,
■ driving faster than 8 km/h during
parking guidance,
■ driver interference on steering
wheel detected,
Driving and operating 145
■ exceeding number of maximum
gear changes: 8 parking cycles
when parallel parking or 5 cycles
when perpendicular parking,
■ switching off the ignition.
Deactivation by the driver or by the
system during manoeuvring will be
indicated by Parking Deactivated on
the display. Additionally an acoustic
signal sounds.
Fault
A message appears when:
■ there is a fault in the system; control
indicator r illuminates in the
instrument cluster,
■ the driver did not successfully
complete the parking manoeuvre,
■ the system is not operational,
■ any of the deactivation reasons
described above apply.
If an object is detected during parking
instructions, Stop is indicated on the
display. Removing the object will
resume the parking manoeuvre. If the
object is not removed, the system will
be deactivated. A long press of button
D will activate the system and
search for a new parking slot.
Basic notes on parking assist
systems
9 Warning
Under certain circumstances,
various reflective surfaces on
objects or clothing as well as
external noise sources may cause
the system to fail to detect
obstacles.
Special attention must be paid to
low obstacles which can damage
the lower part of the bumper.
Caution
Performance of the system can be
reduced when sensors are
covered, e.g. by ice or snow.
Performance of the parking assist
system can be reduced due to
heavy loading.
Special conditions apply if there
are taller vehicles in the vicinity
(e.g. off-road vehicles, mini vans,
vans). Object identification and
correct distance indication in the
upper part of these vehicles
cannot be guaranteed.
Objects with a very small reflection
cross-section, e.g. objects of
narrow size or soft materials, may
not be detected by the system.
Parking assist systems do not
detect objects outside the
detection range.
Note
It is possible that the sensor detects
a non-existing object caused by
echo disturbance from external
acoustic noise or mechanical
misalignments (sporadic false
warnings may occur).
Make sure that the front number
plate is properly mounted (not bent
and no gaps to the bumper on the left
or right side) and the sensors are
firmly in place.
146 Driving and operating
Advanced parking assist system
may not respond to changes in the
available parking space after
initiating a parking manoeuvre. The
system may recognize an entry, a
gateway, a courtyard or even a
crossing as a parking slot. After
selecting reverse gear the system
would start a parking manoeuvre.
Take care of the availability of the
suggested parking slot.
Surface irregularities, e.g. on
construction zones, are not detected
by the system. The driver accepts
responsibility.
Note
If engaging a forward gear and
exceeding a certain speed, the rear
parking assist will be deactivated
when the rear carrier system is
extended.
If engaging reverse at first, the
parking assist will detect the rear
carrier system and provide a buzzing
sound. Press r or D briefly to
deactivate the parking assist.
Note
After production, the system
requires a calibration. For optimal
parking guidance, a driving distance
of at least 10 km, including a number
of bends, is required.
Side blind spot alert
The Side blind spot alert system
detects and reports objects on either
side of the vehicle, within a specified
"blind spot" zone. The system alerts
visually in each exterior mirror, when
detecting objects that may not be
visible in the interior and exterior
mirrors.
Side blind spot alert uses some of the
advanced parking assist sensors
which are located in the front and rear
bumper on both sides of the vehicle.
9 Warning
Side blind spot alert does not
replace driver vision.
The system does not detect:
■ Vehicles outside the side blind
zones which may be rapidly
approaching.
■ Pedestrians, cyclists or animals.
Before changing a lane, always
check all mirrors, look over the
shoulder and use the turn signal.
When the system detects a vehicle in
the side blind zone while driving
forward, either while passing a
vehicle or being passed, an amber
warning symbol B will illuminate in
the relevant exterior mirror. If the
driver then activates the turn signal,
the warning symbol B starts flashing
amber as a warning not to change
lanes.
Driving and operating 147
Side blind spot alert is active from
speeds of 10 km/h up to 140 km/h.
Driving faster than 140 km/h
deactivates the system, indicated by
low lighting warning symbols B in
both exterior mirrors. Reducing the
speed again will extinguish the
warning symbols. If a vehicle is then
detected in the blind zone, the
warning symbols B will illuminate as
normal on the relevant side.
When the vehicle is started, both
exterior mirror displays will briefly
come on to indicate that the system is
operating.
The system can be activated or
deactivated in the Info-Display,
vehicle personalisation 3 101.
Deactivation is indicated by a
message in the Driver Information
Centre.
Detection zones
The detection zones start at the rear
bumper and extend approx.
3 metres rearwards and to the sides.
The height of the zone is approx.
between 0.5 metres and 2 metres off
the ground.
Side blind spot alert is designed to
ignore stationary objects, e.g.
guardrails, posts, curbs, walls and
beams. Parked vehicles or oncoming
vehicles are not detected.
Fault
Occasional missed alerts can occur
under normal circumstances and will
increase in wet conditions.
Side blind spot alert does not operate
when the left or right corners of the
rear bumper are covered with mud,
dirt, snow, ice, slush, or in heavy
rainstorms. Cleaning instructions
3 199.
In the event of a fault in the system or
if the system does not work due to
temporary conditions, a message is
displayed in the Driver Information
Centre. Seek the assistance of a
workshop.
148 Driving and operating
Fuel
Fuel for petrol engines
Only use unleaded fuel that complies
with European standard EN 228 or
E DIN 51626-1 or equivalent.
The engine is capable of running with
E10 fuel that fulfills these standards.
E10 fuel contains up to 10 %
bioethanol.
Use fuel with the recommended
octane rating 3 211. Use of fuel with
too low an octane rating can reduce
engine power and torque and slightly
increases fuel consumption.
Caution
Do not use fuel or fuel additives
that contain metallic compounds
such as manganese-based
additives. This may cause engine
damage.
Caution
Use of fuel that does not comply to
EN 228 or E DIN 51626-1 or
equivalent can lead to deposits or
engine damage and may affect
your warranty.
Caution
Use of fuel with too low an octane
rating could lead to uncontrolled
combustion and engine damage.
Fuel for liquid gas
operation
Liquid gas is known as LPG
(Liquefied Petroleum Gas) or under
its French name GPL (Gaz de Pétrole
Liquéfié). LPG is also known as
Autogas.
LPG consists mainly of propane and
butane. The octane rating is between
105 and 115, depending on the
butane proportion. LPG is stored
liquid at around 5 - 10 bar pressure.
The boiling point depends on the
pressure and mixing ratio. At ambient
pressure, it is between -42 °C (pure
propane) and -0.5 °C (pure butane).
Caution
The system works at an ambient
temperature of approx. -8 °C to
100 °C.
Full function of the LPG system can
only be guaranteed with liquid gas
which complies with the minimum
requirements of DIN EN 589.
Fuel selector
Driving and operating 149
Pressing the LPG button switches
between petrol and liquid gas
operation as soon as the required
parameters (coolant temperature,
gas temperature and minimum
engine speed) have been reached.
The requirements are usually fulfilled
after approx. 60 seconds (depending
on exterior temperature) and the first
firm press on the accelerator. The
LED status shows the current
operating mode.
LED off = petrol operation
LED illuminates = liquid gas
operation
LED flashes = no switching is
possible, one type
of fuel is empty
As soon as the liquid gas tanks are
empty, petrol operation is
automatically engaged until the
ignition is switched off.
Every six months, run the petrol tank
down until control indicator Y
illuminates, then refuel. This helps
maintain fuel quality and system
function for petrol operation.
Fill the tank completely at regular
intervals to prevent corrosion in the
tank.
Faults and remedies
If gas mode is not possible, check the
following:
■ Is there enough liquid gas present?
■ Is there enough petrol present for
starting?
Due to extreme temperatures in
combination with the gas
composition, it may take slightly
longer before the system switches
from petrol to gas mode.
In extreme situations, the system may
also switch back to petrol mode if the
minimum requirements are not
fulfilled.
Seek the assistance of a workshop in
the event of all other faults.
Caution
Repairs and adjustments may only
be made by trained specialists in
order to maintain the safety and
warranty on the LPG system.
Liquid gas is given a particular odour
(odorised) so that any leaks can be
detected easily.
9 Warning
If you smell gas in the vehicle or in
the immediate vicinity, switch to
petrol mode immediately. No
smoking. No naked flames or
ignition sources.
If the gas odour persists, do not start
the engine. Have the cause of the
fault remedied by a workshop.
When using underground car parks,
follow the instructions of the operator
and local laws.
Note
In the event of an accident, switch off
the ignition and lights.
150 Driving and operating

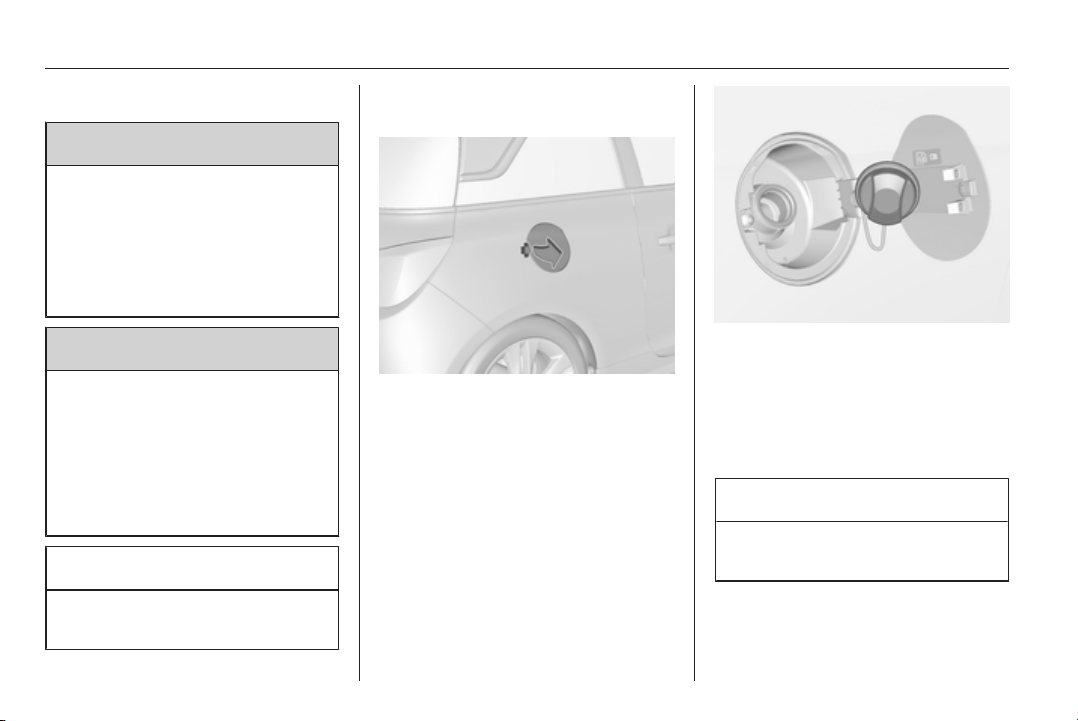

Refuelling
9 Danger
Before refuelling, switch off the
engine.
Switch off any mobile phones.
Follow the operating and safety
instructions of the gas station
when refuelling.
9 Danger
Fuel is flammable and explosive.
No smoking. No naked flames or
sparks.
If you can smell fuel in your
vehicle, have the cause of this
remedied immediately by an
authorized dealer.
Caution
In case of misfuelling, do not
switch on ignition.
Fuel filler flap is located at right rear
side of the vehicle.
The fuel filler flap can only be opened
when the vehicle is unlocked.
Push the flap to engage. Then open
the flap.
Turn the fuel filler cap slowly
anticlockwise to open.
The fuel filler cap can be retained in
the bracket on the fuel filler flap.
For refuelling, fully insert the pump
nozzle and switch it on.
After automatic cut-off, it can be
topped up with max. two doses of fuel.
Caution
Wipe off any overflowing fuel
immediately.
To close, turn the fuel filler cap
clockwise until it clicks.
Close the flap and let engage.
Driving and operating 151
Liquid gas refuelling
Follow the operating and safety
instructions of the filling station when
refuelling.
The filling valve for the liquid gas is
behind the fuel filler cap.
Unscrew protective cap from the filler
neck.
Screw the required adapter hand-
tight onto the filler neck.
ACME Adapter: Screw the nut of the
filling nozzle onto the adapter. Press
locking lever on filler nozzle down.
DISH (Italy) filler neck: Place the filler
nozzle into the adapter. Press locking
lever on filler nozzle down.
Bayonet filler neck: Place filler nozzle
on the adapter and turn to the left or
right through one quarter turn. Pull
locking lever of filler nozzle fully.
EURO filler neck: Press the filler
nozzle onto the adapter until it
engages.
Press the button of the liquid gas
supply point. The filling system stops
or begins to run slowly when 80 % of
the tank volume is reached
(maximum fill level).
Release button on filling system and
the filling process stops. Release the
locking lever and remove the filler
nozzle. A small quantity of liquid gas
can escape.
Remove adapter and stow in vehicle.
Fit protective cap to prevent the
penetration of foreign bodies into the
filler opening and the system.
152 Driving and operating
9 Warning
Due to the system design, an
escape of liquid gas after
releasing the locking lever is
unavoidable. Avoid inhaling.
9 Warning
The liquid gas tank may only be
filled to 80 % for safety reasons.
The multivalve on the liquid gas tank
automatically limits the fill quantity. If
a larger quantity is added, we
recommend not exposing the vehicle
to the sun until the excess amount
has been used up.
Filling adapter
As filling systems are not
standardised, different adapters are
required which are available from
Opel Distributors and from Opel
Authorised Repairers.
ACME adapter: Belgium, Germany,
Ireland, Luxembourg, Switzerland
Bayonet adapter: Netherlands,
Norway, Spain, United Kingdom
EURO adapter: Spain
DISH (Italy) adapter: Bosnia-
Herzegovina, Bulgaria, Denmark,
Estonia, France, Greece, Italy,
Driving and operating 153
Croatia, Latvia, Lithuania,
Macedonia, Austria, Poland,
Portugal, Romania, Sweden,
Switzerland, Serbia, Slovakia,
Slovenia, Czech Republic, Turkey,
Ukraine, Hungary
Fuel filler cap
Only use genuine fuel filler caps.
Fuel consumption - CO
2
-
Emissions
The fuel consumption (combined) of
the model Opel Adam is within a
range of 7.0 to 5.0 l/100 km.
The CO
2
emission (combined) is
within a range of 131 to 112 g/km.
For the values specific for your
vehicle, refer to the EEC Certificate of
Conformity provided with your vehicle
or other national registration
documents.
General information
The official fuel consumption and
specific CO
2
emission figures quoted
relate to the EU base model with
standard equipment.
Fuel consumption data and CO
2
emission data are determined
according to regulation R (EC)
No. 715/2007 (in the latest applicable
version), taking into consideration the
vehicle weight in running order, as
specified by the regulation.
The figures are provided only for the
purpose of comparison between
different vehicle variants and must
not be taken as a guarantee for the
actual fuel consumption of a
particular vehicle. Additional
equipment may result in slightly
higher results than the stated
consumption and CO
2
figures.
Furthermore, fuel consumption is
dependent on personal driving style
as well as road and traffic conditions.
154 Vehicle care
Vehicle care
General Information ................... 154
Vehicle checks ........................... 155
Bulb replacement ....................... 161
Electrical system ........................ 170
Vehicle tools .............................. 176
Wheels and tyres ....................... 177
Jump starting ............................. 195
Towing ....................................... 197
Appearance care ....................... 199
General Information
Accessories and vehicle
modifications
We recommend the use of genuine
parts and accessories and factory
approved parts specific for your
vehicle type. We cannot assess or
guarantee reliability of other products
- even if they have a regulatory or
otherwise granted approval.
Do not make any modifications to the
electrical system, e.g. changes of
electronic control units (chip tuning).
Caution
When transporting the vehicle on
a train or on a recovery vehicle, the
mud flaps might be damaged.
Vehicle storage
Storage for a long period of time
If the vehicle is to be stored for several
months:
■ Wash and wax the vehicle.
■ Have the wax in the engine
compartment and underbody
checked.
■ Clean and preserve the rubber
seals.
■ Fill up fuel tank completely.
■ Change the engine oil.
■ Drain the washer fluid reservoir.
■ Check the coolant antifreeze and
corrosion protection.
■ Adjust tyre pressure to the value
specified for full load.
■ Park the vehicle in a dry, well
ventilated place. Engage first or
reverse gear. Prevent the vehicle
from rolling.
■ Do not apply the parking brake.
Vehicle care 155
■ Open the bonnet, close all doors
and lock the vehicle.
■ Disconnect the clamp from the
negative terminal of the vehicle
battery. Beware that all systems are
not functional, e.g. anti-theft alarm
system.
Putting back into operation
When the vehicle is to be put back into
operation:
■ Connect the clamp to the negative
terminal of the vehicle battery.
Activate the electronics of the
power windows.
■ Check tyre pressure.
■ Fill up the washer fluid reservoir.
■ Check the engine oil level.
■ Check the coolant level.
■ Fit the number plate if necessary.
End-of-life vehicle
recovery
Information on end-of-life vehicle
recovery centres and the recycling of
end-of-life vehicles is available on our
website. Only entrust this work to an
authorised recycling centre.
Gas vehicles must be recycled by a
service centre authorised for gas
vehicles.
Vehicle checks
Performing work
9 Warning
Only perform engine compartment
checks when the ignition is off.
The cooling fan may start
operating even if the ignition is off.
156 Vehicle care
9 Danger
The ignition system uses
extremely high voltage. Do not
touch.
Bonnet
Opening
Pull the release lever and return it to
its original position.
Push the safety catch upwards and
open the bonnet.
Secure the bonnet support.
If the bonnet is opened during an
Autostop, the engine will be restarted
automatically for safety reasons.
Closing
Before closing the bonnet, press the
support into the holder.
Lower the bonnet and allow it to drop
into the catch. Check that the bonnet
is engaged.
Engine oil
Check the engine oil level manually
on a regular basis to prevent damage
to the engine. Ensure that the correct
specification of oil is used.
Recommended fluids and lubricants
3 204.
Check with the vehicle on a level
surface. The engine must be at
operating temperature and switched
off for at least 5 minutes.
Pull out the dipstick, wipe it clean,
insert it to the stop on the handle, pull
out and read the engine oil level.
Insert dipstick to the stop on the
handle and make half a turn.
Vehicle care 157
When the engine oil level has
dropped to the MIN mark, top up
engine oil.
We recommend the use of the same
grade of engine oil that was used at
last change.
The engine oil level must not exceed
the MAX mark on the dipstick.
Caution
Overfilled engine oil must be
drained or suctioned out.
Capacities 3 215.
Fit the cap on straight and tighten it.
Engine coolant
The coolant provides freeze
protection down to approx. -28 °C. In
northern countries with very low
temperatures the factory filled coolant
provides frost protection down to
approx. -37 °C.
Caution
Only use approved antifreeze.

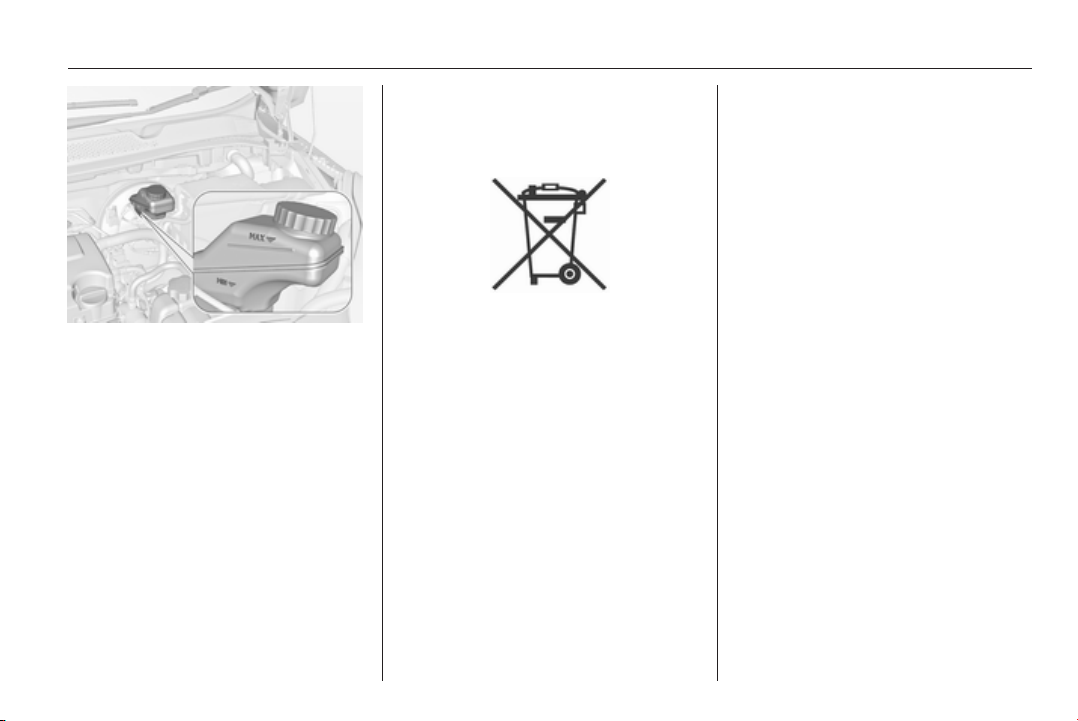

Coolant level
Caution
Too low a coolant level can cause
engine damage.
If the cooling system is cold, the
coolant level should be above the
filling line mark. Top up if the level is
low.
158 Vehicle care
9 Warning
Allow the engine to cool before
opening the cap. Carefully open
the cap, relieving the pressure
slowly.
To top up use a 1:1 mixture of
released coolant concentrate mixed
with clean tap water. If no coolant
concentrate is available, use clean
tap water. Install the cap tightly. Have
the coolant concentration checked
and have the cause of the coolant
loss remedied by a workshop.

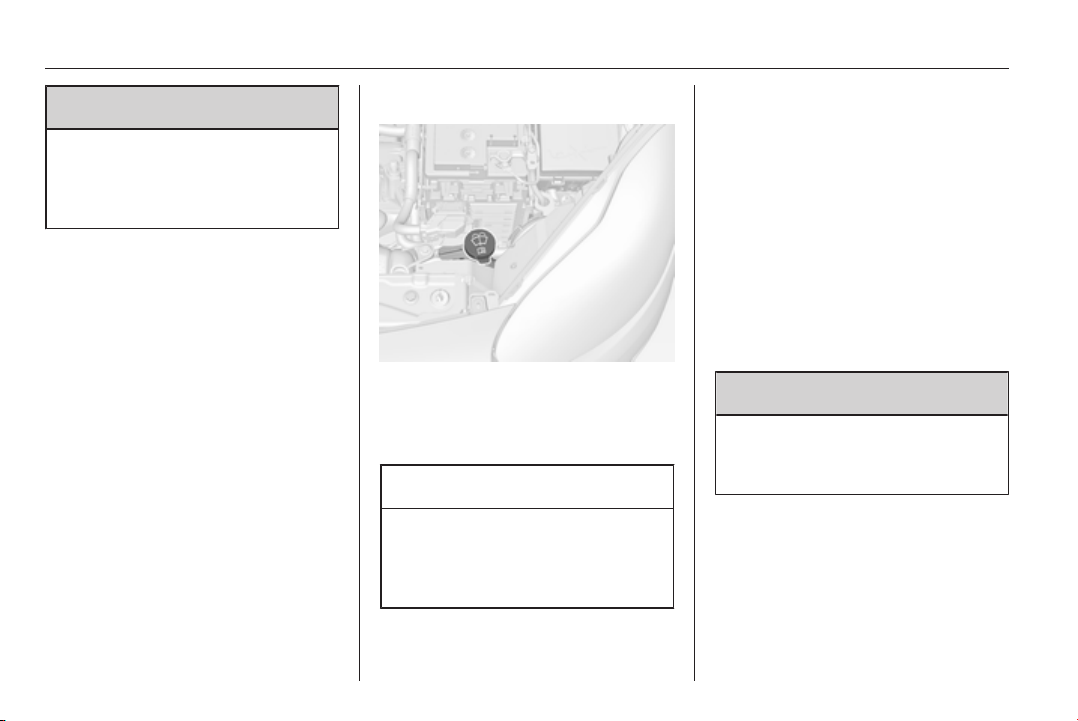

Washer fluid
Fill with clean water mixed with a
suitable quantity of windscreen
washer fluid which contains
antifreeze.
Caution
Only washer fluid with a sufficient
antifreeze concentration provides
protection at low temperatures or
a sudden drop in temperature.
Brakes
In the event of minimum thickness of
the brake lining, a squealing noise
sounds during braking.
Continued driving is possible but
have the brake lining replaced as
soon as possible.
Once new brake linings are installed,
do not brake unnecessarily hard for
the first few journeys.
Brake fluid
9 Warning
Brake fluid is poisonous and
corrosive. Avoid contact with eyes,
skin, fabrics and painted surfaces.
Vehicle care 159
The brake fluid level must be between
the MIN and MAX marks.
If fluid level is below MIN seek the
assistance of a workshop.
Brake and clutch fluid 3 204.
Vehicle battery
The vehicle is equipped with a lead
acid battery.
Vehicles with stop-start system will be
equipped with an AGM battery which
is not a lead acid battery.
The vehicle battery is maintenance-
free provided that the driving profile
allows sufficient charging of the
battery. Short-distance-driving and
frequent engine starts can discharge
the vehicle battery. Avoid the use of
unnecessary electrical consumers.
Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.
Laying up the vehicle for more than
4 weeks can lead to vehicle battery
discharge. Disconnect the clamp from
the negative terminal of the vehicle
battery.
Ensure the ignition is switched off
before connecting or disconnecting
the vehicle battery.
Battery discharge protection 3 112.
Replacing the vehicle battery
Note
Any deviation from the instructions
given in this section may lead to
temporary deactivation of the stop-
start system.
When the vehicle battery is being
replaced, please ensure that there
are no open ventilation holes in the
vicinity of the positive terminal. If a
ventilation hole is open in this area, it
must be closed off with a dummy cap,
and the ventilation in the vicinity of the
negative terminal must be opened.
Only use batteries that allow the fuse
box to be mounted above the vehicle
battery.
Vehicles with stop-start system
Be sure to have the AGM (Absorptive
Glass Mat) battery replaced with
another AGM battery.
160 Vehicle care
An AGM battery can be identified by
the label on the battery. We
recommend the use of an original
Opel battery.
Note
Using an AGM battery different from
the original Opel battery might result
in a lower performance of the stop-
start system.
We recommend that you have the
vehicle battery replaced by a
workshop.
Stop-start system 3 125.
Charging the vehicle battery
9 Warning
On vehicles with stop-start
system, ensure that the charging
potential does not exceed 14.6
volts when using a battery
charger. Otherwise the battery
might be damaged.
Jump starting 3 195.
Warning label
Meaning of symbols:
■ No sparks, naked flames or
smoking.
■ Always shield eyes. Explosive
gases can cause blindness or
injury.
■ Keep the vehicle battery out of the
reach of children.
■ The vehicle battery contains
sulfuric acid which could cause
blindness or serious burn injuries.
■ See the Owner's manual for further
information.
■ Explosive gas may be present in
the vicinity of the battery.
Vehicle care 161
Wiper blade replacement
Lift the wiper arm until it stays in the
raised position, press button to
disengage the wiper blade and
remove.
Attach the wiper blade slightly angled
to the wiper arm and push until it
engages.
Lower wiper arm carefully.
Wiper blade on the rear window
Lift wiper arm. Disengage wiper blade
as shown in illustration and remove.
Attach the wiper blade slightly angled
to the wiper arm and push until it
engages.
Lower wiper arm carefully.
Bulb replacement
Switch off the ignition and switch off
the relevant switch or close the doors.
Only hold a new bulb at the base! Do
not touch the bulb glass with bare
hands.
Use only the same bulb type for
replacement.
Replace headlight bulbs from within
the engine compartment.
Bulb check
After a bulb replacement switch on
the ignition, operate and check the
lights.
Halogen headlights
Halogen headlights with separate
bulbs for low beam and high beam.
162 Vehicle care

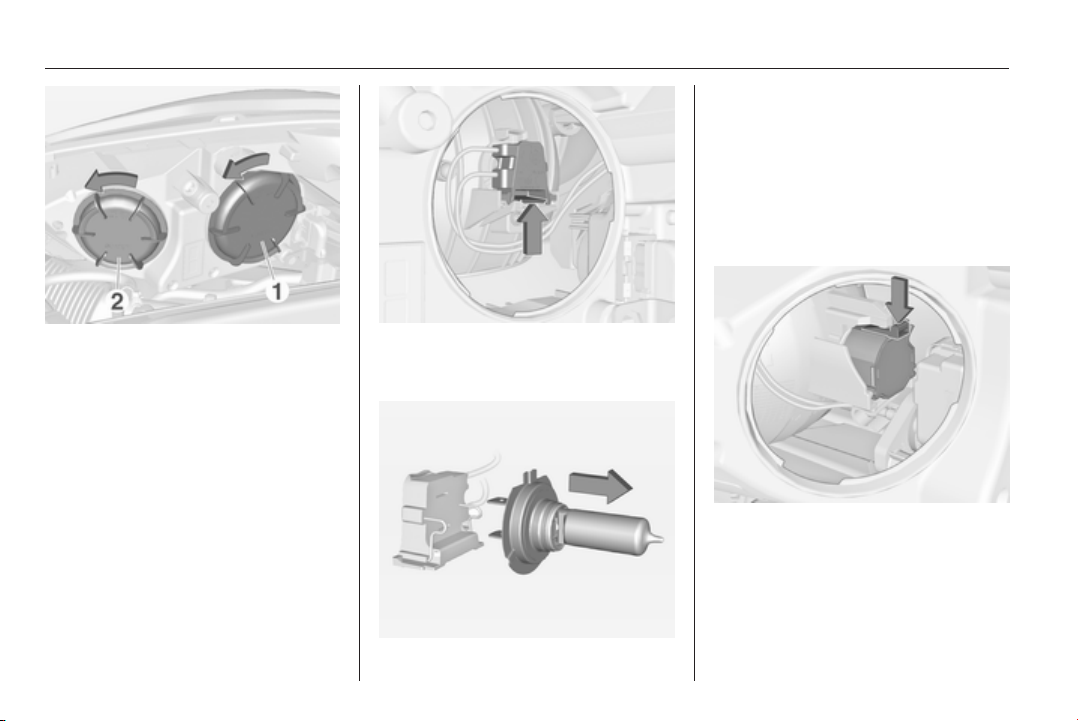

Low beam outer bulb (1).
High beam inner bulb (2).
Low beam (1)
1. Rotate the cap anticlockwise and
remove it.
2. Press the clip to disengage bulb
holder. Withdraw the bulb holder
from the reflector.
3. Detach the bulb from the bulb
holder and replace the bulb.
4. Insert the bulb holder with the clip
downwards and engage into the
reflector until it clicks.
5. Install cap.
High beam (2)
1. Rotate the cap anticlockwise and
remove it.
Vehicle care 163

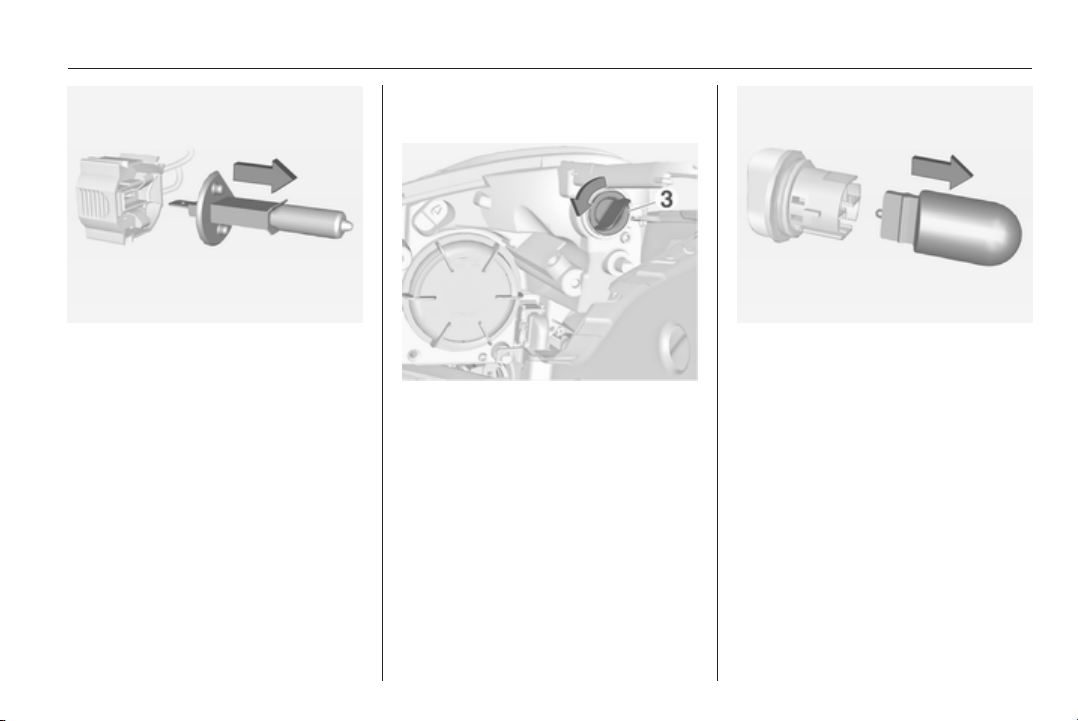

2. Press the clip to disengage bulb
holder. Withdraw the bulb holder
from the reflector.
3. Detach the bulb from the bulb
holder and replace the bulb.
4. Insert the bulb holder with the clip
upwards and engage into the
reflector until it clicks.
5. Install cap.
Sidelight/Daytime running light
with bulbs (3)
1. Rotate bulb socket (3)
anticlockwise to disengage.
Withdraw the bulb socket from the
headlamp housing.
2. Remove the bulb from the socket
by pulling.
3. Replace and insert new bulb into
socket.
4. Insert the bulb socket into the
headlamp housing and turn
clockwise.
Sidelight/Daytime running light
with LEDs
Sidelights and daytime running lights
consist of LEDs which cannot be
changed. Consult a workshop in case
of a defective LED.
164 Vehicle care

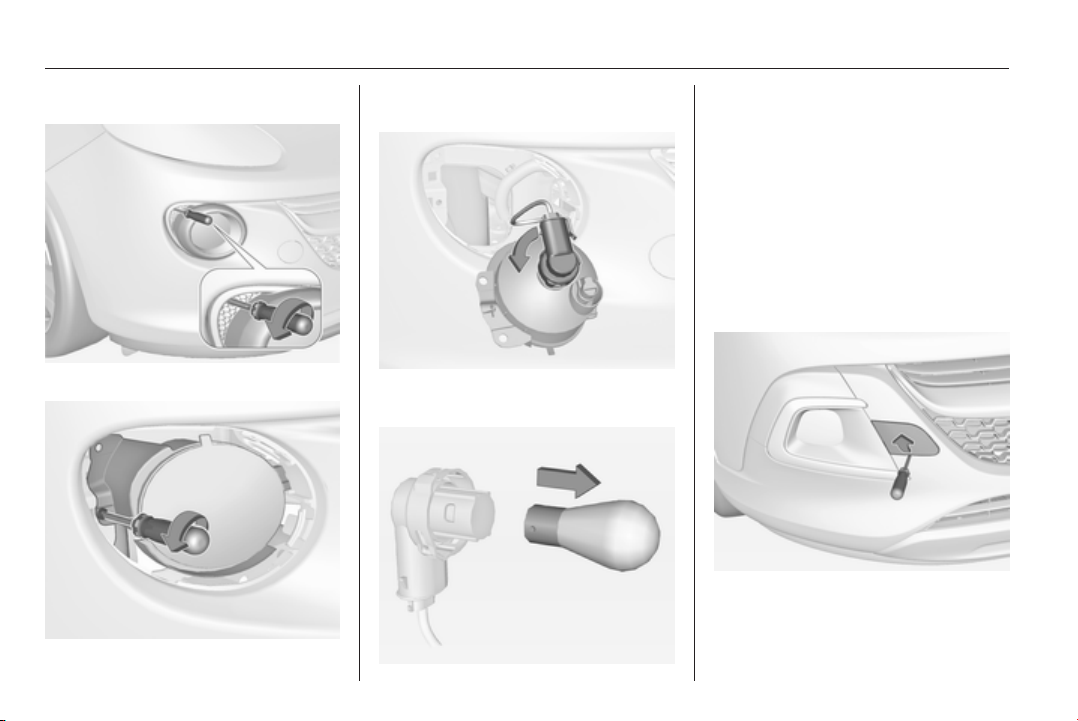

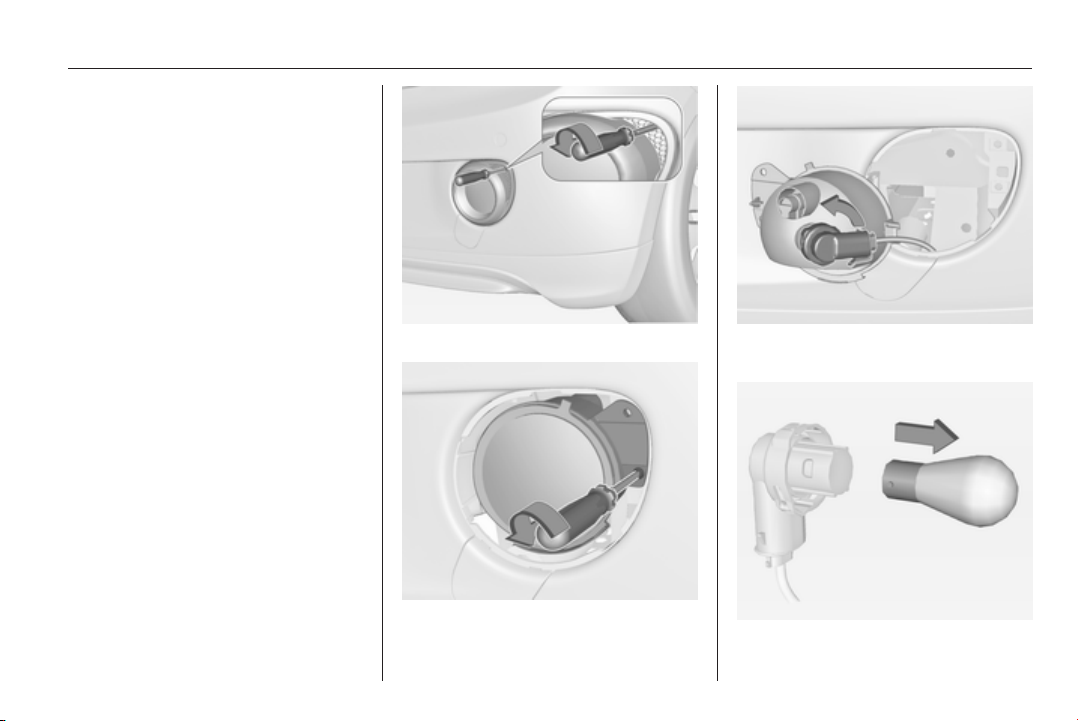

Front turn signal lights
1. Undo screw and remove cover.
2. Undo screw and remove light
assembly from the bumper.
3. Disengage and remove the bulb
socket by turning anticlockwise.
4. Remove bulb by turning
anticlockwise slightly and
withdrawing. Replace the bulb.
5. Insert the bulb socket into the
assembly and turn clockwise.
6. Attach light assembly into the
bumper and fix with the screw.
7. Insert cover into the bumper and
fix with the screw.
Adam Rocks
1. Disengage the small cap with a
screwdriver at the marked
position.
Vehicle care 165

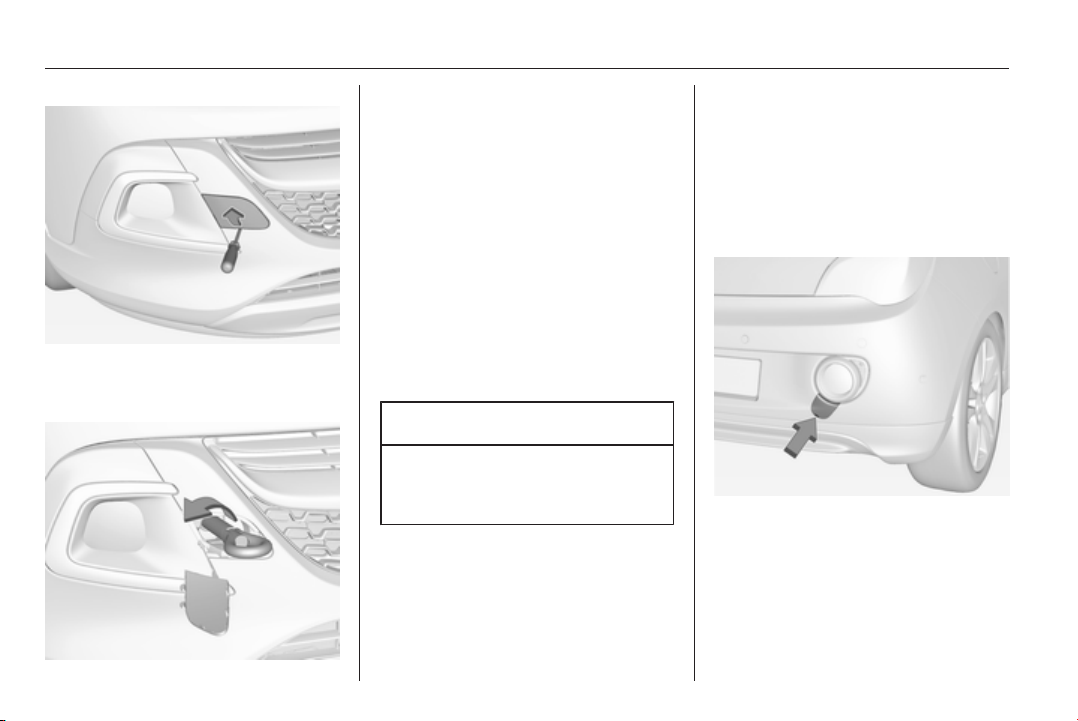

2. Remove the cover by pulling with
fingers at the marked positions,
see arrows in the illustration.
3. Undo both screws and remove
light assembly from the bumper.
4. Disengage and remove the bulb
socket by turning anticlockwise.
5. Remove bulb by turning
anticlockwise slightly and
withdrawing. Replace the bulb.
6. Insert the bulb socket into the
assembly and turn clockwise.
7. Attach light assembly into the
bumper and fix with both screws.
8. Insert and engage cover into the
bumper. Insert small cap.
Tail lights
Versions with subwoofer box
Remove the load compartment floor
cover, on right side also remove the
tool box to gain access to the cover
3 68.
Versions with storage box
Remove storage box to gain access
to the cover 3 66.
166 Vehicle care
1. Release the cover on the
respective side and remove.
2. Unscrew the plastic securing nut
from the inside by hand.
3. Carefully withdraw the light
assembly from the recesses and
remove.
4. Turn bulb holder anticlockwise
and remove. Replace bulb by
withdrawing:
turn signal light 1
tail light 2
tail light / brake light 3
If tail light 2 and tail light/brake
light 3 are LEDs seek the
assistance of a workshop for
replacement.
5. Insert and turn bulb holder
clockwise into the tail light
assembly. Ensure the wires
remain in the cable ducts.
Vehicle care 167
Fit light assembly with the
retaining pins into the recesses of
the vehicle body and tighten the
securing nut from inside the load
compartment. Pull the circular
gasket over the recess in the lamp
housing.
Close cover and engage.
Reversing light/rear fog light
Left-hand drive vehicles
Reversing light is located on the right
side of the bumper, and the rear fog
light is located on the left side of the
bumper.
Right-hand drive vehicles
Reversing light is located on the left
side of the bumper, and the rear fog
light is located on the right side of the
bumper.
The description of bulb replacement
is the same for both lights.
1. Undo screw and remove cover.
2. Undo screw and remove light
assembly from the bumper.
3. Disengage and remove the bulb
socket by turning anticlockwise.
168 Vehicle care
4. Remove bulb by turning
anticlockwise slightly and
withdrawing. Replace the bulb.
5. Insert the bulb socket into the
assembly and turn clockwise.
6. Replace light assembly in the
bumper and fix with the screw.
7. Insert cover into the bumper and
fix with the screw.
Adam Rocks
1. Remove the cover by pulling with
the finger at the marked position,
see arrow in the graphic.
2. Undo both screws and remove
light assembly from the bumper.
3. Disengage and remove the bulb
socket by turning anticlockwise.
4. Remove bulb by turning
anticlockwise slightly and
withdrawing. Replace the bulb.
5. Insert the bulb socket into the
assembly and turn clockwise.
6. Attach light assembly into the
bumper and fix with both screws.
7. Insert and engage cover into the
bumper.
Vehicle care 169
Side turn signal lights
To replace bulb, remove lamp
housing:
1. Slide lamp to its left side and
remove with its right end.
2. Turn bulb holder anticlockwise
and remove from housing.
3. Pull bulb from bulb holder and
replace it.
4. Insert bulb holder and turn
clockwise.
5. Insert left end of the lamp, slide to
the left and insert right end.
Number plate light
1. Insert screwdriver in recess of the
cover, press to the side and
release spring.
170 Vehicle care
2. Remove lamp downwards, taking
care not to pull on the cable.
3. Remove bulb holder from lamp
housing by turning anticlockwise.
4. Pull bulb from bulb holder and
replace it.
5. Insert bulb holder into lamp
housing and turn clockwise.
6. Insert lamp into bumper and let
engage.
Interior lights
Courtesy light, reading lights
Have bulbs replaced by a workshop.
Load compartment light
Have bulbs replaced by a workshop.
Dome light
Have bulbs replaced by a workshop.
Ambient light
Have bulbs replaced by a workshop.
Starlight panel
Have bulbs replaced by a workshop.
Instrument panel
illumination
Have bulbs replaced by a workshop.
Electrical system
Fuses
Data on the replacement fuse must
match the data on the defective fuse.
There are two fuse boxes in the
vehicle:
■ in the front left of the engine
compartment,
■ in left-hand drive vehicles behind
the light switch, or, in right-hand
drive vehicles, behind the
glovebox.
Before replacing a fuse, turn off the
respective switch and the ignition.
Vehicle care 171
There are different kinds of fuses in
the vehicle.
Depending on the type of fuse, a
blown fuse can be recognized by its
melted wire. Do not replace the fuse
until the cause of the fault has been
remedied.
Some functions are protected by
several fuses.
Fuses may also be inserted without
existence of a function.
Fuse extractor
A fuse extractor may be located in the
fuse box in the engine compartment.
Place the fuse extractor on the
various types of fuse from the top, and
withdraw fuse.
Engine compartment fuse
box
The fuse box is in the front left of the
engine compartment.
Disengage the cover and fold it
upwards until it stops. Remove the
cover vertically upwards.
172 Vehicle care
No. Circuit
1 –
2 exterior mirror switch
3 body control module
4 foldable sunroof, Chassis
control module
5 ABS
6 daytime running light left
7 –
8 body control module
9 vehicle battery sensor
10 headlamp levelling, TPMS, fold‐
able sunroof
11 rear wiper
12 window defog
13 daytime running light right
14 mirror defog
15 –
No. Circuit
16 chassis control module,
LPG system
17 interior mirror
18 engine control module
19 fuel pump
20 –
21 injection coil
22 –
23 injection system
24 washer system
25 lighting system
26 engine control module
27 –
28 engine control module
29 engine control module
30 –
31 left headlamp
Vehicle care 173
No. Circuit
32 right headlamp
33 engine control module
34 horn
35 clutch
36 –
No. Circuit
1 ABS pump
2 front wiper
3 blower
4 instrument panel
5 –
6 –
7 electrical vacuum pump
8 cooling fan low
9 cooling fan high
10 cooling fan
electrical vacuum pump
11 starter
After having changed defective fuses
close the fuse box cover and press
until it engages.
If the fuse box cover is not closed
correctly, malfunction may occur.
174 Vehicle care
Instrument panel fuse box
Left-hand drive vehicles
The fuse box is behind the light switch
in the instrument panel.
Hold the handle, then pull and fold
down the light switch.
Right-hand drive vehicles
The fuse box is located behind a
cover in the glovebox. Open the
glovebox, then open the cover and
fold it down.
Vehicle care 175
No. Circuit
1 –
2 –
3 power windows
4 voltage transformer
5 body control module 1
6 body control module 2
7 body control module 3
8 body control module 4
9 body control module 5
10 body control module 6
11 body control module 7
12 body control module 8
13 –
14 tailgate
15 diagnostic connector
16 data link connection
17 ignition
No. Circuit
18 air conditioning system
19 audio amplifier
20 parking assist
21 brake switch
22 audio system
23 display
24 –
25 –
26 instrument panel
27 seat heating, driver
28 –
29 –
30 instrument panel
31 horn
32 seat heating, passenger
33 heated steering wheel
34 –
No. Circuit
35 –
36 –
37 rear wiper
38 cigarette lighter
39 –
40 –
176 Vehicle care
Vehicle tools
Tools
Vehicles with tyre repair kit
Some tools and the towing eye are
located together with the tyre repair
kit in a tool box in the load
compartment below the floor cover.
On version with storage box, remove
box first 3 66.
On versions with rear carrier system
or liquid gas engine, the tools are
located together with the towing eye
and tyre repair kit in a suitcase, fixed
with a strap at the left sidewall in the
load compartment.
On version with storage box, the
suitcase with the tools, the towing eye
and the tyre repair kit is located in a
chamber of the box in the load
compartment 3 66.
Vehicle care 177
On version with subwoofer box, the
tools and the towing eye are located
together with the tyre repair kit and
the warning triangle in the box below
the floor cover. To gain access,
remove floor cover: fold rear part to
the front and pull out the cover to the
rear 3 68.
Vehicles with spare wheel
The jack, the wheel bolt wrench, the
tools and two straps for securing a
damaged wheel are in the tool box
below the load compartment floor
cover 3 68.
Wheels and tyres
Tyre condition, wheel condition
Drive over edges slowly and at right
angles if possible. Driving over sharp
edges can cause tyre and wheel
damage. Do not trap tyres on the kerb
when parking.
Regularly check the wheels for
damage. Seek the assistance of a
workshop in the event of damage or
unusual wear.
We recommend not swapping the
front wheels with the rear wheels and
vice versa, as this can affect vehicle
stability. Always use less worn tyres
on the rear axle.
Winter tyres
Winter tyres improve driving safety at
temperatures below 7 °C and should
therefore be fitted on all wheels.
In accordance with country-specific
regulations, affix the speed sticker in
the driver's field of view.
178 Vehicle care
Tyre designations
E.g. 195/55 R 16 95 H
195 = tyre width, mm
55 = cross-section ratio (tyre height
to tyre width), %
R = belt type: Radial
RF = type: RunFlat
16 = wheel diameter, inches
95 = load index e.g. 95 is equivalent
to 690 kg
H = speed code letter
Speed code letter:
Q = up to 160 km/h
S = up to 180 km/h
T = up to 190 km/h
H = up to 210 km/h
V = up to 240 km/h
W = up to 270 km/h
Directional tyres
Directional tyres must be mounted so
that they rotate in the correct
direction. The proper rotation
direction is indicated by a symbol
(e.g. an arrow) on the sidewall.
Tyre pressure
Check the pressure of cold tyres at
least every 14 days and before any
long journey. Do not forget the spare
wheel.
This also applies to vehicles with tyre
pressure monitoring system.
Unscrew the valve cap.
Tyre pressure 3 216.
The tyre pressure information label
on the right door frame indicates the
original equipment tyres and the
correspondent tyre pressures.
The tyre pressure data refers to cold
tyres. It applies to summer and winter
tyres.
The ECO tyre pressure serves to
achieve the smallest amount of fuel
consumption possible.
Incorrect tyre pressures will impair
safety, vehicle handling, comfort and
fuel economy and will increase tyre
wear.
The tyre pressure tables show all
possible tyre combinations 3 216.
Identify the respective tyre.
For the tyres approved for your
vehicle, refer to the EEC Certificate of
Conformity provided with your vehicle
or other national registration
documents.
The driver is responsible for correct
adjustment of tyre pressure.
Vehicle care 179
9 Warning
If the pressure is too low, this can
result in considerable tyre warm-
up and internal damage, leading to
tread separation and even to tyre
blow-out at high speeds.
If the tyre pressure must be reduced
or increased, switch off ignition. After
adjusting tyre pressure switch on
ignition and select the relevant setting
on the page Tyre load in the Driver
Information Centre 3 91.
Tyre pressure monitoring
system
The tyre pressure monitoring system
checks the pressure of all four tyres
once a minute when vehicle speed
exceeds a certain limit.
Caution
Tyre pressure monitoring system
warns only about low tyre pressure
condition and does not replace
regular tyre maintenance by the
driver.
All wheels must be equipped with
pressure sensors and the tyres must
have the prescribed pressure.
Note
In countries where the tyre pressure
monitoring system is legally
required, the use of wheels without
pressure sensors will invalidate the
vehicle type approval.
The current tyre pressures can be
shown in the Vehicle Information
Menu in the Driver Information
Centre.
The menu can be selected by the
buttons on the turn signal lever.
Press the MENU button to select the
Vehicle Information MenuX.
180 Vehicle care
Turn the adjuster wheel to select the
tyre pressure monitoring system.
System status and pressure warnings
are displayed by a message with the
corresponding tyre flashing in the
Driver Information Centre.
A detected low tyre pressure
condition is indicated by the control
indicator w 3 89.
If w illuminates, stop as soon as
possible and inflate the tyres as
recommended 3 216.
If w flashes for 60-90 seconds and
then illuminates continuously, there is
a fault in the system. Consult a
workshop.
After inflating, driving may be
required to update the tyre pressure
values in the Driver Information
Centre. During this time w may
illuminate.
If w illuminates at lower temperatures
and extinguishes after driving, this
could be an indicator for getting low
pressure. Check tyre pressure.
Vehicle messages 3 98.
If the tyre pressure must be reduced
or increased, switch off ignition.
Only mount wheels with pressure
sensors, otherwise the tyre pressure
will not be displayed and w
illuminates continuously.
A spare wheel or temporary spare
wheel is not equipped with pressure
sensors. The tyre pressure
monitoring system is not operational
for these tyres. Control indicator w
illuminates. For the further three tyres
the system remains operational.
The use of commercially-available
liquid tyre repair kits can impair the
function of the system. Factory-
approved repair kits can be used.
External high-power radio equipment
could disrupt the tyre pressure
monitoring system.
Each time the tyres are replaced, tyre
pressure monitoring system sensors
must be dismounted and serviced.
For the screwed sensor; replace
valve core and sealing ring. For the
clipped sensor; replace complete
valve stem.
Vehicle loading status
Adjust tyre pressure to load condition
according tyre information label or
tyre pressure chart 3 216, and select
the according setting in the menu
Tyre Load in the Driver Information
Centre, Vehicle Information Menu
3 91.
Vehicle care 181
Select:
■ Light for comfort pressure up to
3 people.
■ Eco for Eco pressure up to
3 people.
■ Max for full loading.
TPMS Sensor Matching
Process
Each TPMS sensor has a unique
identification code. The identification
code must be matched to a new tyre/
wheel position after rotating the tyres
or exchanging the complete wheel set
and if one or more TPMS sensors
were replaced. The TPMS sensor
matching process should also be
performed after replacing a spare tyre
with a road tyre containing the TPMS
sensor.
The malfunction light and the warning
message or code should go off at the
next ignition cycle. The sensors are
matched to the tyre/wheel positions,
using a TPMS relearn tool, in the
following order: left side front tyre,
right side front tyre, right side rear tyre
and left side rear tyre. The turn light
at the current active position is
illuminated until sensor is matched.
Consult your workshop for service or
to purchase a relearn tool. There are
two minutes to match the first tyre/
wheel position, and five minutes
overall to match all four tyre/wheel
positions. If it takes longer, the
matching process stops and must be
restarted.
The TPMS sensor matching process
is:
1. Apply the parking brake.
2. Turn the ignition on.
3. Use the MENU button on the turn
signal lever to select the Vehicle
Information Menu in the Driver
Information Centre (DIC).
4. Turn the adjuster wheel to scroll to
the tyre pressure menu.
5. Press the SET/CLR button to
begin the sensor matching
process. A message requesting
acceptance of the process should
display.
6. Press the SET/CLR button again
to confirm the selection. The horn
sounds twice to signal the
receiver is in relearn mode.
7. Start with the left side front tyre.
8. Place the relearn tool against the
tyre sidewall, near the valve stem.
Then press the button to activate
the TPMS sensor. A horn chirp
confirms that the sensor
identification code has been
matched to this tyre and wheel
position.
9. Proceed to the right side front tyre,
and repeat the procedure in
Step 8.
182 Vehicle care
10. Proceed to the right side rear tyre,
and repeat the procedure in
Step 8.
11. Proceed to the left side rear tyre,
and repeat the procedure in
Step 8. The horn sounds twice to
indicate the sensor identification
code has been matched to the left
side rear tyre, and the TPMS
sensor matching process is no
longer active.
12. Turn off the ignition.
13. Set all four tyres to the
recommended air pressure level
as indicated on the tyre pressure
label.
14. Ensure the tyre loading status is
set according selected pressure
3 91.
Temperature dependency
Tyre pressure depends on the
temperature of the tyre. During
driving tyre temperature and pressure
increase.
The tyre pressure value displayed in
the Driver Information Centre shows
the actual tyre pressure. Therefore it
is important to check tyre pressure
with cold tyres.
Tread depth
Check tread depth at regular
intervals.
Tyres should be replaced for safety
reasons at a tread depth of 2-3 mm
(4 mm for winter tyres).
For safety reasons it is recommended
that the tread depth of the tyres on
one axle should not vary by more than
2 mm.
The legally permissible minimum
tread depth (1.6 mm) has been
reached when the tread has worn
down as far as one of the tread wear
indicators (TWI). Their position is
indicated by markings on the
sidewall.
Tyres age, even if they are not used.
We recommend tyre replacement
every 6 years.
Vehicle care 183
Changing tyre and wheel
size
If tyres of a different size than those
fitted at the factory are used, it may be
necessary to reprogramme the
speedometer as well as the nominal
tyre pressure and to make other
vehicle modifications.
After converting to a different tyre
size, have the label with tyre
pressures replaced.
Caution
When converting to wheels with
14'', the ground clearance will be
reduced. This must be considered
when passing over obstacles.
9 Warning
Use of unsuitable tyres or wheels
may lead to accidents and will
invalidate the vehicle type
approval.
Wheel covers
Wheel covers and tyres that are
factory approved for the respective
vehicle and comply with all of the
relevant wheel and tyre combination
requirements must be used.
If the wheel covers and tyres used are
not factory approved, the tyres must
not have a rim protection ridge.
Wheel covers must not impair brake
cooling.
9 Warning
Use of unsuitable tyres or wheel
covers could lead to sudden
pressure loss and thereby
accidents.
Steel wheels: When using locking
wheel nuts, the wheel covers might
not be attached to the steel wheels.
Tyre chains
Tyre chains are only permitted on the
front wheels.
Always use fine mesh chains that add
no more than 10 mm to the tyre tread
and the inboard sides (including chain
lock).
9 Warning
Damage may lead to tyre blowout.
184 Vehicle care
Tyre chains are only permitted on
tyres of size 175/70 R 14,
185/70 R 14, 185/60 R 15,
185/65 R 15 and 195/55 R 16.
Tyre chains are not permitted on tyres
of size 215/45 R 17 and 225/35 R 18.
The use of tyre chains is not permitted
on the temporary spare wheel.
Tyre repair kit
Minor damage to the tyre tread can be
repaired with the tyre repair kit.
Do not remove foreign bodies from
the tyres.
Tyre damage exceeding 4 mm or that
is at the tyre's sidewall cannot be
repaired with the tyre repair kit.
9 Warning
Do not drive faster than 80 km/h.
Do not use for a lengthy period.
Steering and handling may be
affected.
If you have a flat tyre:
Apply the parking brake and engage
first gear.
The tyre repair kit is in the tool box
under the floor cover in the load
compartment.
On versions with rear carrier system
or liquid gas engine, the tyre repair kit
is located in a suitcase and fixed with
a strap at the left sidewall in the load
compartment.
Vehicle care 185
On versions with storage box in the
load compartment the suitcase with
the tyre repair kit is located in a
chamber of the box 3 66.
On versions with subwoofer box the
tyre repair kit is located in the box
under the floor cover in the load
compartment. To use tyre repair kit,
firstly remove floor cover: fold rear
part to the front and pull out the cover
to the rear 3 68.
1. Take the tyre repair kit from the
compartment.
2. Remove the compressor.
3. Remove the electrical connection
cable and air hose from the
stowage compartments on the
underside of the compressor.
186 Vehicle care
4. Screw the compressor air hose to
the connection on the sealant
bottle.
5. Fit the sealant bottle into the
retainer on the compressor.
Set the compressor near the tyre
in such a way that the sealant
bottle is upright.
6. Unscrew valve cap from defective
tyre.
7. Screw the filler hose to the tyre
valve.
8. The switch on the compressor
must be set to J.
9. Connect the compressor plug to
the power outlet or cigarette
lighter socket.
To avoid discharging the battery,
we recommend running the
engine.
10. Set the rocker switch on the
compressor to I. The tyre is filled
with sealant.
11. The compressor pressure gauge
briefly indicates up to 6 bar whilst
the sealant bottle is emptying
(approx. 30 seconds). Then the
pressure starts to drop.
12. All of the sealant is pumped into
the tyre. Then the tyre is inflated.
13. The prescribed tyre pressure
should be obtained within
10 minutes. Tyre pressure
3 216. When the correct pressure
is obtained, switch off the
compressor.
If the prescribed tyre pressure is
not obtained within 10 minutes,
remove the tyre repair kit. Move
the vehicle one tyre rotation.
Reattach the tyre repair kit and
continue the filling procedure for
10 minutes. If the prescribed tyre
pressure is still not obtained, the
Vehicle care 187
tyre is too badly damaged. Seek
the assistance of a workshop.
Drain excess tyre pressure with
the button over the pressure
indicator.
Do not run the compressor for
longer than 10 minutes.
14. Detach the tyre repair kit. Push
catch on bracket to remove
sealant bottle from bracket. Screw
the tyre inflation hose to the free
connection of the sealant bottle.
This prevents sealant from
escaping. Stow tyre repair kit in
load compartment.
15. Remove any excess sealant
using a cloth.
16. Take the label indicating
maximum permitted speed from
the sealant bottle and affix in the
driver's field of view.
17. Continue driving immediately so
that sealant is evenly distributed
in the tyre. After driving approx.
10 km (but no more than
10 minutes), stop and check tyre
pressure. Screw compressor air
hose directly onto tyre valve and
compressor when doing this.
If tyre pressure is more than
1.3 bar, set it to the correct value.
Repeat the procedure until there
is no more loss of pressure.
If the tyre pressure has fallen
below 1.3 bar, the vehicle must
not be used. Seek the assistance
of a workshop.
18. Stow away tyre repair kit in load
compartment.
Reinstall floor cover. Rear floor
storage cover 3 68.
Note
The driving characteristics of the
repaired tyre are severely affected,
therefore have this tyre replaced.
If unusual noise is heard or the
compressor becomes hot, turn
compressor off for at least
30 minutes.
The built-in safety valve opens at a
pressure of 7 bar.
Note the expiry date of the kit. After
this date its sealing capability is no
longer guaranteed. Pay attention to
storage information on sealant
bottle.
Replace the used sealant bottle.
Dispose of the bottle as prescribed
by applicable laws.
The compressor and sealant can be
used from approx. -30 °C.
The adapters supplied can be used
to pump up other items e.g.
footballs, air mattresses, inflatable
dinghies etc. They are located on the
underside of the compressor. To
remove, screw on compressor air
hose and withdraw adapter.
188 Vehicle care
Wheel changing
Make the following preparations and
observe the following information:
■ Park the vehicle on a level, firm and
non-skid surface. The front wheels
must be in the straight-ahead
position.
■ Apply the parking brake and
engage first gear or reverse gear.
■ Never change more than one wheel
at once.
■ Use the jack only to change wheels
in case of puncture, not for
seasonal winter or summer tyre
change.
■ The jack is maintenance-free.
■ If the ground on which the vehicle
is standing is soft, a solid board
(max. 1 cm thick) should be placed
under the jack.
■ Take heavy objects out of the
vehicle before jacking up.
■ No people or animals may be in the
vehicle when it is jacked-up.
■ Never crawl under a jacked-up
vehicle.
■ Do not start the vehicle when it is
raised on the jack.
■ Clean wheel bolts and thread with
a clean cloth before mounting the
wheel.
9 Warning
Do not grease wheel bolt, wheel
nut and wheel nut cone.
1. Steel wheels:
Pull off the wheel cover with the
hook. Vehicle tools 3 176.
Alloy wheels with bolt caps:
Disengage wheel bolt caps with a
screwdriver and remove. To
protect the wheel, place a soft
cloth between the screwdriver
and the alloy wheel.
Alloy wheels with center cap:
Insert extractor in the hole of the
center cap and substract the cap
from the wheel. Vehicle tools
3 176.
Vehicle care 189
2. Install the wheel wrench ensuring
that it locates securely and loosen
each wheel bolt by half a turn.
The wheels might be protected by
locking wheel bolts. To loosen
these specific bolts first attach the
key adapter onto the head of the
bolt before installing the wheel
wrench. The key adapter is
located in the glovebox.
3. Ensure the jack is correctly
positioned under the relevant
vehicle jacking point.
Some versions have sill
panellings with covered vehicle
jacking points: pull out the cover
at the respective jacking point
firstly.
4. Set the jack to the necessary
height. Position it directly below
the jacking point in a manner that
prevents it from slipping.
190 Vehicle care
Attach jack handle and with the
jack correctly aligned rotate
handle until wheel is clear of the
ground.
5. Unscrew the wheel bolts.
6. Change the wheel.
7. Screw on the wheel bolts.
8. Lower vehicle.
9. Install the wheel wrench ensuring
that it locates securely and tighten
each bolt in a crosswise
sequence. Tightening torque is
110 Nm.
10. Align the valve hole in the wheel
cover of the steel wheel with the
tyre valve before installing.
Install wheel bolt caps or center
cap on alloy wheel.
11. Stow and secure the replaced
wheel, the vehicle tools 3 176 and
the key adapter 3 54.
12. Check the tyre pressure of the
installed tyre and the wheel bolt
torque as soon as possible.
Have the defective tyre renewed or
repaired as soon as possible.
Jacking position for lifting
platform
Rear arm position of the lifting
platform centrically under the recess
of the sill.
Vehicle care 191
Front arm position of the lifting
platform at the underbody.
Spare wheel
If mounting a spare wheel, which is
different from the other wheels, this
wheel might be classified as a
temporary spare wheel and the
corresponding speed limits apply,
even though no label indicates this.
Seek the assistance of a workshop to
check the applicable speed limit.
The spare wheel has a steel rim.
Caution
The use of a spare wheel that is
smaller than the other wheels or in
combination with winter tyres
could affect driveability. Have the
defective tyre replaced as soon as
possible.
The spare wheel is located in a holder
beneath the vehicle floor.
1. Open the load compartment floor
3 68.
Remove storage box if equipped
3 66.
2. Remove the wheel wrench from
the tool box.
3. Fit the wheel wrench on the
hexagon bolt near the tool box
and turn it anticlockwise until a
resistance is noticeable.
192 Vehicle care
4. Lift the spare wheel holder slightly
by hand and unhook the catch.
5. Lower the spare wheel holder.
6. Lift the spare wheel holder slightly
by hand and detach the safety
cable.
7. Lower holder all the way and
remove spare wheel.
8. Change the wheel 3 188.
The damaged wheel must be
secured in the load compartment,
see below.
9. Lift the empty spare wheel holder
and insert the safety cable.
10. Lift the spare wheel holder farther
and engage in catch. The open
side of the catch must point in the
direction of travel.
11. Close the empty spare wheel
holder by turning the hexagon bolt
clockwise successively using the
wheel wrench.
12. Stow wheel wrench and the jack
in the tool box in vehicle floor.
13. Close the load compartment floor.
Stowing a damaged wheel in the
load compartment
The spare wheel holder is not
designed for other tyre sizes than the
spare wheel.
A damaged wheel wider than the
spare wheel must be stowed in the
load compartment and secured with a
strap. Vehicle tools 3 176.
Wheels with tyre size up to
195/55 R 16
1. Remove load compartment cover
and lift up load compartment floor.
Stow both behind the raised up
backrests of the rear seats.
Vehicle care 193
2. Untwist wing nut and remove tool
box.
3. Position the damaged wheel to
stand upright into the tool box
spare, facing to the front.
4. Remove strap 1 from the tool box
and place the loop end of the strap
through the right side lashing eye.
5. Place the hook end of the strap
through the loop and pull it until
the strap is fastened securely to
the lashing eye.
6. Insert the strap through the
spokes of the wheel as shown in
the illustration.
7. Mount the hook to the left side
lashing eye.
8. Tighten the strap and secure it
using the buckle.
194 Vehicle care
9. Position the tool box in the inside
of the wheel and secure it with
strap 2 inserted through two
spokes of the wheel.
Wheels with tyre size bigger than
195/55 R 16
1. Fold down backrests of the rear
seats 3 65.
2. Remove strap 1 from the tool box.
3. Position the damaged wheel with
outer side facing downwards in
the load compartment.
4. Take strap 1 and place the loop
end of the strap through the right
side lashing eye.
5. Place the hook end of the strap
through the loop and pull it until
the strap is fastened securely to
the lashing eye.
6. Insert the strap through the
spokes of the wheel as shown in
the illustration.
7. Mount the hook to the left side
lashing eye.
8. Tighten the strap and secure it
using the buckle.
Vehicle care 195
9 Warning
Storing a jack, a wheel or other
equipment in the load
compartment could cause injury if
they are not fixed properly. During
a sudden stop or a collision, loose
equipment could strike someone.
Store jack and tools always in the
respective storage compartments
and secure them by fixing.
Damaged wheel placed in the load
compartment must always be
secured by the strap.
Temporary spare wheel
Caution
The use of the temporary spare
wheel could affect driveability.
Have the defective tyre renewed
or repaired as soon as possible.
Only mount one temporary spare
wheel. Do not drive faster than
80 km/h. Take curves slowly. Do not
use for a long period of time.
If your vehicle gets a flat tyre on the
rear while towing another vehicle,
mount the temporary spare wheel in
the front and the full size tyre in the
rear.
Tyre chains 3 183.
Spare wheel with directional tyre
If possible, fit directional tyres such
that they roll in the direction of travel.
The rolling direction is indicated by a
symbol (e.g. an arrow) on the
sidewall.
The following applies to tyres fitted
opposing the rolling direction:
■ Driveability may be affected. Have
the defective tyre renewed or
repaired as soon as possible.
■ Drive particularly carefully on wet
and snow-covered road surfaces.
Jump starting
Do not start with a quick charger.
A vehicle with a discharged vehicle
battery can be started using jump
leads and the vehicle battery of
another vehicle.
9 Warning
Be extremely careful when starting
with jump leads. Any deviation
from the following instructions can
lead to injuries or damage caused
by battery explosion or damage to
the electrical systems of both
vehicles.
9 Warning
Avoid contact of the battery with
eyes, skin, fabrics and painted
surfaces. The fluid contains
sulphuric acid which can cause
injuries and damage in the event
of direct contact.
196 Vehicle care
■ Never expose the battery to naked
flames or sparks.
■ A discharged vehicle battery can
already freeze at a temperature of
0 °C. Defrost the frozen battery
before connecting jump leads.
■ Wear eye protection and protective
clothing when handling a battery.
■ Use a booster battery with the
same voltage (12 Volts). Its
capacity (Ah) must not be much
less than that of the discharged
battery.
■ Use jump leads with insulated
terminals and a cross section of at
least 16 mm
2
(25 mm
2
for diesel
engines).
■ Do not disconnect the discharged
vehicle battery from the vehicle.
■ Switch off all unnecessary electrical
consumers.
■ Do not lean over the battery during
jump starting.
■ Do not allow the terminals of one
lead to touch those of the other
lead.
■ The vehicles must not come into
contact with each other during the
jump starting process.
■ Apply the parking brake,
transmission in neutral.
■ Open the positive terminal
protection caps of both vehicle
batteries.
Lead connection order:
1. Connect the red lead to the
positive terminal of the booster
battery.
2. Connect the other end of the red
lead to the positive terminal of the
discharged battery.
3. Connect the black lead to the
negative terminal of the booster
battery.
4. Connect the other end of the black
lead to a vehicle grounding point,
such as the engine block or an
engine mounting bolt. Connect as
far away from the discharged
vehicle battery as possible,
however at least 60 cm.
Route the leads so that they cannot
catch on rotating parts in the engine
compartment.
To start the engine:
1. Start the engine of the vehicle
providing the jump.
2. After 5 minutes, start the other
engine. Start attempts should be
made for no longer than
15 seconds at an interval of
1 minute.
3. Allow both engines to idle for
approx. 3 minutes with the leads
connected.
Vehicle care 197
4. Switch on electrical consumers
(e.g. headlights, heated rear
window) of the vehicle receiving
the jump start.
5. Reverse above sequence exactly
when removing leads.
Towing
Towing the vehicle
The towing eye is stowed with the
vehicle tools 3 176.
Adam
1. Disengage the cap by pushing on
the marked position.
2. Screw in the towing eye as far as
it will go until it stops in a
horizontal position.
3. Attach a tow rope – or better still a
tow rod – to the towing eye.
198 Vehicle care
Adam Rocks
1. Disengage the small cap with a
screwdriver at the marked
position.
2. Screw in the towing eye as far as
it will go until it stops in a
horizontal position.
3. Attach a tow rope – or better still a
tow rod – to the towing eye.
General
The towing eye must only be used for
towing and not for recovering the
vehicle.
Switch on ignition to release steering
wheel lock and to permit operation of
brake lights, horn and windscreen
wiper.
Transmission in neutral.
Caution
Drive slowly. Do not drive jerkily.
Excessive tractive force can
damage the vehicle.
When the engine is not running,
considerably more force is needed to
brake and steer.
To prevent the entry of exhaust gases
from the towing vehicle, switch on the
air recirculation and close the
windows.
Seek the assistance of a workshop.
After towing, unscrew the towing eye.
Insert cap and engage in the bumper.
Towing another vehicle
Adam
Insert a screwdriver in the slot at the
lower bend of the cap. Disengage the
cap by carefully moving the
screwdriver downwards.
The towing eye is stowed with the
vehicle tools 3 176.
Vehicle care 199
Screw in the towing eye as far as it will
go until it stops in a horizontal
position.
The lashing eye at the rear
underneath the vehicle must never be
used as a towing eye.
Attach a tow rope – or even better a
tow bar – to the towing eye.
The towing eye must only be used for
towing and not for recovering a
vehicle.
Caution
Drive slowly. Do not drive jerkily.
Excessive tractive force can
damage the vehicle.
After towing, unscrew the towing eye.
Insert cap and engage in the bumper.
Adam Rocks
Towing another vehicle is not
possible.
Appearance care
Exterior care
Locks
The locks are lubricated at the factory
using a high quality lock cylinder
grease. Use de-icing agent only when
absolutely necessary, as this has a
degreasing effect and impairs lock
function. After using de-icing agent,
have the locks regreased by a
workshop.
Washing
Adam without foldable sunroof
The paintwork of your vehicle is
exposed to environmental influences.
Wash and wax your vehicle regularly.
When using automatic vehicle
washes, select a programme that
includes waxing. Restrictions for
filmed or matt painted body parts or
decor tapes, see "Polishing and
waxing".
200 Vehicle care
Adam with foldable sunroof
The paintwork of your vehicle is
exposed to environmental influences,
therefore wash your vehicle regularly.
When using automatic vehicle
washes, select one with textile
brushes and select a programme
without wax additives.
Restrictions for filmed or matt painted
body parts or decor tapes, see
"Polishing and waxing".
When hand washing the vehicle, use
clear water and a soft brush, cleaning
in grain direction of the textile sun
roof.
Never use a steam-jet or high-
pressure jet cleaner for the sunroof.
Wax painted parts of the vehicle
regularly, but not the textile of the
sunroof.
Caution
After washing or cleaning, the
foldable sunroof must be
completely dried before opening. If
a wet sunroof remains opened for
a longer time, it would be
damaged by water spotting and
mould growth.
All variants
Bird droppings, dead insects, resin,
pollen and the like should be cleaned
off immediately, as they contain
aggressive constituents which can
cause paint damage.
If using a car wash, comply with the
car wash manufacturer's instructions.
The windscreen wiper and rear
window wiper must be switched off.
Remove antenna and external
accessories such as roof racks etc.
If you wash your vehicle by hand,
make sure that the insides of the
wheel housings are also thoroughly
rinsed out.
Clean edges and folds on opened
doors and the bonnet as well as the
areas they cover.
Caution
Always use a cleaning agent with
a pH value of 4 to 9.
Do not use cleaning agents on hot
surfaces.
Have the door hinges of all doors
greased by a workshop.
Do not clean the engine compartment
with a steam-jet or high-pressure jet
cleaner.
Thoroughly rinse and leather-off the
vehicle. Rinse leather frequently. Use
separate leathers for painted and
glass surfaces: remnants of wax on
the windows will impair vision.
Do not use hard objects to remove
spots of tar. Use tar removal spray on
painted surfaces.
Exterior lights
Headlight and other light covers are
made of plastic. Do not use any
abrasive or caustic agents, do not use
an ice scraper, and do not clean them
dry.
Vehicle care 201
Polishing and waxing
Wax painted parts of the vehicle
regularly (at the latest when water no
longer beads). Otherwise, the
paintwork will dry out.
The foldable sunroof must not be
polished or waxed. When using
automatic car washes, select a
programme without wax additives.
Polishing is necessary only if the paint
has become dull or if solid deposits
have become attached to it.
Paintwork polish with silicone forms a
protective film, making waxing
unnecessary.
Unpainted plastic body parts must not
be treated with wax or polishing
agents.
Matt filmed body parts or decor tapes
must not be polished, to avoid
gleaming. Do not use hot wax
programmes in automatic car washes
if the vehicle is equipped with these
parts.
Matt painted decor parts, e.g. mirror
housing cover, must not be polished.
Otherwise these parts would become
agleam or the colour would be
dissolved.
Windows and windscreen wiper
blades
Use a soft lint-free cloth or chamois
leather together with window cleaner
and insect remover.
When cleaning the rear window from
inside, always wipe in parallel to the
heating element to prevent damage.
For mechanical removal of ice, use a
sharp-edged ice scraper. Press the
scraper firmly against the glass so
that no dirt can get under it and
scratch the glass.
Clean smearing wiper blades with a
soft cloth and window cleaner.
Glass panel
Never clean with solvents or abrasive
agents, fuels, aggressive media
(e.g. paint cleaner, acetone-
containing solutions etc.), acidic or
highly alkaline media or abrasive
pads. Do not apply wax or polishing
agents to the glass panel.
Wheels and tyres
Do not use high-pressure jet
cleaners.
Clean rims with a pH-neutral wheel
cleaner.
Rims are painted and can be treated
with the same agents as the body.
Paintwork damage
Rectify minor paintwork damage with
a touch-up pen before rust forms.
Have more extensive damage or rust
areas repaired by a workshop.
Underbody
Some areas of the vehicle underbody
have a PVC undercoating while other
critical areas have a durable
protective wax coating.
202 Vehicle care
After the underbody is washed, check
the underbody and have it waxed if
necessary.
Bitumen/rubber materials could
damage the PVC coating. Have
underbody work carried out by a
workshop.
Before and after winter, wash the
underbody and have the protective
wax coating checked.
Liquid gas system
9 Danger
Liquid gas is heavier than air and
can collect in sink points.
Take care when performing work
at the underbody in a pit.
For painting work and when using a
drying booth at a temperature above
60 °C, the liquid gas tank must be
removed.
Do not make any modifications to the
liquid gas system.
Rear carrier system
Clean the rear carrier system with a
steam-jet or high-pressure jet cleaner
at least once a year.
Operate the rear carrier system
periodically if not in regular use, in
particular during winter.
Interior care
Interior and upholstery
Only clean the vehicle interior,
including the instrument panel fascia
and panelling, with a dry cloth or
interior cleaner.
Clean the leather upholstery with
clear water and a soft cloth. In case of
heavy soiling, use leather care.
The instrument cluster and the
displays should only be cleaned using
a soft damp cloth. If necessary use a
weak soap solution.
Clean fabric upholstery with a
vacuum cleaner and brush. Remove
stains with an upholstery cleaner.
Clothing fabrics may not be
colourfast. This could cause visible
discolourations, especially on light-
coloured upholstery. Removable
stains and discolourations should be
cleaned as soon as possible.
Clean seat belts with lukewarm water
or interior cleaner.
Caution
Close Velcro fasteners as open
Velcro fasteners on clothing could
damage seat upholstery.
The same applies to clothing with
sharp-edged objects, like zips or
belts or studded jeans.
Plastic and rubber parts
Plastic and rubber parts can be
cleaned with the same cleaner as
used to clean the body. Use interior
cleaner if necessary. Do not use any
other agent. Avoid solvents and petrol
in particular. Do not use high-
pressure jet cleaners.
Service and maintenance 203
Service and
maintenance
General information ................... 203
Recommended fluids, lubricants
and parts .................................... 204
General information
Service information
In order to ensure economical and
safe vehicle operation and to
maintain the value of your vehicle, it
is of vital importance that all
maintenance work is carried out at the
proper intervals as specified.
The detailed, up-to-date service
schedule for your vehicle is available
at the workshop.
Service display 3 83.
European service intervals
Maintenance of your vehicle is
required every 30,000 km or after
1 year, whichever occurs first, unless
otherwise indicated in the service
display.
A shorter service interval can be valid
for severe driving behaviour, e.g. for
taxis and police vehicles.
The European service intervals are
valid for the following countries:
Andorra, Austria, Belgium, Bosnia-
Herzegovina, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark,
Estonia, Finland, France, Germany,
Greece, Greenland, Hungary,
Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Macedonia,
Malta, Montenegro, Netherlands,
Norway, Poland, Portugal, Romania,
Serbia, Slovakia, Slovenia, Spain,
Sweden, Switzerland, United
Kingdom.
Service display 3 83.
International service intervals
Maintenance of your vehicle is
required every 15,000 km or after
1 year, whichever occurs first, unless
otherwise indicated in the service
display.
The international service intervals are
valid for the countries which are not
listed in the European service
intervals.
Service display 3 83.
204 Service and maintenance
Confirmations
Confirmation of service is recorded in
the Service and Warranty Booklet.
The date and mileage is completed
with the stamp and signature of the
servicing workshop.
Make sure that the Service and
Warranty Booklet is completed
correctly as continuous proof of
service is essential if any warranty or
goodwill claims are to be met, and is
also a benefit when selling the
vehicle.
Service interval with remaining
engine oil life duration
The service interval is based on
several parameters depending on
usage.
The service display lets you know
when to change the engine oil.
Service display 3 83.
Recommended fluids,
lubricants and parts
Recommended fluids and
lubricants
Only use products that meet the
recommended specifications.
Damage resulting from the use of
products not in line with these
specifications will not be covered by
the warranty.
9 Warning
Operating materials are
hazardous and could be
poisonous. Handle with care. Pay
attention to information given on
the containers.
Engine oil
Engine oil is identified by its quality
and its viscosity. Quality is more
important than viscosity when
selecting which engine oil to use. The
oil quality ensures e.g. engine
cleanliness, wear protection and oil
aging control, whereas viscosity
grade gives information on the oil's
thickness over a temperature range.
Dexos is the newest engine oil quality
that provides optimum protection for
petrol and diesel engines. If it is
unavailable, engine oils of other listed
qualities have to be used.
Recommendations for petrol engines
are also valid for Compressed Natural
Gas (CNG), Liquified Petroleum Gas
(LPG) and Ethanol (E85) fuelled
engines.
Select the appropriate engine oil
based on its quality and on the
minimum ambient temperature
3 208.
Topping up engine oil
Engine oils of different manufacturers
and brands can be mixed as long as
they comply with the required engine
oil quality and viscosity.
Use of engine oil with only
ACEA A1/B1 or only A5/B5 quality is
prohibited, since it can cause long-
term engine damage under certain
operating conditions.
Service and maintenance 205
Select the appropriate engine oil
based on its quality and on the
minimum ambient temperature
3 208.
Additional engine oil additives
The use of additional engine oil
additives could cause damage and
invalidate the warranty.
Engine oil viscosity grades
The SAE viscosity grade gives
information of the thickness of the oil.
Multigrade oil is indicated by two
figures, e.g. SAE 5W-30. The first
figure, followed by a W, indicates the
low temperature viscosity and the
second figure the high temperature
viscosity.
Select the appropriate viscosity grade
depending on the minimum ambient
temperature 3 208.
All of the recommended viscosity
grades are suitable for high ambient
temperatures.
Coolant and antifreeze
Use only silicate-free long life coolant
(LLC) antifreeze. Consult a
workshop.
The system is factory filled with
coolant designed for excellent
corrosion protection and frost
protection down to approx. -28 °C. In
northern countries with very low
temperatures the factory filled coolant
provides frost protection down to
approx. -37 °C. This concentration
should be maintained all year round.
The use of additional coolant
additives that intend to give additional
corrosion protection or seal against
minor leaks can cause function
problems. Liability for consequences
resulting from the use of additional
coolant additives will be rejected.
Brake and clutch fluid
Over time, brake fluid absorbs
moisture which will reduce braking
effectiveness. The brake fluid should
therefore be replaced at the specified
interval.
206 Technical data
Technical data
Vehicle identification .................. 206
Vehicle data ............................... 208
Vehicle identification
Vehicle Identification
Number
The Vehicle Identification Number is
stamped on the identification plate
and on the floor pan, under the floor
covering, visible under a cover.
The Vehicle Identification Number
may be embossed on the instrument
panel visible through the windscreen.
Technical data 207
Identification plate
The identification plate is located on
the left door frame.
Information on identification label:
1 = manufacturer
2 = type approval number
3 = Vehicle Identification Number
4 = permissible gross vehicle weight
rating in kg
5 = permissible gross train weight
in kg
6 = maximum permissible front axle
load in kg
7 = maximum permissible rear axle
load in kg
8 = vehicle-specific or country-
specific data
The combined total of front and rear
axle loads must not exceed the
permissible gross vehicle weight. For
example, if the front axle is bearing its
maximum permissible load, the rear
axle can only bear a load that is equal
to the gross vehicle weight minus the
front axle load.
The technical data is determined in
accordance with European
Community standards. We reserve
the right to make modifications.
Specifications in the vehicle
documents always have priority over
those given in this manual.
Engine identification
The technical data tables show the
engine identifier code. Engine data
3 211.
To identify the respective engine,
refer to the engine power in the EEC
Certificate of Conformity provided
with your vehicle or other national
registration documents.
208 Technical data
Vehicle data
Recommended fluids and lubricants
European service schedule
Required engine oil quality
All European countries
(except Belarus, Moldova, Russia, Turkey) Only Israel
Engine oil quality Petrol engines
(including CNG, LPG, E85)
Petrol engines
(including CNG, LPG, E85)
dexos 1 – ✔
dexos 2 ✔ –
In case dexos quality is unavailable you may use max. 1 litre engine oil quality ACEA C3 for topping up once between each
oil change.
Engine oil viscosity grades
All European countries and Israel
(except Belarus, Moldova, Russia, Turkey)
Ambient temperature Petrol engines
down to -25 °C SAE 5W-30 or SAE 5W-40
below -25 °C SAE 0W-30 or SAE 0W-40
Technical data 209
International service schedule
Required engine oil quality
All countries outside Europe
except Israel Only Belarus, Moldova, Russia, Turkey
Engine oil quality Petrol engines
(including CNG, LPG, E85)
Petrol engines
(including CNG, LPG, E85)
dexos 1 ✔ –
dexos 2 – ✔
In case dexos quality is unavailable you may use the oil qualities listed below:
All countries outside Europe
except Israel Only Belarus, Moldova, Russia, Turkey
Engine oil quality Petrol engines
(including CNG, LPG, E85)
Petrol engines
(including CNG, LPG, E85)
GM-LL-A-025 ✔ ✔
GM-LL-B-025 – –
210 Technical data
All countries outside Europe
except Israel Only Belarus, Moldova, Russia, Turkey
Engine oil quality Petrol engines
(including CNG, LPG, E85)
Petrol engines
(including CNG, LPG, E85)
ACEA A3/B3 ✔ ✔
ACEA A3/B4 ✔ ✔
ACEA C3 ✔ ✔
API SM ✔ ✔
API SN resource conserving ✔ ✔
Engine oil viscosity grades
All countries outside Europe (except Israel),
including Belarus, Moldova, Russia, Turkey
Ambient temperature Petrol engines
down to -25 °C SAE 5W-30 or SAE 5W-40
below -25 °C SAE 0W-30 or SAE 0W-40
down to -20 °C
SAE 10W-30
1)
or SAE 10W-40
1)
1)
Permitted, but usage of SAE 5W-30 or SAE 5W-40 with dexos quality is recommended.
Technical data 211
Engine data
Sales designation 1.0 1.0 1.2 1.4 1.4 LPG 1.4
Engine identifier code B10XFL B10XFT A12XEL A14XEL A14XEL A14XER
Number of cylinders 3 3 4 4 4 4
Piston displacement [cm
3
]
999 999 1229 1398 1398 1398
Engine power [kW] 66 85 51 64 64 74
at rpm 3700-6000 5000-6000 5600 6000 5200-6000 6000
Torque [Nm] 170 170 115 130
130
2)
130
at rpm 1800-3700 1800-4500 4000 4000 4000 4000
Fuel type Petrol Petrol Petrol Petrol Liquid Gas/Petrol Petrol
Octane rating RON
recommended 95 95 95 95 95 95
possible 98 98 98 98 98 98
possible 91 91 91 91 91 91
Gas – – – – LPG –
Engine oil consumption [l/1000 km]
3)
0.6 0.6 0.6 0.6 0.6 0.6
2)
LPG operation: 125.
3)
Maximum value.
212 Technical data
Performance
Engine B10XFL B10XFT A12XEL A14XEL
A14XEL
LPG A14XER
Maximum speed
4)
[km/h]
Manual transmission 180 196 165 176 176 185
Automatic transmission – – – – – –
4)
The maximum speed indicated is achievable at kerb weight (without driver) plus 200 kg payload. Optional equipment could reduce the specified maximum
speed of the vehicle.
Technical data 213
Vehicle weight
Kerb weight, basic model without any optional equipment
Engine Manual transmission Automatic transmission
without/with air conditioning
[kg]
B10XFL 1141/1156 –
B10XFT 1141/1156 –
A12XEL 1086/1101 –
A14XEL 1120/1135 –
A14XEL
LPG
1163/1178 –
A14XER 1120/1135 –
Optional equipment and accessories increase the kerb weight.
Loading information 3 71.
214 Technical data
Vehicle dimensions
Length [mm] 3747
Width without exterior mirrors [mm] 1720
Width with two exterior mirrors [mm] 1966
Height (without antenna) [mm]
1475-1499
5)
Length of load compartment floor [mm] 462
Length of load compartment with folded rear seats [mm] 1041
Load compartment width [mm] 954
Load compartment height [mm] 874
Wheelbase [mm] 2311
Turning circle diameter [m]
10.17-11.06
5)
5)
Depending on equipment.
Technical data 215
Capacities
Engine oil
Engine B10XFL B10XFT A12XEL A14XEL A14XEL
LPG
A14XER
including Filter [l] 4.0 4.0 4.0 4.0 4.0 4.0
between MIN and MAX [l] 1.0 1.0 1.0 1.0 1.0 1.0
Fuel tank
Engine B10XFL B10XFT A12XEL A14XEL A14XEL
LPG
A14XER
Petrol, refilling quantity [l] 35 35 35 35 35 35
LPG, refilling quantity [l] – – – – 35 –
216 Technical data
Tyre pressures
Comfort with up to 3
people ECO with up to 3 people
With full load
Engine Tyres front rear front rear front rear
[kPa/bar]
([psi])
[kPa/bar]
([psi])
[kPa/bar]
([psi])
[kPa/bar]
([psi])
[kPa/bar]
([psi])
[kPa/bar]
([psi])
B10XFL,
B10XFT,
A12XEL,
A14XEL,
A14XEL LPG,
A14XER
175/70 R14,
185/70 R14,
185/60 R15,
185/65 R15,
195/55 R16,
215/45 R17,
225/35 R18
220/2.2 (32) 200/2.0 (29) 290/2.9 (42) 270/2.7 (39) 260/2.6 (38) 320/3.2 (46)
All Temporary spare wheel 420/4.2 (61) 420/4.2 (61) – – 420/4.2 (61) 420/4.2 (61)
Customer information 217
Customer information
Customer information ................ 217
Vehicle data recording and pri‐
vacy ........................................... 218
Customer information
Declaration of conformity
Transmission systems
This vehicle has systems that
transmit and/or receive radio waves
subject to Directive 1999/5/EC.
These systems are in compliance
with the essential requirements and
other relevant provisions of Directive
1999/5/EC. Copies of the original
Declarations of Conformity can be
obtained on our website.
Jack
Translation of the original declaration
of conformity
Declaration of conformity according
to EC Directive 2006/42/EC
We declare that the product:
Product designation: Jack
Type/GM part number: 13331922
is in compliance with the provisions of
Directive 2006/42/EC.
Applied technical standards:
GMN9737 = Jacking
GM 14337 = Standard
Equipment Jack –
Hardware Tests
GMN5127 = Vehicle Integrity –
Hoisting and
Service Station
Jacking
GMW15005 = Standard
Equipment Jack
and Spare Tyre,
Vehicle Test
ISO TS 16949 = Quality
management
systems
The signatory is authorised to
compile the technical documentation.
Rüsselsheim, 31st January 2014
signed by
Hans-Peter Metzger
Engineering Group Manager Chassis
& Structure
Adam Opel AG
D-65423 Rüsselsheim
218 Customer information
Vehicle data recording
and privacy
Event data recorders
Data storage modules in the
vehicle
A large number of electronic
components of your vehicle contain
data storage modules temporarily or
permanently storing technical data
about the condition of the vehicle,
events and errors. In general, this
technical information documents the
condition of parts, modules, systems
or the environment:
■ Operating conditions of system
components (e.g. filling levels)
■ Status messages of the vehicle and
its single components (e.g. number
of wheel revolutions / rotational
speed, deceleration, lateral
acceleration)
■ Dysfunctions and defects in
important system components
■ Vehicle reactions in particular
driving situations (e.g. inflation of
an airbag, activation of the stability
regulation system)
■ Environmental conditions (e.g.
temperature)
These data are exclusively technical
and help identifying and correcting
errors as well as optimizing vehicle
functions.
Motion profiles indicating travelled
routes cannot be created with these
data.
If services are used (e.g. repair
works, service processes, warranty
cases, quality assurance),
employees of the service network
(manufacturer included) are able to
read out this technical information
from the event and error data storage
modules applying special diagnostic
devices. If required, you will receive
further information at these
workshops. After an error has been
corrected, the data are deleted from
the error storage module or they are
constantly overwritten.
When using the vehicle, situations
may occur in which these technical
data related to other information
(accident report, damages on the
vehicle, witness statements etc.) may
be associated with a specific person -
possibly, with the assistance of an
expert.
Additional functions contractually
agreed upon with the client (e.g.
vehicle location in emergency cases)
allow the transmission of particular
vehicle data from the vehicle.
Customer information 219
Radio Frequency
Identification (RFID)
RFID technology is used in some
vehicles for functions such as tyre
pressure monitoring and ignition
system security. It is also used in
connection with conveniences such
as radio remote controls for door
locking/unlocking and starting, and in-
vehicle transmitters for garage door
openers. RFID technology in Opel
vehicles does not use or record
personal information or link with any
other Opel system containing
personal information.
220
Index
A
Accessories and vehicle
modifications .......................... 154
Adjustable air vents ................... 121
Airbag and belt tensioners ........... 87
Airbag deactivation ................ 46, 87
Airbag label................................... 41
Airbag system .............................. 41
Air conditioning regular
operation ................................ 122
Air conditioning system .............. 114
Air intake .................................... 121
Air vents...................................... 121
Antilock brake system ................ 129
Antilock brake system (ABS) ....... 88
Anti-theft alarm system ................ 27
Anti-theft locking system .............. 27
Appearance care........................ 199
Ashtrays ....................................... 80
Automatic anti-dazzle .................. 30
Automatic light control ............... 106
Automatic locking ........................ 25
B
Battery discharge protection ...... 112
Battery voltage ........................... 100
Belts.............................................. 38
Bicycle rack.................................. 56
Bonnet ....................................... 156
Brake and clutch fluid................. 204
Brake and clutch system ............. 88
Brake assist ............................... 131
Brake fluid .................................. 158
Brakes ............................... 129, 158
Breakdown.................................. 197
Bulb replacement ....................... 161
C
Capacities .................................. 215
Car Pass ...................................... 21
Catalytic converter ..................... 128
Central locking system ................ 23
Changing tyre and wheel size ...183
Charging system .......................... 87
Child restraint installation
locations ................................... 49
Child restraints.............................. 47
Child restraint systems ................ 47
Cigarette lighter ........................... 80
City mode................................... 133
Climate control ............................. 17
Climate control systems............. 113
Clock ............................................ 78
Code............................................. 98
Colour-Info-Display....................... 96
Control indicators.......................... 84
Control of the vehicle ................. 123
Controls........................................ 73
Convex shape .............................. 29
221
Coolant and antifreeze............... 204
Cruise control ...................... 90, 134
Cupholders .................................. 54
Curtain airbag system .................. 45
D
Danger, Warnings and Cautions ...4
Daytime running lights ............... 107
Declaration of conformity............ 217
Door open .................................... 91
Doors............................................ 26
Driver assistance systems.......... 134
Driver Information Centre............. 91
Driving hints................................ 123
E
Electric adjustment ...................... 29
Electrical system......................... 170
Electronic climate control system 116
Electronic Stability Control.......... 132
Electronic Stability Control and
Traction Control system............ 89
End-of-life vehicle recovery ....... 155
Engine compartment fuse box ... 171
Engine coolant ........................... 157
Engine coolant temperature
gauge ....................................... 82
Engine data ............................... 211
Engine exhaust .......................... 128
Engine identification................... 207
Engine oil ................... 156, 204, 208
Engine oil pressure ...................... 90
Entry lighting .............................. 111
Event data recorders.................. 218
Exit lighting ................................ 111
Exterior care .............................. 199
Exterior light ................................. 90
Exterior lighting .................... 14, 105
Exterior mirrors............................. 29
F
First aid......................................... 70
First aid kit ................................... 70
Fixed air vents ........................... 121
Flex-Fix system............................ 56
Folding mirrors ............................. 29
Front airbag system ..................... 44
Front seats.................................... 35
Front storage................................ 55
Front turn signal lights ............... 164
Fuel............................................. 148
Fuel consumption - CO
2
-
Emissions ............................... 153
Fuel for liquid gas operation....... 148
Fuel for petrol engines ............... 148
Fuel gauge ................................... 82
Fuel selector ................................ 82
Fuses ......................................... 170
G
Gauges......................................... 81
Glass panel .................................. 33
Glovebox ..................................... 54
Graphic-Info-Display..................... 97
H
Halogen headlights .................... 161
Hand brake......................... 129, 130
Hazard warning flashers ............ 107
Headlight flash ........................... 106
Headlight range adjustment ...... 107
Headlights................................... 105
Headlights when driving abroad 107
Head restraint adjustment ............. 8
Head restraints ............................ 34
Heated mirrors ............................. 29
Heated rear window ..................... 32
Heated steering wheel ................. 74
Heating ........................................ 38
Heating and ventilation system . 113
High beam ........................... 90, 106
Hill start assist ........................... 131
Horn ....................................... 15, 74
I
Identification plate ..................... 207
Ignition switch positions ............. 124
Immobiliser ............................ 28, 90
Indicators...................................... 81
222
Information displays...................... 91
Instrument cluster ........................ 81
Instrument panel fuse box ......... 174
Instrument panel illumination ..... 170
Instrument panel illumination
control .................................... 109
Instrument panel overview ........... 10
Interior care ............................... 202
Interior lighting............................ 109
Interior lights ...................... 109, 170
Interior mirrors.............................. 30
Introduction .................................... 3
ISOFIX child restraint systems .... 53
J
Jump starting ............................. 195
K
Key, memorised settings.............. 23
Keys ............................................. 21
Keys, locks................................... 21
L
Lashing eyes ............................... 69
Light switch ................................ 105
Load compartment ................ 26, 65
Load compartment cover ............. 67
Loading information ..................... 71
Low fuel ....................................... 90
M
Malfunction indicator light ............ 87
Manual anti-dazzle ...................... 30
Manual transmission .................. 129
Memorised settings...................... 23
Mirror adjustment ........................... 8
Misted light covers ..................... 109
N
New vehicle running-in .............. 123
Number plate light ..................... 169
O
Object detection systems........... 137
Odometer ..................................... 81
Oil, engine.......................... 204, 208
Operate pedal............................... 88
Outside temperature .................... 77
Overrun cut-off ........................... 125
P
Parking ................................ 19, 127
Parking assist ............................ 137
Parking brake ............................ 130
Parking lights ............................. 108
Performance .............................. 212
Performing work ........................ 155
Pollen filter ................................. 121
Power outlets ............................... 80
Power steering.............................. 89
Power windows ............................ 30
Puncture..................................... 188
R
Radio Frequency Identification
(RFID)..................................... 219
Radio remote control ................... 22
Rear carrier system...................... 56
Rear floor storage cover .............. 68
Rear fog light ............................... 90
Rear fog lights ........................... 108
Rear storage................................. 66
Rear window wiper/washer .......... 76
Recommended fluids and
lubricants ........................ 204, 208
Refuelling ................................... 150
Retained power off..................... 124
Reversing lights ......................... 109
Ride control systems.................. 131
Roof load...................................... 71
Roof rack ..................................... 71
S
Safety belts................................... 38
Seat adjustment ....................... 7, 36
Seat belt ........................................ 8
Seat belt reminder ....................... 86
Seat belts ..................................... 38
Seat folding .................................. 37
Seat position ................................ 35
223
Service ....................................... 122
Service display ............................ 83
Service information .................... 203
Service vehicle soon .................... 88
Side airbag system ...................... 44
Side blind spot alert.................... 146
Sidelights.................................... 105
Side turn signal lights ................ 169
Spare wheel ............................... 191
Speed limiter............................... 136
Speedometer ............................... 81
Starting and operating................ 123
Starting off ................................... 18
Starting the engine .................... 124
Steering wheel adjustment ...... 9, 73
Steering wheel controls ............... 73
Stop-start system........................ 125
Storage......................................... 54
Storage compartments................. 54
Sunroof ........................................ 32
Sun visors .................................... 32
Symbols ......................................... 4
T
Tachometer ................................. 81
Tail lights ................................... 165
Three-point seat belt .................... 39
Tools .......................................... 176
Top-tether fastening eyes ............ 53
Towing........................................ 197
Towing another vehicle ............. 198
Towing the vehicle ..................... 197
Traction Control system ............. 131
Transmission ............................... 18
Tread depth ............................... 182
Trip odometer .............................. 81
Turn and lane-change signals ... 108
Turn signal ................................... 86
Tyre chains ................................ 183
Tyre designations ...................... 178
Tyre pressure ............................ 178
Tyre pressure monitoring
system............................... 89, 179
Tyre pressures ........................... 216
Tyre repair kit ............................. 184
U
Ultrasonic parking assist ...... 89, 137
Upholstery.................................. 202
Upshift.......................................... 88
Using this manual .......................... 3
V
Vehicle battery ........................... 159
Vehicle checks............................ 155
Vehicle data................................ 208
Vehicle data recording and
privacy..................................... 218
Vehicle dimensions .................... 214
Vehicle Identification Number .... 206
Vehicle jack................................ 176
Vehicle messages ....................... 98
Vehicle personalisation ............. 101
Vehicle security............................ 27
Vehicle specific data ...................... 3
Vehicle storage........................... 154
Vehicle tools............................... 176
Vehicle unlocking ........................... 6
Vehicle weight ........................... 213
Ventilation................................... 113
W
Warning chimes ......................... 100
Warning lights............................... 81
Warning triangle .......................... 70
Washer and wiper systems ......... 16
Washer fluid ............................... 158
Wheel changing ......................... 188
Wheel covers ............................. 183
Wheels and tyres ....................... 177
Windows....................................... 30
Windscreen................................... 30
Windscreen wiper/washer ........... 75
Winter tyres ............................... 177
Wiper blade replacement .......... 161
224
www.opel.com
Copyright by ADAM OPEL AG, Rüsselsheim, Germany.
The information contained in this publication is effective as of the date indicated below. Adam Opel AG reserves the right to make changes to the technical specifications, features and
design of the vehicles relative to the information in this publication as well as changes to the publication itself.
Edition: July 2014, ADAM OPEL AG, Rüsselsheim.
Printed on chlorine-free bleached paper.
07/2014
*KTA-2744/6-EN*
KTA-2744/6-en
