www.lg.com
OWNER’S MANUAL
MONITOR SIGNAGE
MONITOR SIGNAGE MODELS
32VS10MS
42VS10MS
47VS10MS
Please read this manual carefully before operating
your set and retain it for future reference.
ENGLISH
2
Table of Contents
Licenses 3
Accessories 4
Connecting the stand 6
Connecting the Speakers 9
To install Portrait 10
Using the Remote Control 11
Name and Function of the Parts 13
Connecting to External Devices 14
When Connecting to your PC ............................................................................................14
When using the LAN ...........................................................................................................16

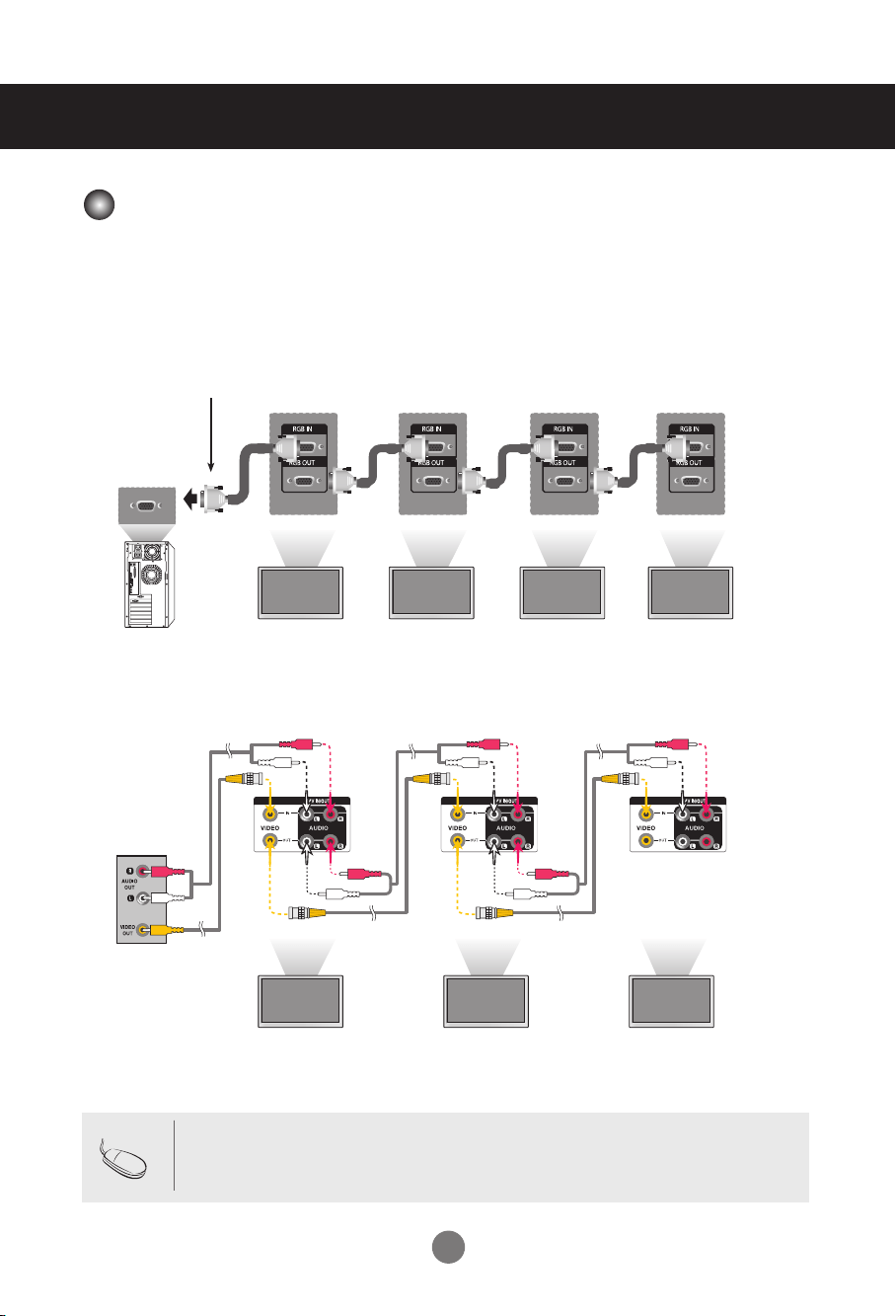

Daisy Chain Monitors .........................................................................................................17
VESA FDMI wall Mounting .................................................................................................18

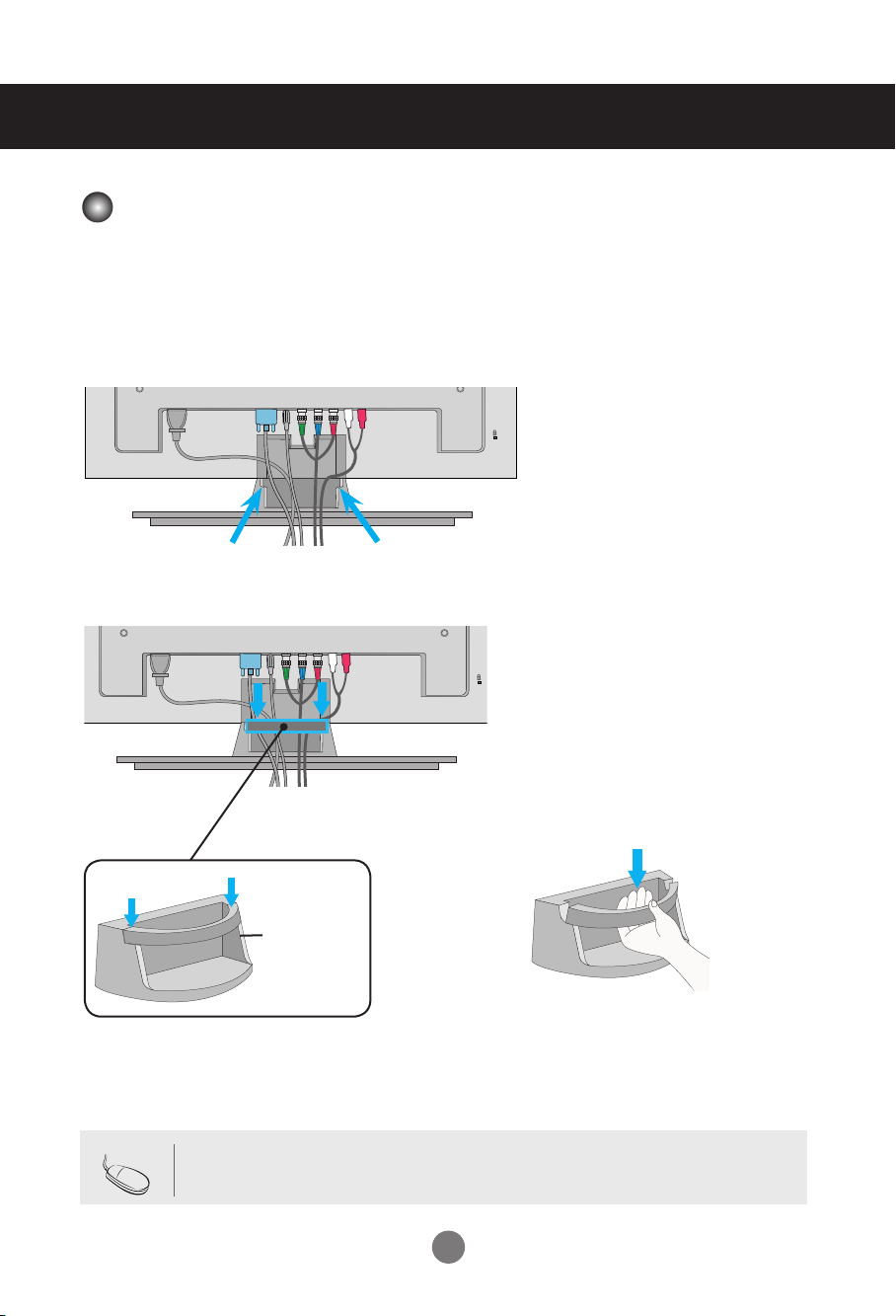

Cable Management .............................................................................................................19
Video Input ...........................................................................................................................20

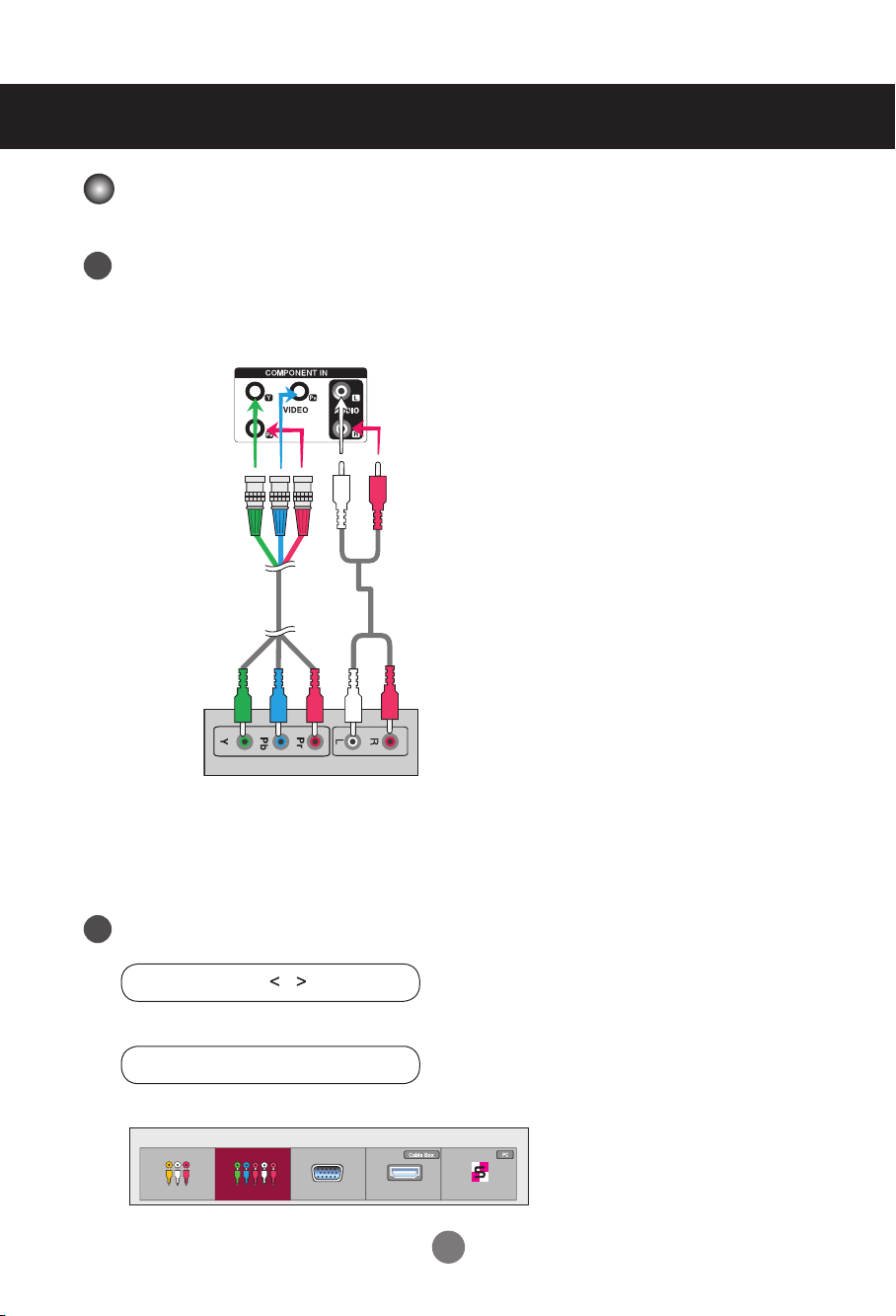

Component Input (480i/480p/576i/576p/720p/1080i/1080p) ..........................................21

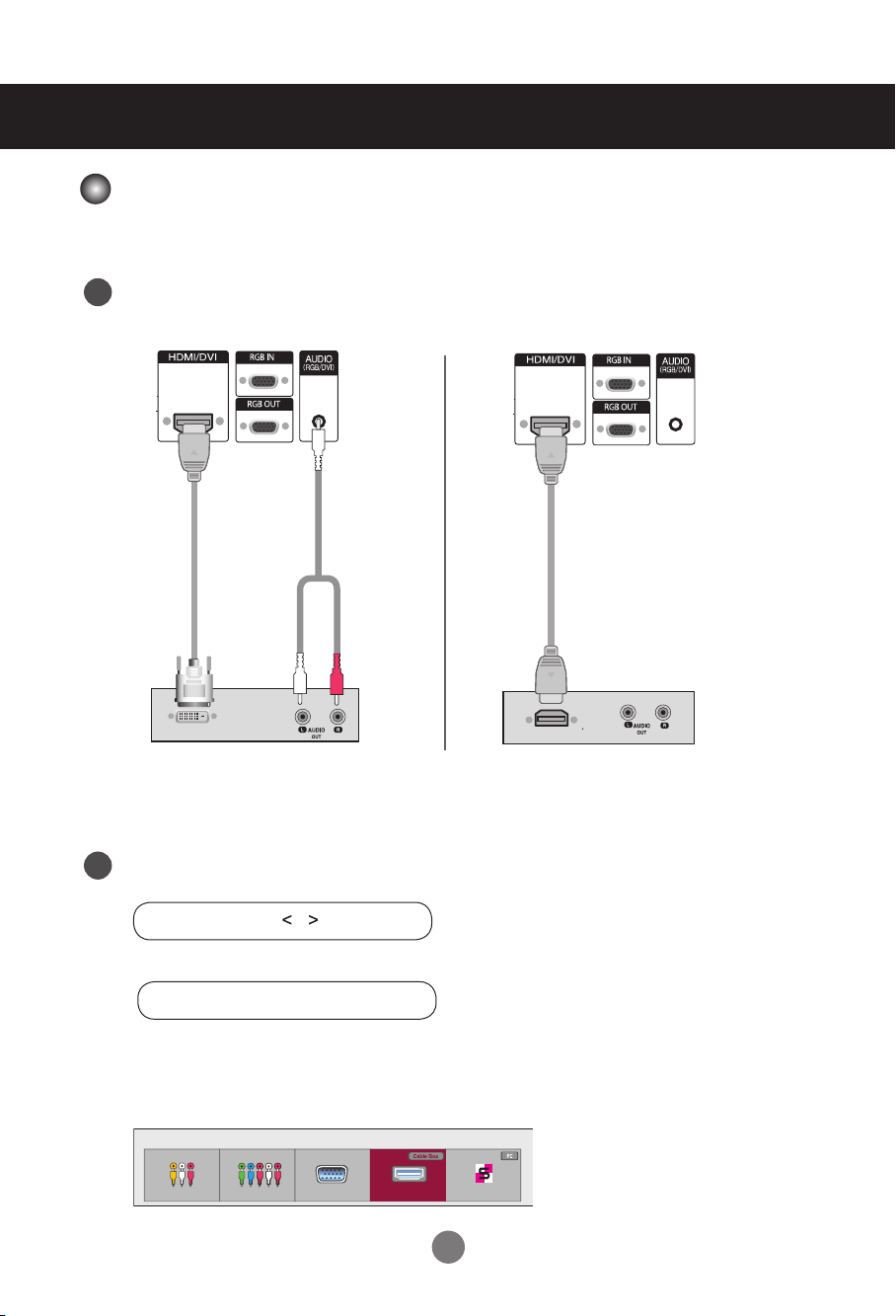

HDMI Input (480p/576p/720p/1080i/1080p) ......................................................................22
User Menus 23
Screen Adjustment options ...............................................................................................23
OSD Menu ............................................................................................................................25

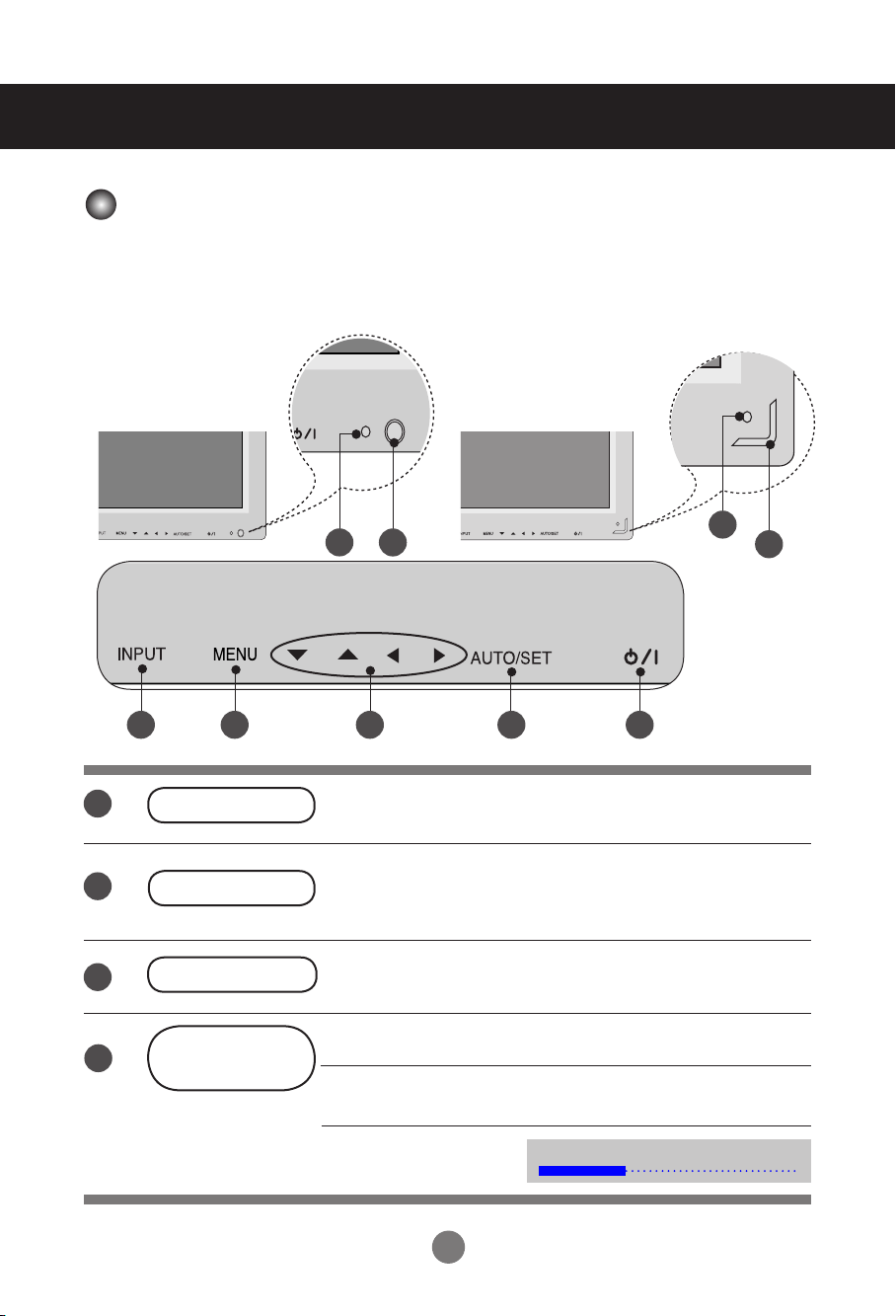

How to adjust the OSD (On Screen Display) screen .....................................................26
How to adjust the screen automatically ..........................................................................26
Adjusting Screen Color ......................................................................................................27

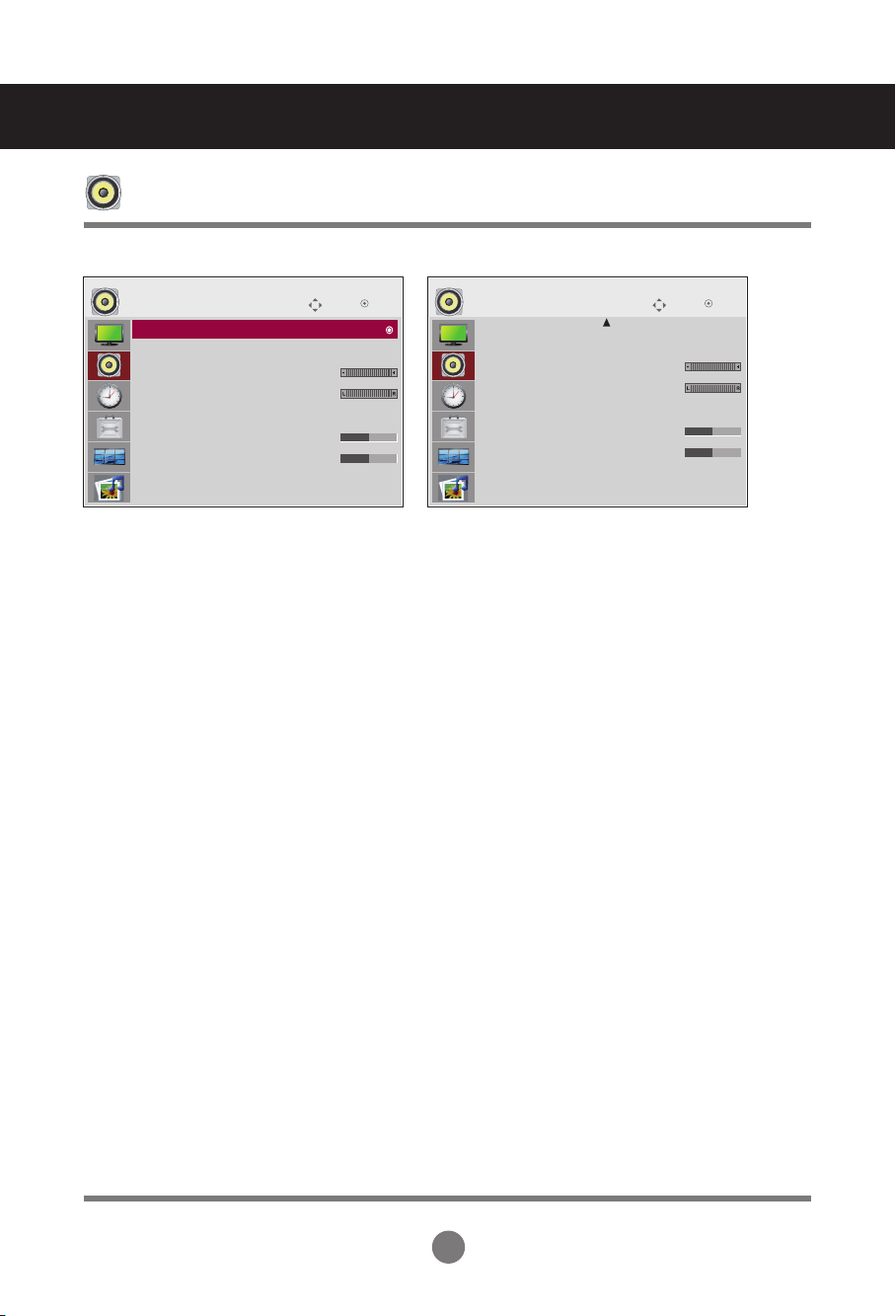

Adjusting the audio function .............................................................................................33
Adjusting the timer function ..............................................................................................34
Selecting the options .........................................................................................................35

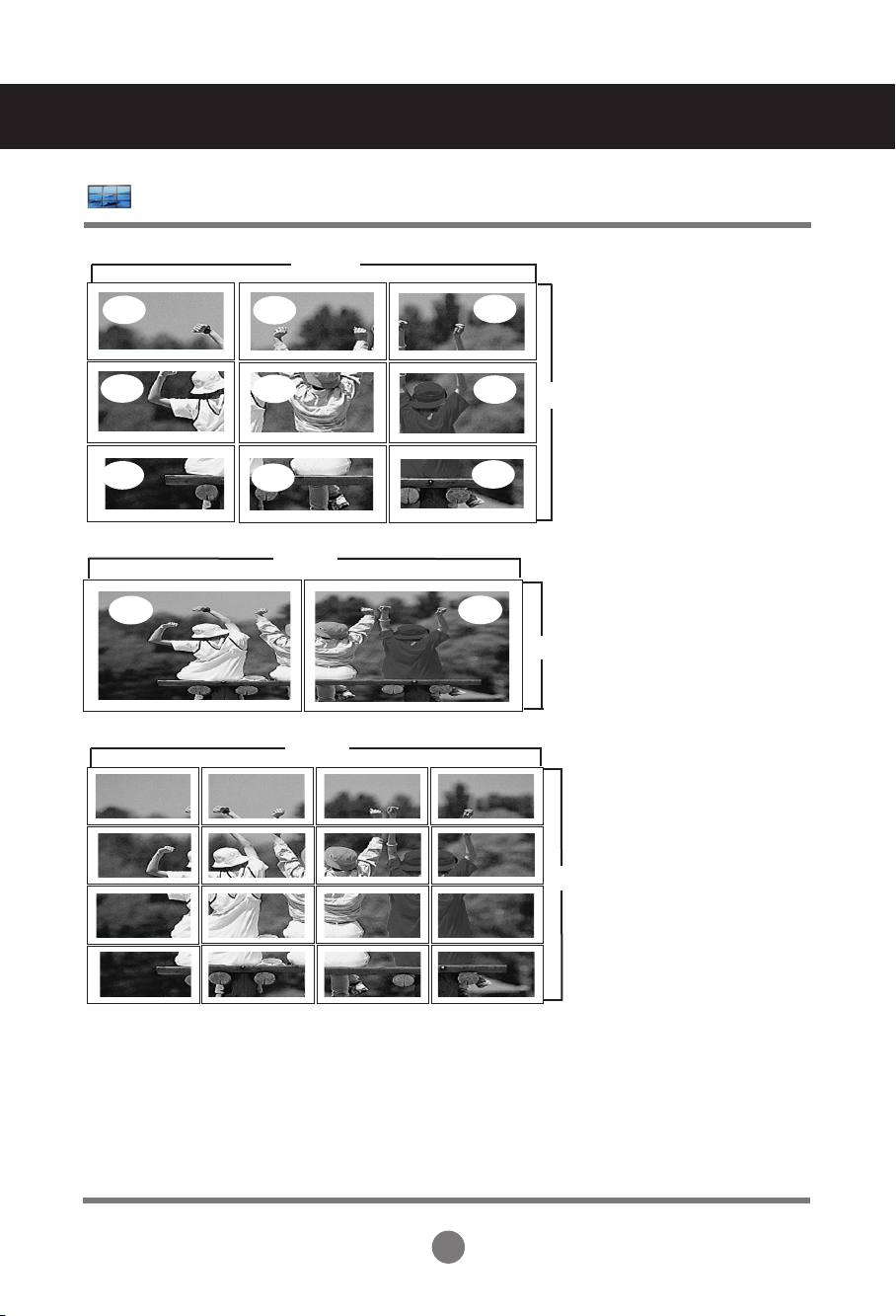

Adjusts the tile options. .....................................................................................................37

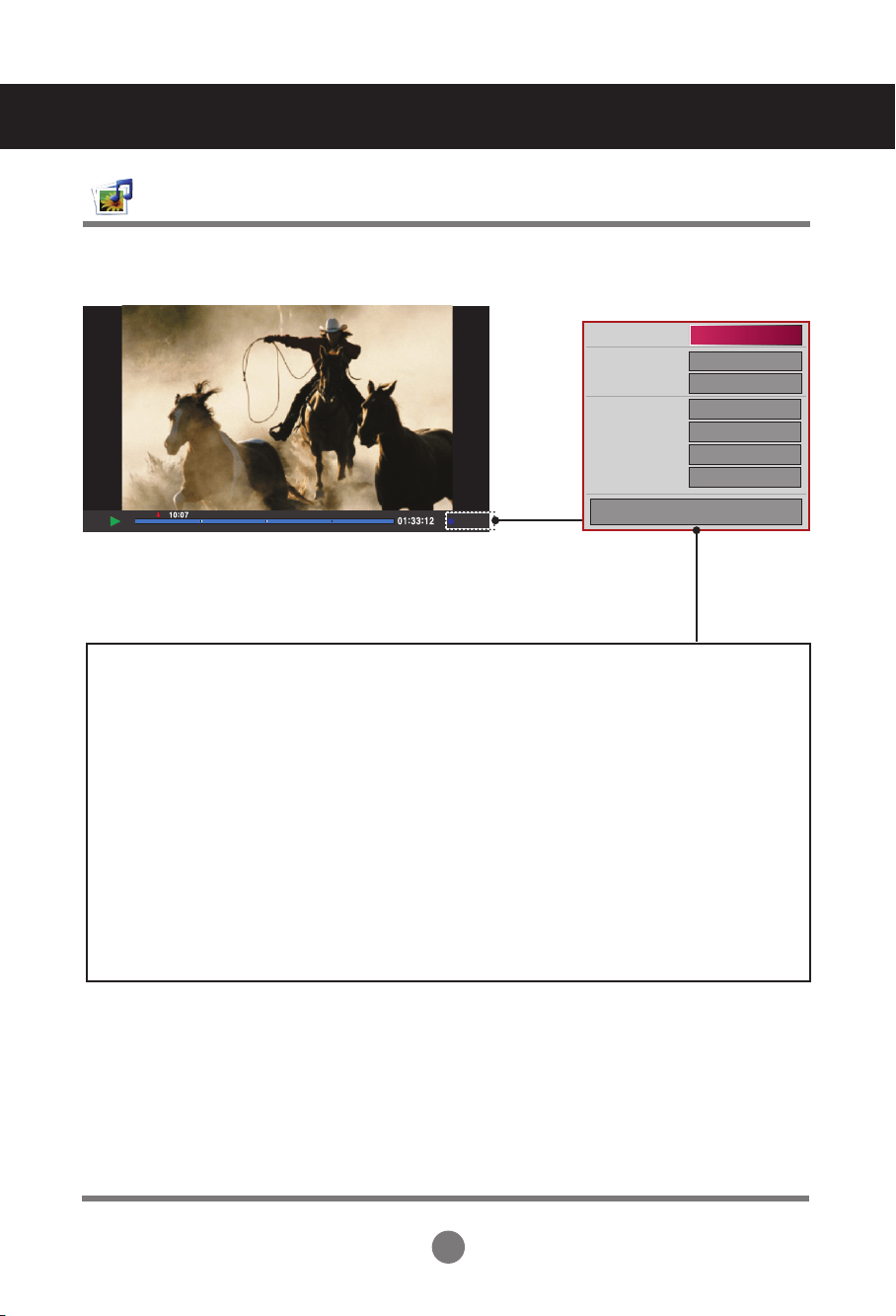

Adjusts the USB options. ...................................................................................................39
Troubleshooting 53
Specifications 56
Controlling the Multiple Product A1
3
Licenses
HDMI, the HDMI logo and High-Definition Multimedia Interface
are trademarks or registered trademarks of HDMI Licensing
LLC.
ABOUT DIVX VIDEO: DivX® is a digital video format created
by DivX, LLC, a subsidiary of Rovi Corporation. This is an
official DivX Certified® device that plays DivX video. Visit divx.
com for more information and software tools to convert your
files into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified®
device must be registered in order to play purchased DivX
Video-on-Demand (VOD) movies. To obtain your registration
code, locate the DivX VOD section in your device setup menu.
Go to vod.divx.com for more information on how to complete
your registration.
DivX Certified® to play DivX® video, including premium
content.
DivX®, DivX Certified® and associated logos are trademarks
of Rovi Corporation or its subsidiaries and are used under
license.
Covered by one or more of the following U.S. patents:
7,295,673; 7,460,668; 7,515,710; 7,519,274
Supported licenses may differ by model. For more information of the licenses,
visit www.lg.com.
Manufactured under license from Dolby Laboratories.
“Dolby “and the double-D symbol are trademarks of Dolby
Laboratories.
4
Thank you for your purchase. Please check the product as well as the accessories
shown below.
❖ Note that the accessories may look different from those shown here.
Remote Control/
Batteries
CD-ROM/ CardsD-Sub Signal
Cable
Power Cable
Accessories
Accessories
5
Without prior notice, optional accessories are subject to change to improve the performance
of the product, and new accessories may be added.
❖ Optional accessories (purchased separately) may vary depending on the model.
❖ Note that optional accessories may look different from those shown here.
❖ You can obtain additional accessories from most electronics stores.
NC2100
NA2000
NA2100
CD-ROM/ Cards
Screws (2)
Separate purchase
Accessories
Speaker Kit
NC2100/ NA2000/ NA2100 Kit
Speaker(2)
Screws (4)/
Cable (2)
Cable holder/
Cable tie
They may not be
available in some
areas or for some
models.
Stand (2) Screws (4)
< 32VS10MS >
< 42VS10MS >
Stand (1)
Stand (1)
Screws (6)
Screws (4)
Cable management (1)
Cable management (1)
Stand Kit
Stand hole cover Kit
< 47VS10MS Only >
Screws (2)
< 47VS10MS >
Stand hole cover
6

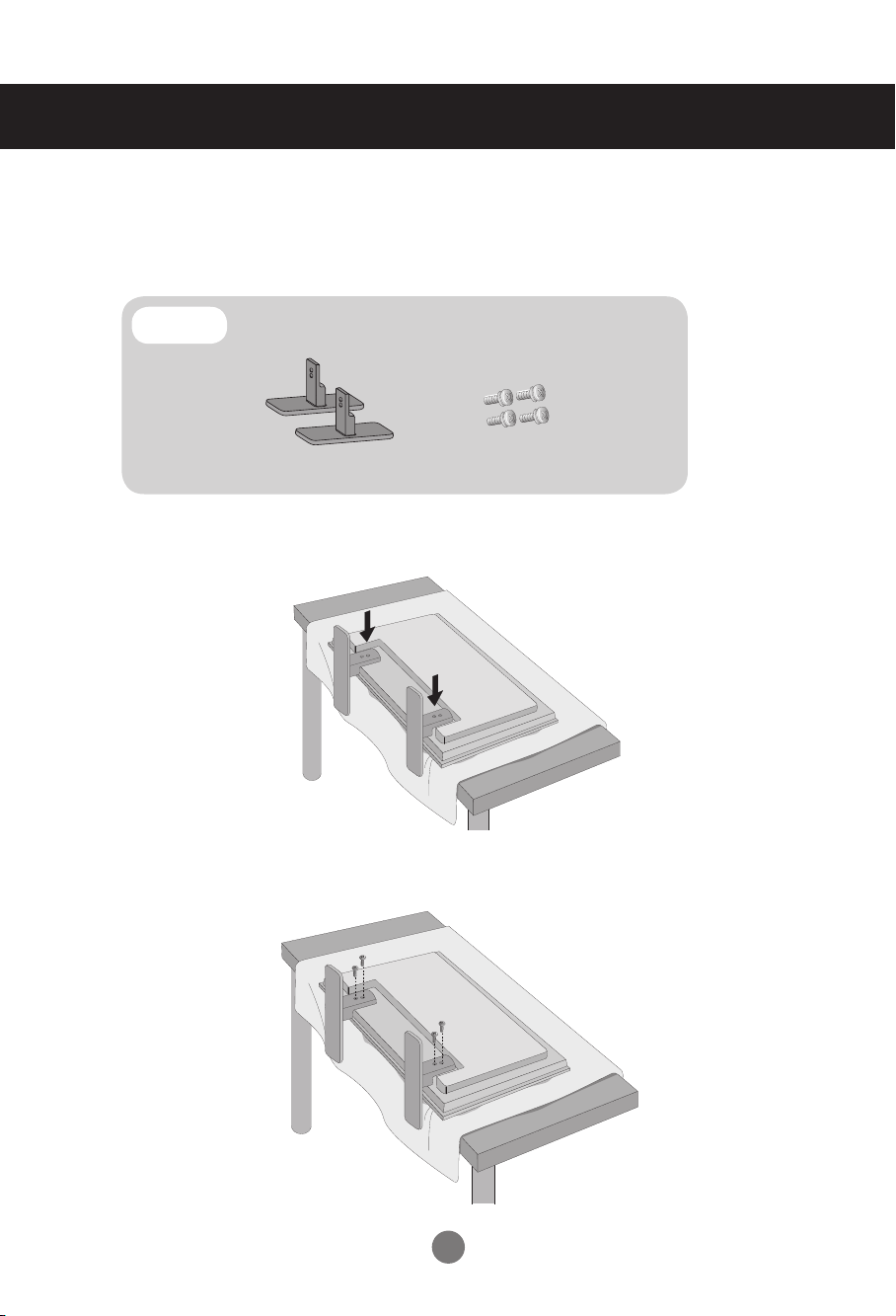

Connecting the stand
First, check if the following parts are all present.
Stand (2)
Screws (4)
Parts
Take the parts for the stand out of the box and assemble them as
shown in the picture.
Place a soft cloth on a table and place the set screen side down upon the
table. Connect the stand as shown below.
Use the screws to secure the stand on the rear side of the set as shown below.
2.
3.
1.
- Only on some models.
< 32VS10MS >
7
2.
3.
1.
Take the parts for the stand out of the box and assemble them as
shown in the picture.
Place a soft cloth on a table and place the set screen side down upon the table.
Connect the stand as shown below.
Use the screws to secure the stand on the rear side of the set as shown below.
First, check if the following parts are all present.
Parts
Stand (1) Screws (6)
Cable management (1)

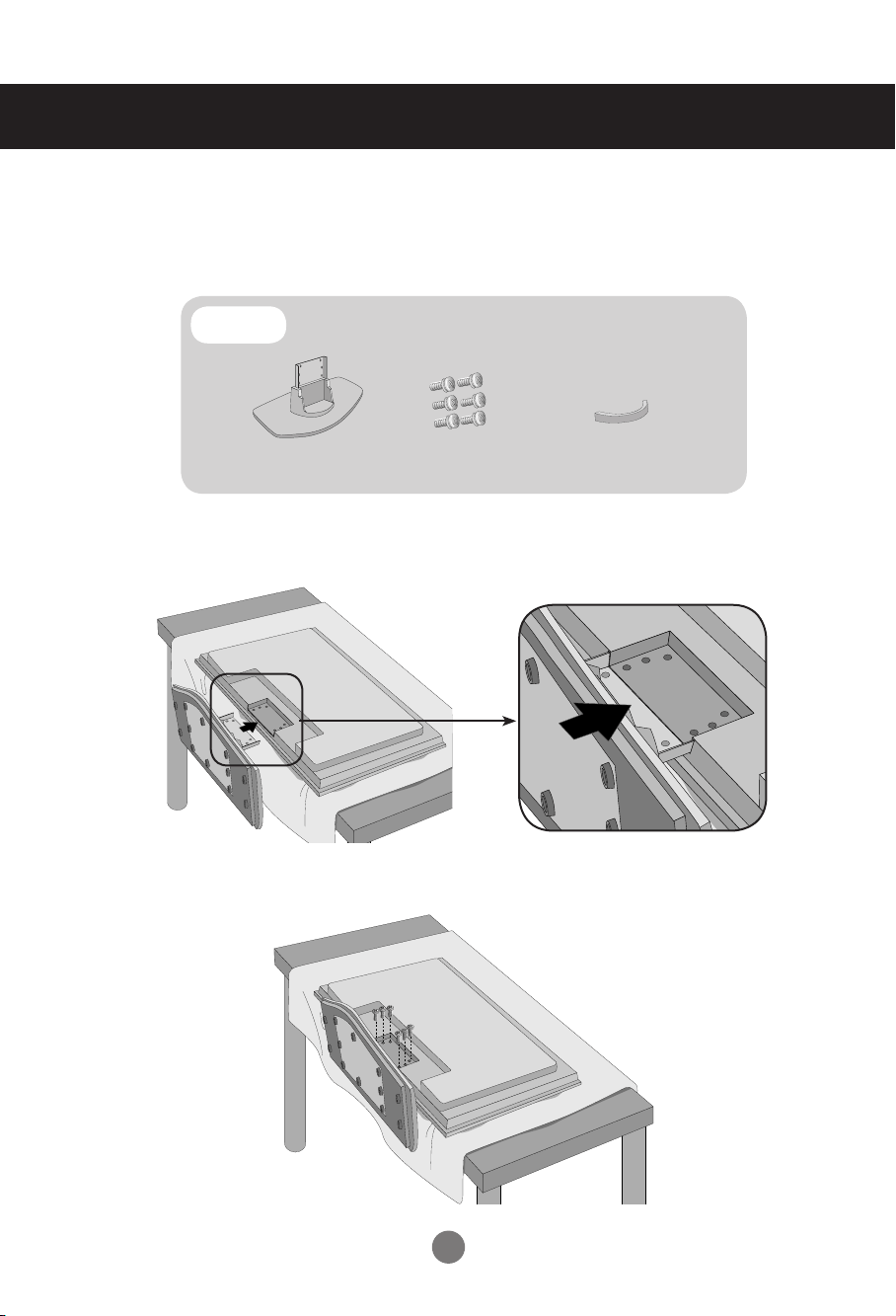

Connecting the stand
- Only on some models.
< 42VS10MS >
8
- Only on some models.
< 47VS10MS >
First, check if the following parts are all present.
Parts
Take the parts for the stand out of the box and assemble them as
shown in the picture.
Place a soft cloth on a table and place the set screen side down upon the table.
Connect the stand as shown below.
Use the screws to secure the stand on the rear side of the set as shown below.
2.
3.
1.
Stand(1) Screws (4)
Cable management (1)
Connecting the stand
9
Connecting the Speakers
Mount the product onto the speaker by using a screw as shown in the following
connect the speaker cable.
When the speaker is installed.
*Connect the input terminal with a proper
color match.
Remove the paper.
Cable holder
After installing your speakers, use holders and cable ties to organize the speaker
cables.
* This feature is not available in all model.
Cable tie
* This feature is not available in all model.
- Only on some models.
10
To install Portrait
"When installing Portrait, rotate it clockwise based on its front."
- Only on some models.
< Only 47VS10MS >
• When using the wall mounting bracket or the portrait scene mode, the opening can
be covered by the stand hole cover.
Note
11
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
. , !
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
1/a/A
- * #
WXYZ
CLEAR
OK
S.MENU
MONITOR
PSM
AUTO
MUTE
BRIGHT
NESS
MENU
ID
BACK
TILE
ON
OFF
EXIT
POWER
1
2
5
4
7
6
9
8
13
12
11
10
3
Using the Remote Control
Name of the Remote Control Buttons
1
2
5
3
4
7
6
9
8
13
12
11
10
Power On / Off Button
- Switches the set on from standby or off to
standby.
Monitor On / Off Button
- Turn off the monitor and then turn it back on.
Number and Alphabet Buttons
- Type numbers and alphabets.
1/a/A Button
- Se l e c t s th e nu m b e r an d al p h a b e t.
(SuperSign input only)
Volume Up/Down Button
- Adjusts the volume.
PSM Button
- Selects the Picture Status Mode.
MUTE Button
- Switches the sound on or off.
MENU Button
- Selects a menu.
- Clears all on-screen displays and returns to
Monitor viewing from any menu.
Up/Down/Left/Right Buttons
- Allows you to navigate the on-screen menus
and adjust the system settings to your
preferenc.
OK Button
- Accepts your selection or displays the
current mode.
BACK button
- Allows the user to move
return one step in an interactive application.
ID ON/OFF Button
- When the number of input ID is equal to the
number of ID Mode, you can control the
monitor which you want in the multi display
condition.
USB Menu control buttons
- Adjust the USB menu(Photo List, Music List
and Movie List ).
12
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
. , !
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
1/a/A
- * #
WXYZ
CLEAR
OK
S.MENU
MONITOR
PSM
AUTO
MUTE
BRIGHT
NESS
MENU
ID
BACK
TILE
ON
OFF
EXIT
POWER
14
15
18
16
19
17
20
21
22
Energy Saving Button
- Adjust the Energy Saving mode of the SET.
INPUT Select Button
If you press the button once, the following
Input Signal Window will appear. Select the
signal type you want using the < > button.
Clear button
- Delete the numbers and alphabets you
typed.(SuperSign input only)
ARC Button
- Selects the Aspect Ratio Mode
Brightness Key
- Adjust the resolution and brightness by
pressing the Up and Down buttons on the
remote control.
- In USB mode, the OSD menu has the Page
function to move to the next file list.
AUTO Button
- Automatically adjusts picture position and
minimizes image instability.(RGB input only)
S.MENU Button (SuperSign Menu Key)
- Selects the SuperSign OSD Menu.
(SuperSign input only)
EXIT Button
- Clears all on-screen displays and returns to monitor
viewing from any menu.
TILE button
- Selects the TILE Mode
Using the Remote Control
1. Slide off the battery cover.
2. Insert the batteries with correct polarity ( + / - ).
3. Close the battery cover.
4. To remove the batteries, perform the installation actions
in reverse.
• Dispose of used batteries in the recycle bin to prevent
environmental pollution.
Inserting batteries into remote control.
14
15
16
18
19
17
20
21
22
AAA Type
Input List
AV Component RGB HDMI/DVI SuperSign
13

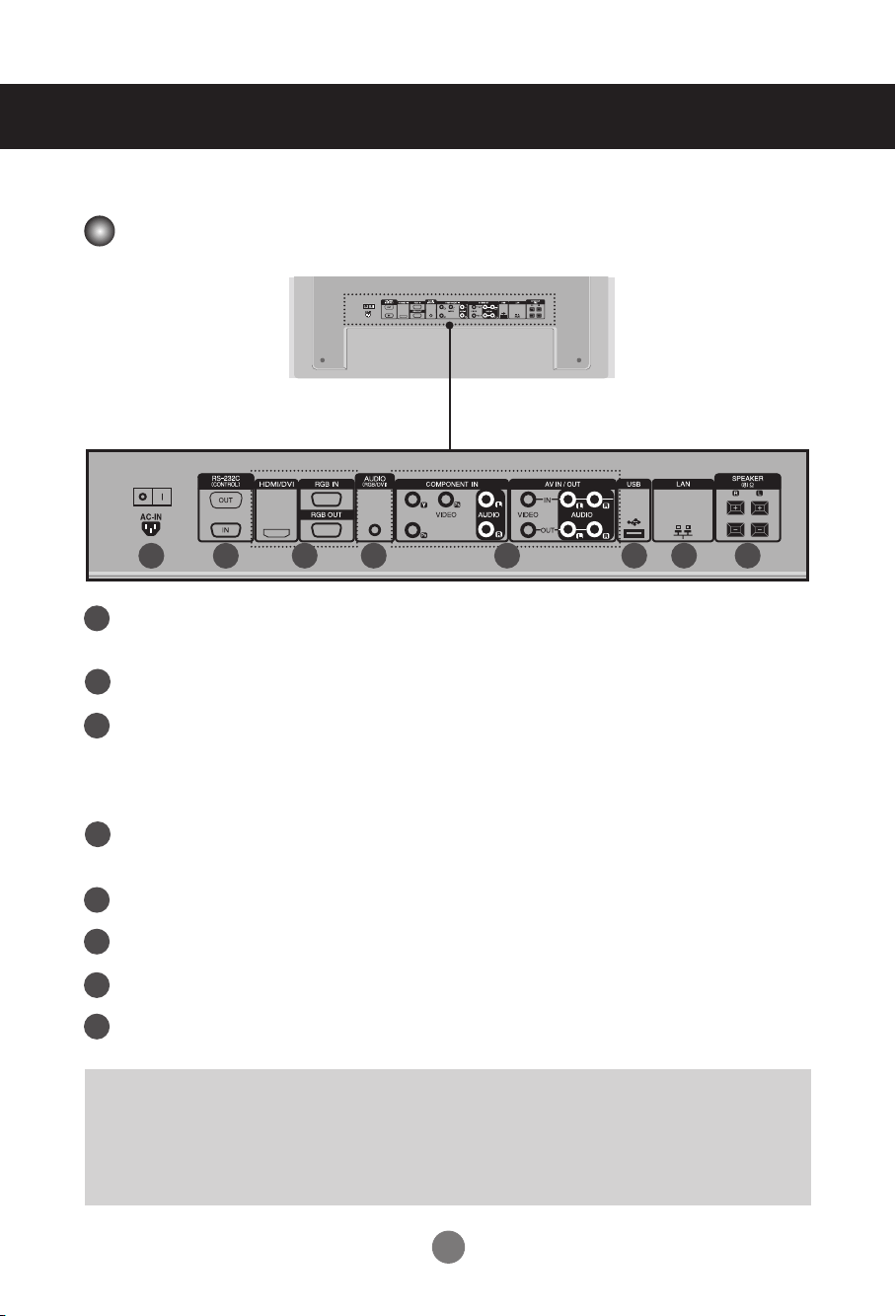

Name and Function of the Parts
Rear View
* LINE OUT
A terminal used to connect to the speaker including a built-in amplifier (Amp). Make sure that
the connecting terminal of the PC sound card is checked before connecting. If the Audio Out of PC
sound card has only Speaker Out, reduce the PC volume. If the Audio Out of the PC sound card
supports both Speaker Out and Line Out, convert to Line Out using the card jumper of the program
(Refer to the Sound Card Manual).
* The product image in the user's guide could be different from the actual image.
Power Connector
Connect the power cord
RS-232C Serial Ports
RGB, HDMI/DVI Ports
HDMI Supports High Definition input and HDCP (High-bandwidth Digital
Content Protection). Some devices require HDCP in order to display HD
signals.
PC Sound Jack
Connect the audio cable to the *LINE OUT jack of the PC sound card.
Component, AV Ports
USB Port
LAN Port
Speaker Ports
1
2
4
3
6
5
8
7
1 2
43 65 87
14

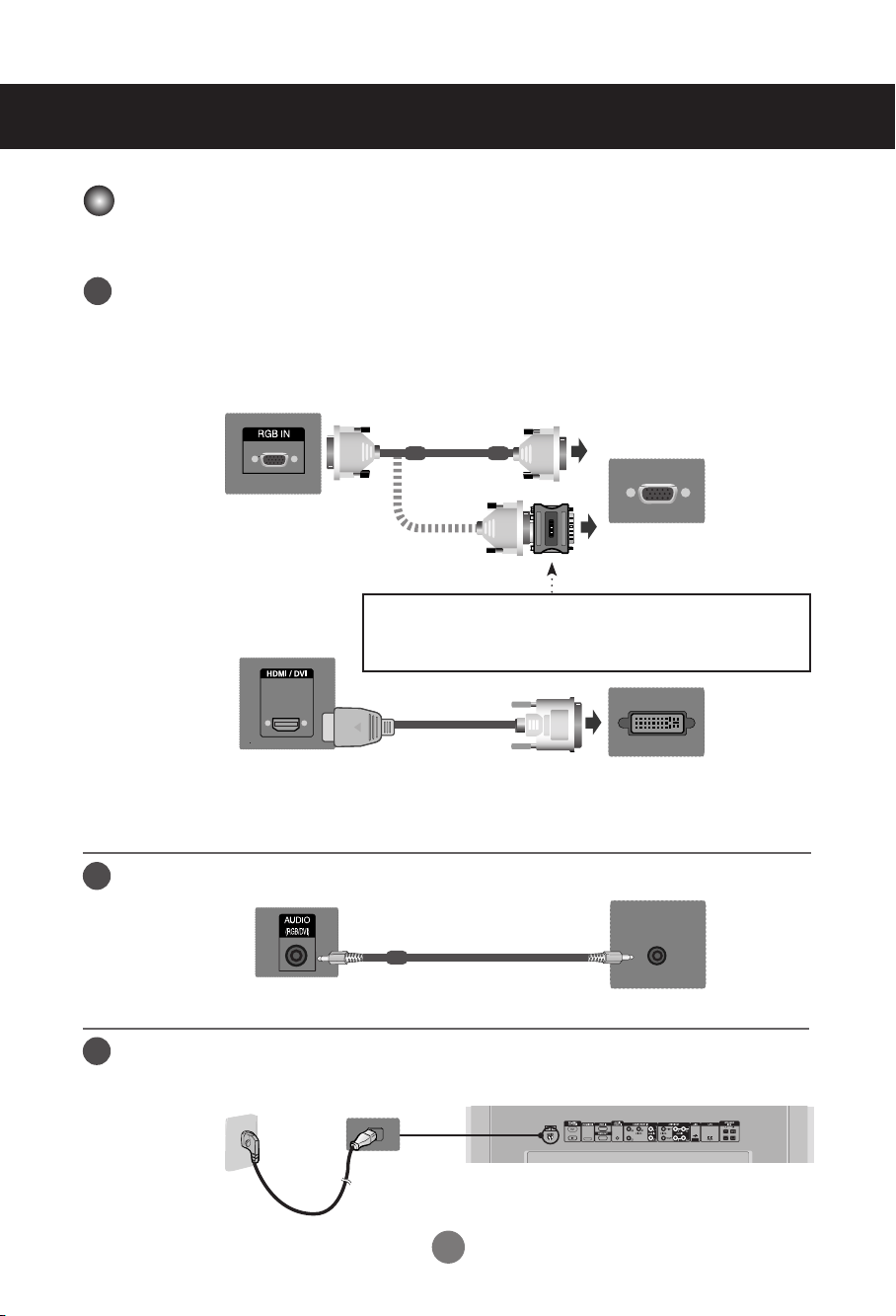

First of all, see if the computer, product and the peripherals are turned off. Then, connect
the signal input cable.
When connecting with the D-Sub signal input cable.
When connecting with the HDMI-DVI signal input cable (not included).
* When HDMI PC is used, a compatiblity problem might occur.
MAC
Macintosh Adapter (not included)
Use the standard Macintosh adapter since an incompatible
adapter is available in the market. (Different signaling system)
Rear back of the set.
Connecting to External Devices
Connect the power cord.
PC
PC/MAC
PC
Rear back of the set.
Rear back of the set.
PC
Rear back of the set.
Connect the Audio cable.
(not included)
(not included)
* User must use shielded signal interface cables (D-sub 15 pin cable, HDMI-DVI cable) with
ferrite cores to maintain standard compliance for the product.
When Connecting to your PC
1
2
3
B.
B.
A.
A.
15
Select an input signal.
Press the INPUT button on the remote control to select the input signal.
Or, press INPUT on the bottom of the set.
• How to connect to two computers.
Connect the signal cables (HDMI-DVI and D-Sub) to each computer.
Press the INPUT button on the remote control to select the computer to use.
• Directly connect to a grounded power outlet on the wall or a power bar with a ground wire.
Note
Turn on power by pressing the power button on the product.
Turn on the PC.
When connecting with a D-Sub signal input cable.
• Select RGB : 15-pin D-Sub analog signal.
When connecting with a HDMI-DVI signal input cable and HDMI Signal Cable.
• Select HDMI/DVI : DVI Digital signal or HDMI Digital signal.
Connecting to External Devices
INPUT → → OK
2.
1.
B.
A.
4
5
INPUT →◄ ► → AUTO/SET
Input List
AV Component RGB HDMI/DVI SuperSign
Input List
AV Component RGB HDMI/DVI SuperSign
On/Off button
< 32VS10MS > < 42VS10MS, 47VS10MS >
On/Off button
16
• Using LAN establishes communication between your PC and the monitor and
enables to use the OSD menus on the PC as well as on the monitor.
Connecting to External Devices
Connect the LAN cable as shown in the below figure .
Connect the LAN cable and install the eZ-Net Manager program on the CD-ROM.
For more information about the program, please refer to eZ-Net Guide in the enclosed
CD-ROM.
Connect PC to Monitor directly.
Using a router(Switch)
PC
Product
Network
Network
Product
LAN
PC
LAN
Switch
Using the Internet.
PC
Product
Network
LAN
When using the LAN
1
2
B.A.
C.
Note
17
Connecting to External Devices
Daisy Chain Monitors
When using RGB input
When using AV input
To use different products connected to each other Connect one end of the signal input
cable (15-pin D-Sub Signal Cable) to the RGB OUT connector of product 1 and connect
the other end to the RGB IN connector of other products.
Product 1
Product 2
Product 3
Product 4
15-pin D-Sub Signal Cable
PC
Video
PC
BNC Cable
(not included)
Audio Cable
(not included)
Product 1 Product 2 Product 3
• The number of monitors that can be connected to one output may vary depending on
signal status and cable loss. If the signal status is good, and there is no cable loss, it
is possible to connect up to 9 monitors. If you want to connect more than this number
of monitors, it is recommended to use a distributor.
B.
A.
Note
18
Kensington Security Slot
The Set is equipped with a kensington
Security System connector on the back
panel. The cable and lock are available
separate and are not sold by LG. For
more info, visit http://www.kensington.
com, the internet home page of the
Kensington company.
This product supports a VESA FDMI compliant mounting interface. These mounts
are purchased separately and not available from LG. Refer to the instructions
included with wall mount for more info.
Connecting to External Devices
VESA FDMI wall Mounting
• There is a switch on the lower side of the back. You can set the switch to "On"
before connecting a power cord to make it more convenient for use.
Note
< 32VS10MS >
< 42VS10MS, 47VS10MS >
19
Connecting to External Devices
Cable Management
- Only on some models.
Cable
Management
Hold the Cable management with both hands
and pull it downward.
Removing the cable guide.
•
Do not use the cable management as a handle for the Monitor.
Arrange the cables in the center as shown in the following picture.
Fit the cable guide to the back to help manage the cables.
2.
1.
Note
< Only 42VS10MS, 47VS10MS >
20
Connecting to External Devices
When connecting with an BNC cable.
• Select AV.
Connect the video cable as shown in the below figure and then connect the
power cord. (See page 14).
When connecting with a BNC cable.
• Connect the input terminal with a proper color match.
BNC Cable
(not included)
Product
VCR/DVD Receiver
Select an input signal.
Press the INPUT button on the remote control to select the input signal.
Or, press INPUT on the bottom of the set.
Audio Cable
(not included)
Video Input
INPUT → → OK
1
2
INPUT →◄ ► → AUTO/SET
Input List
AV Component RGB HDMI/DVI SuperSign
21
• Select Component.
Connect the video/audio cable as shown in the below figure and then, connect the power
cord (See page 14).
• Connect the input terminal with a proper color match.
BNC Cable
(not included)
Product
HDTV Receiver
Select an input signal.
Press the INPUT button on the remote control to select the input signal.
Or, press INPUT on the bottom of the set.
Audio Cable
(not included)
Connecting to External Devices
Note
- Some devices may require HDCP in order to display HD signals.
- Component doesn't support HDCP.
Component Input (480i/480p/576i/576p/720p/1080i/1080p)
INPUT → → OK
1
2
INPUT →◄ ► → AUTO/SET
Input List
AV Component RGB HDMI/DVI SuperSign
• 1080p is Only on 42VS10MS, 47VS10MS models.
22
Connect the video/audio cable as shown in the below figure and then connect the power
cord (See page 14).
RCA-PC
Audio Cable
(not included)
Product
VCR/DVD/Set-top Box
HDMI-DVI
Signal Cable
(not included)
VCR/DVD/Set-top Box
Product
Select an input signal.
Press the INPUT button on the remote control to select the input signal.
Or, press INPUT on the bottom of the set.
HDMI Signal Cable
(not included)
Connecting to External Devices
When connecting with a HDMI-DVI signal input cable.
When connecting with a HDMI signal input cable.
• Select HDMI/DVI
HDMI Supports High Definition input and HDCP (High-bandwidth Digital Content
Protection). Some devices require HDCP in order to display HD signals.
Note : Dolby Digital is not supported.
HDMI Input (480p/576p/720p/1080i/1080p)
INPUT → → OK
1
2
INPUT →◄ ► → AUTO/SET
Input List
AV Component RGB HDMI/DVI SuperSign
23
User Menus
Screen Adjustment options
Press this button to turn on the power. Press this button
again to turn it off.
This Indicator lights up green when the display operates
normally(on mode). If the display is in sleep (Energy Saving)
mode, this indicator color changes to amber.
On/Off Button
◄ ► Adjust the volume.
▲ ▼ Adjust the up and down.
Use this button to show/hide the OSD (On Screen Display)
menu screen.
MENU Button
Use
this
button to select an icon or adjust the setting in the OSD
screen.
OSD Select /
Adjust Button
Power Indicator
Volume
35
1
2
3
4
6 3 4 5 1
2
7
7
2
< 32VS10MS > < 42VS10MS, 47VS10MS >
24
User Menus
This is where the unit receives signals from the remote control.
Screen Adjustment options
AUTO/SET Button
AV Composite Video
Component HDTV, DVD
RGB 15-pin D-Sub analog signal
HDMI/DVI Digital signal
SuperSign SuperSign
- Toggles between inputs
INPUT Button
IR Receiver
5
7
6
INPUT →◄ ► → AUTO/SET
Input List
AV Component RGB HDMI/DVI SuperSign
[For PC Analog signal]
[For PC Analog signal]
Auto in progress
Auto in progress
[When XGA Mode is active and
1360 x 768 is selected]
[When XGA Mode is active and
1920 x 1080 is selected]
Auto in progress
For optimal display change
resolution to 1360 x 768
Auto in progress
For optimal display change
resolution to 1920 x 1080
< 32VS10MS >
< 42VS10MS, 47VS10MS >
25
OSD Menu
OSD(On Screen Disp lay)
• The OSD function enables you to adjust the screen status conveniently since it
provides graphical presentation.
User Menus
Icon Function Description
Adjusts the audio options.
Adjusts screen brightness, contrast and color that you prefer.
Adjusts the screen status according to the circumstances.
Adjusts the timer options.
Adjusts the tile options.
Adjusts the USB options.
Audio
Option
Time
Tile
USB
Note
26
User Menus

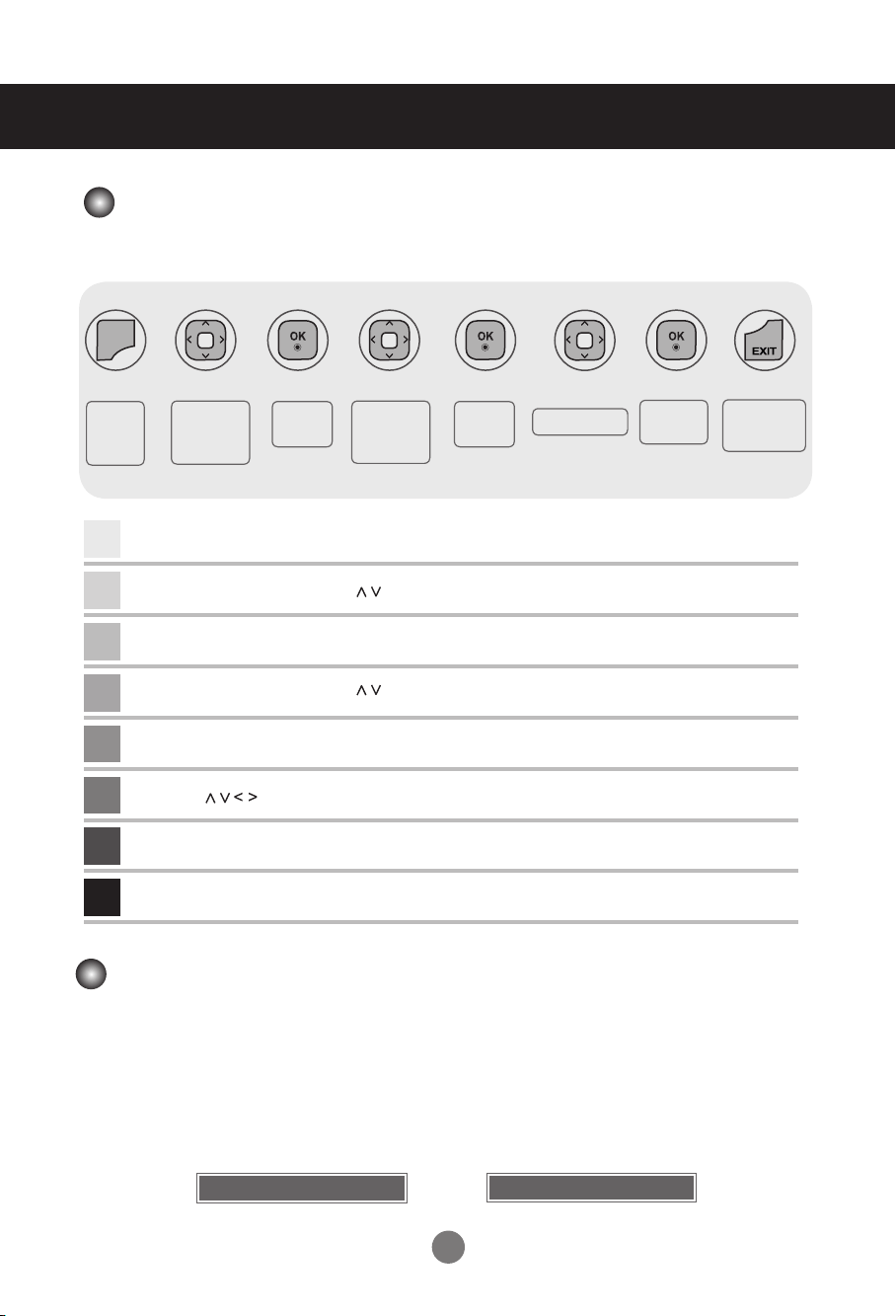

How to adjust the OSD (On Screen Display) screen
•
Use the remote control to adjust the OSD screen.
How to adjust the screen automatically
Press the AUTO/SET button (AUTO button on a remote Control) in the PC analog signal. Then
optimal screen settings will be selected that fit into the current mode. If adjustment is not
satisfactory, you can adjust the screen manually.
Pops up
the menu
screen
Move where
you want to
adjust
Move where
you want to
adjust
Select a
menu list
Select a
menu icon
Adjust the status
Save
adjustment
Exit from the
menu screen.
MENU
➩ ➩ ➩ ➩
➩ ➩ ➩
Press the MENU Button, then the main menu of the OSD appears.
To access a control, use the Buttons.
To access a control, use the Buttons.
When the icon you want becomes highlighted, press the OK Button.
When the list you want becomes highlighted, press the OK Button.
Use the Buttons to adjust the item to the desired level.
Accept the changes by pressing the OK Button.
Exit the OSD by pressing the EXIT Button.
1
2
3
4
5
6
7
8
Auto in progress
Auto in progress
[When XGA mode is active and
1360 x 768 is selected.]
[When XGA mode is active and
1920 x 1080 is selected.]
< 32VS10MS >
< 42VS10MS, 47VS10MS >
27
User Menus
Adjusting Screen Color
Aspect Ratio
To select the image size of the screen.
16:9:
Widescreen mode.
Just Scan:
Displays the full signal data without cropping any of the image.
(*This menu is activated only in 720p,1080p,1080i (HDMI/DVI-DTV, Component mode)
Original:
The aspect ratio is not adjusted from the original signal and is set by the program being
watched.
4:3:
Selects a 4:3 aspect ratio image.
1:1: The aspect ratio is not adjusted from the original. Used in PC mode (only HDMI/ DVI PC, RGB PC).
14:9:
14:9 programs are viewed normally in 14:9 with black bars added to the top and bottom.
4:3 programs are magnified on the top/bottom and left/right sides.
Zoom:
4:3 programs are magnified until they fill the 16:9 screen. The top and bottom will be cut off.
Cinena Zoom 1:
Choose Cinema Zoom when you wish the picture to be altered, both horizontally
extended and vertically cropped. This is a good compromise between signal
alteration and screen coverage.
Full Wide:
When the set receives a wide screen signal, it causes you to adjust the picture
horizontally or vertically, in linear proportion, to fill the entire screen.
H - 80
ENG
KOR
AV
ᬱᅙ⪵໕እ
ᯱ࠺⪵໕እ
ᵭ
օษᵭ
ᱥℕ⪵໕
HDMI / DVI
RGB
SuperSign
Component
JAP
GER
FRA
ITA
SPA
POR
RUS
AV
HDMI / DVI
RGB
SuperSign
Component
ARC
MODE
16 : 9
Just Scan
Original
4 : 3
1 : 1
14 : 9
Zoom
Cinema Zoom 1
Full Wide
AV
HDMI / DVI
RGB
SuperSign
Component
ARC
モード
⹖⺁⹗⹗⹋⺁⺑
⹈⺈⹖⺉
⹘ー
⹕⹘ー
⺍⹂
AV
HDMI / DVI
RGB
SuperSign
Komponente
ARC
Modus
16 : 9
Just Scan
Original
4 : 3
1 : 1
14 : 9
Zoom
Kino-Zoom1
Volle Breite
AV
HDMI / DVI
RGB
SuperSign
Composantes
ARC
MODE
16 : 9
Signal original
Format original
4 : 3
1 : 1
14 : 9
Zoom
Zoom cinéma1
Écran large
AV
HDMI / DVI
RGB
SuperSign
Component
ARC
MODO
16 : 9
Solo ricerca
Originale
4 : 3
1 : 1
14 : 9
Zoom
Zoom Cinema 1
Larghezza intera
AV
HDMI / DVI
RGB
SuperSign
Component
ARC
MODO
16 : 9
Escaneo
Original
4 : 3
1 : 1
14 : 9
Zoom
Zoom cine1
Ancho completo
AV
HDMI / DVI
RGB
SuperSign
Componente
ARC
MODO
16 : 9
Definir por programa
Original
4 : 3
1 : 1
14 : 9
Zoom
Cinema Zoom 1
Tela Cheia
AV
HDMI / DVI
RGB
SuperSign
Компонент
ARC
Режим
16 : 9
Исходный
Обычный
4 : 3
1 : 1
14 : 9
Увеличение
Масштаб фильма1
Во весь экран
Move
OK
Aspect Ratio : 16:9
Energy Saving : Off
Picture Mode : Standard
• Backlight 70
• Contrast 90
• Brightness 50
• Sharpness 70
• Color 60
▼
Aspect Ratio : 16:9
16:9
Just scan
Original
4:3
14:9
Zoom
Cinena Zoom 1
Full Wide
16:9
28
User Menus
Adjusting Screen Color
• If the 'Picture Mode' is set to 'Cinema', the 'Energy saving' mode is disabled.
Note
Energy Saving
The screen brightness adjusting menu helps you save energy.
Level: 4 screen brightness levels are available.
- Off: 100% light
- Level 1: 80% light
- Level 2: 60% light
- Level 3: 40% light
Move
OK
Aspect Ratio : 16:9
ꕫ Energy Saving : Off
Picture Mode : Standard
• Backlight 70
• Contrast 90
• Brightness 50
• Sharpness 70
• Color 60
▼
Energy Saving : Off
Off
Level 1
Level 2
Level 3
Off
29
Adjusting Screen Color
User Menus
• If the 'Picture Mode' setting in the Picture menu is set to Vivid, Standard, Cinema,
Sport or Game the subsequent menus will be automatically set.
Note
Picture Mode
The picture mode menu toggles between screen presets.
Standard: This is the optimum viewing condition for general users.
Vivid: Displays a sharp image.
Cinema: This mode optimizes video for watching movies.
Sport: This mode emphasizes dynamic video and primary colors (e.g. white, uniforms,
grass, sky blue, etc.) by realizing the optimal image settings for sports.
Game: This is the mode for fast response speeds for video games.
Expert1,2 : Select this option to use the user-defined settings.
Move
OK
Aspect Ratio : 16:9
Energy Saving : Off
Picture Mode : Standard
• Backlight 70
• Contrast 90
• Brightness 50
• Sharpness 70
• Color 60
▼
Picture Mode : Standard
Vivid
Standard
Cinema
Sport
Game
Expert 1
Expert 2
Standard
30
User Menus
Adjusting Screen Color
Backlight: Adjusts the brightness of LCD panel.
Contrast: Adjusts the difference between light and dark levels.
Brightness: Adjusts the brightness of the screen.
Sharpness: Adjusts the clearness of the screen.
(This function can be used only under AV, Component and HDMI/DVI(DTV).)
Color: Adjusts the color.
(This function can be used only under AV, Component and HDMI/DVI(DTV).)
Tint: Adjusts the tint.
(This function can be used only under AV, Component and HDMI/DVI(DTV).)
Picture Mode
Move
OK
Aspect Ratio : 16:9
Energy Saving : Off
Picture Mode : Standard (User)
• Backlight 70
• Contrast 90
• Brightness 50
• Sharpness 70
• Color 60
▼
• Backlight 70
31
User Menus
Adjusting Screen Color
Advanced Control
Color Temperature: Color Settings
Cool: Slightly purple temperature.
Medium: Slightly blue temperature.
Warm: Slightly red temperature.
Dynamic Contrast: Optimizes the contrast automatically according to the brightness of the
reflection. (This function can be used only under AV, Component and HDMI/
DVI(DTV).)
Dynamic Color: Adjusts the color of the reflection automatically to reproduce natural colors as
closely as possible. (This function can be used only under AV, Component and
HDMI/DVI(DTV).)
Noise Reduction: Removes noise up to the point where it does not damage the original picture.
(This function can be used only under AV, Component and HDMI/DVI(DTV).)
Gamma: Sets your own gamma value.
On the set, high gamma values display whitish images and low gamma
values display high contrast images.
Black Level: Adjusts the contrast and the brightness using the black level of the screen (function
works in the following modes: AV, Component, HDMI-DTV).
Low: The reflection of the screen gets darker.
High: The reflection of the screen gets brighter.
Film Mode: When you watch a movie, this function adjusts the set to the best picture appearance
(function works in the following modes: AV, Component 480i/576i/1080i, HDMI/DTV
480i/576i/1080i).
White Balance: Adjusts the overall color of the screen to your preferences (function works in the
following modes - Expert 1, Expert 2 Picture mode).
Color Management System: This is an expert tool used to make adjustments by using test
patterns. This does not affect other colors but can be used to
selectively adjust the 6 color areas (red/green/blue/cyan/magenta/
yellow). Color differences may not be distinct even when you
make general adjustments for video (function works in the
following modes: Expert 1, Expert 2 Picture mode).
Move
OK
• Contrast 90
• Brightness 50
• Sharpness 70
• Color 60
• Tint 0
• Advanced Control
• Picture Reset
Screen
• Advanced Control
High
Medium
High
Medium
High
Off
Color Temperature
Dynamic Contrast
Dynamic Color
Noise Reduction
Gamma
Black Level
Film Mode
Close
◄ Medium ►
32
User Menus

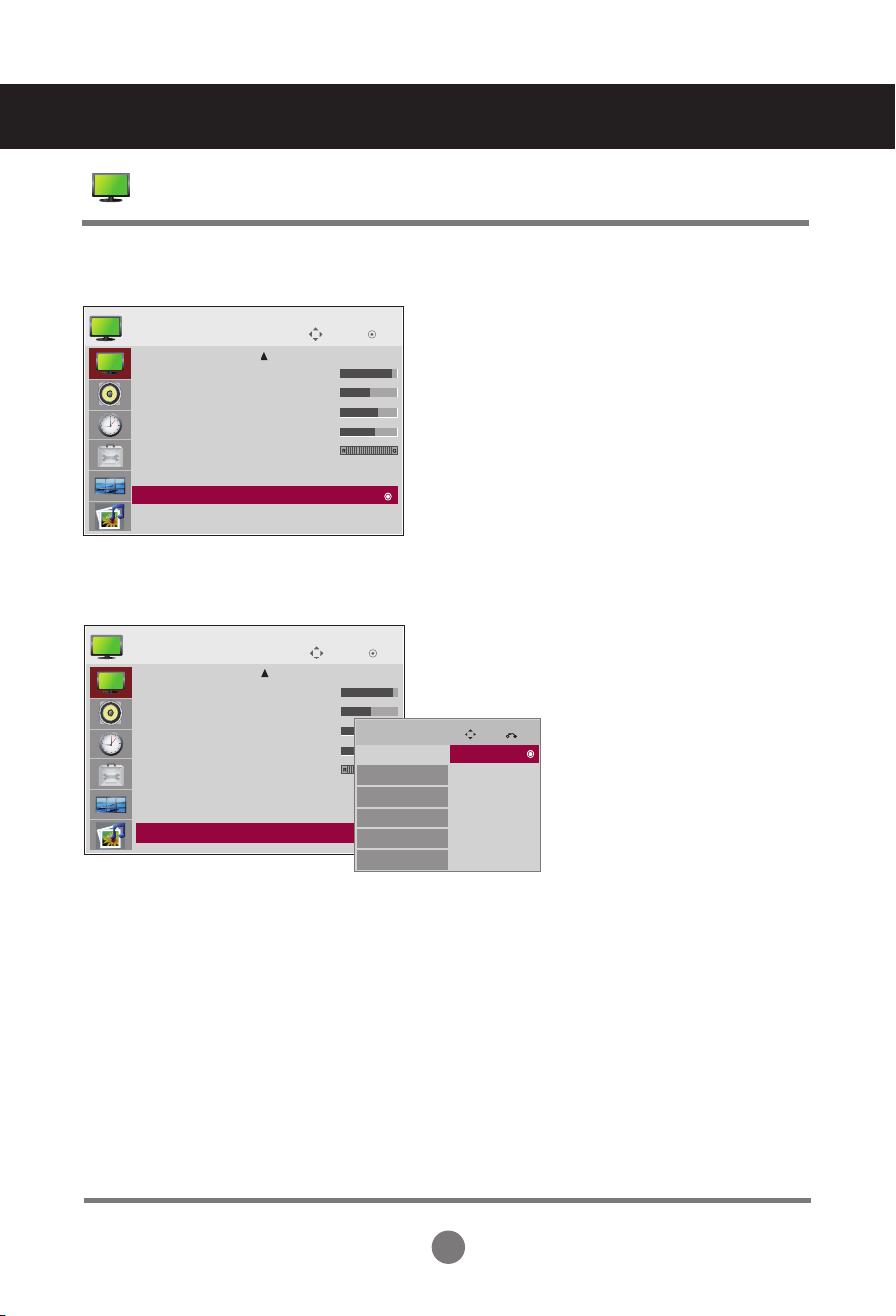

Adjusting Screen Color
Returns Picture Mode to the default factory
settings.
Picture Reset
Screen
Adjusts the screen video.
Resolution: Displays a normal picture and matches the resolution of RGB mode and PC mode.
This function works in the following mode: RGB[PC] mode.
Auto Config. (RGB input only): Automatically adjusts the screen
position, clock and phase. This function is available for analog signals only.
Position: Moves the screen position.
Size: Adjusts the size of the screen.
Phase: Adjusts the focus of the display. This item allows you to remove any horizontal noise
and clear or sharpen the image of characters. This function is available for analog
signals only.
Reset: Returns Manual config. to the default factory settings.
Move
OK
• Contrast 90
• Brightness 50
• Sharpness 70
• Color 60
• Tint 0
• Advanced Control
• Picture Reset
Screen
• Picture Reset
Move
OK
• Contrast 90
• Brightness 50
• Sharpness 70
• Color 60
• Tint 0
• Advanced Control
• Picture Reset
Screen
Screen
1360 x 768
1280 x 768
1360 x 768
1366 x 768
Resolution ►
Auto Config.
Position
Size
Phase
Reset
Prev.
Move
SCREEN
1024 x 768
33
Adjusting the audio function
User Menus
Auto Volume
Automatically adjusts uneven sound volumes across all channels or signals to the most
appropriate level. To use this feature, select On.
Clear Voice II
By differentiating the human sound range from others, Clear Voice II improves voice quality.
Balance
Balances the sound from the left and right speakers.
Sound Mode
Selects the best sound tone quality automatically depending on the current video being watched.
Standard: Offers standard-quality sound.
Music: Optimizes sound for listening to music.
Cinema: Optimizes sound for watching movies.
Sport: Optimizes sound for watching sports events.
Game: Optimizes sound for playing video games.
Speaker
Adjusts internal speaker status.
If you want to use your external hi-fi stereo system, turn off the internal speakers of the set.
Move
AUDIO
Auto Volume : Off
Clear Voice II : Off
• Level 3
Balance 0
Sound Mode : Standard
• Treble 50
• Bass 50
• Reset
▼
OK
Auto Volume : Off
Move
AUDIO
Clear Voice II : Off
• Level 3
Balance 0
Sound Mode : Standard
• Treble 50
• Bass 50
• Reset
Speaker : On
OK
34
Adjusting the timer function
User Menus
• Once the on or off time is set, these functions operate daily at the preset time.
• The scheduled power-off function works properly only when the device time is set
correctly. When the scheduled power-on and power-off times are the same, the pow-
er-off time has priority over the power-on time if the set is turned on, and vice versa if
the set is turned off.
• When On time is operated, input screen is turned on as it was turned off.
Move
TIME
OK
Clock
Off Time : Off
On Time : Off
Sleep Timer : Off
Auto Off : On
Power On Delay : Off
Clock : −− : −− −−−−
On/Off time
The off time automatically switches the set to standby at the pre-set time.
1) Press the MENU button and then use button to select the Time menu,input OK button to enter.
2) Press the button and then use button to select On/Off Timer.
3) Press the button and then use button to select date
4) Press the button and then use button to set the hour(00h to 23h).
5) Press the button and then use button to set the minutes(00 min to 59 min).
6) Press the button ,According to the personal needs, choose to add button.
Sleep timer
The power is automatically turned off when the time set by a user is passed.
1) Press the MENU button and then use button to select the Time menu,input OK button to enter
2) Press the button and then use button to select Sleep timer menu.
3) Press the button and then use button to select the minutes(Off to 240 min).
Auto off
If Auto off is active and there is no input signal, the set switches to off mode automatically after 15 minutes.
1) Press the MENU button and then use button to select the Timer menu, input OK button to enter.
2) Press the button and then use button to select the Auto off menu.
3) Press the button and then use button to select On or Off.
Power on delay
When connecting multiple monitors and turning the power on, the monitors are turned on individually to prevent
overload.
Clock
If the current time is incorrect, reset the clock manually.
1) Press the MENU button and then use button to
select the Time menu,input OK button to enter.
2) Press the button and then use button to select clock
menu.
3) Press the button and then use button to select date.
4) Press the button and then use button to set the
hour(00h to 23h).
5) Press the button and then use button to set the
minutes(00 min to 59 min).
Note
35
User Menus
Selecting the options
Language
Chooses the language in which the control names are displayed.
Input Label
Selects a label for each input source. For example, when connecting to PC in RGB mode,
* Select "PC" for the connecting device field. Otherwise, the screen may not display properly.
Key Lock
Use ∧∨ to select On or Off. The set can be set up so that it can only be used with the remote control.
This feature can prevent unauthorized viewing.
To lock OSD screen adjustment, set the Key Lock tab to the 'On' position.
To unlock it, do the following:
Push MENU on the remote control and set Key Lock to the 'Off' position.
Set ID
You can assign a unique Set ID NO (name assignment) to each set when several set are connected
for display. Specify the number (1 to 99) using < > and exit. Use the assigned Set ID to individually
control each set using the Set Control Program.
ISM Method
Leaving a fixed image on the screen for a long time may cause image burn-in. To use the set for a
long period of time, use a screen saver on the PC or utilize the residual image prevention function on
the set, and when the set is not used, turn the power off. Burn-in and related problems are not covered
by the warranty on this set.
Normal: Leave on normal if you don't foresee image burn in being a problem.
Orbiter: May help prevent ghost images. However, it is best not to allow any fixed image to remain
on the screen. To avoid a permanent image on the screen, the screen will move every 2
minutes.
Inversion: This function inverts the panel color of the screen. The panel color is automatically
inverted every 30 minutes.
White wash: White wash fills the screen with solid white. This helps removes permanent images burned
into the screen. A permanent image may be impossible to clear entirely with white wash.
Move
OPTION
OK
Language : English
Input Label
Key Lock : Off
Set ID : Off
ISM Method : Normal
DPM Select : On
Power Indicator : ON
Interface Select : RS232C
▼
Language : English
36
User Menus
Selecting the options
DPM Select
Turns power saving on/off.
Power Indicator
Sets the power indicator on the front side of the set to On or Off. If you set to Off, it will go Off. If you
set On at any time, the power indicator will automatically be turned on.
Ineterface Select
Sets up network connections.
- Network: LAN - Enables communication via Ethernet.
- RS-232C: Enables communication via Serial.
Network Setup
- DHCP: Allocates and sets up IP automatically.
- Manual: Sets up IP address, Gateway, Subnet Mask, Primary DNS and Secondary DNS.
The setup process is complete when you select Execute, and "IP Setup
Completed" is displayed at the bottom of the screen. While "Wait for IP Setup"
is displayed, you cannot use the local keys and remote control. "Wait for IP
Setup" is displayed for up to 40 seconds.
*If Network select is set to RS232C.DHCP and Manual are disabled.
Information
You can find information about your set serial number, F/W version, IP address and MAC
address here.
Factory Reset
Returns the set to the default factory settings.
Move
OPTION
OK
▲
ISM Method : Normal
DPM Select : On
Power Indicator : ON
Interface Select : RS232C
Network Setup
Information
Factory Reset
DPM Select : On
37
Tile mode and choose Tile alignment and set the ID of the current product to set location.
Only after pressing the SET button the adjustments made to the settings will be saved.
- Must be displayed with various other
products.
- Must be in a function that can be connected
to RS-232C or RGB Out.
-
It is used to enlarge the screen and also used
with several products to view screen.
Tile Mode
-
Tile mode : column x row ( c = 1, 2, 3, 4,5 r = 1, 2, 3, 4, 5 )
- 5 x 5 available.
- Configuration of an integration screen is also available as well as configuration of One by one Display.
-
Tile mode (product 1 ~ 4) : c(2) x r(2)
Adjusts the tile options.
User Menus
ID1
ID
ID
ID4
column
row
3
2
Move
TILE
OK
Tile Mode : Off
Tile ID : 0
Natural Mode : Off
H Size : 0
V Size : 0
H Position : 0
V Position : 0
Reset
Tile Mode : 2x2
38
-
Tile mode (product 1 ~ 2) : c(2) x r(1)
-
Tile mode (product 1 ~ 9) : c(3) x r(3)
-
Tile mode (product 1 ~16) : c(4) x r(4)
row
column
ID 1
ID 5
ID 9
ID 13
ID 2
ID 6
ID10
ID 14
ID 3
ID 7
ID 11
ID 15
ID 4
ID 8
ID 12
ID 16
User Menus
row
column
ID1
ID2
ID4
ID5
ID6
ID7
ID8
ID9
ID
3
ID1
column
row
ID2
Tile ID : Select the location of the Tile by setting an ID.
Natural : The image is omitted by the distance between the screens to be naturally shown.
H-Size : Adjust the horizontal size of the screen taking into account the size of the bezel.
V-Size : Adjust the vertical size of the screen taking into account the size of the bezel.
H-Position :
Moving the screen position horizontally.
V-Position :
Moving the screen position vertically.
Reset : Function to initialize and release Tile.
All Tile setting are released when selecting Tile recall and the screen returns to Full screen.
Adjusts the tile options.
39
User Menus

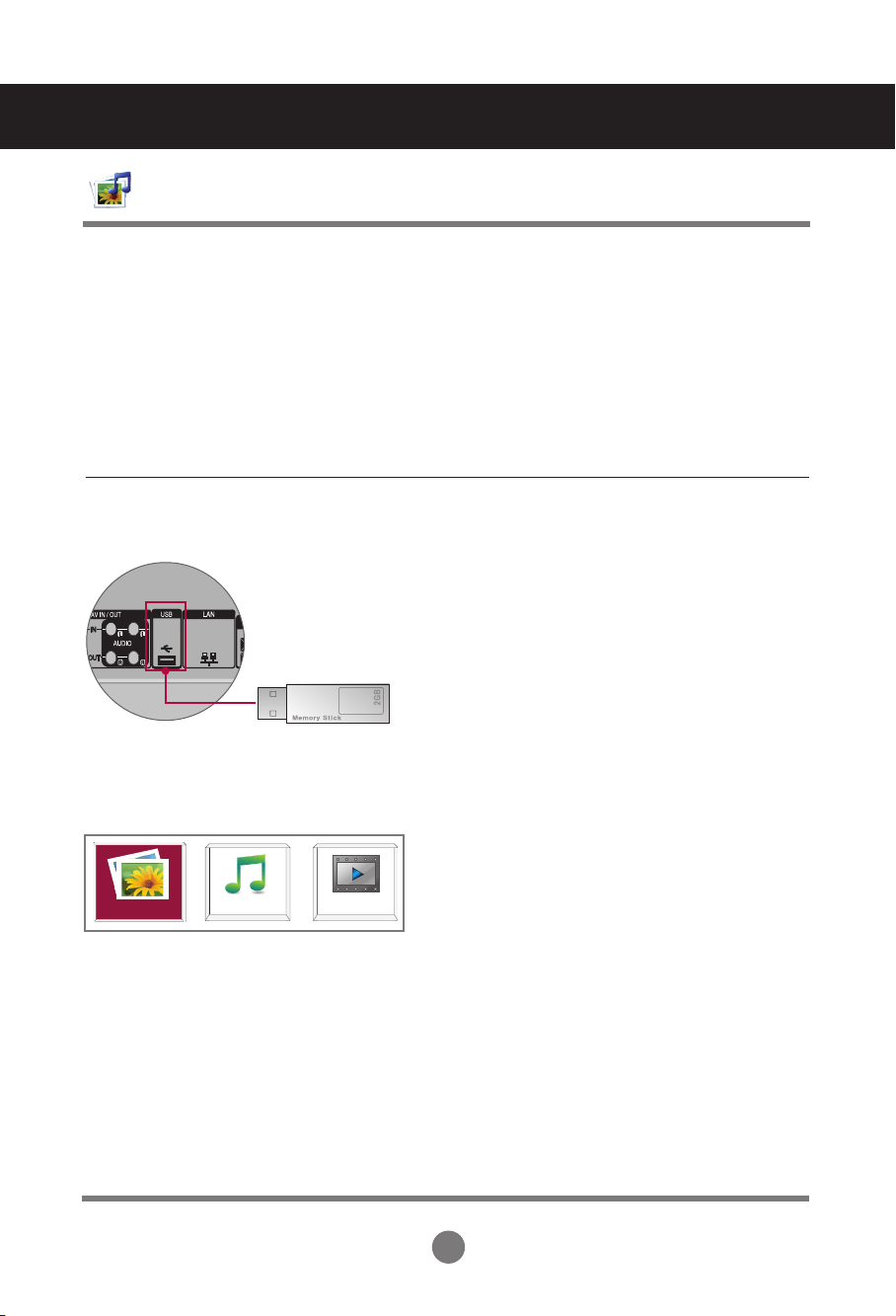

Adjusts the USB options.
When connecting the USB device
When you connect a USB device, this pop up menu is displayed, automatically.
“POP UP MENU” will not be displayed while the OSD including Menu, EPG or Schedule list
is activated.
When the Pop Up menu appears, you can select Music List, Photo List or Movie List in the
MY MEDIA menu.
In USB device, you can not add a new folder or delete the existing folder.
Select PHOTO LIST, MUSIC LIST or MOVIE LIST.
Connect the USB device to the USB jack on the
product
.
PHOTO LIST
MUSIC LIST
MOVIE LIST
2.
1.
USB 메메메 메메
40
User Menus
Adjusts the USB options.
Precautions when using the USB device
• Only a USB storage device is recognizable.
• If the USB storage device is connected through a USB hub, the device is not recognizable.
• A USB storage device using an automatic recognition programme may not be recognized.
• A USB storage device which uses its own driver may not be recognized.
• The recognition speed of a USB storage device may depend on each device.
• Please do not turn off the Monitor or unplug the USB device when the connected USB storage
device is working. When such device is suddenly separated or unplugged, the stored files or the
USB storage device may be damaged.
• Please do not connect the USB storage device which was artificially maneuvered on the PC. The
device may cause the product to malfunction or fail to be played. Never forget to use only a USB
storage device which has normal music files or image files.
• Please use only a USB storage device which was formatted as a FAT16, FAT32, NTFS file system
provided with the Windows operating system. In case of a storage device formatted as a different
utility programme which is not supported by Windows, it may not be recognized. Data in a USB
storage device cannot be deleted in the NTFS file system.
• Please connect power to a USB storage device which requires an external power supply. If not,
the device may not be recognized.
• Please connect a USB storage device with cable is offered by USB maker. If connected with cable
is not offered by USB maker or an excessively long cable, the device may not be recognized.
• Some USB storage devices may not be supported or operated smoothly.
• Maximum of 999 files and folders can be recognized.
• Data in a USB storage device cannot be aligned. Up to 128 English characters can be recognized
as a file name.
• Please back up the important file because a data of USB device may be damaged. Data manage-
ment is consumer's responsibility and in consequence the manufactures does not cover the prod-
uct bearing data damage.
• If the USB is connected in Standby Mode, specific hard disk will automatically be loaded when the
Monitor is turned on.
• The recommended capacity is 1TB or less for a USB external hard disk and 32GB or less for USB
memory.
• Any device with more than the recommended capacity may not work properly.
• If a USB external hard disk with a “Power Saving” function does not work, turn the hard disk off
and on again to make it work properly.
• Names and subtitles of some language files may not display properly.(Korean, Chinese, Japanese)
• When using Korean, Japanese or Chinese subtitles or file names, it is recommended to set the
language to the corresponding one.
41
User Menus
Adjusts the USB options.
You can view photo files on USB storage device.
The On Screen Display may be different from your product. Images are an example to assist with the
product operation.
PHOTO(*.JPEG) supporting file
Baseline: 15360 x 8640
Progressive : 1024 x 768
• You can play JPEG files only.
• Non-supported files are displayed in the form of bitmap.
Photo List
Photo List
Page 2/3
Drive1
JMJ001
1366x768, 125KB
Up Folder
Up Folder
KY101 02/12/2010
KY102 02/12/2010
JMJ001 02/12/2010
JMJ002 02/12/2010
JMJ003 02/12/2010
JMJ004 02/12/2010
KY103 02/12/2010
KY104 02/12/2010
KY105 02/12/2010
JMJ005 02/12/2010
JMJ006 02/12/2010
JMJ007 02/12/2010
JMJ008 02/12/2010
No Marked
Option
Mark
Navigation
Page Change
Exit
MARK EXIT
USB Device
Free Space 150 MB
Screen Components
1
5
2 3
4
Moves to upper level folder
Current page / Total pages
Total number of marked photos
Usable USB memory
Corresponding buttons on the remote control
1
2
4
3
5
42
Photo List
Page 2/3
Drive1
JMJ001
1366x768, 125KB
Up Folder
Up Folder
KY101 02/12/2010
KY102 02/12/2010
JMJ001 02/12/2010
JMJ002 02/12/2010
JMJ003 02/12/2010
JMJ004 02/12/2010
KY103 02/12/2010
KY104 02/12/2010
KY105 02/12/2010
JMJ005 02/12/2010
JMJ006 02/12/2010
JMJ007 02/12/2010
JMJ008 02/12/2010
No Marked
USB Device
Free Space 150 MB
1366x768, 125KB
View
Mark All
Delete
Close
User Menus
Adjusts the USB options.
Photo Selection and PopUp Menu
➩
Photo List
Page 2/3
Drive1
JMJ001
1366x768, 125KB
Up Folder
Up Folder
KY101 02/12/2010
KY102 02/12/2010
JMJ001 02/12/2010
JMJ002 02/12/2010
JMJ003 02/12/2010
JMJ004 02/12/2010
KY103 02/12/2010
KY104 02/12/2010
KY105 02/12/2010
JMJ005 02/12/2010
JMJ006 02/12/2010
JMJ007 02/12/2010
JMJ008 02/12/2010
No Marked
USB Device
Free Space 150 MB
Option
Mark
Navigation
Page Change
Exit
MARK
EXIT
Option
Mark
Navigation
Page Change
Exit
MARK
EXIT
View : Display the selected item.
Mark All : Mark all photos on the screen.
Unmark All : Deselect all marked photos.
Delete : Delete the selected photo item.
Close : Close the pop-up menu.
43
User Menus
Adjusts the USB options.
◄ 1/17 ►
Slideshow ◘ BGM ◘ Delete Option Hide
꘤
► Slideshow
When no picture is selected, all photos in the current folder are displayed during slide show. If some
photos are selected, those photos are displayed in a slide show.
• Set the time interval of the slide show in Option.
► BGM (Background Music)
Listen to music while viewing photos in full size.
• Set the Music Folder for BGM in Options before using this function.
►
꘤
(Rotate)
• Rotate photos. Rotates the photo 90°, 180°, 270°, 360° clockwise.
► Delete
Delete photos.
► Option
Set values for Sl ide Speed and Music Folder for BGM.
• Use < > button and OK button to set values. Press OK to save the settings.
• You cannot change Music Folder while BGM is playing.
► Hide
Hide the menu on the full-sized screen. To see the menu again on the full-sized screen, press OK
button to display. If you press the ARC key on the remote control after hiding the menu, you can
toggle between normal and full screen mode.
How to view photo
Detailed operations are available on full-sized photo view screen.
The aspect ratio of a photo may change the
size of the photo displayed on the screen in
full size. Press the EXIT button to move to
the previous menu screen.
44
User Menus

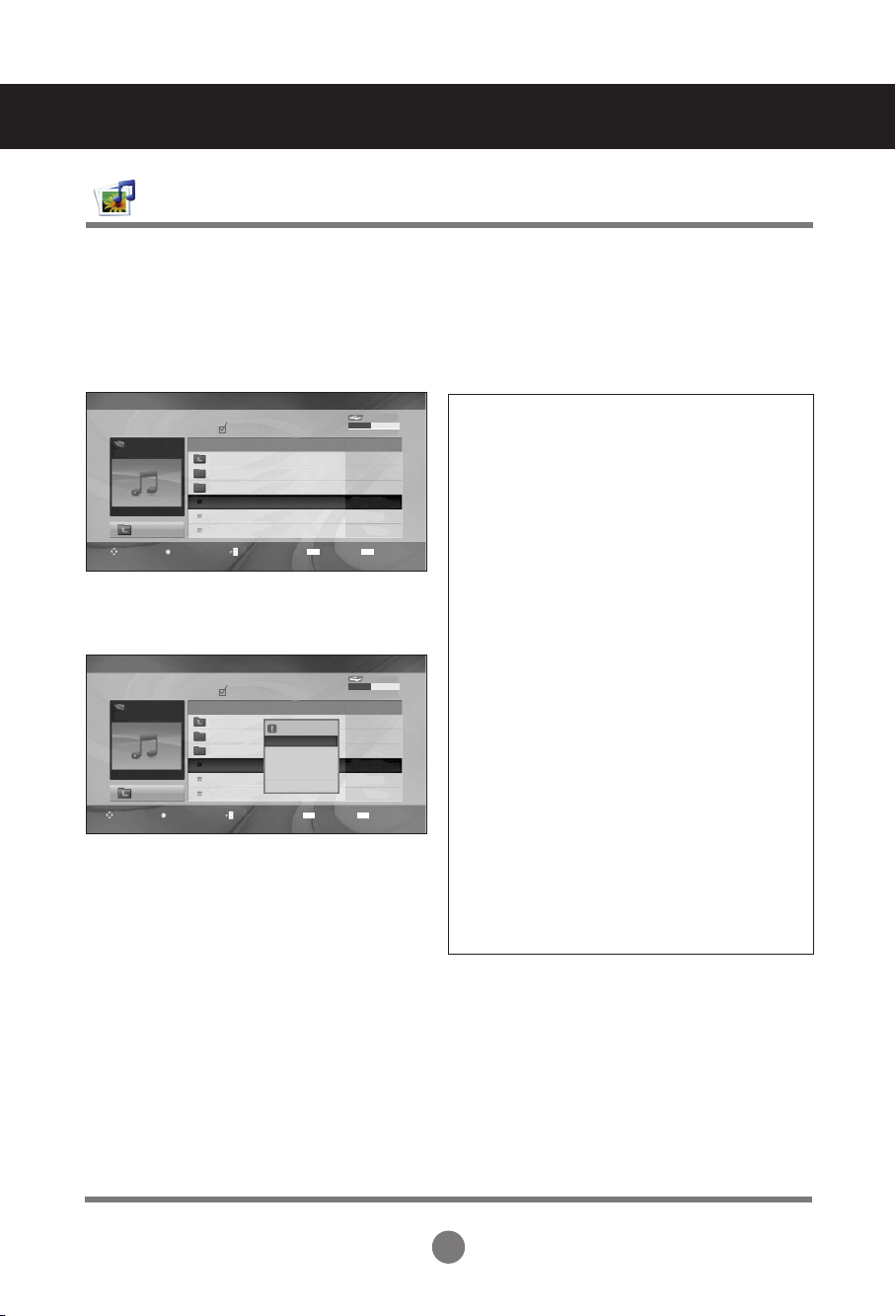

You can play music files on USB storage device.
Purchased music files(*.MP3) may contain copyright restrictions. Playback of these files may
not be supported by this model. Music file on your USB device can be played by this unit.
The On Screen Display may be different from your
product
. Images are an example to assist
with the
product
operation.
MUSIC (*.MP3) supporting file
Bit rate 32 to 320kbps
• Sampling rate MPEG1 layer 3: 32 kHz, 44.1 kHz, 48 kHz.
Adjusts the USB options.
Music List
Music List
Page 2/3
Music
S003
00:00/01:34
Up Folder
Title Duration
Up Folder
S001
S002
S003
S004
S005
Up Folder
03:33
04:45
01:30
02:37
01:58
No Marked
USB Device
Free Space 150 MB
Screen Components
1
5
2 3
4
Moves to upper level folder
Current page / Total pages
Total number of marked music title
Usable USB memory
Corresponding buttons on the remote control
1
2
4
3
5
Option
Mark
Navigation
Page Change
Exit
MARK EXIT
45
Music Selection and PopUp Menu
➩
As shown, up to 6 music titles are listed per page.
User Menus
Adjusts the USB options.
Music List
Page 2/3
Music
S003
00:00/01:34
Up Folder
Title Duration
Up Folder
S001
S002
S003
S004
S005
Up Folder
03:33
04:45
01:30
02:37
01:58
No Marked
Music List
Page 2/3
Music
S003
00:00/01:34
Up Folder
Title Duration
Up Folder
S001
S002
S003
S004
S005
Up Folder
03:33
04:45
01:30
02:37
01:58
No Marked
4395KB 1Kbps
Play
Play with Photo
Mark All
Delete
Close
USB Device
Free Space 150 MB
USB Device
Free Space 150 MB
Option
Mark
Navigation
Page Change
Exit
MARK
EXIT
Option
Mark
Navigation
Page Change
Exit
MARK
EXIT
Play (During stop) : Play the selected
music titles.
One playback of a piece of music finishes,
the next selected one will be played. When
there are no selected music titles to play,
the next one in the current folder will be
played. If you go to a different folder and
press the OK button, the current music in
playback will stop.
Play Marked: Play the selected music
titles. Once a music finishes playing, the
next selected one will be played
automatically.
Stop Play (During playback): Stop the
playing music titles.
Play with Photo: Start playing the
selected music titles and then move to the
Photo List.
Mark All : Mark all music titles in the folder.
Unmark All : Deselect all marked music
titles.
Delete : Delete the selected music titles.
Close : Close the pop-up menu.
46
Music
S003
0:27 / 3:67
■ If you don't press any button for a while during the playing, the play information box (as shown in the below)
will float as a screen saver.
■ The ‘Screen Saver’?
Screen saver is to prevent screen pixel damage due to an fixed image remaining on the screen
for a extended period of time.
• A damaged or corrupted music does not play but displays 00:00 in playtime.
• A music downloaded from a paid service with copyright protection does not start but
displays inappropriate information in playtime.
• If you press OK, ■ buttons, screen saver is stopped.
• The PLAY(►), Pause(II), ■ , ►►, ◄◄ buttons on the remote control are also avail-
able in this mode.
• You can use the ►► button to select the next music and the ◄◄ button to select
the previous music.
User Menus
Adjusts the USB options.
Note
47
The movie list is activated once USB is detected. It is used when playing movie files on monitor.
Displays the movies in the USB folder and supports Play.
Allows playback of all movies in the folder and user desired files.
Video editing is not supported but files can be deleted.
It is a movie list that displays folder information and DivX file.
Supports up to four drives.
Movie List
User Menus
Adjusts the USB options.
Movie List(*.avi/*.DivX) supporting file
Video format : MPEG1, MPEG2, MPEG4(Doesn’t support Microsoft MPEG 4-V2, V3), DivX 3.xx, DivX
4.xx, DivX 5.xx, DivX VOD(DRM), XviD, DivX 6.xx(Playback)
Audio format : Mpeg, Mp3, PCM, Dolby Digital
Sampling frequency : within 32k to 48 khz
Bit rate : 32k to 320 kbps
Subtitle format : *.smi/ *.srt/ *.sub(MicroDVD, SubViewer 2.0)/ *.ass/ *.ssa/*.txt(DVD Subtitle System)
• DivX may not be played depending on its types or recording methods.
• If the video and audio structure of recorded file is not interleaved, either video or audio is outputted.
• Maximum FPS (Frame Per Second) can be reached only at SD level. FPS is 25 FPS (720*576) or 30
FPS (720*480) depending on Resolution.
• Max bitrate of playable DivX is 4Mbps.
• Files more than 25 FPS or 30 FPS or higher may not be played properly.
• A DivX movie file and its subtitle file must be located in the same folder.
• A video file name and its subtitle file name must be identical for it to be displayed.
• Playing a video via a USB connection that doesn’t support high speed may not work properly.
• USB storage devices below USB 2.0 are supported as well. But they may not work properly in the
movie list.
• Files encoded with GMC(Global Motion Compensation) may not be played.
Extension
name
Video Decoder Audio Codec Max Resolution
mpg, mpeg,
vob, dat
MPEG1, MPEG2 AC3,MPEG,MP3,PCM
720x576@25p
720x480@30p
Avi, DivX, m4v
MPEG4-SP, MPEG4-ASP, DivX 3.xx,
DivX 4.xx, DivX 5.xx
DivX 6.xx(Playback), XviD
AC3,MPEG,MP3,PCM
48
User Menus
Adjusts the USB options.
Page 2/3
Movie
M002
640x480, 720KB
Up Folder
Title Duration
Up Folder
Favorite Music
M001
M002
M001
M001
01:34:15
01:35:30
01:30:20
No Marked
USB Device
Free Space 150 MB
Movie List
Screen Components
1
5
2 3
4
Moves to upper level folder
Current page / Total pages
Total number of marked movie title
Usable USB memory
Corresponding buttons on the remote control
1
2
4
3
5
• Use the left/right (< / >) keys to move to a specific frame forward or backward while
playing a movie. (The left/right (< / >) keys may not work properly for some files while
playing a movie.)
Option
Mark
Navigation
Page Change
Exit
MARK EXIT
Note
49
Movie Selection and PopUp Menu
➩
User Menus
Adjusts the USB options.
Page 2/3
Movie
M002
640x480, 720KB
Up Folder
Title Duration
Up Folder
Favorite Music
M001
M002
M001
M001
01:34:15
01:35:30
01:30:20
No Marked
Page 2/3
Movie
M002
640x480, 720KB
Up Folder
Title Duration
Up Folder
Favorite Music
M001
M002
M001
M001
01:34:15
01:35:30
01:30:20
No Marked
1366x768, 125KB
Play
Mark All
Delete
Close
Movie List
Movie List
USB Device
Free Space 150 MB
USB Device
Free Space 150 MB
• In the case of files not supported, a message regarding non-supported file is displayed.
Option
Mark
Navigation
Page Change
Exit
MARK
EXIT
Option
Mark
Navigation
Page Change
Exit
MARK
EXIT
Play : Play the selected movie. DivX Play is
executed while screen changes.
Mark All : Mark all Movie in the folder.
Unmark All : Deselect all marked movies.
Delete : Delete the selected Movie item.
Close : Close the pop-up menu.
Using the remote control
◄◄ / ►►
When playing, repeatedly, press REW (◄◄) to speed up ◄◄(x2) -> ◄◄◄ (x4) -> ◄◄◄◄(x8) ->
◄◄◄◄◄(x16) ->◄◄◄◄◄◄(x32). Repeatedly, press FF (►►) to speed up ►►(x2)-> ►►► (x4) ->
►►►► (x8) -> ►►►►►(x16) -> ►►►►►►(x32). Pressing these buttons repeatedly increases the
fast forward/reverse speed.
I I During playback, press Pause (II) and the still screen is displayed.
■ During playback, stops the screen.
► Press Play(►) to return to normal playback.
Note
50
User Menus
Adjusts the USB options.
When you select the Set Video Play,
Option
1/6
1/6
Off
+0.5
Latin 1
15
◀ Full Screen ▶
Picture Size
Subtitle Language
Audio Language
Subtitle File
● Language
● Sync
● Position
OK
Picture Size : Sets to [Full Screen] or [Original Size].
Subtitle Language : Allows to select the language you want for the file with multiple
subtitle tracks.
This option is not available if the file has only one subtitle track.
Audio Language : Allows to select the language you want for the file with multiple audio
tracks.
This option is not available if the file has only one audio track.
Subtitle File : Sets to On or Off.
Language : Sets to one of Latin1, Latin2, Latin4, Latin5, Cyrillic, Arabic, Greek and
Hebrew
Sync : Adjusts the subtitle delay from 0 and +5.0 in 0.5 second increments.
Position : Moves the subtitle position from 0 to 16.
* You can move the video back or forward by clicking < or > key.
51
User Menus
Move
USB
OK
Photo List
Music List
Movie List
DivX Reg. Code
Deactivation
DivX Reg. Code
ꔋ
Adjusts the USB options.
• Supported movie file
Resolution : under 25 frames/sec(720x576 WxH pixels).
Frame rate : under 30 frames/sec(720x480)
• Video Codec : MPEG1, MPEG2, MPEG4(Doesn’t support Microsoft MPEG4-V2, V3),
DivX3.xx, DivX4.xx, DivX5.xx, , DivX VOD(DRM), XviD, DivX6.xx(Playback).
• When loading, some buttons may not work.
Confirm the DivX registration code number of the monitor. Using the registration number,
movies can be rented or purchased at www.divx.com/vod.
With a DivX registration code from other monitor, playback of rented or purchased DivX file
is not allowed. (Only DivX files matched with the registration code of the purchased monitor
are playable.)
DivX Registration Code
DivX(R) Video On Demand
Your registration Code is: xxxxxxxxxx
To learn more visit www.divx.com/vod.
Close
Close
Note
52
Move
USB
OK
Photo List
Music List
Movie List
DivX Reg. Code
Deactivation
Deactivation
ꔋ
Deactivation
The purpose of deactivation is to allow deactivation of devices for users who have activated
all the available devices through the web_server and are blocked from activating more
devices. DivX VOD allowed the consumer to activate up to 6 devices under one account,
but to replace or deactivate any of those devices, the consumer had to contact DivX
Support and request deletion. Now with this added feature, consumers will be able to
deactivate the device themselves and hence better manage their DivX VOD devices.
➩
DivX(R) Video On Demand
Do you want to deactivate your device?
Yes No
DivX(R) Video On Demand
This device is deactivated.
Your deactivation code is: xxxxxxxx
To learn more visit www.divx.com/vod.
Close
Adjusts the USB options.
Yes
Close
User Menus
53
Troubleshooting
• The Lock function prevents the OSD settings
from being changed inadvertently. To release
the lock, go to Menu and Option and disable the
Key Lock option.
● The 'Key Lock On' message
appears when pressing the Menu
button.
• Install the product driver, which is provided
with the product, or download it from the web
site. (http://www.lg.com)
• See if the plug&play function is supported by
referring to the video card user manual.
●
Did you install the driver?
No image is displayed
'Unknown Product' message appears when the product is connected.
'Key Lock On' message appears.
• See if the power cord is properly connected to
the outlet.
• See if the power switch is turned on.
• May need service.
• Adjust brightness and contrast again.
• Backlight may need repair.
• If the set is in power saving mode, move the
mouse or press any key.
• Turn both devices off and then back on.
• The signal from the PC (video card) is out of
the vertical or horizontal frequency range of the
set. Adjust the frequency range by referring to
the specifications in this manual.
* Maximum Resolution
<32VS10MS>
RGB: 1600x1200 @ 60 Hz
HDMI/DVI: 1920x1080 @ 60 Hz
<42VS10MS, 47VS10MS>
RGB : 1920 x 1080 @ 60 Hz
HDMI/DVI : 1920 x 1080 @ 60 Hz
• The signal cable between PC and set is not
connected. Check the signal cable.
• Press INPUT on the remote control to check
the input signal.
● Is the power cord connected?
●
Is the power indicator light on?
<32VS10MS>
●
Power is on, power indicator is
Green
but the screen appears extremely dark.
<42VS10MS, 47VS10MS>
●
Power is on, power indicator is
Blue
but the screen appears extremely dark.
● Is the power indicator amber?
● Does the 'Out of range' message
appear?
● Does the 'Check signal cable'
message appear?
54
Troubleshooting
●
Is the screen position wrong?
●
Do thin lines appear on the
background screen?
●
Horizontal noise appears or the
characters look blurred.
●
The screen is displayed abnormally.
The screen image looks abnormal.
• D-Sub analog signal - Press the "AUTO" button
in the remote control to automatically select the
optimal screen status that fits into the current
mode. If adjustment is not satisfactory, use the
Position OSD menu.
• See if the video card resolution and frequency
are supported by the product. If the frequency
is out of range, set to the recommended
resolution in the Control Panel "Display"
Setting menu.
• D-Sub analog signal - Press the "AUTO"
button in the remote control to automatically
select an optimal screen status that fits into the
current mode. If adjustment is not satisfactory,
use the Clock OSD menu.
• D-Sub analog signal - Press the "AUTO"
button in the remote control to automatically
select an optimal screen status that fits into the
current mode. If adjustment is not satisfactory,
use the Phase OSD menu.
• The proper input signal is not connected to the
signal port. Connect the signal cable that
matches with the source input signal.
• If you use a fixed image for a long time, the
pixels may be damaged quickly. Use the
screen-saver function.
● After-image appears when the
product is turned off.
After-image appears on the product.
• Vertical frequency: To enable the user to watch the product display, screen image
should be changed tens of times every second like a fluorescent lamp. The vertical
frequency or refresh rate is the times of image display per second. The unit is Hz.
• Horizontal frequency: The horizontal interval is the time to display one vertical line.
When 1 is divided by the horizontal interval, the number of horizontal lines displayed
every second can be tabulated as the horizontal frequency. The unit is kHz.
Note
55
Troubleshooting
• Set the number of colors to more than 24 bits
(true color)
Select Control Panel - Display - Settings - Color
Table menu in Windows.
• Check the connection status of the signal cable.
Or, re-insert the PC video card.
• Several pixels (red, green, white or black color)
may appear on the screen, which can be
attributable to the unique characteristics of the
LCD panel. It is not a malfunction of the LCD.
● Screen has poor color resolution
(16 colors).
● Screen color is unstable or mono-
colored.
● Do black spots appear on the screen?
• See if the audio cable is connected properly.
• Adjust the volume.
• See if the sound is set properly.
• Adjust the Clear Voice ll, Treble and Bass
appropriately.
• Adjust the volume.
● No sound?
● Sound is too dull.
● Sound is too low.
• Is the sleep timer set?
• Check the power control settings.
Power interrupted.
•
"CAUTION! FAN STOP!"
If the power is turned off after this message
appears, it means that the fan is out of order.
In this case, contact your local service center.
●
The power suddenly turned off.
The audio function does not work.
Screen color is abnormal.
The operation does not work normally.
56
Specications
• The specifications shown above may be changed without prior notice for quality
improvement.
Note
LCD Panel
Power
Dimensions
& Weight
80.0 cm (31.5 inch) TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Panel
Visible diagonal size: 80.0 cm
0.51075 mm
Rated Voltage AC 100-240 V~ 50 / 60 Hz 1.6 A
Power Consumption On Mode :100 W Typ.
Sleep Mode : ≤ 1 W (RGB) / 1 W (HDMI/DVI)
(If LAN OFF is selected)
Off Mode : ≤ 0.5 W
Width x Height x Depth
[1] 80.29 cm (31.61 inch) x 53.18 cm (20.93 inch) x 30.19 cm (11.88 inch)
[2] 80.29 cm (31.61 inch) x 49.30 cm (19.41 inch) x 9.98 cm (3.93 inch)
[3] 80.29 cm (31.61 inch) x 53.18 cm (20.93 inch) x 30.19 cm (11.88 inch)
[4] 80.29 cm (31.61 inch) x 49.30 cm (19.41 inch) x 9.98 cm (3.93 inch)
Net
[1] 14.02 kg (30.90 lb) [2] 13.20 kg (29.10 lb)
[3] 14.80 kg (32.62 lb) [4] 13.98 kg (30.82 lb)
[1]
W
H
[2]
W
H
D
D
[3]
W
H
D
D
[4]
W
H
< 32VS10MS >
57
Specications
• The specifications shown above may be changed without prior notice for quality
improvement.
LCD Panel
Power
Dimensions
& Weight
106.73 cm ( 42.02 inch)
TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Panel
Visible diagonal size :
106.73 cm
0.4845 mm x 0.4845 mm X RGB (Pixel Pitch)
Rated Voltage AC 100-240 V~ 50 / 60 Hz 2.7 A
Power Consumption On Mode : 200 W Typ.
Sleep Mode : ≤ 1 W (RGB) / 1 W (HDMI/DVI)
(If LAN OFF is selected)
Off Mode : ≤ 0.5 W
Width x Height x Depth
[1] 99.56 cm (39.2 inch) x 58.76 cm (23.1 inch) x 11.37 cm (4.5 inch)
[2] 99.56 cm (39.2 inch) x 67.41cm (26.5 inch) x 29.30 cm (11.5 inch)
[3] 99.56 cm (39.2 inch) x 58.76 cm (23.1 inch) x 11.37 cm (4.5 inch)
[4] 99.56 cm (39.2 inch) x 67.41cm (26.5 inch) x 29.30 cm (11.5 inch)
[1]
W
[2]
W
H
D
D
[3]
W
H
D
D
[4]
W
H
H
Net
[1] 19.70kg (43.43lb) [2] 22.96kg (50.62 lb)
[3] 20.48kg (45.15Ib) [4] 23.74kg (52.34 lb)
Note
< 42VS10MS >
58
Specications
Note
• The specifications shown above may be changed without prior notice for quality
improvement.
LCD Panel
Power
Dimensions
& Weight
119.28 cm (46.96 inch)
TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Panel
Visible diagonal size :
119.28 cm
0.5415 mm x 0.5415 mm x RGB (Pixel Pitch)
Rated Voltage AC 100-240 V~ 50 / 60 Hz 3.3 A
Power Consumption On Mode : 240 W Typ.
Sleep Mode : ≤ 1 W (RGB) / 1 W (HDMI/DVI)
(If LAN OFF is selected)
Off Mode : ≤ 0.5 W
Width x Height x Depth
[1] 111.70 cm (44.0 inch) x 66.10cm (26.0 inch) x 11.87 cm (4.7 inch)
[2] 111.70 cm (44.0 inch) x 75.78cm (29.8 inch) x 30.26 cm (11.9 inch)
[3] 111.70 cm (44.0 inch) x 66.10cm (26.0 inch) x 11.87 cm (4.7 inch)
[4] 111.70 cm (44.0 inch) x 75.78cm (29.8 inch) x 30.26 cm (11.9 inch)
[1]
W
[2]
W
H
D
D
[3]
W
H
D
D
[4]
W
H
H
Net
[1] 26.42 kg (58.2 lb) [2] 30.44 kg (67.1 lb)
[3] 27.16 kg (59.9 lb) [4] 31.18 kg (68.7 lb)
< 47VS10MS >
59
Specications
• The specifications shown above may be changed without prior notice for quality
improvement.
RMS Audio Output 10 W + 10 W ( R + L )
Input Sensitivity 0.7 Vrms
Speaker Impedance 8 Ω
Audio
Applicable only for models that support the speakers
Note
Max. Resolution RGB: 1600x1200 @ 60 Hz < 32VS10MS >
1920x1080 @ 60 Hz < 42VS10MS, 47VS10MS >
HDMI/DVI:
1920x1080
@ 60 Hz
- It may not be supported depending on the OS or video card type.
Recommended Resolution
RGB:
WXGA 1360x768 @ 60 Hz < 32VS10MS >
WXGA 1920x1080 @ 60 Hz < 42VS10MS, 47VS10MS >
HDMI/DVI:
WXGA 1360x768 @ 60 Hz < 32VS10MS >
WXGA 1920x1080 @ 60 Hz < 42VS10MS, 47VS10MS >
- It may not be supported depending on the OS or video card type.
Horizontal Frequency RGB: 30 kHz to 83 kHz
HDMI/DVI: 30 kHz to 83 kHz
Vertical Frequency RGB: 56 Hz to 75 Hz
HDMI/DVI: 56 Hz to 60 Hz
Synchronization Type Composite/Separate/Digital
15-pin D-Sub type, HDMI/DVI(digital)
Composite Video, Component, RS-232C, LAN, USB
Operational Condition Temperature: 0 °C to 40 °C , Humidity: 10 % to 80 %
Storage Condition Temperature: -20 °C to 60 °C , Humidity: 5 % to 95 %
Video Signal
Input Connector
Environmental
Conditions
60
Specications
PC Mode - Preset Mode
Preset Mode
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Preset Mode
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
1
2
*3
4
*5
6
7
*8
9
*10
640 x 350
720 x 400
640 x 480
640 x 480
800 x 600
800 x 600
832 x 624
1024 x 768
1024 x 768
1280 x 720
31.469
31.468
31.469
37.5
37.879
46.875
49.725
48.363
60.123
44.772
70.8
70.8
59.94
75
60.317
75
74.55
60
75.029
59.855
*11
*12
13
*14
15
*16
17
*18
1280 x 768
1360 x 768
1366 x 768
1280 x 1024
1280 x 1024
1680 x 1050
1600 x 1200
1920 x 1080
47.7
47.72
47.7
63.981
79.98
65.290
75.0
67.5
60
59.799
60
60.02
75.02
59.954
60
60
1 to 18: RGB mode
*: HDMI/DVI mode
1 to 17: RGB mode
*: HDMI/DVI mode
Preset mode
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Preset mode
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
1
2
*3
4
*5
6
7
*8
9
*10
640 x 350
720 x 400
640 x 480
640 x 480
800 x 600
800 x 600
832 x 624
1024 x 768
1024 x 768
1280 x 720
31.469
31.468
31.469
37.5
37.879
46.875
49.725
48.363
60.123
44.772
70.8
70.8
59.94
75
60.317
75
74.55
60
75.029
59.855
11
12
*13
*14
15
*16
*17
1280 x 768
1360 x 768
1366 x 768
1280 x 1024
1280 x 1024
1680 x 1050
1920 x 1080
47.7
47.72
47.7
63.981
79.98
65.290
67.5
60
59.799
60
60.02
75.02
59.954
60
< 32VS10MS >
< 42VS10MS, 47VS10MS >
61
Specications
• DTV/PC selection on HDMI/DVI inputs is available for PC resolutions : 640 x 480/60 Hz,
1280 x 720/60 Hz, 1920 x 1080/60 Hz and DTV resolutions : 480p, 720p, 1080p.
Note
Mode Mode
Set Set
On Mode
Sleep Mode
Off Mode
On Mode
Sleep Mode
Off Mode
Green
Amber
-
Blue
Amber
-
Component Component
480i o x
576i o x
480p o o
576p o o
720p o o
1080i o o
1080p x o
480i o x
576i o x
480p o o
576p o o
720p o o
1080i o o
1080p o o
HDMI/DVI (DTV) HDMI/DVI (DTV)
Power Indicator
< 32VS10MS >
< 32VS10MS >
< 42VS10MS, 47VS10MS >
< 42VS10MS, 47VS10MS >
DTV Mode
Controlling the Multiple Product
RS-232C
A1
Controlling the Multiple Product
RS-232C
A1
A1
Connecting the cable
Connect the RS-232C cable as shown in the picture.
You need to purchase a cable to connect the RS-232C socket as it is not provided as the
accessory.
The RS-232C protocol is used for communication between the PC and product. You can
turn the product on/off, select an input source or adjust the OSD menu from your PC.
Use this method to connect several products to a single PC. You can control several products at a
time by connecting them to a single PC.
If the [Set ID] menu in [Option] is set to OFF, the monitor ID value should be set between 1 and 99.
RS-232C Cable
(not included)
monitor 1
PC
monitor 2
monitor 3 monitor 4
7-Wire Configurations (Standard RS-232C cable)
RXD
TXD
GND
DTR
DSR
RTS
CTS
TXD
RXD
GND
DSR
DTR
CTS
RTS
PC Monitor
2
3
5
4
6
7
8
3
2
5
6
4
8
7
D-Sub 9 D-Sub 9
(Female) (Female)
3-Wire Configurations (Not Standard)
RXD
TXD
GND
DTR
DSR
RTS
CTS
TXD
RXD
GND
DTR
DSR
RTS
CTS
PC Monitor
2
3
5
4
6
7
8
3
2
5
6
4
7
8
D-Sub 9 D-Sub 9
(Female) (Female)
► Baud Rate : 9600 buad Rate (UART)
► Data Length : 8 bit
► Parity Bit : None
► Stop Bit : 1bit
► Flow Control : None
► Communication Code : ASCII code
► Use a crossed (reverse) cable
Communication Parameter
RS-232C Configurations
Controlling the Multiple Product
RS-232C
A2
Command Reference List
COMMAND1COMMAND2DATA1DATA2DATA3
k a 00Hto01H
k c 01Hto1FH
k d 00Hto01H
k e 00Hto01H
k f 00Hto64H
k g 00Hto64H
k h 00Hto64H
k i 00Hto64H
k j 00Hto64H
k k 00Hto64H
k l 00Hto01H
k m 00Hto01H
k t 00Hto64H
k u 00Hto02H
k z FFH
j p 01Hto08H
j u 01H
m c KeyCode
d d 00Hto55H
d e 00Hto14H
d f 00Hto14H
d g 00Hto64H
d h 00Hto64H
d i 00Hto19H
d j 00Hto01H
d x 00Hto06H
d y 01Hto05H
d w FFH
d l FFH
d n FFH
d p FFH
d u 00Hto01H
d v 00Hto01H
f a 00Hto06H
f d F1HtoF4H
E0HtoE4H
01Hto80H
f e F1HtoF4H
E0HtoE4H
01Hto80H
01.Power
02.Aspect Ratio
03.Screen Mute
04.Volume Mute
05.Volume Control
06.Contrast
07.Brightness
08.Color
09.Tint
10.Sharpness
11.OSD Select
12.Remote Lock/ key Lock
13.Balance
14.Color Temperature
15. Abnomal state
16.ISM mode
17. Auto configuration
18. Key
19.Tile Mode
20.Tile H Position
21.Tile V Position
22.Tile H Size
23.Tile V Size
24. Tile ID Set
25.Natural Mode (In Tile mode)
26.Picture mode (PSM)
27.Sound mode
28.Fan Fault check
29.Elapsed time return
30.Temperature value
31.Lamp fault check
32.Auto Volume
33.Speaker
34.Time
35.On Timer (On/Off Timer)
Time
36.Off Timer (On/Off Timer) Time
00Hto17H00Hto3BH
00Hto17H00Hto3BH
00Hto17H00Hto3BH
Controlling the Multiple Product
RS-232C
A3
COMMAND1COMMAND2DATA1DATA2DATA3
f u F1HtoF4H
f f 00Hto08H
f g 00Hto01H
f h 00Hto64H
f i 00Hto09H
f j 00Hto01H
f k 00Hto02H
f l 00Hto03H
f o 00Hto01H
f y FFH
f z FFH
x b 20HtoB0H
02Hto0BH
37.Scheduling input select
38.Sleep Time
39.Auto Sleep
40.Power On Delay
41.Language
42.DPM Select
43.Reset
44.Power Saving
45.Power Indicator
46.Serial no.
47. S / W Version
48.Input Select
Controlling the Multiple Product
RS-232C
A4
OK Acknowledgement
* The Product transmits ACK (acknowledgement) based on
this format when receiving normal data. At this time, if the
data is data read mode, it indicates present status data.
If the data is data write mode, it returns the data of the PC
computer.
Error Acknowledgement
* If there is error, it returns NG
Transmission
* [Command 1]: First command. (k, j, m, d, f, x)
* [Command 2]: Second command.(a to u)
* [Set ID]: Set up the Set ID number of product.
range : 01H to 63H. by setting '0', server can control all products.
* In case of operating with more than 2 sets using set ID as '0' at the same time, it should
not be checked the ack message. Because all sets will send the ack message, so it's
impossible the check the whole ack messages.
* [DATA]: To transmit command data.
Transmit 'FF' data to read status of command.
* [Cr]: Carriage Return
ASCII code '0 x 0 D'
* [ ]: ASCII code Space (0 x 20)
Transmission / Receiving Protocol
[Command1][Command2][][SetID][][Data][Cr]
[Command2][][SetID][][OK][Data][x]
[Command2][][SetID][][NG][Data][x]
Controlling the Multiple Product
RS-232C
A5
Transmission / Receiving Protocol
01. Power(Command : k a)
►To control Power On / Off of the Set.
Transmission
Data 0 : Power Off 1 : Power On
Acknowledgement
►To show the status of Power On / Off.
Transmission
Acknowledgement
Data 0 : Power Off 1 : Power On
[k][a][][SetID][][Data][Cr]
[a][][SetID][][OK][Data][x]
[k][a][][SetID][][FF][Cr]
[a][][SetID][][OK][Data][x]
Controlling the Multiple Product
RS-232C
A6
02. Aspect Ratio(Command : k c) (Main picture format)
►To adjust the screen format.
You can also adjust the screen format using the ARC
(Aspect Ratio Control) button on remote control or in the
Screen menu.
Transmission
Data 1 : Normal Screen (4 : 3)
2 : Wide Scran (16 : 9)
4 : Zoom (AV, Component, HDMI-DTV)
6 : Original (AV)
7 : 14 : 9 (AV, Component, HDMI-DTV)
9 : Just Scan(Component (HD DTV), HDMI-DTV (HD DTV))
* 1:1 (RGB, HDMI-PC,SuperSign)
10 to 1F : Cinema Zoom 1 to 16 (AV,Component,HDMI-DTV)
B : Full Wide (AV)
Acknowledgement
03. Screen Mute(Command : k d)
► To select screen mute on / off.
Transmission
Data 0 : Screen mute off (Picture on)
1 : Screen mute on (Picture off)
Acknowledgement
Transmission / Receiving Protocol
[k][c][][SetID][][Data][Cr]
[k][d][][SetID][][Data][Cr]
[c][][SetID][][OK][Data][x]
[d][][SetID][][OK][Data][x]
Controlling the Multiple Product
RS-232C
A7
A7
Transmission / Receiving Protocol
04. Volume Mute(Command : k e)
►To control On/Off of the Volume Mute.
Transmission
Data 0 : Volume Mute On (Volume Off)
1 : Volume Mute Off (Volume On)
Acknowledgement
Data 0 : Volume Mute On (Volume Off)
1 : Volume Mute Off (Volume On)
05. Volume Control(Command : k f)
►To adjust Volume
Transmission
Data Min : 00H to Max : 64H
(Hexadecimal code)
Acknowledgement
Data Min : 00H to Max : 64H
* Real Data Mapping
0 : STEP 0
:
A : STEP 10
:
F : STEP 15
10 : STEP 16
:
64 : STEP 100
[k][e][][SetID][][Data][Cr]
[e][][SetID][][OK][Data][x]
[k][f][][SetID][][Data][Cr]
[f][][SetID][][OK][Data][x]
Controlling the Multiple Product
RS-232C
A8
A8
Transmission / Receiving Protocol
06. Contrast(Command : k g)
►To adjust screen contrast.
You can also adjust the contrast in the Picture menu.
Transmission
Data Min : 00H to Max : 64H
Acknowledgement
*
Refer to 'Real data mapping' page A7.
07. Brightness(Command : k h)
►To adjust screen brightness.
You can also adjust the brightness in the Picture menu.
Transmission
Data Min : 00H to Max : 64H
*
Refer to 'Real data mapping' as shown below.
Acknowledgement
*
Refer to 'Real data mapping' page A7.
[k][g][][SetID][][Data][Cr]
[g][][SetID][][OK][Data][x]
[k][h][][SetID][][Data][Cr]
[h][][SetID][][OK][Data][x]
Controlling the Multiple Product
RS-232C
A9
Transmission / Receiving Protocol
08. Color(Command : k i) (Video Timing only)
►To adjust the screen color.
You can also adjust the color in the Picture menu.
Transmission
Data Min : 00H to Max : 64H
(Hexadecimal code)
*
Refer to 'Real data mapping' page A7.
Acknowledgement
Data Min : 00H to Max : 64H
09. Tint(Command : k j) (Video Timing only)
►To adjust the screen tint.
You can also adjust the tint in the Picture menu.
Transmission
Data Red : 00H to Green: 64H
(Hexadecimal code)
*
Refer to 'Real data mapping' page A7.
Acknowledgement
Data Red : 00H to Green : 64H
* Tint Real data mapping
0 : Step 0 to Red
:
64 : Step 100 to Green
[k][i][][SetID][][Data][Cr]
[i][][SetID][][OK][Data][x]
[k][j][][SetID][][Data][Cr]
[j][][SetID][][OK][Data][x]
Controlling the Multiple Product
RS-232C
A10
Transmission / Receiving Protocol
10. Sharpness(Command : k k) (Video Timing only)
► To adjust the screen Sharpness.
You can also adjust the sharpness in the Picture menu.
Transmission
Data Min : 00H to Max : 64H
(Hexadecimal code)
*
Refer to 'Real data mapping' page A7.
Acknowledgement
Data Min : 00H to Max : 64H
11. OSD Select(Command : k l)
►To control OSD on/off to the set.
Transmission
Data 0 : OSD Off 1 : OSD On
Acknowledgement
Data 0 : OSD Off 1 : OSD On
12. Remote Lock /Key Lock (Command : k m)
►To control Remote Lock on/off to the set.
This function, when controlling RS-232C, locks the remote control and the local keys.
Transmission
Data 0 : Off 1 : On
Acknowledgement
Data 0 : Off 1 : On
[k][k][][SetID][][Data][Cr]
[k][][SetID][][OK][Data][x]
[k][l][][SetID][][Data][Cr]
[l][][SetID][][OK][Data][x]
[k][m][][SetID][][Data][Cr]
[m][][SetID][][OK][Data][x]
Controlling the Multiple Product
RS-232C
A11
Transmission / Receiving Protocol
13. Balance(Command : k t)
►To adjust the sound balance.
Transmission
Data Min : 00H to Max : 64H
(Hexadecimal code)
00H:StepL50
64H:StepR50
Acknowledgement
Data Min : 00H to Max : 64H
00H:Step0toL50
64H:Step100toR50
* Balance : L50 to R50
14. Color Temperature (Command : k u)
►To adjust the screen color temperature.
Transmission
Data 0 : Medium
1 : Cool
2 : Warm
Acknowledgement
Data 0 : Medium
1 : Cool
2 : Warm
[k][t][][SetID][][Data][Cr]
[t][][SetID][][OK][Data][x]
[k][u][][SetID][][Data][Cr]
[u][][SetID][][OK][Data][x]
Controlling the Multiple Product
RS-232C
A12
Transmission / Receiving Protocol
15. Abnormal state (Command : k z)
►Abnormal State : Used to Read the power off status when Stand-by mode.
Transmission
Data FF : Read
Acknowledgement
0 : Normal (Power on and signal exist)
1 : No signal (Power on)
2 : Turn the monitor off by remote control
3 : Turn the monitor off by sleep time function
4 : Turn the monitor off by RS-232C function
8 : Turn the monitor off by off time function
9 : Turn the monitor off by auto off function
16. ISM mode(Command: j p)
►Used to select the afterimage preventing function.
Transmission
Data 1H : Inversion
2H : Orbiter
4H : White Wash
8H : Normal
Acknowledgement
[k][z][][SetID][][Data][Cr]
[z][][SetID][][OK][Data][x]
[j][p][][SetID][][Data][Cr]
[p][][SetID][][OK][Data][x]
Controlling the Multiple Product
RS-232C
A13
Transmission / Receiving Protocol
17. Auto Configure(Command: j u)
►To adjust picture position and minimize image shaking
automatically. it works only in RGB(PC) mode.
Transmission
Data 1 : To set
Acknowledgement
18. Key(Command : m c)
►To send IR remote key code.
Transmission
Data Key code : Refer to page A 32.
Acknowledgement
[j][u][][SetID][][Data][Cr]
[u][][SetID][][OK][Data][x]
[m][c][][SetID][][Data][Cr]
[c][][SetID][][OK][Data][x]
Controlling the Multiple Product
RS-232C
A14
Transmission / Receiving Protocol
19. Tile Mode(Command : d d)
►Change a Tile Mode.
Transmission
* The data can not be set to 0X or X0 except 00.
Acknowledgement
Data Description
00 or 11 Tile mode is off.
12 1 x 2 mode(column x row)
13 1 x 3 mode
14 1 x 4 mode
... ...
55 5 x 5 mode
[d][d][][SetID][][Data][x]
[d][][00][][OK/NG][Data][x]
Controlling the Multiple Product
RS-232C
A15
Transmission / Receiving Protocol
20. Tile H Position(Command : d e)
►To set the Horizontal position.
Transmission
Data Min : 00H to Max : 14H
00H : Step -10(Left)
14H : Step 10(Right)
Acknowledgement
21. Tile V Position(Command : d f)
►To set the Vertical position.
Transmission
Data Min : 00H to Max : 14H
00H : Step -10(Down)
14H : Step 10(Up)
Acknowledgement
[d][e][][SetID][][Data][x]
[e][][SetID][][OK/NG][Data][x]
[d][f][][SetID][][Data][x]
[f][][SetID][][OK/NG][Data][x]
Controlling the Multiple Product
RS-232C
A16
Transmission / Receiving Protocol
22. Tile H Size(Command : d g)
►To set the Horizontal size.
Transmission
Data Min : 00H to Max : 64H
*
Refer to 'Real data mapping' page A7.
Acknowledgement
23. Tile V Size(Command : d h)
►To set the Vertical size.
Transmission
Data Min : 00H to Max : 64H
*
Refer to 'Real data mapping' page A7
Acknowledgement
[d][g][][SetID][][Data][x]
[g][][SetID][][OK/NG][Data][x]
[d][h][][SetID][][Data][x]
[h][][SetID][][OK/NG][Data][x]
Controlling the Multiple Product
RS-232C
A17
A17
Transmission / Receiving Protocol
24. Tile ID Set(Command : d i)
►To assign the Tile ID for Tiling function .
Transmission
Data Min : 00H to Max : 19H
(Hexadecimal code)
Acknowledgement
25.
Natural Mode (In Tile mode) (
Command : d j)
►To assign the Tile Natural mode for Tiling function .
Transmission
Data 0 : Natural Off
1 : Natural On
ff : Read Status
Acknowledgement
26. Picture Mode (Command : d x)
►To adjust the picture mode.
Transmission
Data Structure
Acknowledgement
[d][i][][SetID][][Data][x]
[i][][SetID][][OK/NG][Data][x]
[d][j][][SetID][][Data][x]
[j][][SetID][][OK/NG][Data][x]
[d][x][][SetID][][Data][x]
Data(Hex)
00
01
02
03
04
05
06
MODE
Vivid
Standard
Cinema
Sport
Game
Export1
Export2
[x][][SetID][][OK/NG][Data][x]
Controlling the Multiple Product
RS-232C
A18
A18
Transmission / Receiving Protocol
27. Sound Mode (Command : d y )
►To adjust the Sound mode.
Transmission
Data Structure
Acknowledgement
Data(Hex)
01
02
03
04
05
Mode
Standard
Music
Cinema
Sport
Game
28. Fan Fault check (Command : d w )
►To check the Fan fault of the monitor.
Transmission
* The data is always FF(in Hex).
Data ff: Read Status
Acknowledgement
* Data is the status value of the Fan fault.
Data 0: Fan fault
1: Fan OK
2: N/A(Not Avaliable)
[d][y][][SetID][][Data][X]
[y][][SetID][][OK/NG][Data][x]
[d][w][][SetID][][Data][x]
[w][][SetID][][OK/NG][Data][x]
Controlling the Multiple Product
RS-232C
A19
Controlling the Multiple Product
RS-232C
A19
Transmission / Receiving Protocol
30. Temperature value (Command : d n)
►To read the inside temperature value.
Transmission
* The data is always FF(in Hex).
Acknowledgement
* The data is 1 byte long in Hexadecimal.
31. Lamp fault Check(Command : d p)
►To check lamp fault.
Transmission
* The data is always FF(in Hex).
Acknowledgement
Data 0 : Lamp Fault
1 : Lamp OK
2 : N/A(DPM/Power Off)
29. Elapsed time return(Command : d l)
►To read the elapsed time.
Transmission
* The data is always FF(in Hex).
Acknowledgement
* The data means used hours.
(Hexadecimal code)
[d][l][][SetID][][Data][x]
[l][][SetID][][OK/NG][Data][x]
[d][n][][SetID][][Data][x]
[n][][SetID][][OK/NG][Data][x]
[d][p][][SetID][][Data][x]
[p][][SetID][][OK/NG][Data][x]
Controlling the Multiple Product
RS-232C
A20
Controlling the Multiple Product
RS-232C
A20
Transmission / Receiving Protocol
32. Auto volume (Command : d u)
►Automatically adjust the volume level.
Transmission
Data 0 : Off
1 : On
Acknowledgement
33. Speaker (Command : d v)
►Turn the speaker on or off.
Transmission
Data 0 : Off
1 : On
Acknowledgement
[d][u][][SetID][][Data][x]
[u][][SetID][][OK/NG][Data][x]
[d][v][][SetID][][Data][x]
[v][][SetID][][OK/NG][Data][x]
Controlling the Multiple Product
RS-232C
A21
Transmission / Receiving Protocol
34. Time (Command : f a)
►Set the current time.
Transmission
[Data1]
0 : Monday
1 : Tuesday
2 : Wednesday
3 : Thursday
4 : Friday
5 : Saturday
6 : Sunday
[Data2]
0H to 17H (Hours)
[Data3]
00H to 3BH (Minutes)
Acknowledgement
*When reading data, FFH is inputted for [Data1], [Data2] and [Data3].
In other cases, all are treated as NG.
[f][a][][SetID][][Data1][][Data2][][Data3][Cr]
[a][][SetID][][OK/NG][Data1][Data2][Data3][x]
Controlling the Multiple Product
RS-232C
A22
Transmission / Receiving Protocol
Transmission
[Data1]
1. f1h to f4h(read one index)
f1: read 1st index of On Time List,
f2: read 2nd index of On Time List
f3: read 3rd index of On Time List
f4: read 4th index of On Time List
2. e1h~e4h(delete one index), e0h(delete all indexes)
e0: delete all indexes of On Time List
e1: delete 1st index of On Time List
e2: delete 2nd index of On Time List
e3: delete 3rd index of On Time List
e4: delete 4th index of On Time List
3. 01h to 80h (write) (Day of Week)
bit0 (01h) : Monday
bit1 (02h) : Tuesday
bit2 (04h) : Wednesday
bit3 (08h) : Thursday
bit4 (10h) : Friday
bit5 (20h) : Saturday
bit6 (40h) : Sunday
bit7 (80h) : Everyday
(1fh) : Monday to Friday
(3fh) : Monday to Saturday
(60h) : Saturday to Sunday
[Data 2]
00h to 17h (Hours)
[Data 3]
00h to 3bh (Minutes)
*When you read/delete the current on time list, all of [Data2][Data3] are have to be FFH.
(ex1: fd 01 f1 ff ff - when you read 1st index of On Time List
ex2: fd 01 e1 ff ff - when you delete 1st index of On Time List
ex3: fd 01 3f 02 03 - when you write one On Time Data, "Monday to Saturday, 02:03"
Acknowledgement
35. On Timer (On/Off Timer) Time (Command : f d)
►Set On Timer.
[d][][SetID][][OK][Data1][Data2][Data3][x]
[f][d][][SetID][][Data1][][Data2][][Data3][Cr]
Controlling the Multiple Product
RS-232C
A23
Transmission / Receiving Protocol
Transmission
[Data 1]
1. f1h to f4h(read one index)
f1: read 1st index of Off Time List,
f2: read 2nd index of Off Time List
f3: read 3rd index of Off Time List
f4: read 4th index of Off Time List
2. e1h to e4h(delete one index), e0h(delete all indexes)
e0: delete all indexes of Off Time List
e1: delete 1st index of Off Time List
e2: delete 2nd index of Off Time List
e3: delete 3rd index of Off Time List
e4: delete 4th index of Off Time List
3. 01h to 80h (write) (Day of Week)
bit0 (01h) : Monday
bit1 (02h) : Tuesday
bit2 (04h) : Wednesday
bit3 (08h) : Thursday
bit4 (10h) : Friday
bit5 (20h) : Saturday
bit6 (40h) : Sunday
bit7 (80h) : Everyday
(1fh) : Monday to Friday
(3fh) : Monday to Saturday
(60h) : Saturday to Sunday
[Data 2]
00h to 17h (Hours)
[Data 3]
00h to 3bh (Minutes)
*When you read/delete the current on time list, all of [Data2][Data3] are have to be FFH.
(ex1: fd 01 f1 ff ff - when you read 1st index of Off Time List
ex2: fd 01 e1 ff ff - when you delete 1st index of Off Time List
ex3: fd 01 3f 02 03 - when you write one Off Time Data, "Monday to Saturday, 02:03")
Acknowledgement
36. Off Timer (On/Off Timer) Time (Command : f e)
►Set Off Timer.
[f][e][][SetID][][Data1][][Data2][][Data3][Cr]
[e][][SetID][][OK][Data1][Data2][Data3][x]
Controlling the Multiple Product
RS-232C
A24
Transmission / Receiving Protocol
37. Scheduling Input select (Command : f u) (Main Picture Input)
►To select input source for monitor depending on day.
Transmission
[Data 1]
1. f1h to f4h(write/read one index)
f1: read 1st index of On Time Input
f2: read 2nd index of On Time Input
f3: read 3rd index of On Time Input
f4: read 4th index of On Time Input
[Data 2]
Input
*When you read/delete the current On Time Input, [Data2] needs to be FFH.
(ex1: fu 01 f1 ff - when you read 1st index of On Time Input
ex2: fu 01 f3 02 - when you write one On Time Input Data in to 3rd index, "AV")
Acknowledgement
[f][u][][SetID][][Data1][][Data2][Cr]
[u][][SetID][][OK][Data1][Data2][x]
Data(Hex)
02
04
07
08
09
0B
INPUT
AV
Component
RGB - PC
HDMI/DVI - HD-DVD
HDMI/DVI - PC
SuperSign
Controlling the Multiple Product
RS-232C
A25
Transmission / Receiving Protocol
38. Sleep Time (Command : f f)
►Set Sleep Time.
Transmission
Data
0 : Off
1 : 10
2 : 20
3 : 30
4 : 60
5 : 90
6 : 120
7 : 180
8 : 240
Acknowledgement
39. Auto Sleep (Command : f g)
►Set Auto Sleep.
Transmission
Data 0 : Off
1: On
Acknowledgement
[f][f][][SetID][][Data][Cr]
[g][][SetID][][OK/NG][Data][x]
[f][g][][SetID][][Data][Cr]
[f][][SetID][][OK/NG][Data][x]
Controlling the Multiple Product
RS-232C
A26
Transmission / Receiving Protocol
40. Power On Delay (Command : f h)
► Set the schedule delay when the power is turned on (Unit:
second).
Transmission
Data : 00H to 64H (Data value)
*
Refer to 'Real data mapping' page A7
Acknowledgement
41. Language (Command : f i)
►Set the OSD language.
Transmission
Data
0 : English
1 : French
2 : German
3 : Spanish
4 : Italian
5 : Portuguese
6 : Chinese
7 : Japanese
8 : Korean
9 : Russian
Acknowledgemen
[f][h][][SetID][][Data][Cr]
[i][][SetID][][OK/NG][Data][x]
[f][i][][SetID][][Data][Cr]
[h][][SetID][][OK/NG][Data][x]
Controlling the Multiple Product
RS-232C
A27
Transmission / Receiving Protocol
42. DPM Select (Command : f j)
►Set the DPM (Display Power Management) function.
Transmission
Data 0 : Off
1: On
Acknowledgement
43. Reset (Command : f k)
►Execute the Picture, Screen and Factory Reset functions.
Transmission
Data
0 : Picture Reset
1 : Screen Reset
2 : Factory Reset
Acknowledgement
[f][j][][SetID][][Data][Cr]
[k][][SetID][][OK/NG][Data][x]
[f][k][][SetID][][Data][Cr]
[j][][SetID][][OK/NG][Data][x]
Controlling the Multiple Product
RS-232C
A28
Transmission / Receiving Protocol
44. Power saving(Command : f I)
►To set the Power saving mode.
Transmission
Data 0 : Off
1: (static level 1)
2: (static level 2)
3: (static level 3)
Acknowledgement
45. Power Indicator (Command : f o)
►To set the LED for Power Indicator
Transmission
Data 0 : Off
1: On
Acknowledgement
[f][I][][SetID][][Data][Cr]
[f][o][][SetID][][Data][Cr]
[o][][SetID][][OK/NG][Data][x]
[I][][SetID][][OK/NG][Data][x]
Controlling the Multiple Product
RS-232C
A29
Transmission / Receiving Protocol
46. Serial no.Check (Command : f y)
►To read the serial numbers
Transmission
Data FF (to read the serial numbers)
Acknowledgement
* The data format is ASCII Code.
[y][][SetID][][OK/NG][Data1]~[Data13][x]
[f][y][][SetID][][Data][Cr]
Controlling the Multiple Product
RS-232C
A30
Transmission / Receiving Protocol
47. S/W Version (Command : f z)
►Check the software version.
Transmission
Data FFH : Read
Acknowledgement
48. Input Select (Command : x b)
► To select input source for the Set.
Transmission
Data 20H : AV
40H : Component
60H : RGB (PC)
90H : HDMI/DVI (DTV)
A0H : HDMI/DVI (PC)
B0H : SuperSign
Acknowledgement
Data 20H : AV
40H : Component
60H : RGB (PC)
90H : HDMI/DVI (DTV)
A0H : HDMI/DVI (PC)
B0H : SuperSign
[f][z][][SetID][][Data][Cr]
[x][b][][SetID][][Data][Cr]
[b][][SetID][][OK][Data][x]
[z][][SetID][][OK/NG][Data][x]
Controlling the Multiple Product
RS-232C
A31
IR Codes
RS-232C
A31
Remote Control IR Code
Output waveform
single pulse, modulated with 37.917kHz signal at 455kHz
►Configuration of frame
T1
Tc
▪
Repeat frame
Tf
Repeat code
► Lead code
►Repeat code
►Bit description
2.25 ms
9 ms
0.55ms
►Frame interval : Tf
Tf
Tf
Tf = 108 ms @ 455 kHz
Lead
code
Low
custom code
High
custom code
Data code
Data code
C0 C1 C2 C3 C4 C5 C6 C7 C0 C1 C2 C3 C4 C5 C6 C7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7
9 ms
4.5 ms
Carrier frequency
FCAR = 1 / Tc = fosc / 12
Duty ratio = T1 / Tc = 1 / 3
▪
1st frame
0.56 ms
1.12 ms
0.56 ms
2.24 ms
▪
Bit "0"
▪
Bit "1"
▪
The waveform is transmitted as long as a key is depressed.
Controlling the Multiple Product
RS-232C
A32
IR Codes
RS-232C
A32
Code(Hex)FunctionNote
UP(∧)
DOWN(∨)
RIGHT(>)
LEFT(<)
POWERON/OFF
MONITORON
MONITOROFF
MUTE
EnergySaving
INPUT
MENU
EXIT
PSM
OK
NumberKey0
NumberKey1
NumberKey2
NumberKey3
NumberKey4
NumberKey5
NumberKey6
NumberKey7
NumberKey8
NumberKey9
ARC(MARK)
Vol+
Vol-
40
41
06
07
08
C4
C5
09
95
0B
43
5B
4D
44
10
11
12
13
14
15
16
17
18
19
79
02
03
R/CButton
R/CButton
R/CButton
R/CButton
R/CButton
R/CButton
(DiscreteIRCode)
R/CButton
(DiscreteIRCode)
R/CButton
R/CButton
R/CButton
R/CButton
R/CButton
R/CButton
R/CButton
R/CButton
R/CButton
R/CButton
R/CButton
R/CButton
R/CButton
R/CButton
R/CButton
R/CButton
R/CButton
R/CButton
(DiscreteIRCode)
R/CButton
R/CButton
Controlling the Multiple Product
RS-232C
A33
IR Codes
RS-232C
A33
E0
E1
28
99
72
71
63
61
7B
B0
B1
BA
8F
8E
5A
BF
D5
C6
76
77
AF
R/CButton
R/CButton
R/CButton
R/CButton
(DiscreteIRCode)
R/CButton
R/CButton
R/CButton
R/CButton
R/CButton
R/CButton
R/CButton
R/CButton
R/CButton
R/CButton
DiscreteIRCode
(InputAVSelection)
DiscreteIRCode(Input
COMPONENTSelection)
DiscreteIRCode
(InputRGBPCSelection)
DiscreteIRCode
(InputHDMI/DVISelection)
DiscreteIRCode
(Only4:3mode)
DiscreteIRCode
(Only16:9mode)
DiscreteIRCode
(OnlyZOOM,
Cinena
ZOOM1mode)
Bright∧(PageUP)
Bright∨(PageDown)
BACK
AUTOCONFIC
IDON(RedColor)
IDOFF(GreenColor)
(YellowColor)
(BlueColor)
TILE
►
■
II
◄◄
►►
AV
COMPONENT
RGBPC
HDMI/DVI
ARC(4:3)
ARC(16:9)
ARC(ZOOM)
Code(Hex)FunctionNote
Ma ke su re to re ad t he Im p or t an t
Precautions before using the product.
Keep the Owner's Manual(CD) in an
accessible place for future reference.
The model and serial number of the SET
is located on the back and one side of
the SET. Record it below should you ever
need service.
WARNING -This is a class A product. In a do-
mestic environment this product may cause
radio interference in which case the user may
be required to take adequate measures.
MODEL
SERIAL
Temporary noise is normal when powering
ON or OFF this device.
Warranty void if removed.
Important
WARRANTY VOID
IF REMOVED
3850TAZ209Y
