645Ci Owner's Manual for Vehicle
Congratulations, and thank you for choosing a BMW.
Thorough familiarity with your vehicle will provide you
with enhanced control and security when you drive it.
We therefore have this request:
Please take the time to read this Owner's Manual and
familiarize yourself with the information that we have com-
piled for you before starting off in your new vehicle. It con-
tains important data and instructions intended to assist you
in gaining maximum use and satisfaction from your BMW's
unique range of technical features. The manual also con-
tains information on maintenance designed to enhance
operating safety and contribute to maintaining the value of
your BMW throughout an extended service life.
This Owner's Manual should be considered a permanent
part of this vehicle. It should stay with the vehicle when
sold to provide the next owner with important operating,
safety and maintenance information.
This manual is supplemented by a Service and Warranty
Information Booklet for US models or a Warranty and
Service Guide Booklet for Canadian models.
We wish you an enjoyable driving experience.
BMW AG
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
© 2004 Bayerische Motoren Werke
Aktiengesellschaft
Munich, Germany
Reprinting, including excerpts,
only with the written consent of
BMW AG, Munich.
Order No. 01 41 0 157 980
US English II/04, 04 03 460
Printed in Germany
Printed on environmentally friendly paper,
bleached without chlorine, suitable for recycling.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Reference At a glanceControlsDriving tipsCommunications NavigationEntertainmentMobility
Contents
The fastest way to find specific topics is
to use the index, refer to page 197.
Using this Owner's Manual
4 Notes
7 Reporting safety defects
At a glance
10 Cockpit
16 Control Center
20 Voice command system
Controls
26 Opening and closing
42 Adjustments
51 Transporting children safely
54 Driving
64 Everything under control
75 Technology for comfort, convenience
and safety
85 Lamps
88 A congenial climate
94 Practical interior accessories
Driving tips
102 Things to remember when driving
Navigation
108 Starting navigation system
110 Destination entry

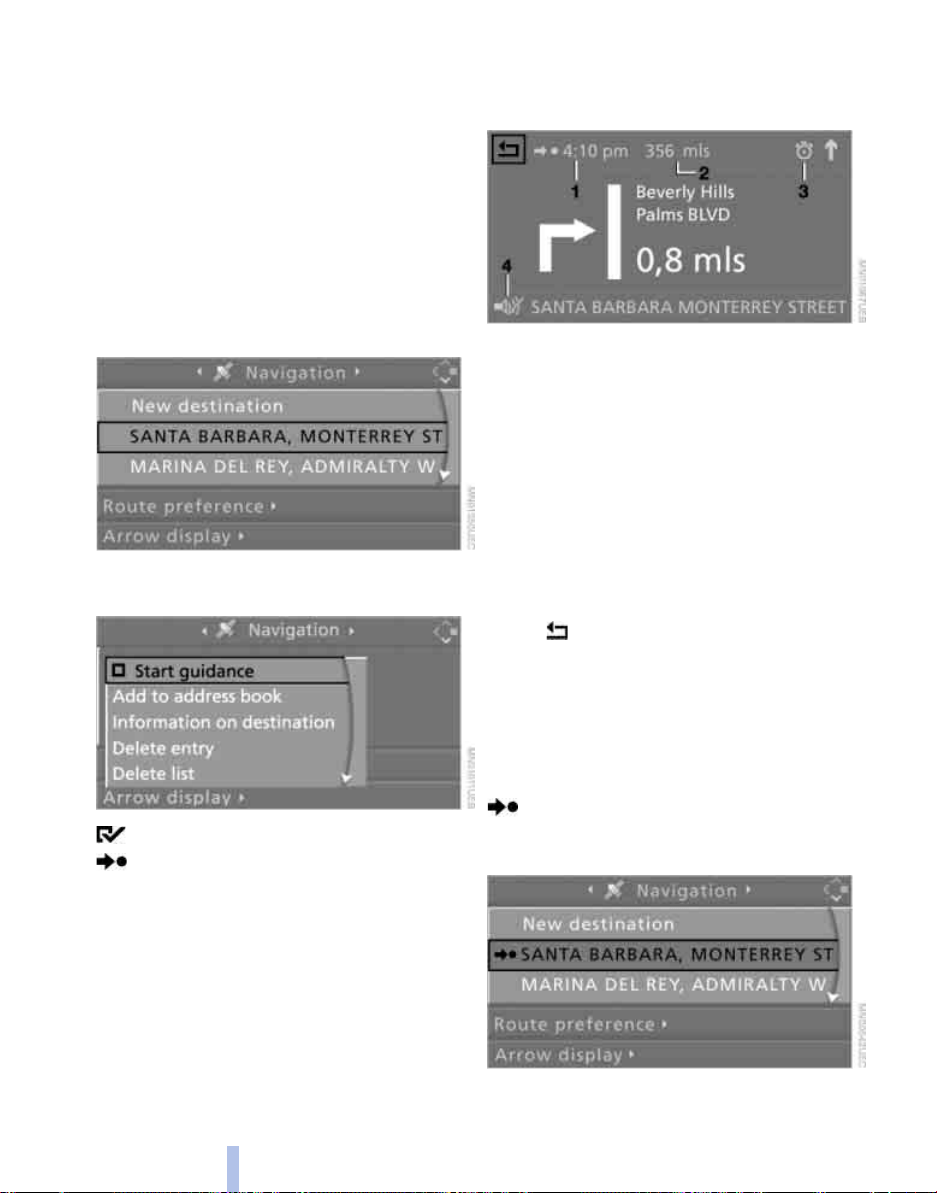

118 Destination guidance
122 What to do if …
Entertainment
126 On/off and tone
130 Radio
137 CD player and CD changer
Communications
144 Telephoning
155 TeleService, BMW Assist
Mobility
162 Refueling
164 Wheels and tires
170 Under the hood
174 Maintenance
176 Rules and regulations
178 Replacing components
183 Giving and receiving assistance
Reference
190 Technical data
194 Short commands of the
voice command system
197 Everything from A to Z
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Notes
4
Notes
Using this Owner's Manual
We have made every effort to ensure that
you are able to find what you need in this
Owner's Manual as quickly as possible.
The fastest way to find specific topics is to
use the detailed index at the back of the
manual. If you wish to gain an initial over-
view of your vehicle, you will find this in the
first chapter.
Should you want to sell your BMW some
day, please remember to hand over the
Owner's Manual as well; it is an important
component of your vehicle.
Additional sources of information
Should you have any other questions, your
BMW center will be glad to advise you at
any time.
You can find information on BMW, e.g.
technology, on the Internet at
www.bmwusa.com.
Symbols used
Indicates precautions that must be
followed precisely in order to avoid
the possibility of personal injury and seri-
ous damage to the vehicle.
< Marks the end of a specific item of infor-
mation.
Indicates information that will assist
you in gaining the optimum benefit
from your vehicle and enable you to care
more effectively for your vehicle.
Refers to measures that can be taken
to help protect the environment.
* Indicates special equipment, country-
specific equipment and optional extras
when available.
"..." Identifies Control Display texts used to
select individual functions.
Symbols on vehicle components
Indicates that you should consult the
relevant section of this Owner's Man-
ual for information on a particular part or
assembly.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
5
Reference At a glanceControlsDriving tipsCommunications NavigationEntertainmentMobility
The individual vehicle
On purchasing your BMW, you have
decided in favor of a model with individual-
ized equipment and features. This Owner's
Manual describes the entire array of
options and equipment available with a
specific BMW model.
Please bear in mind that the manual may
contain information on accessories and
equipment that you have not specified for
your own vehicle. Sections describing
options and special equipment are marked
by asterisks
* to assist you in identifying
possible differences between the descrip-
tions in this manual and your own vehicle's
equipment.
Should your BMW be equipped with fea-
tures or accessories not described in this
manual, please consult the enclosed Sup-
plementary Owner's Manual(s).
Editorial notice
BMW pursues a policy of continuous,
ongoing development that is conceived
to ensure that our vehicles continue to
embody the highest quality and safety
standards combined with advanced, state-
of-the-art technology.
For this reason, it is possible that the fea-
tures described in this Owner's Manual
could differ from those on your vehicle. Nor
can errors and omissions be entirely ruled
out. You are therefore asked to appreciate
that no legal claims can be entertained on
the basis of the data, illustrations or
descriptions in this Owner's Manual.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Notes
6
For your own safety
Fuels
Use unleaded gasoline only.
Fuels containing up to and including
10% ethanol or other oxygenates with
up to 2.8% oxygen by weight – that is,
15% MTBE or 3% methanol plus an equiv-
alent amount of co-solvent – will not void
the applicable warranties with respect to
defects in materials or workmanship. Field
experience has indicated significant differ-
ences in fuel quality – volatility, composi-
tion, additives, etc. – among gasolines
offered for sale in the United States and
Canada. The use of poor-quality fuels may
result in drivability, starting and stalling
problems, especially under certain environ-
mental conditions such as high ambient
temperature and high altitude.
Should you encounter drivability problems
which you suspect could be related to the
fuel you are using, we recommend that you
respond by switching to a recognized high-
quality brand.
Failure to comply with these recommenda-
tions may result in unscheduled mainte-
nance.
Follow the relevant safety rules when you
are handling gasoline.<
Maintenance and repair
Advanced technology, e.g. the use of
modern materials and high-perfor-
mance electronics, requires specially
adapted maintenance and repair methods.
Therefore, only have corresponding work
on your BMW carried out by a BMW center
or a workshop that works according to
BMW repair procedures with correspond-
ingly trained personnel. If work is carried
out improperly there is a danger of conse-
quential damage and the related safety
risks.<
Parts and accessories
For your own safety, use genuine
parts and accessories approved by
BMW.
When you purchase accessories tested
and approved by BMW and Genuine BMW
Parts, you simultaneously acquire the
assurance that they have been thoroughly
tested by BMW to ensure optimum perfor-
mance when installed on your vehicle.
BMW warrants these parts to be free from
defects in material and workmanship.
BMW will not accept any liability for dam-
age resulting from installation of parts and
accessories not approved by BMW.
BMW cannot test every product made by
other manufacturers to verify if it can be
used on a BMW safely and without risk to
either the vehicle, its operation, or its occu-
pants.
Genuine BMW Parts, BMW Accessories
and other products approved by BMW,
together with professional advice on using
these items, are available from all BMW
centers.
Installation and operation of non-BMW
approved accessories such as alarms,
radios, amplifiers, radar detectors, wheels,
suspension components, brake dust
shields, telephones – including operation of
any portable phone from within the vehicle
without using an externally mounted
antenna – or transceiver equipment, for
instance, CBs, walkie-talkie, ham radio or
similar accessories, may cause extensive
damage to the vehicle, compromise its
safety, interfere with the vehicle's electrical
system or affect the validity of the BMW
Limited Warranty. Refer to your BMW cen-
ter for additional information.<
Maintenance, replacement, or repair
of the emission control devices and
systems may be performed by any automo-
tive repair establishment or individual using
any certified automotive part.<
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
7
Reference At a glanceControlsDriving tipsCommunications NavigationEntertainmentMobility
Service and warranty
We recommend that you read this publica-
tion thoroughly.
Your BMW is covered by the following war-
ranties:
> New Vehicle Limited Warranty
> Rust Perforation Limited Warranty
> Federal Emissions System Defect
Warranty
> Federal Emissions Performance
Warranty
> California Emission Control System
Limited Warranty.
Detailed information about these warran-
ties is listed in the Service and Warranty
Information Booklet for US models or in the
Warranty and Service Guide Booklet for
Canadian models.
Reporting safety defects
The following only applies to vehicles
owned and operated in the US.
If you believe that your vehicle has a defect
which could cause a crash or could cause
injury or death, you should immediately
inform the National Highway Traffic Safety
Administration (NHTSA) in addition to noti-
fying BMW of North America, LLC, P.O.
Box 1227, Westwood, New Jersey 07675-
1227, Telephone (800) 831-1117.
If NHTSA receives similar complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may order a recall and remedy
campaign. However, NHTSA cannot
become involved in individual problems
between you, your dealer, or BMW of North
America, LLC.
To contact NHTSA, you may either call the
Auto Safety Hotline toll-free at 1-800-424-
9393 (or 366-0123 in Washington, D.C.
area) or write to: NHTSA, U.S. Department
of Transportation, Washington, D.C.
20590. You can also obtain other informa-
tion about motor vehicle safety from the
Hotline.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG

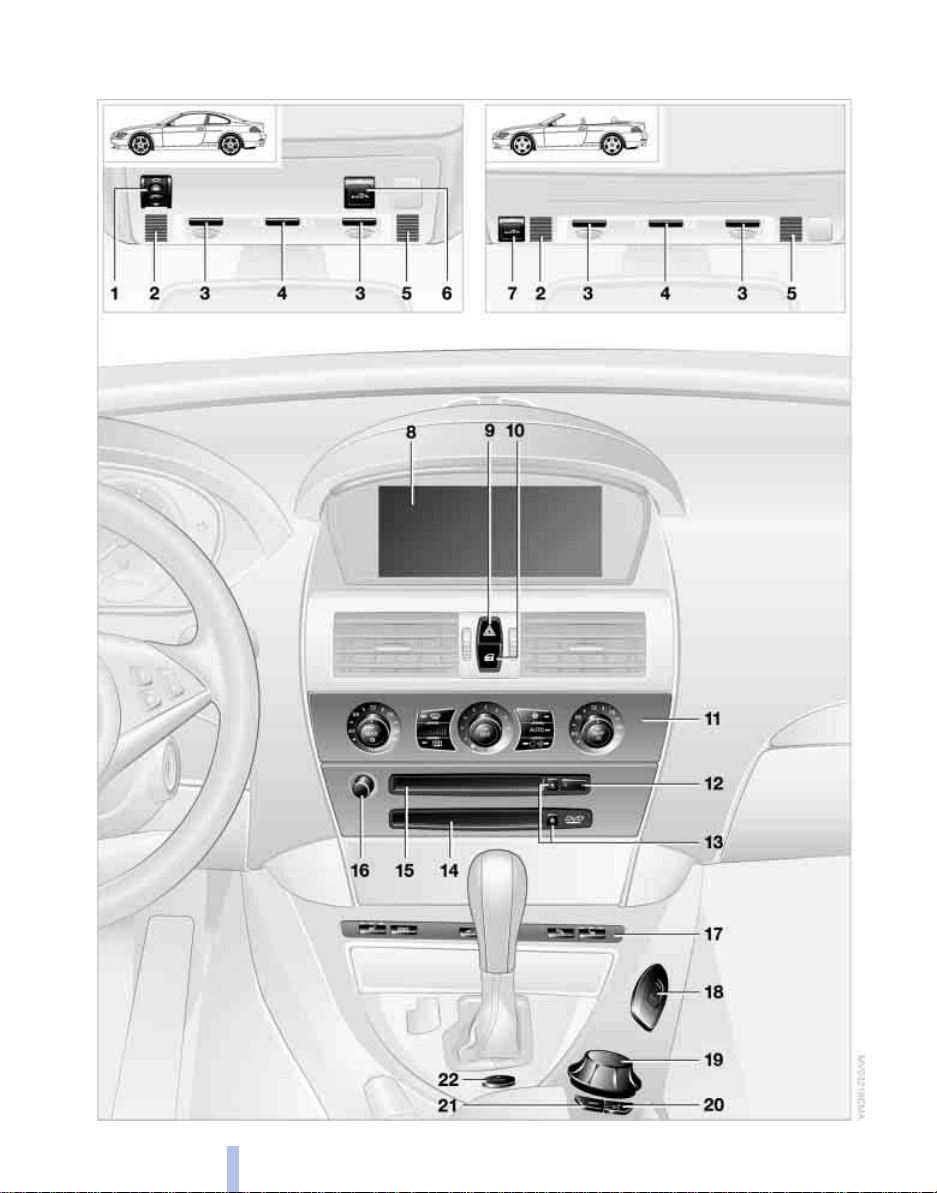

At a glance
This overview of buttons, switches and
displays is intended to serve as a source
of orientation in your vehicle's operating
environment. The section will also assist
you in becoming acquainted with the
control concepts and options available
for operating the various systems.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Cockpit
10
Cockpit
All around the steering wheel: controls and displays
1 Convertible: opening and closing rear
window 35
2 Convertible: opening and closing
windows together 34
3 Convertible: opening and closing back
windows 34
4 Opening and closing front windows 33
5 Adjusting exterior mirrors 48
6
Turn signals 60
High beams,
headlamp flasher 86
Roadside parking lamps 86
Check Control 66
Computer 69
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
At a glance
11
Reference ControlsDriving tipsCommunications NavigationEntertainmentMobility
7 Buttons on the steering wheel
Portable phone:
> Press briefly:
Accept call or terminate call
as well as dial if an entry has been
selected from "A - Z", "Top 8", "Redial",
"Received calls" or "Missed calls"
> Press longer: redial
Volume
Voice command system
Fast forward/reverse
> Radio
Press briefly: change radio station
Press longer: manual tuning or auto-
matic station-search function scan
> CD
Press briefly: select track
Press longer: fast forward/reverse
> Portable phone
Press briefly: select entry in "A - Z",
"Top 8", "Redial", "Received calls" or
"Missed calls"
Individually programmable 49
Individually programmable 49
8 Instrument cluster 12
10 Ignition lock 54
11 Horn: the entire surface
14 Releasing the engine hood 170
15 Opening the luggage compartment
lid 30
16 Head-Up Display 83
9
Windshield wipers 61
Rain sensor 61
12
Steering wheel heater 49
Steering wheel adjustment 48
13
Cruise control 63
17
Parking lamps 85
Low beams 85
Automatic headlamp
control 85
Adaptive Head Light 86
18
Instrument lighting 87
Front fog lamps 86
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Cockpit
12
Instrument cluster
1 Indicator lamps for turn signals 13
2 Speedometer with display of speed for
cruise control 63
3 Fixed indicator and warning lamps 13
4 Tachometer 64
and engine oil thermometer 65
5 Display for
> Variable indicator and warning
lamps 66
> Speed for cruise control 63
> Time/date 64
> Outside temperature 64
6 Display for
> Automatic transmission with
Steptronic 58
> SMG Sequential manual
transmission 57
> Dynamic Driving Control 59
> Computer 69
> Date and remaining distance for
service requirement 65
> Odometer and trip odometer 64
> Check Control message present 66
7 Fuel gauge 65
8 Resetting the trip odometer to zero 64
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
At a glance
13
Reference ControlsDriving tipsCommunications NavigationEntertainmentMobility
Indicator and warning
lamps
Technology that monitors itself
The indicator and warning lamps identified
by the
+ symbol are subjected to an oper-
ation check each time you switch on the
ignition or start the engine. They each light
up once for different periods of time.
When a malfunction occurs in a monitored
system, the corresponding lamp will either
fail to go out when the engine is started, or
it will come on again during normal driving,
usually accompanied by a Check Control
message. You will find more details on the
specified pages.
Fixed indicator and warning lamps
Colors
The indicator and warning lamps can light
up in different colors and combinations.
> Red:
Stop immediately
or
important reminder
> Red and yellow:
Continue to drive; drive cautiously
> Yellow:
Have the system checked at the earliest
opportunity
or
for your information
> Green or blue:
For your information.
Variable indicator and warning lamps
On the display 5 of the instrument cluster,
other indicator and warning lamps appear
as necessary. Pay attention to the instruc-
tions of the accompanying Check Control
messages, also refer to page 66.
Turn signals 60
Active steering
+ 80
Brake system +
With handbrake engaged 55
With handbrake released 78, 173
With other warning lamps 78
Brake system for Canadian models
Airbags
+ 81
Service Engine Soon
+ 176
If the indicator lamp comes on
either continuously or intermit-
tently, this indicates a malfunction
the emissions-related electronic
systems.
Although the vehicle remains oper-
ational, you should have the sys-
tems checked by your BMW center
at the earliest possible opportunity
Service Engine Soon indicator
lamp for Canadian models
Front fog lamps 86
ABS Antilock Brake System + 78
DTC Dynamic Traction Control 78
High beams/headlamp flasher 86
Please fasten safety belt
+ 47
DSC Dynamic Stability
Control
+ 78
Check Gas Cap 162
Lamp for US models
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Cockpit
14
All around the center console: controls and displays
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
At a glance
15
Reference ControlsDriving tipsCommunications NavigationEntertainmentMobility
1 Coupe: glass roof, electric with raise
function 35
2 Microphone for portable phone 146
Convertible: microphone on steering
column
*
3 Reading lamps 87
4 Interior lamps 87
5 Microphone for voice command
system 20
Convertible: microphone on steering
column
*
6 Coupe: initiating an emergency
call 183
7 Convertible: initiating an emergency
call 183
8 Control Display 16
Displays for menu guidance
9 Hazard warning flashers
10 Central locking system 29
11 Automatic climate control 88
12 Button for
> Station scan 126
> Track scan 138
13 Ejecting
> Navigation DVD 108
> Audio CD 126
14 Drive for navigation DVD 108
15 Drive for audio CD 126
16 Switching sound output for Entertain-
ment on/off and adjusting the
volume 126
18 Bracket for cup holder 97
19 Controller 16
Horizontal movement in four directions,
turn or press
20 Activating voice command system 20
21 Opening the start menu on the
Control Display 17
22 Dynamic Driving Control 59
Temperature setting,
left/right 89
Automatic air distribution and
volume 89
Cooling function 89
AUC Automatic recirculated-air
control 89
Maximum cooling 89
Residual heat mode 90
Switching off automatic climate
control 90
Air volume 89
Defrosting windows 89
Rear window defroster 88
17
Heated seats 47
PDC Park Distance Control 75
DSC Dynamic Stability
Control 77
Convertible: opening the
convertible top 38
Convertible: closing the
convertible top 38
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Control Center
16
Control Center
The Control Center groups the functions of
a large number of switches. This means
that these functions can be operated from
a central position. The following section
provides an introduction to the principle of
the menu guidance. How you control the
individual functions is described in the con-
text of the relevant equipment.
Controls
1 Controller: you navigate through the
menus of the Control Center and make
adjustments by turning, pressing and
moving it to the left, right, forwards or
backwards
2 The start menu can be opened from any
menu with this button
3 Control Display
When you turn the controller, you feel a
clicking. This helps you to select the
desired menu item.
To avoid posing an unnecessary haz-
ard due to inattention, both to your
own vehicle's occupants and to other road
users: never attempt to use the controls or
make entries unless traffic and road condi-
tions allow.<
Menu overview
You can call up all the functions in the
Control Center using five menu items.
Communication
> Portable phone
> BMW Assist or TeleService.
Navigation or onboard information
> Navigation system
> Onboard information, e.g. for display of
the average fuel consumption.
Entertainment
> Radio
> CD player and CD changer.
Climate
> Air distribution
> Independent ventilation.
menu
> Switching off the Control Display
> Traffic information
> Tone and display settings
> Settings for your vehicle, e.g. for central
locking or settings for entertainment or
your portable phone
> Display of the maintenance requirement
and dates for statutory emission and
vehicle inspections.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
At a glance
17
Reference ControlsDriving tipsCommunications NavigationEntertainmentMobility
Menu guidance
As of ignition key position 1, the following
message appears on the Control Display:
Confirm the message by pressing the con-
troller; the start menu is opened.
Start menu
Via the start menu, you can open four
menus by moving the controller to the left,
right, forwards or backwards. Pressing the
controller opens the menu.
Opening start menu
Press button.
To open the start menu from the menu:
Press the button twice.
Displays in menu
1 In menus, you can change fields to
select the menu items they contain or to
make adjustments. The active field is
brighter than the others
2 Menu items are usually grouped in hor-
izontal or vertical lists
3 Arrows indicate that other menu items
can be selected in lists, but these are
not visible at the moment
4 Adjustments are displayed in diagrams
or as numbers
5 A symbol indicates the last selected
menu item of the start menu:
Communication
Navigation or
onboard information
Entertainment
Climate
menu
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Control Center
18
Selecting menu items and making adjustments
1 To select individual menu items: turn
the controller. The marking moves.
Menu items shown in white can be
selected
2 To activate menu items selected with
the marking: press the controller. In the
current field, new menu items are dis-
played or a function is executed
3 To change the current field: move the
controller to the left, right, forwards or
backwards and let go.
To change the current menu: move the
controller to the left, right, forwards or
backwards and hold for longer than
approx. 2 seconds. The menu in the rel-
evant direction is opened
4 To select menu items, cf. 1: turn the
controller. The marking moves
5 To make adjustments: turn the control-
ler. A graphical display, numerical val-
ues or text displays change. The adjust-
ment is applied if you change to another
field or into another menu
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
At a glance
19
Reference ControlsDriving tipsCommunications NavigationEntertainmentMobility
Status information
1 Manual or automatic air distribution for
driver and passenger side
2 Display for Entertainment:
Radio or CD,
sound output for Entertainment off.
Display for telephone:
"Car Phone", "Portable" or no network
3 new entries present in "Missed calls",
text message/SMS received,
roaming active
4 Telephoning and emergency call
possible
5 Current time
Other displays:
If information is issued by the Check Con-
trol or inputs are made using the voice
command system, a text message appears
here on the Control Display.
Assistance window*
Additional information can be displayed in
the assistance window:
> The computer or the travel computer
> The travel route in vehicles with naviga-
tion system
> The current location.
To select the display in the assistance win-
dow:
1. Move the controller to the right to
change to the assistance window and
press the controller
2. Select a menu item
3. Press the controller.
Switching Control Display on/off
To switch off the Control Display:
1. Open the start menu
2. Press the controller to open the menu
3. Select "Display off" and press the con-
troller.
The status information continues to be
displayed.
To switch on the Control Display:
Press the controller.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Voice command system
20
Voice command system
The concept
The voice command system allows you to
control operation of various vehicle sys-
tems without ever removing your hands
from the steering wheel.
Individual menu items on the Control Dis-
play can be spoken as commands. Opera-
tion via the controller is not required.
The voice command system transforms
your oral commands into control signals for
the selected systems and provides support
in the form of instructions or questions.
The voice command system includes a
special microphone.
The microphone is located:
> On the Coupe near the interior rearview
mirror, refer to page 14
> On the Convertible near the interior
rearview mirror, refer to page 14, or on
the steering column.
Precondition
The set language of the Control Center and
of the voice command system should
match so that the commands to be spoken
can be identified more easily. Setting the
language of the Control Center, refer to
page 73.
Symbols used
Voice commands
Activating voice command system
Briefly press the button on the steering
wheel or in the center console.
This symbol on the Control Display and
an acoustic message indicate that you can
enter voice commands.
*
Indicates voice commands in this
Owner's Manual which are to be spo-
ken word for word.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
At a glance
21
Reference ControlsDriving tipsCommunications NavigationEntertainmentMobility
The text or numbers that the voice com-
mand system has registered will appear on
the Control Display.
This symbol appears on the Control Dis-
play when you can enter additional voice
commands.
If there are no other voice commands,
operate the equipment using the Control
Center.
Terminating or canceling voice
command system
Press the button on the steering wheel or
in the center console
or
Voice commands
To open the start menu:
You can have a list of the respectively pos-
sible voice commands read off; this list is
dependent on the menu item selected on
the Control Display.
For example, if you have selected "CD", the
possible voice commands for operating the
CD player and the CD changer will be read
off:
There are often a number of commands to
run a function, e.g.:
With short commands you can carry out
certain functions directly, regardless of
which menu item is selected, refer to
page 194.
An example: selecting a track
1. If necessary, switch on sound output for
Entertainment
2. Press the button in the steering wheel
or in the center console.
{Cancel}.
{Main menu}.
{Options} or {Help}.
{Radio on} or {Switch on radio}.
3. {Entertainment}.
The system issues:
{{Entertainment}}
4. {CD}.
The system issues:
{{CD}}
5. Select a track, e.g.:
{Track 1}.
The system issues:
{{Track 1}}.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Voice command system
22
Notes
Do not use the voice command sys-
tem in emergency situations. In stress
situations, voice and pitch can change.<
The portable phone can also be oper-
ated by voice control, refer to
page 151.<
For voice commands, bear the following in
mind:
> Issue the commands fluently and at
normal volume, avoiding excessive
emphasis and pauses
> Always speak commands with the pro-
nunciation of the voice command sys-
tem, as otherwise, for example, foreign
radio stations will not be understood
> For entries in the voice-activated phone
book, only use names in the language
of the voice command system and no
abbreviations
> Keep the doors, windows and glass
roof or convertible top closed to pre-
vent interference from ambient noise
> Avoid other sources of noise in the
vehicle while speaking, and ask other
vehicle occupants to refrain from talk-
ing while you are using the system.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Controls
This chapter is intended to provide you
with information for complete control
of your vehicle. Its extensive array of
features and accessories, both for
driving and for your own safety, comfort
and convenience, are described here.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Opening and closing
26
Opening and closing
The key set
1 Master keys with remote control.
They specify the functions of the Key
Memory. In the process individual func-
tions of your vehicle can behave differ-
ently depending on the key used, see
further below.
To differentiate, you can mark the keys
with remote controls using the color-
coded decals you received on taking
delivery of the vehicle
There is an extended-life battery
in every master key with remote
control which is charged automatically
in the ignition lock as you drive.
If you have any master keys with remote
control that are not used on a regular
basis, you should therefore remember
to recharge these units by using them
to drive the vehicle for an extended
period at least every six months, also
refer to page 28.<
2 Spare key for storage in a safe place,
such as in your wallet.
The locks for the luggage compartment
lid and the hotel function, refer to
page 30, cannot be operated with this
key. This is an advantage in a hotel, for
example. The key is not intended for
constant use
Replacement keys
Additional or replacement keys are avail-
able at your BMW center.
Key Memory
How the system functions
Doubtless you have often reflected on how
great it would be if you could configure
your vehicle's various adjustment settings
to meet your own personal requirements.
BMW has designed several freely select-
able options into the vehicle during its
development. You can set these as desired
via the Control Center.
You can have up to four different basic set-
tings adjusted for four different persons for
the specific keys. The only requirement is
that each person uses his or her own mas-
ter key with remote control.
When your vehicle is unlocked with the
remote control, the vehicle recognizes the
individual key by means of a data exchange
and makes adjustments accordingly.
Examples of Key Memory functions
> Automatic adjustment of the driver's
seat
> Locking the vehicle after moving off
> When unlocking with the remote con-
trol, either unlock only the driver's door
or the entire vehicle
> Activating visual warning for PDC Park
Distance Control
> Resetting volume setting.
Central locking system
The concept
The central locking system is ready for
operation whenever the driver's door is
closed. This simultaneously engages and
releases the locks on the following:
> Doors
> Compartment in the front center con-
sole
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Controls
27
Reference At a glanceDriving tipsCommunications NavigationEntertainmentMobility
> Luggage compartment lid
> Fuel filler door.
The central locking system can be oper-
ated from the outside
> via the remote control
> via the door lock
and from inside via the button for the cen-
tral locking system.
If operated from the inside, the fuel filler
door and the compartment in the front
center console are not locked, refer to
page 29.
The anti-theft system is automatically acti-
vated whenever you activate the central
locking system from outside the vehicle.
It prevents the doors from being unlocked
using the safety lock buttons or door han-
dles. The alarm system is armed/disarmed
at the same time.
In the event of an accident, the central
locking system unlocks automatically. The
hazard warning flashers and interior lamps
also switch on.
Opening and closing: from
outside
Using the remote control
When you lock/unlock the vehicle, you
simultaneously activate/deactivate the
anti-theft system, arm/disarm the alarm
system, and switch the interior lamps on/
off.
Protect the remote control against
unauthorized use by handing over
only the spare key, for example when using
hotel valet parking.<
You can find more detailed information on
the alarm system on page 32.
Because any persons or animals left
unattended in a parked vehicle could
lock the doors from the inside, you should
always keep the remote control with you;
this precaution ensures that you will remain
able to unlock the vehicle from the outside
at all times.<
Unlocking
Use the button to unlock the vehicle
depending on the setting:
Control Center, for principle details, refer to
page 16:
1. Open the menu
2. Select "Vehicle settings" and press the
controller
3. Select "Door locks" and press the con-
troller
4. Select "Central locking" and press the
controller
5. Select "Unlock button" and press the
controller
6. Select a menu item:
> "All doors"
Press the button once to unlock
the entire vehicle
> "Driver's door only"
Press the button once to unlock
only the driver's door and the fuel
filler door.
Press the button twice to unlock the
entire vehicle
7. Press the controller.
Depending on which key you have used to
open the vehicle, the last adjustment is
applied.
Convenience opening mode
Press the button once briefly and then
keep it pressed:
> Coupe: the windows are opened, the
glass roof is raised, and the sliding
panel moves back approx. 2 in/5 cm
> Convertible: the windows and the con-
vertible top are opened.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Opening and closing
28
Locking and securing
Press the button.
Switching on interior lamps
Press the button if the vehicle is
locked.
You can also use this function to locate
your vehicle in parking garages etc.
Panic mode*
By pressing and holding the button for
more than approx. two seconds, you can
trigger the alarm system in response to any
impending danger.
To switch off the alarm: press any of the
buttons.
Opening luggage compartment lid
Press the button:
The luggage compartment lid opens,
regardless of whether it was previously
locked or unlocked.
A previously locked luggage com-
partment lid is also locked after clos-
ing.
Coupe: the luggage compartment lid
swings to the rear and upwards when
opened. Make sure there is sufficient free
space.<
Setting confirmation signals
You can have unlocking or locking the vehi-
cle confirmed.
Control Center, for principle details, refer to
page 16:
1. Open the menu
2. Select "Vehicle settings" and press the
controller
3. Select "Door locks" and press the con-
troller
4. Select "Confirmation" and press the
controller
5. Select the desired signal
6. Press the controller.
The signals are switched on.
Malfunctions
Local radio waves can disrupt the function
of the remote control.
Should the remote control fail to operate
owing to interference of this kind, you can
respond by using the master key to unlock
your vehicle at one of the doors.
If it is no longer possible to lock the vehicle
via the remote control, the battery is dis-
charged. Use this remote control during an
extended drive; this will recharge the bat-
tery, refer to page 26.
For US owners only
The transmitter and receiver units comply
with part 15 of the FCC/Federal Communi-
cation Commission regulations. Operation
is governed by the following:
FCC ID: LX8766S
LX8766E
LX8CAS
Compliance statement:
This device complies with part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions:
> This device may not cause harmful
interference, and
> this device must accept any interfer-
ence received, including interference
that may cause undesired operation.
Any unauthorized modifications or
changes to these devices could void
the user's authority to operate this equip-
ment.<
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Controls
29
Reference At a glanceDriving tipsCommunications NavigationEntertainmentMobility
Using door lock
One turn of the key in the driver's door lock
unlocks the driver's door only.
Turning the key a second time unlocks all of
the remaining doors, the luggage compart-
ment lid and the fuel filler door.
Convenience operation
The windows, the glass roof on the Coupe,
the rear window and top on the convertible
can also be operated via the door lock:
> To open:
With the door closed, turn the key to the
Unlock position and hold it there
> To close:
With the door closed, turn the key to the
Lock position and hold it there.
Watch during the closing process to
be sure that no one is injured. Releas-
ing the key stops the operation.<
Manual operation
In the event of an electrical malfunction,
you can turn the key all the way to the right
or left in the door lock to lock or unlock the
driver's door.
Opening and closing: from
inside
You can operate the central locking system
with this button when the doors are closed.
This only unlocks or locks the doors and
luggage compartment lid, but the anti-theft
system is not activated. The fuel filler door
remains unlocked to enable refueling, as
does the compartment in the front center
console to ensure access to personal
items.
You can also make the following settings:
> The central locking system automati-
cally locks the vehicle as soon as you
drive off
> The central locking system automati-
cally locks the vehicle after a short time
when no door has been opened.
Control Center, for principle details, refer to
page 16:
1. Open the menu
2. Select "Vehicle settings" and press the
controller
3. Select "Door locks" and press the con-
troller
4. Select "Central locking" and press the
controller
5. Select "Lock after driving"
or
"Relock door if not opened"
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Opening and closing
30
6. Press the controller.
The setting is selected.
Depending on which key you have used to
open the vehicle, the last adjustment is
applied.
Unlocking and opening doors
> Either unlock both doors together with
the button for the central locking sys-
tem and then pull the door handle
above the armrest or
> pull the door handle for each door
twice: the first pull unlocks the door,
and the second one opens it.
Locking doors
> Use the central locking button to lock
both of the doors simultaneously, or
> press down the safety lock button of the
desired door. To prevent you from
being locked out, the open driver's door
cannot be locked using the safety lock
button.
Because any persons or animals left
unattended in a parked vehicle could
lock the doors from the inside, always take
the master key with remote control with
you to ensure that you will remain able to
unlock the vehicle from the outside when-
ever the need arises.<
Hotel function
The hotel function locks the compartment
in the front center console and the luggage
compartment lid individually and discon-
nects them from the central locking sys-
tem. The spare key, refer to page 26, does
not fit the lock for the hotel function. If you
then only hand over the spare key, e.g. in a
hotel, no access is possible to the luggage
compartment lid or to the compartment in
the front center console.
Turn the key to the right, refer to illustration,
and remove.
The hotel function is only activated after
subsequent locking or unlocking of the
vehicle. This locks the luggage compart-
ment lid and the compartment in the front
center console and disconnects them from
the central locking system.
In the event of an electrical
malfunction
For manual unlocking, turn the master key
all the way to the right:
The compartment in the front center con-
sole is unlocked.
If unlocking was manual, the lock has
to be returned to the home position,
i.e. all the way back to the left, before set-
ting the hotel function again.<
Luggage compartment lid
Coupe: the luggage compartment lid
swings to the rear and upwards when
opened. Make sure there is sufficient free
space.<
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Controls
31
Reference At a glanceDriving tipsCommunications NavigationEntertainmentMobility
Opening from inside
Press the button:
The luggage compartment lid opens unless
the hotel function is activated, see above.
Opening from outside
Press the upper half of the BMW emblem
or the button on the remote control:
The luggage compartment lid opens.
In the event of an electrical
malfunction
The luggage compartment lid lock is
located under the BMW emblem. Only the
master keys with remote control, refer to
page 26, match the luggage compartment
lid lock.
Turn the master key to the right as far as it
will go:
The luggage compartment lid opens.
If you use the key to unlock the lug-
gage compartment lid while the alarm
system is armed, the alarm will be trig-
gered. Switching off the alarm, refer to
page 32.<
Emergency release
This lever releases the luggage compart-
ment lid from inside the luggage compart-
ment.
Closing
The handle recesses on the interior trim of
the luggage compartment lid make it easier
to pull down.
Make sure that the closing path of the
luggage compartment lid is clear, as
otherwise injuries may result.
Operate the vehicle only when the luggage
compartment lid is completely closed.
Otherwise, exhaust fumes could penetrate
the interior of the vehicle.<
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Opening and closing
32
If special circumstances should make it
absolutely necessary to operate the vehicle
with the lid open:
1. Coupe: close both windows as well as
the glass roof
Convertible: with closed top, close all
windows
2. Adjust the automatic climate control to
supply a high air volume, refer to
page 89.
Luggage compartment
There are four lashing eyes on the inner
corners of the luggage compartment for
securing luggage nets or securing straps to
fix luggage in position.
Also refer to Cargo loading, page 104.
Convertible: increasing luggage
compartment capacity
With the convertible top closed, you can
enlarge the luggage compartment capac-
ity:
To do so, unfold the handle and press it
downwards in the direction of travel, refer
to arrow. This folds the convertible top
compartment floor upwards.
Before opening the convertible top, run this
procedure in reverse order.
The convertible top cannot be
opened if the convertible top com-
partment floor is folded up.<
Alarm system
The concept
The vehicle alarm system responds:
> When a door, the hood, or the luggage
compartment lid is opened
> To movement in the vehicle interior:
interior motion sensor
> To changing of the vehicle's tilt if some-
one attempts to steal the wheels or tow
the vehicle
> To interruption of battery voltage.
The system responds to unauthorized vehi-
cle entry and attempted theft by simulta-
neously activating:
> An acoustic alarm, which lasts for a
period of approx. 30 seconds
> The hazard warning flashers for approx.
5 minutes
> The high beams, which flash on and off
in the same rhythm.
Arming and disarming alarm system
When you lock or unlock the vehicle, either
with the remote control or at the door lock,
the alarm system is armed or disarmed at
the same time.
The system indicates that it has been cor-
rectly armed by switching on the hazard
warning flashers for a single cycle and by
emitting an acoustic signal.
You can also open the luggage compart-
ment lid with the system armed using but-
ton on the remote control, refer to
page 28. When you close the lid, it is
secured again.
Switching off alarm
> Unlock the vehicle using the remote
control, refer to page 27
> or turn the ignition key to position 1.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Controls
33
Reference At a glanceDriving tipsCommunications NavigationEntertainmentMobility
Indicator lamp displays
> The indicator lamp below the interior
rearview mirror flashes continuously:
the system is armed
> The indicator lamp flashes on locking:
door(s) or luggage compartment lid are
not completely closed. Even if you do
not close the alerted area, the system
begins to monitor the remaining areas,
and the indicator lamp flashes continu-
ously after approx.10 seconds. How-
ever, the interior motion sensor is not
activated
> The indicator lamp goes out on unlock-
ing: no manipulation or attempted intru-
sions have been detected in the period
since the system was armed
> The indicator lamp flashes on unlocking
before the remote control is inserted in
the ignition lock, but for no more than
roughly 5 minutes: an attempted entry
has been detected in the period since
the system was armed.
Following triggering of an alarm, the indica-
tor lamp will flash continuously.
Tilt alarm sensor and interior motion
sensor
Tilt alarm sensor
Monitors the inclination of the vehicle. The
alarm system reacts, for example, if some-
one attempts to steal the wheels or tow the
vehicle.
Interior motion sensor
Coupe:
In order for the interior motion sensor to
function properly, the windows and glass
roof must be completely closed.
Convertible:
Monitors the interior up to the height of the
seat cushions. This means that the alarm
system, including the interior motion sen-
sor, is armed even if the convertible top is
open. Falling objects, e.g. leaves, can trig-
ger false alarms, refer to Avoiding uninten-
tional alarms.
Avoiding unintentional alarms
The tilt alarm sensor and interior motion
sensor may be switched off at the same
time. This is how you prevent unintentional
alarms, e.g. in the following situations:
> In garages with elevator ramps
> During transport on automobile trans-
port trains
> If animals are to remain in the vehicle.
Switching off tilt alarm sensor and
interior motion sensor
Press the button on the remote con-
trol once again directly after locking.
The indicator lamp lights up briefly and
then flashes continuously. The tilt alarm
sensor and the interior motion sensor are
switched off until the vehicle is unlocked
and locked again.
Windows
To prevent injuries, exercise care
when closing the windows and keep
them in your field of vision until they are
shut.
When leaving the vehicle, always remove
the ignition key and close the doors to pre-
vent children from operating the windows
and injuring themselves etc.<
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Opening and closing
34
Coupe: opening and closing
windows
Ignition key as of position 1:
> Press the switch up to the resistance
point:
The window continues to move down-
wards as long as you continue to hold
the switch
> Briefly press the switch beyond the
resistance point:
The window moves downwards auto-
matically. Briefly press the switch again
to stop the opening movement.
You can close the windows in the same
manner by pulling the switch.
Convertible: opening and closing
windows
Individually
Ignition key as of position 1:
> Press the switch up to the resistance
point:
The window continues to move down-
wards as long as you continue to hold
the switch
> Briefly press the switch beyond the
resistance point:
The window moves downwards auto-
matically. Briefly press the switch again
to stop the opening movement.
You can close the windows in the same
manner by pulling the switch. The rear win-
dows cannot be closed automatically with
one touch.
Together
Ignition key as of position 1:
1. Briefly press button 1:
The LEDs in button 1 and at switch 2
light up
2. Press switch 2:
> Up to the resistance point:
All the windows move downwards
as long as you continue to press the
switch.
You can close the windows in the
same manner by pulling the switch
> Briefly press the switch beyond the
resistance point:
All the windows move downwards
automatically. Briefly press the
switch again to stop the opening
movement.
Briefly press button 1 again to deactivate
the function. The LEDs go out.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Controls
35
Reference At a glanceDriving tipsCommunications NavigationEntertainmentMobility
Rear window
Ignition key as of position 1:
1. Briefly press button 1:
The LEDs in button 1 and at switch 2
light up
2. Press switch 2:
> Up to the resistance point:
The rear window continues to move
downward as long as you continue
to hold the switch.
You can close the rear window in the
same manner by pulling the switch
> Briefly press the switch beyond the
resistance point:
The rear window moves downwards
automatically. Briefly press the
switch again to stop the opening
movement.
Briefly press button 1 again to deactivate
the function. The LEDs go out.
The rear window opens and closes
automatically when you open or close
the convertible top.<
After switching off ignition
You can still operate the windows:
> Ignition key in position 1 for approx.
15 minutes
> In position 0 or with the ignition key
removed for approx. 1 minute, as long
as a door has not been opened.
To open, press the switch beyond the
resistance point.
When leaving the vehicle, remove the
master key with remote control and
close the doors, as otherwise children
could operate the windows and injure
themselves etc.<
For information on using the convenience
operation mode at the door lock or with the
remote control, refer to page 27 or 29.
Anti-trapping mechanism
If the closing force rises beyond a pre-
defined threshold during closing, the sys-
tem will immediately stop moving the win-
dow prior to lowering it slightly.
Convertible: the back windows and
rear window are not equipped with an
anti-trapping mechanism.<
Despite the anti-trapping mechanism,
you should always inspect the front
side window's travel path prior to closing it,
as the safety feature might fail to detect
certain kinds of obstructions, such as very
thin objects, and the window would con-
tinue closing.
Pulling the switch beyond the resistance
point and holding it limits the response of
the anti-trapping mechanism. Under these
conditions, the window will respond to
forces beyond a defined threshold by only
opening a few inches/millimeters.
If you again pull the switch past the resis-
tance point and hold it in position within a
period of roughly 4 seconds, the anti-trap-
ping mechanism will be deactivated.<
Accessories in window area
After installing any accessory – such as a
clamp-on antenna for a portable phone –
within the window's travel range, you will
need to have the system reinitialized for
use under the new conditions. Please con-
tact your BMW center for assistance.
Coupe:
Glass roof, electric with
raise function*
To prevent injuries, exercise care
when closing the glass roof and keep
it in your field of vision until it is shut.
When leaving the vehicle, always remove
the key and close the doors, as otherwise
children could operate the roof and injure
themselves etc.<
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Opening and closing
36
Raising and closing glass roof
Ignition key as of position 1:
> Briefly press the switch for raising the
roof:
The roof opens and the sliding panel
moves back approx. 2 in/5 cm
> Press the switch twice beyond the
resistance point toward the rear:
The roof opens and the sliding panel
moves completely back
> To close, briefly press the switch or
push it twice beyond the resistance
point toward the front:
The roof and sliding panel close.
Opening and closing sliding panel
Ignition key as of position 1:
> Push the switch up to the resistance
point in the desired direction:
The sliding panel continues to move as
long as you continue to hold the switch
> Push the switch beyond the resistance
point in the desired direction:
The sliding panel moves automatically.
Briefly press the switch again in any
direction to stop the movement.
After switching off ignition
You can still operate the roof:
> Ignition key in position 1 for approx.
15 minutes
> In position 0 or with the ignition key
removed for approx. 1 minute, as long
as a door has not been opened.
For information on using the convenience
operation mode at the door lock or with the
remote control, refer to page 27 or 29.
Anti-trapping mechanism
If the glass roof encounters resistance
when closing from the raised position, the
closing action is interrupted and the glass
roof opens.
If the sliding panel encounters resistance
when closing within approx. 8 in/20 cm, the
closing action is interrupted and the sliding
panel opens approx. 8 in/20 cm.
Despite the anti-trapping mechanism,
you should always inspect the roof's
travel range prior to closing it, as the safety
feature might fail to detect certain kinds of
obstructions, such as very thin objects, and
the roof would continue closing.
The anti-trapping mechanism for closing
the glass roof is deactivated if the switch is
pressed beyond the resistance point and
held there. The closing action is immedi-
ately interrupted when you release the
switch.<
Following interruptions in electrical
power supply
After disconnecting the battery, it can
occur that the glass roof does not move.
The system has to be initialized. Should
this occur, please have the roof initialized
at your BMW center.
Manual operation
In the event of an electrical malfunction,
you can operate the panorama glass roof
and the sliding panel manually.
Glass roof
1. Remove cover on headliner in front of
rear window. To do this, first detach the
cover at the rear on both sides and then
disengage by pulling downward firmly
2. Insert the Allen wrench supplied with
the onboard tool kit in the opening pro-
vided, refer to arrow.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Controls
37
Reference At a glanceDriving tipsCommunications NavigationEntertainmentMobility
3. Turn the Allen wrench and move the
glass roof in the desired direction.
Sliding panel
1. Lower the cover downwards, if neces-
sary using the screwdriver from the
onboard tool kit at the positions indi-
cated, refer to page 178
2. Insert the Allen wrench supplied with
the onboard tool kit in the opening pro-
vided
3. Turn the Allen wrench and move the
sliding panel in the desired direction.
Convertible: top
The fully automatic convertible top com-
bines secure weather protection with sim-
ple and convenient operation.
So that you get the maximum pleasure from
your convertible, here are a few tips:
> It is recommended that you close the
convertible top when the vehicle is
parked. The closed convertible top not
only protects the passenger compart-
ment against unforeseen weather dam-
age, it also represents a certain protec-
tion against theft. Nonetheless, even if
the convertible top is closed, only keep
valuables in the locked luggage com-
partment
> Do not attach luggage rack systems to
the convertible top
> At temperatures below 14 7/–106,
do not operate the convertible top, as
otherwise damage can occur.
Do not leave the soft top in the con-
vertible top compartment for longer
than one day when wet, as otherwise dam-
age from moisture can occur.
Do not place any objects on the convertible
top, as otherwise if the top was to be oper-
ated, they would fall off and lead to damage
or injury.
Never move the convertible top when the
rollover protection system is raised.
Driving without having completed the
opening or closing action can lead to dam-
age or injury.
Do not place hands in the top mechanism
during the opening and closing action.
Keep children away from the travel path of
the convertible top.
For safety reasons, only operate the con-
vertible top when the vehicle is at a stand-
still.<
If you have initiated top operation with
the vehicle at a standstill and then
drive off, e.g. at a traffic light, you can con-
tinue the initiated operation up to a speed
of 20 mph/30 km/h.
To do so, press and hold the correspond-
ing button.<
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Opening and closing
38
Partial vacuums that occur at higher
speeds in the passenger compart-
ment can make the convertible top flap.
Use the ventilation controls to increase the
air supply so that no partial vacuum occurs
in the vehicle.<
To close the electrically activated side
windows while the vehicle is being
driven, always close the rear windows or
all four windows simultaneously first, as
otherwise the windows cannot close tightly
at higher speeds.<
Prior to opening and closing
> Read carefully and comply with the
safety precautions that appear above
> Ensure that the convertible top com-
partment floor in the luggage compart-
ment is folded down, refer to page 32,
as otherwise the convertible top cannot
be opened
> Ensure that the luggage compartment
lid is closed.
Opening and closing
As of ignition key position 1, with the vehi-
cle stationary:
So as not to place an excessive load
on the battery, only operate the con-
vertible top with the engine running, if pos-
sible.
Before closing the convertible top, remove
foreign bodies from the windshield frame,
as these might inhibit closing of the con-
vertible top.<
1 Closing
2 Indicator lamp
3 Opening
If the opening or closing action is not
completed, the luggage compartment
lid cannot be opened.
When the button for top operation is
pressed, the side windows move down-
wards slightly; the rear window is lowered
completely.
If you hold the button pressed for longer
than 2 seconds after completion of the
opening or closing action and the LED has
gone out, the side windows and rear win-
dow move once again.<
Indicator lamp
In the following situations, a message is
displayed on the Control Display and an
acoustic signal sounds in addition to the
indicator lamp:
> During convertible top operation, the
LED lights up green. It goes out as soon
as the opening or closing action is com-
pleted
> If the indicator lamp flashes red when
you release the button, the opening or
closing action is not completed
> If the indicator lamp lights up red with
the button pressed, the convertible top
compartment floor is folded up or a fault
has occurred. The convertible top can-
not be moved.
Interruption
The automatic sequence of movements is
interrupted immediately if the button for top
operation is released. The sequence can
be continued in the desired direction using
the button.
If the opening or closing action is
interrupted for a longer period by
releasing the button, the convertible top
remains in that position for approx. 15 min-
utes before it slowly moves to a stable
position. The sequence can be continued
using the buttons.
Do not interrupt and continue the closing
action several times in succession, as oth-
erwise the fully automatic top mechanism
can be damaged.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Controls
39
Reference At a glanceDriving tipsCommunications NavigationEntertainmentMobility
If the opening or closing action is inter-
rupted, it can happen that the luggage
compartment lid cannot be opened.<
Convenience operation using remote
control and driver's door lock
Refer to pages 27 and 29.
Manual closing in the event of an
electrical malfunction
Only close the convertible top manu-
ally if absolutely necessary; never
open it manually. The convertible top com-
partment lid cannot be locked in the event
of an electrical malfunction and would
open while the vehicle is being driven.
Improper handling can lead to damage.<
Before closing
1. Open the luggage compartment lid
2. Take the Allen wrench and screwdriver
from the onboard tool kit
3. Lever out the two buttons in the lug-
gage compartment with the screwdriver
and then pull firmly. The convertible top
compartment lid is unlocked
4. Close the luggage compartment lid
5. Move the side windows downwards
slightly; fully lower the rear window.
If the rear window cannot be opened
using the switch, it must be lowered
manually:
Lever out the cover between the rear
head restraints. To do so, place the
screwdriver as close as possible to the
lock element, as shown in the illustra-
tion.
Carefully insert the Allen wrench in the
opening and turn firmly in the direction
indicated by the arrow until the rear
window is completely open.
Closing
Perform the following work steps with
the assistance of a second person
and with the doors open to prevent injury
and damage to the convertible top.<
1. Push the cover 1 on the left and right of
the side panel forwards. Reach into the
resulting openings and raise the con-
vertible top compartment lid 2 as far as
it will go
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Opening and closing
40
2. Hold the convertible top at each side
frame, arrow 3, with both hands
Lifting the convertible top at parts
other than the side frame can
damage it.<
3. Both persons lift on both sides simulta-
neously, arrows 4, and swing the top
forwards. In doing so, keep the convert-
ible top compartment lid open, arrow 5,
e.g. with your shoulder
4. Raise the two convertible top ends as
far as they will go, arrow 6, and close
the convertible top compartment lid,
arrow 7
Do not raise the convertible top
ends until after the convertible top
has been swung forward, as otherwise
damage can occur.<
5. Fold the convertible top ends down-
wards onto the convertible top com-
partment lid
6. From the interior, take out the cover in
the center of the front top frame; use
the screwdriver if necessary
7. Insert the Allen wrench in the appropri-
ate opening
8. From the outside, both persons pull the
front convertible top frame downwards
and on both sides simultaneously as far
as possible
9. Turn the Allen wrench in the direction of
the arrow until the front convertible top
frame locks with the windshield frame.
The rear convertible top ends are
pressed automatically onto the convert-
ible top compartment lid and close
tightly with tension
10. If necessary, close the rear window
again manually in the same way as
above.
Wind deflector*
The wind deflector keeps the air movement
in the passenger compartment at a low
level when the convertible top is open, this
enabling pleasant driving even at higher
speeds. You can conveniently stow it in the
luggage compartment when it is not
needed.
Before fitting
1. Take the wind deflector from the pro-
tective sleeve
2. Unfold the wind deflector
3. Press together the locking mechanism
on the left side until it snaps into place
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Controls
41
Reference At a glanceDriving tipsCommunications NavigationEntertainmentMobility
4. Push out the securing pin 1 on the right
side of the wind deflector until it snaps
into place
5. Unfold the rear mounts 2.
Fitting
1. Insert the wind deflector with the secur-
ing pin 1 in the appropriate opening on
the right side of the vehicle
2. Guide the rear mounts 2 into the recep-
tion points
3. Push the securing pin 3 on the left side
until it snaps into place in the appropri-
ate opening, refer to arrow
4. Fold up the upper half 4 of the wind
deflector.
With wind deflector fitted: do not
incline the front seat backrests too far
backwards if the seat is to be moved back
to the end position, as otherwise the wind
deflector will be damaged.<
Removing
The same as fitting, but in reverse order.
Folding up
Push the handle of the securing pin on the
left side of the vehicle all the way back and
release the locking mechanism.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Adjustments
42
Adjustments
Sitting safely
The ideal sitting position can make a vital
contribution to relaxed, fatigue-free driving.
The sitting position also plays an important
role together with the safety belts and air-
bags in providing occupants with maximum
levels of passive safety in an accident. To
ensure that the safety systems operate with
optimal efficiency, we strongly urge you to
observe the instructions contained in the
following section.
For additional information on transporting
children safely, refer to page 51.
Sitting safely with airbags
Always maintain an adequate dis-
tance between yourself and the air-
bags. Always hold the steering wheel by
its rim with hands at the 9 o'clock and
3 o'clock positions, to minimize the risk of
injuries to your hands and arms in the event
of airbag deployment.
No one and nothing is to come between the
airbags and the seat occupant.
Do not use the cover of the front airbag on
the front passenger side as a storage area.
Make sure that the front passenger is sit-
ting correctly and does not rest feet or legs
on the instrument panel, otherwise leg inju-
ries can occur if the knee and front airbags
are triggered.
Never let an occupant's head rest near or
on a side airbag because the inflating air-
bag could cause a serious or fatal injury.<
Even if you adhere to all the instructions
injuries resulting from contact with airbags
cannot be fully excluded, depending on the
circumstances. The ignition and inflation
noise may provoke a mild – usually tempo-
rary – hearing loss in extremely sensitive
individuals.
For airbag locations and additional infor-
mation on airbags, refer to page 81.
Sitting safely with safety belts
Fasten your safety belt before starting any
trip. Airbags complement the safety belt as
an additional safety device, but they do not
represent a substitute.
Your vehicle has four seats that are all
equipped with a safety belt.
At all times, occupants should sit
upright and be properly restrained:
infants and small children in appropriate
child-restraint systems; larger children and
adults using the safety belts.
Never allow more than one person to wear
a single safety belt. Never allow infants or
small children to ride in a passenger's lap.
Expectant mothers should always wear
their safety belts, taking care to position
the lap belt against the lower hips, where it
will not exert pressure against the abdomi-
nal area.
Do not route the belt across your neck, or
run it across sharp edges. Be sure that the
belt does not become caught or jammed.
Avoid twisting the belt while routing it firmly
across the hips and shoulder. Do not allow
the belt to rest against hard or fragile
objects. Otherwise, in the event of a frontal
impact, a loose lap belt could slide over
your hips, leading to abdominal injury.
Avoid wearing clothing that prevents the
belt from fitting properly and pull the lap
belt periodically to readjust the tension
across your shoulder in order to avoid a
reduction in the retention effect of the
safety belt.<
For instructions on operating safety belts,
refer to page 47.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Controls
43
Reference At a glanceDriving tipsCommunications NavigationEntertainmentMobility
Seats
Note before adjusting
Never attempt to adjust your seat
while operating the vehicle. The seat
could respond with unexpected move-
ment, and the ensuing loss of vehicle con-
trol could lead to an accident.
On the front passenger side as well, do not
tilt the backrest too far toward the rear
while driving. Failure to observe this pre-
caution can prevent the belt from providing
effective protection against injury, as the
passenger could slide under the belt in an
accident.
Make sure that the footwell behind the
driver's and front passenger's seat is empty
and unobstructed. If you fail to do so, any
persons or objects behind the seat could
be injured or damaged by a rearward
movement of the seat.<
Also observe the instructions regarding
damage to the safety belt on page 47.
Convertible: with the wind deflector
fitted, do not incline the front seat
backrests too far backwards if the seat is to
be moved back to the end position, as oth-
erwise the wind deflector will be dam-
aged.<
Seat adjustment
To ensure that the safety systems
continue to provide optimized protec-
tion, please observe the adjustment
instructions above.<
1 Inclination
2 Longitudinal direction
3 Height
4 Backrest
5 Convertible: head restraints, refer to
page 45
With the sports seat
*, you can also adjust
the thigh support manually:
Pull the lever and move the thigh support in
a longitudinal direction.
Lumbar support* adjustment
You can also adjust the contours of the
backrest to obtain additional support in the
lumbar region.
The upper hips and spinal column receive
supplementary support to help you main-
tain a relaxed, upright sitting position.
> Press the switch forwards or back-
wards: increase or decrease curvature
> Press the switch up or down: shift cur-
vature at top or bottom.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Adjustments
44
Seat, mirror and steering
wheel memory
You can store and select three different
adjustment settings for the driver's seat,
exterior mirrors and steering wheel.
The adjustment of the lumbar support is not
stored in the memory.
Storing
Ignition key as of position 1:
1. Adjust the desired seat, exterior mirror
and steering-wheel positions
2. Press
MEMORY button:
The indicator lamp in the button lights
up
3. Press the desired memory button 1, 2
or 3:
The indicator lamp goes out.
Calling up automatically
You have two possibilities:
> Calling up on unlocking the vehicle
> Calling up on opening the driver's door.
If you want to call up the last driver's seat,
exterior mirror and steering wheel position,
proceed as follows:
Control Center, for principle details, refer to
page 16:
1. Open the menu
2. Select "Vehicle settings" and press the
controller
3. Select "Door locks" and press the con-
troller
4. Select "Central locking" and press the
controller
5. Select "Last seat pos." and press the
controller
6. Select "After unlocking" or "After open-
ing door"
7. Press the controller.
Depending on which key you have used to
open the vehicle, the last adjustment is
applied.
When using this Key Memory feature,
always make sure that the footwell
behind the driver's seat is empty and unob-
structed. If you fail to do so, any persons or
objects behind the seat could be injured or
damaged by a rearward movement of the
seat.<
Calling up manually
Do not call up a position from the
memory while the vehicle is moving.
There is a risk of accident from unexpected
movement of the seat or steering wheel.<
Convenience mode
1. Open the driver's door after unlocking
or turn the ignition key to position 1
2. Briefly press the desired memory but-
ton 1, 2 or 3.
The system immediately cancels the
adjustment procedure when you press one
of the seat adjustment switches or use one
of the memory buttons.
The adjusting procedure for the steering
wheel is immediately interrupted if you
operate the switch for the steering wheel
adjustment in any direction, refer to
page 48.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Controls
45
Reference At a glanceDriving tipsCommunications NavigationEntertainmentMobility
Safety feature
1. Close the driver's door and turn the
ignition key to position 0 or 2
2. Press the desired memory button 1, 2
or 3 and maintain pressure until the
adjustment process has been com-
pleted.
If you press the
MEMORY button acciden-
tally:
Press the button again; the indicator lamp
goes out.
Tilt function, passenger-side mirror
Automatic curb monitor
Activating
1. Select the driver's exterior mirror with
the switch
2. When you engage reverse gear or
selector-lever position R, the exterior
mirror glass on the front passenger side
tilts downward slightly. This allows the
driver to see the area immediately adja-
cent to the vehicle – such as a curb –
when parking, etc.
Deactivating
Slide the mirror selection switch to the pas-
senger's side position.
Front head restraints
Head restraints reduce the risk of spi-
nal injury in the event of an accident.
Adjust the head restraints so that they are
centered roughly at the level of your ears.<
Coupe
Adjusting the height
> To raise: pull
> To lower: press.
To reach the lowest position, press
the button, refer to arrow 1.<
Adjusting tilt angle
Swivel the head restraints.
Removal
1. Pull the head restraint upwards to the
stop
2. Press the button, arrow 1, and remove
the head restraint.
Installation
Push the head restraint into the supports.
Convertible
Adjusting height
> To raise: move the switch upwards
> To lower: move the switch downwards.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Adjustments
46
Adjusting tilt angle
Swivel the head restraints.
Entry to the rear
Before moving off, fold back both seat
backrests. Otherwise, there is a risk
of accident from unexpected movement.<
Coupe: releasing backrest
Pull the lever upwards and fold the back-
rest forwards.
The lever is designed in such a way that the
safety belt can be stored there. This
enables you to fasten the safety belt more
conveniently.
Convertible: releasing backrest
The belt system integrated in the seat
ensures easier entry in the rear.
1. Pull lever 1 upwards and fold the back-
rest forwards
2. Press and hold button 2 until the seat
has moved to the desired position
3. After entry to the rear, fold back the
backrest and lock it in place
4. Press and hold button 3. The seat
moves back to its previous position.
If you release button 3 before this, the
seat stops in its current position.
You can lock the backrest in place
when it is folded forward. This is use-
ful, for example, when you get into the vehi-
cle when it is parked on a hill. Press the
backrest until it audibly locks into place. To
fold it back, you do not have to use lever 1
to release it.<
Lock backrest warning lamp:
Lights up when the backrest is not
locked. At the same time, an addi-
tional message appears on the Control Dis-
play.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Controls
47
Reference At a glanceDriving tipsCommunications NavigationEntertainmentMobility
Safety belts
Fasten your safety belt before starting any
trip. Airbags complement the safety belt as
an additional safety device, but they do not
represent a substitute.
Fastening
Make sure you hear the latch plate engage
in the belt buckle.
Please fasten safety belt
warning lamp:
Lights up until the driver and front
passenger have fastened their safety belts.
Depending on the model, a signal
* sounds
or a message
* appears on the Control Dis-
play at the same time.
The warning is also issued when the driver
or front passenger removes his or her
safety belt while driving.
The warning can also take place if
objects are placed on the passenger
seat.<
Releasing
1. Hold the belt firmly
2. Press the red button in the belt buckle
3. Guide the belt into its reel.
The shoulder strap's anchorage point will
be in the correct position for adults of every
build if the seat is correctly adjusted, refer
to page 43.
Damage to safety belts
If the safety belts are damaged or
stretched in an accident: have the
entire belt system, including the tensioning
mechanisms, replaced at your BMW cen-
ter. Have the belt anchorage points
inspected for damage at the same time.
Failure to observe this precaution may pre-
vent the safety belts from effectively pro-
viding optimal protection when needed.<
Heated seats
The system regulates the temperatures of
the seat cushion and backrest.
The temperature setting progresses one
step through its control sequence each
time you press the button.
To switch off:
Maintain pressure on the button for several
seconds.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Adjustments
48
Mirrors
Adjusting exterior mirrors
Armrest in the driver's door:
1 4-way adjustment
2 Switching to the other mirror or auto-
matic curb monitor, refer to page 45
To prevent the exterior mirrors from
being damaged due to the width of
the vehicle, always fold them in by hand
before entering an automatic car wash.<
You can also adjust the mirrors manually
if necessary by pressing against the outer
edges of their lenses.
Storing the mirror positions, refer to Seat,
mirror and steering wheel memory,
page 44.
The mirror on the passenger's side
features a lens with a more convex
surface than the mirror installed on the
driver's side. When estimating the distance
between yourself and other traffic, bear in
mind that the objects reflected in the mirror
are closer than they appear. This means
that estimations of the distance to following
traffic should not be regarded as precise.<
Automatic functions
> Both exterior mirrors are automatically
heated in ignition key position 2
> The interior and exterior mirrors dim
depending on the light occurring when
the vehicle is being driven forward
*.
There are two photocells in the interior
mirror to control the automatic dimming
of the interior mirror. One is integrated
within the mirror's lens, refer to arrow,
while the other is located at an offset
position on the rear of the mirror hous-
ing.
For trouble-free operation, keep the
photocells clean and do not cover the
area between the interior rearview mir-
ror and the windshield. Do not attach
any kind of stickers on the windshield in
front of the mirror, either.
Steering wheel adjustment
Do not adjust the steering wheel while
the vehicle is moving. There is a risk
of accident from unexpected movement.<
The steering wheel can be adjusted in four
directions.
Storing the steering-wheel position, refer
to Seat, mirror and steering wheel memory,
page 44.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Controls
49
Reference At a glanceDriving tipsCommunications NavigationEntertainmentMobility
Automatic steering wheel
adjustment
In conjunction with seat, mirror and steer-
ing wheel memory.
The steering wheel automatically moves as
high up and far forward as possible to ease
driver entry and exit before then returning
to the standard position or stored memory
setting.
This automatic feature is governed by the
driver's door and the ignition lock.
Steering wheel heater*
In ignition key position 2, press the button.
The indicator lamp within the button lights
up when the steering wheel heater is in
operation.
Programming button function
Depending on your vehicle's equipment, an
individual function can be assigned to each
of the two programmable function buttons
in the steering wheel.
Control Center, for principle details, refer to
page 16:
1. Open the menu
2. Select "Vehicle settings" and press the
controller
3. Select "Steering wheel buttons" and
press the controller.
A list with different functions is dis-
played:
> "Navigation"
Voice instructions for the navigation
system
> "Air recirculation on / off"
In this mode, you can continuously
block the supply of outside air, refer
to AUC Automatic recirculated-air
control on page 89
> "Mute on / off"
Mutes the audio sources
> "Screen on / off"
Switches the Control Display on/off
> "Short cut / Telephone"
Display/hide phone book
> "Next entertainment source"
Changes audio source
4. Select the desired function
5. Press the controller
6. Select button if necessary
.
7. Press the controller.
Depending on which key you have used to
open the vehicle, the last adjustment is
applied.
You can operate the selected function
using the corresponding button.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Adjustments
50
Operating function
Briefly press the corresponding button on
the steering wheel.
Voice instructions of navigation system:
> Switch voice instructions on/off:
Maintain pressure on the button for
several seconds
> Repeat the last voice instruction:
Briefly press the button
> To prevent the navigation system from
interrupting other audio sources, such
as a news program or traffic bulletin,
you can cancel the voice instructions:
Press the button briefly during an
instruction.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Controls
51
Reference At a glanceDriving tipsCommunications NavigationEntertainmentMobility
Transporting children safely
The right place for children
Children always in the rear
Accident research shows that the safest
place for children in a vehicle is in the rear
seat.
Older children should be tightly secured
with a safety belt, after they have outgrown
a booster seat that is appropriate for their
age, height and weight.
Child-restraint system in the rear
Children under 13 years of age and
children less than 5 ft/150 cm tall
should always ride in the rear and the
restraint systems should be secured with
the vehicle's safety belts.<
Younger children should be secured in an
appropriate forward-facing child-restraint
system that has first been properly
secured. We strongly urge you to carefully
read and comply with the instructions for
installation and use provided by the child-
restraint's manufacturer whenever you use
such a device.
All rear sitting positions in your vehicle
meet the recommendations of SAE J1819,
an industry-recommended practice for
securing child-restraint systems in motor
vehicles.
Exception for front passenger seat
Should it become necessary to use
a child-restraint system on the front
passenger seat, the airbags on the passen-
ger's side must be deactivated. Deactivat-
ing the passenger airbags is only possible
on the Coupe. Your BMW center will be
glad to advise you.<
Never install a rearward-facing child-
restraint system in the front passen-
ger seat of this vehicle if the passenger air-
bag is not deactivated. If you do so, the
child could be severely injured when the
airbag is triggered.
Your vehicle is equipped with an airbag
supplemental restraint system for the front
passenger. Because the backrest on any
rearward-facing child-restraint system – of
the kind designed for infants under 1 year
and 20 Ibs./9 kg – would be within the air-
bag's deployment range, you should never
mount such a system in the front passenger
seat, since the impact of the airbag against
the child restraint's backrest could lead to
serious or fatal injuries.<
Installing child-restraint
systems
Before installing any child-restraint system
or child seat, read the following:
Observe the child-restraint system
manufacturer's instructions for instal-
lation and use. Otherwise the degree of
protection can be reduced.
After an accident, have all parts of the
child-restraint system and of the relevant
vehicle safety belt system checked by a
BMW center and replaced if necessary.<
Commercially-available child-restraint sys-
tems are designed to be secured with a lap
belt or with the lap belt portion of a combi-
nation lap/shoulder belt. Improperly or
inadequately installed restraint systems
can increase the risk of injury to children.
Always read and follow the instructions that
come with the system.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Transporting children safely
52
Child seat security
All of the rear belt retractors and the front
passenger's safety belt can be locked for
mounting and securing child-restraint sys-
tems.
Information regarding this is located near
the buckle latch of each safety belt.
To lock safety belt
Pull the entire length of the belt from the
belt retractor. Allow the reel to retract the
belt somewhat and engage the buckle,
then tighten the belt against the child-
restraint system. The retraction mechanism
is now locked.
To unlock safety belt
Release the buckle, remove the child-
restraint system and allow the belt retractor
to reel the belt completely in.
Coupe: child-restraint system with
tether strap
If you use a child-restraint system with a
tether strap, two additional tether anchor-
age points have been provided – refer to
the arrows in the illustration. Depending on
the location selected for sitting in the rear
passenger area, attach the tether strap to
the corresponding anchorage point to
secure the child-restraint system, as
shown in the illustration below.
Each sitting position is fitted with a head
restraint.
The head restraint must be adjusted into
the lowest possible position. Pass the
tether strap over the head restraint.
Adjust the tether strap according to
the child-restraint manufacturer's
instructions.<
LATCH child-restraint fixing
LATCH: Lower Anchor and Tethers for
CHildren.
The rear outer sitting positions are pro-
vided with anchors for a LATCH child-
restraint fixing.
To fit the LATCH child-restraint fixing,
follow the operating and safety
instructions of the system manufacturer.<
Access to anchorage points
The illustrations show the right rear seat as
an example. The outer anchorage points
for the LATCH child-restraint fixing are
identified by flags.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Controls
53
Reference At a glanceDriving tipsCommunications NavigationEntertainmentMobility
Canadian models only:
The anchorage points for the LATCH child-
restraint fixing are identified by buttons.
Installation guide
The installation guide makes it easier to fit
the LATCH child-restraint fixing and at the
same time protects the surface of the
seats.
The installation guide is available at
your BMW center. Always observe
the related operating instructions and
safety precautions.<
1. Pull the belt away from the area of the
child-restraint fixing
2. Firmly press the installation guide into
the gap between the upholstery on seat
and backrest, continuing until the two
funnel-shaped guides snap into place in
the LATCH support braces in the seat.
Pull the installation guide to remove.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Driving
54
Driving
Ignition lock
0 Steering locked
The key can only be inserted or removed in
this position.
After removing the key, turn the steering
wheel slightly until it locks.
Interlock on automatic transmission
> Only move the selector lever from
position P with the engine running
> To turn the key back to position 0 or to
remove it, first select the selector lever
position P.
1 Steering unlocked
A slight steering wheel movement often
makes it easier to turn the key from 0 to 1.
Individual current consumers are ready for
operation.
2 Ignition switched on
All vehicle systems are ready for operation.
3 Start engine
Starting engine
Do not run the engine in closed
rooms, as otherwise the inhaling of
toxic exhaust gases can cause uncon-
sciousness and death. The exhaust gases
contain carbon monoxide, an odorless and
colorless, but highly toxic gas.
Never leave an unattended vehicle with the
engine running, as such a vehicle repre-
sents a potential safety hazard.
To prevent the vehicle from rolling, always
select idle position or position N and apply
the handbrake before leaving the vehicle
with the engine running.<
When starting the engine, do not press the
accelerator pedal.
Do not allow the engine to warm up by
leaving it running while the vehicle remains
stationary. Instead, begin to drive immedi-
ately at a moderate engine speed.
Special starting conditions
Press the accelerator pedal halfway down
when starting if
> the engine fails to start on the first
attempt, for instance, if it is very hot or
cold
> the engine is started at very low tem-
peratures, below approx. +57/–156,
at high altitudes, over 3,300 ft/1,000 m.
Avoid frequent starting in quick suc-
cession or repeated start attempts in
which the engine does not start. Otherwise,
the fuel is not burned or inadequately
burned and there is a danger of overheat-
ing and damaging the catalytic converter.<
Manual transmission
1. Apply the handbrake
2. Gearshift lever in idle position
3. Press the clutch pedal
If the clutch pedal is not
depressed, the engine will not
start.<
4. Start the engine.
Do not terminate the starting operation
too early, but after approx. 20 seconds
at the latest. When the engine starts, let
go of the ignition key immediately.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Controls
55
Reference At a glanceDriving tipsCommunications NavigationEntertainmentMobility
SMG Sequential manual
transmission and automatic
transmission
Your BMW is equipped with the conve-
nience starting feature. Here, it is sufficient
to turn the ignition key only briefly to posi-
tion 3 'Start engine' and to let go of it right
away. The system responds by automati-
cally engaging the starter for a certain
period and allowing it to run until the engine
starts, after which it then disengages auto-
matically.
SMG Sequential manual
transmission
1. Press the brake pedal
2. Engage selector-lever position N
3. Start the engine.
If the engine does not start, engage
the last gear selected again, refer to
instrument cluster display, and then
engage selector-lever position N.<
Automatic transmission with
Steptronic
1. Press the brake pedal
2. Engage selector-lever position P or N
3. Start the engine.
Switching off engine
Do not remove the ignition key while
the vehicle is rolling, as otherwise the
steering wheel lock would engage while
steering.
When leaving the vehicle, remove the igni-
tion key and lock the steering.
When parking on a downhill incline, apply
the handbrake, as otherwise the vehicle
could roll away.<
Manual transmission
1. Turn the ignition key to position 1 or 0
2. Engage first or reverse gear.
SMG Sequential manual
transmission
1. Engage a drive position
2. Turn the ignition key to position 1 or 0.
A signal sounds if the idle position N is
engaged on stopping the engine.
Automatic transmission with
Steptronic
1. Engage selector-lever position P
2. Turn the ignition key to position 1 or 0.
Handbrake
The handbrake is primarily intended to pre-
vent the vehicle from rolling while parked;
it brakes the rear wheels.
Indicator lamp
The indicator lamp lights up, and an
acoustic signal also sounds when
starting off. The handbrake is
engaged.
Indicator lamp for Canadian mod-
els.
Engaging
The lever locks into place automatically;
the indicator lamp in the instrument cluster
lights up as of ignition key position 1.
Releasing
Pull slightly upwards, press the button and
lower the lever.
If exceptional circumstances should
make it necessary to engage the
handbrake while the vehicle is in motion,
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Driving
56
do not pull it too strongly. In doing so, con-
tinuously press the button of the handbrake
lever.
Strong application of the handbrake can
lead to overbraking of the rear axle and
associated 'fishtailing' of the vehicle rear
end.
The brake lamps do not light up when the
handbrake is engaged.
Vehicles with manual or SMG transmission:
When parking on inclines, engage the
handbrake, as even engaging the first or
reverse gear might not under certain cir-
cumstances secure the vehicle against
moving.
Vehicles with automatic transmission:
Engage selector-lever position P.<
To prevent corrosion and one-sided
braking action, occasionally engage
the handbrake lightly when the vehicle is
slowly coming to a standstill if the traffic
conditions are suitable.<
Manual transmission
While shifting gear in the 5th/6th gear
level, press the gearshift lever to the
right, as otherwise engine damage could
occur from inadvertently engaging a gear in
the 3rd/4th gear level.
On inclines, do not hold the vehicle with the
clutch; use the handbrake. Otherwise there
is high clutch wear.<
Reverse gear
Select only when the vehicle is completely
stationary. When pressing the gearshift
lever to the left, overcome some resis-
tance.
The backup lamps automatically switch on
in ignition key position 2.
SMG Sequential manual
transmission*
The concept
The SMG Sequential manual transmission
is an automated manual transmission in
which an electro-hydraulic system handles
the clutching and gear changes.
You operate the SMG using the selector
lever in the center console and two shift
paddles on the steering wheel.
It offers the following functions:
> Choice of manual or automatic mode:
Sequential mode or Drive mode
> Options of two drive programs:
Normal or Sport, refer to page 59
> Protection against incorrect gearshifts
and automatic shift down at minimum
engine speed, also in the Sequential
mode
> Kickdown function in the Drive mode
> Acceleration assistant, refer to
page 60.
The SMG is operational in ignition key posi-
tion 2.
Selector-lever positions
The current selector-lever position is dis-
played on the center console.
> R: Reverse gear
> N: Neutral, idle
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Controls
57
Reference At a glanceDriving tipsCommunications NavigationEntertainmentMobility
> One-touch function for Sequential
mode
+: manual upshifts
—: manual downshifts
> D: Drive mode.
N is automatically engaged if the
driver's door is opened with the
engine running and neither pedals, shift
paddles nor the selector lever are oper-
ated.
This is indicated by an acoustic signal and
the flashing display N in the instrument
cluster.<
Gear display
R N 1 to 6
The currently engaged gear is displayed, in
the Drive mode preceded by a D.
Shiftlock
Press the brake pedal before shifting out
of N; the shift command will not be exe-
cuted unless the brake is applied.
R Reverse
Select only when the vehicle is completely
stationary.
Sequential mode
After every engine start, as soon as the
selector lever is pushed to the right and the
brake pedal is pressed, the Sequential
mode is activated.
The gear is changed using the shift paddles
or selector lever.
Driving off is also possible in second gear,
e.g. when the roadway is icy.
D Drive mode
In the Drive mode, all forward gears are
shifted automatically.
To switch from Sequential to Drive mode:
Briefly press the selector lever to the right
towards D.
Kickdown:
For rapid acceleration, e.g. overtaking,
press the accelerator pedal as far down as
it will go: you achieve maximum accelera-
tion.
To switch back to the Sequential mode:
briefly press the selector lever back to the
right towards D or change the current gear
using the shift paddles or selector lever.
Start off quickly on slopes. Do not
hold the vehicle on a hill by applying
the throttle, but engage the handbrake
instead. Otherwise overheating can occur
in the area of the transmission.<
Gear changes
Using selector lever
> To shift up, briefly press the selector
lever towards +
> To shift down, briefly press towards —.
Using shift paddles on steering
wheel
> To shift up, pull one of the shift paddles
> To shift down, press.
In the following situations, the SMG in the
Sequential mode assists you:
> Upshifts and downshifts are executed
only when they will result in a plausible
combination of engine and vehicle
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Driving
58
speed; thus, for example, a downshift
that would cause the engine to overrev
will not be executed by the system
> When the vehicle is stationary, the
transmission automatically downshifts
into first gear
> Shortly before dropping below a gear-
dependent minimum speed, the trans-
mission downshifts automatically even
without your intervention.
Malfunction
The warning lamp lights up and a
message appears on the Control
Display. There is a malfunction in
the transmission system. Avoid high loads.
While it will remain still possible to move
the selector lever to any desired position,
the transmission will revert to operation in
its default mode with only a limited number
of forward gears.
Have the system checked as soon as pos-
sible.
Information on jump-starting and towing
begins on page 185.
Overheating
The warning lamp lights up and a
message appears on the Control
Display. In addition, an acoustic
signal sounds. Overheating in the area of
the transmission. If possible, stop or drive
off quickly so that the system can cool
down.
Automatic transmission
with Steptronic*
In addition to the fully automatic mode, you
can also shift manually with Steptronic,
refer to page 59.
Selector-lever positions
P R N D M/S + –
Possible displays
P R N D DS M1 to M6
The selector lever position is indicated, and
in the manual mode the gear currently
engaged.
Changing selector-lever positions
An interlock prevents inadvertent gear-
shifts into selector-lever positions R and P.
To cancel the interlock, press the button on
the front of the selector lever knob, refer to
arrow.
Shiftlock
Press the brake pedal before shifting out
of P or N; the shift command will not be
executed unless the brake is applied.
To prevent the vehicle from creeping after
you select a driving position, maintain pres-
sure on the brake pedal until you are ready
to start.
To prevent the vehicle from rolling,
always select selector-lever posi-
tion P and engage the handbrake before
leaving the vehicle with the engine running.
Never leave an unattended vehicle with the
engine running, as such a vehicle repre-
sents a potential safety hazard.<
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Controls
59
Reference At a glanceDriving tipsCommunications NavigationEntertainmentMobility
P Parking
Select only when the vehicle is completely
stationary. The rear wheels are blocked.
R Reverse
Select only when the vehicle is completely
stationary.
N Neutral
E.g. engage in car washes. The vehicle can
roll.
D Drive, automatic position
Position for normal vehicle operation.
All forward gears are available.
Under normal operating conditions, fuel
consumption is lowest when driving in
position D.
Kickdown
The kickdown mode provides maximum
acceleration:
Press the accelerator pedal beyond the
full-throttle resistance point.
M/S manual operation and
Sport program
Move the selector lever from position D to
the left into gearshift gate M/S:
The sport program is activated and DS
appears in the instrument cluster.
This position is recommended for a perfor-
mance-oriented driving style. It is engaged
automatically when the Dynamic Driving
Control is activated, see below.
When the selector lever is moved slightly
towards + or –, the Steptronic shifts gear
and manual operation is activated. The
instrument cluster shows M1 through M6.
Upshifts and downshifts are executed only
when they will result in a plausible combi-
nation of engine and vehicle speed; thus,
for example, a downshift that would cause
the engine to overrev will not be executed
by the system. The selected gear appears
briefly in the instrument cluster, followed by
the current gear.
To use the automatic function again, move
the selector lever to the right into posi-
tion D.
Malfunction
The warning lamp lights up and a
message appears on the Control
Display. There is a malfunction in
the transmission system. Avoid heavy
loads.
While it will remain still possible to move
the selector lever to any desired position,
the transmission will revert to operation in
its default mode with only a limited number
of forward gears.
Have the system checked as soon as pos-
sible.
Towing, refer to page, 185, jump-starting,
refer to page 185.
Dynamic Driving Control
The Dynamic Driving Control makes it pos-
sible for your BMW to react in an even more
sports-oriented manner at the push of a
button:
> The engine responds more spontane-
ously to accelerator pedal movements
> The steering conveys a feeling of even
better contact with the road surface
> Cruise control:
The stored speed you call up is reached
more quickly.
Additionally with SMG:
> Gearshifts are faster
> The engine speed range is used opti-
mally in the Drive mode.
With automatic transmission:
> The Sport program is activated.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Driving
60
Activating system
With ignition key in position 2
Press the SPORT button.
The LED in the button lights up and SPORT
is displayed in the instrument cluster.
Deactivating system
> Press the SPORT button again or
> engage reverse gear or
> switch off the engine.
The LED in the button and SPORT in the
instrument cluster go out.
Acceleration assistant with SMG
The acceleration assistant enables opti-
mized vehicle acceleration at racing car
level on road surfaces with good adhesion
when starting off.
Do not use the acceleration assistant
too often, as otherwise components
will wear prematurely.<
1. Activate the Dynamic Driving Control
2. Press the DSC button, refer to page 77,
for longer than three seconds
3. Press the accelerator pedal down fully:
kickdown. The ideal starting-off engine
speed is set.
To maintain driving stability, drive
with the DSC on whenever possible.<
Turn signals/
headlamp flasher
1 High beams
2 Headlamp flasher
3 Turn signals
Using turn signals
Move the lever beyond the resistance
point. It then returns to the center position
when released. Press the lever as far as the
resistance point to switch off the turn sig-
nals.
If the indicator lamp flashes faster
than usual, a turn signal has failed.<
Signaling briefly
Press the lever as far as the resistance
point and hold there if necessary. It then
returns to the center position when
released.
Triple turn signal activation
Press the lever as far as the resistance
point; the turn signals flash three times.
You can activate or deactivate this func-
tion.
Control Center, for principle details, refer to
page 16:
1. Open the menu
2. Select "Vehicle settings" and press the
controller
3. Select "Lighting" and press the control-
ler
4. Select "Triple turn signal activation" and
press the controller.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Controls
61
Reference At a glanceDriving tipsCommunications NavigationEntertainmentMobility
Triple turn signal activation is acti-
vated.
Wiper system
1 Standard wiper speed: briefly press
once.
The system automatically reverts to
operation in the intermittent mode
whenever the vehicle is stationary.
Fast wipe: briefly press twice or press
beyond the resistance point.
The system automatically reverts to
operation in the standard wipe mode
whenever the vehicle is stationary
2 Switching off wipers or for brief wipe
3 Activating/deactivating rain sensor
4 Cleaning windshield and headlamps
5 Adjusting rain sensor sensitivity level
The lever automatically returns to its initial
position when released.
Cleaning windshield and headlamps
The system sprays washer fluid against the
windshield and activates the wipers for a
brief period.
When the vehicle lighting system is
switched on, the headlamps are also
cleaned at regular and appropriate inter-
vals.
Do not use the washers if there is any
danger that the fluid will freeze on the
windshield. If you do so, your vision could
be obscured. To avoid freezing, use a
washer fluid antifreeze, refer to Washer
fluid.
Avoid activating the washer when the res-
ervoir is empty, as damage to the pump
could result.<
Windshield washer nozzles
The windshield washer nozzles are auto-
matically heated in ignition key position 2.
Rain sensor
The rain sensor controls windshield wipe
operation depending on the amount of rain.
The rain sensor is located on the wind-
shield, directly in front of the interior rear-
view mirror.
Activating rain sensor
As of ignition key position 1, briefly press
the button. The indicator lamp in the button
lights up. The wipers will always respond
by completing at least one sweep of the
windshield.
Adjusting rain sensor sensitivity level
Turn the serrated dial 5.
Deactivating rain sensor
Press the button again. The indicator lamp
goes out.
The rain sensor is automatically deacti-
vated when you switch off the ignition.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Driving
62
Deactivate the rain sensor when
passing through an automatic car
wash. Failure to do so could result in dam-
age caused by undesired wiper activa-
tion.<
Washer fluid
Washer fluid antifreeze is flammable.
Always keep it well away from sparks
and open flames, and store it in tightly
closed containers well out of the reach of
children. Always observe the instructions
for use provided on the containers.<
Washer fluid reservoir
Capacity approx. 5.3 US quarts/5 liters
Fill with water and – if required – with a
washer antifreeze, according to manufac-
turer's recommendations.
In order to keep to the mixture ratio,
mix the washer fluid before filling.<
Cruise control
The concept
The cruise control is available for use at
speeds of approx. 20 mph/30 km/h and
higher. The vehicle maintains and stores
the speed that you set using the lever
mounted on the steering column.
Do not use the cruise control when
driving on winding roads, in heavy
traffic or in poor road conditions – e.g.
snow, rain, ice, loose road surface – that do
not permit a constant speed.<
One lever for all functions
1 Maintaining and storing speed,
accelerating
Press the lever up to the resistance point:
The system maintains and stores the cur-
rent vehicle speed. The display 1 in the
speedometer indicates this regulated
speed, refer to page 63. Every time you
briefly press the lever, the vehicle's speed
increases by roughly 1 mph/1 km/h.
Press the lever up to the resistance point
and hold it:
The vehicle accelerates without pressure
on the accelerator pedal. The system main-
tains and stores your current speed as
soon as you release the lever.
Press the lever beyond the resistance
point:
Increases the speed by 5 mph/10 km/h.
The vehicle may accelerate beyond the
regulated speed on steep downhill
stretches where the engine's braking effect
alone may not be sufficient to slow the
vehicle. Speed can drop on uphill grades if
the engine output is insufficient.
2 Maintaining and storing speed,
decelerating
Pull the lever:
Functions are the same as 1, only the vehi-
cle speed is reduced.
3 Interrupting cruise control
With the cruise control active, briefly press
the lever up or down.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Controls
63
Reference At a glanceDriving tipsCommunications NavigationEntertainmentMobility
In addition, cruise control is interrupted
automatically
> when you apply pressure to the brake
pedal
> when you press down the clutch pedal
or engage position N of the automatic
transmission/SMG
> when DSC comes on.
4 Recalling stored speed
Briefly press button 4: the vehicle acceler-
ates to and maintains the stored speed.
Deactivating system
When the ignition is switched off, the sys-
tem is deactivated and the stored speed is
deleted.
Displays in instrument cluster
1 Display for stored speed with cruise
control activated
2 Digital speedometer.
Briefly displays the selected speed
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Everything under control
64
Everything under control
Odometer, outside
temperature display, clock
When the ignition is off you can briefly acti-
vate the time, outside temperature and
odometer displays by pressing the knob 3
at the lower left of the instrument cluster.
Outside temperature display, clock,
date 1
The outside temperature and the time are
displayed from ignition key position 1
onwards.
You can set the measurement unit 7 or 6
on the Control Display, refer to Measure-
ment units on page 72.
To call up the date:
Briefly press the CHECK button on the turn
indicator lever, refer to page 69.
Setting the time and date, refer to page 73.
Ice warning
A signal sounds when the outside temper-
ature falls to roughly +37.57/+36; this is
accompanied by a message.
Please bear in mind that the ice warn-
ing does nothing to alter the fact that
black ice may be present on roads at tem-
peratures higher than +37.57/+36, e.g.
on bridges and shaded roads.<
Odometer and trip odometer 2
To reset the trip odometer to zero:
Press button 3 in the instrument cluster.
Tachometer
The white-striped advance warning field,
arrow 1, changes depending on the engine
temperature. The segments disappear in
sequence as the engine warms to its nor-
mal operating temperature.
Avoid allowing the engine speed to rise as
far as the advance warning field whenever
possible.
Engine speeds in the red warning field,
arrow 2, must be avoided.
In this range, the fuel supply is interrupted
to protect the engine.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Controls
65
Reference At a glanceDriving tipsCommunications NavigationEntertainmentMobility
Engine oil thermometer
The engine oil temperature is between
approx. 1607/706 and approx. 3407/
1706 during normal operation.
If the engine oil temperature is too high, a
message appears on the Control Display.
Fuel gauge
Fuel tank capacity: approx. 18.5 US gal-
lons/70 liters, including the reserve capac-
ity of approx. 2.1 gallons/8 liters. You can
find information on refueling on page 162.
If the tilt of the vehicle varies for a longer
period, when you are driving in mountain-
ous areas, for example, the indicator may
fluctuate slightly.
After the reserve quantity has been
reached, a message appears for a short
time on the Control Display; the remaining
range is shown in the computer. Below a
range of approx. 30 miles/50 km, the mes-
sage remains on the Control Display.
Refuel as soon as possible once your
cruising range falls below 30 miles/
50 km, as otherwise engine functions are
not ensured and damage can occur.<
Service requirement display
In instrument cluster
The remaining distance to be driven, the
date for the next maintenance as well as
the date entered for the state emission or
vehicle inspection are displayed briefly as
of ignition key position 2, if the date is
imminent.
Your BMW Service Advisor will deter-
mine your vehicle's current service
requirements by reading out the data
stored in the vehicle key.<
On Control Display
You can view additional information on ser-
vice and maintenance procedures on the
Control Display.
Control Center, for principle details, refer to
page 16:
1. Open the menu
2. Select "Service" and press the control-
ler
3. Select "Service requirements" and
press the controller
4. Select "Status" and press the control-
ler.
The display shows a list of selected service
and maintenance procedures, as well as
legally mandated official inspections.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Everything under control
66
Symbols
The service deadline has already
passed.
The deadline for service or an official
inspection is approaching. Please fix
a service appointment.
No service is currently required.
You can request more detailed information
on every entry.
Select the entry and press the controller.
To exit the menu:
Select and press the controller.
Entering dates for state emission and
vehicle inspections
Make sure the date in the Control Center is
always set correctly, refer to page 73, as
otherwise the effectiveness of CBS Condi-
tion Based Service is not ensured.
Control Center, for principle details, refer to
page 16:
1. Open the menu
2. Select "Service" and press the control-
ler
3. Select "Service requirements" and
press the controller
4. Select "Status" and press the controller
5. Select "Emission inspect." or "State
inspection" and press the controller
6. Select "Set service date" and press the
controller. The month is highlighted
7. Turn the controller to make the adjust-
ment
8. Press the controller to apply the setting.
The year is highlighted
9. Turn the controller to make the adjust-
ment
10. Press the controller to apply the setting.
The date entry is stored.
To exit the menu:
Select and press the controller.
Check Control
The concept
The Check Control monitors functions in
the vehicle and issues a message if there is
a malfunction in the monitored systems.
Supplementary messages on the Control
Display are intended to assist you in
assessing the severity of malfunctions; they
provide you with the information you need
to decide on the best way to respond.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Controls
67
Reference At a glanceDriving tipsCommunications NavigationEntertainmentMobility
Display of a message
means that a Check Control message is
present.
Information and malfunction reports are
indicated by an illuminated indicator or
warning lamp symbol.
At the same time, a gong sounds and a text
message appears on the Control Display.
Supplementary instructions
Messages are assigned one of two priority
ratings:
Priority 1
These messages and malfunction reports
are signaled by a gong. If a number of mal-
functions occur simultaneously, they are
displayed in succession. These messages
cannot be deleted, and they remain on the
display until the problem is corrected. Sup-
plementary information can also appear on
the Control Display.
To exit the menu:
Select and press the controller.
Priority 2
These status messages and malfunction
reports are indicated by the gong and dis-
played for approx. 20 seconds.
To hide a displayed message: briefly press
the CHECK button on the turn signal lever.
Check Control symbol and message
on Control Display
Depending on the status of the monitored
systems, various symbols are displayed:
No malfunctions are present in the
monitored systems.
Malfunctions are present in the moni-
tored systems.
Depending upon how serious the
problem is, a supplementary mes-
sage may also appear on the Control Dis-
play.
The symbols also indicate the status of the
service requirement display, refer to
page 66.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Everything under control
68
Calling up stored messages on
Control Display
Using CHECK button
1. Press the button longer:
The first stored message is displayed
2. Briefly press the button:
A new message appears each time you
briefly press the button.
Using Control Center
Control Center, for principle details, refer to
page 16:
1. Press button.
The start menu is opened
2. Press the controller to open the menu
3. Select "Service" and press the control-
ler
4. Select "Check Control messages" and
press the controller. The stored mes-
sages appear on the display
5. Select the desired message and press
the controller.
The display disappears automatically after
a short time.
To exit the menu immediately:
Select and press the controller.
Displays after completion of trip
Malfunction reports generated during the
trip are shown consecutively when you
switch off the ignition.
Before the display disappears, you can dis-
play the messages once again. Press the
CHECK button for approx. 2 seconds.
If several messages are present, you can
continue to briefly press the CHECK button
to view them in succession.
The display
> cancels itself automatically after a brief
period
> can be canceled by again pressing the
CHECK button for approx. 2 seconds.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Controls
69
Reference At a glanceDriving tipsCommunications NavigationEntertainmentMobility
Computer
Mode selection
As of ignition key position 1, you can use
the BC button in the turn signal lever to call
up computer information in the instrument
cluster.
A new function appears each time you
briefly press the BC button.
Displays in instrument cluster
The display sequence:
> Cruising range
> Average speed
> Average fuel consumption.
Cruising range
Displays the estimated cruising range
available with the remaining fuel. The sys-
tem calculates the cruising range based on
operating conditions over the last 20 miles/
30 km and the amount of fuel remaining in
the tank.
Always refuel as soon as possible
once your cruising range falls to
below 30 miles/50 km, as otherwise engine
functions are not ensured and damage can
occur.<
Average fuel consumption
The average fuel consumption is calculated
for the time during which the engine is run-
ning.
You can use the Control Display to view
your fuel consumption rate over two differ-
ent distances, refer to Computer or Trip
computer.
To reset the average fuel consumption:
press the BC button in the turn signal lever
for approx. 2 seconds.
Average speed
Periods with the vehicle parked and the
engine off are not included in the calcula-
tions of average speed.
To reset the average speed: press the
BC button in the turn signal lever for
approx. 2 seconds.
Displays on Control Display
You can also call up the computer via the
Control Center, for principle details, refer to
page 16:
1. Press button.
The start menu is opened
2. Move the controller to the right to open
"Navigation".
On vehicles without navigation system:
open "Car Data"
3. Select "Car Data" and press the con-
troller.
You can choose between two display
options:
> Computer
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Everything under control
70
> Trip computer,
suitable e.g. for a vacation trip.
Computer
Select "Onboard info" and press the con-
troller.
> Estimated time of arrival at destination:
> Entering a distance manually in the
computer, see below
> Entering a destination in the naviga-
tion system, refer to page 110
> Cruising range
> Distance to destination:
> Entering a distance manually in the
computer, see below
> Entering a destination in the naviga-
tion system, refer to page 110
> Average speed
> Average fuel consumption.
Trip computer
Select "Trip computer" and press the con-
troller.
> Departure time
> Driving time
> Elapsed distance
> Average speed
> Average fuel consumption.
To switch the trip computer on/off and
reset all the values:
1. Select "Set" and press the controller
2. Select the desired menu item
3. Press the controller.
Entering a distance manually
Control Center, for principle details, refer to
page 16:
1. Open "Navigation".
On vehicles without navigation system:
open "Car Data"
2. Select "Car Data" and press the con-
troller
3. Select "Onboard info" and press the
controller
4. Select "Dist. to destination" and press
the controller
5. Turn the controller to select the dis-
tance to your destination. When doing
so, maintain a slight resistance if neces-
sary if a greater difference is to be
entered
6. Press the controller to apply the setting.
With the destination guidance switched on,
the distance is given automatically.
Display options
You can display the computer or the trip
computer in the assistance window.
Control Center, for principle details, refer to
page 16:
1. Move the controller to the right to
change to the assistance window and
press the controller
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Controls
71
Reference At a glanceDriving tipsCommunications NavigationEntertainmentMobility
2. Select a menu item:
> "Onboard info"
> "Trip computer"
3. Press the controller.
Speed limit
You can enter a speed and a Check Control
message indicates when you have reached
this speed. This enables you, for example,
to receive warnings if you exceed a speed
limit in an urban area.
You are only warned of reaching this speed
a second time if you again drive at least
3 mph/5 km/h slower.
Entering, changing
Control Center, for principle details, refer to
page 16:
1. Open "Navigation".
On vehicles without navigation system:
open "Car Data"
2. Select "Car Data" and press the con-
troller
3. Select "Limit" and press the controller
4. Select the speed and press the control-
ler
5. Turn the controller to set the limit. When
doing so, maintain a slight resistance if
necessary if a greater difference is to be
entered
6. Press the controller to apply the setting.
Applying your current speed as limit
Control Center, for principle details, refer to
page 16:
1. Open "Navigation".
On vehicles without navigation system:
open "Car Data"
2. Select "Car Data" and press the con-
troller
3. Select "Limit" and press the controller
4. Select "Select current speed" and
press the controller. The system applies
your current speed as the limit.
Activating limit
Control Center, for principle details, refer to
page 16:
1. Open "Navigation".
On vehicles without navigation system:
open "Car Data"
2. Select "Car Data" and press the con-
troller
3. Select "Limit" and press the controller
4. Select "On" and press the controller.
Limit is activated.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Everything under control
72
Stopwatch
Control Center, for principle details, refer to
page 16:
1. Open "Navigation".
On vehicles without navigation system:
open "Car Data"
2. Select "Car Data" and press the con-
troller
3. Select "Stopwatch" and press the con-
troller.
Starting and stopping
> Select "Start" and press the controller.
The stopwatch starts at the displayed
time
> Select "Reset" and press the controller.
The stopwatch is reset and it restarts if
it was running beforehand
> Select "Stop" and press the controller.
This stops the timer.
Taking an intermediate time reading
Select "Interim time" and press the control-
ler. This intermediate time appears below
the ongoing primary stopwatch count.
All of the remaining functions remain
available at all times while the stop-
watch is running. The stopwatch continues
operation in the background.<
Settings on Control Display
Brightness of Control Display
The brightness is automatically adapted to
the ambient lighting conditions. However,
you can change the base setting.
Control Center, for principle details, refer to
page 16:
1. Press button.
The start menu is opened
2. Press the controller to open the menu
3. Select "Display settings" and press the
controller
4. Select "Brightness" and press the con-
troller
5. If necessary, move the controller to the
right to select "Display Offset"
6. Turn the controller until the desired set-
ting is selected.
Depending on which key you have used to
open the vehicle, the last adjustment is
applied.
Measurement units
You can change the measurement units for
consumption, distances, temperature and
pressure.
1. Open the menu
2. Select "Display settings" and press the
controller
3. Select "Units" and press the controller
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Controls
73
Reference At a glanceDriving tipsCommunications NavigationEntertainmentMobility
4. Select the menu item to be set
5. Press the controller
6. Select the desired measurement unit
and press the controller.
Depending on which key you have used to
open the vehicle, the last settings are
applied.
Language on Control Display
The language on the Control Display can
be set.
Control Center, for principle details, refer to
page 16:
1. Open the menu
2. Select "Display settings" and press the
controller
3. Select "Languages" and press the con-
troller
4. Select "Text language" and press the
controller. You can select a different
language for the text displays
5. Select the desired language and press
the controller.
Depending on which key you have used to
open the vehicle, the last adjustment is
applied.
Setting time
Control Center, for principle details, refer to
page 16:
1. Open the menu
2. Select "Display settings" and press the
controller
3. Select "Time" and press the controller
4. Select "Set time" and press the control-
ler. The hours are selected
5. Turn the controller to set the hours
6. Press the controller to apply the setting.
The next adjustment is highlighted
7. Make the remaining adjustments. After
the last adjustment, the time is stored.
12h/24h mode
The mode can be set.
1. Select "Time format" and press the
controller
2. Select the desired mode and press the
controller.
Depending on which key you have used to
open the vehicle, the last adjustment is
applied.
Switching on hour signal*
You will hear three tones just before each
full hour.
Select "Hour memo" and press the control-
ler.
The hour signal is activated.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Everything under control
74
Setting date
Control Center, for principle details, refer to
page 16:
1. Open the menu
2. Select "Display settings" and press the
controller
3. Select "Date" and press the controller
4. Select "Set date" and press the control-
ler. The first section of the date display
is highlighted, here the day
5. Turn the controller to make the adjust-
ment
6. Press the controller to apply the setting.
The next adjustment is highlighted
7. Make the remaining adjustments. After
the last adjustment, the date is stored.
Changing date format
The date format can be set.
1. Select "Date format" and press the con-
troller
2. Select the desired format and press the
controller.
Depending on which key you have used to
open the vehicle, the last adjustment is
applied.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Controls
75
Reference At a glanceDriving tipsCommunications NavigationEntertainmentMobility
Technology for comfort, convenience
and safety
PDC Park Distance Control*
The concept
The PDC assists you when you are parking.
Signal tones and a visual display
* indicate
the current distance to an object behind or
in front of your vehicle. To measure the dis-
tance, there are four ultrasonic sensors in
each bumper. The sensors at the front and
at the two rear corners have a range of
approx. 20 in/50 cm; the rear middle sen-
sors have approx. 5 ft/1.50 m.
PDC is a parking aid that can indicate
objects when they are approached
slowly, as is usually the case when parking.
Avoid approaching an object at high speed,
as otherwise the physical circumstances
would mean that the system warning was
too late.<
Automatic mode
In ignition key position 2, the system auto-
matically assumes operational status after
a few seconds each time you engage
reverse gear or selector-lever position R.
Wait this short period before driving.<
The system is automatically deacti-
vated once the vehicle travels approx.
165 ft/50 m or exceeds a speed of roughly
20 mph/30 km/h; the indicator lamp goes
out. You can reactivate the system manu-
ally as needed.
Manual mode
With the ignition key in position 2, press the
button; the indicator lamp lights up.
Deactivating manual mode
Press the button again; the indicator lamp
goes out.
Signal tones
The signal indicating the distance to the
nearest obstacle is directional. Thus, an
object detected to the left rear of the vehi-
cle will be indicated by a signal tone from
the left rear speaker, etc. As the distance
between vehicle and object decreases, the
intervals between the tones become
shorter. The signal tone becomes continu-
ous once the distance to the nearest object
falls to below roughly 1 ft/30 cm.
The warning signal is canceled after
approx. 3 seconds if you are moving paral-
lel to a wall.
Malfunctions
The indicator lamp within the button
flashes and a message appears on the
Control Display. PDC has failed. Switch off
PDC. Have the system checked.
As a preventive measure, keep the sensors
clean and free of ice or snow in order to
ensure that they will continue to operate
effectively.
PDC with visual warning*
You also enjoy the option of having the sys-
tem show distances to objects on the Con-
trol Display. The Control Display will also
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Technology for comfort, convenience and safety
76
indicate the presence of objects in green
before they are close enough to generate a
signal tone.
Control Center, for principle details, refer to
page 16:
1. Press button.
The start menu is opened
2. Press the controller to open the menu
3. Select "Vehicle settings" and press the
controller
4. Select "PDC" and press the controller
5. Select "Monitor display on" and press
the controller.
The PDC screen is activated.
The display appears on the Control Display
as soon as PDC is activated.
Depending on which key you have used to
open the vehicle, the last adjustment is
applied.
System limits
Even with PDC, final responsibility for
estimating the distance between the
vehicle and any obstructions always
remains with the driver. Even when sensors
are involved, there is a blind spot in which
objects cannot be detected. The system is
also subject to the physical limits that apply
to all forms of ultrasonic measurement,
such as those encountered with thin and
wedge-shaped objects, etc. Low objects
already displayed, e.g. a curb, can also dis-
appear from the detection area of the sen-
sors again before a continuous tone
sounds.
Loud noises from outside and inside your
vehicle may prevent you from hearing the
PDC signal tone.<
Do not apply high pressure spray to
the sensors for a prolonged period of
time. Keep the spray at least 4 in/10 cm
away from the sensors.<
Driving stability control
systems
Your BMW is equipped with an extended
array of systems designed to enhance and
maintain vehicle stability under extreme
conditions. The following section describes
these functions based on ABS and DSC.
ABS Antilock Brake System
ABS enhances active safety by preventing
the wheels from locking under braking.
ABS is operational every time you start the
engine. ABS includes the functions CBC
Cornering Brake Control and EBV Elec-
tronic brake-force distribution.
CBC Cornering Brake Control
It provides further enhancements in vehicle
stability and steering response during lane
changes and cornering at high rates of lat-
eral acceleration.
EBV Electronic brake-force
distribution
EBV controls the brake system's applica-
tion pressure at the rear wheels to ensure
stable deceleration.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Controls
77
Reference At a glanceDriving tipsCommunications NavigationEntertainmentMobility
DSC Dynamic Stability Control
DSC optimizes vehicle stability during
acceleration and when starting from a full
stop, as well as optimizing traction. The
system recognizes any tendency for the
vehicle to assume an unstable attitude
such as oversteer or understeer; it then
counteracts this tendency with a combina-
tion of graduated reductions in engine
torque and selective braking intervention at
individual wheels. DSC provides optimal
stability within the limits defined by the
laws of physics.
The DSC is operational every time you start
the engine. DSC includes the functionality
of the DTC Dynamic Traction Control and
DBC Dynamic Brake Control, see below.
Indicator lamp
The indicator lamp goes out soon
after you start the engine.
The indicator lamp flashes:
DSC controls the drive and braking forces.
The indicator lamp stays lit:
DSC has been switched off via the button.
DTC Dynamic Traction Control
In special driving states, e.g. in deep snow,
DTC ensures maximum forward momen-
tum. The gain in forward momentum also
involves a reduction in driving stability.
DTC is active up to approx. 45 mph/
70 km/h, whereas DSC is only effective to
a limited degree.
You may find it useful to briefly activate
DTC under the following special circum-
stances:
> When rocking the vehicle and starting
off in deep snow or on loose road sur-
faces
> When ascending snow-covered hills,
and when driving in deep or on hard-
packed snow
> When driving with snow chains.
Activating DTC
> Press the DSC button briefly; the DTC
indicator lamp in the instrument cluster
lights up continuously.
Deactivating DTC again
Press the DSC button briefly again; the
DTC indicator lamp in the instrument clus-
ter goes out.
Switching off DSC
Press the DSC button until the DSC indica-
tor light in the instrument cluster lights up
continuously, however not longer than
approx. 10 seconds. DSC and DTC are
deactivated. In addition, the stability pro-
moting intervention of the active steering is
deactivated, refer to page 80.
A message appears on the Control Display.
Please note any supplementary information
that appears there.
To maintain optimal stability, drive
with the system on whenever possi-
ble.<
Reactivating DSC
Press the DSC button briefly; the indicator
lamp in the instrument cluster goes out.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Technology for comfort, convenience and safety
78
The laws of physics cannot be
repealed, even with DSC. An appro-
priate driving style always remains the
responsibility of the driver. Therefore, do
not reduce the additional safety margin
again by taking risks.<
DBC Dynamic Brake Control
When you apply the brakes rapidly, this
system automatically produces the maxi-
mum braking force boost and thus helps to
achieve the shortest braking distance dur-
ing panic stops. This system exploits all of
the benefits provided by ABS.
Do not reduce the pressure on the brake
pedal for the duration of the brake applica-
tion. When the brake pedal is released,
DBC is deactivated.
Malfunctions of driving stability
control systems
The brake system warning lamp
lights up in red, appearing together
with the indicator lamps for ABS
and DSC. A message appears on
the Control Display. Driving stability
control and ABS have failed. Con-
ventional braking efficiency remains
available without limitations.
While you may continue, you should
remember to proceed cautiously and drive
defensively while avoiding full brake appli-
cations.
Have the system checked as soon as pos-
sible.
Display of the previously described
malfunction on Canadian models.
The DSC warning lamp lights up.
DSC and DTC have failed.
The stability maintenance functions
are no longer available. The vehicle will
remain completely operational, however,
without DSC.
Have the system checked as soon as pos-
sible.
The warning lamp for the brake sys-
tem lights up yellow and a message
appears on the Control Display.
DBC has failed.
Have the system checked as soon as pos-
sible.
Display of the previously described
malfunction on Canadian models.
Active roll stabilization*
The concept
Active roll stabilization minimizes body roll
and optimizes vehicle stability during cor-
nering and evasive maneuvers.
Dynamic stabilizers at the front and rear
axles form the basis for active roll stabiliza-
tion. Suspension compliance adapts to suit
driving conditions, varying from perfor-
mance-oriented during cornering to
smooth and comfort-oriented when the
vehicle is proceeding in a straight line. Dur-
ing vehicle operation, the system continu-
ously runs through closed-loop control
cycles lasting only fractions of a second.
The system assumes operational status
each time you start the engine.
Malfunction
The warning lamp lights up and a
message appears on the Control
Display. There is a malfunction in
the system. Have the system checked as
soon as possible.
If there is a malfunction in the system,
please remember to adapt your
speed accordingly, especially in curves.
The suspension will be noticeably softer
and the vehicle will display a greater ten-
dency to tilt during cornering and in cross-
winds.
If a message stating that you should stop
appears on the Control Display, stop and
switch off the engine as soon as possible.
In this case the oil level in the reservoir may
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Controls
79
Reference At a glanceDriving tipsCommunications NavigationEntertainmentMobility
have dropped below the minimum, possi-
bly owing to a leak in the hydraulic system.
Do not continue driving. Contact your BMW
center.<
Flat Tire Monitor
The concept
The Flat Tire Monitor keeps track of the
inflation pressures in the four tires as you
drive. The system provides an alert when-
ever the inflation pressure drops signifi-
cantly in relation to the pressure in another
tire.
The check of the tire inflation pressure is
based on monitoring the relative speeds
of the wheels. A flat tire is detected and
reported on the basis of a deviation in cer-
tain speed ratios.
Functional requirement
To ensure reliable operation, the system
should have been initialized with the cor-
rect tire inflation pressure.
System limits
The Flat Tire Monitor cannot indicate
sudden severe tire damage caused
by outside factors and does not detect a
natural, even pressure drop in all four
tires.<
In the following situations, the system
could be delayed or malfunction:
> When you are driving on snow-covered
or slippery road surfaces
> In the case of performance-oriented
driving: slip on the drive wheels, high
lateral acceleration
> False alarms and undetected loss of
pressure may occur when you are driv-
ing with snow chains fitted
> If the Flat Tire Monitor was not initial-
ized after the last inflation pressure cor-
rection, false alarms indicating a flat tire
that is not present are possible or pres-
sure loss might not be detected.
Initializing system
Perform the initialization immediately
after correcting the inflation pressure,
after changing a tire or changing a wheel or
all wheels. A drive is necessary for this pur-
pose.<
Control Center, for principle details, refer to
page 16:
1. Start the engine, but do not drive off
2. Open the menu
3. Select "Vehicle settings" and press the
controller
4. Select "FTM" and press the controller
5. Select "Set tire pressure" and press the
controller
6. Select "Yes" and press the controller
7. Drive off.
The message "Initializing" is displayed.
It takes a few minutes before the Flat Tire
Monitor can detect and report a flat tire and
"Status: Active" is displayed.
If a flat tire is detected during initialization,
a message appears on the Control Display.
When driving with snow chains, do
not initialize the system.<
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Technology for comfort, convenience and safety
80
Report of a flat tire
The warning lamp lights up in red
and a message appears on the
Control Display. In addition, an
acoustic signal sounds. There is a flat tire
or extensive inflation pressure loss.
1. Cautiously reduce the vehicle speed to
below 50 mph/80 km/h. Avoid sudden
braking and steering maneuvers. Do
not exceed a vehicle speed of 50 mph/
80 km/h
Due to the reinforcement on the
side walls of the run-flat tires,
inflation pressure loss can not usually
be recognized from the outside, refer to
Run-flat tires on page 168.<
2. To continue driving, comply with the
instructions for driving with damaged
tires on page 168.
Malfunction
The warning lamp lights up yellow
and a message appears on the
Control Display. The Flat Tire Moni-
tor has a malfunction or has failed. Have
the system checked as soon as possible.
Active steering*
The concept
The active steering is a system that actively
varies the steering angle of the front wheels
in relation to the steering wheel move-
ments.
When you are driving in the low road speed
range, e.g. in a town or when parking, the
steering angle of the wheels is reinforced,
i.e. the steering becomes very direct.
In the higher speed range, on the other
hand, the steering angle of the wheels is
reduced more and more. This improves the
handling capability of your BMW over the
entire speed range.
In critical situations, the system can make
targeted changes to the steering angle pro-
vided by the driver and thus stabilize the
vehicle before the driver intervenes.
Malfunction
The fixed warning lamp lights up.
The active steering is no longer
operational. In the low speed range,
greater steering wheel movement is neces-
sary. Have the system checked.
If the warning lamp lights up during the first
engine starting following a power supply
interruption, the system must be activated
with initialization.
Initializing system
1. Start the engine
2. With the vehicle stationary, turn the
steering wheel from the straight-ahead
position to the left as far as it will go and
then back to the straight-ahead position
3. Switch off the engine.
When you start the engine again, all the
functions of the active steering are avail-
able once again.
Brake Force Display
The two-stage brake lamps light up in two
stages depending on how strongly you
brake.
> Normal braking:
The brake lamps and the third brake
lamp go on
> Heavy braking and braking with ABS:
In addition, the light area of the rear
brake lamps is enlarged, refer to illus-
tration.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Controls
81
Reference At a glanceDriving tipsCommunications NavigationEntertainmentMobility
Airbags
The following airbags are located under the
marked covers:
1 Front airbags for driver and front pas-
senger
2 Coupe: head airbags
3 Front side airbags
4 Knee airbag for front passenger
5 Knee airbag for driver
Protective effect
The front airbags help protect the driver
and front passenger by responding to fron-
tal impacts in which safety belts alone can-
not provide adequate restraint. When
needed, the head and side airbags help
provide protection in the event of a side
impact. The side airbags help restrain the
side of the occupant's upper torso, and the
head airbags help support the head while
also helping provide protection against any
objects penetrating into the passenger
compartment.
The airbags are deliberately not triggered
in every impact situation, e.g. less severe
accidents, certain rollover conditions, or
rear-end collisions.
For information on the correct sitting posi-
tion, refer to page 42.
Even if you adhere to all the instructions
injuries resulting from contact with airbags
cannot be fully excluded, depending on the
circumstances. The ignition and inflation
noise may provoke a mild hearing loss in
extremely sensitive individuals. This effect
is usually only temporary.
Do not apply adhesive materials to
the cover panels of the airbags, cover
them or modify them in any other way.
Do not attempt to remove the airbag reten-
tion system from the vehicle. Never modify
or tamper with either the wiring or the indi-
vidual components in the airbag system.
This category includes the upholstery in the
center of the steering wheel, on the instru-
ment panel, the side trim panels on the
doors and on the Coupe the roof pillars
along with the sides of the headliner.
Do not attempt to remove or dismantle the
steering wheel.
Do not touch the individual components
directly after the system has been trig-
gered, because there is a danger of burns.
If you note any indication of system mal-
function, if you desire to have an airbag
deactivated, or if the airbag retention sys-
tem is triggered in response to an accident,
you should always entrust all inspection,
repair and dismantling operations to your
BMW center. Unprofessional attempts to
service the system could lead to failure in
an emergency or undesired airbag activa-
tion, either of which could result in personal
injury.<
Airbag warning information is also provided
on the sun visors.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Technology for comfort, convenience and safety
82
Airbag system operational
The airbag warning lamp in the instrument
cluster indicates the operational readiness
of the entire airbag system and the safety
belt tensioners as of ignition key position 1.
The warning lamp goes out after a few sec-
onds.
Airbag system malfunction
Have the airbag system checked
immediately if a malfunction occurs,
as otherwise there is a danger of the sys-
tem not responding in the expected man-
ner to an impact occurring within its normal
response range.<
There is a malfunction in the airbag
system when:
> The warning lamp does not light up as
of ignition key position 1
> The warning lamp remains on continu-
ously
> The warning lamp lights up while the
vehicle is being driven.
Convertible:
Rollover protection system
The rollover protection system is automati-
cally activated in the event of an accident
or a critical driving situation, extreme incli-
nation on the longitudinal or transverse
axis, or loss of ground contact. The rollover
bars located behind the rear head
restraints move out within fractions of a
second.
As a supplement to the rollover bar inte-
grated in the windshield frame, the rollover
protection system ensures that all vehicle
occupants have the necessary headroom.
Always keep the path of movement of
the rollover protection system clear.
In less severe accidents, you are protected
by the fastened safety belt and, depending
on the severity of the accident, the belt ten-
sioner and the multistage airbag restraint
system.<
Lowering
If the protection function was not required
after automatic activation, the rollover pro-
tection system can be lowered again.
No tools are necessary for this purpose.
1. Press the release backwards and hold
in that position
2. Press the rollover bar halfway down
from above
3. Let go of the release
4. Press the rollover bar down until it
snaps into place
5. Use the same procedure for the second
rollover bar.
Have the rollover protection system
checked after unexpected triggering.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Controls
83
Reference At a glanceDriving tipsCommunications NavigationEntertainmentMobility
Never move the convertible top when
the rollover protection system is
raised.
No changes of any nature may be made to
the individual components of the rollover
protection system and wiring.
Work on the rollover protection system may
only be performed at a BMW center.
Unprofessional attempts to service the sys-
tem can lead to failure or malfunction.
For a system check and to ensure long-
term functioning, you must comply with the
maintenance intervals of the service
requirement display.<
Head-Up Display*
The concept
With the Head-Up Display important infor-
mation is projected into the driver's field of
view, e.g. navigation instructions. This
enables you to take in this information with-
out looking away from the road.
Switching on/off
Ignition key in position 2:
Press the button to activate or deactivate
this system.
1 Navigation instructions
2 Display for cruise control
3 Speed
Selecting displays
Control Center, for principle details, refer to
page 16:
1. Press button.
The start menu is opened
2. Press the controller to open the menu
3. Select "Display settings" and press the
controller
4. Select "HUD selection" and press the
controller
5. Select desired information of Head-Up
Display
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Technology for comfort, convenience and safety
84
6. Press the controller.
The information appears on the
Head-Up Display.
Depending on which key you have used to
open the vehicle, the last adjustment is
applied.
Adjusting brightness
The brightness of the display is automati-
cally adapted to the ambient lighting condi-
tions. However, you can change the base
setting.
With the low beams switched on, the
brightness can also be adjusted with the
serrated dial of the instrument lighting.
Control Center, for principle details, refer to
page 16:
1. Open the menu
2. Select "Display settings" and press the
controller
3. Select "Brightness" and press the con-
troller
4. If necessary, move the controller to the
left to select "Head-Up Display Offset"
5. Turn the controller until the desired set-
ting is selected.
Depending on which key you have used to
open the vehicle, the last adjustment is
applied.
Notes
The recognizability of the displays in the
Head-Up Display is influenced by:
> Sunglasses with certain polarization
filters
> Certain seating positions
> Objects on the cover of the Head-Up
Display
> Wet road surface and unfavorable light-
ing conditions.
If the image is distorted, please have the
base setting checked at a BMW center.
Special windshield
The windshield is part of the system. The
shape of the windshield complies with the
requirements of the Head-Up Display to
enable a precise display. A film in the wind-
shield prevents the double images from
being displayed.
To have the windshield replaced, contact a
BMW center.
Care instructions
You can find everything you need to know
on this topic by consulting the Caring for
your vehicle brochure.
Only clean the cover of the Head-Up
Display with a soft, non-abrasive cloth
or a display cleaning cloth, as otherwise
damage may result.<
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Controls
85
Reference At a glanceDriving tipsCommunications NavigationEntertainmentMobility
Lamps
Parking lamps/low beams
Parking lamps
With the switch in this position, the
front, rear and side vehicle lighting
is switched on. You can use the
parking lamps for parking. For lighting on
one side for parking as an additional fea-
ture, refer to page 86.
Low beams
When you switch off the ignition
with the headlamps on, the head-
lamps go out, and only the parking
lamps remain on.
Pathway lighting
After parking the vehicle and switching off
the headlamps, operating the headlamp
flasher activates the low beams. You can
set the duration on the Control Display or
deactivate the function.
Control Center, for principle details, refer to
page 16:
1. Open the menu
2. Select "Vehicle settings" and press the
controller
3. Select "Lighting" and press the control-
ler
4. Select "Pathway lighting" and press the
controller
5. Turn the controller to select the corre-
sponding duration
6. Press the controller to apply the setting.
Lights on warning
If you turn the ignition key to position 0, an
acoustic signal sounds when you open the
driver's door for a few seconds to remind
you that the lamps have not yet been
switched off. At the same time a message
appears on the Control Display.
Daytime driving lamps*
If you wish, you can leave the light switch in
the low-beam position.
Always observe all applicable laws govern-
ing the use of daytime driving lamps.
You can switch on the parking lamps when
needed using the standard procedure
described under Parking lamps.
Automatic headlamp control
When you set the switch to this
position, the system activates and
switches on and off the low beams
in response to changes in ambient light
conditions, for instance, in a tunnel, at
dawn and dusk, and in rain and snow.
The LED next to the symbol is illuminated
when the low beams are on.
The low beams remain on indepen-
dent of the ambient lighting condi-
tions when you switch on the fog lamps.
With the daytime driving lamps activated,
the low beams are always switched on in
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Lamps
86
this switch position with the ignition key in
position 2.<
The automatic headlamp control can-
not serve as a substitute for your per-
sonal judgment in determining when the
lamps should be switched on in response
to ambient lighting conditions. For exam-
ple, the system cannot detect fog. To avoid
safety risks, you should always switch on
the lamps manually under these condi-
tions.<
Adaptive Head Light*
The concept
Adaptive Head Light is a variable headlamp
control system that enables better illumina-
tion of the road surface. Depending on the
steering angle and other assumptions, the
light from the headlamp follows the course
of the road.
Activating Adaptive Head Light
In ignition key position 2, turn the
light switch to the position 'Auto-
matic headlamp control', refer to
page 85.
So that oncoming traffic is not dazzled,
Adaptive Head Light is
> not active when the vehicle is reversing
> only active toward passenger's side
when stopped.
Malfunction
The LED beside the symbol for automatic
headlamp control flashes. The Adaptive
Head Light has a malfunction or has failed.
Have the system checked as soon as pos-
sible.
High beams/roadside
parking lamps
1 High beams
2 Headlamp flasher
3 Roadside parking lamps
Roadside parking lamps, left or right*
You also enjoy the option of lighting up just
one side of your vehicle when parking.
When using this function, comply with
national regulations:
With the ignition switched off, press the
lever in the desired direction 3, past the
resistance point.
Fog lamps
The parking lamps or low beams
must be switched on for the fog
lamps to operate. The green indica-
tor lamp lights up whenever the fog lamps
are on.
The fog lamps are switched off whenever
the high beams are switched on.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Controls
87
Reference At a glanceDriving tipsCommunications NavigationEntertainmentMobility
If the automatic headlamp control is
activated, the low beams will come on
automatically when you switch on the fog
lamps.<
Instrument lighting
Turn the serrated dial to adjust the illumina-
tion intensity.
Interior lamps
Control of the interior lamps, footwell
lamps, door entry lighting, courtesy lamps
*
and sill panel lighting
* is automatic.
Switching interior lamps on and off
manually
Briefly press button 1.
If you want the interior lamps to remain off
continuously, maintain pressure on the but-
ton for approx. 3 seconds.
To revert to normal operation, briefly press
the button.
Reading lamps
The reading lamps are beside the interior
lamp.
You can turn them on and off using the
buttons 2 located next to the lamps.
To avoid discharging the battery, all of
the vehicle's interior lamps are auto-
matically extinguished approx. 15 minutes
after the ignition is switched off.<
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
A congenial climate
88
A congenial climate
1 Airflow directed toward the windshield
and side windows
2 Air for the upper body region
The serrated dials allow you to open
and close the air supply vent outlets
through an infinitely-variable range.
The levers change the direction of the
airflow. You can find more information
on adjusting for draft-free ventilation on
page 92
3 Air to footwell
4 Setting the temperature, left side of
passenger compartment
5 Maximum cooling
6 Defrosting windows and removing
condensation
7 Adjusting the air volume manually
8 Switching off automatic climate control
9 Switching cooling function on and off
manually
10 Setting the temperature, right side of
passenger compartment
11 Residual heat mode
12 AUTO program
13 Outside air/AUC Automatic recircu-
lated-air control/recirculated air
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Controls
89
Reference At a glanceDriving tipsCommunications NavigationEntertainmentMobility
14 Indicator lamp for independent ventila-
tion
> Activation time set:
The indicator lamp comes on
> Independent ventilation switched on:
The indicator lamp flashes
15 Rear window defroster
16 Air grill for interior temperature sensor –
please keep clear and unobstructed
All other setting options for the automatic
climate control can be found at "Climate"
and in the menu on the Control Display,
refer to pages 90 and 91.
The current setting for air distribution is dis-
played on the Control Display.
A congenial climate
To use the automatic function, press the
AUTO button. Select an interior tempera-
ture you find pleasant.
The following section contains more
detailed information on the available set-
ting options.
The cooling function is only possible with
the engine running.
AUTO program
The AUTO program adjusts the
air distribution to the wind-
shield and side windows,
towards the upper body and footwell as
well as the air volume, while also using your
preselected temperature setting as the
basis for adjusting the interior climate to
adapt to external seasonal influences.
The cooling function comes on automati-
cally when you select the AUTO program.
At the same time, a condensation sensor
controls the program in such a way that
window condensation is prevented as far
as possible.
Temperature adjustment
The figures on the display pro-
vide a general indication of inte-
rior temperature. A pleasant
adjustment is 727/226.
When you start the vehicle, this
system ensures that the selected tempera-
ture is achieved as quickly as possible. It
then maintains this temperature, regard-
less of the season.
Defrosting windows and removing
condensation
This program quickly removes
ice and condensation from the
windshield and front side win-
dows.
Adjusting air volume manually
You can adjust the air volume
by turning. You can reactivate
the automatic mode for the air
volume with the AUTO button.
Switching cooling function on and off
manually
The cooling function cools and
dehumidifies the incoming air
before also reheating it as
required, according to the temperature set-
ting. Depending on the weather, the wind-
shield may fog over briefly when the engine
is started.
The cooling function comes on automati-
cally when you select the AUTO program.
Maximum cooling
This program quickly provides
maximum cooling.
The system switches to the
recirculated-air mode and the
air flows at maximum air volume only from
the vent outlets for the upper body area.
For this reason you should ensure that
these vent outlets are open before select-
ing this program.
AUC Automatic recirculated-air
control
You can respond to unpleasant
odors or pollutants in the imme-
diate environment by tempo-
rarily suspending the supply of outside air.
The system then recirculates the air cur-
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
A congenial climate
90
rently within the vehicle. AUC executes this
function automatically.
Press the button repeatedly to run through
the following control sequence:
> Indicator lamps off: outside air flows
into the vehicle continuously
> Right indicator lamp on, AUC mode: the
system detects pollutants in the outside
air and responds by blocking the supply
of outside air when required.
Depending upon air quality require-
ments, in the automatic mode the sys-
tem alternates between its outside-air
and recirculated-air modes
> Left indicator lamp on, recirculated-air
mode: the supply of outside air into the
vehicle is continuously blocked.
If condensation starts to form on the
inside window surfaces during opera-
tion in the recirculated-air mode, you
should switch it off while also increasing
the air volume as required.
The recirculated-air mode should not be
used over a longer period of time, as the air
quality inside the vehicle deteriorates con-
tinuously.<
Residual heat mode
If you press this button with the
engine switched off, the system
uses the warmth stored in the
engine to heat the interior, for
instance, while the vehicle is
stationary at a school to pick up a child.
You can adjust the automatic climate con-
trol settings as of ignition key position 2.
Provided that the engine has warmed to its
normal operating temperature and the bat-
tery is charged, you can use this function
for up to 15 minutes after switching off the
ignition. The LED within the button lights up
to confirm compliance with both of these
conditions.
Switching off automatic climate
control
The air volume, the heater and
the cooling function are all
switched off. You can restart
the automatic climate control
by pressing any of its buttons
except the REST button.
Settings using Control Center
Ignition key:
> On vehicles with separate drives for
audio CDs and navigation DVDs, igni-
tion key in position 2
> On vehicles with one drive for audio
CDs, ignition key in position 1.
Control Center, for principle details, refer to
page 16:
1. Press button.
The start menu is opened
2. Move the controller to the left to open
"Climate".
You can set the following:
> Separate air distribution for driver and
front passenger
> Adapting the temperature in the upper
body region
> Intensity of the AUTO program.
Manual air distribution
You can combine your air distribution your-
self and also individually adjust the air tem-
perature in the upper body area.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Controls
91
Reference At a glanceDriving tipsCommunications NavigationEntertainmentMobility
1. Select "Vent settings and press the
controller
2. Select "AUTO and press the controller.
The manual air distribution is
switched on
3. Select the desired field by moving the
controller and turn the controller to
adjust the air distribution.
1 Airflow directed toward the windshield
and side windows, driver's side only
2 Airflow for the upper body
3 Air to footwell
To select the front passenger area:
Move the controller to the right.
Automatic air distribution
1. Select "Vent settings and press the
controller
2. Select "AUTO" and press the controller.
The automatic air distribution is
switched on.
The program handles adjustment of the air
distribution, separately for the driver and
passenger side.
To switch on the automatic air distribution
for the front passenger:
Move the controller to the right.
Adapting temperature in upper body
region
1. Select "Vent settings and press the
controller
2. Select the field by moving the controller
and turn the controller to adjust the air
distribution.
Setting intensity of AUTO program
To meet your individual needs, you can
weaken or strengthen the intensity of the
automatic climate control.
Control Center, for principle details, refer to
page 16:
1. Open the menu
2. Select "Vehicle settings" and press the
controller
3. Select "Climate control" and press the
controller
4. Select "Automatic programs" and press
the controller
5. Select the desired intensity
6. Press the controller.
Convertible program
When the convertible top is opened, the
convertible program can also be selected.
In the convertible program, the automatic
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
A congenial climate
92
climate control is optimized for driving with
the convertible top open. In addition, the air
supply is increased as the speed increases.
If the convertible program has been
selected, it is automatically active every
time the top is opened.
The effect of the convertible program
can be greatly enhanced if the wind
deflector is fitted.<
Ventilation
You can use the serrated dials 1 to open
and close the vent outlets through an infi-
nitely-variable range, while the levers 2
allow you to adjust the airflow direction.
Do not drop any foreign bodies into
the vent outlets, as otherwise these
could be catapulted outwards and lead to
injuries.<
Ventilation for cooling
Adjust the vent outlets to direct the flow of
cool air in your direction, for instance, if the
interior has become too warm, etc.
Draft-free ventilation
Set the vent outlets so that the air flows
past you and is not directed straight at you.
Microfilter/activated-charcoal filter
The microfilter removes dust and pollen
from the incoming air. The activated-char-
coal filter provides additional protection by
filtering gaseous pollutants from the out-
side air. Your BMW center replaces this
combined filter as a standard part of your
scheduled maintenance.
You can select a display of more detailed
information in the service requirement dis-
play, refer to page 65.
Independent ventilation
The independent ventilation blows air into
the passenger compartment to lower inte-
rior temperatures.
The independent ventilation is controlled
using the Control Center. You can set two
different times for the system to start.
The independent ventilation remains on for
30 minutes. It can also be switched on and
off directly. Since the system uses a sub-
stantial amount of electrical current, you
should refrain from activating it twice in
succession without allowing the battery to
be recharged in normal operation between
use.
The independent ventilation is ready for
use at any outside temperature up to igni-
tion key position 1.
The air emerges through the upper body
region vent outlets in the instrument panel.
These vent outlets must be open for the
system to operate.
Switching on and off directly
Control Center, for principle details, refer to
page 16:
1. Open "Climate"
2. Select "Ventilation" and press the con-
troller
3. Select "Automatic ventilation" and
press the controller
4. Select "Parked car ventilation" and
press the controller.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Controls
93
Reference At a glanceDriving tipsCommunications NavigationEntertainmentMobility
Preselecting activation times
Control Center, for principle details, refer to
page 16:
1. Open "Climate"
2. Select "Ventilation" and press the con-
troller
3. Select "Activation time" and press the
controller
The two preselected activation times
should differ by at least 31 minutes.<
4. Move the controller to the left or right to
select "Time 1" or "Time 2"
5. Select the time and press the controller.
The first time setting is highlighted
6. Turn the controller to make the adjust-
ment
7. Press the controller to apply the setting.
The next adjustment is highlighted
8. Make the remaining adjustments. After
the last adjustment, the time is stored.
Activating activation timer
Move the controller to the left or right to
select "Time 1" or "Time 2" and press the
controller.
The activation time is activated.
The independent ventilation is only
available for activation within the sub-
sequent 24 hours. After that, the time must
be reactivated.<
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Practical interior accessories
94
Practical interior accessories
Integrated universal remote
control*
The concept
The integrated universal remote control
replaces up to three different hand-held
transmitters for various items of radio-con-
trolled equipment such as door openers
and house alarm systems. The integrated
universal remote control registers and
stores signals from the original hand-held
transmitters.
The signal of an original hand-held trans-
mitter can be programmed on one of the
three memory buttons 1. Then the respec-
tive device can be actuated with the mem-
ory button 1 programmed for its use with
the ignition key in position 2. The indicator
lamp 2 flashes to confirm transmission of
the signal.
If you sell your vehicle one day, delete the
saved programs beforehand for your own
security, refer to page 95.
To prevent possible damage or injury,
before programming or using the inte-
grated universal remote control, always
inspect the immediate area to make certain
that no people, animals or objects are
within the travel range of the device. Also,
comply with the safety precautions of the
original hand-held transmitter.<
Checking compatibility
If you see this symbol on the pack-
aging or in the manual supplied with
the original hand-held transmitter, it
is safe to assume that it is compatible with
the integrated universal remote control.
If you have additional questions, please
consult your BMW Sports Activity Vehicle
Center or call 1-800-355-3515.
You can also visit these websites:
www.bmwusa.com or
www.homelink.com.
HomeLink is a registered trademark owned
by Johnson Controls, Inc.
Programming
1 Memory buttons
2 Indicator lamp
Fixed-code hand-held transmitters
1. Ignition key in position 2
2. When using for the first time: press both
outer buttons 1 for approx. 20 seconds,
maintaining pressure until the indicator
lamp 2 starts to flash. The three mem-
ory buttons 1 are cleared
3. Hold the original hand-held transmitter
at a distance of approx. 2 in/5 cm to
8 in/20 cm to the memory buttons 1
The required distance between
the hand-held transmitter and the
memory buttons 1 depends on the rele-
vant system of the original hand-held
transmitter used.<
4. Simultaneously press the transmit but-
ton on the original hand-held transmit-
ter and the desired memory button 1 on
the integrated universal remote control.
Initially, the indicator lamp 2 flashes
slowly. Release both buttons as soon
as the indicator lamp 2 flashes rapidly.
If the indicator lamp 2 does not flash
rapidly after approx. 15 seconds,
change the distance
5. To program other original hand-held
transmitters, repeat steps 3 and 4.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Controls
95
Reference At a glanceDriving tipsCommunications NavigationEntertainmentMobility
The corresponding memory button 1 is
now programmed with the signal of the
original hand-held transmitter.
The equipment can be used in ignition key
position 2.
If the device cannot be operated after
repeated programming, check
whether the original hand-held transmitter
uses an alternating-code system. Here,
either read the instructions for the original
hand-held transmitter or hold down the
programmed memory button 1 of the inte-
grated universal remote control. If the indi-
cator lamp 2 on the integrated universal
remote control flashes rapidly for a short
time then lights up for approx. 2 seconds,
this indicates that the original hand-held
transmitter uses an alternating-code sys-
tem. In the case of an alternating-code sys-
tem, program the memory buttons 1 as
described at Alternating-code hand-held
transmitters.<
Alternating-code hand-held
transmitters
To program the integrated universal remote
control, consult the Operating Instructions
for the equipment to be set. You will find
information there on the possibilities for
synchronization.
When programming hand-held transmitters
that employ an alternating code, please
observe the following supplementary
instructions:
Programming will be easier with the
aid of a second person.<
1. Park your vehicle within the range of the
remote-controlled equipment
2. Program the integrated universal
remote control as described above at
Fixed-code hand-held transmitters
3. Locate the button at the receiver of the
equipment to be set, e.g. on the drive
4. Press the button on the receiver of the
equipment to be set. After step 4, you
have approx. 30 seconds for step 5
5. Press the programmed memory
button 1 of the integrated universal
remote control three times.
The corresponding memory button 1 is
now programmed with the signal of the
original hand-held transmitter.
If you have any additional questions,
please contact your BMW center.<
Clearing memory buttons
Press both outer buttons 1 of the inte-
grated universal remote control for approx.
20 seconds, maintaining pressure until the
indicator lamp 2 starts to flash. All three
memory buttons are cleared.
The memory of individual memory but-
tons 1 cannot be cleared.
Glove compartment
Opening
Press button. The glove compartment
opens automatically and the lamps come
on.
Closing
Fold the cover up.
To prevent injury in the event of an
accident while the vehicle is being
driven, close the glove compartment
immediately after use.<
Rechargeable flashlight*
The flashlight is located on the left side of
the glove compartment.
The flashlight can remain there continu-
ously.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Practical interior accessories
96
Be sure that the flashlight is switched
off when it is inserted into its holder.
Failure to comply with this precaution
could lead to overcharging and damage.<
Center armrest
A storage compartment is located in the
armrest between the front seats. This com-
partment is integrated in the central locking
system and can also be locked separately
using the hotel function, refer to page 30.
To open the cover:
Pull the left button. The cover opens and
can be folded upwards.
Depending on the version, there can be a
corresponding cradle
* for the telephone or
portable phone.
Height adjustment
The center armrest can be set in 2 stages.
Pull the right button:
Move the armrest upwards or downwards
and lock it in the desired position.
Storage compartments
Storage compartment behind center
armrest
To open, raise the cover at the left or right
edge. The compartment contains the cup
holder and the lock for the hotel function,
refer to page 30.
Other compartments and nets
Other compartments are in the doors as
well as in the front center console
*.
Ticket pockets are located in the sun
visors.
Storage nets are located on the backrests
of the front seats and in the passenger
footwell
*.
Another storage option is located in the
luggage compartment in the right side
panel. If you wish, this is also suitable for
storing the onboard documentation.
Coupe: clothes hooks
To fold down, press at the top edge.
When suspending clothing from the
hooks, ensure that it will not obstruct
the driver's vision. Do not hang heavy
objects on the hooks. If you do so, they
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Controls
97
Reference At a glanceDriving tipsCommunications NavigationEntertainmentMobility
could cause personal injury to occupants
during braking or evasive maneuvers.<
Cup holders
The compartment of the rear center con-
sole contains a built-in and removable cup
holder.
The removable cup holder can be inserted
in the side of the center console.
Do not place glass containers in the
cup holders. This would lead to an
increased risk of injury in the event of an
accident.<
Ashtray
Opening
Press the trim strip of the cover.
Emptying
Press the opened cover beyond the resis-
tance point, refer to arrow:
The ashtray rises for removal.
Cigarette lighter
In ignition key position 2, press in the ciga-
rette lighter.
Remove as soon as the lighter jumps back
out.
Hold or touch the hot cigarette lighter
by the knob only. Holding or touching
it in other areas could result in burns.
Always remove the ignition key when you
leave the vehicle so that, for example, chil-
dren are unable to use the cigarette lighter
and burn themselves.<
Socket
In ignition key position 2, the lighter socket
can be used to plug in hand flashlights, car
vacuum cleaners, etc., with power ratings
of up to approx. 200 W at 12 V. Avoid dam-
aging the socket due to inserting plugs of
different shapes or sizes.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Practical interior accessories
98
Socket
In front passenger footwell
Access to the socket:
Fold the cover upwards.
Ski bag*
Designed for safe, convenient transport of
up to 2 pairs of standard skis or one snow-
board.
The ski bag itself plus the additional capac-
ity provided by the luggage compartment
make it possible to transport skis with a
length of up to 6.9 ft/2.10 m.
Loading
1. Press the button downwards and pull
the filler element forwards
2. Extend the ski bag between the front
seats. The zipper allows more conve-
nient access to stored objects and can
also be left open to allow the ski bag to
dry
3. Press the button in the luggage com-
partment
4. Open the loading flap and use the mag-
netic holder to secure it to the rear
panel.
To store the ski bag, perform the above
steps in reverse order.
Ensure that the skis are clean before
loading them into the bag. Take care
to avoid damage from sharp edges.<
Securing load
After loading, secure the ski bag and its
contents. To do so, tighten the retaining
belt at the buckle.
Secure the ski bag in this way. If you
fail to do so, it could move around and
endanger occupants during braking or eva-
sive maneuvers.<
To refit the filler element, insert the
two steps in the strip and press back
the filler element. Make sure that you do
not damage the rear seat upholstery.<
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Driving tips
This section is designed to provide you
with extra support by supplying information
useful in dealing with specific driving and
operating conditions.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Things to remember when driving
102
Things to remember when driving
Break-in procedures
To ensure that your vehicle continues to
provide optimized economy of operation
throughout an extended service life, we
request that you devote careful attention to
the following section.
Engine and differential
Up to 1,200 miles/2,000 km:
You should attempt to vary both vehicle
and engine speeds. Until the break-in
period has been completed, you should
also refrain from exceeding an engine
speed of 4500 rpm or a driving speed of
100 mph/160 km/h.
Always obey all official speed limits.
Avoid full-throttle operation and use of the
transmission's kickdown mode during
these initial miles.
Once you have driven 1,200 miles/
2,000 km, the engine and vehicle speeds
can be gradually increased.
SMG Sequential manual
transmission
Do not use the acceleration assistant dur-
ing the break-in period, refer to page 60.
Tires
Due to technical factors associated with
their manufacture, tires do not achieve their
full traction potential until after an initial
break-in period. Therefore, drive reservedly
during the first 200 miles/300 km.
Brake system
Brakes require an initial break-in period of
approx. 300 miles/500 km to achieve opti-
mized contact and wear patterns between
brake pads and rotors.
Clutch
The function of the clutch is only at its opti-
mized level after a distance driven of
approx. 300 miles/500 km. During this
break-in period, engage the clutch gently.
After component replacement
You should also comply with these break-in
procedures should the components men-
tioned above need to be replaced at a later
point.
General driving notes
Hot exhaust system
Extreme temperatures occur at the
catalytic converter on this and every
catalyst-equipped vehicle. Do not remove
the heat shields installed adjacent to vari-
ous sections of the exhaust system, and
never apply undercoating to them. When
driving, standing at idle and while parking,
take care to avoid possible contact
between the hot exhaust system and any
highly flammable materials such as hay,
leaves, grass, etc. Such contact could lead
to a fire, and with it the risk of serious prop-
erty damage as well as personal injury.<
Parking vehicle
Condensation forms in the air conditioner
system during operation, and then exits
under the vehicle. Traces of condensed
water under the vehicle are thus normal.
Before driving into a car wash
Fold in the exterior mirrors manually, as
otherwise they could be damaged due to
the width of the vehicle.
Hydroplaning
When driving on wet or slushy roads,
reduce road speed. If you do not, a
wedge of water can form between tires and
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Driving tips
103
Reference At a glanceControlsCommunications NavigationEntertainmentMobility
road surface. This phenomenon is referred
to as hydroplaning, and is characterized
by a partial or complete loss of contact
between the tires and the road surface, ulti-
mately undermining your ability to steer
and brake the vehicle.<
The risk of hydroplaning increases as the
tread depth of the tires decreases, also
refer to Tire tread on page 167.
Driving through water
Do not drive through water on the
road if it is deeper than 1 ft/30 cm,
and then only at walking speed at the most.
Otherwise, the vehicle's engine, the electri-
cal systems and the transmission may be
damaged.<
Braking safely
Your BMW is equipped with ABS as stan-
dard. The best way to achieve optimized
braking response from the ABS is to apply
maximum pressure to the brake pedal in
situations where this is required: panic
stops. Since the vehicle maintains steering
responsiveness, you can nevertheless
avoid possible obstacles with a minimum
of steering effort.
Pulsation at the brake pedal combines with
sounds from the hydraulic circuits to indi-
cate to the driver that ABS is in its active
mode.
Do not drive with your foot resting on
the brake pedal. Even light but con-
sistent pedal pressure can lead to high
temperatures, brake wear and possibly
even brake failure.<
Driving in wet conditions
While driving in wet conditions and in
heavy rain, it is a good idea to apply light
pressure to the brake pedal every few
miles. Monitor traffic conditions to ensure
that this maneuver does not endanger
other road users. The heat generated in this
process helps dry the pads and rotors to
ensure that full braking efficiency will then
be available when you need it.
Hills
To prevent overheating and thus
reduced efficiency of the brake sys-
tem, downshift to a gear in which only min-
imal brake applications are needed when
descending long or steep downhill
stretches. Even light but consistent pedal
pressure can lead to high temperatures,
brake wear and possibly even brake fail-
ure.<
You can further enhance the engine's brak-
ing effect by selecting a lower gear in the
automatic transmission's manual mode,
downshifting as far as first gear on
extremely steep stretches, refer to
page 59. This strategy helps you avoid
placing excessive loads on the brake sys-
tem.
Never drive with the clutch pressed
or allow the vehicle to coast with the
transmission in Neutral – or with the engine
switched off – there is no engine braking
when the transmission is in Neutral, and no
power assist for brakes and steering when
the engine is not running.
Never allow floor mats, carpets or any other
objects to protrude into the area around the
accelerator and brake pedals and obstruct
their movement.<
Corrosion on brake rotors
When the vehicle is driven only occasion-
ally, during extended periods when the
vehicle is not used at all, and in operating
conditions where brake applications are
less frequent, there is an increased ten-
dency for corrosion to form on rotors, while
contaminants accumulate on the brake
pads. This occurs because the minimum
pressure which must be exerted by the
pads during brake applications to clean the
rotors is not reached.
Should corrosion form on the brake rotors,
the brakes will tend to respond with a pul-
sating effect that even extended applica-
tion will fail to cure.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Things to remember when driving
104
Mobile communication devices in
vehicle
BMW advises against using mobile
communication devices, e.g. portable
phones, in the inside of the vehicle without
a direct connection to an external antenna.
Otherwise, the vehicle electronics and
mobile communication device can influ-
ence one another. It is not ensured that the
waves emitted during transmission are led
out of the vehicle interior.<
Cargo loading
To avoid loading the tires beyond
their approved carrying capacity,
never overload the vehicle. Overloading
can lead to overheating and increases the
rate at which damage develops inside the
tires. The ultimate result can assume the
form of a sudden air loss.<
Determining loading limit
1. Locate the following statement on your
vehicle's placard
*:
The combined weight of occu-
pants and cargo should never
exceed XXX lbs. or YYY kg, as other-
wise the vehicle may be damaged and
unstable driving conditions may
result.<
2. Determine the combined weight of the
driver and passengers that will be riding
in your vehicle
3. Subtract the combined weight of the
driver and passengers from XXX lbs. or
YYY kg
4. The resulting figure equals the available
amount of cargo and luggage load
capacity.
For example, if the XXX amount equals
1400 lbs. and there will be five 150-lbs.
passengers in your vehicle, the amount
of available cargo and luggage load
capacity is 650 lbs.:
1400 lbs. minus 750 lbs. = 650 lbs.
5. Determine the combined weight of lug-
gage and cargo being loaded on the
vehicle. That weight may not safely
exceed the available cargo and luggage
load capacity calculated in step 4
6. If your vehicle will be towing a trailer,
part of the load from your trailer will be
transferred to your vehicle. Consult the
manual for transporting a trailer to
determine how this may reduce the
available cargo and luggage load
capacity of your vehicle.
Load
The permitted load is the total of the weight
of occupants and cargo/luggage. The
greater the weight of occupants, the less
cargo/luggage can be transported.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Driving tips
105
Reference At a glanceControlsCommunications NavigationEntertainmentMobility
Stowing cargo
> Load heavy cargo as far forward and
as low as possible, placing it directly
behind the bulkhead behind the rear
seats
> Cover sharp edges and corners.
Securing cargo
> Use the luggage net* or securing straps
to hold down small and lightweight lug-
gage and cargo
> Heavy-duty cargo straps
* for securing
larger and heavier objects are available
at your BMW center. Four lashing eyes
fitted in the luggage compartment are
used to secure these heavy-duty cargo
straps, refer to arrows
> Please observe the special instructions
supplied with the heavy-duty cargo
straps.
Always position and secure the load
as described above. If you do not, it
can even endanger the passengers during
braking or evasive maneuvers.
Never exceed either the approved gross
vehicle weight or either of the approved
axle loads, refer to page 190, as excessive
loads can pose a safety hazard, and may
also place you in violation of freeway safety
laws.
You should never transport heavy or hard
objects unsecured in the passenger com-
partment, as they could fly around and
even pose a safety hazard to the vehicle's
occupants during abrupt braking or evasive
maneuver.<
Pad on base of luggage
compartment
If required, you can use the pad e.g. to
transport dirty or soiled objects. The rub-
berized side is washable and has an anti-
slip effect.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Navigation
This chapter describes how you can
enter destinations and specify your route
so that your navigation system guides you
reliably to your destination.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Starting navigation system
108
Starting navigation system
Your navigation system can use satellites
to ascertain the precise position of your
vehicle and guide you reliably to any desti-
nation you enter.
Navigation DVD
Special navigation DVDs are required;
these are available from your BMW center.
Inserting navigation DVD
1. Insert the navigation DVD with the
labeled side up
2. Allow approx. 8 seconds for the system
to scan the data from the DVD.
Removing navigation DVD
1. Press button 1.
The DVD is ejected from the navigation
computer
2. Remove the DVD.
Opening navigation
Enter data only when the vehicle is
stationary, and always obey the traffic
regulations and road signs in the event of
any contradiction between traffic and road
conditions and the instructions issued by
the navigation system. If you do not
observe this precaution, you may be in vio-
lation of the law, and can endanger vehicle
occupants and other road users.<
Control Center, for principle details, refer to
page 16:
1. Press button.
The start menu is opened
2. Move the controller to the right to open
"Navigation"
3. Select "Navigation" and press the con-
troller.
*
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Navigation Driving tips
109
Reference At a glanceControlsCommunications EntertainmentMobility
Display in assistance
window
You can display the route or the current
position in the assistance window. This dis-
play remains visible even if you switch to
another application.
1. Move the controller to the right to enter
the assistance window
2. Press the controller.
Other menu items are displayed
3. Select the desired view of the route or
"Current position"
4. Press the controller.
The contents of the assistance window is
continually updated as you drive.
Displaying current position
Control Center, for principle details, refer to
page 16:
1. Select "Navigation" and press the con-
troller
2. Select "Current position" and press the
controller.
The current position of your BMW is dis-
played.
If the navigation system is unable to identify
a town or city, your current map coordi-
nates will appear.
To exit the menu:
Select and press the controller.
You can also have the current position
displayed on a map, refer to page 120.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Destination entry
110
Destination entry
In entering your destination you can select
from among the following options:
> Entering a destination manually, see
below
> Selecting destination using information,
refer to page 113
> Selecting from among recent destina-
tions, refer to Destination list, page 113
> Selecting destination from address
book, refer to page 114.
After selecting your destination you can
proceed to start the destination guidance,
refer to page 118.
Entering a destination
manually
The system supports the wordmatch prin-
ciple to make it easier for you to enter the
names of streets or towns/cities. This
enables input of different spellings and
supplements your input automatically so
that stored names can be applied as desti-
nations as quickly as possible.
Control Center, for principle details, refer to
page 16:
1. Select "Navigation" and press the con-
troller
2. Select "New destination" and press the
controller
3. Select "Enter address" and press the
controller.
The system also supports you with the fol-
lowing features:
> If you do not enter a street, the system
will guide you to the downtown area of
a town or city
> You can skip the entry of country and
locality if the current entries are being
retained for your new destination
> The commands of the voice command
system for destination entry differ from
those of the individual menu items on
the Control Display. You can have the
system list the possible voice com-
mands, refer to page 21.
Selecting country of destination
1. Select "State / Province" or the dis-
played country and press the controller.
A list of available countries appears on
the display
2. Select the country of destination and
press the controller.
In order to be able to start the destination
guidance, at least the city of destination or
its zip code must be entered.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Navigation Driving tips
111
Reference At a glanceControlsCommunications EntertainmentMobility
Entering town/city of destination or
zip code
1. Select "Town / City" or the displayed
town/city and press the controller
2. To enter the town/city of destination:
Select the first letter and press the con-
troller.
A list of all towns/cities starting with this
letter appears on the Control Display.
To enter the zip code:
Select digits individually and press the
controller, then select the zip code and
press the controller.
The corresponding town/city of desti-
nation is displayed
3. If necessary, enter other letters of the
town/city of destination.
The list gradually grows smaller each
time you enter a new letter.
To enter blanks:
Select and press the controller.
To delete the last letter entered:
Move the controller to the right to select
and press the controller
4. Select the town/city name from the list
and press the controller.
Entering street, house number and
intersection
1. Select "Street" or the displayed street
and press the controller
2. For instructions on entry, refer to Enter-
ing town/city of destination.
After the street you can also enter the inter-
section or the house number.
The intersection is entered in the same way
as the street.
To enter the house number:
1. Select "House number" and press the
controller
2. Enter the house number:
Select the individual digits and press
the controller.
To delete entered digits or letters:
Move the controller to the right to select
and press the controller
3. Select the house number and press the
controller.
Only house numbers stored for the
street on the navigation DVD can be
entered.
Starting destination guidance with
manual destination entry
Select "Start guidance" and press the con-
troller.
Destination guidance starts immediately.
If destination guidance is not to be started
immediately:
Select "Add to destination list" and press
the controller.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Destination entry
112
The destination is saved in the destination
list, refer to page 113.
Selecting destination using
map
If you only know the location of the town/
city or street, the system offers you a map.
You can use the cursor to limit the destina-
tion in the map and then apply it into the
destination guidance.
Control Center, for principle details, refer to
page 16:
1. Select "Navigation" and press the con-
troller
2. Select "New destination" and press the
controller
3. Select "Input map" and press the con-
troller.
A section of a map is displayed on the
Control Display:
> During destination guidance, around
the current destination
> With the destination guidance deac-
tivated, around the last destination
entered
4. Move the controller in the desired direc-
tion to localize your destination.
The controller can be moved to the left,
right, forwards, backwards and also
diagonally.
The aim can be applied in a scale below
1 mile/2 km as destination or saved.
To adjust the scale:
Turn the controller
5. Press the controller.
The selected town/city of destination
and other menu items are displayed
6. Select the desired menu item:
> closes "Input map"
> "Start route guidance" switches the
destination guidance on
> "Show current position" places the
current position back in the center of
the map
> "Show destination position" places
the current destination in the center
of the map
> "Return to map" switches back to
"Input map"
7. Press the controller.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Navigation Driving tips
113
Reference At a glanceControlsCommunications EntertainmentMobility
Selecting destination using
information
You can obtain a display of selected desti-
nations for towns/cities and apply them
into the destination guidance, e.g. hotels,
sights or hospitals.
Control Center, for principle details, refer to
page 16:
1. Select "Navigation" and press the con-
troller
2. Select "New destination" and press the
controller
3. Select "Information" and press the con-
troller
4. Select the destination town/city or
country:
> "On destination"
> "On location"
> "On a new destination"
The display for entering a town/city
appears on the Control Display.
Select the desired town/city and
press the controller
5. Press the controller
6. Select the desired type of destination,
such as "Hotels and restaurants"
7. Press the controller.
A list with a maximum of ten destina-
tions, sorted by distance, is displayed
on the Control Display
8. Select a destination and press the con-
troller
9. Select a menu item:
> To apply the address in the destina-
tion list and start the destination
guidance:
Select "Select as destination" and
press the controller
> To set up a telephone connection:
Select "Call" and press the control-
ler.
To exit the menu:
Select and press the controller.
Destination list
The destination list shows the last 20
entered destinations as well as the current
destination of the destination guidance.
The current destination is highlighted by
this symbol .
Control Center, for principle details, refer to
page 16:
1. Select "Navigation" and press the con-
troller
2. Select a destination and press the con-
troller
3. The selected destination can be edited:
> To start destination guidance:
Select "Start guidance".
The destination guidance is
started
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Destination entry
114
> To display information on the desti-
nation:
Select "Information on destination"
> To change the entry:
Select "Edit", for operation, refer to
Entering town/city of destination or
zip code, page 111
> To delete the entry:
Select "Delete entry"
> To delete all entries:
Select "Delete list". Destination
guidance is switched off
> To store the entry:
Select "Add to address book"
4. Press the controller.
Address book
Opening address book
Control Center, for principle details, refer to
page 16:
Select "Address book" and press the con-
troller.
Storing destinations in address book
You can save approx. 100 destinations in
the address book.
Control Center, for principle details, refer to
page 16:
1. Select "Address book" and press the
controller
2. Select "New address" and press the
controller
3. Select "Enter address yourself" and
press the controller
4. Enter name and address
5. Select "Store in address book" and
press the controller.
The entry is stored in the address book.
You can also save a destination from the
destination list in the address book, refer to
page 113.
Storing current position
The current position can be adopted into
the address book:
Control Center, for principle details, refer to
page 16:
1. Select "Address book" and press the
controller
2. Select "New address" and press the
controller
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Navigation Driving tips
115
Reference At a glanceControlsCommunications EntertainmentMobility
3. Select "Apply location as address" and
press the controller.
The given name can be changed. For
operation, refer to Entering a destina-
tion manually, page 110
4. Select "Store in address book" and
press the controller.
You can also enter your current position in
the address book after leaving the sector
covered by the navigation DVD. In this
case, you must enter a name.
Selecting destinations from address
book
Control Center, for principle details, refer to
page 16:
1. Select "Address book" and press the
controller.
The stored entries are displayed on the
Control Display
2. Select the entry and press the control-
ler.
To start destination guidance:
Select "Start guidance" and press the con-
troller.
Changing destinations from address
book
Control Center, for principle details, refer to
page 16:
1. Select "Address book" and press the
controller
2. Select the entry and press the controller
3. Select "Edit address" and press the
controller
4. Change the entry.
For operation, refer to Entering a desti-
nation manually, page 110
Deleting individual destinations from
address book
Control Center, for principle details, refer to
page 16:
1. Select "Address book" and press the
controller
2. Select the entry and press the controller
3. Select "Delete address" and press the
controller.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Destination entry
116
Deleting all destinations from
address book
Control Center, for principle details, refer to
page 16:
1. Open the start menu
2. Press the controller to open the menu
3. Select "Vehicle settings" and press the
controller
4. Select "Delete data" and press the con-
troller
5. Select "Delete address book" and press
the controller
6. Select "Yes" and press the controller.
Route selection
You can influence the calculated route by
choosing certain route criteria.
Changing route criteria
Control Center, for principle details, refer to
page 16:
1. Select "Navigation" and press the con-
troller
2. Select "Route preference" and press
the controller.
The various criteria are listed on the
Control Display
3. Select a route criterion for the route:
> "With highways"
Freeways and major traffic arteries
are given priority
> "Avoid highways"
Freeways are avoided where possi-
ble
> "Fast route"
Shortest time using combination of
smallest possible distance and sec-
tions where fast driving is possible
> "Short route"
Shortest distance without consider-
ation of the time
4. Press the controller.
The route criterion is highlighted
5. If necessary, select an additional route
criterion and then press the controller:
> "Dynamic route"
The route is planned around or
through traffic obstructions
> "Avoid tollroads"
Tollroads are avoided where possi-
ble
> "Avoid ferries"
Ferries are avoided where possible.
To exit the menu:
Select and press the controller.
The route is planned according to fixed
rules. These vary according to the different
kinds of roads stored on the map DVD. As
a result, the routes recommended by the
navigation system may not always be the
same ones that you would choose based
on personal experience.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Navigation Driving tips
117
Reference At a glanceControlsCommunications EntertainmentMobility
You can change the choice of route when-
ever the destination guidance is active.
Wordmatch principle
The system supports the wordmatch prin-
ciple to make it easier for you to enter the
names of streets or towns/cities. The sys-
tem runs ongoing checks, comparing your
destination entries with the data stored on
the navigation DVD as the basis for instant
response. The user benefits include:
> Names of specific locations can also
vary from the official versions provided
that the spelling of the entry corre-
sponds to a standard form used in
another country.
Example:
Instead of 'München', you can also
enter the English spelling 'Munich' or
the Italian spelling 'Monaco'
> When you are entering the names of
towns/cities and streets the system will
complete them automatically as soon
as enough letters are available to
ensure unambiguous identification
> The system only accepts name entries
beginning with letters that are stored on
the navigation DVD. The system will not
accept nonexistent names and
addresses.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Destination guidance
118
Destination guidance
Starting destination
guidance
Control Center, for principle details, refer to
page 16:
1. Select "Navigation" and press the con-
troller
2. Select the destination from the destina-
tion list and press the controller or enter
a new destination, refer to page 110
3. Select "Start guidance" and press the
controller.
The destination guidance is started.
indicates the current destination.
After the route has been calculated, desti-
nation guidance is indicated by arrows or a
route map on the Control Display.
1 Estimated time of arrival
2 Distance to the destination on the cal-
culated route
3 Route criterion
4 Switch voice instructions on/off
During destination guidance, you can oper-
ate other equipment using the Control Cen-
ter at any time. You are informed of a
required change in direction by means of
voice instructions in good time prior to
every intersection.
To exit the menu:
Select and press the controller.
Terminating/continuing
destination guidance
Control Center, for principle details, refer to
page 16:
indicates the current destination.
1. Select the current destination and press
the controller
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Navigation Driving tips
119
Reference At a glanceControlsCommunications EntertainmentMobility
2. Select "Start guidance" and press the
controller.
The destination guidance is switched
off.
When you park the vehicle before reaching
the entered destination, upon restarting
you will see the question "Continue guid-
ance to dest.?".
To restart destination guidance:
Select "Yes" and press the controller.
Destination guidance
through voice instructions
Switching voice instructions on/off
Control Center, for principle details, refer to
page 16:
1. Open the start menu
2. Press the controller to open the menu
3. Select "Display settings" and press the
controller
4. Select "Languages" and press the con-
troller
5. Select "Navigation voice instructions
on" and press the controller.
The voice instructions are switched on.
Depending on which key you have used to
open the vehicle, the last adjustment is
applied.
Repeating and canceling voice
instructions
With the programmable keys in the steering
wheel, you can also make the following set-
tings, refer to page 49:
> Repeat the voice instruction
> Cancel the voice instruction
> Switching voice instructions on/off.
Adjusting volume
1. Repeat the last voice instruction, if
required
2. Turn the button during the voice
instruction to select the desired vol-
ume.
This volume is independent of the volume
of the audio and video sources.
Depending on which key you have used to
open the vehicle, the last adjustment is
applied.
Displaying route
You have the option of displaying various
views of the route during destination guid-
ance.
Displaying arrow view
1. Select "Navigation" and press the con-
troller
2. Select "Arrow display" and press the
controller.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Destination guidance
120
Displaying route map
You can have your current position dis-
played on a map. After starting the destina-
tion guidance, the planned route is shown
on the map.
1. Select "Navigation" and press the con-
troller
2. Select "Map, facing north" or
"Map, direction of travel"
3. Press the controller.
At scales of less than 300 miles/500 km,
you enjoy the option of deciding whether to
orient the map to north or toward your cur-
rent direction of travel. From 300 miles/
500 km, the map always points toward
north.
Changing scale
Turn the controller.
On the Control Display, a scale display
appears and the scale is changed.
Displaying towns/cities and streets
of route
You can have the names of streets and
towns/cities on your route displayed when-
ever the destination guidance is active.
The distances remaining to be traveled on
each individual road and directional arrows
are also displayed.
Control Center, for principle details, refer to
page 16:
1. Select "Navigation" and press the con-
troller
2. Select "Route list" and press the con-
troller.
To exit the menu:
Select and press the controller.
Bypassing route sections
During destination guidance, you can
revise the navigation system's route rec-
ommendations to avoid particular
stretches of road. Enter the number of
miles/kilometers that you want to travel
before returning to the original route.
Control Center, for principle details, refer to
page 16:
1. Select "New route" and press the con-
troller
2. Turn the controller to enter the desired
number of miles/kilometers and press
the controller.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
What to do if …
122
What to do if …
What to do if …
> you request the current position of your
vehicle, but do not receive a precise
display?
The system is unable to receive enough
GPS signals at your current position
owing to obstructions, your current
position is not yet available on your nav-
igation DVD, or the system is in the pro-
cess of calculating your current posi-
tion. As a rule, reception is guaranteed
under a clear sky
> the destination guidance does not
apply a destination?
The data of the destination is not stored
on the navigation DVD that is loaded.
Select a destination that is as close as
possible to the original
> the destination guidance does not
apply an address without the street
name?
On the navigation DVD, no downtown
area can be determined for the city or
town entered. Enter any street, or a
destination such as the railway station
etc., then start the destination guidance
> you want to enter a destination for the
destination guidance, but it is not pos-
sible to select the letters for your
desired entry?
The destination data is not recorded on
the navigation DVD that is loaded. In
this case, the system will not offer you
any letters to choose from. Select a
destination that is as close as possible
to the original
> the system stops furnishing directions
on which way to turn as you approach
intersections?
You are driving in an area that has not
yet been completely recorded on the
navigation DVD. Instead of an arrow
indicating a turn, you will see an arrow
which indicates the general direction of
your planned route. Or you have left the
recommended route and the system
requires a few seconds to calculate a
new recommended route
> the battery has been disconnected?
It will take approx. 10 minutes for the
system to resume operation.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Entertainment
Operation of the radio and CD
as well as their tone settings
are described in this chapter.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
On/off and tone
126
On/off and tone
The following equipment has shared con-
trols and setting options:
> Radio Business
> CD player
> CD changer
*.
Controls
The audio sources can be operated using:
> Buttons on the CD player
> Control Center
> Buttons on the steering wheel, refer to
page 11.
Buttons on CD player
The layout of the buttons can vary depend-
ing on your vehicle's equipment.
Equipment with single drive:
Equipment with two drives:
1 Sound output for Entertainment on/off,
volume
> Press: switch on/off.
When you switch on, the last set
radio station or CD track is played
> Turn: adjust volume
2 Drive for audio CD
3 Eject CD
4 Station scan/track scan
> Change radio station
> Select track for CD player and
CD changer
5 Drive for navigation DVD
Operation using Control Center
Control Center, for principle details, refer to
page 16:
1. Press button.
The start menu is opened
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
NavigationEntertainment Driving tips
127
Reference At a glanceControlsCommunicationsMobility
2. Move the controller backwards to open
"Entertainment".
You have the following choices:
> "FM" or "AM": radio reception
> "WB": calling up Weather Band station
> "SAT": selecting satellite radio
> "CD": selecting CD player or CD
changer
> "Set": depending on each audio source,
other settings can be made, e.g. on the
radio: updating stations with best
reception, storing stations, setting the
tone, playing stations.
Switching on/off
To switch the sound output for Entertain-
ment on/off:
Press button 1 on the CD player.
This symbol on the Control Display
indicates that sound output is switched off.
Adjusting volume
Turn button 1 until the desired volume has
been reached.
Depending on which key you have used to
open the vehicle, the last adjustment is
applied.
Adjusting tone
You can alter various tone settings, e.g. tre-
ble and bass, or the speed-dependent vol-
ume. This changes the setting for all audio
sources.
Depending on which key you have used to
open the vehicle, the last settings are
applied.
Changing tone settings
Control Center, for principle details, refer to
page 16:
1. Press button.
The start menu is opened
2. Press the controller to open the menu
3. Select "Entertainment settings" and
press the controller
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
On/off and tone
128
4. Select "Audio" and press the controller.
The tone settings can also be selected if
you have opened "Entertainment":
Select "Set" or "Tone" and press the con-
troller.
Treble and bass
1. Select "Treble / Bass" and press the
controller
2. Move the controller to the left or right to
select "Treble" or "Bass"
3. Turn the controller until the desired set-
ting is selected.
Balance and fader
You can set the right/left and front/rear
volume balance in the same manner as
"Treble / Bass".
Speed-dependent volume
The speed-dependent volume control
automatically increases the volume with
increasing speed. You can set various
stages for the increase in volume.
1. Select "Speed volume" and press the
controller
2. Turn the controller. The adjustment is
applied; the field can be changed.
Professional LOGIC7 HiFi System*
You can select a spatial sound effect that
improves the spatial acoustics in all fre-
quency ranges.
1. Select "LOGIC7" and press the control-
ler
2. Select "Concert hall" and press the
controller.
LOGIC7 spatial sound is switched on.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
NavigationEntertainment Driving tips
129
Reference At a glanceControlsCommunicationsMobility
To switch off spatial sound:
Select "Off" and press the controller.
LOGIC7 and the LOGIC7 logo are regis-
tered trade marks of Lexicon, Inc., a com-
pany of the Harman International Group.
Equalizer*
You can set individual sound frequency
ranges:
1. Select "Equalizer" and press the con-
troller
2. Move the controller to the left or right to
select the desired frequency range
3. Turn the controller until the desired set-
ting is selected.
Resetting tone settings
You can reset all tone settings except
"Speed volume" to the standard default
settings.
1. Open the start menu
2. Press the controller to open the menu
3. Select "Entertainment settings" and
press the controller
4. Select "Audio" and press the controller
5. Select "Reset" and press the controller.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Radio
130
Radio
Your radio provides reception of the FM
and AM wavebands.
Listening to the radio
Press the button if the sound output is
switched off.
Control Center, for principle details, refer to
page 16:
1. Press button.
The start menu is opened
2. Move the controller backwards to open
"Entertainment"
3. Select "FM" or "AM"
4. Press the controller.
Stations are shown on the Control Display
on the basis of various selection criteria,
e.g. "Presets".
If no station is displayed, update the sta-
tions with the best reception, refer to
page 132.
Changing station
Turn the controller.
In addition to the stations currently dis-
played, you can have stations with another
selection criterion displayed.
You can choose from the following selec-
tion criteria:
> "Autostore":
The six strongest stations, refer to
page 132
> "Presets":
Stations you have stored, refer to
page 132.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
NavigationEntertainment Driving tips
131
Reference At a glanceControlsCommunicationsMobility
To change between these different selec-
tion criteria of stations:
1. Move the controller forwards to change
fields
2. Select a selection criterion
3. Press the controller.
Buttons on CD player
Briefly press the button for the correspond-
ing direction.
The system switches to the next displayed
station.
Playing stations, scan
The system automatically plays a brief
sample from each of the stations on the
current waveband.
Control Center, for principle details, refer to
page 16:
1. Select "FM" or "AM"
2. Press the controller
3. Press the controller.
Other menu items are displayed
4. Select "Scan" and press the controller.
Scan starts.
To stop the scan:
1. Press the controller once again
2. Select "Scan" and press the controller.
This cancels the scan search, and the radio
remains on the current station.
Buttons on the CD player:
To start the scan, press the button for a
longer period.
To stop the scan, press the button briefly.
Selecting frequency manually
Control Center, for principle details, refer to
page 16:
1. Select "FM" or "AM"
2. Press the controller
3. Move the controller forwards to change
fields
4. Select "Manual" and press the control-
ler
5. Turn the controller to set a certain fre-
quency.
Buttons on the CD player:
In "Manual", you can set stations that are
received in addition to those displayed.
To start the scan, press the button for a
longer period.
The scan mode begins with the currently
selected frequency.
The system plays a brief sample from each
radio station.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Radio
132
To stop the scan at the desired frequency
or station:
Press button.
Updating stations with best
reception
If you are on a longer journey and leave the
transmission range of the stations originally
set, you can update the list of stations with
the best reception.
Control Center, for principle details, refer to
page 16:
1. Select "FM" or "AM"
2. Press the controller
3. Move the controller forwards to change
fields
4. Select "Autostore" and press the con-
troller
5. Press the controller.
Other menu items are displayed
6. Select "Autostore" and press the con-
troller.
The display of the stations with the stron-
gest reception is updated. The stations are
displayed based on their frequencies.
Storing stations
Control Center, for principle details, refer to
page 16:
1. Select "FM" or "AM"
2. Select the desired station.
"Set" has been selected
3. Press the controller.
Other menu items are displayed
4. Select "Store" and press the controller.
"Presets" is displayed
5. Turn the controller until the desired
memory location is selected.
The number of the memory location
appears beside the name or frequency
of the station
6. Press the controller.
The station is stored.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
NavigationEntertainment Driving tips
133
Reference At a glanceControlsCommunicationsMobility
The stations of the last selection criterion
are displayed once again after a short time.
Depending on which key you have used to
open the vehicle, other stored stations are
displayed.
Changing a memory location
Control Center, for principle details, refer to
page 16:
1. Select "Presets" and press the control-
ler
2. Select the desired station
3. Press the controller.
Other menu items are displayed
4. Select "Store" and press the controller
5. Turn the controller until the desired
memory location is selected.
The number of the memory location
appears beside the name or frequency
of the station
6. Press the controller.
The station is stored.
RDS Radio Data System
RDS transmits additional information in the
FM frequency range. RDS stations have the
following properties:
> In the case of broadcasting networks
that transmit over a number of frequen-
cies, there is an automatic switch to the
frequency with the best reception qual-
ity
> If the reception conditions are good, the
station names are shown on the Control
Display. If the reception is weak or dis-
rupted, it can take some time before the
station names appear.
Weather Band*
Weather Radio is a service of the National
Oceanic and Atmospheric Administration –
NOAA – of the U.S. Department of Com-
merce. Weather messages are repeated
every four to six minutes and are routinely
revised every one to three hours, or more
frequently if needed. Most of the stations
operate 24 hours daily. During severe
weather, National Weather Service fore-
casters can interrupt the routine weather
broadcasts and substitute special warning
messages. If you have a question concern-
ing NOAA Weather Radio, please contact
your nearest National Weather Service
Office, or write to National Weather Service
– Attn: W/OM11 –, National Oceanic and
Atmospheric Administration, 1325 East-
West Highway, Silver Spring, MD. 20910.
Selecting Weather Band
Control Center, for principle details, refer to
page 16:
1. Select "WB" and press the controller
2. Select the Weather Band station and
press the controller.
It can occur that the Weather Band station
is not available in some regions.
Satellite radio*
You can receive up to 100 different chan-
nels with high tone quality.
The channels are offered to you in pre-
defined combinations. To receive the chan-
nels of your choice, you must have this
combination enabled.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Radio
134
You may experience signal drops and
muting events related to this new
technology.<
Enabling or disabling channels
Control Center, for principle details, refer to
page 16:
1. Press button.
The start menu is opened
2. Move the controller backwards to open
"Entertainment"
3. Select "SAT"
4. Press the controller.
The channels are displayed.
These channels are enabled.
Enabling
1. Select a channel that has not yet been
enabled and press the controller.
A telephone number and the electronic
serial number, ESN, are displayed
The electronic serial number is
required to enable or disable.<
2. To have the channels enabled:
Dial the telephone number or, in the
case of equipment with two drives,
select the telephone number and press
the controller.
Disabling
1. Select an enabled channel and press
the controller
1. Select "ESN" and press the controller.
A telephone number and the electronic
serial number, ESN, are displayed
The electronic serial number is
required to disable.<
2. To have the channels disabled:
Dial the telephone number or, in the
case of equipment with two drives,
select the telephone number and press
the controller.
Selecting and storing channel
1. Select "SAT" and press the controller.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
NavigationEntertainment Driving tips
135
Reference At a glanceControlsCommunicationsMobility
Channels are shown on the Control Dis-
play sorted on the basis of various
selection criteria
2. Select a menu item:
> "Presets":
Up to twelve channels you have
stored
> "All channels"
> "Categories":
All channels sorted by category, e.g.
news, jazz
3. Press the controller
4. If "Categories" has been selected:
Select the desired category and press
the controller.
The channels of this category are dis-
played
5. Select a channel marked with this
symbol
6. Press the controller.
Other menu items are displayed
7. Select "Play" and press the controller.
Additional information
The name of the channel and additional
information on the current track are dis-
played, e.g. the name of the artist.
1 Artist
2 Track
3 Album
*
Storing channel
1. Select desired channel
2. Press the controller.
Other menu items are displayed
3. Select "Store" and press the controller.
"Presets" is displayed
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Radio
136
4. Turn the controller to select a memory
location and press the controller.
The channel is stored. The stations of the
last selection criterion are displayed once
again after a short time.
Changing channel with buttons on
CD player
Briefly press the button for the correspond-
ing direction.
The system switches to the next enabled
channel.
Notes
When there is a signal blockage or the
transmission is suspended momentarily for
more than 4 seconds, a message appears
on the Control Display.
Service may be interrupted or
unavailable for specific reasons such
as environmental or topographic condi-
tions and others that Satellite Radio cannot
directly control.
Signal may not be available under tunnels,
in parking garages, next to tall buildings,
nearby trees with dense foliage, nearby
mountains or other possible strong sources
of radio interference.
Service should resume normally after the
source of signal unavailability has been
cleared.<
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
NavigationEntertainment Driving tips
137
Reference At a glanceControlsCommunicationsMobility
CD player and CD changer
Listening to CDs
Starting CD player
Equipment with two drives:
The upper drive is for audio CDs.
Insert the CD with the labeled side facing
upwards.
Playback starts automatically if the sound
output is on.
Currently not available:
The CD player can also play CDs with an
MP3 content. Depending on the directory
and file structure, it may take up to 50 sec-
onds to read in the data.
To start playback when there is already a
CD in the drive:
Control Center, for principle details, refer to
page 16:
1. Press button.
The start menu is opened
2. Move the controller backwards to open
"Entertainment"
3. Select "CD" and press the controller
4. On vehicles with a CD changer, select
"CD" and press the controller to start
the CD player.
To eject the CD, press the button on the
CD player:
The CD emerges slightly from the drive.
Starting CD changer
1. Fill the CD magazine and insert, refer to
page 140
2. Control Center, for principle details,
refer to page 16:
Press button.
The start menu is opened
*
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
CD player and CD changer
138
3. Move the controller backwards to open
"Entertainment"
4. Select "CD" and press the controller
5. Select the desired CD and press the
controller.
At the end of the last track, the next CD will
be selected.
If new CDs have been placed in the CD
magazine, playback starts with the lowest
CD, e.g. CD 1, track 1.
The CD magazine's load status is indicated
on the Control Display.
Selecting a track
Buttons on the CD player:
Press the button for the corresponding
direction repeatedly, continuing until you
reach the desired track on the current CD.
The CD will start play at the start of the
track. The track is displayed on the Control
Display.
Control Center, for principle details, refer to
page 16:
Select a track by turning the controller.
If you have a CD with MP3 content:
1. Select directory if necessary
2. Select the music track and press the
controller
3. Select "play" and press the controller.
To change the directory:
Select directory and press the controller.
To exit the menu:
Select and press the controller.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
NavigationEntertainment Driving tips
139
Reference At a glanceControlsCommunicationsMobility
Repeating a track
Control Center, for principle details, refer to
page 16:
1. Select "Set" and press the controller.
Other menu items are displayed
2. Select "Repeat" and press the control-
ler.
The current music track on the CD is
repeated.
To stop repetition:
Press the controller, select "Repeat" and
press the controller.
If you have a CD with MP3 content:
1. Select the current music track and
press the controller
2. Select "repeat track" and press the
controller.
The current music track on the CD is
repeated.
To stop repetition:
Press the controller, select "repeat track"
and press the controller.
Track sample scan
The system automatically plays a brief
sample from each of the tracks on the cur-
rent CD.
Control Center, for principle details, refer to
page 16:
1. Select "Set" and press the controller.
Other menu items are displayed
2. Select "Scan" and press the controller.
To stop the scan:
1. Press the controller once again
2. Select "Scan" and press the controller.
This cancels the scan, and the selected
track remains.
If you have a CD with MP3 content:
1. Select the current music track and
press the controller
2. Select "scan directory" and press the
controller.
The system automatically plays a brief
sample from each of the tracks in the cur-
rent directory.
To stop the scan:
1. Press the controller once again
2. Select "scan directory" and press the
controller.
This cancels the scan, and the selected
track remains.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
CD player and CD changer
140
Random play sequence
In this mode, the music tracks on the cur-
rent CD are played once in a random
sequence.
Control Center, for principle details, refer to
page 16:
1. Select "Set" and press the controller.
Other menu items are displayed
2. Select "Random" and press the control-
ler.
To stop the random mode:
Press the controller, select "Random" and
press the controller.
If you have a CD with MP3 content:
1. Select the current music track and
press the controller
2. Select "random directory" and press
the controller.
In this mode, the music tracks in the current
directory are played once in a random
sequence.
To stop the random mode:
Press the controller, select "random direc-
tory" and press the controller.
Fast forward/reverse
Buttons on the CD player:
Press and hold the button for the corre-
sponding direction.
The tracks can be heard, but the sound is
distorted.
CD magazine
The BMW CD changer for six CDs is
installed in the glove compartment.
Removing CD magazine
To insert or remove CDs from the CD mag-
azine 1, you must first remove it from the
CD changer:
1. Press button 2.
The CD magazine 1 is ejected
2. Remove the CD magazine.
Inserting/removing CDs from
CD magazine
When inserting or removing CDs, remem-
ber to always only grasp them on the edge,
taking care to avoid touching the data side
with its mirror finish.
To insert:
Insert the CD in a CD slot with the labeled
side facing upwards.
To remove:
Pull out the desired drawer, refer to arrow,
and remove the corresponding CD.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
NavigationEntertainment Driving tips
141
Reference At a glanceControlsCommunicationsMobility
Inserting CD magazine
Push in the CD magazine as far as possible
in the direction of the arrow.
The CD changer automatically reads in the
inserted CDs and is then ready for opera-
tion.
Notes
For correct playback of MP3 content, the
MP3 data should have been produced with
the Fraunhofer codec.
Good playback quality is achieved with a
data transfer rate of 192 kBit/s, however it
should be at least 128 kBit/s.
Safety notes
The BMW CD drives are Class 1 laser
products. Do not operate if the cover
is damaged, otherwise severe eye damage
can result.
Do not use self-recorded CDs with labels
applied as these can become detached
during playback due to the development of
heat and cause irreparable damage to the
device.
Only use round CDs with a standard diam-
eter of 4.7 in/12 cm and do not play CDs
with an adapter, e.g. maxi CDs, as other-
wise the CDs or the adapter can jam and
may no longer be ejected.
Do not use a combined CD/DVD, e.g.
DVD
Plus
, as otherwise the CD/DVD can jam
and is no longer ejected.<
Malfunctions
To prevent illegal CD copying, manufactur-
ers often use copy protection. This can
mean than some CDs cannot be played or
only to a limited extent. In this case, please
contact the CD dealer or manufacturer.
You may experience playback problems,
such as skips, when using CD-Rs/CD-RWs
that you have copied at home.
If the CD that you have loaded in the drive
does not play, check to ensure that the CD
has been inserted correctly and inspect it
for signs of defects.
High levels of humidity can lead to conden-
sation on the laser's scan lens and tempo-
rarily prevent it from reading the CD.
Keep CDs away from magnetic fields as
created, e.g., by loudspeakers.
Always hold CDs by the edges; do not
touch the reflecting CD memory surface.
Care instructions
You can find everything you need to know
on this topic by consulting the Caring for
your vehicle brochure.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Communications
This chapter summarizes how you operate
your BMW portable phone via the Control
Center or voice control and how you use
BMW Assist or TeleService.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Telephoning
144
Telephoning
Safety notes
For your own safety
Your car phone makes life more convenient
in many ways, and can even save lives in an
emergency. While you should consult your
portable phone's separate Owner's Manual
for a detailed description of safety precau-
tions and information, we request that you
direct your particular attention to the fol-
lowing:
Adjustments
To avoid posing a danger to yourself
and other road users, never adjust the
system settings unless your vehicle is sta-
tionary.<
Using the phone in your vehicle
Using a portable phone while driving
is now illegal in many states and cit-
ies. Always use your hands-free system, or
stop your vehicle in an area where you will
not pose a safety hazard to other road
users.<
Vehicles and portable phones
Do not use your phone within a
garage, or near an open hood. The air
in these areas could contain fuel vapors,
and the portable phone might generate
sparks that could result in burns.
This same precaution applies to open lug-
gage compartment lids on vehicles
equipped for operation using natural gas or
hydrogen, and to all vehicles with luggage
compartment-mounted batteries.<
Antenna
When using the phone, ensure that all
persons in the area are at least 20 in/
50 cm from the antenna. Never use your
BMW portable phone if the antenna is dam-
aged. Contact between your skin and a
damaged antenna can result in minor
burns.
If the antenna is damaged, have it replaced
immediately.<
Special environmental conditions
Always switch off your BMW portable
phone in areas where blasting work is
being conducted with explosives. The
phone signals could potentially act as a
high-frequency transmitter and set off
explosions.
Always switch off your BMW portable
phone in areas where an increased explo-
sion danger is present. This category
includes gas stations along with fuel and
chemical storage depots, etc., and all
areas in which the air can contain fuel,
chemicals or metal particles. Under these
conditions, your BMW portable phone
could conceivably generate sparks that
could lead to a fire or explosion. Always
observe all legal regulations governing the
use of portable phones in the vicinity of gas
stations, chemical factories and other
areas where an explosion potential exists.
Never use your BMW portable phone in air-
craft; do not use this portable phone in hos-
pitals, care centers or at other locations
where medical equipment may be in oper-
ation, such as accident sites, etc.
Your wireless service provider can furnish
you with more detailed information on legal
regulations governing the use of your
phone.<
Medical equipment
Portable phones can generate inter-
ference capable of preventing hearing
aids and cardiac pacemakers from operat-
ing correctly. If you or any occupant of the
vehicle use such equipment, consult a phy-
sician or the manufacturer of the equip-
ment to determine whether it is adequately
shielded against high-frequency energy.<
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
145
EntertainmentReference At a glanceControlsDriving tipsCommunications NavigationMobility
Batteries
Never attempt to dismantle your
BMW portable phone or its battery.
Use only approved battery types – the
wrong battery can destroy your portable
phone.
To avoid possible short circuits, after
removing a battery you should never allow
it to come into contact with metallic sur-
faces of any kind.<
Disposing of used batteries
Return used batteries to a recycling
collection point or to your BMW cen-
ter.<
Care instructions
You can find what you need to know about
caring for your portable phone in the Caring
for your vehicle brochure and in the sepa-
rate portable phone Owner's Manual.
Operating options
You can operate the BMW portable phone*
with:
> The steering wheel, refer to page 11
> The Control Center, refer to page 146
> Voice control, refer to page 151.
Telephoning with car phone:
BMW Assist calls
You can use the car phone via the hands-
free system for BMW Assist calls.
When the status information "Car Phone" is
displayed in "Communication", only BMW
Assist calls are possible.
Activating the
BMW portable phone*
Requirements for portable phones with
SIM card:
> Enter a Personal Identification Number,
PIN, if necessary
> Remove all keypad locks, refer to sepa-
rate Owner's Manual.
Before starting off, place the BMW portable
phone in the cradle. If a connection to
BMW Assist has been established, you
cannot use the BMW portable phone until
this connection has been terminated.
Inserting portable phone
1. Press button 1
2. To adjust the cradle to the portable
phone:
Slide the switch 2 toward the front or
rear if necessary
3. If necessary, remove the protective cap
from the antenna connector on the back
of the portable phone
4. Insert the portable phone with the
antenna completely retracted
5. Press the cradle downwards.
When the status information "Portable" is
displayed in "Communication", you can
operate the BMW portable phone via the
vehicle.
Removing portable phone
Press button 1.
For information on operating your
portable phone, please consult the
separate Owner's Manual.<
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Telephoning
146
Hands-free system
Coupe:
Convertible:
The hands-free microphone is located near
the interior rearview mirror or on the steer-
ing column.
The hands-free system is activated when-
ever you establish or receive a call using:
> The button on the steering wheel
> The Control Center
> Voice control.
Volume adjustment
Turn the button during a call to select the
desired volume.
This volume for the hands-free system is
maintained, even if the other audio sources
are set to minimum volume.
Depending on which key you have used to
open the vehicle, the last adjustment is
applied.
Operation using Control
Center
The following functions can be used via the
Control Center as soon as the BMW porta-
ble phone has been laid in the cradle:
> Entering unlock code
> Dialing a phone number
> Phone book
> Top 8
> Redialing
> Displaying accepted calls
> Displaying missed calls
> Text messages/SMS.
Control Center, for principle details, refer to
page 16:
1. Press button.
The start menu is opened
2. Move the controller forwards to open
"Communication".
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
147
EntertainmentReference At a glanceControlsDriving tipsCommunications NavigationMobility
Entering unlock code
if you are asked to enter the Unlock Code
by a message on the Control Display:
1. Select "Phone" and press the controller
2. To enter the unlock code: select letters
and digits individually and press the
controller.
Each letter or digit of the unlock code is
displayed on the Control Display with
an asterisk.
To delete an incorrect digit:
Move the controller to the right to select
and press the controller
3. Select "Confirm unlock code" and
press the controller.
Receiving calls
If you have the phone number of the caller
stored in the phone book and the phone
number is transmitted, the entry is dis-
played.
Accepting a call
Select "Accept" and press the controller.
Rejecting a call
Select "Reject" and press the controller.
The caller is diverted to your mailbox if this
has been activated.
Calling
Dialing phone numbers
1. Select "Phone" and press the controller
2. Select "Dial" and press the controller
3. To enter the phone number: select dig-
its individually and press the controller.
Always enter the complete phone num-
ber consisting of area code and phone
number.
To delete an incorrect digit:
Move the controller to the right to select
and press the controller
4. Select "Dial number" and press the
controller.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Telephoning
148
Ending a call
1. If necessary, select the telephone num-
ber
2. Press the controller.
Other menu items are displayed
3. Select "End call" and press the control-
ler.
Phone book
After inserting the portable phone in the
cradle, the phone book is transferred from
the portable phone into the vehicle. This
also applies to portable phones with a SIM
card; the phone book of the SIM card will
not be transferred. Loading the phone book
can take several minutes.
Dialing from phone book
1. Select "Phone" and press the controller
2. Select "A - Z" and press the controller.
An alphabetical listing of all the entries
in the phone book appears on the Con-
trol Display.
To run a targeted search for an entry,
select the first letter of the entry and
press the controller.
The first entry that starts with this letter
is displayed
3. Select the desired entry
4. Press the controller.
Other menu items are displayed
5. Select "Call" and press the controller.
The system dials the number.
If different phone numbers are stored in the
portable phone under one name, e.g. office
and home, the name is shown once for
each phone number.
Adding digits to phone numbers
You can add other digits to a phone num-
ber stored in the phone book, e.g. to call a
specific extension:
1. Select "Phone" and press the controller
2. Select "A - Z" and press the controller
3. Select the desired entry
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
149
EntertainmentReference At a glanceControlsDriving tipsCommunications NavigationMobility
4. Press the controller.
Other menu items are displayed
5. Select "Add digits" and press the con-
troller
6. To supplement the phone number:
select digits individually and press the
controller
7. Select "Dial number" and press the
controller.
Lists
Your phone stores phone numbers you
have dialed and calls you missed. If the
caller is entered in the phone book, the
name of the caller is displayed instead of
the phone number.
You can select the desired subscriber from
the list and establish the connection.
Four lists are available:
> "Top 8".
The eight numbers called most fre-
quently via the list "A - Z" are automati-
cally stored in the Top 8 list. The num-
ber called most often appears at the top
of the list
> "Redial".
The last eight phone numbers you have
dialed are automatically stored. The last
number dialed is at the top of the list
> "Received calls".
The phone numbers of the last eight
calls accepted while the portable phone
was in its cradle are stored. Here, it
must be possible for the telephone
number of the caller to be sent
> "Missed calls".
The phone numbers of the last eight
calls not accepted while the portable
phone was in its cradle are stored.
Here, it must be possible for the tele-
phone number of the caller to be sent.
Dialing from a list
To select an entry and establish a connec-
tion:
1. Select "Phone" and press the controller
2. Select the list:
> "Top 8"
> "Redial"
> "Received calls"
> "Missed calls"
3. Press the controller
4. Select the desired entry
5. Press the controller.
Other menu items are displayed
6. Select "Call" and press the controller.
The system dials the number.
Deleting individual entries
1. Select the desired entry from the list
2. Press the controller.
Other menu items are displayed
3. Select "Delete" and press the control-
ler.
The entry is deleted.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Telephoning
150
Deleting entire list
1. Select an entry from the list
2. Press the controller.
Other menu items are displayed
3. Select "Delete all numbers" and press
the controller.
The list is deleted.
Touch tone dialing
Touch tone numbers are required for
access to network services or to control
devices, e.g. remote access to an answer-
ing machine.
This function can only be used during a
call.
1. Establish a connection
2. Press the controller.
Other menu items are displayed
3. Select "Keypad" and press the control-
ler
4. Select the desired digits and press the
controller.
Each digit is sent immediately.
Text messages/SMS
The symbol on the Control Display
shows that you have received a new text
message. The symbol is no longer dis-
played after there are no unread text mes-
sages.
The number of text messages that can be
stored depends on the memory capacity of
your BMW portable phone.
Displaying text messages/SMS
1. Select "SMS" and press the controller.
The list of received text messages is
displayed on the Control Display.
The symbol indicates unread text
messages
2. Select the desired text message and
press the controller.
The text message is displayed.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
151
EntertainmentReference At a glanceControlsDriving tipsCommunications NavigationMobility
To close the text message:
Move the controller forwards to select
and press the controller.
Calling sender
1. Select the desired text message and
press the controller.
The text message is displayed
2. Select "Options" and press the control-
ler
3. Select "Call sender" and press the con-
troller.
The selected sender is called.
Deleting text messages/SMS
1. Select the desired text message and
press the controller.
The text message is displayed
2. Select "Options" and press the control-
ler
3. Select "Delete" and press the control-
ler.
The text message of the portable phone
is deleted.
Operation by voice control*
The concept
You can operate your portable phone with-
out having to remove your hands from the
steering wheel. The system operates on
the basis of voice commands that you learn
easily after using them a few times. In addi-
tion, you are also supported by instructions
or questions.
Symbols used
Voice commands
In ignition key position 2:
1. Briefly press the button on the steer-
ing wheel.
A sound signal indicates operating
readiness
2. Speak voice commands.
To have the system list the voice com-
mands possible in each case:
Canceling operation via voice
control
Briefly press the button on the steering
wheel
or
In dialogs where text of any kind can be
spoken, e.g. a name, canceling is only pos-
sible using the button. Voice control dia-
log is automatically interrupted when an
incoming call is received.
Voice commands
In addition to the commands described in
this Owner's Manual, alternative com-
mands are often possible for the same
functions, e.g.:
Digits from zero to nine are understood.
You can say each digit individually or group
them into a sequence of three to five digits
to speed up the process.
{...} Identifies voice commands.
{{...}} Identifies instructions generated
by the system.
{Help}.
{Cancel}.
{Dial name} or {Name}.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Telephoning
152
An example: dialing a phone number
Start the dialog:
Briefly press the button on the steering
wheel.
Volume adjustment
You can adjust the volume for the instruc-
tions from the system:
Turn the button during an instruction to
select the desired volume.
This volume for the instructions is main-
tained, even if the other audio sources are
set to minimum volume.
Depending on which key you have used to
open the vehicle, the last adjustment is
applied.
First steps
Entering unlock code
You can protect your BMW portable phone
against misuse with a four-digit unlock
code.
Correcting unlock code
After the sequence of digits has been
repeated by the system, the unlock code
can be corrected.
Deleting unlock code
Canceling operation
Calling
Dialing a phone number
Voice command Response
{Dial number}{{Please say the number}}
e.g. {123 456 7890}{{123 456 7890. Continue?}}
{Dial}{{Dialing number}}
1. {Input unlock code}.
The dialog for entering the unlock
code is started
2. Speak unlock code
3. {Send unlock code}.
1. {Correct number}.
The block of digits is deleted
2. Speak the new unlock code on
request
3. {Send unlock code}.
{Delete number}.
{Cancel}.
1. {Dial number}.
The dialog for establishing a tele-
phone connection is called up
2. Say the phone number.
For telephone calls abroad, say
{Plus} and then the country code
3. {Dial}.
The connection to the desired sub-
scriber is established.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
153
EntertainmentReference At a glanceControlsDriving tipsCommunications NavigationMobility
Correcting phone number
After the last spoken sequence of digits
has been repeated by the system, you can
delete this sequence of digits.
The command {Correct number} can be
repeated as often as you like.
Deleting input
{Delete} is used to delete all the digits
entered so far.
Voice phone book
You can create a voice phone book with
up to 50 phone numbers and names. The
names and phone numbers in the voice
phone book are independent of the mem-
ory of your BMW portable phone.
Storing an entry
An entry always consists of a name and
phone number.
Selecting an entry
The connection to the phone number of the
selected entry is established.
Reading out and selecting entries
You can have all the entries of your voice
phone book read out in the order of input
and select a certain entry to establish a
connection:
Redialing
{Redial} dials the last phone number
dialed.
Deleting an entry
You can delete any entry from the voice
phone book.
Deleting all entries
{Delete phone book} deletes all entries in
the phone book.
{Correct number}.
The digits are deleted.
1. {Save name}.
The dialog for storing a name is
called up
2. Speak name and repeat entry upon
request.
The duration of the name in the
phone book must not exceed
approx. 2 seconds
3. Speak the phone number upon
request
4. To save the phone number:
{Save}.
1. {Dial name}.
The dialog for selecting an entry is
called up
2. Speak the name on request
3. Confirm the prompt with {Yes}.
1. {Read phone book}.
The dialog for reading the phone
book is called up
2. {Dial number} when the desired
entry is read out.
1. {Delete name}.
The dialog for deleting an entry is
called up
2. Speak the name on request
3. Confirm the prompt with {Yes}.
1. {Delete phone book}.
The dialog for deleting the phone
book is called up
2. Confirm the prompt with {Yes}
3. Confirm the repeated prompt with
{Yes}.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Telephoning
154
Notes
The voice commands were available
in English on going to print. Other lan-
guages are currently not available.
To operate the portable phone via the voice
command system, refer to page 20.<
Important for voice commands
For voice commands, bear the following in
mind:
> Issue the commands fluently and at
normal volume, avoiding excessive
emphasis and pauses
> Keep the doors, windows and glass
roof closed to prevent interference from
ambient noise
> Avoid other sources of noise in the
vehicle while speaking, and ask other
vehicle occupants to refrain from talk-
ing while you are using the system.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
155
EntertainmentReference At a glanceControlsDriving tipsCommunications NavigationMobility
TeleService , BMW Assist
TeleService
TeleService supports you in communicat-
ing with your BMW center. The installed car
phone can be used to transmit data on the
service status of your vehicle or on legally
mandated inspections directly to your
BMW center. This is the same data that is
also stored for CBS Condition Based Ser-
vice in the ignition key. Your BMW center
can then contact you, and you can make an
appointment that suits you while you are
still on the road. Your advantage is that
your BMW center can prepare in advance
for the required maintenance work. The
functions of TeleService are country-spe-
cific: the data on the service status of your
vehicle or on legally mandated inspections
is transmitted on a country-specific basis
either automatically before they fall due or
simultaneously when you call your BMW
center. Your BMW center will be glad to
provide more detailed information.
BMW Assist
BMW Assist provides you – in addition to
TeleService – with other services, e.g. the
position data of your vehicle can be trans-
ferred to the BMW Assist emergency call
center if an emergency call is started.
Many functions of BMW Assist depend on
the individually agreed contract. The data
transmission, e.g. of CBS Condition Based
Service, is different in individual countries.
The subscriber agreement must be com-
pleted successfully before using the BMW
Assist services.
Requirements
The installed car phone is logged on to a
portable telephone network. This network
must be able to transmit the services.
To transmit position data, the vehicle must
be able to determine the current position.
This is displayed on the Control Display. In
order to enable and update TeleService or
BMW Assist, a GPS signal must be present.
Enabling TeleService or BMW Assist
For you to be able to use the services of
TeleService or BMW Assist, these must be
enabled.
Leave the ignition key in position 1 during
the entire operation.
Control Center, for principle details, refer to
page 16:
1. Press button.
The start menu is opened
2. Press the controller to open the menu
3. Select "Communication interface" and
press the controller
4. Select "BMW Service settings" and
press the controller
5. Select "Service Status" and press the
controller
**
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
TeleService, BMW Assist
156
6. Select "Enable services" and press the
controller.
TeleService and, if applicable, BMW
Assist is enabled; data exchange with
the service center starts.
Enabling takes a few minutes. The status is
displayed on the Control Display. If you
open another menu, the enable process
continues to run in the background.
These services are enabled.
Services offered
The following special aspects apply to the
services of TeleService and BMW Assist:
> The range of services offered is coun-
try-dependent
> Voice contact is established or data are
transferred in dependence on the
equipment and the country. In some
countries, both are possible
> The data that is transferred can be the
vehicle data, your current position or
the data of CBS Condition Based Ser-
vice.
Automatic service notification*
The data on the service status of your vehi-
cle or on legally mandated inspections is
transmitted automatically directly to your
BMW center prior to the due date. You can
check when the BMW center is notified.
Control Center, for principle details, refer to
page 16:
1. Open the start menu
2. Press the controller to open the menu
3. Select "Service" and press the control-
ler
4. Select "Service requirements" and
press the controller
5. Select "Service notification" and press
the controller.
Breakdown assistance
You can call Roadside Assistance* of the
BMW Group should you require help in the
event of a breakdown.
Control Center, for principle details, refer to
page 16:
1. Open the start menu
2. Press the controller to open the menu
3. Select "Service" and press the control-
ler
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
157
EntertainmentReference At a glanceControlsDriving tipsCommunications NavigationMobility
4. Select "BMW Service" and press the
controller
5. Select "Roadside Assistance" and
press the controller.
If the current position can be deter-
mined, the current vehicle location is
displayed
6. Select "Start service" and press the
controller.
Contact to Roadside Assistance will be
established.
Setting up contact to your BMW
center or BMW Customer Relations
You can contact your BMW center, e.g. to
arrange a service appointment.
For information related to your vehicle, call
the BMW Customer Relations.
Control Center, for principle details, refer to
page 16:
1. Open the start menu
2. Press the controller to open the menu
3. Select "Service" and press the control-
ler
4. Select "BMW Service" and press the
controller
5. Select the desired BMW center
> "Service Request"
> "Customer Relations"
6. Press the controller
7. Select "Start service" and press the
controller.
Contact to the desired BMW center is
established.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
TeleService, BMW Assist
158
Adapting TeleService or
BMW Assist
Displaying and updating services
You will be informed about the changes in
the scope of TeleService or BMW Assist. In
this case, you should update the services.
Control Center, for principle details, refer to
page 16:
1. Open the start menu
2. Press the controller to open the menu
3. Select "Communication interface" and
press the controller
4. Select "BMW Service settings" and
press the controller
5. Select "Service Status" and press the
controller.
You will be informed about the current
scope of TeleService or BMW Assist.
These services are enabled
6. Select "Update services" and press the
controller.
Roaming
So that you are able to use the services of
TeleService or BMW Assist in other coun-
tries, the foreign providers must support
them.
In addition, the services offered must be
transmitted to your vehicle. You can do this
in the following ways:
> Update services
> Enable roaming.
The range of foreign services is trans-
ferred automatically. This can involve
additional costs.
To enable roaming:
1. Open the start menu
2. Press the controller to open the menu
3. Select "Communication interface" and
press the controller
4. Select "BMW Service settings" and
press the controller
5. Select "Profile" and press the controller
6. Select "Roaming" and press the con-
troller.
Roaming is enabled.
Terminating services
If you terminate the services, your vehicle
will not be equipped to contact the BMW
Assist call center. When an emergency call
is initiated, the telephone connection to the
general emergency number is established.
Control Center, for principle details, refer to
page 16:
1. Open the start menu
2. Press the controller to open the menu
3. Select "Communication interface" and
press the controller
4. Select "BMW Service settings" and
press the controller
5. Select "Service Status" and press the
controller
6. Select "Terminate services" and press
the controller.
Use of TeleService or BMW Assist is
blocked. To lift the block, re-enabling is
required, refer to page 155. This does
not affect the contractual agreements.
Automatic service notification can be dis-
abled separately. Contact your BMW cen-
ter for assistance.
Enable TeleService and, if applicable,
BMW Assist once again to re-establish.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
159
EntertainmentReference At a glanceControlsDriving tipsCommunications NavigationMobility
Displaying vehicle data
When TeleService or BMW Assist is acti-
vated, the colored designation, the license
plate and the vehicle identification number
of your vehicle can be displayed.
Control Center, for principle details, refer to
page 16:
1. Open the start menu
2. Press the controller to open the menu
3. Select "Communication interface" and
press the controller
4. Select "BMW Service settings" and
press the controller
5. Select "Profile" and press the control-
ler.
To adapt the color designation and the
license plate number, contact your BMW
center.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Mobility
This section helps you maintain
your mobility by supplying important
information on vital topics including fuels
and lubricants, wheels and tires, service,
maintenance and how to deal with any
problems that may occur.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Refueling
162
Refueling
Always switch off the engine before
refueling. If you do not, fuel cannot be
filled into the tank and a message on the
Control Display will appear.<
Always observe all applicable precau-
tions and regulations when handling
fuels. Never carry spare fuel containers in
your vehicle. Whether empty or full, these
containers can leak, cause an explosion,
and lead to fire in the event of a collision.<
Fuel filler door
To open and close: briefly press the rear
edge of the fuel filler door.
Manual release
In the event of an electrical malfunction in
the system, you can release the fuel filler
door manually:
In the luggage compartment, pull the knob
with the gas pump symbol on the right side
panel.
Observe following when refueling
When handling fuels always observe
any safety guidelines posted at the
filling station.<
Put the fuel filler cap in the bracket
attached to the fuel filler door.
When refueling, insert the filler nozzle com-
pletely into the filler pipe. Lifting the filler
nozzle during refueling
> results in premature pump shutoff
> can lead to reduced efficiency in the
fuel-vapor recovery system.
The fuel tank is full when the filler nozzle
clicks off the first time.
Fuel tank capacity
Approx. 18.5 US gallons/70 liters, including
the reserve capacity of approx. 2.1 gallons/
8 liters.
Refuel as soon as possible once your
cruising range falls below 30 miles/
50 km, as otherwise engine functions are
not ensured and damage can occur.<
Closing fuel filler cap
Fit the cap and turn it clockwise until you
clearly hear a click.
Close the fuel filler cap carefully after
refueling, continuing until a click is
heard. While closing, be sure not to
squeeze the strap which is fastened to the
cap. A loose or missing cap will activate the
message Check Gas Cap
* on the Control
Display.<
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Mobility
163
Reference At a glanceControlsDriving tipsCommunications NavigationEntertainment
Warning lamp* lights up.
Fuel filler cap is not properly closed
or is missing. Check whether the
fuel filler cap is properly closed.
Fuel specifications
The engine uses lead-free gasoline only.
Required fuel
Premium Unleaded Gasoline,
Minimum Octane Rating: 91.
Minimum Octane Rating corresponds to
the Anti Knock Index AKI and is deter-
mined according to the so-called (R+M)/
2 method.
Do not use leaded gasoline, as other-
wise the lambda probe and catalytic
converter will be permanently damaged.<
Use high-quality brands
Field experience has indicated significant
differences in fuel quality: volatility, compo-
sition, additives, etc., among gasolines
offered for sale in the United States and
Canada. Fuels containing up to and includ-
ing 10% ethanol or other oxygenates with
up to 2.8% oxygen by weight, that is,
15% MTBE or 3% methanol plus an equiv-
alent amount of co-solvent, will not void
the applicable warranties with respect to
defects in materials or workmanship.
The use of poor-quality fuels may
result in drivability, starting and stall-
ing problems, especially under certain
environmental conditions such as high
ambient temperature and high altitude.
Should you encounter drivability problems
which you suspect could be related to the
fuel you are using, we recommend that you
respond by switching to a recognized high-
quality brand.
Failure to comply with these recommenda-
tions may also result in unscheduled main-
tenance.<
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Wheels and tires
164
Wheels and tires
Tire inflation pressure
Information for your safety
It is not merely the tire's service life, but
also driving comfort and – to a great extent
– driving safety that depend on the condi-
tion of the tires and the maintenance of the
specified tire pressure.
Check the tire inflation pressure regu-
larly and correct it if necessary: at
least every two weeks and before begin-
ning a longer trip. If you fail to observe this
precaution, you may be driving on tires with
incorrect tire pressures, a condition that
can not only compromise your vehicle's
stability, but also lead to tire damage and
the risk of an accident.<
Checking tire inflation pressure
Only check tire inflation pressure when the
tires are cold. This means after a maximum
of 1.25 miles/2 km driving or when the
vehicle has been parked for at least
2 hours. When tires are warm, the tire infla-
tion pressure increases.
After correcting the inflation pres-
sure(s), always reinitialize the Flat Tire
Monitor, refer to page 79.<
Inflation pressures for original tires
The tires must be at ambient temperature.
The inflation pressures, provided on a label
affixed to the B-pillar, are visible when the
driver's door is open.
Inflation pressure for other tire sizes
The tables below provide all the correct
inflation pressures for the specified tire
sizes at ambient temperature.
For correct identification of the right
tire inflation pressure for your tires,
observe the specifications for the corre-
sponding tire size.<
Observe tire size
The specified pressures apply to tire sizes
approved by BMW and recommended tire
makes; your BMW center will be glad to
provide information.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Mobility
165
Reference At a glanceControlsDriving tipsCommunications NavigationEntertainment
645Ci Coupe
645Ci Convertible
Tire size Pressure specifications in psi/kPa
All pressure specifications in
the table are indicated in psi/
kilopascal with cold tires –
cold = ambient temperature
245/45 R 18 96 V,H M+S 29/200 32/220 33/230 39/270
Front: 245/45 R 18 96 W
Rear: 275/40 R 18 99 W
29/200
–
–
32/220
33/230
–
–
39/270
Front: 245/40 R 19 94 W
Rear: 275/35 R 19 96 W
29/200
–
–
32/220
33/230
–
–
39/270
Front: 245/35 R 20 91 Y
Rear: 275/30 R 20 93 Y
29/200
–
–
32/220
33/230
–
–
39/270
More details on the permitted load and weights can be found on page 190.
Tire size Pressure specifications in psi/kPa
All pressure specifications in
the table are indicated in psi/
kilopascal with cold tires –
cold = ambient temperature
245/45 R 18 96 V,H M+S 32/220 38/260 39/270 46/320
Front: 245/45 R 18 96 W
Rear: 275/40 R 18 99 W
32/220
–
–
38/260
39/270
–
–
46/320
Front: 245/40 R 19 94 W
Rear: 275/35 R 19 96 W
32/220
–
–
38/260
39/270
–
–
46/320
Front: 245/35 R 20 91 Y
Rear: 275/30 R 20 93 Y
32/220
–
–
38/260
39/270
–
–
46/320
More details on the permitted load and weights can be found on page 190.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Wheels and tires
166
Tire identification marks
Knowledge of the labeling on the side of
the tire makes it easier to identify and
choose the right tires.
Tire size
Speed letter
T = up to 118 mph/190 km/h
H = up to 131 mph/210 km/h
V = up to 150 mph/240 km/h
W = up to 167 mph/270 km/h
Y = up to 186 mph/300 km/h
Tire Identification Number
Tires with DOT codes meet the guidelines
of the U.S. Department of Transport.
DOT code:
Tire age
The tire's date of manufacture is indicated
on the sidewall:
DOT ... 1204 indicates that a tire was man-
ufactured in week 12 of the year 2004.
BMW recommends for various reasons,
including beginning brittleness, replacing
all tires after 6 years at the latest, even if a
tire age of 10 years is possible.
Uniform Tire Quality Grading
Quality grades can be found where appli-
cable on the tire sidewall between tread
shoulder and maximum section width.
For example:
Treadwear 200 Traction AA
Temperature A
DOT Quality Grades
Treadwear
Traction AA A B C
Temperature A B C
All passenger car tires must conform
to Federal Safety Requirements in
addition to these grades.<
Treadwear
The treadwear grade is a comparative rat-
ing based on the wear rate of the tire when
tested under controlled conditions on a
specified government test course.
For example, a tire graded 150 would wear
one and one-half, 1g, times as well on the
government course as a tire graded 100.
The relative performance of tires depends
upon the actual conditions of their use,
however, and may depart significantly from
the norm due to variations in driving habits,
service practices and differences in road
characteristics and climate.
Traction
The traction grades, from highest to lowest,
are AA, A, B, and C.
Those grades represent the tire's ability to
stop on wet pavement as measured under
controlled conditions on specified govern-
ment test surfaces of asphalt and concrete.
A tire marked C may have poor traction
performance.
The traction grade assigned to this
tire is based on straight-ahead brak-
ing traction tests, and does not include
acceleration, cornering, hydroplaning, or
peak traction characteristics.<
e.g.
Nominal width
in mm
Aspect ratio in X
Radial type
Rim diameter in inches
Load rating
not on ZR tires
Speed rating
before R on ZR tires
205/60 R 1591W
e.g.
Manufacturer code
for tire make
Tire size and tire design
Tire age
DOT xxxx xxx 1204
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Mobility
167
Reference At a glanceControlsDriving tipsCommunications NavigationEntertainment
Temperature
The temperature grades are A, the highest,
B, and C, representing the tire's resistance
to the generation of heat and its ability to
dissipate heat when tested under con-
trolled conditions on a specified indoor lab-
oratory test wheel.
Sustained high temperature can cause the
material of the tire to degenerate and
reduce tire life, and excessive temperature
can lead to sudden tire failure. The grade C
corresponds to a level of performance
which all passenger car tires must meet
under the Federal Motor Vehicle Safety
Standard No. 109. Grades B and A repre-
sent higher levels of performance on the
laboratory test wheel than the minimum
required by law.
The temperature grade for this tire is
established for a tire that is properly
inflated and not overloaded. Excessive
speed, underinflation, or excessive load-
ing, either separately or in combination,
can cause heat buildup and possible tire
failure.<
RSC – run-flat tires
You will recognize run-flat tires by a circular
symbol containing the letters RSC on the
side of the tire, refer to page 168.
M+S
Winter and all-season tires.
These have better winter properties than
summer tires.
Tire condition
Before driving off, inspect your tires for
tread wear, signs of damage and foreign
objects lodged in the tread, and check the
tread depth.
Minimum tread depth
The tread depth should not drop below
0.12 in/3 mm, although, for example, Euro-
pean legislation only specifies a minimum
tread depth of 0.063 in/1.6 mm. At tread
depths below 0.12 in/3 mm there is an
increased risk of high-speed hydroplaning,
even when only small amounts of water are
present on the road surface.
As winter tires display a noticeable loss in
their ability to cope with cold-weather driv-
ing conditions once the tread wears to
below 0.157 in/4 mm, to ensure continued
safety you should always have such tires
replaced.
Wear indicators at the tread-groove base,
refer to arrow, are distributed over the tire's
circumference and are marked on the side
of the tire with TWI – Tread Wear Indicator.
These indicators signal at a tread depth of
0.063 in/1.6 mm that the legal wear limit
has been reached. The tread is then no
longer visible at these points.
Tire damage
Due to low-profile tires, please note
that wheels, tires and suspension
parts are more susceptible to road hazard
and consequential damages.
Unusual vibrations encountered during
normal vehicle operation can indicate tire
failure or some other vehicle defect. This
can, for example, be caused by driving over
curbs. These kinds of problems may also
be signaled by other changes in vehicle
response, such as a strong tendency to pull
to the left or right.
In these cases, immediately reduce speed.
Drive cautiously to the nearest BMW center
or tire dealer or, if necessary, have the
vehicle towed there.
Tire damage, extending to sudden and
complete loss of pressure in extreme
cases, can pose a potentially lethal safety
hazard for the vehicle's occupants and
other road users alike.<
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Wheels and tires
168
Run-flat tires
You will recognize run-flat tires by a circular
symbol containing the letters RSC on the
side of the tire.
Run-flat tires consist of self-contained tires
and special rims. The tire reinforcement
ensures that the tire retains some residual
safety in the event of pressure drop and
driving remains possible to a restricted
degree.
Continuing driving with a damaged
tire
Driving on run-flat tires with tire damage
can continue, depending on the vehicle
load and the severity of the tire damage, at
a maximum speed of 50 mph/80 km/h.
You can estimate the possible mileage for
continued driving on the basis of the fol-
lowing general indications:
> With low load:
1 to 2 persons without luggage:
Approx. 155 miles/250 km
> With medium load:
2 persons, luggage compartment full, or
4 persons without luggage:
Approx. 94 miles/150 km
> With full load:
4 persons, luggage compartment full:
Approx. 30 miles/50 km.
Drive reservedly and do not exceed
a speed of 50 mph/80 km/h. In the
event of pressure loss, vehicle handling
changes. This includes reduced track sta-
bility in braking, extended braking distance
and altered natural steering characteristics.
If unusual vibrations occur while the vehicle
is being driven, this can indicate final failure
of the damaged tire. Reduce speed and
stop as soon as possible. Do not continue
driving. Contact your BMW center.<
New wheels and tires
You can find out the right wheel-tire combi-
nation from your BMW center. It is another
vital factor in ensuring reliable operation of
various vehicle systems such as ABS and
DSC. Have the wheel and tire assemblies
balanced every time either a wheel or a tire
is replaced.
Only have new wheels and tires
mounted by a specialist. If this work is
performed inexpertly, there is a danger of
damage and associated safety risks.<
Retreaded tires
BMW does not recommend the use of
retread tires, as otherwise driving
safety may be reduced. Possible variations
in the design and the age – which could be
substantial – of the carcasses can lead to
unusually rapid wear.<
The right wheels and tires
BMW recommends that you use only
wheel and tire combinations that
BMW has tested and approved for your
particular vehicle. Variations in factors such
as manufacturing tolerances mean that
even wheels and tires with identical official
size ratings could actually have different
dimensions than the approved units – these
differences could lead to body contact, and
with it the risk of severe accidents. If non-
approved wheels and tires are used, BMW
cannot evaluate their suitability, and there-
fore cannot be held liable for driving
safety.<
To maintain good handling and vehicle
response, use only tires of a single tread
configuration from a single manufacturer.
After a flat tire, always remember to have
the specified wheel and tire combination
remounted on the vehicle as soon as pos-
sible.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Mobility
169
Reference At a glanceControlsDriving tipsCommunications NavigationEntertainment
Recommended tire sizes and makes
BMW tests certain tire brands for each tire
size, classifies them as road-safe and
approves them. You can find out about
these at specialized dealers or at your
BMW center. Observe any country-specific
regulations, e.g. on making a correspond-
ing entry in the vehicle documents.
The factory-mounted tires have been spe-
cially selected to provide optimized perfor-
mance when installed on your vehicle; if
properly cared for, they will provide a com-
bination of safety and excellent ride com-
fort.
Run-flat tires
In the event of replacement, use run-flat
tires, refer to page 168, as there is no spare
wheel available for flats.
For safety reasons, BMW recom-
mends that you do not have damaged
run-flat tires repaired; they should be
replaced.<
Special characteristics of winter
tires
BMW recommends winter tires for use in
cold winter driving conditions. Although all-
season M+S tires provide better winter
traction than summer tires, they generally
fail to provide the same levels of cold-
weather performance as winter tires.
Run-flat tires
If you switch from summer to winter tires,
or vice versa, use run-flat tires, refer to
page 168, as in the event of a flat tire there
is no spare tire available. Your BMW center
will be glad to advise you.
Observing speed ratings
Never exceed the maximum speed for
which the winter tires are rated.
Unprofessional attempts by laymen to ser-
vice tires can lead to damage and acci-
dents. Have this work performed by skilled
professionals only. The technicians at your
BMW center will be glad to assist you with
the required professional knowledge and
specialized equipment.<
Storage
Always store wheels and tires in a cool, dry
place with as little exposure to light as pos-
sible. Always protect tires against all con-
tact with oil, grease and fuels. Do not
exceed the maximum tire inflation pressure
indicated on the side wall of the tire.
Snow chains*
BMW only tests certain snow chains, clas-
sifies them as road-safe and approves
them. Consult your BMW center for more
information. BMW recommends using
these approved, narrow-link snow chains.
These snow chains are approved exclu-
sively for use in pairs on the rear wheels
with the tire size 245/45 R 18.
Observe the manufacturer's instructions
when mounting snow chains.
Do not exceed a vehicle speed of 30 mph/
50 km/h with the chains mounted.
Do not initialize the Runflat Indicator
after mounting snow chains.
When you are driving with snow chains, it
can be beneficial to switch off DSC briefly,
refer to page 77.<
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Under the hood
170
Under the hood
Never attempt to perform any service
or repair operations on your vehicle
without the required, professional technical
training. If you are unfamiliar with the ser-
vice procedures and precautions, always
have any required work on your vehicle
carried out at your BMW center. If this work
is performed inexpertly, there is a danger of
damage and associated safety risks.<
Hood
Releasing
Pull the lever located under the left side of
the instrument panel.
Opening
Press the release handle and open the
engine hood.
Closing
Close the hood from a height of approx.
16 in/40 cm with momentum. It must be
clearly heard to engage.
Make sure that the closing path of the
engine hood is clear, as otherwise
injuries may result.
If you see any signs that the hood is not
completely closed while you are driving
your vehicle, you should stop at once and
close it securely.<
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Mobility
171
Reference At a glanceControlsDriving tipsCommunications NavigationEntertainment
Engine compartment
1 Filler neck for engine oil, refer to
Topping up engine oil
2 Brake fluid reservoir, located beneath
the microfilter cover, refer to page 173
3 Dipstick for engine oil, refer to
Checking oil level
4 Starting-aid terminal, refer to page 184
5 Washer fluid reservoir of the headlamp
and windshield cleaning systems, refer
to page 62
6 Expansion tank for coolant, refer to
page 172
Engine oil
Checking oil level
1. Park the vehicle on a level surface with
the engine at operating temperature
2. After approx. 5 minutes, pull the
dipstick 3 out and wipe it off with a
clean lint-free cloth, paper towel, or
similar material
3. Carefully push the dipstick all the way
into the guide tube and pull it out again
4. The oil should extend to between the
two marks on the dipstick.
The engine oil consumption is dependent
on driving style and driving conditions.
The oil quantity between the centers of the
two marks on the dipstick, refer to arrows,
is approx. 1.6 US quarts/1.5 liters. Do not
fill beyond the upper mark on the dipstick.
Excess oil can damage the engine.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Under the hood
172
Topping up engine oil
Wait until the level has dropped to just on
the lower dipstick mark before adding oil.
In this area a message also appears on the
Control Display.
Store oil, grease etc., well out of the
reach of children; always observe all
warning labels on the containers.<
Specified engine oils
The quality of the engine oil selected has
critical significance for the operation and
service life of an engine. BMW continu-
ously approves specific oils after confirm-
ing their suitability for use in its vehicles
with extensive testing.
Use only approved BMW High Perfor-
mance Synthetic Oil.
If you are unable to obtain BMW High Per-
formance Synthetic Oil, you can add small
amounts of another synthetic oil between
oil changes. Use only oils with the API SH
specification or higher.
Ask your BMW center for details con-
cerning the specific BMW High Per-
formance Synthetic Oil or synthetic oils
which have been approved.<
You can also call BMW of North America
at 1-800-831-1117 or visit this website:
www.bmwusa.com to obtain this informa-
tion.
BMW engines are designed to oper-
ate without additives, and their use
could even lead to damage in some
cases.<
Viscosity ratings
Viscosity is the oil flow rating as defined in
SAE classes.
The selection of the correct SAE class
depends on the climatic conditions in the
area where you typically drive your BMW.
Approved oils are in SAE classes
5W-40 and 5W-30.<
These oils may be used for driving in all
ambient temperatures.
Coolant
Do not add coolant to the cooling sys-
tem when the engine is hot. Escaping
coolant can cause burns.<
Coolant consists of water and the addition
of antifreeze and anticorrosion agent. Not
all commercially available additives are
suitable for your BMW. Ask your BMW cen-
ter for suitable additives.
Only use suitable additives, as other-
wise engine damage may result. The
additives present a health hazard; observe
the instructions on the containers.<
Always observe all applicable envi-
ronmental rules and regulations when
disposing of used coolant additives.<
Checking coolant level
1. The engine must be at ambient temper-
ature
2. Turn the cap of the expansion tank
counterclockwise to allow any accumu-
lated pressure to escape, then continue
turning to open
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Mobility
173
Reference At a glanceControlsDriving tipsCommunications NavigationEntertainment
3. The coolant level is correct when the
measuring range of the fill level indica-
tor is at the level of the upper edge of
the filler neck, also refer to the drawing
next to the filler neck
4. If the coolant is low, slowly add coolant
up to the specified level – do not overfill
5. Turn the cap until you hear a click
6. Have the reason for the coolant loss
eliminated as soon as possible.
Brake system
Malfunction
Brake fluid
The warning lamp lights up in red
in spite of the handbrake being
released; a message appears on
the Control Display.
Stop the vehicle immediately.
The brake fluid in the reservoir has fallen to
below the minimum level. At the same time,
a significantly longer brake pedal path is
noticeable. Have the system checked
immediately by a BMW center.
Warning lamp for Canadian models.
When you continue driving, an
increased brake pedal path can be
necessary, and significantly longer braking
distances might be required. Please adapt
your driving style accordingly.<
Brake pads
The warning lamp lights up in red
in spite of the handbrake being
released; a message appears on
the Control Display. The brake pads have
reached their minimum pad thickness.
Have the brake pads replaced as soon as
possible.
Warning lamp for Canadian models.
For your own safety: use only brake
pads that BMW has approved for your
particular vehicle model. As BMW cannot
assess the suitability of other brake pads
for use on your vehicle, BMW is unable to
assume continued responsibility for the
vehicle's operating safety if non-approved
pads are installed.<
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Maintenance
174
Maintenance
The BMW maintenance
system
The BMW maintenance system supports
the preservation of the traffic and operating
safety of your BMW. The service schedule
also includes operations related to the
vehicle's comfort and convenience fea-
tures, such as replacement of the filters for
the inside air. The ultimate objective is to
ensure economical maintenance by provid-
ing the ideal service for your vehicle.
Should the day come when you decide to
sell your BMW, you will find that a complete
dealer service history is an asset of inesti-
mable value.
CBS Condition Based Service
Sensors and special algorithms take the
different driving conditions of your BMW
into account. Condition Based Service
uses this to determine the current and
future maintenance requirement. By letting
you define a service and maintenance reg-
imen that reflects your own individual
requirements, the system builds the basis
for trouble-free driving.
The service requirement display, refer to
page 65, individually displays the time or
distance remaining for selected mainte-
nance work and any legally required inter-
vals:
> Engine oil
> Brakes, front and rear separately
> Microfilter/activated-charcoal filter
> Brake fluid
> Spark plugs
> Vehicle check
> Legally required tests depending on
local regulations.
Your vehicle stores this information contin-
uously in the master key while the vehicle is
being driven. After accessing the data
stored in the master key, your BMW Ser-
vice Advisor can suggest precisely the right
array of service procedures for your own
individual vehicle. You should therefore
hand over to the BMW Service Advisor the
key you last used to drive when you take
your vehicle for service.
Make sure the date in the Control
Center is always set correctly, refer to
page 74, as otherwise the effectiveness of
CBS Condition Based Service is not
ensured.<
Service and Warranty Information
Booklet for US models and Warranty
and Service Guide Booklet for
Canadian models
Please consult your Service and Warranty
Information Booklet for US models and
Warranty and Service Guide Booklet for
Canadian models for additional information
on service requirements.
Have service and repair operations
performed at your BMW center.
Take the time to ensure that these service
procedures are confirmed by entries in
your vehicle's Service and Warranty Infor-
mation Booklet for US models and War-
ranty and Service Guide Booklet for Cana-
dian models. These entries verify that your
vehicle has received the specified regular
maintenance, and may also be required
when submitting warranty claims.<
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Rules and regulations
176
Rules and regulations
California laws
Proposition 65 Warning
California laws require us to issue the fol-
lowing warning:
Engine exhaust and a wide variety of
automobile components and parts,
including components found in the interior
furnishings in a vehicle, contain or emit
chemicals known to the State of California
to cause cancer and birth defects and
reproductive harm. In addition, certain flu-
ids contained in vehicles and certain prod-
ucts of component wear contain or emit
chemicals known to the State of California
to cause cancer and birth defects or other
reproductive harm.
Battery posts, terminals and related acces-
sories contain lead and lead compounds.
Wash your hands after handling.
Used engine oil contains chemicals that
have caused cancer in laboratory animals.
Always protect your skin by washing thor-
oughly with soap and water.<
Event Data Recorders
Your vehicle may be equipped with one or
more sensing and diagnostic modules or a
recording device capable of recording or
transmitting certain vehicle data or infor-
mation. In addition, if you have a Subscrip-
tion Service Agreement for the BMW Assist
system, certain vehicle information may be
transmitted or recorded in order to provide
such services.
OBD connector
The Onboard Diagnostic OBD interface
socket is located on the left of the driver's
side under the instrument panel and under
a cover.
The cover has the letters OBD on it.
The purpose of the OBD system is to
ensure proper operation of the emission
control system for the vehicle's lifetime.
The system monitors emission-related
components and systems for deterioration
and malfunction.
An illuminated indicator lamp
informs you of the need for service,
not of the need to stop the vehicle.
However, the systems should be checked
by your BMW center at the earliest possible
opportunity.
Display of the previously described
malfunction on Canadian models.
Under certain conditions, the indicator
lamp will blink or flash. This indicates a
rather severe level of engine misfire. When
this occurs, you should reduce speed and
consult the nearest BMW center as soon as
possible. Severe engine misfire over only a
short period of time can seriously damage
emissions control components, especially
the catalytic converter.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Mobility
177
Reference At a glanceControlsDriving tipsCommunications NavigationEntertainment
When the fuel filler cap is not properly
tightened, the OBD system can
detect the vapor leak and the indicator
lamp will light up. If the filler cap is subse-
quently tightened, the indicator lamp
should go out within a few days.<
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Replacing components
178
Replacing components
Onboard tool kit
The onboard tool kit 1, the screw-in tow
fitting 2 and spare fuses and a pair of plas-
tic tweezers 3 are stored in the luggage
compartment. Fold up the cover located
under the floor mat.
Windshield wiper blades
To replace, fold the wiper arm up and hold.
Press the locking lugs together while push-
ing the wiper blade out of the detent toward
the front.
Lamps and bulbs
Lamps and bulbs make an essential contri-
bution to vehicle safety. Therefore, comply
fully with the following instructions during
bulb replacement. If you are not familiar
with the specified procedures, have the
replacements carried out at your BMW
center.
Never touch the glass on new bulbs
with your bare fingers, as even minute
amounts of contamination will burn into the
bulb's surface and reduce its service life.
Use a clean cloth, napkin etc., or hold the
bulb by its metal socket.<
You can obtain a selection of replacement
bulbs at your BMW center.
When working on the lighting system
you should always switch off the
lights affected to prevent short circuits.
To avoid possible injury or equipment dam-
age when changing bulbs, observe any
instructions provided by the bulb manufac-
turer.<
When performing maintenance on the
headlamps, comply with the instructions in
the separate Caring for your vehicle bro-
chure.
In the case of bulbs where the
replacement is not described, please
consult your BMW center.<
Xenon lamps
The service life of these lamps is very long
and the probability of a failure is very low,
provided that they are not switched on and
off an unusual number of times. In the
unlikely event that one of these lamps
should fail, you can continue driving under
poor visibility conditions by switching on
your fog lamps and proceeding carefully,
where allowed by law.
To avoid the risk of potentially fatal
injuries: owing to the extremely high
voltages at which these units operate, ser-
vice work on the xenon lighting system
should only be carried out by a BMW cen-
ter.<
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Mobility
179
Reference At a glanceControlsDriving tipsCommunications NavigationEntertainment
High beams, parking lamps
The illustration shows the front left side of
the engine compartment.
High beams
Bulb 55 watts, H 7
1. Remove the cover cap 1 by pressing
the tab and removing the cover cap
upward
2. Press the bulb holder from above to
release it
3. Remove the bulb holder
4. Remove and replace the bulb.
Parking lamps
Bulb 10 watts
Bulb holder and reflector are one unit
and are replaced together.<
1. Turn the bulb holder 2 to the right and
remove
2. Press the detent on the plug connector,
pull off the bulb holder and replace.
Front turn signal, sidemarker
Your BMW is equipped with two turn signal
lamps per side in the front. Turn signal
lamp 1 can be replaced via the engine
compartment, and turn signal lamp 2 via
the wheel well.
Turn signal lamp 1
Bulb 21 watts, WY 21 SV
The illustration shows the front right side of
the engine compartment.
1. The lever shown:
> Right turn signal: press downwards
> Left turn signal: press upwards
2. Remove the bulb holder towards the
rear
3. Remove and replace the bulb.
Turn signal lamp 2
Bulb 21 watts, WY 21 SV
The bulb of the turn signal lamp 2 can be
replaced via a cover at the front of the
wheel well.
The illustration shows the left side of the
vehicle.
1. Turn the steering all the way to lock to
obtain access to the cover, refer to
illustration
2. Remove the cover by unscrewing the
two bolts with an open-end wrench
from the onboard tool kit
3. Location of the bulb holder of turn sig-
nal lamp 2, refer to arrow
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Replacing components
180
4. Turn the bulb holder to the left and pull
out
5. Remove and replace the bulb.
Sidemarker
Bulb 5 watts, WY5W ST
The bulb can be replaced via a cover at the
front of the wheel well, refer to the descrip-
tion for turn signal lamp 2.
1. The bulb holder of the sidemarker lamp
is located toward the outside of the
vehicle next to the bulb holder of turn
signal lamp 2
2. Turn the bulb holder to the left and pull
out
3. Remove and replace the bulb.
Side turn signals
Bulb 5 watts, WY 5 W
1. Press against the front edge of the lamp
with the tip of your finger, then push it to
the rear, release the detent at the front
and take it off the trim strip
2. Turn the bulb holder 905 to the left and
remove
3. Remove and replace the bulb.
Tail lamps
The roadside parking, rear and brake
lamps are LEDs. The backup lamps
are fitted with longlife bulbs. Please con-
tact a BMW center in case of a malfunc-
tion.<
1 Turn signal
2 Roadside parking, rear and brake lamp
3 Backup lamp
4 Reflector
Rear turn signals
Bulb 21 watts, PY 21 W
The illustration shows the recess on the left
side of the luggage compartment.
1. Remove the cover
2. Unclip the bulb holder and remove
3. Apply gentle pressure to the bulb while
turning it to the left for removal and
replacement.
License plate lamps
Bulb 5 watts, WY 5 W
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Mobility
181
Reference At a glanceControlsDriving tipsCommunications NavigationEntertainment
1. Push a screwdriver from the left under
the lamp and lever up the lamp to the
right
2. Turn the bulb holder 905 to the left and
remove
3. Remove and replace the bulb.
Light-emitting diodes LEDs
Light-emitting diodes installed behind
translucent lenses serve as the light source
for many of the controls and displays in
your vehicle. These light-emitting diodes,
which operate using a concept similar to
that applied in conventional lasers, are offi-
cially designated as Class 1 light-emitting
diodes.
Do not remove the covers, and never
stare into the unfiltered light several
hours, as irritation of the retina could
result.<
Changing a wheel
Your BMW is equipped with run-flat tires as
standard. An immediate wheel change in
the event of a flat tire is therefore no longer
required.
You will recognize run-flat tires by a circular
symbol containing the letters RSC on the
side of the tire, refer to Run-flat tires on
page 167.
If you switch from summer to winter tires,
or vice versa, use only run-flat tires, as in
the event of a flat there is no spare tire
available. Your BMW center will be glad to
advise you.
Also refer to New wheels and tires,
page 168.
Car jacking points
The jacking points for the car jack are
located in the positions shown.
You can obtain a suitable car jack as
an accessory at your BMW center.<
Battery
Battery care
The battery is 100% maintenance-free, i.e.,
the electrolyte will last for the life of the bat-
tery when the vehicle is operated in a tem-
perate climate.
Your BMW center will be glad to advise in
all matters concerning the battery.
Charging battery
Only charge the battery in the vehicle via
the terminals in the engine compartment
with the engine switched off. For the con-
nections, refer to Jump-starting on
page 184.
Disposal
Have old batteries disposed of by
your BMW center or hand them in to a
recycling center. Maintain the battery in an
upright position for transport and storage.
Always restrain the battery to prevent it
from tipping over during transport.<
Power cut
After a temporary power cut, e.g. with a
discharged battery, the features of some
equipment are limited and it has to be rein-
itialized. Individual settings are also lost
and have to be updated:
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Replacing components
182
> Active steering
The system is deactivated and has to be
initialized, refer to page 80. Until then,
greater steering wheel movement is
required
> Seat, mirror and steering wheel
memory
The position must be newly stored,
refer to page 44
> Time and date
The settings must be updated, refer to
page 73
> Radio
Radio stations have to be stored again,
refer to page 132
> Navigation system
Wait to see what happens with the
functional capability, refer to page 122.
Fuses
Never attempt to repair a blown fuse,
and do not replace a defective fuse
with a substitute of another color or amper-
age rating, as this could lead to overloading
of the wiring, ultimately resulting in a fire in
the vehicle.<
Information on the fuse assignment is
located below the bracket for the onboard
tool kit, see below.
In glove compartment
1. Press the button on the back in the cen-
ter of partition 1 and pull out the parti-
tion upwards, arrow 2
2. Press the coupling downwards,
arrow 3, and fold the lid 4 forwards.
In luggage compartment
Fold up the cover under the floor mat and
remove the bracket for the onboard tool kit.
Information on the fuse assignment 1 and
additional fuses 2 are provided there.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Mobility
183
Reference At a glanceControlsDriving tipsCommunications NavigationEntertainment
Giving and receiving assistance
Emergency call*
Conditions for an emergency call:
> Ignition key as of position 1
> The car phone is logged on to a
portable telephone network
> The emergency call system is operable.
Coupe: emergency call button.
Convertible: emergency call button.
Initiating an emergency call
1. To open the protective cover of the
emergency call button:
Briefly press the protective cover
2. Press the emergency call switch for
at least 2 seconds.
The indicator lamp in the button lights
up. As soon as the voice connection to
the BMW Assist response center has
been established, the indicator lamp
flashes.
If conditions allow, remain in the vehicle
until the connection has been established.
You will then be able to provide a detailed
description of the situation.
If the current location of your vehicle can be
determined with vehicles with an activated
BMW Assist, it will be transmitted to the
BMW Assist response center.
Activating BMW Assist, refer to page 155.
If the indicator lamp flashes, but you are
unable to hear the BMW Assist response
center through the hands-free system, this
could indicate, for instance, that the hands-
free system is no longer operational. How-
ever, the BMW Assist response center may
then still be able to hear you.
Under certain conditions, an emergency
call is started automatically immediately
after a severe accident. The automatic
emergency call is not affected by the but-
ton being pressed.
For technical reasons, the emergency
call cannot be guaranteed under
unfavorable conditions.<
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Giving and receiving assistance
184
Warning triangle*
The warning triangle can be found in the
luggage compartment on the left side.
Comply with legal requirements
requiring you to carry a hazard warn-
ing triangle in the vehicle.<
First-aid kit*
The first-aid kit is located in the filler ele-
ment of the rear seat backrest.
1. Press the button downwards
2. Remove the filler element in a forward
direction
3. Remove the first-aid kit.
To refit the filler element, insert the
two steps in the strip and press back
the filler element. Make sure that you do
not damage the rear seat upholstery.<
Some of the articles contained in the
first-aid kit have a limited service life.
For this reason, check the expiration dates
of each of the items regularly and replace
any whose expiration dates have passed.
You can find replacements in any phar-
macy.
Comply with legal requirements requiring
you to carry a first-aid kit in the vehicle.<
Roadside Assistance*
The Roadside Assistance of the BMW
Group offers you breakdown assistance
around the clock, including on weekends
and public holidays.
The phone numbers of the Roadside Assis-
tance in your home country can be found in
the BMW Dealer Directory.
In the case of vehicles with BMW Assist or
TeleService, you can call the Roadside
Assistance of the BMW Group directly for
breakdown assistance via the Control Cen-
ter, refer to page 156.
Jump-starting
When your battery is discharged, you can
use two jumper cables to start your BMW
with power from the battery in a second
vehicle. You can also use the same method
to help start another vehicle. Use only
jumper cables with fully-insulated clamp
handles.
To avoid the risk of potentially fatal
injury, always avoid all contact with
electrical components while the engine is
running. Carefully adhere to the following
sequence, both to prevent damage to one
or both vehicles, and to guard against pos-
sible personal injuries.<
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Mobility
185
Reference At a glanceControlsDriving tipsCommunications NavigationEntertainment
Preparing
1. Check whether the battery of the other
vehicle has a voltage of 12 Volts and
approximately the same capacitance
in Ah. This information can be found on
the battery
2. Switch off the engine of the vehicle pro-
viding assistance
3. Switch off any consumer units in both
vehicles.
There must not be any contact
between the bodies of the two vehi-
cles, as otherwise there is a danger of
shorting.<
Connecting jumper cables
To avoid personal injury from sparks,
always observe this sequence when
connecting jumper cables.<
On your BMW, the so-called starting-aid
terminal in the engine compartment serves
as the battery positive terminal, also refer
to engine compartment essentials on
page 171. The symbol + is embossed on
the cover.
1. Fold open the cover of the BMW start-
ing-aid terminal. To do so, pull the tab
2. Attach one end of the jumper cable
plus/+ to the positive terminal of the
battery or a starting-aid terminal of the
vehicle providing assistance
3. Attach the second end of the cable to
the positive terminal of the battery or to
a starting-aid terminal of the vehicle to
be started
Your BMW has a special nut as body
ground or negative pole.
4. Attach one end of the jumper cable
minus/– to the negative terminal of the
battery or to an engine or body ground
of the vehicle providing assistance
5. Attach the second end of the cable to
the negative terminal of the battery or to
the engine or body ground of the vehi-
cle to be started.
Starting engine
1. Start the engine on the support vehicle
and allow it to run for several minutes at
increased speed
2. Start the engine on the other vehicle in
the usual way.
If the first start attempt is not success-
ful, wait a few minutes before another
attempt in order to allow the discharged
battery to recharge
3. Let the engines run for a few minutes
4. Disconnect the jumper cables by
reversing the connection sequence
If required, have the battery inspected and
recharged at your BMW center.
Never use spray fluids to start the
engine.<
Towing and tow-starting
Always observe all applicable towing
laws and regulations.<
Never allow passengers to ride in a
towed vehicle for any reason.<
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Giving and receiving assistance
186
Using tow fitting
The threaded tow fitting is stored in the tool
kit mounted on the inside of the luggage
compartment under the floor mat, refer to
page 178, and should always remain in the
vehicle. It can be screwed in at the front or
rear of the BMW.
To avoid damage to the tow fitting
and the vehicle, observe the follow-
ing: only use the tow fitting that comes with
the vehicle and screw it in as far as possi-
ble. Only use the tow fitting to tow on the
roadway. Avoid heavy lateral loading of the
tow fitting, e.g. do not lift the vehicle by the
tow fitting.<
Access to screw thread
Rectangular cover in bumper:
Press the arrow symbol of the cover.
Front
Rear
Being towed
Even if there is a failure in the electri-
cal system, make sure that the igni-
tion key is in position 1, as otherwise the
steering wheel could lock and it would be
impossible to steer the vehicle. There is no
power assist with the engine stopped. This
then requires increased effort for braking
and steering. The active steering is deacti-
vated; when stopped and in the low speed
range greater steering wheel movements
are required.<
Switch on the hazard warning flashers
depending on the local regulations. If the
electrical system fails, mark the vehicle to
be towed, e.g. with a sign or warning trian-
gle in the rear window.
Vehicles with manual transmission
Gearshift lever in idle position
Vehicles with automatic
transmission
Selector lever in position N.
Do not exceed a towing speed of
45 mph/70 km/h and a towing dis-
tance of 90 miles/150 km, as otherwise the
automatic transmission may be dam-
aged.<
Vehicles with SMG Sequential
manual transmission
With the ignition switched on, engage
selector-lever position N, then switch off
the ignition.
Towing methods
In some countries, towing with tow bars or
ropes in public traffic is not permitted.
Familiarize yourself with all regulations on
towing in the respective country.
With tow bar
The towing vehicle may not be lighter
than the vehicle to be towed, as oth-
erwise it will not be possible to control
vehicle response.<
The tow fittings used should be on the
same side on both vehicles. Should it prove
impossible to avoid mounting the tow bar
at an offset angle, please observe the fol-
lowing:
> Clearance and maneuvering capability
will be strictly limited in corners
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Mobility
187
Reference At a glanceControlsDriving tipsCommunications NavigationEntertainment
> When mounted at an angle, the tow bar
will exert lateral forces, tending to push
the vehicle sideways.
Secure the tow bar on the tow fitting
only. Otherwise damage could result
on other vehicle parts.<
With tow-rope
When starting off in the towing vehicle,
make sure that the tow-rope is taut.
To avoid jerking and the associated
stresses on vehicle components
when towing, always use nylon ropes or
nylon straps. Secure the tow rope on the
tow fitting only. Otherwise damage could
result on other vehicle parts.<
With tow truck
Have the BMW transported with a tow
truck with a so-called lift bar or on a load
bed.
Do not lift vehicle by tow fitting or
body and chassis parts, as otherwise
damage may result.<
Tow-starting
Do not tow-start vehicles with an
automatic transmission.
Jump-starting, refer to page 184.<
Only tow-start vehicles with a catalytic
converter with the engine cold. It is better
to jump-start the engine, refer to page 184.
1. Switch on the hazard warning flashers,
comply with country-specific regula-
tions
2. Turn the ignition key to position 2
3. Engage the 3rd gear, vehicles with
SMG, see below
4. Have the vehicle tow-started with the
clutch pedal completely depressed and
slowly release the clutch. After the
engine starts, depress the clutch pedal
completely again
5. Stop at a suitable location, remove the
tow bar or rope and switch off the haz-
ard warning flashers
6. Have the vehicle checked.
Vehicles with SMG Sequential manual
transmission:
1. Tow-start in selector lever position N
2. Select sequential mode. The correct
gear will be selected and engaged
automatically.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Reference
This is where to look to find information on
any desired topic as quickly as possible.
This chapter includes the section with
technical data, the short commands of
the voice command system a well as
the manual's index.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Technical data
190
Technical data
Engine specifications
Weights
Never exceed either the approved
axle loads or the gross vehicle weight.
645Ci
Displacement
Number of cylinders
cu in/cmm 268.4/4,398
8
Maximum output
at engine speed
hp
rpm
325
6,100
Maximum torque
at engine speed
lb ft/Nm
rpm
330/450
3,600
645Ci Coupe 645Ci Convertible
Curb weight
with manual transmission
with automatic transmission / SMG
lbs./kg
3,781/1,715
3,792/1,720
4,178/1,895
4,189/1,900
Approved gross weight
with manual transmission
with automatic transmission / SMG
lbs./kg
4,619/2,095
4,630/2,100
4,960/2,250
4,971/2,255
Load lbs./kg 838/380 772/350
Approved front axle load lbs./kg 2,271/1,030 2,381/1,080
Approved rear axle load lbs./kg 2,513/1,140 2,381/1,080
Luggage compartment capacity
Convertible: with convertible top com-
partment floor up, refer to page 32
cu ft/l 15.9/450
–
10.6/300
12.4/350
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Technical data
192
Convertible: dimensions
All dimensions in inches/mm. Minimum turning circle diameter: 37.4 ft/11.4 m.
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Reference
193
At a glanceControlsDriving tipsCommunications NavigationEntertainmentMobility
Capacities
Notes
Fuel tank
Reserve
gal/liters
gal/liters
approx. 18.5/70
approx. 2.1/8
Fuel specification: page 163
Window and headlamp
washer system quarts/liters approx. 5.3/5
For details: page 62
Engine oil and filter change quarts/liters 8.5/8 BMW High Performance
Synthetic Oil
Oil grades: page 172
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Short commands of the voice command system
194
Short commands of the
voice command system
With short commands you can carry out
certain functions directly, regardless of
which menu item is selected.
The following lists important short com-
mands of the voice command system.
Communication
Navigation
*
Function Command
Opening the telephone 146 {Phone}
Dialing phone number 147 {Dial number}
Displaying the phone book 148 {A to Z}
Selecting from the phone book 148 {Dial name}
Displaying "Top 8" 149 {Top 8}
Redialing 149 {Redial}
Displaying "Received calls" 149 {Received calls}
Displaying "Missed calls" 149 {Missed calls}
Displaying "SMS" 150 {SMS}
Opening BMW Assist 155 {BMW Assist}
Function Command
Displaying the current position 109 {Current Position}
Opening the destination entry 110 {New destination}
Displaying "Input map" 112 {Input map}
Opening "Information" 113 {Destination input with Information on
location}
Displaying the destination list 113 {Last destinations}
Displaying the address book 114 {Address book} or
{Destination from address book}
Displaying the route criteria 116 {Route preference}
Displaying the arrow view 119 {Map Arrow display}
Displaying the route map 120 {Map view}
{Map facing north} or
{Map direction of travel}
Changing scale 120 {Scale ... kilometers}
Displaying streets and town/cities of the
route 120
{Route list}
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Reference
195
At a glanceControlsDriving tipsCommunications NavigationEntertainmentMobility
Onboard information
Entertainment
Climate
Function Command
Displaying the computer 70 {Onboard info}
Displaying the trip computer 70 {Trip computer}
Opening the speed limit 71 {Limit}
Opening the stopwatch 72 {Stopwatch}
Function Command
Opening the tone setting 127 {Tone}
Switching on radio 130 {Radio on}
Opening "FM" 130 {FM}
Opening "AM" 130 {AM}
Opening "All stations" 130 {FM All stations}
Selecting the radio station 130 {Station} name
Opening "Presets" 130 {FM presets} or
{AM presets}
Selecting stored stations 130 {Station ...}
Opening "Manual" 131 {FM manual} or
{AM manual}
Manual station selection 131 {Frequency 87 ... 107 Point 0 ... 9}
Opening the radio station with the best
reception 132
{AM Autostore}
Opening "CD" 137 {CD}
Selecting a CD 137 {CD 1...6}
Selecting a track 138 {Track ...}
Function Command
Opening "Vent settings" 90 {Vent settings}
Opening "Parked car ventilation" 92 {Parked car operation}
Opening "Automatic ventilation" 92 {Automatic ventilation}
Displaying the activation times 93 {Activation time}
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Short commands of the voice command system
196
menu
Function Command
Opening "Door locks" 27, 29 {Door locks}
Opening "Steering wheel buttons" 49 {Steering wheel buttons}
Opening "Lighting" 60, 85 {Light settings}
Opening "Communication interface" 155 {Communication interface}
Opening "BMW Service settings" 155 {BMW Service settings}
Opening "BMW Service" 157 {BMW center}
Opening "Service requirements" 65, 156 {Service requirements}
Opening "Service" 65, 156 {Service}
Displaying "Check Control messages" 68 {Check Control messages}
Opening "Display settings" 72 {Display settings}
Adjusting the brightness of the Control
Display 72
{Brightness}
Opening "Units" 72 {Units}
Opening "Languages" 73, 119 {Language}
Opening "Time" 73 {Time}
Opening "Date" 74 {Date}
Opening "Climate control" 91 {Climate control}
Opening "PDC" 75 {PDC}
Opening "FTM" 79 {FTM}
Opening "Entertainment settings" 127 {Entertainment settings}
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
197
Reference At a glanceControlsDriving tipsCommunications NavigationEntertainmentMobility
Everything from A to Z
Index
"..." Indicates texts on the
Control Display for the
selection of functions,
pointing out where these
are located.
A
ABS Antilock Brake
System 76
– malfunction 78
– warning lamp 13, 78
Acceleration assistant with
SMG 60
Accessories, refer to
Your individual vehicle 5
Activated-charcoal filter 92
"Activation time" for
independent
ventilation 93
Activation times 93
– entering 93
Active roll stabilization 78
Active steering 80
– initializing the system 80
– warning lamp 13, 80
Adapting the temperature
in the upper body
region 91
Adaptive brake lamps, refer
to Brake Force Display 80
Adaptive Head Light 86
"Add digits" for portable
phone 149
"Address book" for
navigation 114
Address for navigation
– deleting 115
– entering 110
– selecting 115
– storing current
location 114
"Add to destination
list" 111
Adjusting the temperature
with automatic climate
control 89
Adjusting the thigh
support 43
"After opening door" 44
"After unlocking" 44
Airbags 81
– deactivating, Coupe 51
– indicator lamp 82
– sitting safely 42
Air distribution
– automatic 89
– manual 90
Airing, refer to
Ventilation 92
Air recirculation, refer to
Automatic recirculated-
air control 89
"Air recirculation on /
off" 49
Air vents, refer to
Ventilation 88
Air volume 89
AKI, refer to Fuel
specifications 163
Alarm system 32
– avoiding unintentional
alarms 33
– interior motion sensor 33
– switching off alarm 32
– switching off tilt alarm
sensor and interior
motion sensor 33
– tilt alarm sensor 33
All around the center
console 14
All around the steering
wheel 10
"All channels" 135
"All doors" 27
All-season tires, refer to
Winter tires 169
Altering stretch of road 120
"AM", reception
range 127, 130
Antenna for portable
phone 144
Antifreeze
– coolant 172
– washer fluid 62
Antilock Brake System,
ABS 76
Anti-theft alarm system,
refer to Alarm system 32
Anti-theft system 27
Anti-trapping mechanism
– glass roof 36
– power windows 35
Approved axle loads, refer
to Weights 190
Approved gross vehicle
weight, refer to
Weights 190
Armrest, refer to
Center armrest 96
Arrival time, refer to
Computer 70
Arrival time, refer to
Starting destination
guidance 118
"Arrow display" 119
Ashtray 97
Assistance systems, refer
to Driving stability control
systems 76
Assistance window 19
AUC Automatic recircu-
lated-air control 89
"Audio" 128
Audio 126
– adjusting the tone 127
– controls 126
– switching on/off 126
– volume 127
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Everything from A to Z
198
Automatic
– air distribution 89
– air volume 89
– cruise control 62
– curb monitor 45
– headlamp control 85
– service notification 156
– station search 131
– steering wheel
adjustment 49
– storing stations 132
Automatic car wash 102
– also refer to the Caring for
your vehicle brochure
Automatic climate
control 88
– automatic air
distribution 89
– convertible program 91
– settings using Control
Center 90
– switching off 90
"Automatic programs" 91
Automatic recirculated-air
control, AUC 89
Automatic transmission
with Steptronic 58
– convenience start 55
– Dynamic Driving
Control 59
– interlock 54
– kickdown 59
– selector lever interlock 58
– shiftlock 58
– starting engine 55
– towing 186
– tow-starting 187
– warning lamp 59
"Automatic ventilation" 92
AUTO program with
automatic climate
control 89
"Autostore" on the
radio 130, 132
"AUTO" with automatic
climate control 91
Average fuel
consumption 69
– setting units 72
Average speed 69
"Avoid ferries" for
navigation 116
Avoid freeways for
navigation 116
"Avoid highways" for
navigation 116
Avoiding unintentional
alarms 33
"Avoid tollroads" for
navigation 116
Axle loads, refer to
Weights 190
"A - Z" 148
B
Backrests, refer to
Seats 43
Backup lamps, refer to
Reverse gear 56
– replacing the bulbs 180
Balance, refer to
Adjusting the tone 128
Balance adjustment in
audio mode
– right/left 128
Bass, refer to
Adjusting the tone 127
"Bass", refer to
Adjusting the tone 128
Battery 181
– in the remote control 26
– jump-starting 184
Being towed 186
Belts, refer to
Safety belts 47
Beverage holder, refer to
Cup holders 97
Black ice, refer to
Ice warning 64
Blower, refer to
Air volume 89
BMW Assist 155
– enabling 155
– services offered 156
BMW maintenance
system 174
"BMW Service" 157
"BMW Service
settings" 155
Bore, refer to
Engine data 190
Bottle holder, refer to
Cup holders 97
Brake Assistant, refer to
DBC Dynamic Brake
Control 78
Brake fluid 173
– warning lamp 173
Brake Force Display 80
Brake hydraulic
system 173
Brake lamps
– replacing the bulbs 180
– two-stage brake lamps 80
Brake pads 173
– break-in procedure 102
Brake pedal, refer to
Brakes 103
Brake rotors 103
Brakes 103
– ABS Antilock Brake
System 76
– brake fluid 173
– Brake Force Display 80
– brake pads 102, 173
– break-in procedure 102
– handbrake 55
Brake system 102
– brake fluid level 173
– brake pads 173
– brake rotors 103
– break-in procedure 102
– warning lamp 13, 78, 173
Brake wear warning
– brake pads 173
– warning lamp 173
Breakdown assistance 156
Breakdown services, refer
to Roadside
Assistance 184
Breaking-in the clutch 102
Breaking-in the
differential 102
Break-in procedures 102
"Brightness" 72
Buttons on the steering
wheel 11
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Reference
199
At a glanceControlsDriving tipsCommunications NavigationEntertainmentMobility
C
California laws
– Event Data
Recorders 176
– Proposition 65
Warning 176
"Call" 148
Call
– accepting 147
– display accepted 149
– ending 148
– in absence 149
– starting 147
Calling
– from phone book 148
– from the Top 8 list 149
– redialing 149
– refer to telephone
Owner's Manual 96
"Call sender" 151
Can holder, refer to
Cup holders 97
Capacities 193
Car battery, refer to
Battery 181
Car care, refer to the Caring
for your vehicle brochure
Car-care products, refer to
the Caring for your
vehicle brochure
"Car data" 69
Care 175
Cargo, securing 105
Caring for artificial leather,
refer to the Caring for
your vehicle brochure
Caring for leather, refer to
the Caring for your
vehicle brochure
Caring for light-alloy
wheels, refer to the
Caring for your vehicle
brochure'
Caring for plastic, refer to
the Caring for your
vehicle brochure
Caring for the carpet, refer
to the Caring for your
vehicle brochure
Caring for the vehicle finish,
refer to the Caring for
your vehicle brochure'
Car jacking points 181
Car keys, refer to
Key set 26
Car phone 145
– location, refer to
Center armrest 96
– refer to
Portable phone 144
– refer to separate
Owner's Manual
Car radio, refer to
Radio 130
Car wash 102
– also refer to the Caring for
your vehicle brochure
Catalytic converter, refer to
Exhaust system 102
"Categories" 135
CBC Cornering Brake
Control 76
CBS Condition Based
Service 174
"CD" 127, 137
CD changer 137
– adjusting the tone 127
– controls 126
– fast forward/reverse 140
– installation location 140
– playing a track 139
– random play
sequence 140
– repeating a track 139
– selecting a CD 137
– selecting a track 138
– switching on/off 126
– volume 127
CD player 137
– adjusting the tone 127
– controls 126
– fast forward/reverse 140
– playing a track 139
– random play
sequence 140
– repeating a track 139
– selecting a track 138
– switching on/off 126
– volume 127
Center armrest
– adjusting the height 96
– front 96
Center console 14
"Central locking" 27
Central locking system 26
– from inside vehicle 29
Changes, technical, refer to
For your own safety 6
Changing a wheel 181
Changing the language on
Control Display 73
Changing the
measurement units on the
Control Display 72
Changing wheels 181
CHECK button 68
Check Control 66
"Check Control
messages" 68
Check Gas Cap 162
Checking the air pressure,
refer to Tire inflation
pressure 164
Child's seats, refer to
Child-restraint
systems 52
Child-restraint system 51
Chrome parts, care, refer
to the Caring for your
vehicle brochure
Cigarette lighter 97
Cleaning, refer to the
Caring for your vehicle
brochure
Cleaning windshield, refer
to Wiper system 61
"Climate" 90
"Climate control" 91
Clock 64
– 12/24 hour mode 73
– setting time and date 73
Closing
– from inside 29
– from outside 27
Clothes hooks, Coupe 96
Cockpit 10
Cold start, refer to
Starting the engine 54
"Communication" 146
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Everything from A to Z
200
"Communication
interface" 155
Compact disc
– refer to CD changer 137
– refer to CD player 137
Computer 69
– clock, 12/24 hour
mode 73
– displays on Control
Display 69
– hour signal 73
"Concert hall" 128
Condition Based Service,
CBS 174
"Confirmation" 28
Confirmation signals for
locking and unlocking 28
"Confirm unlock code" 147
Connecting a vacuum
cleaner
– refer to Lighter socket 97
– refer to Power socket 97
Consumption display, refer
to Average fuel
consumption 69
"Continue guidance to
dest.?" 119
Control Center 16
– adjusting the
brightness 72
– assistance window 19
– automatic climate
control 90
– changing settings 18, 72
– changing the menu
page 18
– confirming selection or
entry 18
– controller 16
– display, menus 16
– language selection 73
– menu guidance 17
– menu item selection 18
– operating elements 16
– selecting units of
measurement and display
format 72
– setting time and date 73
– start menu 17
– status information 19
– symbols 17
Control Display 16
Controller, refer to
Control Center 16
Controls, refer to
Cockpit 10
Convenience operation
– convertible top 27, 29
– glass roof 27, 29
– windows 27, 29
Convenience start, refer to
Starting engine 54, 55
Convertible program for
automatic climate
control 91
Convertible top 37
– care, refer to the Caring
for your vehicle brochure
– convenience operation 29
– emergency closing 39
– manual closing in the
event of an electrical
malfunction 39
– opening and closing 38
Coolant 172
– level 172
Cooling, maximum 89
Cornering Brake Control,
CBC 76
Country of destination for
navigation 110
Courtesy lamps 87
Cruise control 62
Cruising range 69
Cup holders 97
Curb weight, refer to
Weights 190
"Current position" 109
Current position
– displaying 109
– entering 114
– storing 114
"Customer Relations" 157
Cylinders, refer to
Engine data 190
D
Dashboard, refer to
Cockpit 10
Data 190
– capacities 193
– dimensions 191
– engine 190
– weights 190
"Date" 74
Date 64
– setting 74
"Date format" 74
Daytime driving lamps 85
DBC Dynamic Brake
Control 78
Deactivating front
passenger airbag,
Coupe 51
Decommissioning the
vehicle, refer to the
Caring for your vehicle
brochure
Defect
– convertible top 39
– door lock 29
– fuel filler door 162
– glass roof 36
– luggage compartment
lid 30, 31
– SMG Sequential manual
transmission 58
Defrosting windows 89
Defrosting windows and
removing
condensation 89
Defrosting windshield, refer
to Defrosting windows 89
Defrost position, refer to
Defrosting windows 89
"Delete address book" for
navigation 116
"Delete address" for
navigation 115
"Delete all numbers" for
portable phone 150
"Delete data" for
navigation 116
"Delete" for portable
phone 149
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Reference
201
At a glanceControlsDriving tipsCommunications NavigationEntertainmentMobility
Destination address
– deleting 115
– entering 110
Destination for navigation
– destination list 113
– entry 110
– selecting from address
book 115
– selecting using
information 113
– storing 114
Destination guidance 118
– bypassing route
sections 120
– canceling voice
instructions 50
– changing specified
route 116
– displaying route 119
– distance and arrival 118
– interrupting 118
– starting 118
– terminating/
continuing 118
– voice instructions 119
– volume of voice
instructions 119
Destination list 113
Destinations recently
driven to 113
"Dial" for portable
phone 147
"Dial number" 147
Digital clock 64
Dimensions
– Convertible 192
– Coupe 191
Dipstick for engine oil 171
Directional indicators, refer
to Turn signals 60
Direction announcements,
refer to Voice
instructions 119
Direction instructions, refer
to Voice instructions 119
Directory, refer to
Phone book 148
Directory for navigation,
refer to Address
book 114
Disc brakes 103
Displacement, refer to
Engine data 190
Display, refer to
Control Center 16
"Display off" 19
Displays, refer to
Instrument cluster 12
"Display settings" 72
Displays on the windshield,
refer to Head-Up
Display 83
Disposal, vehicle
battery 181
Distance, refer to
Computer 70
Distance to destination,
refer to Computer 70
Distance warning, refer to
PDC Park Distance
Control 75
"Dist. to destination" 70
Door entry lighting 87
Door keys 26
Door lock 29
"Door locks" 27
Doors
– manual operation 29
– remote control 27
DOT Quality Grades 166
Draft-free ventilation 92
"Driver's door only" 27
Driving lamps, refer to
Parking lamps/
low beams 85
Driving notes 102
Driving route, refer to
Displaying the route 119
Driving stability control
systems 77
Driving through water 103
Driving tips, refer to
Driving notes 102
Drying the air, refer to
Cooling function 89
DSC Dynamic Stability
Control 77
– indicator lamp 13, 77
DTC Dynamic Traction
Control 77
– activating 77
– indicator lamp 13, 77
DVD for navigation 108
Dynamic Brake Control,
DBC 78
Dynamic Driving Control 59
"Dynamic route" for
navigation 116
Dynamic Stability Control,
DSC 77
Dynamic Traction Control,
DTC 77
E
Easy Entry, refer to
Entry to the rear 46, 52
EBV Electronic brake-force
distribution 76
"Edit address" for
navigation 115
Eject button, refer to
Buttons on CD player 126
Electrical malfunction
– automatic transmission
with Steptronic 59
– convertible top 39
– door lock 29
– driver's door 29
– fuel filler door 162
– glass roof 36
– luggage compartment
lid 31
– SMG Sequential manual
transmission 58
Electric steering wheel
adjustment 48
Electronic brake-force
distribution, EBV 76
Emergency assistance,
refer to Roadside
Assistance 184
Emergency call 183
Emergency operation, refer
to Manual operation
– convertible top 39
– door lock 29
– driver's door 29
– fuel filler door 162
– glass roof 36
– luggage compartment
lid 30, 31
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Everything from A to Z
202
Emergency services, refer
to Roadside
Assistance 184
"Emission inspect." 66
"Enable services" 156
"End call" 148
Engine
– break-in procedure 102
– data 190
– speed 190
– starting 54
– starting difficulties 54
– switching off 55
Engine compartment 171
Engine coolant 172
Engine hood 170
Engine oil
– checking the oil level 171
– specified engine oils 172
– temperature 65
– temperature gauge 65
– topping up 172
Engine output, refer to
Engine data 190
Engine speed, refer to
Engine specifications 190
Engine starting, refer to
Starting engine 54
"Enter address" for
navigation 110
Entering activation times of
independent ventilation/
heating 93
Entering destination 111
Entering the address 110
Entering the
intersection 111
Entering the town/city for
navigation 111
Entering zip code for
navigation 111
"Entertainment" 127
"Entertainment
settings" 127
Entry map for
destination 112
Entry to the rear 46
"Equalizer", refer to
Adjusting the tone 129
"ESN" 134
ESP Electronic Stability
Program, refer to DSC
Dynamic Stability
Control 77
Exhaust system 102
Exterior mirrors 48
– automatic dimming
feature 48
– automatic heating 48
Eye for towing, refer to
Tow fitting 186
F
Fader, refer to
Adjusting the tone 128
Failure messages, refer to
Check Control 66
False alarms, refer to
Avoiding unintentional
alarms 33
False alarms with Flat Tire
Monitor 79
Fastening safety belts, refer
to Safety belts 47
Fastest route for
navigation 116
"Fast route" for
navigation 116
First aid, refer to
First-aid kit 184
First-aid kit 184
First-aid pouch, refer to
First-aid kit 184
Flashing on locking/
unlocking 28
Flashlight, refer to
Rechargeable
flashlight 95
Flat tire
– Flat Tire Monitor 79
– run-flat tires 80, 168
Flat Tire Monitor 79
– false alarms 79
– initializing the system 79
– limits of system 79
– malfunction 80
– warning lamp 80
Flooding, refer to
Water on roads 103
"FM", reception
range 127, 130
FM, waveband 130
Fog lamps 86
– indicator lamp 86
Folding up the convertible
top compartment floor,
convertible 32
Footwell lamps 87
Forward, fast
– CD changer 140
– CD player 140
For your own safety 6
Front airbags 81
Front head restraints 45
Front seat adjustment 43
"FTM" 79
Fuel
– average consumption 69
– display 65
– fuel specifications 163
– high-quality brands 163
– quality 163
– tank capacity 162
Fuel display, refer to
Fuel gauge 65
Fuel filler door 162
– releasing in the event of
an electrical
malfunction 162
Fuel gauge 65
Fuel specifications 163
Fuses 182
G
Garage-door opener, refer
to Integrated universal
remote control 94
Gasoline
– refer to Fuel
specifications 163
– refer to Required fuel 163
Gasoline display, refer to
Fuel gauge 65
Gear changes
– automatic transmission
with Steptronic 58
– SMG Sequential manual
transmission 57
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Reference
203
At a glanceControlsDriving tipsCommunications NavigationEntertainmentMobility
Gear display
– automatic transmission
with Steptronic 58
– SMG Sequential manual
transmission 57
Gearshift lever
– automatic transmission
with Steptronic 58
– manual transmission 56
– SMG Sequential manual
transmission 56
General driving notes 102
Glass roof, electric with
raise function 35
– closing in the event of an
electrical malfunction 36
– convenience operation 29
– remote control 27
Glove compartment 95
GPS navigation, refer to
Navigation system 108
Grills, refer to
Ventilation 88
Gross vehicle weight, refer
to Weights 190
H
Handbrake 55
– indicator lamp 13, 55
Hands-free system 14, 146
Hazard warning flashers 15
Head airbags 81
Headlamp control,
automatic 85
Headlamp flasher 60
Headlamps
– care, refer to the Caring
for your vehicle brochure
– cleaning, refer to
Wiper system 61
– replacing the bulbs 178
Head Light, refer to
Adaptive Head Light 86
Head-Up Display 83
Heated mirrors 48
Heated rear window 89
Heated seats 47
Heated steering wheel 49
Heating
– exterior mirrors 48
– interior 88
– rear window 89
– residual heat mode 90
– seats 47
– steering wheel 49
Heating with engine
switched off, refer to
Residual heat mode 90
Heavy cargo, refer to
Securing the load 105
Height, refer to
Dimensions 191
Height adjustment
– seats 43
– steering wheel 48
High beams 86
– headlamp flasher 86
– indicator lamp 13
– replacing the bulbs 178
Hills 103
Holder for cups 97
Horn 10
Hotel function 30
Hot exhaust system 102
"Hour memo" 73
"House number" for desti-
nation entry 111
Hydraulic Brake Assistant,
refer to DBC Dynamic
Brake Control 78
Hydroplaning 102
– also refer to Minimum
tread depth 167
I
Ice warning 64
iDrive, refer to
Control Center 16
Ignition key 26
Ignition key positions, refer
to Ignition lock 54
Ignition lock 54
Increasing luggage
compartment capacity,
Convertible 32
Independent ventilation
– activating activation
timer 93
– setting the activation
time 93
– switching on and off
directly 92
Indicator/warning lamps
– ABS Antilock Brake
System 13, 78
– active steering 13, 80
– airbags 13, 82
– brake system 13, 78
– DSC Dynamic Stability
Control 13, 77
– DTC Dynamic Traction
Control 13, 77
– fastening safety
belts 13, 47
– Flat Tire Monitor 80
– fog lamps 11, 86
Indicator and warning
lamps, overview 13
Individual button
assignment options on
the steering wheel 49
Individual settings, refer to
Key Memory 26
Inflation pressure, refer to
Tire inflation
pressure 164
Inflation pressure
monitoring, refer to Flat
Tire Monitor 79
Information
– on another location 113
– on current location 113
– on destination
location 113
"Information" for
navigation 113
"Information on
destination" 114
Initiating an emergency
call 183
"Input map" 112
Installation location
– CD changer 140
– portable phone 145
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Everything from A to Z
204
Instructions for navigation
system, refer to
Voice instructions 119
Instrument cluster 12
Instrument illumination,
refer to Instrument
lighting 87
Instrument lighting 87
Instrument panel, refer to
Instrument cluster 12
Instrument panel lighting,
refer to Instrument
lighting 87
Integrated universal remote
control 94
Interesting destination 113
"Interim time" 72
Interior lamps 87
– remote control 28
Interior mirror, automatic
dimming feature 48
Interior rearview mirror 48
Interlock, refer to
Steering locked 54
Interlock on automatic
transmission 54
Intermittent mode of the
wipers 61
J
Jacking points 181
Joystick, refer to
Control Center 16
Jump-starting 184
K
Key Memory 26
"Keypad" 150
Keys 26
Kickdown
– automatic transmission
with Steptronic 59
– SMG Sequential manual
transmission 57
Knock control 163
L
Lamps, refer to Parking
lamps/low beams 85
Lamps and bulbs 178
"Languages" 73
– for navigation 119
Lashing down loads, refer
to Securing the load 105
Lashing eyes, refer to
Securing the load 105
Last destinations, refer to
Destination list 113
"Last seat pos." 44
LATCH child-restraint
fixing 52
LEDs light-emitting
diodes 181
Length, refer to
Dimensions 191
Letter symbol with portable
phone 150
License plate lamps,
replacing bulbs 180
Light-emitting diodes
LEDs 181
Lighter 97
Lighter socket 97
"Lighting" 60, 85
Lighting
– instruments 87
– vehicle, refer to Lamps 85
Lights on warning 85
Light switch 85
"Limit" 71
Loading
– securing the load 105
– stowing cargo 105
– vehicle 104
Location, navigation
drive 108
"Lock after driving" 29
Lock buttons in the doors,
refer to Locking 30
Locking
– from inside 30
– from outside 28
Locking and unlocking
doors
– from inside 29
– from outside 27
"LOGIC7", refer to
Adjusting the tone 128
Low beams 85
– automatic 85
– replacing the bulbs 178
Lower back support, refer
to Lumbar support 43
Luggage compartment
– capacity 190
– emergency release 31
– hotel function 30
– increasing the capacity,
Convertible 32
– opening/closing, refer to
Luggage compartment
lid 31
– opening from inside 31
– opening from outside 31
– opening with remote
control 28
Luggage compartment
lid 30
– emergency operation 31
– emergency release 31
– opening from inside 31
– opening from outside 31
– opening with remote
control 28
– unlocking manually 31
Lumbar support 43
LW, waveband 130
M
M+S tires, refer to
Winter tires 169
Maintenance, refer to the
Service and Warranty
Information Booklet for
US models or to the
Warranty and Service
Guide Booklet for
Canadian models 174
Maintenance system 174
Malfunction warnings, refer
to Check Control 66
Manual air distribution 90
Manual mode with
automatic transmission
with Steptronic 59
"Manual" on the radio 131
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Reference
205
At a glanceControlsDriving tipsCommunications NavigationEntertainmentMobility
Manual operation
– convertible top 39
– door lock 29
– driver's door 29
– fuel filler door 162
– glass roof 36
– luggage compartment
lid 30, 31
Manual transmission 56
Map
– changing scale 120
– destination entry 112
– facing north 120
"Map, direction of
travel" 120
"Map, facing north" 120
Master key with remote
control 26
Maximum cooling 89
Maximum speed with
winter tires 169
Memory
– refer to Key Memory 26
– refer to Seat, mirror and
steering wheel
memory 44
Menus, refer to
Control Center 16
Microfilter 92
Microphone
– for hands-free
system 146
– for portable phone 14
– for voice command
system 14
Mirrors 48
– automatic curb
monitor 45
– dimming feature 48
– heating 48
– memory, refer to Seat,
mirror and steering wheel
memory 44
"Missed calls" 149
Missed calls 149
Mobile communication
devices in vehicle 104
Monitor, refer to
Control Center 16
"Monitor display on" 76
Most recent portable phone
numbers 149
Multifunction steering
wheel MFL 11
Multifunction switch
– refer to Turn signals/
headlamp flasher 60
– refer to Wiper/washer
system 61
Music track, finding 139
"Mute on / off" 49
MW, waveband 130
N
"Navigation" 108
Navigation destination
– manual entry 110
– selecting via map 112
Navigation drive,
location 108
Navigation DVD 108
Navigation system 108
– address book 114
– bypassing route
sections 120
– destination entry 110
– destination guidance in
assistance window 109
– destination list 113
– displaying current
position 109
– entering a destination
manually 110
– looking for interesting
destination 113
– navigation DVD 108
– route display 119
– route list 120
– selecting destination
using information 113
– selecting destination
using map 112
– selecting route
criteria 116
– starting 108
– starting destination
guidance 118
– terminating/continuing
destination guidance 118
– voice instructions 119
– volume adjustment 119
"Navigation voice instruc-
tions on" 119
Neck support, refer to
Front head restraints 45
"New address" for
navigation 114
"New destination" 110, 112
"New route" 120
New wheels and tires 168
"Next entertainment
source" 49
Nozzles
– refer to Ventilation 88
– refer to Windshield
washer nozzles 61
Nylon rope, refer to Tow-
starting and towing 185
O
OBD connector 176
Octane numbers, refer to
Fuel specifications 163
Odometer 64
Oil
– additives 172
– capacity 193
– consumption 171
– dipstick 171
– level 171
– specified engine oils 172
Oil change intervals
– refer to Service
requirement display 65
– refer to the Service and
Warranty Information
Booklet for US models or
to the Warranty and
Service Guide Booklet for
Canadian models 174
Old batteries, refer to
Disposal 181
"On a new destination" for
navigation 113
Onboard computer, refer to
Control Center 16
"Onboard information" 70
Onboard tool kit 178
"On destination" 113
"On location" 113
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Everything from A to Z
206
Opening and closing
– from inside 29
– from outside 27
– rear window 35
– using door lock 29
– using the remote
control 27
Operation via voice control
for portable phone 151
– adjusting volume 152
– canceling 151
– correcting phone
number 153
– correcting unlock
code 152
– dialing a phone
number 152
– entering unlock code 152
– making a call 152
– redialing 153
– voice commands 151
– voice phone book 153
"Options" for portable
phone 151
Orientation menu, refer to
Start menu 17
Output, refer to
Engine data 190
Outside air, refer to AUC
Automatic recirculated-
air control 89
Outside temperature
display 64
– changing unit of
measurement 72
– in the computer 72
P
Panic mode 28
Park Distance Control,
PDC 75
Parking, vehicle 55
Parking aid, refer to PDC
Park Distance Control 75
Parking brake, refer to
Handbrake 55
Parking lamps/
low beams 85
– replacing the
bulbs 178, 180
Parts and accessories,
refer to Your individual
vehicle 5
Passenger-side mirror tilt
function 45
"Pathway lighting" 85
Pathway lighting 85
"PDC" 76
PDC Park Distance
Control 75
"Phone" 147
Phone book 146
Phone numbers
– deleting in the phone
book 149
– dialing 147
– most recent numbers 149
– selecting in the phone
book 149
– Top 8 149
Plasters, refer to
First-aid kit 184
"play" in audio mode 138
Please fasten safety belt
warning lamp 47
Pollen, refer to Microfilter/
activated-charcoal
filter 92
Portable phone
– accepted calls 149
– adjusting volume 146
– battery 145
– calling 147
– call termination 148
– codes 147
– entering unlock code 147
– hands-free system 146
– installation position 96
– missed calls 149
– operation using
Control Center 146
– phone book 148
– redialing 149
– refer also to separate
Owner's Manual
– SMS 150
– Top 8 149
– touch tone dialing 150
– use in vehicle, refer to
Mobile communication
devices in vehicle 104
Position
– displaying 109
– storing 114
Power cut 181
Power failure, refer to
Power cut 181
Power windows, refer to
Windows 34
"Presets" on the
radio 130, 135
Pressure, tires 164
Pressure monitoring of
tires, refer to
Flat Tire Monitor 79
"Profile" 158
Protective function, refer to
Anti-trapping mechanism
– glass roof 36
– windows 35
R
Radio
– adjusting tone 127
– Autostore 132
– controls 126
– playing stations 131
– satellite radio 133
– selecting frequency
manually 131
– selecting
waveband 126, 130
– station search 131
– station selection 130
– station with best
reception 132
– storing stations 132
– switching on/off 126
– volume 127
– Weather Band 133
Radio-control key, refer to
Master key with remote
control 26
Rain sensor, refer to
Wiper system 61
"Random", random
sequence generator 140
"random directory" in audio
mode 140
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Reference
207
At a glanceControlsDriving tipsCommunications NavigationEntertainmentMobility
Random play
– CD changer 140
– CD player 140
Reading lamps 87
Rear lamps, refer to
Tail lamps 180
Rearview mirror 48
Rear window defroster 89
"Received calls" 149
Receiving level of portable
phone, refer to Status
information 19
Reception
– quality 133
– radio stations 133
– regional station 132
Rechargeable flashlight 95
Recirculated-air mode,
refer to AUC Automatic
recirculated-air
control 89
Recirculation of air, refer to
AUC Automatic recircu-
lated-air control 89
Reclining seat, refer to
Backrest 43
Recording times, refer to
Stopwatch 72
"Redial" for portable
phone 149
Redialing with portable
phone 149
Refueling 162
Releasing, engine
hood 170
"Relock door if not
opened" 29
Remaining distance
– refer to Computer 70
– refer to Cruising range 69
Remote control 26
– garage-door opener 94
– luggage compartment
lid 28
– malfunctions 28
"Repeat" in audio
mode 139
"repeat track" in audio
mode 139
Replacement fuses 182
Replacement of tires,
changing a wheel 181
Replacing bulbs, refer to
Lamps and bulbs 178
Replacing wheels/tires 168
Reporting an accident,
refer to Initiating an
emergency call 183
Reporting safety defects 7
Reserve warning, refer to
Fuel gauge 65
"Reset"
– for stopwatch 72
– in audio mode 129
Residual heat mode 90
Restraint systems
– for children 51
– refer to Safety belts 47
Retreaded tires 168
Reverse, fast
– CD changer 140
– CD player 140
Reverse gear
– automatic transmission
with Steptronic 59
– manual transmission 56
– SMG Sequential manual
transmission 57
Road map 120
"Roadside Assistance" 157
Roadside Assistance 184
Roadside parking lamps 86
"Roaming" 158
Rollover protection system
on Convertible 82
– lowering 82
Rope, refer to Towing and
tow-starting 185
Rotary pushbutton, refer to
Control Center 16
Route
– bypassing sections 120
– changing 116, 120
– display 120
– displaying map 120
– displaying the arrow
view 119
– list 120
– selecting 116
– selecting criteria 116
"Route list" for
navigation 120
Route map 119
"Route preference" 116
Route selection 116
Run-flat tires 168
– continuing driving with a
damaged tire 168
– flat tire 80
– tire inflation
pressure 164, 168
– tire replacement 168, 169
– winter tires 169
S
Safety belts 47
– damage 47
– sitting safely 42
– warning lamp 47
Safety belt tensioners, refer
to Safety belts 47
Safety systems
– ABS Antilock Brake
System 76
– airbags 81
– DSC Dynamic Stability
Control 77
– rollover protection
system, convertible 82
– safety belts 47
Satellite radio 133
– activating 134
– selecting channel 134
– storing channel 134
"SAT" on the radio 134
"Scan"
– playing stations 131
– playing tracks 139
Scan
– CD changer 139
– CD player 139
– radio 131
"scan directory" in audio
mode 139
Screen, refer to
Control Center 16
"Screen on / off" 49
Screw-on valve caps 181
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Everything from A to Z
208
Screw thread for tow
fitting 186
Seats 43
– adjusting 43
– heating 47
– memory, refer to Seat,
mirror and steering wheel
memory 44
– sitting safely 42
– sports seat 43
– storing the setting 44
– thigh support 43
Securing load 98
"Select as destination" 113
"Select current speed" 71
Selecting audio sources,
refer to Operation using
Control Center 126
Selecting frequency
manually 131
Selecting menu items 18
Selecting new scale for
navigation system
display 120
Selecting route 116
Selection options with
navigation system 116
Selector lever
– automatic transmission
with Steptronic 58
– manual transmission 56
– SMG Sequential manual
transmission 56
Selector lever interlock,
refer to Shiftlock
– automatic transmission
with Steptronic 58
– SMG Sequential manual
transmission 57
Sequential manual trans-
mission, SMG 56
"Service" 65, 156
Service, refer to
Roadside Assistance 184
Service and Warranty Infor-
mation Booklet for US
models 174
"Service notification" 156
"Service Request" 157
Service requirement
display 65
– also refer to CBS
Condition Based
Service 174
"Service
requirements" 65, 156
"Service Status" 155
"Set date" 74
"Set" in audio mode 127
"Set service date" 66
"Set time" 73
Setting road-speed limit 71
Settings
– changing on the
Control Display 72
– configuring, refer to
Key Memory 26
Setting the time, refer to
Preselecting activation
time 93
"Set tire pressure" 79
Shifting gears with
automatic transmission
with Steptronic 58
Short commands of the
voice command
system 194
"Short cut / Telephone" 49
Shortest route for
navigation 116
"Short route" for
navigation 116
"Show current
position" 112
"Show destination
position" 112
Side airbags 81
Side marker lamps,
replacing the bulbs 180
Side turn signals, replacing
the bulbs 180
Sill panel lighting 87
Sitting safely 42
– with airbags 42
– with safety belts 42
Ski bag 98
Sliding/tilt roof, refer to
Glass roof, electric with
raise function 35
SMG Sequential manual
transmission 56
– acceleration assistant 60
– convenience start 55
– Dynamic Driving
Control 59
– gear display 57
– kickdown 57
– overheating 58
– shiftlock 57
– towing 186
– tow-starting 187
– warning lamp 58
"SMS" 150
Snow chains 169
Socket
– for Onboard Diagnosis
interface 176
– in front passenger
footwell 98
– refer to Cigarette lighter
socket 97
SOS, refer to Initiating an
emergency call 183
Sound output for Enter-
tainment on/off 127
Spare fuses 182
Spare key 26
Special oils, refer to
Specified engine oils 172
Specified engine oils 172
Speed-dependent
volume 128
Speed limit warning, refer
to Speed limit 71
Speedometer 12
"Speed volume", refer to
Adjusting the tone 128
Speed with winter tires 169
Sport program
– automatic transmission
with Steptronic 59
– Dynamic Driving
Control 59
Stability control, refer to
Driving stability control
systems 76
"Start" for stopwatch 72
"Start guidance" 111, 118
Starting assistance, refer to
Jump-starting 184
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Reference
209
At a glanceControlsDriving tipsCommunications NavigationEntertainmentMobility
Starting difficulties
– jump-starting 184
– refer to Starting engine 54
Starting engine 54
Start menu 17
"Start route guidance" 112
"Start service" 157
"State / Province" for desti-
nation entry 110
"State inspection" 66
Station, refer to Radio 130
"Status" 65
Status of this Owner's
Manual at time of
printing 5
Steering wheel 11
– adjustment 48
– automatic adjustment 49
– buttons on steering
wheel 11
– heating 49
– individual button
assignment options 49
– memory 44
"Steering wheel
buttons" 49
Steering with variable ratio,
refer to Active steering 80
Steptronic, refer to
Automatic transmission
with Steptronic 58
"Stop" for stopwatch 72
"Stopwatch" 72
Stopwatch 72
Storage compartments 96
"Store in address book" for
navigation 114
"Store" on the
radio 132, 135
Storing current
position 114
Storing sitting position,
refer to Seat, mirror and
steering wheel
memory 44
Storing tires 169
Straps, refer to
Loading 105
"Street" for destination
entry 111
Stroke, refer to
Engine data 190
Summer tires, refer to
Wheels and tires 164
SW, waveband 130
Switches, refer to
Cockpit 10
Switching navigation voice
instructions on/off 119
Switching off
– engine 55
– interior motion sensor 33
– tilt alarm sensor 33
Switching on
– audio 126
– CD changer 126
– CD player 126
– portable phone 145
– radio 126
Switching on hour signal 73
Switching the cooling
function on and off 89
Swiveling headlamps, refer
to Adaptive Head Light 86
Symbols 4
T
Tachometer 64
Tail lamps 180
– replacing the bulbs 180
Tank capacity, refer to
Fuel tank capacity 162
Target cursor for
navigation 112
Technical changes, refer to
For your own safety 6
Technical data 190
Telematic 155
Telephone
– refer to Portable
phone 144
– refer to separate
Owner's Manual
TeleService 155
– enabling 155
– services offered 156
Temperature
adjustment 89
Temperature display
– ice warning 64
– outside temperature 64
– setting measurement
units 64
Temperature gauge,
engine oil 65
Tempomat, refer to
Cruise control 62
"Terminate services" 158
"Text language" 73
The individual vehicle 5
Tilt function, passenger-
side mirror 45
"Time" 73
"Time 1" for independent
ventilation 93
"Time 2" for independent
ventilation 93
"Time format" 73
Timer, refer to Preselecting
activation time 93
Tire pressure monitoring,
refer to Flat Tire
Monitor 79
Tire Quality Grading 166
Tires
– age 166
– air loss 80
– break-in procedure 102
– changing 168
– condition 167
– damage 167
– flat 168
– inflation pressure 164
– new wheels and tires 168
– pressure monitoring, refer
to Flat Tire Monitor 79
– replacing 168
– retreaded tires 168
– run-flat tires 168
– size 168
– tread 167
– wear indicators 167
– wheel/tire
combination 168
– winter tires 169
"Tone" 128
Tone in audio mode
– adjusting 127
– middle setting 129
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Everything from A to Z
210
Tools, refer to
Onboard tool kit 178
"Top 8" for portable
phone 149
Torque, refer to
Engine specifications 190
Touch tone dialing 150
Tow fitting 186
Towing 185
– tow fitting 186
– vehicles with automatic
transmission 186
– vehicles with SMG
Sequential manual
transmission 186
– with tow bar 186
– with tow-rope 187
– with tow truck 187
"Town / City" for desti-
nation entry 111
Tow-starting 187
Tracks
– random play
sequence 139, 140
– sample scan 139
Track width, refer to
Dimensions 191
Traction control, refer to
DSC Dynamic Stability
Control 77
Traffic congestion, refer to
Bypassing route
sections 120
Transmission
– automatic transmission
with Steptronic 58
– manual transmission 56
– SMG Sequential manual
transmission 56
Transporting children
safely 51
Transport securing device,
refer to Securing the
load 105
Tread depth, refer to
Minimum tread depth 167
"Treble", refer to
Adjusting the tone 128
"Trip computer" 70
Trip computer 70
Trip-distance counter, refer
to Trip odometer 64
"Triple turn signal
activation" 60
Trip odometer 64
Trunk, refer to Luggage
compartment 30
Trunk lid, refer to Luggage
compartment lid 30
Turning circle, refer to
Dimensions 191
Turn signals 60
– indicator lamp 13
– replacing the bulbs 179
U
Underbody protection,
refer to the Caring for
your vehicle brochure
Uniform Tire Quality
Grading/UTQR 166
"Units" 72
Units
– average fuel
consumption 72
– temperature 72
Universal garage-door
opener, refer to
Integrated universal
remote control 94
Universal remote control,
refer to Integrated
universal remote
control 94
"Unlock button" 27
Unlock code 147
Unlocking
– from inside 30
– from outside 27
Unlocking and locking
doors, setting confir-
mation signals 28
"Update services" 158
V
Vehicle
– battery 181
– break-in procedure 102
– care 175
– care, refer to the Caring
for your vehicle brochure
– decommissioning, refer to
the Caring for your
vehicle brochure
– dimensions 191
– loading 104
– parking 55
– position, refer to
Displaying current
position 109
– washing, refer to the
Caring for your vehicle
brochure
– weights 190
"Vehicle settings" 27
"Ventilation" 92
Ventilation 92
– draft-free 92
– independent
ventilation 92
Vent outlets of automatic
climate control 88
"Vent settings" 91
Voice command system 20
Voice instructions for
navigation system 119
– muting 50, 119
– repeating 50, 119
– switching on/off 50, 119
– volume 119
Voice phone book 153
Volume 126
– audio sources 126
– portable phone 146
– setting speed-
dependent 128
– setting using buttons on
steering wheel 11
– voice instructions 119
Volume adjustment in audio
mode, front-to-rear 128
Volume of the luggage
compartment 190
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Reference
211
At a glanceControlsDriving tipsCommunications NavigationEntertainmentMobility
W
Warning lamps, refer to
Indicator/warning
lamps 13
Warning messages, refer to
Check Control 66
Warning triangle 184
Warranty and Service
Guide Booklet for
Canadian models 174
Washer fluid
– capacity of the
reservoir 62
– wiper system 62
Washer fluid reservoir 62
Water on roads, refer to
Driving through water 103
Waveband 130
"WB" 127, 133
Wear indicators in tires 167
Weights 190
Wheel/tire combination,
refer to New wheels and
tires 168
Wheelbase, refer to
Dimensions 191
Wheels and tires 164
Width, refer to
Dimensions 191
Wind deflector 40
Windows 33
– convenience
operation 27, 29
– opening and closing,
Convertible 34
– opening and closing,
Coupe 34
– rear window,
Convertible 35
Windshield washer
nozzles 61
Windshield washer system,
refer to Washer/wiper
system 61
Windshield wiper blade
replacement 178
Windshield wipers, refer to
Wiper/washer system 61
Winter tires 169
– setting speed limit 71
– storage 169
Wiper blade
replacement 178
Wiper system 61
– washer fluid 62
– windshield washer
nozzles 61
"With highways" for
navigation 116
Wordmatch principle for
navigation 117
Working in the engine
compartment 170
Wrenches/screwdrivers,
refer to Onboard tool
kit 178
X
Xenon lamps 178
– replacing the bulbs 178
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
Refueling
To ensure that you always have all the
essential data at hand when refueling, we
recommend that you fill in the following
tables with the specifications and informa-
tion that apply to your vehicle. Consult the
index for individual specifications.
Fuel
Engine oil
The oil quantity between the middle of
the two marks on the dipstick is approx.
1.6 US quarts/1.5 liters.
Tire inflation pressures
Designation
Please enter your preferred fuel here.
Quality
Summer tires
Front Rear
Winter tires
Front Rear
Up to 4 persons
4 persons plus luggage
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
01 41 0 157 980 ue
The Ultimate
Driving Machine
More about BMW
bmwusa.com
Online Edition for Part No. 01 41 0 157 980 - © 01/04 BMW AG
