IIDD NNuummbbeerr:: 4616: 26LC7D(26LC7D-AB)
4624: 32LC7D(32LC7D-AB)
4623: 37LC7D(37LC7D-AB)
4622: 42LC7D(42LC7D-AB)
1
ACCESSORIES
AACCCCEESSSSOORRIIEESS
Ensure that the following accessories are included with your product. If an accessory is missing, please con-
tact the dealer where you purchased the product.
1.5V 1.5V
Owner’s Manual Batteries
OK
TVD/A
INPUT
DVD
EXIT
VOL
SIZE
INDEX
TIME
REVEAL
Q.VIEW
LIST
MENU
TEXT
GUIDE
VCR
POWER
123
456
789
0
?
APM
RATIO
FAV
SUBTITLE
SLEEP
I/II
BRIGHT
SIMPLINK
MUTE
INFO
PAGE
PR
INPUT
MODE
i
i
Remote Control Power Cord
2-TV Bracket Bolts
Cable Management
Twister Holder
Arrange the wires
with the twister holder.
2-TV Brackets,
2-Wall Brackets
Polishing Cloth
Polish the screen with the cloth.
This feature is not available for all models.
* Slightly wipe stained spot on the exterior only with
the polishing cloth if there is stain or fingerprint on
the exterior.
* Do not wipe roughly when removing stain. Please be
aware that excessive force may cause scratch or discol-
oration.
4-bolts for stand assembly
See below for detail information.
(Refer to p.6)
This feature is not available for all models.
CONTENTS
2
CONTENTS
AACCCCEESSSSOORRIIEESS.....................................................1
PREPARATION
Front Panel Controls
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Back Panel Information
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
Stand Installation
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

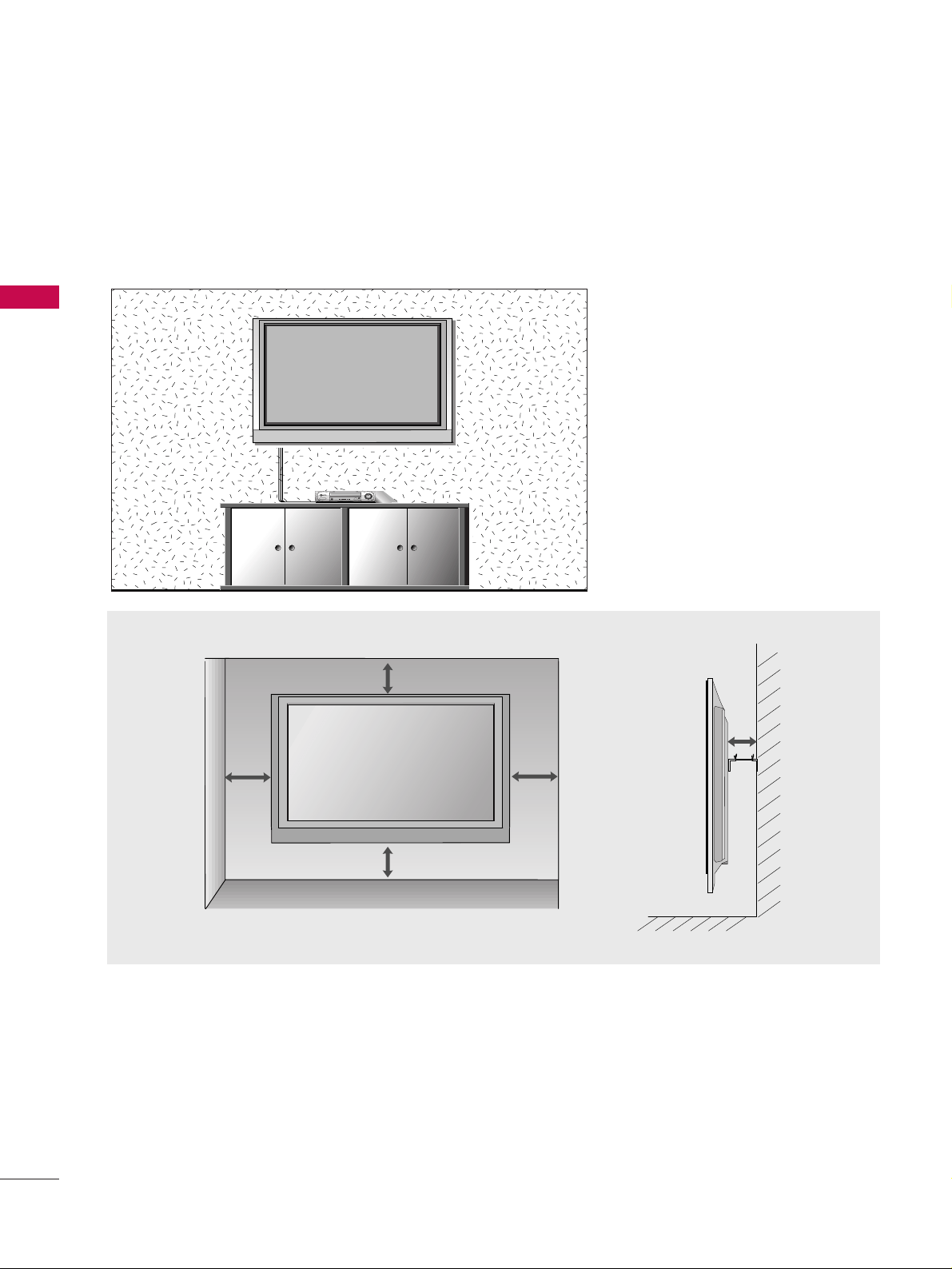

Attaching the TV to a Wall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Back Cover for Wire Arrangement
.................................................... 8
Desktop Pedestal Installation
.................................................................... 9
Wall Mount: Horizontal installation
............................................ 10
Antenna Connection
............................................................................................ 11
EXTERNAL EQUIPMENT SETUP
HD Receiver Setup.................................................................................................. 12
DVD Setup............................................................................................................................ 15
VCR Setup
............................................................................................................................. 18
Other A/V Source Setup
............................................................................. 21
PC Setup
................................................................................................................................. 22
- Screen Setup for PC Mode................................25
AV Output Setup
......................................................................................................
26
Digital Audio Output Setup
................................................................... 27
WATCHING TV/PROGRAMME CONTROL
Remote Control Key Functions......................................................... 28
Turning on the TV
................................................................................................... 30
Initializing Setup
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Programme Selection.......................................................................................... 31
Volume Adjustment
............................................................................................. 31
EPG(Electronic Programme Guide)
. . . . . . . . . . . . . . . . . . . 32
On Screen Menus Selection and Adjustment
.......... 35
Auto Programme Tuning
................................................................................ 36
Manual Programme Tuning....................................................................... 37
Fine Tuning
........................................................................................................................... 39
Assigning a Station Name
.......................................................................... 40
Programme Edit
............................................................................................................ 41
Calling Up the Programme List.......................................................... 43
Input Source Selection
................................................................................... 44
Key Lock
................................................................................................................................... 45
SIMPLINK
............................................................................................................................... 47
Digital Signal Strength
..................................................................................... 48
PICTURE CONTROL
Picture Size(Aspect Ratio) Control
. . . . . . . . . . . . . . . . . . . 49
Preset Picture Settings
- PSM - Preset
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
- Auto Colour Tone Control
(Warm/Medium/Cool)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
- Adaptive Picture Mode(APM) . . . . . . . . . . . . . . . . . . . . . . 52
Manual Picture Adjustment
- PSM - User Option
...................................................................................... 53
- Colour Tone - User Option
........................................................... 54
Brightness Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
XD - Picture Improvement Technology
............................... 56
Advanced - Cinema............................................................................................... 57
Advanced - Black(Darkness) Level
............................................... 58
Picture Preset
.................................................................................................................. 59
XD Demo
............................................................................................................................... 60
SOUND & LANGUAGE CONTROL
Auto Volume Leveller(AVL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Preset sound settings - SSM Mode . . . . . . . . . . . . . . . . . . . 62
Sound Setting Adjustment - User Mode . . . . . . . . . . . 63
Balance
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
TV Speakers ON/OFF Setup
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
I/II
- Stereo/Dual Reception
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
- Speaker Sound Output Selection
. . . . . . . . . . . . . . . . . 67
Subtitle
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
CONTENTS
3
After reading this manual, keep it handy for future reference.
TIME SETTING
Clock Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Auto On/Off Timer Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Sleep Timer Setting
............................................................................................... 72
Auto Shut - Off Setting
..................................................................................................
73
PARENTAL CONTROL/RATINGS
Set Password & Lock System
. . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Programme Blocking
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Parental Guidance
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
External Input Blocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
TELETEXT
Switch On/Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Simple Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
TOP Text
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Fastext
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Special Teletext Functions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
80
APPENDIX
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Maintenance
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Programming the Remote Control
. . . . . . . . . . . . . . . . . . 85
IR Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87
External Control Through RS-232C . . . . . . . . . . . . . . . . . .90
PREPARATION
4
FRONT PANEL CONTROLS
PREPARATION
R
PR
PR
VOL
VOL
OK
OK
MENU
MENU
INPUT
INPUT
(POWER) Button
INPUT Button
MENU Button
OK Button
VOLUME (
FF
,
GG
)
Button
PROGRAMME
(
DD
,
EE
)Button
■
This is a simplified representation of the front panel. Image shown may be somewhat different from your TV.
■
If your product has a protection film attached, remove the film and then wipe the product with a polishing
cloth.
Remote Control Sensor
Power Standby Indicator
• Illuminates red in standby mode.
• Illuminates green when the set is switched on.
PREPARATION
5
BACK PANEL INFORMATION
ANTENNA
IN
HDMI/DVI IN
COMPONENT IN
VIDEO
AUDIO
RGB IN
RGB (PC)
AUDIO
(RGB/DVI)
AV
IN
1
VIDEO
S-VIDEO
AUDIO
( )
RS-232C IN
(CONTROL & SERVICE)
AV OUT
REMOTE
CONTROL IN
DIGITAL
AUDIO
OUT
OPTICAL
ANTENNA
IN
HDMI/DVI IN
COMPONENT IN
VIDEO
AUDIO
RGB IN
RGB (PC)
AUDIO
(RGB/DVI)
AV
IN
1
VIDEO
S-VIDEO
AUDIO
( )
RS-232C IN
(CONTROL & SERVICE)
AV OUT
AUDIO OUT
REMOTE
CONTROL IN
DIGITAL
AUDIO
OUT
OPTICAL
VIDEO
OUT
VIDEO
VIDEO
AUDIO
AV IN 2
L/MONO
R
S-VIDEOS-VIDEO
(DVI)
ANTENNAANTENNA
ININ
HDMI/DVI INHDMI/DVI IN
2
1
COMPONENT INCOMPONENT IN
VIDEOVIDEO
AUDIOAUDIO
RGB INRGB IN
RGB (PC) RGB (PC)
AUDIO AUDIO
(RGB/DVI)(RGB/DVI)
AV
IN 1
AV
IN
1
VIDEOVIDEO
S-VIDEOS-VIDEO
AUDIOAUDIO
MONO
( )
RS-232C INRS-232C IN
(CONTROL & SERVICE)(CONTROL & SERVICE)
AV
OUT
AV OUT
REMOTEREMOTE
CONTROL INCONTROL IN
DIGITALDIGITAL
AUDIO AUDIO
OUTOUT
OPTICALPTICAL
ANTENNA
IN
HDMI/DVI IN
COMPONENT IN
VIDEO
AUDIO
RGB IN
RGB (PC)
AUDIO
(RGB/DVI)
AV
IN
1
VIDEO
S-VIDEO
AUDIO
( )
RS-232C IN
(CONTROL & SERVICE)
AV OUT
AUDIO OUT
REMOTE
CONTROL IN
DIGITAL
AUDIO
OUT
OPTICAL
VIDEO
OUT
VIDEOVIDEO
S-VIDEO
(DVI)(DVI)
AUDIO
S-VIDEO
Connect S-Video out from an S-VIDEO device.
AUDIO Input
Connections are available for listening to stereo
sound from an external device.
VIDEO Input
Connects the video signal from a video device.
1
2
4
7
8
3
HDMI/DVI IN
Connect a HDMI signal.
Or DVI(VIDEO)signal to the this port with a
HDMI to DVI cable.
RGB/AUDIO IN
Connect the output from a set top box or PC to
the appropriate input port.
RS-232C IN (CONTROL &SERVICE) PORT
Connect to the RS-232C port on a PC.
Remote Control Port
Connect your wired remote control.
ANTENNA IN
Connect antenna signals to this jack.
DIGITAL AUDIO OUT
Connect digital audio from various types of
equipment. Note: In standby mode, these ports
do not work.
COMPONENT IN
Connect a component video/audio device to
these jacks.
AV (Audio/Video) IN 1
Connect audio/video output from an external
device to these jacks.
S-VIDEO
Connect S-Video out from an S-VIDEO device.
AV OUT
Connect a second TV or monitor.
Power Cord Socket
For operation with AC power.
Caution: Never attempt to operate the TV on DC
power.
1
6
7
8
9
10
2
3
4
5
■
This is a simplified representation of the back panel. Image shown may be somewhat different from your TV.
AV IN 2
L/ MONO
R
AUDIO
VIDEO
S-VIDEO
HDMI IN HDMI/DVI IN
1
1
2
2
VARIABLE
AUDIO OUT
COMPONENT IN
AV IN 1 AV OUT
HDMI IN HDMI/DVI IN
1
1
2
2
VARIABLE AUDIO OUT
RGB IN
COMPONENT IN
AV IN 1 AV OUT
L/ MONO
R
AUDIO
VIDEO
RS-232C IN
(CONTROL&SERVICE)
RGB IN
RS-232C IN
(CONTROL&SERVICE)
L/ MONO
R
AUDIO
VIDEO
L/ MONO
R
AUDIO
VIDEO
10
5
6
9
PREPARATION
6
PREPARATION
STAND INSTALLATION
1
2
3
Carefully place the product screen side down on
a cushioned surface that will protect product and
screen from damage.
Assemble the product stand with the product as
shown.
Install the 4 bolts securely, in the back of the
product in the holes provided.
PREPARATION
7
ATTACHING THE TV TO A WALL
A
This Feature is not available for all models.
A
Set it up close to the wall so the product doesn’t fall over when it is pushed backwards.
A
The instructions shown below is a safer way to set up the product, which is to fix it on the wall so the
product doesn’t fall over when it is pulled in the forward direction. It will prevent the product from
falling forward and hurting people. It will also prevent the product from damage caused by fall. Please
make sure that children don’t climb on or hang from the product.
NOTE
!
G
When moving the product to another place undo the ropes first.
G
Use a product holder or a cabinet that is big and strong enough for the size and weight of the product.
G
To use the product safely make sure that the height of the bracket that is mounted on the wall is same
as that of the product.
3
Use the eye-bolts or TV brackets/bolts to fix the product to the wall as shown in the picture.
(If your product has the bolts in the eye-bolts position before inserting the eye-bolts, loosen the bolts.)
* Insert the eye-bolts or TV brackets/bolts and tighten them securely in the upper holes.
Secure the wall brackets with the bolts (not provided as parts of the product, must purchase separately) on
the wall. Match the height of the bracket that is mounted on the wall.
Use a sturdy rope (not provided as parts of the product, must purchase separately) to tie the
product. It is safer to tie the rope so it becomes horizontal between the wall and the product.
2
1
1
2
3
PREPARATION
8
PREPARATION
BACK COVER FOR WIRE ARRANGEMENT
Connect the cables as necessary.
To connect additional equipment, see the External Equipment Setup section.
Install the CABLE MANAGEMENT as shown.
How to remove the CABLE
MANAGEMENT
GG
Hold the CABLE MANAGEMENT
with both hands and pull it upward.
GG
Do not hold the CABLE MANAGEMENT
when moving the product.
- If the product is dropped, you may be
injured or the product may be broken.
NOTE
!
1
2
Bundle the cables using the supplied twister holder.
(This Feature is not available for all models.)
3
TWISTER HOLDER
CABLE MANAGEMENT
PREPARATION
9
DESKTOP PEDESTAL INSTALLATION
For proper ventilation, allow a clearance of 4inches on each side from the wall.
R
4 inches
4 inches
GG
Ensure adequate ventilation by following the clearance recommendations.
CAUTION
4 inches
4 inches
Power Supply
Short-circuit
Breaker
■
Image shown may be somewhat different from your TV.
GROUNDING
Ensure that you connect the earth ground wire to prevent possible electric shock. If grounding methods
are not possible, have a qualified electrician install a separate circuit breaker.
Do not try to ground the unit by connecting it to telephone wires, lightening rods, or gas pipes.
PREPARATION
10
PREPARATION
WALL MOUNT: HORIZONTAL INSTALLATION
For proper ventilation, allow a clearance of 4" on each side and from the wall.
Detailed installation instructions are available from your dealer.
4 inches
4 inches
4 inches
4 inches
4 inches
PREPARATION
11
ANTENNA CONNECTION
Wall Antenna Socket or Outdoor Antenna without a Cable Box Connections.
For optimum picture quality, adjust antenna direction if needed.
ANTENNA
IN
Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)
Outdoor
Antenna
(VHF, UHF)
Wall
Antenna
Socket
RF Coaxial Wire (75 ohm)
GG
The TV will let you know when the analogue, cable, and digital programme scans are complete.
NOTE
!
ANTENNA
IN
■
To improve the picture quality in a poor signal area, please purchase a signal amplifier and install properly.
■
If the antenna needs to be split for two TV’s, install a 2-Way Signal Splitter.
■
If the antenna is not installed properly, contact your dealer for assistance.
Antenna
UHF
Signal
Amplifier
VHF
AV IN 3
L/ MONO
R
AUDIO
VIDEO
S-VIDEO
12
VARIABLE
AUDIO OUT
RGB IN
COMPONENT IN
AUDIO
VIDEO
AV 1 AV 2
ANTENNA
IN
HDMI/DVI IN HDMI IN
■
To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment.
EXTERNAL EQUIPMENT SETUP
12
EXTERNAL EQUIPMENT SETUP
HD RECEIVER SETUP
This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if you
do receive digital signals from a digital set-top box or other digital external device, refer to the figure as
shown below.
This TV supports HDCP (High-bandwidth Digital Contents Protection) protocol for Digital Contents (480p,
576p, 720p, 1080i, 1080p).
HDMI/DVI IN
2
1
RGB IN
RGB (PC)
S-
(CO
DIGITAL
AUDIO
OUT
COMPONENT INCOMPONENT IN
VIDEOVIDEO
AUDIOAUDIO
Y L RP
B
P
R
HDMI/DVI IN
2
1
COMPONENT IN
VIDEO
AUDIO
DIGITAL
AUDIO
OUT
RGB IN
RGB (PC)
AUDIO
(RGB/DVI)
COMPONENT IN
VIDEO
AUDIO
RGB IN
RGB (PC)
DIGITAL
AUDIO
OUT
HDMI/DVI IN
COMPONENT IN
VIDEO
AUDIO
DIGITAL
AUDIO
OUT
HDMI/DVI IN
RGB IN
AUDIO
(RGB/DVI)
2
(DVI)
(DVI)
(DVI)
(DVI)
When connecting with a Component cables
Connect the video outputs
(
Y, PB, PR
)
of the digital set
top box to the CCOOMMPPOONNEENNTT IINN VVIIDDEEOO 11 jacks on
the set. Match the jack colors
(Y = green, P
B = blue, and PR = red)
Connect the audio output of the digital set-top box to
the CCOOMMPPOONNEENNTT IINN AAUUDDIIOO 11 jacks on the set.
Turn on the digital set-top box.
(
Refer to the owner’s manual for the digital set-top box.
)
Select CCoommppoonneenntt 11 input source using the IINNPPUUTT
button on the remote control.
If connected to CCOOMMPPOONNEENNTT IINN 22 input, select
CCoommppoonneenntt 22 input source.
2
1
Signal
480i
480p
576i
576p
720p
1080 i
1080 p
Component 1/2
Yes
Yes
Yes
Yes
Yes
Yes
No
HDMI1/DVI, HDMI2
No
Yes
No
Yes
Yes
Yes
Yes
1
2
3
4
EXTERNAL EQUIPMENT SETUP
13
When connecting with HDMI cable
Connect the digital set-top box to HHDDMMII//DDVVII IINN 11 or
22 jack on the set.
No separate audio connection is necessary.
Turn on the digital set-top box.
(Refer to the owner’s manual for the digital set-top box.)
Select HHDDMMII11//DDVVII or HHDDMMII 22 input source using the
IINNPPUUTT button on the remote control.
2
1
HDMI/DVI IN
2
1
RGB IN
RGB (PC)
DIGITAL
AUDIO
OUT
COMPONENT IN
VIDEO
AUDIO
HDMI/DVI IN
2
1
COMPONENT IN
VIDEO
AUDIO
DIGITAL
AUDIO
OUT
RGB IN
RGB (PC)
AUDIO
(RGB/DVI)
COMPONENT INCOMPONENT IN
VIDEOVIDEO
AUDIOAUDIO
RGB INRGB IN
RGB (PC) RGB (PC)
AUDIO
(RGB/DVI)
DIGITAL
AUDIO
OUT
HDMI/DVI INHDMI/DVI IN
2
1
HDMI-DTV OUTPUT
COMPONENT IN
VIDEO
AUDIO
DIGITAL
AUDIO
OUT
HDMI/DVI IN
RGB IN
AUDIO
(RGB/DVI)
2
(DVI)
(DVI)
(DVI) (DVI)
(DVI)
1
GG
If the digital set-top box supports Auto HDMI function, the
output resolution of the source device will be automatically
set to 1280x720p.
GG
If the digital set-top box player does not support Auto
HDMI, you need to set the output resolution appropriately.
To get the best picture quality, adjust the output resolution
of the source device to 1280x720p.
NOTE
!
3
4
EXTERNAL EQUIPMENT SETUP
14
EXTERNAL EQUIPMENT SETUP
When connecting HDMI to DVI cable
HDMI/DVI IN
2
1
RGB IN
RGB (PC)
DIGITAL
AUDIO
OUT
COMPONENT IN
VIDEO
AUDIO
HDMI/DVI IN
2
1
COMPONENT IN
VIDEO
AUDIO
DIGITAL
AUDIO
OUT
RGB IN
RGB (PC)
AUDIO
(RGB/DVI)
COMPONENT IN
VIDEO
AUDIO
RGB IN
RGB (PC)
DIGITAL
AUDIO
OUT
HDMI/DVI IN
ANTENNA
IN
COMPONENT INCOMPONENT IN
VIDEOVIDEO
AUDIOAUDIO
A
V
IN
1
VIDEO
S-VIDEO
AUDIO
MONO
( )
RS-232C IN
(CONTROL & SERVICE)
A
V
OU
T
REMOTE
CONTROL IN
DIGITALDIGITAL
AUDIO AUDIO
OUTOUT
OPTICAL
HDMI/DVI INHDMI/DVI IN
1
RGB INRGB IN
RGB (PC)
AUDIO AUDIO
(RGB/DVI)(RGB/DVI)
L R
DVI-DTV OUTPUT
VIDEO
2
(DVI)
(DVI)
(DVI)
(DVI) (DVI)
AUDIO
Connect the DVI output of the digital set-top box to the HHDDMMII/DVI IN 1 jack on the set.
Connect the audio output of the digital set-top box to the AAUUDDIIOO((RRGGBB//DDVVII)) jack on the set.
Turn on the digital set-top box.
(
Refer to the owner’s manual for the digital set-top box.
)
Select HHDDMMII11//DDVVII input source using the IINNPPUUTT button on the remote control.
2
1
1
2
3
4
EXTERNAL EQUIPMENT SETUP
15
When connecting Component cables
HDMI/DVI IN
2
1
RGB IN
RGB (PC)
S-
(C
DIGITAL
AUDIO
OUT
COMPONENT INCOMPONENT IN
VIDEOVIDEO
AUDIOAUDIO
Y L RPB PR
COMPONENT IN
VIDEO
AUDIO
RGB IN
RGB (PC)
DIGITAL
AUDIO
OUT
HDMI/DVI IN
(DVI)
(DVI)
HDMI/DVI IN
2
1
COMPONENT IN
VIDEO
AUDIO
RGB IN
RGB (PC)
DIGITAL
AUDIO
OUT
AV IN
1
VIDEO
AUDIO
( )
S-VIDEO
(DVI)
DVD SETUP
Component Input ports
To get better picture quality, connect a DVD player to the component input ports as shown below.
Component ports on the TV
YP
B
P
R
Video output ports
on DVD player
Y
Y
Y
Y
PB
B-Y
Cb
Pb
PR
R-Y
Cr
Pr
Connect the video outputs (Y, P
B, PR) of the DVD to the
CCOOMMPPOONNEENNTT IINN VVIIDDEEOO11 jacks on the set.
Match the jack colours (Y = green, P
B = blue, and PR = red).
Connect the audio outputs of the DVD to the CCOOMMPPOO--
NNEENNTT IINN AAUUDDIIOO11 jacks on the set.
Turn on the DVD player, insert a DVD.
Select CCoommppoonneenntt 11 input source using the IINNPPUUTT
button on the remote control.
If connected to CCOOMMPPOONNEENNTT IINN 22 input, select
CCoommppoonneenntt 22 input source.
Refer to the DVD player's manual for operating instruc-
tions.
2
1
1 2
3
4
5
EXTERNAL EQUIPMENT SETUP
16
EXTERNAL EQUIPMENT SETUP
When connecting with an S-Video cable
HDMI/DVI IN
2
1
RGB IN
RGB (PC)
DIGITAL
AUDIO
OUT
COMPONENT IN
VIDEO
AUDIO
COMPONENT IN
VIDEO
AUDIO
RGB IN
RGB (PC)
DIGITAL
AUDIO
OUT
HDMI/DVI IN
(DVI)
(DVI)
HDMI/DVI IN
2
1
COMPONENT IN
VIDEOVIDEO
AUDIOAUDIO
RGB IN
RGB (PC)
DIGITAL
AUDIO
OUT
AV IN
1
AV IN
1
VIDEOVIDEO
AUDIOAUDIO
MONO
( )
S-VIDEOS-VIDEO
DVI) (DVI)
L R
S-VIDEO
AUDIO
AUDIO
1
2
Connect the S-VIDEO output of the DVD to the SS--VVIIDDEEOO input on the set.
Connect the audio outputs of the DVD to the AAUUDDIIOO input jacks on the set.
Turn on the DVD player, insert a DVD.
Select AAVV11 input source using the IINNPPUUTT button on the remote control.
If connected to AAVV IINN 22 input, select AAVV22 input source.
Refer to the DVD player's manual for operating instructions.
2
1
3
4
5
EXTERNAL EQUIPMENT SETUP
17
HDMI/DVI IN
2
1
RGB IN
RGB (PC)
DIGITAL
AUDIO
OUT
COMPONENT IN
VIDEO
AUDIO
COMPONENCOMPONENT IN
VIDEOVIDEO
AUDIO
RGB INRGB IN
RGB (PC) RGB (PC)
A
(R
DIGITAL
AUDIO
OUT
HDMI/DVI INHDMI/DVI IN
2
1
HDMI-DVD OUTPUT
(DVI)
(DVI) (DVI)
HDMI/DVI IN
2
1
COMPONENT IN
VIDEO
AUDIO
RGB IN
RGB (PC)
DIGITAL
AUDIO
OUT
AV
IN
1
VIDEO
AUDIO
( )
S-VIDEO
(DVI)
1
When connecting HDMI cable
Connect the HDMI output of the DVD to the
HHDDMMII//DDVVII IINN 11 or 22 jack on the set.
No separate audio connection is necessary.
Select HHDDMMII11//DDVVII or HHDDMMII 22 input source using the
IINNPPUUTT button on the remote control.
Refer to the DVD player's manual for operating instruc-
tions.
2
1
GG
If the DVD supports Auto HDMI function, the DVD output
resolution will be automatically set to 1280x720p.
GG
If the DVD does not support Auto HDMI, you need to set
the output resolution appropriately.
To get the best picture quality, adjust the output resolution
of the DVD to 1280x720p.
NOTE
!
3
4
EXTERNAL EQUIPMENT SETUP
18
EXTERNAL EQUIPMENT SETUP
VCR SETUP
When connecting with an antenna
■
To avoid picture noise (interference), leave an adequate distance between the VCR and TV.
■
If the 4:3 picture format is used; the fixed images on the sides of the screen may remain visible on the
screen. This phenomenon is common to all manufacturers and in consequence the manufacturer’s warranty
does not cover the product bearing this phenomenon.
ANTENNA
OUT
ANTENNA
IN
AV IN 1
ANTENNA
OUT
ANTENNA
IN
AV IN 1
ANTENNA
OUT
ANTENNA
IN
VIDEO
AUDIO
( )
AUDIO
( )
S-VIDEO
DVI INHDMI/DVI IN
2
1
COMPONENT INCOMPONENT IN
VIDEOVIDEO
AUDIOAUDIO
RGB INRGB IN
RGB (PC) RGB (PC)
AUDIO
(RGB/DVI)
AV IN 1
VIDEO
AUDIO
MONO
( )
RS-232C IN
(CONTROL & SERVICE)
AV OUT
REMOTE
CONTROL IN
DIGITALDIGITAL
AUDIO AUDIO
OUTOUT
OPTICAL
S-VIDEO
ANTENNAANTENNA
ININ
HDMI/DVI IN
2
1
COMPONENT IN
VIDEO
AUDIO
RGB IN
RGB (PC)
DIGITAL
AUDIO
OUT
A
V IN 1
VIDEO
AUDIO
( )
HDMI/DVI IN
2
1
COMPONENT IN
VIDEO
AUDIO
RGB IN
RGB (PC)
DIGITAL
AUDIO
OUT
A
V IN 1
VIDEO
AUDIO
( )
S-VIDEO
VIDEO
(DVI)
(DVI)
(DVI)
AUDIO
L R
S-VIDEO VIDEO
OUTPUT
SWITCH
ANT IN
ANT OUT
Wall Jack
Antenna
1
2
Connect the RF antenna out socket of the VCR to the AANNTTEENNNNAA IINN socket on the set.
Connect the antenna cable to the RF antenna in socket of the VCR.
Set VCR output switch to 3 or 4 and then tune TV to the same programme number.
Insert a video tape into the VCR and press PLAY on the VCR.
(
Refer to the VCR owner’s manual.
)
2
1
3
4
EXTERNAL EQUIPMENT SETUP
19
When connecting with an RCA cable
ANTENNA
OUT
ANTENNA
IN
AV IN 1
ANTENNA
OUT
ANTENNA
IN
AV IN 1
ANTENNA
OUT
ANTENNA
IN
VIDEO
AUDIO
( )
AUDIO
( )
S-VIDEO
HDMI/DVI IN
2
1
COMPONENT IN
VIDEO
AUDIO
RGB IN
RGB (PC)
DIGITAL
AUDIO
OUT
ANTENNA
IN
HDMI/DVI IN
2
1
COMPONENT IN
VIDEO
AUDIO
RGB IN
RGB (PC)
DIGITAL
AUDIO
OUT
AV IN 1A
V IN 1
VIDEOVIDEO
AUDIOAUDIO
MONO
( )
S-VIDEO
HDMI/DVI IN
2
1
COMPONENT IN
VIDEO
AUDIO
RGB IN
RGB (PC)
DIGITAL
AUDIO
OUT
A
V IN 1
VIDEO
AUDIO
( )
S-VIDEO
L R
S-VIDEOVIDEO
OUTPUT
SWITCH
ANT IN
ANT OUT
(DVI)
(DVI)
(DVI)
AUDIO
Connect the AAUUDDIIOO/VVIIDDEEOO jacks between TV and
VCR. Match the jack colours(Video = yellow, Audio Left =
white, and Audio Right = red)
Insert a video tape into the VCR and press PLAY on the
VCR.
(
Refer to the VCR owner’s manual.
)
Select AAVV11 input source using the IINNPPUUTT button on
the remote control.
If connected to AAVV IINN22, select AAVV22 input source.
1
GG
If you have a mono VCR, con-
nect the audio cable from the
VCR to the AAUUDDIIOO
LL((MMOONNOO)) jack of the set.
NOTE
!
1
3
2
EXTERNAL EQUIPMENT SETUP
20
EXTERNAL EQUIPMENT SETUP
GG
Do not connect to both Video
and S-Video at the same time. In
the event that you connect both
Video and the S-Video cables,
only the S-Video will work.
CAUTION
GG
The picture quality is improved: ; compared to normal
composite (RCA cable) input.
NOTE
!
ANTENNA
OUT
ANTENNA
IN
AV IN 1
ANTENNA
OUT
ANTENNA
IN
AV IN 1
ANTENNA
OUT
ANTENNA
IN
VIDEO
AUDIO
( )
AUDIO
( )
S-VIDEO
HDMI/DVI IN
2
1
COMPONENT IN
VIDEO
AUDIO
RGB IN
RGB (PC)
DIGITAL
AUDIO
OUT
ANTENNA
IN
HDMI/DVI IN
2
1
COMPONENT IN
VIDEO
AUDIO
RGB IN
RGB (PC)
DIGITAL
AUDIO
OUT
A
V IN 1
VIDEO
AUDIO
( )
HDMI/DVI IN
2
1
COMPONENT IN
VIDEO
AUDIO
RGB IN
RGB (PC)
DIGITAL
AUDIO
OUT
AV IN 1A
V IN 1
VIDEOVIDEO
AUDIOAUDIO
MONO
( )
S-VIDEOS-VIDEO
L R
S-VIDEO
VIDEO
OUTPUT
SWITCH
ANT IN
ANT OUT
(DVI)
(DVI)
(DVI)
AUDIO
When connecting with an S-Video cable
Connect the S-VIDEO output of the VCR to the SS--VVIIDDEEOO
input on the set.
Connect the audio outputs of the VCR to the AAUUDDIIOO
input jacks on the set.
Insert a video tape into the VCR and press PLAY on the
VCR.
(
Refer to the VCR owner’s manual.
)
Select AAVV11 input source using the IINNPPUUTT button on
the remote control.
If connected to AAVV IINN 22 input, select AAVV22 input
source.
2
1
1
2
3
4
EXTERNAL EQUIPMENT SETUP
21
OTHER A/V SOURCE SETUP
AV IN 2AV IN 2
L/L/MONOMONO
R
AUDIOAUDIO
VIDEOVIDEO
S-VIDEOS-VIDEO
L R
VIDEO
Camcorder
Video Game Set
Connect the AAUUDDIIOO/VVIIDDEEOO jacks between TV and
external equipment. Match the jack colours
.
(
Video = yel-
low, Audio Left = white, and Audio Right = red
)
Select AAVV22 input source using the IINNPPUUTT button on
the remote control.
If connected to AAVV IINN11 input, select AAVV11 input source.
Operate the corresponding external equipment.
1
1
2
3
EXTERNAL EQUIPMENT SETUP
22
EXTERNAL EQUIPMENT SETUP
PC SETUP
This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings.
The TV perceives 1024x768, 60Hz as DTV 720p based on the PC graphic card. If necessary, change the
screen scanning rate for the graphic card accordingly.
When connecting D-sub 15pin cable
GG
Check the image on your TV. There may be noise associ-
ated with the resolution, vertical pattern, contrast or
brightness in PC mode. If noise is present, change the PC
output to another resolution, change the refresh rate to
another rate or adjust the brightness and contrast on the
VIDEO menu until the picture is clear. If the refresh rate of
the PC graphic card can not be changed, change the PC
graphic card or consult the manufacturer of the PC
graphic card.
NOTE
!
COMPONENT IN
VIDEO
AUDIO
DIGITAL
AUDIO
OUT
HDMI/DVI IN
RGB IN
AUDIO
(RGB/DVI)
ANTEN
IN
HDMI/DVI INHDMI/DVI IN
2
COMPONENT INCOMPONENT IN
VIDEOVIDEO
AUDIOAUDIO
VIDEO
S-VIDEO
MON
(
RS-232C IN
(CONTROL & SERVICE)
REMOTE
CONTROL IN
DIGITADIGITAL
AUDIO AUDIO
OOUT
OPTICA
RGB INRGB IN
RGB (PC)
AUDIO
(RGB/DVI)
RGB OUTPUT
AUDIO
2
(DVI)
(DVI)(DVI)
Connect the RGB output of the PC to the RRGGBB
((
PPCC)) jack on the set.
Connect the PC audio output to the AAUUDDIIOO
((
RRGGBB//DDVVII
))
jjack on the set.
Turn on the PC and the set.
Select RRGGBB--PPCC input source in input option of Special
menu.
Once you select RRGGBB--PPCC in input option of Special
menu, IINNPPUUTT button is also available for this purpose.
2
1
1
2
4
3
5
EXTERNAL EQUIPMENT SETUP
23
When connecting HDMI to DVI cable
GG
If the PC has a DVI output and no HDMI output, a separate audio connection is necessary.
GG
If the PC does not support Auto DVI, you need to set the output resolution appropriately. To get the
best picture quality, adjust the PC graphics card's output resolution to 1024x768, 60Hz.
NOTE
!
ANTENNA
IN
COMPONENT INCOMPONENT IN
VIDEOVIDEO
AUDIOAUDIO
AV IN 1
VIDEO
S-VIDEO
AUDIO
MONO
( )
RS-232C IN
(CONTROL & SERVICE)
AV OUT
REMOTE
CONTROL IN
DIGITALDIGITAL
AUDIO AUDIO
OUTOUT
OPTICAL
HDMI/DVI INHDMI/DVI IN
1
RGB INRGB IN
RGB (PC)
AUDIO AUDIO
(RGB/DVI)(RGB/DVI)
L R
DVI-PC OUTPUT
VIDEO
HDMI/DVI IN
COMPONENT IN
VIDEO
AUDIO
DIGITAL
AUDIO
OUT
RGB IN
2
(DVI) (DVI)
(DVI)
AUDIO
Connect the DVI output of the PC to the HHDDMMII//DDVVII IINN 11jack on the set.
Connect the PC audio output to the AAUUDDIIOO
((
RRGGBB//DDVVII
))
jack on the set.
Turn on the PC and the set.
Select HHDDMMII11//DDVVII input source using the IINNPPUUTT button on the remote control.
2
1
1
2
4
3
EXTERNAL EQUIPMENT SETUP
24
EXTERNAL EQUIPMENT SETUP
GG
To get the the best picture quality, adjust the PC
graphics card to 1280x768, 60Hz.
GG
Depending on the graphics card, DOS mode may
not work if a HDMI to DVI Cable is in use.
GG
When Source Devices are connected with
HDMI/DVI Input, the output PC Resolution(VGA,
SVGA, XGA), Position and Size may not fit on the
Screen. As shown in the picture below, press the
OK button to adjust the screen Position of the TV
SET and contact a PC graphics card service cen-
ter.
GG
When Source Devices connected with HDMI/DVI
Input, output TV SET Resolution (480p, 576p,
720p, 1080i, 1080p) and TV SET Display fit
EIA/CEA-861-B Specification to Screen. If not,
refer to the Manual of HDMI/DVI Source Devices
or contact your service centre.
GG
If the HDMI/DVI Source Device is not connected
to the Cable or if there is a poor cable connec-
tion, "No signal" is displayed in the HDMI/DVI
Input. In this case, that Video Resolution is not
supported. If "Invalid Format" is displayed, refer to
the Source Device manual or contact your service
centre.
GG
Avoid keeping a fixed image on the screen for a
long period of time. The fixed image may become
permanently imprinted on the screen.
GG
The synchronization input form for Horizontal
and Vertical frequencies is separate.
NOTES
!
Supported Display Specifications (RGB/HDMI-PC )
Horizontal Vertical
Frequency(kHz) Frequency(Hz)
31.468 70.08
31.469 59.94
37.500 75.00
37.879 60.31
46.875 75.00
48.363 60.00
56.476 70.06
60.023 75.02
47.776 59.870
47.720 59.799
47.13 59.65
Resolution
720x400
640x480
800x600
1024x768
Supported Display Specifications (HDMI-DTV)
Horizontal Vertical
Frequency(kHz) Frequency(Hz)
31.25 50.00
31.47/31.50 59.94/60.00
44.96/45.00 59.94/60.00
37.50 50.00
28.125 50.00
33.72/33.75 59.94/60.00
67.432/67.500 59.939/60.00
56.25 50.00
26.97/27.00 23.97/24.00
33.71/33.75 29.97/30.00
Resolution
720x480
720x576
1280x720
1920x1080i
1280x768
1360x768
1920x1080p
1366x768
25
EXTERNAL EQUIPMENT SETUP
Screen Setup for PC mode
Overview
This function works in the following mode:
Component1, Component2, RGB-PC, HDMI1/DVI or HDMI2.
Resolution function works only RGB-PC mode.
(1024/1280/1360/1366x768, 60Hz)
Note: Some signal from some graphics boards may not function properly. If the results are unsatisfactory, adjust
your monitor’s position, size and phase manually.
Adjustment for screen Resolution, Position,
Clock and Phase
Press the
OO KK
button and then use
DD
or
EE
button to select
RReessoolluuttiioonn,, PPoossiittiioonn
,
CClloocckk
, or
PPhhaassee
.
Press the
GG
button and then use
DD
or
EE
or
FF
or
GG
but-
ton to make appropriate adjustments.
■
The
PPhhaassee
adjustment range is
--3322
~
++3322
.
The
PPhhaassee
only works in RGB-PC mode.
■
The
CClloocckk
adjustment range is
--5500
~
++5500
.
The
CClloocckk
only works in RGB-PC mode.
Press the
OOKK
button.
Press the
OO KK
button and then use
DD
or
EE
button to select
RReesseett
.
Press the
GG
button and then use
FF
or
GG
button to select
YYeess
.
Press the
OOKK
button.
To initialize the adjusted values
This function allows you to return to the good picture repro-
duction programmed at the factory and cannot be change.
1
2
3
1
2
3
Initializing (Reset to original factory values)
1 2 3
1 2 3
RReessoolluuttiioonn
This function allows you select
resolution of XGA/WXGA. (Up
to 1366x768, 60Hz)
PPoossiittiioonn
This function is to adjust picture to
left/right and up/down as you prefer.
CClloocckk
This function is to minimize any ver-
tical bars or stripes visible on the
screen background. And the hori-
zontal screen size will also change.
PPhhaassee
This function allows you to remove
any horizontal noise and clear or
sharpen the image of characters. In
HDMI/DVI-PC mode, PHASE is not
available.
Resolution
GG
Position
Clock
Phase
Reset
Close
Initialize Settings
1024 x 768
1280 x 768
1360 x 768
1366 x 768
Resolution
Position
Clock
Phase
Reset
Yes
No
SelectPrev OK
FF GG
MENU
EXTERNAL EQUIPMENT SETUP
26
EXTERNAL EQUIPMENT SETUP
AV OUTPUT SETUP
The TV has a special signal output capability which allows you to hook up a second TV or monitor.
HDMI/DVI IN
2
1
COMPONENT IN
VIDEO
AUDIO
RGB IN
RGB (PC)
AV IN 1
VIDEO
IDEO
AUDIO
MONO
( )
RS-232C IN
NTROL & SERVICE)
REMOTE
ONTROL IN
DIGITAL
AUDIO AUDIO
OUTOUT
OPTICAL
AV OUTAV O
UT
VIDEO
L
R
S-VIDEO
VIDEO
(DVI)
AUDIO
Connect the second TV or monitor to the
TV’s AAVV OOUUTT jacks.
See the Operating Manual of the second TV or monitor
for further details regarding that device’s input settings.
GG
Digital, Component1-2, RGB-PC, HDMI1/DVI, HDMI2
input sources cannot be used for AV out.
GG
We recommend to use the AV OUT jacks for VCR recording.
NOTE
!
2
1
1
EXTERNAL EQUIPMENT SETUP
27
DIGITAL AUDIO OUTPUT SETUP
Send the TV’s audio to external audio equipment via the Digital Audio Output
(
Optical
)
port.
ANTENNA
OUT
ANTENNA
IN
DIGITAL AUDIO
OUT
OPTICAL
ANTENNA
OUT
ANTENNA
IN
DIGITAL AUDIO OUT
OPTICAL
IN
HDMI/DVI IN
2
1
NCOMPONENT IN
VIDEO
AUDIOAUDIO
RGB IN
RGB (PC)
O
DVI)
A
V
I
N
1
VIDEO
S-VIDEO
AUDIO
MONO
( )
RS-232C IN
(CONTROL & SERVICE)
A
V
OUT
REMOTE
CONTROL IN
VIDEO
DIGITALDIGITAL
AUDIO AUDIO
OUTOUT
OPTICALPTICAL
(DVI)
AUDIO
GG
When connecting with external audio equipments, such
as amplifiers or speakers, please turn the TV speakers
off.
NOTE
!
GG
Do not look into the optical output port. Looking at the
laser beam may damage your vision.
CAUTION
Connect one end of an optical cable to the TV Digital
Audio
(
Optical
)
Output port.
Connect the other end of the optical cable to the digi-
tal audio
(
optical
)
input on the audio equipment.
Set the “TV Speaker option - Off” in the AUDIO
menu. See the external audio equipment instruction
manual for operation.
2
3
1
1
2
WATCHING TV/PROGRAMME CONTROL
28
WATCHING TV/PROGRAMME CONTROL
REMOTE CONTROL KEY FUNCTIONS
When using the remote control, aim it at the remote control sensor on the TV.
OK
TVD/A
INPUT
DVD
EXIT
VOL
SIZE
INDEX
TIME
REVEAL
Q.VIEW
PR
FAV
LIST
I/II
MENU
RATIO
TEXT
GUIDE
INFO
VCR
POWER
123
456
789
0
APM
?
MODE
BRIGHT
SUBTITLE
SLEEP
!!
!
MUTE
INPUT
PAGE
SIMPLINK
D/A INPUT
(Digital TV /
Analogue TV)
INPUT
POWER
SIMPLINK
BRIGHT
OK
THUMBSTICK
(Up/Down/Left
Right)
VOLUME
UP/DOWN
Q.VIEW
MUTE
PROGRAMME
UP/DOWN
PAGE UP/DOWN
APM
SLEEP
I/II
Selects digital or analogue mode.
External input modes rotate in regular sequence: Digital,
Analogue, AV1-2, Component 1-2, RGB-PC,
HDMI1/DVI, HDMI2.
Switches the set between ON and STANDBY.
See a list of AV devices connected to TV.
When you toggle this button, the Simplink menu appears
at the screen
GG
pp.. 4466--4477
Adjusts brightness on screen.
It returns to the default settings brightness by changing
mode source.
Control some video cassette recorders or DVD players
("RECORD" button is not available for DVD player).
Accepts your selection or displays the current mode.
Adjusts menu settings.
Selects menu item.
Increase/decrease the sound level.
Returns to the previously viewed programme.
Switches the sound on or off.
Selects a programme.
Move from one full set of screen information to the next
one.
Selects a programme. Selects numbered items in a menu.
Concurrently, compare with the Dynamic, Standard, Mild,
User1 and User2 on the screen.
Sets the sleep timer.
Selects the sound output or the audio mode.
NUMBER button
VCR/DVD
control buttons
1
WATCHING TV/PROGRAMME CONTROL
29
■
Open the battery compartment cover on the back
side and install the batteries matching correct
polarity
(
+with +, -with -
)
.
■
Install two 1.5V AA batteries. Don’t mix old or
used batteries with new ones.
■
Close cover.
■
Use a remote control up to 7 meters distance and
30 degree (left/right) within the receiving unit
scope.
■
Dispose of used batteries in a recycle bin to
preserve environment.
R
!!
TVD/A
INPUT
DVD
TEXT
GUIDE
VCR
POWER
RATIO
BRIGHT
SIMPLINK
INFO
!
INPUT
MODE
Installing Batteries Remote control effective range
TV, VCR, DVD
RATIO
INFOoo
GUIDE
Coloured
buttons
EXIT
SUBTITLE
MENU
LIST
FAV
(FAVOURITE)
TELETEXT
BUTTONS
Selects the remote operating mode: TV, VCR, DVD. Select other operating modes, for the
remote to operate external devices.
Selects your desired picture format.
Shows the present screen information.
Shows a programme schedule.
They are used as per the indications or functions displayed on the TV screen in the case of
Text displays (Teletext, EPG) and programme edit.
Returns to TV viewing from any menu.
Recalls your preferred subtitle in digital mode.
Selects a menu.
Displays the programme table.
Displays the selected favourite programmes.
These buttons are used for teletext.
Text button is used to enable teletext services while other buttons are for teletext functions.
* For further details, see the ‘Teletext’ section.
1
!
WATCHING TV/PROGRAMME CONTROL
30
WATCHING TV/PROGRAMME CONTROL
INITIALIZING SETUP
If the OSD (On Screen Display) is displayed on the screen
as figure 1 after turning on the set, you can adjust the Auto
Programme tuning, Time Zone selection or Password set-
ting.
1
Welcome
The Following process guides you
to complete initial settings. This
initial setup appears the first
time you turn the TV on. The
settings can be changed in menu
once entered.
Installation Guide
Next
Figure 1.
GG
It will automatically disappear after approx. 40 seconds
unless a button is pressed.
NOTE
!
If your TV will be turned on, you will be able to use its features.
NOTE
!
GG
If you intend to be away on vacation, disconnect the
power plug from the wall power outlet.
Ensure the power cord is connected correctly.
When connected to power the TV switches to standby mode.
■
In standby mode, press the , IINNPPUUTT, PPRR ((
DD
or
EE
))
button on the TV or press the PPOOWWEERR, IINNPPUUTT, DD//AA
IINNPPUUTT, PPRR ((++ or --)), NNuummbbeerr ((00~99)) button on the
remote control.
Select the viewing source by using the IINNPPUUTT button on
the remote control.
■
This TV is programmed to remember which mode it was
last set to, even if you turn the TV off.
When finished using the TV, press the PPOOWWEERR button on
the remote control. The TV reverts to standby mode.
OK
TV
DVD
EXIT
VOL
Q.VIEW
PR
LIST
MENU
TEXT
GUIDE
VCR
123
456
789
0
D/A
INPUT
POWERPOWER
APM
BRIGHT
RATIO
SUBTITLE
FAV
SLEEP
MUTE
INFO
!
PAGE
INPUT
MODE
SIMPLINK
POWER
1
2
3
TURNING ON THE TV
WATCHING TV/PROGRAMME CONTROL
31
VOL
SIZE
INDEX
TIME
REVEAL
Q.VIEW
PR
123
456
789
0
POWER
?
APM
SLEEP
I/II
MUTE
PAGE
POWER
Press the PPRR ++ or -- or NNUUMMBBEERR buttons to select a
programme number.
Automatically finds all programmes available through
antenna or cable inputs, and stores them in memory on
the programme list.
1
VOLUME ADJUSTMENT
Press the VVOOLL ++ or -- button to adjust the volume.
If you want to switch the sound off, press the MMUUTTEE button.
You can cancel the Mute function by pressing the MMUUTTEE,
II //IIII or VVOOLL ++ or -- button.
POWER
OK
TVD/A
INPUT
DVD
SIZE
INDEX
TIME
REVEAL
Q.VIEW
LIST
EXIT
MENU
TEXT
GUIDE
VCR
POWER
123
456
789
0
?
APM
RATIO
FAV
SUBTITLE
SLEEP
I/II
VOL
BRIGHT
MUTE
INFO
!
PAGE
PR
INPUT
MODE
SIMPLINK
POWER
Adjust the volume to suit your personal preference.
1
2
3
PROGRAMME SELECTION
WATCHING TV/PROGRAMME CONTROL
32
EPG (ELECTRONIC PROGRAMME GUIDE)
-
In Digital Mode Only
WATCHING TV/PROGRAMME CONTROL
This system has an Electronic Programme Guide (EPG) to help your naviga-
tion through all the possible viewing options.
The EPG supplies information such as programme listings, start and end times
for all available services. In addition, detailed information about the pro-
gramme is often available in the EPG (the availability and amount of these
programme details will vary, depending on the particular broadcaster).
This function can be used only when the EPG information is broadcasted by
broadcasting companies.
The EPG displays the programme description for next 7 days.
Switch on/off EPG
Select a programme
POWER
TVD/A
INPUT
DVD
EXIT
LIST
MENU
TEXT
GUIDE
VCR
POWER
RATIO
FAV
SUBTITLE
BRIGHT
INFO
!
INPUT
MODE
SIMPLINK
OK
POWER
Press the GGUUIIDDEE button to switch on EPG.
Press the GGUUIIDDEE or EEXXIITT button again to switch off EPG and return to TV viewing.
2
1
Press the
DD
or
EE
or
FF
or
GG
buttons to select desired programme, then press the OOKK
button to display the selected programme.
1
WATCHING TV/PROGRAMME CONTROL
33
Button Function in NOW/NEXT Guide Mode
Remote Control Buttons
Function
GREEN Change to 7Day’s EPG Guide
YELLOW Shows the Schedule List
BLUE Selects the Radio programmes
D
/
E
/
F
/
G
Select the Broadcasting Programme
EXIT Switch off EPG
INFO i The detail information on or off
Button Function in 7 Days Guide Mode
Remote Control Buttons
Function
GREEN Change to Now/Next Guide
RED Enter Timer Reservation/Cancel setting mode
YELLOW Shows the Schedule List
BLUE Selects the Radio programmes
D
/
E
/
F
/
G
Select the Broadcasting Programme
EXIT Switch off EPG
Page Move Selects the page
Day Move Selects the day
INFO i The detail information on or off
WATCHING TV/PROGRAMME CONTROL
34
WATCHING TV/PROGRAMME CONTROL
Remote Control Buttons
Function
YELLOW Change to Guide
PR +/ - Page Up/Down
Delete the selected item
Button Function in Reservation Setting Mode
Schedule List
Button Function in Extended Description Box
Remote Control Buttons
Function
Change to the selected channel
INFO i The detail information on or off
Digital
35
WATCHING TV/PROGRAMME CONTROL
ON SCREEN MENUS SELECTION AND ADJUSTMENT
Press the MMEENNUU button and then use
DD
or
EE
button to select the each menu.
Press the
GG
button and then use
DD
or
EE
or
FF
or
GG
buttons to display the available menus.
Your TV's OSD
(
On Screen Display
)
may differ slightly from what is shown in this manual.
SETUP
SPECIAL
LOCK
TIME
Auto programme
Manual programme
Programme edit
Signal strength
Set ID
PSM
Color Temperature
XD
Advanced
Video preset
Auto clock
Manual clock
Off time
On time
Sleep timer
Auto sleep
Input
Subtitle
Child lock
ARC
XD demo
SIMPLINK
AUDIO
SSM
AVL
Balance
TV Speaker
Lock system
Set password
Block programme
Parental guidance
Aux. block
2
1
36
AUTO PROGRAMME TUNING
Press the MMEENNUU button and then
DD
or
EE
button to
select the SETUP menu.
Press the
GG
button and then
DD
or
EE
button to select
AAuuttoo pprrooggrraammmmee.
Press the
GG
button to select SSttoorraaggee ffrroomm.
Select the beginning programme number with the
DD
or
EE
button or NUMBER buttons.
Press the
GG
button to select TToo ssttaarrtt.
Press the OO KK button to begin auto programming.
All receivable stations are stored.
To stop auto programming, press the OO KK button.
When auto programming is completed, the
PPrrooggrraammmmee eeddiitt menu appears on the screen. See
the ‘Programme Edit’ section to edit the stored pro-
gramme.
Press EEXXIITT button to return to normal TV viewing.
Up to 100 TV stations can be stored in this set by programme num-
bers (0 to 99). Once you have preset the stations, you will be able
to use the PPRR ++ or -- or NUMBER buttons to scan the stations you
programmed. Stations can be tuned using automatic or manual
modes.
A password is required to gain access to Auto programme or Manual
programme menu if the Lock system is turned on.
If you forgot your password, press ‘7’, ‘7’, ‘7’, ‘7’ on the remote con-
trol.
In Australia, if no station name can be assigned to a station, the pro-
gramme number is assigned and stored as ----- followed by a number
see ‘Assigning a station name’ section to assign the station name.
Auto programme
Manual programme
Programme edit
Signal strength
Set ID
Auto programme
G
Manual programme
Programme edit
Signal strength
Set ID
2
3
4
5
6
1
DD
EE
Storage from 0
G
To start
Auto programme
G
Manual programme
Programme edit
Signal strength
Set ID
Storage from 0
To start
G
All of service-information
will be updated.
Press (OK) to start.
Processing
Auto programme...
26 %
5 channels found
Press (OK) to start
digital programme scan.
MENU Prev
2 3
4 5
1
VOL
Q.VIEW
123
456
789
POWER
OK
EXIT
LIST
MENU
SUBTITLE
FAV
MUTE
PR
PAGE
POWER
WATCHING TV/PROGRAMME CONTROL
WATCHING TV/PROGRAMME CONTROL
37
WATCHING TV/PROGRAMME CONTROL
MANUAL PROGRAMME TUNING
Press the MMEENNUU button and then use
DD
or
EE
button
to select the SSEETTUUPP menu.
Press the
GG
button and then use
DD
or
EE
button to
select MMaannuuaall pprrooggrraammmmee.
Press the
GG
button and then use
DD
or
EE
button to
select the programme number you want to add.
Press the OO KK button to store the programme. When
the programme number you want to add is already
added in programme list, the message ““AAllrreeaaddyy pprroo--
ggrraammmmeedd cchhaannnneell.. DDoo yyoouu wwaanntt ttoo uuppddaattee??””
will appear. If you want to keep on manual program-
ming, select YES with using
FF
or
GG
button . Then,
press the OO KK button. Otherwise select NN OO.
When the programme is stored, the Programme edit
menu appears on the screen. See the ‘Programme Edit’
section to edit the stored programme.
Press EEXXIITT button to return to normal TV viewing.
Auto programme
Manual programme
G
Programme edit
Signal strength
Set ID
Auto programme
Manual programme
Programme edit
Signal strength
Set ID
Auto programme
Manual programme
Programme edit
Signal strength
Set ID
2
1
4
3
5
Select the digital
channel
for manual scanning
7
Signal strength
DD
EE
In Digital Mode
Manual programme lets you manually add a programme to
your programme list.
Select the digital
channel
for manual scanning
7
Signal strength
3 4
2
1
TVD/A
INPUT
DVD
TEXT
GUIDE
VCR
POWERPOWER
BRIGHT
RATIO
OK
EXIT
LIST
MENU
SUBTITLE
FAV
INFO
!
INPUT
MODE
SIMPLINK
POWER
38
MANUAL PROGRAMME TUNING
Continued
In Analogue Mode
Manual programme lets you manually tune and arrange the sta-
tions in whatever order you desire. Also you can assign a station
name with five characters to each programme number.
Auto programme
Manual programme
G
Programme edit
Signal strength
Set ID
Auto programme
Manual programme
Programme edit
Signal strength
Set ID
Press the MMEENNUU button and then use
DD
or
EE
button
to select the SSEETTUUPP menu.
Press the
GG
button and then use
DD
or
EE
button to
select MMaannuuaall pprrooggrraammmmee.
Press the
GG
button to select BBaanndd. Press the
DD
or
EE
button to select VV//UUHHFF or CCaabbllee as required.
Press the
GG
button to select CChhaannnneell. Press the
DD
or
EE
button to select the desired channel number.
Press the
GG
button to select SSeeaarrcchh. Press the
DD
or
EE
button to commence searching. If a station is found
the search will stop.
If this station is the one required, press the
FF
or
GG
button to select Storage. Select the desired pro-
gramme number with the
DD
or
EE
button.
Press the OO KK button to store it.
To store another station, repeat steps 3 to 7.
Press EEXXIITT button to return to normal TV viewing.
2
1
4
5
6
7
8
3
9
Auto programme
Manual programme
Programme edit
Signal strength
Set ID
DD
EE
Band V/UHF G
Channel 1
Search
Up/Down
Fine
Up/Down
Name - - - - -
Storage 0
Band V/UHF
Channel 1
Search
Up/Down
Fine
Up/Down
Name - - - - -
Storage 0
Press (OK) to store.
3 4 5 6 7
2
1
TVD/A
INPUT
DVD
TEXT
GUIDE
VCR
POWERPOWER
BRIGHT
RATIO
OK
EXIT
LIST
MENU
SUBTITLE
FAV
INFO
!
INPUT
MODE
SIMPLINK
POWER
WATCHING TV/PROGRAMME CONTROL
WATCHING TV/PROGRAMME CONTROL
39
WATCHING TV/PROGRAMME CONTROL
FINE TUNING -
In Analogue Mode only
Normally fine tuning is only necessary if reception is poor.
The finely tuned programme will be indicated by a yellow
number during programme selection.
Press the MMEENNUU button and then use
DD
or
EE
button
to select the SSEETTUUPP menu.
Press the
GG
button and then use
DD
or
EE
button to
select MMaannuuaall pprrooggrraammmmee.
Press the
GG
button and then
FF
or
GG
button to
select FFiinnee.
Press the
DD
or
EE
button to fine tune for the best
picture and sound.
Press the OO KK button to store.
Press EEXXIITT button to return to normal TV viewing.
2
3
4
5
6
1
Auto programme
Manual programme
G
Programme edit
Signal strength
Set ID
Auto programme
Manual programme
Programme edit
Signal strength
Set ID
Auto programme
Manual programme
Programme edit
Signal strength
Set ID
DD
EE
Band V/UHF
Channel 1
Search
Up/Down
Fine
Up/Down
G
Name - - - - -
Storage 0
Band V/UHF
Channel 1
Search
Up/Down
Fine
Up/Down
Name - - - - -
Storage 0
Press (OK) to store.
3 4 5
2
1
TVD/A
INPUT
DVD
TEXT
GUIDE
VCR
POWERPOWER
BRIGHT
RATIO
OK
EXIT
LIST
MENU
SUBTITLE
FAV
INFO
!
INPUT
MODE
SIMPLINK
POWER
40
ASSIGNING A STATION NAME -
In Analogue Mode only
You can assign a station name to each programme number.
Press the MMEENNUU button and then use
DD
or
EE
button
to select the SSEETTUUPP menu.
Press the
GG
button and then use
DD
or
EE
button to
select MMaannuuaall pprrooggrraammmmee..
Press the
GG
button and then use
FF
or
GG
button to
select NNaammee.
Press the
DD
or
EE
button. You can use the numeric 00
to 99, the alphabet AA to ZZ ++, --, and blank.
Press the
FF
or
GG
button to select the position and
make your choice of the second character, and so on.
Press the OO KK button to store.
Press EEXXIITT button to return to normal TV viewing.
2
3
4
5
6
7
1
Auto programme
Manual programme
G
Programme edit
Signal strength
Set ID
Auto programme
Manual programme
Programme edit
Signal strength
Set ID
Auto programme
Manual programme
Programme edit
Signal strength
Set ID
DD
EE
Band V/UHF
Channel 1
Search
Up/Down
Fine
Up/Down
Name - - - - - G
Storage 0
Band V/UHF
Channel 1
Search
Up/Down
Fine
Up/Down
Name - - - - -
Storage 0
Press (OK) to store.
3 4 5
2
1
TVD/A
INPUT
DVD
TEXT
GUIDE
VCR
POWERPOWER
BRIGHT
RATIO
OK
EXIT
LIST
MENU
SUBTITLE
FAV
INFO
!
INPUT
MODE
SIMPLINK
POWER
WATCHING TV/PROGRAMME CONTROL
WATCHING TV/PROGRAMME CONTROL
41
WATCHING TV/PROGRAMME CONTROL
PROGRAMME EDIT
This function enables you to delete or skip the stored pro-
grammes. Also you can move some stations to other pro-
gramme numbers or copy blank station data into the
selected programme number.
Press the MMEENNUU button and then use
DD
or
EE
button
to select the SSEETTUUPP menu.
Press the
GG
button and then use
DD
or
EE
button to
select PPrrooggrraammmmee eeddiitt...
Press the
GG
button.
■
DDeelleettiinngg aa pprrooggrraammmmee ((IInn AAnnaalloogguuee MMooddee OOnnllyy))
a. Select a programme to be deleted with the
DD
or
EE
or
FF
or
GG
buttons.
b. Press the RREEDD button twice. The selected pro-
gramme is deleted, all the following programmes
are shifted up one position.
■
CCooppyyiinngg aa pprrooggrraammmmee ((IInn AAnnaalloogguuee MMooddee OOnnllyy))
a. Select a programme to be copied with the
DD
or
EE
or
FF
or
GG
buttons.
b. Press the GGRREEEENN button.
c. Move the programme to the desired programme
number with the
DD
or
EE
or
FF
or
GG
buttons.
d. Press the GGRREEEENN button again to copy the pro-
gramme. All the following programmes are shifted
down one position.
2
3
4
1
Auto programme
Manual programme
Programme edit
G
Signal strength
Set ID
Auto programme
Manual programme
Programme edit
Signal strength
Set ID
Selection (
G
or ) leads
you to the programme edit
screen.
3 4 5
2
1
POWER
TVD/A
INPUT
DVD
LIST
TEXT
GUIDE
VCR
POWER
BRIGHT
RATIO
SUBTITLE
FAV
INFO
!
INPUT
MODE
SIMPLINK
EXIT
MENU
POWER
OK
42
■
MMoovviinngg aa pprrooggrraammmmee ((IInn AAnnaalloogguuee MMooddee OOnnllyy))
a. Select a programme to be moved with
DD
or
EE
or
FF
or
GG
buttons.
b. Press the YYEELLLLOOWW button.
c. Move the programme to the desired programme
number with the
DD
or
EE
or
FF
or
GG
buttons.
d. Press the YYEELLLLOOWW button again to release this
function.
■
Skipping a programme number
a. Select a programme number to be skipped with
DD
or
EE
or
FF
or
GG
buttons.
b. Press the BBLLUUEE button. The skipped programme
number turns to blue.
c. Press the BBLLUUEE button again to release the
skipped programme.
When a programme number is skipped it means that
you will be unable to select it using the PPRR++ or --
button during normal TV viewing. If you want to
select the skipped programme, directly enter the pro-
gramme number with the NUMBER buttons or select
it in the programme edit or table menu.
■
SSeelleeccttiinngg FFaavvoouurriittee PPrrooggrraammmmee
a. Select your favourite programme number with
DD
or
EE
or
FF
or
GG
buttons and then press the FFAAVV
button. It will automatically include the selected
programme into your favourite programmes list and
a heart mark will appear in front of that programme
number. You can store up to 10 programmes.
Repeatedly press the FFAAVV button to select stored
favourite programmes in normal TV viewing.
5
POWER
TVD/A
INPUT
DVD
VOL
SIZE
INDEX
TIME
REVEAL
Q.VIEW
LIST
TEXT
GUIDE
VCR
POWER
123
456
789
0
?
APM
BRIGHT
RATIO
SUBTITLE
FAV
SLEEP
I/II
PR
MUTE
INFO
!
PAGE
INPUT
MODE
SIMPLINK
EXIT
MENU
POWER
OK
WATCHING TV/PROGRAMME CONTROL
WATCHING TV/PROGRAMME CONTROL
43
WATCHING TV/PROGRAMME CONTROL
CALLING UP THE PROGRAMME LIST
You can check the programmes stored in the memory by
displaying the programme list.
Press the PPRR++ or -- button to changes current page
into previous/next page.
Press the LLIISSTT button to return to normal TV viewing.
Displaying programme list
Selecting a programme in the programme list
Paging through a programme list
■
Press the LLIISSTT button to display the Programme
table menu.
The programme list appears on the screen.
Select a programme with the
DD
or
EE
or
FF
or
GG
buttons.
The set switches to the chosen programme number.
1
2
1
2
NOTE
!
GG
You may find some blue programmes.
They have been set up to be skipped by auto programming
or in the programme edit mode.
GG
Some programmes with the channel number shown in the
programme LIST indicate there is no station name assigned.
POWER
TVD/A
INPUT
DVD
VOL
SIZE
INDEX
TIME
REVEAL
Q.VIEW
LIST
TEXT
GUIDE
VCR
POWER
123
456
789
0
?
APM
BRIGHT
RATIO
SUBTITLE
FAV
SLEEP
I/II
PR
MUTE
INFO
!
PAGE
INPUT
MODE
SIMPLINK
OK
EXIT
MENU
POWER
44
INPUT SOURCE SELECTION
Press the MMEENNUU button and then use
DD
or
EE
button
to select the SSPPEECCIIAALL menu.
Press the
GG
button and then use
DD
or
EE
button to
select IInnppuutt.
Press the
GG
button and then use
DD
or
EE
to select
Digital, Analogue, AV 1 , AV 2 , Component 1,
Component 2, RGB-PC, HDMI1/DVI or HDMI 2.
Press EEXXIITT button to return to normal TV viewing.
Alternatively you can select the Digital, Analogue, AV1-2,
Component 1-2, RGB-PC, HDMI1/DVI or HDMI 2 mode
by pressing the INPUT button.
Press the D/A INPUT button to select digital or analogue
mode.
Input
Subtitle
Child lock
ARC
XD demo
SIMPLINK
2
3
4
1
Input
G
Subtitle
Child lock
ARC
XD demo
SIMPLINK
Digital
Analogue
AV1
AV2
Component1
Component2
RGB-PC
HDMI1/DVI
HDMI2
POWER
TV
DVD
TEXT
GUIDE
VCR
POWER
RATIO
D/A
INPUT
EXIT
LIST
MENU
SUBTITLE
FAV
BRIGHT
INFO
!
INPUT
MODE
SIMPLINK
OK
POWER
2 3
1
WATCHING TV/PROGRAMME CONTROL
WATCHING TV/PROGRAMME CONTROL
45
WATCHING TV/PROGRAMME CONTROL
KEY LOCK
Press the MMEENNUU button and then use
DD
or
EE
button
to select the SSPPEECCIIAALL menu.
Press the
GG
button and then use
DD
or
EE
button to
select CChhiilldd lloocckk.
Press the
GG
button and then use
DD
or
EE
button to
select OOnn or OOffff.
Press EEXXIITT button to return to normal TV viewing.
The TV can be set so that the remote control is needed to
control it. This feature can be used to prevent unautho-
rized viewing.
Input
Subtitle
Child lock
ARC
XD demo
SIMPLINK
2
3
4
1
Input
Subtitle
Child lock
G
ARC
XD demo
SIMPLINK
Off
On
NOTE
!
GG
With the lock on, the display ‘‘CChhiilldd lloocckk :: OOnn’’
appears on the screen if any button on the front
panel is pressed while viewing the TV.
GG
The display ‘‘CChhiilldd lloocckk :: OOnn’’ will not appear on
the screen if any button on the front panel is
pressed while displaying the menus.
2 3
1
OK
TVD/A
INPUT
DVD
EXIT
LIST
MENU
TEXT
GUIDE
VCR
POWERPOWER
RATIO
FAV
SUBTITLE
BRIGHT
INFO
!
INPUT
MODE
SIMPLINK
POWER
46
Press the MMEENNUU button and then use
DD
or
EE
button to select the SSPPEECCIIAALL menu.
Press the
GG
button and then use
DD
or
EE
button
to select
SIMPLINK
.
Press the
GG
button and then use
DD
or
EE
button
to select OOnn or OOffff.
Press EEXXIITT button to return to normal TV viewing.
This operates only for the devices with the SIMPLINK
logo. Please check the SIMPLINK logo.
This allows you to control and play other AV devices
connected to the display through HDMI cable without
additional cables and settings.
If you do not want SIMPLINK menu, select “Off”.
Input
Subtitle
Child lock
ARC
XD demo
SIMPLINK
1
Input
Subtitle
Child lock
ARC
XD demo
SIMPLINK
G
Off
On
2 3
POWER
TVD/A
INPUT
DVD
TEXT
GUIDE
VCR
POWER
BRIGHT
SIMPLINK
RATIO
OK
EXIT
LIST
MENU
SUBTITLE
FAV
INFO
!
INPUT
MODE
POWER
2
3
4
1
WATCHING TV/PROGRAMME CONTROL
WATCHING TV/PROGRAMME CONTROL
47
WATCHING TV/PROGRAMME CONTROL
1
2
3
4
5
NOTE
!
GG
Connect the HDMI/DVI IN or HDMI IN terminal of the TV to the rear terminal (HDMI terminal) of the
SIMPLINK device with the HDMI cable.
GG
After connecting the HDMI terminal for the home theater with SIMPLINK function in the above method,
connect the VARIABLE AUDIO OUT terminal on the back of the TV to the VARIABLE AUDIO IN terminal
on the back of the SIMPLINK device with the VARIABLE AUDIO OUT cable.
GG
When operating the external device with SIMPLINK, press the TV button among the MODE button on the
remote controller.
GG
When you switch the Input source with the INPUT button on the remote controller, you can stop the
operation of device controlled by SIMPLINK.
GG
When you select or operate the media device with home theater function, the speaker automatically
switches to home theater speaker (HT speaker).
DDiisscc ppllaayybbaacckk
Control connected AV devices by pressing the
DD
or
EE
or
FF
or
GG
, OOKK buttons and buttons for play, stop, pause, fast
reverse, fast forward, chapter skip.(The button does not provide such functions)
DDiirreecctt PPllaayy
After connecting AV devices to TV, you can directly control the devices and play media without additional settings.
SSeelleecctt AAVV ddeevviiccee
Enables you to select one of AV devices connected to TV and play it.
PPoowweerr ooffff aallll ddeevviicceess
When you power off TV, all connected devices are turned off.
SSwwiittcchh aauuddiioo--oouutt
Offers an easy way to switch audio-out.
** AA ddeevviiccee,, wwhhiicchh iiss ccoonnnneecctteedd ttoo TTVV tthhrroouugghh HHDDMMII ccaabbllee bbuutt ddooeess nnoott ssuuppppoorrtt SSiimmpplliinnkk,, ddooeess nnoott pprroovviiddee tthhiiss ffuunnccttiioonn..
SIMPLINK Functions
TTVV vviieewwiinngg :: Switch to the previous TV programme
regardless of the current mode.
DDIISSCC ppllaayybbaacckk :: Select and play discs. When multiple
discs are available, the titles of the discs are conve-
niently displayed at the bottom of the screen.
VVCCRR ppllaayybbaacckk :: Play and control the connected VCR.
HHDDDD RReeccoorrddiinnggss ppllaayybbaacckk :: Play and control
recordings stored in HDD.
AAuuddiioo OOuutt ttoo HHoommee tthheeaattrree//AAuuddiioo OOuutt ttoo TTVV ::
Select Home theatre or TV speaker for Audio Out.
1
2
3
4
5
SIMPLINK Menu
Press the
DD
or
EE
or
FF
or
GG
button and then
OO KK
button to select the desired SIMPLINK source.
GG
Selected Device
GG
When no device is
connected (displayed
in gray)
GG
When a device is
connected (displayed
in bright colour)
48
DIGITAL SIGNAL STRENGTH
-
In Digital Mode only
Press the MMEENNUU button and then use
DD
or
EE
but-
ton to select the SSEETTUUPP menu.
Press the
GG
button and then use
DD
or
EE
button to
select SSiiggnnaall ssttrreennggtthh.
View the on-screen signal strength monitor to see
the strength of the signal being received.
Press EEXXIITT button to return to normal TV viewing.
2
3
1
Reveals how strong your DTV signal is and whether you
need to adjust your antenna.
The higher the signal strength, the less likely you are to
experience picture degradation.
Digital TV Signals; May not be available in all areas, nor
broadcast all programmes.
Auto programme
Manual programme
Programme edit
Signal strength
Set ID
Auto programme
Manual programme
Programme edit
Signal strength
Set ID
Bad Normal Good
2
1
OK
TVD/A
INPUT
DVD
EXIT
LIST
MENU
TEXT
GUIDE
VCR
POWERPOWER
RATIO
FAV
SUBTITLE
BRIGHT
INFO
!
INPUT
MODE
SIMPLINK
POWER
WATCHING TV/PROGRAMME CONTROL
WATCHING TV/PROGRAMME CONTROL
4
49
WATCHING TV/PROGRAMME CONTROL
PICTURE CONTROL
PICTURE SIZE(ASPECT RATIO)CONTROL
You can watch TV in various picture formats; Auto, 4:3, 16:9 (Wide), 14:9,
Zoom and Cinema zoom.
Auto
Selects the proper picture proportion to
match the source’s image.
(
4:3 4:3, 16:9
16:9
)
4:3
Choose 4:3 when you want to view a picture
with an original 4:3 aspect ratio.
16:9
Adjust the picture horizontally, in a linear pro-
portion to fill the entire screen.
14:9
The screen size is, more enlarged at both
sides, to create a spectacular view.
You can move the 14:9 screen using
DD
or
EE
button. The adjustment range is -10 - +10.
Zoom
Choose Zoom when you want to view the
picture without any alteration. However, the
top and bottom portions of the picture will be
cropped.
You can move the Zoom screen using
DD
or
EE
button. The adjustment range is -16 - +16.
Cinema Zoom
Choose Cinema Zoom when you want to
enlarge the picture in correct proportion.
Note: When enlarging or reducing the picture,
the image may become distorted.
You can adjust the enlarge proportion of
Cinema Zoom using
DD
or
EE
button.
The adjustment range is 1-16.
NOTE
!
POWER
TVD/A
INPUT
DVD
EXIT
LIST
MENU
TEXT
GUIDE
VCR
POWER
RATIO
FAV
SUBTITLE
BRIGHT
SIMPLINK
INFO
!
INPUT
MODE
OK
POWER
Press the RRAATTIIOO button repeatedly to select the desired picture format.
■
You can also adjust AARRCC in the SSPPEECCIIAALL menu.
1
GG
If a fixed image is displayed on the screen for a long time, it image may
become imprinted on the screen and remain visible.
This phenomenon is common to all manufacturers and in consequence the
manufacturer’s warranty does not cover the product bearing this phenomenon.
NOTE
!
GG
In HDMI/DVI-PC and RGB-PC mode, 4:3 and 16:9 is available.
GG
Auto: When your TV receives the wide screen signal, it will be automatically changed to the picture format
sent. (Not available in all countries)
50
PRESET PICTURE SETTINGS
This function adjusts the set to the best picture appearance.
When adjusting picture options (contrast, brightness, colour,
sharpness and tint) manually, PSM is automatically changed to
User.
Picture options Dynamic, Standard, and Mild are preset and
programmed for good picture quality at the factory and cannot
be changed.
Press the MMEENNUU button and then use
DD
or
EE
button
to select the PPIICCTTUURREE menu.
Press the
GG
button and then use
DD
or
EE
button to
select PPSSMM.
Press the
GG
button and then use
DD
or
EE
button to
select DDyynnaammiicc, SSttaannddaarrdd, MMiilldd, UUsseerr11, or UUsseerr22.
Press EEXXIITT button to return to normal TV viewing.
2
4
3
1
PSM
G
Colour temperature
XD
Advanced
Video preset
Dynamic
Standard
Mild
User1
User2
PSM
Colour temperature
XD
Advanced
Video preset
2 3
1
OK
TVD/A
INPUT
DVD
EXIT
LIST
MENU
TEXT
GUIDE
VCR
POWERPOWER
RATIO
FAV
SUBTITLE
BRIGHT
INFO
!
INPUT
MODE
SIMPLINK
POWER
PSM - PRESET
PICTURE CONTROL
PICTURE CONTROL
51
PICTURE CONTROL
AUTO COLOUR TONE CONTROL
(WARM/MEDIUM/COOL)
Choose one of three automatic colour adjustments. Set to
warm to enhance hotter colours such as red, or set to cool
to see less intense colours with more blue.
Press the MMEENNUU button and then use
DD
or
EE
button
to select the PPIICCTTUURREE menu.
Press the
GG
button and then use
DD
or
EE
button to
select CCoolloouurr tteemmppeerraattuurree.
Press the
GG
button and then use
DD
or
EE
button to
select either WWaarrmm,MMeeddiiuumm,CCooooll, or UUsseerr.
Press EEXXIITT button to return to normal TV viewing.
PSM
Colour temperature
G
XD
Advanced
Video preset
Warm
Medium
Cool
User
PSM
Colour temperature
XD
Advanced
Video preset
2
3
4
1
2 3
1
OK
TVD/A
INPUT
DVD
EXIT
LIST
MENU
TEXT
GUIDE
VCR
POWERPOWER
RATIO
FAV
SUBTITLE
BRIGHT
INFO
!
INPUT
MODE
SIMPLINK
POWER
52
ADAPTIVE PICTURE MODE (APM
)
Press the
AAPP MM
button once. The screen is divided to 4
sections.
Use the
DD
or
EE
or
FF
or
GG
buttons to navigate between
the 4 screen sections.
By pressing the
OOKK
button, you can select the desired
mode.
Allows you to select your preferred picture mode after compar-
ing the four different picture (Dynamic, Standard, Mild, and
User1 (or User2) settings.
NOTE
!
GG
While in the APM mode, only the
PPOOWWEERR
,
AAPPMM
,
OOKK
,
EEXXIITT
,
DD
or
EE
or
FF
or
GG
,
VVOOLLUUMMEE ++
or
--
,
MMUUTTEE
buttons on the
remote control are usable.
GG
APM screen will automatically disappear after approx. 40
seconds unless a button is pressed.
2
1
DDyynnaammiicc
Standard
User1
Mild
EXIT
Navigate Select Exit
1 2
GG
DD
EE
FF
POWER
TVD/A
INPUT
DVD
EXIT
VOL
SIZE
INDEX
TIME
REVEAL
Q.VIEW
LIST
MENU
TEXT
VCR
123
456
789
0
?
APM
RATIO
FAV
SUBTITLE
SLEEP
I/II
BRIGHT
MUTE
INFO
!
PAGE
PR
INPUT
MODE
SIMPLINK
OK
GUIDE
POWER
POWER
PICTURE CONTROL
PICTURE CONTROL
53
PICTURE CONTROL
MANUAL PICTURE ADJUSTMENT
Press the MMEENNUU button and then use
DD
or
EE
button
to select the PPIICCTTUURREE menu.
Press the
GG
button and then use
DD
or
EE
button to
select PPSSMM.
Press the
GG
button and then use
DD
or
EE
button to
select UUsseerr 11 or UUsseerr 22.
Press the
GG
button and then use
DD
or
EE
button to
select the desired picture option
((
CCoonnttrraasstt,
BBrriigghhttnneessss,CCoolloouurr,SShhaarrppnneessss, or TTiinntt
))
.
Press the
GG
button and then use
FF
or
GG
button to
make appropriate adjustments.
Press EEXXIITT button to return to normal TV viewing.
You can adjust picture Contrast, Brightness,Colour,
Sharpness, and Tint options to the levels you prefer.
PSM
Colour temperature
XD
Advanced
Video preset
Dynamic
Standard
Mild
User 1
G
user 2
Contrast 85
FF
G
EE
User1
Contrast 85
G
Brightness 50
Colour 50
Sharpness 50
Tint 0
R G
Press to confirm.
MENU
PSM
Colour temperature
XD
Advanced
Video preset
2
3
4
5
6
1
2 3
4
5
1
OK
TVD/A
INPUT
DVD
EXIT
LIST
MENU
TEXT
GUIDE
VCR
POWERPOWER
RATIO
FAV
SUBTITLE
BRIGHT
INFO
!
INPUT
MODE
SIMPLINK
POWER
PSM - USER OPTION
54
COLOUR TONE - USER OPTION
You can also adjust the detailed settings (Red, Green, Blue)
by selecting the UUsseerr menu.
Press the MMEENNUU button and then use
DD
or
EE
button
to select the PPIICCTTUURREE menu.
Press the
GG
button and then use
DD
or
EE
button to
select CCoolloouurr tteemmppeerraattuurree.
Press the
GG
button and then use
DD
or
EE
button to
select UUsseerr.
Press the
GG
button and then use
DD
or
EE
button to
select RReedd, GGrreeeenn, or BBlluuee.
Press the
GG
button and then use
FF
or
GG
button to
make appropriate adjustments.
■
The adjustment range of RReedd, GGrreeeenn, or BBlluuee
is -20~ +20.
Press EEXXIITT button to return to normal TV viewing.
PSM
Colour temperature
XD
Advanced
Video preset
PSM
Colour temperature
XD
Advanced
Video preset
2
3
4
5
6
1
User
Red 0
G
Green 0
Blue 0
Press to confirm.
Warm
Medium
Cool
User
G
Red 0
FF
G
EE
MENU
2 3
4
5
1
OK
TVD/A
INPUT
DVD
EXIT
LIST
MENU
TEXT
GUIDE
VCR
POWERPOWER
RATIO
FAV
SUBTITLE
BRIGHT
INFO
!
INPUT
MODE
SIMPLINK
POWER
PICTURE CONTROL
PICTURE CONTROL
55
PICTURE CONTROL
POWER
TVD/A
INPUT
DVD
TEXT
GUIDE
VCR
POWER
RATIO
BRIGHT
INFO
!
INPUT
MODE
SIMPLINK
POWER
BRIGHTNESS ADJUSTMENT
Press the button.
Adjust the desired screen brightness.
Adjust the brightness using this button on the remote control.
2
1
1 2
56
PICTURE CONTROL
PICTURE CONTROL
Press the MMEENNUU button and then use
DD
or
EE
button
to select the PPIICCTTUURREE menu.
Press the
GG
button and then use
DD
or
EE
button to
select XX DD.
Press the
GG
button and then use
DD
or
EE
button to
select AAuuttoo or MMaannuuaall.
Press EEXXIITT button to return to normal TV viewing.
XD is LG Electronics’ unique picture improving technology
to display a real HD source through an advanced digital
signal processing algorithm.
When selecting PSM options (Dynamic, Standard and
Mild), XD is automatically changed to Auto.
But when selecting PSM options (User 1 and User 2), you
can choose the Auto / Manual.
When selecting the Manual, you can adjust the XD con-
trast, XD colour and XD noise.
PSM
Colour temperature
XD
G
Advanced
Video preset
Manual
XD contrast On
XD colour On
XD noise On
PSM
Colour temperature
XD
Advanced
Video preset
2
3
4
1
SSeelleeccttiinngg tthhee MMaannuuaall
1. Press the
GG
button and then use
FF
or
GG
but-
ton to select XXDD ccoonnttrraasstt, XXDD ccoolloouurr or
XXDD nnooiissee.
■
XXDD ccoonnttrraasstt:: Optimizing the contrast
automatically according to the brightness of
the reflection.
■
XXDD ccoolloouurr:: Adjusting the colours of the
reflection automatically to reproduce as
closely as possible to natural colours.
■
XXDD nnooiissee :: Removing the noise up to the
point where it does not damage the original
picture.
2. Use the
DD
or
EE
button to select OO nn or OOffff.
XD - PICTURE IMPROVEMENT TECHNOLOGY
2 3
1
OK
TVD/A
INPUT
DVD
EXIT
LIST
MENU
TEXT
GUIDE
VCR
POWERPOWER
RATIO
FAV
SUBTITLE
BRIGHT
INFO
!
INPUT
MODE
SIMPLINK
POWER
57
Press the MMEENNUU button and then use
DD
or
EE
button
to select the PPIICCTTUURREE menu.
Press the
GG
button and then use
DD
or
EE
button to
select AAddvvaanncceedd.
Press the
GG
button and then use
DD
or
EE
button to
select CCiinneemmaa.
Press the
GG
button and then use
DD
or
EE
button to
select OOnn or OOffff.
Press EEXXIITT button to return to normal TV viewing.
Set up the TV for the best picture appearance for viewing
movies.
This feature operates only in AV1, AV2, and Component
480i mode.
PSM
Colour temperature
XD
Advanced
G
Video preset
Cinema Off
Black level Auto
PSM
Colour temperature
XD
Advanced
Video preset
2
3
4
5
1
ADVANCED-CINEMA
3 42
1
OK
TVD/A
INPUT
DVD
EXIT
LIST
MENU
TEXT
GUIDE
VCR
POWERPOWER
RATIO
FAV
SUBTITLE
BRIGHT
INFO
!
INPUT
MODE
SIMPLINK
POWER
PICTURE CONTROL
58
PICTURE CONTROL
ADVANCED-BLACK(DARKNESS) LEVEL
PICTURE CONTROL
Press the MMEENNUU button and then use
DD
or
EE
button
to select the PPIICCTTUURREE menu.
Press the
GG
button and then use
DD
or
EE
button to
select AAddvvaanncceedd.
Press the
GG
button and then use
DD
or
EE
button to
select BBllaacckk LLeevveell.
Press the
GG
button and then use
DD
or
EE
button to
select AAuuttoo, LLooww, or HHiigghh.
■
AAuuttoo
Realizing the black level of the screen and set it to
High or Low automatically.
■
LLooww
The black level of the screen gets darker.
■
HHiigghh
The black level of the screen gets brighter.
Press EEXXIITT button to return to normal TV viewing.
Adjusting the contrast and the brightness of the screen
using the black level of the screen.
This feature operates only in AV1, AV2, HDMI1/DVI or
HDMI2 mode.
PSM
Colour temperature
XD
Advanced
G
Video preset
Cinema Off
Black level Auto
PSM
Colour temperature
XD
Advanced
Video preset
2
3
4
5
1
3 42
1
OK
TVD/A
INPUT
DVD
EXIT
LIST
MENU
TEXT
GUIDE
VCR
POWERPOWER
RATIO
FAV
SUBTITLE
BRIGHT
INFO
!
INPUT
MODE
SIMPLINK
POWER
59
PICTURE CONTROL
PICTURE PRESET
Press the MMEENNUU button and then use
DD
or
EE
button
to select the PPIICCTTUURREE menu.
Press the
GG
button and then use
DD
or
EE
button to
select VViiddeeoo pprreesseett.
Press the
GG
button to reset the picture menu options
to original values.
Use to quickly reset all the Picture menu options to their
original factory preset values.
PSM
Colour temperature
XD
Advanced
Video preset
G
Selection (
G
or ) presets
the video configuration.
PSM
Colour temperature
XD
Advanced
Video preset
2
3
1
2 3
1
OK
TVD/A
INPUT
DVD
EXIT
LIST
MENU
TEXT
GUIDE
VCR
POWERPOWER
RATIO
FAV
SUBTITLE
BRIGHT
INFO
!
INPUT
MODE
SIMPLINK
POWER
60
PICTURE CONTROL
PICTURE CONTROL
XD DEMO
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
SSPPEECCIIAALL
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
XXDD ddeemmoo
.
Press the
GG
button to start
XXDD ddeemmoo
.
Press
EEXXIITT
button to stop XD demo.
Allows you to select your preferred picture mode after
compare the four different picture (Dynamic, Standard,
Mild, and User1 (or User2)) settings.
Input
Subtitle
Child lock
ARC
XD demo
SIMPLINK
2
3
4
1
Input
Subtitle
Child lock
ARC
XD demo
G
SIMPLINK
Selection (
G
or )
leads you
to the XD demo.
2 3
1
Dynamic
Standard
User1
Mild
Press to end.
EXIT
OK
TVD/A
INPUT
DVD
EXIT
LIST
MENU
TEXT
GUIDE
VCR
POWER
POWER
RATIO
FAV
SUBTITLE
BRIGHT
INFO
!
INPUT
MODE
SIMPLINK
POWER
61
SOUND & LANGUAGE CONTROL
SOUND & LANGUAGE CONTROL
AUTO VOLUME LEVELLER (AVL)
AVL automatically keeps on an equal volume level even if
you change programmes.
Press the MMEENNUU button and then use
DD
or
EE
button
to select the AAUUDDIIOO menu.
Press the
GG
button and then use
DD
or
EE
button to
select AAVVLL.
Press the
GG
button and then use
DD
or
EE
button to
select OOnn or OOffff.
Press EEXXIITT button to return to normal TV viewing.
SSM
AVL
G
Balance
TV Speaker
2
3
4
1
SSM
AVL
Balance
TV Speaker
2 3
1
Off
On
OK
TVD/A
INPUT
DVD
EXIT
LIST
MENU
TEXT
GUIDE
VCR
POWERPOWER
RATIO
FAV
SUBTITLE
BRIGHT
INFO
!
INPUT
MODE
SIMPLINK
POWER
62
SOUND & LANGUAGE CONTROL
SOUND & LANGUAGE CONTROL
PRESET SOUND SETTINGS - SSM MODE
SSM lets you enjoy the best sound without any special
adjustment because the TV sets the appropriate sound
options based on the programme content.
When adjusting sound options (treble and bass) manually,
SSM is automatically changed to User.
Standard, Music, Movie, and Sports are preset for good
sound quality at the factory and are not adjustable.
Press the MMEENNUU button and then use
DD
or
EE
button
to select the AAUUDDIIOO menu.
Press the
GG
button and then use
DD
or
EE
button to
select SSSSMM.
Press the
GG
button and then use
DD
or
EE
button to
select SSttaannddaarrdd, MMuussiicc, MMoovviiee, SSppoorrttss, or UUsseerr.
Press EEXXIITT button to return to normal TV viewing.
SSM
G
AVL
Balance
TV Speaker
Standard
Music
Movie
Sports
User
2
3
4
1
SSM
AVL
Balance
TV Speaker
2 3
1
OK
TVD/A
INPUT
DVD
EXIT
LIST
MENU
TEXT
GUIDE
VCR
POWERPOWER
RATIO
FAV
SUBTITLE
BRIGHT
INFO
!
INPUT
MODE
SIMPLINK
POWER
63
SOUND & LANGUAGE CONTROL
Adjust the sound to suit your taste and room situations.
Press the MMEENNUU button and then use
DD
or
EE
button
to select the AAUUDDIIOO menu.
Press the
GG
button and then use
DD
or
EE
button to
select SSSSMM.
Press the
GG
button and then use
DD
or
EE
button to
select UUsseerr.
Press the
GG
button and then use
DD
or
EE
button to
select the desired sound option (TTrreebbllee,BBaassss, or
FFrroonntt ssuurrrroouunndd).
2
3
4
1
SSM
AVL
Balance
TV Speaker
SSM
AVL
Balance
TV Speaker
Standard
Music
Movie
Sports
User
G
User
Treble 50
G
Bass 50
Front surround Off
Press to confirm.
MENU
SOUND SETTING ADJUSTMENT - USER MODE
OK
TVD/A
INPUT
DVD
EXIT
LIST
MENU
TEXT
GUIDE
VCR
POWERPOWER
RATIO
FAV
SUBTITLE
BRIGHT
INFO
!
INPUT
MODE
SIMPLINK
POWER
2 3
1
4
64
SOUND & LANGUAGE CONTROL
SOUND & LANGUAGE CONTROL
Press the
GG
button and then use
FF
or
GG
button to
make appropriate adjustments.
SSeelleeccttiinngg tthhee FFrroonntt ssuurrrroouunndd
Press the
GG
button and then use
FF
or
GG
button to
select OOffff or SSRRSS
(
Sound Retrieval System)TTrruuSSuurrrroouunndd
XXTT.
Press EEXXIITT button to return to normal TV viewing.
Front surround SRS TruSurround XT
SSRRSS TTrruuSSuurrrroouunndd XXTT
Takes advantage of any multi-channel format without
needing to add extra speakers or equipment. Dialog clari-
ty, bass enrichment, and the addition of stereo audio
enhancement produces an immersive sound experience
from standard stereo material.
6
5
GG
is a trademark of SRS Labs, Inc.
GG
TruSurround XT technology is incorporated under license from SRS Labs, Inc.
R
TruSurround XT
65
SOUND & LANGUAGE CONTROL
BALANCE
Press the MMEENNUU button and then use
DD
or
EE
button
to select the AAUUDDIIOO menu.
Press the
GG
button and then use
DD
or
EE
button to
select BBaallaannccee.
Press the
GG
button and then use
FF
or
GG
button to
make appropriate adjustments.
Press EEXXIITT button to return to normal TV viewing.
Adjust the left/right sound of speaker to suit your taste
and room situations.
L R
Balance 0
2
3
4
1
SSM
AVL
Balance
TV Speaker
SSM
AVL
Balance 0
TV Speaker
L R
2
3
1
OK
TVD/A
INPUT
DVD
EXIT
LIST
MENU
TEXT
GUIDE
VCR
POWERPOWER
RATIO
FAV
SUBTITLE
BRIGHT
INFO
!
INPUT
MODE
SIMPLINK
POWER
66
SOUND & LANGUAGE CONTROL
TV SPEAKERS ON/OFF SETUP
Press the MMEENNUU button and then use
DD
or
EE
button
to select the AAUUDDIIOO menu.
Press the
GG
button and then use
DD
or
EE
button to
select TTVV SSppeeaakkeerr.
Press the
GG
button and then use
DD
or
EE
button to
select OOnn or OOffff.
Press EEXXIITT button to return to normal TV viewing.
Turn the TV speakers off if using external audio equipment.
In AV1-2, Component1-2, RGB PC, HDMI1/DVI and
HDMI2 mode, the audio signal can be outputted even
though there is no video signal.
SSM
AVL
Balance
TV Speaker
G
Off
On
2
3
4
1
SSM
AVL
Balance
TV Speaker
2 3
1
OK
TVD/A
INPUT
DVD
EXIT
LIST
MENU
TEXT
GUIDE
VCR
POWERPOWER
RATIO
FAV
SUBTITLE
BRIGHT
INFO
!
INPUT
MODE
SIMPLINK
POWER
SOUND & LANGUAGE CONTROL
67
SOUND & LANGUAGE CONTROL
I/II
■
Mono sound selection
If the stereo signal is weak in stereo reception, you can switch to
mono by pressing the II//IIII button twice. In mono reception, the
clarity of sound is improved. To switch back to stereo, press the
II//IIII button twice again.
Broadcast On Screen Display
Mono MONO
Stereo MONO / STEREO
SPEAKER SOUND OUTPUT SELECTION
In AV 1-2, Component 1-2, RGB-PC, HDMI1/DVI or HDMI 2
mode, you can select output sound for the left and right loud-
speakers.
Repeatedly press the II//IIII button to select the sound output.
L+R: Audio signal from audio L input is sent to the left loud
speaker and audio signal from audio R input is sent to the right
loud speaker.
L+L: Audio signal from audio L input is sent to left and right loud
speakers.
R+R: Audio signal from audio R input is sent to left and right loud
speakers.
NOTE
!
GG
In digital mode, repeatedly press the II//IIII button to
change the audio mode (MPEG or DOLBY DIGITAL).
POWER
OK
TVD/A
INPUT
DVD
EXIT
VOL
SIZE
INDEX
TIME
REVEAL
Q.VIEW
LIST
MENU
TEXT
GUIDE
VCR
POWER
123
456
789
0
?
APM
RATIO
FAV
SUBTITLE
SLEEP
I/II
BRIGHT
MUTE
INFO
!
PAGE
PR
INPUT
MODE
SIMPLINK
POWER
STEREO/DUAL RECEPTION
-
In Analogue Mode only
SOUND & LANGUAGE CONTROL
68
SUBTITLE -
In Digital Mode only
Press the MMEENNUU button and then use
DD
or
EE
button
to select the SSPPEECCIIAALL menu.
Press the
GG
button and then use
DD
or
EE
button to
select SSuubbttiittllee.
Press the
GG
button and then use
DD
or
EE
button to
select OOnn or OOffff.
Press EEXXIITT button to return to normal TV viewing.
Input
Subtitle
Child lock
ARC
XD demo
SIMPLINK
2
3
4
1
You can select Subtitle on or off with the TEXT button in
DTV mode.
Input
Subtitle
G
Child lock
ARC
XD demo
SIMPLINK
Off
On
2 3
1
POWER
TVD/A
INPUT
DVD
EXIT
LIST
MENU
GUIDE
VCR
POWER
BRIGHT
RATIO
SUBTITLE
FAV
TEXT
INFO
!
INPUT
MODE
SIMPLINK
POWER
OK
TIME SETTING
69
TIME SETTING
AUTO CLOCK SETTING
The time is automatically set from a digital channel signal.
The digital channel signal includes information for the cur-
rent time provided by the broadcasting station.
Set the clock manually, if the current time is set incorrectly
by the auto clock function.
Press the MMEENNUU button and then use
DD
or
EE
button
to select the TTIIMMEE menu.
Press the
GG
button and then use
DD
or
EE
button to
select AAuuttoo cclloocckk.
Press the
GG
button and then use
DD
or
EE
button to
select OOnn.
Press the
GG
button and then use
DD
or
EE
button to
select your viewing area time zone:
NNSSWW//AACCTT, NNTT, TTAASS, WWAA, SSAA, QQLLDD, or VVIICC.
Press EEXXIITT button to return to normal TV viewing.
Auto clock
G
Manual clock
Off time
On time
Sleep timer
Auto sleep
Off
On
Auto clock
Manual clock
Off time
On time
Sleep timer
Auto sleep
Off
On
Auto clock
Manual clock
Off time
On time
Sleep timer
Auto sleep
2
3
4
5
1
Time Zone NSW/ACT
Time Zone NSW/ACT
DD
EE
2
1
3 4
OK
TVD/A
INPUT
DVD
EXIT
LIST
MENU
TEXT
GUIDE
VCR
POWERPOWER
RATIO
FAV
SUBTITLE
BRIGHT
INFO
!
INPUT
MODE
SIMPLINK
POWER
CLOCK SETTING
70
MANUAL CLOCK SETTING
Press the MMEENNUU button and then use
DD
or
EE
button
to select the TTIIMMEE menu.
Press the
GG
button and then use
DD
or
EE
button to
select MMaannuuaall cclloocckk.
Press the
GG
button and then use
FF
or
GG
to select
either the year, date, or time option. Once selected,
use the
DD
or
EE
button to set the year, date, and time
options.
Press EEXXIITT button to return to normal TV viewing.
If the current time setting is wrong, reset the clock manually.
Auto clock
Manual clock
G
Off time
On time
Sleep timer
Auto sleep
Year - - - -
Date - - / - -
Time - - : - - - -
Auto clock
Manual clock
Off time
On time
Sleep timer
Auto sleep
2
3
4
1
2 3
1
OK
TVD/A
INPUT
DVD
EXIT
LIST
MENU
TEXT
GUIDE
VCR
POWERPOWER
RATIO
FAV
SUBTITLE
BRIGHT
INFO
!
INPUT
MODE
SIMPLINK
POWER
TIME SETTING
TIME SETTING
71
TIME SETTING
AUTO ON/OFF TIMER SETTING
Press the MMEENNUU button and then use
DD
or
EE
button
to select the TTIIMMEE menu.
Press the
GG
button and then use
DD
or
EE
button to
select OOffff TTiimmee or OOnn TTiimmee.
Press the
GG
button and then use
DD
or
EE
button to
select OOnn.
■
To cancel the OOffff TTiimmee or OOnn TTiimmee function, select
OOffff.
Press the
GG
button and then use
DD
or
EE
button to set
the hour.
Press the
GG
button and then use
DD
or
EE
button to set
the minutes.
OOnnllyy OOnn ttiimmee
Press the
GG
button and then use
DD
or
EE
to select the
programme at turn-on.
Press the
GG
button and then use
DD
or
EE
to set the
sound level at turn-on.
Press EEXXIITT button to return to normal TV viewing.
Auto clock
Manual clock
Off time
On Time
G
Sleep timer
Auto sleep
Off
On
Time 6 : 30 AM
PR 0
Vol 17
Auto clock
Manual clock
Off time
On time
Sleep timer
Auto sleep
2
3
4
5
6
7
1
The time function operates only if the current time has
been set.
The Off-Time function overrides the On-Time function if
they are both set to the same time.
The TV must be in standby mode for the On-Time function
to work.
If you do not press any button within 2 hours after the TV
turns on with the On Time function, the TV will automati-
cally revert to standby mode.
ANALOGUE
5 6432
1
OK
TVD/A
INPUT
DVD
EXIT
LIST
MENU
TEXT
GUIDE
VCR
POWERPOWER
RATIO
FAV
SUBTITLE
BRIGHT
INFO
!
INPUT
MODE
SIMPLINK
POWER
72
SLEEP TIMER SETTING
Press the SSLLEEEEPP button repeatedly to select the number of minutes. First the
OOffff option appears on the screen, followed by the following sleep timer
options : 10, 20, 30, 60, 90, 120, 180, and 240 minutes.
When the number of minutes you want is displayed on the screen, press the
SSLLEEEEPP button. The timer begins to count down from the number of minutes
selected.
To check the remaining minutes before the TV turns off, press the SSLLEEEEPP
button once.
To cancel the Sleep Timer, press the SSLLEEEEPP button repeatedly to select OOffff.
When you switch the set off, the set cancels the preset sleep time.
You don’t have to remember to switch the set off before you go
to sleep.
The sleep timer automatically switches the set to standby after
the preset time has elapsed.
■
You can also set up the Sleep timer in the TIME menu.
Auto clock
Manual clock
Off time
On time
Sleep timer
G
Auto sleep
Off
10 min
20 min
30 min
60 min
90 min
120 min
180 min
240 min
Auto clock
Manual clock
Off time
On time
Sleep timer
Auto sleep
2
3
4
5
1
POWER
OK
TVD/A
INPUT
DVD
EXIT
VOL
SIZE
INDEX
TIME
REVEAL
Q.VIEW
LIST
MENU
TEXT
GUIDE
VCR
POWER
123
456
789
0
?
APM
RATIO
FAV
SUBTITLE
SLEEP
I/II
BRIGHT
MUTE
INFO
!
PAGE
PR
INPUT
MODE
SIMPLINK
POWER
TIME SETTING
TIME SETTING
73
TIME SETTING
AUTO SHUT-OFF SETTING
If set to on and there is no input signal, the TV turns off
automatically after 10 minutes.
Press the MMEENNUU button and then use
DD
or
EE
button
to select the TTIIMMEE menu.
Press the
GG
button and then use
DD
or
EE
button to
select AAuuttoo sslleeeepp.
Press the
GG
button and then use
DD
or
EE
button to
select OOnn or OOffff.
Press EEXXIITT button to return to normal TV viewing.
Auto clock
Manual clock
Off time
On time
Sleep timer
Auto sleep
G
Off
On
Auto clock
Manual clock
Off time
On time
Sleep timer
Auto sleep
2
3
4
1
2 3
1
OK
TVD/A
INPUT
DVD
EXIT
LIST
MENU
TEXT
GUIDE
VCR
POWERPOWER
RATIO
FAV
SUBTITLE
BRIGHT
INFO
!
INPUT
MODE
SIMPLINK
POWER
74
SETTING UP YOUR PASSWORD
Set up is used to block specific channels, ratings, and external
viewing sources.
A password is required to gain access to this menu.
Press the MMEENNUU button and then use the
DD
or
EE
button
to select the LLOOCCKK menu. Then, press the
GG
button.
■
Enter the password as requested.
■
The TV is set up with the initial
password “0-0-0-0”.
Enter Password
1
Enter Password
** **
SET PASSWORD & LOCK SYSTEM
SET PASSWORD
After inputting the current password, use the
DD
or
EE
button to choose SSeett ppaasssswwoorrdd.
Press the
GG
button and then choose any 4 digits for
your new password next to New.
As soon as the 4 digits are entered, re-enter the same
4 digits to CCoonnffiirrmm.
The new password is memorized.
Press EEXXIITT button to return to normal TV viewing.
Change the password by inputting a new password twice.
Lock system
Set password
Block programme
Parental guidance
Aux. block
Lock system
Set password
G
Block programme
Parental guidance
Aux. block
New
Confirm
2
3
1
****
****
2
1
NOTE
!
GG If you ever forget your password, key in ‘7’, ‘7’, ‘7’, ‘7’
on the remote control.
PARENTAL CONTROL /RATINGS
PARENTAL CONTROL / RATINGS
OK
TVD/A
INPUT
DVD
EXIT
LIST
MENU
TEXT
GUIDE
VCR
POWERPOWER
RATIO
FAV
SUBTITLE
BRIGHT
INFO
!
INPUT
MODE
SIMPLINK
POWER
75
PARENTAL CONTROL /RATINGS
LOCK SYSTEM
After inputting the password, use the
DD
or
EE
button
to choose LLoocckk ssyysstteemm.
Press the
GG
button and then use the
DD
or
EE
button
to select OO nn or OOffff.
■
When you select OO nn, the Lock System is enabled.
Press EEXXIITT button to return to normal TV viewing.
Enables or disables the blocking scheme you set up previously.
Lock system
G
Set password
Block programme
Parental guidance
Aux. block
Off
On
Lock system
Set password
Block programme
Parental guidance
Aux. block
2
3
1
2
1
OK
TVD/A
INPUT
DVD
EXIT
LIST
MENU
TEXT
GUIDE
VCR
POWER
RATIO
FAV
SUBTITLE
BRIGHT
INFO
!
INPUT
MODE
SIMPLINK
76
PROGRAMME BLOCKING
After inputting the password, use the
DD
or
EE
button
to choose BBlloocckk pprrooggrraammmmee.
Press the
GG
button. You will now see a screen filled
with channel numbers and a preview picture.
Use
DD
or
EE
or
FF
or
GG
buttons to select a channel
and then use the OOKK button to block or unblock it.
Press EEXXIITT button to return to normal TV viewing.
Lock system
Set password
Block programme
G
Parental guidance
Aux. block
Selection (
G
or
) leads
you to the block programme
screen.
Lock system
Set password
Block programme
Parental guidance
Aux. block
2
3
4
1
Select a channel number that you wish to block.
2
3
1
PARENTAL CONTROL /RATINGS
PARENTAL CONTROL/RATINGS
OK
TVD/A
INPUT
DVD
EXIT
LIST
MENU
TEXT
GUIDE
VCR
POWER
RATIO
FAV
SUBTITLE
BRIGHT
INFO
!
INPUT
MODE
SIMPLINK
77
PARENTAL CONTROL /RATINGS
PARENTAL GUIDANCE -
In Digital Mode only
Prevents children from watching certain children's TV pro-
grams, according to the ratings limit set.
After inputting the password, use the
DD
or
EE
button
to choose PPaarreennttaall gguuiiddaannccee.
Press the
GG
button and then use the
DD
or
EE
to
select GG, PP GG, MM, MMAA, AAVV or RR.
■
G (General audience)
■
PG (Parental guidance suggested)
■
M (Mature audiences)
■
MA (Mature adult audiences)
■
AV (Adult audiences)
■
R (Restricted)
■
Blocking Off (Permits all programs)
Press EEXXIITT button to return to normal TV viewing.
Lock system
Set password
Block programme
Parental guidance
Aux. block
Lock system
Set password
Block programme
Parental guidance
G
Aux. block
G
PG
M
MA
AV
R
Blocking Off
2
3
1
2
1
OK
TVD/A
INPUT
DVD
EXIT
LIST
MENU
TEXT
GUIDE
VCR
POWER
RATIO
FAV
SUBTITLE
BRIGHT
INFO
!
INPUT
MODE
SIMPLINK
78
PARENTAL CONTROL /RATINGS
PARENTAL CONTROL/RATINGS
EXTERNAL INPUT BLOCKING
Enables you to select a source to block from the external
source devices you have hooked up.
After inputting the password, use the
DD
or
EE
button
to choose AAuuxx.. bblloocckk.
Press the
GG
button and then use the
FF
or
GG
button
to select a source.
Press the
GG
button and then use the
DD
or
EE
button
to select OOnn or OOffff on the each source.
Press EEXXIITT button to return to normal TV viewing.
Lock system
Set password
Block programme
Parental guidance
Aux. block
Lock system
Set password
Block programme
Parental guidance
Aux. block
G
AV1 On
AV2 On
Component1 Off
Component2 On
RGB-PC
Off
HDMI1/DVI On
HDMI2 Off
2
3
4
1
2 3
1
OK
TVD/A
INPUT
DVD
EXIT
LIST
MENU
TEXT
GUIDE
VCR
POWER
RATIO
FAV
SUBTITLE
BRIGHT
INFO
!
INPUT
MODE
SIMPLINK
79
TELETEXT
TELETEXT
Press the TTEEXXTT button to switch to teletext. The initial page or last page appears on the screen.
Two page numbers, TV station name, date and time are displayed on the screen headline. The first page num-
ber indicates your selection, while the second shows the current page displayed.
Press the TTEEXXTT or EEXXIITT button to switch off teletext.
* This feature is not available in all countries.
- Teletext is a free service broadcast by some TV stations which gives up-to-the-minute information on news, weath-
er, television programmes, share prices and many other topics.
- The teletext decoder of this TV can support the SIMPLE, TOP and FASTEXT systems. SIMPLE (standard teletext)
consists of a number of pages which are selected by directly entering the corresponding page number. TOP and
FASTEXT are more modern methods allowing quick and easy selection of teletext information.
AA BBlloocckk // ggrroouupp // ppaaggee sseelleeccttiioonn
With the BBLLUUEE button you can progress from block to block.
Use the yellow button to proceed to the next group with automatic overflow to the next block.
With the GGRREEEENN button you can proceed to the next existing page with automatic overflow to the next group.
Alternatively the PPRR ++ button can be used.
The red button permits to return to previous selection. Alternatively the PPRR-- button can be used.
AA DDiirreecctt ppaaggee sseelleeccttiioonn
Corresponding to the SIMPLE teletext mode, you can select a page by entering it as a three digit number using
the NUMBER buttons in TOP mode.
- The user guide displays four fields-red, green, yellow and blue at the bottom of the screen. The yellow field
denotes the next group and the blue field indicates the next block.
* This feature is not available in all countries.
* This feature is not available in all countries.
Switch On/Off
TOP Text
■
PPaaggee sseelleeccttiioonn
Enter the desired page number as a three digit number with the NUMBER buttons. If during selection you
press a wrong number, you must complete the three digit number and then re-enter the correct page
number.
The PPRR ++ or -- button can be used to select the preceding or following page.
SIMPLE Text
1
1
2
3
4
2
80
TELETEXT
TELETEXT
- The teletext pages are colour coded along the bottom of the screen and are selected by pressing the corre-
sponding coloured button.
AA PPaaggee sseelleeccttiioonn
1. Press the button to select the index page.
2. You can select the pages which are colour coded along the bottom line with the same coloured buttons.
3. Corresponding to the SIMPLE teletext mode, you can select a page by entering its three digit page number
with the NUMBER buttons in FASTEXT mode.
4. The PPRR ++ or -- button can be used to select the preceding or following page.
i
RREEVVEEAALL
Press this button to display concealed infor-
mation, such as solutions of riddles or puzzles.
Press this button again to remove the informa-
tion from the display.
SSIIZZEE
Selects double height text.
Press this button to enlarge the top half of the
page.
Press this button again to enlarge the bottom
half of the page.
Press this button again to return to the normal
display.
TTIIMMEE
When viewing a TV programme, press this
button to display the time at the top right
hand corner of the screen. Press this button
again to remove the display.
?
FASTEXT
Special Teletext Functions
81
APPENDIX
APPENDIX
TROUBLESHOOTING
TThhee ooppeerraattiioonn ddooeess nnoott wwoorrkk nnoorrmmaallllyy..
TThhee ooppeerraattiioonn ddooeess nnoott wwoorrkk nnoorrmmaallllyy..
No picture &No sound
No or poor colour
or poor picture
Poor reception on
some channels
Lines or streaks
in pictures
Horizontal/vertical bars
or picture shaking
Picture appears slowly
after switching on
The remote control
doesn’t work
Power is suddenly
turned off
■
Check to see if there is any object between the product and the remote control
causing obstruction. Ensure you are pointing the remote control directly at the TV.
■
Ensure that the batteries are installed with correct polarity (+ to +, - to -).
■
Ensure that the correct remote operating mode is set: TV, VCR etc.
■
Install new batteries.
■
Is the sleep timer set?
■
Check the power control settings. Power interrupted
■
No broadcast on station tuned with Auto off activated.
■
Check whether the product is turned on.
■
Try another channel. The problem may be with the broadcast.
■
Is the power cord inserted into wall power outlet?
■
Check your antenna direction and/or location.
■
Test the wall power outlet, plug another product’s power cord into the outlet
where the product’s power cord was plugged in.
■
This is normal, the image is muted during the product startup process. Please
contact your service center, if the picture has not appeared after five minutes.
■
Adjust Colour in menu option.
■
Keep a sufficient distance between the product and the VCR.
■
Try another channel. The problem may be with the broadcast.
■
Are the video cables installed properly?
■
Activate any function to restore the brightness of the picture.
■
Check for local interference such as an electrical appliance or power tool.
■
Station or cable product experiencing problems, tune to another station.
■
Station signal is weak, reorient antenna to receive weaker station.
■
Check for sources of possible interference.
■
Check antenna (Change the direction of the antenna).
82
APPENDIX
APPENDIX
■
Press the VOL or VOLUME button.
■
Sound muted? Press MUTE button.
■
Try another channel. The problem may be with the broadcast.
■
Are the audio cables installed properly?
■
Adjust Balance in menu option.
■
A change in ambient humidity or temperature may result in an unusual noise
when the product is turned on or off and does not indicate a fault with the
product.
Picture OK & No sound
Unusual sound from
inside
the product
No output from one
of the speakers
TThheerree iiss aa pprroobblleemm iinn PPCC mmooddee.. ((OOnnllyy PPCC mmooddee aapppplliieedd))
■
Adjust resolution, horizontal frequency, or vertical frequency.
■
Check the input source.
■
Work the Auto configure or adjust clock, phase, or H/V position. (Option)
■
Check the signal cable.
■
Reinstall the PC video card.
The signal is out of range
Screen colour is unstable
or single colour
Vertical bar or stripe on
background &
Horizontal Noise &
Incorrect position
TThhee aauuddiioo ffuunnccttiioonn ddooeess nnoott wwoorrkk..
83
APPENDIX
MAINTENANCE
Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will
have your new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning.
Cleaning the Screen
Here’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm
water and a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then
use it to wipe the screen.
Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.
Cleaning the Cabinet
■
To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.
■
Please be sure not to use a wet cloth.
Extended Absence
If you expect to leave your TV dormant for a long time (such as a vacation), it’s a good idea to unplug
the power cord to protect against possible damage from lightning or power surges.
CAUTION
2
1
84
APPENDIX
APPENDIX
PRODUCT SPECIFICATIONS
■
The specifications shown above may be changed without prior notice for quality improvement.
26LC7D
*
(26LC7D-AB)
32LC7D
*
(32LC7D-AB)
37LC7D
*
(37LC7D-AB)
42LC7D
*
(42LC7D-AB)
MODELS
26.6 x 20.9x 8.7 inches
676.5 x 531.2 x 221.0mm
26.6 x 18.8 x 3.3 inches
676.5 x 478.7 x 84.0 mm
21.4 pounds / 9.7kg
19.0 pounds / 8.62 kg
AC100-240V~
50/60Hz 1.3A
31.8 x 23.9x 9.8 inches
806.6x 606.5 x 249.0 mm
31.8 x 21.7 x 3.1 inches
806.6 x 552.3 x 79.0 mm
31.5 pounds / 14.3 kg
24.7 pounds / 11.2 kg
AC100-240V~
50/60Hz 1.5A
36.5 x 27.3 x 11.0 inches
927.0 x 692.8 x 280.5 mm
36.5 x 24.8 x 3.5 inches
927.0 x 630.0 x 88.0 mm
44.1 pounds / 20 kg
35.3 pounds / 16.0 kg
AC100-240V~
50/60Hz 1.8A
40.7 x 29.5 x 11.3 inches
1033.4 x 750.0x 287.6 mm
40.7 x 27.0 x 3.5 inches
1033.4 x 686.8 x 88.5 mm
54.9 pounds / 24.9 kg
45.0 pounds / 20.4 kg
AC100-240V~
50/60Hz 2.3A
PAL B/G, DVB-T
VHF 0-12, UHF 20-75, CATV 02-44, DTV 06-12, 27-69
75 ohm
32 ~ 104°F (0 ~ 40°C)
Less than 80%
-4 ~ 140°F (-20 ~ 60°C)
Less than 85%
Dimensions
(Width x Height x Depth)
Weight
Power requirement
Television System
Program Coverage
External Antenna Impedance
Environment condition
Including stand
Excluding stand
including stand
excluding stand
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
85
APPENDIX
Programming a code into a remote mode
To find out whether your remote can operate the device without programming, turn on the device such as a
VCR and press the corresponding mode button on the remote.
After that, press the PPOOWWEERR button. If the device is turned off then it responds properly and the remote
need not to be programmed. If not, the remote should be programmed to operate the device. The program-
ming procedures are explained below.
Press the MMEENNUU and MMUUTTEE button continuously at the same time for 2 seconds, the current selected
device button will be illuminated.
If you don't press any button for 20 seconds, the light on the mode button will be turned off. In that case,
you have to repeat from step 2.
Enter code numbers using the number button on the remote by referring the code table on the following
pages. When pressing the button, the light blinks. If the device turned off, the programming is successful.
Press the MMEENNUU button to store the code. After blinking twice, this code is stored.
Test the remote functions to see if the device responds properly. If not, repeat from step 2.
The remote is a multi-brand or a universal remote. It can be programmed to operate most remote-control-
lable devices of other manufacturers.
Note that the remote may not control all models of other brands.
2
3
4
5
1
PROGRAMMING THE REMOTE CONTROL
86
APPENDIX
APPENDIX
Code
Function Note
(Hexa)
Code
Function Note
(Hexa)
50 D/A INPUT Remote control Button
0B INPUT Remote control Button
79 RATIO Remote control Button
0E SLEEP Remote control Button
10-19 Number Key 0-9 Remote control Button
1A Q.VIEW Remote control Button
09 MUTE Remote control Button
02 VOL + Remote control Button
03 VOL - Remote control Button
00 PR + Remote control Button
01 PR - Remote control Button
1E FAV Remote control Button
40
DD
Remote control Button
41
EE
Remote control Button
07
FF
Remote control Button
06
GG
Remote control Button
44 OK Remote control Button
43 MENU Remote control Button
5B EXIT Remote control Button
92 APM Remote control Button
A9 GUIDE Remote control Button
7E SIMPLINK Remote control Button
39 SUBTITLE Remote control Button
64 SIZE Remote control Button
70 INDEX Remote control Button
26 TIME Remote control Button
2A REVEAL Remote control Button
20 TEXT Remote control Button
72 RED Remote control Button
71 GREEN Remote control Button
63 YELLOW Remote control Button
61 BLUE Remote control Button
53 LIST Remote control Button
0A II//IIII Remote control Button
AA INFO Remote control Button
E1 Remote control Button
E0 Remote control Button
B1 Remote control Button
B0 Remote control Button
BA Remote control Button
BD Remote control Button
B2 Remote control Button
8F Remote control Button
8E Remote control Button
B3 Remote control Button
87
APPENDIX
IR CODES
■
Configuration of frame
1st frame
Repeat frame
■
Lead code
■
Repeat code
■
BBiitt ddeessccrriippttiioonn
■
FFrraammee iinntteerrvvaall:: TTff
The waveform is transmitted as long as a key is depressed.
C0 C1 C2 C3 C4 C5 C6 C7 C0 C1 C2 C3 C4 C5 C6 C7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7
Lead code Low custom code High custom code Data code Data code
Repeat code
Tf
4.5 ms
9 ms
2.25 ms
9 ms
0.55 ms
0.56 ms
1.12 ms
0.56 ms
2.24 ms
Tf Tf
Tf=108ms @455KHz
Bit ”0”
Bit ”1”
1. How to Connect
■
Connect your wired remote control to the Remote Control port on the TV.
2. Remote Control IR Codes
■
Output waveform
Single pulse, modulated with 37.917KHz signal at 455KHz
T1
Tc
Carrier frequency
FCAR = 1/TC = fOSC/12
Duty ratio = T1/TC = 1/3
88
APPENDIX
APPENDIX
VCRs
Brand Codes Brand Codes Brand Codes
AIWA 034
AKAI 016 043 046 124
125 146
AMPRO 072
ANAM 031 033 103
AUDIO DYNAMICS
012 023 039 043
BROKSONIC 035 037 129
CANON 028 031 033
CAPEHART 108
CRAIG 003 040 135
CURTIS MATHES 031 033 041
DAEWOO 005 007 010 064
065 108 110 111
112116117119
DAYTRON 108
DBX 012 023 039 043
DYNATECH 034 053
ELECTROHOME 059
EMERSON 006 017 025 027
029 031 034 035
036 037 046 101
129 131 138 15 3
FISHER 003 008 009 010
FUNAI 034
GE 031 033 063 072
10 7 10 9 14 4 147
GO VIDEO 132 136
HARMAN KARDON 012 045
HITACHI 004 018 026 034
043 063 137 150
INSTANTREPLAY 031 033
JCL 031 033
JCPENNY 012 013 015 033
040 066 101
JENSEN 043
JVC 012 031 033 043
048 050 055 060
130 150 152
KENWOOD 014 034 039 043
047 048
LG (GOLDSTAR) 001 012 013 020
101 10 6 114 123
LLOYD 034
LXI 003 009 013 014
017 034 101 106
MAGIN 040
MAGNAVOX 031 033 034 041
067 068
MARANTZ 012 031 033 067
069
MARTA 101
MATSUI 027 030
MEI 031 033
MEMOREX 003 010 014 031
033 034 053 072
101 10 2 13 4 13 9
MGA 045 046 059
MINOLTA 013 020
MITSUBISHI 013 020 045 046
049 051 059 061
151
MTC 034 040
MULTITECH 024 034
NEC 012 023 039 043
048
NORDMENDE 043
OPTONICA 053 054
PANASONIC 066 070 074 083
13 3 14 0 14 5
PENTAX 013 020 031 033
063
PHILCO 031 034 067
PHILIPS 031 033 034 054
067 071 101
PILOT 101
PIONEER 013 021 048
PORTLAND 108
PULSAR 072
QUARTZ 011 014
QUASAR 033 066 075 145
RCA 013 020 033 034
040 041 062 063
107 109 140 144
14 5 14 7
REALISTIC 003 008 010 014
031 033 034 040
053 054 101
RICO 058
RUNCO 148
SALORA 014
SAMSUNG 032 040 102 104
10 5 10 7 10 9 112
113 115 12 0 12 2
12 5
SANSUI 022 043 048 135
SANYO 003 007 010 014
10 2 13 4
SCOTT 017 037 112 129
131
SEARS 003 008 009 010
013 014 017 020
031 042 073 081
101
SHARP 031 054 149
SHINTOM 024
SONY 003 009 031 052
056 057 058 076
077 078 149
SOUNDESIGN 034
STS 013
SYLVANIA 031 033 034 059
067
SYMPHONIC 034
TANDY 010 034
TATUNG 039 043
TEAC 034 039 043
TECHNICS 031 033 070
TEKNIKA 019 031 033 034
101
THOMAS 034
TMK 006
TOSHIBA 008 013 042 047
059 082 112 131
TOTEVISION 040 101
UNITECH 040
VECTOR RESEARCH
012
VICTOR 048
VIDEO CONCEPTS
012 034 046
VIDEOSONIC 040
WARDS 003 013 017 024
031 033 034 040
053 054 131
YAMAHA 012 034 039 043
ZENITH 034 048 056
058 072 080 101
89
APPENDIX
VCRs
Brand Codes Brand Codes Brand Codes
ABC 003 004 039 042
046 052 053
AJIN 112
ANTRONIK 014
ARCHER 005 007 014 024
CABLE STAR 026
CENTURION 092
CENTURY 007
CITIZEN 007
COLOUR VOICE 065 090
COMBANO 080 081
COMTRONICS 019 030
DIAMOND 023
EAGLE 020 030 040
EASTERN 057 062 066
ELECTRICORD 032
GE 072
GEMINI 008 022 025 054
GI 052 074
GOLDEN CHANNEL
030
HAMLIN 049 050 055
HITACHI 052 055
HOSPITALITY 070 077
JERROLD 002 003 004 008
009 010 052 069
074
LG (GOLDSTAR) 001 106 101 005
M-NET 037
MACOM 033
MAGNAVOX 010 012 064 079
MEMOREX 100
MOVIE TIME 028 032
NSC 015 028 038 071
073
OAK 016 031 037 053
PANASONIC 044 047
PARAGON 100
PHILIPS 006 012 013 020
065 085 090
PIONEER 034 051 052 063
076
POST NEWS WEEK016
PRUCER 059
PTS 011 048 071 072
073 074
PULSAR 100
RCA 047
REGAL 049 050
REGENCY 057
REMBRANT 025
SAMSUNG 102 107 030 068
SCIENTIFIC ATLANTA
003 011 041 042
043 045 046
SHERITECH 022
SIGNAL 030
SIGNATURE 052
SL MARX 030
SPRUCER 047 078
STARCOM 002 004 008 009
STARGATE 008 030
TADIRAN 030
TAEKWANG 110
TAIHAN 105
TANDY 017
TEXSCAN 029
TOCOM 039 040 056
TOSHIBA 100
UNIKA 007 014 024
UNITED CABLE 004 053
UNIVERSAL 005 007 014 024
026 027 032 035
VIEWSTAR 012 015 018 086
087 088 089
ZENITH 100 114 060 093
Brand Codes Brand Codes Brand Codes
DVD
APEX DIGITAL 022
DENON 020 014
GE 005 006
HARMAN KARDON 027
JVC 012
LG 001 010 016 025
MAGNAVOX 013
MARANTZ 024
MITSUBISHI 002
NAD 023
ONKYO 008 017
PANASONIC 003 009
PHILIPS 013
PIONEER 004 026
PROCEED 021
PROSCAN 005 006
RCA 005 006
SAMSUNG 011 015
SONY 007
THOMPSON 005 006
TOSHIBA 019 008
YAMAHA 009 018
ZENITH 010 016 025
90
APPENDIX
APPENDIX
EXTERNAL CONTROL THROUGH RS-232C
APPENDIX
RS-232C Setup
Connect the RS-232C (serial port) input jack to an external control device (such as a computer or an A/V
control system) to control the TV’s functions externally.
Note: RS-232C connection cables are not supplied with the TV.
HDMI/DVI IN
2
COMPONENT INCOMPONENT IN
VIDEOVIDEO
AUDIOAUDIO
RGB IN
RGB (PC)
A
V
IN
1
VIDEO
S-VIDEO
AUDIO
MONO
( )
AV OUT
DIGITAL
AUDIO
OUT
RS-232C INRS-232C IN
(CONTROL & SERVICE)(CONTROL & SERVICE)
VIDEO
(DVI) (DVI)
AUDIO
Type of Connector; D-Sub 9-Pin Male
No. Pin Name
1 No connection
2 RXD
(
Receive data
)
3 TXD
(
Transmit data
)
4 DTR
(
DTE side ready
)
5 GND
6 DSR
(
DCE side ready
)
7 RTS
(
Ready to send
)
8 CTS
(
Clear to send
)
9 No Connection
1 5
6 9
91
APPENDIX
Press the MMEENNUU button and then use
DD
or
EE
button
to select the SSEETTUUPP menu.
Press the
GG
button and then use
DD
or
EE
button to
select SSeett IIDD.
Press the
GG
button and then use
DD
or
EE
button to
adjust SSeett IIDD to choose the desired TV ID number.
The adjustment range of Set ID is 1~99.
Press EEXXIITT button to return to normal TV viewing.
Use this function to specify a TV ID number.
Refer to ‘Real Data Mapping1’. See page 93.
SET ID
Communication Parameters
■
Baud rate : 9600 bps
(
UART
)
■
Data length : 8 bits
■
Parity : None
■
Stop bit : 1 bit
■
Communication code : ASCII code
■
Use a crossed (null modem) cable.
RS-232C Configurations
Auto programme
Manual programme
Programme edit
Signal strength
Set ID
G
1
Auto programme
Manual programme
Programme edit
Signal strength
Set ID
2
1
3
4
PC TV
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DSR
DSR 6 4 DTR
RTS 7 8 CTS
CTS 8 7 RTS
D-Sub 9 D-Sub 9
PC TV
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DTR
DSR 6 4 DSR
RTS 7 7 RTS
CTS 8 8 CTS
D-Sub 9 D-Sub 9
7-Wire Configurations
(
Standard RS-232C cable
)
3-Wire Configurations
(
Not standard
)
2 3
1
92
APPENDIX
APPENDIX
Transmission / Receiving Protocol
CCOOMMMMAANNDD11 CCOOMMMMAANNDD22
DATA
(Hexadecimal)
CCOOMMMMAANNDD11 CCOOMMMMAANNDD22
DATA
(Hexadecimal)
TTrraannssmmiissssiioonn
[Command 1] : First command to control the set.
(j, k, m or x)
[Command 2] : Second command to control the set.
[Set ID] : You can adjust the set ID to choose desired TV ID
number in Setup menu. Adjustment range is 1
~ 99.
When selecting Set ID ‘0’, every connected the TV
is controlled. Set ID is indicated as decimal
(
1
~
99
)
on menu and as Hexa decimal
(
0x0~ 0x63
)
on transmission/receiving protocol.
[DATA] : To transmit command data.
Transmit ‘FF’ data to read status of command.
[Cr] : Carriage Return
ASCII code ‘0x0D’
[ ] : ASCII code ‘space (0x20)’
OOKK AAcckknnoowwlleeddggeemmeenntt
The TV transmits ACK (acknowledgement) based on this for-
mat when receiving normal data. At this time, if the data is
data read mode, it indicates present status data. If the data is
data write mode, it returns the data of the PC computer.
EErrrroorr AAcckknnoowwlleeddggeemmeenntt
The TV transmits ACK (acknowledgement) based on this for-
mat when receiving abnormal data from non-viable functions
or communication errors.
Data1: Illegal Code
Data2: Not supported function
Data3: Wait more time
01. Power k a 0 ~ 1
02. Input Select k b 0 ~ 8
03. Aspect Ratio k c See p.93
04. Screen Mute k d 0 ~ 1
05. Volume Mute k e 0 ~ 1
06. Volume Control k f 0 ~ 64
07. Contrast k g 0 ~ 64
08. Brightness k h 0 ~ 64
09. Colour k i 0 ~ 64
10. Tint k j 0 ~ 64
11. Sharpness k k 0 ~ 64
12. OSD Select k l 0 ~ 1
13. Remote Control/
Key Lock
14. Treble k r 0 ~ 64
k m
[[CCoommmmaanndd11]][[CCoommmmaanndd22]][[ ]][[SSeett IIDD]][[ ]][[DDaattaa]][[CCrr]]
[[CCoommmmaanndd22]][[ ]][[SSeett IIDD]][[ ]][[OOKK]][[DDaattaa]][[xx]]
[[CCoommmmaanndd22]][[ ]][[SSeett IIDD]][[ ]][[NNGG]][[DDaattaa]][[xx]]
0 ~ 1
15. Bass k s 0 ~ 64
16. Balance k t 0 ~ 64
17.
Colour Temperature
k u 0 ~ 2
18. Red Adjustment k v 0 ~ C8
19. Green Adjustment k w 0 ~ C8
20. Blue Adjustment k $ 0 ~ C8
21. Channel Tuning m a See p.95
22. Send IR Code m c See p.95
23. Input Select x b See p.95
Command Reference List
93
APPENDIX
0011.. PPoowweerr ((CCoommmmaanndd22::aa))
To control Power On/Off of the TV.
Transmission [k][a][ ][Set ID][ ][Data][Cr]
Data 0 : Power Off Data 1 : Power On
Acknowledgement [a][ ][Set ID][ ][OK/NG][Data][x]
* In a like manner, if other functions transmit ‘FF’ data
based on this format, Acknowledgement data feedback
presents status about each function.
0022.. IInnppuutt SSeelleecctt ((CCoommmmaanndd22::bb))
To select input source for the TV.
Transmission [k][b][ ][Set ID][ ][Data][Cr]
Data 0: Digital Data 5: Component 2
Data 1: Analogue Data 6: RGB-PC
Data 2: AV1 Data 7: HDMI1/DVI
Data 3: AV2 Data 8: HDMI2
Data 4: Component 1
Acknowledgement [b][ ][Set ID][ ][OK/NG][Data][x]
0033.. AAssppeecctt RRaattiioo ((CCoommmmaanndd22::cc))
To adjust the screen format.
You can also adjust the screen format using the ARC
button on remote control or in the Special menu.
Transmission [k][c][ ][Set ID][ ][Data][Cr]
Date 0: Auto
1: 4:3
2: 16:9
3: 14:9 (-10) ~ D: 14:9 (0) ~ 17: 14:9 (10)
18: Zoom (-16) ~ 28: Zoom (0) ~ 38: Zoom (16)
39: Cinema Zoom (1) ~ 48: Cinema Zoom (16)
Acknowledgement [c][ ][Set ID][ ][OK/NG][Data][x]
* Using the PC input, you select either 16:9 or 4:3
screen aspect ratio.
0044.. SSccrreeeenn MMuuttee ((CCoommmmaanndd22::dd))
To select screen mute on/off.
Transmission [k][d][ ][Set ID][ ][Data][Cr]
Data 0 : Screen mute off (Picture on)
Data 1 : Screen mute on (Picture off)
Acknowledgement [d][ ][Set ID][ ][OK/NG][Data][x]
0055.. VVoolluummee MMuuttee ((CCoommmmaanndd22::ee))
To control volume mute on/off.
You can also adjust mute using the MUTE button on
remote control.
Transmission [k][e][ ][Set ID][ ][Data][Cr]
Data 0 : Volume mute on (Volume off)
Data 1 : Volume mute off (Volume on)
Acknowledgement [e][ ][Set ID][ ][OK/NG][Data][x]
0066.. VVoolluummee CCoonnttrrooll ((CCoommmmaanndd22::ff))
To adjust volume.
You can also adjust volume with the volume buttons on
remote control.
Transmission [k][f][ ][Set ID][ ][Data][Cr]
Data Min : 0 ~ Max : 64
Refer to ‘Real data mapping1’ as shown below.
Acknowledgement [f][ ][Set ID][ ][OK/NG][Data][x]
0077.. CCoonnttrraasstt ((CCoommmmaanndd22::gg))
To adjust screen contrast.
You can also adjust contrast in the Picture menu.
Transmission [k][g][ ][Set ID][ ][Data][Cr]
Data Min : 0 ~ Max : 64
Refer to ‘Real data mapping1’ as shown below.
Acknowledgement [g][ ][Set ID][ ][OK/NG][Data][x]
0088.. BBrriigghhttnneessss ((CCoommmmaanndd22::hh))
To adjust screen brightness.
You can also adjust brightness in the Picture menu.
Transmission [k][h][ ][Set ID][ ][Data][Cr]
Data Min : 0 ~ Max : 64(*transmit by Hexadecimal code)
Refer to ‘Real data mapping1’ as shown below.
Acknowledgement [h][ ][Set ID][ ][OK/NG][Data][x]
0099.. CCoolloouurr ((CCoommmmaanndd22::ii))
To adjust the screen colour.
You can also adjust colour in the Picture menu.
Transmission [k][i][ ][Set ID][ ][Data][Cr]
Data Min : 0 ~ Max : 64
Refer to ‘Real data mapping1’ as shown below.
Acknowledgement [i][ ][Set ID][ ][OK/NG][Data][x]
*Real data mapping 1
0 : Step 0
A : Step 10 (SET ID 10)
F : Step 15 (SET ID 15)
10 : Step 16 (SET ID 16)
63 : Step 99 (SET ID 99)
64 : Step 100
Tint: R50 ~ G50, Balance: L50 ~ R50
94
APPENDIX
APPENDIX
1100.. TTiinntt ((CCoommmmaanndd22::jj))
To adjust the screen tint
You can also adjust tint in the Picture menu.
Transmission [k][j][ ][Set ID][ ][Data][Cr]
Data Red : 0 ~ Green : 64
*Refer to ‘Real data mapping1’. See page 93.
Acknowledgement [ j ][ ][Set ID][ ][OK/NG][Data][x]
1111.. SShhaarrppnneessss ((CCoommmmaanndd22::kk))
To adjust the screen sharpness.
You can also adjust sharpness in the Picture menu.
Transmission [k][k][ ][Set ID][ ][Data][Cr]
Data Min: 0 ~ Max: 64
*Refer to ‘Real data mapping1’. See page 93.
Acknowledgement [k][ ][Set ID][ ][OK/NG][Data][x]
1122.. OOSSDD SSeelleecctt ((CCoommmmaanndd22::ll))
To select OSD (On Screen Display) on/off.
Transmission [k][l][ ][Set ID][ ][Data][Cr]
Data 0: OSD off Data 1: OSD on
Acknowledgement [l][ ][Set ID][ ][OK/NG][Data][x]
* When setting “OSD - Off”, every OSD doesn’t display
on screen.
1133.. RReemmoottee CCoonnttrrooll LLoocckk MMooddee ((CCoommmmaanndd22::mm))
To lock the remote control and the front panel controls
on the set.
Transmission [k][m][ ][Set ID][ ][Data][Cr]
Data 0: Lock off Data 1: Lock on
Acknowledgement [m][ ][Set ID][ ][OK/NG][Data][x]
1144.. TTrreebbllee ((CCoommmmaanndd22::rr))
To adjust treble.
You can also adjust treble in the Audio menu.
Transmission [k][r][ ][Set ID][ ][Data][Cr]
Data Min: 0 ~ Max: 64(*transmit by Hexadecimal code)
*Refer to ‘Real data mapping1’. See page 93.
Acknowledgement [r][ ][Set ID][ ][OK/NG][Data][x]
1155.. BBaassss ((CCoommmmaanndd22::ss))
To adjust bass.
You can also adjust bass in the Audio menu.
Transmission [k][s][ ][Set ID][ ][Data][Cr]
Data Min: 0 ~ Max: 64(*transmit by Hexadecimal code)
*Refer to ‘Real data mapping1’. See page 93.
Acknowledgement [s][ ][Set ID][ ][OK/NG][Data][x]
1166.. BBaallaannccee ((CCoommmmaanndd22::tt))
To adjust balance.
You can also adjust balance in the Audio menu.
Transmission [k][t][ ][Set ID][ ][Data][Cr]
Data Min: 0 ~ Max: 64(*transmit by Hexadecimal code)
*Refer to ‘Real data mapping1’. See page 93.
Acknowledgement [t][ ][Set ID][ ][OK/NG][Data][x]
1177.. CCoolloouurr TTeemmppeerraattuurree ((CCoommmmaanndd22::uu))
To adjust colour temperature.
You can also adjust colour temperature in the Picture
menu.
Transmission [k][u][ ][Set ID][ ][Data][Cr]
Data 0: Medium 1: Cool 2: Warm 3: User
Acknowledgement [u][ ][Set ID][ ][OK/NG][Data][x]
1188.. RReedd AAddjjuussttmmeenntt((CCoommmmaanndd::vv))
To adjust red in colour temperature
Transmission [k][v][ ][Set ID][ ][Data][Cr]
Data Min:0 ~ Max:C8
*Refer to "Real data mapping 2". as shown below.
Acknowledgement [v][ ][Set ID][ ][OK/NG][Data][x]
1199.. GGrreeeenn AAddjjuussttmmeenntt((CCoommmmaanndd::ww))
To adjust green in colour temperature.
Transmission [k][w][ ][Set ID][][Data][Cr]
Data Min:0 ~ Max:C8
*Refer to "Real data mapping 2" as shown below
Acknowledgement [w][ ][Set ID][ ][OK/NG][Data][x]
2200.. BBlluuee AAddjjuussttmmeenntt((CCoommmmaanndd::$$))
To adjust blue in colour temperature.
Transmission [k][$][ ][Set ID][ ][Data][Cr]
Data Min:0 ~ Max:C8
*Refer to "Real data mapping 2"as shown below
Acknowledgement [$][ ][Set ID][ ][OK/NG][Data][x]
*Real data mapping 2
0 : -20
5 : -19
A : -18
5F: -1
64: 0
69: +1
C3 : +19
C8 : +20
95
APPENDIX
2211.. CChhaannnneell TTuunniinngg ((CCoommmmaanndd:: mm aa))
To tune channel to following programme number
Transmission [m][a][ ][Set ID][ ][Data0][ ][Data1]
[ ][Data2][Cr]
Data 0: High channel data
Data 1: Low channel data
Data 2: 00: Analogue TV
: 10: Digital TV
ex) Analogue TV : ma 0 00 01 00
* Channel Data Range:
Analogue TV: 0 ~ 63
Digital TV: 0 ~ 3E7
2222.. SSeenndd IIRR CCooddee ((CCoommmmaanndd:: mm cc))
To send IR remote key code
Transmission [m][c][ ][Set ID][ ][Data][Cr]
Data Key code: Refer to page 86.
Acknowledgement [c][ ][Set ID][ ][OK/NG][Data][x]
2233.. IInnppuutt SSeelleecctt((CCoommmmaanndd:: xx bb))
To select input source for TV.
Transmission [x][b][ ][Set ID][ ][Data][Cr]
Data 00 : Digital Data 41 : Component2
Data 10 : Analogue Data 50 : RGB-PC
Data 20 : AV1 Data 60 : HDMI1/DVI
Data 21 : AV2 Data 90 : HDMI2
Data 40 : Component1
Acknowledgement [b][ ][Set ID][ ][OK/NG][Data][x]
